1. RAC Installation Lab Installing and Configuring a Real Application Cluster on Windows Server 2003

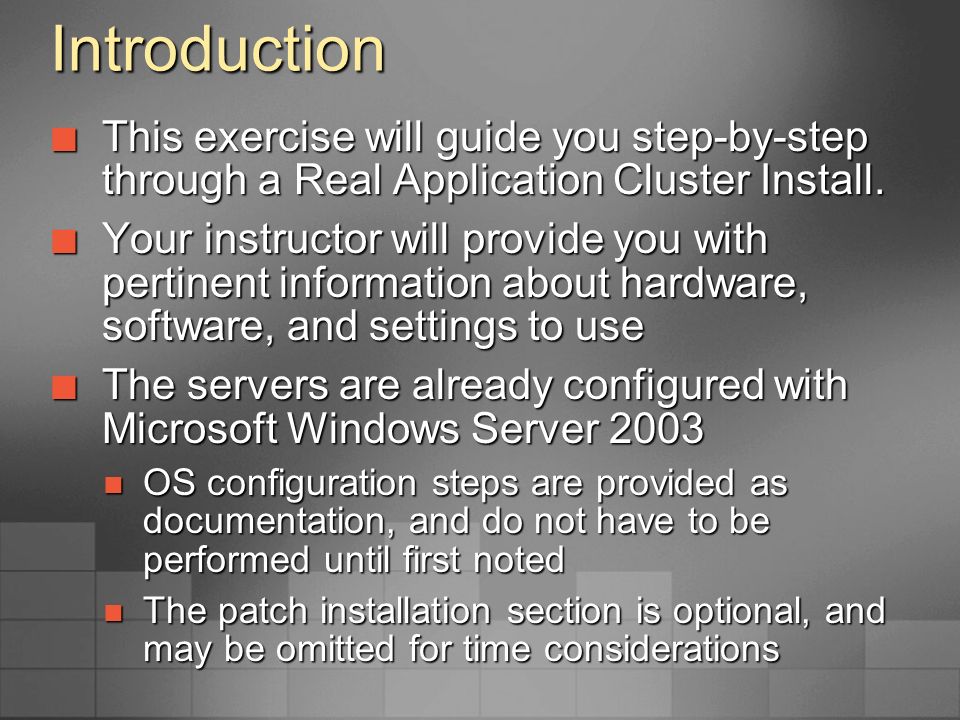

2. Introduction This exercise will guide you step-by-step through a Real Application Cluster Install. Your instructor will provide you with pertinent information about hardware, software, and settings to use The servers are already configured with Microsoft Windows Server 2003 OS configuration steps are provided as documentation, and do not have to be performed until first noted OS configuration steps are provided as documentation, and do not have to be performed until first noted The patch installation section is optional, and may be omitted for time considerations The patch installation section is optional, and may be omitted for time considerations

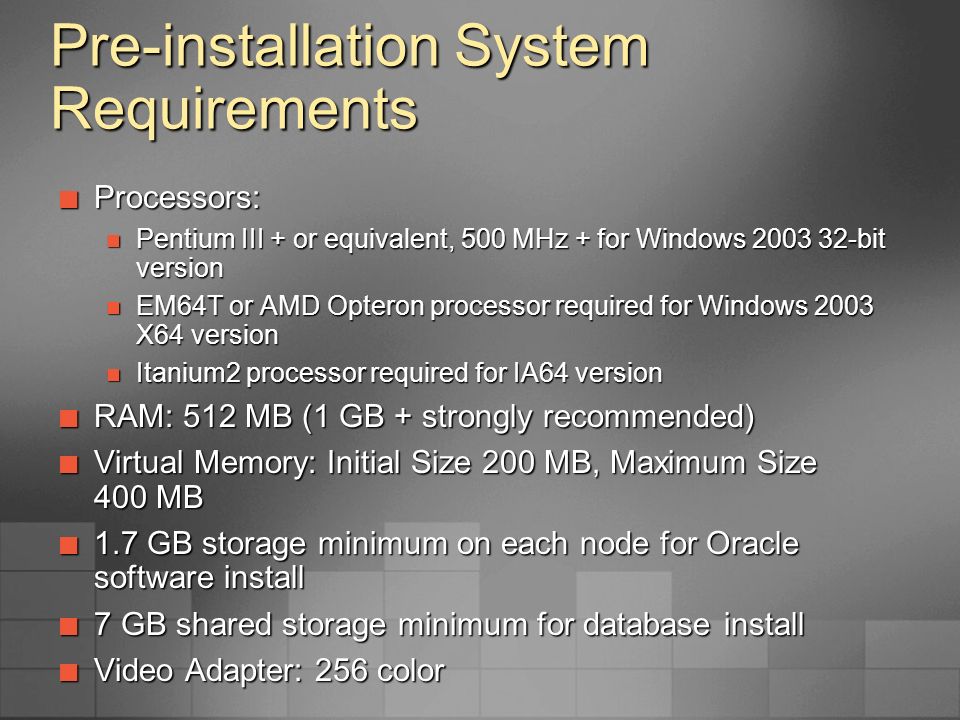

3. Pre-installation System Requirements Processors: Pentium III + or equivalent, 500 MHz + for Windows 2003 32-bit version Pentium III + or equivalent, 500 MHz + for Windows 2003 32-bit version EM64T or AMD Opteron processor required for Windows 2003 X64 version EM64T or AMD Opteron processor required for Windows 2003 X64 version Itanium2 processor required for IA64 version Itanium2 processor required for IA64 version RAM: 512 MB (1 GB + strongly recommended) Virtual Memory: Initial Size 200 MB, Maximum Size 400 MB 1.7 GB storage minimum on each node for Oracle software install 7 GB shared storage minimum for database install Video Adapter: 256 color

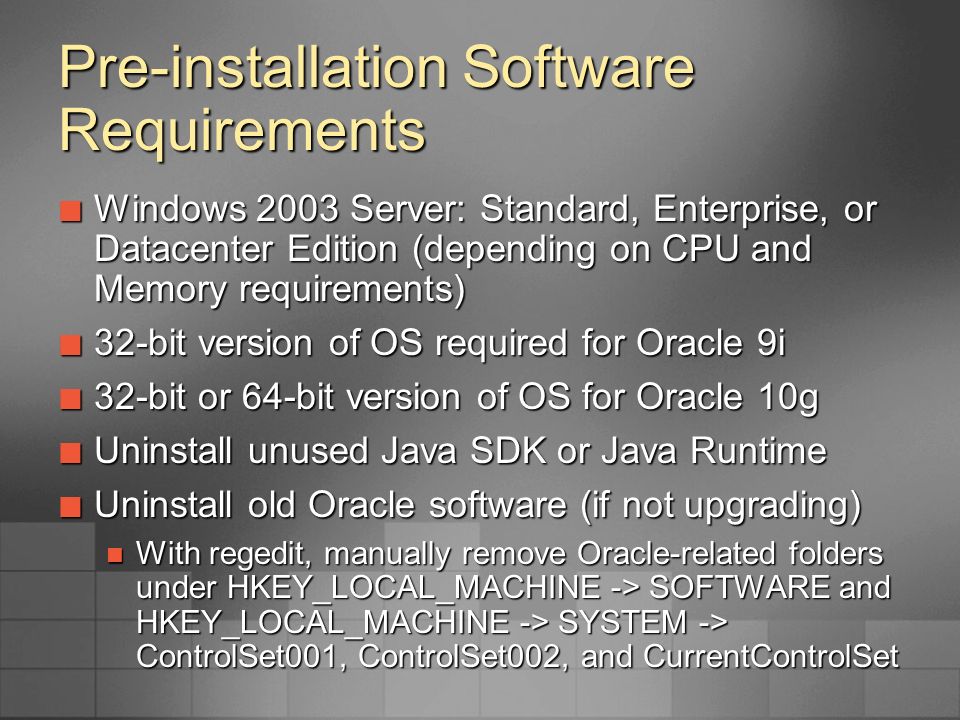

4. Pre-installation Software Requirements Windows 2003 Server: Standard, Enterprise, or Datacenter Edition (depending on CPU and Memory requirements) 32-bit version of OS required for Oracle 9i 32-bit or 64-bit version of OS for Oracle 10g Uninstall unused Java SDK or Java Runtime Uninstall old Oracle software (if not upgrading) With regedit, manually remove Oracle-related folders under HKEY_LOCAL_MACHINE -> SOFTWARE and HKEY_LOCAL_MACHINE -> SYSTEM -> ControlSet001, ControlSet002, and CurrentControlSet With regedit, manually remove Oracle-related folders under HKEY_LOCAL_MACHINE -> SOFTWARE and HKEY_LOCAL_MACHINE -> SYSTEM -> ControlSet001, ControlSet002, and CurrentControlSet

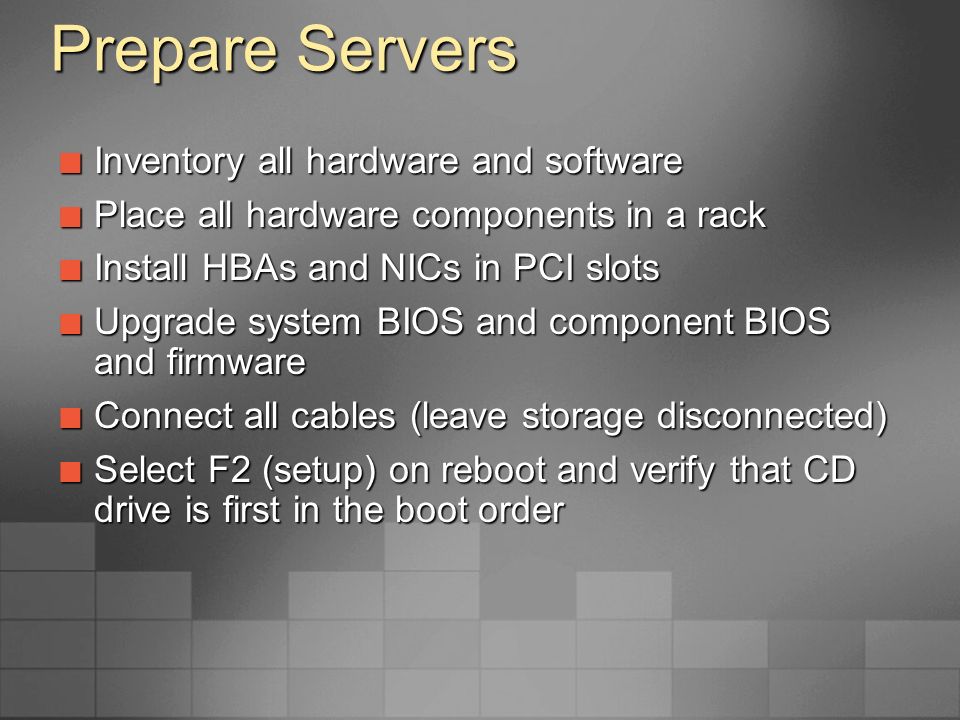

5. Prepare Servers Inventory all hardware and software Place all hardware components in a rack Install HBAs and NICs in PCI slots Upgrade system BIOS and component BIOS and firmware Connect all cables (leave storage disconnected) Select F2 (setup) on reboot and verify that CD drive is first in the boot order

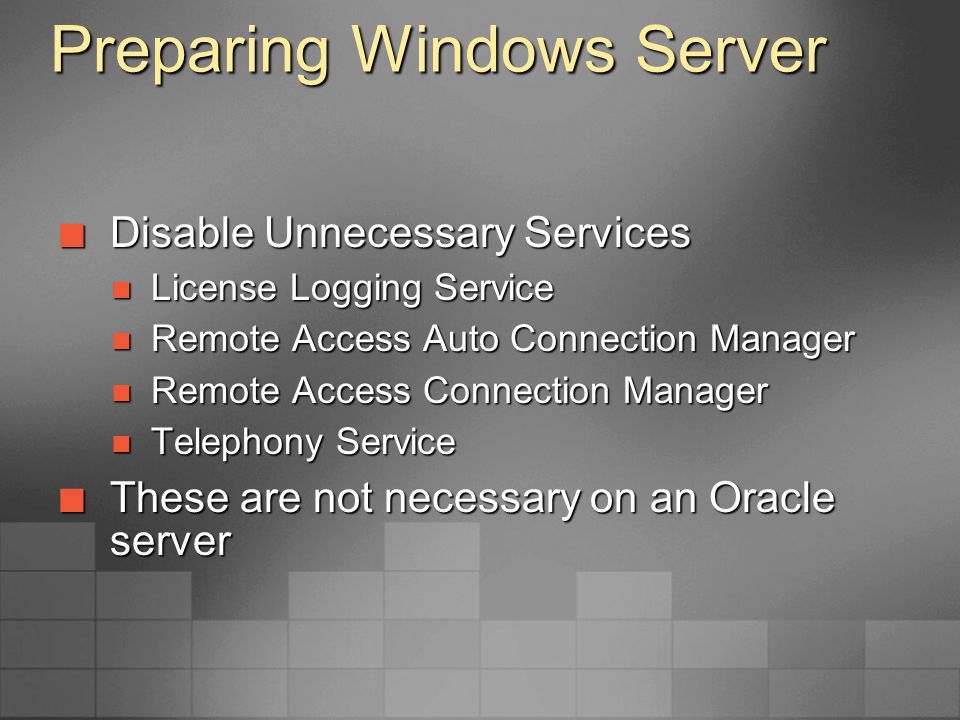

6. Preparing Windows Server Disable Unnecessary Services License Logging Service License Logging Service Remote Access Auto Connection Manager Remote Access Auto Connection Manager Remote Access Connection Manager Remote Access Connection Manager Telephony Service Telephony Service These are not necessary on an Oracle server

7. Preparing Windows Server Close unnecessary foreground applications Remove all applications from Startup folders of Windows Server console operators. Remove all applications from Startup folders of Windows Server console operators. Minimize the window when executing long- running scripts from a command prompt, to prevent excessive window repaints. Minimize the window when executing long- running scripts from a command prompt, to prevent excessive window repaints. Disable screen savers, which can saturate the CPU. If necessary, choose Blank Screen. Disable screen savers, which can saturate the CPU. If necessary, choose Blank Screen.

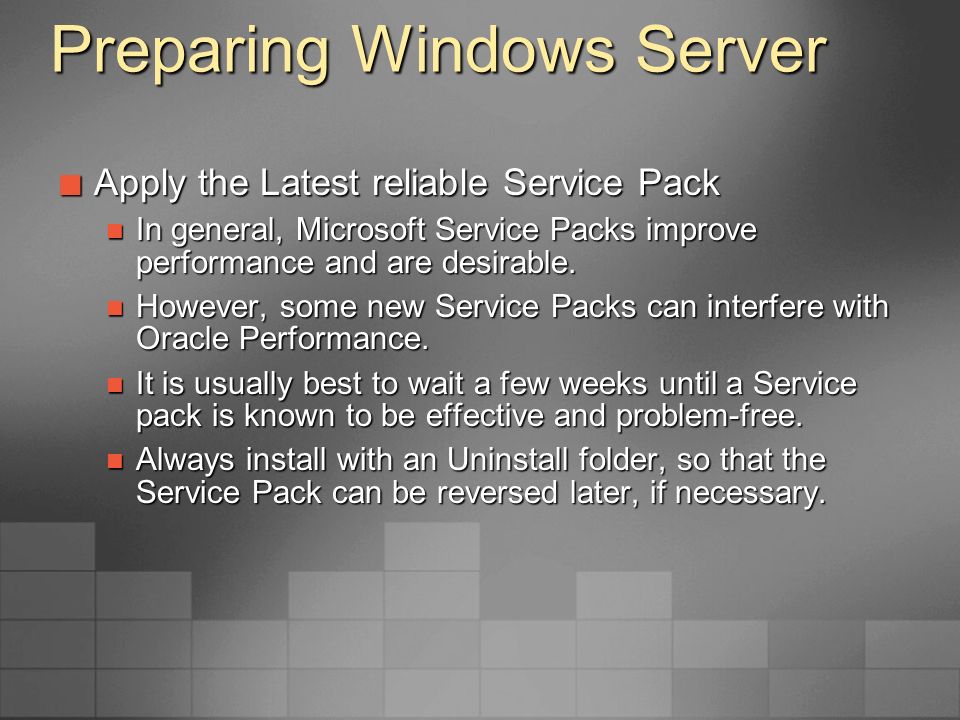

8. Preparing Windows Server Apply the Latest reliable Service Pack In general, Microsoft Service Packs improve performance and are desirable. In general, Microsoft Service Packs improve performance and are desirable. However, some new Service Packs can interfere with Oracle Performance. However, some new Service Packs can interfere with Oracle Performance. It is usually best to wait a few weeks until a Service pack is known to be effective and problem-free. It is usually best to wait a few weeks until a Service pack is known to be effective and problem-free. Always install with an Uninstall folder, so that the Service Pack can be reversed later, if necessary. Always install with an Uninstall folder, so that the Service Pack can be reversed later, if necessary.

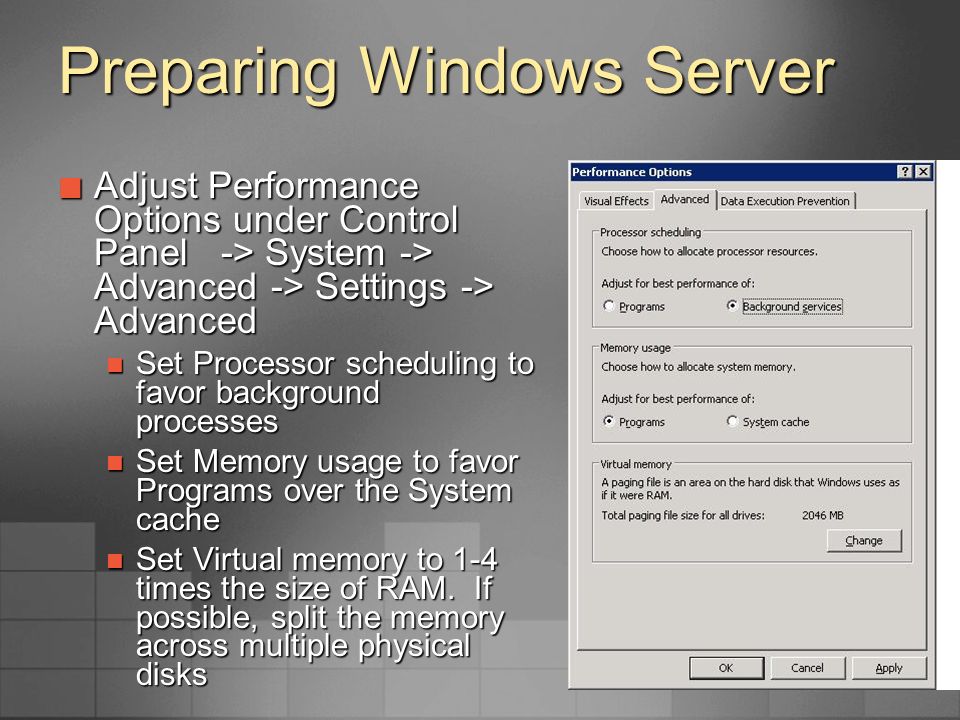

9. Preparing Windows Server Adjust Performance Options under Control Panel -> System -> Advanced -> Settings -> Advanced Set Processor scheduling to favor background processes Set Processor scheduling to favor background processes Set Memory usage to favor Programs over the System cache Set Memory usage to favor Programs over the System cache Set Virtual memory to 1-4 times the size of RAM. If possible, split the memory across multiple physical disks Set Virtual memory to 1-4 times the size of RAM. If possible, split the memory across multiple physical disks

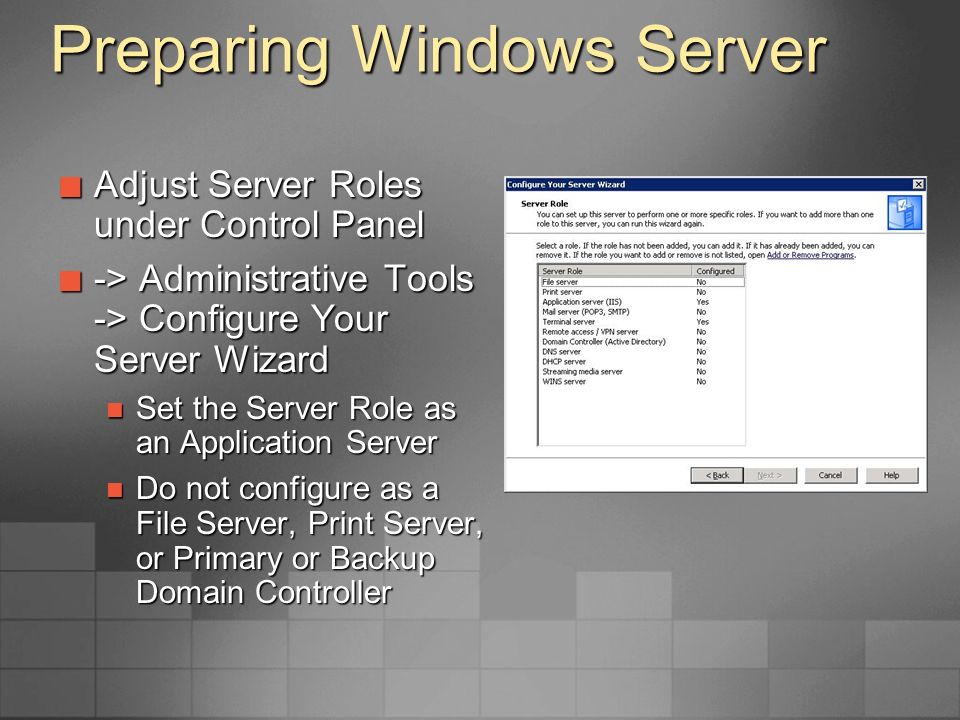

10. Preparing Windows Server Adjust Server Roles under Control Panel -> Administrative Tools -> Configure Your Server Wizard Set the Server Role as an Application Server Set the Server Role as an Application Server Do not configure as a File Server, Print Server, or Primary or Backup Domain Controller Do not configure as a File Server, Print Server, or Primary or Backup Domain Controller

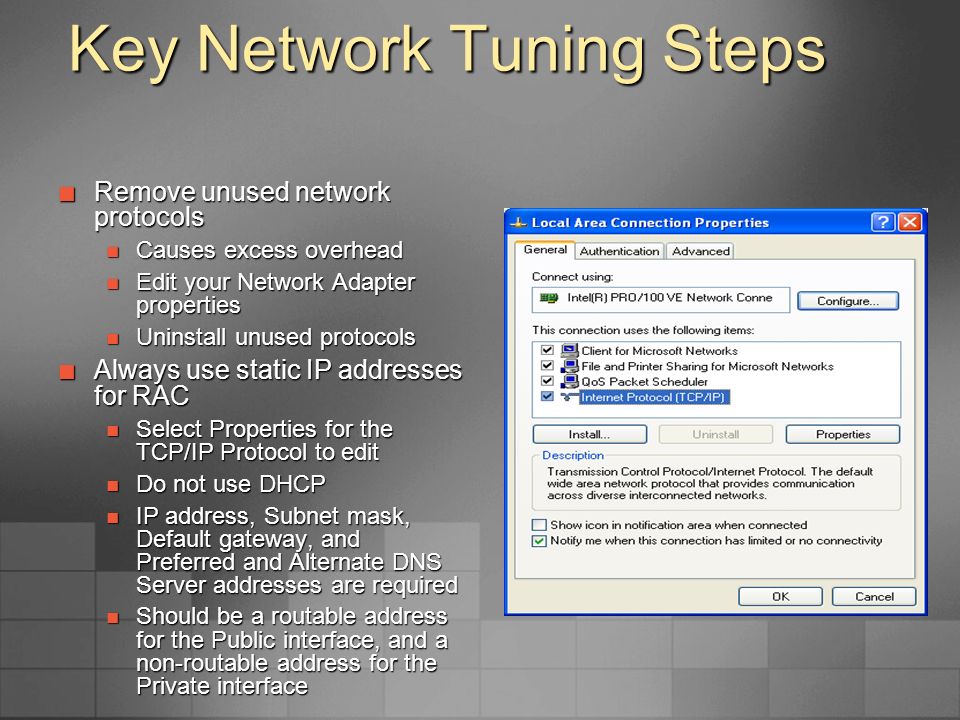

11. Key Network Tuning Steps Key Network Tuning Steps Remove unused network protocols Causes excess overhead Causes excess overhead Edit your Network Adapter properties Edit your Network Adapter properties Uninstall unused protocols Uninstall unused protocols Always use static IP addresses for RAC Select Properties for the TCP/IP Protocol to edit Select Properties for the TCP/IP Protocol to edit Do not use DHCP Do not use DHCP IP address, Subnet mask, Default gateway, and Preferred and Alternate DNS Server addresses are required IP address, Subnet mask, Default gateway, and Preferred and Alternate DNS Server addresses are required Should be a routable address for the Public interface, and a non-routable address for the Private interface Should be a routable address for the Public interface, and a non-routable address for the Private interface

12. Key Network Tuning Steps Key Network Tuning Steps Remove unused network protocols Causes excess overhead Causes excess overhead Edit your Network Adapter properties Edit your Network Adapter properties Uninstall unused protocols Uninstall unused protocols Always use static IP addresses for RAC Select Properties for the TCP/IP Protocol to edit Select Properties for the TCP/IP Protocol to edit Do not use DHCP Do not use DHCP IP address, Subnet mask, Default gateway, and Preferred and Alternate DNS Server addresses are required IP address, Subnet mask, Default gateway, and Preferred and Alternate DNS Server addresses are required Should be a routable address for the Public interface, and a non-routable address for the Private interface Should be a routable address for the Public interface, and a non-routable address for the Private interface

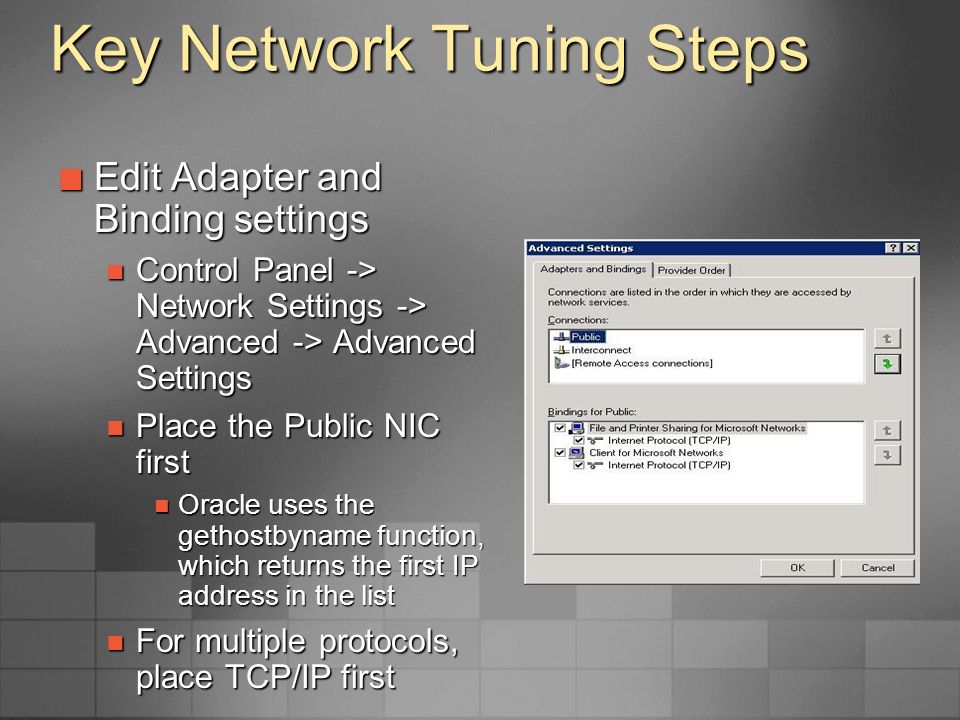

13. Key Network Tuning Steps Edit Adapter and Binding settings Control Panel -> Network Settings -> Advanced -> Advanced Settings Control Panel -> Network Settings -> Advanced -> Advanced Settings Place the Public NIC first Place the Public NIC first Oracle uses the gethostbyname function, which returns the first IP address in the list Oracle uses the gethostbyname function, which returns the first IP address in the list For multiple protocols, place TCP/IP first For multiple protocols, place TCP/IP first

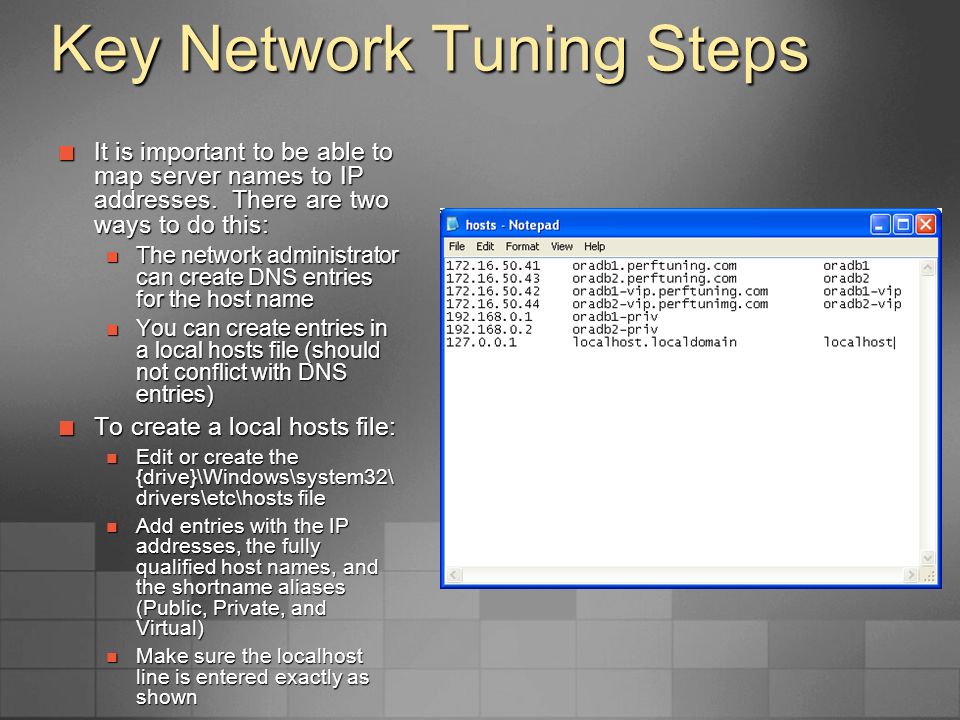

14. Key Network Tuning Steps It is important to be able to map server names to IP addresses. There are two ways to do this: The network administrator can create DNS entries for the host name The network administrator can create DNS entries for the host name You can create entries in a local hosts file (should not conflict with DNS entries) You can create entries in a local hosts file (should not conflict with DNS entries) To create a local hosts file: Edit or create the {drive}\Windows\system32\ drivers\etc\hosts file Edit or create the {drive}\Windows\system32\ drivers\etc\hosts file Add entries with the IP addresses, the fully qualified host names, and the shortname aliases (Public, Private, and Virtual) Add entries with the IP addresses, the fully qualified host names, and the shortname aliases (Public, Private, and Virtual) Make sure the localhost line is entered exactly as shown Make sure the localhost line is entered exactly as shown

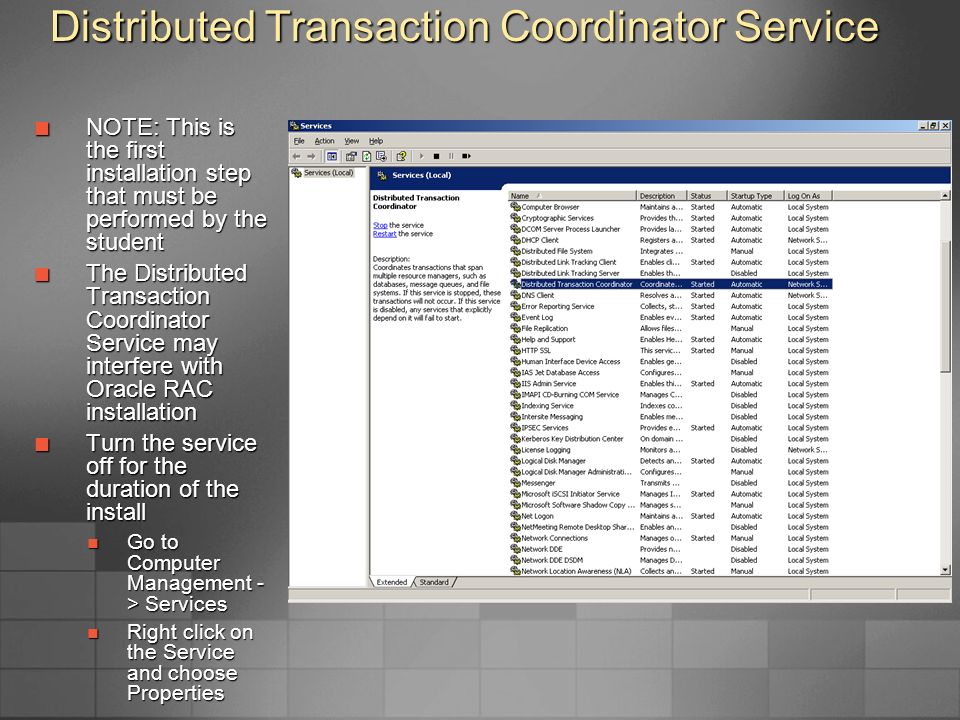

15. Distributed Transaction Coordinator Service NOTE: This is the first installation step that must be performed by the student The Distributed Transaction Coordinator Service may interfere with Oracle RAC installation Turn the service off for the duration of the install Go to Computer Management - > Services Go to Computer Management - > Services Right click on the Service and choose Properties Right click on the Service and choose Properties

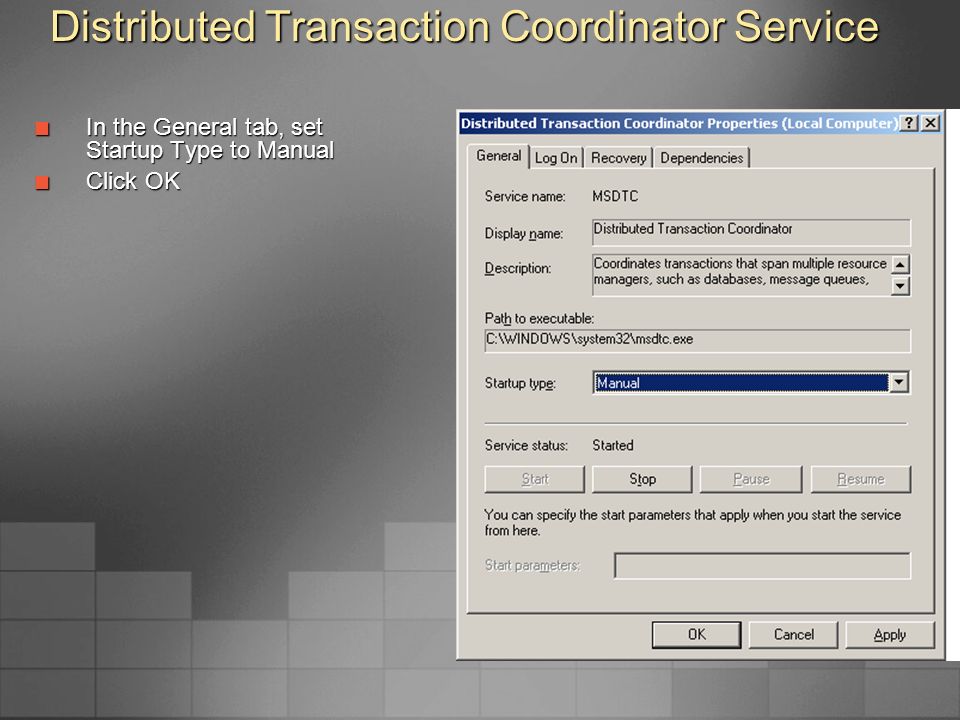

16. Distributed Transaction Coordinator Service In the General tab, set Startup Type to Manual Click OK

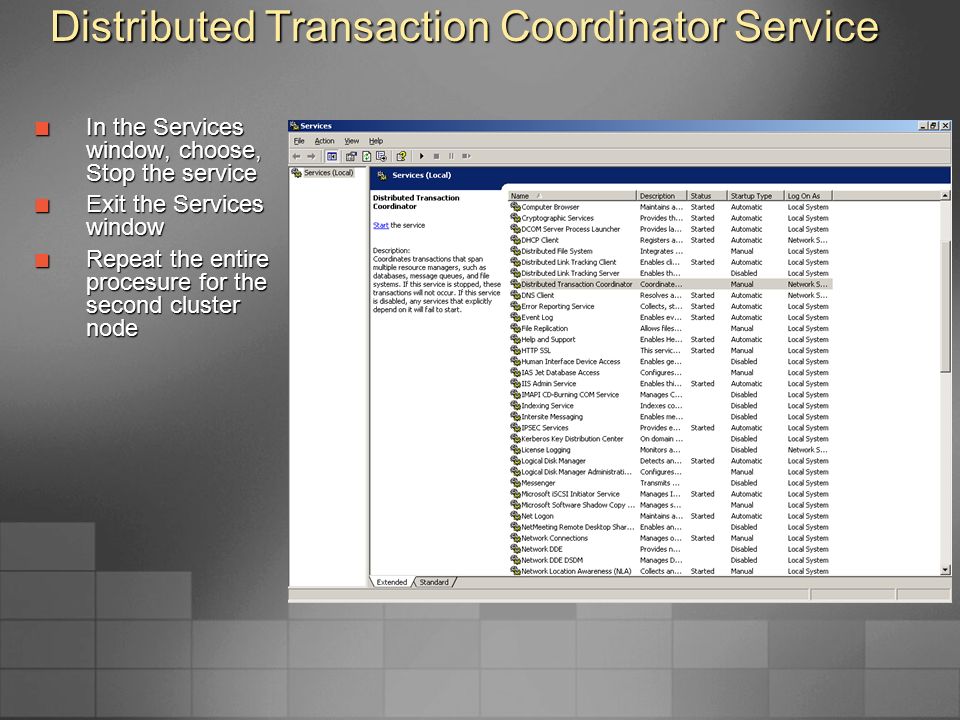

17. Distributed Transaction Coordinator Service In the Services window, choose, Stop the service Exit the Services window Repeat the entire procesure for the second cluster node

18. Connecting to iSCSI Storage On the desktop, double click the iSCSI Initiator icon In the iSCSI Initiator Properties window, click on the General tab Click the Change button

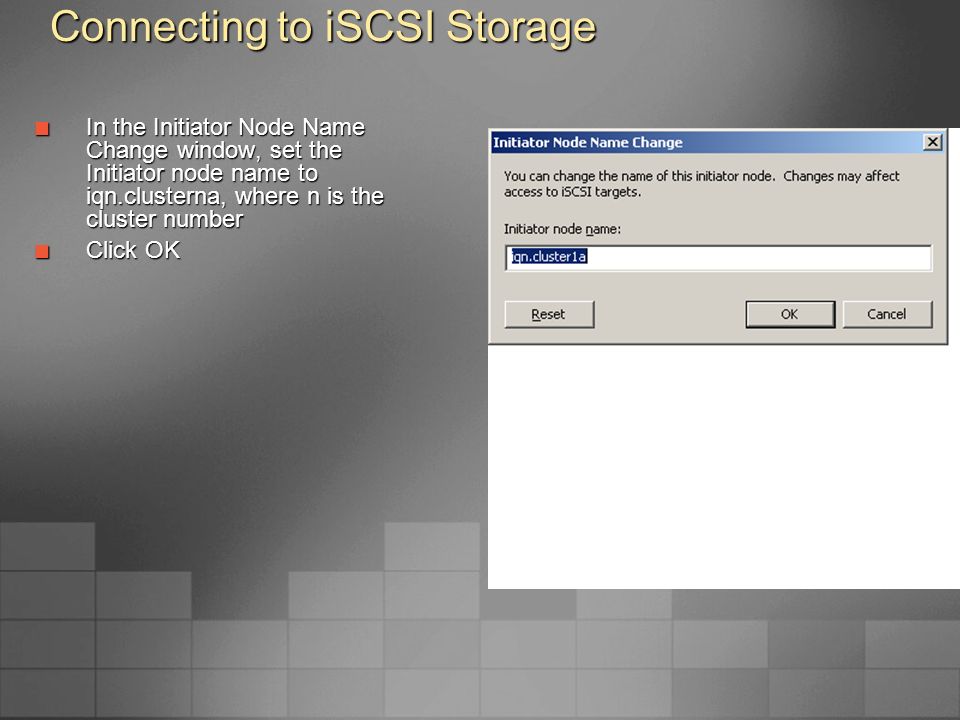

19. Connecting to iSCSI Storage In the Initiator Node Name Change window, set the Initiator node name to iqn.clusterna, where n is the cluster number Click OK

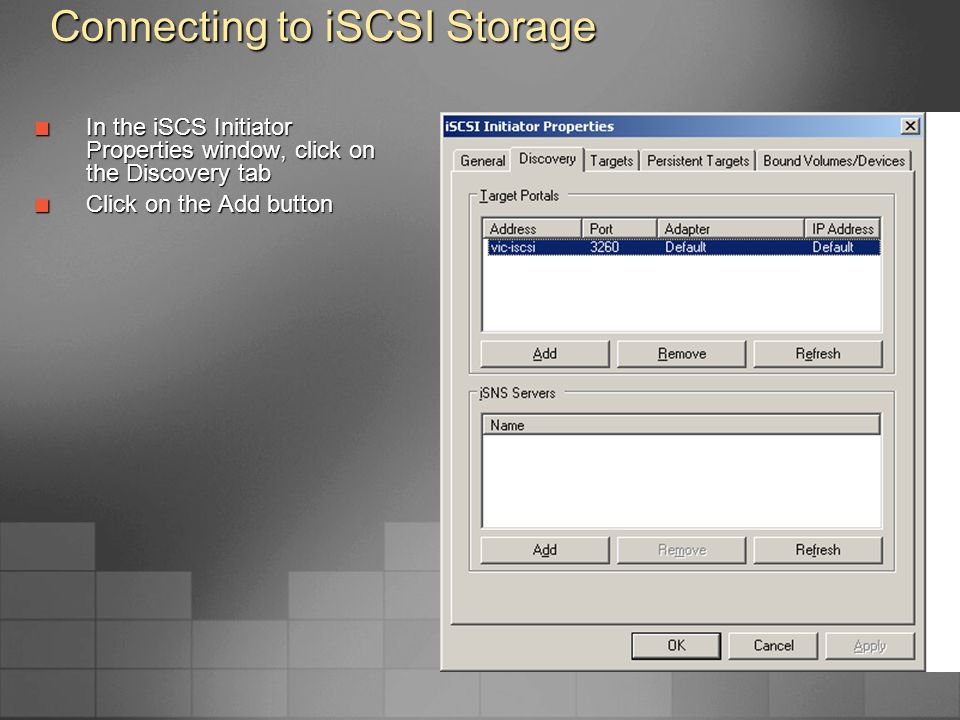

20. Connecting to iSCSI Storage In the iSCS Initiator Properties window, click on the Discovery tab Click on the Add button

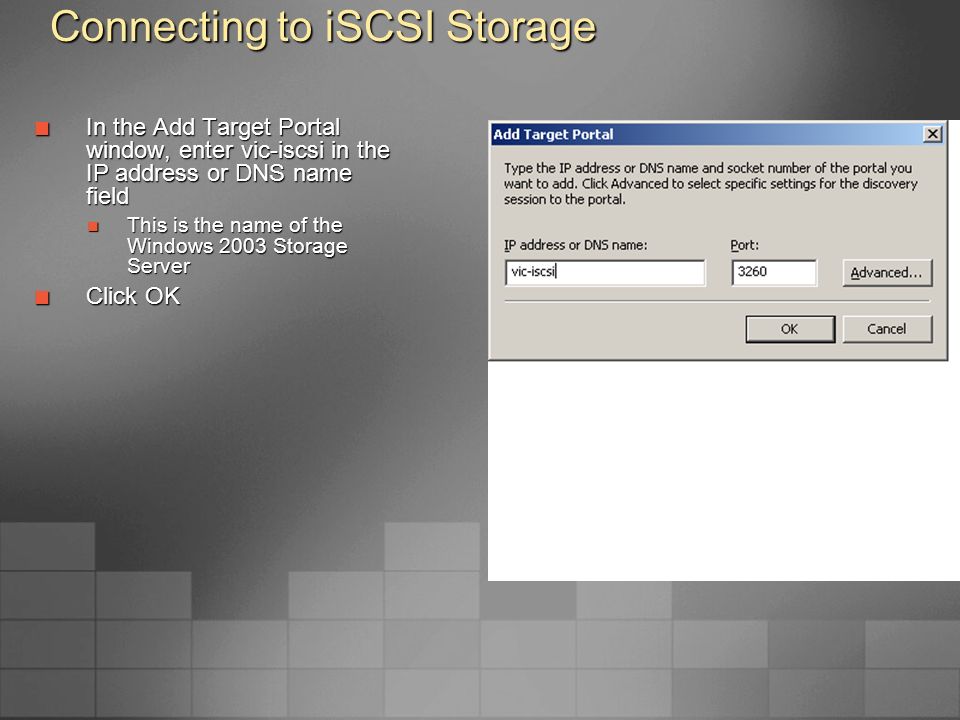

21. Connecting to iSCSI Storage In the Add Target Portal window, enter vic-iscsi in the IP address or DNS name field This is the name of the Windows 2003 Storage Server This is the name of the Windows 2003 Storage Server Click OK

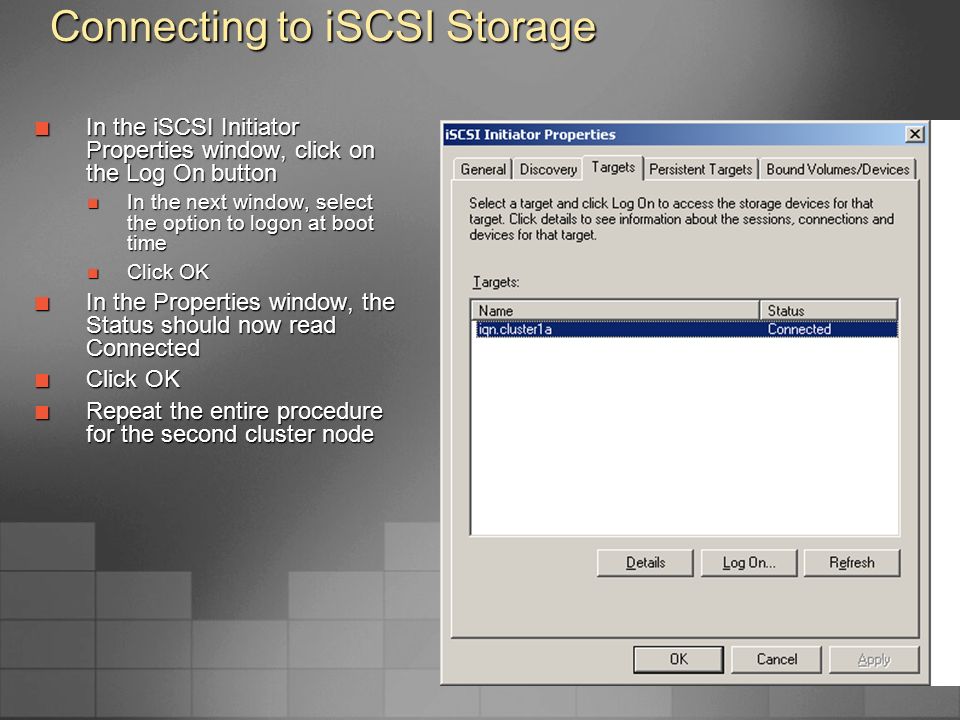

22. Connecting to iSCSI Storage In the iSCSI Initiator Properties window, click on the Log On button In the next window, select the option to logon at boot time In the next window, select the option to logon at boot time Click OK Click OK In the Properties window, the Status should now read Connected Click OK Repeat the entire procedure for the second cluster node

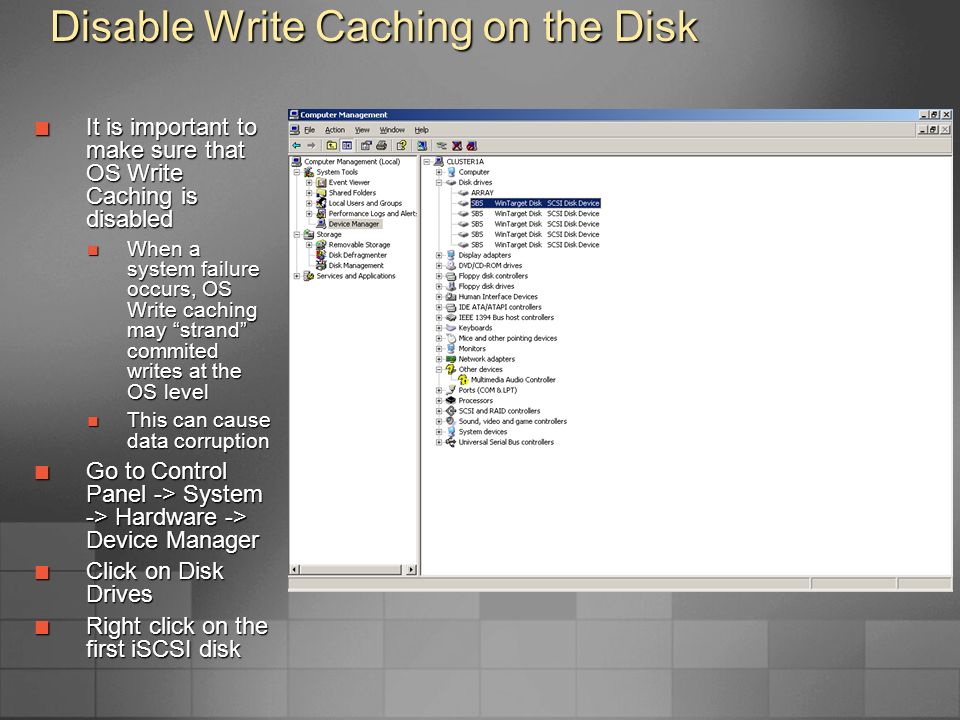

23. Disable Write Caching on the Disk It is important to make sure that OS Write Caching is disabled When a system failure occurs, OS Write caching may “strand” commited writes at the OS level When a system failure occurs, OS Write caching may “strand” commited writes at the OS level This can cause data corruption This can cause data corruption Go to Control Panel -> System -> Hardware -> Device Manager Click on Disk Drives Right click on the first iSCSI disk

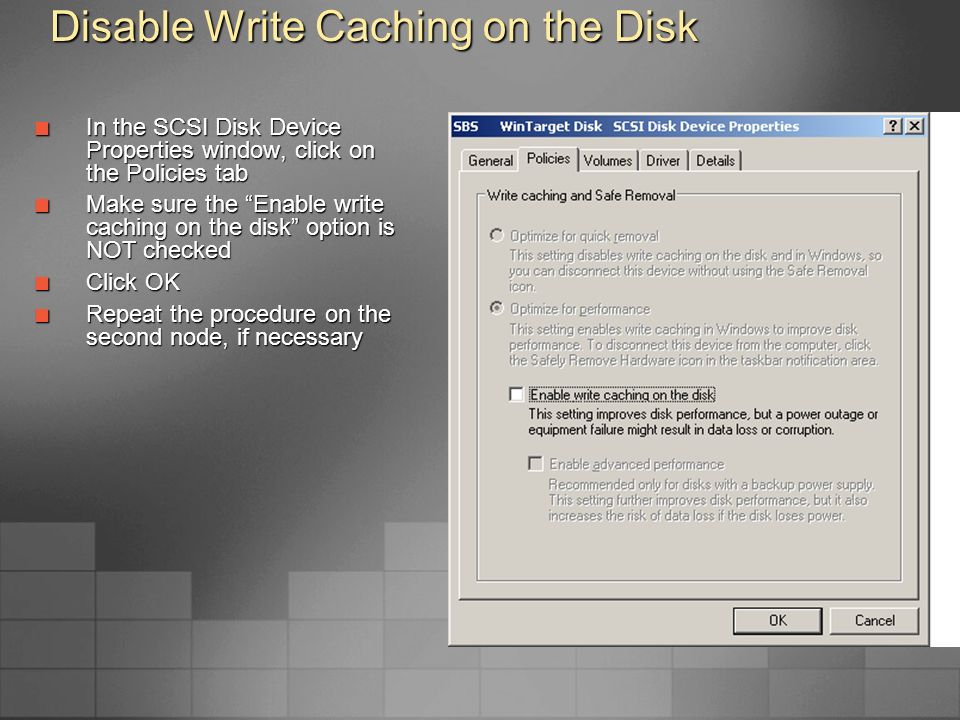

24. Disable Write Caching on the Disk In the SCSI Disk Device Properties window, click on the Policies tab Make sure the “Enable write caching on the disk” option is NOT checked Click OK Repeat the procedure on the second node, if necessary

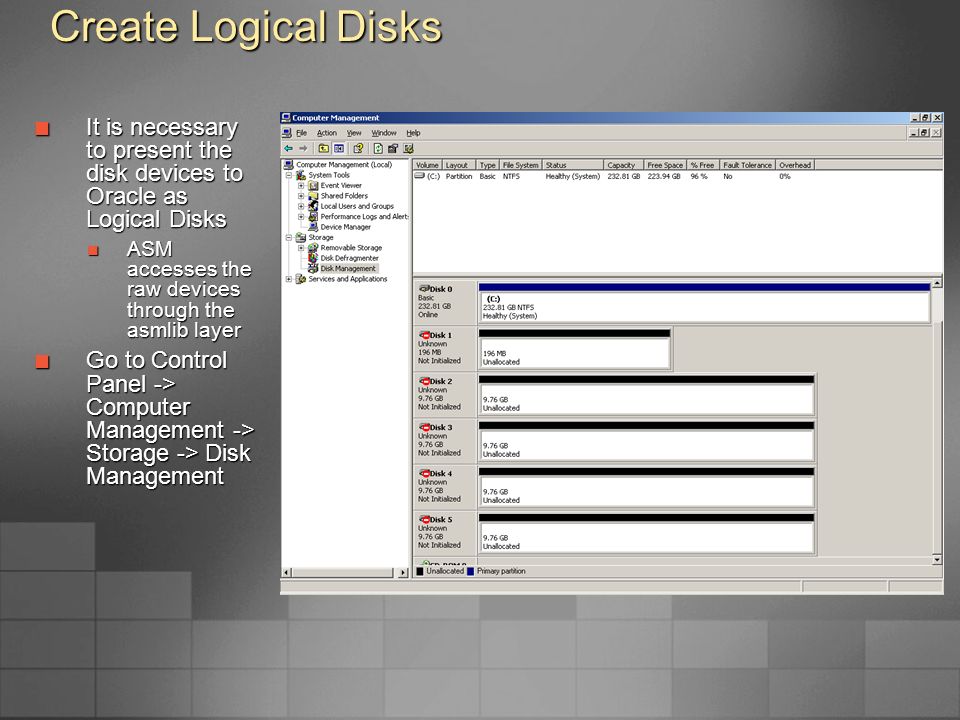

25. Create Logical Disks It is necessary to present the disk devices to Oracle as Logical Disks ASM accesses the raw devices through the asmlib layer ASM accesses the raw devices through the asmlib layer Go to Control Panel -> Computer Management -> Storage -> Disk Management

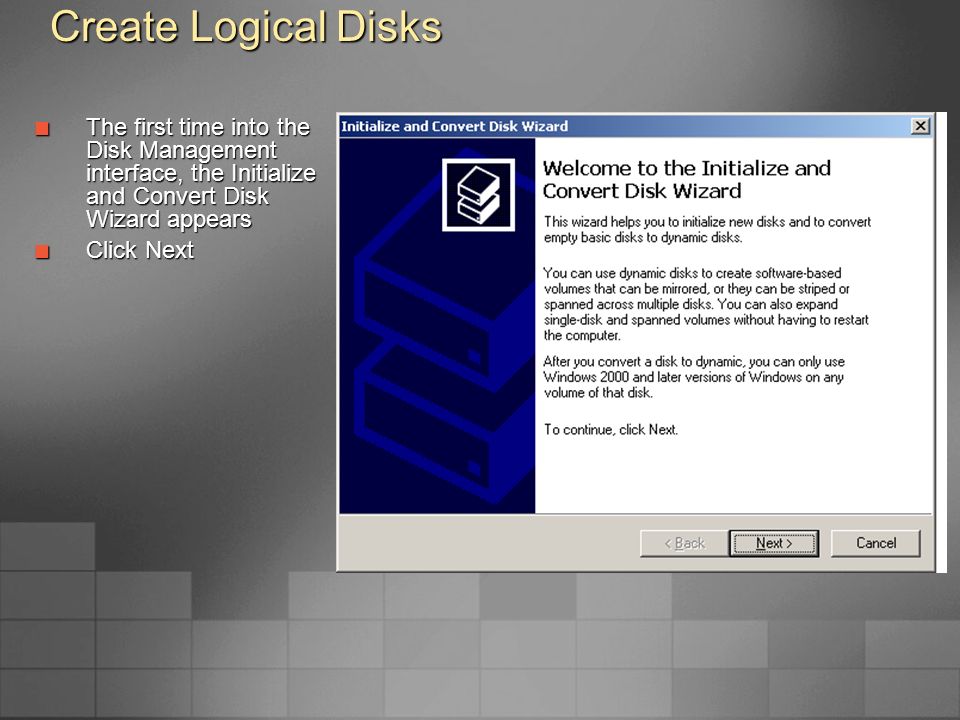

26. Create Logical Disks The first time into the Disk Management interface, the Initialize and Convert Disk Wizard appears Click Next

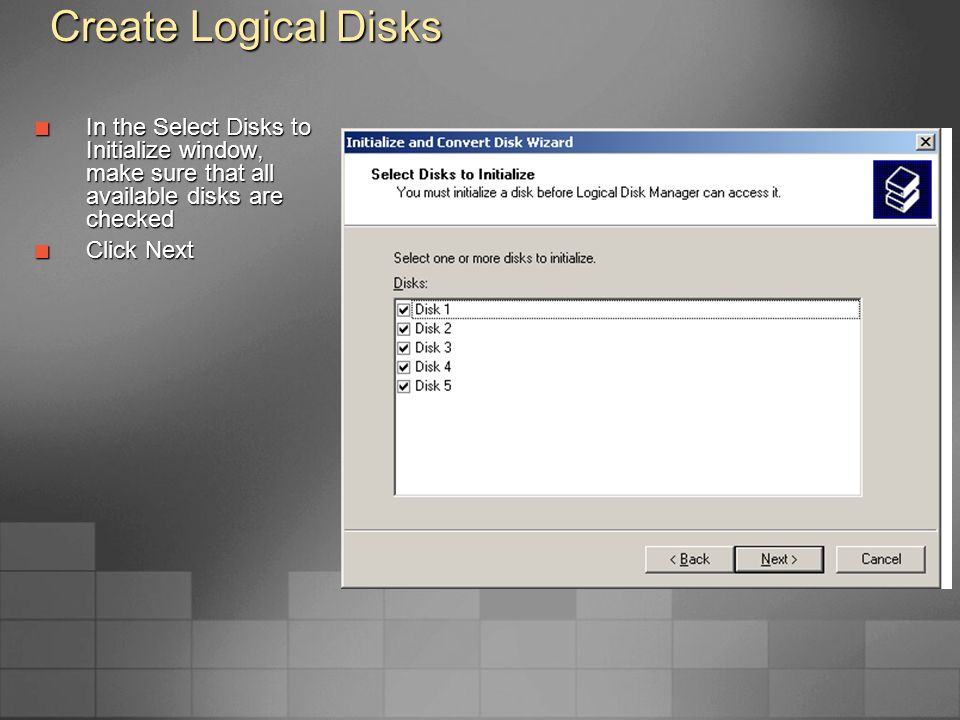

27. Create Logical Disks In the Select Disks to Initialize window, make sure that all available disks are checked Click Next

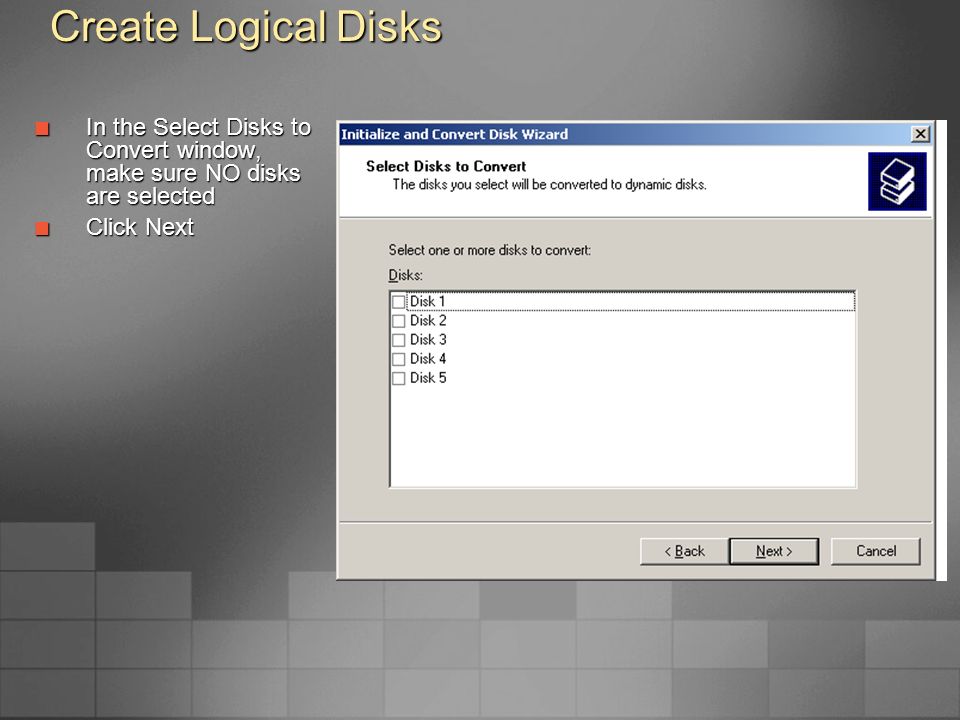

28. Create Logical Disks In the Select Disks to Convert window, make sure NO disks are selected Click Next

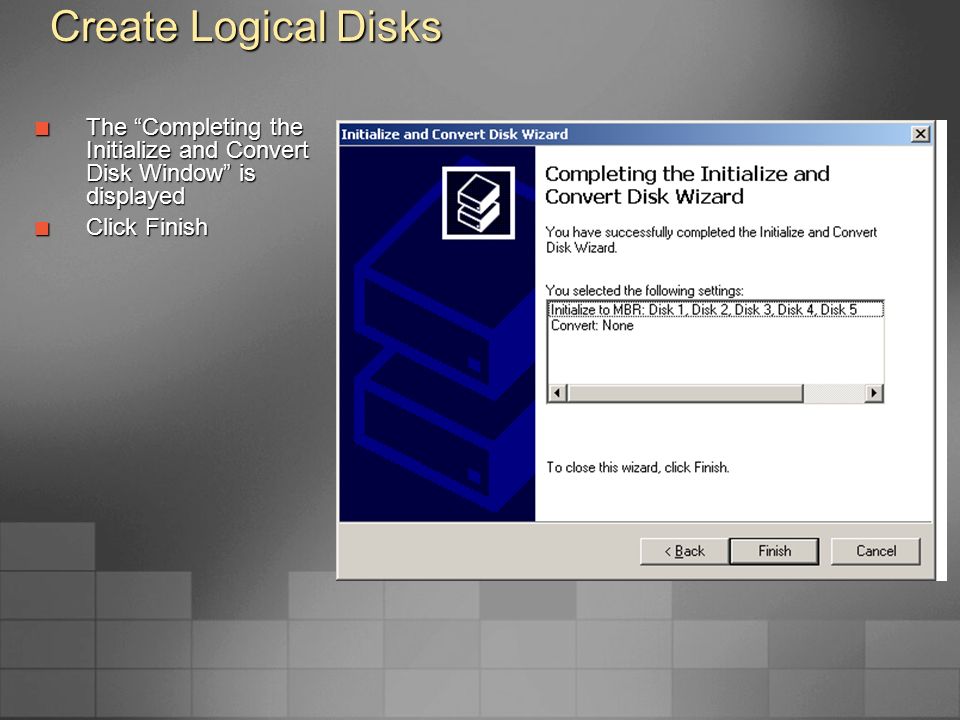

29. Create Logical Disks The “Completing the Initialize and Convert Disk Window” is displayed Click Finish

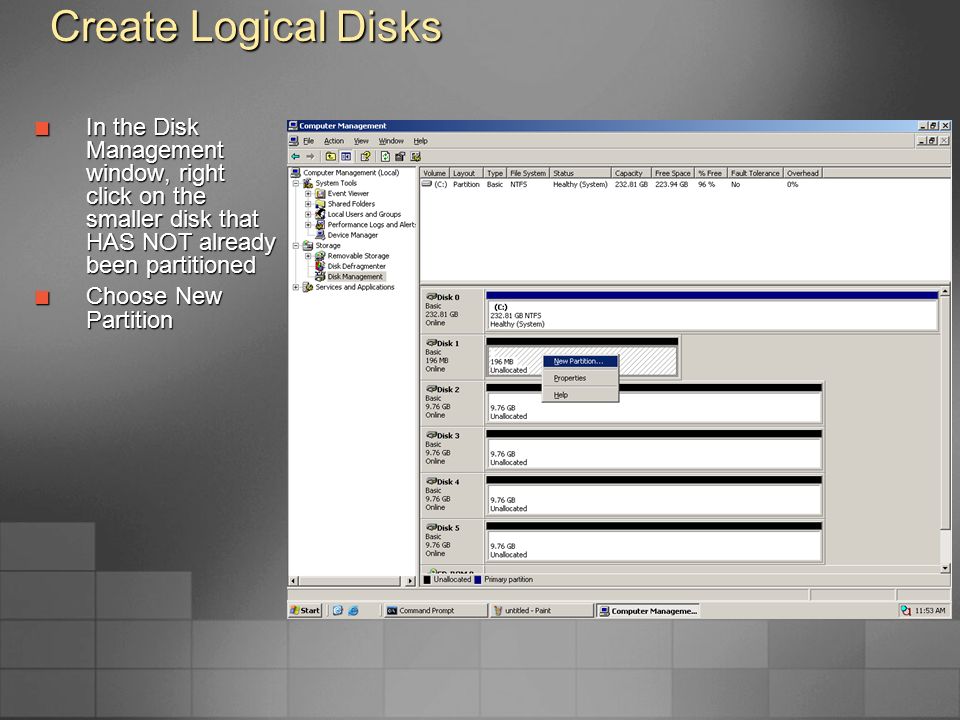

30. Create Logical Disks In the Disk Management window, right click on the smaller disk that HAS NOT already been partitioned Choose New Partition

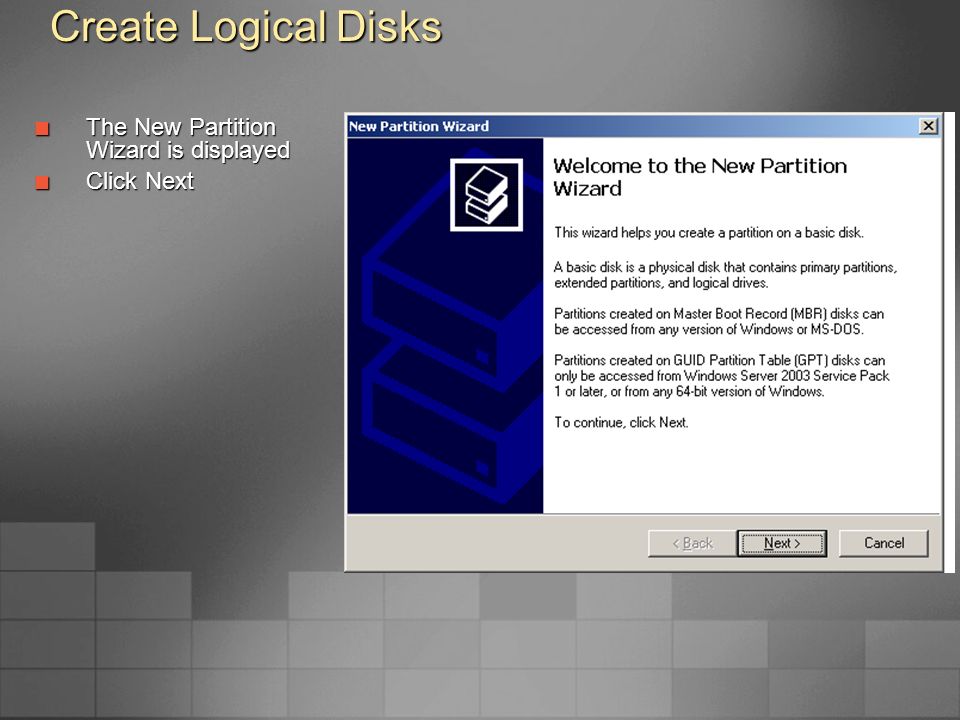

31. Create Logical Disks The New Partition Wizard is displayed Click Next

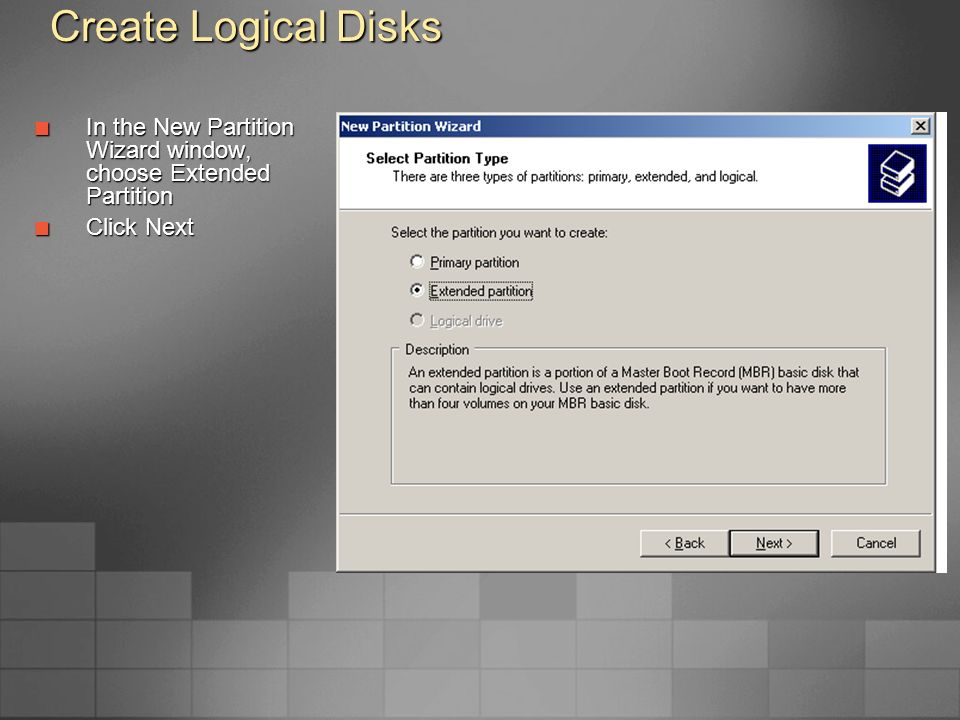

32. Create Logical Disks In the New Partition Wizard window, choose Extended Partition Click Next

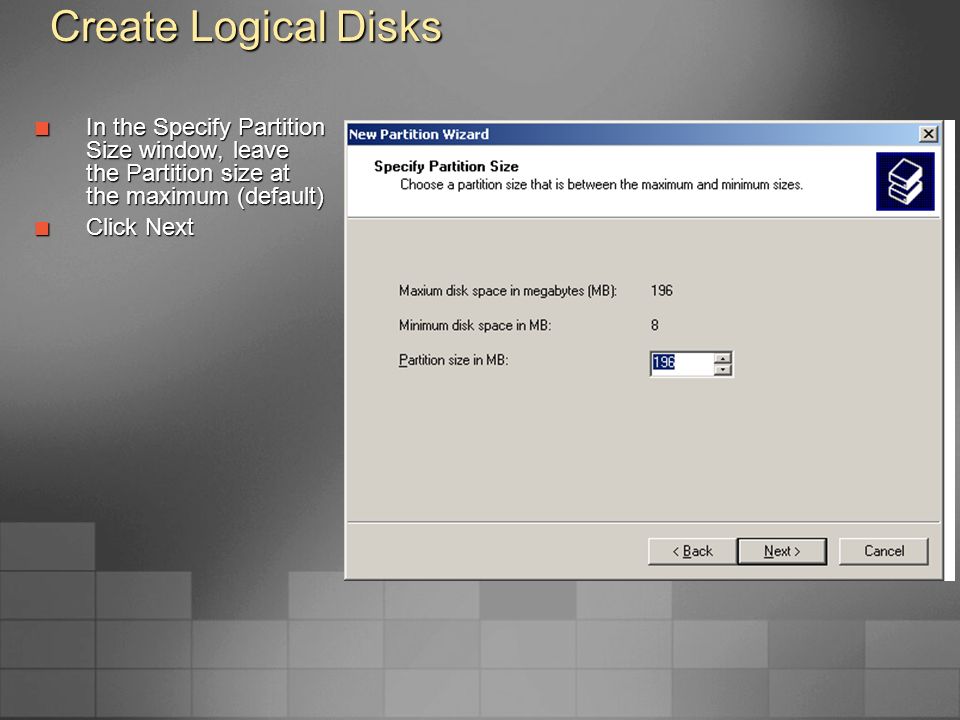

33. Create Logical Disks In the Specify Partition Size window, leave the Partition size at the maximum (default) Click Next

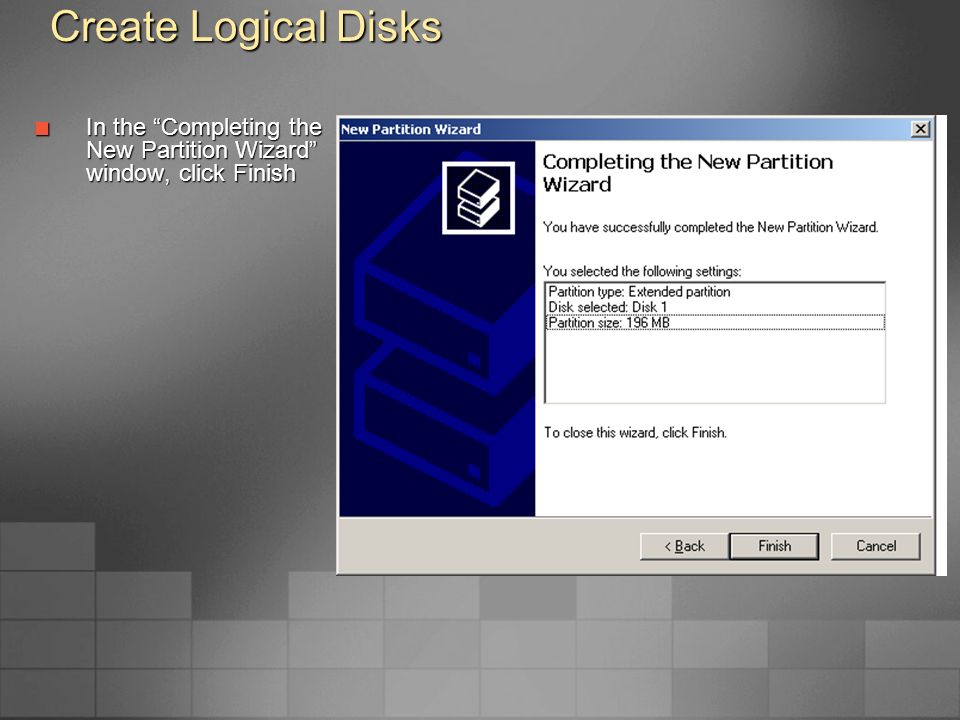

34. Create Logical Disks In the “Completing the New Partition Wizard” window, click Finish

35. Create Logical Disks In the Disk Management window, right click on the Extended Partition just created Select Use Logical Drive

36. Create Logical Disks In the “Welcome to the New Partition Wizard” window, click Next

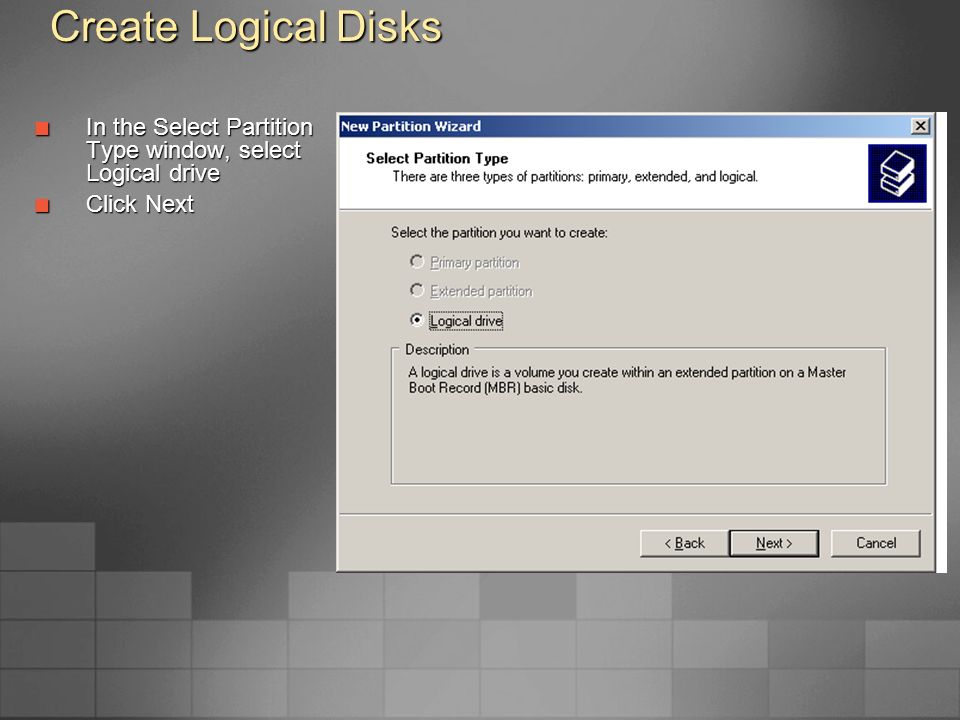

37. Create Logical Disks In the Select Partition Type window, select Logical drive Click Next

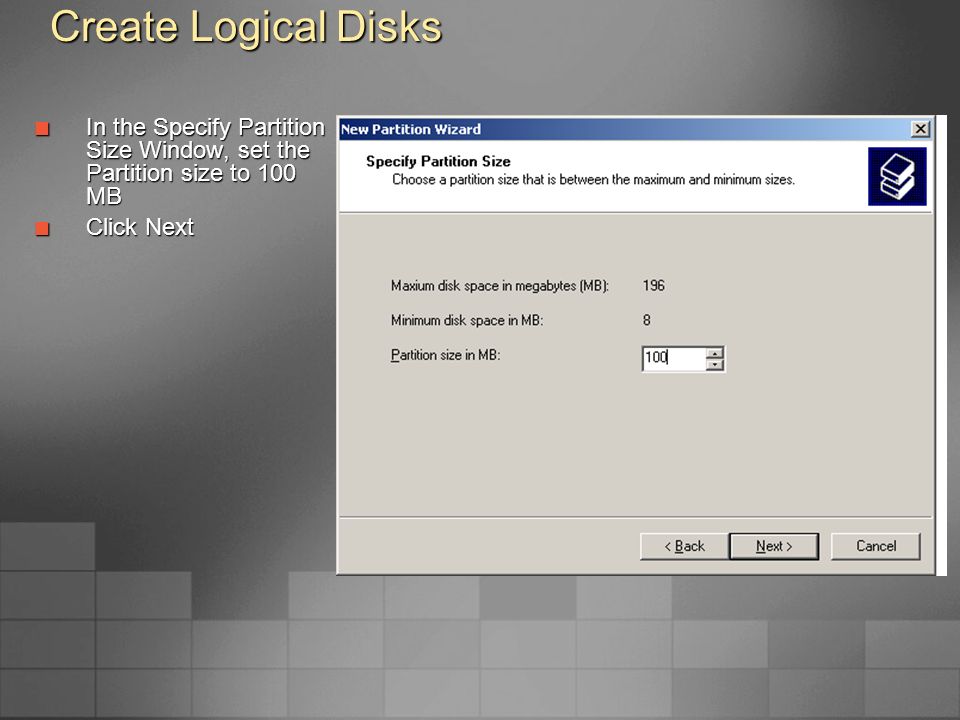

38. Create Logical Disks In the Specify Partition Size Window, set the Partition size to 100 MB Click Next

39. Create Logical Disks In the “Assign Drive Letter or Path” window, select Do not assign a drive letter or drive path

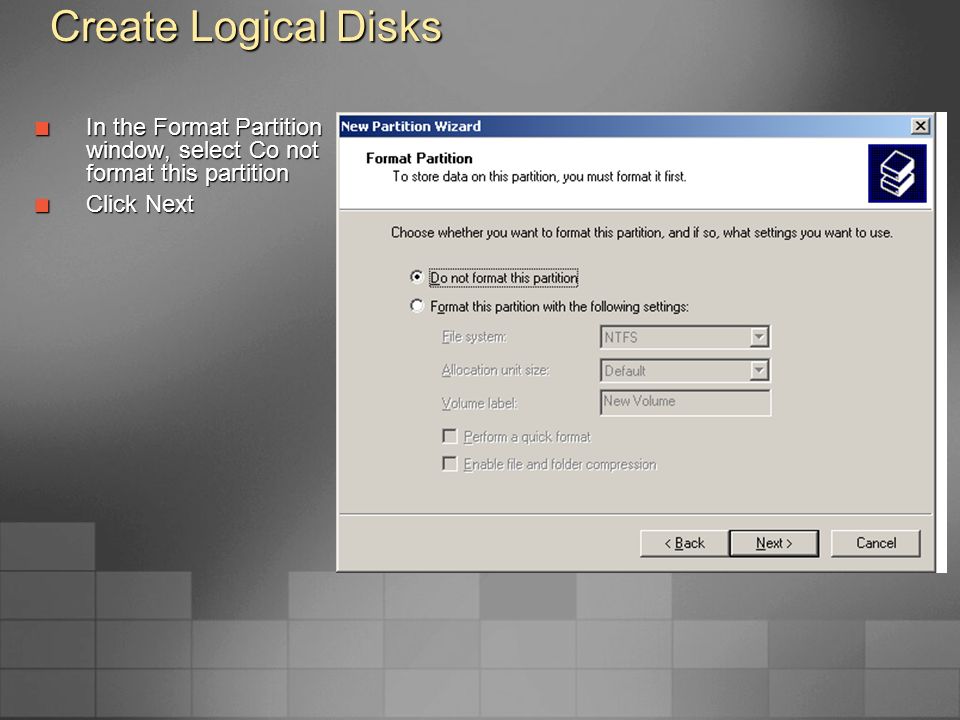

40. Create Logical Disks In the Format Partition window, select Co not format this partition Click Next

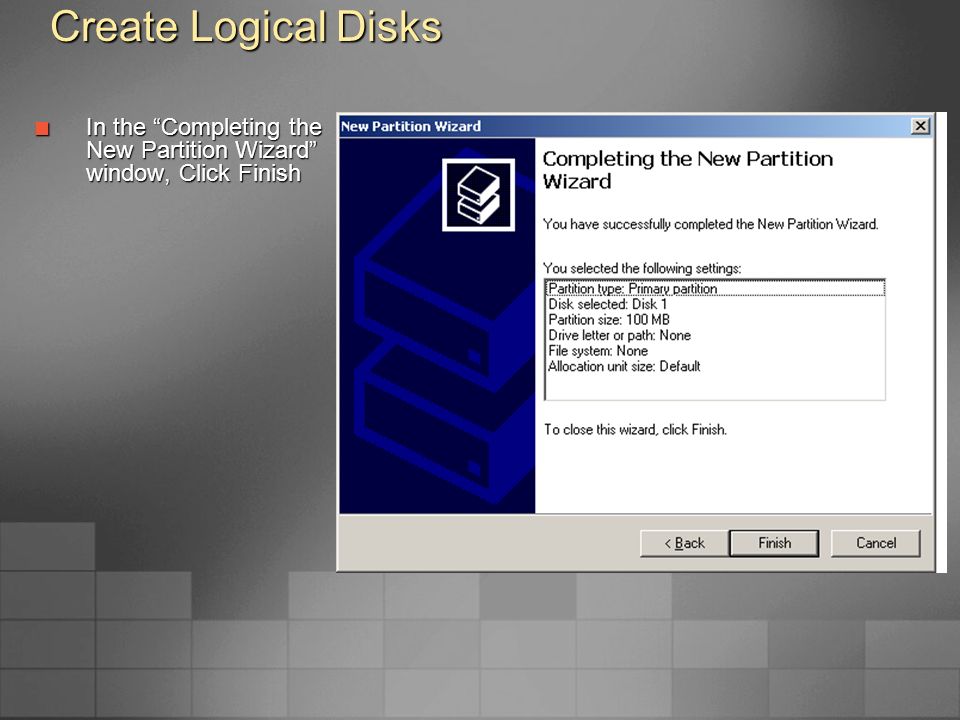

41. Create Logical Disks In the “Completing the New Partition Wizard” window, Click Finish

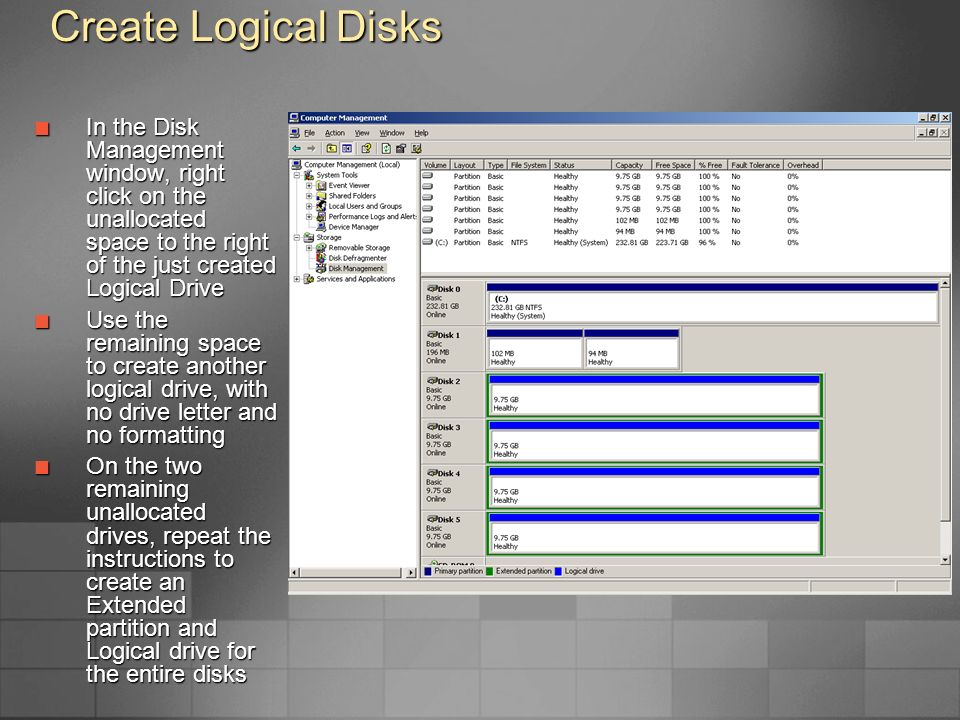

42. Create Logical Disks In the Disk Management window, right click on the unallocated space to the right of the just created Logical Drive Use the remaining space to create another logical drive, with no drive letter and no formatting On the two remaining unallocated drives, repeat the instructions to create an Extended partition and Logical drive for the entire disks

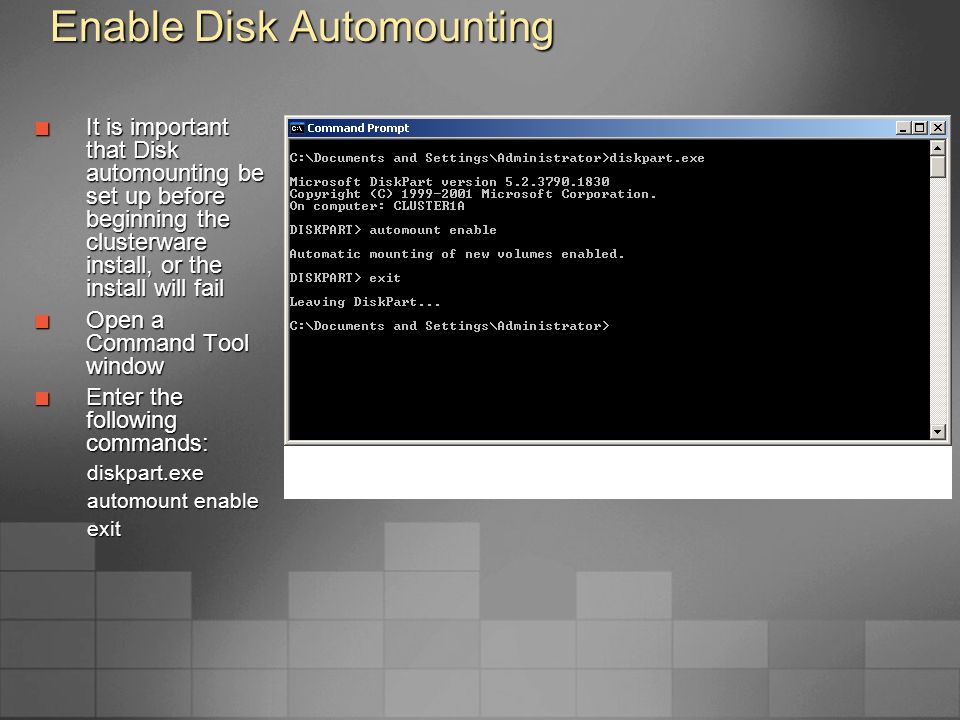

43. Enable Disk Automounting It is important that Disk automounting be set up before beginning the clusterware install, or the install will fail Open a Command Tool window Enter the following commands: diskpart.exe automount enable exit

44. Cluster Verification Script Open a Command Tool window Change directories to the class MS_RAC_Class_Downloa ds directory At the same time, open a Windows Explorer window to the same directory, and unzip the clusterware zip file. In the command window, change directories to locate the clusterware\cluvfy directory Run the following command runcluvfy.bat stage –pre crsinst –n cluster1a,cluster1b

45. Cluster Verification Script The script results are shown to the right The script will partially fail due to a failure of the vip interface Oracle does not endorse using public networks that begin with “10.10” or “192.168.1” Oracle does not endorse using public networks that begin with “10.10” or “192.168.1” You can workaround this limitation You can workaround this limitation Make sure that there ae no other errors Close the command window

46. Install Clusterware Open a Windows Explorer window In the clusterware directory, double click the setup.exe file

47. Install Clusterware In the Welcome window, click Next

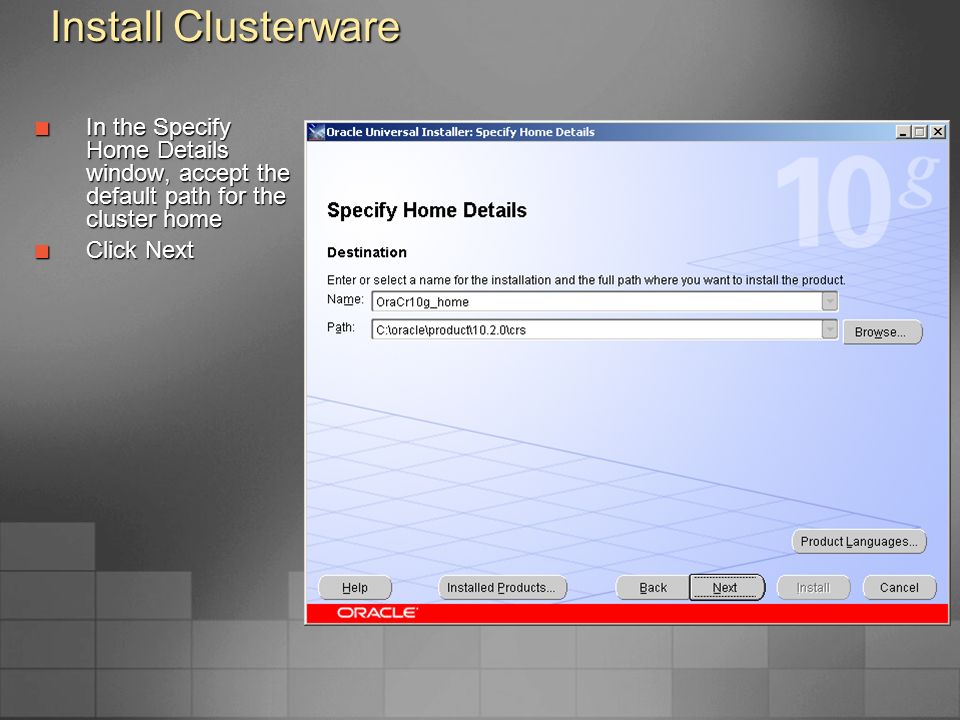

48. Install Clusterware In the Specify Home Details window, accept the default path for the cluster home Click Next

49. Install Clusterware In the Product- Specific Prerequisite Checks window, make sure all prerequisite test are passed Click Next

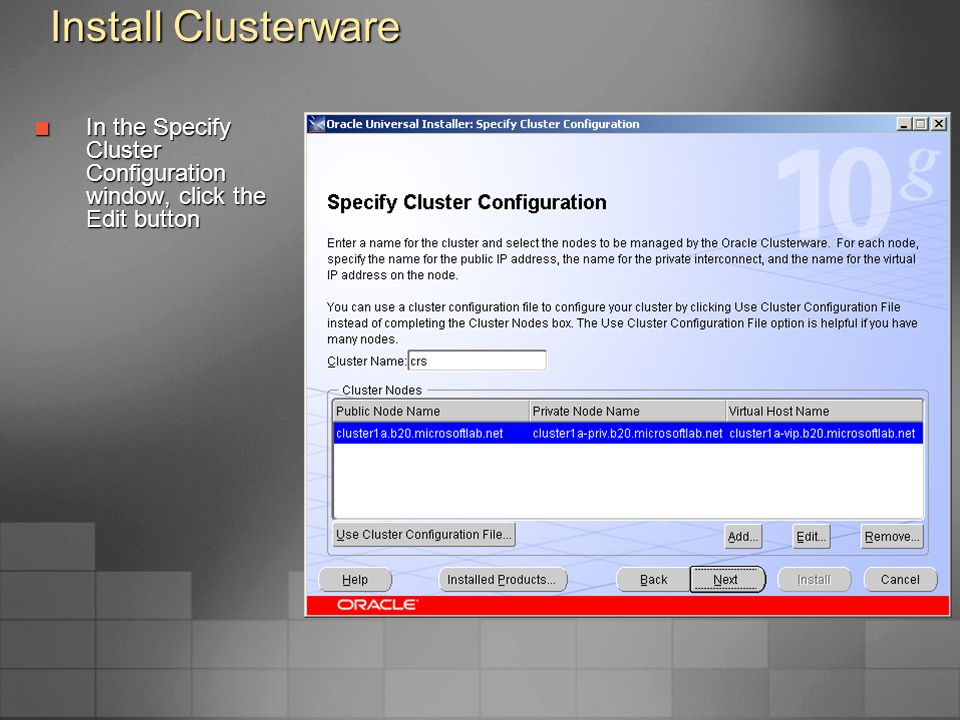

50. Install Clusterware In the Specify Cluster Configuration window, click the Edit button

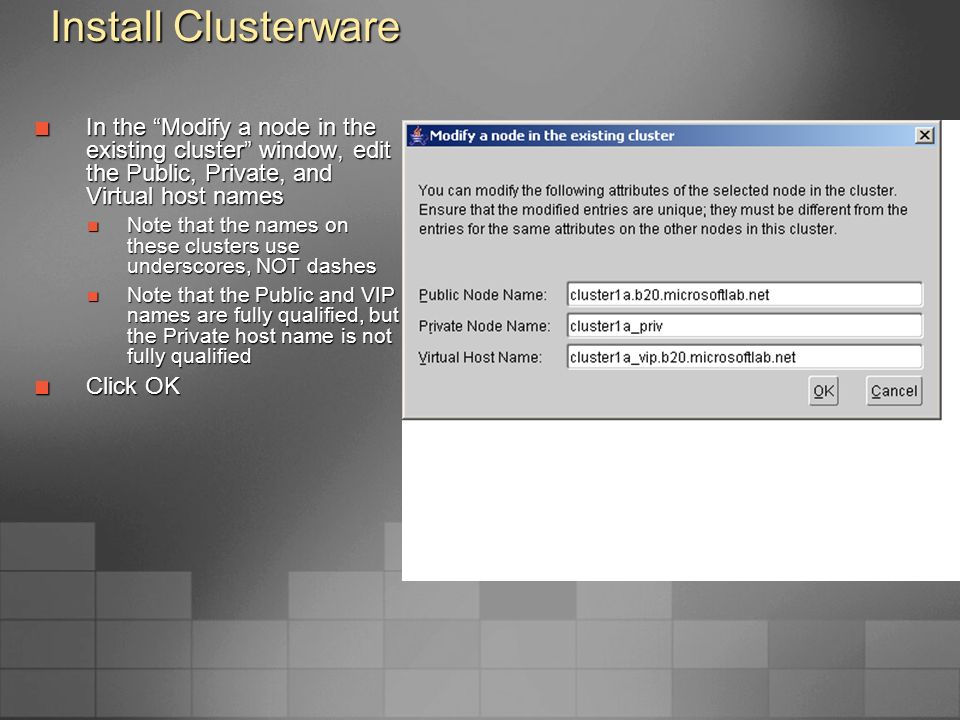

51. Install Clusterware In the “Modify a node in the existing cluster” window, edit the Public, Private, and Virtual host names Note that the names on these clusters use underscores, NOT dashes Note that the names on these clusters use underscores, NOT dashes Note that the Public and VIP names are fully qualified, but the Private host name is not fully qualified Note that the Public and VIP names are fully qualified, but the Private host name is not fully qualified Click OK

52. Install Clusterware Use the Add button to enter the Node Names for the second node Carefully check the names before proceeding Click Next

53. Install Clusterware In the “Specify Network Interface Usage” window, click on the Public Interface Name Click Edit

54. Install Clusterware For the Public Interface Name, choose an Interface Type of Public Click OK

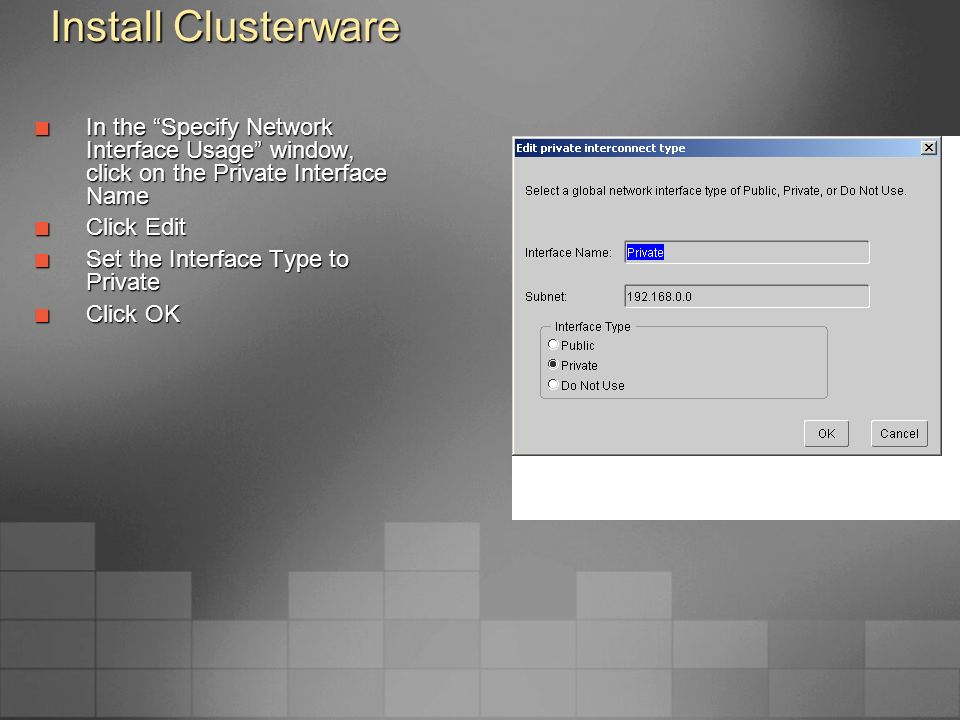

55. Install Clusterware In the “Specify Network Interface Usage” window, click on the Private Interface Name Click Edit Set the Interface Type to Private Click OK

56. Install Clusterware In the “Specify Network Interface Usage” window, click on the iscsi Interface Name Click Edit Set the Interface Type to Do Not Use

57. Install Clusterware In the Cluster Configuration Storage window, click on the Available Disk that has approximately 100MB and is currently unused Click Next

58. Install Clusterware In the Specify Disk Configuration window, check the box to place the OCR(Primary) on this partition Click OK

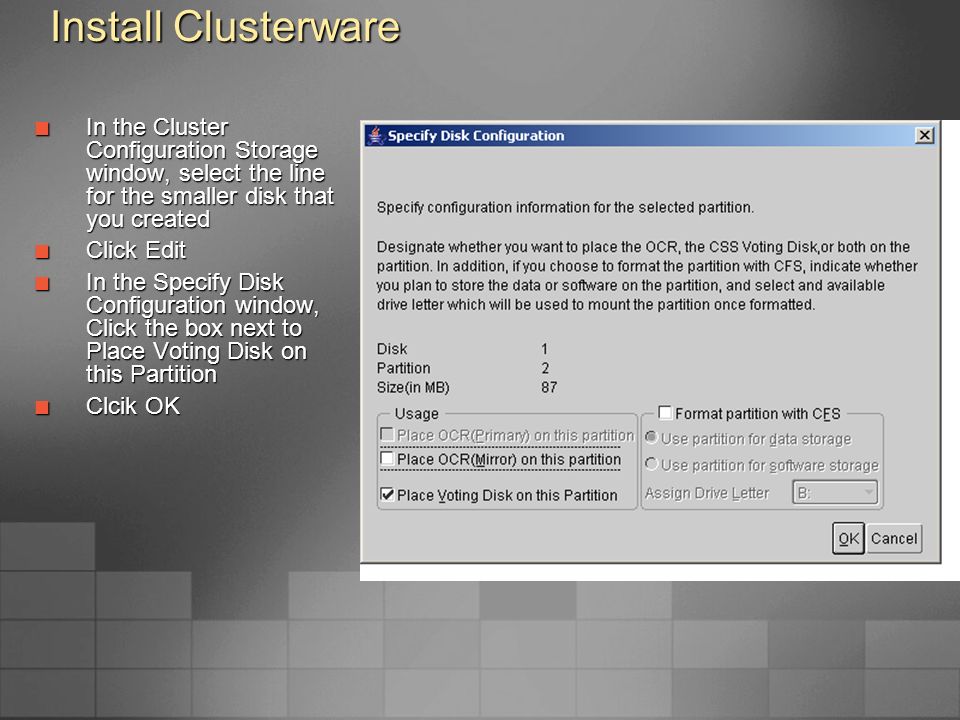

59. Install Clusterware In the Cluster Configuration Storage window, select the line for the smaller disk that you created Click Edit In the Specify Disk Configuration window, Click the box next to Place Voting Disk on this Partition Clcik OK

60. Install Clusterware You will receive a warning that Oracle recommends a mirror disk for the OCR. Since you are using externally redundant disks, this is not necessary Click OK

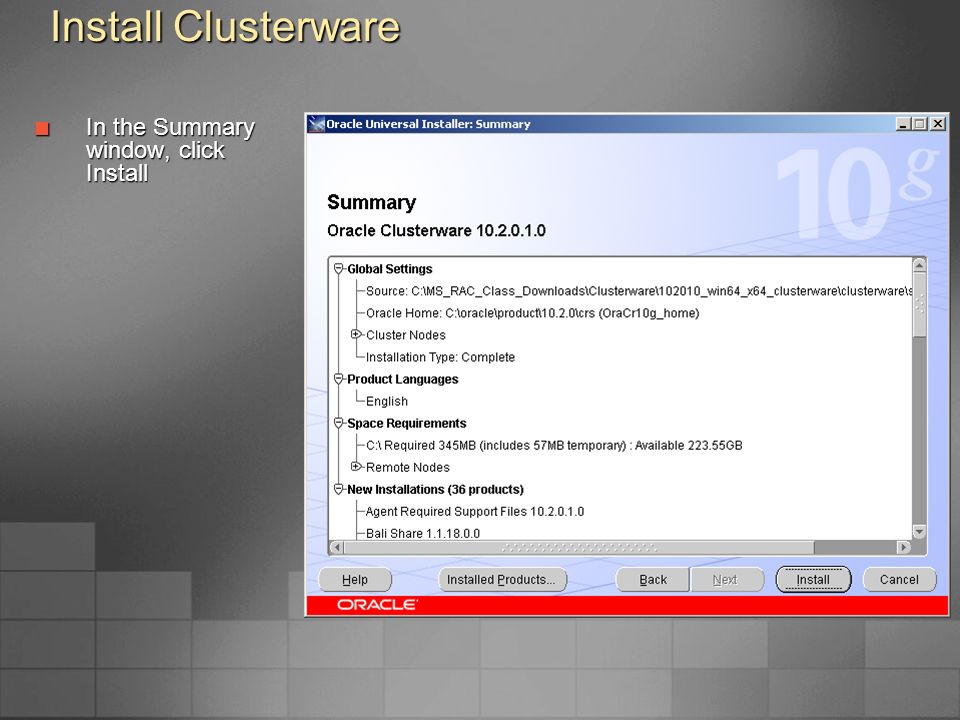

61. Install Clusterware In the Summary window, click Install

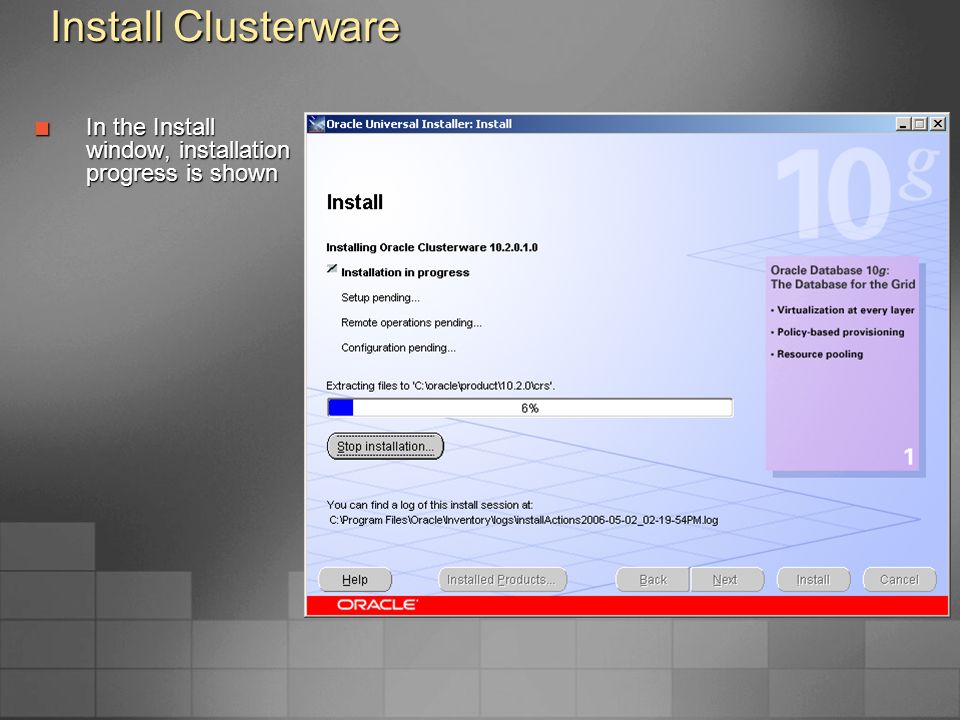

62. Install Clusterware In the Install window, installation progress is shown

63. Install Clusterware The Configuration Assistants window is displayed Make sure that the assistants located above the Virtual Private IP Configuration Assistant do not fail Talk to your instructor if you have a failure in the first section of the Configuration Assistants Talk to your instructor if you have a failure in the first section of the Configuration Assistants

64. Install Clusterware The VIPCA assistant will fail This is expected, since we are using a “10.10” public network This is expected, since we are using a “10.10” public network Click OK

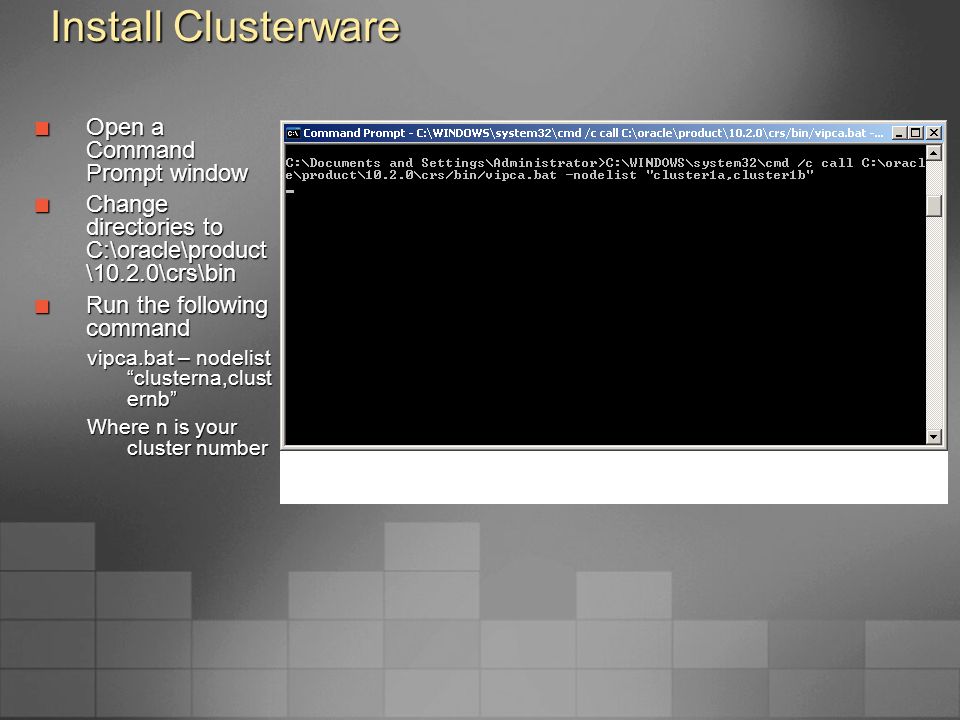

65. Install Clusterware Open a Command Prompt window Change directories to C:\oracle\product \10.2.0\crs\bin Run the following command vipca.bat – nodelist “clusterna,clust ernb” Where n is your cluster number

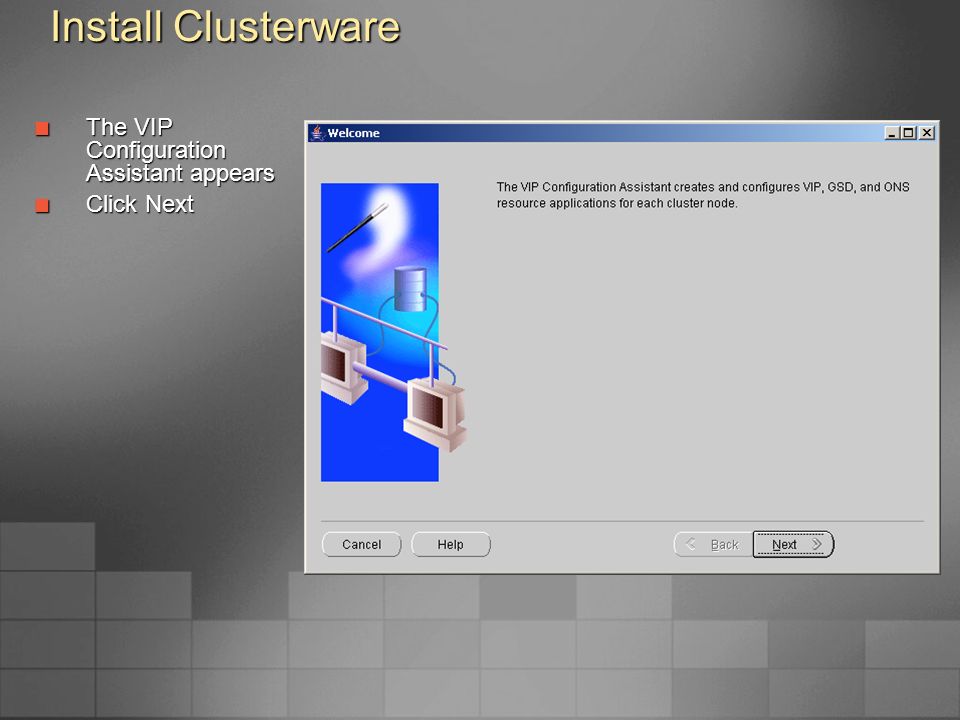

66. Install Clusterware The VIP Configuration Assistant appears Click Next

67. Install Clusterware In the next window, select the Public interface Click on the Select All button Click Next

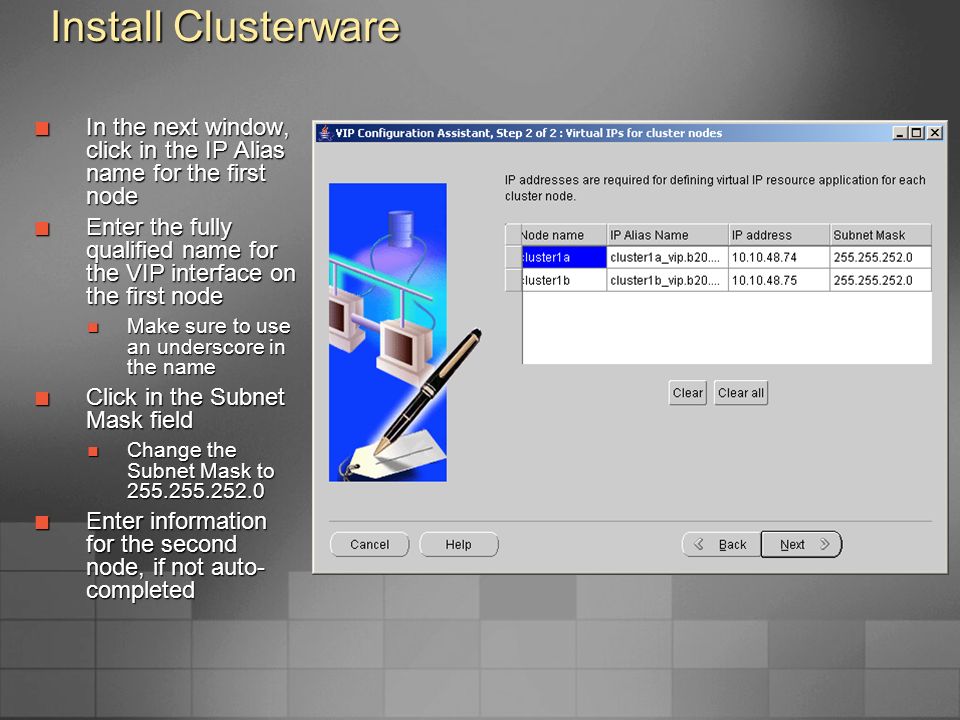

68. Install Clusterware In the next window, click in the IP Alias name for the first node Enter the fully qualified name for the VIP interface on the first node Make sure to use an underscore in the name Make sure to use an underscore in the name Click in the Subnet Mask field Change the Subnet Mask to 255.255.252.0 Change the Subnet Mask to 255.255.252.0 Enter information for the second node, if not auto- completed

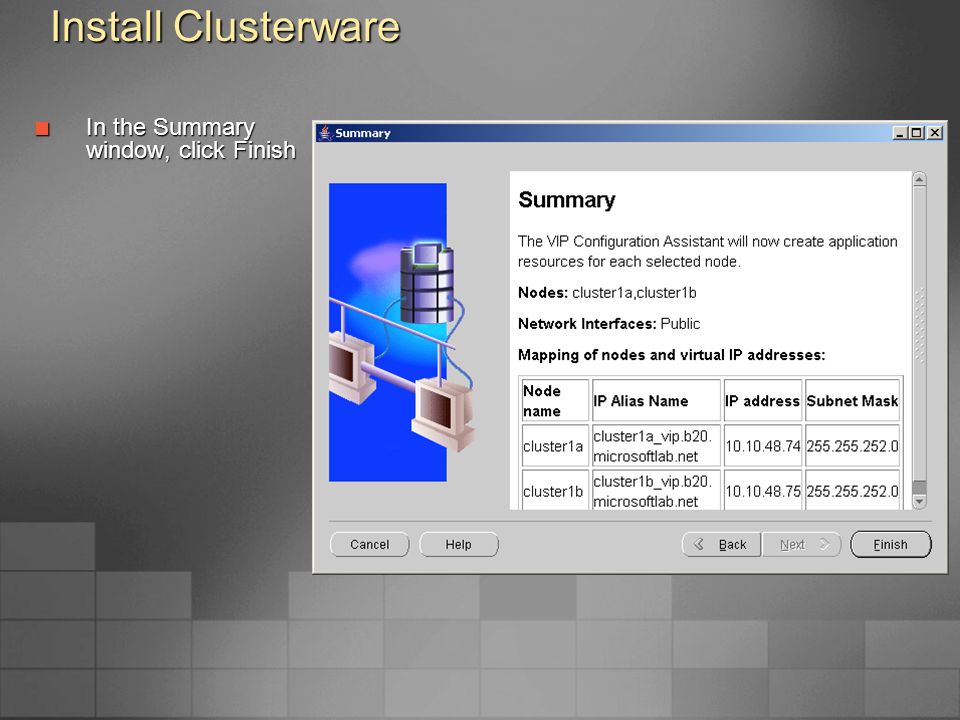

69. Install Clusterware In the Summary window, click Finish

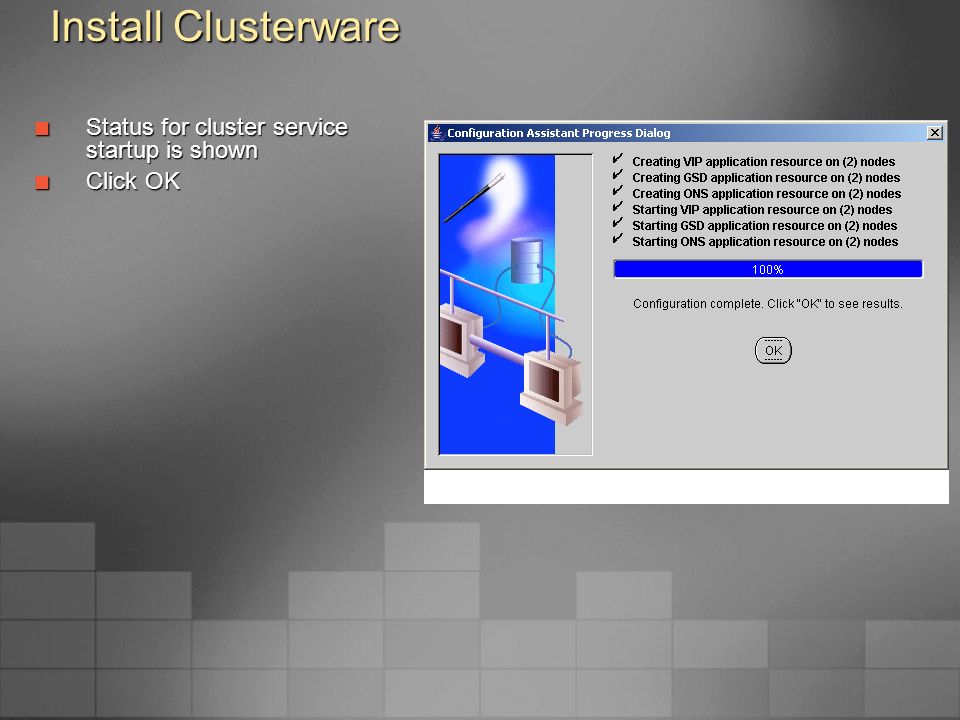

70. Install Clusterware Status for cluster service startup is shown Click OK

71. Install Clusterware In the Configuration Results window, click Exit

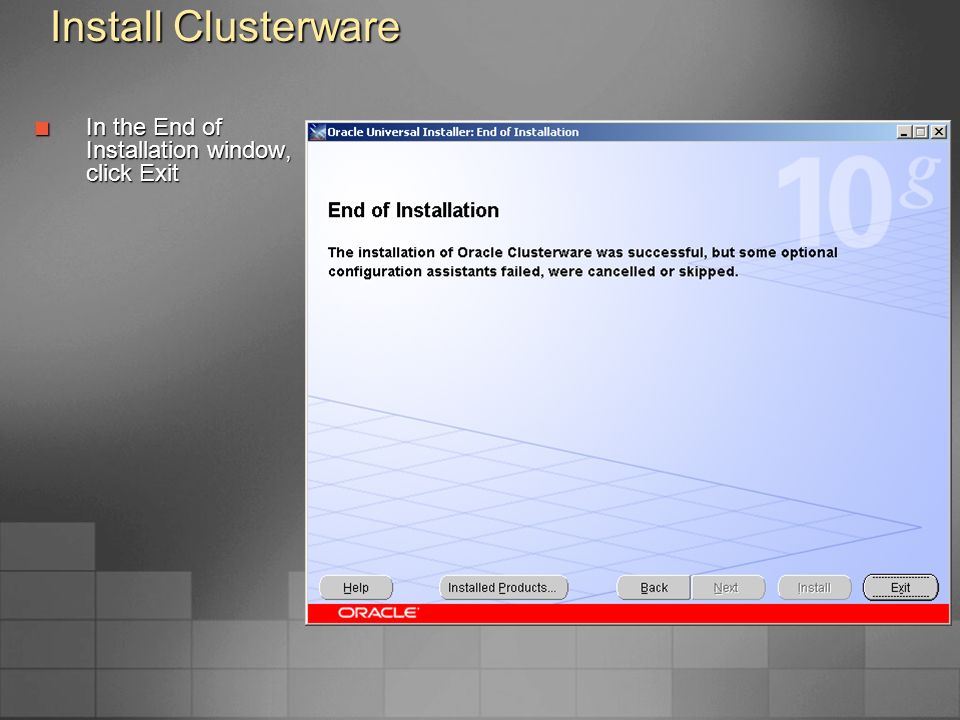

72. Install Clusterware In the End of Installation window, click Exit

73. Cluster Verification Script Open a Command Tool window Change directories to the class MS_RAC_Class_Download s directory In the command window, change directories to locate the clusterware\cluvfy directory Run the following command runcluvfy.bat stage –post crsinst –n clusterna,clusternb Where n is your cluster number

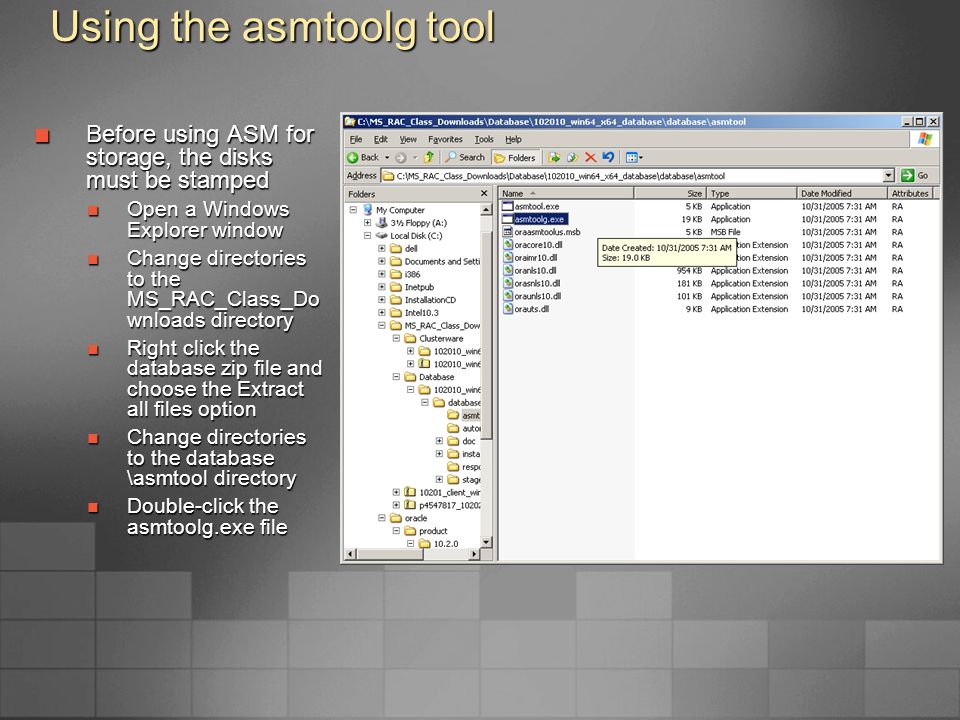

74. Using the asmtoolg tool Before using ASM for storage, the disks must be stamped Open a Windows Explorer window Open a Windows Explorer window Change directories to the MS_RAC_Class_Do wnloads directory Change directories to the MS_RAC_Class_Do wnloads directory Right click the database zip file and choose the Extract all files option Right click the database zip file and choose the Extract all files option Change directories to the database \asmtool directory Change directories to the database \asmtool directory Double-click the asmtoolg.exe file Double-click the asmtoolg.exe file

75. Using the asmtoolg tool In the next wndow, select the Add or change label window Click Next

76. Using the asmtoolg tool Click on the first available file of size 9985 MB Make sure that you do not write over existing Oracle disks, check with your instructor to be sure Make sure that you do not write over existing Oracle disks, check with your instructor to be sure Change the prefix to CLASSDATA Click Next

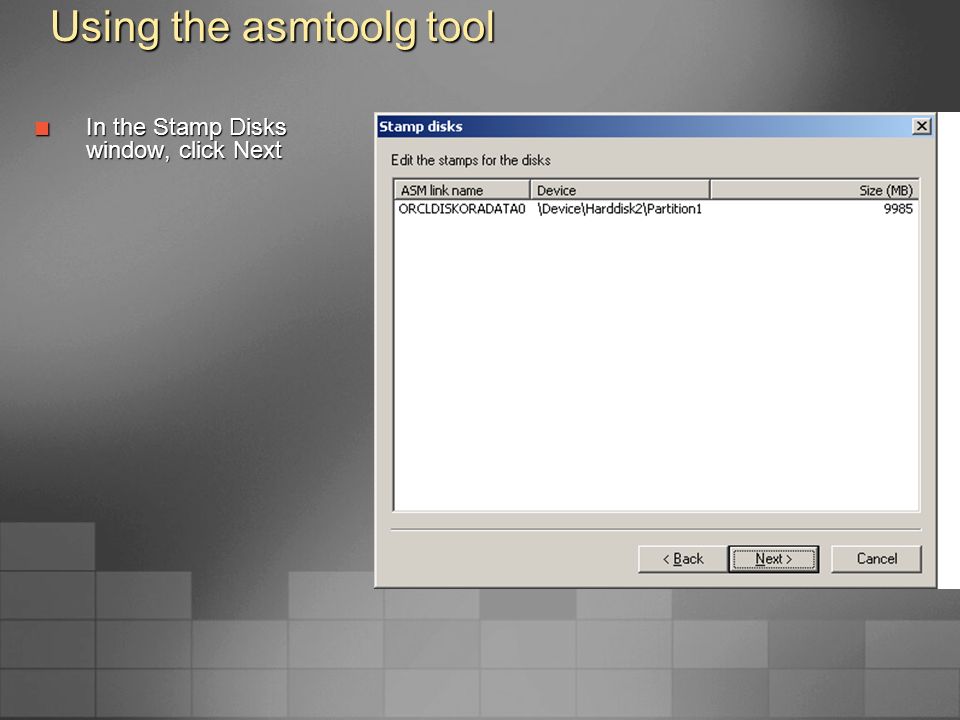

77. Using the asmtoolg tool In the Stamp Disks window, click Next

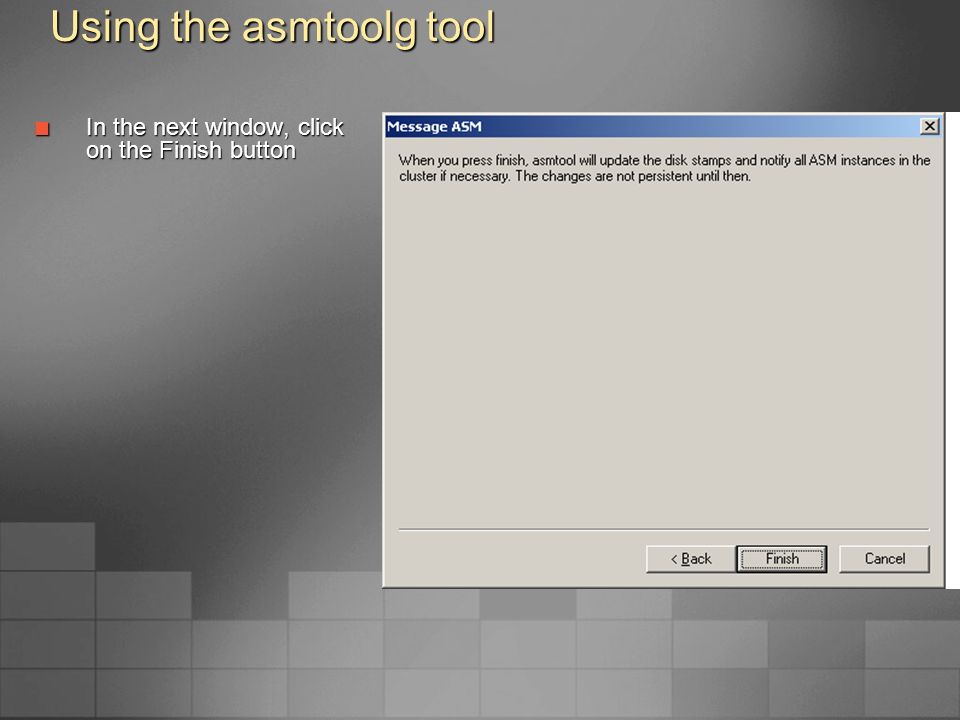

78. Using the asmtoolg tool In the next window, click on the Finish button

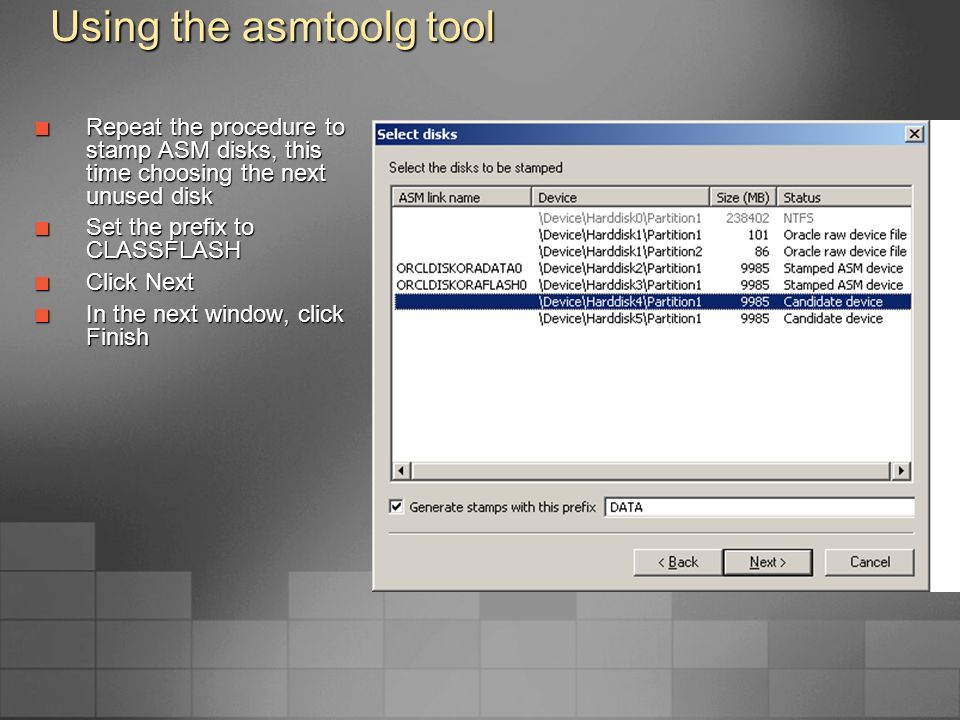

79. Using the asmtoolg tool Repeat the procedure to stamp ASM disks, this time choosing the next unused disk Set the prefix to CLASSFLASH Click Next In the next window, click Finish

80. Installing Database Software Open a Windows Explorer window Change directories to the class MS_RAC_Class _Downloads directory Double-click the setup.exe file

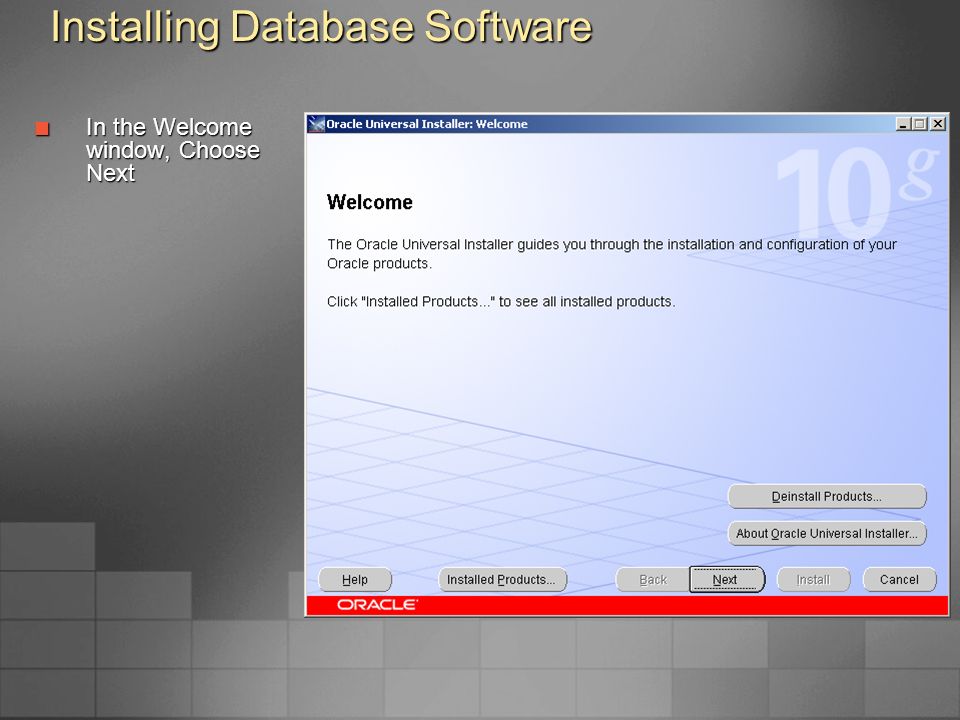

81. Installing Database Software In the Welcome window, Choose Next

82. Installing Database Software In the Select Installation Type window, choose Custom There are useful Windows-specific administrative tools that are not installed by default There are useful Windows-specific administrative tools that are not installed by default Click Next

83. Installing Database Software In the Specify Home Details window, make sure the Path is to the db_1 directory Click Next

84. Installing Database Software In the Specify Hardware Cluster Installation Mode window, make sure all nodes are selected Click Next

85. Installing Database Software In the Available Product Components window, click the Oracle Windows Interfaces 10.2.0.1.0 option Select Oracle Administration Assistant for Windows 10.2.1.0 Select Oracle Administration Assistant for Windows 10.2.1.0 Select Counters for Windows Performance Monitor 10.2.0.1.0 Select Counters for Windows Performance Monitor 10.2.0.1.0 Deselect any other Oracle Windows Interfaces options Deselect any other Oracle Windows Interfaces options Check the iSQL Plus 10.2.0.1.0 option Click Next

86. Installing Database Software In the Product- Specific Prerequisite Checks window, make sure all pre- requisite checks are successful Click Next

87. Installing Database Software In the Create Database window, choose Install database Software only Click Next

88. Installing Database Software In the Summary window, choose Install

89. Installing Database Software In the Install window, installation progress is displayed

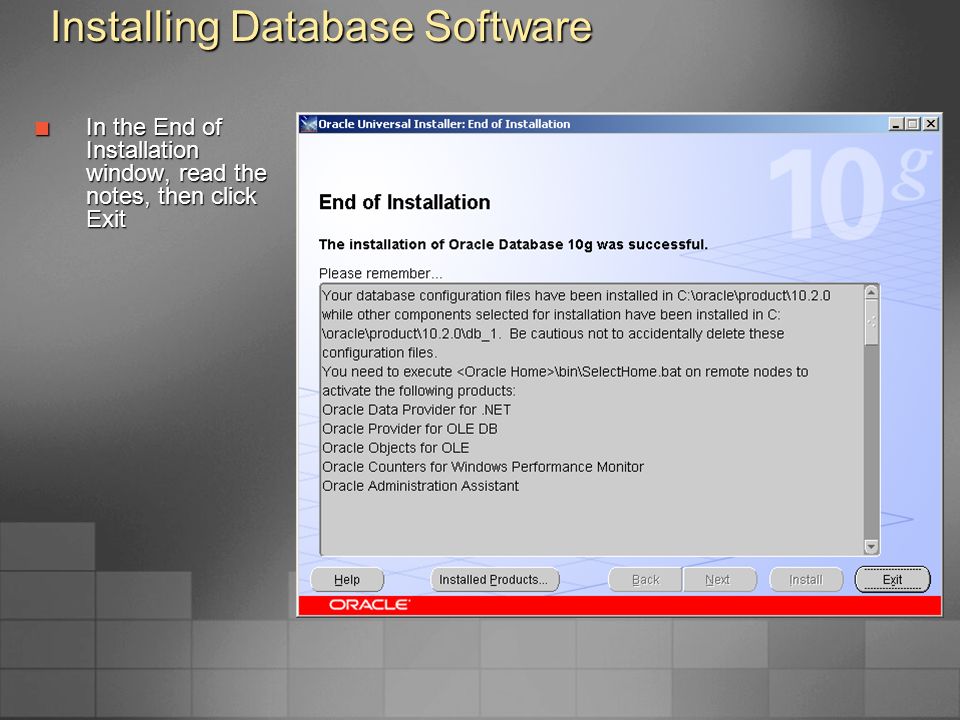

90. Installing Database Software In the End of Installation window, read the notes, then click Exit

91. Installing Database Software On the second node, open a Command Prompt window Change directories to the C:\oracle\product\10.2.0\d b_1\bin directory Run the command selecthome.bat Exit the window

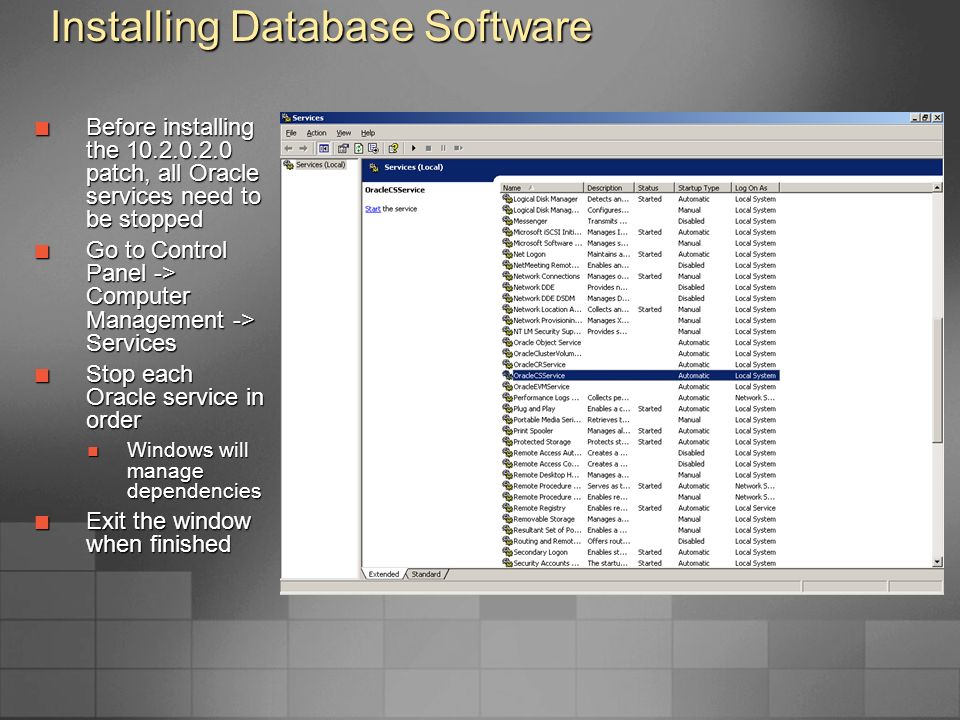

92. Installing Database Software Before installing the 10.2.0.2.0 patch, all Oracle services need to be stopped Go to Control Panel -> Computer Management -> Services Stop each Oracle service in order Windows will manage dependencies Windows will manage dependencies Exit the window when finished

93. Installing Database Software On the taskbar at the bottom of the Windows session, right-click and select Task Manager Locate all ons.exe processes (there are usually at least two), and click the End Process button for each process

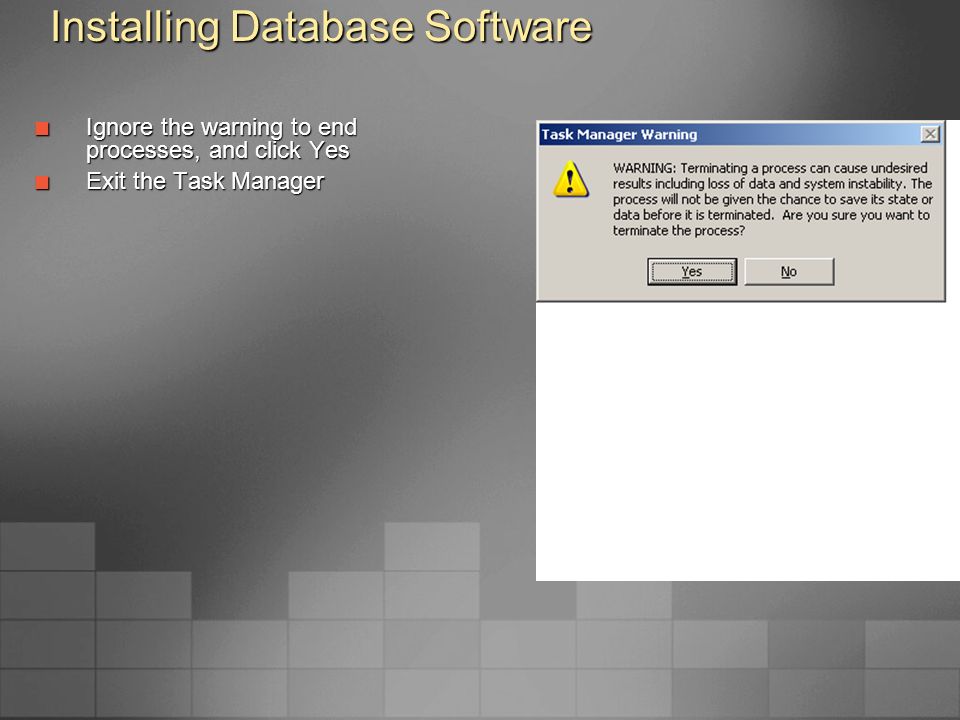

94. Installing Database Software Ignore the warning to end processes, and click Yes Exit the Task Manager

95. Installing Database Patch Software Open a Windows Explorer window Change directories to the class MS_RAC_Cla ss_Download s directory Right click the 10.2.0.2.0 patch zip file and choose the Extract all files option Change directories to the patch directory that is generated Doubleick the setup.exe file

96. Installing Database Patch Software In the Welcome window, click Next

97. Installing Database Patch Software In the Specify Home Details window, make sure that you choose the CLUSTER home (not the default) Click Next

98. Installing Database Patch Software In the “Specify Hardware Cluster Installation Mode” window, all cluster nodes are chosen by default Click Next

99. Installing Database Patch Software In the Summary window, click Install

100. Installing Database Patch Software In the End of Installation window, ignore the note to shut down services You will need to run the post- patch batch file You will need to run the post- patch batch file Click Exit

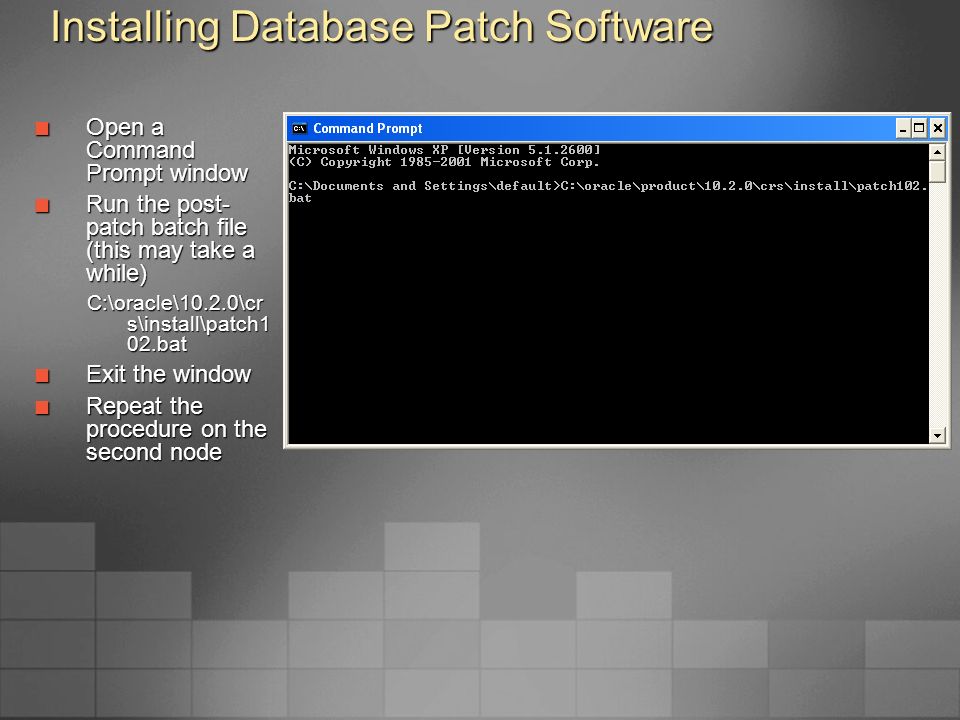

101. Installing Database Patch Software Open a Command Prompt window Run the post- patch batch file (this may take a while) C:\oracle\10.2.0\cr s\install\patch1 02.bat Exit the window Repeat the procedure on the second node

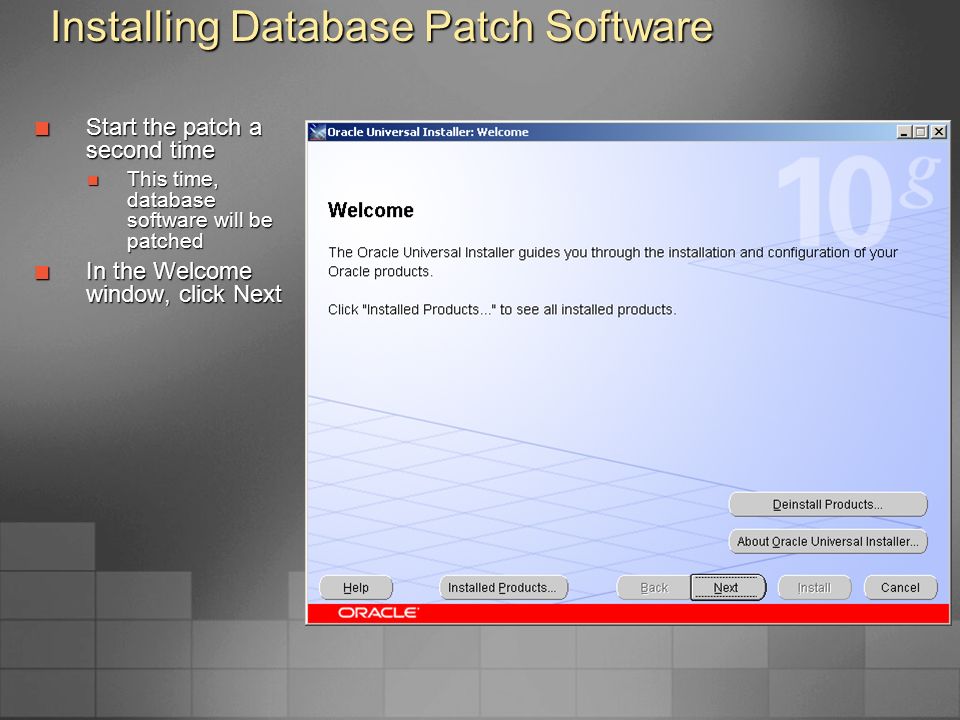

102. Installing Database Patch Software Start the patch a second time This time, database software will be patched This time, database software will be patched In the Welcome window, click Next

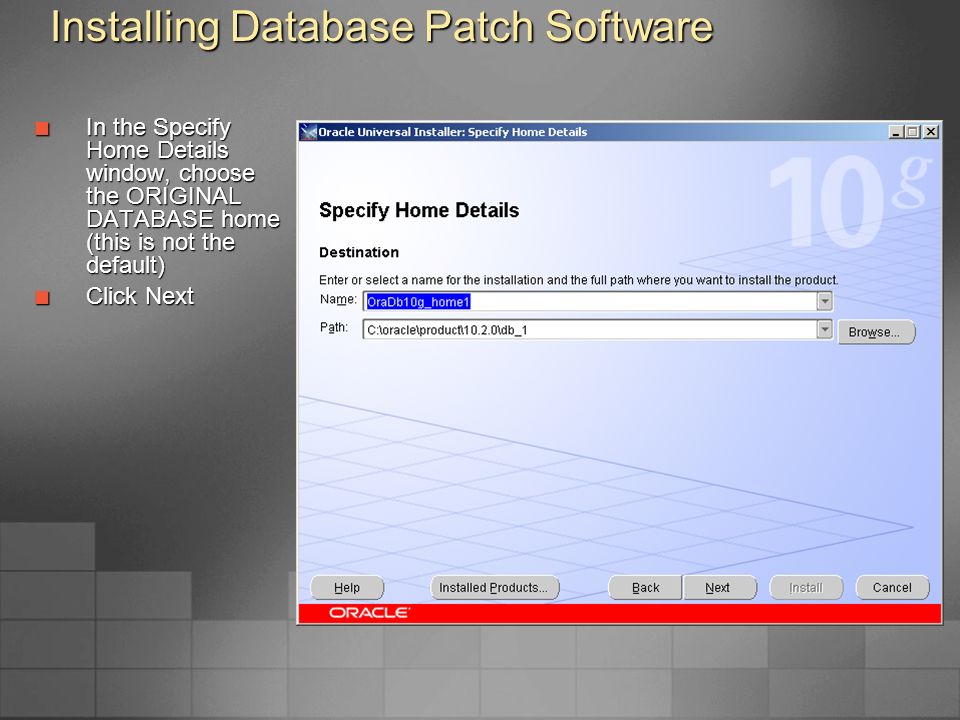

103. Installing Database Patch Software In the Specify Home Details window, choose the ORIGINAL DATABASE home (this is not the default) Click Next

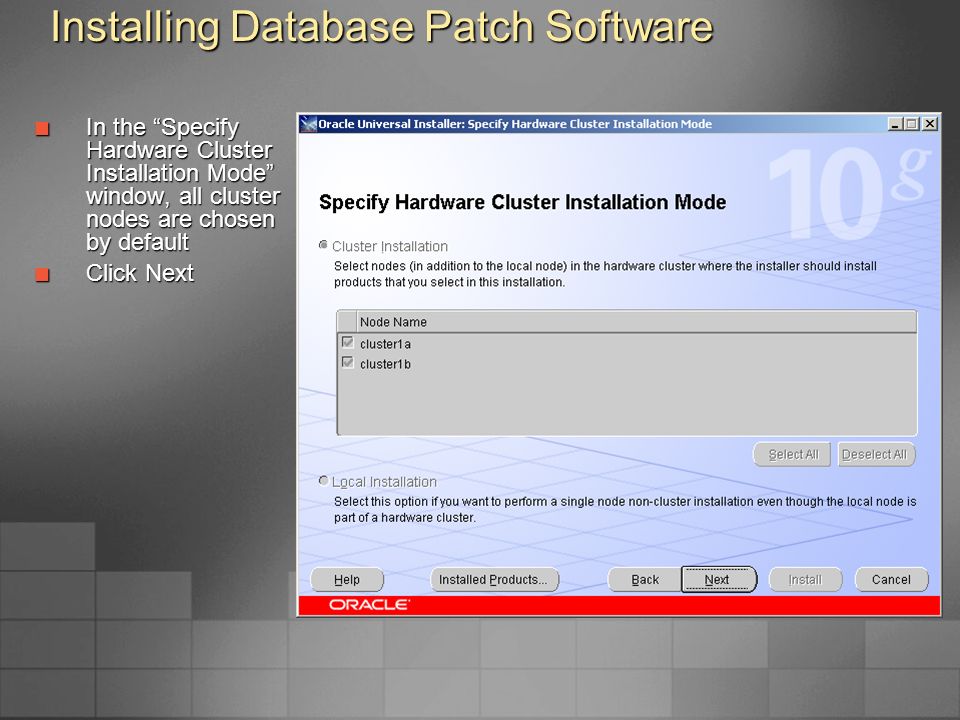

104. Installing Database Patch Software In the “Specify Hardware Cluster Installation Mode” window, all cluster nodes are chosen by default Click Next

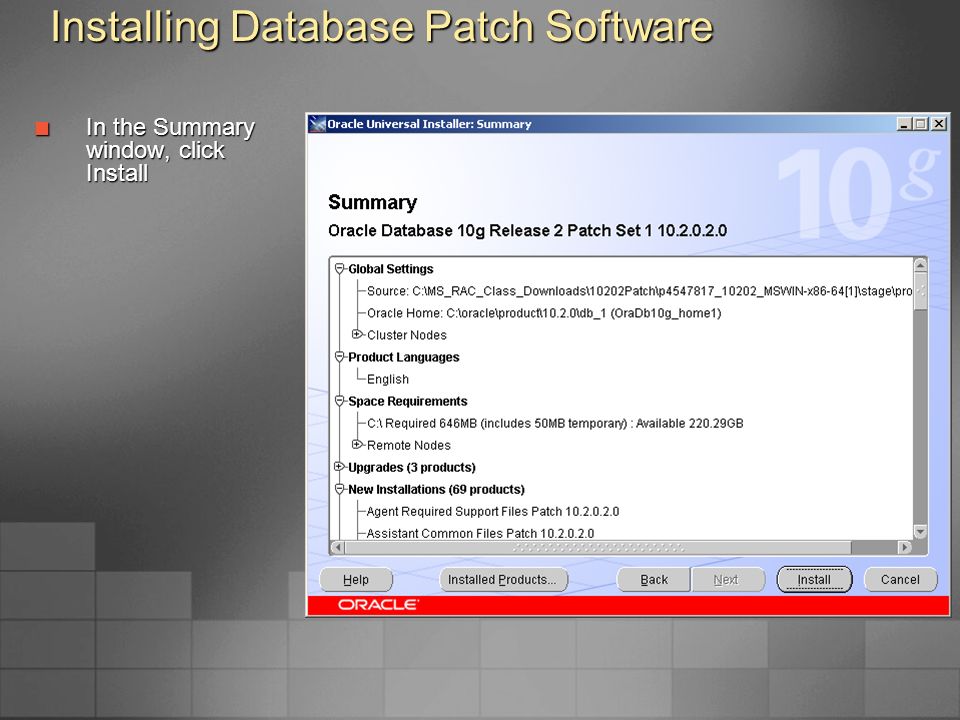

105. Installing Database Patch Software In the Summary window, click Install

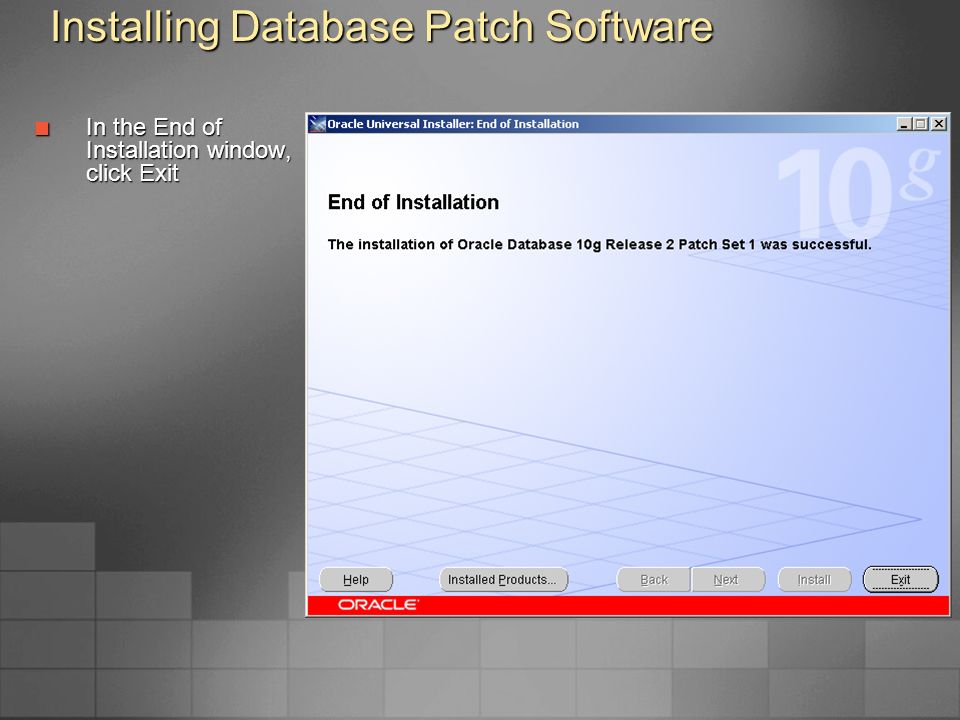

106. Installing Database Patch Software In the End of Installation window, click Exit

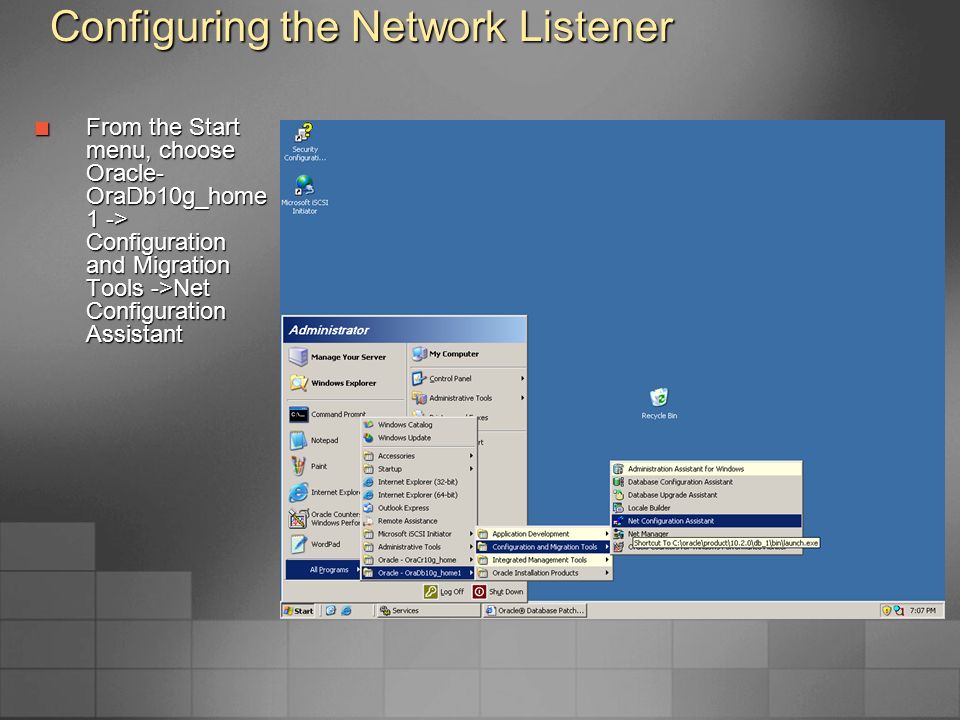

107. Configuring the Network Listener From the Start menu, choose Oracle- OraDb10g_home 1 -> Configuration and Migration Tools ->Net Configuration Assistant

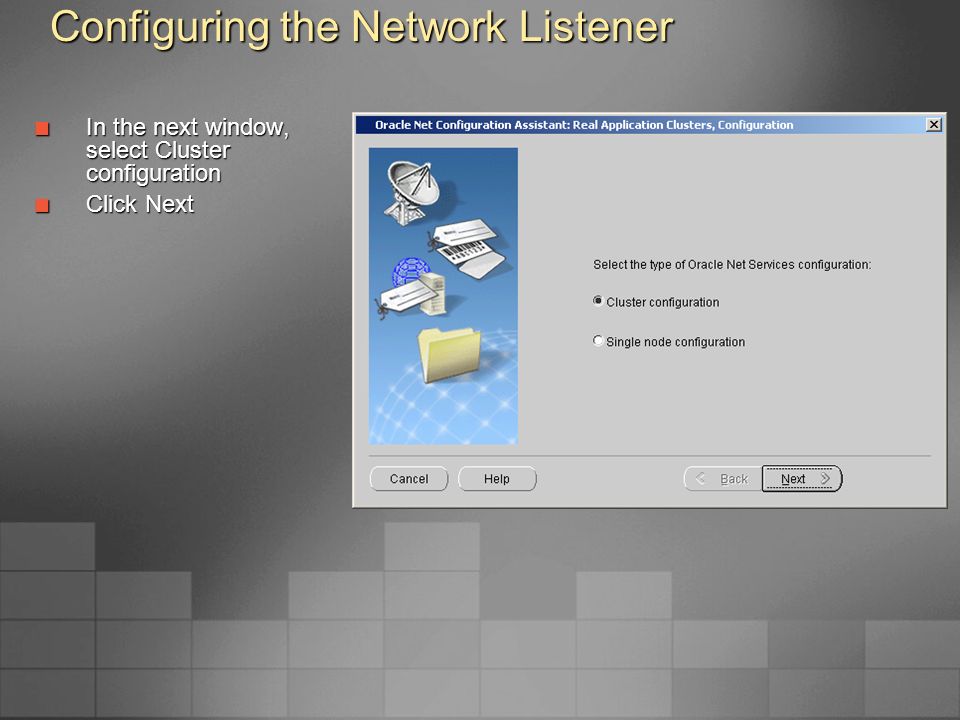

108. Configuring the Network Listener In the next window, select Cluster configuration Click Next

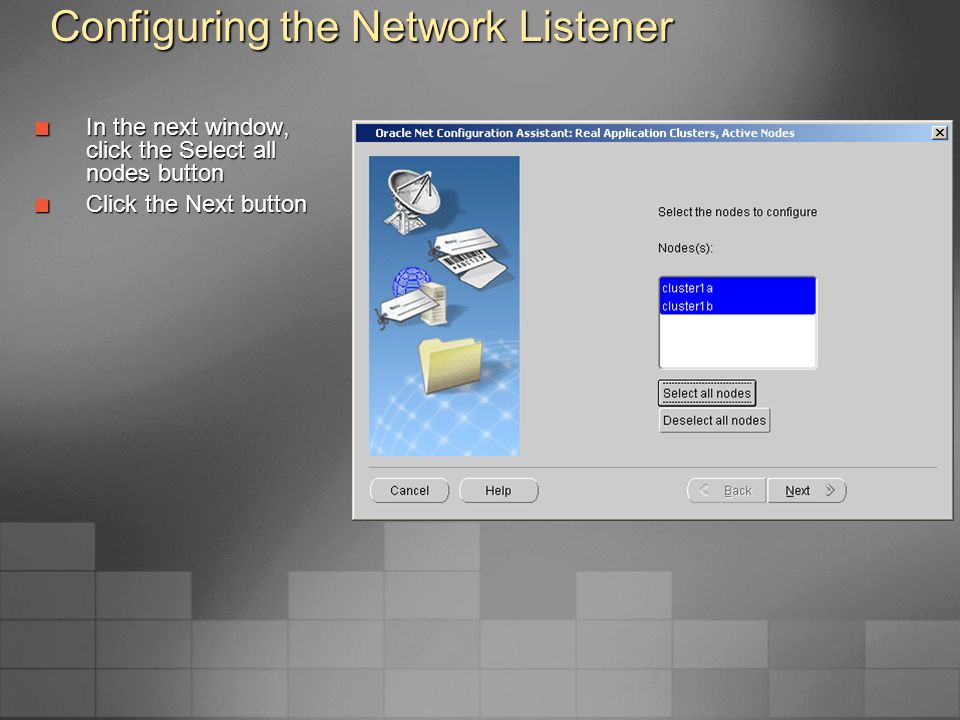

109. Configuring the Network Listener In the next window, click the Select all nodes button Click the Next button

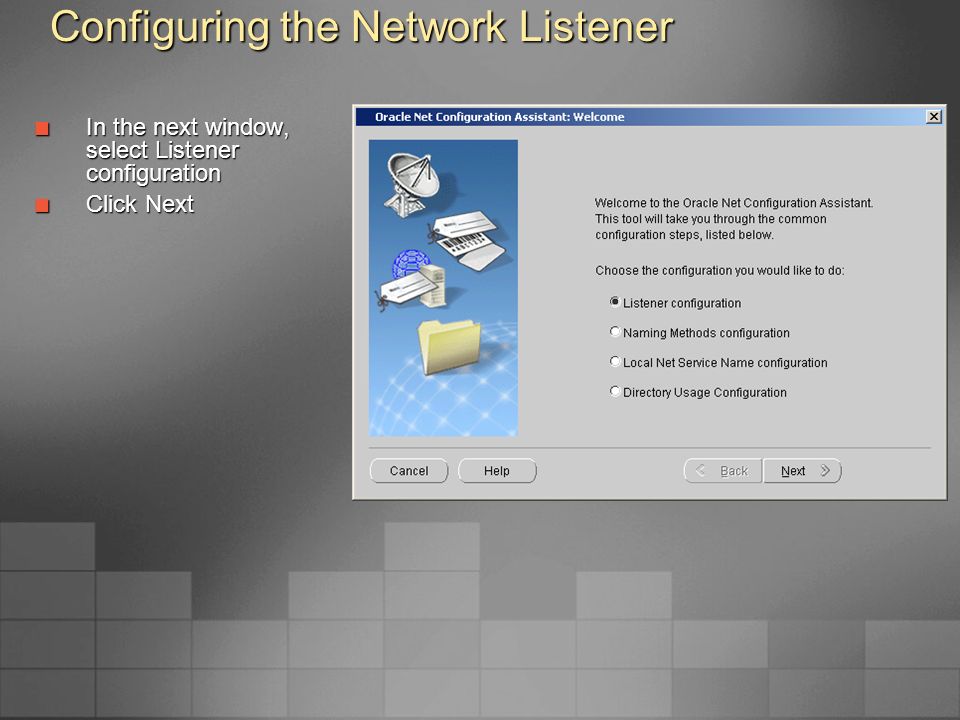

110. Configuring the Network Listener In the next window, select Listener configuration Click Next

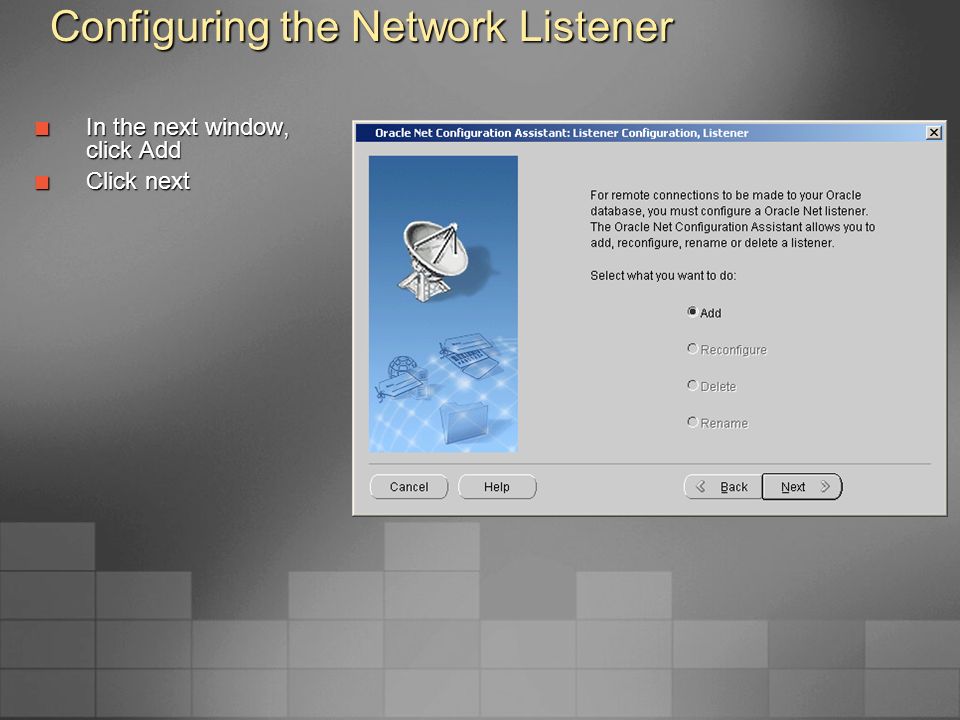

111. Configuring the Network Listener In the next window, click Add Click next

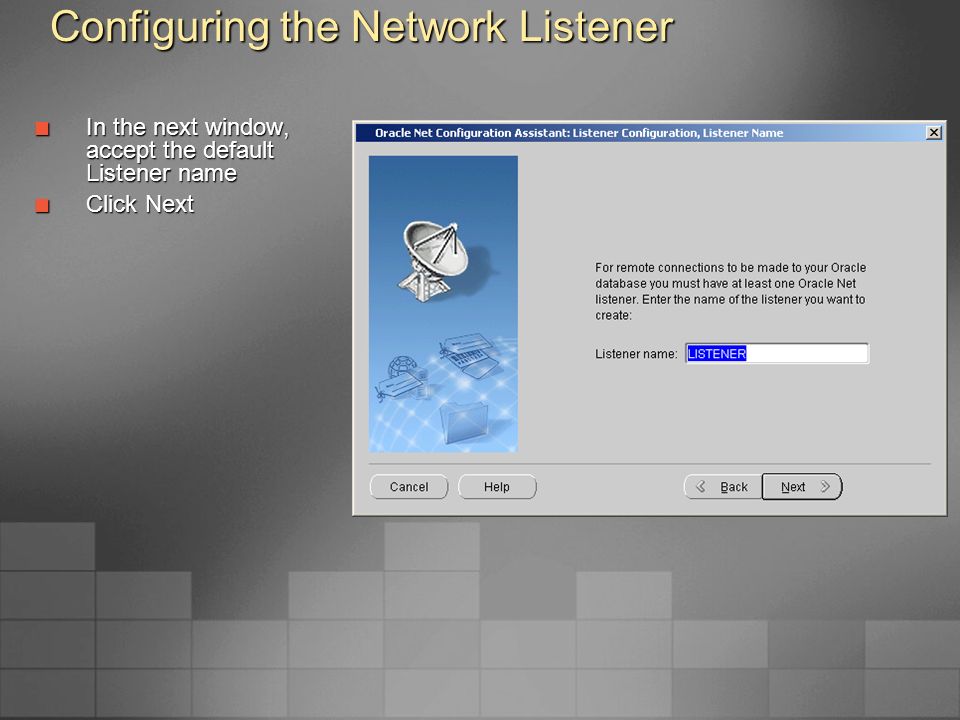

112. Configuring the Network Listener In the next window, accept the default Listener name Click Next

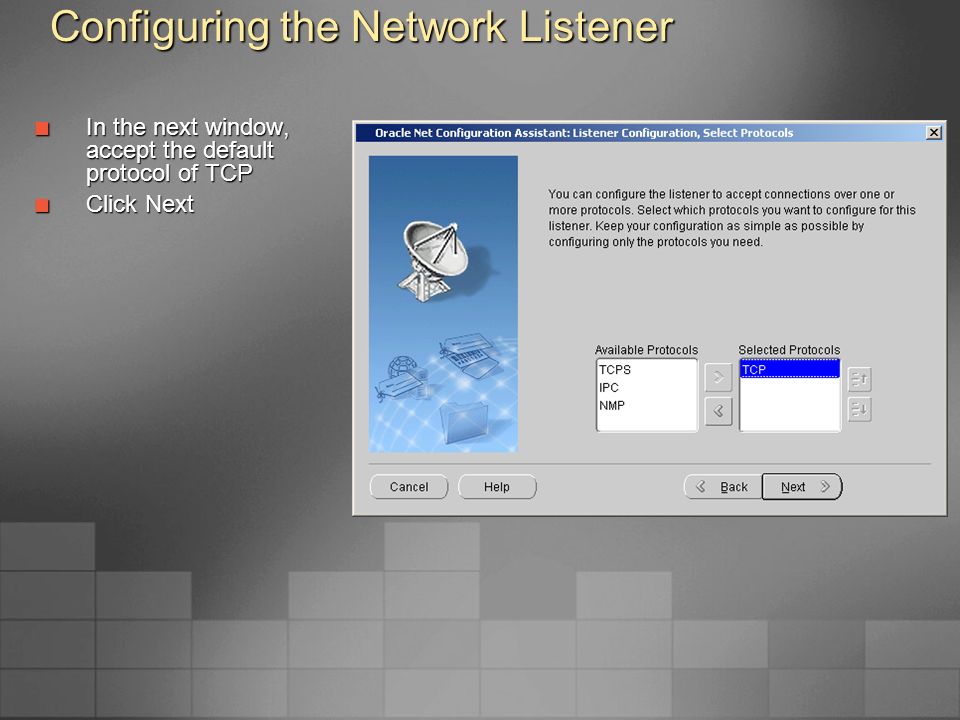

113. Configuring the Network Listener In the next window, accept the default protocol of TCP Click Next

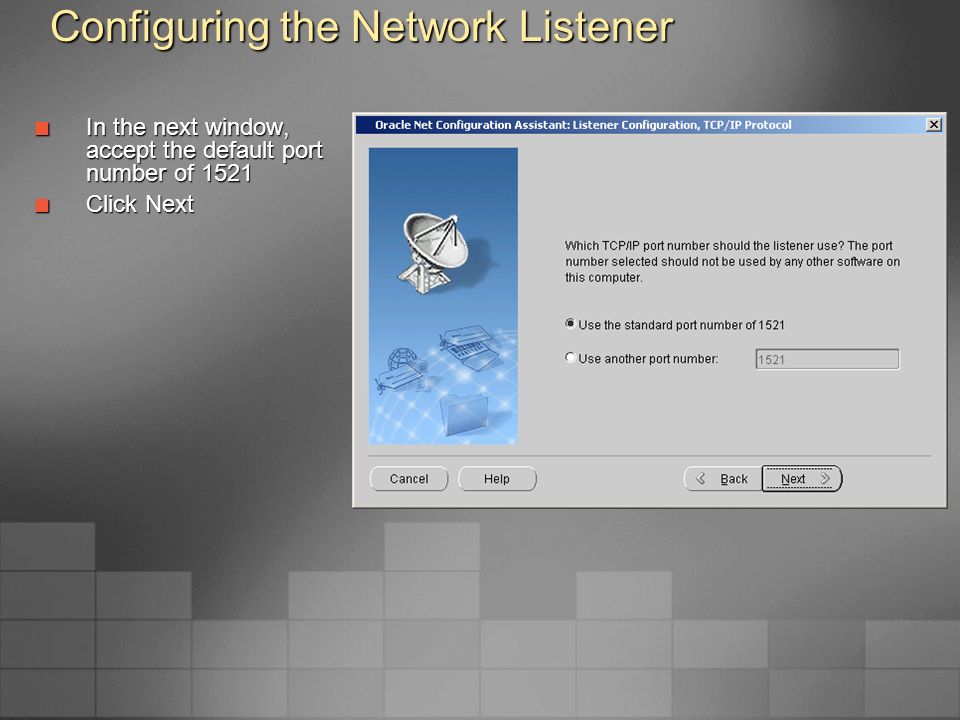

114. Configuring the Network Listener In the next window, accept the default port number of 1521 Click Next

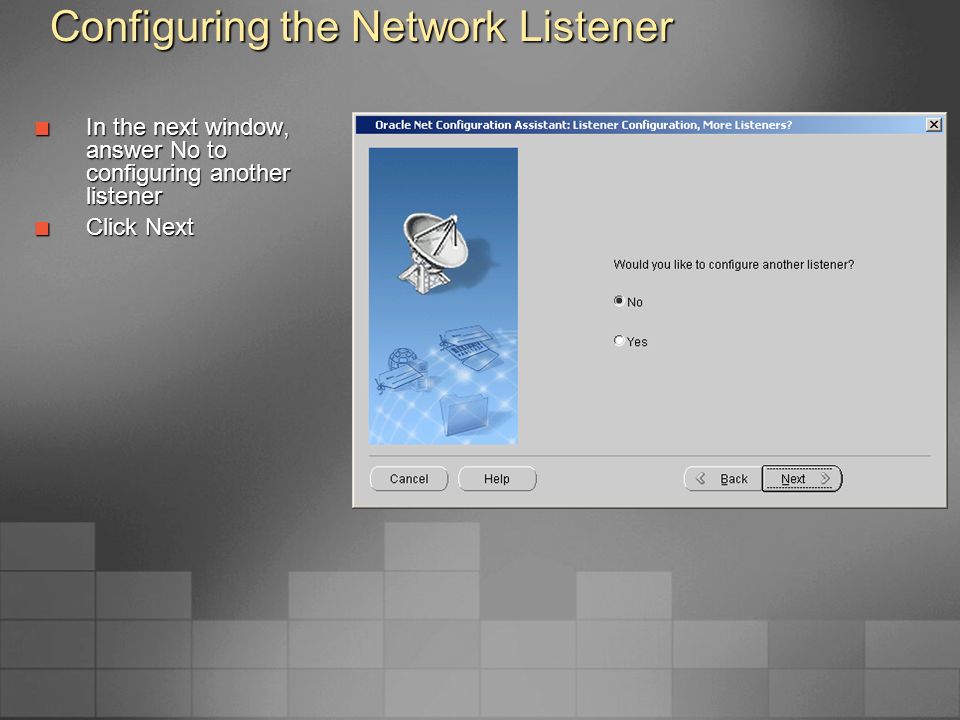

115. Configuring the Network Listener In the next window, answer No to configuring another listener Click Next

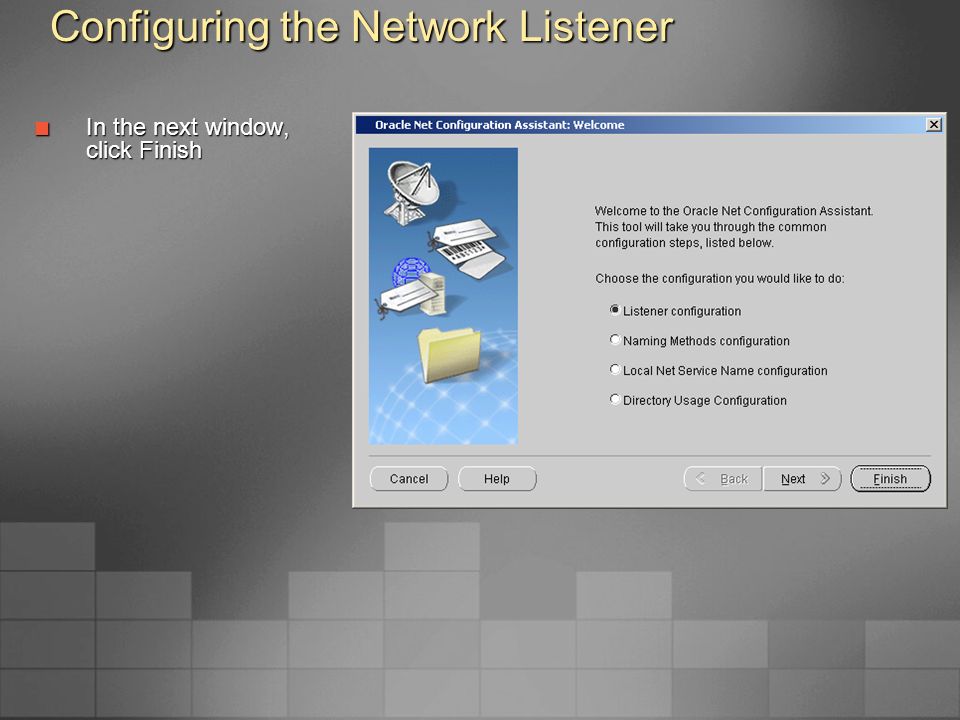

116. Configuring the Network Listener In the next window, click Finish

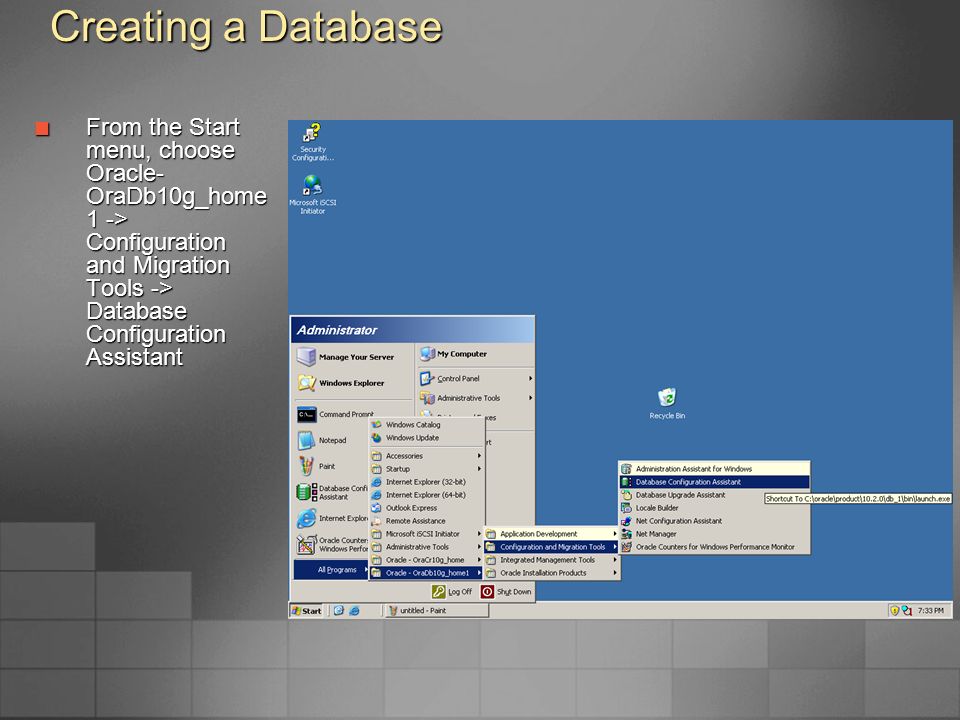

117. Creating a Database From the Start menu, choose Oracle- OraDb10g_home 1 -> Configuration and Migration Tools -> Database Configuration Assistant

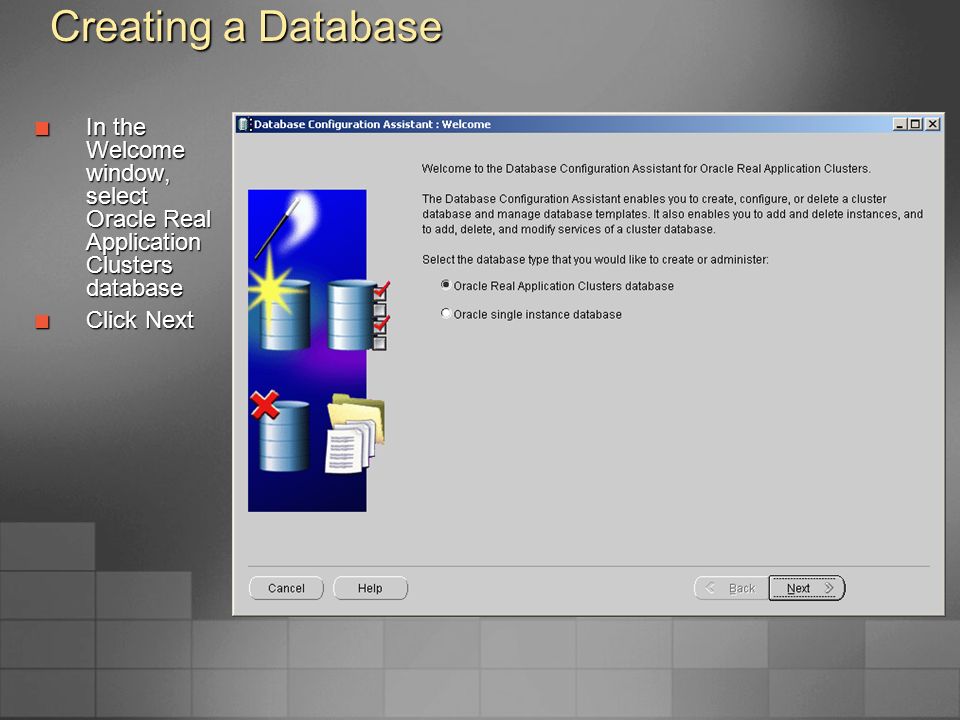

118. Creating a Database In the Welcome window, select Oracle Real Application Clusters database Click Next

119. Creating a Database In the next window, select Create a Database Click Next

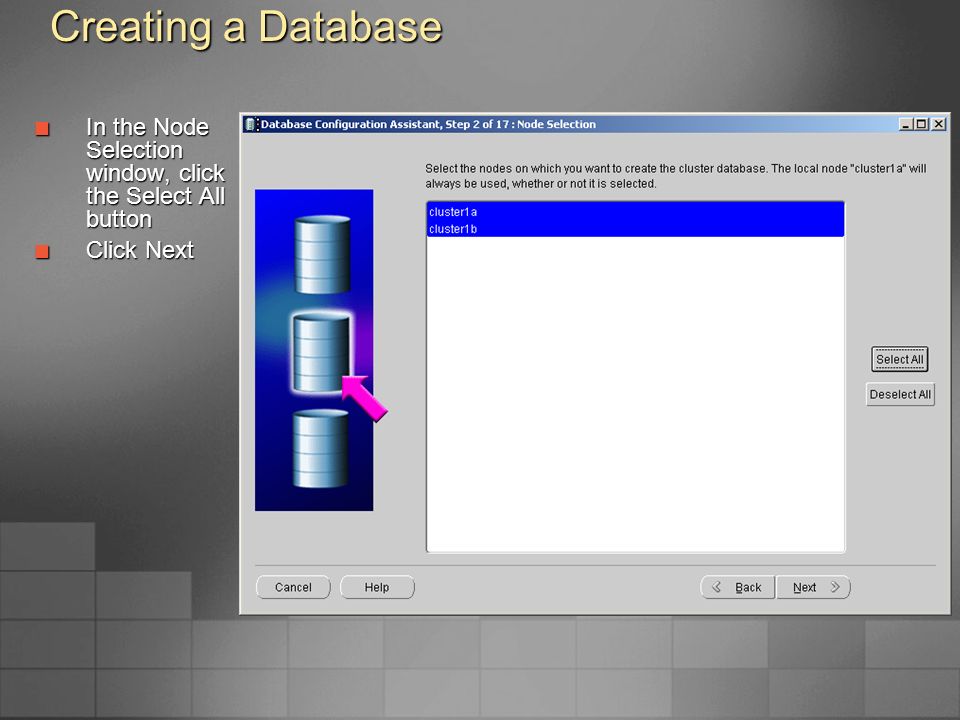

120. Creating a Database In the Node Selection window, click the Select All button Click Next

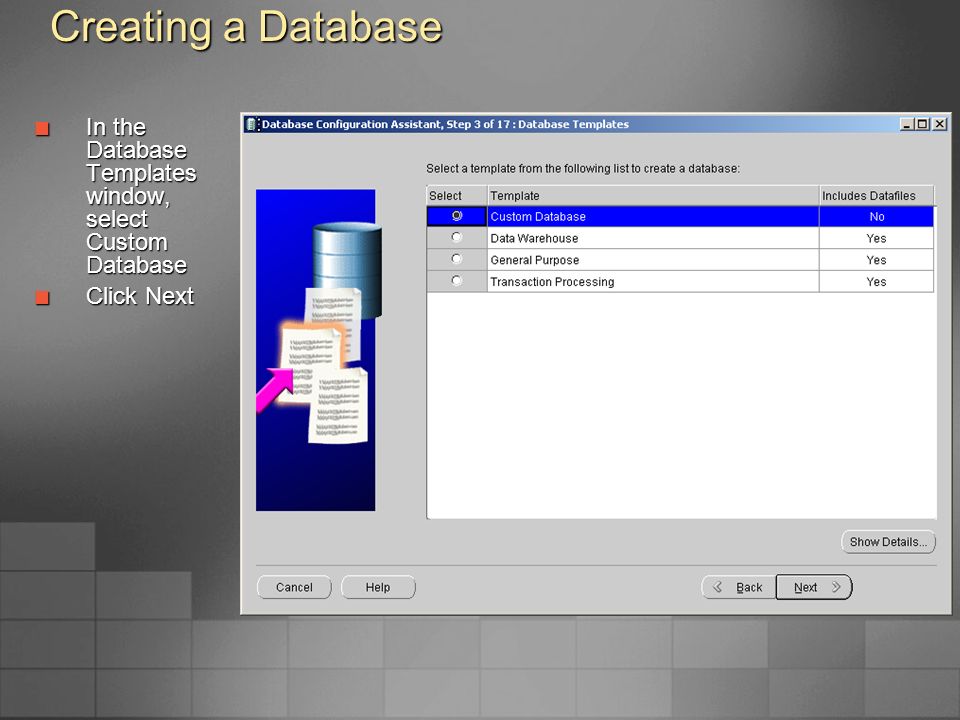

121. Creating a Database In the Database Templates window, select Custom Database Click Next

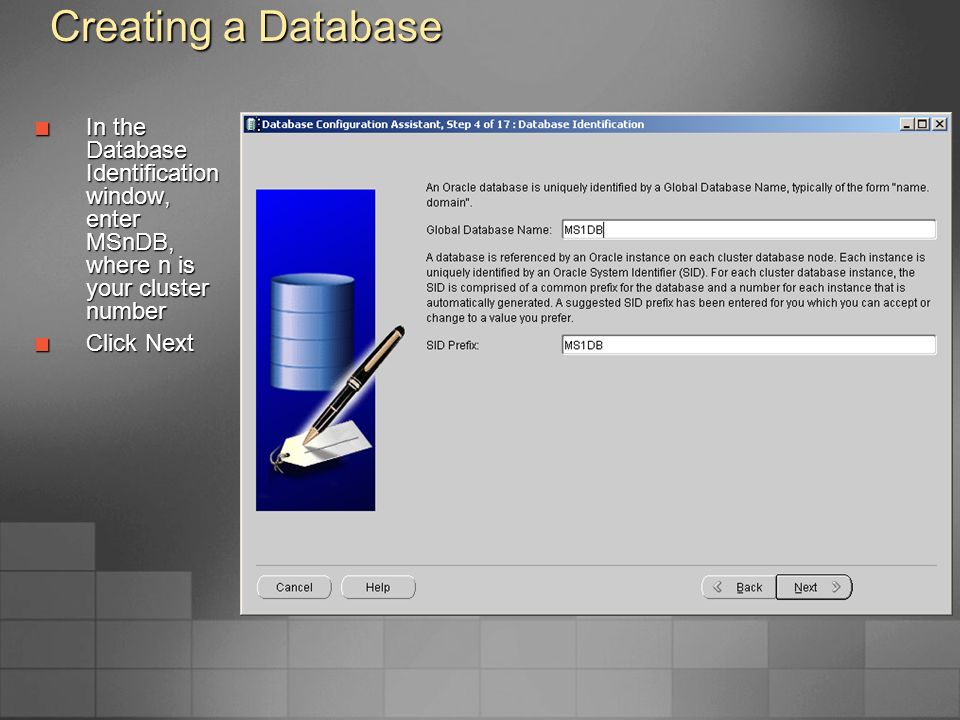

122. Creating a Database In the Database Identification window, enter MSnDB, where n is your cluster number Click Next

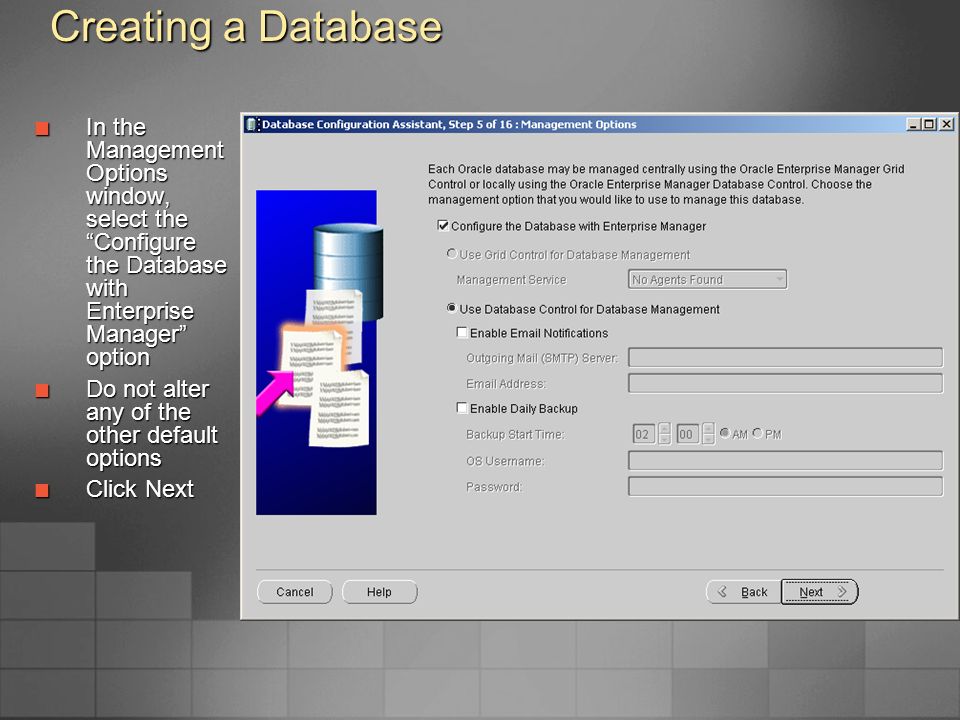

123. Creating a Database In the Management Options window, select the “Configure the Database with Enterprise Manager” option Do not alter any of the other default options Click Next

124. Creating a Database In the Database Credentials window, for classroom purposes, your instructor will suggest a common password for all databases Click Next

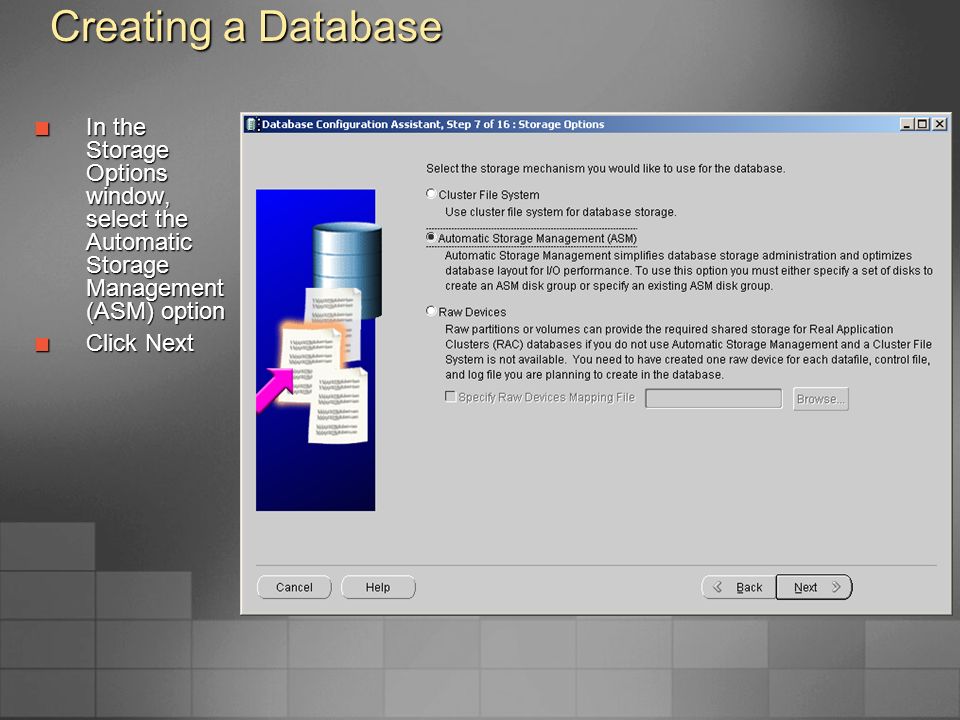

125. Creating a Database In the Storage Options window, select the Automatic Storage Management (ASM) option Click Next

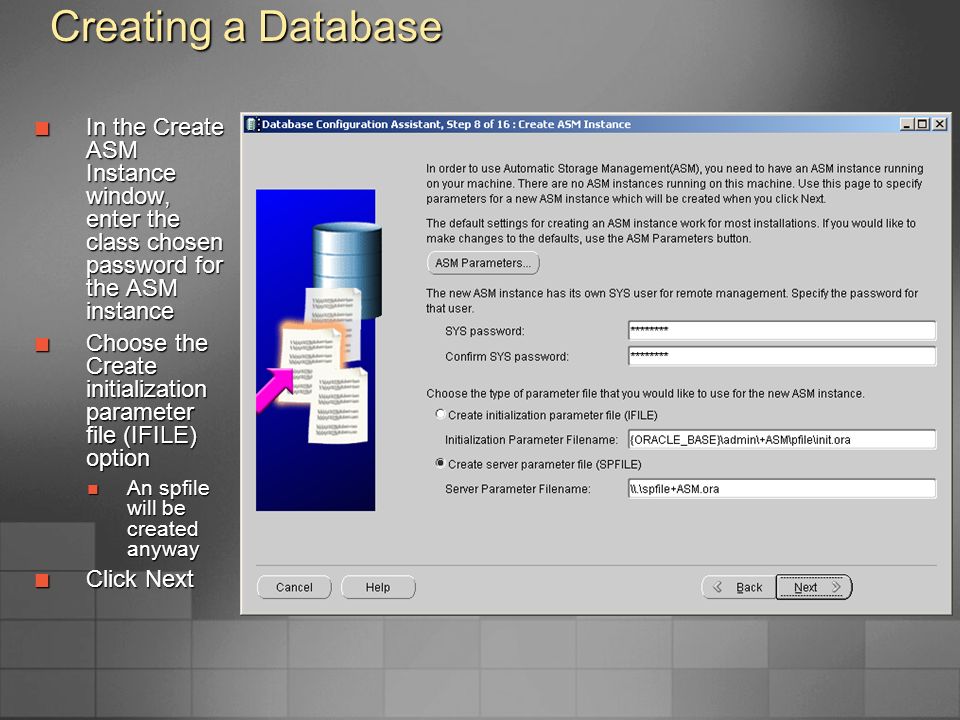

126. Creating a Database In the Create ASM Instance window, enter the class chosen password for the ASM instance Choose the Create initialization parameter file (IFILE) option An spfile will be created anyway An spfile will be created anyway Click Next

127. Creating a Database A message appears telling you that the ASM instance will be started. Click OK

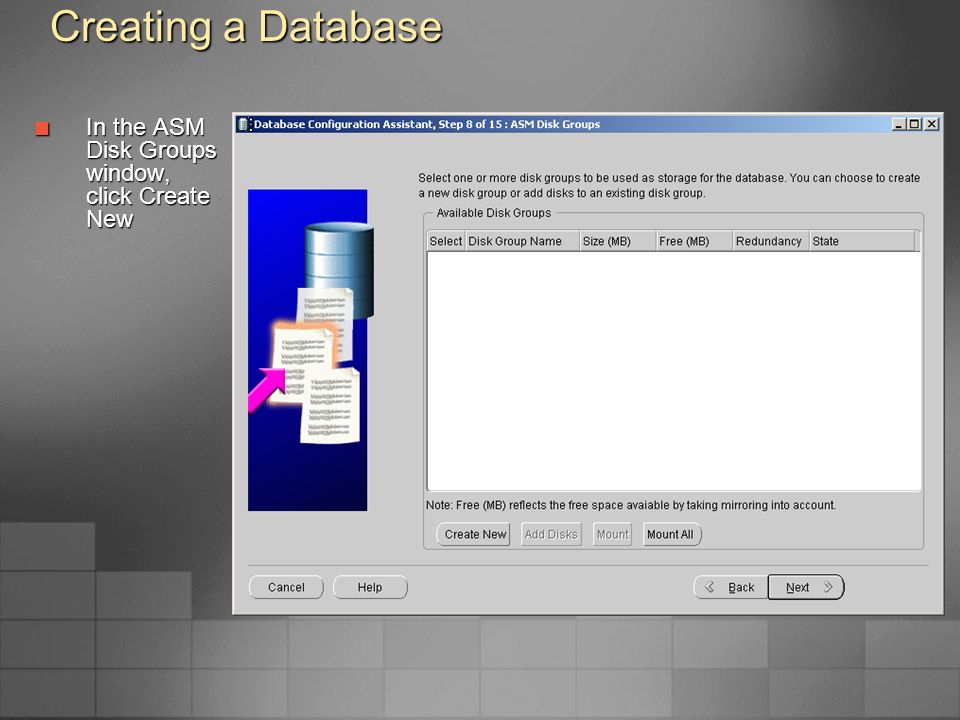

128. Creating a Database In the ASM Disk Groups window, click Create New

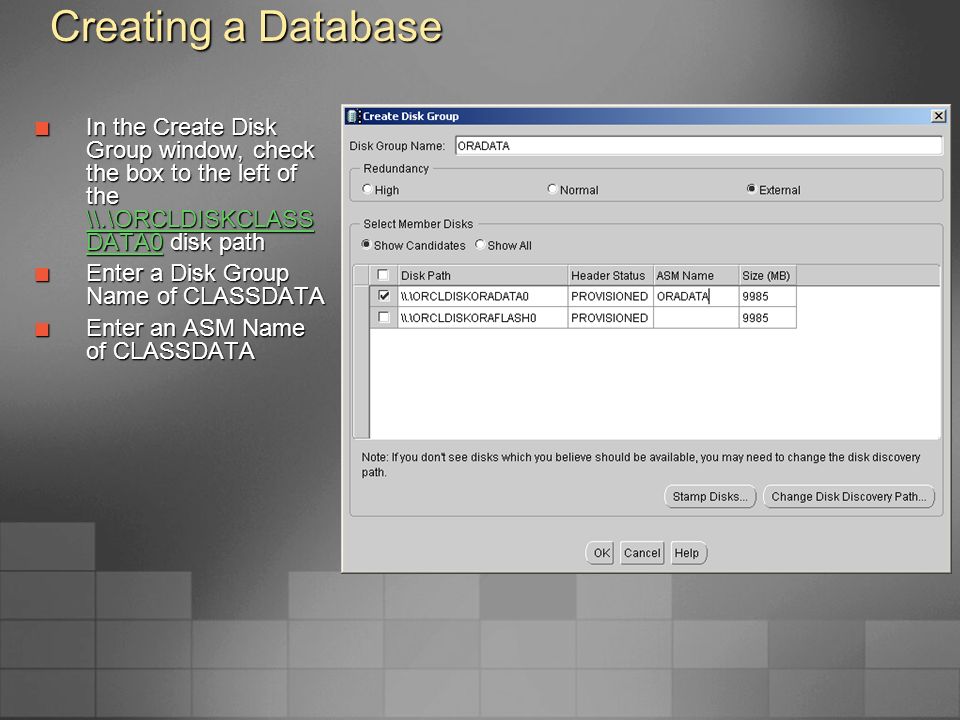

129. Creating a Database In the Create Disk Group window, check the box to the left of the \\.\ORCLDISKCLASS DATA0 disk path \\.\ORCLDISKCLASS DATA0 \\.\ORCLDISKCLASS DATA0 Enter a Disk Group Name of CLASSDATA Enter an ASM Name of CLASSDATA

130. Creating a Database In the ASM Disk Groups window, select Create New

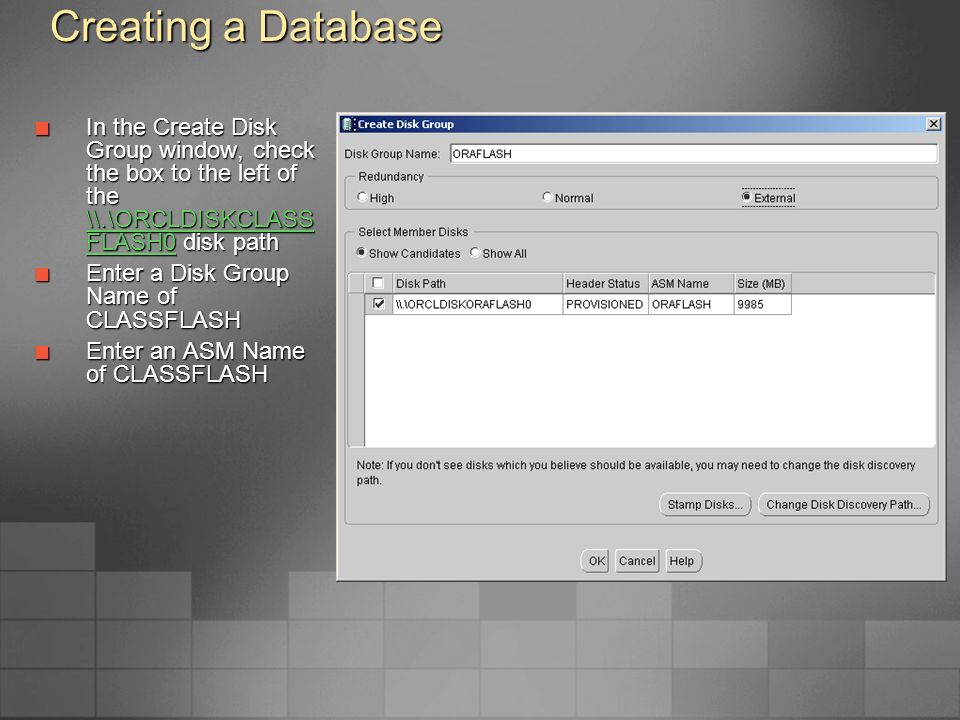

131. Creating a Database In the Create Disk Group window, check the box to the left of the \\.\ORCLDISKCLASS FLASH0 disk path \\.\ORCLDISKCLASS FLASH0 \\.\ORCLDISKCLASS FLASH0 Enter a Disk Group Name of CLASSFLASH Enter an ASM Name of CLASSFLASH

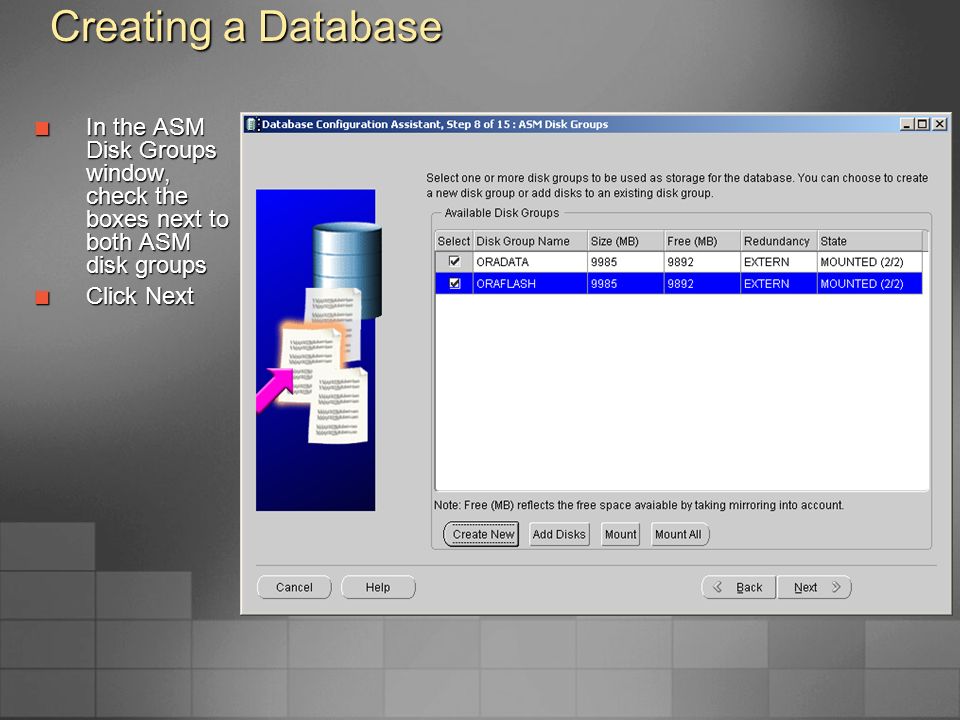

132. Creating a Database In the ASM Disk Groups window, check the boxes next to both ASM disk groups Click Next

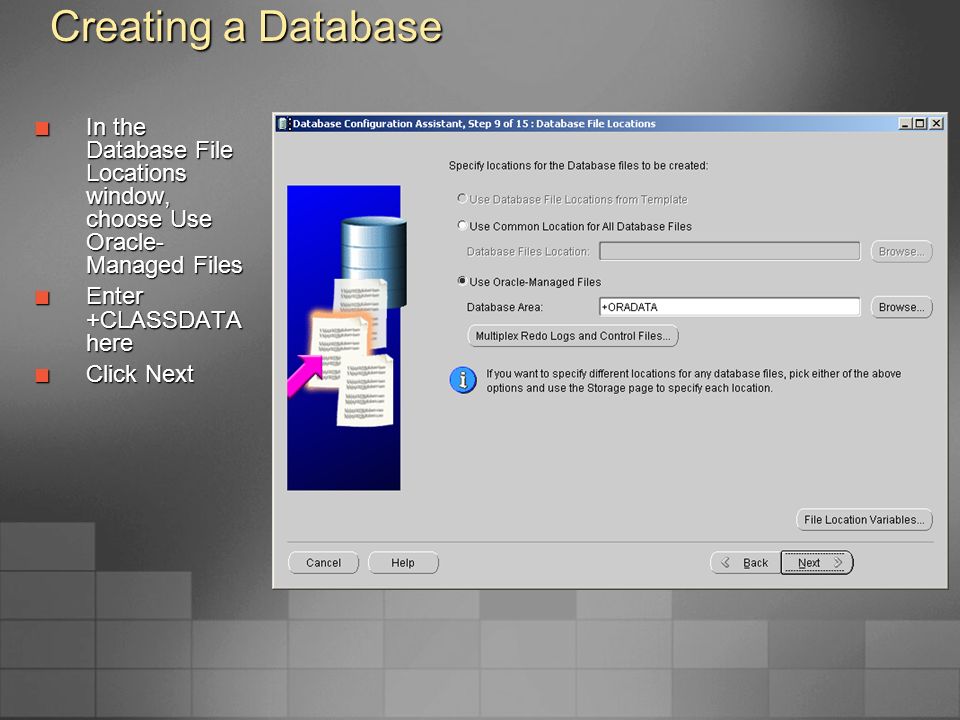

133. Creating a Database In the Database File Locations window, choose Use Oracle- Managed Files Enter +CLASSDATA here Click Next

134. Creating a Database In the Recovery Configuration window, select Specify Flash Recovery Area Click o

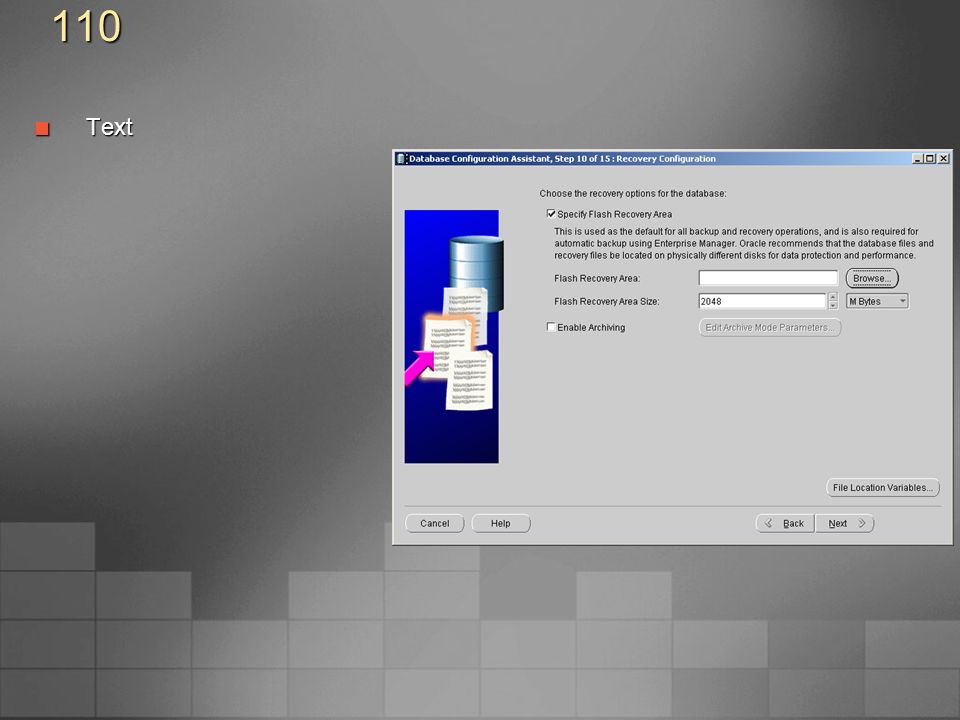

135. 110Text

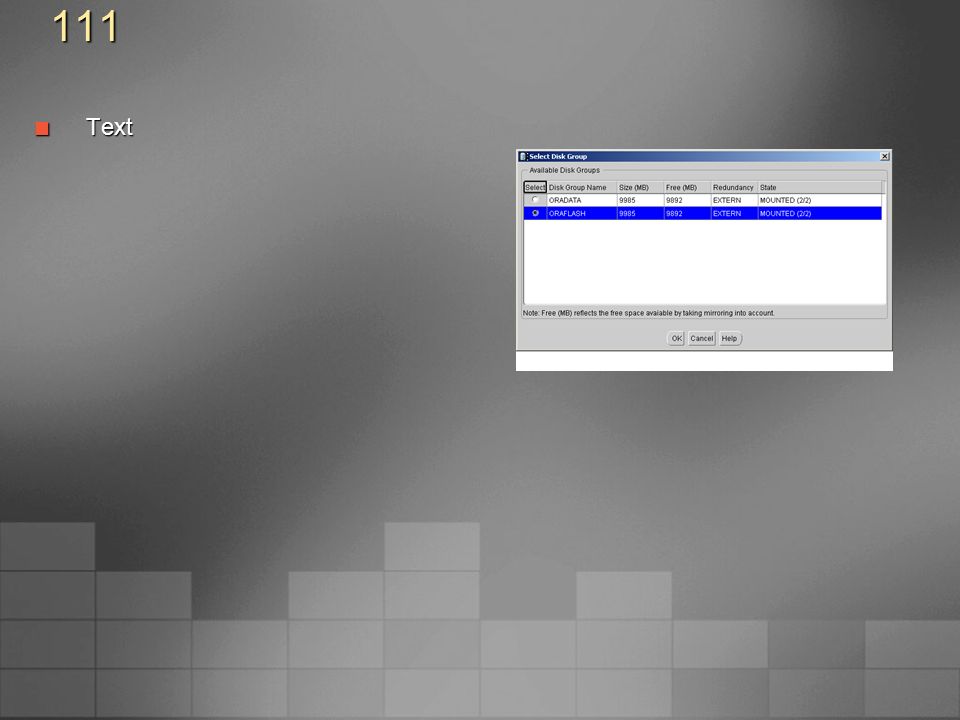

136. 111Text

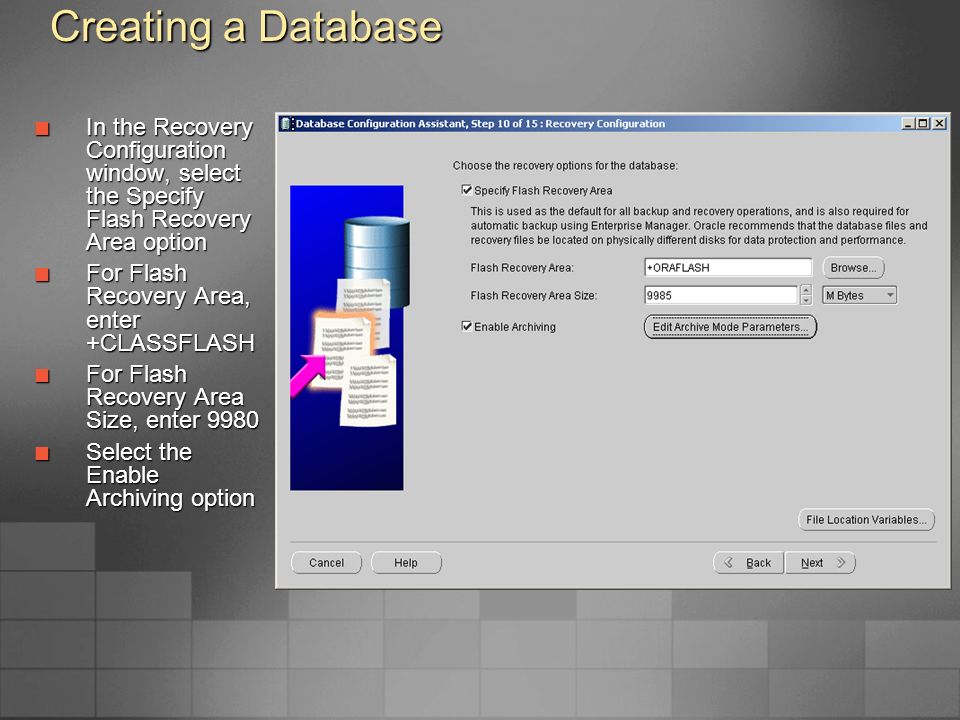

137. Creating a Database In the Recovery Configuration window, select the Specify Flash Recovery Area option For Flash Recovery Area, enter +CLASSFLASH For Flash Recovery Area Size, enter 9980 Select the Enable Archiving option

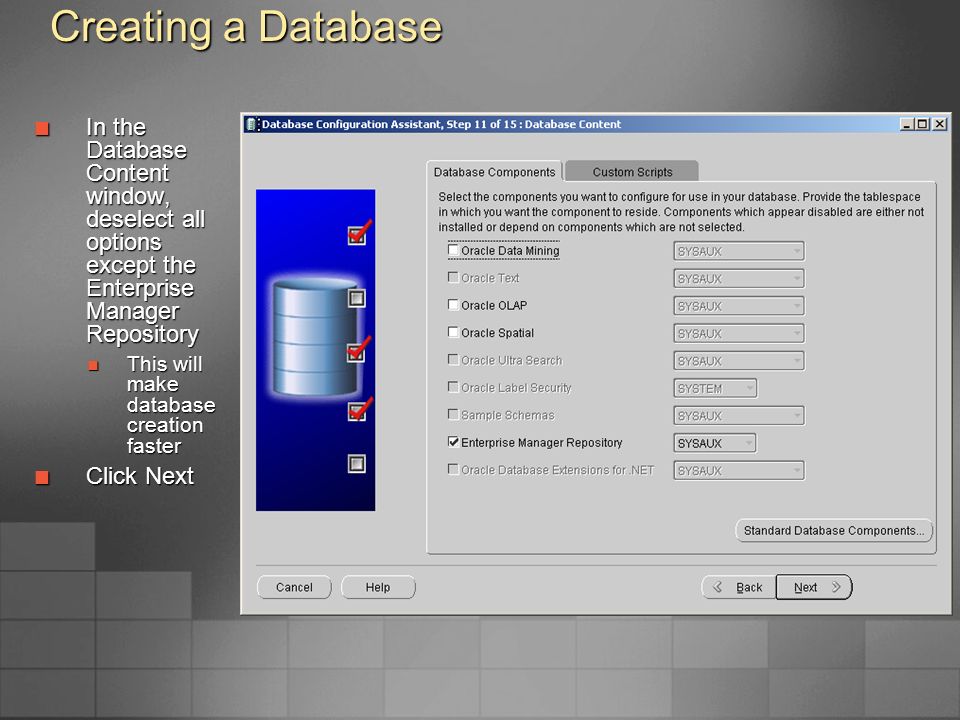

138. Creating a Database In the Database Content window, deselect all options except the Enterprise Manager Repository This will make database creation faster This will make database creation faster Click Next

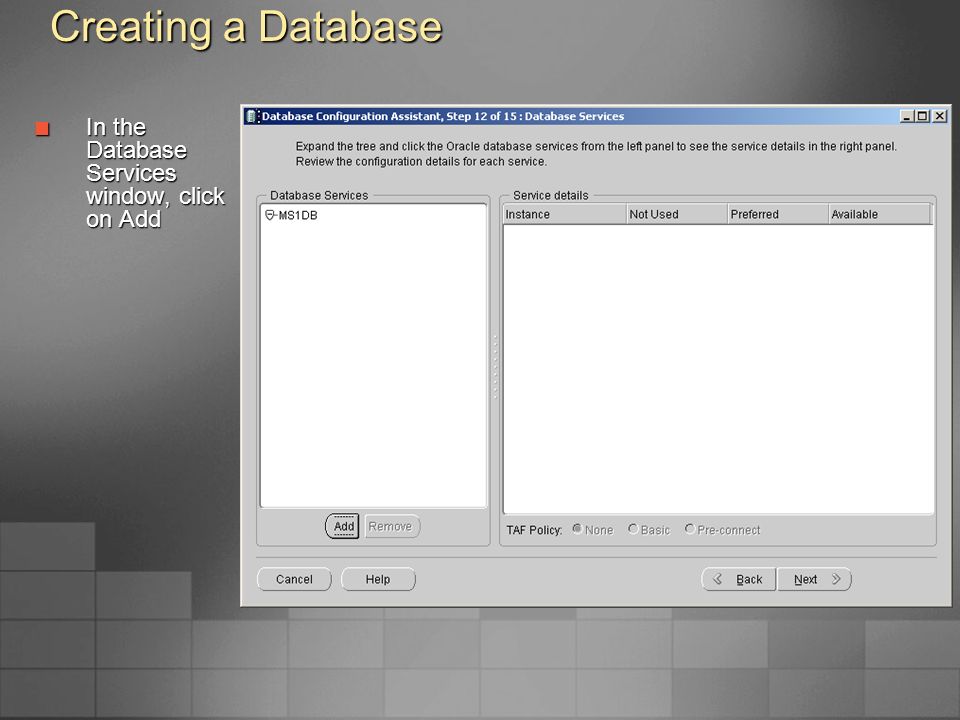

139. Creating a Database In the Database Services window, click on Add

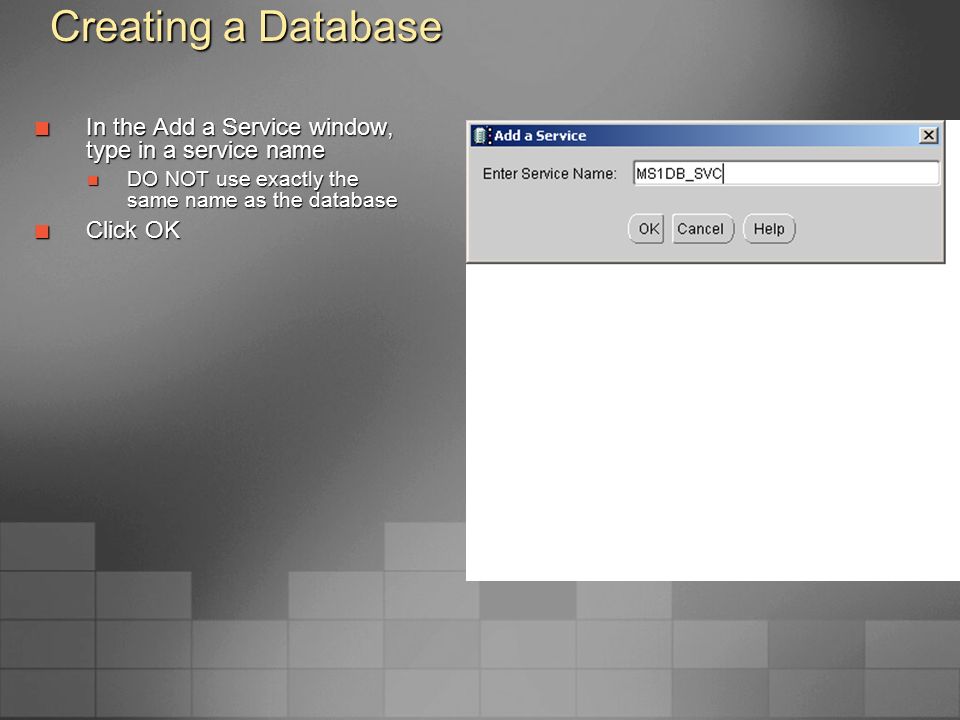

140. Creating a Database In the Add a Service window, type in a service name DO NOT use exactly the same name as the database DO NOT use exactly the same name as the database Click OK

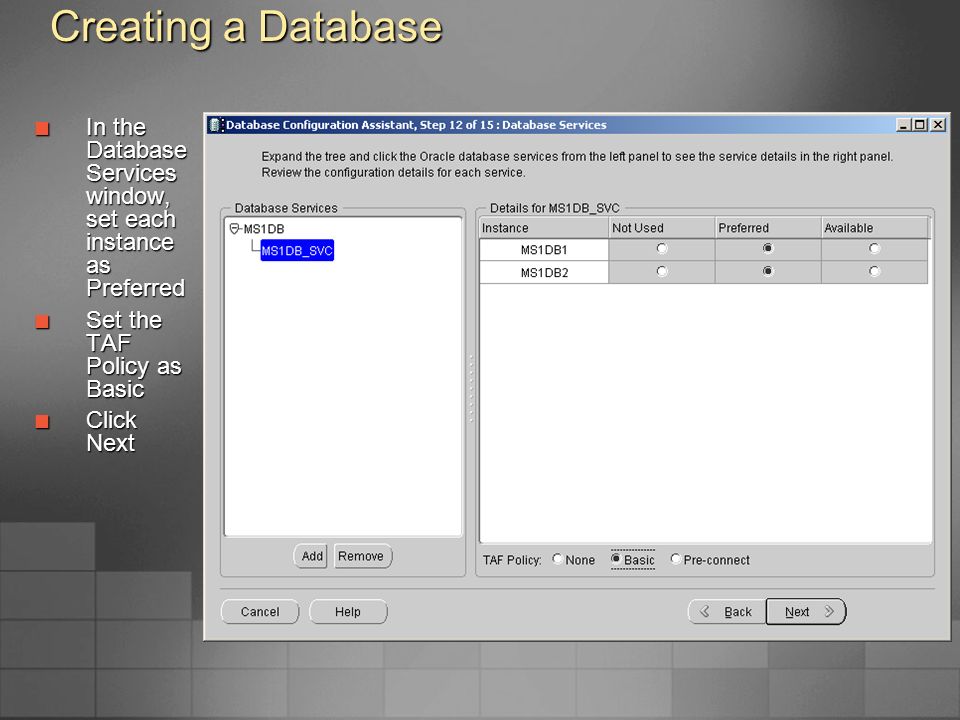

141. Creating a Database In the Database Services window, set each instance as Preferred Set the TAF Policy as Basic Click Next

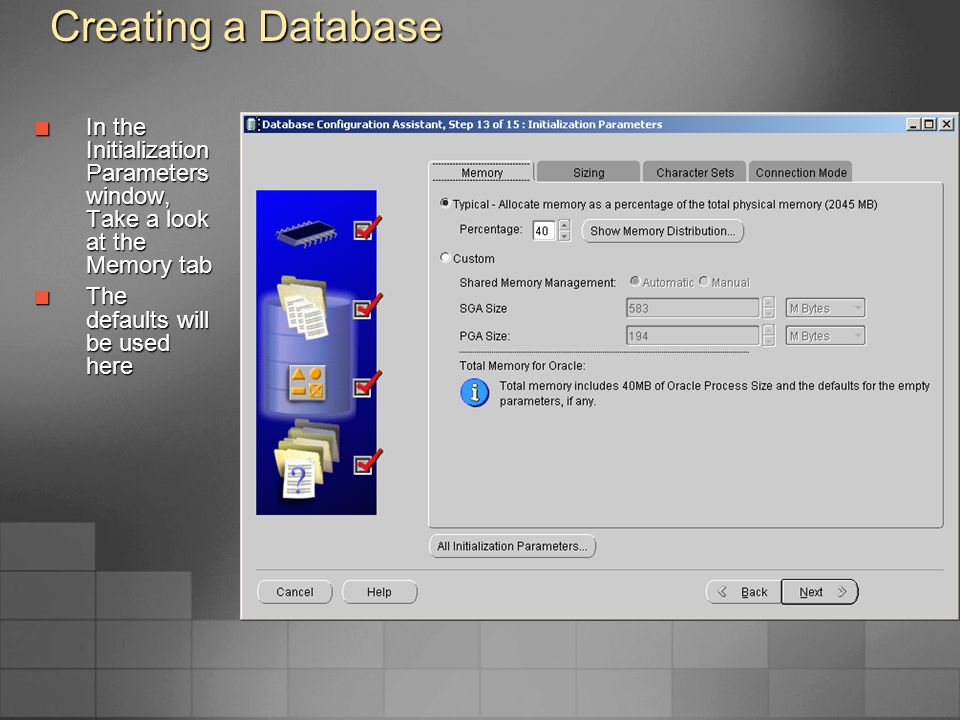

142. Creating a Database In the Initialization Parameters window, Take a look at the Memory tab The defaults will be used here

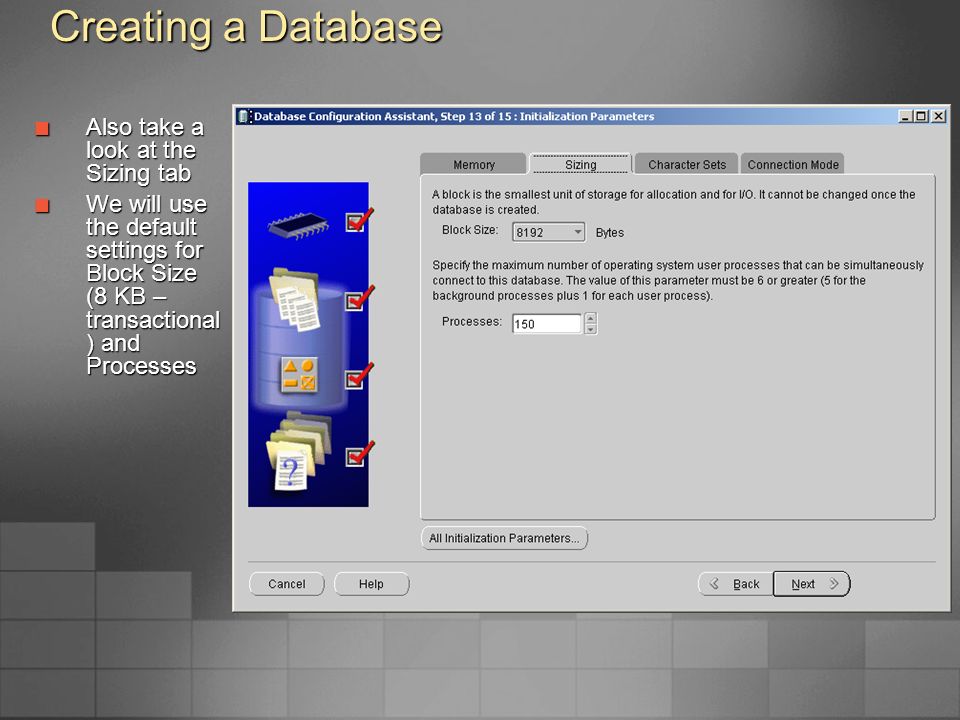

143. Creating a Database Also take a look at the Sizing tab We will use the default settings for Block Size (8 KB – transactional ) and Processes

144. Creating a Database In the Connection Mode tab, we will use the default of Dedicated Server Mode Click Next

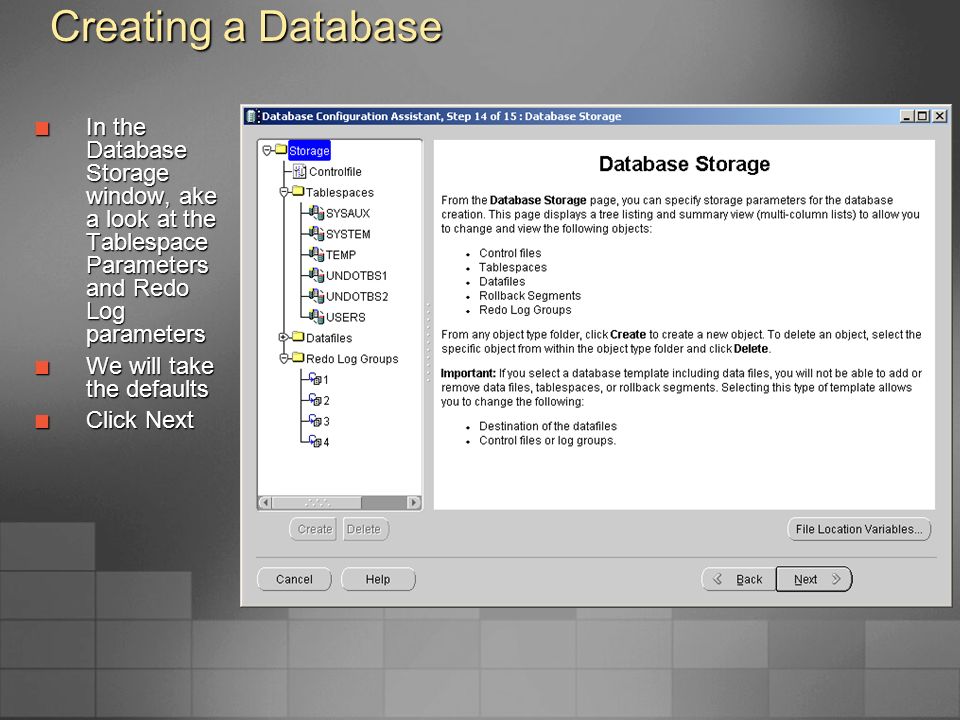

145. Creating a Database In the Database Storage window, ake a look at the Tablespace Parameters and Redo Log parameters We will take the defaults Click Next

146. Creating a Database In the Creation Options window, Check Create Database Also set up the Save as a Database Template option Also check the Generate Database Creation Scripts Click Finish

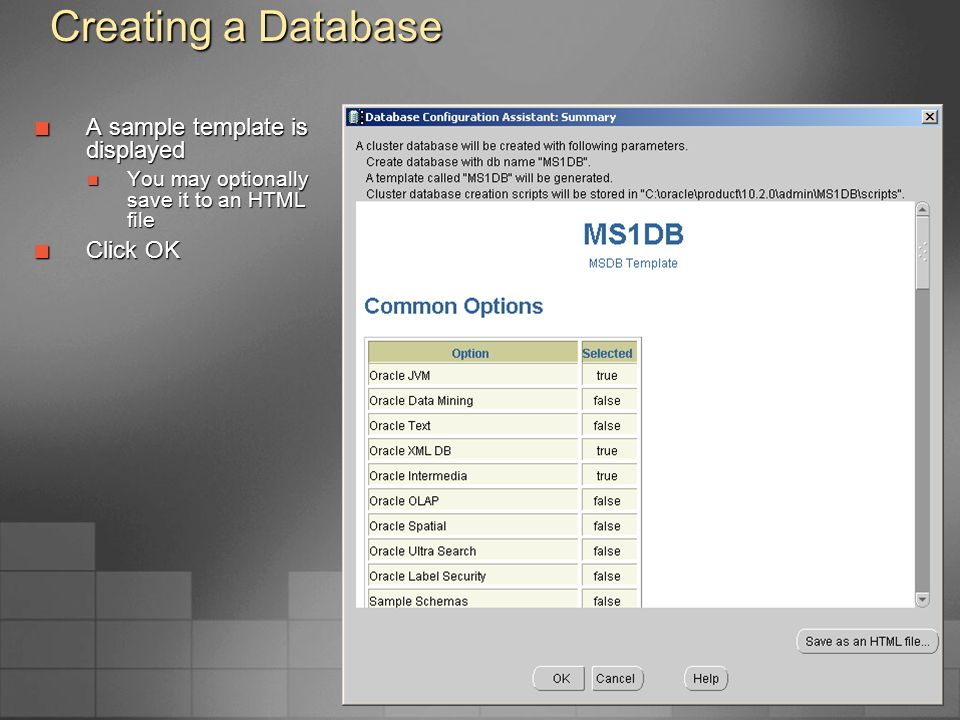

147. Creating a Database A sample template is displayed You may optionally save it to an HTML file You may optionally save it to an HTML file Click OK

148. Creating a Database A message is displayed when the template is created Click OK

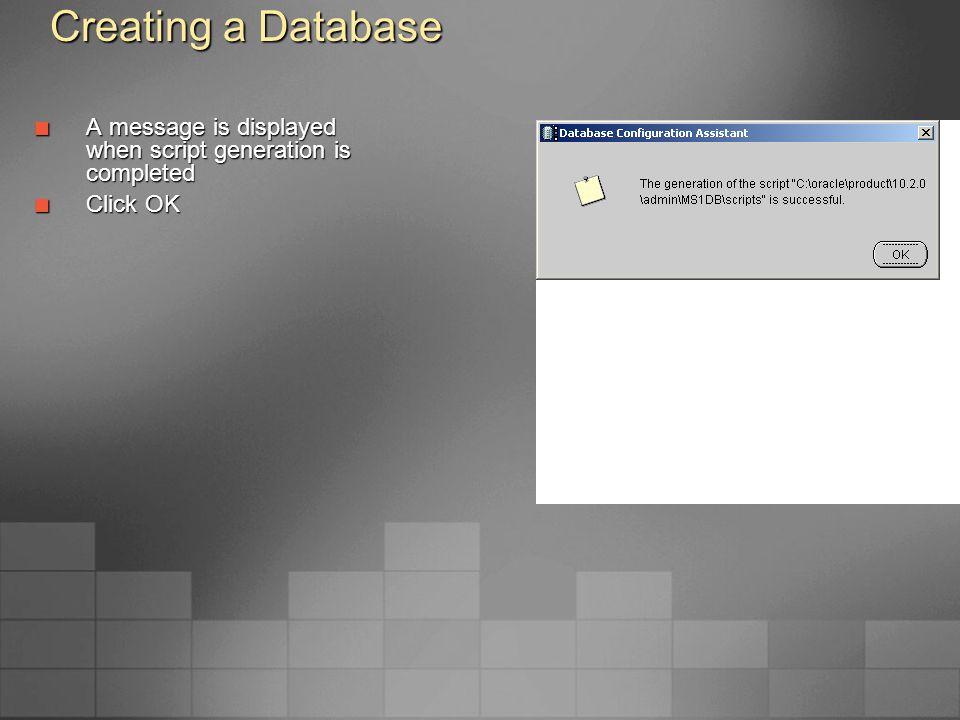

149. Creating a Database A message is displayed when script generation is completed Click OK

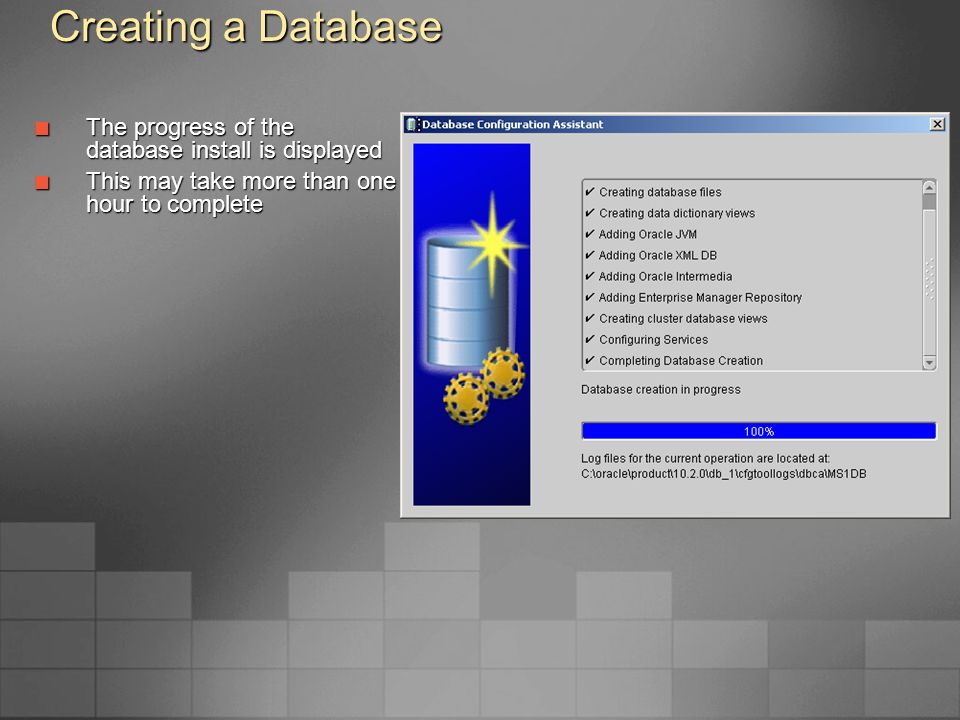

150. Creating a Database The progress of the database install is displayed This may take more than one hour to complete

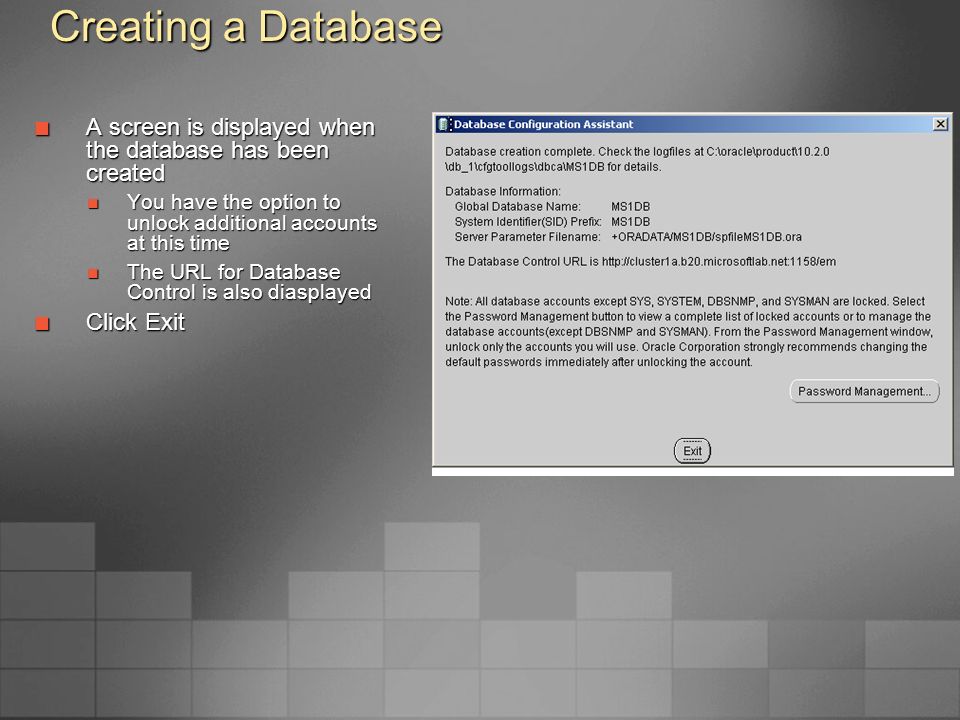

151. Creating a Database A screen is displayed when the database has been created You have the option to unlock additional accounts at this time You have the option to unlock additional accounts at this time The URL for Database Control is also diasplayed The URL for Database Control is also diasplayed Click Exit

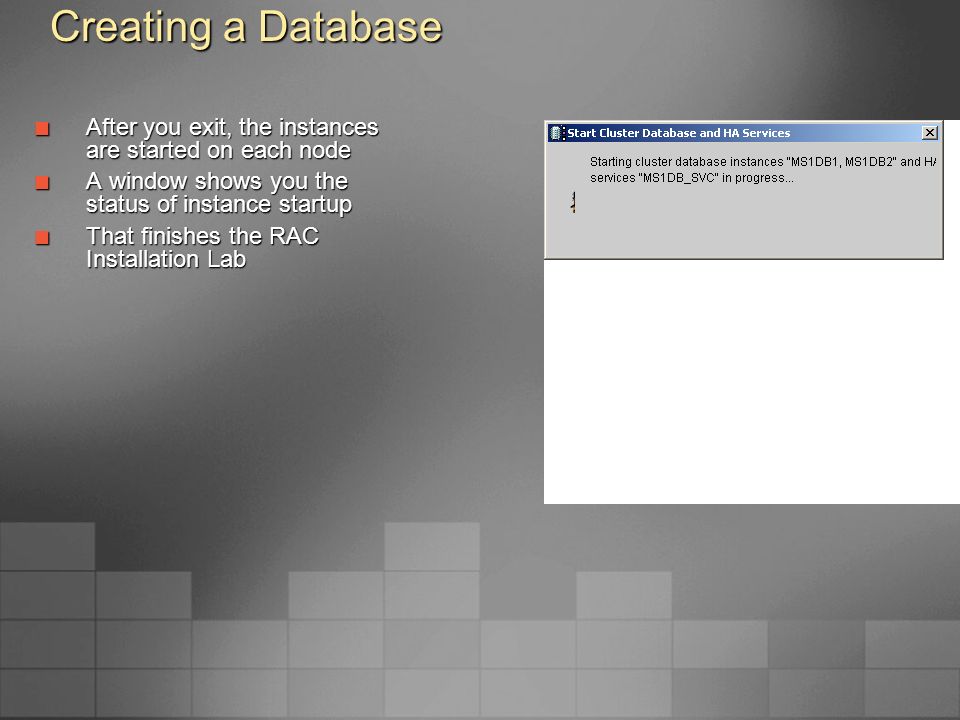

152. Creating a Database After you exit, the instances are started on each node A window shows you the status of instance startup That finishes the RAC Installation Lab
