Investigations in family doctors practice doc. Butvyn S.M. Polyclinical affairs and family doctors department Medical faculty
2
Main methods of instrumental investigations : Electrocardiography (ECG) Radiology Computed tomography (CT) Magnetic resonance imaging (MRI) Angiography Radionuclide scanning
3

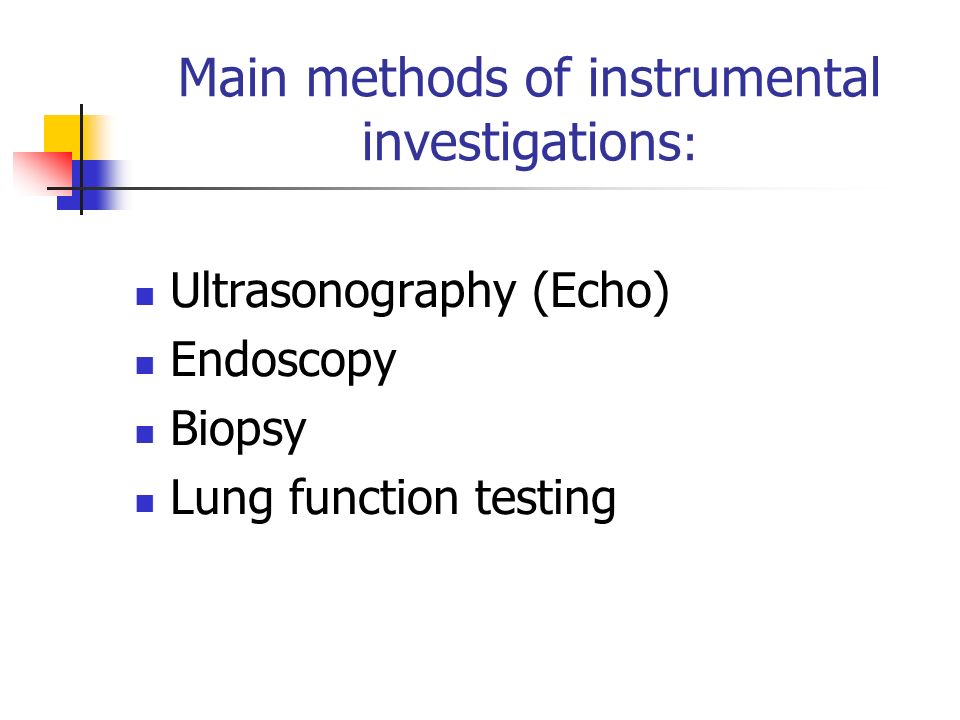

Main methods of instrumental investigations : Ultrasonography (Echo) Endoscopy Biopsy Lung function testing
4

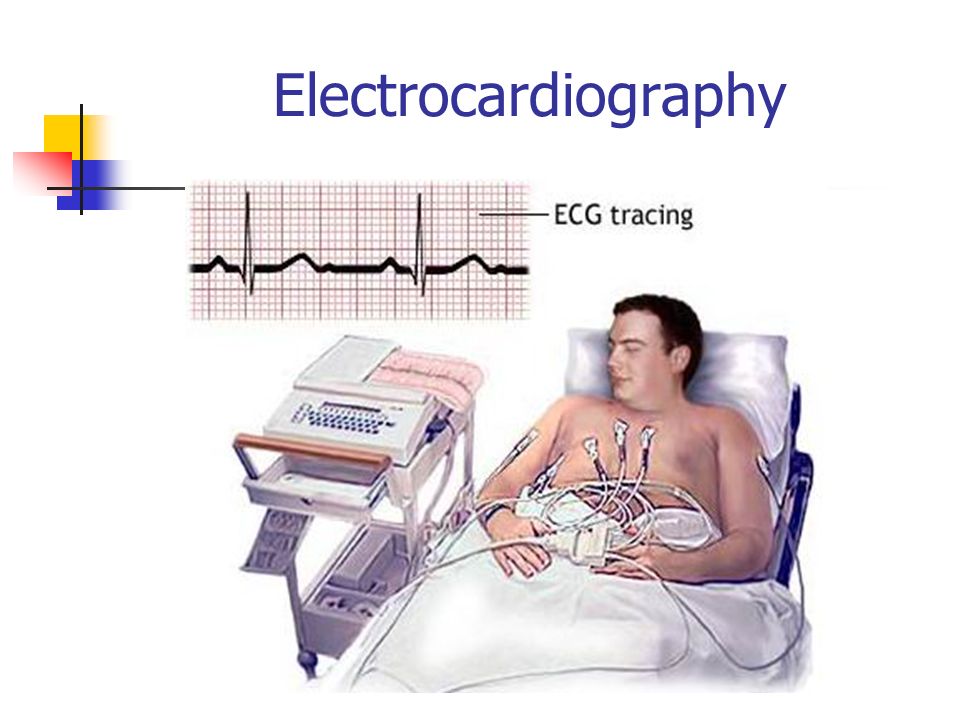

Electrocardiography
5

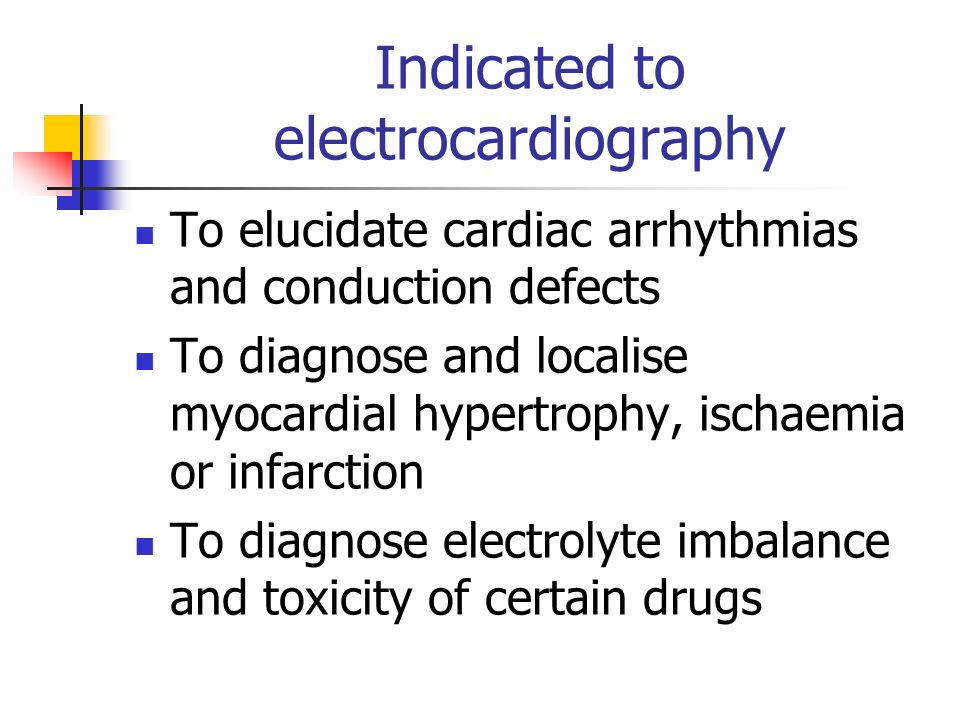

Indicated to electrocardiography To elucidate cardiac arrhythmias and conduction defects To diagnose and localise myocardial hypertrophy, ischaemia or infarction To diagnose electrolyte imbalance and toxicity of certain drugs
6
Exercise (stress) ECG By performing an ECG during progressively increasing exercise (usually on a treadmill) Indication to detect stress-provoked arrhythmias or evidence of ischaemia Contraindication: unstable angina, decompensated heart failure, severe hypertension
7
Ambulatory ECG (Holter monitoring) Continuous recording of one or more ECG leads to a small portable solid state or tape recorder Indication: detecting transient episodes of arrhythmias or of ischaemia
8

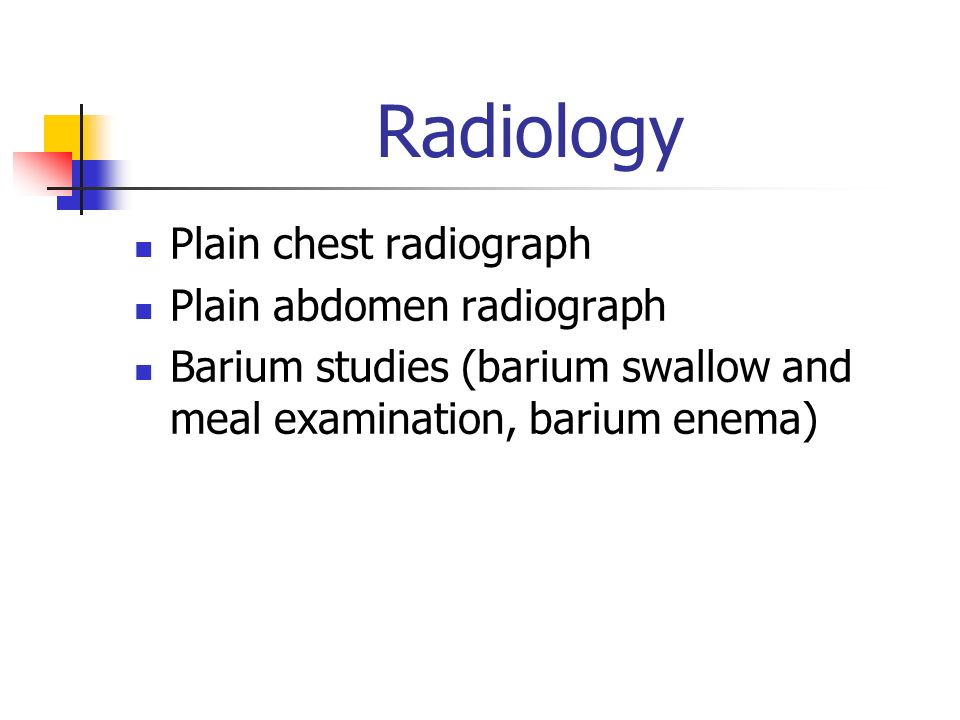

Radiology Plain chest radiograph Plain abdomen radiograph Barium studies (barium swallow and meal examination, barium enema)
9

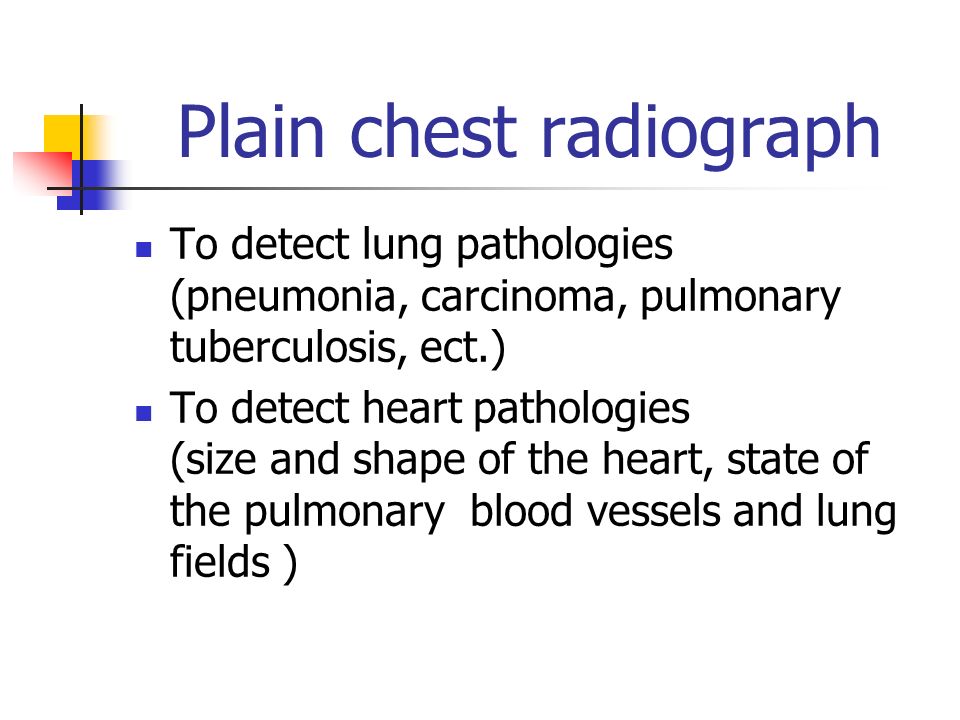

Plain chest radiograph To detect lung pathologies (pneumonia, carcinoma, pulmonary tuberculosis, ect.) To detect heart pathologies (size and shape of the heart, state of the pulmonary blood vessels and lung fields )
10

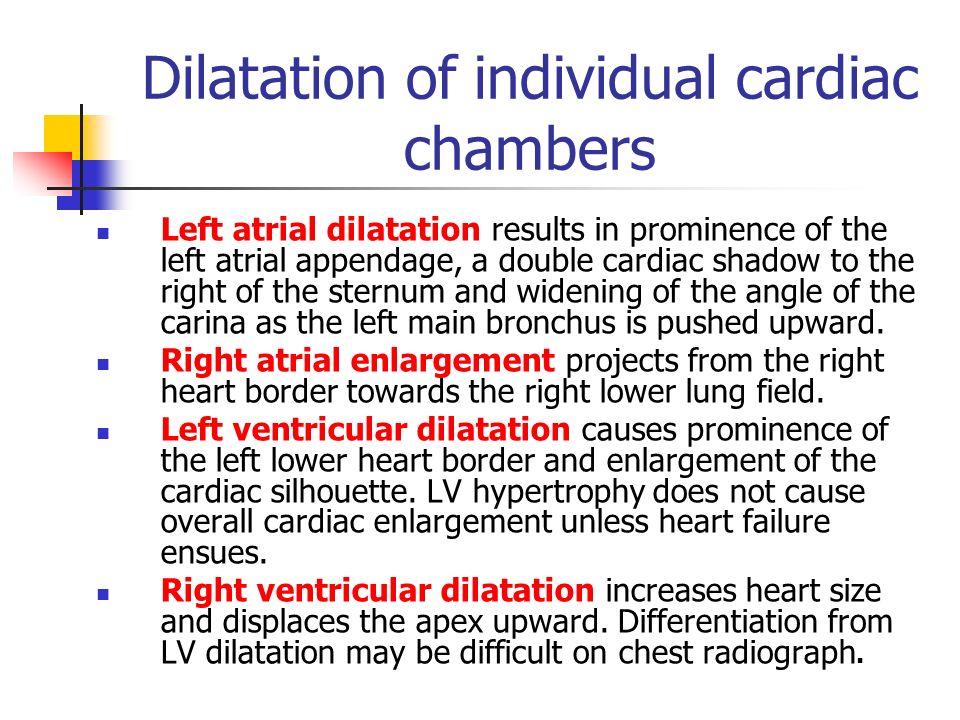

Dilatation of individual cardiac chambers Left atrial dilatation results in prominence of the left atrial appendage, a double cardiac shadow to the right of the sternum and widening of the angle of the carina as the left main bronchus is pushed upward. Right atrial enlargement projects from the right heart border towards the right lower lung field. Left ventricular dilatation causes prominence of the left lower heart border and enlargement of the cardiac silhouette. LV hypertrophy does not cause overall cardiac enlargement unless heart failure ensues. Right ventricular dilatation increases heart size and displaces the apex upward. Differentiation from LV dilatation may be difficult on chest radiograph.
11

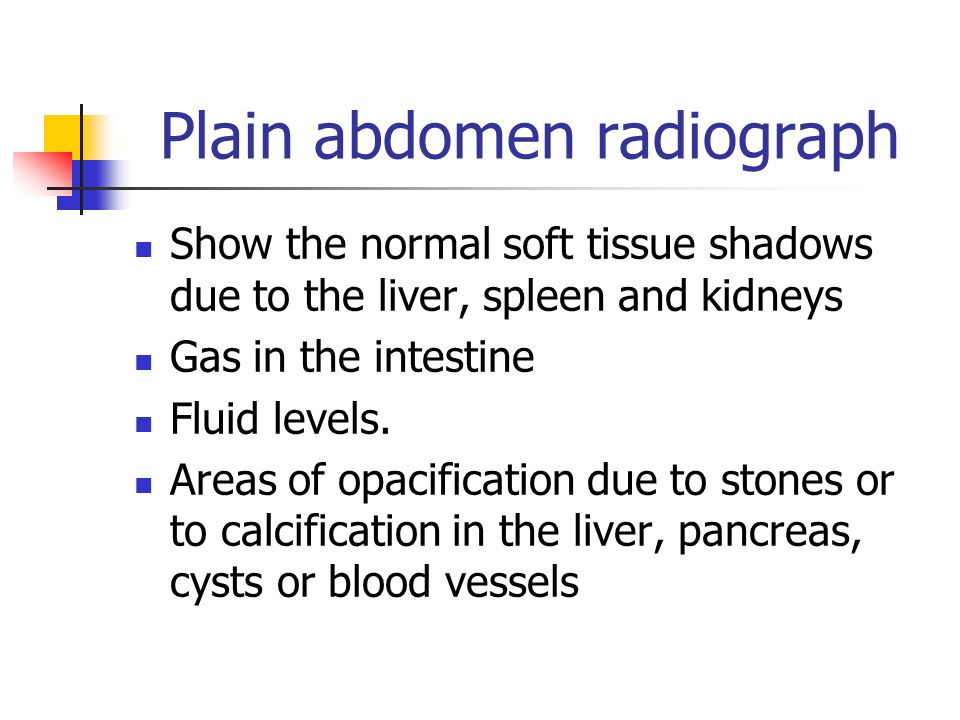

Plain abdomen radiograph Show the normal soft tissue shadows due to the liver, spleen and kidneys Gas in the intestine Fluid levels. Areas of opacification due to stones or to calcification in the liver, pancreas, cysts or blood vessels
12
Barium swallow and meal examination Oesophagus - disorder of motility, a filling defect caused by a tumour or varices, a stricture, a diverticulum or a hiatus hernia Stomach – to detect ulcer, cancers (except infiltrating carcinoma) Small bowel - to detect structural abnormalities such as diverticula or strictures
13
Barium enema The colon must be meticulously cleared of faeces by means of laxatives followed by a cleansing enema just before the barium enema. Barium alone or, for double-contrast examination, barium and air, is run into the bowel through a self-retaining catheter. Radiographs are taken with the colonic mucosa coated with barium and the lumen distended with air Colonic mucosa can be studied in detail and polyps or small tumours identified. In inflammatory bowel disease mucosal abnormalities are readily recognised.
14
Endoscopy Oesophagogastroduodenoscopy (EGDS) Sigmoidoscope Endoscopic retrograde cholangiopancreatography (ERCP) Laparoscopy Laryngoscopy Bronchoscopy Mediastinoscopy Cystoscopy
15
Diagnostic possibilities of the endoscopy To exam oesophagus, stomach, duodenum, colon, bronchi, larynx, mediastinum, abdomen cavity To take biopsy To do therapeutic procedures such as removal of a polyp
16

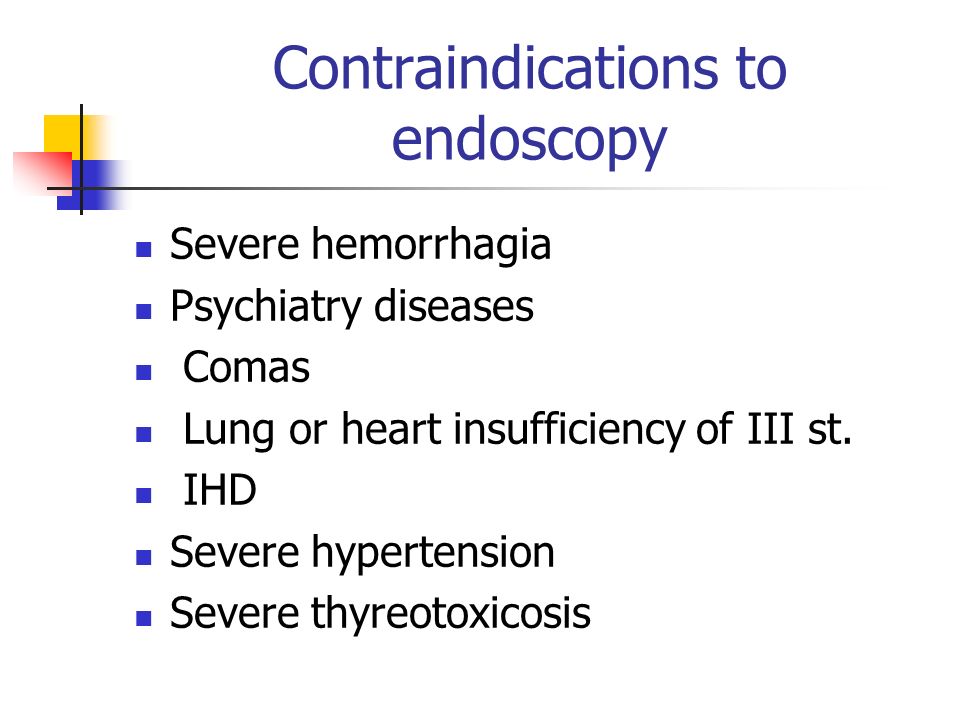

Contraindications to endoscopy Severe hemorrhagia Psychiatry diseases Comas Lung or heart insufficiency of III st. IHD Severe hypertension Severe thyreotoxicosis
17
Bronchoscopy Detect structural changes, such as distortion or obstruction To biopsy abnormal tissue in the bronchial lumen or wall Bronchial brushings, washings or aspirates can be taken for cytological or bacteriological examination.
18
Prepare patient to the EGDS and bronchoscopy The planned EGDS conduct on an empty stomach in the morning. Local anaesthesia of cavity of mouth and pharynx (greasing of mucus shell by a 3% solution of dicain, rinse of mouth by 0,25% solution of dicain or dispersion from the sprayer of a 3% solution of dicain with addition of 2-3 drops of 0,1% solution of adrenalin. At a necessity after 15-20 min to research under a skin enter 1 ml 2 % solution of promedol, and 0,5-1 ml 0,1% solution of atropine sulfate
19
Normal mucosa of oesophagus
20
Normal mucosa of duodenum
21
Normal mucosa bulbus of duodenum
22
Erosive bulbitis
23

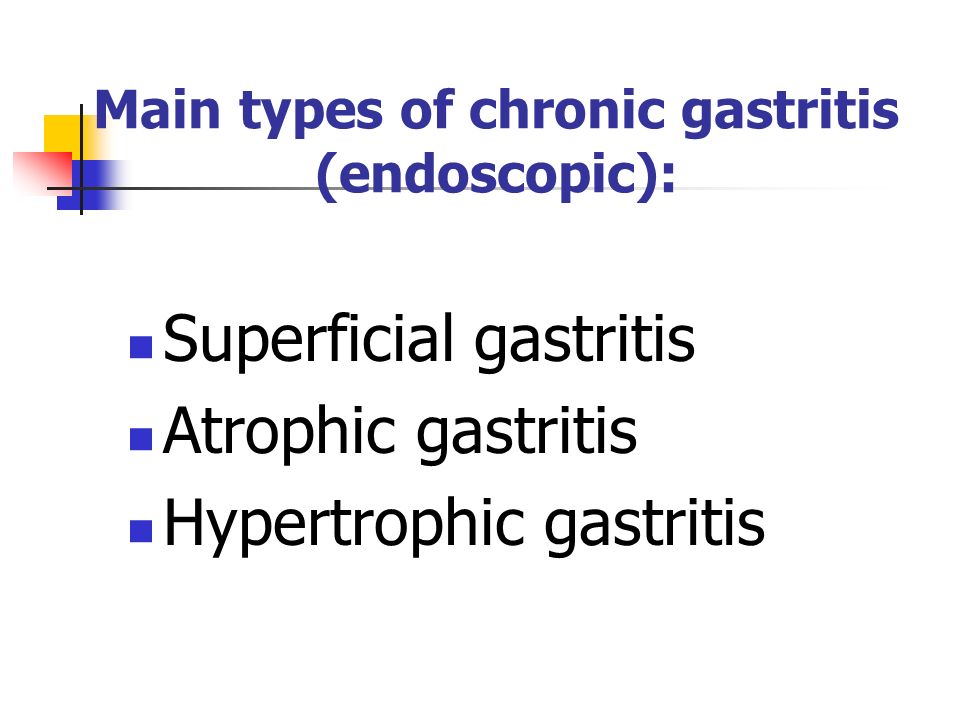

Main types of chronic gastritis (endoscopic): Superficial gastritis Atrophic gastritis Hypertrophic gastritis
24
Superficial gastritis
25
Atrophic gastritis
26
Hypertrophic gastritis
27
Erosive gastritis
28
Peptic ulcer in active stage
29
Peptic ulcer in reparation stage
30
Peptic ulcer in scary stage
31
Possible complications of EGDS perforation of the oesophaguss or stomach whilst passing the instrument or during biopsy the inhalation of secretions cardiac arrhythmias or arrest transmission of infections
32
Ultrasound investigation
33
Prepare patient to the abdominal ultrasonograhy Three days before the inspection to apply measures for reduction of formation of gas To exclude from a meal the milk, brown bread, fresh fruits and vegetables, fruit juices To the persons, that suffer by flatulence, limitation of products, that cause flatulence on two-three days of the use of polyenzyme drugs (festal, digestal, mezym-forte), absorbent carbon is appointed, decoction of chamomile The inspection is conducted on an empty stomach (necessarily previous starvation about 12 hours) In the extreme case the research is conducted off the hand.
34
Gall bladder ultrasound investigation mostly determine the Gall bladder (GB) on 5- 6 sm rihgt from middle line form rounded or prolate (depending on a cut) walls GB appear by surrounding fabrics or structure of organ which he is designed on (mostly livers) the thickness of wall GB does not exceed 3 mm a cavity of GB is free middle sizes 5-6 x 2-3 sm.
35
Gall bladder ultrasound investigation (normal)
36
Echography sings of chronic cholecystitis
37

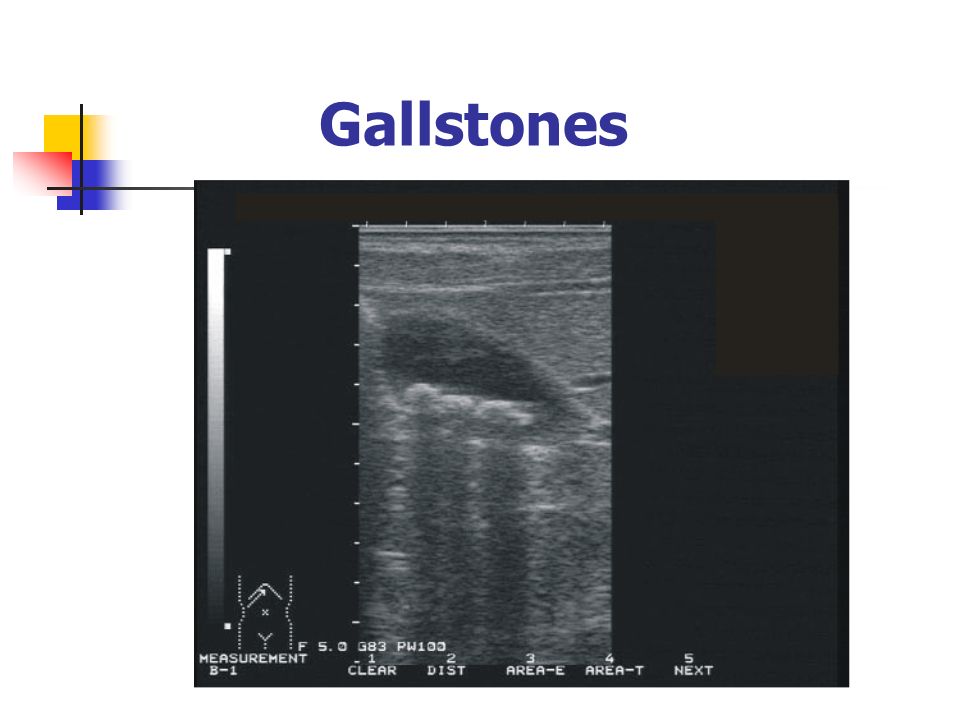

Gallstones
38
Diagnostic values of liver ultrasound investigation size of liver contours of liver the state of intrahepatic bile ducts presence of focal changes in a liver presence of free liquid in an abdominal and pleura region the state of intrahepatic vein net
39
Liver ultrasound investigation (normal)
40
Echography sings of chronic hepatitis change of sizes of liver; change of closeness of liver; possible expansion of portal vein
41
Liver ultrasound investigation (chronic hepatitis)
42

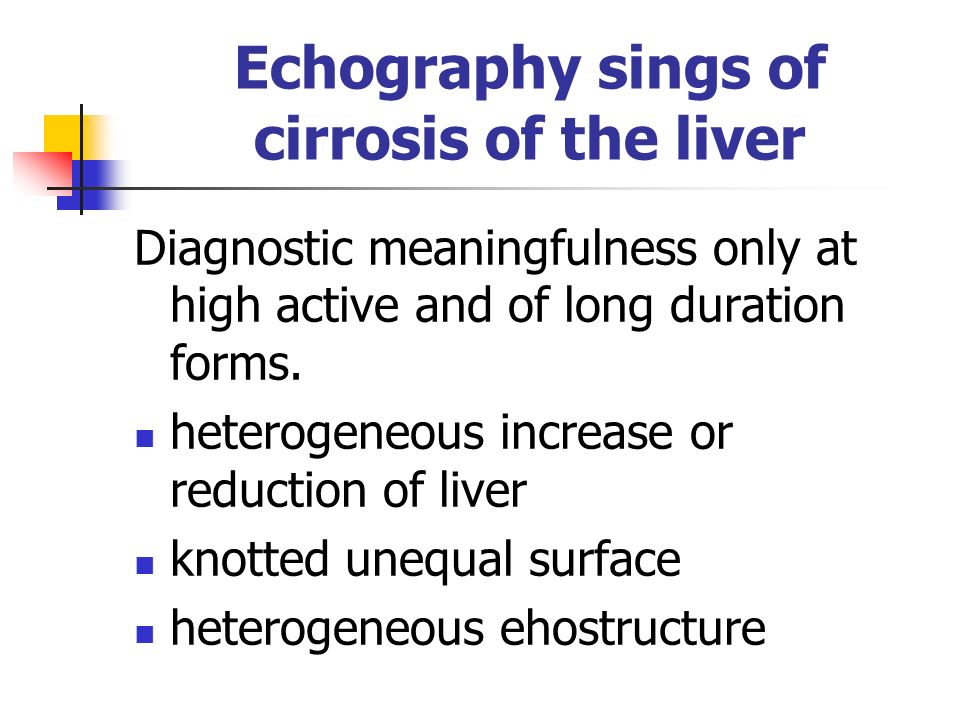

Echography sings of cirrosis of the liver Diagnostic meaningfulness only at high active and of long duration forms. heterogeneous increase or reduction of liver knotted unequal surface heterogeneous ehostructure
43
Cirrosis of the liver
44
Secondary malignant tumors in the liver
45
Ultrasound investigation of the pancreas (normal)
46
Chronic pancreatitis
48
Diagnostic value of the renal ultrasound To assess overall renal size and cortical thickness To distinguish solid tumours from cysts Excellent screening test for polycystic kidney disease In investigation of suspected malignant renal tumours ultrasound can give additional information by detecting extension of tumour to renal veins, vena cava, lymph nodes or liver
49
Diagnostic value of the renal ultrasound It can demonstrate dilation of the renal pelvis and ureters, which may indicate urinary tract obstruction To assess residual urine in the bladder after nicturition Perinephric abscess or haematoma can be demonstrated Calculi are usually detected but very small stones may be missed
50
Ultrasound investigation of the kidney (normal)
51
Double kidney
52
Transthoracal echocardiography
53
Diagnostic value of the echocardiography to study blood flow the structure of the heart the movement of valves and cardiac muscle
54
M-mode echocardiography The EGG is recorded simultaneously and permits accurate measurements of the timing of cardiac events including the opening and closing of valves. The ultrasound is focused into a narrow beam, and the information is presented graphically with respect to time and depicts the structures through which the beam passes. Characteristic patterns of valve movement are produced in, for example, mitral stenosis, and pericardia effusions arc easily recognized.
55
Two-dimensional (or cross-sectional) real-time echocardiography This type of echocardiography is particularly valuable for detecting intracardiac masses, such as thrombi or tumors, or endocarditic vegetations. It is also very useful in defining complex structural abnormalities in congenital heart disease
56
Transthoracal echocardiography
58
Doppler cartography detecting abnormal directions of blood flow, e.g. aortic or mitral reflux estimating pressure gradients, for example the gradient across a stenosed aortic valve
59
Computed tomography
60

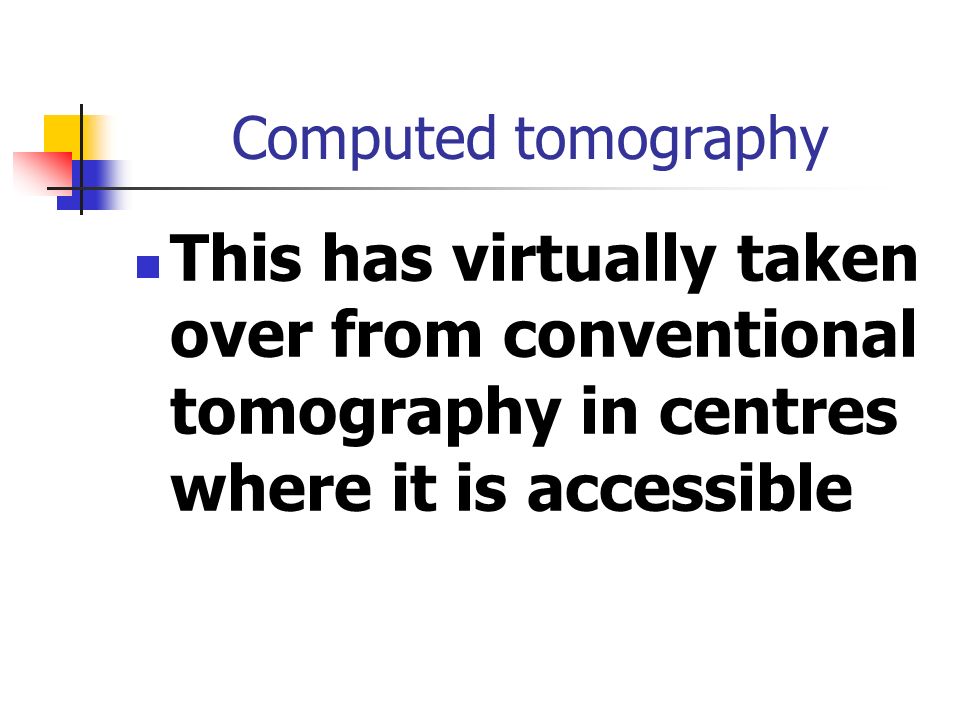

This has virtually taken over from conventional tomography in centres where it is accessible
61

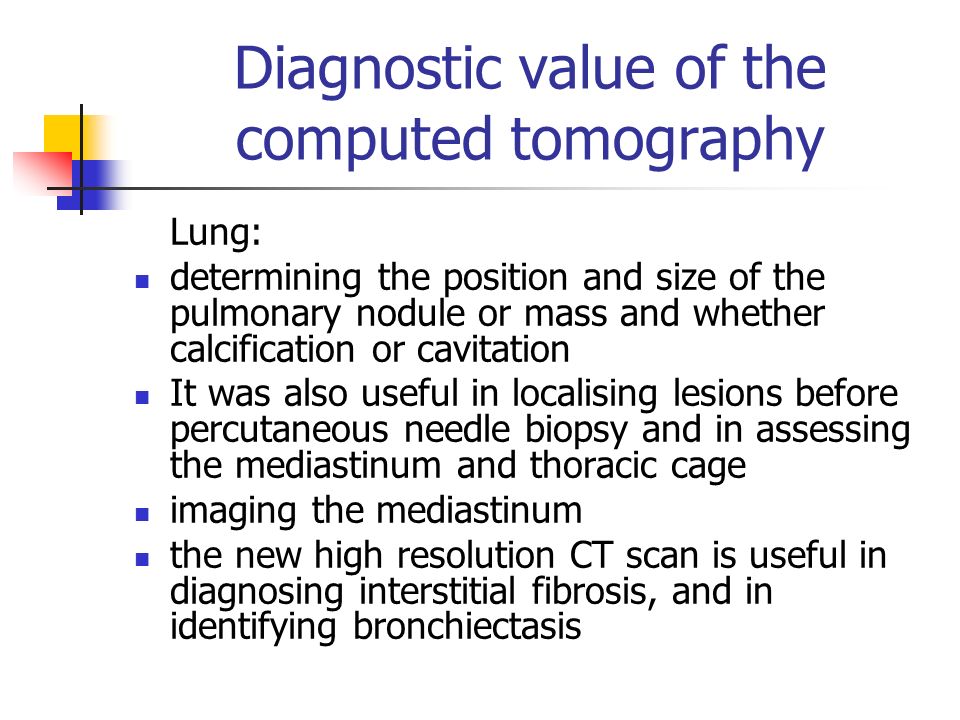

Diagnostic value of the computed tomography Lung: determining the position and size of the pulmonary nodule or mass and whether calcification or cavitation It was also useful in localising lesions before percutaneous needle biopsy and in assessing the mediastinum and thoracic cage imaging the mediastinum the new high resolution CT scan is useful in diagnosing interstitial fibrosis, and in identifying bronchiectasis
62
CT of the thorax (extensive dilatation of the bronchi - bronchoectasis)
63
Diagnostic value of the computed tomography Abdomen: important technique for defining certain intraabdominal diseases, particularly those involving inaccessible organs or regions Thus it is used in the diagnosis and management of pancreatitis and pancreatic cancer diagnosing diseases of the retroperitoneal space and lymph nodes assessing the spread of tumour, e.g. gastric cancer, so that decisions can be made on whether surgery should be palliative or curative
64
Diagnostic value of the computed tomography Renal diseases: particularly helpful in diagnosis of masses in the kidney and in perirenal and retroperitoneal tissues extension of renal tumours to perirenal tissue, retroperitoneal nodes, liver and thorax can be identified value in assessing the extent of renal trauma, particularly when vascular damage is suspected demonstrating radioopaque stones
65
Radionuclide scanning (gastroenterology) For imaging the liver, spleen and biliary tract. To assess gastric emptying. In this assessment a radiolabeled meal is eaten, the liquid being labelled with 111mDTPA and the solid with 99mTc-sulphur colloid labelled chicken liver. The test is used particularly to diagnose gastroparesis. To assess inflammatory bowel disease. A sample of the patient's blood is incubated with 99mTc which is taken up by the neutrophils and macrophages. The labelled cells are also lost into the intestinal lumen through the inflamed mucosa and so the radioactivity in a 48 hour collection of stools gives a measure of the total activity of the disease.
66

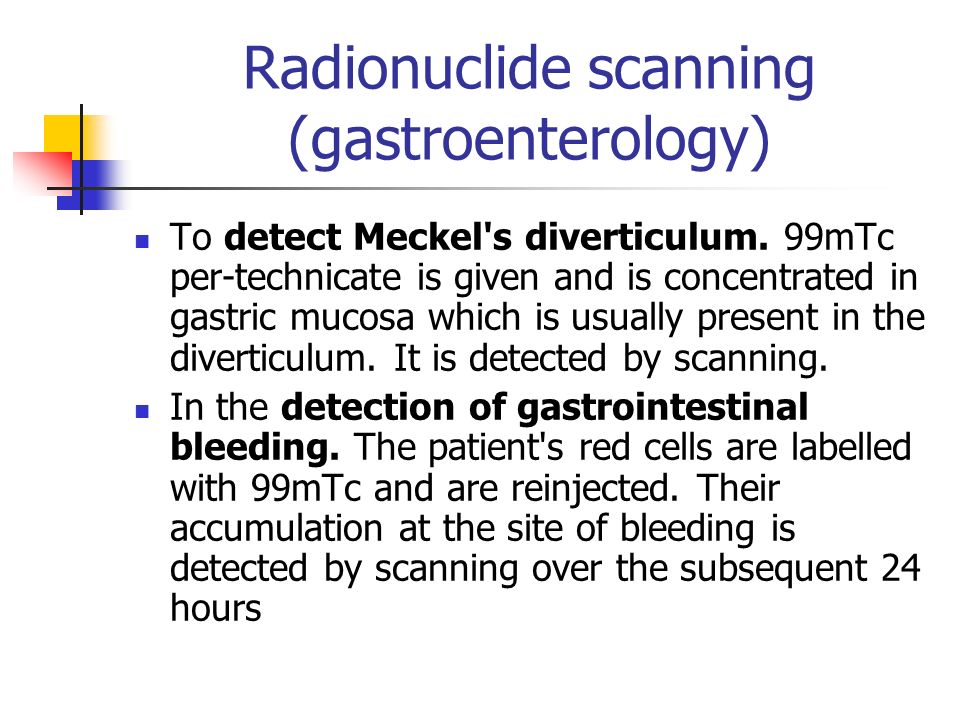

Radionuclide scanning (gastroenterology) To detect Meckel's diverticulum. 99mTc per-technicate is given and is concentrated in gastric mucosa which is usually present in the diverticulum. It is detected by scanning. In the detection of gastrointestinal bleeding. The patient's red cells are labelled with 99mTc and are reinjected. Their accumulation at the site of bleeding is detected by scanning over the subsequent 24 hours
67
Radionuclide scanning (pulmonology) Ventilation perfusion imaging Its main value is in the detection of pulmonary thromboemboli. 133Xe gas is inhaled (the ventilation scan) and 99mTc- labelled macroaggregates of albumin, or albumin microspheres, are injected intravenously, the particles becoming trapped in pulmonary microvessels and providing the 'perfusion' scan.
68

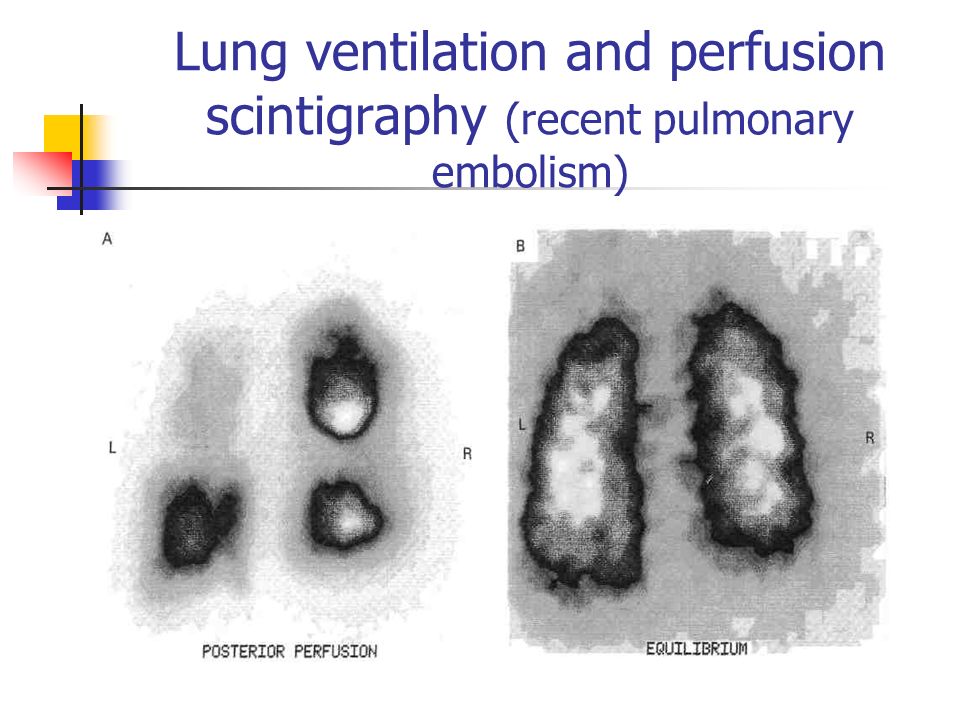

Lung ventilation and perfusion scintigraphy (recent pulmonary embolism)
69
Lung scannogramm with J 131 (normal)
70
Lung scannogramm with J 131 (cancer of the right lung)
71
LUNG FUNCTION TESTING Measurements of ventilatory capacity The forced expiratory volume in one second (FEV1, forced vital capacity (FVC) and vital capacity (VC) are obtained from maximal forced and relaxed expirations into a recording spirometer and compared with predicted values based on age, sex and height and ethnic group
72

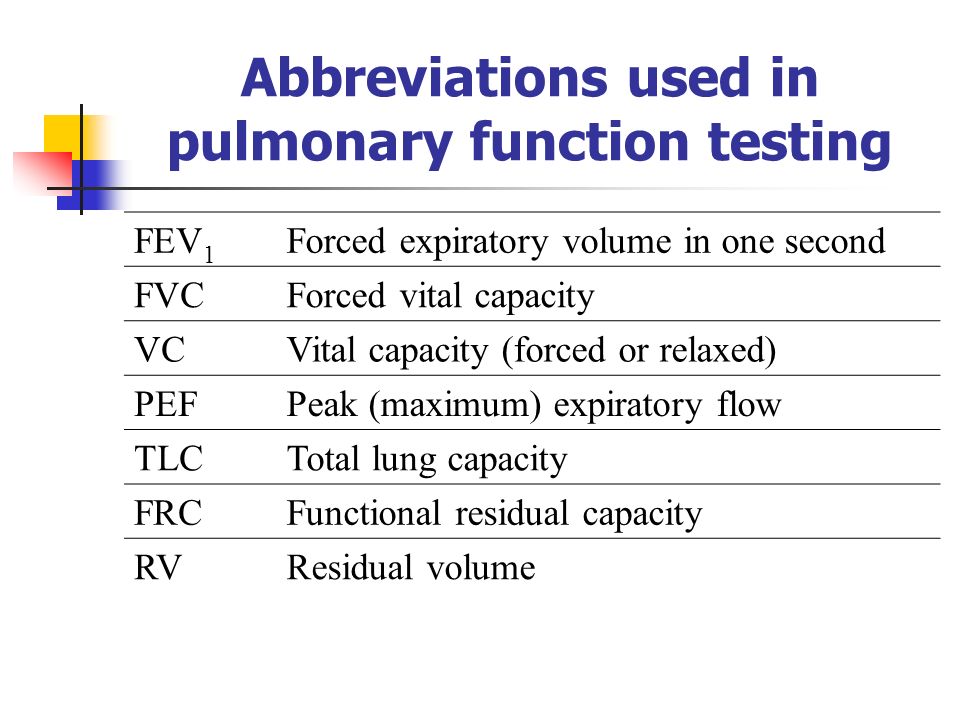

Abbreviations used in pulmonary function testing FEV 1 Forced expiratory volume in one second FVCForced vital capacity VCVital capacity (forced or relaxed) PEFPeak (maximum) expiratory flow TLCTotal lung capacity FRCFunctional residual capacity RVResidual volume
73
LUNG FUNCTION TESTING Measurements of lung volumes The values are obtained either by diluting helium (a non-toxic, non- absorbed gas) into the gas in the lungs, or in a whole body plethysmograph.
74
Normal lung volumes and changes witch occur in obsructive and restrictive ventilatory defects
75
LUNG FUNCTION TESTING Measurements of gas transfer factor The gas transfer factor (diffusing capacity) may be thought of as the conductance of the lungs for the gas being studied. It forms a useful overall estimate of the ability of the lungs to exchange gases, and is of particular value in interstitial lung disease, sarcoidosis and emphysema. It is normally estimated by measuring the uptake of carbon monoxide from a single breath of a 0.3% mixture in air
76
LUNG FUNCTION TESTING Arterial blood gas analysis Modem automatic analysers give a rapid direct read- out of P02, PC02 and hydrogen ion concentration in arterial blood. Such measurements are of particular value in the management of respiratory failure and asthma and adult respiratory distress syndrome (ARDS). Ear or pulse oximeters allow continuous non-invasive measurement of arterial oxygen saturation, of value in assessing hypoxaemia and the effects of oxygen therapy
77
LUNG FUNCTION TESTING Exercise tests Exercise challenge is a self-evident test for detecting exercise-induced asthma. Formal exercise tests, in which cardiac and respiratory responses to bicycle or treadmill exercise are measured in the laboratory, are of value in detecting exercise hypoxaemia and in assessing disability due to respiratory disease. 'Everyday' exercise tests, such as measurement of the distance the patient can walk in six minutes, require no complex apparatus and assist in the assessment of disability, handicap and the response to treatment
78
Sank you for attention!
