1. Simple Data Types Built-In and User Defined Chapter 10

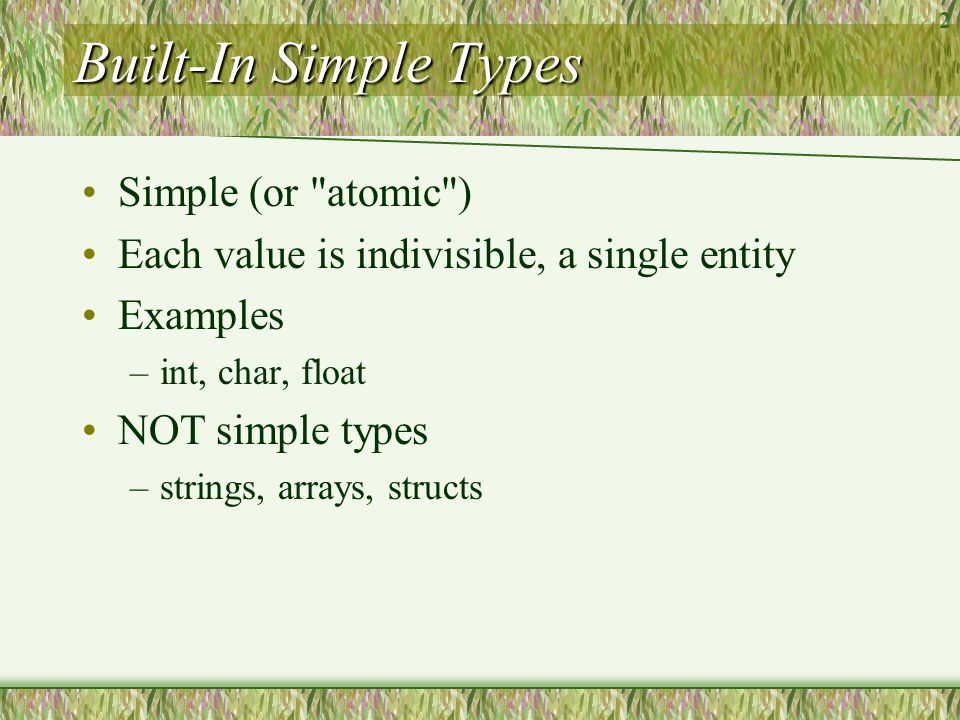

2. 2 Built-In Simple Types Simple (or "atomic") Each value is indivisible, a single entity Examples –int, char, float NOT simple types –strings, arrays, structs

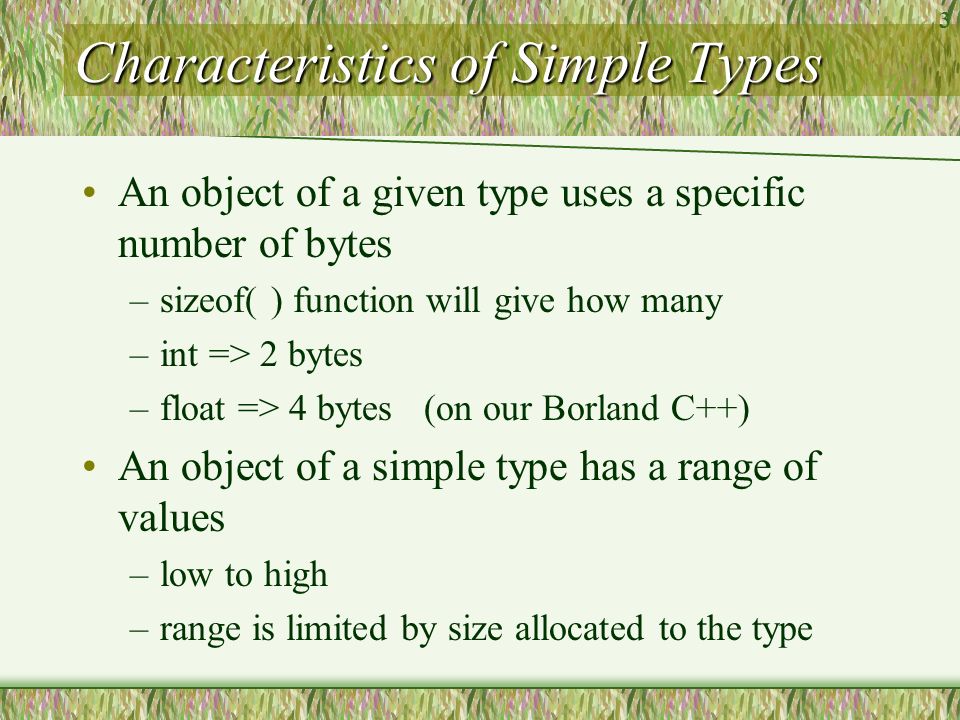

3. 3 Characteristics of Simple Types An object of a given type uses a specific number of bytes –sizeof( ) function will give how many –int => 2 bytes –float => 4 bytes (on our Borland C++) An object of a simple type has a range of values –low to high –range is limited by size allocated to the type

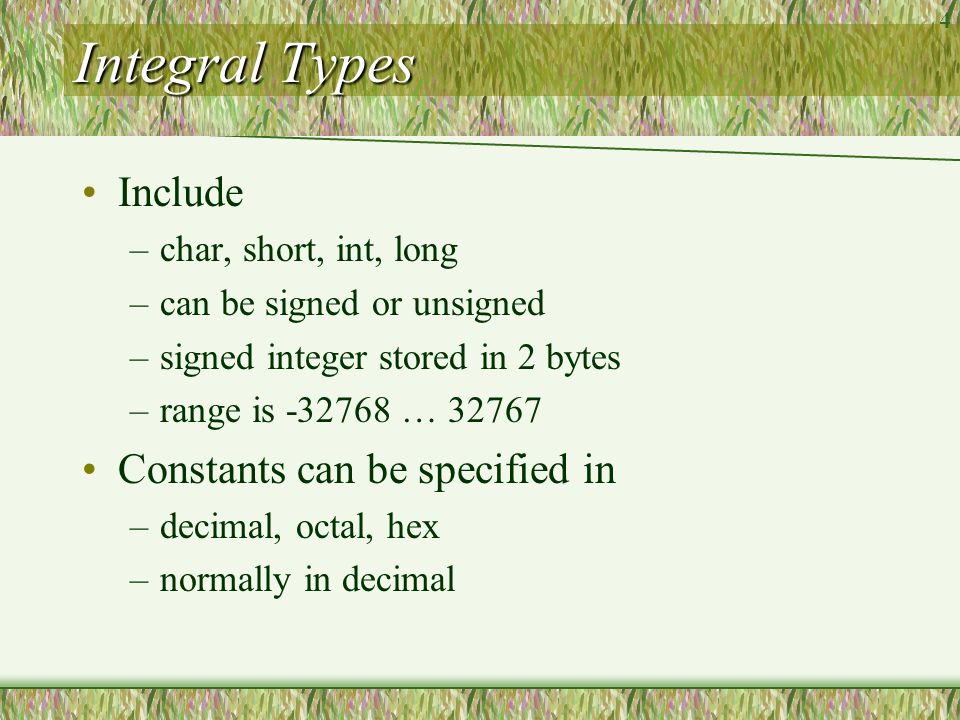

4. 4 Integral Types Include –char, short, int, long –can be signed or unsigned –signed integer stored in 2 bytes –range is -32768 … 32767 Constants can be specified in –decimal, octal, hex –normally in decimal

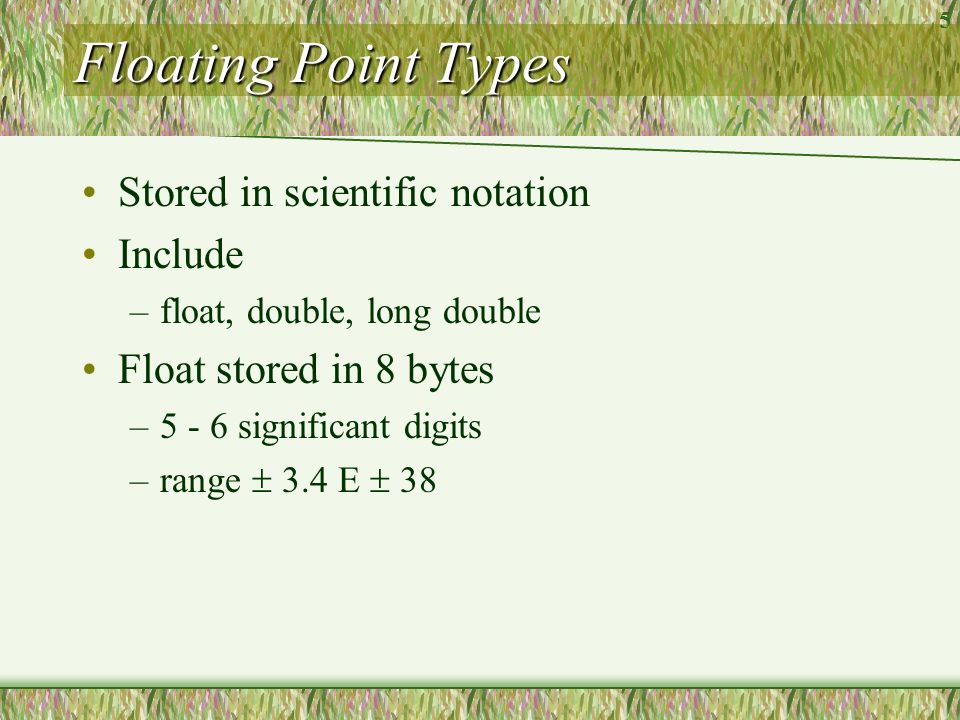

5. 5 Floating Point Types Stored in scientific notation Include –float, double, long double Float stored in 8 bytes –5 - 6 significant digits –range  3.4 E  38

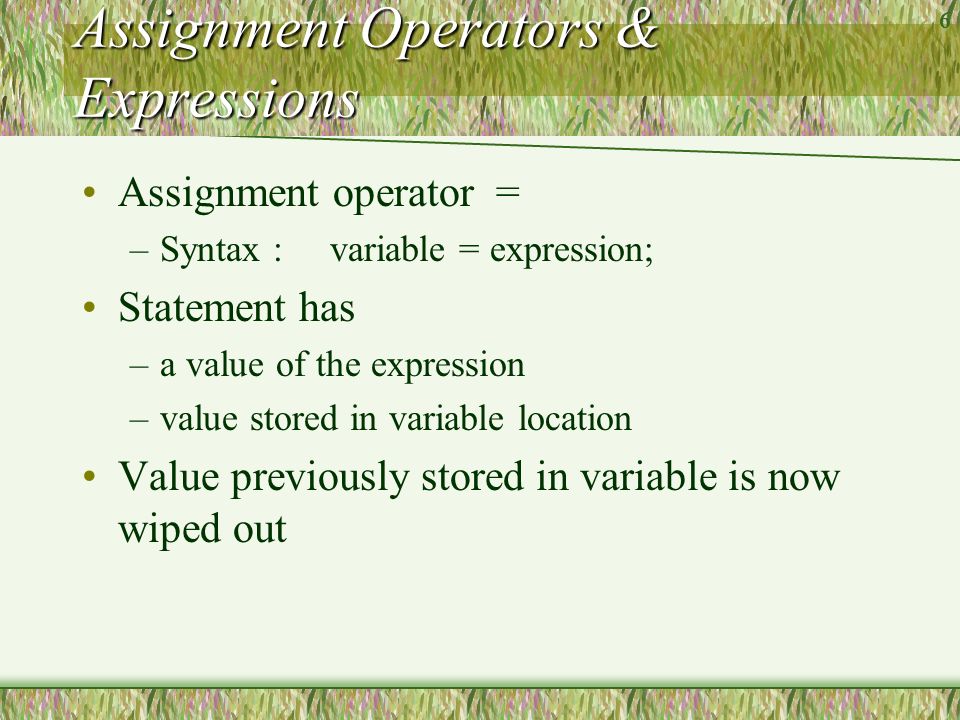

6. 6 Assignment Operators & Expressions Assignment operator = –Syntax : variable = expression; Statement has –a value of the expression –value stored in variable location Value previously stored in variable is now wiped out

7. 7 Combined Assignment Operators Consider a += 5; // same as a = a + 5; Similar results with -= *= /= %= The symbol += is considered a binary operator –syntax requires a variable on the left –an expression on the right

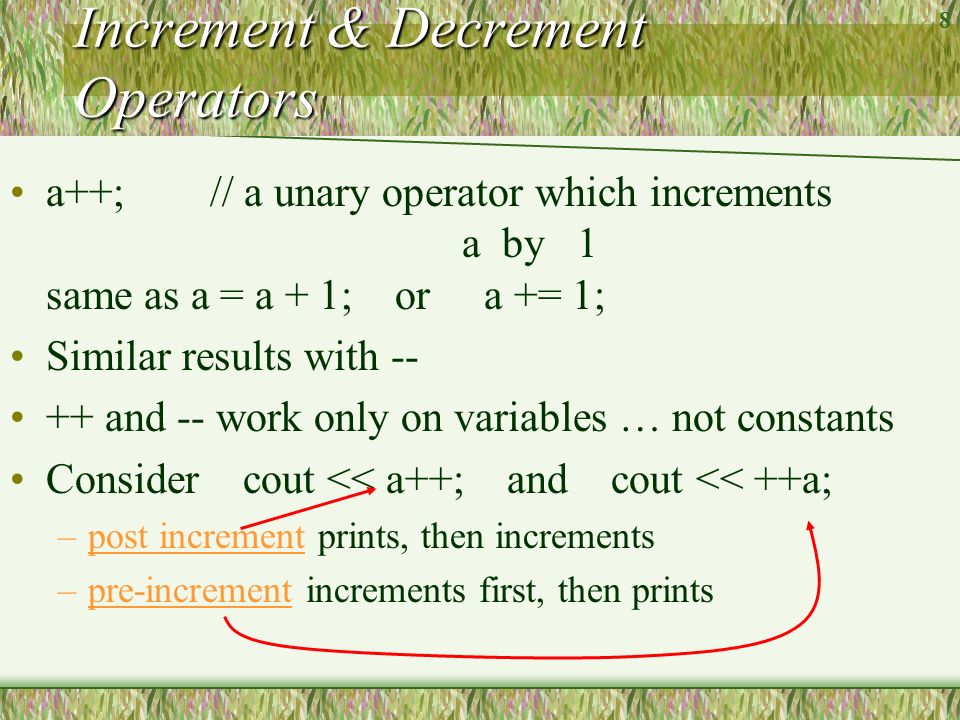

8. 8 Increment & Decrement Operators a++; // a unary operator which increments a by 1 same as a = a + 1; or a += 1; Similar results with -- ++ and -- work only on variables … not constants Consider cout << a++; and cout << ++a; –post increment prints, then increments –pre-increment increments first, then prints

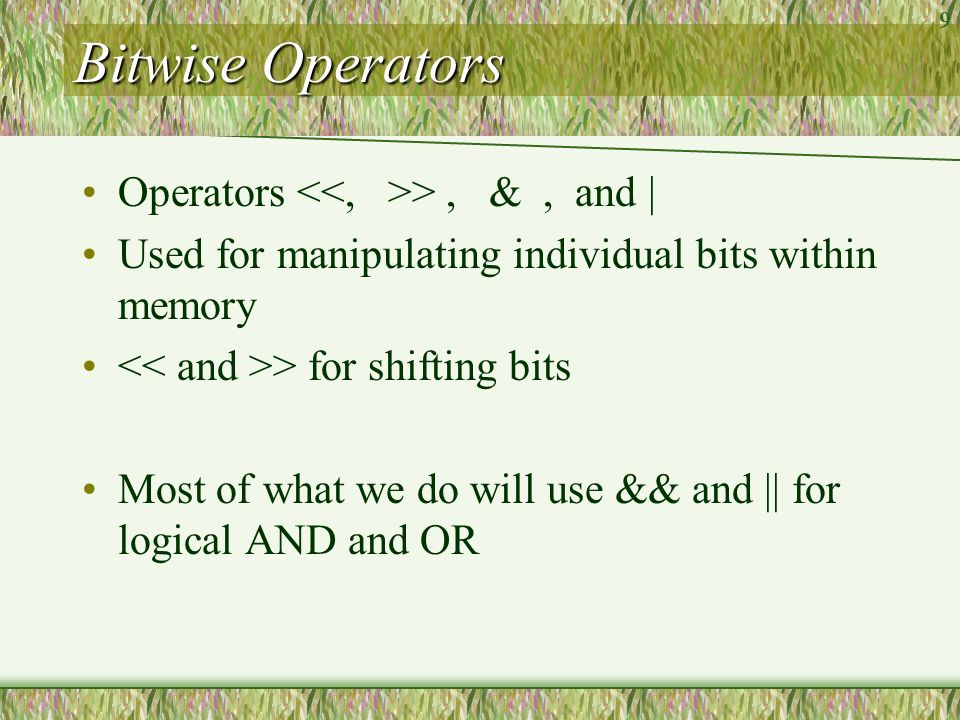

9. 9 Bitwise Operators Operators >, &, and | Used for manipulating individual bits within memory > for shifting bits Most of what we do will use && and || for logical AND and OR

10. 10 The Cast Operator Wen mixing data types in expressions, implicit type casting occurs Example int x; float f; Consider x = f; Versus f = x; Text suggests explicit type casting x = (int)f; // use the type in ( ) f = float(x); // use the type as a function

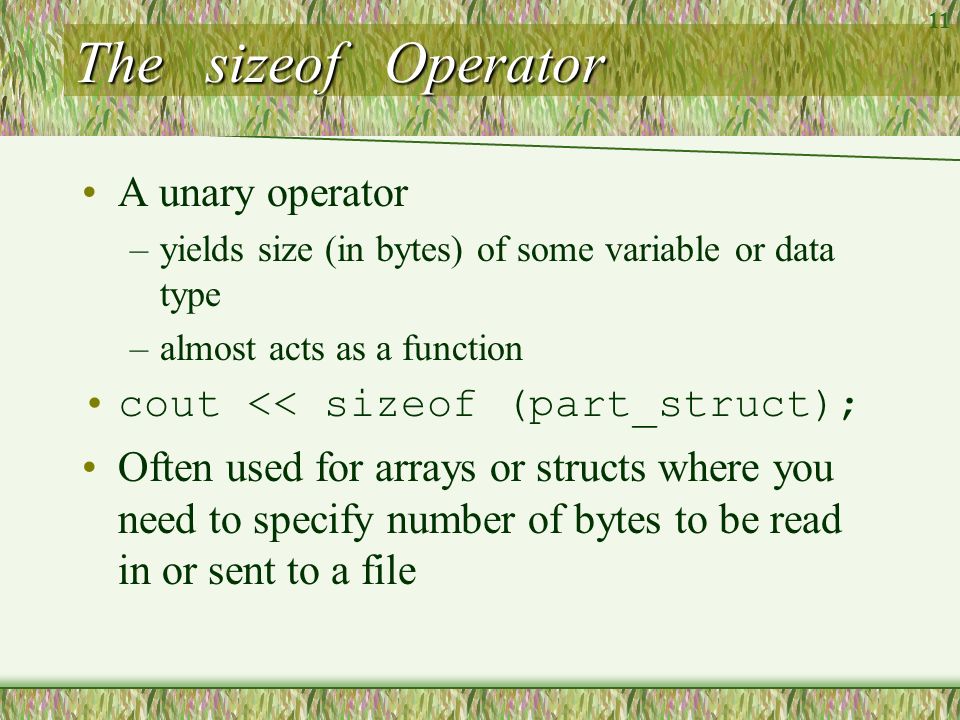

11. 11 The sizeof Operator A unary operator –yields size (in bytes) of some variable or data type –almost acts as a function cout << sizeof (part_struct); Often used for arrays or structs where you need to specify number of bytes to be read in or sent to a file

12. 12 The Selection Operator ? : A trinary operator -- requires three operands Example amt = (x < 5) ? y : z; If x < 5 then amt gets value stored in y otherwise gets value stored in z

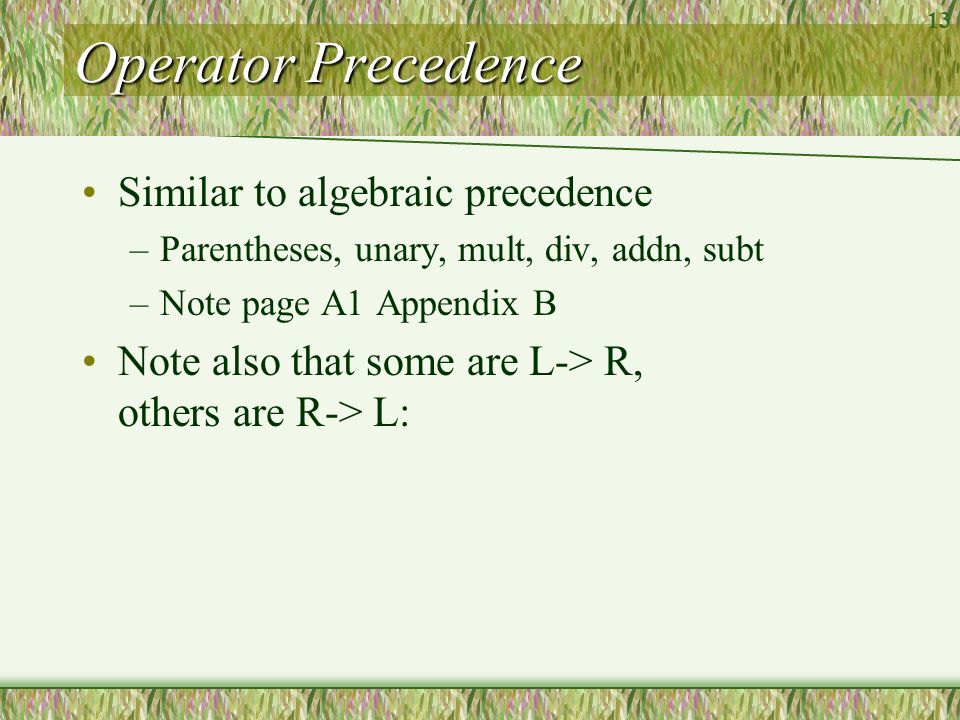

13. 13 Operator Precedence Similar to algebraic precedence –Parentheses, unary, mult, div, addn, subt –Note page A1 Appendix B Note also that some are L-> R, others are R-> L:

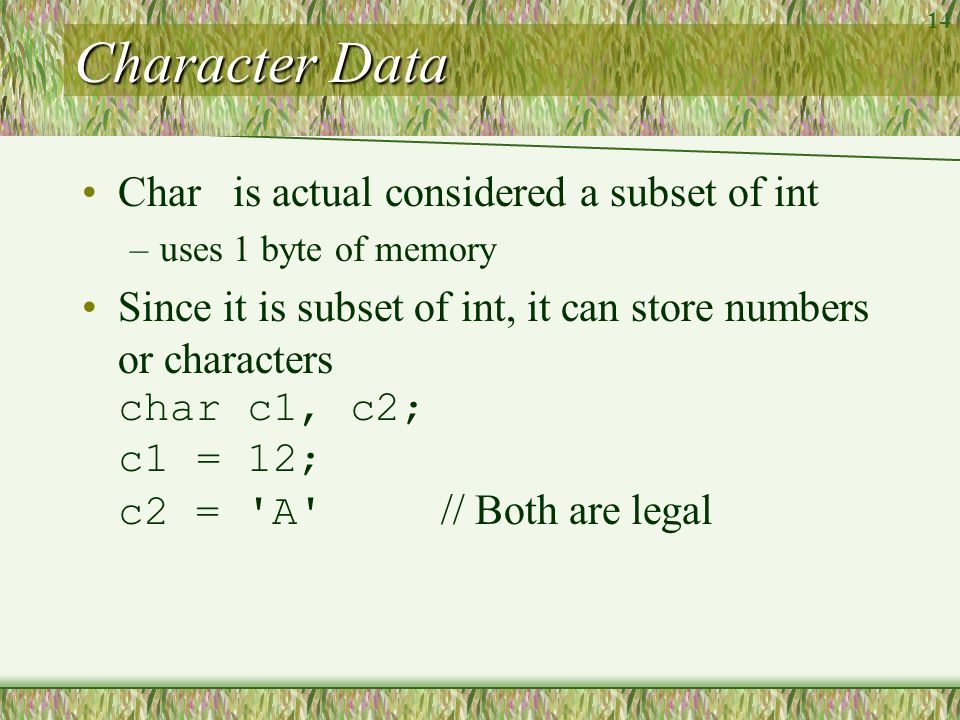

14. 14 Character Data Char is actual considered a subset of int –uses 1 byte of memory Since it is subset of int, it can store numbers or characters char c1, c2; c1 = 12; c2 = 'A' // Both are legal

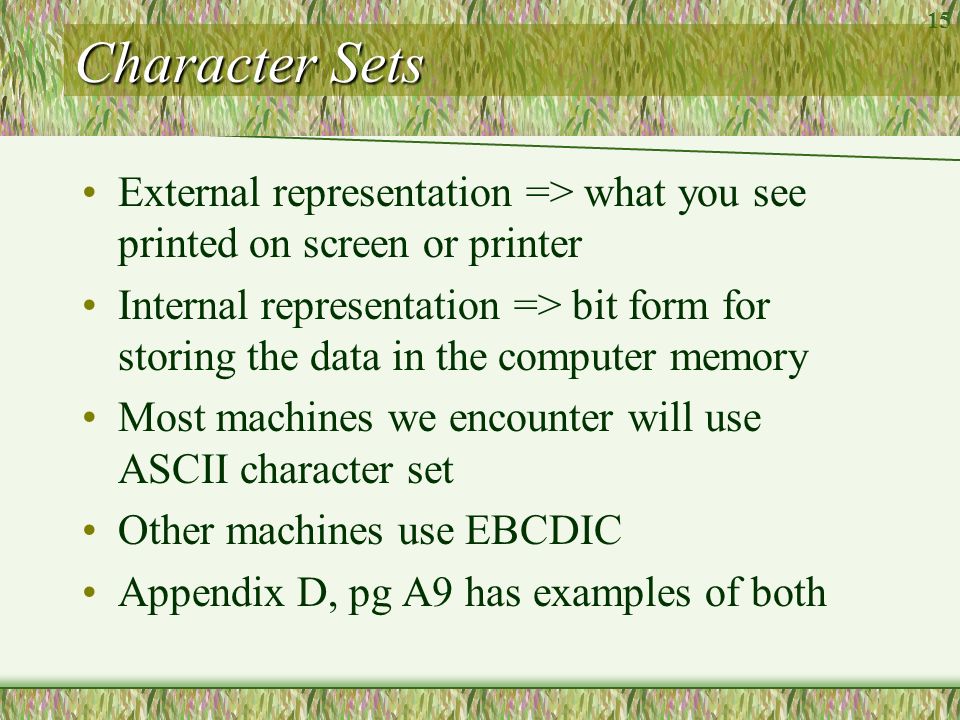

15. 15 Character Sets External representation => what you see printed on screen or printer Internal representation => bit form for storing the data in the computer memory Most machines we encounter will use ASCII character set Other machines use EBCDIC Appendix D, pg A9 has examples of both

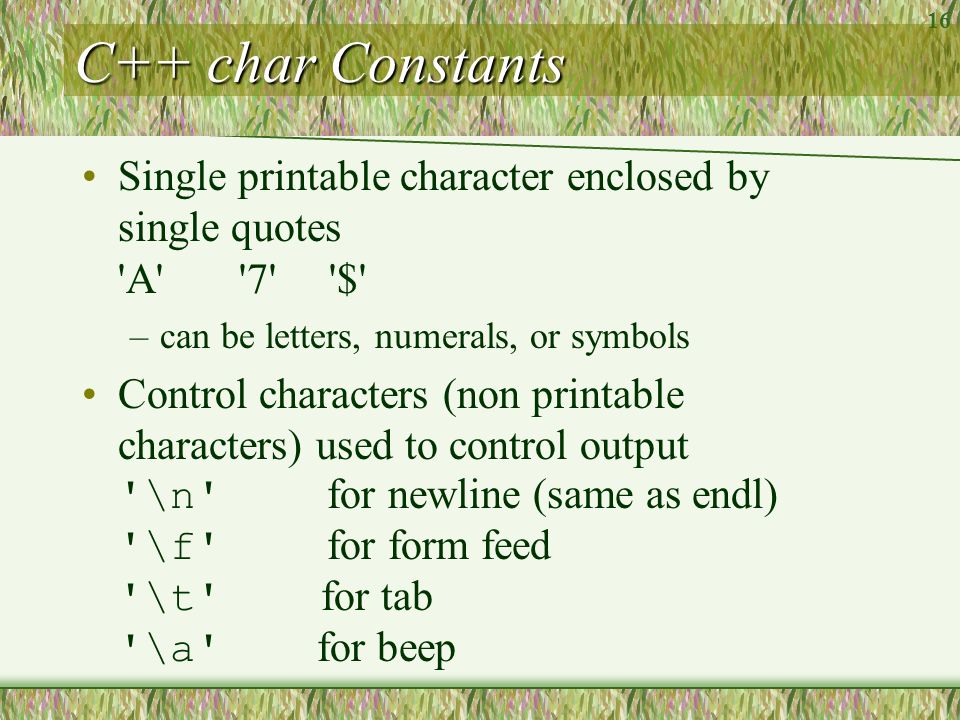

16. 16 C++ char Constants Single printable character enclosed by single quotes 'A' '7' '$' –can be letters, numerals, or symbols Control characters (non printable characters) used to control output '\n' for newline (same as endl) '\f' for form feed '\t' for tab '\a' for beep

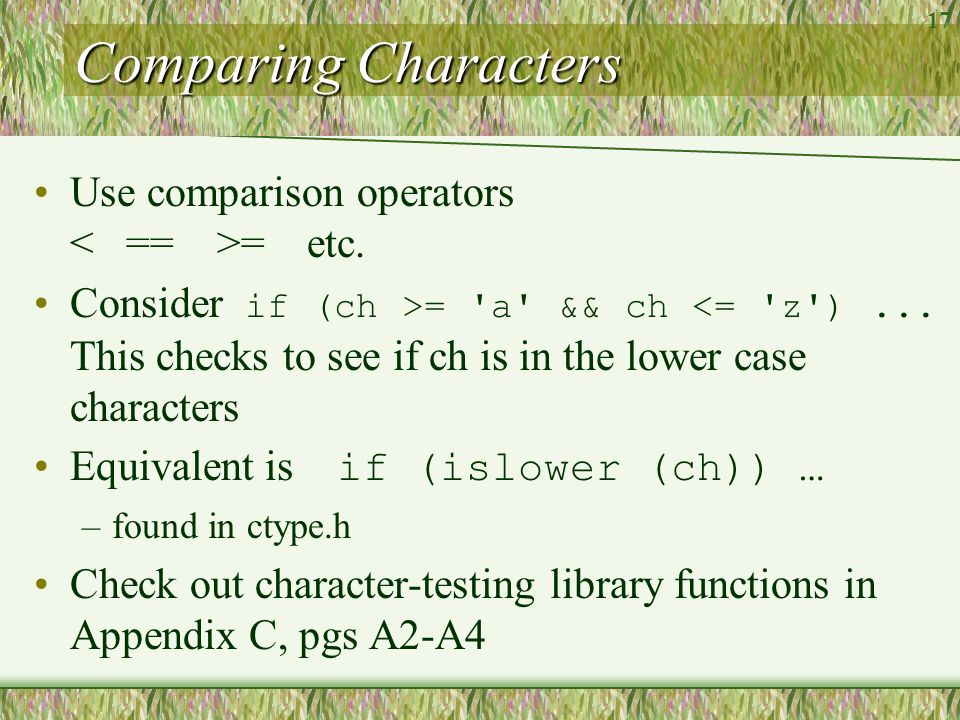

17. 17 Comparing Characters Use comparison operators = etc. Consider if (ch >= 'a' && ch <= 'z')... This checks to see if ch is in the lower case characters Equivalent is if (islower (ch)) … –found in ctype.h Check out character-testing library functions in Appendix C, pgs A2-A4

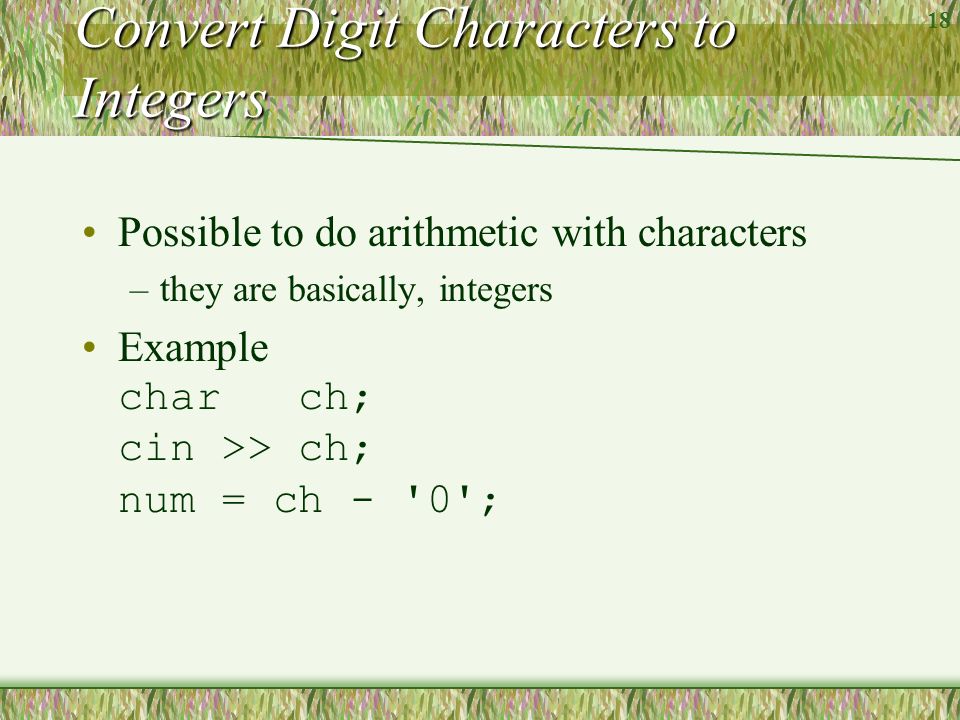

18. 18 Convert Digit Characters to Integers Possible to do arithmetic with characters –they are basically, integers Example char ch; cin >> ch; num = ch - '0';

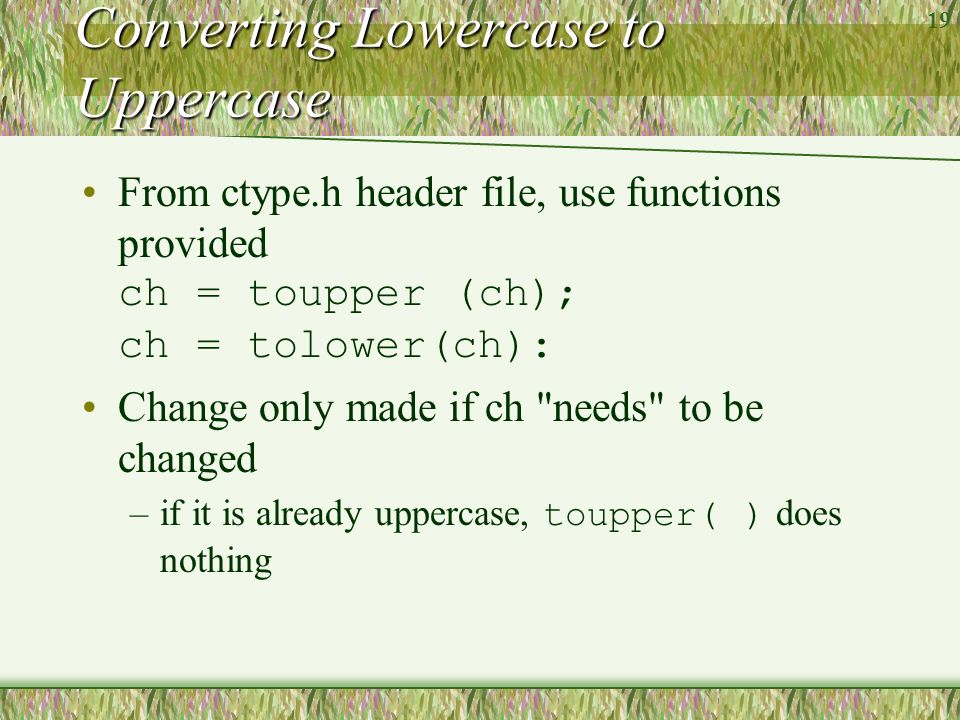

19. 19 Converting Lowercase to Uppercase From ctype.h header file, use functions provided ch = toupper (ch); ch = tolower(ch): Change only made if ch "needs" to be changed –if it is already uppercase, toupper( ) does nothing

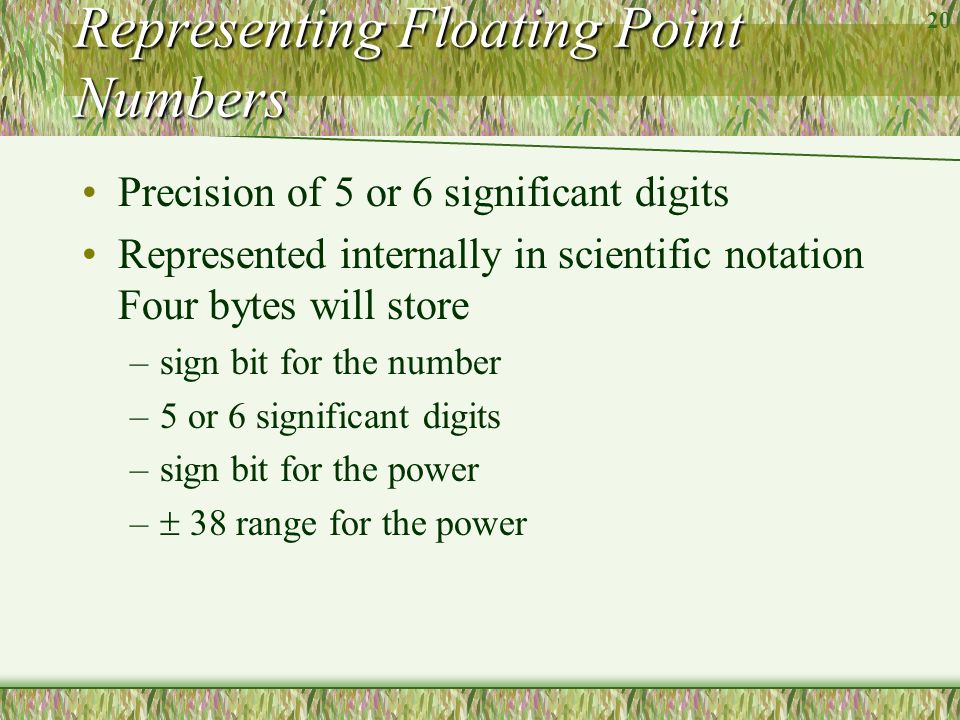

20. 20 Representing Floating Point Numbers Precision of 5 or 6 significant digits Represented internally in scientific notation Four bytes will store –sign bit for the number –5 or 6 significant digits –sign bit for the power –  38 range for the power

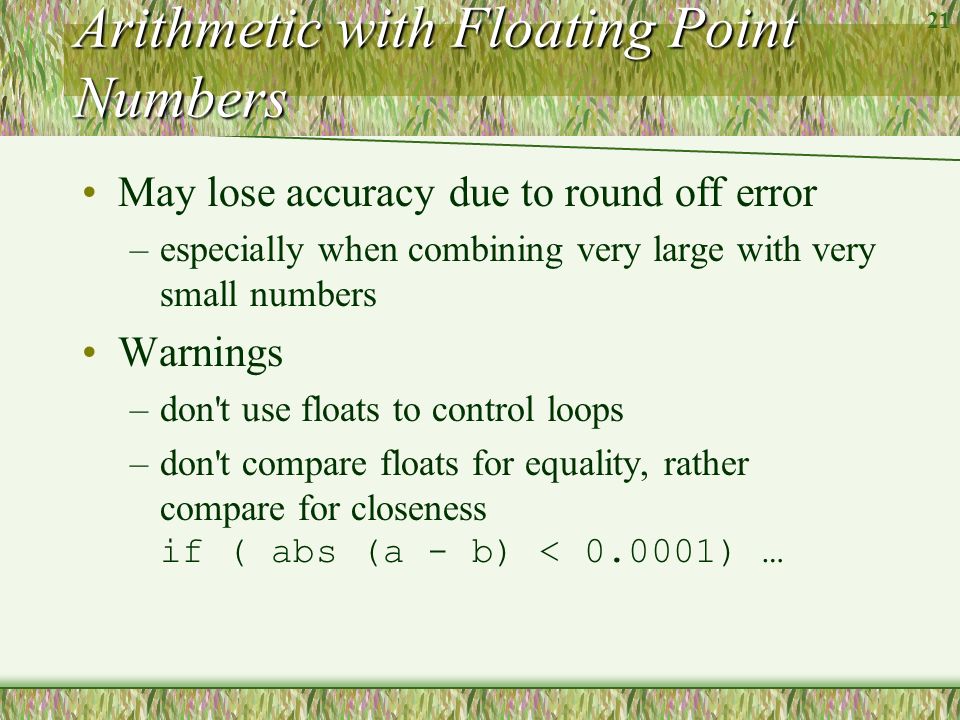

21. 21 Arithmetic with Floating Point Numbers May lose accuracy due to round off error –especially when combining very large with very small numbers Warnings –don't use floats to control loops –don't compare floats for equality, rather compare for closeness if ( abs (a - b) < 0.0001) …

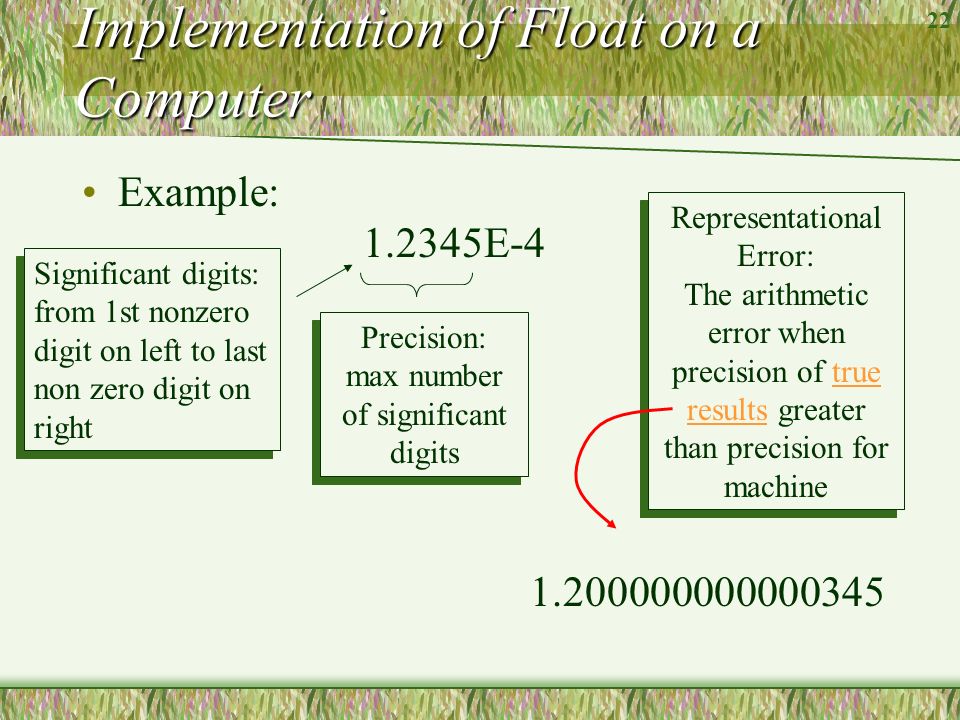

22. 22 Implementation of Float on a Computer Example: 1.2345E-4 Significant digits: from 1st nonzero digit on left to last non zero digit on right Precision: max number of significant digits Representational Error: The arithmetic error when precision of true results greater than precision for machine 1.200000000000345

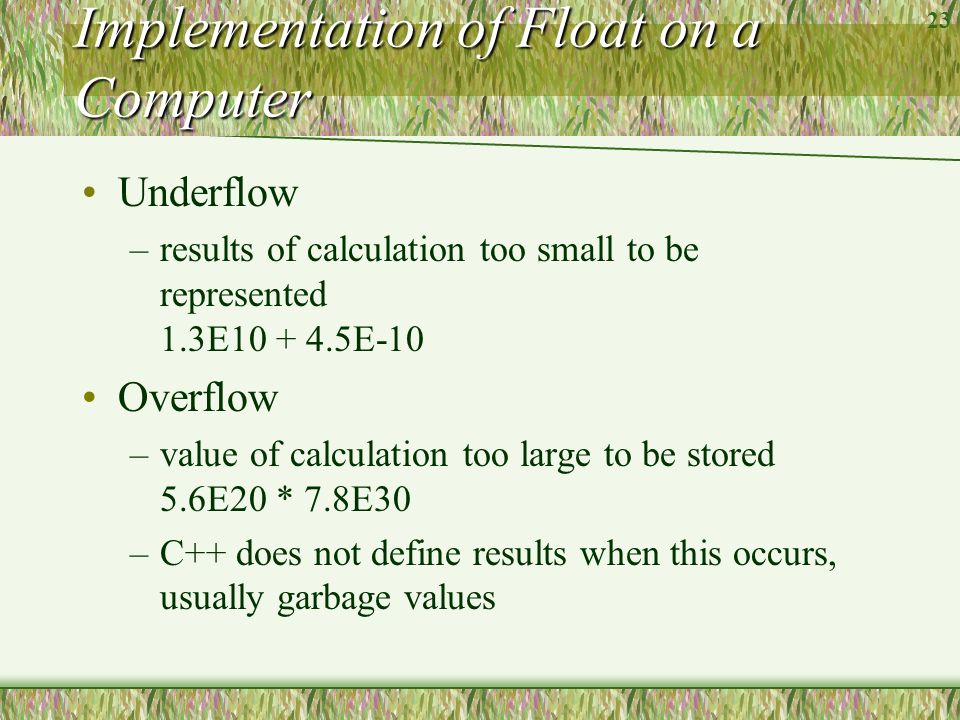

23. 23 Implementation of Float on a Computer Underflow –results of calculation too small to be represented 1.3E10 + 4.5E-10 Overflow –value of calculation too large to be stored 5.6E20 * 7.8E30 –C++ does not define results when this occurs, usually garbage values

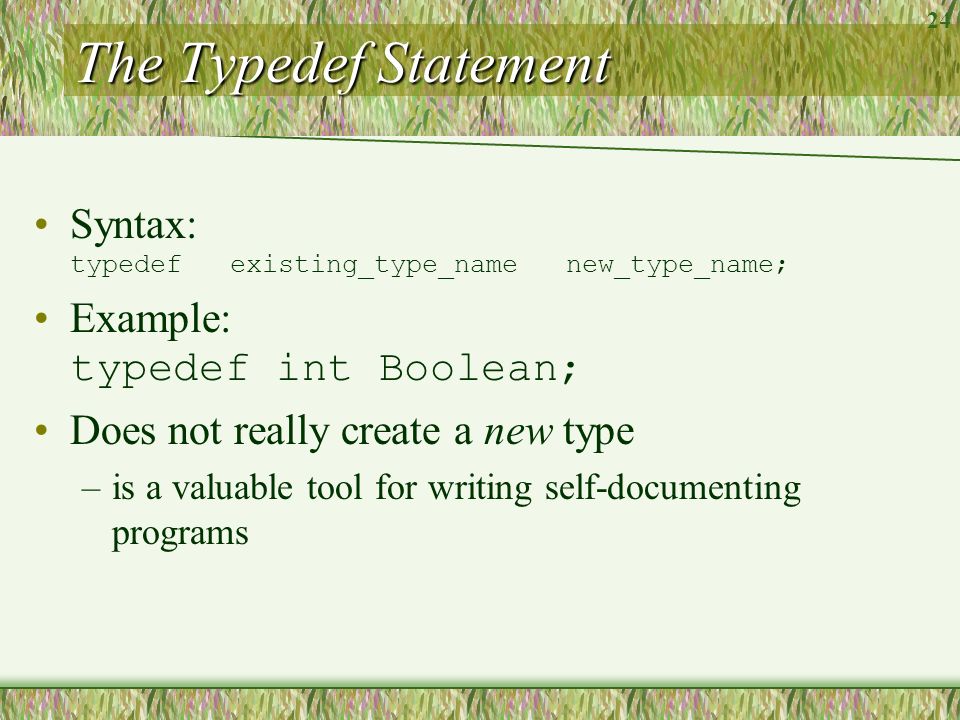

24. 24 The Typedef Statement Syntax: typedef existing_type_name new_type_name; Example: typedef int Boolean; Does not really create a new type –is a valuable tool for writing self-documenting programs

25. 25 Enumerated Types Possible to create a new type by simply listing (enumerating) the constants which make up the type Example: enum daysOfWeek (SUN, MON, TUE, WED, THU, FRI, SAT); daysOfWeek today, tomorrow, work_day; work_day = MON; C++ represents these internally as numbers (0.. 6 for our example)

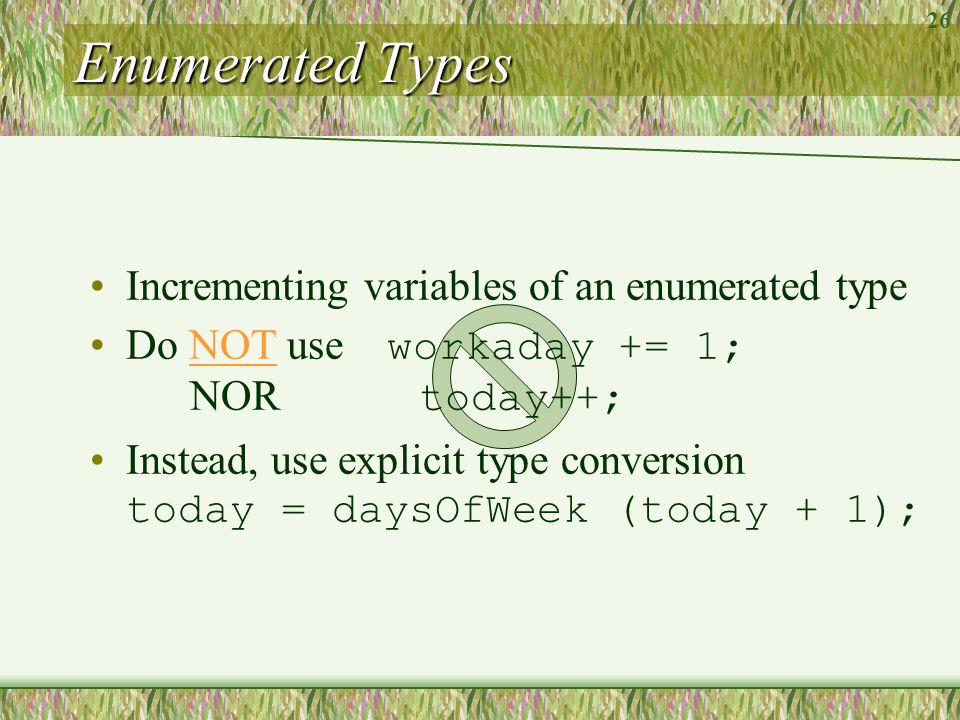

26. 26 Enumerated Types Incrementing variables of an enumerated type Do NOT use workaday += 1; NOR today++; Instead, use explicit type conversion today = daysOfWeek (today + 1);

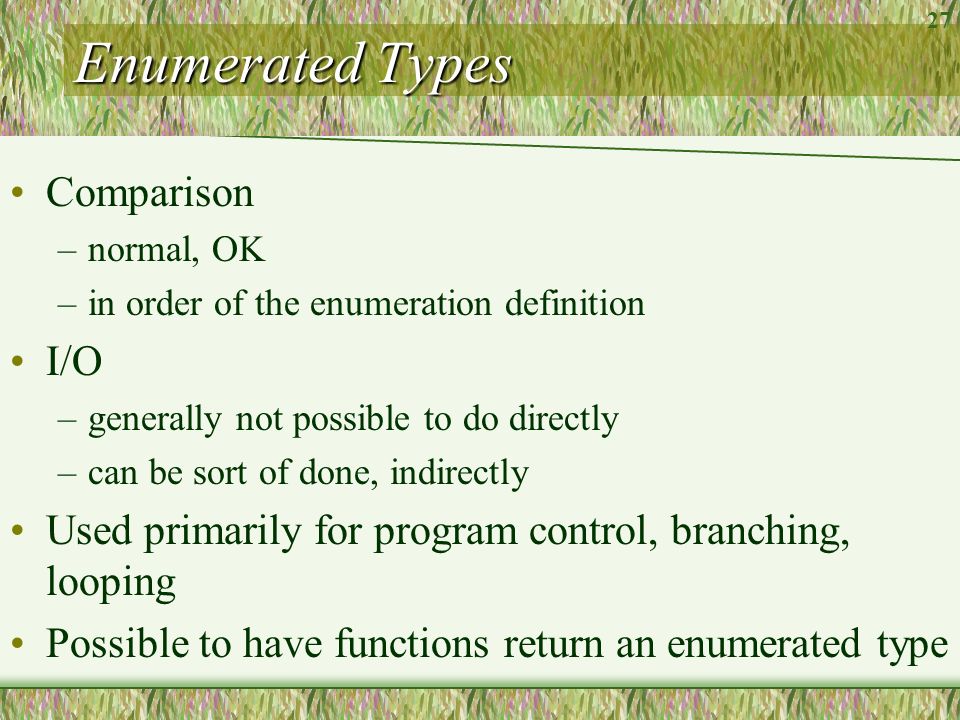

27. 27 Enumerated Types Comparison –normal, OK –in order of the enumeration definition I/O –generally not possible to do directly –can be sort of done, indirectly Used primarily for program control, branching, looping Possible to have functions return an enumerated type

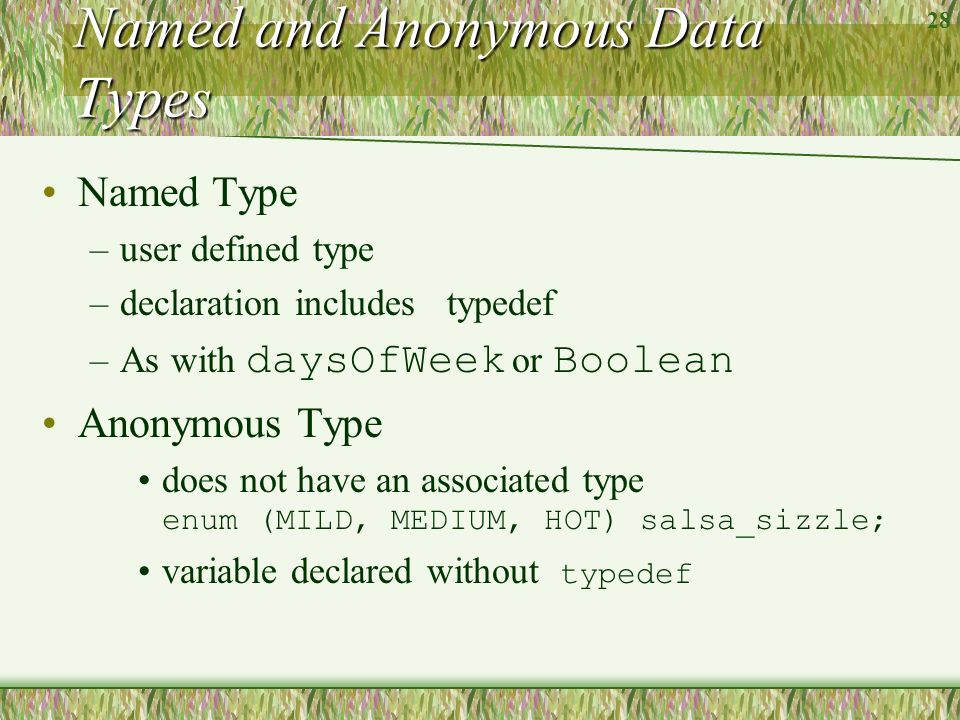

28. 28 Named and Anonymous Data Types Named Type –user defined type –declaration includes typedef –As with daysOfWeek or Boolean Anonymous Type does not have an associated type enum (MILD, MEDIUM, HOT) salsa_sizzle; variable declared without typedef

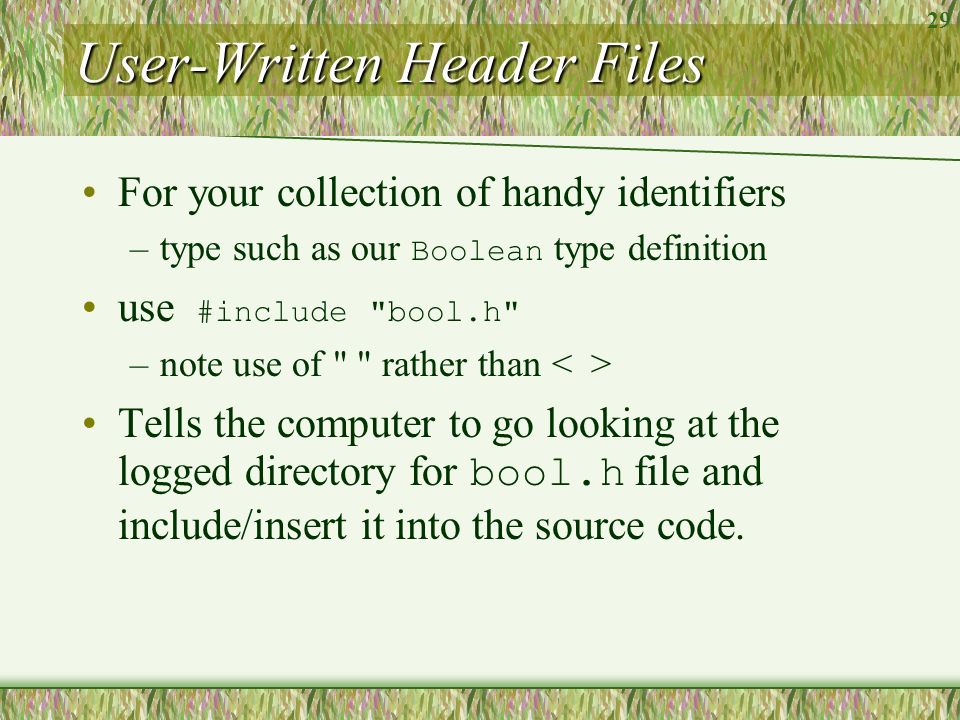

29. 29 User-Written Header Files For your collection of handy identifiers –type such as our Boolean type definition use #include "bool.h" –note use of " " rather than Tells the computer to go looking at the logged directory for bool.h file and include/insert it into the source code.

30. 30 Type Coercion in Expressions If two operands are of different types –one is temporarily "promoted" or "widened" to match the data type of the other int x = 5; float f = 1.234, amt = + f; Another example: –char or short operands promoted to int int x = 5 + 'Q'; Expression result is of type int

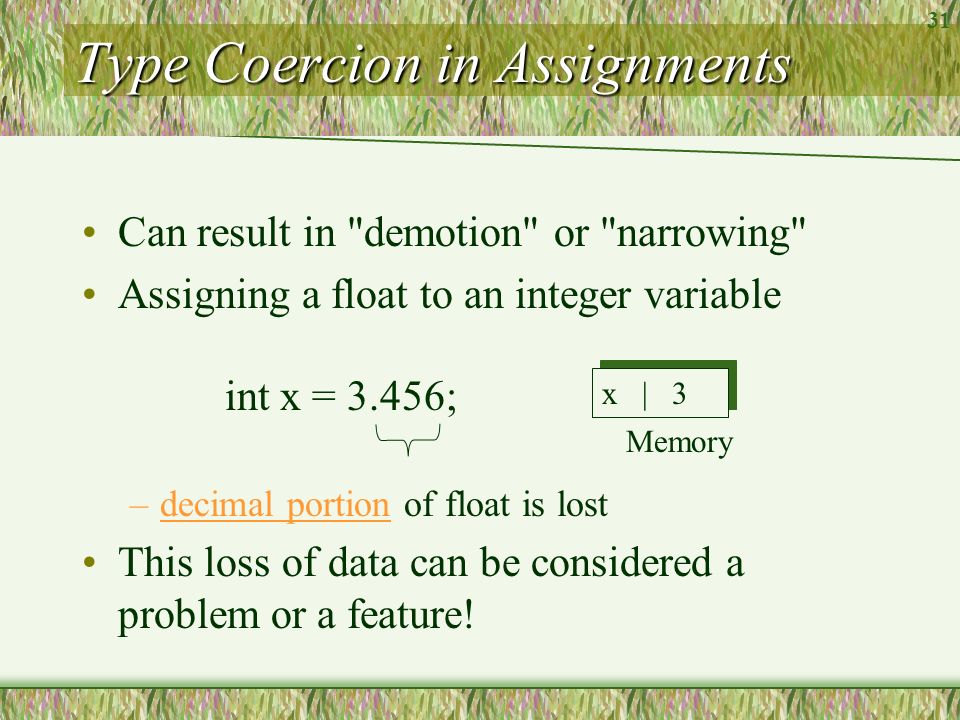

31. 31 Type Coercion in Assignments Can result in "demotion" or "narrowing" Assigning a float to an integer variable int x = 3.456; –decimal portion of float is lost This loss of data can be considered a problem or a feature! x | 3 Memory
