1. Histology Anatomy 10A

2. Tissues are sectioned in three ways: Longitudinal section Transverse, cross- section Oblique

3. Category 1: epithelia Surface and lining layer(s) Characterized by cells close together Characterized by no blood vessels Described by the number of layers One, or more than one Described by the shape Flat, square or rectangular

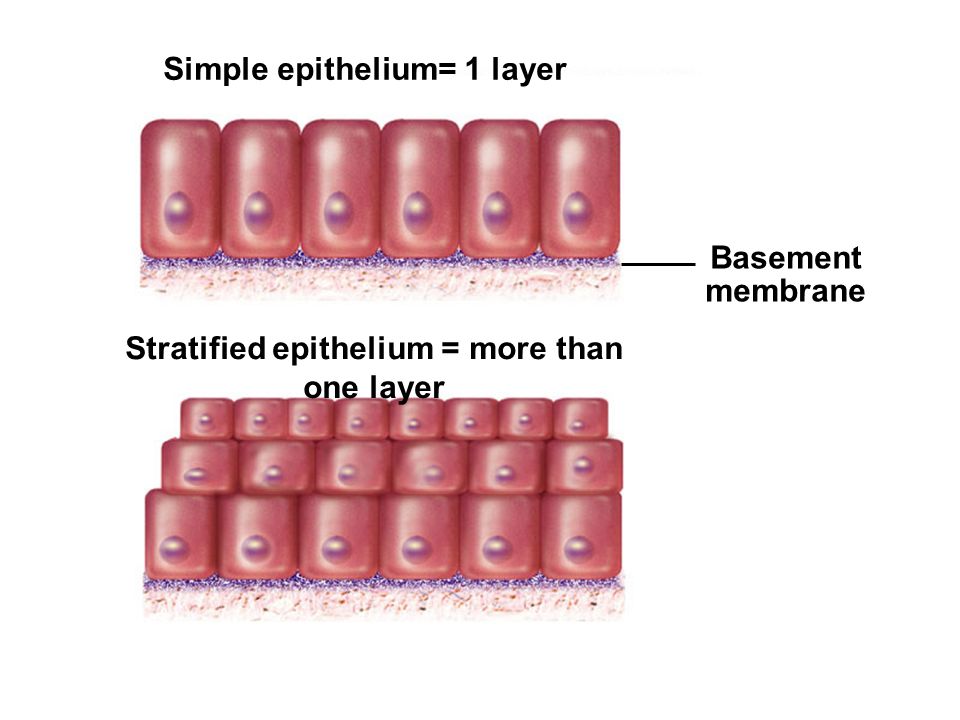

4. Simple epithelium= 1 layer Basement membrane Stratified epithelium = more than one layer

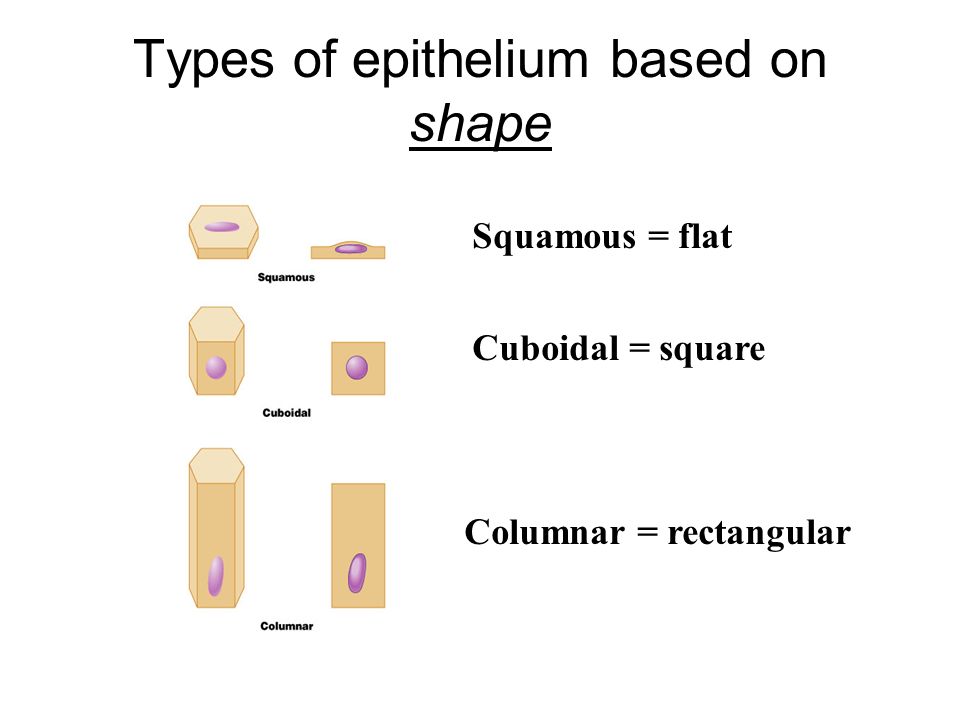

5. Types of epithelium based on shape Squamous = flat Cuboidal = square Columnar = rectangular

6. Simple squamous epithelium Each cell is like a floor tile- thin and flat, placed very close to the next tile. 3D view2-D view

7. Simple cuboidal epithelium 3-D view 2-D view Each cell is shaped like an ice cube with the nucleus in the center.

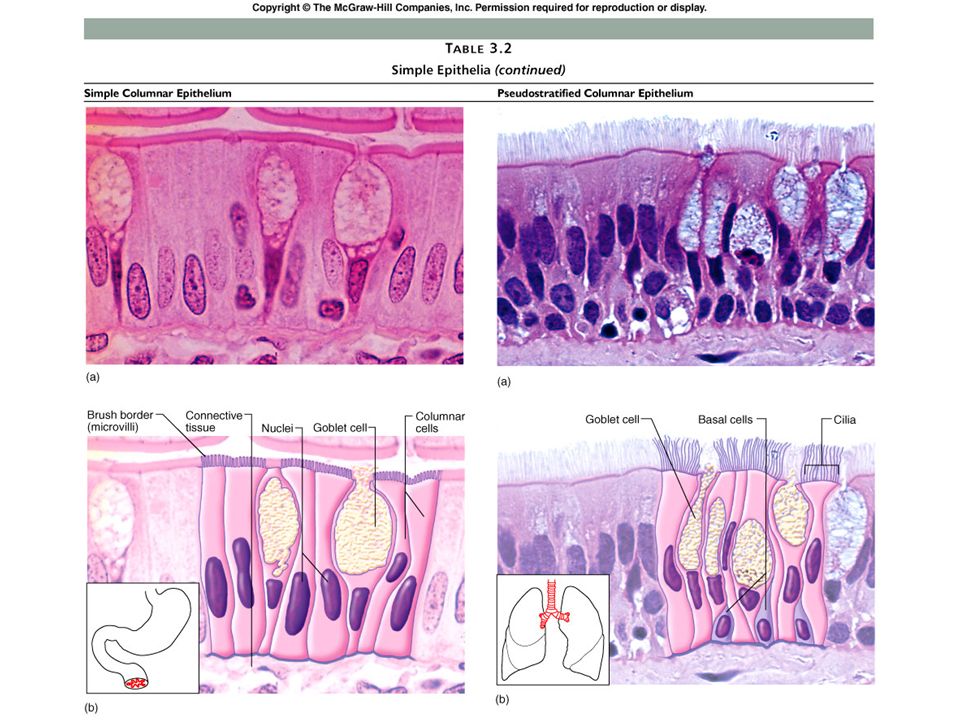

8. Simple columnar epithelium (with microvilli, non-ciliated) Each cell is tall, rectangular-shaped. Nuclei are organized in rows. 3-D 2-D view

9. Pseudostratified ciliated columnar epithelia 3-D 2 2-D view Cells are many sizes; tallest are ciliated. Nuclei are disorganized, staggered.

10. Simple colunmar epithelium (with microvilli)

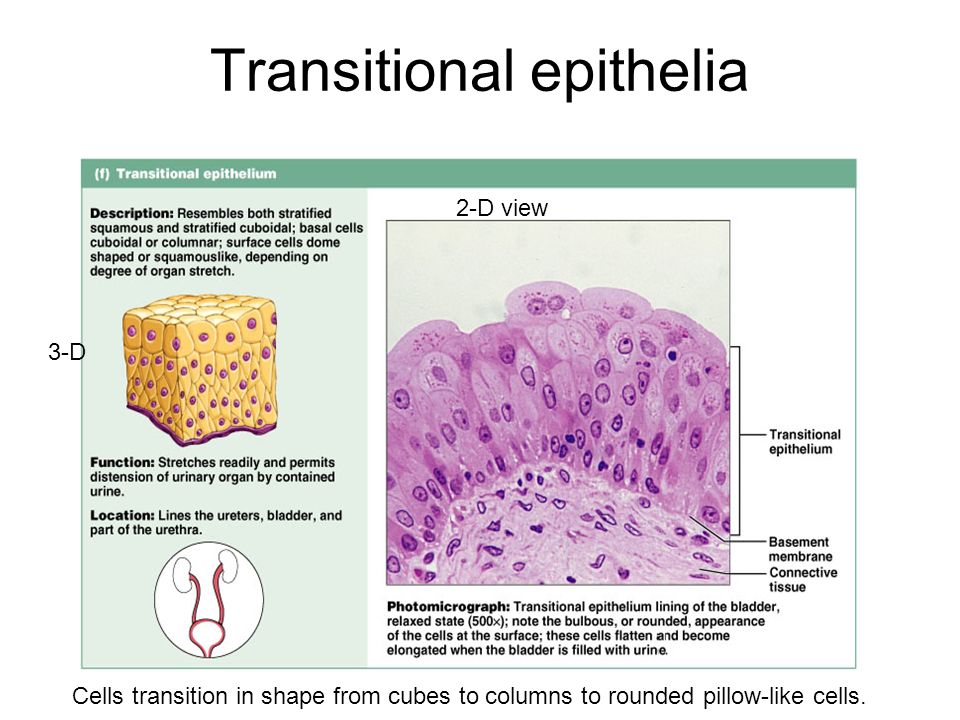

11. Transitional epithelia 3-D 2-D view Cells transition in shape from cubes to columns to rounded pillow-like cells.

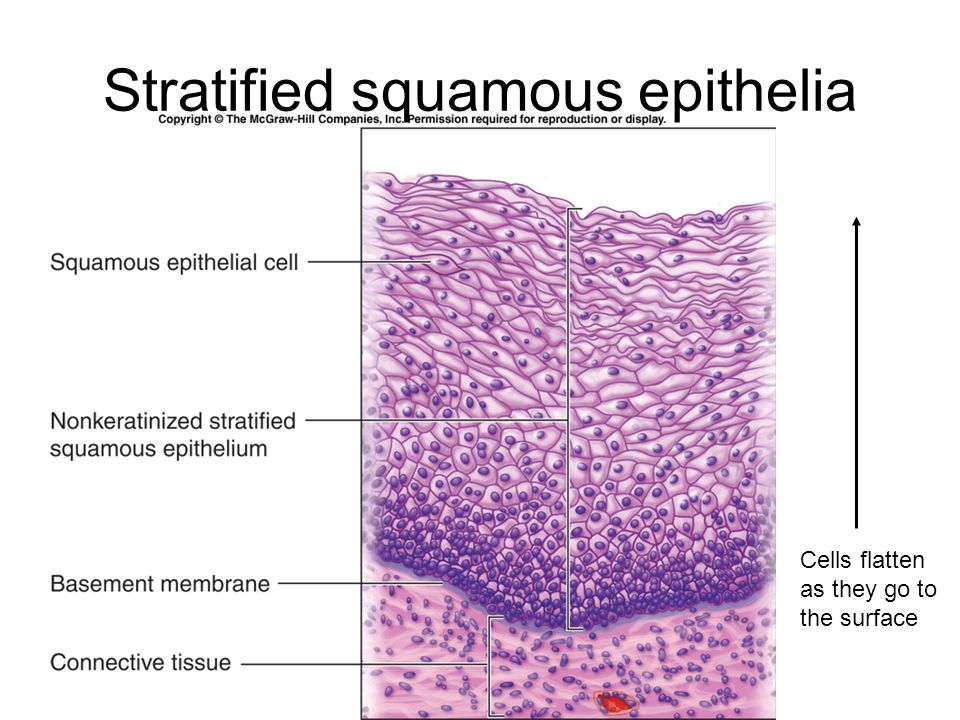

12. Stratified squamous epithelia Cells flatten as they go to the surface

13. Stratified squamous epithelia

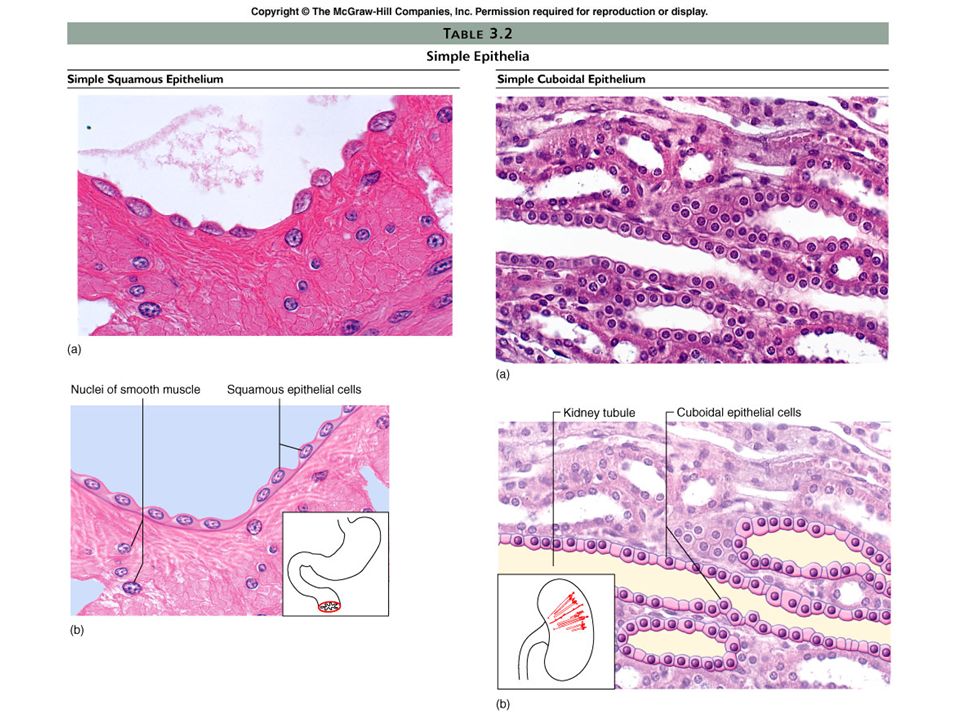

14. Epithelia review, compare and contrast

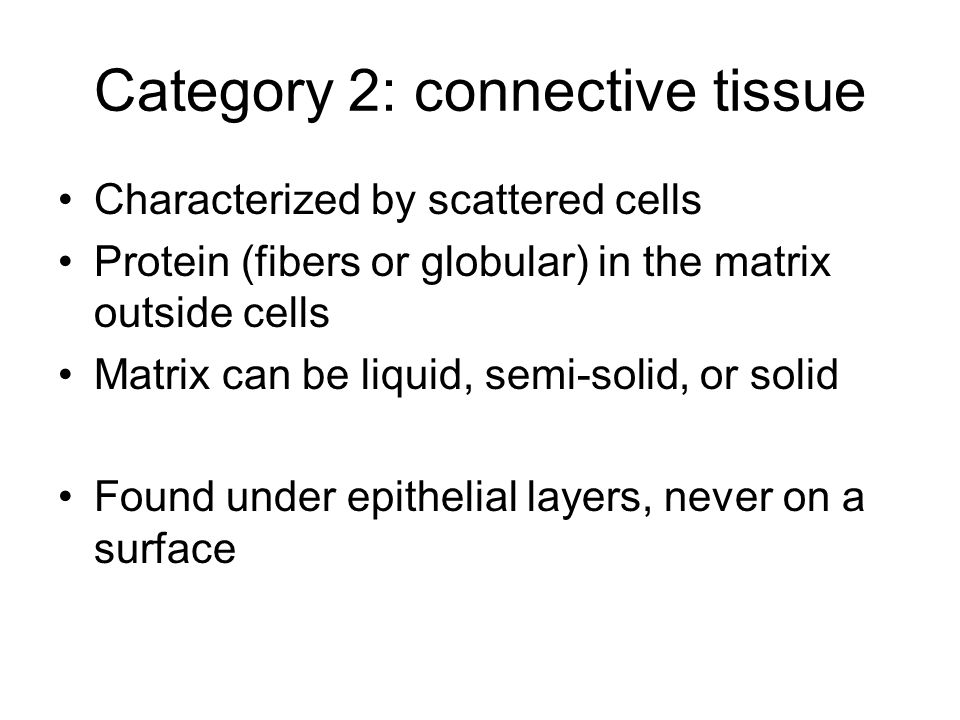

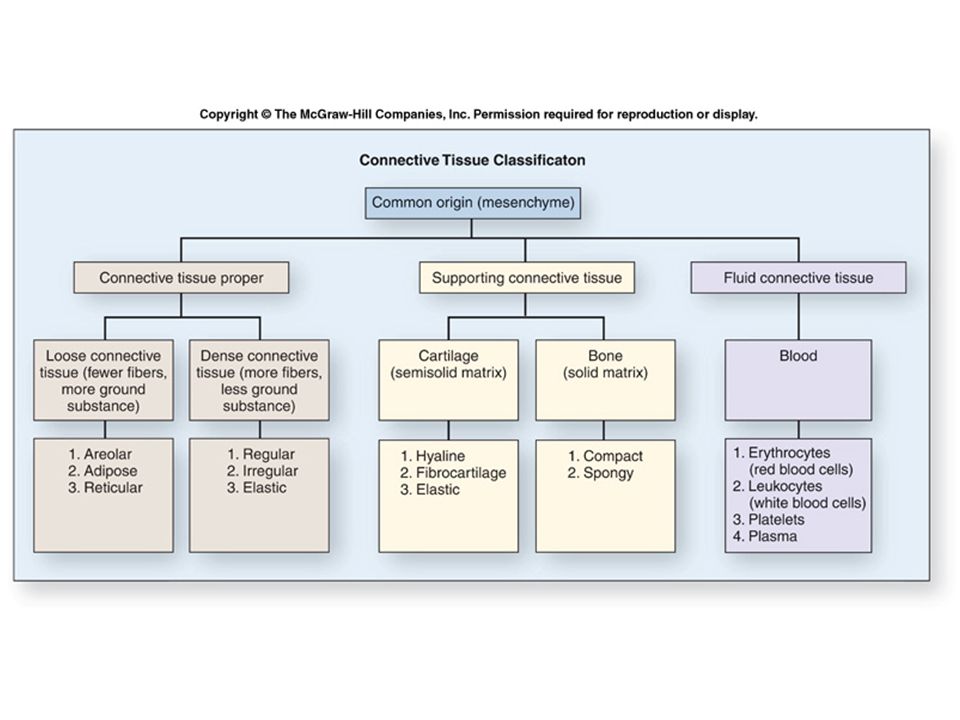

19. Category 2: connective tissue Characterized by scattered cells Protein (fibers or globular) in the matrix outside cells Matrix can be liquid, semi-solid, or solid Found under epithelial layers, never on a surface

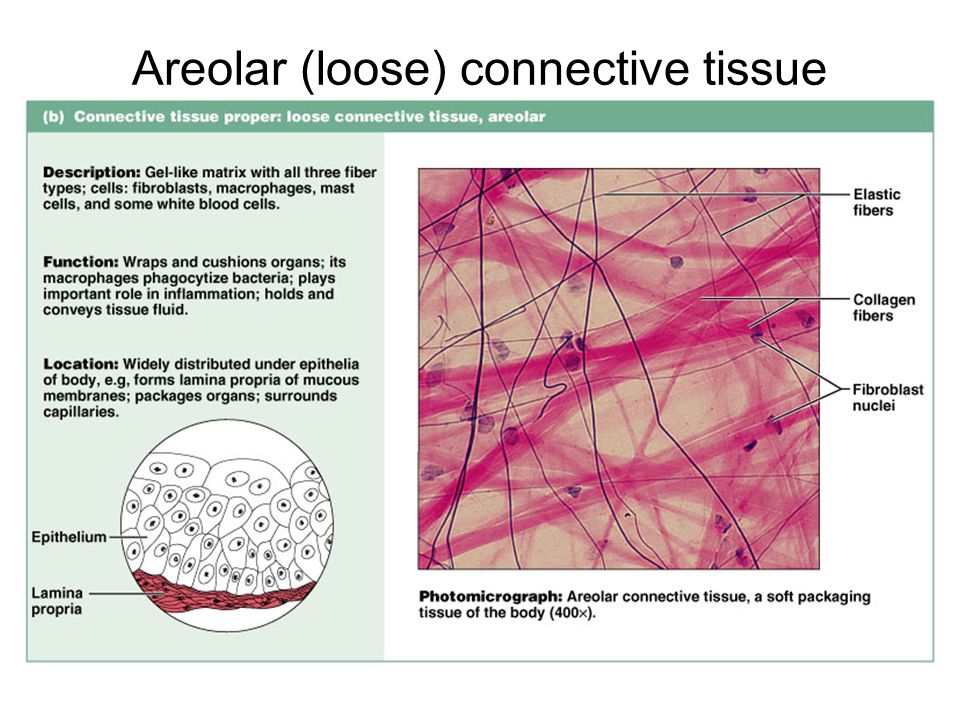

21. Areolar (loose) connective tissue

22. Adipose

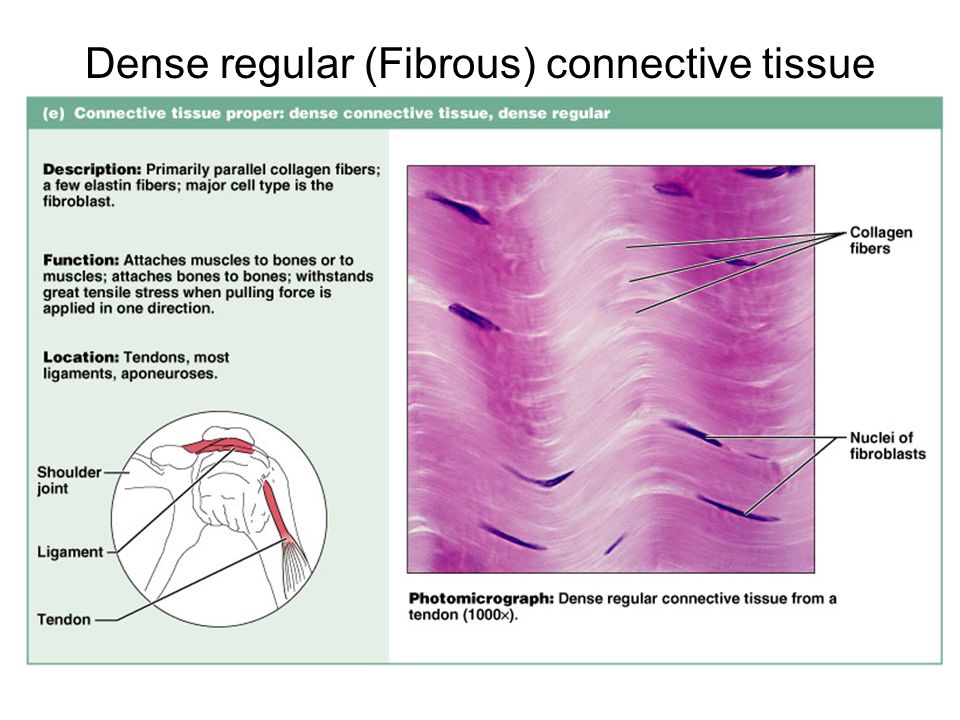

24. Dense regular (Fibrous) connective tissue

26. Blood

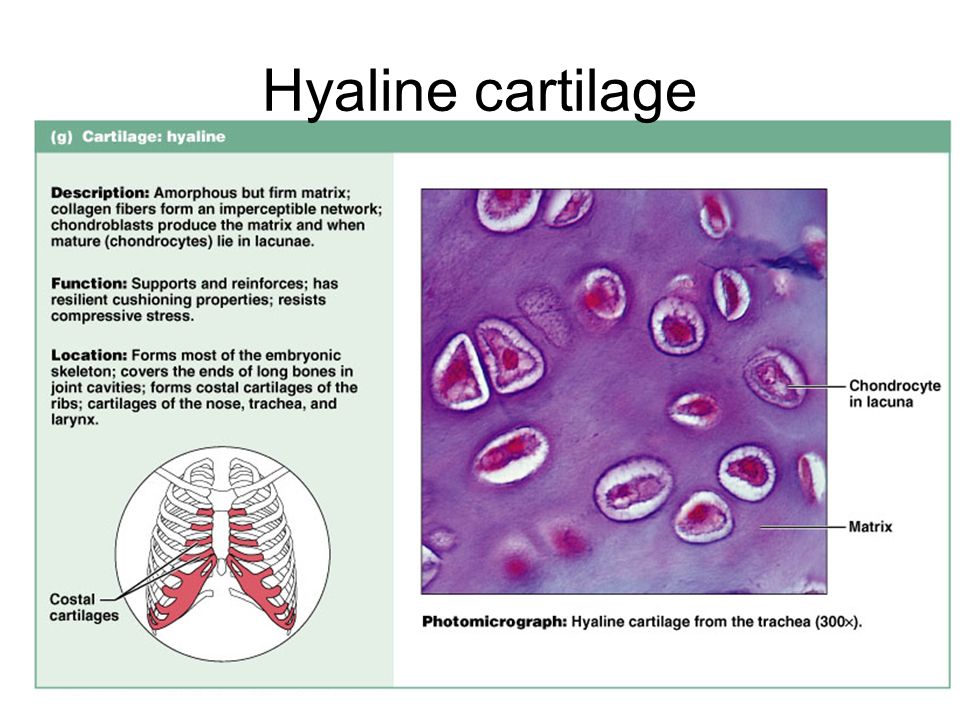

28. Hyaline cartilage

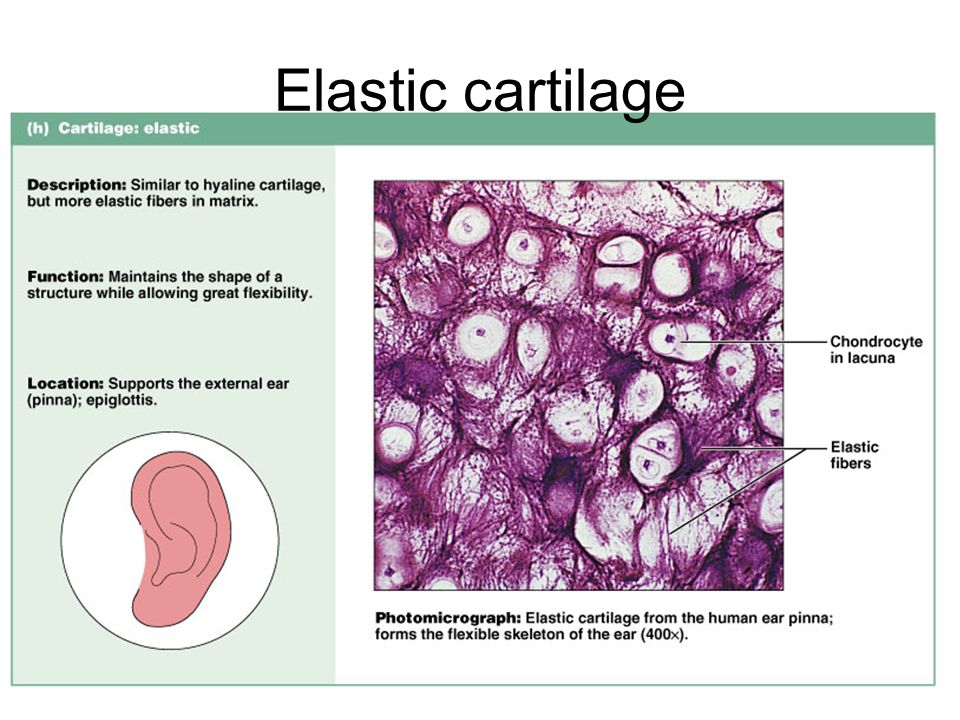

30. Elastic cartilage

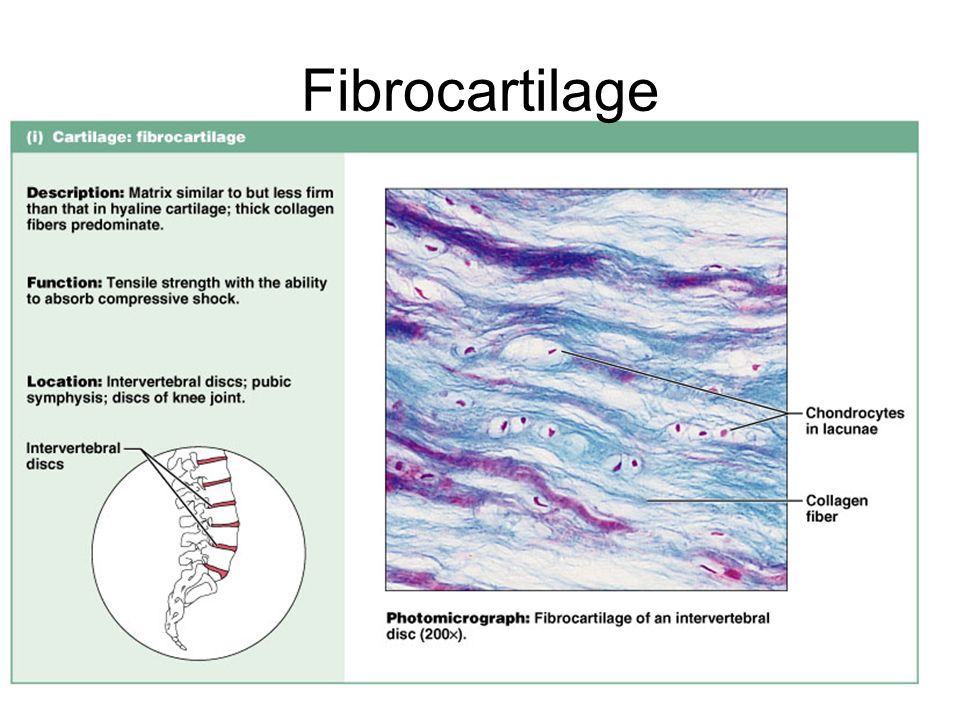

32. Fibrocartilage

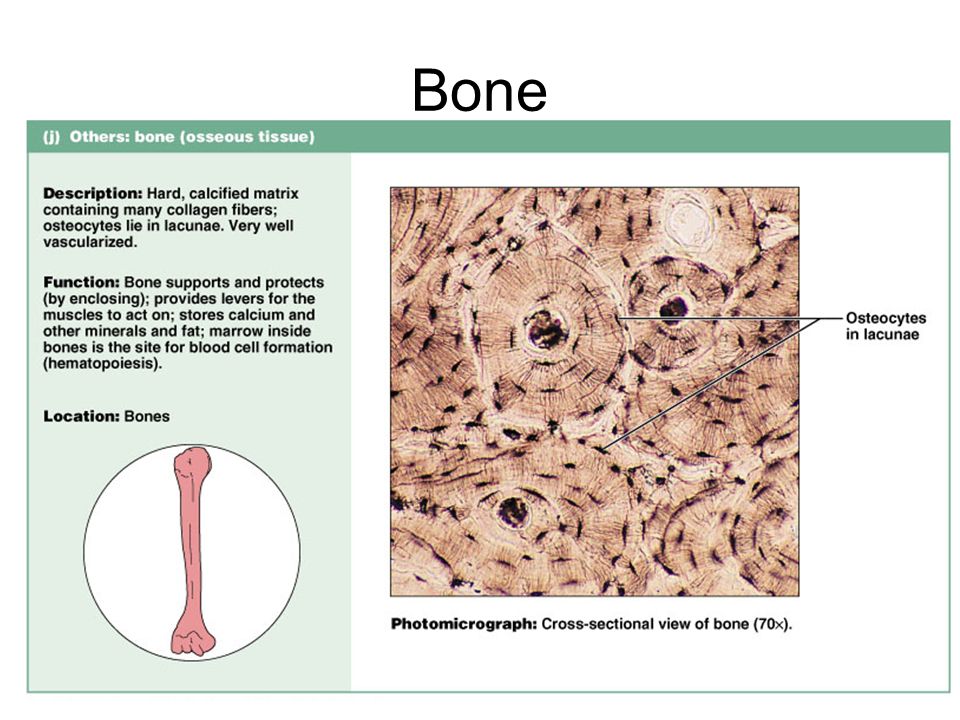

34. Bone

36. Category 3: muscles Contract Found in three places: –Heart (cardiac) –Hollow organs (smooth) –Attached to the skeleton (skeletal)

38. Skeletal muscle

39. Skeletal (voluntary) muscle

40. Cardiac muscle

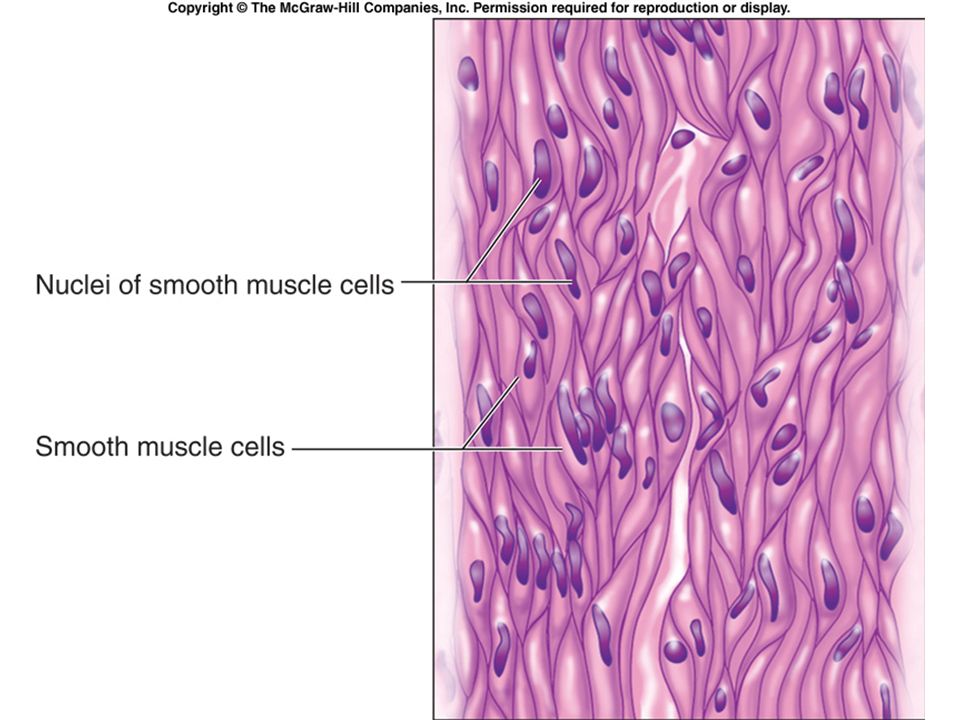

42. Smooth muscle

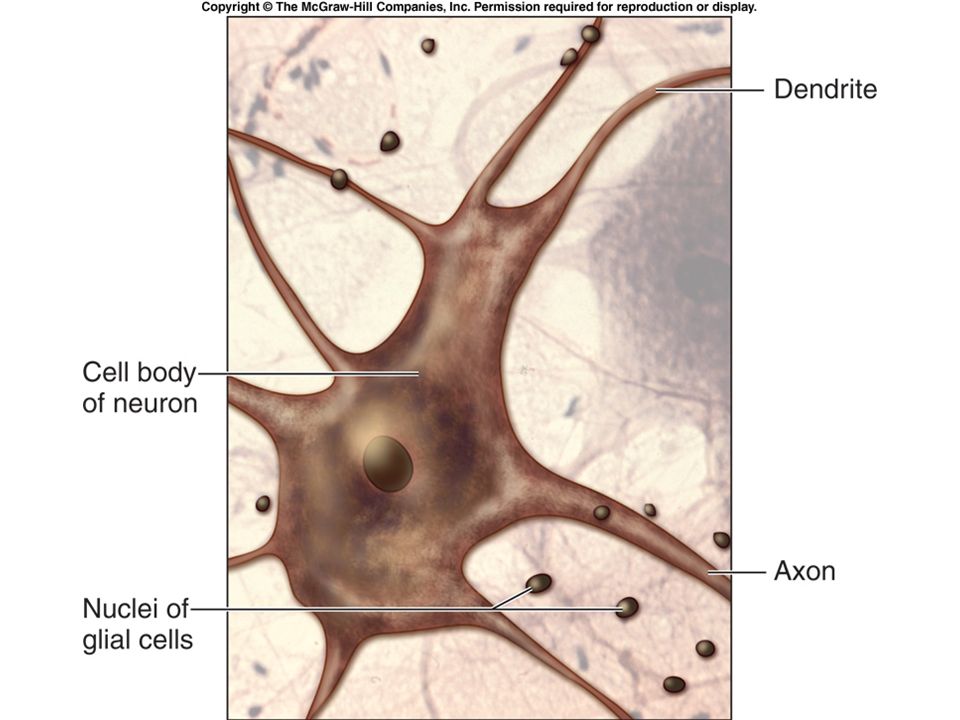

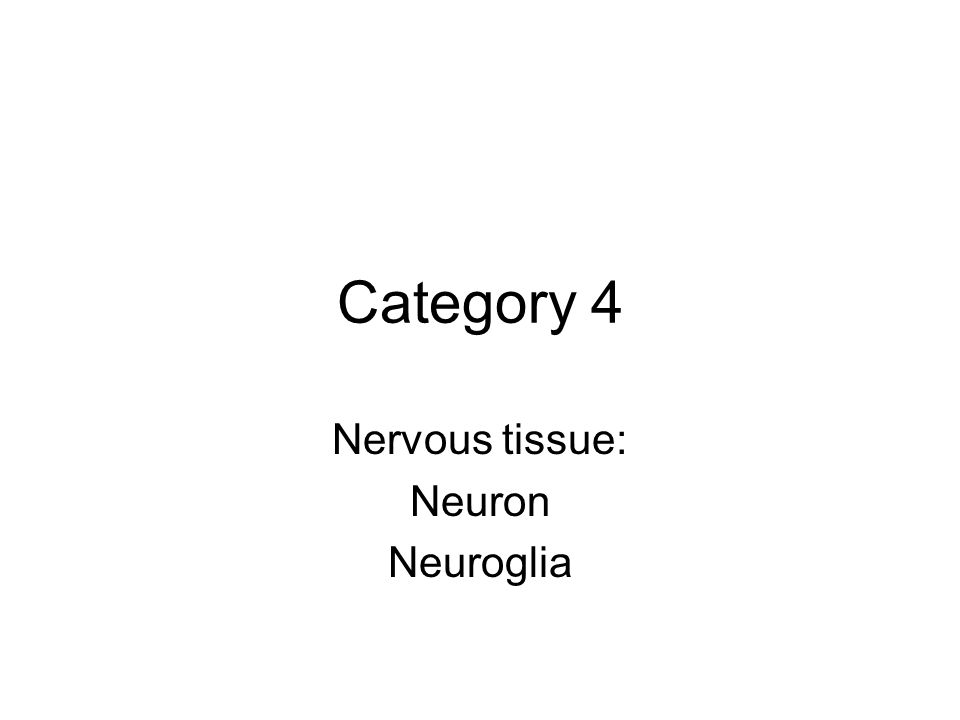

44. Category 4 Nervous tissue: Neuron Neuroglia

45. Nervous tissue
