1. 4.3 Multiplexing FDM TDM

2. Introduction Definition 1. The transmission of information from one or more source to one or more destination over the same medium. 2. The process which two or more signals are combined for transmission over a single communications path. 3. A process where multiple analog message signals or digital data streams are combined into one signal with the aim is to share an expensive resource. http://en.wikipedia.org/wiki/Multiplexing

3. Categories of multiplexing

4. Cont’d... Make the communications very economical by transmitting thousands of independent signals over a single transmission line. Three predominant ways to multiplex 1. Frequency Division Multiplexing (FDM) 2. Time Division Multiplexing (TDM) 3. Wavelength Division Multiplexing (WDM)

5. Cont’d... Multiplexing allows several analog signals to be processed by one analog- to-digital converter (ADC) E.g. Several phone calls may be transferred using one wire. The multiplexed signal is transmitted over a communication channel which may be a physical transmission medium.

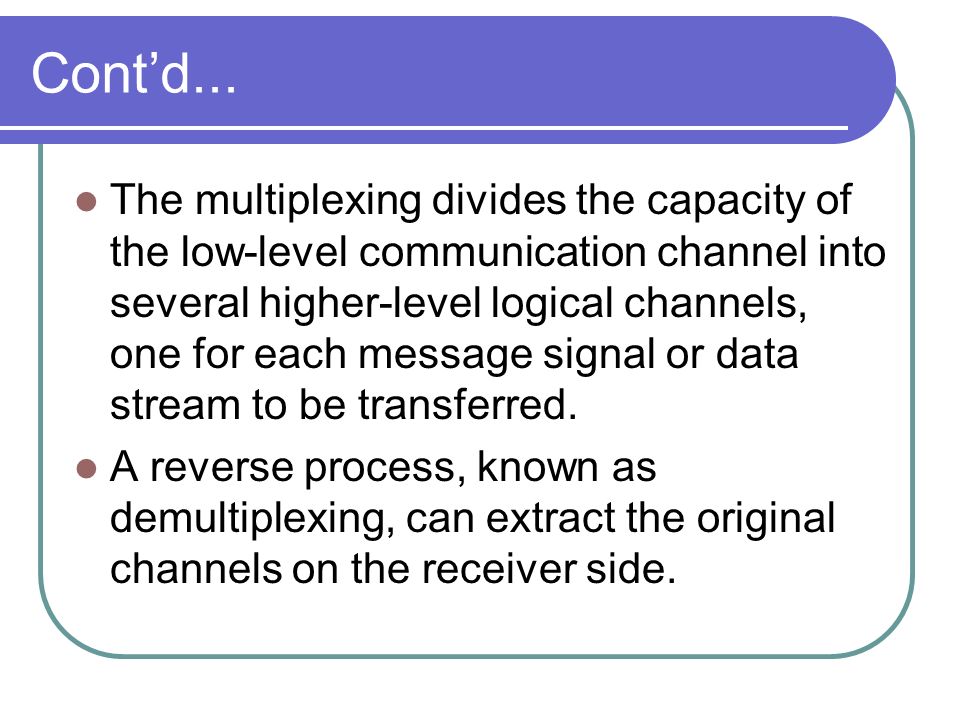

6. Cont’d... The multiplexing divides the capacity of the low-level communication channel into several higher-level logical channels, one for each message signal or data stream to be transferred. A reverse process, known as demultiplexing, can extract the original channels on the receiver side.

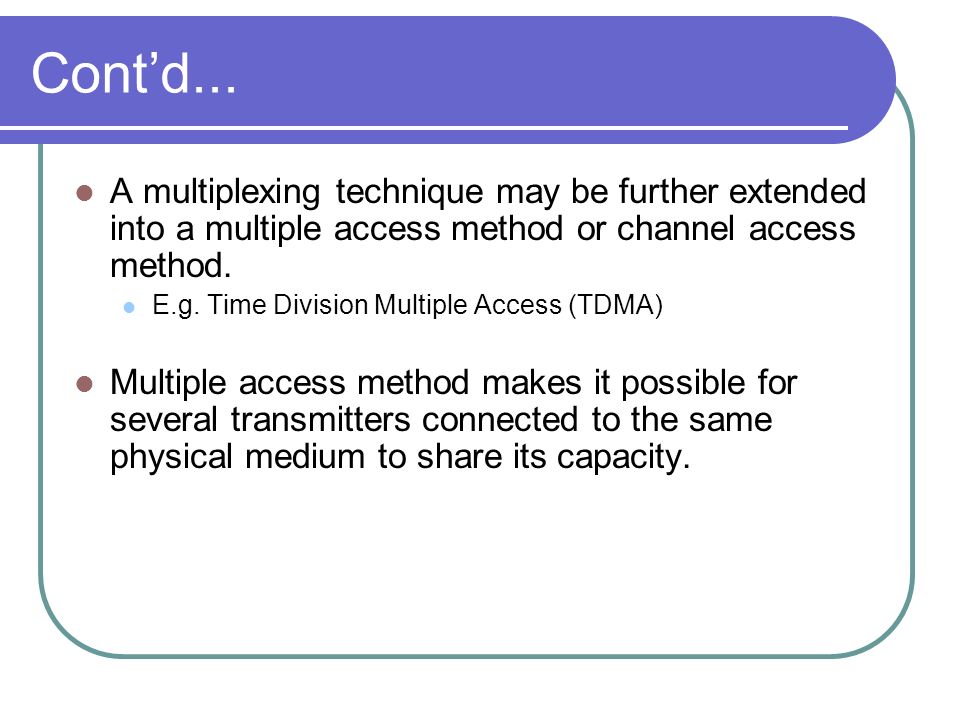

7. Cont’d... A multiplexing technique may be further extended into a multiple access method or channel access method. E.g. Time Division Multiple Access (TDMA) Multiple access method makes it possible for several transmitters connected to the same physical medium to share its capacity.

8. Cont’d... Concept of multiplexing

9. Frequency Division Multiplexing (FDM) Predominantly used in analog communications. Widely used in FM stereo broadcast. Compatibility with mono-receivers. Requires only a slight increase in BW. Great advantage in increasing system capacity.

10. Cont’d... Transmitting end of an FDM System

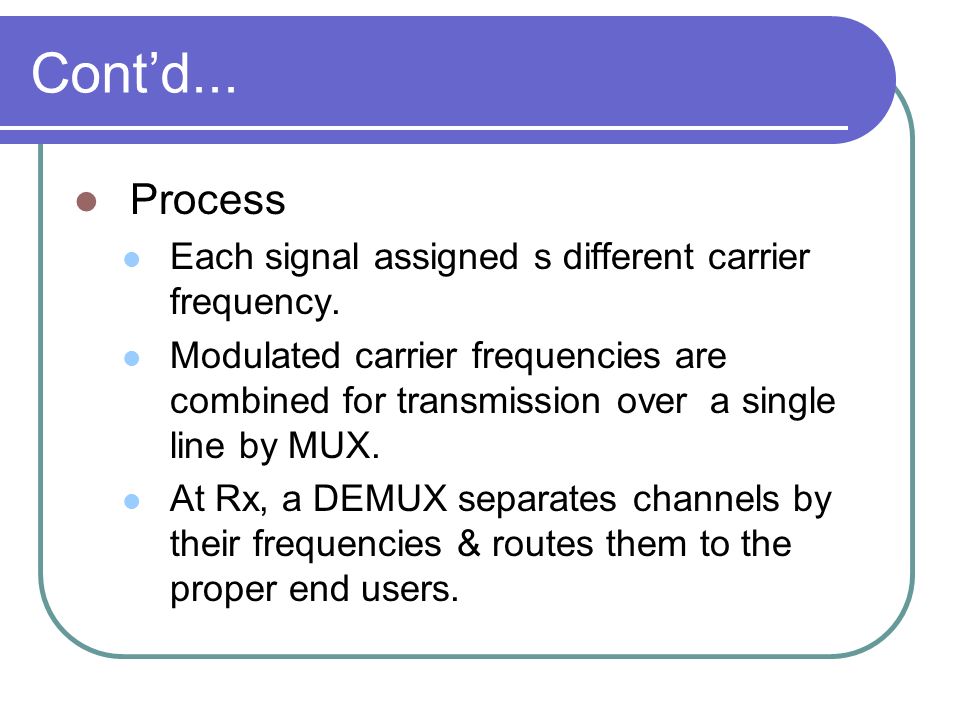

11. Cont’d... Process Each signal assigned s different carrier frequency. Modulated carrier frequencies are combined for transmission over a single line by MUX. At Rx, a DEMUX separates channels by their frequencies & routes them to the proper end users.

12. FDM Multiplexing

13. FDM Demultiplexing

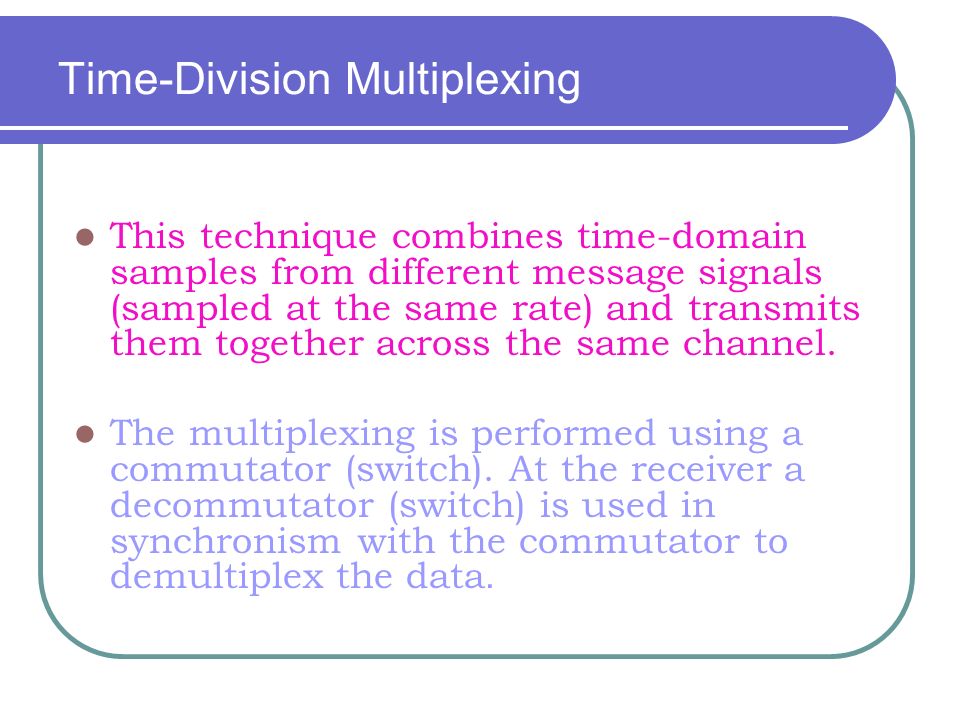

14. Time-Division Multiplexing This technique combines time-domain samples from different message signals (sampled at the same rate) and transmits them together across the same channel. The multiplexing is performed using a commutator (switch). At the receiver a decommutator (switch) is used in synchronism with the commutator to demultiplex the data.

15. Cont’d… TDM system is very sensitive to symbol dispersion, that is, to variation of amplitude with frequency or lack of proportionality of phase with frequency. This problem may be solved through equalization of both magnitude and phase. One of the methods used to synchronize the operations of multiplexing and demultiplexing is to organize the multiplexed stream of data as frames with a special pattern. The pattern is known to the receiver and can be detected very easily.

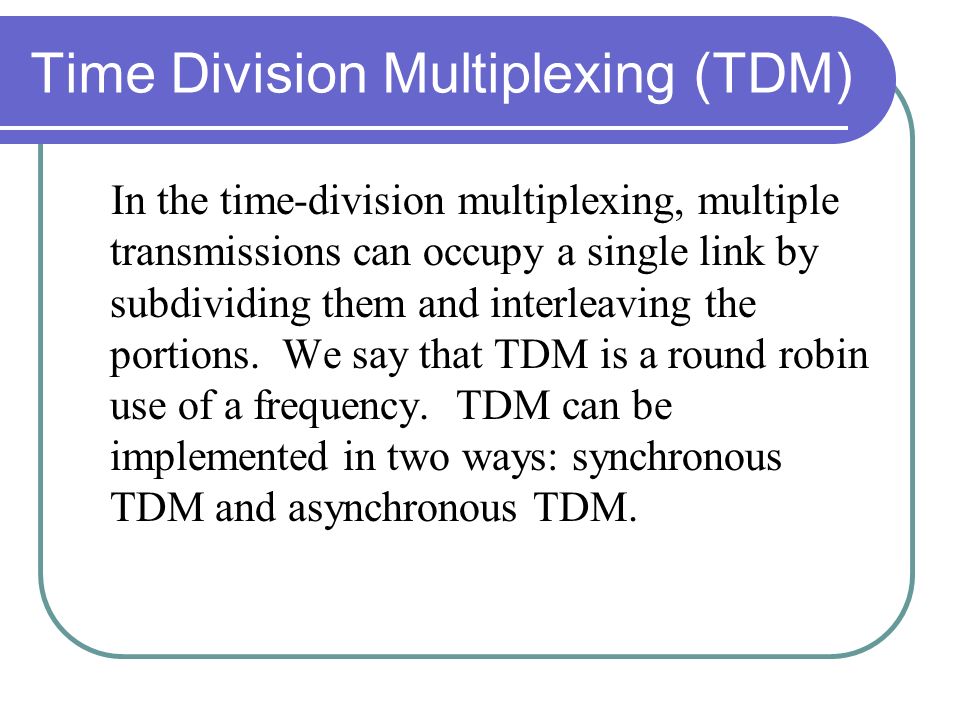

16. Time Division Multiplexing (TDM) In the time-division multiplexing, multiple transmissions can occupy a single link by subdividing them and interleaving the portions. We say that TDM is a round robin use of a frequency. TDM can be implemented in two ways: synchronous TDM and asynchronous TDM.

17. Time Division Multiplexing (TDM) Synchronous TDM The multiplexer allocates exactly the same time slot to each device at all times, whether or not a device has anything to transmit. Time slot 1, for example, is assigned to device 1 alone and cannot be used by any other device as shown below.

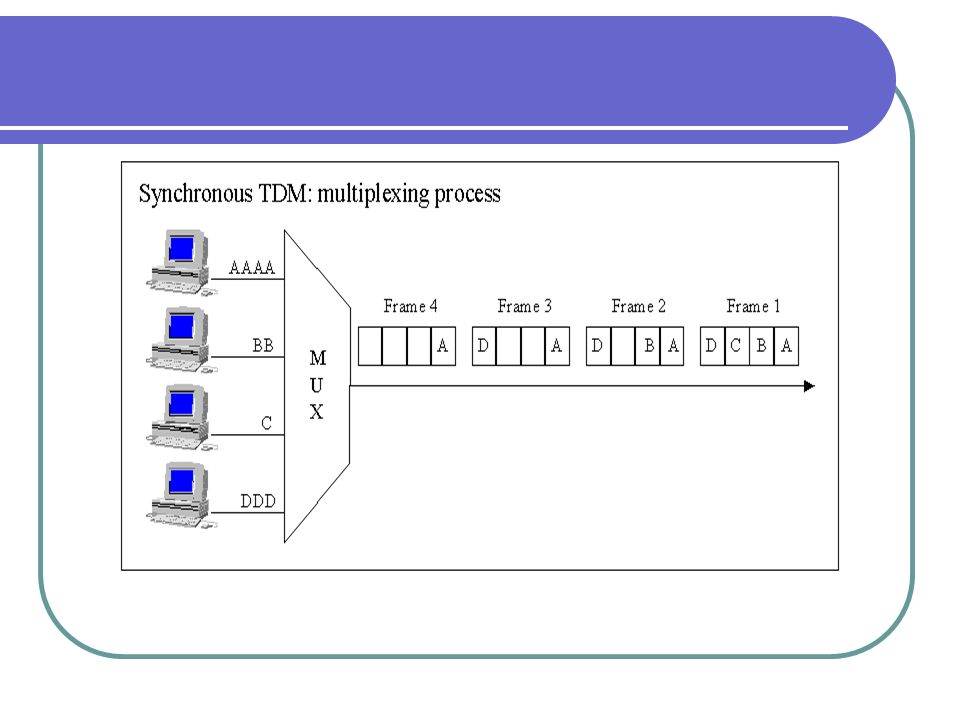

19. Frames : In synchronous TDM, a frame consists of one complete cycle of time slots. Thus the number of slots in frame is equal to the number of inputs. Two figures below are an example of how the synchronous TDM works.

22. Asynchronous TDM (or statistical time-division multiplexing) In asynchronous TDM, each slot in a frame is not dedicated to the fix device. Each slot contains an index of the device to be sent to and a message. Thus, the number of slots in a frame is not necessary to be equal to the number of input devices. More than one slots in a frame can be allocated for an input device. Asynchronous TDM allows maximization the link. It allows a number of lower speed input lines to be multiplexed to a single higher speed line.

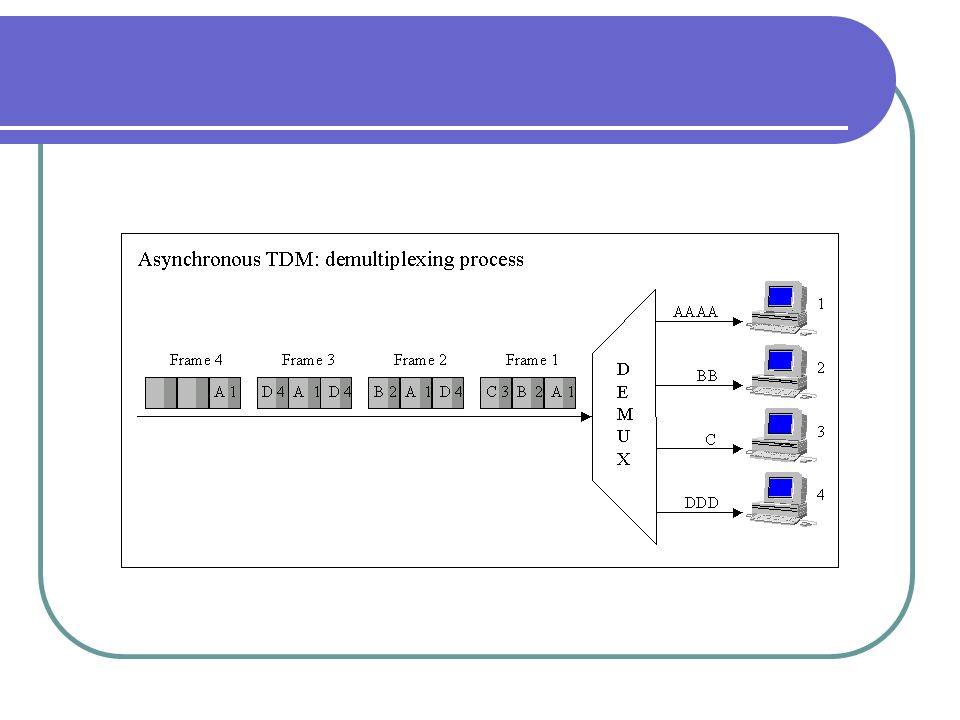

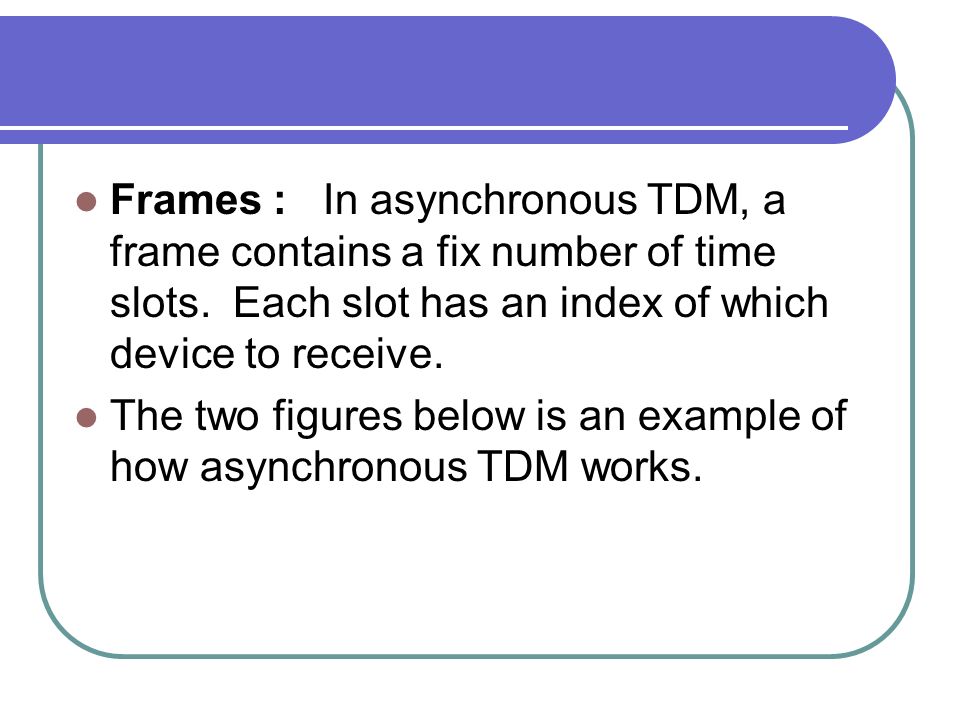

24. Frames : In asynchronous TDM, a frame contains a fix number of time slots. Each slot has an index of which device to receive. The two figures below is an example of how asynchronous TDM works.

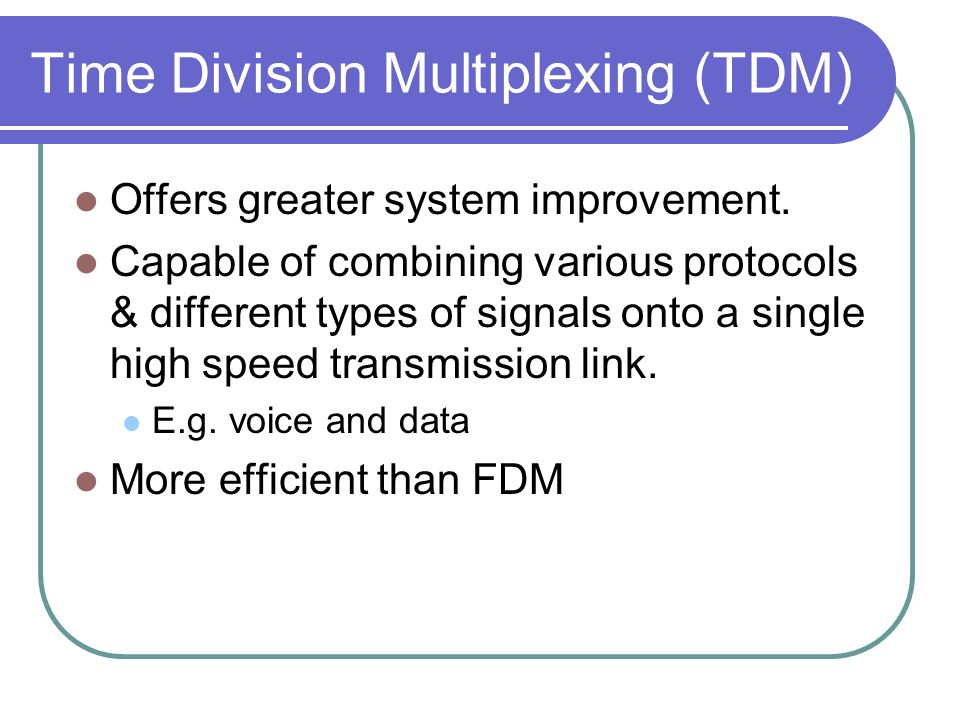

27. Time Division Multiplexing (TDM) Offers greater system improvement. Capable of combining various protocols & different types of signals onto a single high speed transmission link. E.g. voice and data More efficient than FDM

28. Block diagram of TDM-PCM communication system

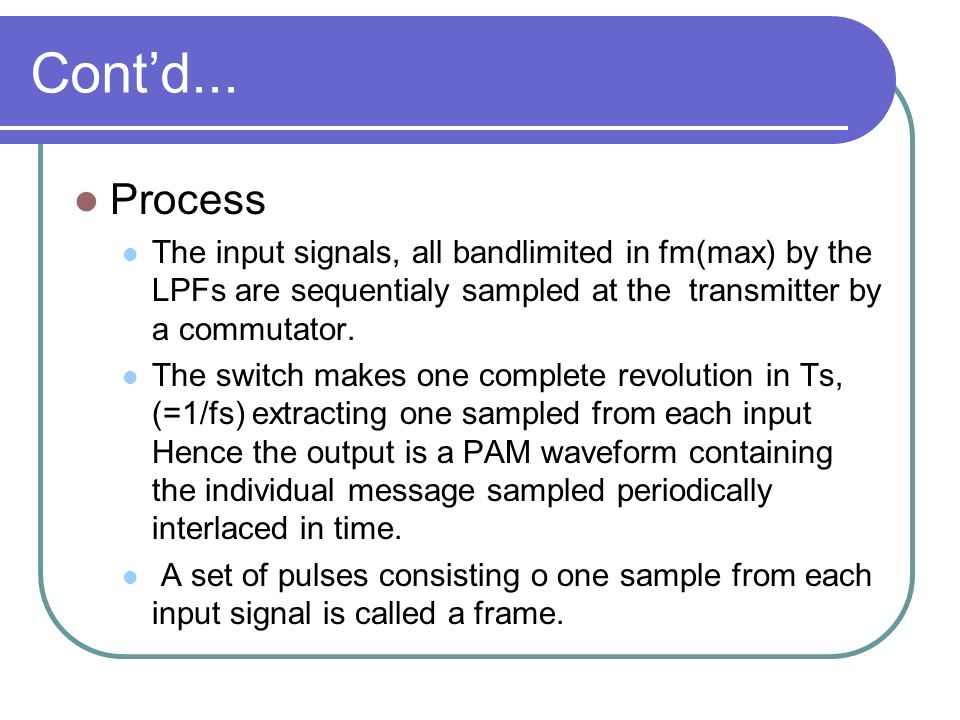

29. Cont’d... Process The input signals, all bandlimited in fm(max) by the LPFs are sequentialy sampled at the transmitter by a commutator. The switch makes one complete revolution in Ts, (=1/fs) extracting one sampled from each input Hence the output is a PAM waveform containing the individual message sampled periodically interlaced in time. A set of pulses consisting o one sample from each input signal is called a frame.

30. Cont’d... At the receiver a distributor (decommutator) separates the samples and distributes them to a bank of LPFs, which in turn reconstruct the original messages. Synchronizing are provided to keep the decommutator in step with the commutator.

31. Comparison between TDM and FDM TDM 1. The individual channels are assigned to different time slots but jumbled together in the frequency domain. 2. Offers simpler instrumentation 3. No crosstalk or inteference between adjacent channels. FDM 1. The individual channels are assigned to different frequency slots but jumbled together in the time domain. 2. Requires an analog subcarrier modulator,bandpass filter and demodulator for every message..

32. Comparison between TDM and FDM TDM 4. Greater transmission BW required. 5. Transmission medium is subjected to fading. FDM 3. The inteference in FDM is normally due to imperfect bandpass filtering and non- linear cross modulation. 4. The bandwidth is used effectively.
