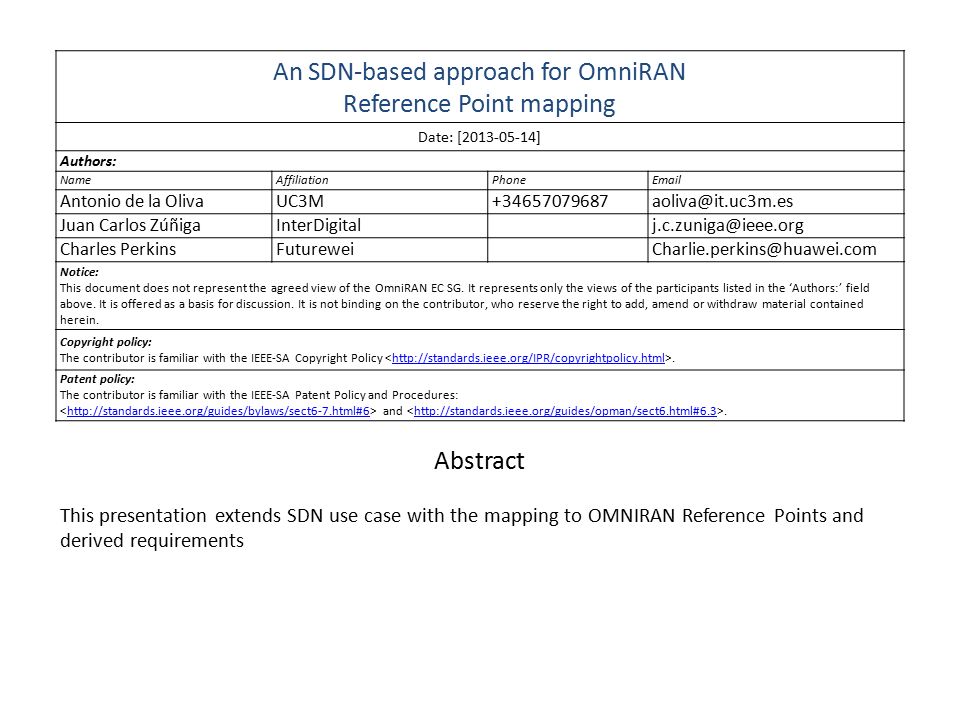

1. An SDN-based approach for OmniRAN Reference Point mapping Date: [2013-05-14] Authors: NameAffiliationPhoneEmail Antonio de la OlivaUC3M+34657079687aoliva@it.uc3m.es Juan Carlos ZúñigaInterDigitalj.c.zuniga@ieee.org Charles PerkinsFutureweiCharlie.perkins@huawei.com Notice: This document does not represent the agreed view of the OmniRAN EC SG. It represents only the views of the participants listed in the ‘Authors:’ field above. It is offered as a basis for discussion. It is not binding on the contributor, who reserve the right to add, amend or withdraw material contained herein. Copyright policy: The contributor is familiar with the IEEE-SA Copyright Policy.http://standards.ieee.org/IPR/copyrightpolicy.html Patent policy: The contributor is familiar with the IEEE-SA Patent Policy and Procedures: and.http://standards.ieee.org/guides/bylaws/sect6-7.html#6http://standards.ieee.org/guides/opman/sect6.html#6.3 Abstract This presentation extends SDN use case with the mapping to OMNIRAN Reference Points and derived requirements

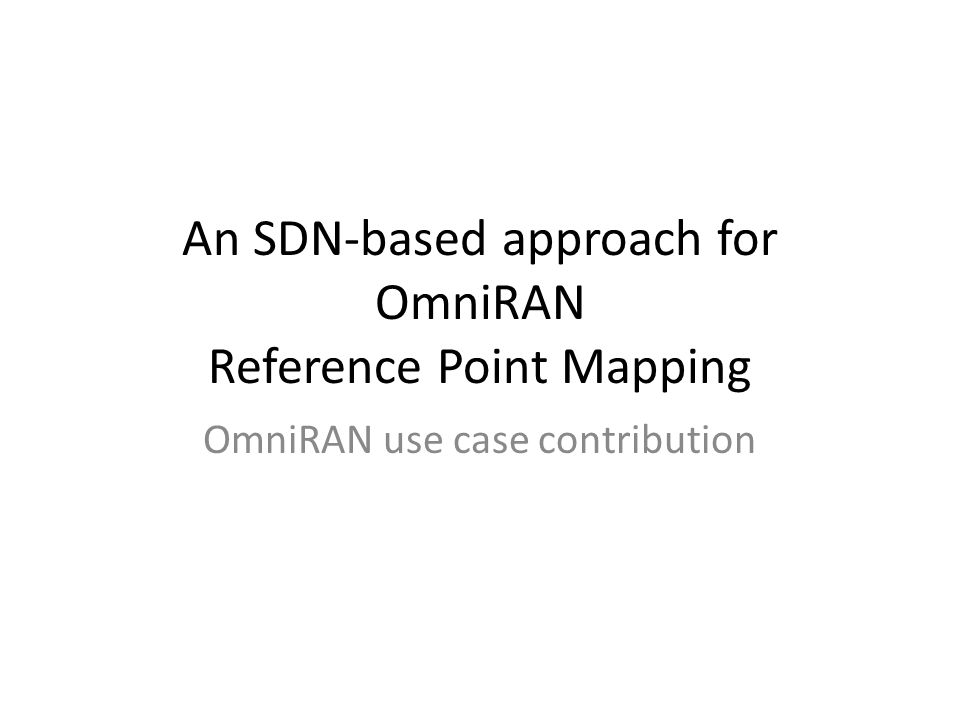

2. An SDN-based approach for OmniRAN Reference Point Mapping OmniRAN use case contribution

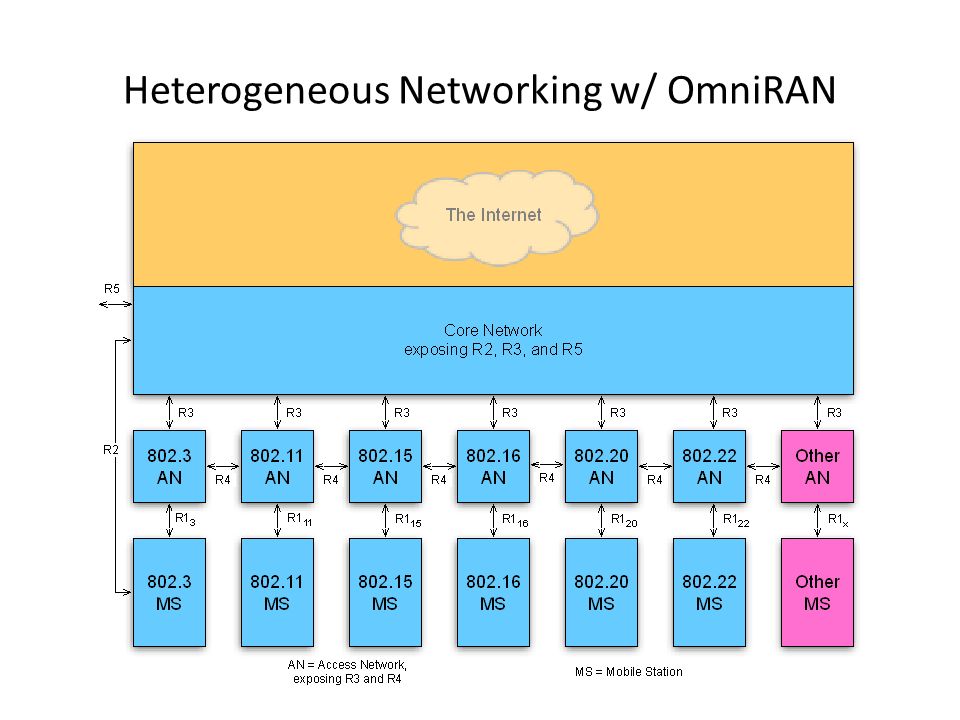

3. Heterogeneous Networking w/ OmniRAN

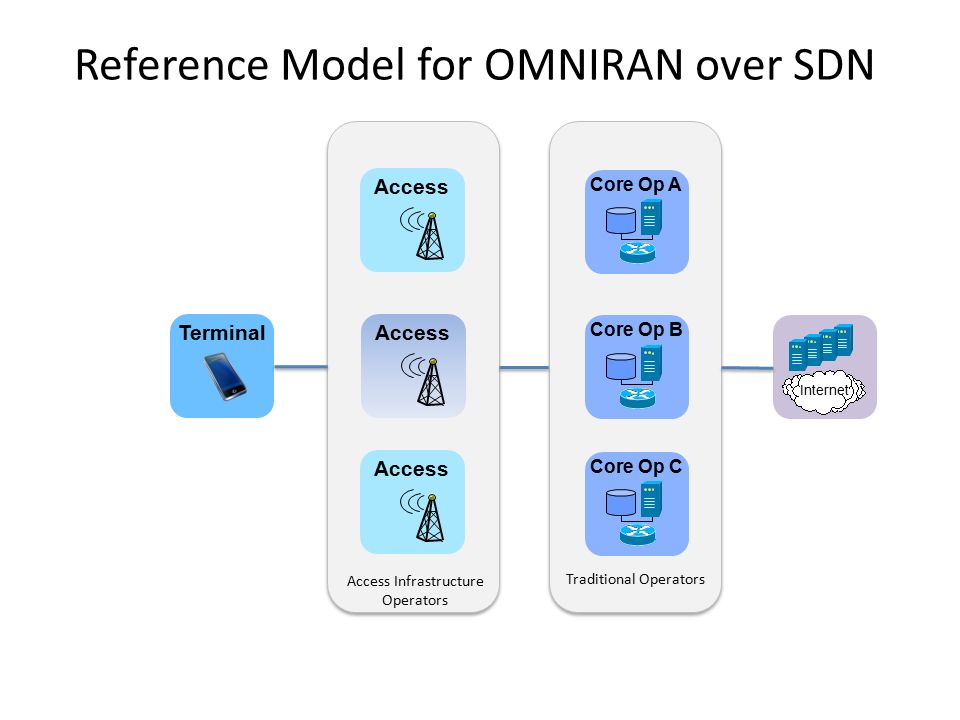

4. sdf Terminal Access Core Op B Internet Access Access Infrastructure Operators Core Op ACore Op C Traditional Operators Reference Model for OMNIRAN over SDN

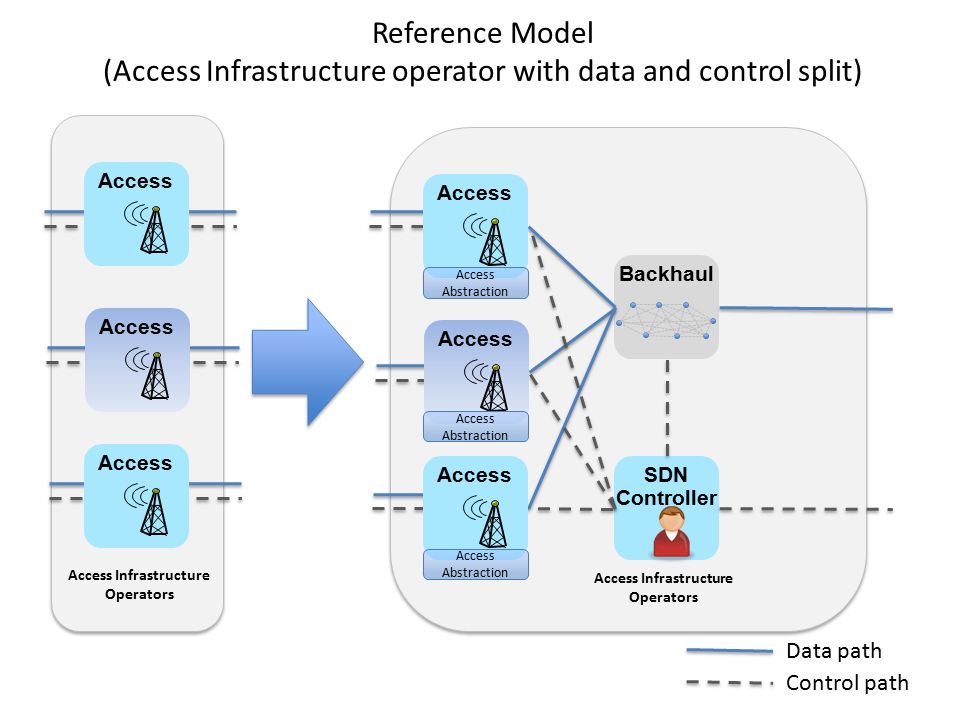

5. sdf Access Access Infrastructure Operators Reference Model (Access Infrastructure operator with data and control split) Access Infrastructure Operators BackhaulSDN Controller Data path Control path Access Access Abstraction

6. Reference Points  R1: Terminal  Access point: technology specific  R2: Terminal  Core Network (connectivity services network)  User & terminal authentication, subscription & terminal management  R3: Access Network  Core network  Authorization, service management, user data connection, mobility support, accounting, location  R4: Access Network  Access network  Inter-access network coordination and cooperation, fast inter- technology handover  R5: Core Network  Core network  Inter-operator roaming plus access infrastructure sharing.

7. Access Access Infrastructure Operators BackhaulSDN Controller sdf Core Op B Internet Core Op ACore Op C Traditional Operators Terminal R1 R1: Access link SDN-based configuration/interaction between infrastructure and wireless link Access Abstraction R1

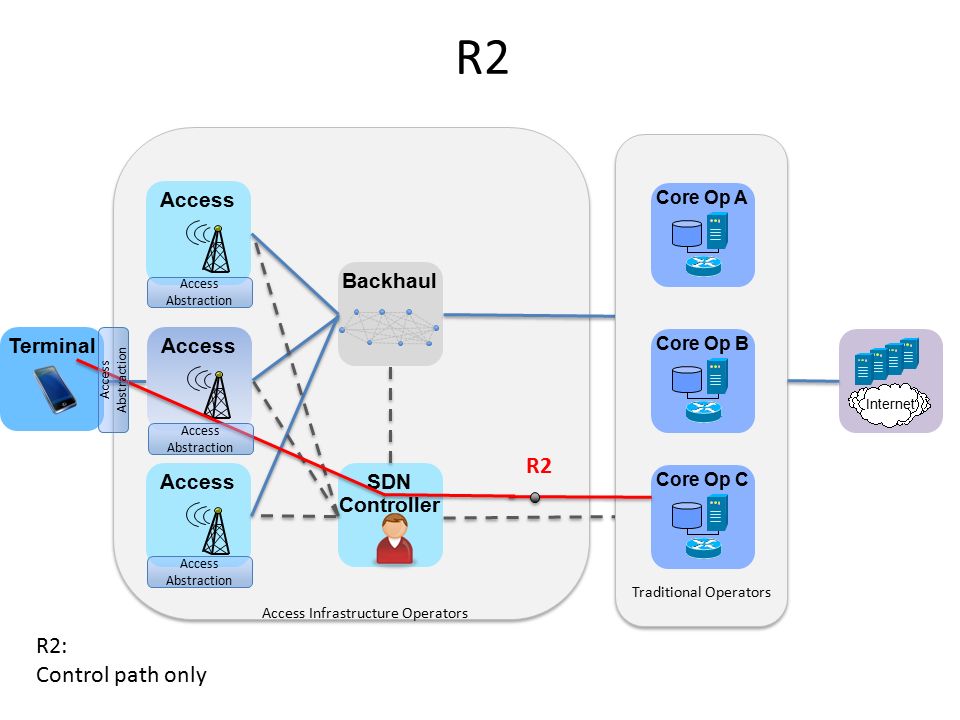

8. Access Access Infrastructure Operators BackhaulSDN Controller sdf Core Op B Internet Core Op ACore Op C Traditional Operators Terminal R2 R2: Control path only Access Abstraction

9. Access Access Infrastructure Operators BackhaulSDN Controller sdf Core Op B Internet Core Op ACore Op C Traditional Operators Terminal R3 R3: Data (e.g., mobility) and Control (e.g., configuration) path Access Abstraction

10. Access Access Infrastructure Operators BackhaulSDN Controller sdf Core Op B Internet Core Op ACore Op C Traditional Operators Terminal R4 R4: Data (e.g., fast handover) and Control (e.g., ICI) path Access Abstraction R4 Access Abstraction

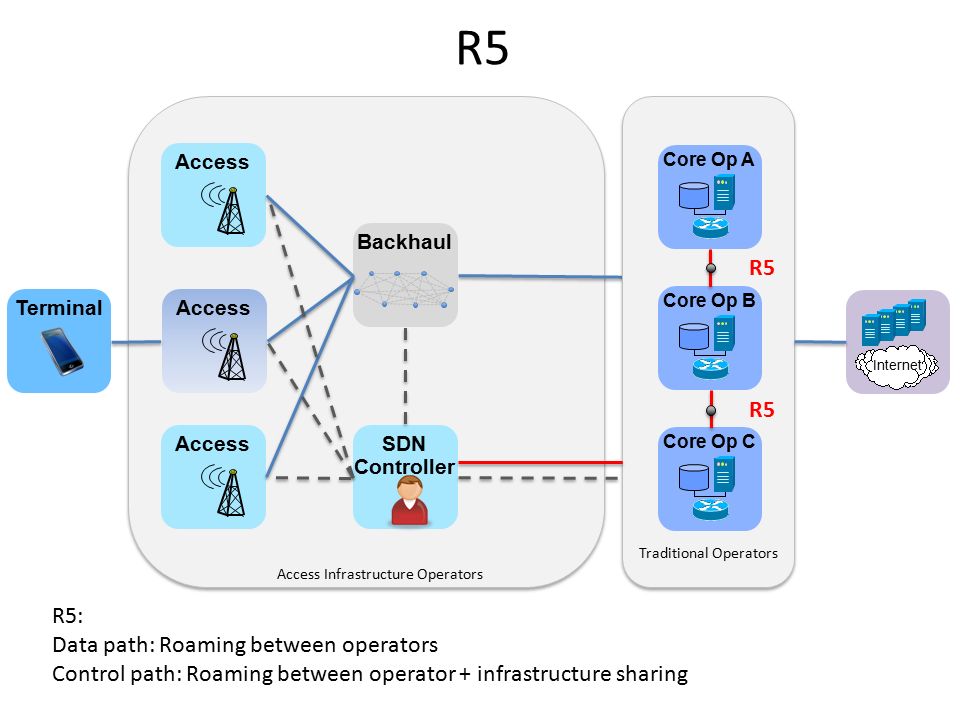

11. sdf Core Op B Internet Core Op ACore Op C Traditional Operators Terminal R5 Access Access Infrastructure Operators BackhaulSDN Controller R5: Data path: Roaming between operators Control path: Roaming between operator + infrastructure sharing

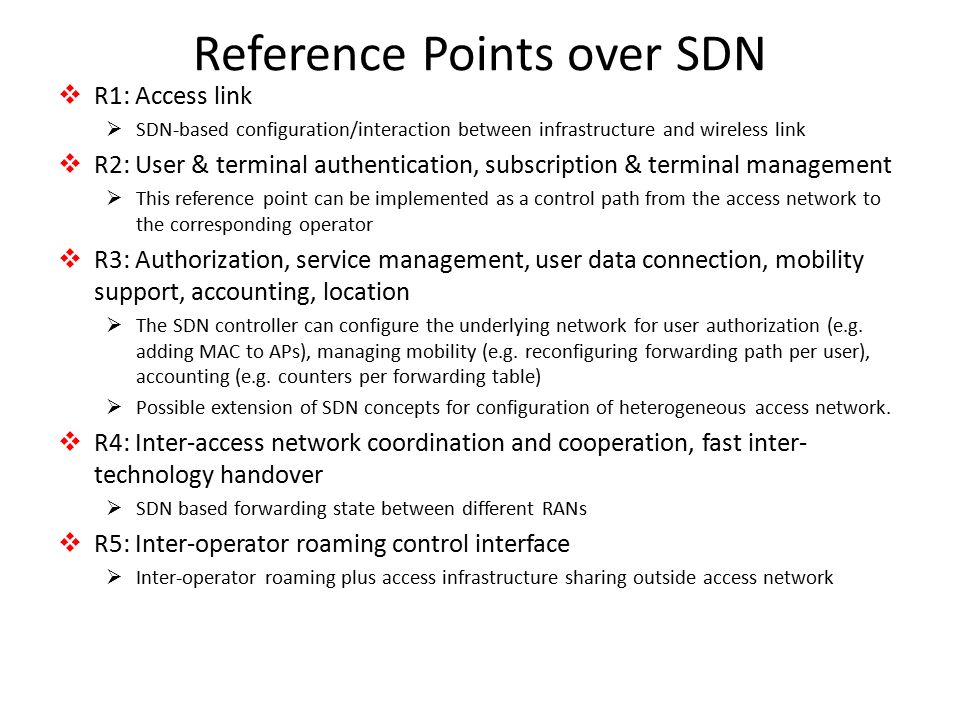

12. Reference Points over SDN  R1: Access link  SDN-based configuration/interaction between infrastructure and wireless link  R2: User & terminal authentication, subscription & terminal management  This reference point can be implemented as a control path from the access network to the corresponding operator  R3: Authorization, service management, user data connection, mobility support, accounting, location  The SDN controller can configure the underlying network for user authorization (e.g. adding MAC to APs), managing mobility (e.g. reconfiguring forwarding path per user), accounting (e.g. counters per forwarding table)  Possible extension of SDN concepts for configuration of heterogeneous access network.  R4: Inter-access network coordination and cooperation, fast inter- technology handover  SDN based forwarding state between different RANs  R5: Inter-operator roaming control interface  Inter-operator roaming plus access infrastructure sharing outside access network
