1. USDA Geospatial Data Warehouse NCGC Data Center 15 TB Online Data Bi-directional Data Replication and Failover for Business Continuity Data Themes: NAIP MDOQ CLU Soils (SSURGO) Hydrography Geopolitical Transportation Elevation TeleAtlas DRG NRCS at Fort Collins, CO Geospatial Data Mart in Web Farm NRCS at Fort Collins, CO Geospatial Data Mart in Web Farm APFO Data Center 15 TB Online Data FSA at Kansas City, MO Geospatial Data Mart in Web Farm FSA at Kansas City, MO Geospatial Data Mart in Web Farm RD at St. Louis, MO Geospatial Data Mart in Web Farm RD at St. Louis, MO Geospatial Data Mart in Web Farm Aerial Photography Field Office Salt Lake City, UT National Cartography and Geospatial Center Fort Worth, TX Field Service Centers Ag Users/Partners Internet

2. Field Service Center GIS GDW Architecture Tape Library Disk Array Tape Library Disk Array Internet Web Farms Data Centers Ft Collins Ft Worth/NCGCSalt Lake City/APFO Kansas City St Louis Replication

3. GDW and NAIP Delivery 1.Near Line Component Tape silo Archive 2.On-line Component Arc SDE Database Supports web service 3. Delivery Component APFOBD Geospatial Data Gateway Data Provisioning System WMS image streaming

4. NAIP Delivery Two Products 1.Compressed County Mosaics 2.Full Resolution Quarter Quads

5. NAIP Delivery Compressed County Mosaics Optimized for local use -MrSID MG3 format -compressed -performs well image pyramid “Interim Release” Before QA 30 days after acquisition “Final Release” -Can contain/represent rework

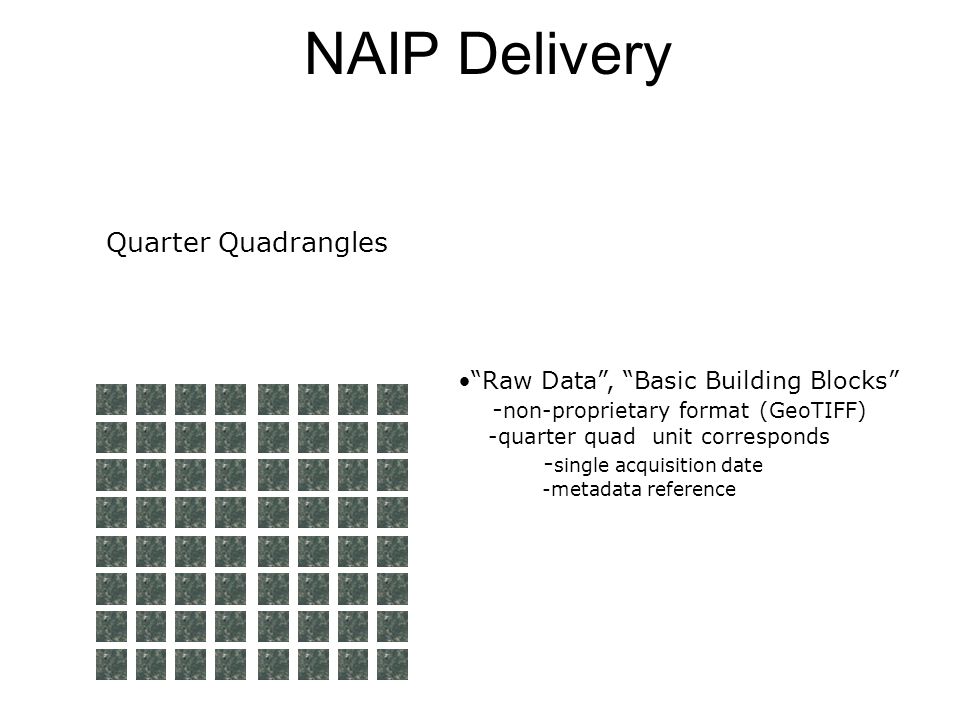

6. NAIP Delivery Quarter Quadrangles “Raw Data”, “Basic Building Blocks” - non-proprietary format (GeoTIFF) -quarter quad unit corresponds - single acquisition date -metadata reference

7. Image Acquisition Annual NAIP Timeline (2004) June JulyAugSeptOctNovDecJanFebMarAprilMay “Interim” Compressed County Mosaic Cost Share Partners Full Resolution Quarter quads QA Cost Share Partners Project Close out

8. Image Acquisition Annual NAIP Timeline (2005-06) June JulyAugSeptOctNovDecJanFebMarAprilMay “Interim” Compressed County Mosaic Cost Share Partners Full Resolution Quarter quads QA Cost Share Partners Project Close Out

9. NAIP Production Process Acquisition

10. NAIP Production Process Acquisition Aero Triangulation

11. NAIP Production Process Acquisition Aero Triangulation Ortho Production

12. NAIP Production Process Acquisition Compressed County Mosaics Aero Triangulation Ortho Production

13. Image Acquisition Annual NAIP Timeline (2005-06) June JulyAugSeptOctNovDecJanFebMarAprilMay “Interim” Compressed County Mosaic Cost Share Partners Full Resolution Quarter quads QA Cost Share Partners Project Close Out
