1. Windows Terminal Server & Citrix MetaFrame
Stanford Linear Accelerator Center
NT Support Group
Gregg Daly
Supported by U.S. D.O.E. contract
DE-AC03-76SF005515

2. General Information
Stanford University operated - U.S.D.O.E funded unclassified research center
Heterogeneous computing environment supporting high-energy physics research
3800 hosts (1400 Windows networking), Solaris, Mac OS, Linux & numerous other operating systems
Exponential growth at the facility
- Research Center - no weapons research, nearly all information is published on our 1/2 million web pages or academic papers
- Computing environment - 13 some OS’s (BeOS to Mac to NT to Solaris ) Mac Iici’s, WinTel servers to 64 CPU Sun E10000
- Growth - just one experiment will produce 3 PB of data over 5 years

3. Responding to ‘98 Security Incident
Hackers compromised 25 systems and 50 user accounts
Perform data & service analysis on areas of the network
Decision to safeguard critical HR and Financial Data on PeopleSoft and Oracle
Safeguard personnel data in Human Resource database
Safeguard purchasing and budget data in Financial database
- Hackers - AIX and Solaris systems effected - direct lessons to be learned
- OS and patch not up-to-date leaving holes for “root kits”
- SLAC equipped with a filtering router with ACLs but we do not a proxy or stateful inspection firewall system
- Determination - What parts of the network could be secured without effecting the open collaboration with sister labs and numerous universities around the world,
- Decision - The research doctrine dictated the research networks be safeguard yet no obstacles to the “free flow of data”. That is how or the idea the Internet was built on and SLAC being the first US web site, history won
- Safeguard the private data within the PeopleSoft/Oracle databases that contains personnel data (names, addresses, SSN, driver’s licenses) and the financial data (purchasing, credit cards, vendor account data)

4. Options to securing data
Corporate type lock down including limiting access to and from the Internet and other research facilities
Two physical networks - one SLAC only & other Internet accessible
Moving the data (but not the people) into a highly secured zone. Use encrypted access and extensive monitoring
- Corporate Firewall at the Border Router to the Internet
- Would cut off SLAC scientists from world-wide collaborators
- After opening all holes to provide all the services - Swiss cheese firewall - impractical
- Violates the research doctrine of the facility
- Two physical networks
- Impracticable for the type of environment - unclassified work
- Unable to justify cost
- Moving the data
- Very practical for SLAC environment
- Allows users throughout the network complete access
- Allow BSD access to both the secure network

5. Business Services Network
Created a highly secure “machine/data only” network
Created a user/workstation network to access the secure network
Secure all aspects of data access
Secured workstations
Encrypted application access via Citrix’s Secure ICA
Encrypted host connections via Secure Shell (3DES/Blowfish)
Two Phase authentication process for secure domain login
- This solution allowed for the users on the BSD network to have regular access to the critical HR and Financial data AND access to the rest of SLAC, the staff they service and the Internet.
- Separate the users from the data, restricting access to the data
- Secure all aspects of data access
- Secure workstations by boot floppy the workstation, erasing the partitions, reloading the OS and applications with users not in the administrator access. Numerous file and registry changes to improve security.
- MetaFrame a secure 128-bit RC5 encrypted connection to the application servers. ICA sessions must be initiated from the the BSDnet to the secure BSDnet.
- Connections to the secure BSDnet must be with a Secure Shell client (3DES or Blowfish encryption). Telnet daemons unloaded from the hosts.
- Security Dynamic’s ACE/Server provides a secondary log in using a pseudo-random tokencode and pin code combo. Passcodes not reusable that eliminates threat of sniffing hack - even if it is sniffed, can not reuse the passcode.

6. PeopleSoft WTS-MetaFrame Farm
Data
Data
MetaFrame Farm
Data
Data
Oracle
Secure BSDnet
MS Windows Terminal Server
Citrix MetaFrame
MetaFrame Load Balance
Secure ICA
MS Windows Terminal Server
Citrix MetaFrame
MetaFrame Load Balance
Secure ICA
PeopleSoft
Business Services Division
BSD Domain
Workstation
Connection: Secure ICA
(future 2-factor authentication)
BSDnet
- Secure ICA connections to the MetaFrame servers can only be initiated from the BSDnet
- Remote users must VPN into the BSDnet (giving them a BSDnet IP address) and then launch a Secure ICA session through the PPTP server -
SLAC
Internet

7. Secure Business System
- In the event of a security incident, Secure BSD net and BSDnet can be isolated from SLAC and the Internet
- In the case of a BSDnet computer being compromised, the BSDnet can be isolated from Secure BSDnet, the rest of SLAC and the Internet

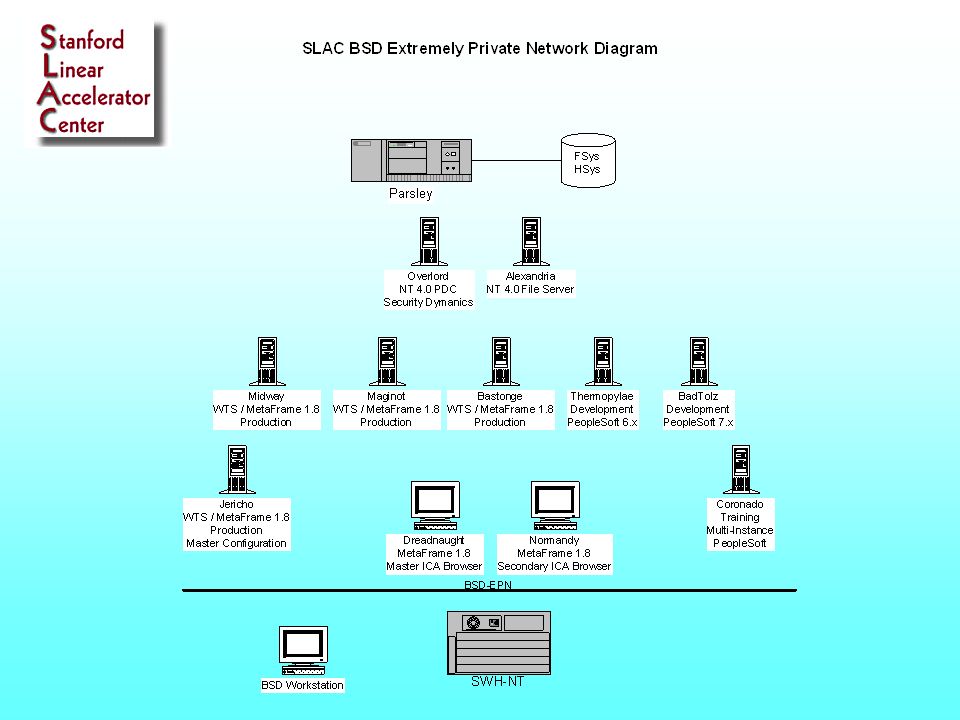

8. Prod Test WTS Secure BSDnet BIS Data File Server SMS, BDC BSD BSDnet
PeopleSoft
Test
PeopleSoft
WTS
+Citrix Farm
UserMC
Secure BSDnet
“Air Gap”
BIS
Web Server
Data
Warehouse
File
Server
SMS,
BDC
BSD
PDC
User01
UserYY
UserXX
“Air Gap”
BSDnet
Rest of SLAC
- Topology of the network
- Gigabit backbone
- Green - BSDnet
- BSDnet / BSD NT Domain
- Mainly NT workstations & servers
- Self contained network with Domain Controllers, Backups, SMS, web servers
- Users and workstation in the network
- Red - Secure BSDnet
- Servers and data only
- “Emergency” workstation
- WTS / MetaFrame applications servers run PS and connect to DB running on Oracle/Solaris
- Can only be accessed from a BSDnet addresses computer, router (both border and BSD) have access controls against spoofed Ips -
Gigabit Ethernet

10. Lessons of the implementation
SLAC’s business process application, PEOPLESOFT is not native to the Windows Terminal Server/Citrix Metaframe environment
Increased session security incompatible with cross-platform access
3rd Party applications (Crystal Reports) has to be reconfigured to not only run on WTS but also run with a non-standard implementation of a “multi-user” PeopleSoft
Securing the application servers running WTS
Staff intensive installation and troubleshooting
- Peoplesoft 6.5 required extensive scripting during application startup to enumerate variables within each individuals WTS session, intensive debugging and required a highly advanced knowledge of both PS, WTS, and MetaFrame
- Current OS levels (SAMBA) does not supported MS heightened session security SMB and NTLMv2; rumors in fall a capability layer with MS
- Techniques to lock down workstations, such as removing hidden shares, broke services, like SMS -

11. Securing WTS/MetaFrame
Physical security critical - “Log on Locally” to all users
Restrict anonymous connections
Separate %rootdrive% and %systemroot% from %apps%
Apply Microsoft ZAK for WTS
Create bin folder on %apps% with system32 user apps
Remove “everyone” access from everywhere file & registry
Apply security based Service Packs and hot fixes immediately
Recommend encrypted client
Run highest NT authentication hash compatible with your site

12. Securing Business Services
Standardized workstations
Add’l filtering router on business subnet
Secure application publishing - MetaFrame
Two phase authentication
Encrypted host, app & remote access
Active monitoring
“Air gap” fail-safe measure in the event of intrusion

13. General Use App Farm
Goal: To provide non-Windows clients access to Windows applications; encourage single platform clients
Based on Dell Dual PII-400, 1/2 GB RAM, RAID 0 servers
“Master” to clone maintenance plan
Provide most every app needed/requested by users

14. General Use App Farm Strong support for LINUX and Solaris clients
Beware of potential “bad apps” on WTS
NetMeeting (
DOS applications
Using Basic encryption for general sessions, considering bit SecureICA for all access to both farms

15. Future of Thin Client
Windows 2000 servers “natively” support thin client - Watch for more features in MS’ RDP clients
Windows 2000 Applications Deployment Services
“Rental applications”
Watch for significant changes in licensing requirements and fees from Microsoft and other software vendors
Microsoft’s 2000 logo program “requires” WTS compliance
Return to the mainframe-like methodology with Win2K and thin client solutions

16. WTS/Citrix Paper
NT Security in an Open Academic Environment - SLAC 8172
Find the document at :

17. Questions HEPNT ‘99 www.slac.stanford.edu/comp/winnt
