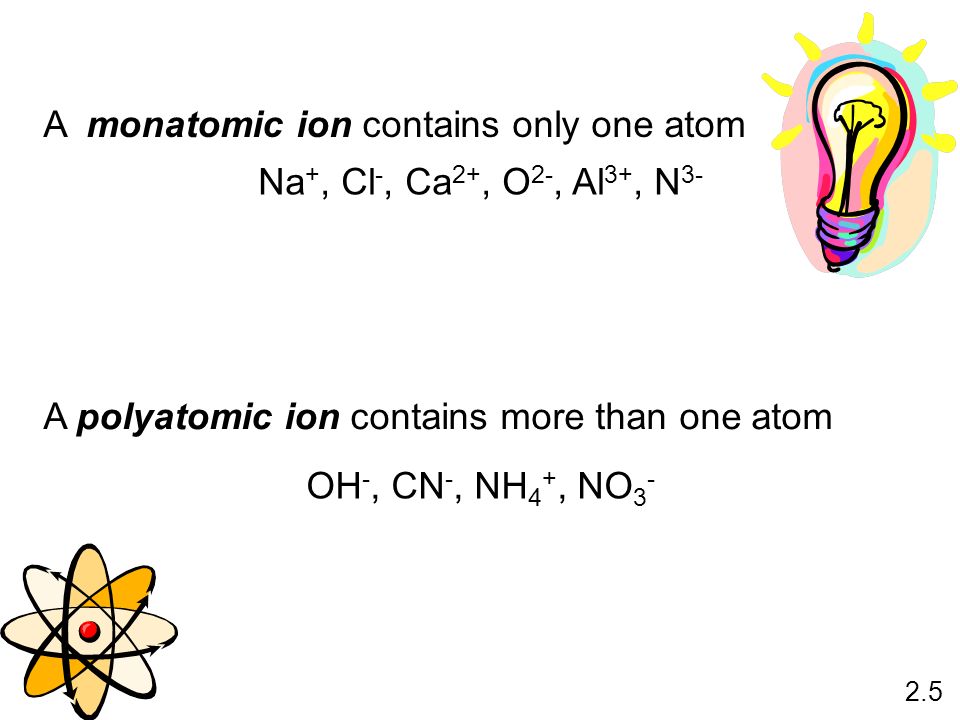

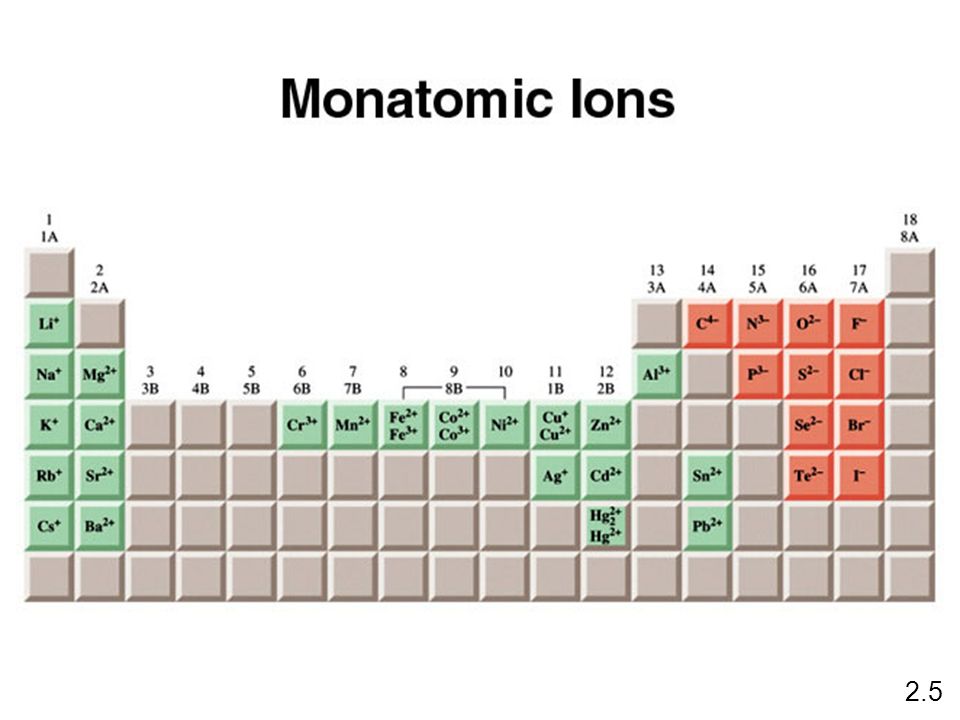

1. A monatomic ion contains only one atom A polyatomic ion contains more than one atom 2.5 Na +, Cl -, Ca 2+, O 2-, Al 3+, N 3- OH -, CN -, NH 4 +, NO 3 -

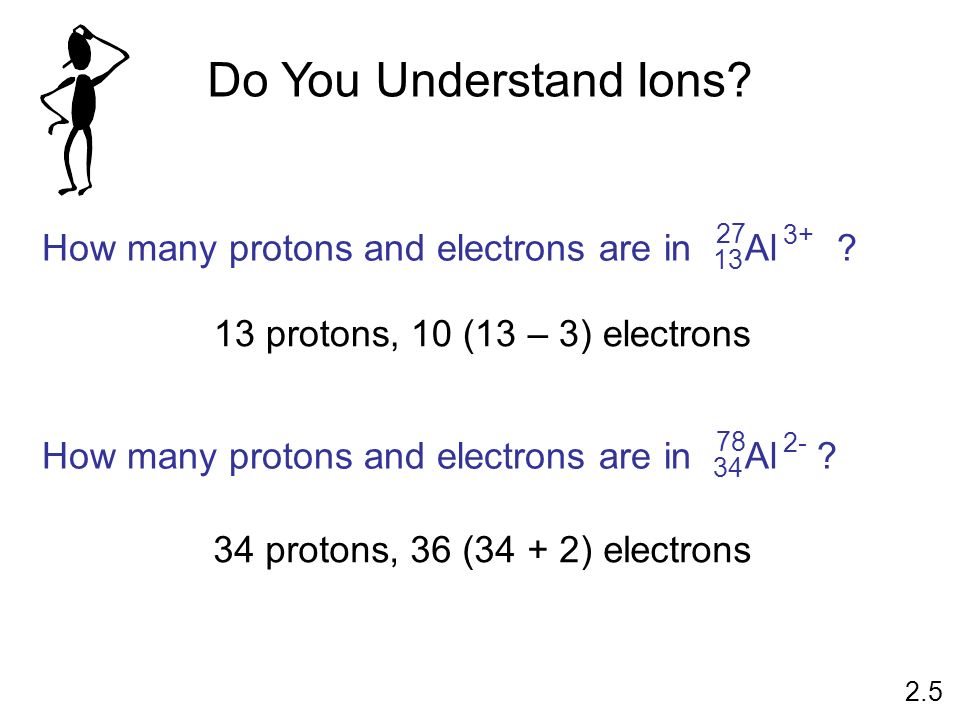

2. 13 protons, 10 (13 – 3) electrons 34 protons, 36 (34 + 2) electrons Do You Understand Ions? 2.5 How many protons and electrons are in ?Al 27 13 3+ How many protons and electrons are in ?Al 78 34 2-

3. 2.5

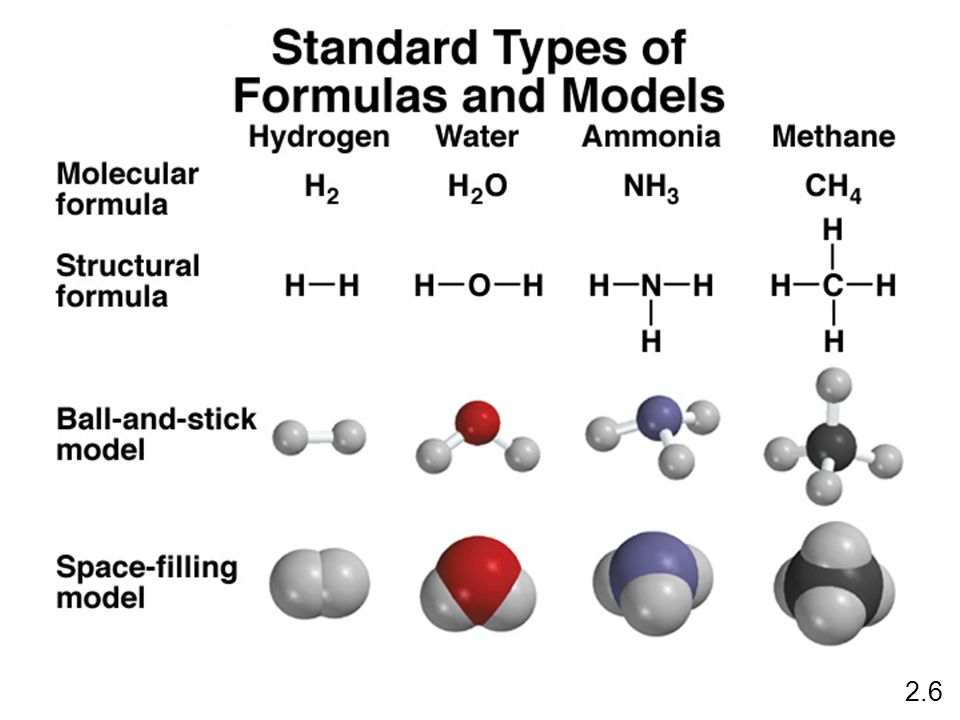

4. 2.6

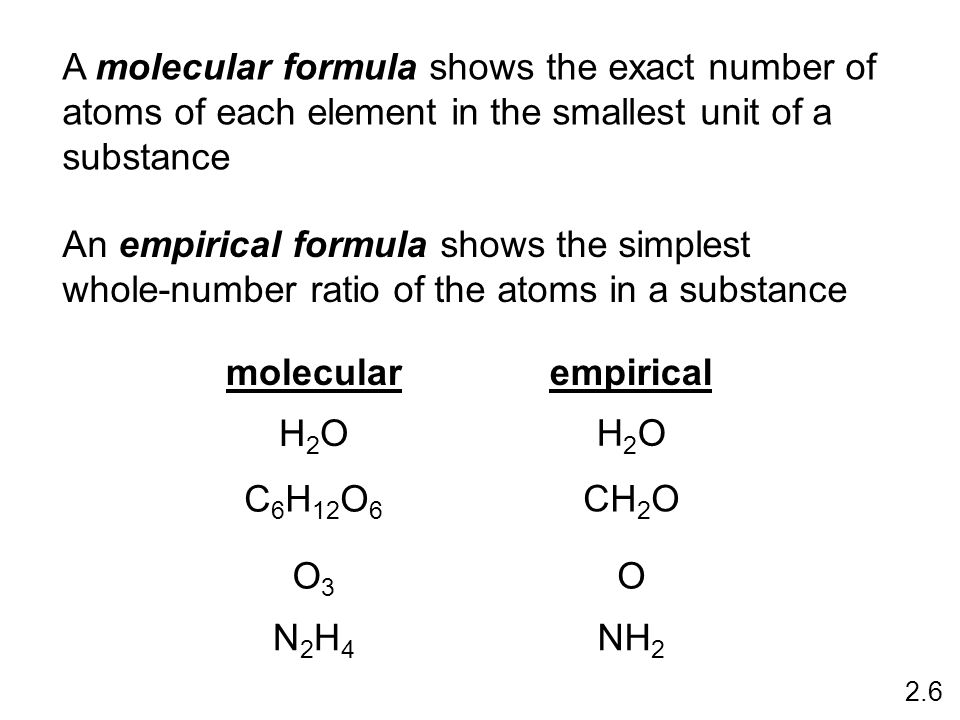

5. A molecular formula shows the exact number of atoms of each element in the smallest unit of a substance An empirical formula shows the simplest whole-number ratio of the atoms in a substance H2OH2O H2OH2O molecularempirical C 6 H 12 O 6 CH 2 O O3O3 O N2H4N2H4 NH 2 2.6

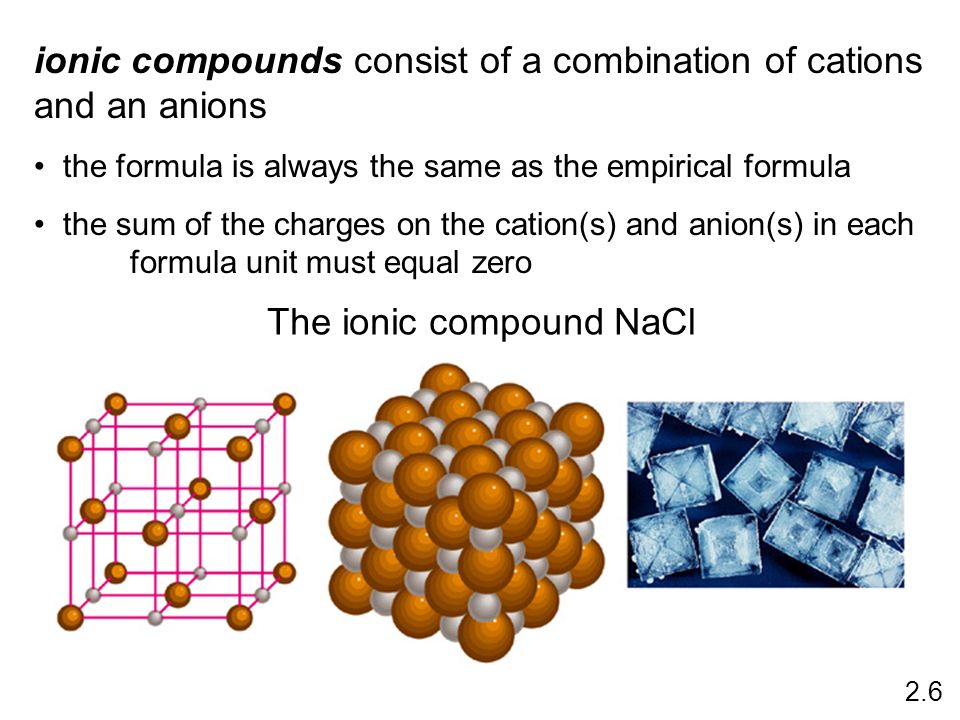

6. ionic compounds consist of a combination of cations and an anions the formula is always the same as the empirical formula the sum of the charges on the cation(s) and anion(s) in each formula unit must equal zero The ionic compound NaCl 2.6

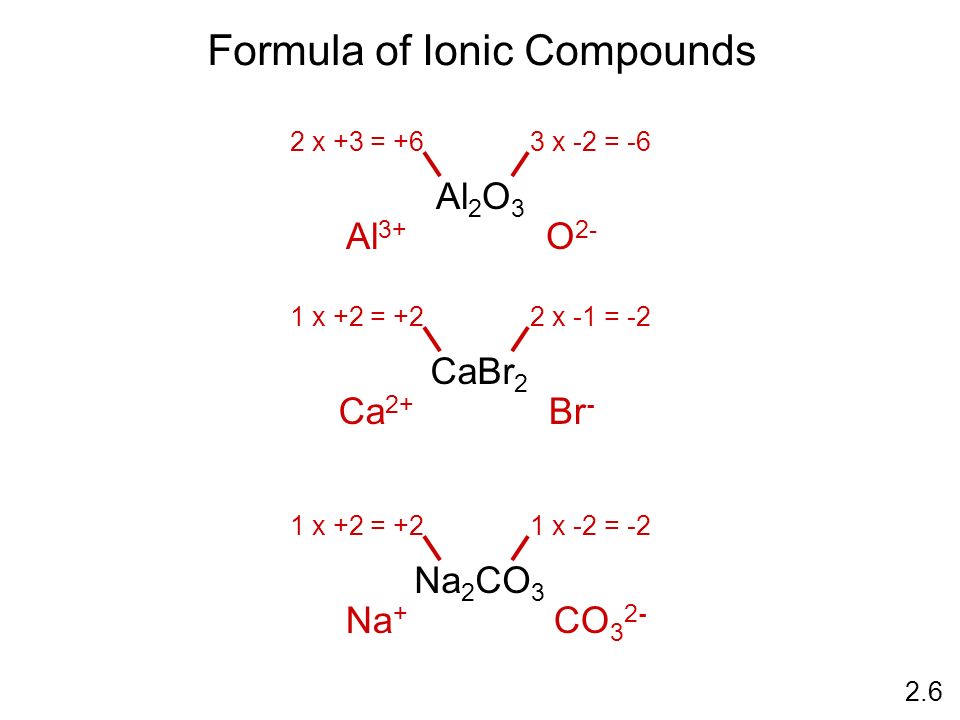

7. Formula of Ionic Compounds Al 2 O 3 2.6 2 x +3 = +63 x -2 = -6 Al 3+ O 2- CaBr 2 1 x +2 = +22 x -1 = -2 Ca 2+ Br - Na 2 CO 3 1 x +2 = +21 x -2 = -2 Na + CO 3 2-

8. 2.6

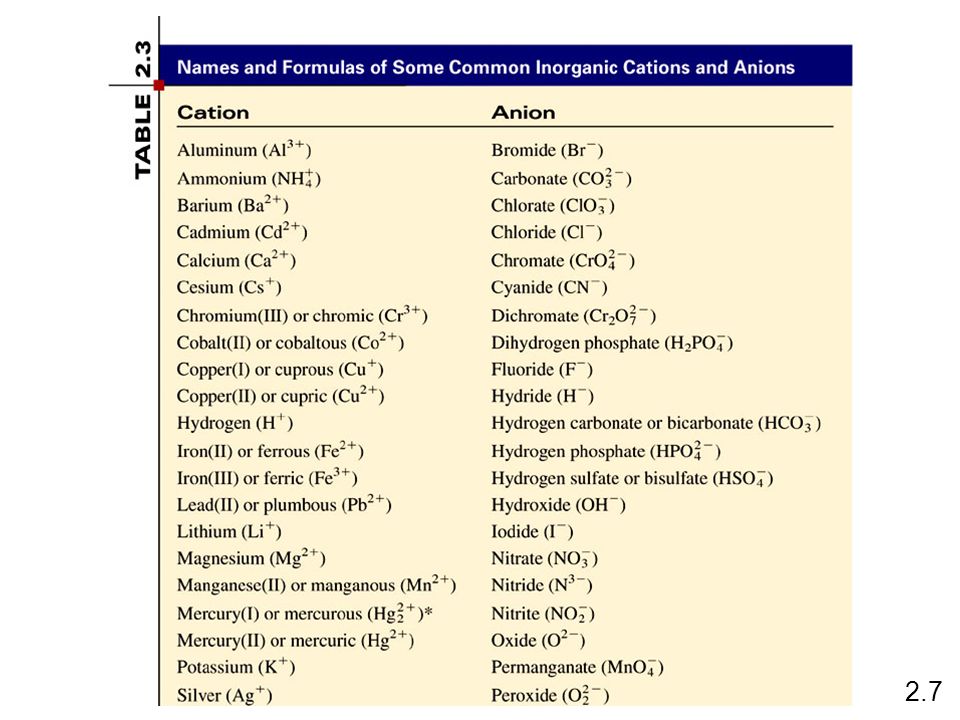

9. 2.7

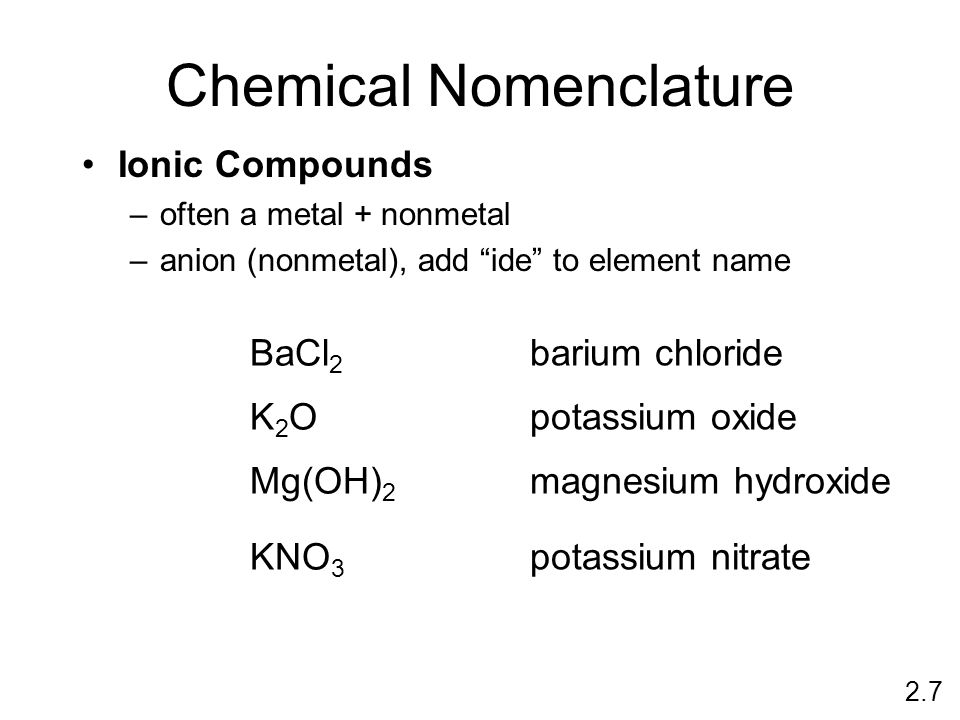

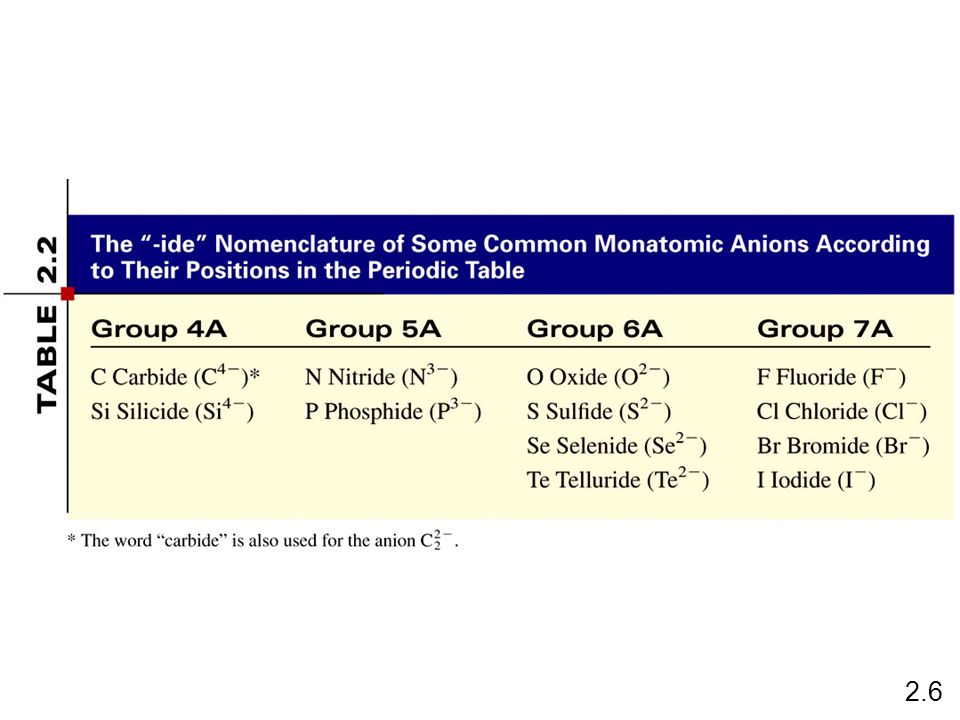

10. Chemical Nomenclature Ionic Compounds –often a metal + nonmetal –anion (nonmetal), add “ide” to element name BaCl 2 barium chloride K2OK2O potassium oxide Mg(OH) 2 magnesium hydroxide KNO 3 potassium nitrate 2.7

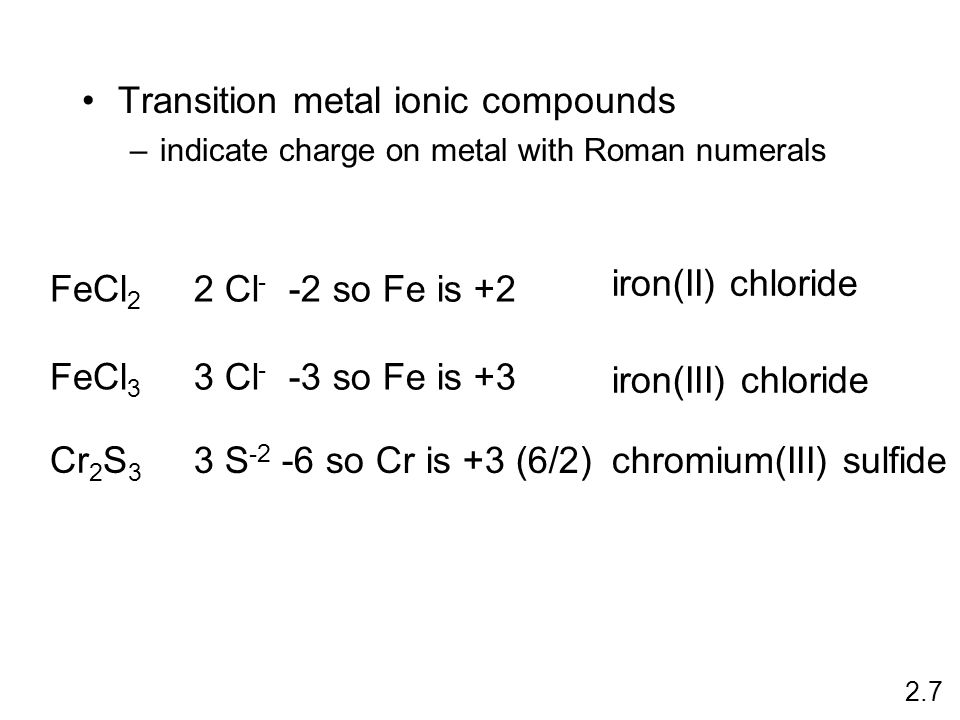

11. Transition metal ionic compounds –indicate charge on metal with Roman numerals FeCl 2 2 Cl - -2 so Fe is +2 iron(II) chloride FeCl 3 3 Cl - -3 so Fe is +3 iron(III) chloride Cr 2 S 3 3 S -2 -6 so Cr is +3 (6/2)chromium(III) sulfide 2.7

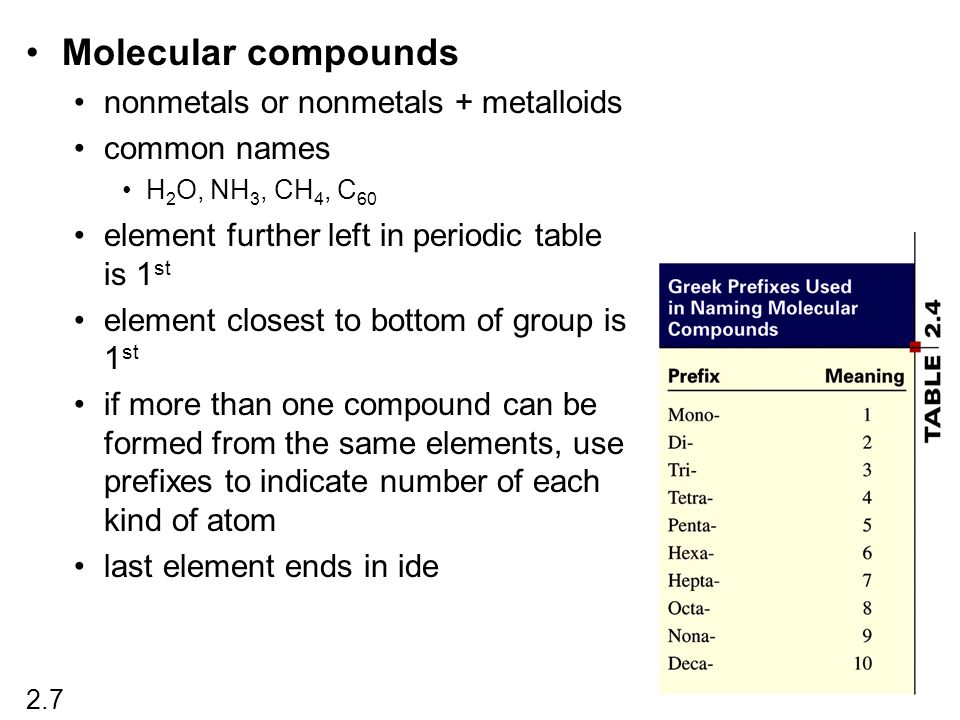

12. Molecular compounds nonmetals or nonmetals + metalloids common names H 2 O, NH 3, CH 4, C 60 element further left in periodic table is 1 st element closest to bottom of group is 1 st if more than one compound can be formed from the same elements, use prefixes to indicate number of each kind of atom last element ends in ide 2.7

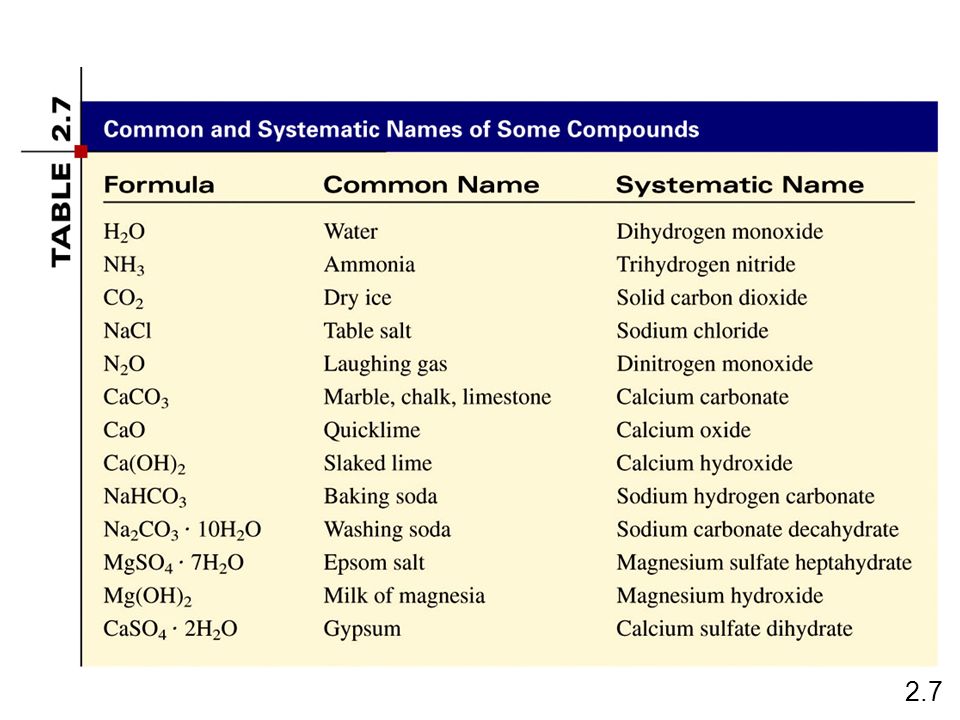

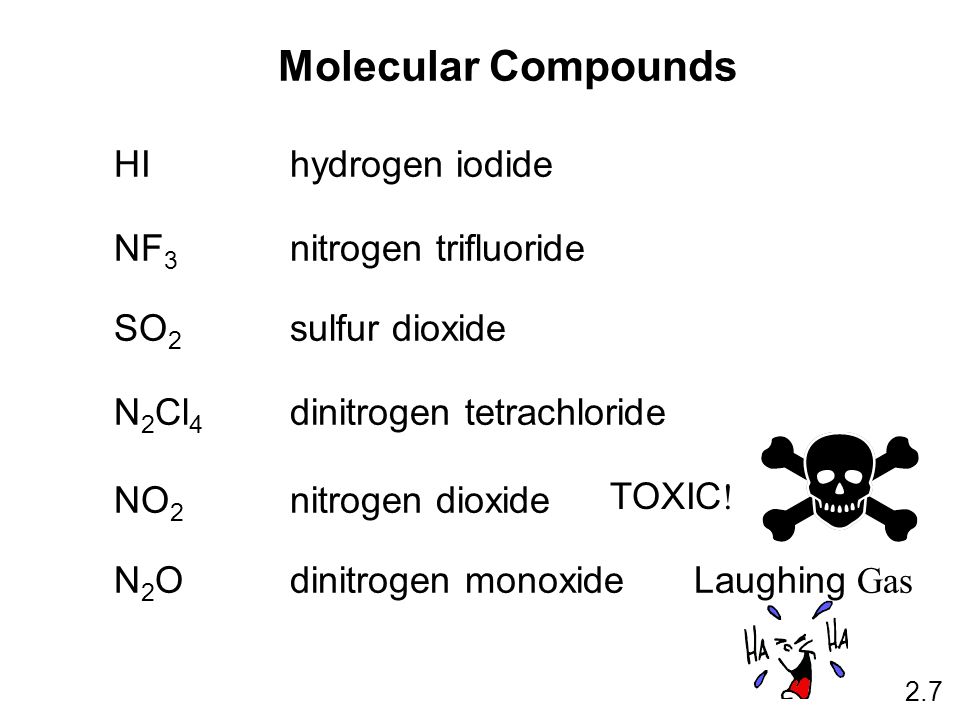

13. HIhydrogen iodide NF 3 nitrogen trifluoride SO 2 sulfur dioxide N 2 Cl 4 dinitrogen tetrachloride NO 2 nitrogen dioxide N2ON2Odinitrogen monoxide Molecular Compounds 2.7 TOXIC ! Laughing Gas

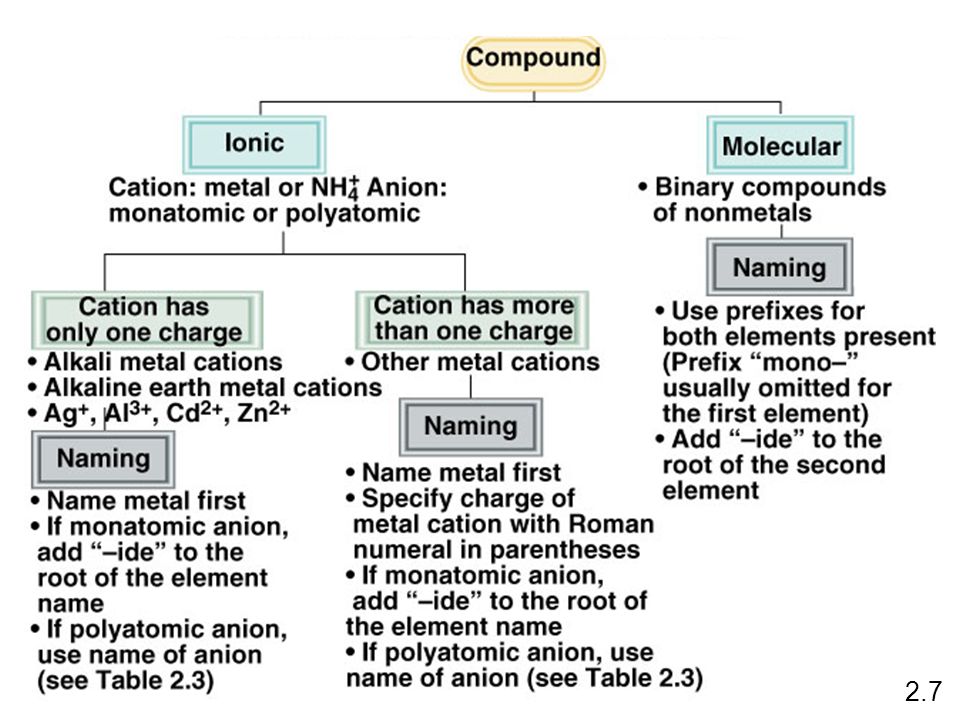

14. 2.7

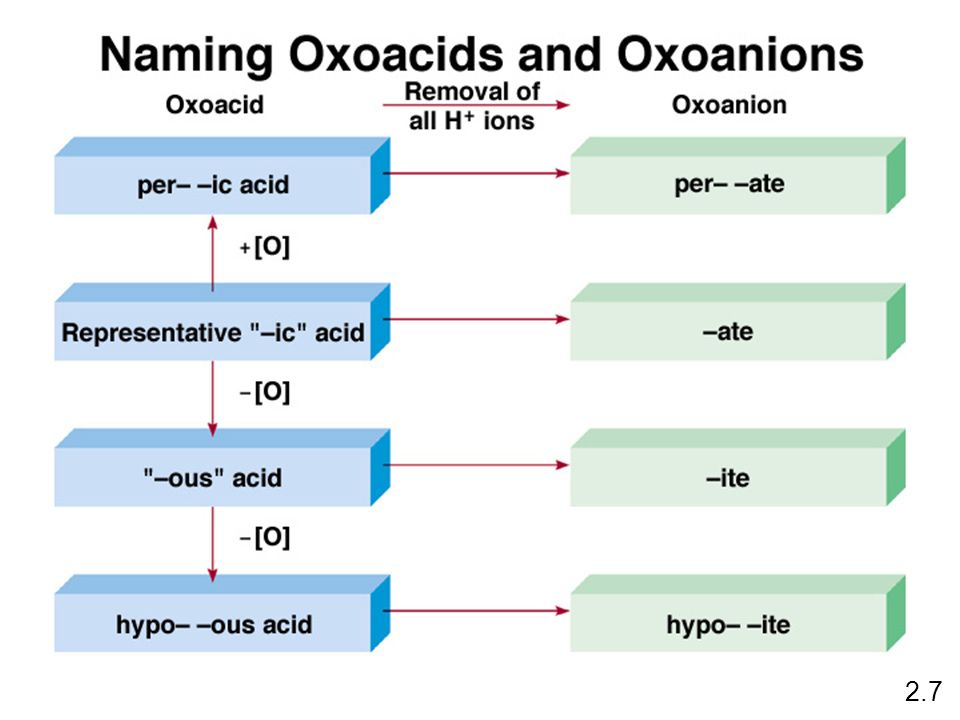

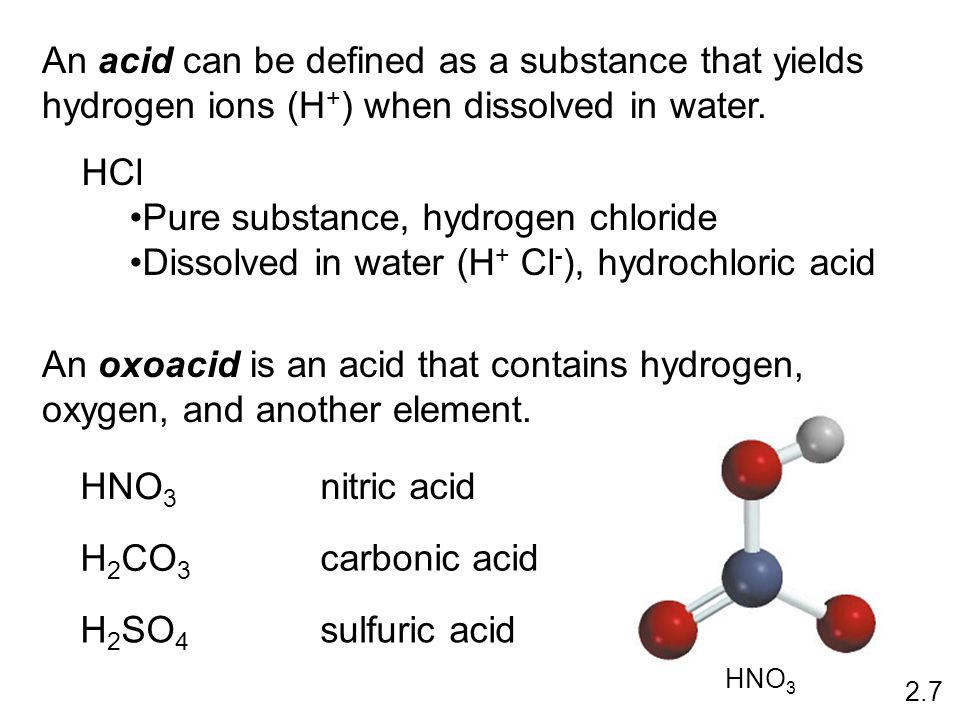

15. An acid can be defined as a substance that yields hydrogen ions (H + ) when dissolved in water. HCl Pure substance, hydrogen chloride Dissolved in water (H + Cl - ), hydrochloric acid An oxoacid is an acid that contains hydrogen, oxygen, and another element. HNO 3 nitric acid H 2 CO 3 carbonic acid H 2 SO 4 sulfuric acid 2.7 HNO 3

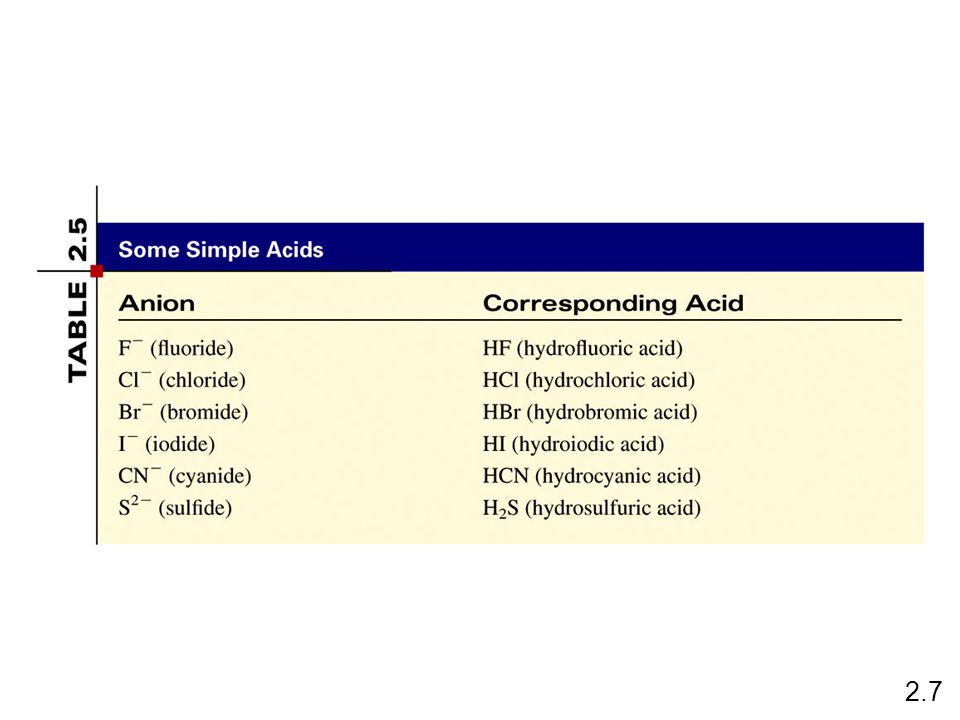

16. 2.7

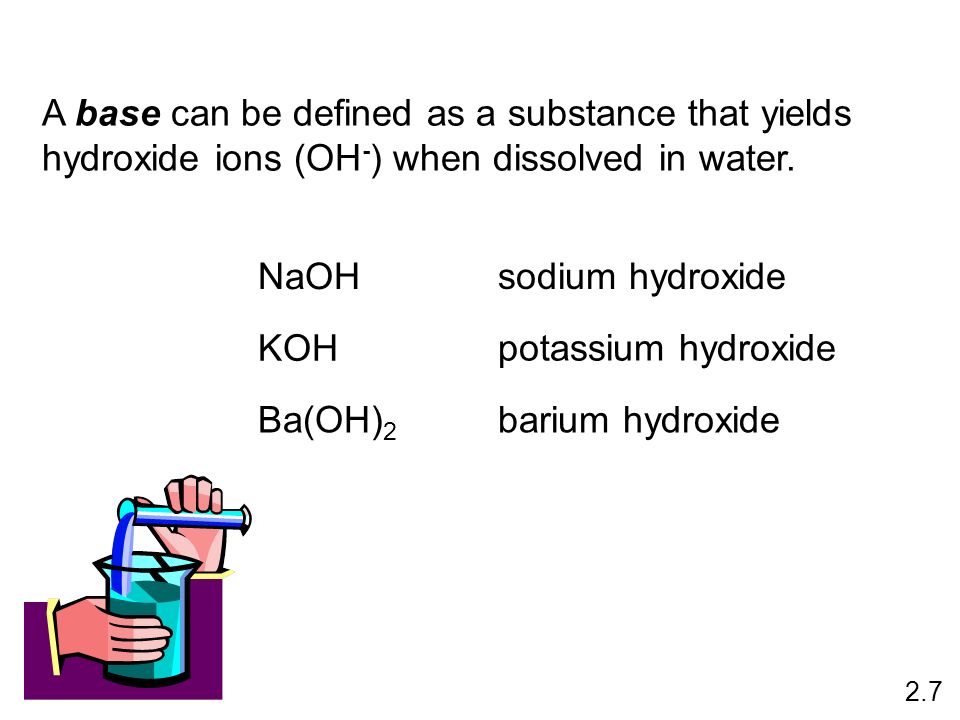

19. A base can be defined as a substance that yields hydroxide ions (OH - ) when dissolved in water. NaOH sodium hydroxide KOH potassium hydroxide Ba(OH) 2 barium hydroxide 2.7
