1 Graphs of motion Contents: Position graphs Whiteboard Qualitative Instantaneous Velocity graphs Whiteboard Qualitative

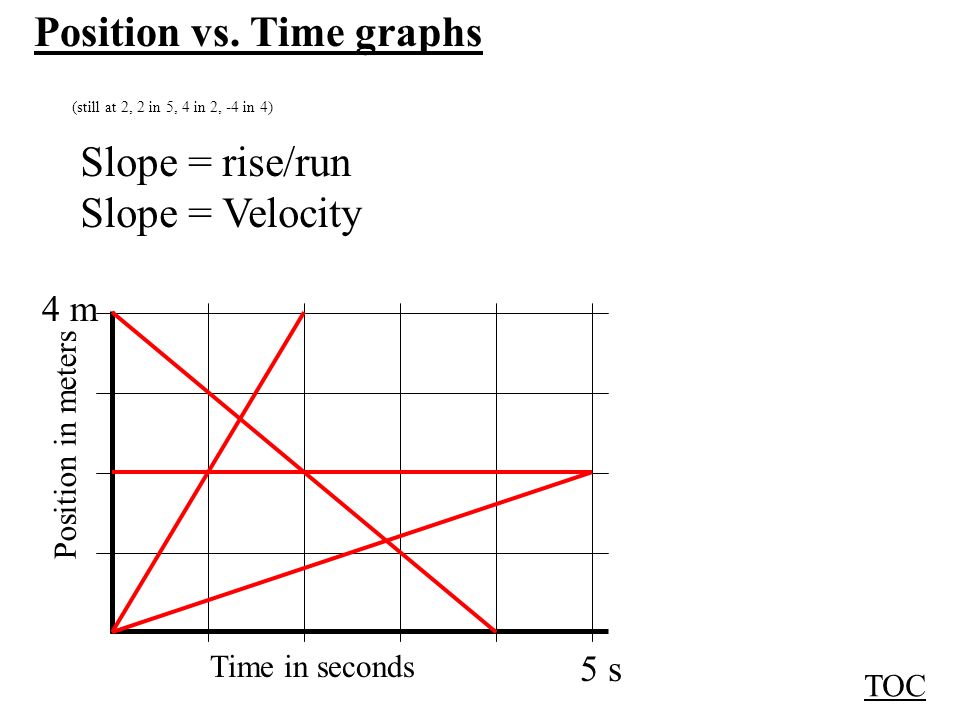

2 Position vs. Time graphs TOC Position in meters Time in seconds 5 s 4 m (still at 2, 2 in 5, 4 in 2, -4 in 4) Slope = rise/run Slope = Velocity

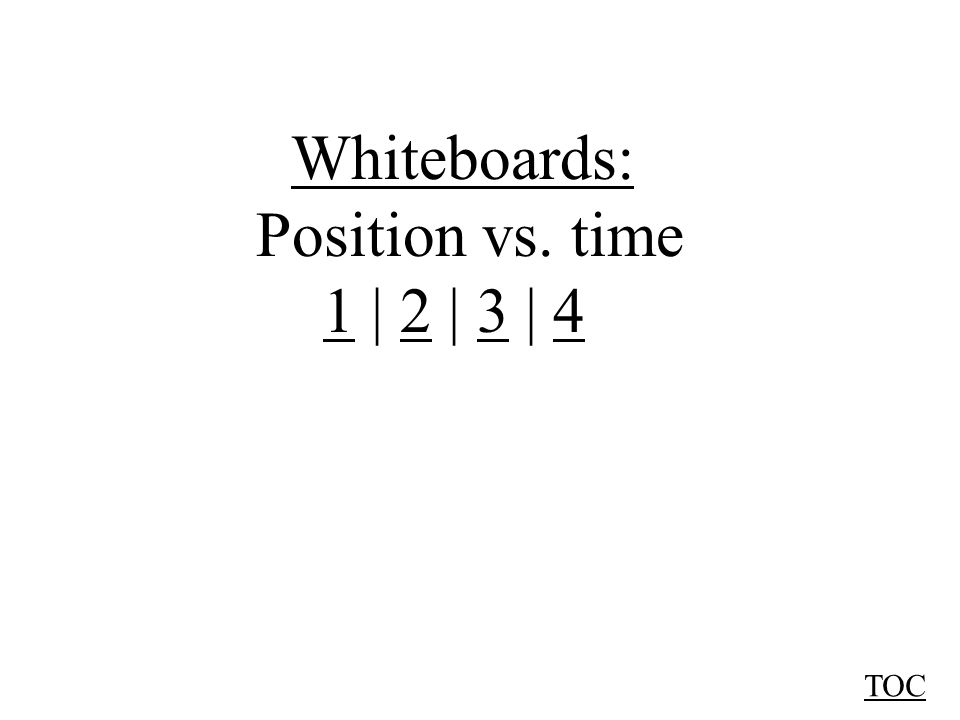

3 Whiteboards: Position vs. time 11 | 2 | 3 | 4234 TOC

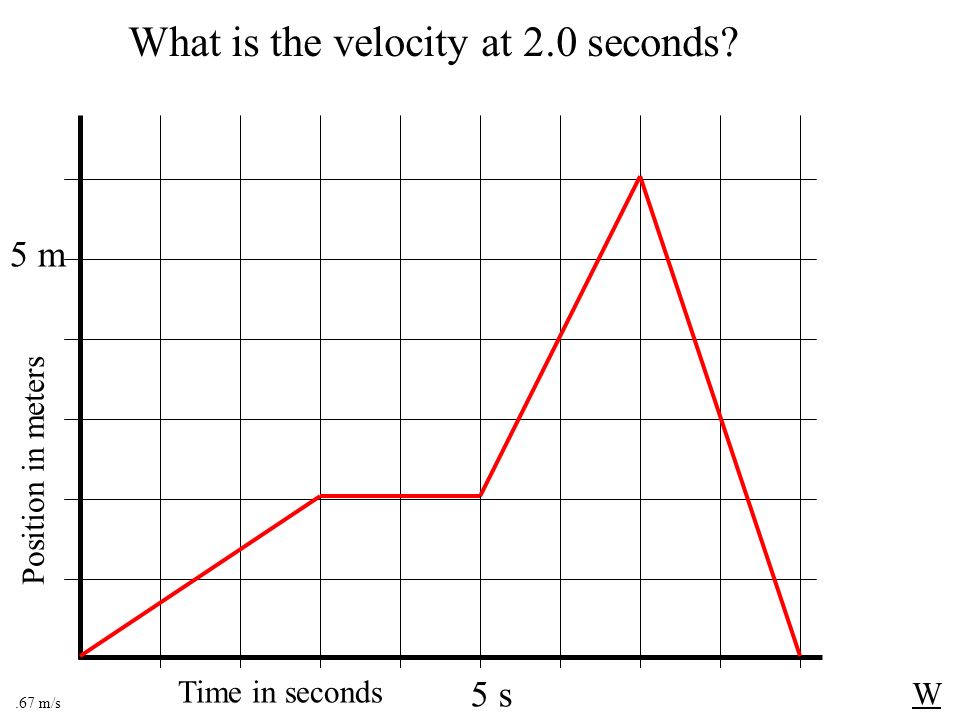

4 W Position in meters Time in seconds 5 s 5 m What is the velocity at 2.0 seconds?.67 m/s

5 W Position in meters Time in seconds 5 s 5 m What is the velocity at 4.0 seconds? 0

6 W Position in meters Time in seconds 5 s 5 m What is the velocity at 6.2 seconds? 2.0 m/s

7 W Position in meters Time in seconds 5 s 5 m What is the velocity at 8.15 seconds? -3.0 m/s

8 Whiteboards: Qualitative Position vs. time TOC

9 Position in meters Time in seconds 5 s 5 m What’s going on here?

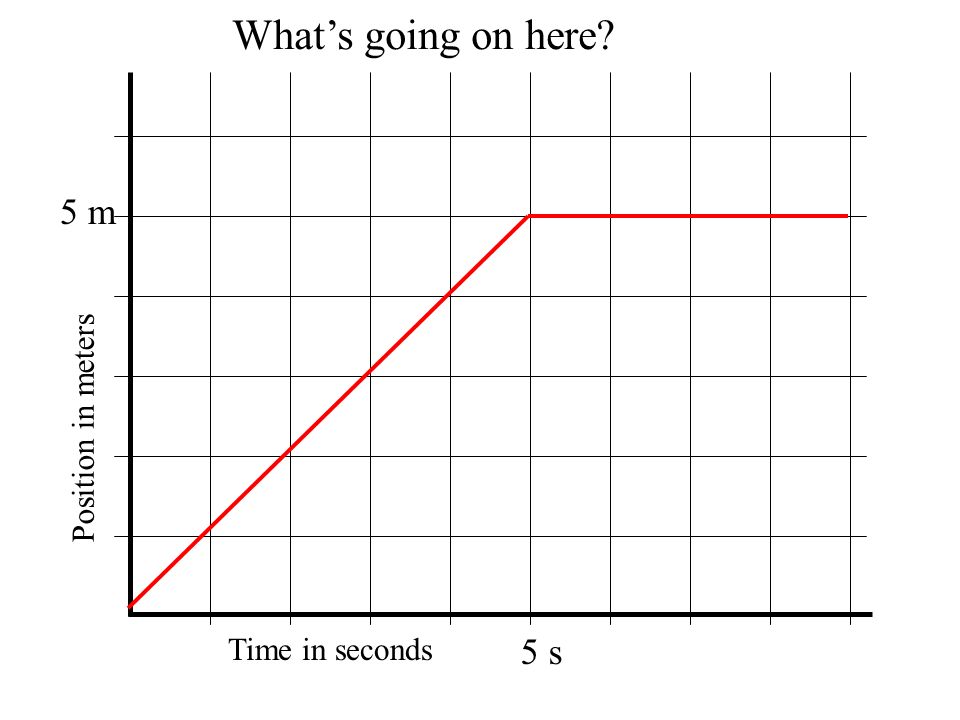

10 Position in meters Time in seconds 5 s 5 m What’s going on here?

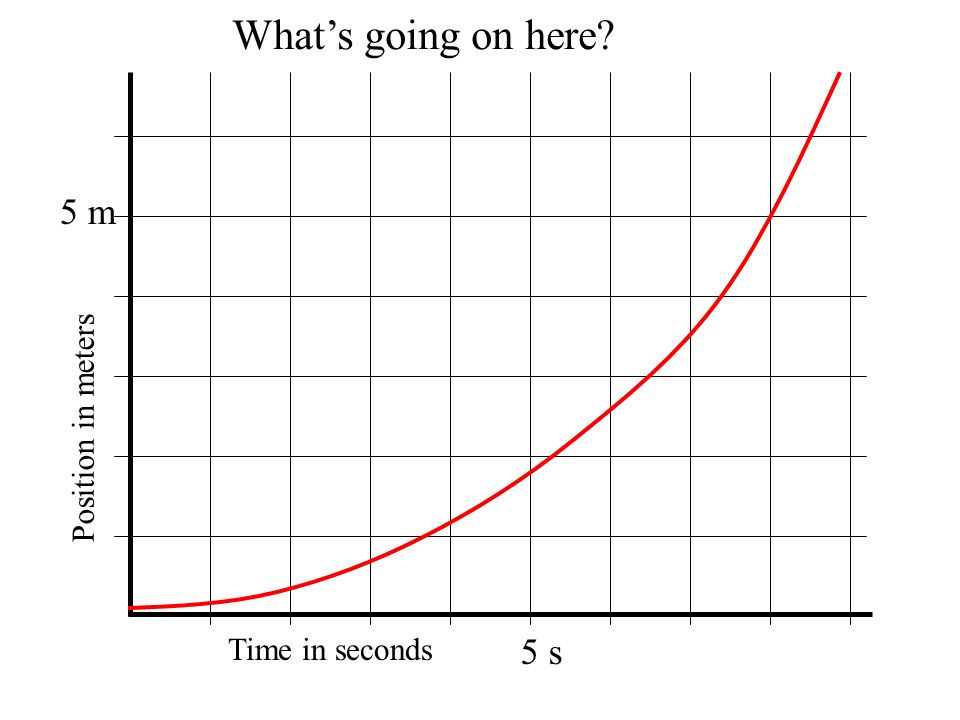

11 Position in meters Time in seconds 5 s 5 m What’s going on here?

12 Position in meters Time in seconds 5 s 5 m What’s going on here?

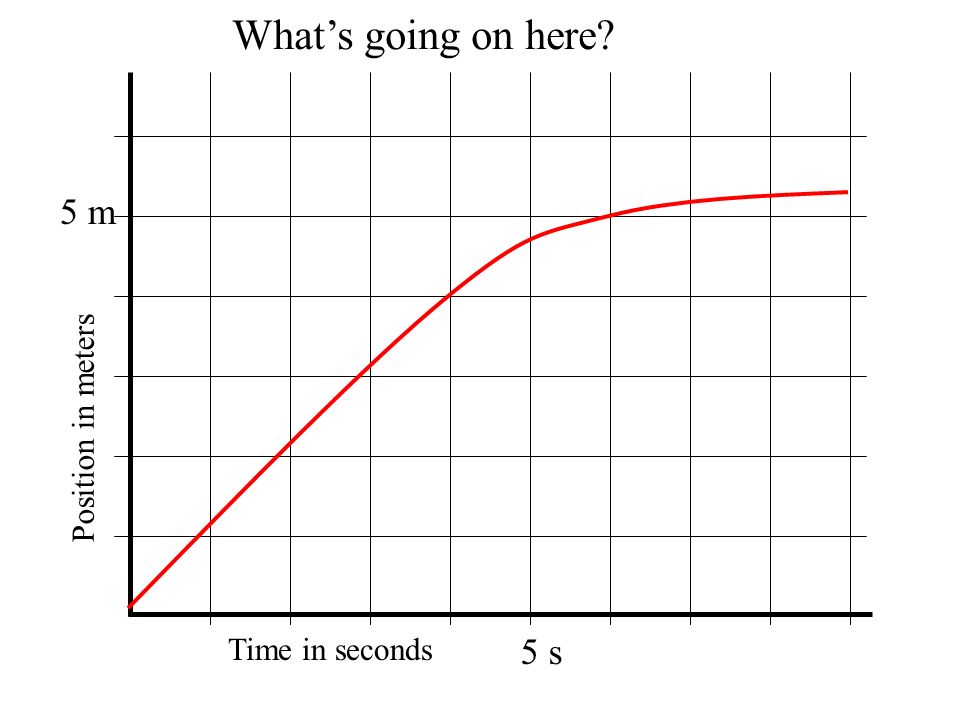

13 Position in meters Time in seconds 5 s 5 m What’s going on here?

14 Position in meters Time in seconds 5 s 5 m What’s going on here?

15 Position in meters Time in seconds 5 s 5 m What’s going on here?

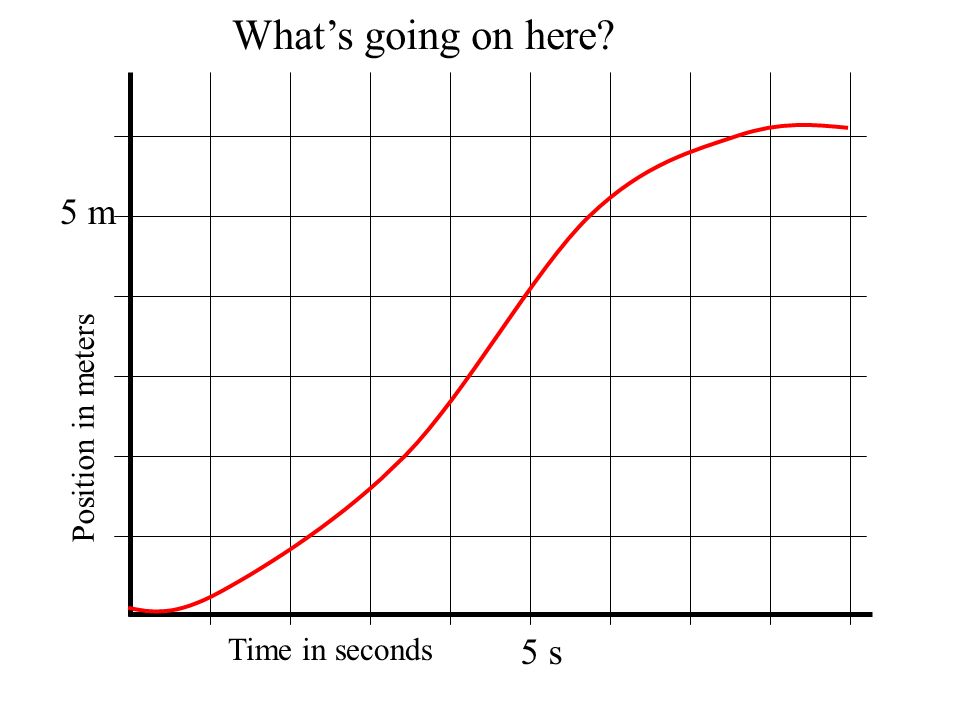

16 Position in meters Time in seconds 5 s 5 m What’s going on here?

17 Position in meters Time in seconds 5 s 5 m What’s going on here?

18 Position in meters Time in seconds 5 s 5 m v at 6.0 s =?Find the tangent slope Finding instantaneous velocity 5.1/5.95.86 ms

19 Position in meters Time in seconds 5 s 5 m What is the velocity at 3.0 seconds? 3/7.6 =.39 m/s

20 Position in meters Time in seconds 5 s 5 m What’s the velocity at 6.0 seconds? -2.85/4.5 = -.62 m/s

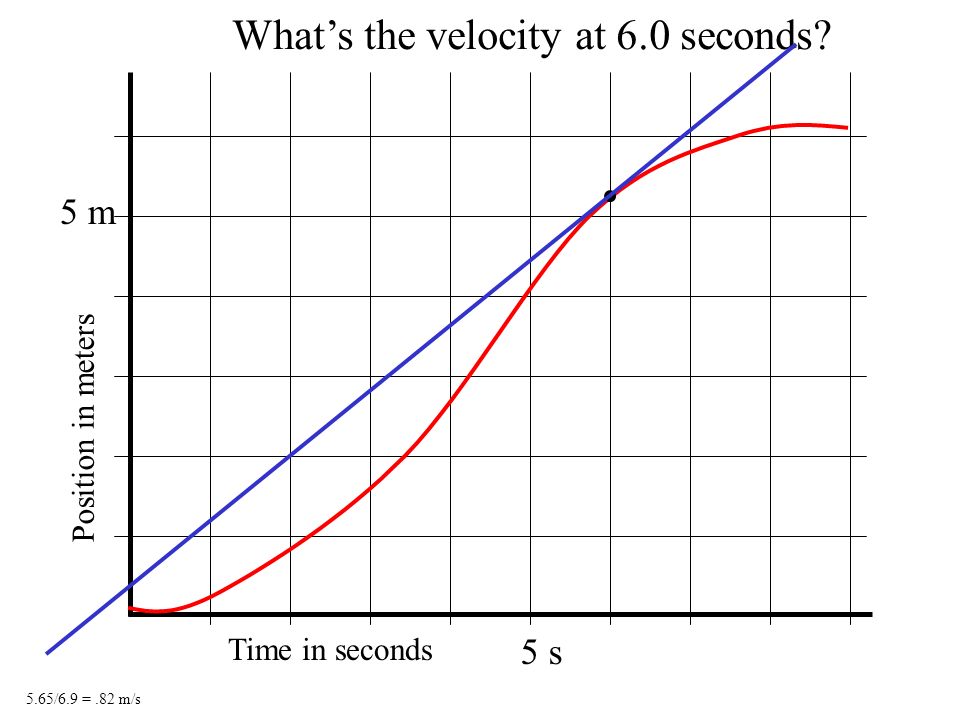

21 Position in meters Time in seconds 5 s 5 m What’s the velocity at 6.0 seconds? 5.65/6.9 =.82 m/s

22 Velocity vs. Time graphs TOC Velocity (m/s) Time in seconds 5 s 4 m/s Slope = rise/run Slope = acceleration (show driving on a road) Area under is Displacement 3 m/s for 5 seconds How far? LxW = ?

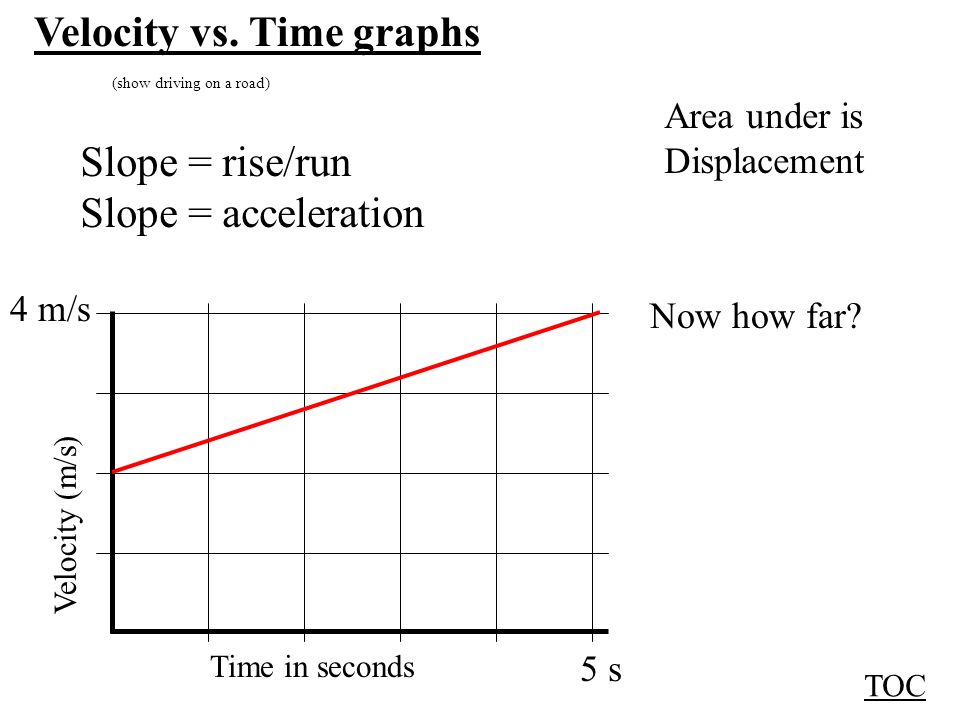

23 Velocity vs. Time graphs TOC Velocity (m/s) Time in seconds 5 s 4 m/s Slope = rise/run Slope = acceleration (show driving on a road) Area under is Displacement Now how far?

24 Whiteboards: Velocity vs. time 11 | 2 | 3 | 4234 TOC

25 velocity in m/s Time in seconds 5 s 5 m/s What is the acceleration at 1.15887 seconds? 1.5 m/s/s

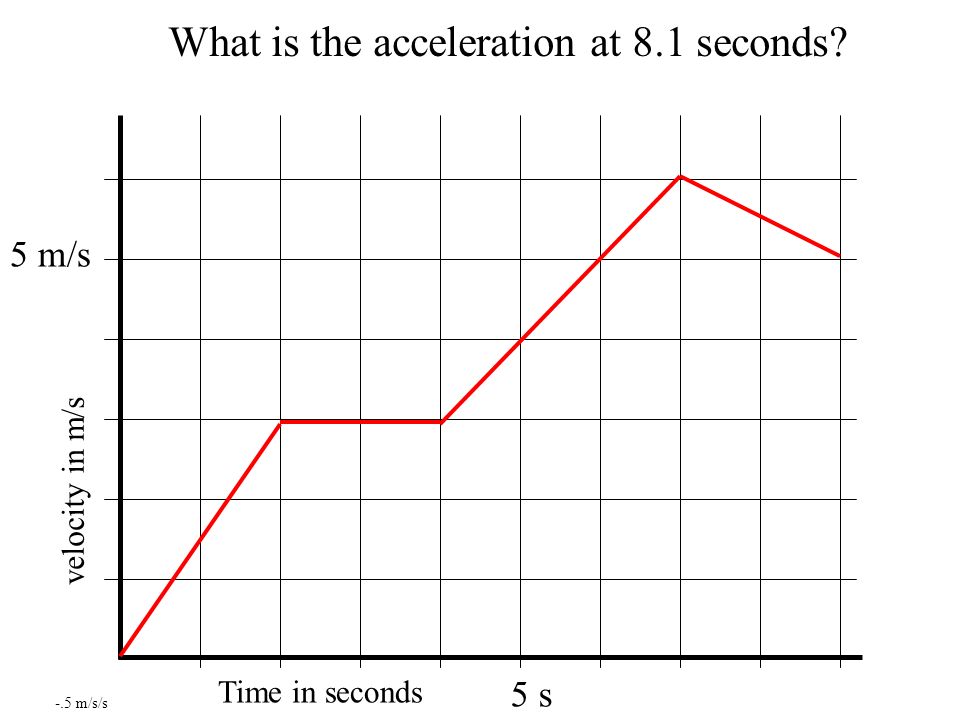

26 velocity in m/s Time in seconds 5 s 5 m/s What is the acceleration at 8.1 seconds? -.5 m/s/s

27 velocity in m/s Time in seconds 5 s 5 m/s What displacement between 2 and 4 seconds? 6.0 m

28 velocity in m/s Time in seconds 5 s 5 m/s What displacement between 4 and 7 seconds? 13.5 m

29 Whiteboards: Qualitative Velocity vs. time TOC

30 Time + V What’s going on here? 0 m/s - V

31 Time + V What’s going on here? 0 m/s - V

32 Time + V What’s going on here? 0 m/s - V

33 Time + V What’s going on here? 0 m/s - V

34 Time + V What’s going on here? 0 m/s - V

35 Time + V What’s going on here? 0 m/s - V

36 Position Time Here is what it is as position v time
