1. 1 Building Verilog Models for the MIPS Processor

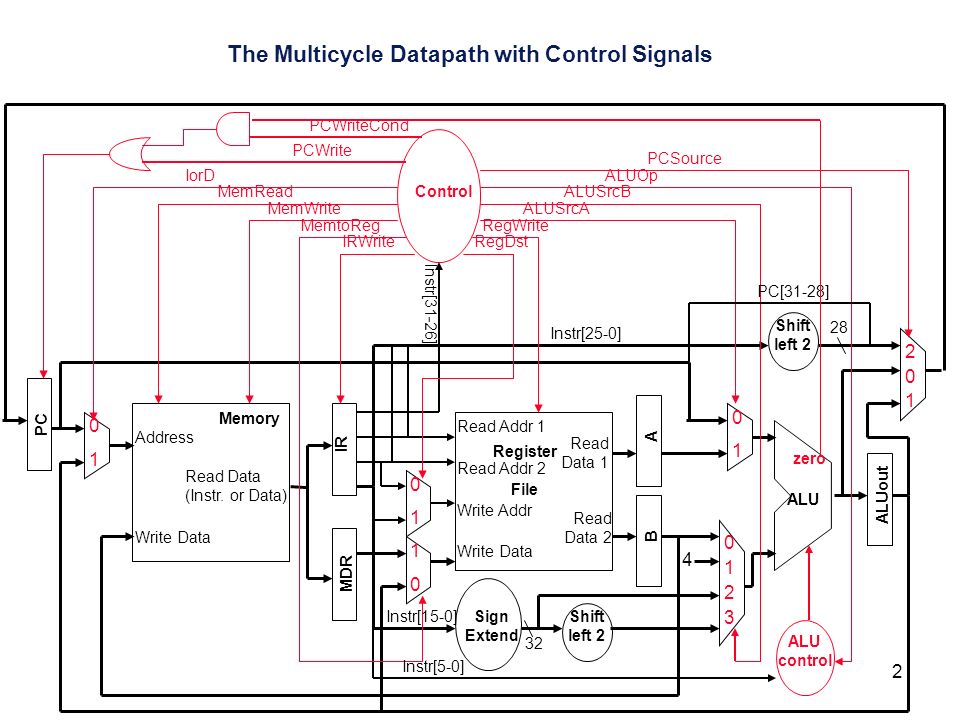

2. 2 The Multicycle Datapath with Control Signals Address Read Data (Instr. or Data) Memory PC Write Data Read Addr 1 Read Addr 2 Write Addr Register File Read Data 1 Read Data 2 ALU Write Data IR MDR A B ALUout Sign Extend Shift left 2 ALU control Shift left 2 ALUOp Control IRWrite MemtoReg MemWrite MemRead IorD PCWrite PCWriteCond RegDst RegWrite ALUSrcA ALUSrcB zero PCSource 1 1 1 1 1 1 0 0 0 0 0 0 2 2 3 4 Instr[5-0] Instr[25-0] PC[31-28] Instr[15-0] Instr[31-26] 32 28

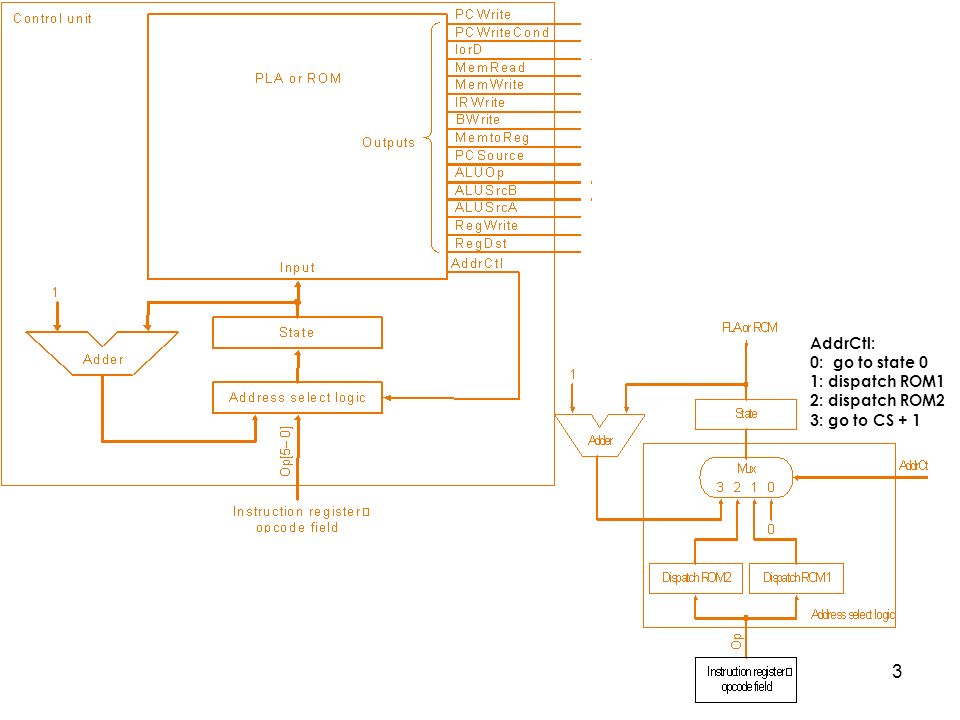

3. 3 AddrCtl: 0: go to state 0 1: dispatch ROM1 2: dispatch ROM2 3: go to CS + 1

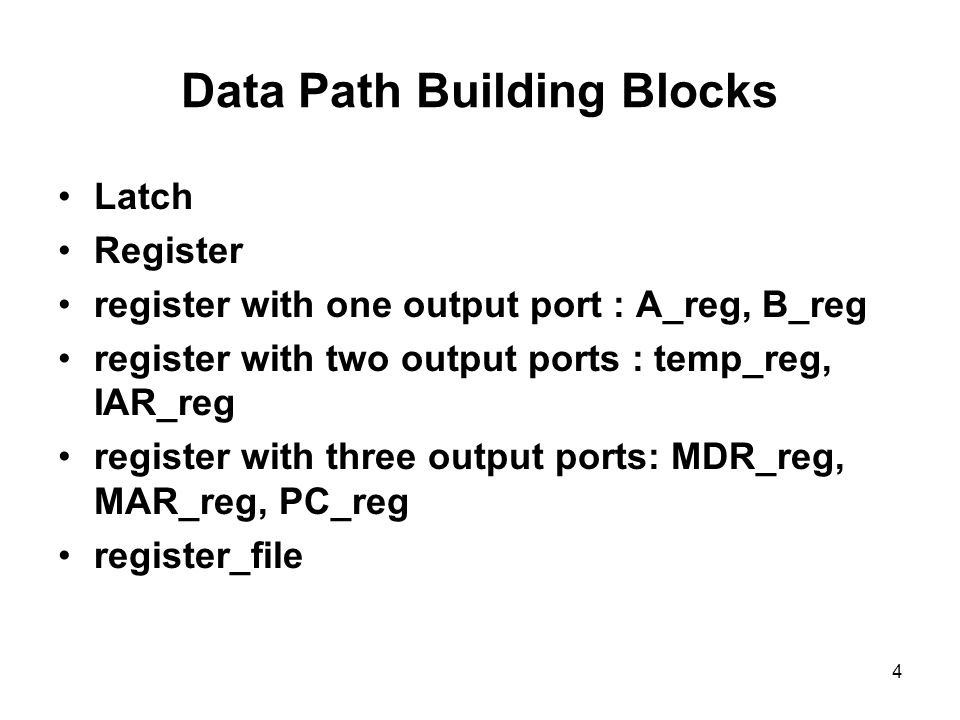

4. 4 Data Path Building Blocks Latch Register register with one output port : A_reg, B_reg register with two output ports : temp_reg, IAR_reg register with three output ports: MDR_reg, MAR_reg, PC_reg register_file

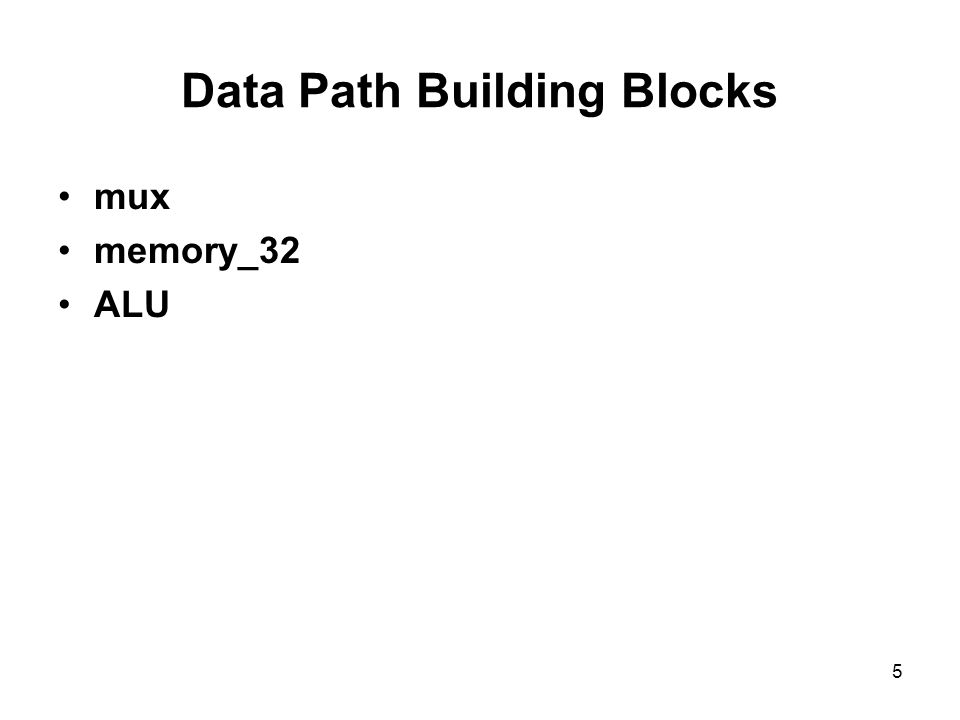

5. 5 Data Path Building Blocks mux memory_32 ALU

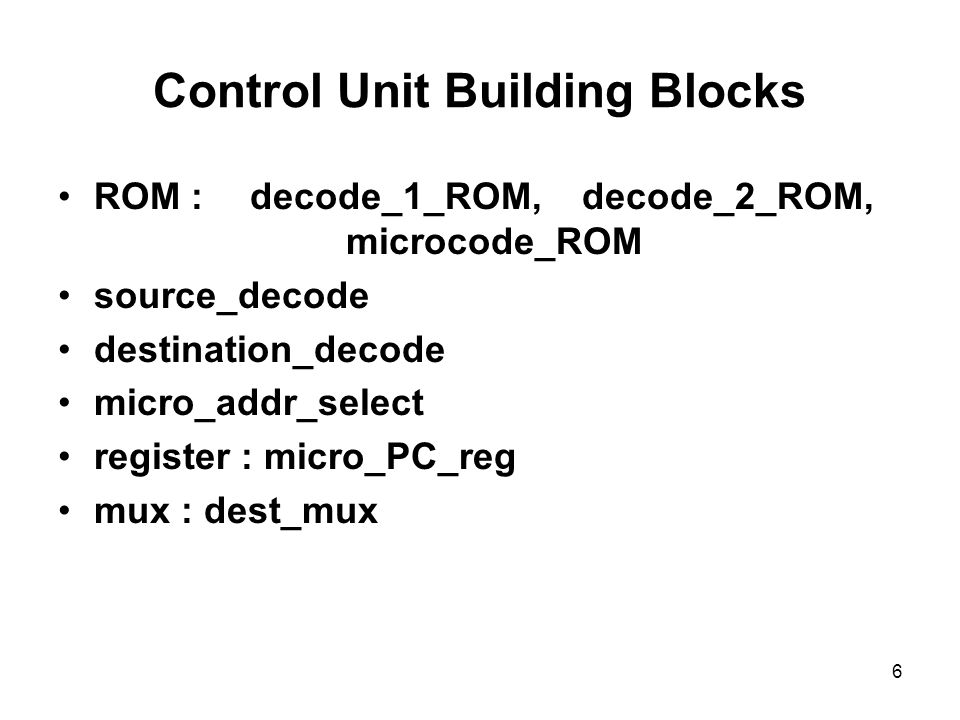

6. 6 Control Unit Building Blocks ROM : decode_1_ROM, decode_2_ROM, microcode_ROM source_decode destination_decode micro_addr_select register : micro_PC_reg mux : dest_mux

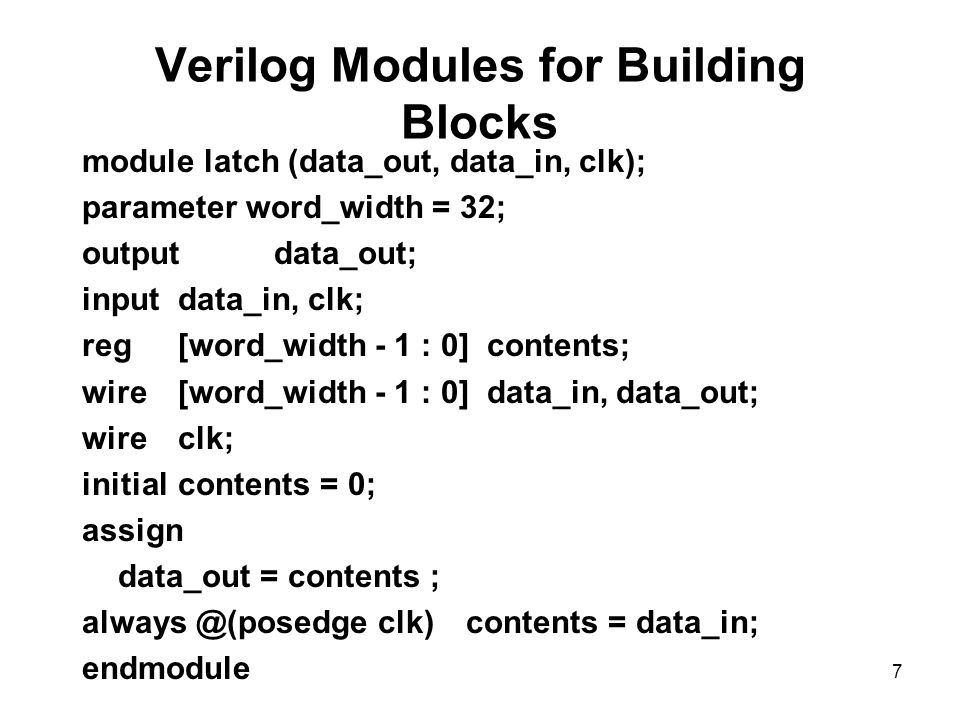

7. 7 Verilog Modules for Building Blocks module latch (data_out, data_in, clk); parameter word_width = 32; outputdata_out; inputdata_in, clk; reg[word_width - 1 : 0] contents; wire[word_width - 1 : 0] data_in, data_out; wire clk; initial contents = 0; assign data_out = contents ; always @(posedge clk)contents = data_in; endmodule

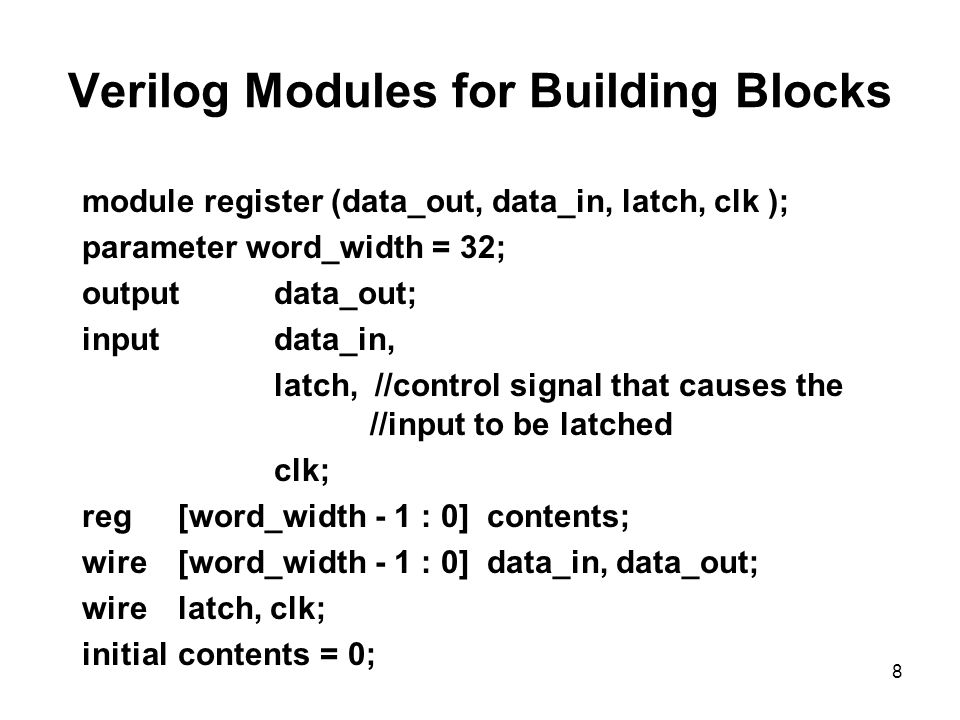

8. 8 Verilog Modules for Building Blocks module register (data_out, data_in, latch, clk ); parameter word_width = 32; outputdata_out; inputdata_in, latch, //control signal that causes the //input to be latched clk; reg[word_width - 1 : 0] contents; wire[word_width - 1 : 0] data_in, data_out; wire latch, clk; initialcontents = 0;

9. 9 Verilog Modules for Building Blocks assign data_out = contents; always @(posedge clk) if (latch)contents = data_in; endmodule

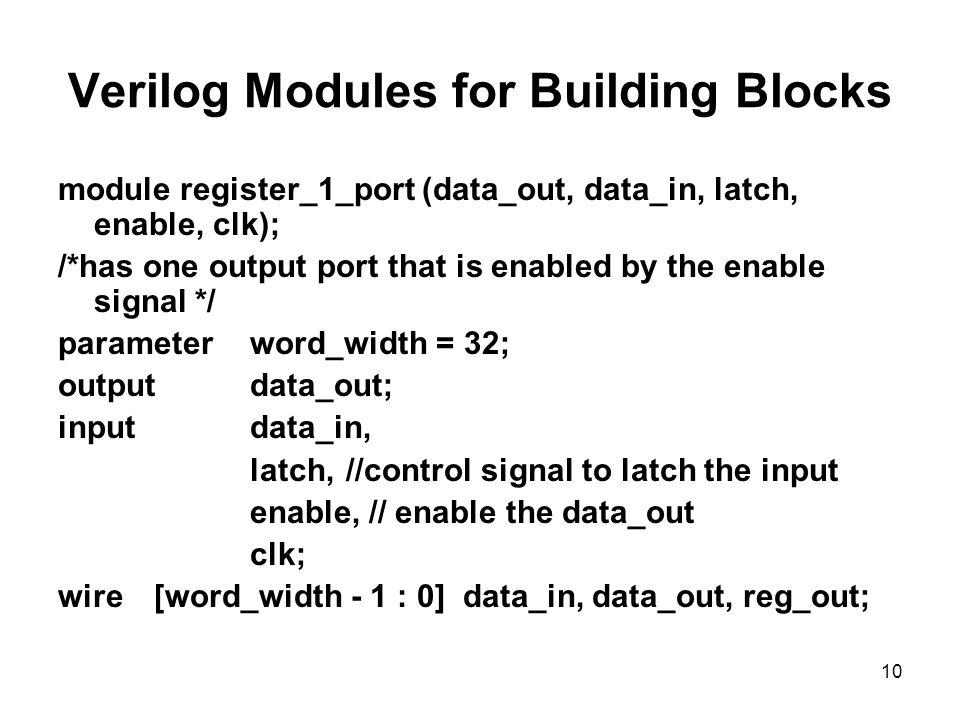

10. 10 Verilog Modules for Building Blocks module register_1_port (data_out, data_in, latch, enable, clk); /*has one output port that is enabled by the enable signal */ parameter word_width = 32; outputdata_out; inputdata_in, latch,//control signal to latch the input enable, // enable the data_out clk; wire[word_width - 1 : 0] data_in, data_out, reg_out;

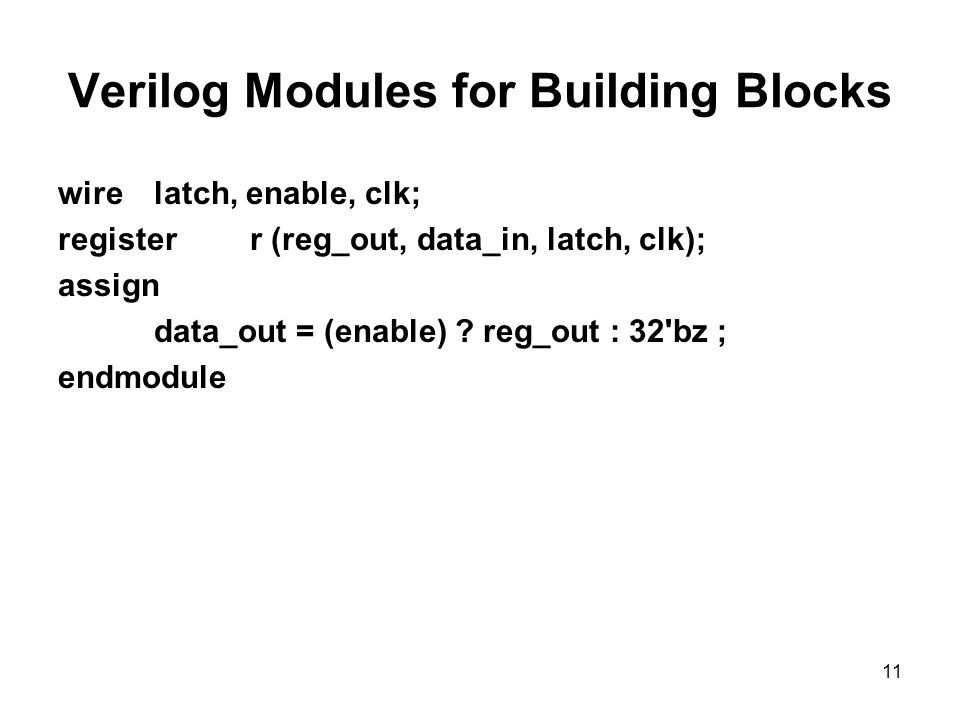

11. 11 Verilog Modules for Building Blocks wirelatch, enable, clk; registerr (reg_out, data_in, latch, clk); assign data_out = (enable) ? reg_out : 32'bz ; endmodule

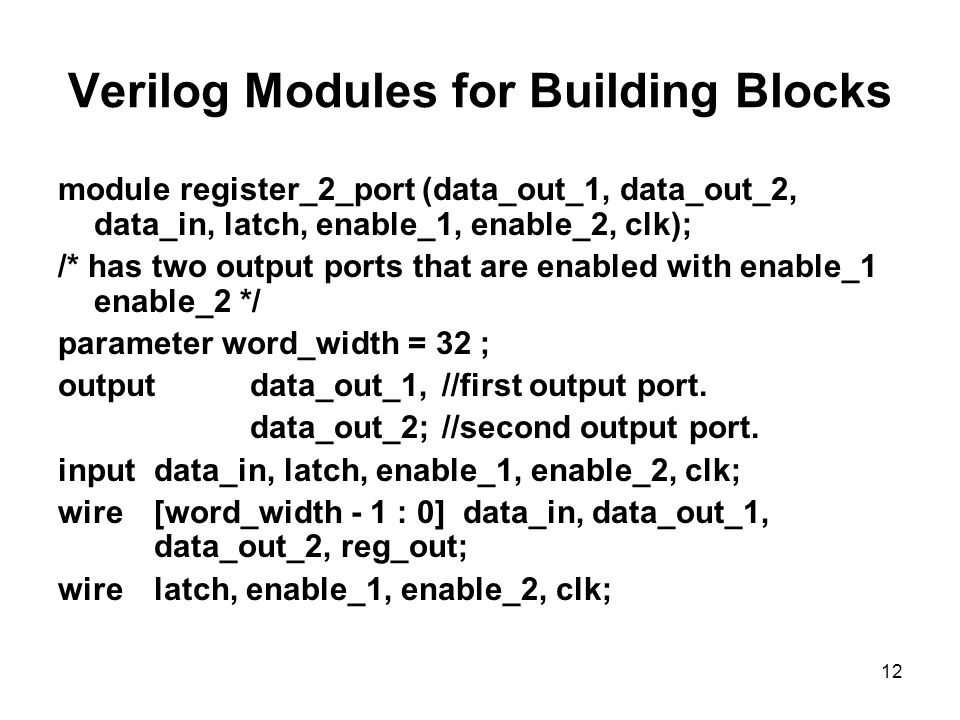

12. 12 Verilog Modules for Building Blocks module register_2_port (data_out_1, data_out_2, data_in, latch, enable_1, enable_2, clk); /* has two output ports that are enabled with enable_1 enable_2 */ parameter word_width = 32 ; outputdata_out_1,//first output port. data_out_2;//second output port. inputdata_in, latch, enable_1, enable_2, clk; wire[word_width - 1 : 0] data_in, data_out_1, data_out_2, reg_out; wirelatch, enable_1, enable_2, clk;

13. 13 Verilog Modules for Building Blocks register r (reg_out, data_in, latch, clk); assign data_out_1 = (enable_1) ? reg_out : 32'bz, data_out_2 = (enable_2) ? reg_out : 32'bz; endmodule

14. 14 Verilog Modules for Building Blocks module register_3_port (data_out_1, data_out_2, data_out_3, data_in, latch, enable_1, enable_2, clk); /*has three output ports, the first two ports are enabled by enable_1, enable_2, the third port constantly outputs the value of the register*/ parameter word_width = 32; outputdata_out_1, data_out_2, data_out_3; inputdata_in, latch, enable_1, enable_2, clk; wire[word_width - 1 : 0 ] data_in, data_out_1, data_out_2, data_out_3, reg_out; wirelatch, enable_1, enable_2, clk;

15. 15 Verilog Modules for Building Blocks register r (reg_out, data_in, latch, clk); assigndata_out_1 = (enable_1) ? reg_out : 32'bz, data_out_2 = (enable_2) ? reg_out : 32'bz, data_out_3 = reg_out; endmodule

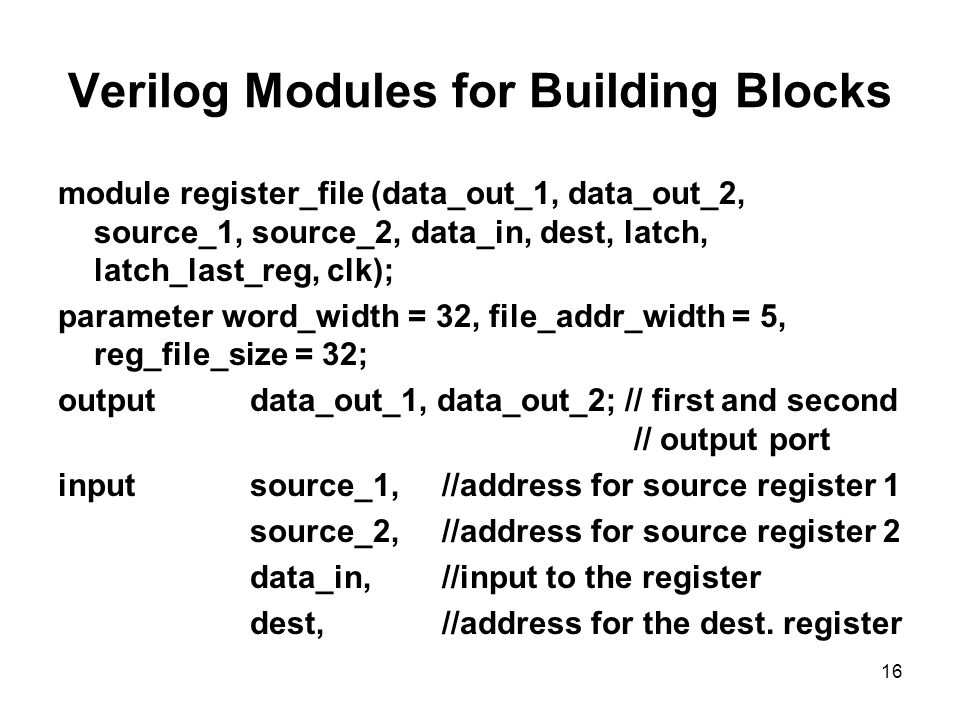

16. 16 Verilog Modules for Building Blocks module register_file (data_out_1, data_out_2, source_1, source_2, data_in, dest, latch, latch_last_reg, clk); parameter word_width = 32, file_addr_width = 5, reg_file_size = 32; outputdata_out_1, data_out_2; // first and second // output port inputsource_1,//address for source register 1 source_2,//address for source register 2 data_in,//input to the register dest,//address for the dest. register

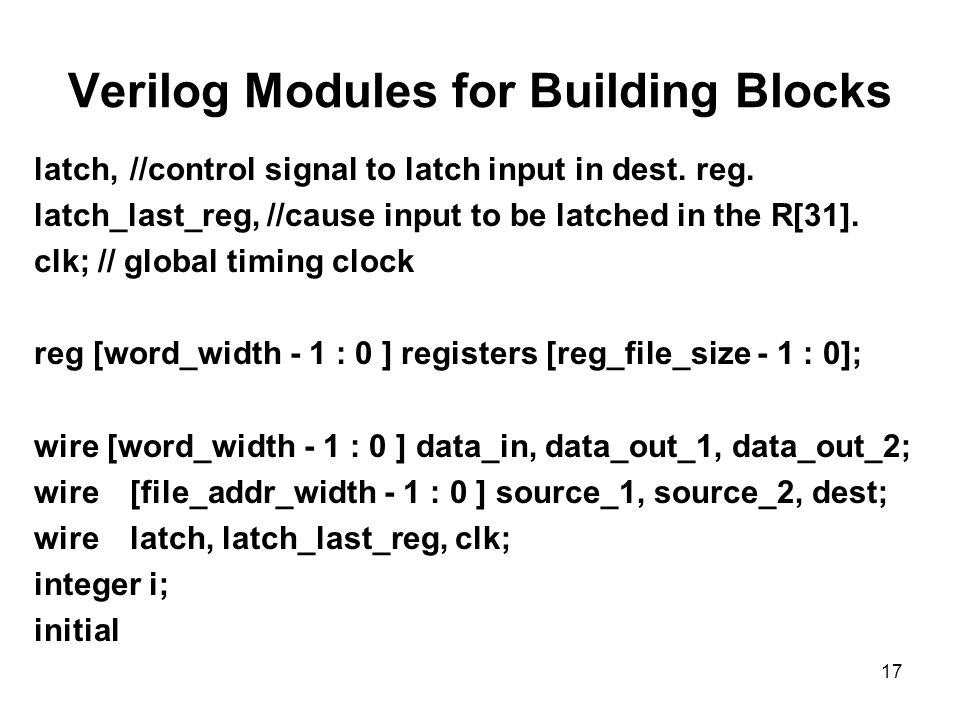

17. 17 Verilog Modules for Building Blocks latch,//control signal to latch input in dest. reg. latch_last_reg, //cause input to be latched in the R[31]. clk; // global timing clock reg [word_width - 1 : 0 ] registers [reg_file_size - 1 : 0]; wire [word_width - 1 : 0 ] data_in, data_out_1, data_out_2; wire[file_addr_width - 1 : 0 ] source_1, source_2, dest; wirelatch, latch_last_reg, clk; integer i; initial

18. 18 Verilog Modules for Building Blocks begin for (i=0; i<= (reg_file_size -1 ); i = i+1) registers[i] = 0; end assign data_out_1 = registers[source_1], data_out_2 = registers[source_2];

19. 19 Verilog Modules for Building Blocks always @(posedge clk) begin if (latch && (dest != 0 )) registers[dest] = data_in; if (latch_last_reg) registers[reg_file_size - 1] = data_in; end endmodule

20. 20 Verilog Modules for Building Blocks module mux ( data_out, input_1, input_2, select); parameter word_width = 32; outputdata_out; inputinput_1, input_2, select; wire [word_width -1 : 0] data_out, input_1, input_2; wire select; assign data_out = (select) ? input_2 : input_1; endmodule

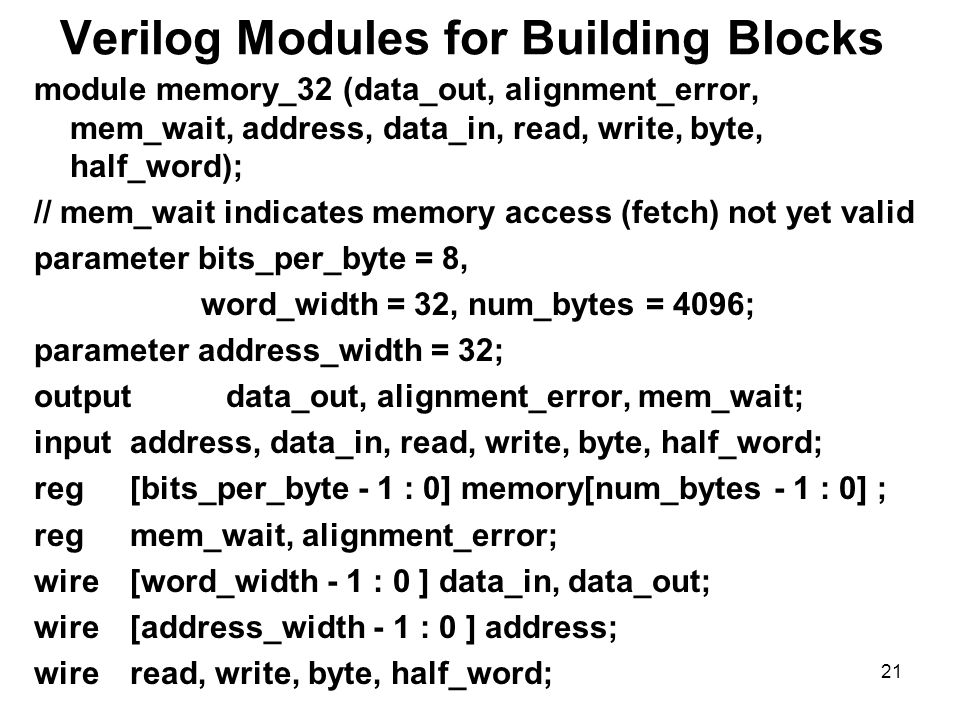

21. 21 Verilog Modules for Building Blocks module memory_32 (data_out, alignment_error, mem_wait, address, data_in, read, write, byte, half_word); // mem_wait indicates memory access (fetch) not yet valid parameter bits_per_byte = 8, word_width = 32, num_bytes = 4096; parameter address_width = 32; outputdata_out, alignment_error, mem_wait; inputaddress, data_in, read, write, byte, half_word; reg [bits_per_byte - 1 : 0] memory[num_bytes - 1 : 0] ; reg mem_wait, alignment_error; wire [word_width - 1 : 0 ] data_in, data_out; wire[address_width - 1 : 0 ] address; wireread, write, byte, half_word;

22. 22 Verilog Modules for Building Blocks integer i; initial begin mem_wait = 0; alignment_error = 0; for (i=0; i<= (num_bytes - 1) ; i = i+1) memory[i] = 0; end assign data_out = (byte) ? {24 'b0, memory[address]} : 32'bz, data_out = (half_word) ? {16 'b0, memory[address], memory[address+1]}: 32'bz,

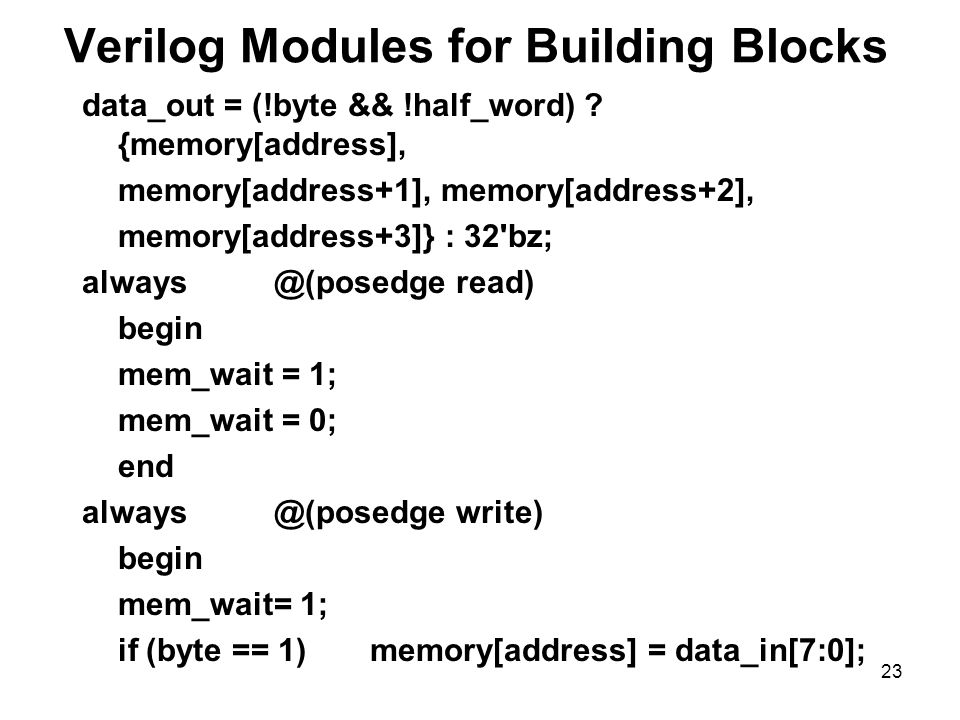

23. 23 Verilog Modules for Building Blocks data_out = (!byte && !half_word) ? {memory[address], memory[address+1], memory[address+2], memory[address+3]} : 32'bz; always @(posedge read) begin mem_wait = 1; mem_wait = 0; end always@(posedge write) begin mem_wait= 1; if (byte == 1)memory[address] = data_in[7:0];

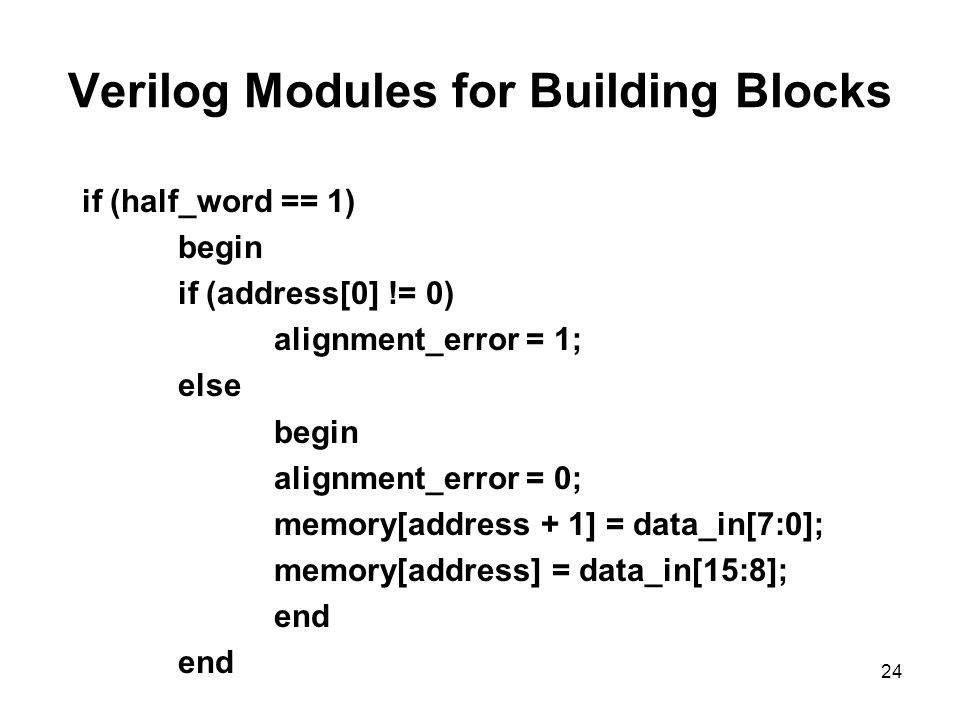

24. 24 Verilog Modules for Building Blocks if (half_word == 1) begin if (address[0] != 0) alignment_error = 1; else begin alignment_error = 0; memory[address + 1] = data_in[7:0]; memory[address] = data_in[15:8]; end

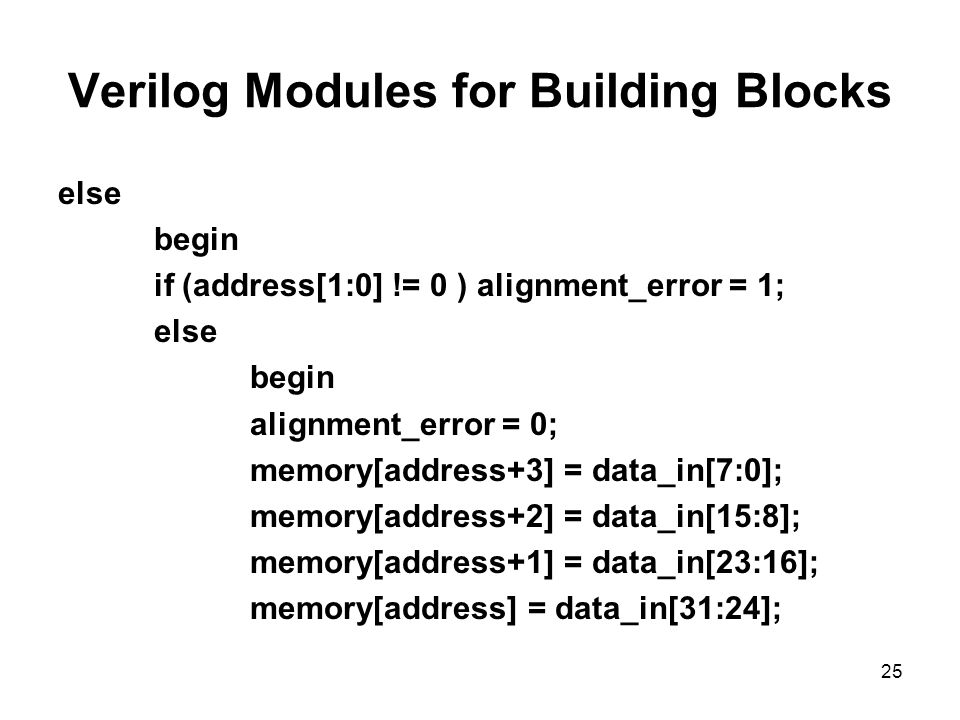

25. 25 Verilog Modules for Building Blocks else begin if (address[1:0] != 0 ) alignment_error = 1; else begin alignment_error = 0; memory[address+3] = data_in[7:0]; memory[address+2] = data_in[15:8]; memory[address+1] = data_in[23:16]; memory[address] = data_in[31:24];

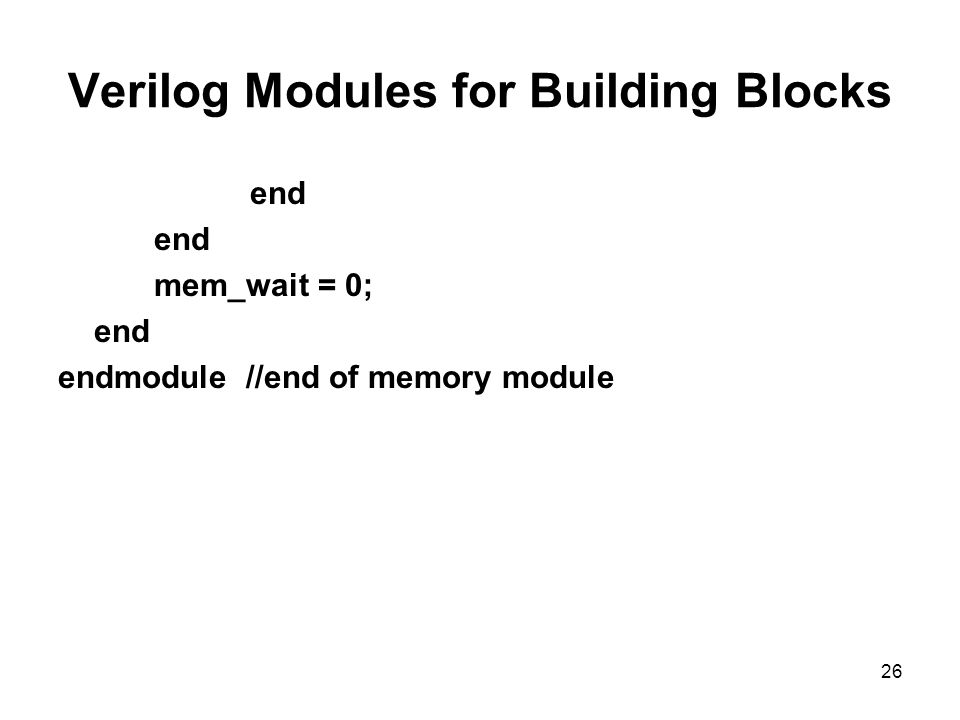

26. 26 Verilog Modules for Building Blocks end mem_wait = 0; end endmodule //end of memory module

27. 27 Verilog Modules for Building Blocks module ALU(data_out, zero, negative, divide_by_zero, s1, s2, alu_op, enable); parameter word_width = 32, alu_op_width = 5; output data_out, zero, negative, divide_by_zero; input s1, s2, alu_op, enable; wire [word_width - 1 : 0] temp, data_out, s1, s2; wire[alu_op_width - 1 : 0] alu_op; wirezero, negative, enable, divide_by_zero;

28. 28 Verilog Modules for Building Blocks assign temp = (alu_op == 0) ? (s1+ s2) : 32'bz, temp = (alu_op == 1) ? (s1- s2) : 32'bz, temp = (alu_op == 2) ? (s2 - s1) : 32'bz, temp = (alu_op == 3) ? (s1 & s2) : 32'bz, temp = (alu_op == 4) ? (s1 | s2 ) : 32'bz, temp = (alu_op == 5) ? (s1 ^ s2 ) : 32'bz, temp = (alu_op == 6) ? (s1 << s2 ) : 32'bz, temp = (alu_op == 7) ? (s1 >> s2 ) : 32'bz,

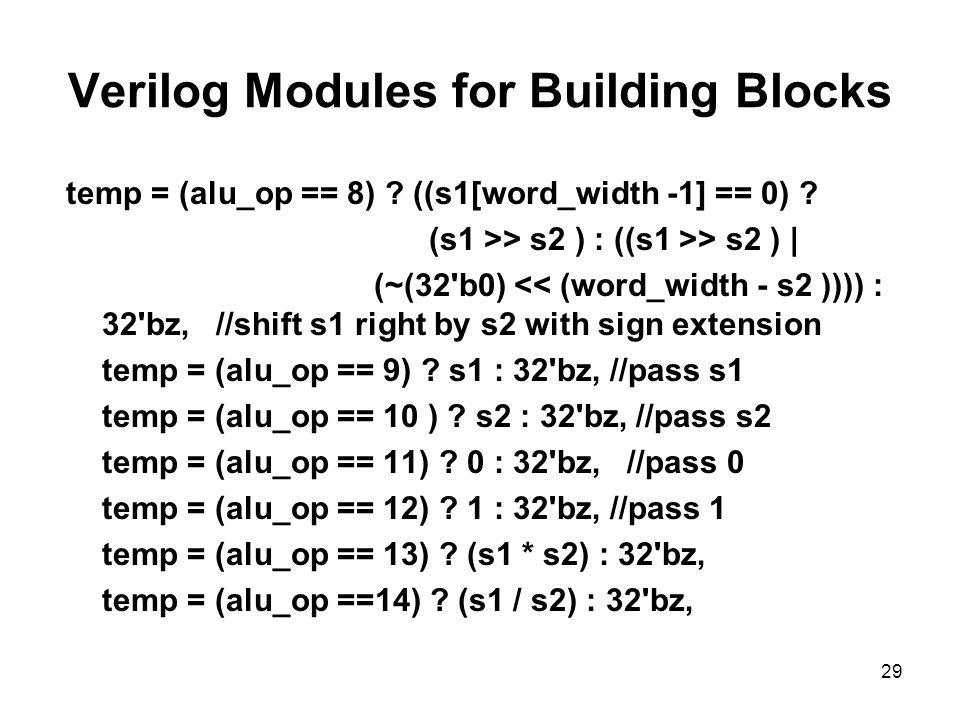

29. 29 Verilog Modules for Building Blocks temp = (alu_op == 8) ? ((s1[word_width -1] == 0) ? (s1 >> s2 ) : ((s1 >> s2 ) | (~(32'b0) << (word_width - s2 )))) : 32'bz, //shift s1 right by s2 with sign extension temp = (alu_op == 9) ? s1 : 32'bz, //pass s1 temp = (alu_op == 10 ) ? s2 : 32'bz, //pass s2 temp = (alu_op == 11) ? 0 : 32'bz, //pass 0 temp = (alu_op == 12) ? 1 : 32'bz, //pass 1 temp = (alu_op == 13) ? (s1 * s2) : 32'bz, temp = (alu_op ==14) ? (s1 / s2) : 32'bz,

30. 30 Verilog Modules for Building Blocks temp = (alu_op >= 15) ? 32'bz : 32'bz, data_out = (enable) ? temp : 32'bz, zero = (temp == 0) ? 1: 0, negative = (temp[word_width -1] == 1) ? 1 : 0, divide_by_zero = ((alu_op == 14) && (s2 == 0)) ? 1 : 0; endmodule

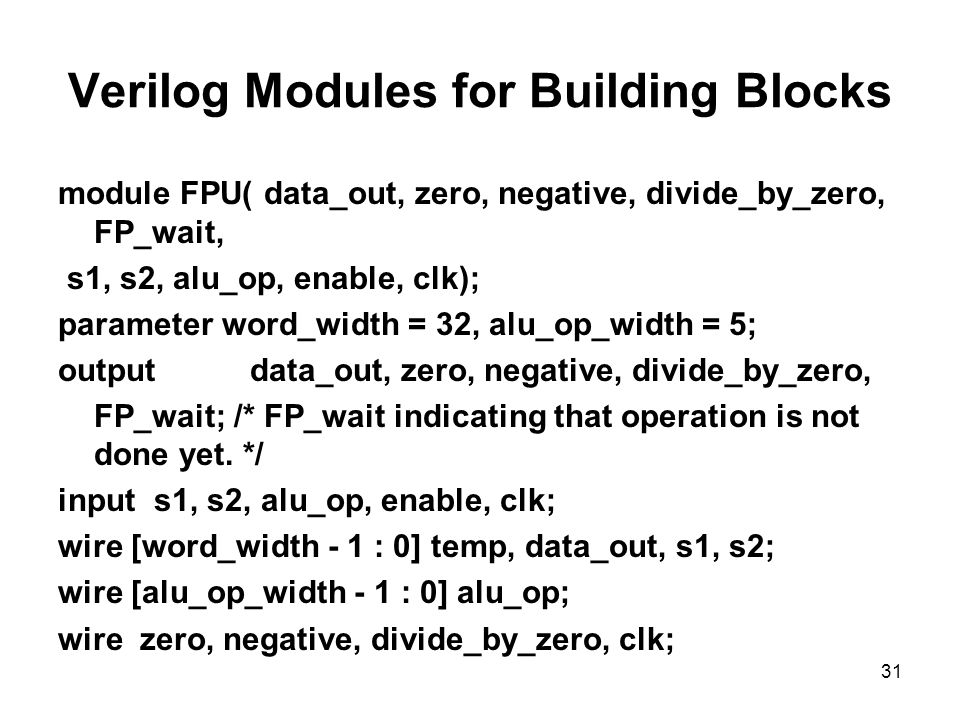

31. 31 Verilog Modules for Building Blocks module FPU( data_out, zero, negative, divide_by_zero, FP_wait, s1, s2, alu_op, enable, clk); parameter word_width = 32, alu_op_width = 5; outputdata_out, zero, negative, divide_by_zero, FP_wait; /* FP_wait indicating that operation is not done yet. */ inputs1, s2, alu_op, enable, clk; wire [word_width - 1 : 0] temp, data_out, s1, s2; wire [alu_op_width - 1 : 0] alu_op; wire zero, negative, divide_by_zero, clk;

32. 32 Verilog Modules for Building Blocks reg FP_wait; initial FP_wait = 0; always@(posedge clk) begin if (enable == 1) begin if (alu_op == 0) begin FP_wait = 1; #20 FP_wait = 0; end

33. 33 Verilog Modules for Building Blocks else if (alu_op == 1) begin FP_wait = 1; #40 FP_wait = 0; end assign temp = (alu_op == 0) ? (s1 * s2) : 32'bz, temp = ((alu_op == 1) && (s2 != 0)) ? (s1/s2) : 32'bz,

34. 34 Verilog Modules for Building Blocks data_out = (enable) ? temp : 32'bz, zero = (temp == 0) ? 1 : 32'bz, divide_by_zero = ((alu_op ==1) && (s2 == 0) ) ? 1 : 0, negative = (temp[word_width - 1] == 1) ? 1 : 0; endmodule

35. 35 Verilog Modules for Building Blocks module ROM(data_out, address); parameter word_width = 32, addr_width = 6, num_words = 64; integer i; output data_out; input address; reg [word_width - 1 : 0] mem[num_words -1 : 0]; wire[word_width - 1 : 0] data_out;

36. 36 Verilog Modules for Building Blocks wire[word_width - 1 : 0] address; initial begin for (i=0; i < num_words; i = i +1) mem[i] = 0; end assign data_out = mem[address]; endmodule

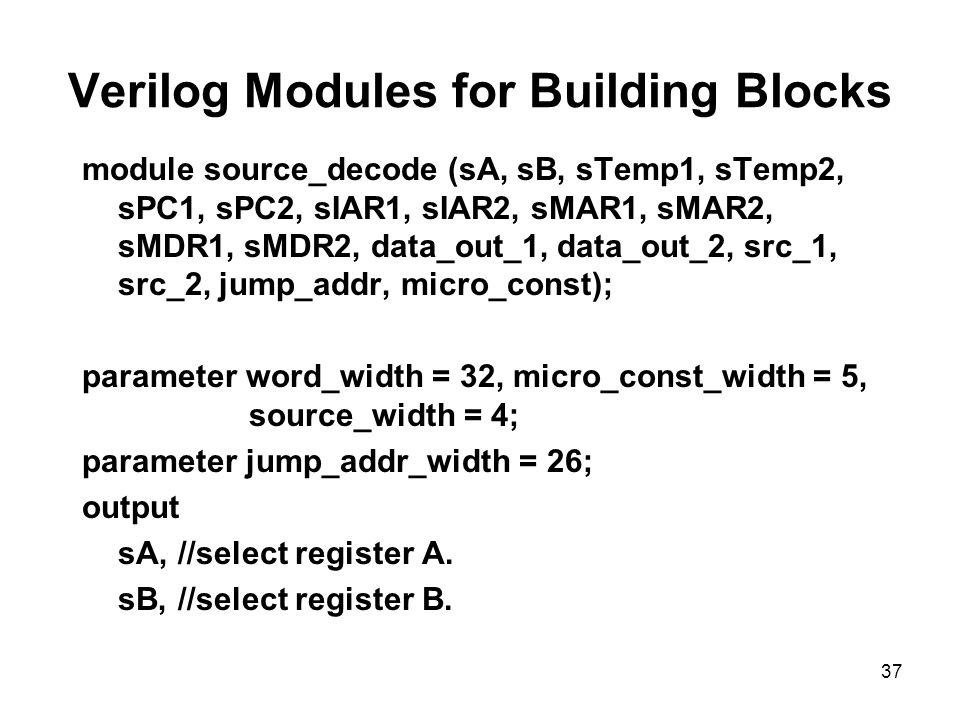

37. 37 Verilog Modules for Building Blocks module source_decode (sA, sB, sTemp1, sTemp2, sPC1, sPC2, sIAR1, sIAR2, sMAR1, sMAR2, sMDR1, sMDR2, data_out_1, data_out_2, src_1, src_2, jump_addr, micro_const); parameter word_width = 32, micro_const_width = 5, source_width = 4; parameter jump_addr_width = 26; output sA,//select register A. sB,//select register B.

38. 38 Verilog Modules for Building Blocks sTemp1,//select register temp port 1. sTemp2,//select register temp port 2 sPC1,//select register PC port 1. sPC2,//select register PC port 2. sIAR1,//select register IAR port 1. sIAR2,//select register IAR port 2. sMAR1,//select register MAR port 1. sMAR2,//select register MAR port 2. sMDR1,//select register MDR port 1. sMDR2,//select register MDR port 2.

39. 39 Verilog Modules for Building Blocks data_out_1,// data connection to bus s1. (to CPU) data_out_2; // data connection to bus s2. (to CPU) input src_1,//source for bus s1 src_2,//source for bus s2 jump_addr, //macro code jump addr from IR micro_const; // micro_const from micro instruction wire[word_width - 1 : 0] data_out_1, data_out_2; wire[jump_addr_width - 1 : 0] jump_addr; wire[micro_const_width - 1 : 0] micro_const; wire[source_width - 1 : 0] src_1, src_2;

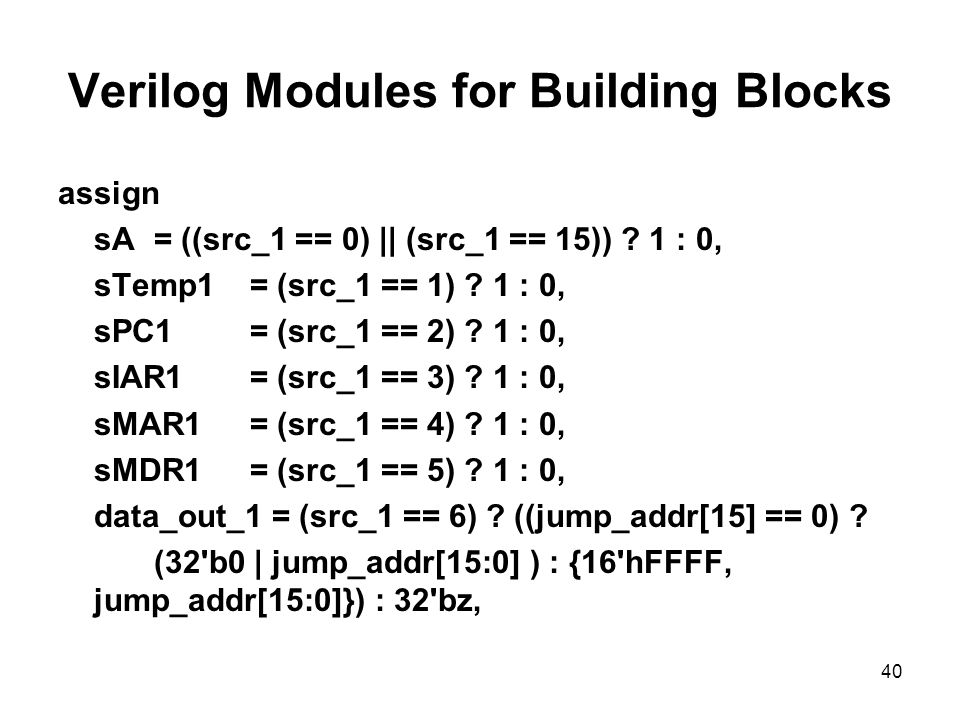

40. 40 Verilog Modules for Building Blocks assign sA= ((src_1 == 0) || (src_1 == 15)) ? 1 : 0, sTemp1= (src_1 == 1) ? 1 : 0, sPC1= (src_1 == 2) ? 1 : 0, sIAR1= (src_1 == 3) ? 1 : 0, sMAR1= (src_1 == 4) ? 1 : 0, sMDR1 = (src_1 == 5) ? 1 : 0, data_out_1 = (src_1 == 6) ? ((jump_addr[15] == 0) ? (32'b0 | jump_addr[15:0] ) : {16'hFFFF, jump_addr[15:0]}) : 32'bz,

41. 41 Verilog Modules for Building Blocks data_out_1 = (src_1 == 7) ? ((jump_addr[25] == 0) ? (32'b0 | jump_addr[25:0] ) : {6'b111111, jump_addr[25:0]}) : 32'bz, data_out_1 = (src_1 == 8) ? (32'b0 | micro_const ) : 32'bz, sB= ((src_2 == 0) || (src_2 == 15)) ? 1 : 0, sTemp2= (src_2 == 1) ? 1 : 0, sPC2= (src_2 == 2) ? 1 : 0, sIAR2= (src_2 == 3) ? 1 : 0, sMAR2= (src_2 == 4) ? 1 : 0, sMDR2 = (src_2 == 5) ? 1 : 0,

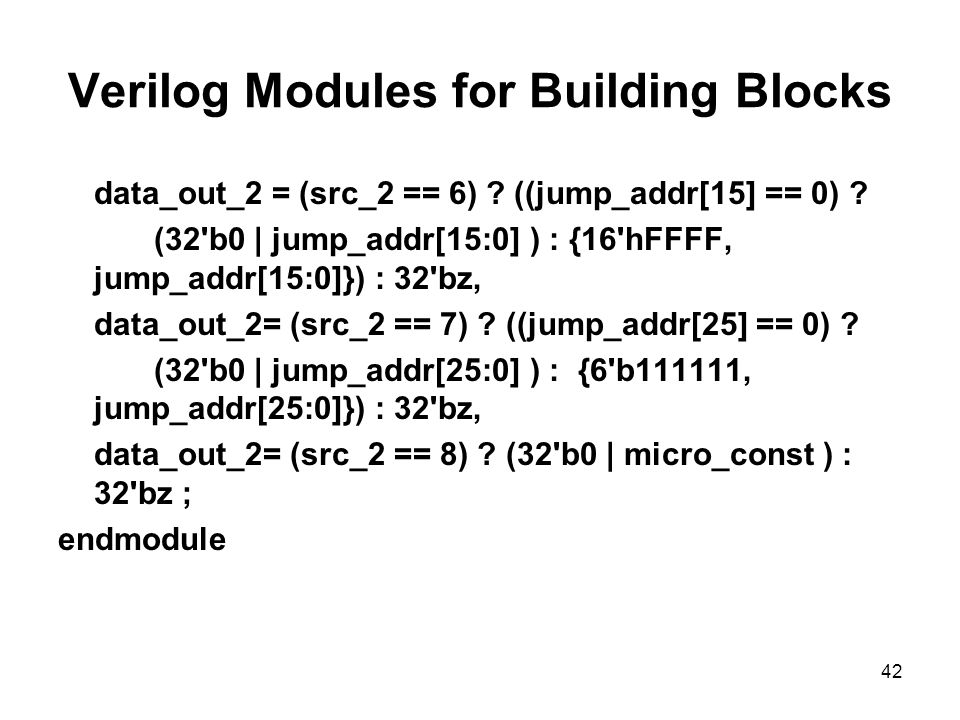

42. 42 Verilog Modules for Building Blocks data_out_2 = (src_2 == 6) ? ((jump_addr[15] == 0) ? (32'b0 | jump_addr[15:0] ) : {16'hFFFF, jump_addr[15:0]}) : 32'bz, data_out_2= (src_2 == 7) ? ((jump_addr[25] == 0) ? (32'b0 | jump_addr[25:0] ) : {6'b111111, jump_addr[25:0]}) : 32'bz, data_out_2= (src_2 == 8) ? (32'b0 | micro_const ) : 32'bz ; endmodule

43. 43 Verilog Modules for Building Blocks module destination_decode (lA, lB, lC, lTemp, lPC, lIAR, lGPR, lIR, lMAR, lMDR, mux_MDR_select, read_mem, write_mem, mux_addr_select, lR31, dest, misc); parameter misc_width = 3, dest_width = 3; output lA,//latch register A lB, //latch register B lC, //latch register C lTemp, //latch register Temp. lPC, //latch register PC

44. 44 Verilog Modules for Building Blocks lIAR,//latch register IAR lGPR,//latch register GPR lIR,//latch register IR lMAR,//latch register MAR lMDR,//latch register MDR mux_MDR_select, //select memory source for MDR. read_mem, //read memory signal write_mem, //write memory signal mux_addr_select, //select PC as memory address lR31; //latch R[31].

45. 45 Verilog Modules for Building Blocks input dest,//coded destination addr. misc;//coded misc operation. wire[misc_width - 1 : 0] misc; wire[dest_width - 1 : 0 ] dest; wirelA, lB, lC, lTemp, lPC, lIAR, lGPR, lIR, lMAR, lMDR, mux_MDR_select, read_mem, write_mem, mux_addr_select, lR31; assign lA= (misc == 3) ? 1 : 0,

46. 46 Verilog Modules for Building Blocks lB= (misc == 3) ? 1 : 0, lC= (dest == 1) ? 1 : 0, lTemp= (dest == 2) ? 1 : 0, lPC= (dest == 3 ) ? 1 : 0, lIAR= (dest == 4 ) ? 1 : 0, lGPR= (misc == 4 ) ? 1 : 0, lIR= (misc == 0 ) ? 1 : 0, lMAR= (dest == 5 ) ? 1 : 0,

47. 47 Verilog Modules for Building Blocks lMDR= ((dest == 6) || (misc == 1)) ? 1 : 0, read_mem = ((misc == 0) || (misc == 1)) ? 1 : 0, write_mem = (misc == 2) ? 1 : 0, mux_MDR_select = (misc == 1) ? 1 : 0, //fetch word form memoryM[MAR] mux_addr_select = (misc == 0) ? 1 : 0, //fetch next instr. at M[PC] lR31= (misc == 5) ? 1 : 0; endmodule

48. 48 Verilog Modules for Building Blocks module microcode_addr_select (micro_addr, byte, half_word, select_I, op_code, decode_1, decode_2, cond, jump, next_PC, interrupt, mem_wait, alignment_error, ALU_zero, ALU_negative, ALU_divide_by_zero); parameter micro_addr_width = 6, op_code_width = 6, cond_width = 4;

49. 49 Verilog Modules for Building Blocks output micro_addr,//micro inst. ROM address byte,//memory byte access half_word,//memory half word access select_I;//select the immediate GPR dest. input op_code,//opcode from IR register decode_1,//decode_1 indexed addressed decode_2,//decode_2 indexed addressed cond,//cond for jump from micro instr.

50. 50 Verilog Modules for Building Blocks jump,//micro instr. jump address next_PC,//the current micro PC + 1 interrupt,//pending interrupt ignal. mem_wait,//memory wait signal alignment_error, ALU_zero, ALU_negative, ALU_divide_by_zero; wire[op_code_width - 1 : 0] op_code; wire[micro_addr_width - 1 : 0] micro_addr, decode_1, decode_2; wire[micro_addr_width - 1 : 0] jump, next_PC;

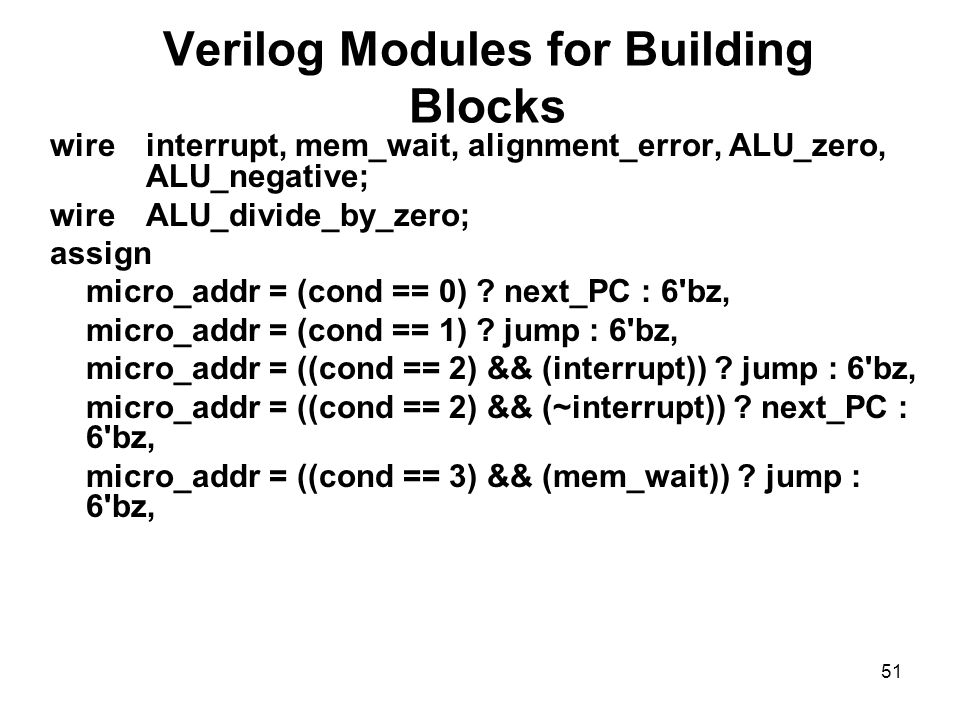

51. 51 Verilog Modules for Building Blocks wire interrupt, mem_wait, alignment_error, ALU_zero, ALU_negative; wireALU_divide_by_zero; assign micro_addr = (cond == 0) ? next_PC : 6'bz, micro_addr = (cond == 1) ? jump : 6'bz, micro_addr = ((cond == 2) && (interrupt)) ? jump : 6'bz, micro_addr = ((cond == 2) && (~interrupt)) ? next_PC : 6'bz, micro_addr = ((cond == 3) && (mem_wait)) ? jump : 6'bz,

52. 52 Verilog Modules for Building Blocks micro_addr = ((cond == 3) && (~mem_wait)) ? next_PC : 6'bz, micro_addr = ((cond == 4) && (ALU_zero )) ? jump : 6'bz, micro_addr = (( cond == 4) && (~ALU_zero)) ? next_PC : 6'bz, micro_addr = (( cond == 5) && (ALU_negative)) ? jump : 6'bz, micro_addr = (( cond == 5) && (~ALU_negative)) ? next_PC : 6'bz, micro_addr = (( cond == 6) && (op_code < 5)) ? jump : 6'bz,

53. 53 Verilog Modules for Building Blocks micro_addr = (( cond == 6) && ~(op_code < 5 )) ? next_PC : 6'bz, micro_addr = ( cond == 7) ? decode_1 : 6'bz, micro_addr = (cond == 8) ? decode_2 : 6'bz, micro_addr = (cond == 9) ? decode_2 : 6'bz, micro_addr = ( cond >= 10) ? 0 : 6'bz, byte = (( op_code == 4) || (op_code == 1) || (op_code == 8)) ? 1 : 0, half_word = (( op_code == 3) || (op_code == 4) || (op_code == 9) ) ? 1 : 0,

54. 54 Verilog Modules for Building Blocks select_I = ((op_code < 8) || (op_code ==11) || (op_code == 13) || (op_code == 15) || (op_code == 17) || (op_code == 19) || (op_code == 20) || (op_code == 22) || (op_code == 24) || (op_code == 26 ) || (op_code == 28) || (op_code == 30) || (op_code == 32) || (op_code == 34) || (op_code == 36) || (op_code == 38 ) || (op_code == 42) || (op_code == 44) || (op_code == 47) || (op_code == 49 )) ? 1 : 0; endmodule

55. 55 Processor Module module MIPS(); // declare parameters `define HC #100 //clock half cycle `define CP #200 //clock period // define instruction fields `define OP_CODE IR[31:26] `define RS1IR[25:21] //R type instruction `define RS2IR[20:16] //R type instruction `define RDIR[15:11] //R type instruction `define RDIIR[20:16] // I type instruction

56. 56 Processor Module `define FUNCIR[5:0] //R type instruction `define IMMEDIATE IR[15:0] `define JUMP_OFFSETIR[25:0] //define microinstructions fields `define DESTMI[33:31] `define ALU_OPMI[30:26] `define SELECT_ALU~MI[30] `define SELECT_FPUMI[30] `define SOURCE_1MI[25:22] `define SOURCE_2MI[21:18]

57. 57 Processor Module `define CONSTMI[17:13] `define MISCMI[12:10] `define CONDMI[9:6] `define MICRO_JUMPMI[5:0] parameter word_width = 32, alu_op_width = 6, RF_addr_width = 5, microcode_ROM_size = 64, RF_size = 32, micro_addr_width = 6, microcode_word_width = 34;

58. 58 Processor Module wire [microcode_word_width - 1 : 0] MI; wire [word_width - 1 : 0] A, B, C, dest, S1, S2, MDR, mem_addr, MAR_addr, PC_addr, mem_data_in, mem_data_out, IR; wire [micro_addr_width - 1 : 0] micro_addr, decode_1, decode_2, next_PC, micro_PC; wire [RF_addr_width - 1 : 0 ] GPR_dest; reg clk, interrupt; assign next_PC = micro_addr + 1; latch #(6) micro_PC_reg(micro_addr, micro_PC, clk); registerC_reg (C, dest, latch_C, clk), IR_reg (IR, mem_data_out, latch_IR, clk);

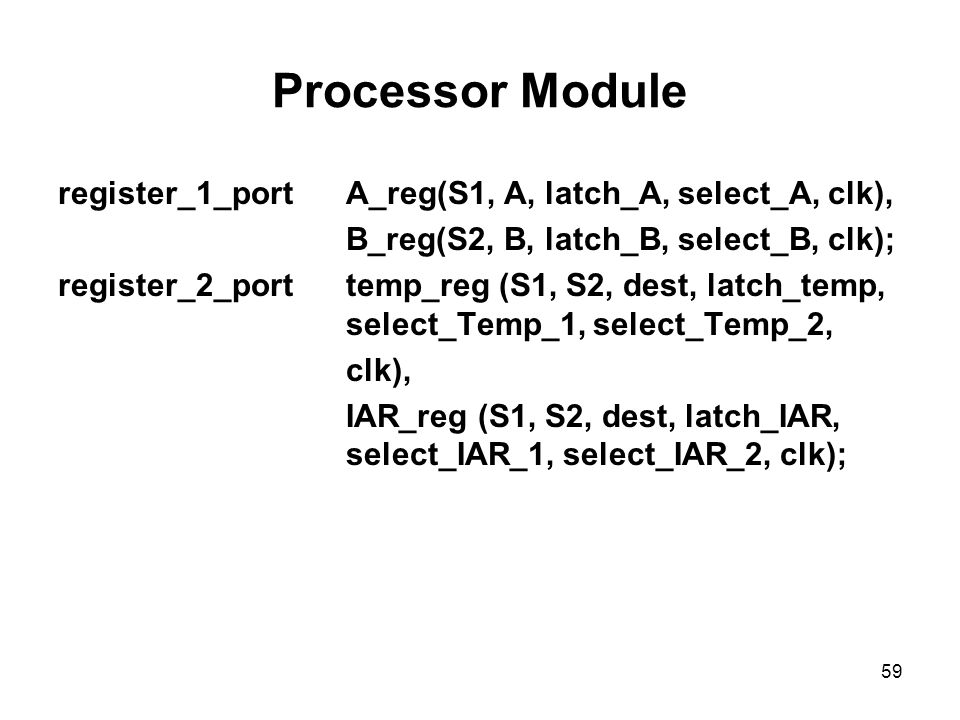

59. 59 Processor Module register_1_port A_reg(S1, A, latch_A, select_A, clk), B_reg(S2, B, latch_B, select_B, clk); register_2_port temp_reg (S1, S2, dest, latch_temp, select_Temp_1, select_Temp_2, clk), IAR_reg (S1, S2, dest, latch_IAR, select_IAR_1, select_IAR_2, clk);

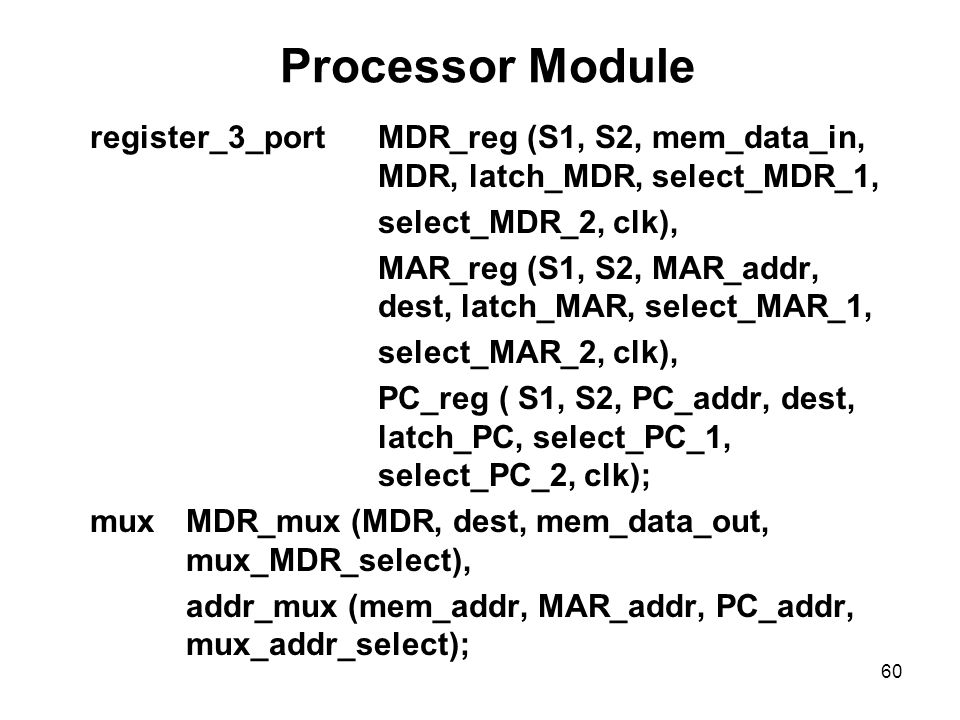

60. 60 Processor Module register_3_portMDR_reg (S1, S2, mem_data_in, MDR, latch_MDR, select_MDR_1, select_MDR_2, clk), MAR_reg (S1, S2, MAR_addr, dest, latch_MAR, select_MAR_1, select_MAR_2, clk), PC_reg ( S1, S2, PC_addr, dest, latch_PC, select_PC_1, select_PC_2, clk); muxMDR_mux (MDR, dest, mem_data_out, mux_MDR_select), addr_mux (mem_addr, MAR_addr, PC_addr, mux_addr_select);

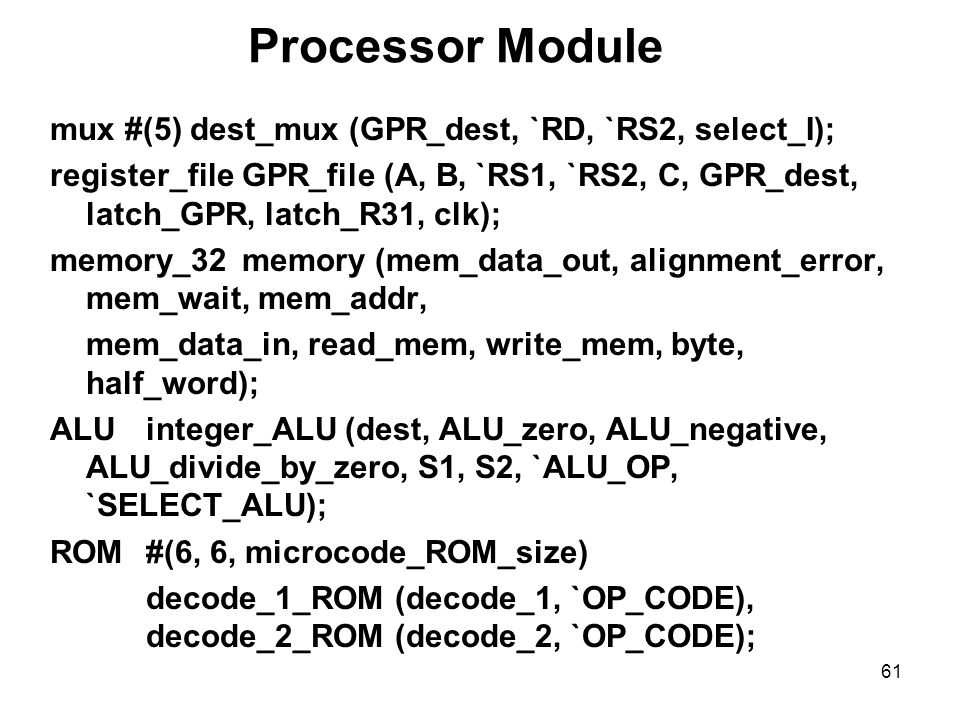

61. 61 Processor Module mux #(5) dest_mux (GPR_dest, `RD, `RS2, select_I); register_file GPR_file (A, B, `RS1, `RS2, C, GPR_dest, latch_GPR, latch_R31, clk); memory_32memory (mem_data_out, alignment_error, mem_wait, mem_addr, mem_data_in, read_mem, write_mem, byte, half_word); ALUinteger_ALU (dest, ALU_zero, ALU_negative, ALU_divide_by_zero, S1, S2, `ALU_OP, `SELECT_ALU); ROM#(6, 6, microcode_ROM_size) decode_1_ROM (decode_1, `OP_CODE), decode_2_ROM (decode_2, `OP_CODE);

62. 62 Processor Module ROM#(34, 6, microcode_ROM_size) microcode_ROM(MI, micro_addr); microcode_addr_selectmicro_select (micro_PC, byte, half_word, select_I, `OP_CODE, decode_1, decode_2, `COND, `MICRO_JUMP, next_PC, interrupt, mem_wait, alignment_error, ALU_zero, ALU_negative, ALU_divide_by_zero); source_decodesrc_decode (select_A, select_B, select_Temp_1, select_Temp_2, select_PC_1, select_PC_2, select_IAR_1, select_IAR_2, select_MAR_1, select_MAR_2, select_MDR_1, select_MDR_2, S1, S2, `SOURCE_1, `SOURCE_2, `JUMP_OFFSET, `CONST);

63. 63 Processor Module destination_decodedest_decode (latch_A, latch_B, latch_C, latch_temp, latch_PC, latch_IAR, latch_GPR, latch_IR, latch_MAR, latch_MDR, mux_MDR_select, read_mem, write_mem, mux_addr_select, latch_R31, `DEST, `MISC);

64. 64 Processor Module initial begin clk = 0; interrupt = 0; load_decode_1; load_decode_2; load_micro_instructions; end always begin `HC clk = ~clk; end

65. 65 Processor Module task lp; // load program into memory begin $readmemb ("program_file", memory.memory); $stop; end endtask

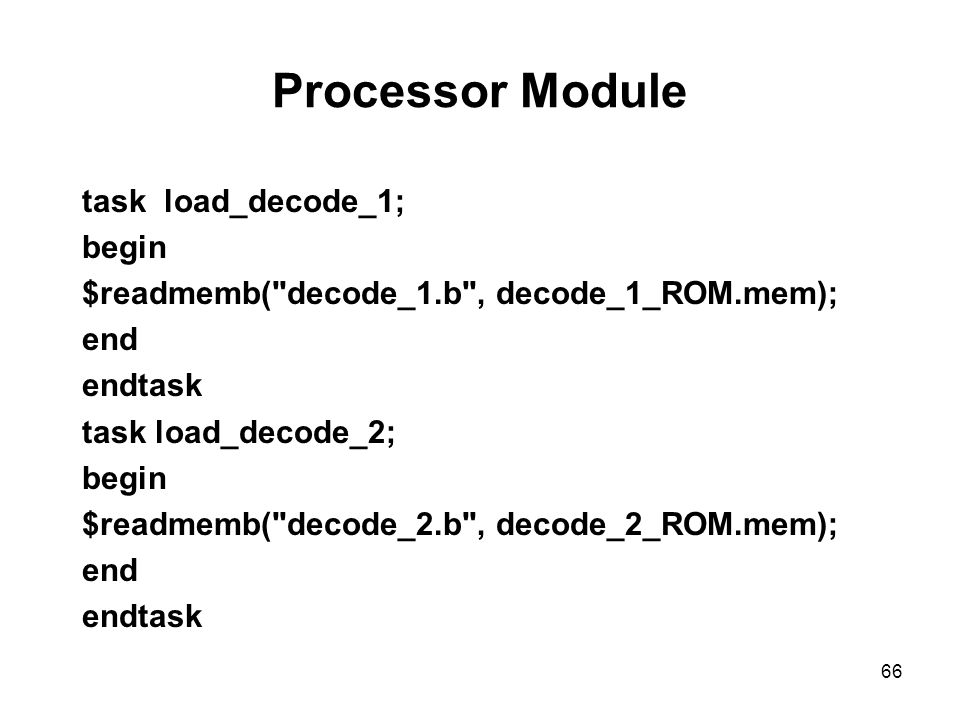

66. 66 Processor Module task load_decode_1; begin $readmemb("decode_1.b", decode_1_ROM.mem); end endtask task load_decode_2; begin $readmemb("decode_2.b", decode_2_ROM.mem); end endtask

67. 67 Processor Module task load_micro_instructions; begin $readmemb("micro.b", microcode_ROM.mem); end endtask endmodule
