1. Computational Biology BS123A/MB223 UC-Irvine Ray Luo, MBB, BS

2. Reading Assignment Leach, Chapters 6, 7 Sec 6.4-6.9, 7.7, 7.8

3. Understanding the Mechanisms The driving force for biochemical processes is described by thermodynamics. Thermodynamics dictates the energetic relationships between different chemical states. The mechanism by which chemical processes occur is described by kinetics. The sequence or rate of events that occur as molecules transform between their various possible states is described by kinetics.

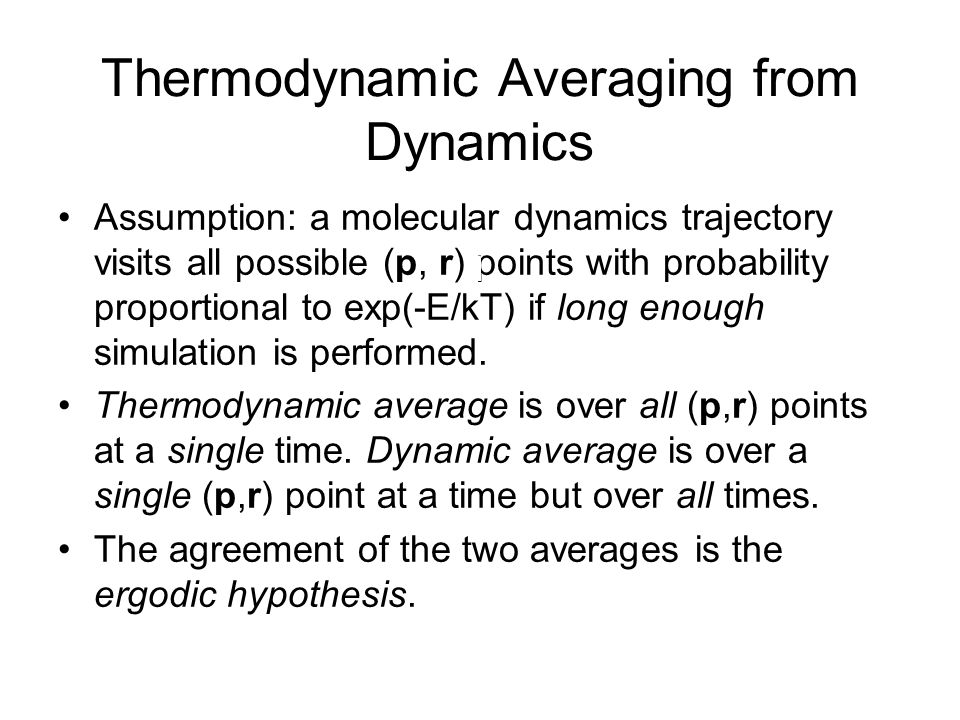

4. Thermodynamic Averaging from Dynamics Assumption: a molecular dynamics trajectory visits all possible (p, r) points with probability proportional to exp(-E/kT) if long enough simulation is performed. Thermodynamic average is over all (p,r) points at a single time. Dynamic average is over a single (p,r) point at a time but over all times. The agreement of the two averages is the ergodic hypothesis.

5. Kinetic Averaging from Dynamics Assumption: the long-time events can be described even if the dynamics algorithm is intrinsically chaotic. Given that a single trajectory describes the behavior of a single molecule, kinetics will be obtained by simply running numerous independent trajectories. This is essentially to simulate a measurement in a test tube. This can be verified when compared with high-quality kinetics measurements.

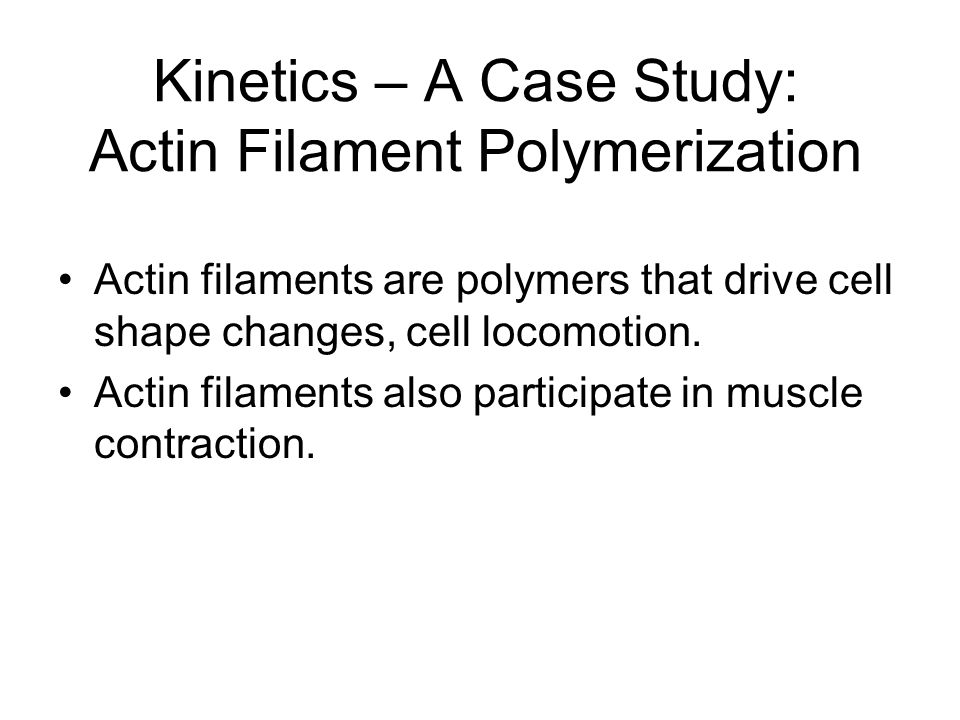

6. Kinetics – A Case Study: Actin Filament Polymerization Actin filaments are polymers that drive cell shape changes, cell locomotion. Actin filaments also participate in muscle contraction.

7. Actin Filaments Assembly Self-assembly--not catalyzed by enzyme, rate is diffusion limited Assembled from identical monomeric actin subunits

8. The Two Ends Grow at Different Rates When short myosin S1-decorated filaments are the nuclei for actin polymerization, the resulting elongated filaments have much longer undecorated (+) end, indicating faster monomer addition at that end (5- to 10-fold faster).

9. Asymmetry in Actin Polymerization Method: Simulations of binding of a monomer to the end of a filament over a range of ionic strengths with Brownian dynamics Analysis: Computation of rate constants for binding by keeping track of the number of successful binding events at each end of the filament.

10. Asymmetry in Actin Polymerization

13. Minimization v.s. Dyanmics A dynamics calculation alters the intramolecular degrees of freedom in a step-wise fashion, analogous to energy minimization. However, the steps in molecular dynamics meaningfully represent the changes in atomic positions over time. The individual steps in energy minimization are merely directed at establishing a down-hill direction to a minimum.

14. Practical Aspects of Dynamics Starting a simulation Controlling the system (temp, press, density) Equilibrating Looking at the atoms

15. Starting a Simulation Starting from scratch: Positions are usually from a crystal structure (NMR structures are becoming common) solvated in a water box. Velocities are assigned from a Maxwell distribution at a certain temperature T. Continuing a simulation: Make sure both positions and velocities are used.

16. Controlling the Simulation The density is controlled by the choice of the box volume V. The temperature can be measured and controlled by rescaling the velocities. The pressure can be measured during the run and controlled by rescaling the volume.

17. Temperature Control T(t) is computed from the system kinetic energy No longer follow Newtonian trajectory. Energy is no longer conserved.

18. Reaching Equilibrium Indicators of the state are not stationary (that is, fluctuating around a fixed value), but relaxing towards a new value (that is, fluctuating around a value that is slowly drifting with time). In all cases, we usually want equilibrium to be reached before performing measurements on the system.

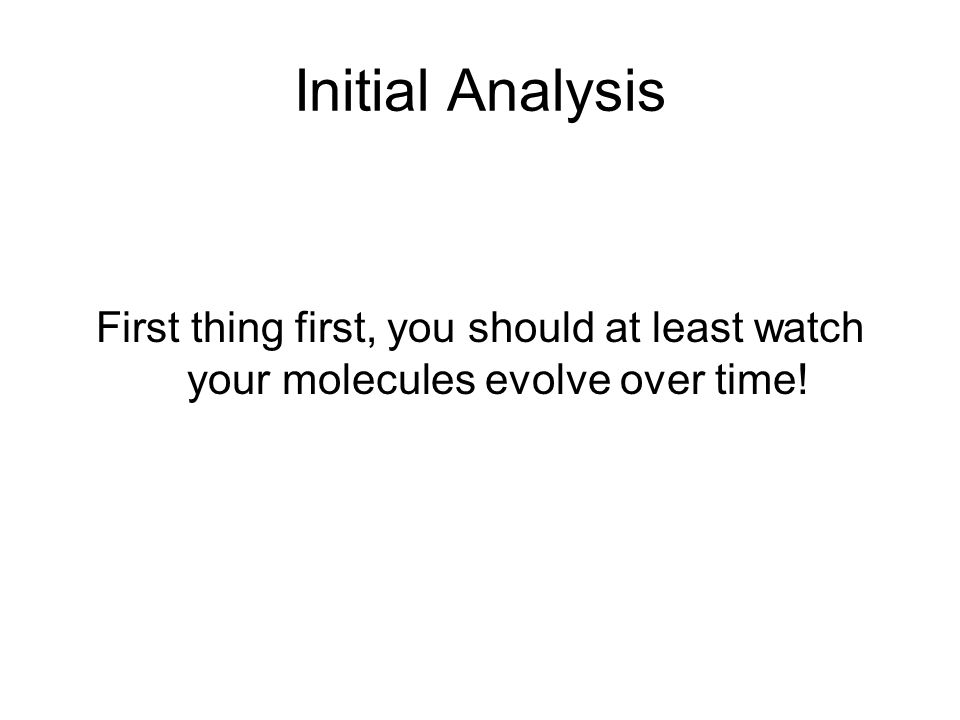

19. First thing first, you should at least watch your molecules evolve over time! Initial Analysis

20. Constant temperature simulations should have stable temperature, i.e. not drifting to a different temperature than specified. At constant temperature, the potential energy will only fluctuate around a constant if an equilibrium state is reached. In reality it most likely goes down even after the initial equilibrium. This is because the system has not reached the nearest energy basin, or there exists discrepancy between theory and experiment. Root Mean Squared Displacement. How far is your protein drifting away from the crystal structure? Note only consider backbone atoms that are not in contact with other molecules (crystal packing), or are poorly defined.

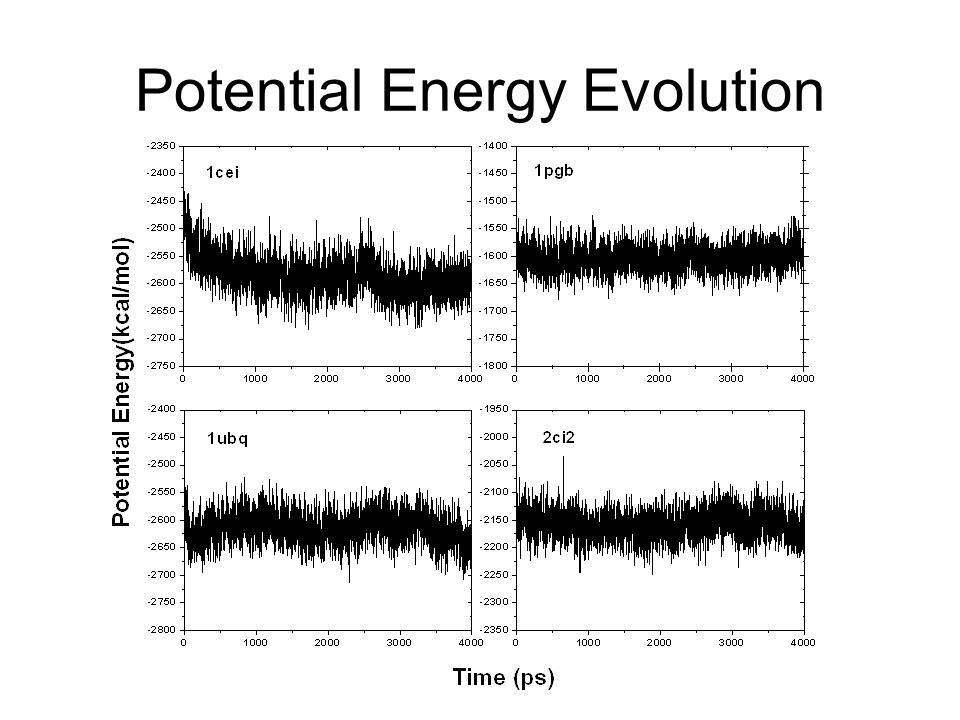

21. Potential Energy Evolution

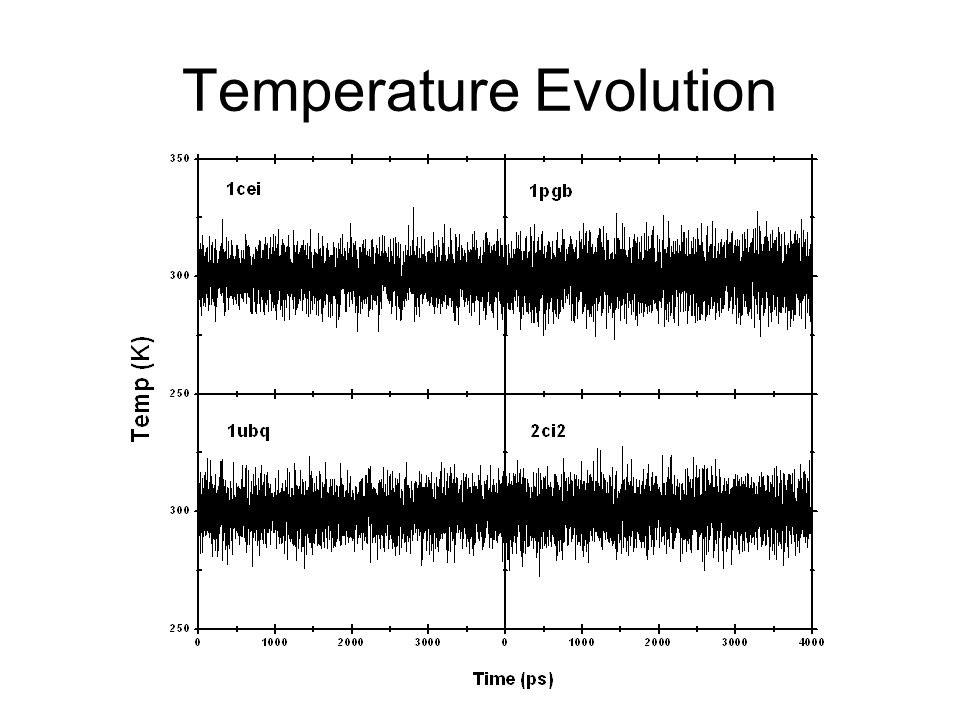

22. Temperature Evolution

23. RMSD Evolution
