1. Computer Integrated Manufacturing (CIM) Overview: Motivation, Implementation, Operation Scott J. Anson, Ph.D., P.E. PLTW Affiliate Professor Assistant Professor Rochester Institute of Technology April 2007 Thanks to Prof. James Rehg providing some slide material

2. Introduction The phrase computer-integrated manufacturing (CIM) was coined by Dr. J. Harrington, Jr. in 1973. He argued for an integrated approach to the enterprise and against highly fragmented manufacturing operations that lead to localized optimization.

3. What is the primary goal of a business? Motivation

4. To make $!!! Recommended reading- “The Goal” by Eliyahu M. Goldratt and Jeff Cox. Copyright 1984 Motivation

5. The ultimate goal of the enterprise is to develop an internal strategy that raises manufacturing performance to a level higher than that of the competition. Individual automation cells were and early attempt at increasing profitability.

6. Motivation Early automation attempts often failed to support this goal (making $) for three reasons- 1) Automated cells were isolated from the rest of the production system – no data connectivity or poor material flow 2) Deficiencies in the work-cell design process – Engineers often design a cell to copy the manual tasks including copying poor production practices 3) Insufficient training and preparation of people to set up and maintain the systems – training is both technical and cultural (mind set)

7. Implementation Failures in early automation implementation lead to the development of CIM (Computer Integrated Manufacturing) which has as much to do with corporate culture as with electron flow and digital logic.

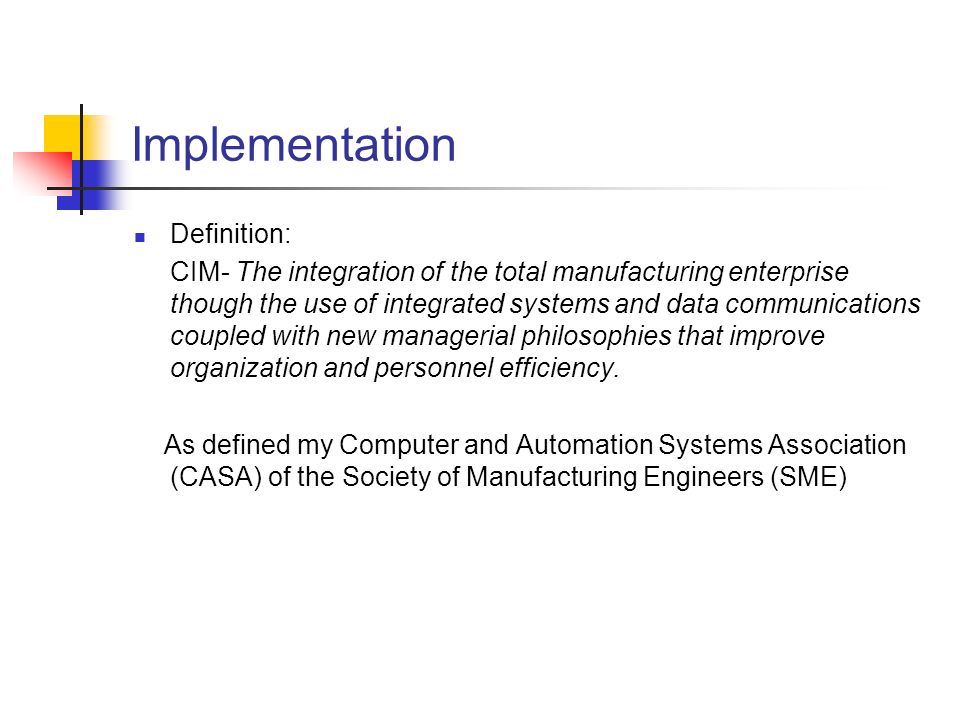

8. Implementation Definition: CIM- The integration of the total manufacturing enterprise though the use of integrated systems and data communications coupled with new managerial philosophies that improve organization and personnel efficiency. As defined my Computer and Automation Systems Association (CASA) of the Society of Manufacturing Engineers (SME)

9. Implementation The implementation of CIM system takes three steps Assessment The organization is studied to determine strengths and weaknesses Simplification A simplification process is applied to eliminate all waste from the manufacturing area(s) to be automated Implementation The acquisition and implementation of the hardware and software for the production cells or manufacturing systems

10. Implementation – Critical Requirements for Effective CIM Implementation Teamwork Total quality Improved productivity Reduced waste/ Lean Manufacturing Continuous improvements Common databases Respect and consideration for all ideas regardless of the level of the organization from which they are initiated

11. Operation – Major Elements of CIM

12. Operation – The 1985 CIM Wheel The Society of Manufacturing Engineers (SME) CIM wheel provides a portrayal of relationships among all parts of an enterprise

13. Operation – The 1993 SME Enterprise Wheel The Society of Manufacturing Engineers (SME) 1985 CIM wheel developed into the 1993 Enterprise Wheel

14. CIM Summary Since CIM involves both hardware and business philosophies, there are many different aspects to CIM, and one organizations CIM system might differ substantially from another’s and both can still be CIM

15. CIM Summary CIM is the modern way of manufacturing. Therefore, for Engineers to speak of “Computer Integrated Manufacturing” is almost redundant since the Computer Integrated part is obvious. Some college level programs are beginning to avoid the term “CIM” because it has been accepted as the only proper way to manufacture. This does not undermine the validity of the term “CIM” but rather validates it.
