1 CS590VC - Tutorial 3 Linden Scripting Language (LSL)

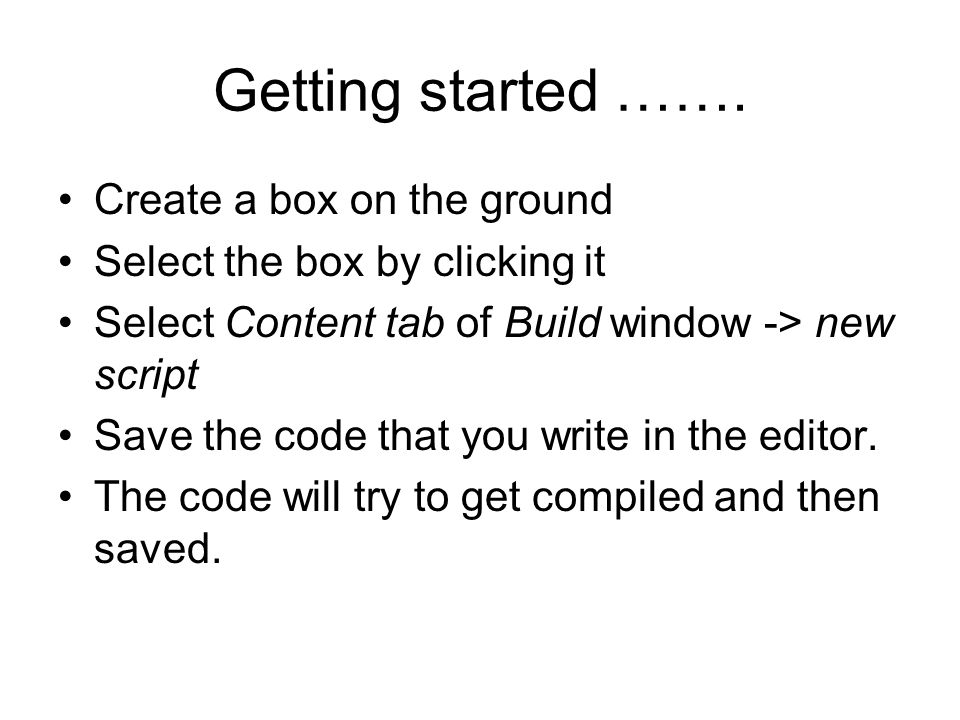

2 Getting started ……. Create a box on the ground Select the box by clicking it Select Content tab of Build window -> new script Save the code that you write in the editor. The code will try to get compiled and then saved.

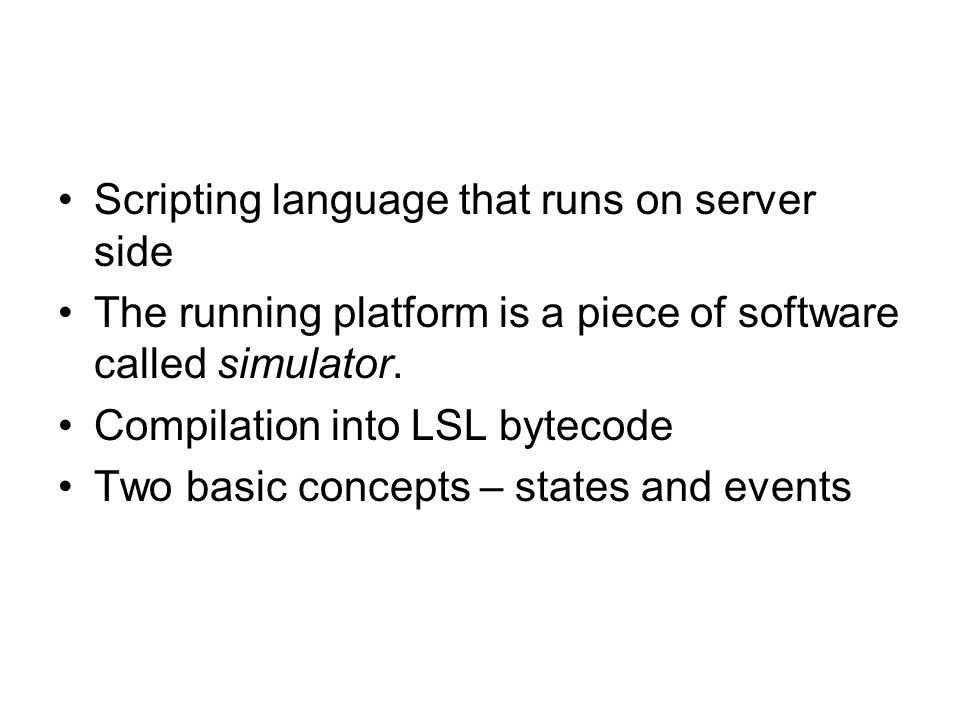

3 Scripting language that runs on server side The running platform is a piece of software called simulator. Compilation into LSL bytecode Two basic concepts – states and events

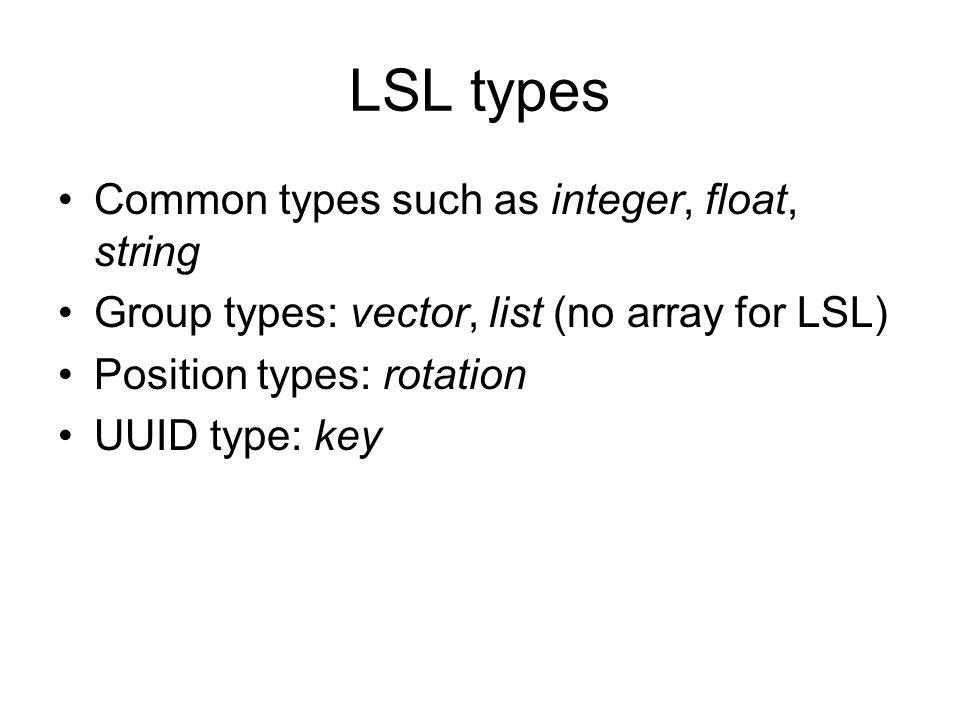

4 LSL types Common types such as integer, float, string Group types: vector, list (no array for LSL) Position types: rotation UUID type: key

5 Positioning type - rotation Quaternion rotation – x, y, z and s components Example: rotation rot = ; http://lslwiki.net/lslwiki/wakka.php?wakka=rotation

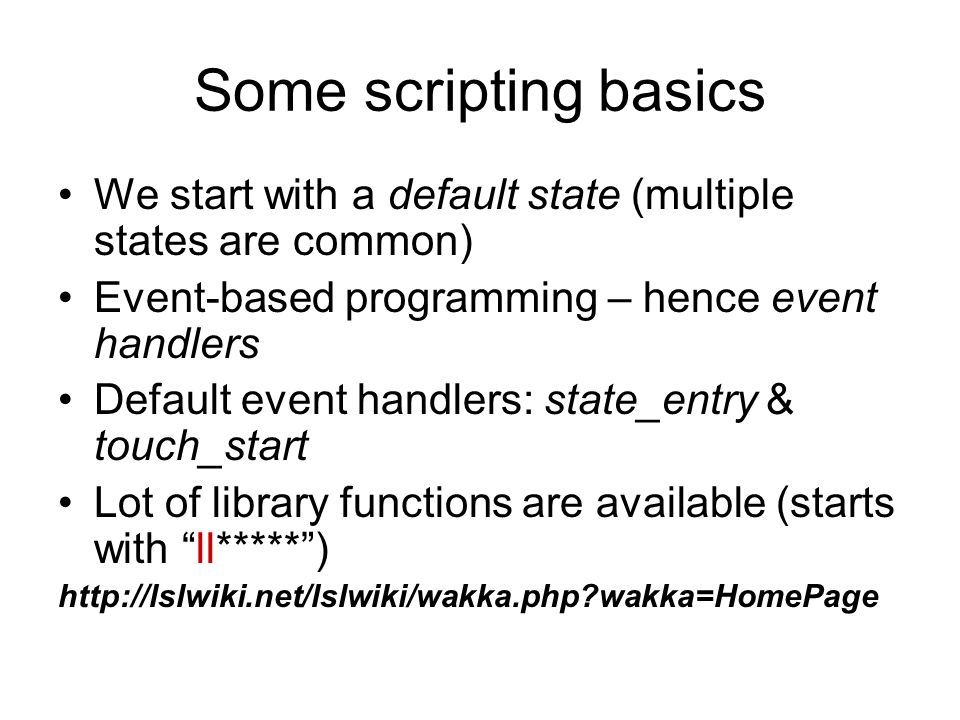

6 Some scripting basics We start with a default state (multiple states are common) Event-based programming – hence event handlers Default event handlers: state_entry & touch_start Lot of library functions are available (starts with “ll*****”) http://lslwiki.net/lslwiki/wakka.php?wakka=HomePage

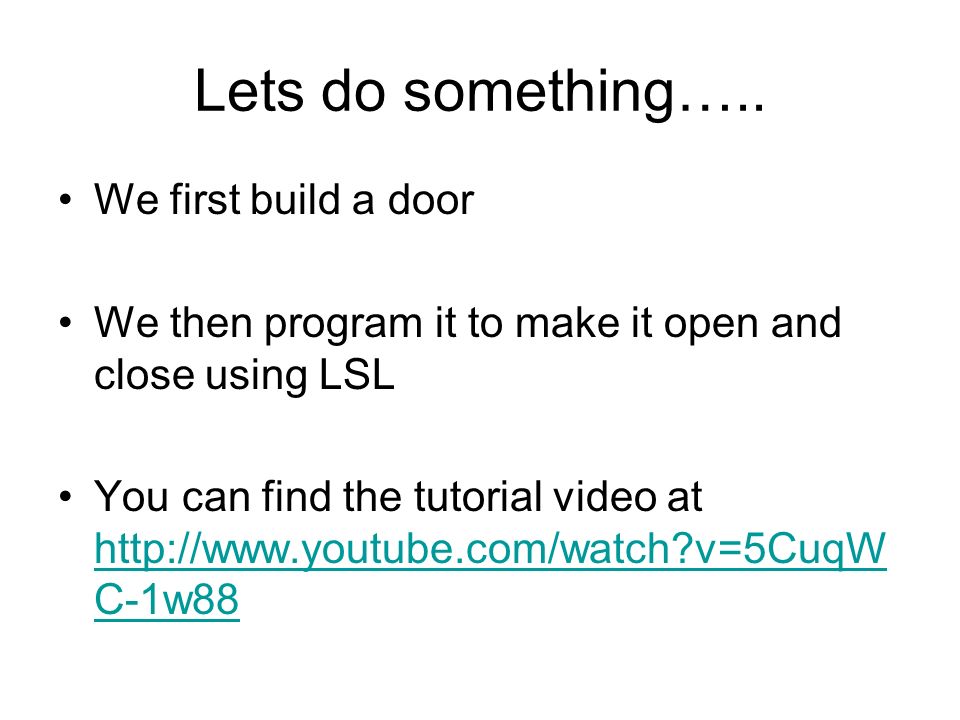

7 Lets do something….. We first build a door We then program it to make it open and close using LSL You can find the tutorial video at http://www.youtube.com/watch?v=5CuqW C-1w88 http://www.youtube.com/watch?v=5CuqW C-1w88

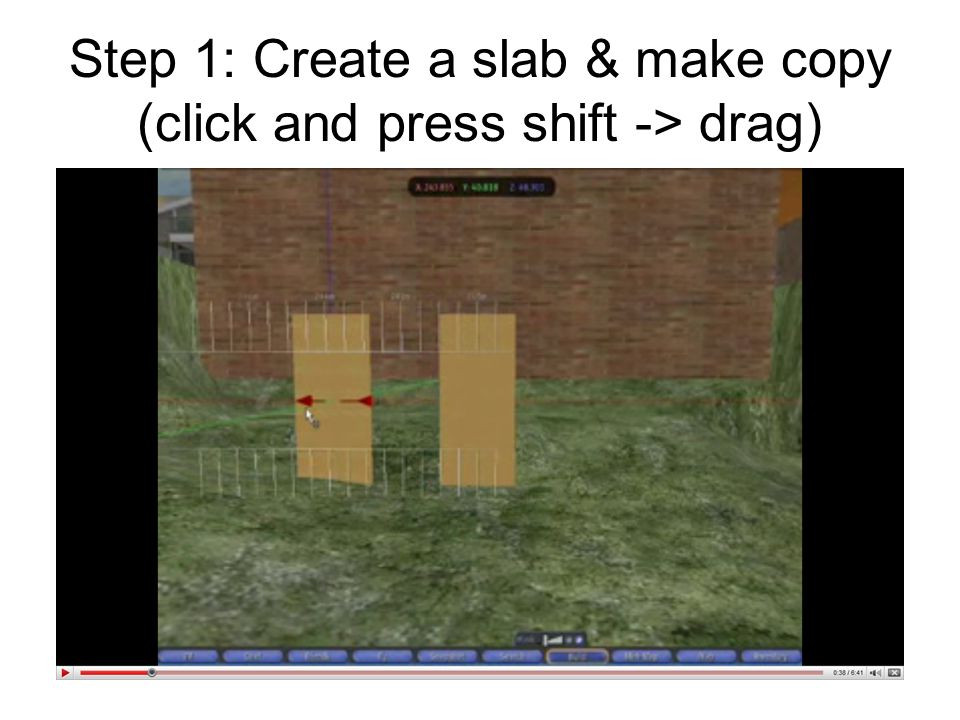

8 Step 1: Create a slab & make copy (click and press shift -> drag)

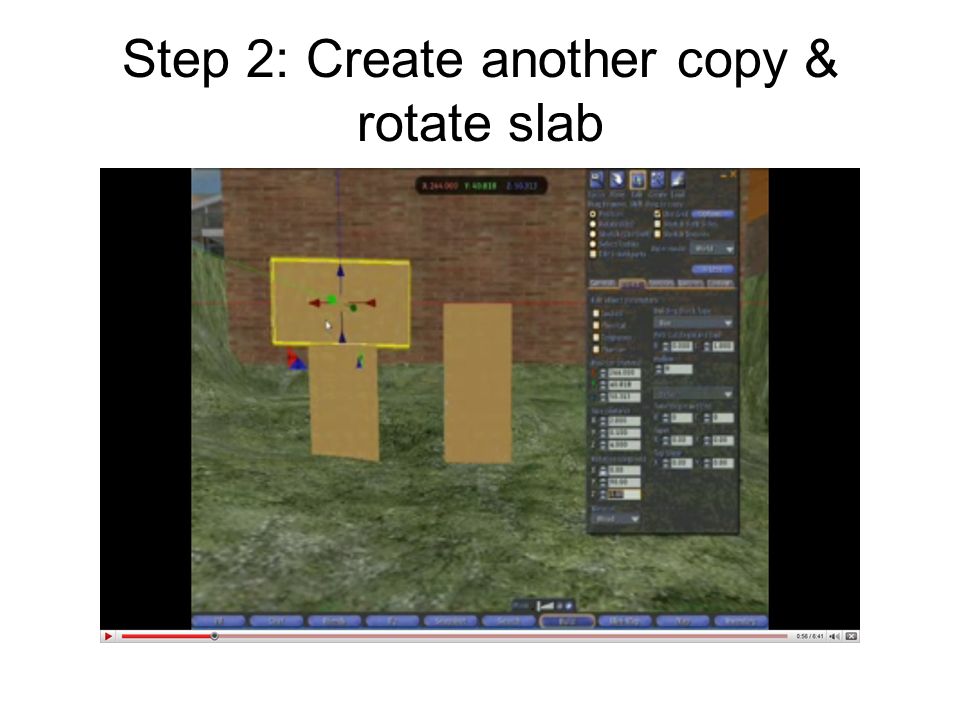

9 Step 2: Create another copy & rotate slab

10 Step 3: position the slab that was rotated at the center of the pillars & increase the length as shown

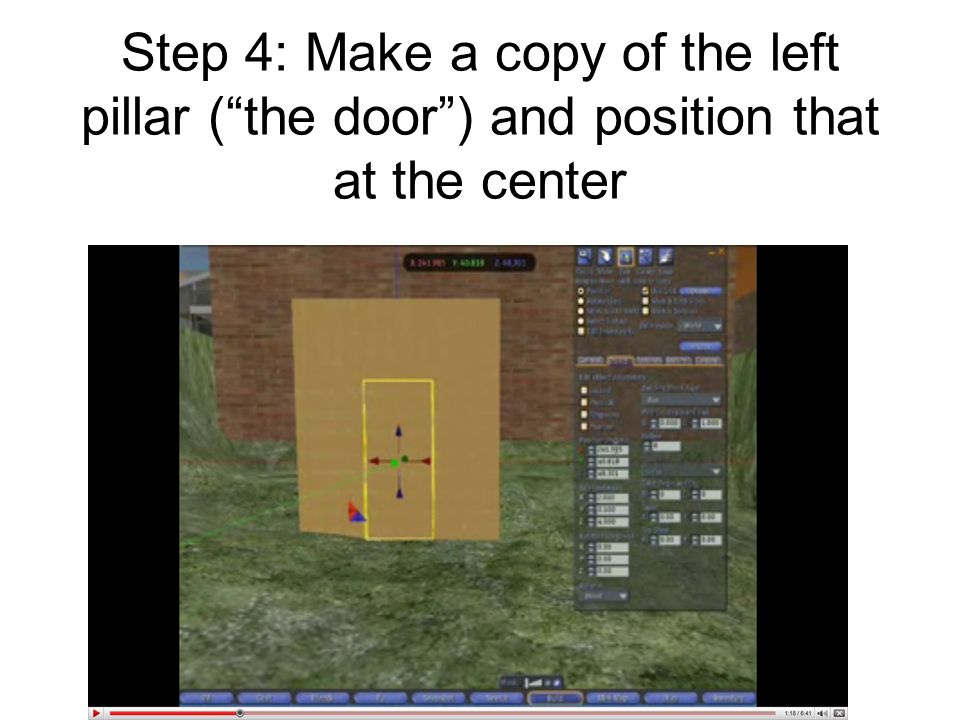

11 Step 4: Make a copy of the left pillar (“the door”) and position that at the center

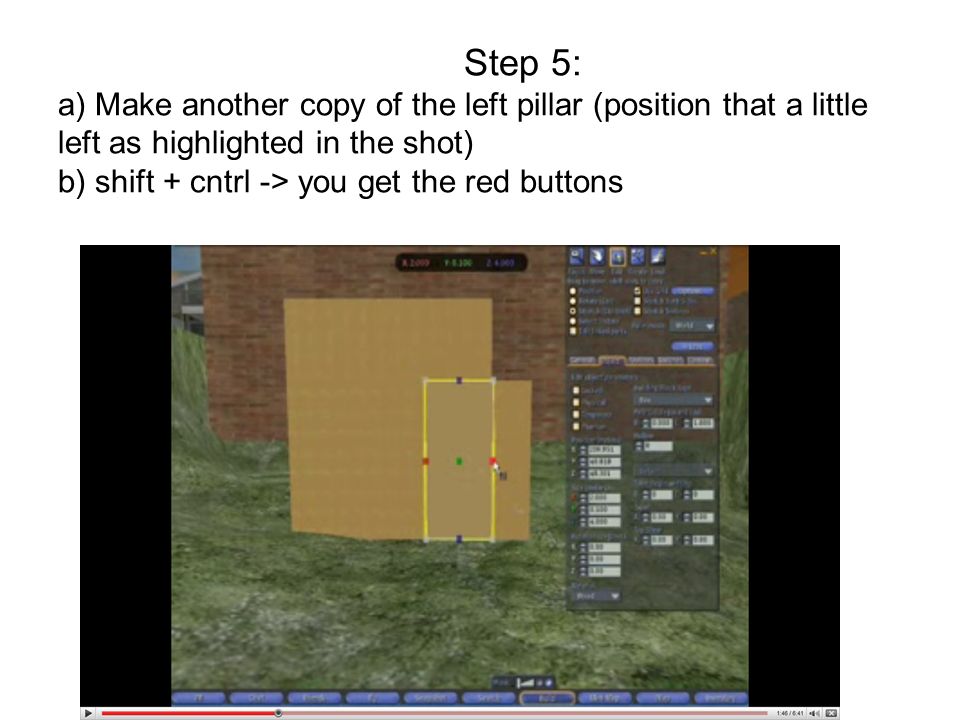

12 Step 5: a) Make another copy of the left pillar (position that a little left as highlighted in the shot) b) shift + cntrl -> you get the red buttons

13 Step 6: click the button and drag left to create a thin hinge for your door

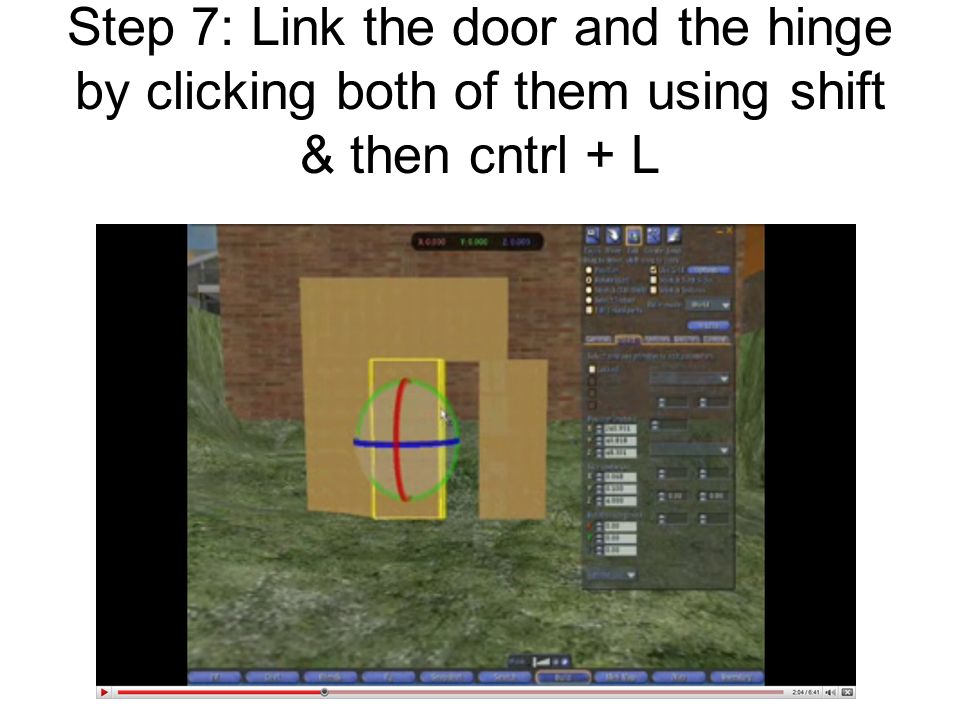

14 Step 7: Link the door and the hinge by clicking both of them using shift & then cntrl + L

15 Step 8: bring the left pillar back & rotate the door -90 degree using the profile editor

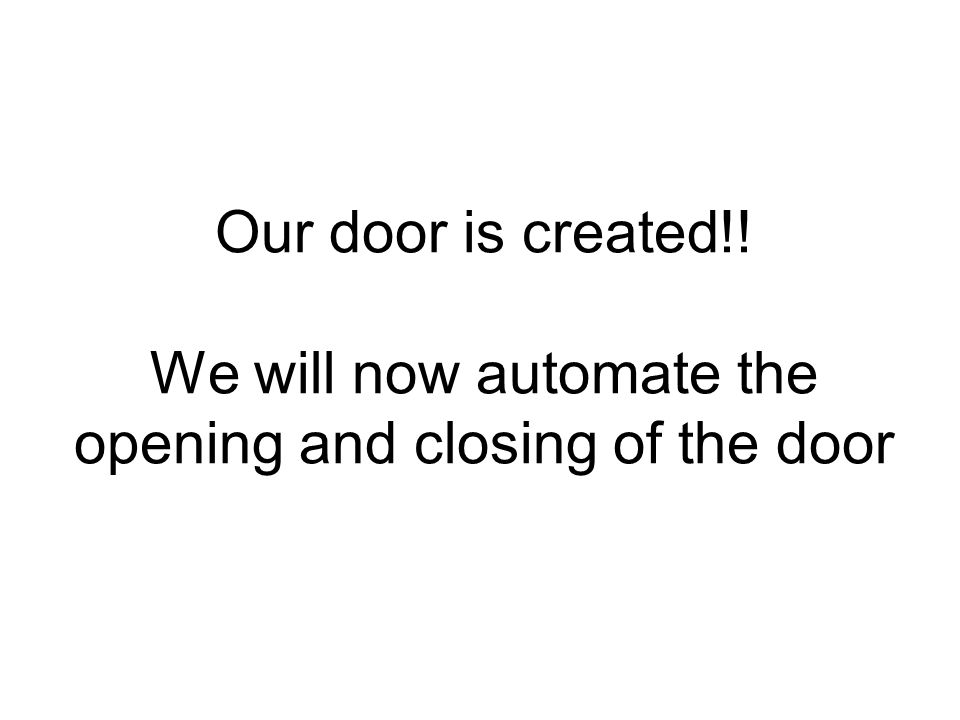

16 Our door is created!! We will now automate the opening and closing of the door

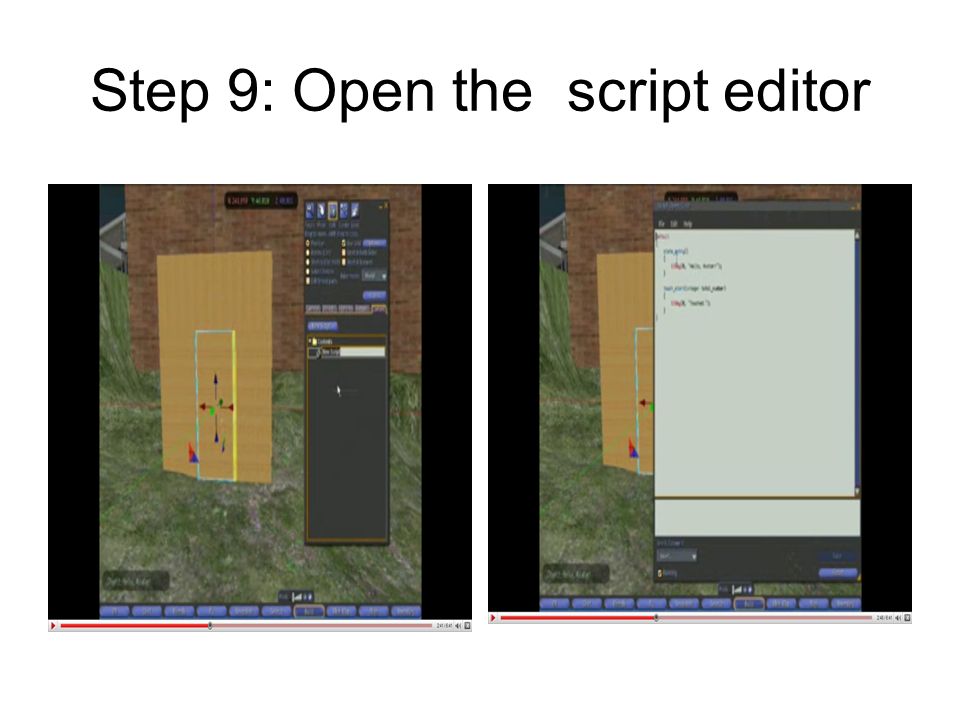

17 Step 9: Open the script editor

18 Step 10: Use this code in the editor default { touch_start(integer total_number) { rotation rot = llGetLocalRot(); // string z = (string)rot.z; // string s = (string)rot.s; // llsay(0, “z = ” + z + “s = ” + s); if (rot.z == 0) { rot.z = -0.707107; rot.s = 0.707107; } else { rot.z = 0; rot.s = 1; } llSetLocalRot(rot); }

19 References http://www.slbuilding.com/ - some very good scripting videos and source-codehttp://www.slbuilding.com/ Second Life – the official guide (2 nd ed.)
