Diana Parno d 2 n and A 1 n : Recent Results and Outlook CENPA, University of Washington 2013 Users’ Group Meeting, Jefferson Lab.

Published byAubrey Lloyd Modified over 8 years ago

Similar presentations

Presentation on theme: "Diana Parno d 2 n and A 1 n : Recent Results and Outlook CENPA, University of Washington 2013 Users’ Group Meeting, Jefferson Lab."— Presentation transcript:

1 Diana Parno d 2 n and A 1 n : Recent Results and Outlook CENPA, University of Washington 2013 Users’ Group Meeting, Jefferson Lab

2 2 Deep inelastic scattering and structure functions d 2 and A 1 for the neutron E06-014 in Hall A at 6 GeV Outlook at 12 GeV Outline Diana Parno - May 29, 2013

3 3 Deep Inelastic Scattering Start with a polarized electron and a polarized nucleon They exchange a virtual photon Virtual photon-nucleon vertex contains nucleon structure information Inclusive measurement: only detect scattered electrons Incident electron k Incident nucleon k’ Scattered electron q Virtual photon p Diana Parno - May 29, 2013

4 4 Scattering from a point particle is straightforward: Nucleon Structure Functions To describe scattering from a complex structure – like a nucleon – you need structure functions: k k’ θ Diana Parno - May 29, 2013

5 5 Polarized Structure Functions Now add relative spin orientations to the picture F 1 (x, Q 2 ) and g 1 (x, Q 2 ) have simple meanings in the quark-parton model: Diana Parno - May 29, 2013

6 6 From g 1 and g 2, we form the quantity d 2 for the nucleon: d2d2 Clean probe of twist-3 physics (quark-gluon correlations) Proton Neutron d2d2 Predictions and Data Bag ModelQCD Sum Rules Lattice QCD Chiral Soliton Data 2σ discrepancy between lattice prediction and measurement of neutron d 2 We need precise data at large x Diana Parno - May 29, 2013

7 7 Picture the polarizations at the hadron vertex: A1A1 Same helicities:Opposite helicities: Photon spin Nucleon spin Flavor decomposition of spin structure from A 1 n and A 1 p combined Diana Parno - May 29, 2013

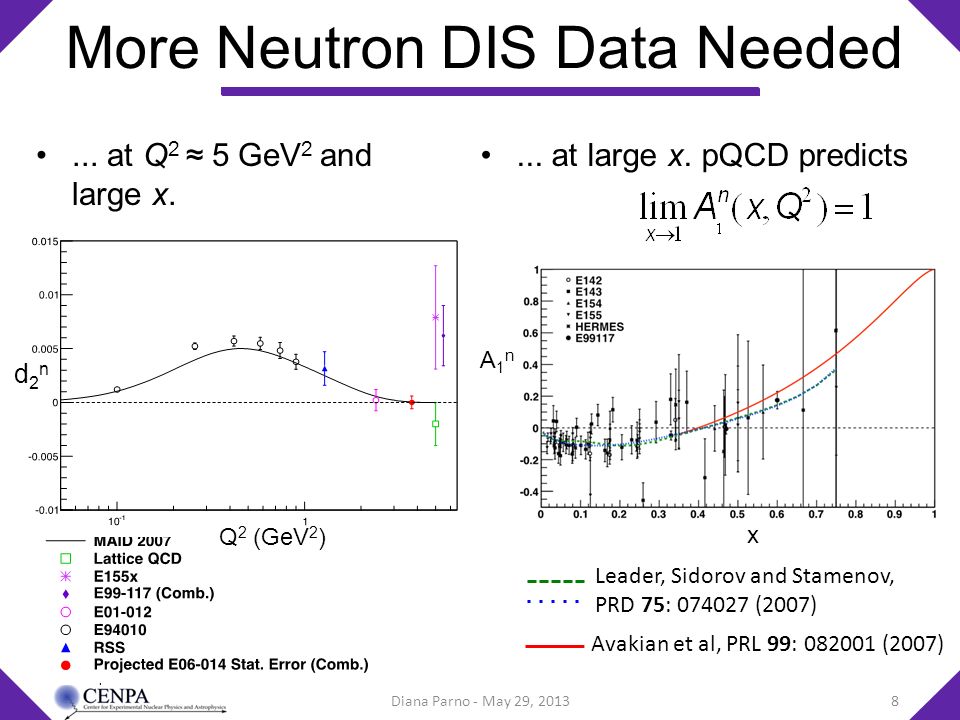

8 8 More Neutron DIS Data Needed... at Q 2 ≈ 5 GeV 2 and large x. d2nd2n Q 2 (GeV 2 )... at large x. pQCD predicts Leader, Sidorov and Stamenov, PRD 75: 074027 (2007) Avakian et al, PRL 99: 082001 (2007) x A1nA1n Diana Parno - May 29, 2013

9 9 Deep inelastic scattering and structure functions d 2 and A 1 for the neutron E06-014 in Hall A at 6 GeV Outlook at 12 GeV Outline Diana Parno - May 29, 2013

10 10 E06-014 in Hall A BigBite spectrometer Left high-resolution spectrometer Compton Polarimeter Beam direction Feb-Mar 2009 E e = 4.7 and 5.9 GeV Inclusive asymmetries Inclusive cross sections Polarized electron beam Polarized 3 He target Diana Parno - May 29, 2013

11 11 Polarized 3 He Target 87% of the time, the neutron carries the 3 He nuclear spin Polarized 3 He target ≈ polarized neutron target Ameya Kolarkar, PhD thesis, 2008 Hybrid spin-exchange optical pumping 1. Polarize Rb via optical pumping 2. Rb-K interactions polarize K 3. K- 3 He interactions polarize 3 He Diana Parno - May 29, 2013

12 12 E06-014 Kinematics DIS region Resonance region Diana Parno - May 29, 2013

13 13 What you will see accounted for: –Beam polarization –Target polarization –N 2 dilution in target cell –Dilution from e + /e - pairs produced in π 0 decay –Basic nuclear corrections (effective polarization model) Preliminary E06-014 Results What you won’t see accounted for: –Radiative corrections (nearly complete) –Asymmetries from e + /e - pairs –Some systematics (cut selection, kinematics) –More sophisticated nuclear corrections Deconvolution method in progress – Melnitchouk et al. Diana Parno - May 29, 2013

14 14 x 2 g 1 n (d 2 n integrand) Lacks radiative / pair-production corrections Systematic error bars will grow Preliminary nuclear-correction method Diana Parno - May 29, 2013

15 15 x 2 g 2 n (d 2 n integrand) Lacks radiative / pair-production corrections Systematic error bars will grow Preliminary nuclear-correction method Diana Parno - May 29, 2013

16 16 A 1 He-3 Lacks radiative / pair-production corrections Systematic error bars will grow No nuclear correction yet E06014 (E e = 5.89 GeV) E06014 (E e = 4.74 GeV) E142 E99-117 E01-012 (resonance) DISResonance Diana Parno - May 29, 2013

17 17 Deep inelastic scattering and structure functions d 2 and A 1 for the neutron E06-014 in Hall A at 6 GeV Outlook at 12 GeV Outline Diana Parno - May 29, 2013

18 18 E e =11 GeV, upgraded 3 He target SHMS: large x range at nearly constant Q 2 HMS: fill in gaps at low x E12-06-121: d 2 n at 12 GeV Spokespeople: T. Averett W. Korsch Z.-E. Meziani B. Sawatzky Approved with A- rating 29 days in Hall C E06-014 kinematics HMS SHMS Measure d 2 n at 4 constant Q 2 values Error at each point will be comparable to E06-014 Diana Parno - May 29, 2013

19 19 E e =11 GeV, upgraded 3 He target Simultaneous HMS, SHMS measurements improve statistics E12-06-110: A 1 n at 12 GeV Spokespeople: G. Cates J.-P. Chen Z.-E. Meziani X. Zheng Approved with A rating 36 days in Hall C Explore Q 2 dependence Push to high x Precise DIS A 1 n measurements from 0.25 ≤ x ≤ 0.77 30° 12.5° Diana Parno - May 29, 2013

20 20 E e =6.6, 8.8 GeV; upgraded 3 He target BigBite: Primary measurement Left HRS: Cross-check (lower statistics) E12-06-122: A 1 n at 12 GeV Spokespeople: T. Averett G. Cates N. Liyanage G. Rosner B. Wojtsekhowski X. Zheng Approved with A- rating 23 days in Hall A Third set of Q 2 values for interpolation Test of open-geometry measurement technique Diana Parno - May 29, 2013

21 21 DIS measurements of d 2 n and A 1 n at large x will –test Lattice QCD and pQCD –probe higher-twist effects –explore nucleon spin structure E06-014 data will address these questions –Stay tuned for final results The 12-GeV program will improve the picture even further –Push to higher x –Explore Q 2 evolution Conclusions Diana Parno - May 29, 2013

22 The E06-014 Collaboration (Hall A) K. Allada W. Armstrong T. Averett F. Benmokhtar W. Bertozzi A. Camsonne M. Canan G. D. Cates C. Chen J.-P. Chen S. Choi E. Chudakov F. Cusanno M. M. Dalton W. Deconinck C. W. de Jager X. Deng A. Deur C. Dutta L. El Fassi D. Flay G. B. Franklin M. Friend H. Gao F. Garibaldi S. Gilad R. Gilman O. Glamazdin S. Golge J. Gomez L. Guo O. Hansen D. W. Higinbotham T. Holmstrom J. Huang C. Hyde H. F. Ibrahim X. Jiang G. Jin J. Katich A. Kelleher A. Kolarkar W. Korsch G. Kumbartzki J. J. LeRose R. Lindgren N. Liyanage E. Long A. Lukhanin V. Mamyan D. McNulty Z.-E. Meziani R. Michaels M. Mihovilovič B. Moffit N. Muangma S. Nanda A. Narayan V. Nelyubin B. Norum Nuruzzaman Y. Oh D. S. Parno J. C. Peng M. Posik X. Qian Y. Qiang A. Rakhman R. D. Ransome S. Riordan A. Saha B. Sawatzky M. H. Shabestari A. Shahinyan S. Širca P. Solvignon R. Subedi V. Sulkosky A. Tobias W. Troth D. Wang Y. Wang B. Wojtsekhowski X. Yan H. Yao Y. Ye Z. Ye L. Yuan X. Zhan Y. Zhang Y.-W. Zhang B. Zhao X. Zheng Co-spokespersonPhD (in progress)PhD (complete)

23 23 The DOE Office of Science The Accelerator Division The “Big Family” collaboration for setup help Further Acknowledgments Thank you! The Transversity collaboration for many of the pictures used in this talk Diana Parno - May 29, 2013

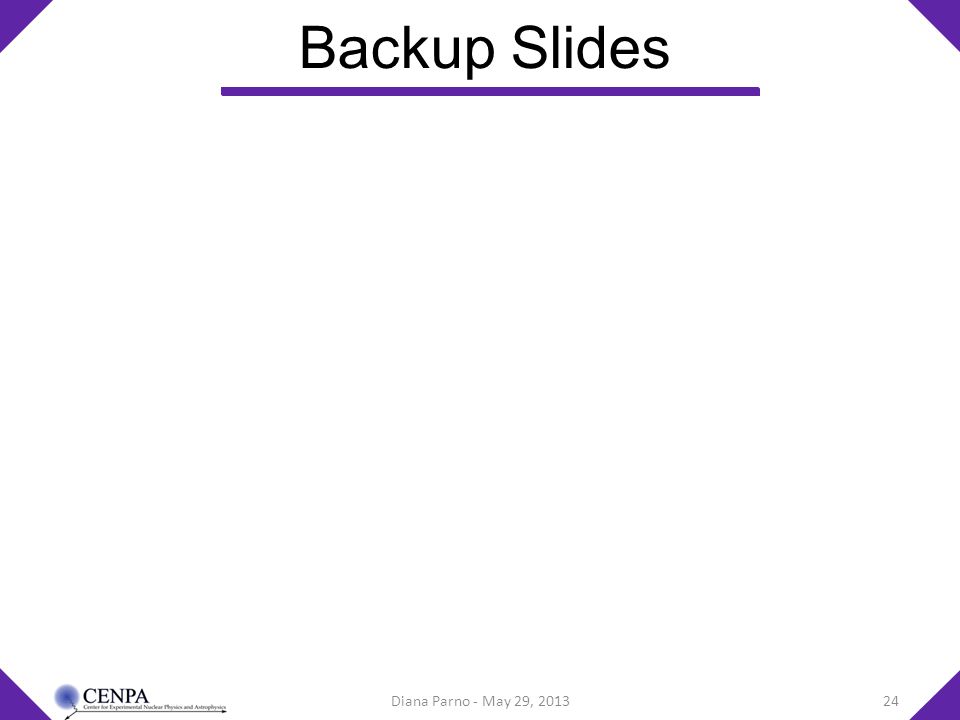

24 24 Backup Slides Diana Parno - May 29, 2013

25 25 DIS Vocabulary Let’s define some useful variables in the lab frame (nucleon rest frame) k k’ θ Four-momentum transfer Electron energy loss (lab frame) Bjorken x (momentum fraction) Diana Parno - May 29, 2013

26 26 Longitudinally polarized beam and target Polarized Structure Functions Longitudinally polarized beam and transversely polarized target k k’ θ Diana Parno - May 29, 2013

27 27 Polarized Electron Beam The electrons on target are longitudinally polarized…but how well polarized are they? Two measurement methods for E06-014: Møller scattering (e - e - e - e - ) Destructive measurement From Hall A Møller Group Compton scattering (e - γ e - γ) Non-destructive measurement Circularly polarized photons Longitudinally polarized electrons Photon energy Asymmetry Diana Parno - May 29, 2013

28 28 3 multiwire drift chambers –Tracking –Momentum BigBite Adapted from Xin Qian, PhD thesis, 2010 Scattered particles Gas Čerenkov –Exclude pions from trigger 2 lead-glass calorimeters –Energy –Particle identification Scintillator plane –Timing Diana Parno - May 29, 2013

29 29 Radiative corrections have not been applied 5.9-GeV Cross Sections Diana Parno - May 29, 2013

30 30 Radiative corrections have not been applied 4.7-GeV Cross Sections Diana Parno - May 29, 2013
