1. S HOULDER U LTRASOUND Personal protocols Caitlin Gardiner

2. I NTRODUCTION The practice I did the majority of my training with in my first year of clinical ultrasound performs little MSK ultrasound. I have just commenced work in the past few weeks at a general radiology practice where I am already exposed to a significant degree more MSK ultrasound that ever before. At this stage, I’m scanning MSK with another sonographer and the plan is to slowly add various scans to my list as I gain competency. Shoulder ultrasound is challenging due to the large number of tendons very proximal to one another and unique scanning plane. Using my images I submitted for homework, this is a summary of what I know so far with the feedback I have been given by my tutor.

3. B ICEPS Ipsilateral hand of the shoulder placed on the knee with palm upwards. Observe in Trans -?surrounding fluid Observe it Long ?regular fibers Any hypoechoic/thickening Ensure visualization from upper biceps muscle to very superior segment Assess groove <3mm= shallow Transverse bicep central/medial edge(subluxed)/out of the groove (dislocated) Assess pop-eye sign, to aid biceps rupture Patient Position/Manoeuvre Assessment of Structure

4. B ICEPS - SUBMITTED IMAGES AND FEEDBACK Lovely

5. S UBSCAPULARIS Place probe in transverse, fully rotate the arm externally Assess subscupularis like this and then visualize in mild extension and partial external rotation Assess all fibres, including those adjacent to the bicep tendon (utilise manoeuvres) Ensure observation of subscapularis sliding under coracoid (?entrapment) Visualise fibrillar pattern and any bursal thickening Mild bony irregularly is acceptable Patient Position/Manoeuvre Assessment of Structure

6. S UBMITTED I MAGES AND F EEDBACK Image with internal rotation does not have subscapularis in it

7. CA L IGAMENT Maintain external rotation of the arm. Slide the probe medial to visualize the clavicle and angle the lateral end of probe superior to around 45° to see acromium. Patient Position/Manoeuvre Assessment of Structure

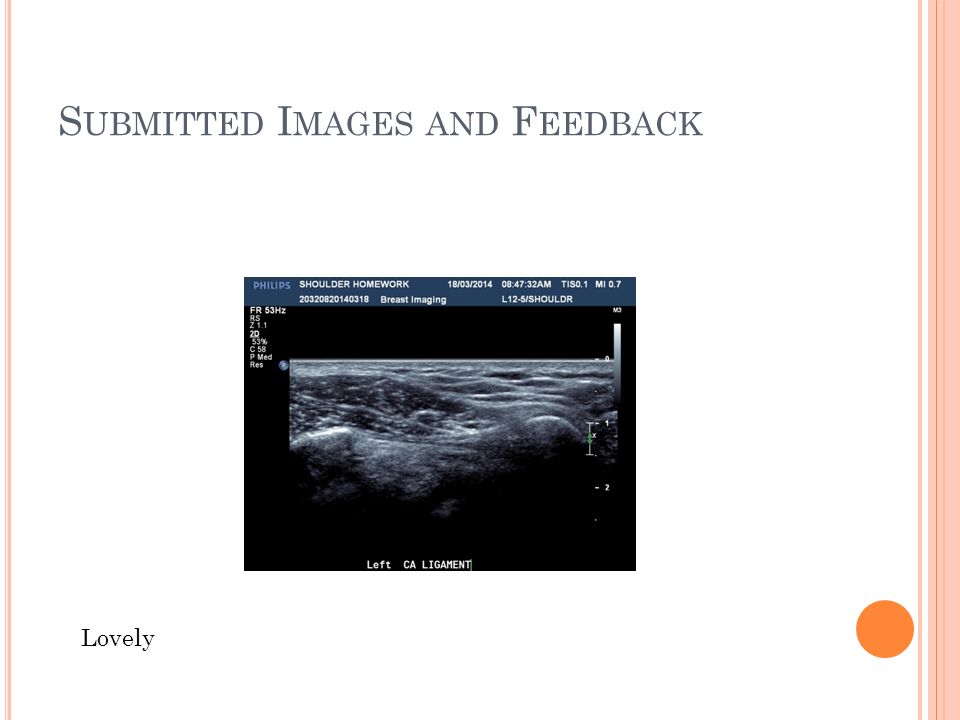

8. S UBMITTED I MAGES AND F EEDBACK Lovely

9. AC J OINT ‘Plonk’ probe on top, in line with the clavicle Is there any focal tenderness? Any separation of the two bones (can get patient to pull from underneath of bed to apply pressure) Any cysts or bony spurs Patient Position/Manoeuvre Assessment of Structure

10. S UBMITTED I MAGES AND F EEDBACK Lovely.

11. S UPRASPINATUS Place the ipsilateral hand on the ipsilateral hip with elbow posterior. Visualize the bicep in transverse in the most medial side of the screen. Slide the probe backwards to visual is transverse. Rotate 90°to view tendon in longitudinal. Consider various positions (eg, hand behind back/neutral) throughout to maximize assessment In true transverse, assess from anterior to posterior ensuring visualisation adjacent to biceps tendon Regular contour (?thinning, flattening) In longitudinal, image from medial to lateral fibrillar pattern Bony irregularity (?enthesopathy) Bursal thickening Note any calcifications and associated hypervascularity Patient Position/Manoeuvre Assessment of Structure

12. S UBMITTED I MAGES AND F EEDBACK None of trans images have biceps in them, therefore most anterior portion is not imaged. Mid and post long images are a little oblique.

13. I NFRASPINATUS Place hand on contralateral shoulder. Position probe on posterior of shoulder (not too far back). Mild bony irregularity is acceptable Significant bony irregularity/Hill-Sachs deformities indicate dislocation If need to differentiate from supraspinatus, refer to previous position where the infraspinatus fibres run oblique Patient Position/Manoeuvre Assessment of Structure

14. S UBMITTED I MAGES AND F EEDBACK Lovely.

15. P OSTERIOR J OINT Drop field of depth from infraspinatus and slide probe slightly medial Ask patient to slowly tap ipsilateral shoulder and observe any joint fluid. Appears as an echogenic triangle ?fluid ?cysts Patient Position/Manoeuvre Assessment of Structure

16. S UBMITTED I MAGES AND F EEDBACK No feedback.

17. S PINOGLENOID /S UPRASCAPULAR N OTCHES Spinoglenoid notch- move probe more medially Suprascapular notch- position probe between the superior scapula and the posterior border of the lateral clavicle Exclude ganglion and cysts Patient Position/Manoeuvre Assessment of Structure

18. S UBMITTED I MAGES AND F EEDBACK ?Mislabelled

19. A BDUCTION Patients arm is bent beside their torso with their palm up. Abduct slowly. Observe anterior and mid supraspinatus under CA Ligament ? Bunching of the supraspinatus ?bunching of the bursa Patient Position/Manoeuvre Assessment of Structure

20. S UBMITTED I MAGES AND F EEDBACK Good.

21. R EFERENCES Ideas extracted from McNally E, 2005. Practical Musculoskeletal Sonography. Elevisier Churchill Livingstone, Philadelphia Coombs P, 2005. Shoulder Ultrasound: a discussion paper. Soundeffects; 3:18-25
