1. Timing Diagrams Shows signal state (1 or 0) as a function of time Dependent variable (horizontal axis) used for time Independent variable (vertical axis) used for signal state NAND gateExample Timing Diagram

2. Device Models Model: An arbitrarily defined set of characteristics used to describe the operation of a device. inverter Idealized modelModel with gate delays t pLH t pHL

3. Propagation Delays Present in all digital devices Prop delays vary based on –device type –device family –device operating conditions Rising signal delays (t pLH ) and falling signal delay times (t pHL ) are usually different for a given device

4. Timing Diagram Annotation Draw reader’s attention to important conditions in circuit Help them find the “trees” instead of getting overwhelmed with the “forest”

5. Timing Diagram Annotation arrows show simple cause and effect relationship a more complex circuit Draw reader’s attention to important conditions in circuit All timing diagrams should be annotated!

6. Did we mention that… ……All timing diagrams should be annotated!?

7. Circuit Simulation Allows for testing a design before actual circuit implementation Simulation represents a “best guess” of how the circuit will operate Accuracy of simulation compared to actual circuit based on quality of models used B 2 Spice A/D Lite used for Experiment 4 Available for FREE: http://www.beigebag.com/adv4_lite.htm

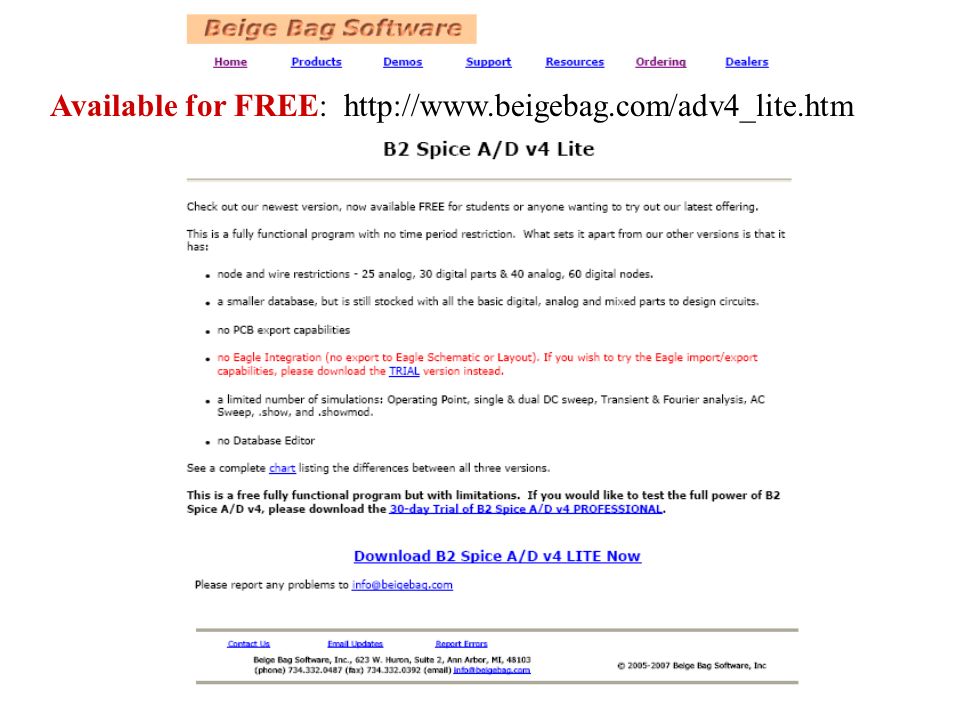

9. Glitches Unwanted momentary error conditions in circuit

10. Glitches Glitches have many causes –cross talk –EMI (Electro-Magnetic Interference) –switching noise –Logic hazards in circuit design Experiment 4 glitches caused by device propagation delays in circuit elements

11. Glitches: Experiment 4 Caused by static logic hazards –change in single input variable causes unexpected change in output Only Input A changes 1  0 1 1 F(A,B,C) = F(1,1,1) = 1 “Static” – F stays @ 1 A BC 00011110 00110 10011 F(A,B,C) = F(0,1,1) = 1

12. Glitches: Experiment 4 “Logic Hazard Cover Term” A BC 00011110 00110 10011 Glitches prevented by including additional cover terms in K-map Example shown in Experiment 4:

13. Experiment 4 Procedure Overview B2 Spice A/D Lite tutorial (DONE!!?) Ring Oscillator analysis Static-1 logic hazard detection & removal Static-0 logic hazard detection & removal

14. Ring Oscillator Include output ports for every gate output …so you can observe how the circuit operates

15. How Do You Choose What Values (1/0) to Apply to Your Inputs To Provoke a Possible Glitch?? How many inputs should change simultaneously to induce a glitch? How can we determine which input signal levels may cause a glitch? Which direction should you change your one input signal? 1  0 or 0  1?

16. For Next Week: Note which Logic Analyzer Model is at your station (HP 1651A or HP 1663) Review the tutorial: “An Intuitive Description of the Logic Analyzer” Read Experiment #5 to prepare for using the Logic Analyzer and the Xilinx Tools –Be sure to download and review the correct Experiment #5 version for YOUR particular model of Logic Analyzer There are 2 different versions – one for each LA model.
