1. Networking and communication basics. Areej Aloufi

2. Basic Concepts in Communication

3. Basic Concepts Communications – activity associated with distributing or exchanging information Telecommunications – technology of communications at a distance that permits information to be created any where and used everywhere with little delay Today it, involves Data: digital and analog Voice: spoken word Video: telelcommunication imaging

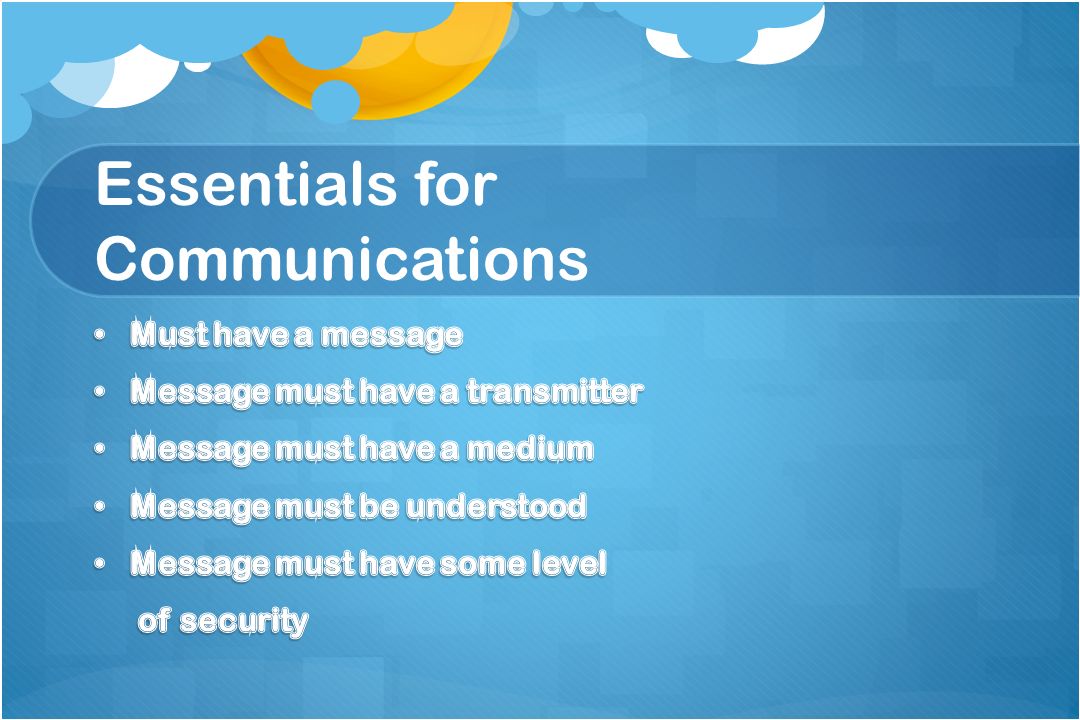

4. Essentials for Communications

6. Workstation/PC Source System Medium Workstation/PC Destination System Essentials for Communications Source  Transmitter  Transmission  Receiver  Destination 123456

7. Understanding Networking

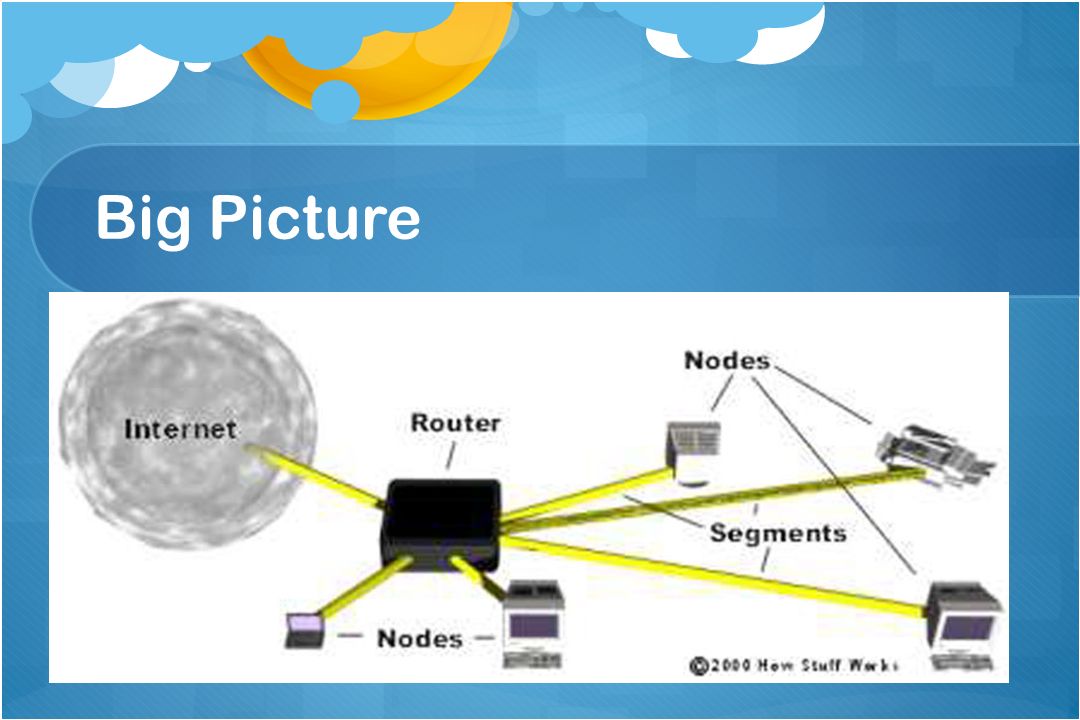

8. Big Picture

9. Key Network Terminology Explained (1) Networks needs to interconnect at a distance by a form of point to point or point to multiple point connected media A network is a group of computers connected together in such a way as to allow Networks that are interconnected have proven to be low cost, reliable, and efficient means of communicating at a distance

10. Key Network Terminology Explained (2) Node: anything connected to the network, usually a computer, but it could be a printer or a scanner Segment: any portion of a network that is separated by a switch, bridge or a router from another part of a network. Backbone: the main cabling of a network that all of the segment connect to. Usually, the backbone is capable of carrying more information than the individual segments. Topology: The way each node is physically connected to the network Network  architecture

11. Common Topologies - Bus Bus: each node is daisy-chained (connected one right after the other) along the same backbone. Information sent from a node travels along the backbone until it reaches its destination node.

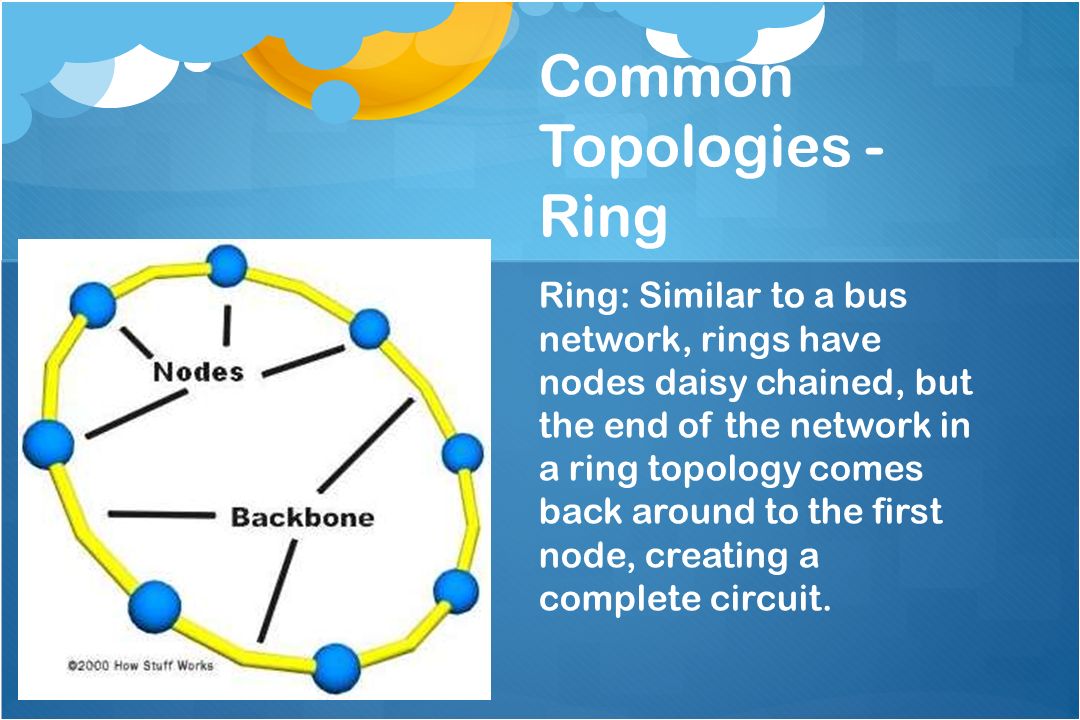

12. Common Topologies - Ring Ring: Similar to a bus network, rings have nodes daisy chained, but the end of the network in a ring topology comes back around to the first node, creating a complete circuit.

13. Common Topologies - Star In a star network, each node is connected to a central device called a hub. The hub takes a signal that comes from any node and passes it along to all the other nodes in the network.

14. Key Network Terminology Explained (3) Simplex: information flows in only one direction Half-duplex: information flows in two directions, but only in one direction at a time. Full-duplex: information flows in two directions at the same time

15. Data Transmission Successful transmission of data depends on: The quality of the signal being transmitted Characteristics of the transmission medium Data rate – bits per second in data communications Bandwidth – bandwidth or signal is constrained by the transmitter and the nature of the transmission in cycles per second or hertz Noise – Average level of noise over the communication path. Error rate – rate at which errors occur where error in 1 or 0 bit occurs

16. Understanding Transmission Medium

17. Basic transmission medium concepts Medium is the physical path between transmitter and receiver in a data transmission system Guided Medium: waves are guided along a solid medium path. Unguided medium: waves are propagated through the atmosphere and inner/outerspace (satellite, laser, and wireless transmissions).

18. Medium examples by type Conductive: twisted pairs and coaxial cables Electromagnetic: microwave Light: lasers and optical fibers (need clear line of sight) Wireless – inner/outerspace; satellite

19. Network Hardware

20. What is the difference between? Bridge: device to interconnect two LANs that use the SAME logical link control protocol but may use different medium access control protocols. Router: device to interconnect SIMILAR networks, e.g. similar protocols and workstations and servers Gateway: device to interconnect DISSIMILAR protocols and servers, and Macintosh and IBM LANs and equipment

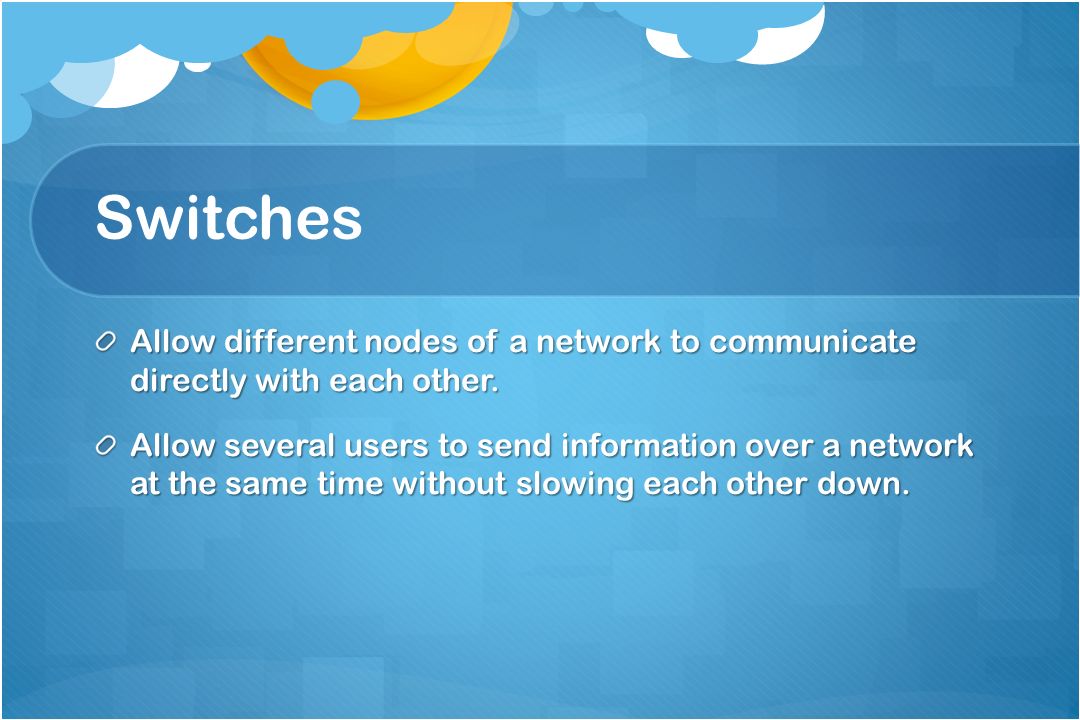

21. Switches Allow different nodes of a network to communicate directly with each other. Allow several users to send information over a network at the same time without slowing each other down.

22. WANs and LANs

23. Major Categories of Networks Local Area Networks (LAN) A network of computers that are in the same general physical location, within a building or a campus. Metropolitan Area Networks (MAN) Wide Area Networks (WAN)

24. What is ethernet? A group of standards for defining a local area network that includes standards in cabling and the structure of the data sent over those cables as well as the hardware that connects those cables. Independent of the network architecture

25. How does Ethernet work? Using addresses to distinguish between machines, Ethernet transmits frames of data across baseband cables.

26. Communication protocol standards: Connectivity: refers to a measure of the effectiveness and efficiency of computer based devices to communicate and share information and messages without human intervention. It is achieved by the use of communication protocol standards. Protocols: deals with the specifics of how a certain task will be done. Standard: it is an approved reference model and protocol determined by standard setting groups for building or developing products and services.

27. Communication protocol standards: HIS, RIS and PACs are integrated using communication protocol standards. The two popular standards are health level 7 (HL-7) and digital imaging and communication in medicine (DICOM).

28. Communication protocol standards: HL-7 : standard application protocol most used with HIS and RIS. DICOM : is the imaging communication protocol for PACs.

29. Computer in radiology: In 1955 computers were used to calculate radiation dose distributions in cancer patients. Today, computer applications in radiology include two categories imaging and nonimaging applications.

30. Imaging applications: They are those modalities in which the information acquired from the patient is subjected to computer processing. This involves digital image processing techniques to produce computer – generated or digital images. These images can be stored or displayed. Several methods exist for creating images: computed radiography, digital fluroscopy, radiographic film digitalization computed tomography and magnetic resonance imaging.

31. Non imaging applications: Radiology information systems (RIS) patient admissions, scheduling, accounting, billing, film library functions, word processing, statistics, database management and data communications. RIS can connect to hospital information system (HIS) which address the needs of all departments in the hospital including laboratory, pharmacy, finance, admissions and hospital administration.

32. PACS: Control database system Local area network (LAN) Computer monitor Film printer Optical jukebox or tape RIS/HIS Remote interface Wide area network (WAN) CTMRICR Communication Archiving Acquisition Display

33. ANY Qs?
