1. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 1 INFORMATION THEORY and KULLBACK-LEIBLER DISTANCE APPROACH IN THE EVALUATION OF DIAGNOSTIC TEST PERFORMANCE

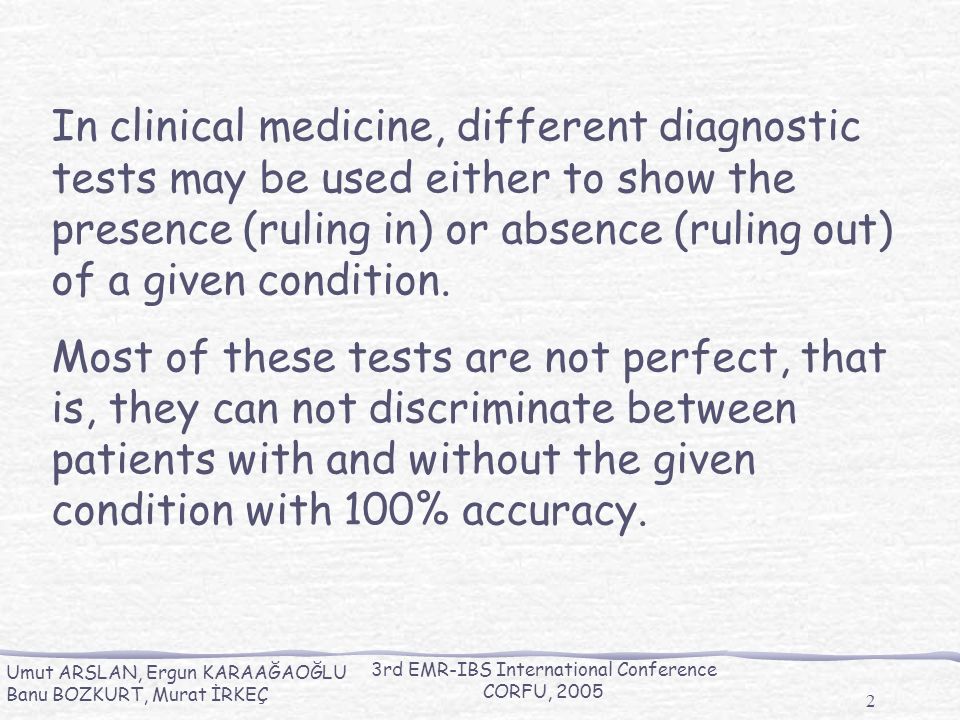

2. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 2 In clinical medicine, different diagnostic tests may be used either to show the presence (ruling in) or absence (ruling out) of a given condition. Most of these tests are not perfect, that is, they can not discriminate between patients with and without the given condition with 100% accuracy.

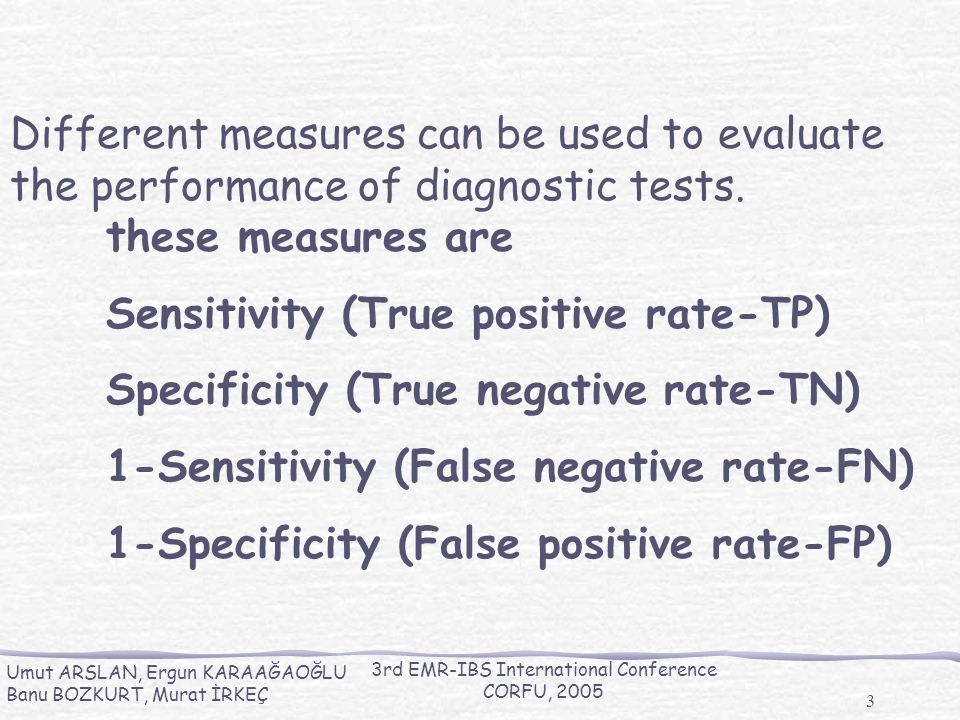

3. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 3 Different measures can be used to evaluate the performance of diagnostic tests. these measures are Sensitivity (True positive rate-TP) Specificity (True negative rate-TN) 1-Sensitivity (False negative rate-FN) 1-Specificity (False positive rate-FP)

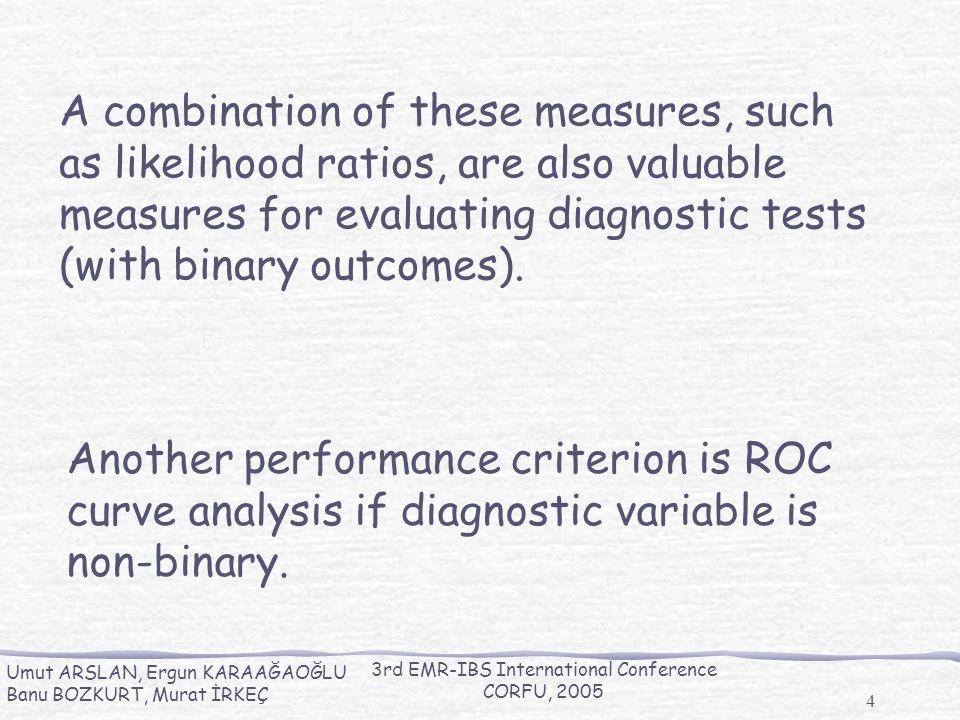

4. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 4 A combination of these measures, such as likelihood ratios, are also valuable measures for evaluating diagnostic tests (with binary outcomes). Another performance criterion is ROC curve analysis if diagnostic variable is non-binary.

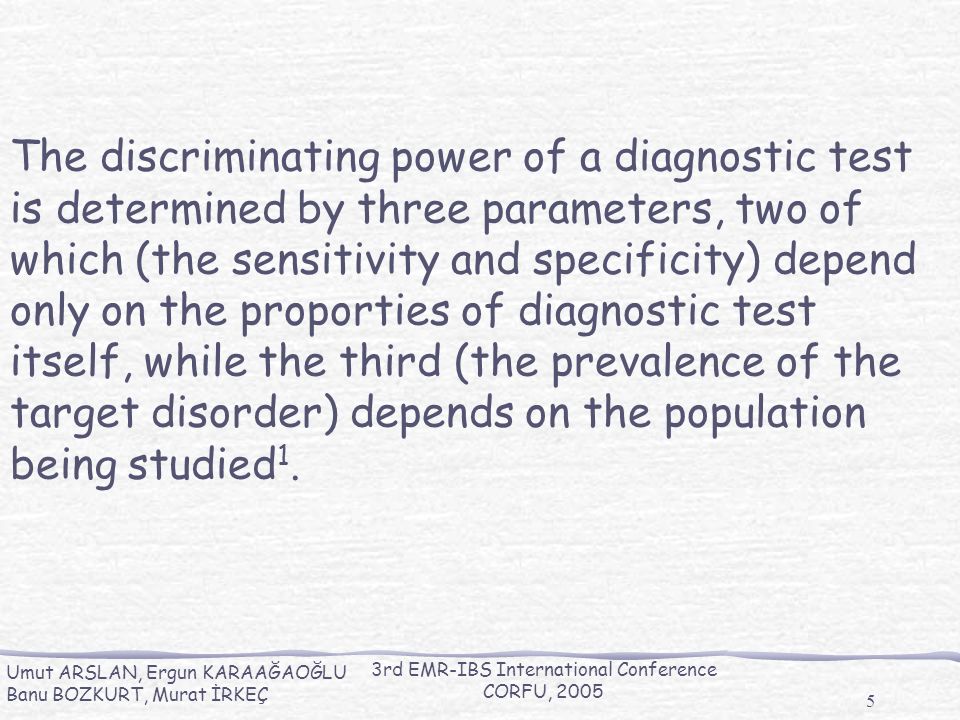

5. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 5 The discriminating power of a diagnostic test is determined by three parameters, two of which (the sensitivity and specificity) depend only on the proporties of diagnostic test itself, while the third (the prevalence of the target disorder) depends on the population being studied 1.

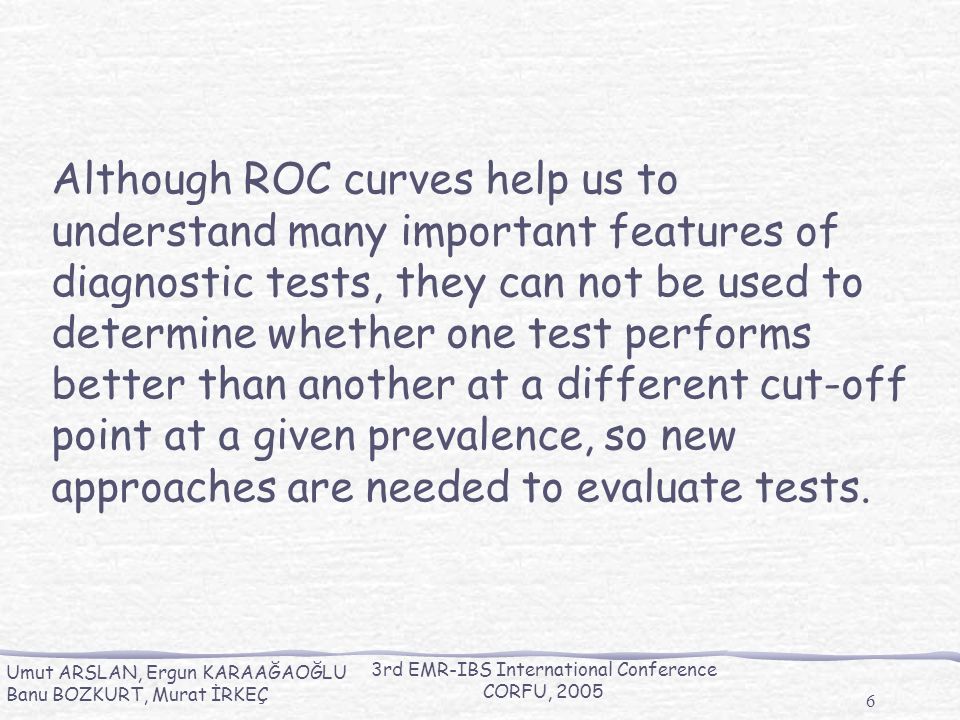

6. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 6 Although ROC curves help us to understand many important features of diagnostic tests, they can not be used to determine whether one test performs better than another at a different cut-off point at a given prevalence, so new approaches are needed to evaluate tests.

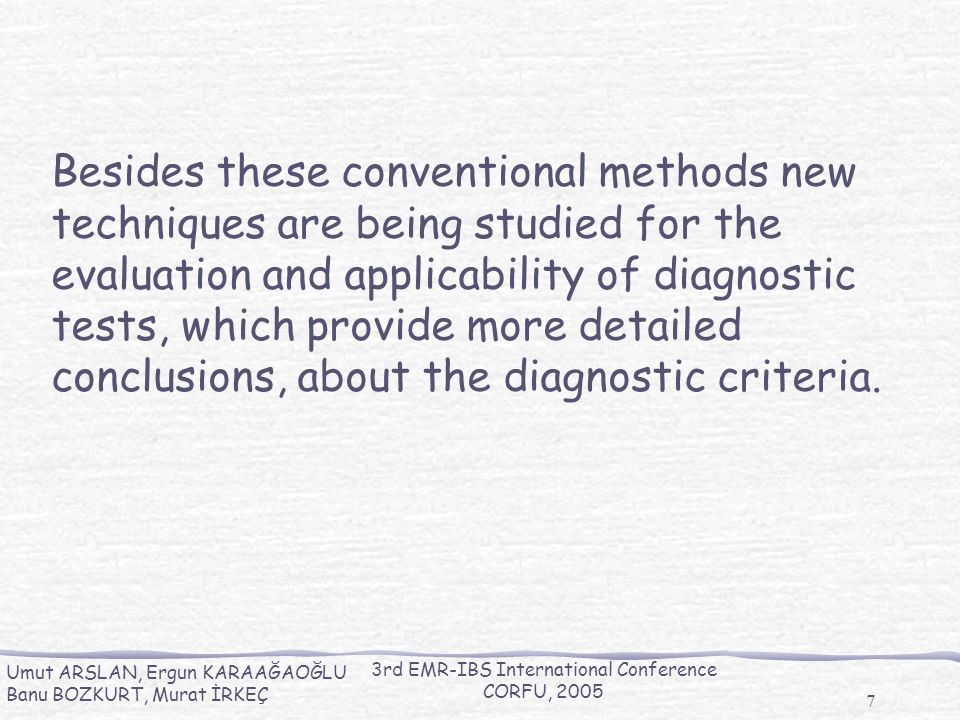

7. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 7 Besides these conventional methods new techniques are being studied for the evaluation and applicability of diagnostic tests, which provide more detailed conclusions, about the diagnostic criteria.

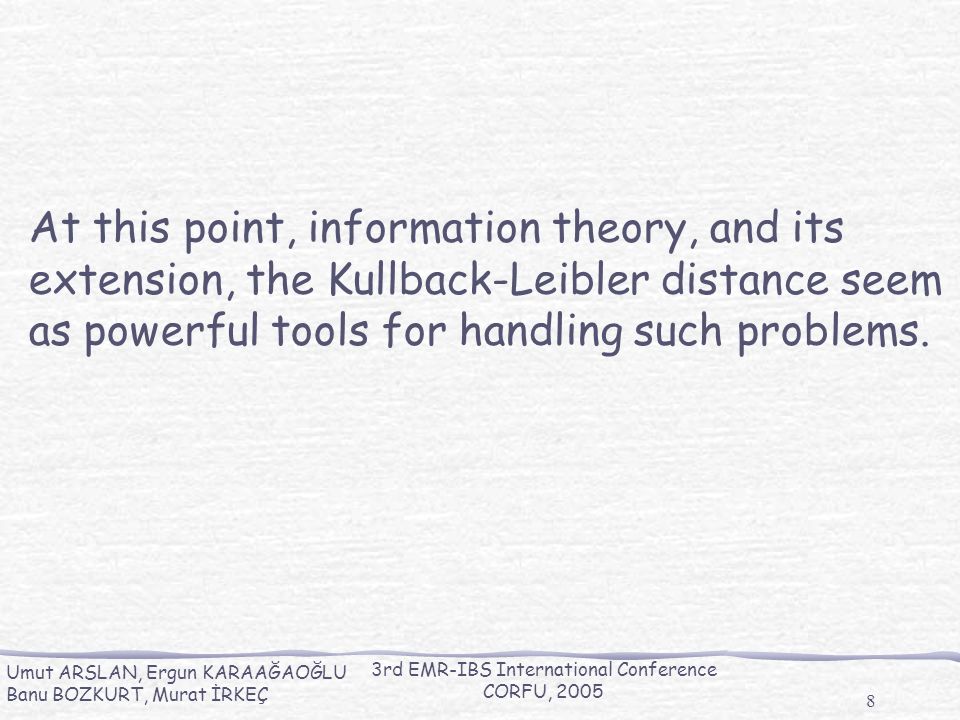

8. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 8 At this point, information theory, and its extension, the Kullback-Leibler distance seem as powerful tools for handling such problems.

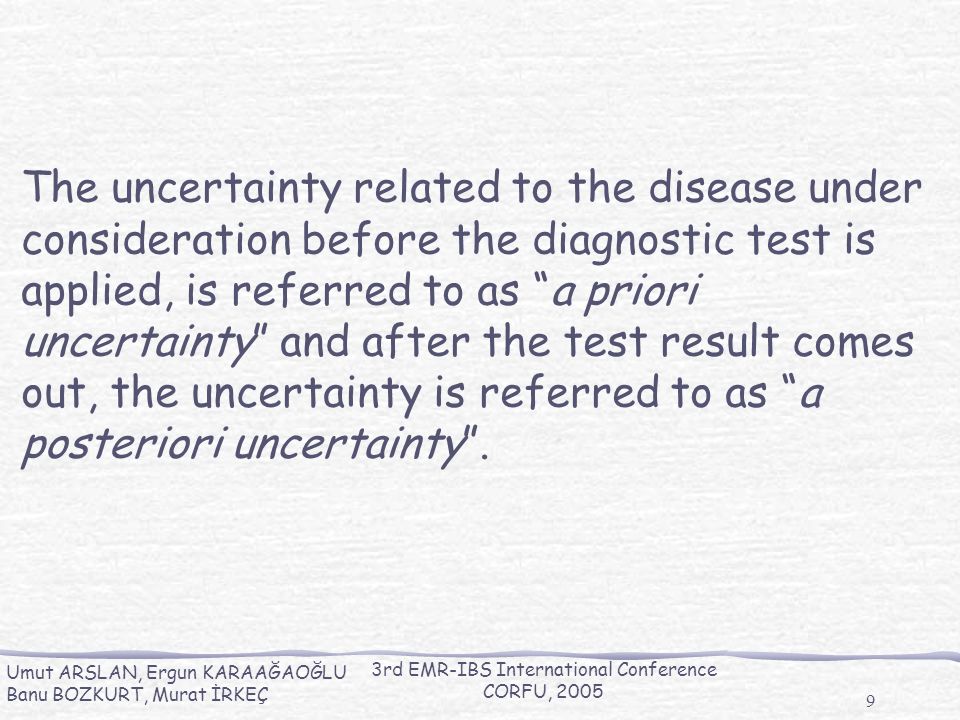

9. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 9 The uncertainty related to the disease under consideration before the diagnostic test is applied, is referred to as “a priori uncertainty” and after the test result comes out, the uncertainty is referred to as “a posteriori uncertainty”.

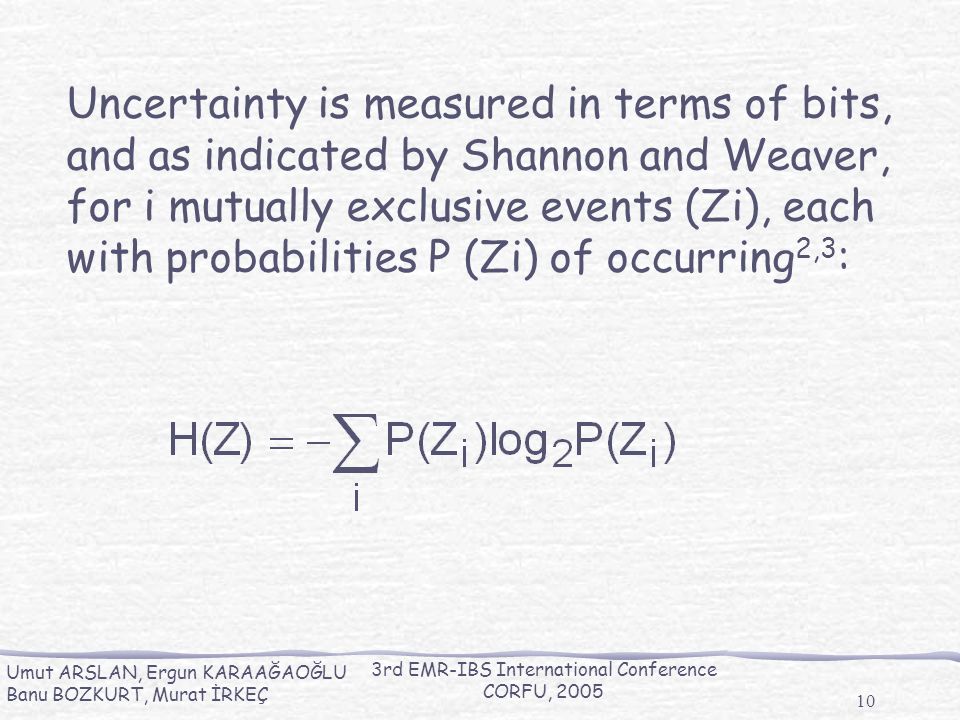

10. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 10 Uncertainty is measured in terms of bits, and as indicated by Shannon and Weaver, for i mutually exclusive events (Zi), each with probabilities P (Zi) of occurring 2,3 :

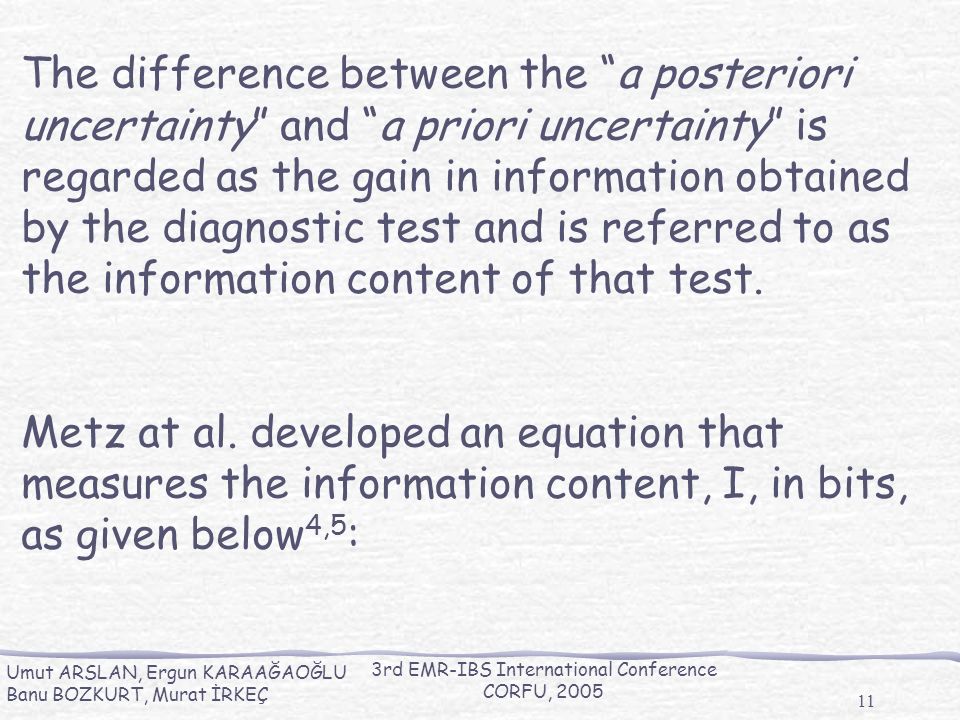

11. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 11 The difference between the “a posteriori uncertainty” and “a priori uncertainty” is regarded as the gain in information obtained by the diagnostic test and is referred to as the information content of that test. Metz at al. developed an equation that measures the information content, I, in bits, as given below 4,5 :

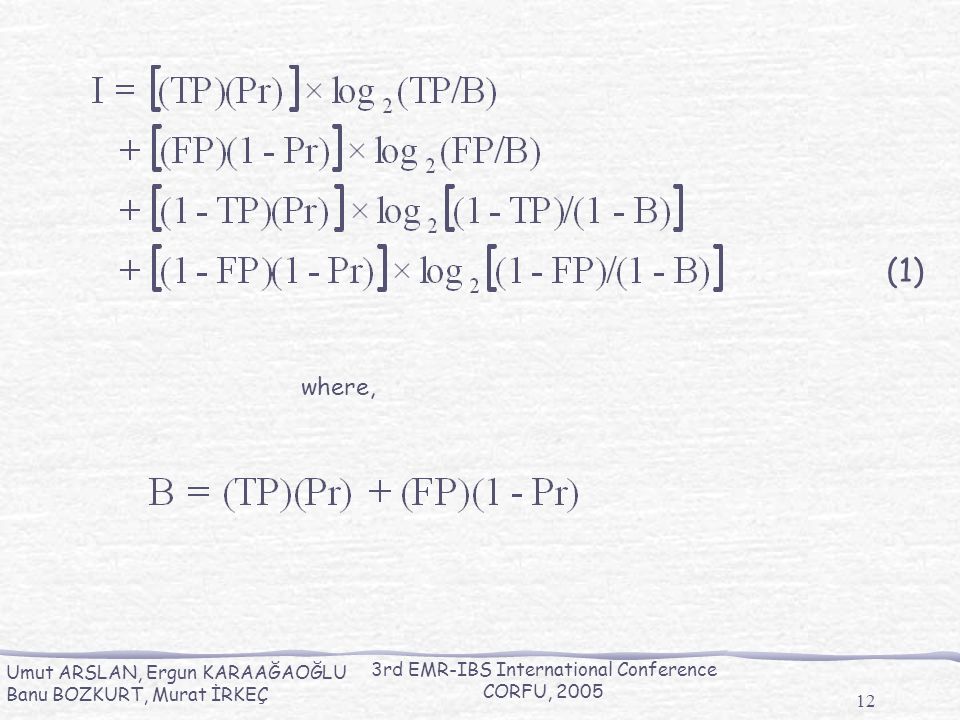

12. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 12 where, (1)

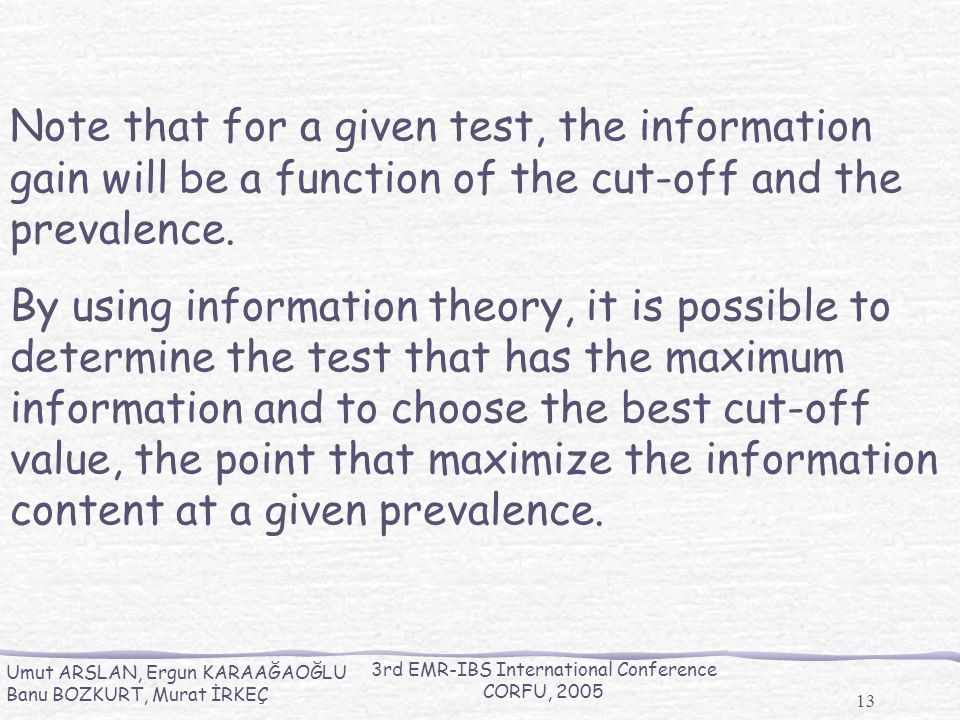

13. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 13 Note that for a given test, the information gain will be a function of the cut-off and the prevalence. By using information theory, it is possible to determine the test that has the maximum information and to choose the best cut-off value, the point that maximize the information content at a given prevalence.

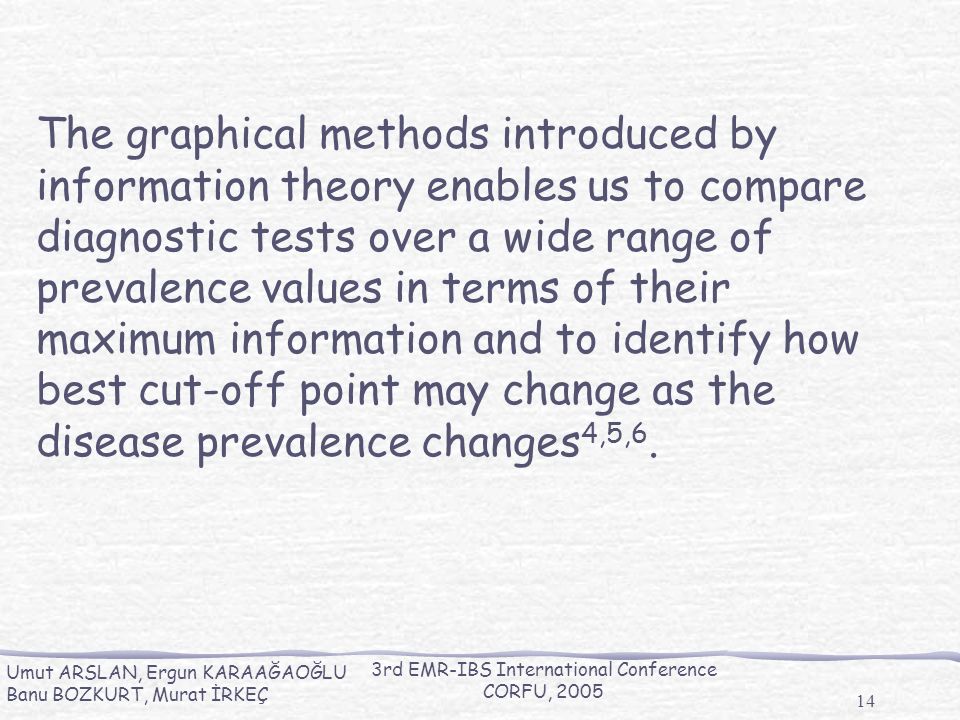

14. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 14 The graphical methods introduced by information theory enables us to compare diagnostic tests over a wide range of prevalence values in terms of their maximum information and to identify how best cut-off point may change as the disease prevalence changes 4,5,6.

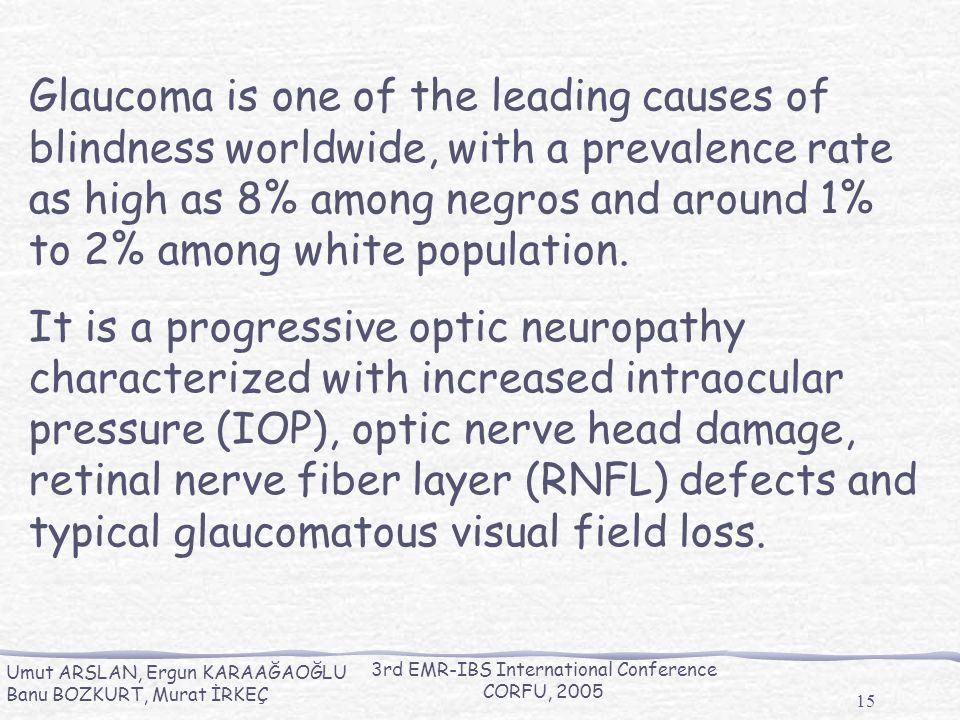

15. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 15 Glaucoma is one of the leading causes of blindness worldwide, with a prevalence rate as high as 8% among negros and around 1% to 2% among white population. It is a progressive optic neuropathy characterized with increased intraocular pressure (IOP), optic nerve head damage, retinal nerve fiber layer (RNFL) defects and typical glaucomatous visual field loss.

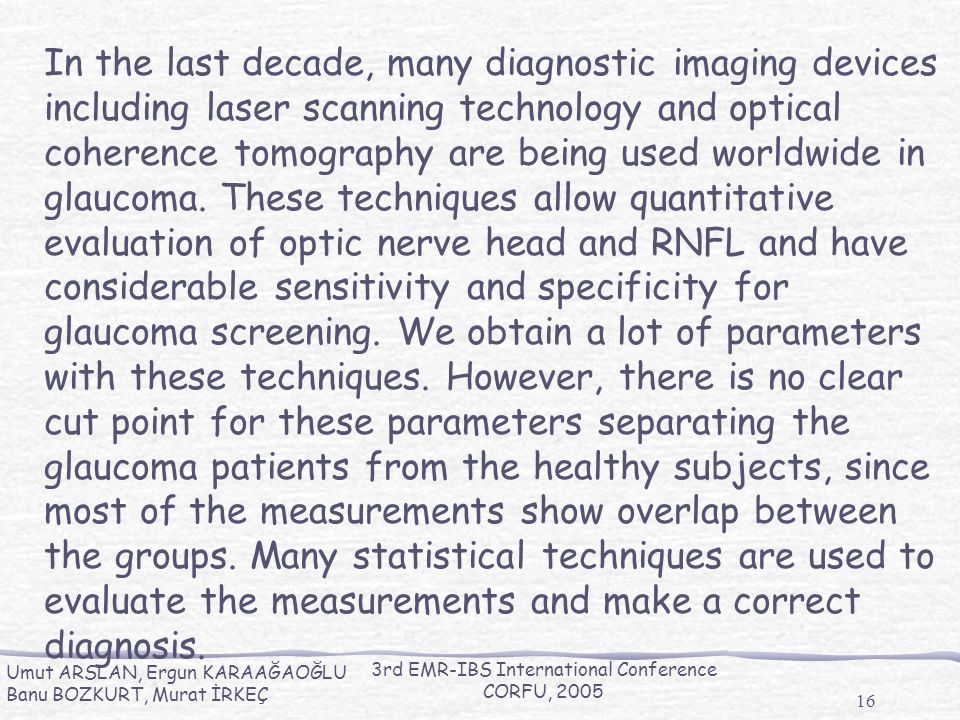

16. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 16 In the last decade, many diagnostic imaging devices including laser scanning technology and optical coherence tomography are being used worldwide in glaucoma. These techniques allow quantitative evaluation of optic nerve head and RNFL and have considerable sensitivity and specificity for glaucoma screening. We obtain a lot of parameters with these techniques. However, there is no clear cut point for these parameters separating the glaucoma patients from the healthy subjects, since most of the measurements show overlap between the groups. Many statistical techniques are used to evaluate the measurements and make a correct diagnosis.

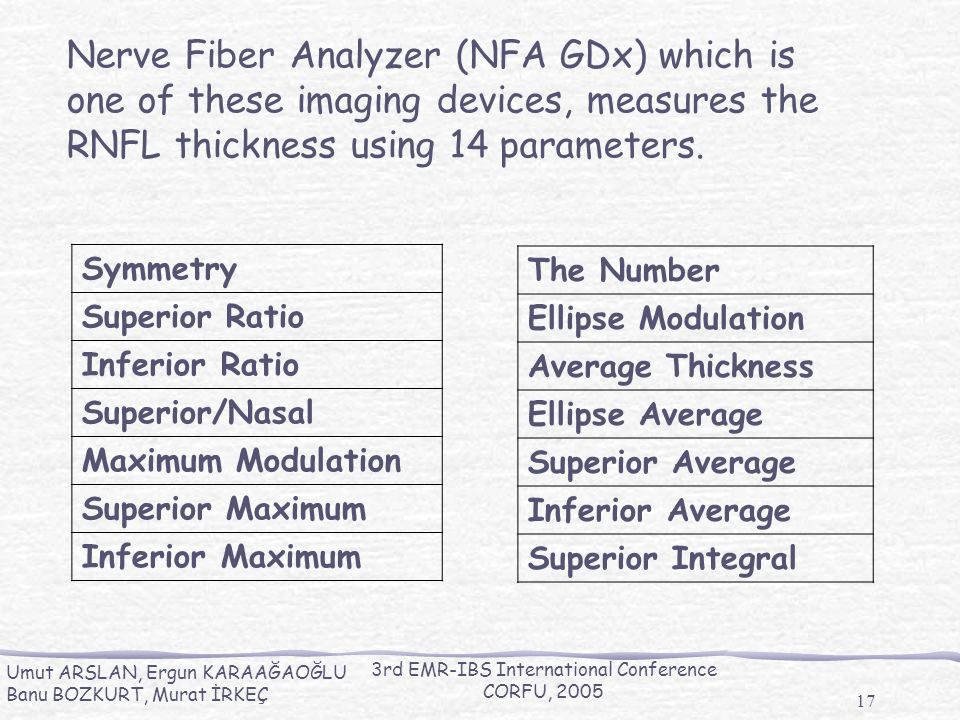

17. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 17 Nerve Fiber Analyzer (NFA GDx) which is one of these imaging devices, measures the RNFL thickness using 14 parameters. Symmetry Superior Ratio Inferior Ratio Superior/Nasal Maximum Modulation Superior Maximum Inferior Maximum The Number Ellipse Modulation Average Thickness Ellipse Average Superior Average Inferior Average Superior Integral

18. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 18 We used information theory for determining the parameter with the highest discriminating power and the cut-off points related with this parameter.

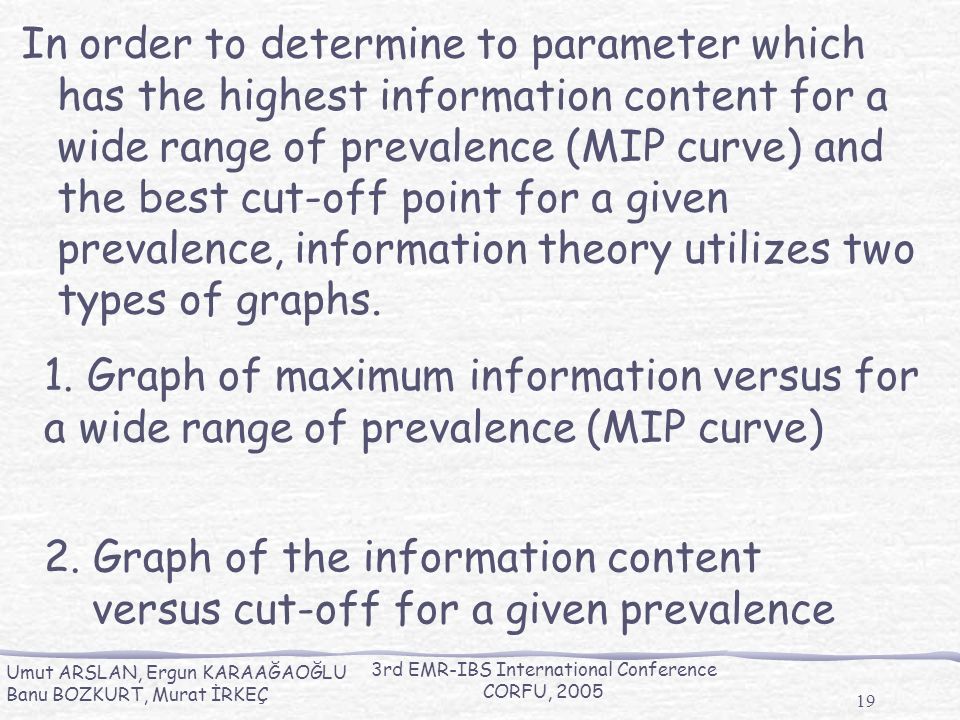

19. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 19 In order to determine to parameter which has the highest information content for a wide range of prevalence (MIP curve) and the best cut-off point for a given prevalence, information theory utilizes two types of graphs. 2. Graph of the information content versus cut-off for a given prevalence 1. Graph of maximum information versus for a wide range of prevalence (MIP curve)

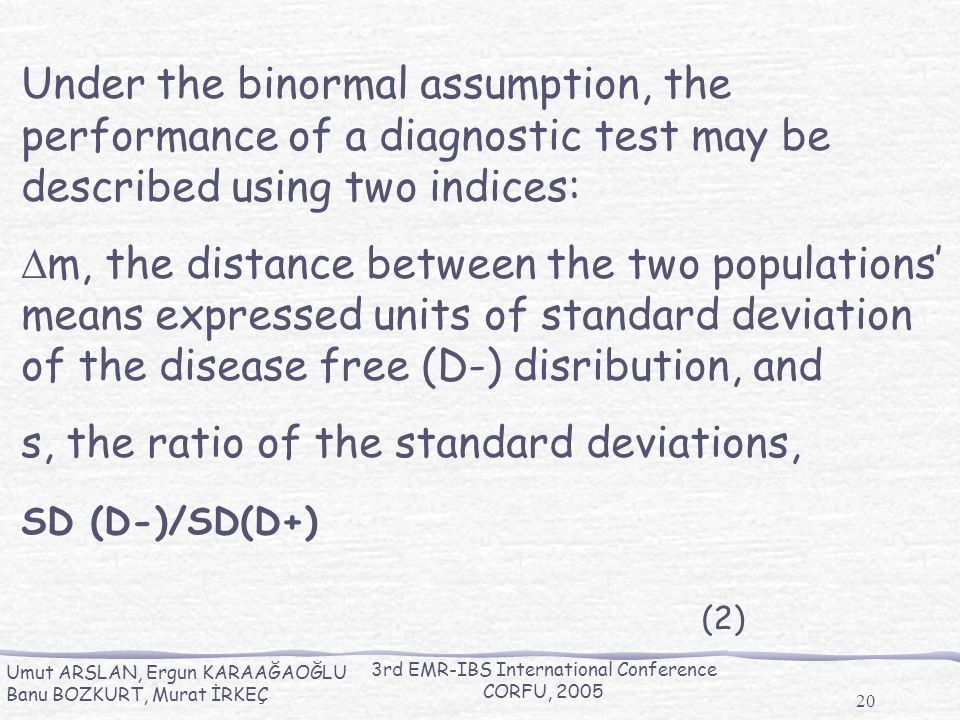

20. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 20 Under the binormal assumption, the performance of a diagnostic test may be described using two indices:  m, the distance between the two populations’ means expressed units of standard deviation of the disease free (D-) disribution, and s, the ratio of the standard deviations, SD (D-)/SD(D+) (2)

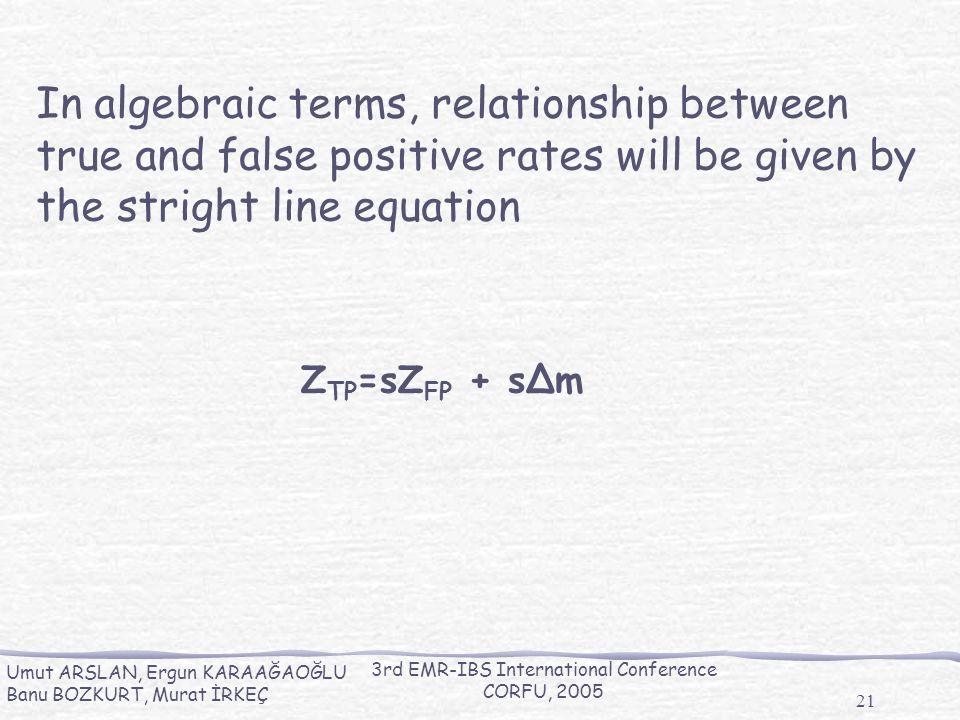

21. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 21 In algebraic terms, relationship between true and false positive rates will be given by the stright line equation Z TP =sZ FP + sΔm

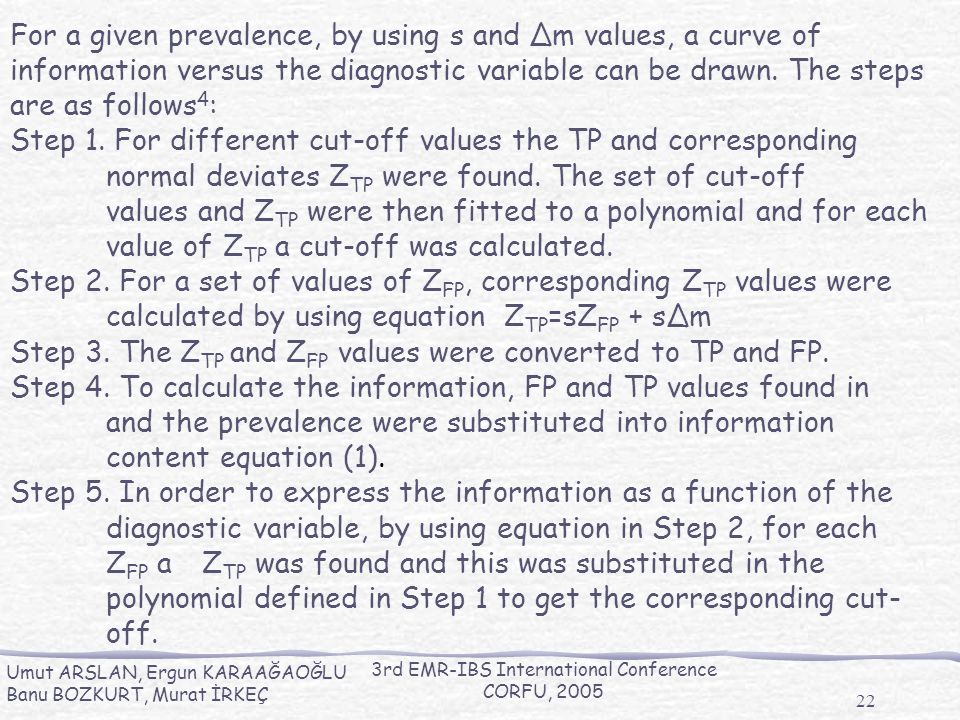

22. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 22 For a given prevalence, by using s and Δm values, a curve of information versus the diagnostic variable can be drawn. The steps are as follows 4 : Step 1. For different cut-off values the TP and corresponding normal deviates Z TP were found. The set of cut-off values and Z TP were then fitted to a polynomial and for each value of Z TP a cut-off was calculated. Step 2. For a set of values of Z FP, corresponding Z TP values were calculated by using equation Z TP =sZ FP + sΔm Step 3. The Z TP and Z FP values were converted to TP and FP. Step 4. To calculate the information, FP and TP values found in and the prevalence were substituted into information content equation (1). Step 5. In order to express the information as a function of the diagnostic variable, by using equation in Step 2, for each Z FP a Z TP was found and this was substituted in the polynomial defined in Step 1 to get the corresponding cut- off.

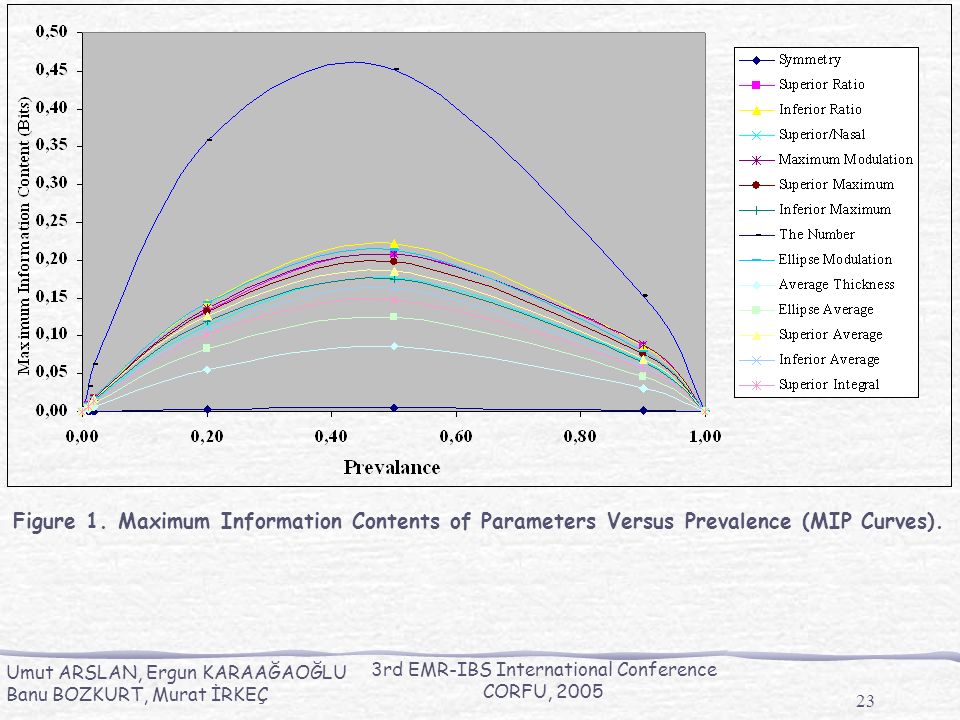

23. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 23 Figure 1. Maximum Information Contents of Parameters Versus Prevalence (MIP Curves).

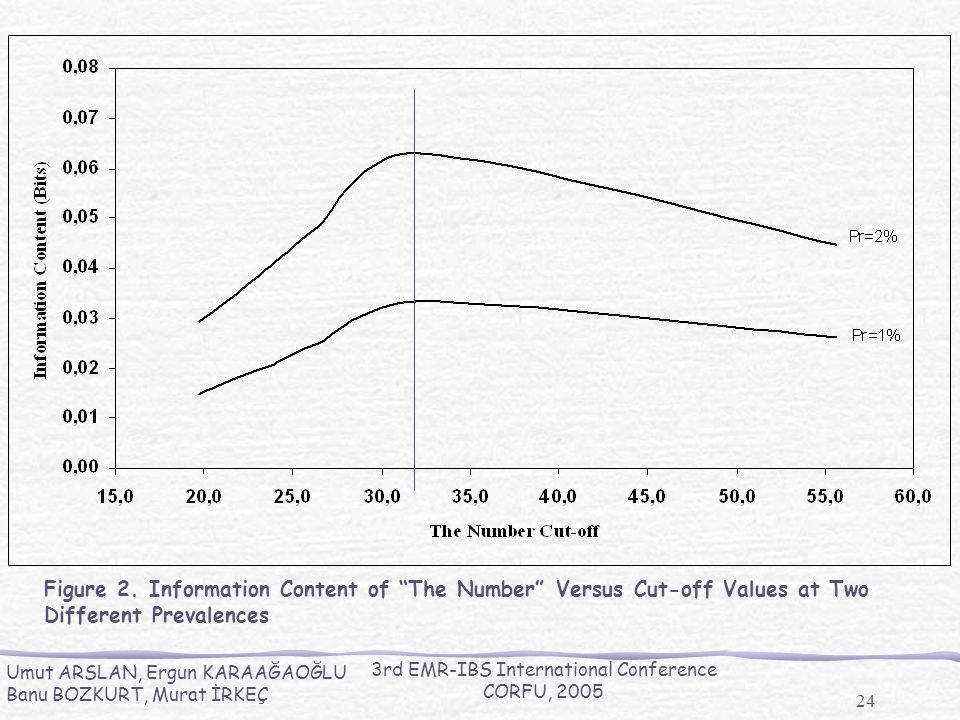

24. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 24 Figure 2. Information Content of “The Number” Versus Cut-off Values at Two Different Prevalences

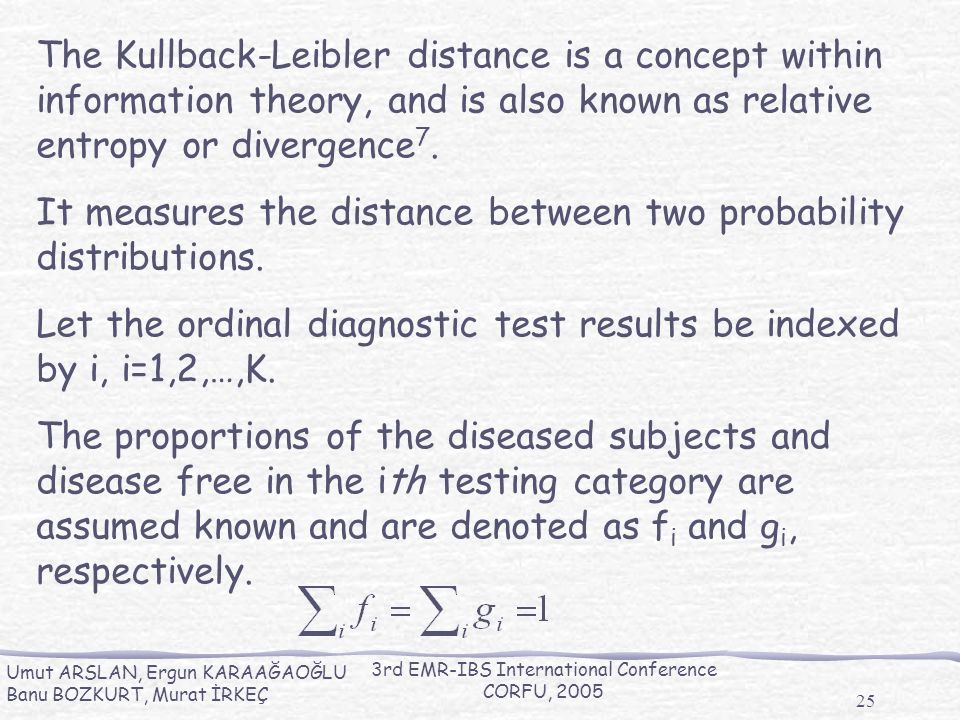

25. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 25 The Kullback-Leibler distance is a concept within information theory, and is also known as relative entropy or divergence 7. It measures the distance between two probability distributions. Let the ordinal diagnostic test results be indexed by i, i=1,2,…,K. The proportions of the diseased subjects and disease free in the ith testing category are assumed known and are denoted as f i and g i, respectively.

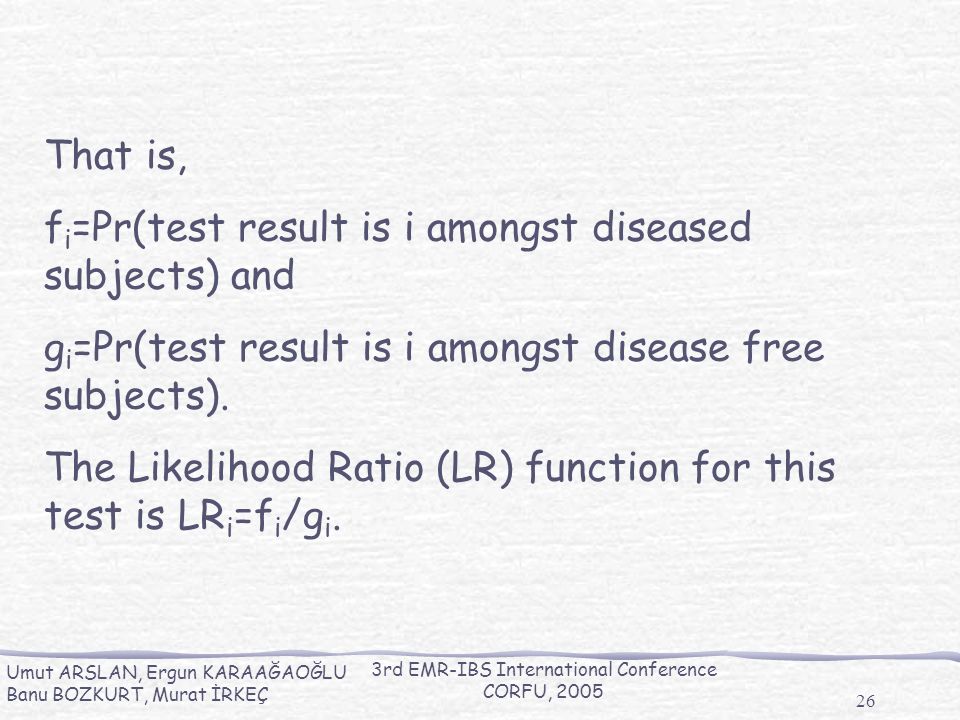

26. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 26 That is, f i =Pr(test result is i amongst diseased subjects) and g i =Pr(test result is i amongst disease free subjects). The Likelihood Ratio (LR) function for this test is LR i =f i /g i.

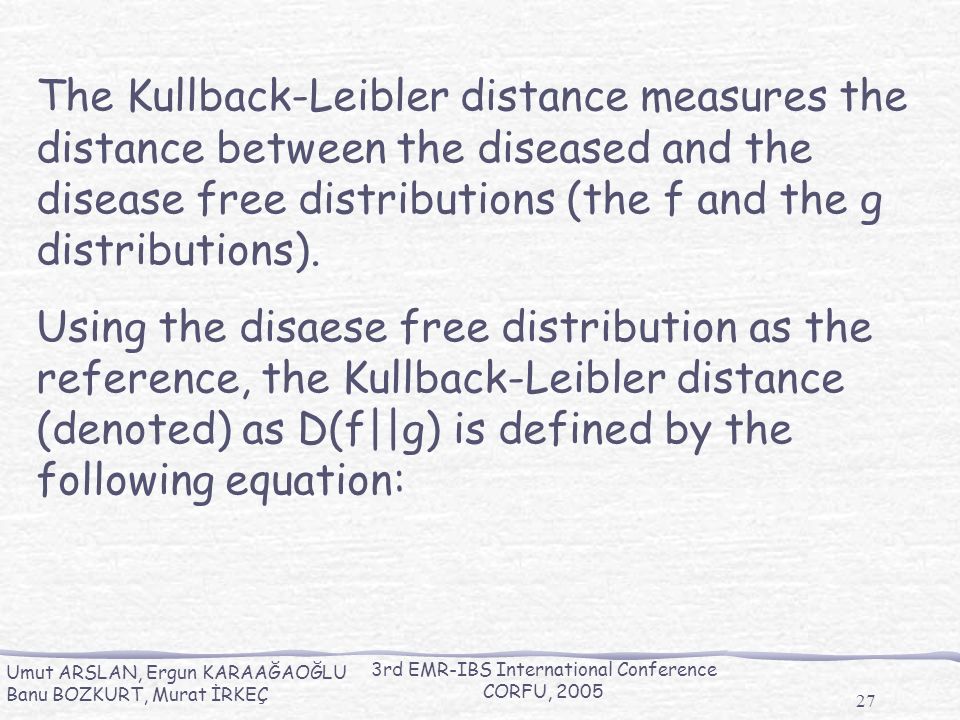

27. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 27 The Kullback-Leibler distance measures the distance between the diseased and the disease free distributions (the f and the g distributions). Using the disaese free distribution as the reference, the Kullback-Leibler distance (denoted) as D(f||g) is defined by the following equation:

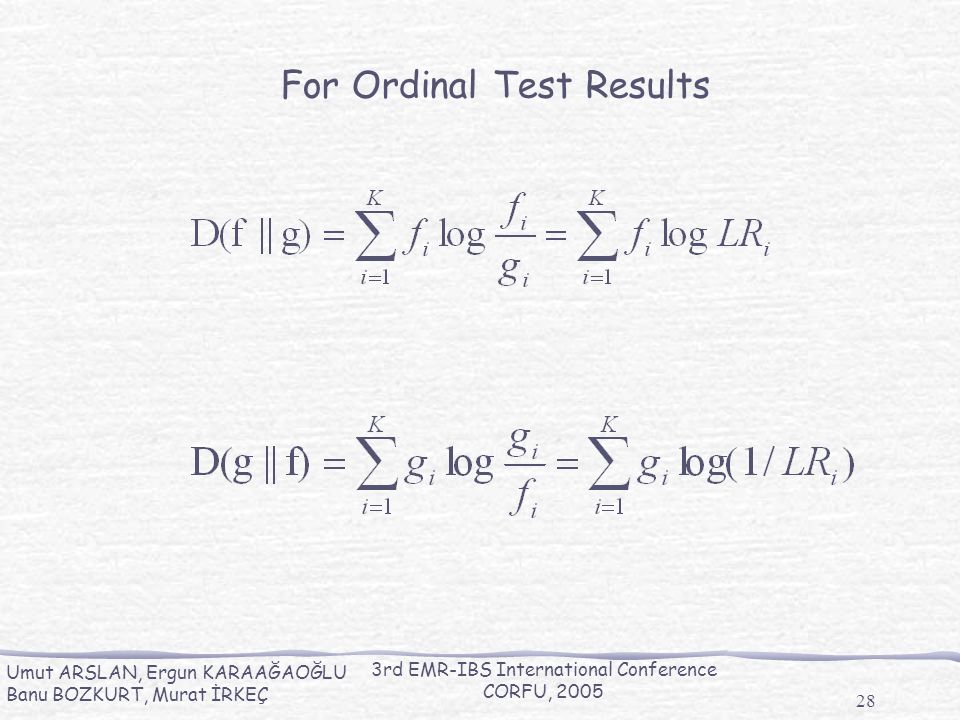

28. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 28 For Ordinal Test Results

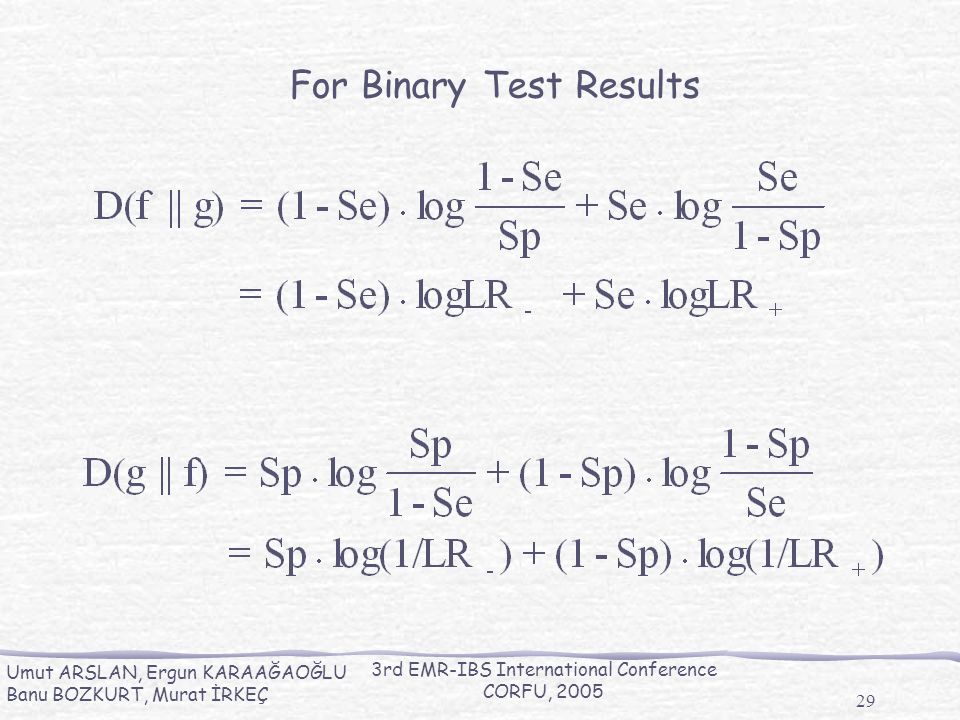

29. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 29 For Binary Test Results

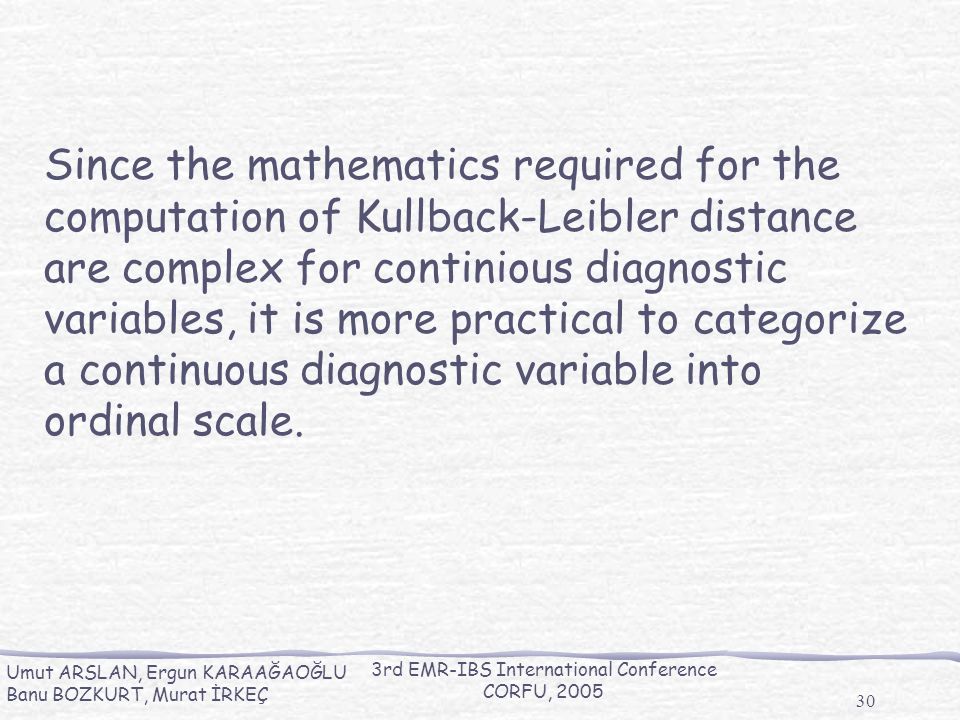

30. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 30 Since the mathematics required for the computation of Kullback-Leibler distance are complex for continious diagnostic variables, it is more practical to categorize a continuous diagnostic variable into ordinal scale.

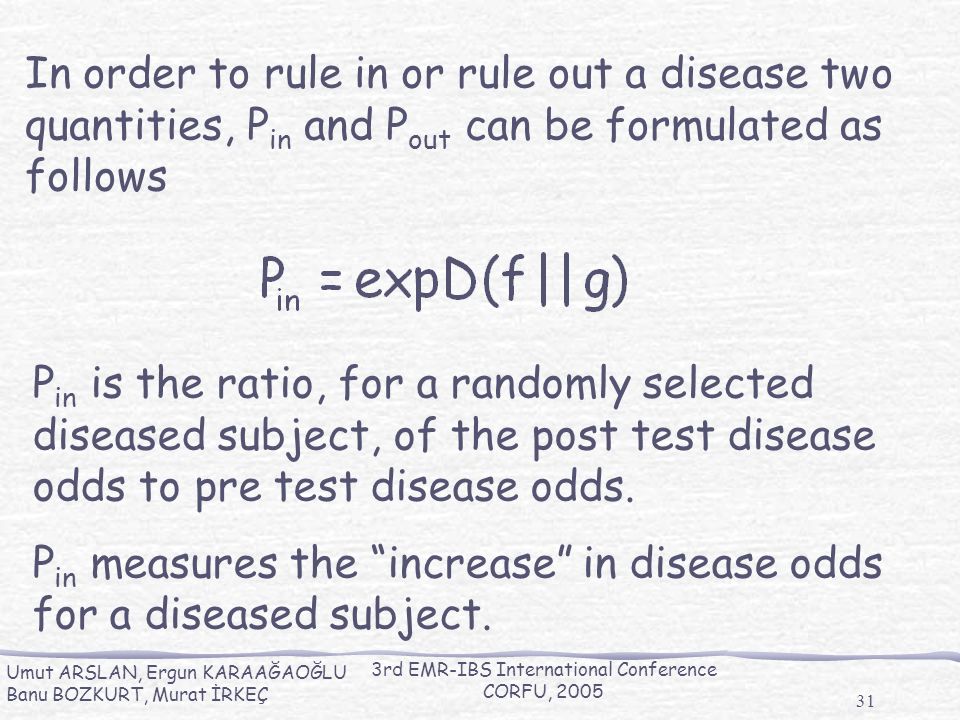

31. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 31 P in is the ratio, for a randomly selected diseased subject, of the post test disease odds to pre test disease odds. P in measures the “increase” in disease odds for a diseased subject. In order to rule in or rule out a disease two quantities, P in and P out can be formulated as follows

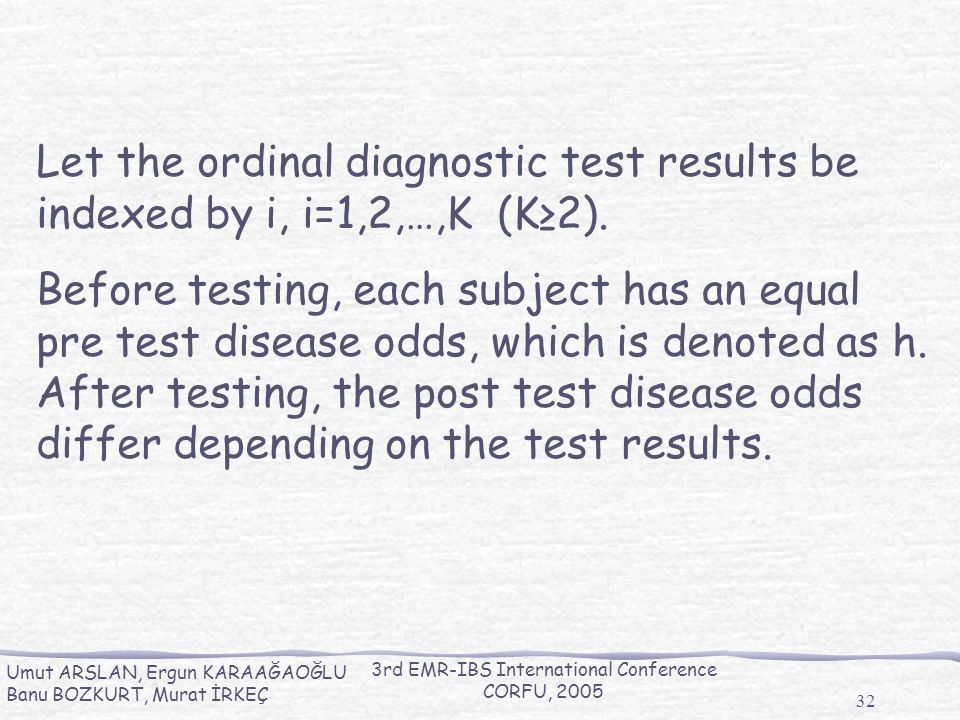

32. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 32 Let the ordinal diagnostic test results be indexed by i, i=1,2,…,K (K≥2). Before testing, each subject has an equal pre test disease odds, which is denoted as h. After testing, the post test disease odds differ depending on the test results.

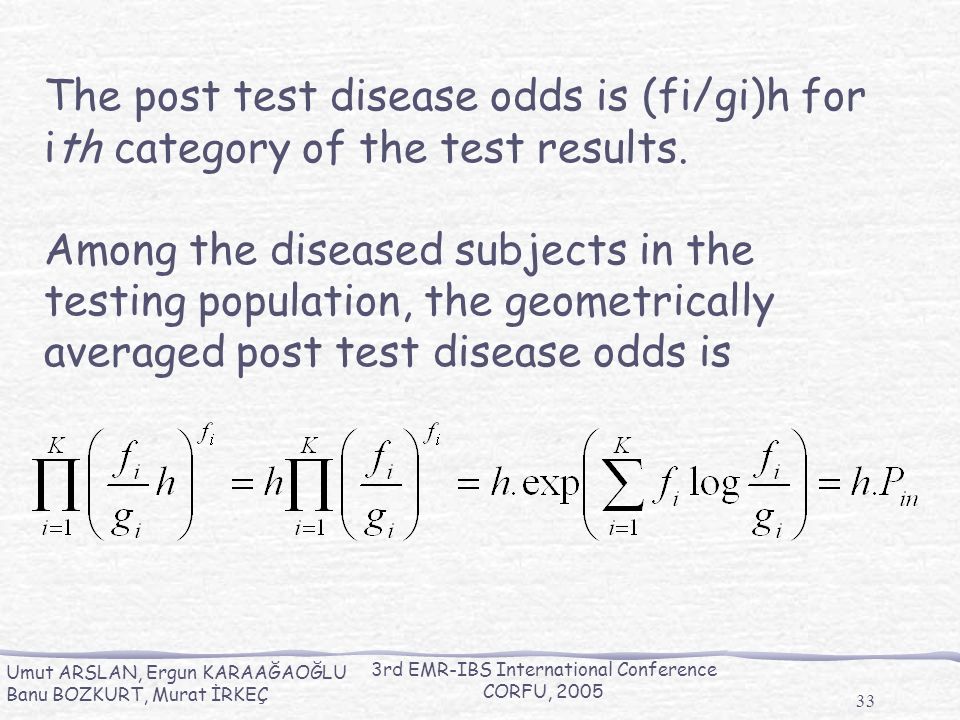

33. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 33 The post test disease odds is (fi/gi)h for ith category of the test results. Among the diseased subjects in the testing population, the geometrically averaged post test disease odds is

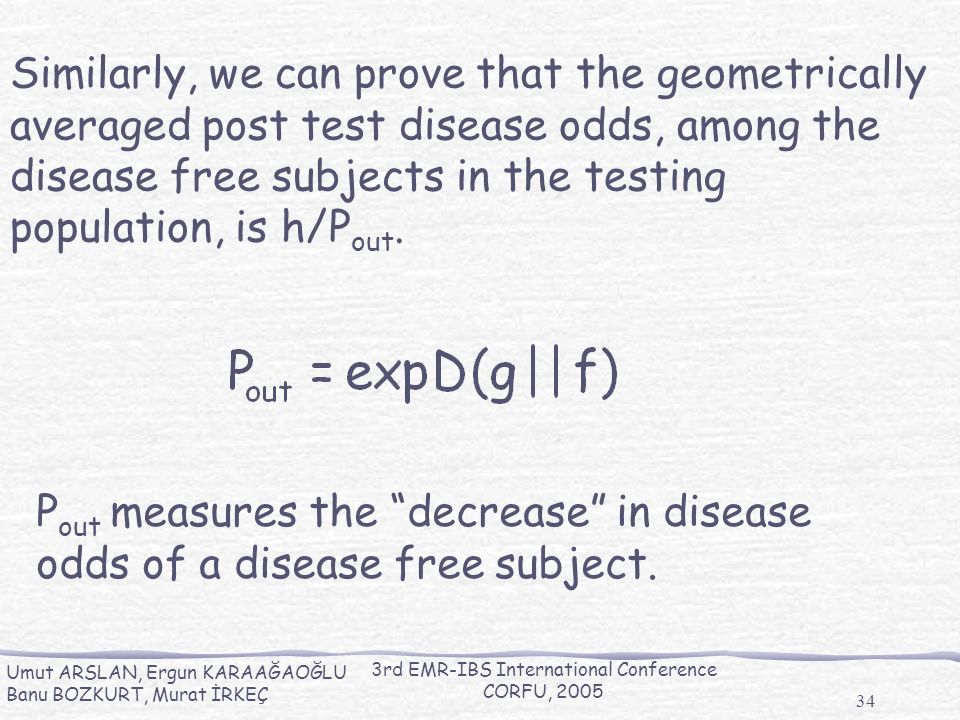

34. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 34 Similarly, we can prove that the geometrically averaged post test disease odds, among the disease free subjects in the testing population, is h/P out. P out measures the “decrease” in disease odds of a disease free subject.

35. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 35 With these new performance indices, we can now have a better undertanding of the rule in and rule out potentials of a diagnostic test. A diagnostic test with greater D(f||g) (and greater P in ), if administered, will on average make disease presence more likely among the diseased subjects in the testing population-its potential of ruling in disease is higher.

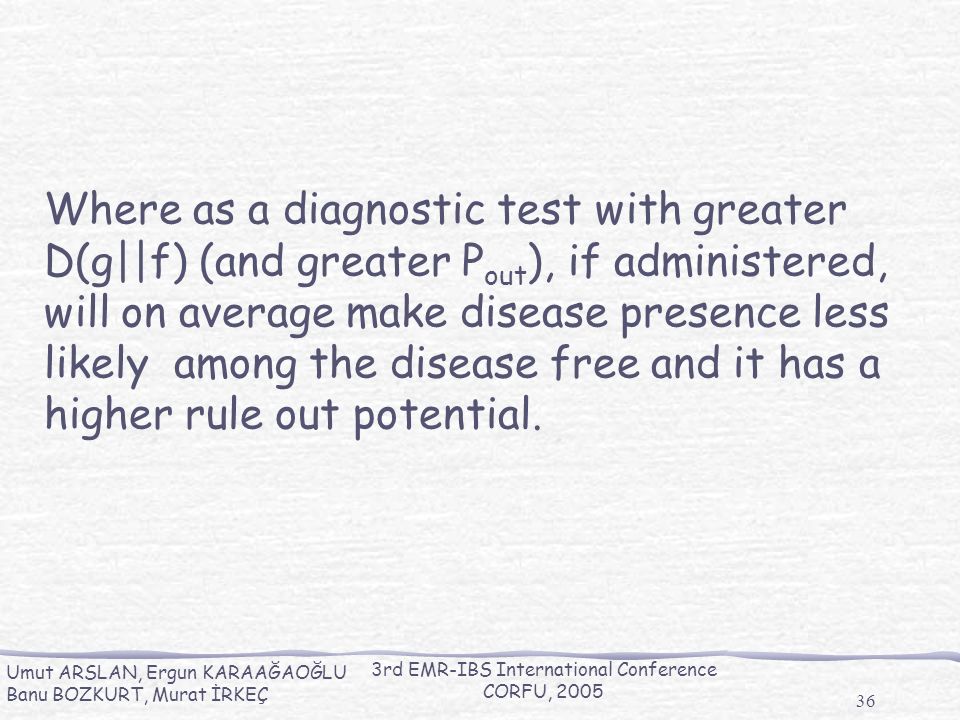

36. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 36 Where as a diagnostic test with greater D(g||f) (and greater P out ), if administered, will on average make disease presence less likely among the disease free and it has a higher rule out potential.

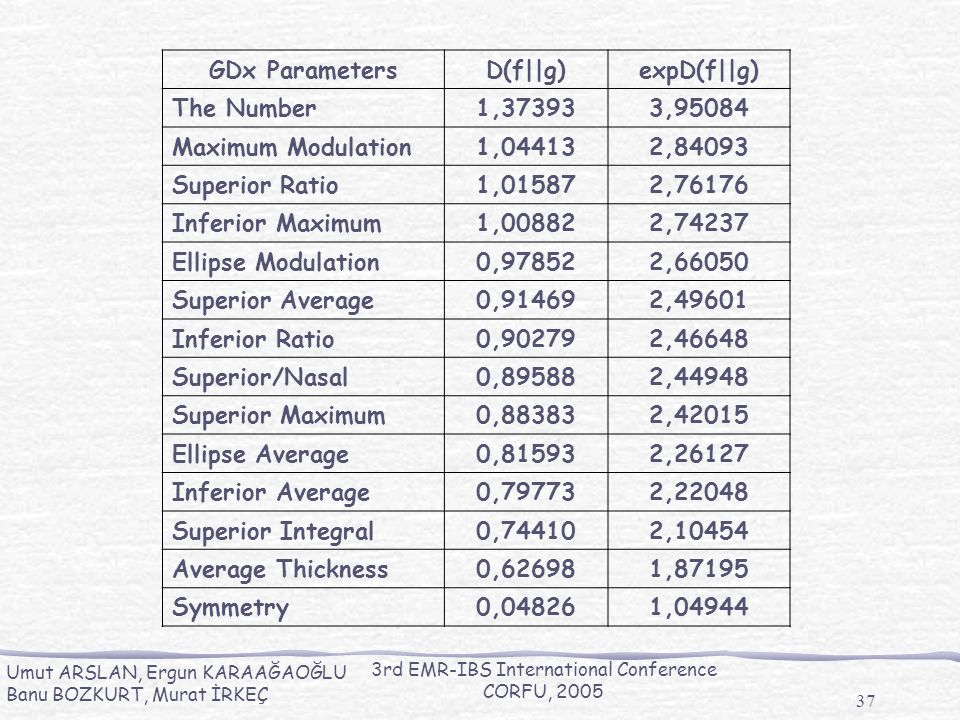

37. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 37 GDx ParametersD(f||g)expD(f||g) The Number1,373933,95084 Maximum Modulation1,044132,84093 Superior Ratio1,015872,76176 Inferior Maximum1,008822,74237 Ellipse Modulation0,978522,66050 Superior Average0,914692,49601 Inferior Ratio0,902792,46648 Superior/Nasal0,895882,44948 Superior Maximum0,883832,42015 Ellipse Average0,815932,26127 Inferior Average0,797732,22048 Superior Integral0,744102,10454 Average Thickness0,626981,87195 Symmetry0,048261,04944

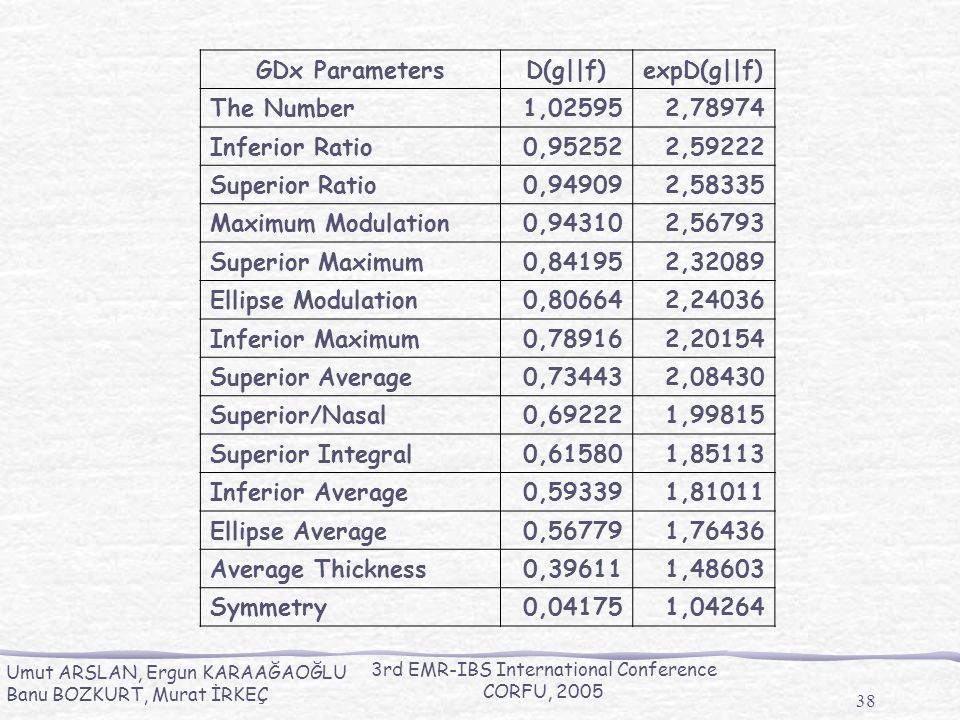

38. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 38 GDx ParametersD(g||f)expD(g||f) The Number1,025952,78974 Inferior Ratio0,952522,59222 Superior Ratio0,949092,58335 Maximum Modulation0,943102,56793 Superior Maximum0,841952,32089 Ellipse Modulation0,806642,24036 Inferior Maximum0,789162,20154 Superior Average0,734432,08430 Superior/Nasal0,692221,99815 Superior Integral0,615801,85113 Inferior Average0,593391,81011 Ellipse Average0,567791,76436 Average Thickness0,396111,48603 Symmetry0,041751,04264

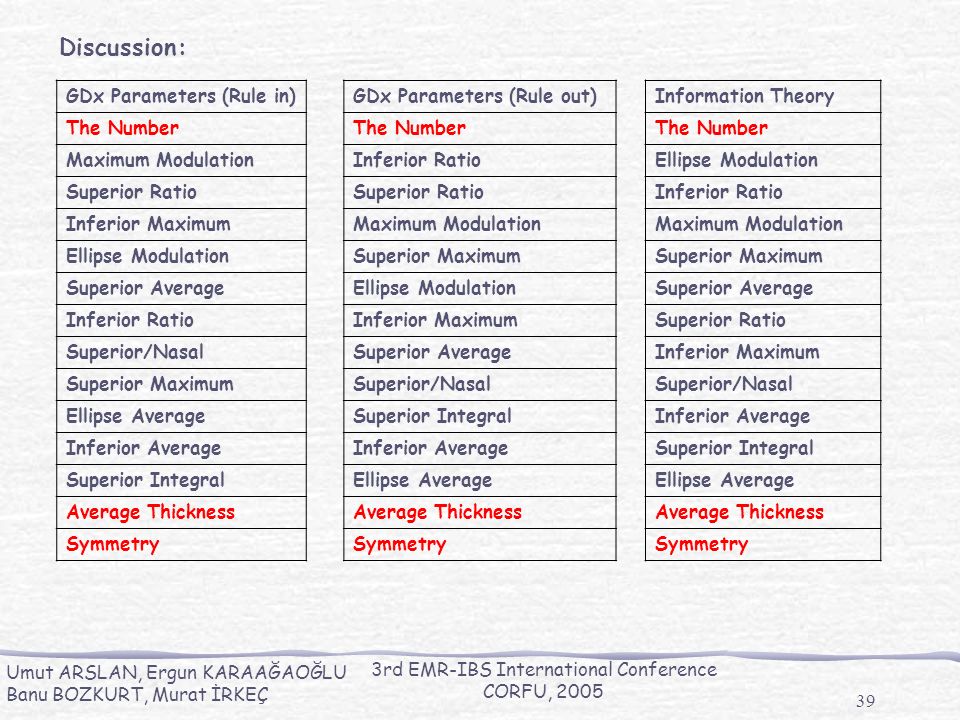

39. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 39 GDx Parameters (Rule in) The Number Maximum Modulation Superior Ratio Inferior Maximum Ellipse Modulation Superior Average Inferior Ratio Superior/Nasal Superior Maximum Ellipse Average Inferior Average Superior Integral Average Thickness Symmetry GDx Parameters (Rule out) The Number Inferior Ratio Superior Ratio Maximum Modulation Superior Maximum Ellipse Modulation Inferior Maximum Superior Average Superior/Nasal Superior Integral Inferior Average Ellipse Average Average Thickness Symmetry Information Theory The Number Ellipse Modulation Inferior Ratio Maximum Modulation Superior Maximum Superior Average Superior Ratio Inferior Maximum Superior/Nasal Inferior Average Superior Integral Ellipse Average Average Thickness Symmetry Discussion:

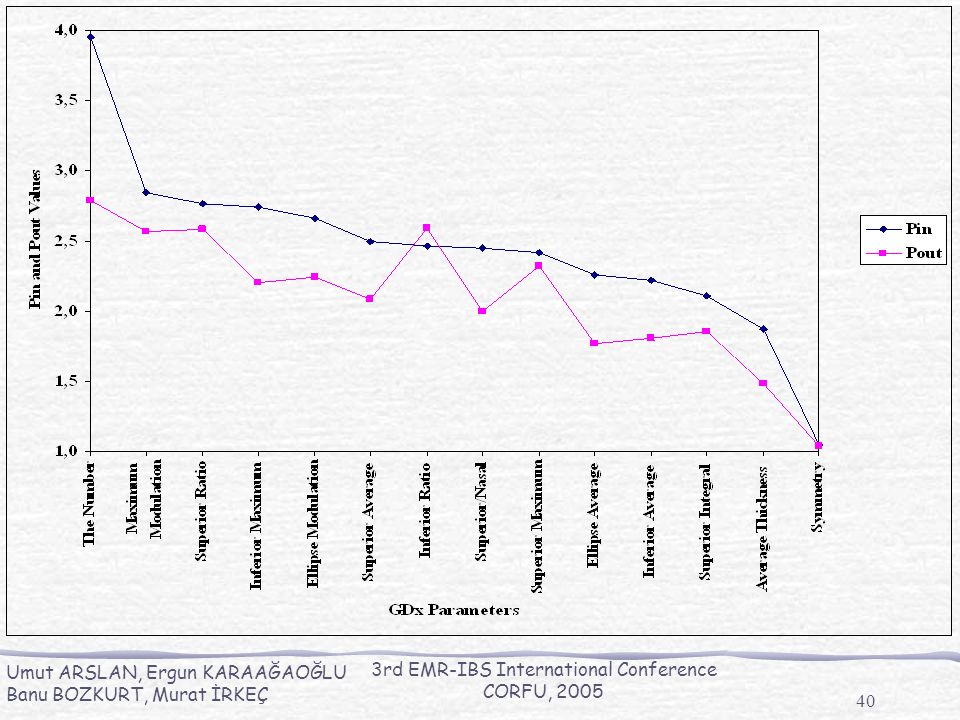

40. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 40

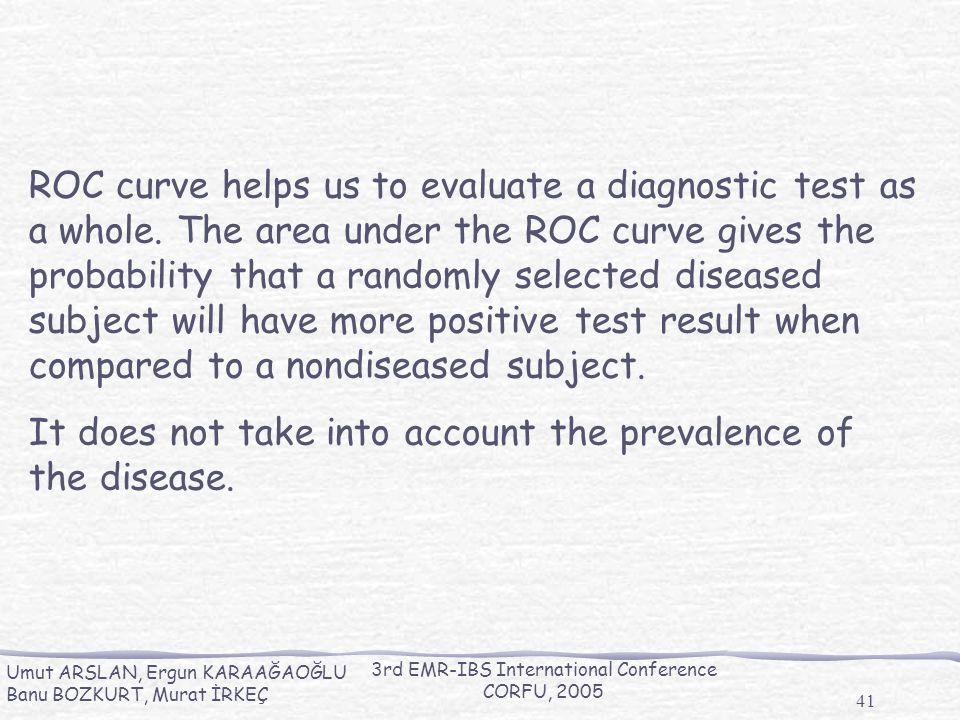

41. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 41 ROC curve helps us to evaluate a diagnostic test as a whole. The area under the ROC curve gives the probability that a randomly selected diseased subject will have more positive test result when compared to a nondiseased subject. It does not take into account the prevalence of the disease.

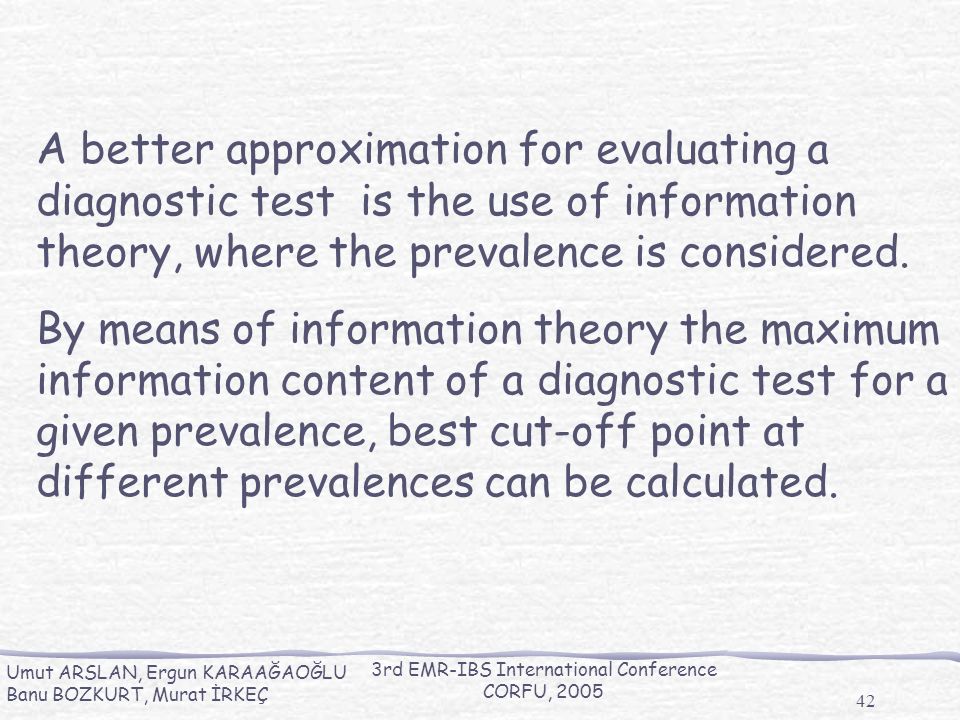

42. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 42 A better approximation for evaluating a diagnostic test is the use of information theory, where the prevalence is considered. By means of information theory the maximum information content of a diagnostic test for a given prevalence, best cut-off point at different prevalences can be calculated.

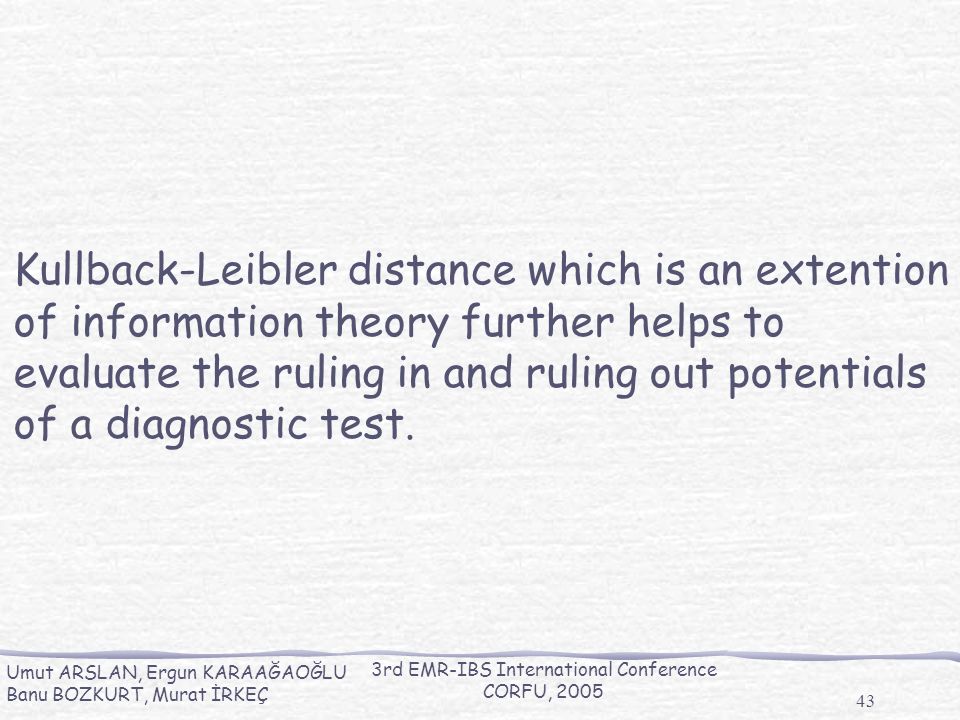

43. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 43 Kullback-Leibler distance which is an extention of information theory further helps to evaluate the ruling in and ruling out potentials of a diagnostic test.

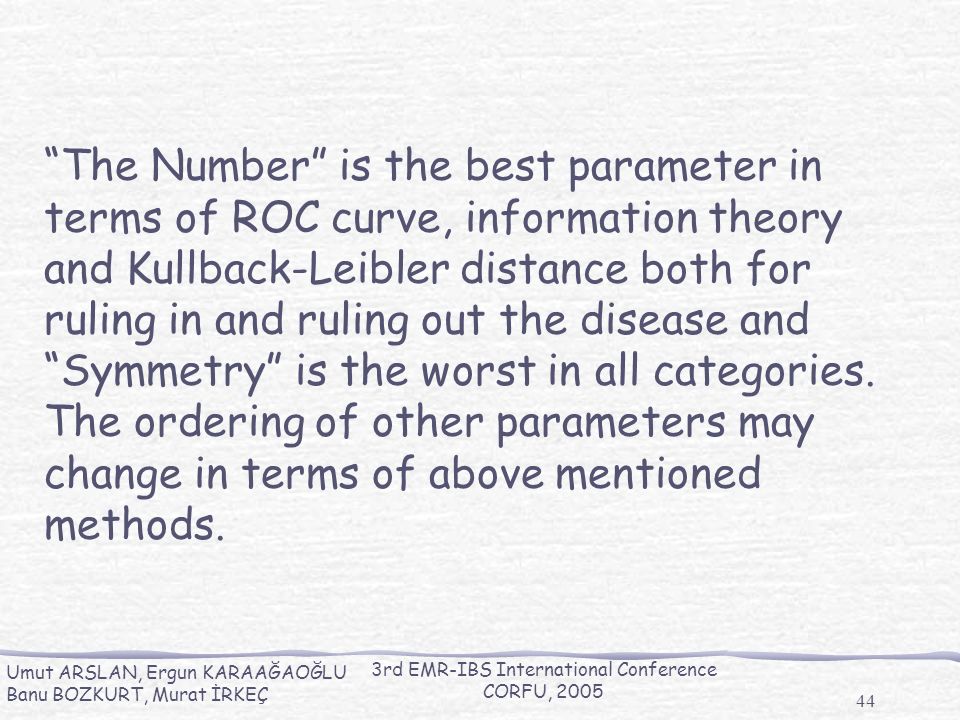

44. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 44 “The Number” is the best parameter in terms of ROC curve, information theory and Kullback-Leibler distance both for ruling in and ruling out the disease and “Symmetry” is the worst in all categories. The ordering of other parameters may change in terms of above mentioned methods.

45. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 45 Larger values of Kullback-Leibler distance indicates greater seperation between two distributions. For a parameter as D(f||g) increases the corresponding P in value also increases. Among GDx parameters “The Number” seems to be the best parameter for ruling in the disease, whereas “Symmetry” is the worst.

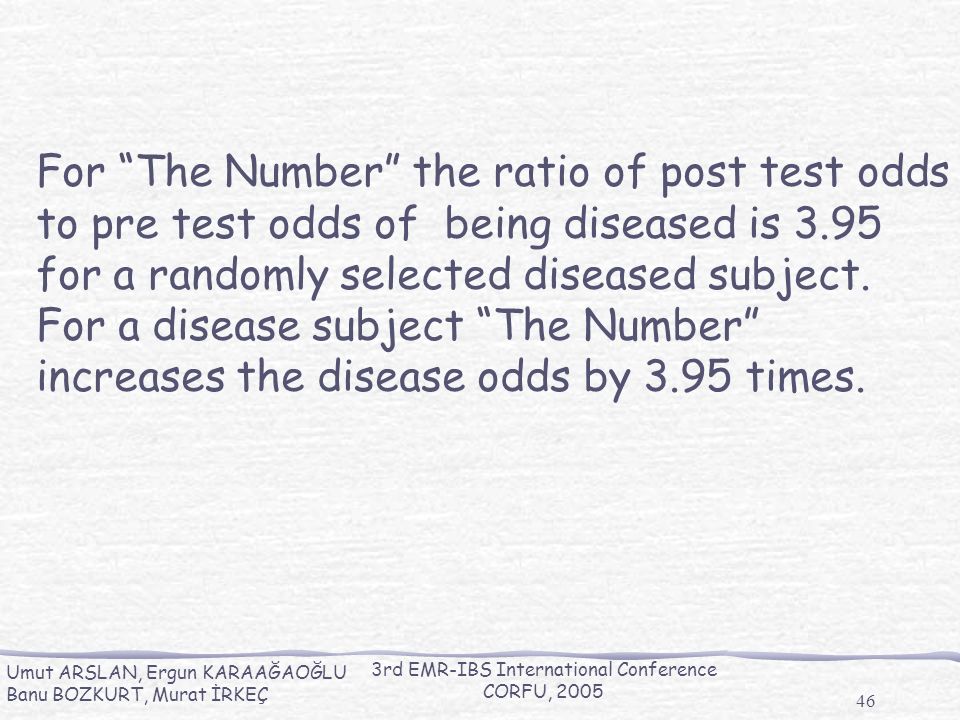

46. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 46 For “The Number” the ratio of post test odds to pre test odds of being diseased is 3.95 for a randomly selected diseased subject. For a disease subject “The Number” increases the disease odds by 3.95 times.

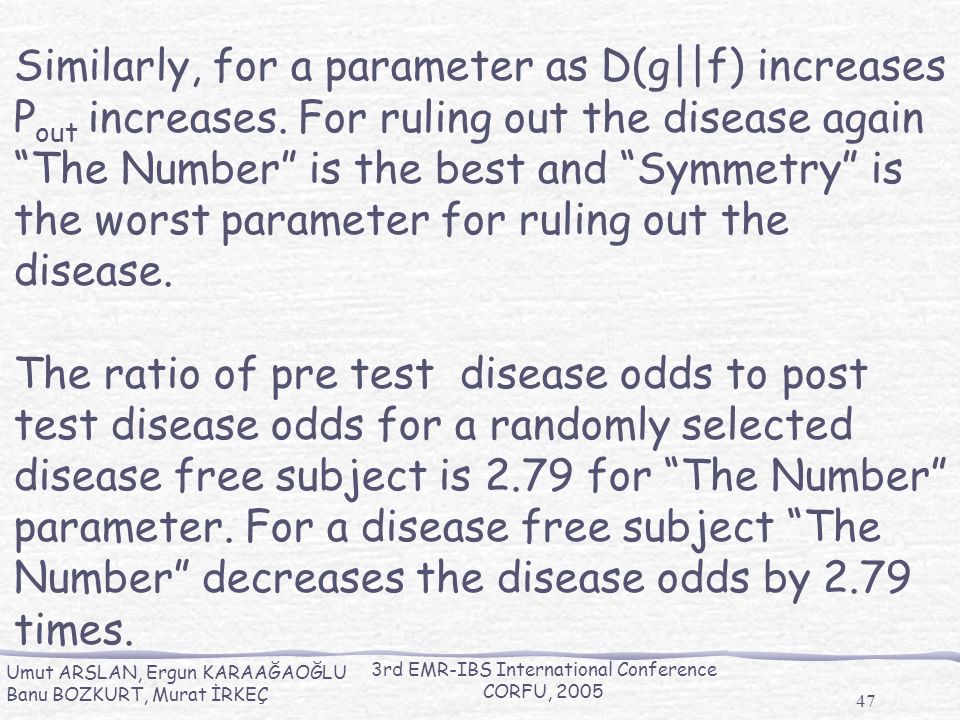

47. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 47 Similarly, for a parameter as D(g||f) increases P out increases. For ruling out the disease again “The Number” is the best and “Symmetry” is the worst parameter for ruling out the disease. The ratio of pre test disease odds to post test disease odds for a randomly selected disease free subject is 2.79 for “The Number” parameter. For a disease free subject “The Number” decreases the disease odds by 2.79 times.

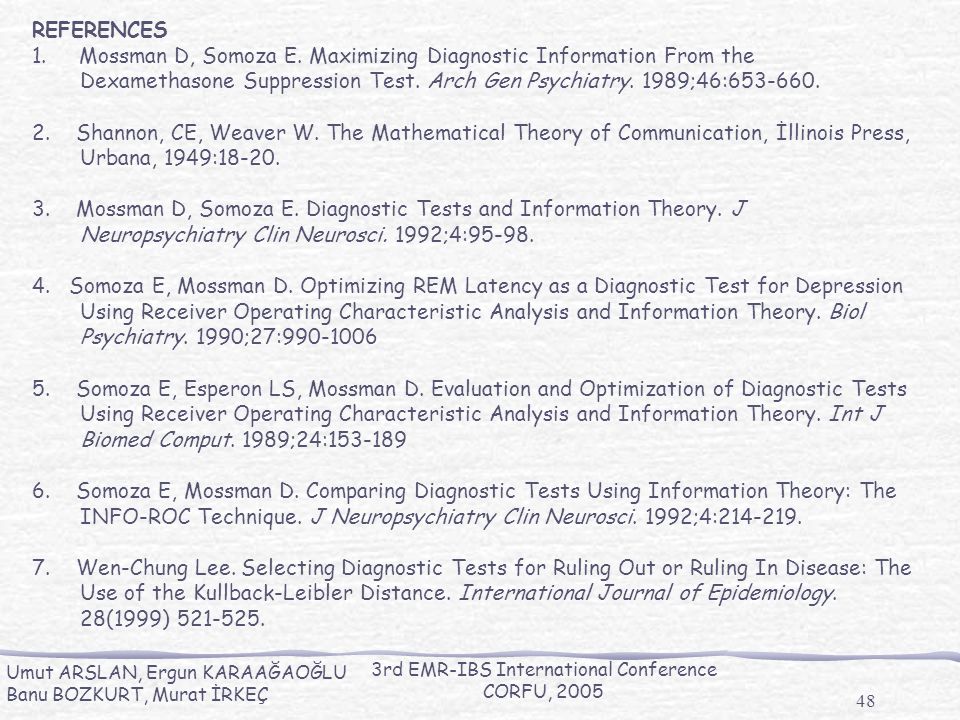

48. Umut ARSLAN, Ergun KARAAĞAOĞLU Banu BOZKURT, Murat İRKEÇ 3rd EMR-IBS International Conference CORFU, 2005 48 REFERENCES 1. Mossman D, Somoza E. Maximizing Diagnostic Information From the Dexamethasone Suppression Test. Arch Gen Psychiatry. 1989;46:653-660. 2. Shannon, CE, Weaver W. The Mathematical Theory of Communication, İllinois Press, Urbana, 1949:18-20. 3. Mossman D, Somoza E. Diagnostic Tests and Information Theory. J Neuropsychiatry Clin Neurosci. 1992;4:95-98. 4. Somoza E, Mossman D. Optimizing REM Latency as a Diagnostic Test for Depression Using Receiver Operating Characteristic Analysis and Information Theory. Biol Psychiatry. 1990;27:990-1006 5. Somoza E, Esperon LS, Mossman D. Evaluation and Optimization of Diagnostic Tests Using Receiver Operating Characteristic Analysis and Information Theory. Int J Biomed Comput. 1989;24:153-189 6. Somoza E, Mossman D. Comparing Diagnostic Tests Using Information Theory: The INFO-ROC Technique. J Neuropsychiatry Clin Neurosci. 1992;4:214-219. 7. Wen-Chung Lee. Selecting Diagnostic Tests for Ruling Out or Ruling In Disease: The Use of the Kullback-Leibler Distance. International Journal of Epidemiology. 28(1999) 521-525.
