1 Covalent Bonding & Polarity Chapter 6.2

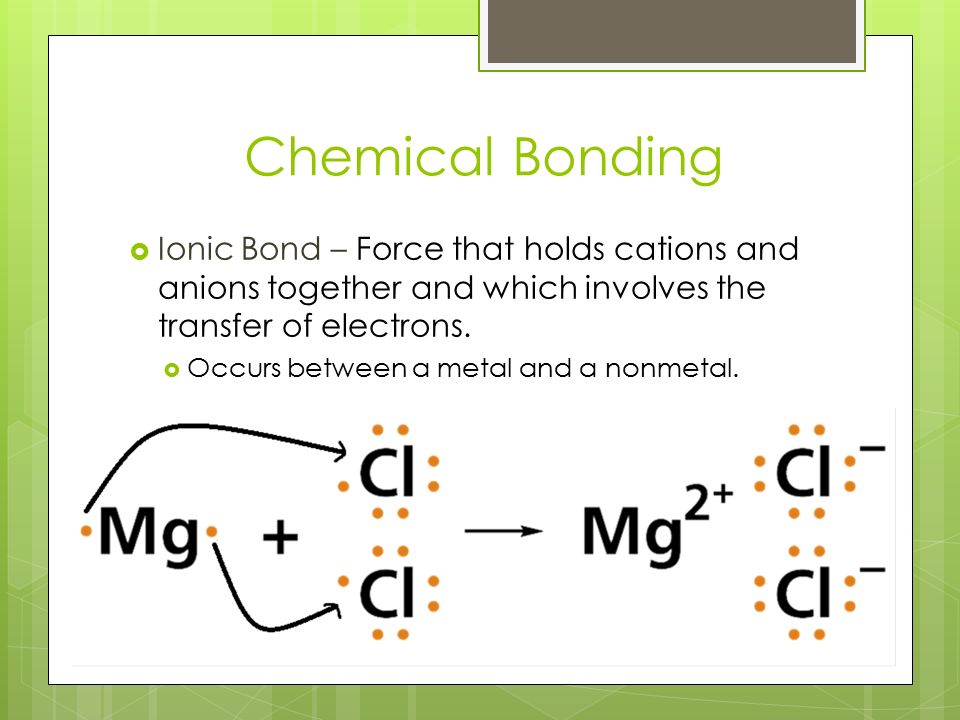

2 Chemical Bonding  Ionic Bond – Force that holds cations and anions together and which involves the transfer of electrons.  Occurs between a metal and a nonmetal.

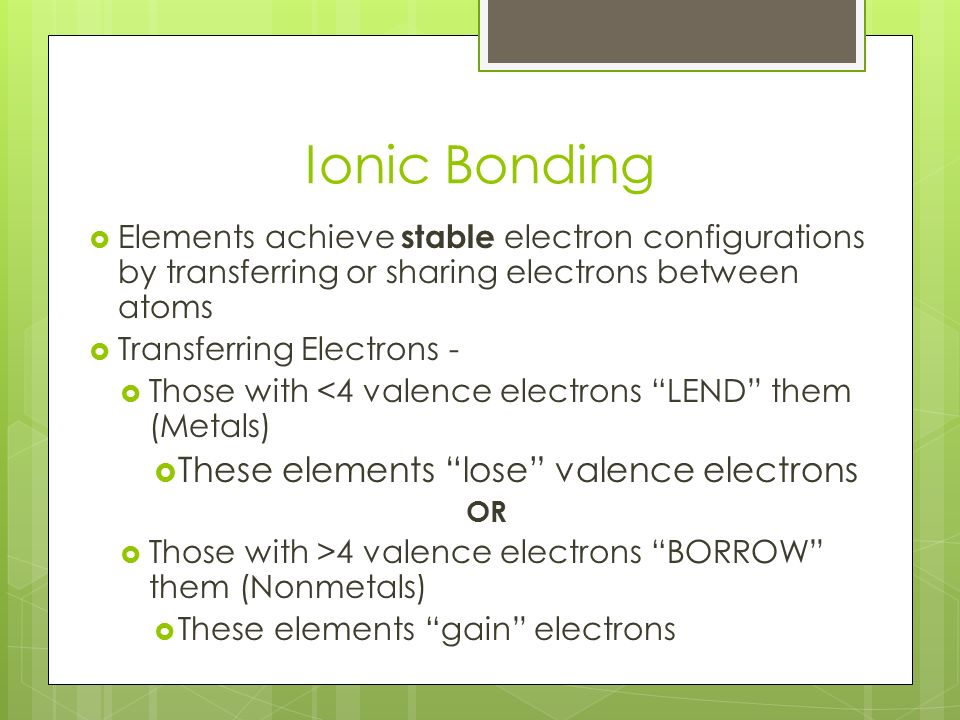

3 Ionic Bonding  Elements achieve stable electron configurations by transferring or sharing electrons between atoms  Transferring Electrons -  Those with <4 valence electrons “LEND” them (Metals)  These elements “lose” valence electrons OR  Those with >4 valence electrons “BORROW” them (Nonmetals)  These elements “gain” electrons

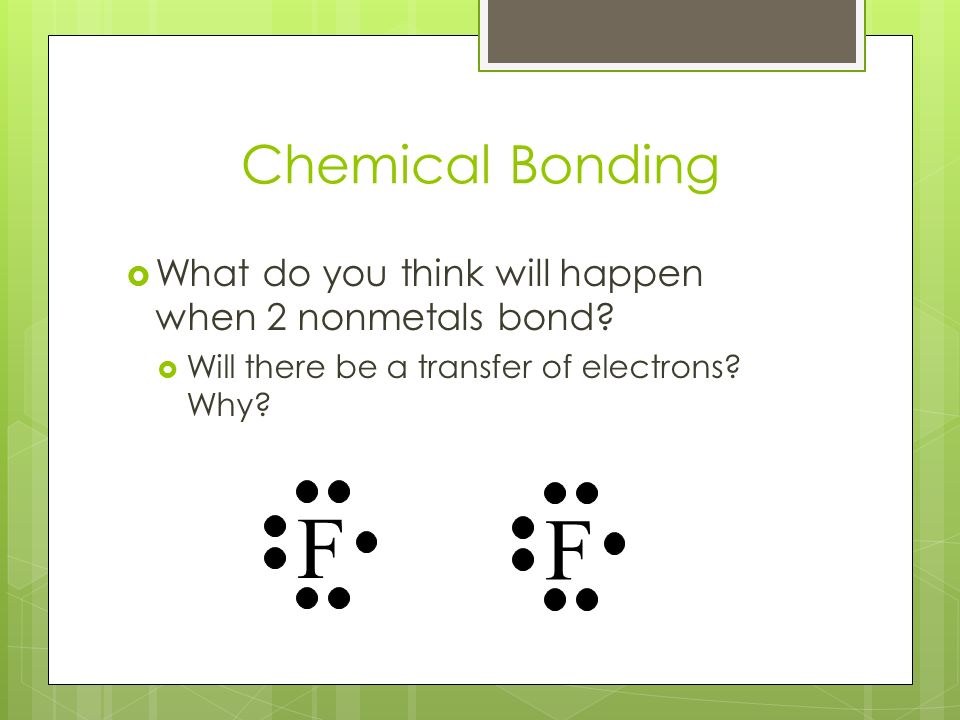

4 Chemical Bonding  What do you think will happen when 2 nonmetals bond?  Will there be a transfer of electrons? Why? FF

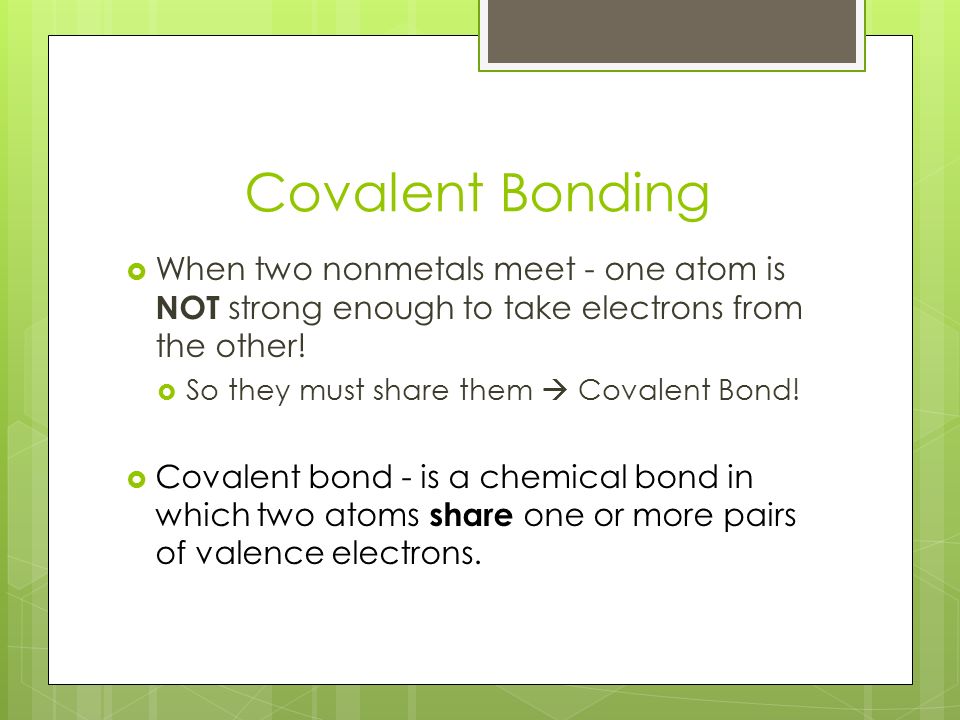

5 Covalent Bonding  When two nonmetals meet - one atom is NOT strong enough to take electrons from the other!  So they must share them  Covalent Bond!  Covalent bond - is a chemical bond in which two atoms share one or more pairs of valence electrons.

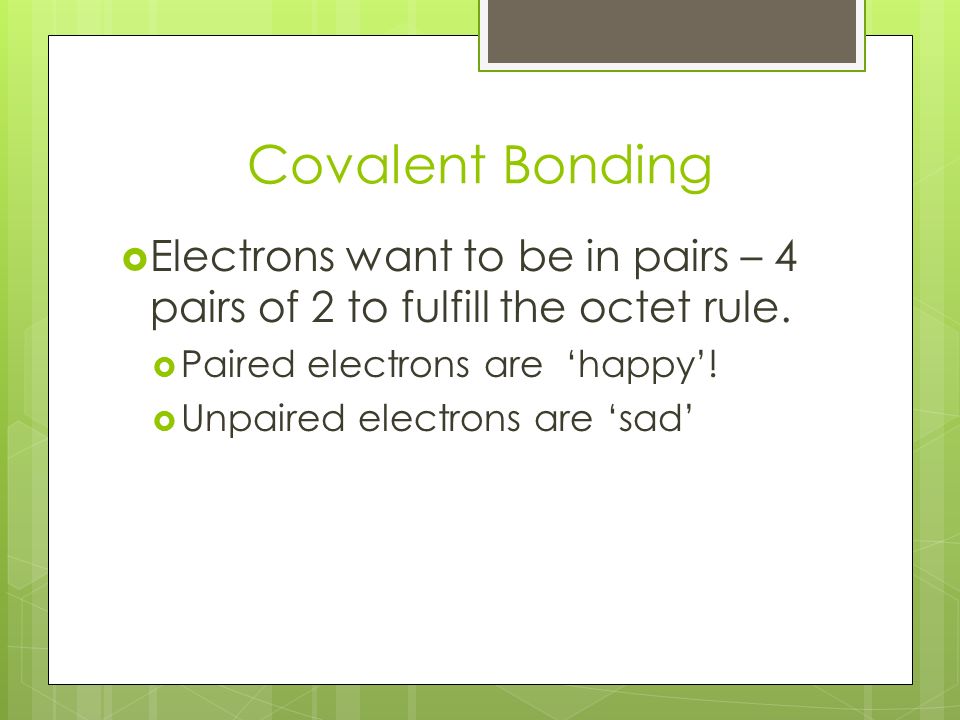

6 Covalent Bonding  Electrons want to be in pairs – 4 pairs of 2 to fulfill the octet rule.  Paired electrons are ‘happy’!  Unpaired electrons are ‘sad’

7 Paired or Unpaired Unpaired Electron

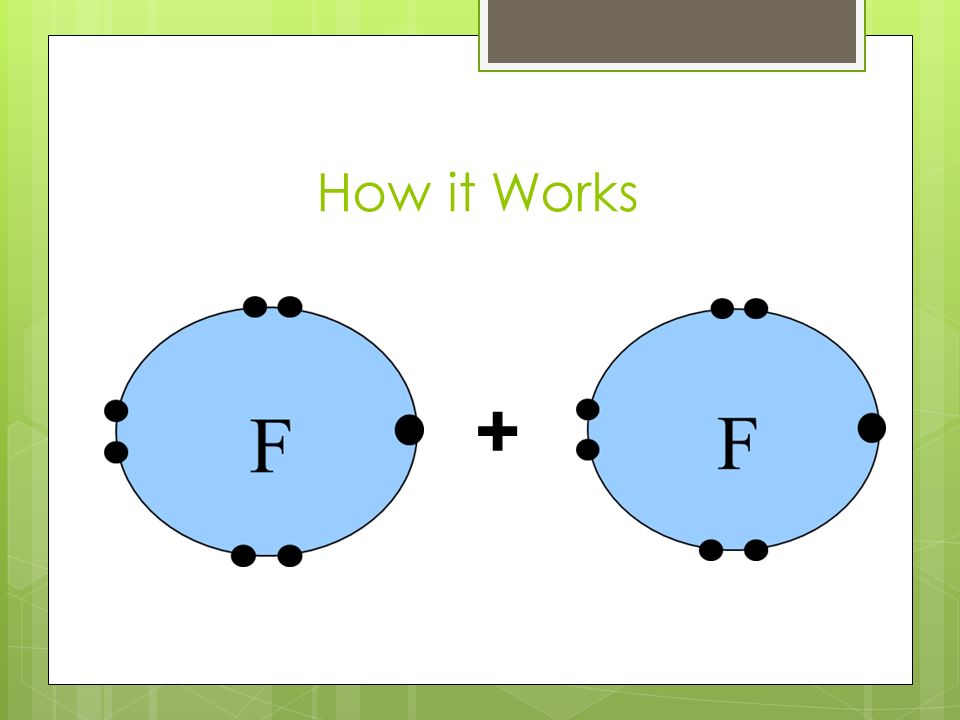

8 How it Works +

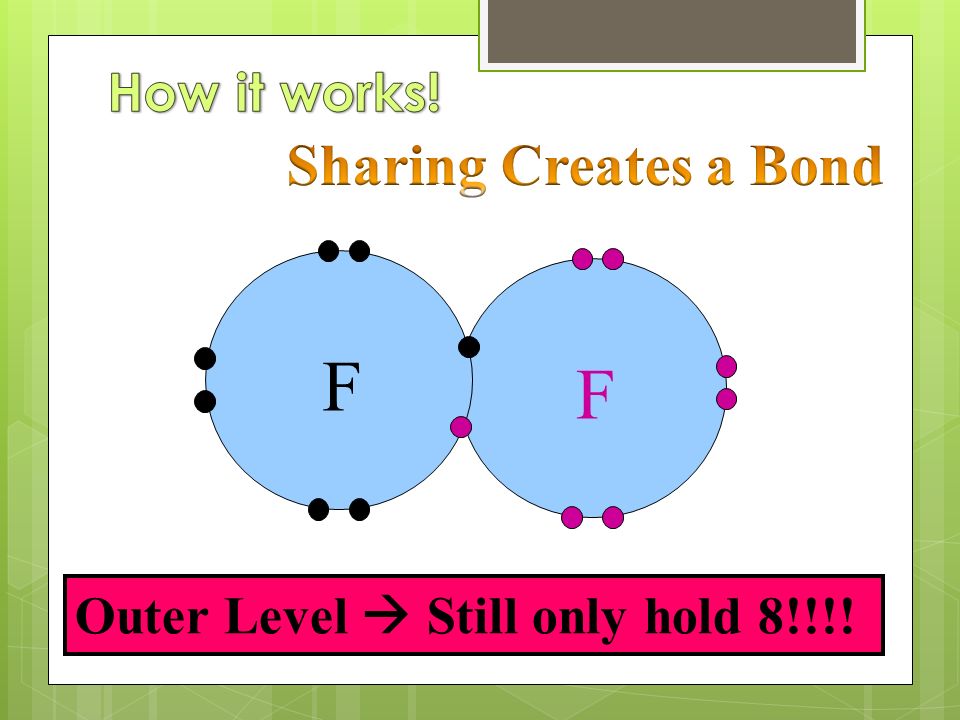

9 F F Outer Level  Still only hold 8!!!!

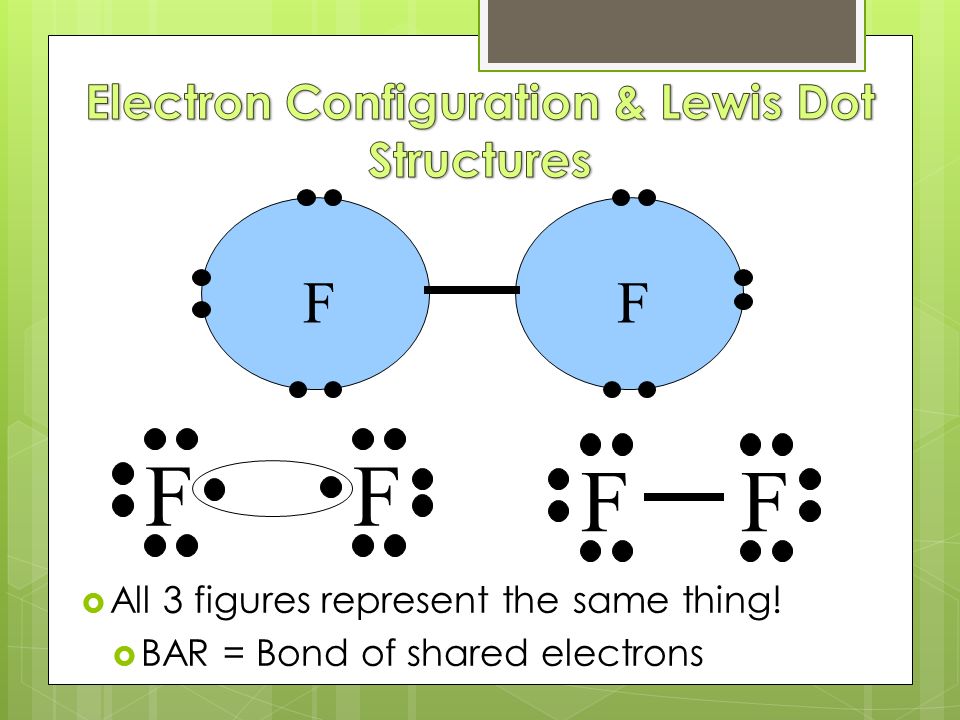

10  All 3 figures represent the same thing!  BAR = Bond of shared electrons FF FFFF

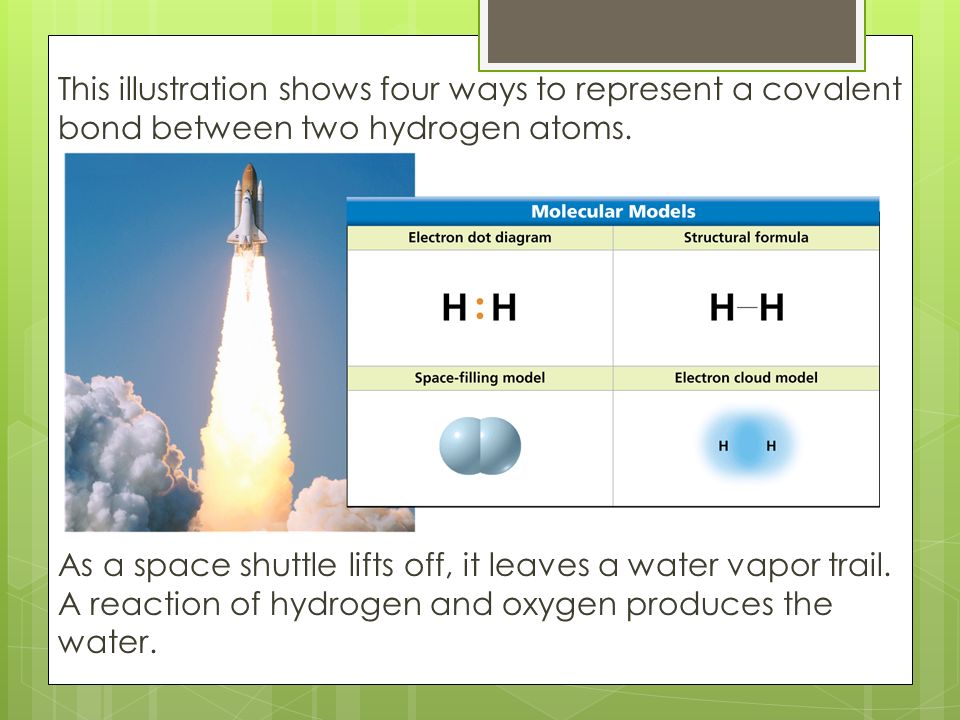

11 This illustration shows four ways to represent a covalent bond between two hydrogen atoms. As a space shuttle lifts off, it leaves a water vapor trail. A reaction of hydrogen and oxygen produces the water.

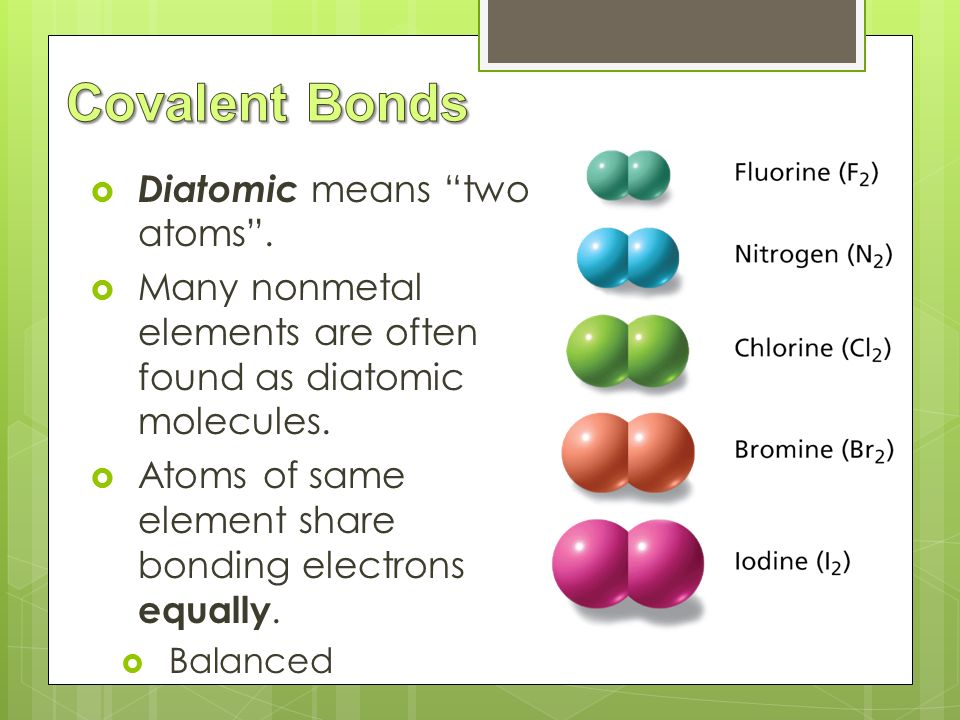

12  Diatomic means “two atoms”.  Many nonmetal elements are often found as diatomic molecules.  Atoms of same element share bonding electrons equally.  Balanced

13 FFFF OR Single Bond = One Pair of e - Shared Between Two Atoms. Each atom gives one e - to the shared pair

14 Oxygen and Oxygen O O

15 OR Two Pairs of Electrons are Being Shared Each atom gives one e - to each shared pair OO OO

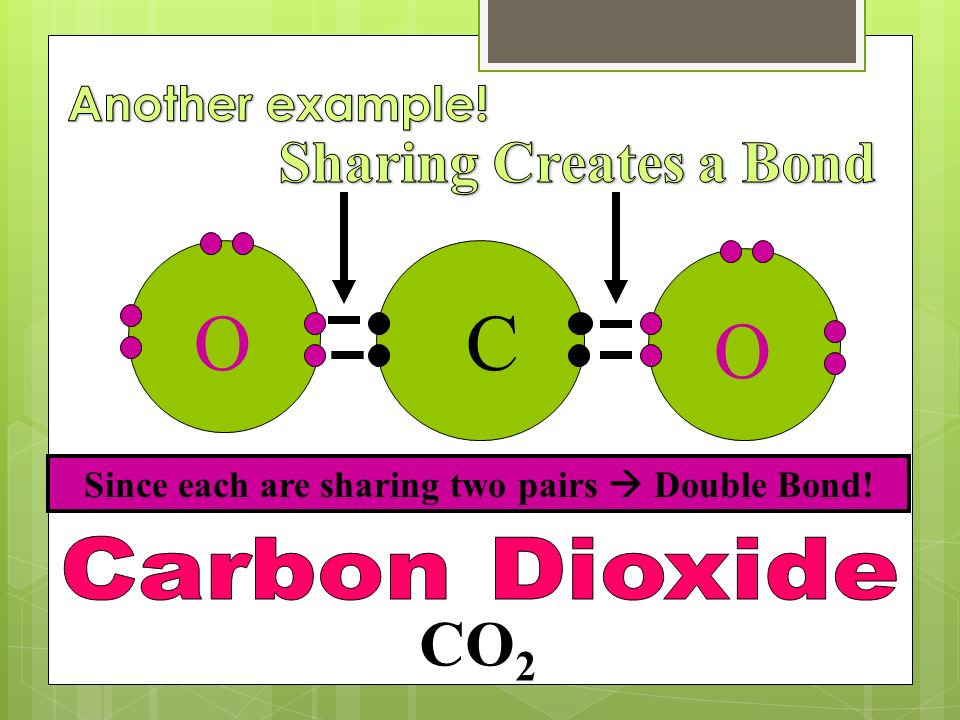

16 CO 2 Since each are sharing two pairs  Double Bond! CO O

17 Nitrogen and Nitrogen N N N

18 OR Three Pairs of Electrons Being Shared NN NN

19 Make a molecule out of Oxygen and two Fluorine

20 F OF Formula: OF 2 OF F

21 Try Carbon and two Oxygen

22 O CO C O O Formula: CO 2

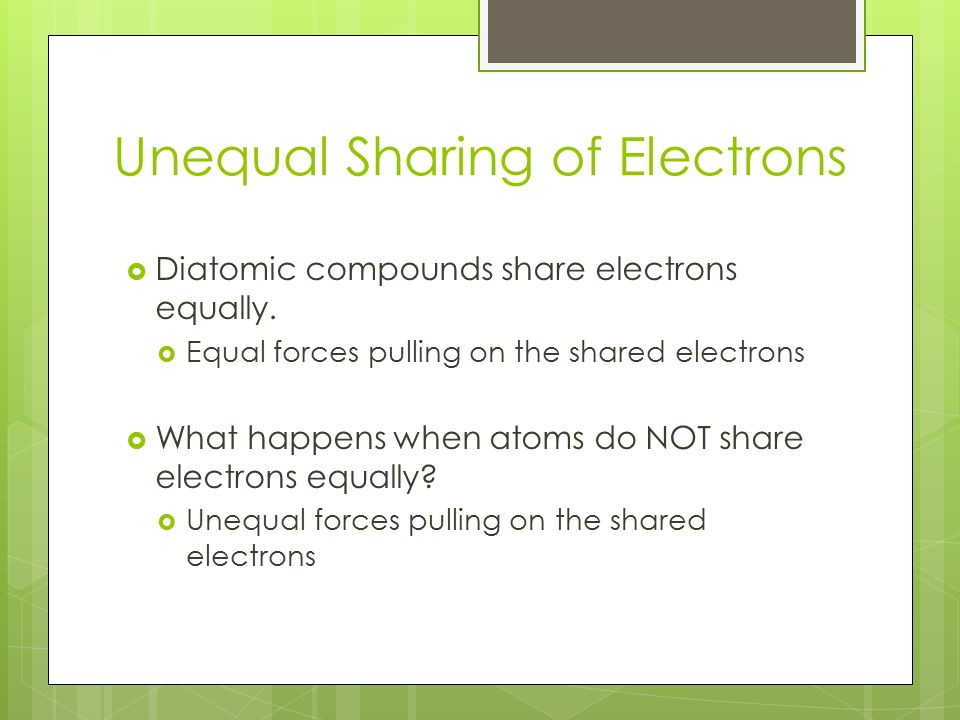

23 Unequal Sharing of Electrons  Diatomic compounds share electrons equally.  Equal forces pulling on the shared electrons  What happens when atoms do NOT share electrons equally?  Unequal forces pulling on the shared electrons

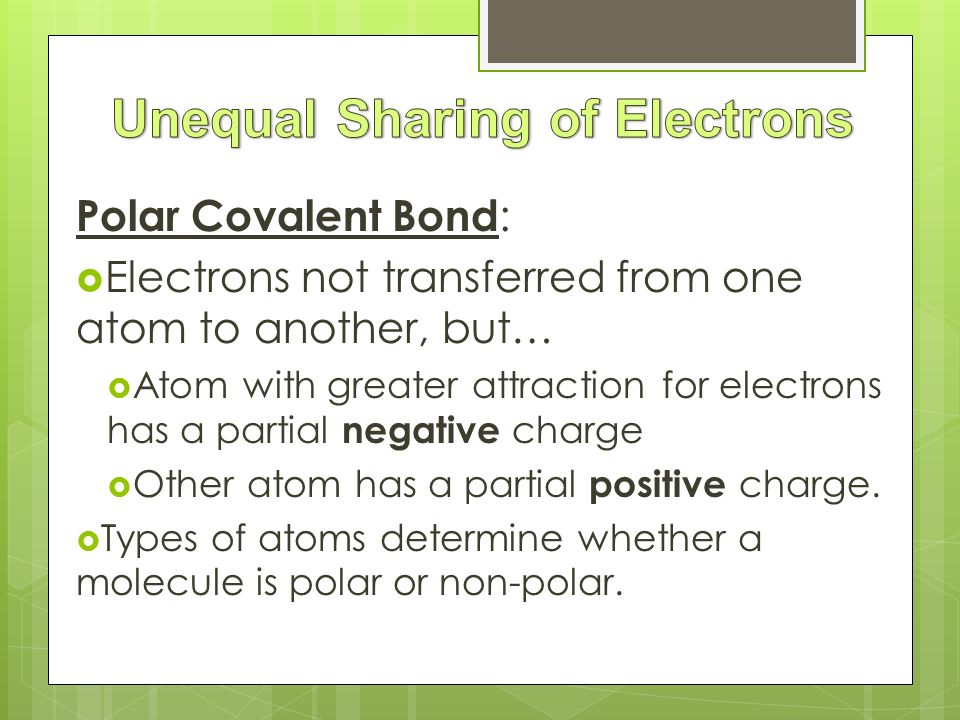

24 Polar Covalent Bond :  Electrons not transferred from one atom to another, but…  Atom with greater attraction for electrons has a partial negative charge  Other atom has a partial positive charge.  Types of atoms determine whether a molecule is polar or non-polar.

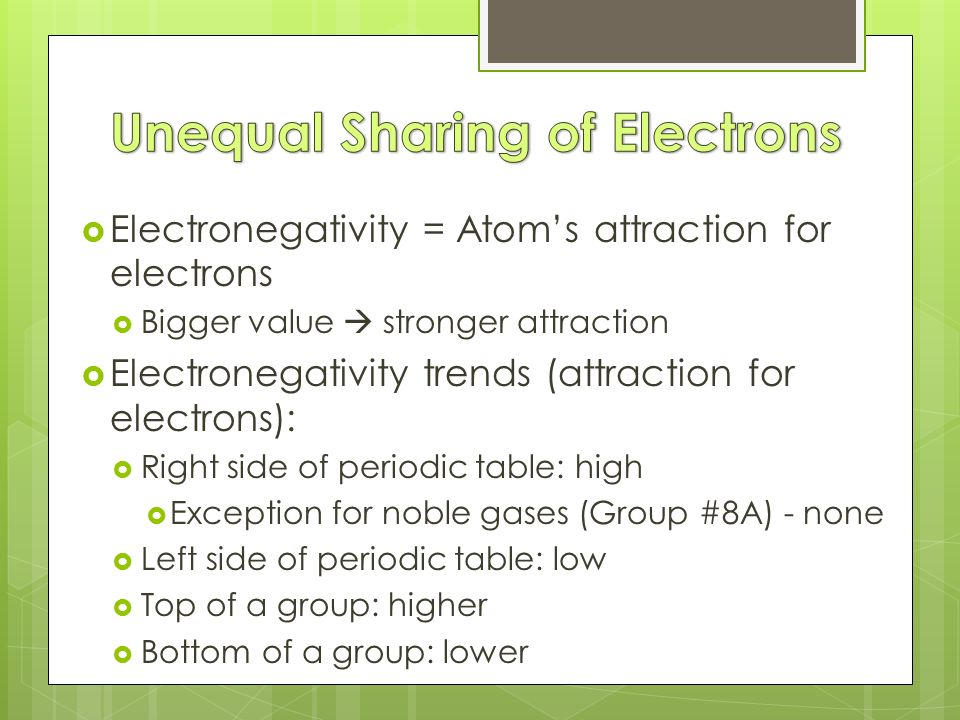

25  Electronegativity = Atom’s attraction for electrons  Bigger value  stronger attraction  Electronegativity trends (attraction for electrons):  Right side of periodic table: high  Exception for noble gases (Group #8A) - none  Left side of periodic table: low  Top of a group: higher  Bottom of a group: lower

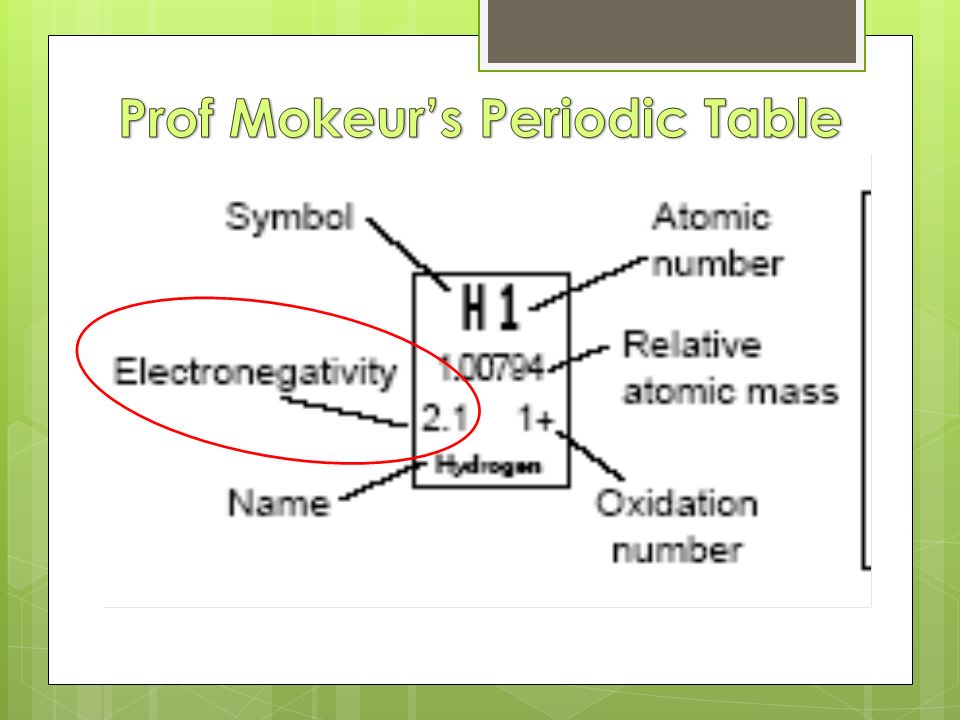

26

27

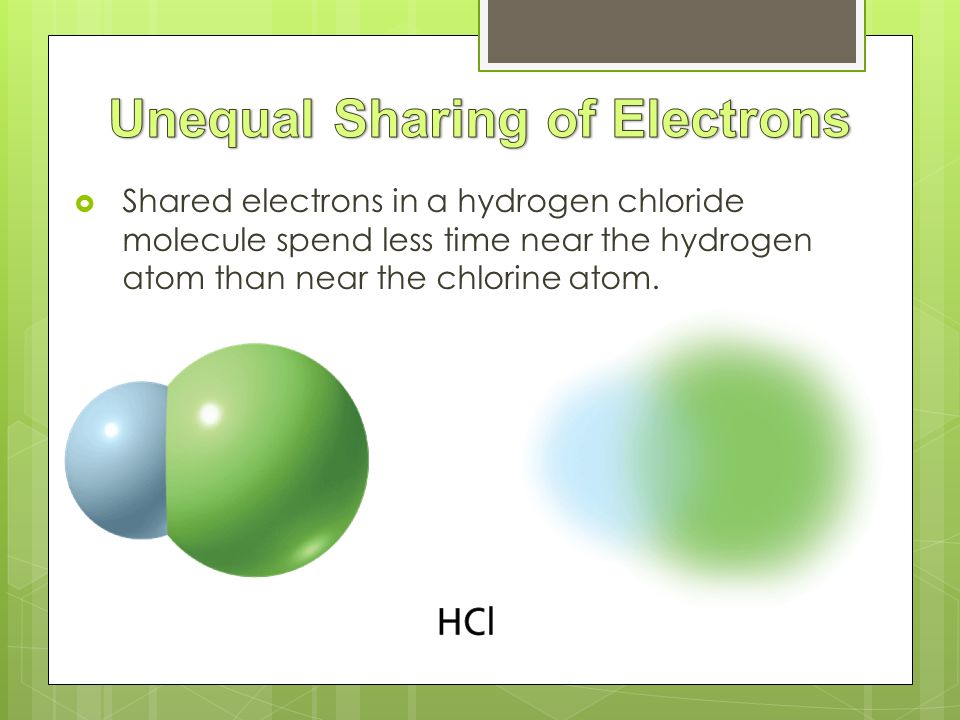

28  Shared electrons in a hydrogen chloride molecule spend less time near the hydrogen atom than near the chlorine atom.

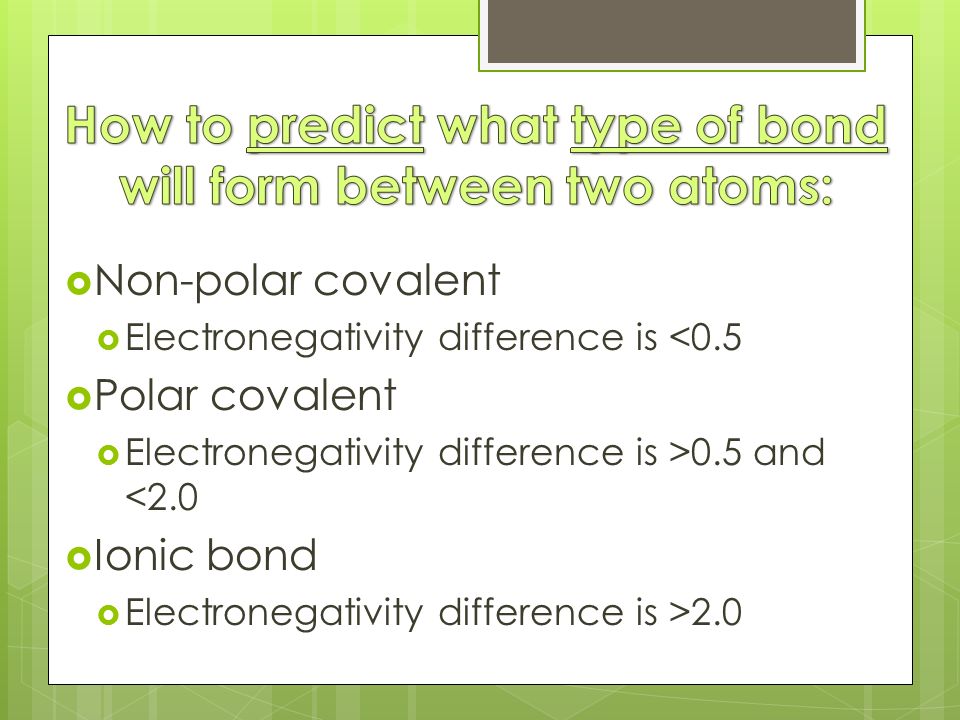

29  Non-polar covalent  Electronegativity difference is <0.5  Polar covalent  Electronegativity difference is >0.5 and <2.0  Ionic bond  Electronegativity difference is >2.0

30  Boron and Hydrogen  Electronegativities: B = 2.0 H = 2.1  Difference: 0.1  non-polar covalent  Potassium and Iodine:  Electronegativities: K = 0.8 I = 2.7  Difference: 1.9  polar covalent  Sodium and Chlorine  Electronegativities: Na = 0.9 Cl = 3.0  Difference: 2.1  ionic
