1. Do now! Can you plot a graph of last lesson’s experiment? (Force on the y axis, extention on the x axis)

2. Today’s lesson Adding forces Hooke’s law

3. Forces Remember a force is a push (or pull)

4. Forces Force is measured in Newtons

5. Forces There are many types of forces; electrostatic, magnetic, upthrust, friction, gravitational………

6. Which of the following is the odd one out? Mass Speed Force Temperature Distance Elephant

7. Which of the following is the odd one out? Mass Speed Force Temperature Distance Elephant

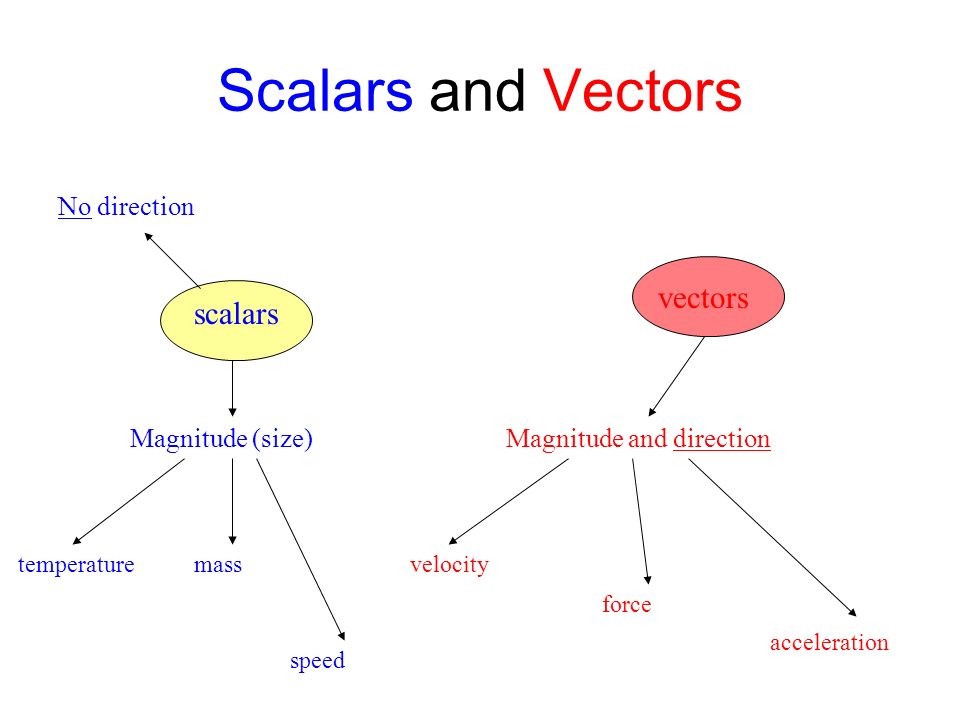

8. Scalars and Vectors scalars vectors Magnitude (size) No direction Magnitude and direction temperaturemass speed velocity force acceleration

9. Representing Forces Forces can be represented by arrows. The length of the arrow indicates the magnitude, and the direction the direction!

10. Adding forces For example; 6 N4 N 2 N Resultant force Copy please!

11. Robert Hooke

12. Investigating forces and springs You are going to investigate how much a spring stretches when a force is applied to it. The amount a spring stretches is called its extension. This is the difference in length between the stretched spring and the length of the spring when it was unstretched. (Remember we are looking at the force on the spring. A mass of 100g will have a weight (force of gravity pulling it down) of 1 Newton. Add masses to your spring and carefully measure its extension. You can do this until the spring breaks! (but you must wear goggles and be careful during this investigation). Your experimental report will include the following A table of results A graph of your results A conclusion describing what you have discovered (think about this!)

13. Table of results Force (N)Length of spring (cm) Extension (cm) 03.40 15.42.0 27.44.0 39.46.0

14. Graph Force (N) Extension (cm)

15. Go!

16. Hooke’s law (F = kx) Force (N) Extension (x) (cm) L imit of proportionality The extension of a spring is proportional to the force applied (until the limit of proportionality is reached). The gradient of the graph is equal to k, the spring constant. Hooke's Law and springs - Physics – YouTube http://www.youtube.com/watch?v=pVdGUTRI49E

17. What does k mean in F=kx? k is called the spring constant and is a measure of the stiffness of the spring or material It has units of N/m (newtons per metre) The higher the k the stiffer the spring Materials with a high k need a large force to for a given extension

18. A material is said to obey Hookes Law if its extension is directly proportional to the applied force More info on Hooke at http://www.roberthooke.org.uk/ http://www.roberthooke.org.uk/ COPY!

19. Steel, glass and wood! Force Extention Even though they don’t stretch much, they obey Hooke’s law for the first part of the graph

20. Rubber Force Extension

21. Let’s try some questions!

22. Calculating spring constant Can you use your graph to calculate the spring constant of your spring? (The gradient of the straight line part of your graph – the units will be N/cm)

23. Spring constant in series and parallel? k ? ?

24. Let’s try some questions!
