Objectives Vocabulary Describe the central tendency of a data set.

Similar presentations


Presentation on theme: "Objectives Vocabulary Describe the central tendency of a data set."— Presentation transcript:

1 Objectives Vocabulary Describe the central tendency of a data set.
Create box-and-whisker plots. Vocabulary mean quartile median range mode box-and-whisker plot

2 A measure of central tendency describes how data clusters around a value.
The mean is the sum of the values in the set divided by the number of values in the set. The median the middle value when the values are in numerical order, or the mean of the two middle values if there are an even number of values. The mode is the value or values that occur most often. There may be one mode or more than one mode. If no value occurs more often than another, we say the data set has no mode. The range of a set of data is the difference between the least and greatest values in the set. The range describes the spread of the data.

3 Example 1A: Finding Mean, Median, Mode, and Range of a Data Set
Find the mean, median, mode, and range of the data set. The number of hours students spent on a research project: 2, 4, 10, 7, 5 Write the data in numerical order. mean: Add all the values and divide by the number of values. median: 2, 4, 5, 7, 10 The median is 5. There are an odd number of values. Find the middle value. mode: none No value occurs more than once. range: 10 – 2 = 8

4 Example 1B: Finding Mean, Median, Mode, and Range of a Data Set
Find the mean, median, mode, and range of each data set. The weight in pounds of six members of a basketball team: 161, 156, 150, 156, 150, 163 Write the data in numerical order. Add all the values and divide by the number of values. mean: There are an even number of values. Find the mean of the two middle values. median: 150, 150, 156, 156, 161, 163 The median is 156.

5 Example 1B Continued 150, 150, 156, 156, 161, 163 modes: 150 and 156 150 and 156 both occur more often than any other value. range: 163 – 150 = 13

6 Example 2 Josh scored 75, 75, 81, 84, and 85 on five tests. Use the mean, median, and mode of his scores to answer each question. mean = median = 81 mode = 75 a. Which value describes the score Josh received most often? Josh has two scores of 75 which is the mode. b. Which value best describes Josh’s scores? Explain. The median best describes Josh’s scores. The mode is his lowest score, and the mean is lowered by the two scores of 75.

7 Measures of central tendency describe how data tends toward one value

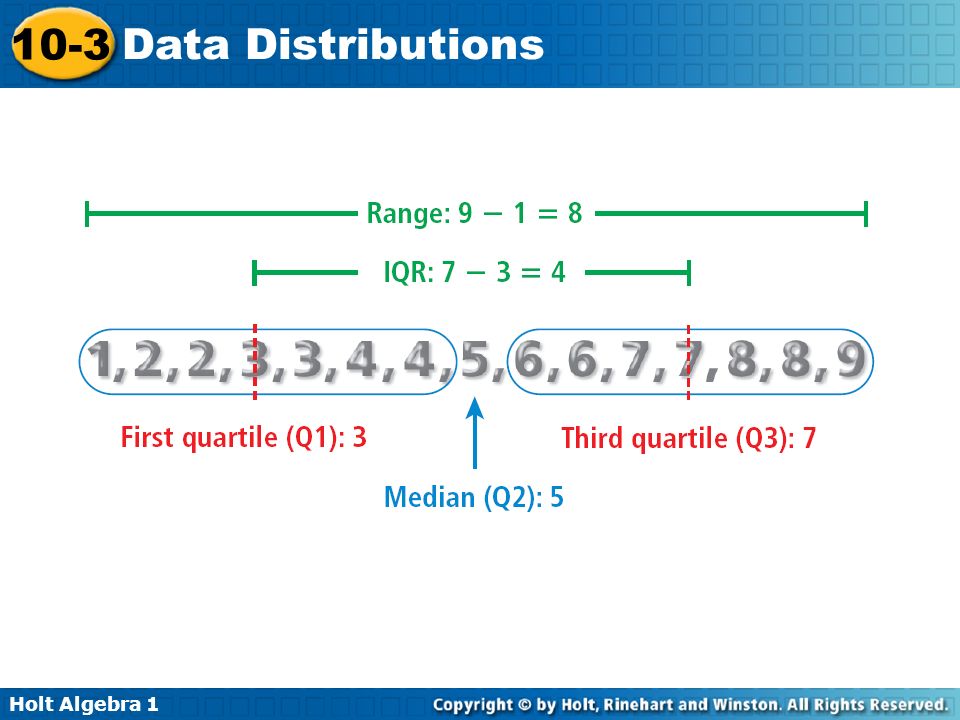

Measures of central tendency describe how data tends toward one value. You may also need to know how data is spread out across several values. Quartiles divide a data set into four equal parts. Each quartile contains one-fourth of the values in the set. The interquartile range (IQR) is the difference between the upper and lower quartiles. The IQR represents the middle half of the data.

8

9 A box-and-whisker plot can be used to show how the values in a data set are distributed. The minimum is the least value that is not an outlier. The maximum is the greatest value that is not an outlier. You need five values to make a box-and-whisker plot: the minimum, first quartile, median, third quartile, and maximum.

10 Example 3: Sports Application
The number of runs scored by a softball team at 19 games is given. Use the data to make a box-and-whisker plot. 3, 8, 10, 12, 4, 9, 13, 20, 12, 15, 10, 5, 11, 5, 10, 6, 7, 6, 11 Step 1 Order the data from least to greatest. 3, 4, 5, 5, 6, 6, 7, 8, 9, 10, 10, 10, 11, 11, 12, 12, 13, 15, 20 Step 2 Identify the five needed values and determine whether there are any outliers.

11 Example 3 Continued 3, 4, 5, 5, 6, 6, 7, 8, 9, 10, 10, 10, 11, 11, 12, 12, 13, 15, 20 Q1 6 Q3 12 Q2 10 Minimum 3 Maximum 20

12 Example 3 Continued 8 16 24 Median First quartile Third quartile Minimum Maximum Half of the scores are between 6 and 12 runs per game. One-fourth of the scores are between 3 and 6. The greatest score earned by this team is 20.

13 Lesson Quiz: Part I 1. Find the mean, median, mode, and range of the data set. The number of hours Gerald mowed lawns in one week: 7, 3, 5, 4, 5 mean: 4.8; median: 5; mode: 5; range: 4

14 Lesson Quiz: Part II The following list gives times of Tara’s one-way ride to school (in minutes) for one week: 12, 23, 13, 14, 13. Use the mean, median, and mode of her times to answer each question. mean = 15 median = 13 mode = 13 2. Which value describes the time that occurred most often? mode, 13 3. Which value best describes Tara’s ride time? Explain. Median or mode: 13; 13 occurred twice, and most times are near this value.

15 Lesson Quiz: Part III 4. The number of inches of snow that fell during the last 8 winters in one city are given. Use the data to make a box-and-whisker plot. 25, 17, 14, 27, 20, 11, 29, 32 11 15.5 22.5 28 32
