1. International Association of Oil & Gas Producers OGP Surveying and Positioning Committee The EPSG Geodetic Parameter Data Set Presentation to POSC SIG July 12th, 2006 Stavanger, Norway by Palle J. Jensen, Maersk Oil and Roger Lott (formerly BP)

2. EPSG/OGP S&P Organisational background. Overview of the OGP/EPSG Geodetic Parameter Data Set. Relevance to regional and local E&P operations. Future plans for the data set. The EPSG Geodetic Parameter Data Set

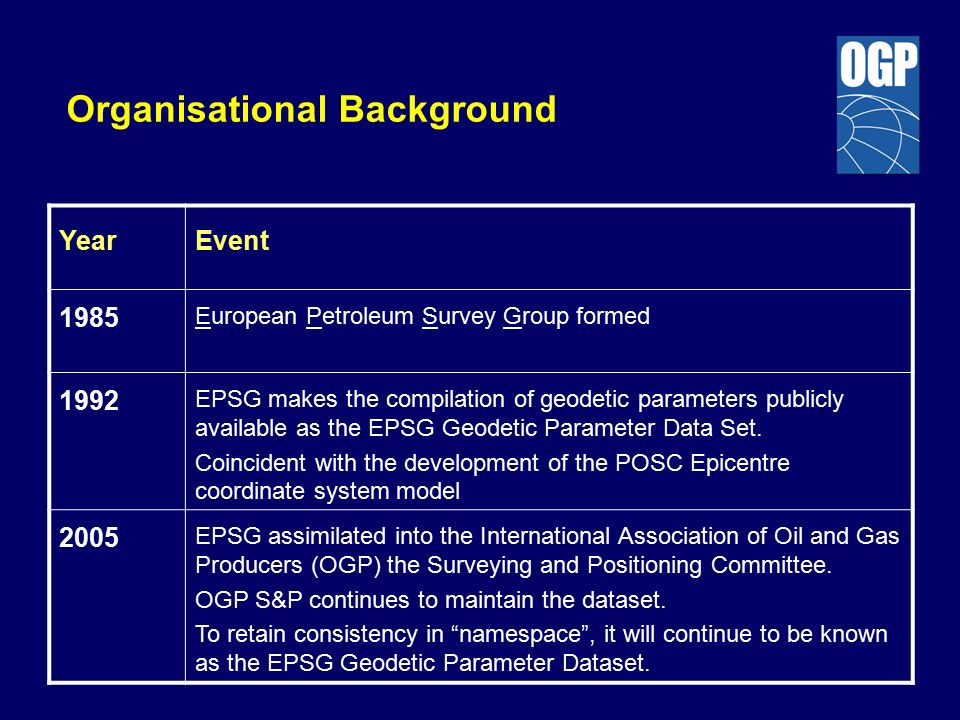

3. Organisational Background YearEvent 1985 European Petroleum Survey Group formed 1992 EPSG makes the compilation of geodetic parameters publicly available as the EPSG Geodetic Parameter Data Set. Coincident with the development of the POSC Epicentre coordinate system model 2005 EPSG assimilated into the International Association of Oil and Gas Producers (OGP) the Surveying and Positioning Committee. OGP S&P continues to maintain the dataset. To retain consistency in “namespace”, it will continue to be known as the EPSG Geodetic Parameter Dataset.

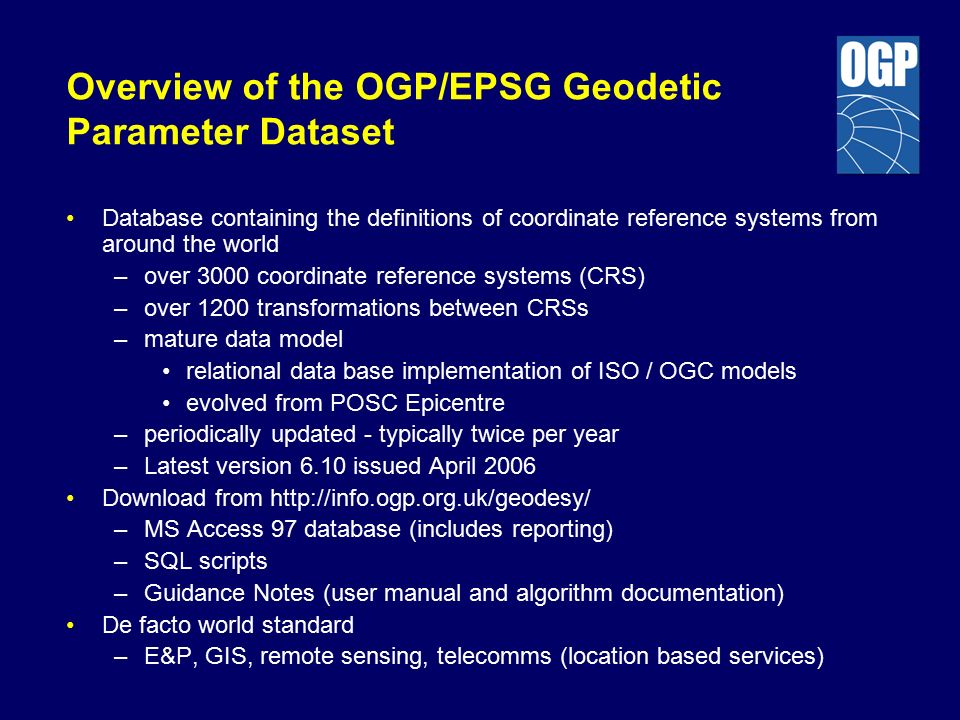

4. Database containing the definitions of coordinate reference systems from around the world –over 3000 coordinate reference systems (CRS) –over 1200 transformations between CRSs –mature data model relational data base implementation of ISO / OGC models evolved from POSC Epicentre –periodically updated - typically twice per year –Latest version 6.10 issued April 2006 Download from http://info.ogp.org.uk/geodesy/ –MS Access 97 database (includes reporting) –SQL scripts –Guidance Notes (user manual and algorithm documentation) De facto world standard –E&P, GIS, remote sensing, telecomms (location based services) Overview of the OGP/EPSG Geodetic Parameter Dataset

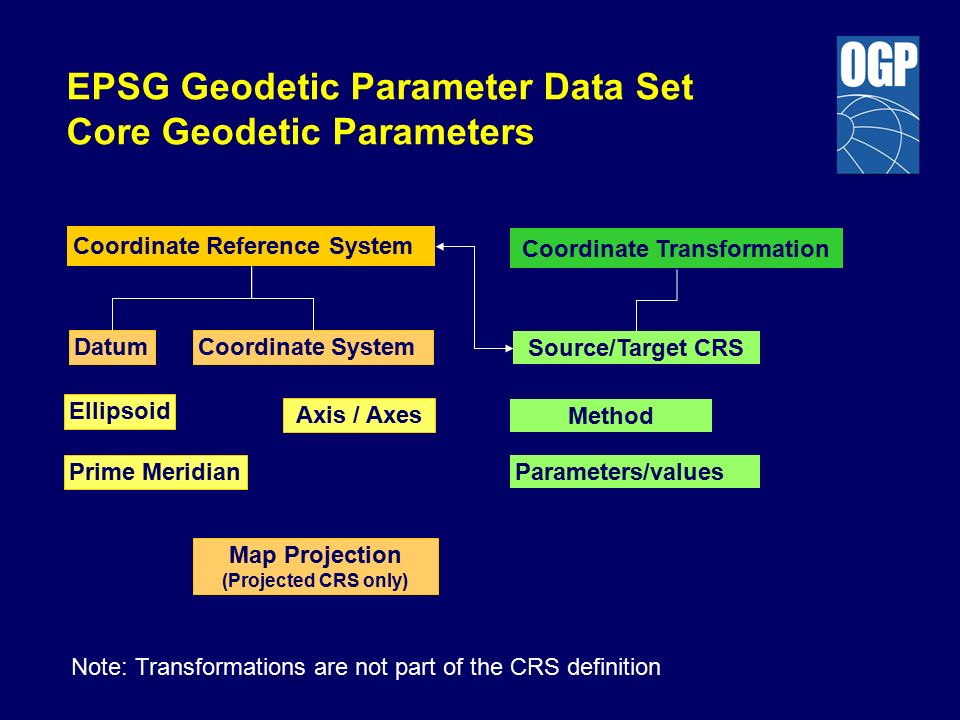

5. Parameters/values Method Coordinate Transformation Coordinate Reference System Datum Prime Meridian Ellipsoid Axis / Axes Coordinate System Map Projection (Projected CRS only) Note: Transformations are not part of the CRS definition Source/Target CRS EPSG Geodetic Parameter Data Set Core Geodetic Parameters

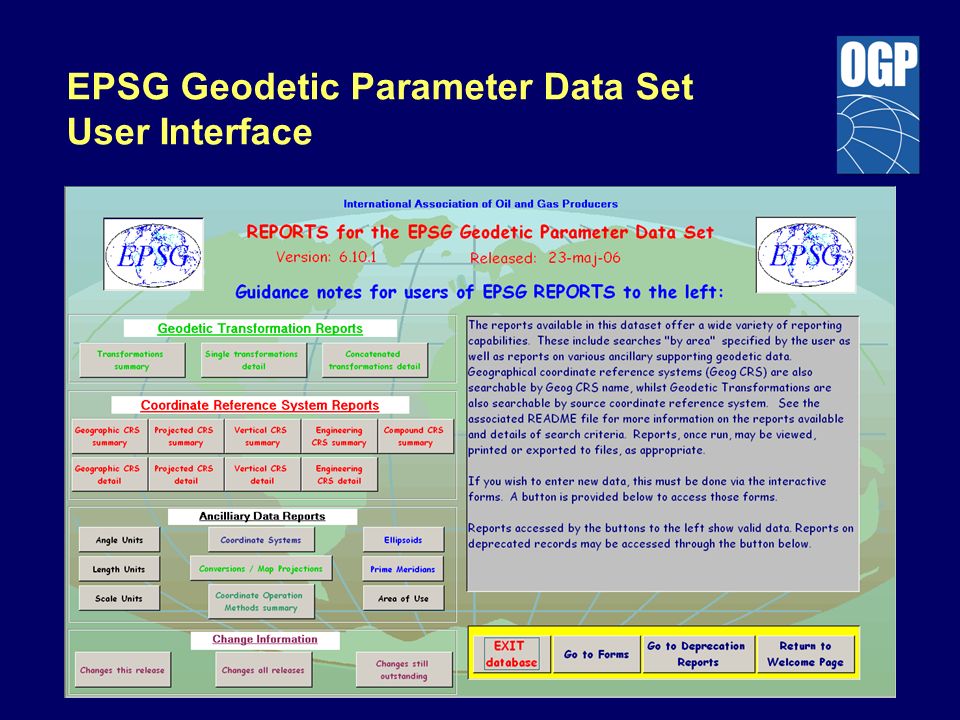

6. EPSG Geodetic Parameter Data Set User Interface

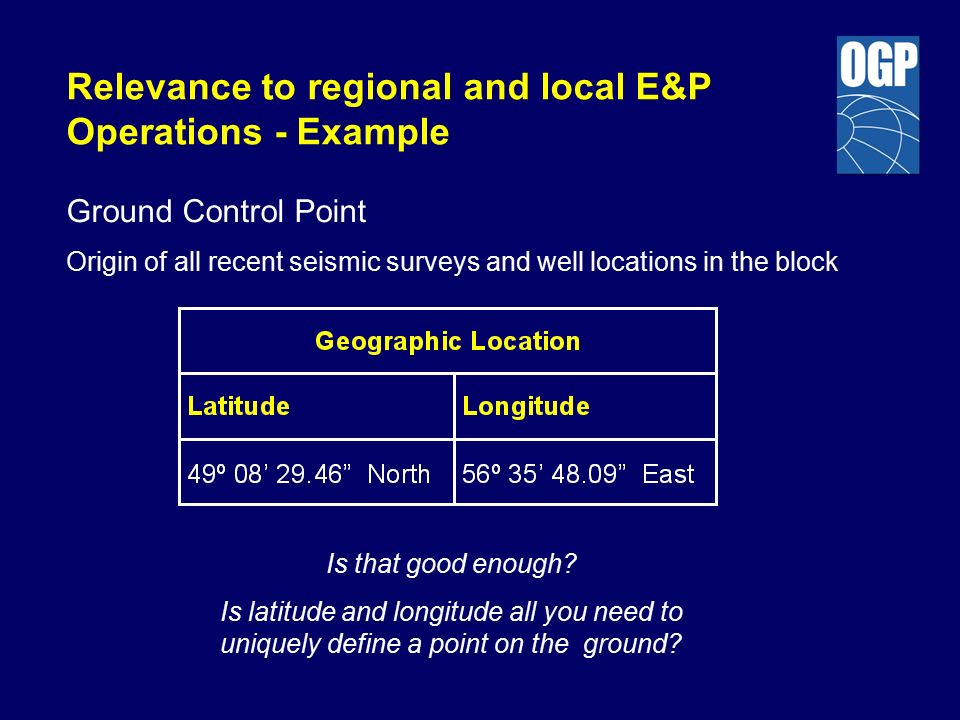

7. Is that good enough? Is latitude and longitude all you need to uniquely define a point on the ground? Ground Control Point Origin of all recent seismic surveys and well locations in the block Relevance to regional and local E&P Operations - Example

8. Example – Describing a geographic location Same point but co-ordinates differ by 100m+ to 4000 kilometres (None of them are wrong)

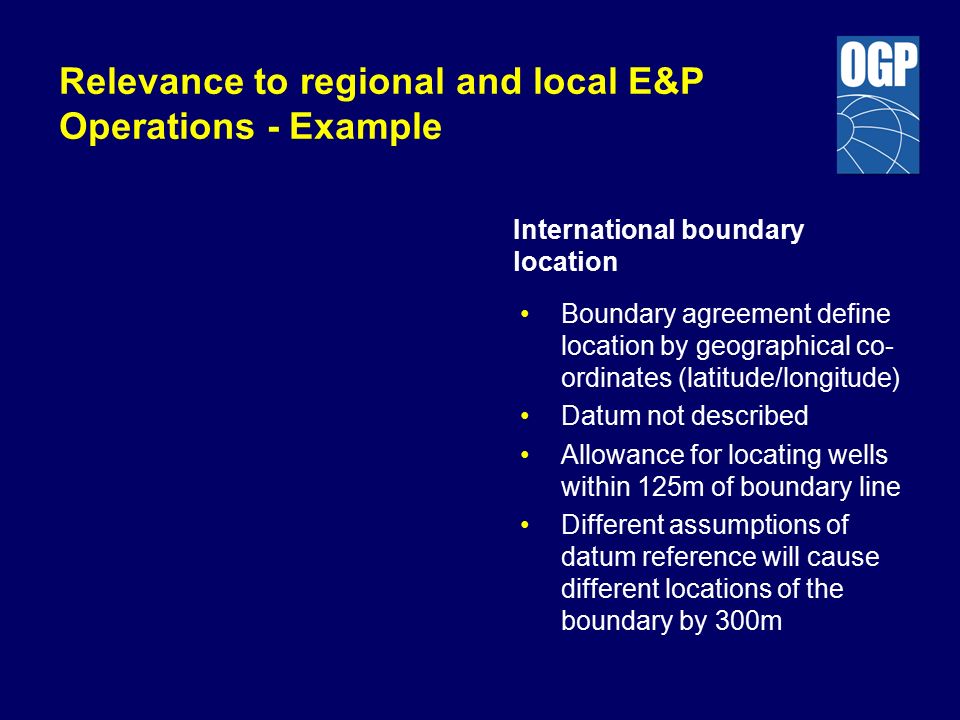

9. International boundary location Boundary agreement define location by geographical co- ordinates (latitude/longitude) Datum not described Allowance for locating wells within 125m of boundary line Different assumptions of datum reference will cause different locations of the boundary by 300m Relevance to regional and local E&P Operations - Example

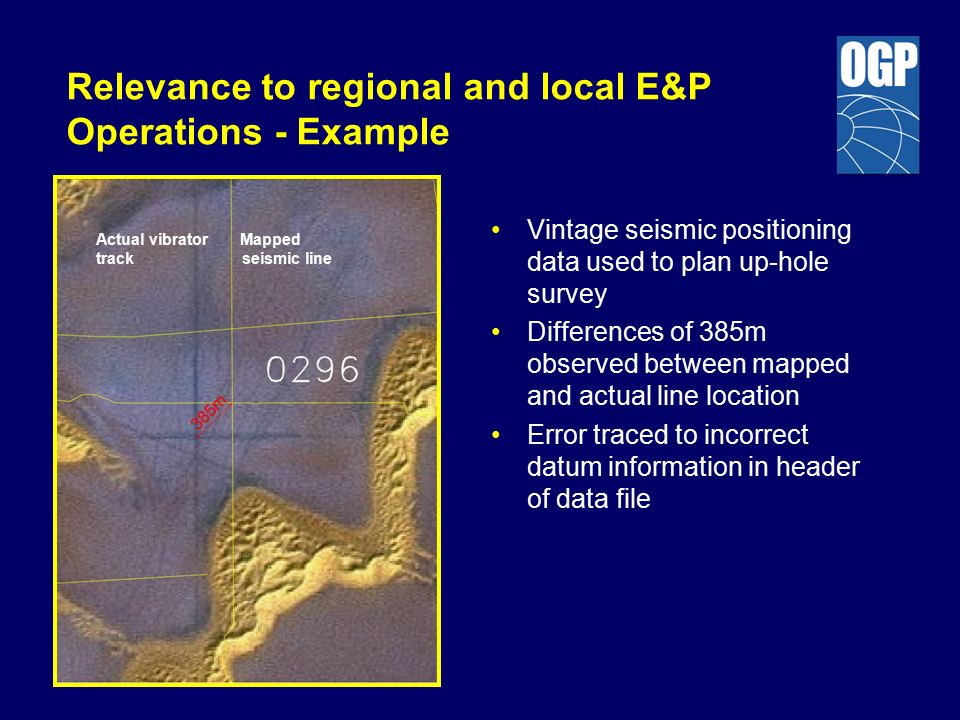

10. Vintage seismic positioning data used to plan up-hole survey Differences of 385m observed between mapped and actual line location Error traced to incorrect datum information in header of data file Actual vibrator Mapped track seismic line

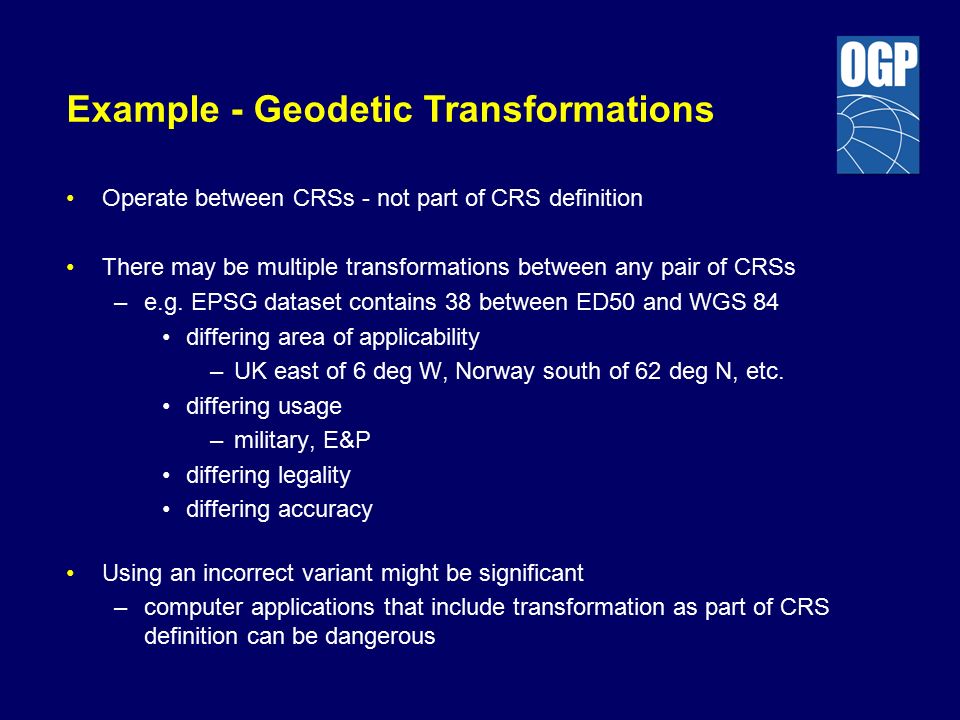

11. Operate between CRSs - not part of CRS definition There may be multiple transformations between any pair of CRSs –e.g. EPSG dataset contains 38 between ED50 and WGS 84 differing area of applicability –UK east of 6 deg W, Norway south of 62 deg N, etc. differing usage –military, E&P differing legality differing accuracy Using an incorrect variant might be significant –computer applications that include transformation as part of CRS definition can be dangerous Example - Geodetic Transformations

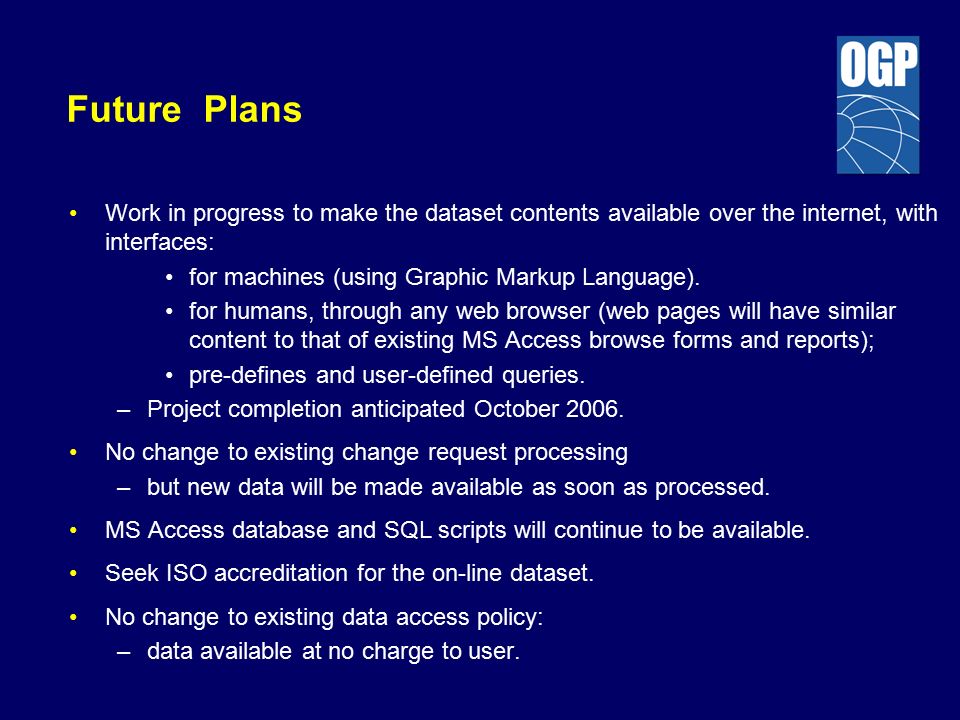

12. Work in progress to make the dataset contents available over the internet, with interfaces: for machines (using Graphic Markup Language). for humans, through any web browser (web pages will have similar content to that of existing MS Access browse forms and reports); pre-defines and user-defined queries. –Project completion anticipated October 2006. No change to existing change request processing –but new data will be made available as soon as processed. MS Access database and SQL scripts will continue to be available. Seek ISO accreditation for the on-line dataset. No change to existing data access policy: –data available at no charge to user. Future Plans

13. EPSG Geodetic Parameter Data Set Thank you
