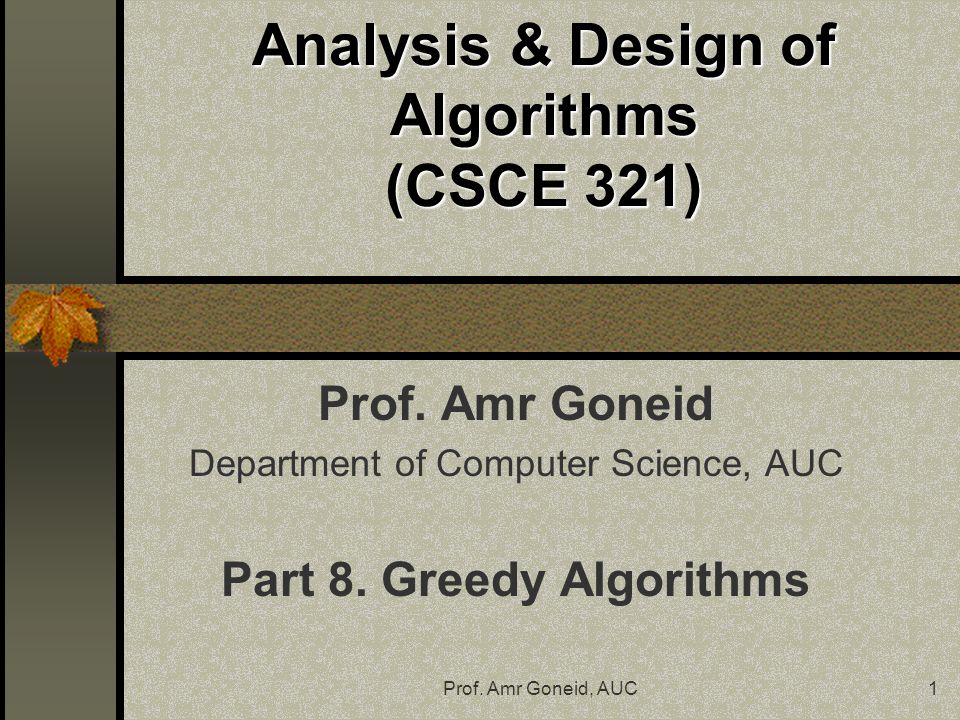

1. Prof. Amr Goneid, AUC1 Analysis & Design of Algorithms (CSCE 321) Prof. Amr Goneid Department of Computer Science, AUC Part 8. Greedy Algorithms

2. Prof. Amr Goneid, AUC2 Greedy Algorithms

3. Prof. Amr Goneid, AUC3 Greedy Algorithms Microsoft Interview From: http://www.cs.pitt.edu/~kirk/cs1510/http://www.cs.pitt.edu/~kirk/cs1510/

4. Prof. Amr Goneid, AUC4 Greedy Algorithms The General Method Continuous Knapsack Problem Optimal Merge Patterns

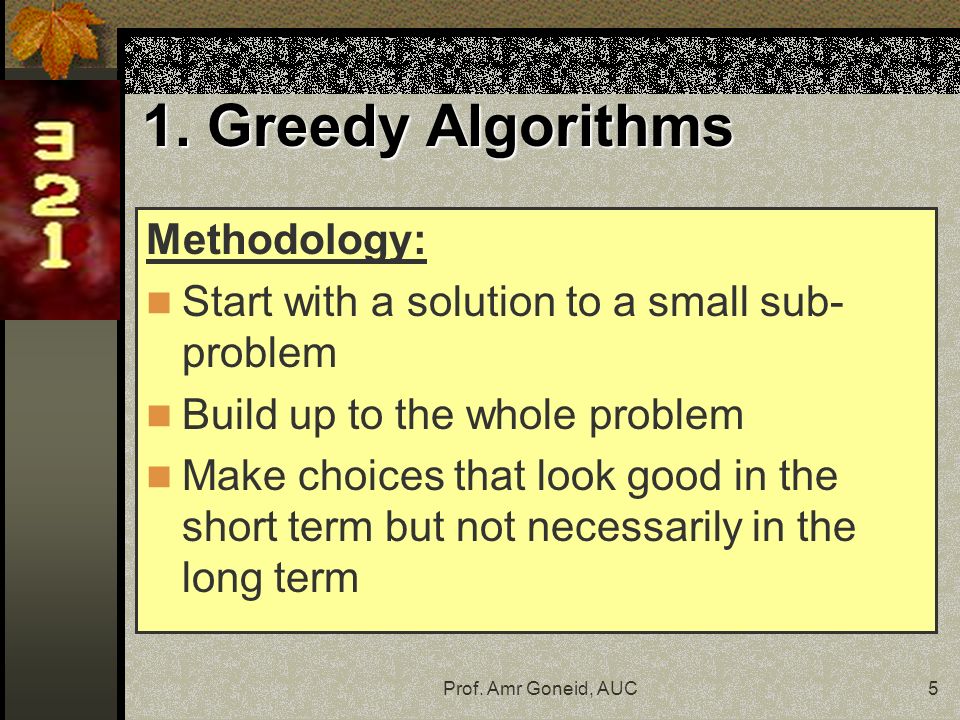

5. Prof. Amr Goneid, AUC5 1. Greedy Algorithms Methodology: Start with a solution to a small sub- problem Build up to the whole problem Make choices that look good in the short term but not necessarily in the long term

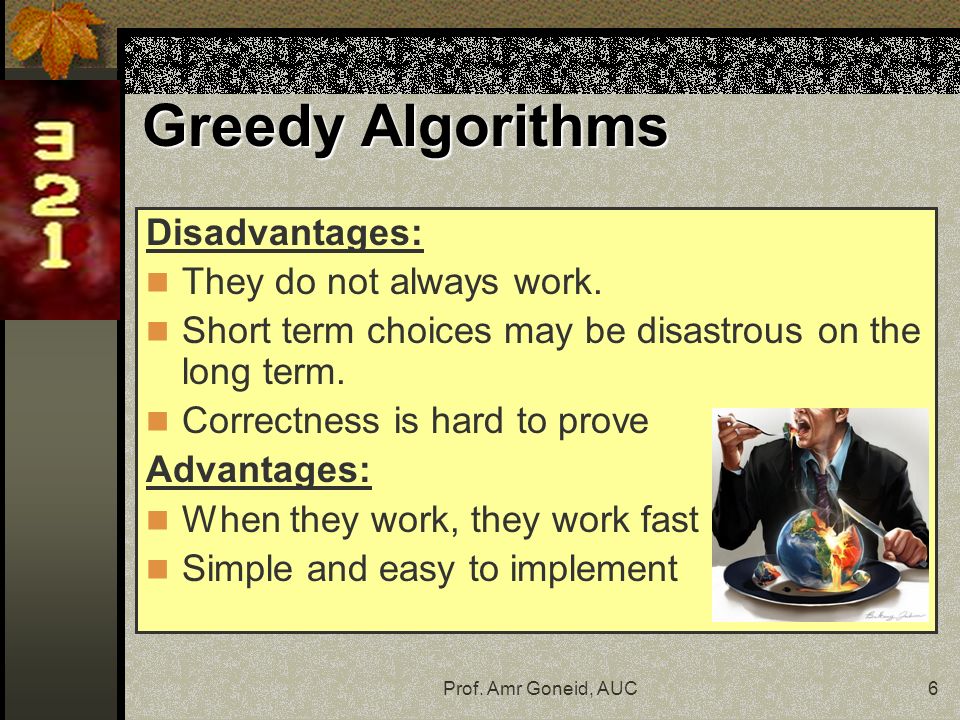

6. Prof. Amr Goneid, AUC6 Greedy Algorithms Disadvantages: They do not always work. Short term choices may be disastrous on the long term. Correctness is hard to prove Advantages: When they work, they work fast Simple and easy to implement

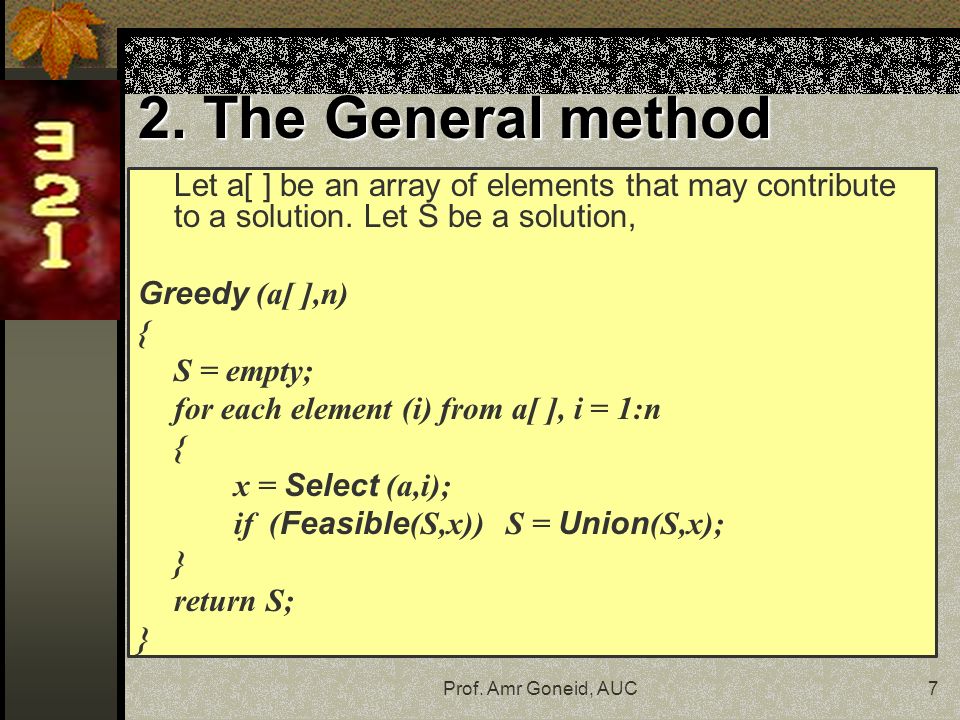

7. Prof. Amr Goneid, AUC7 2. The General method Let a[ ] be an array of elements that may contribute to a solution. Let S be a solution, Greedy (a[ ],n) { S = empty; for each element (i) from a[ ], i = 1:n { x = Select (a,i); if ( Feasible (S,x)) S = Union (S,x); } return S; }

8. Prof. Amr Goneid, AUC8 The General method (continued) Select: Selects an element from a[ ] and removes it.Selection is optimized to satisfy an objective function. Feasible: True if selected value can be included in the solution vector, False otherwise. Union: Combines value with solution and updates objective function.

9. Prof. Amr Goneid, AUC9 3. Continuous Knapsack Problem

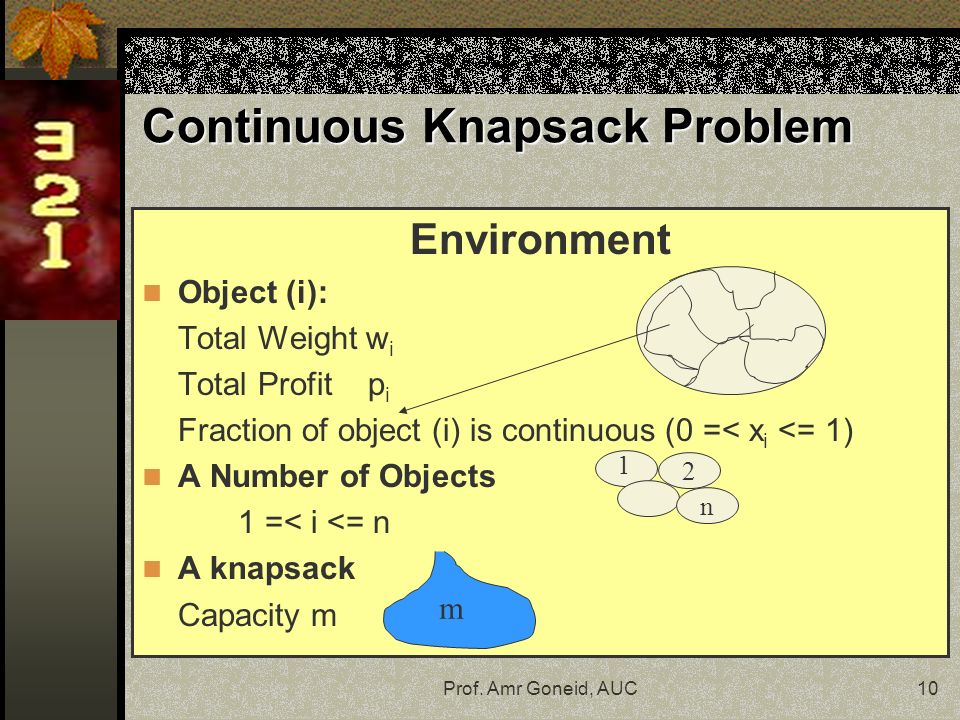

10. Prof. Amr Goneid, AUC10 Continuous Knapsack Problem Environment Object (i): Total Weight w i Total Profit p i Fraction of object (i) is continuous (0 =< x i <= 1) A Number of Objects 1 =< i <= n A knapsack Capacity m 2 n 1 m

11. Prof. Amr Goneid, AUC11 The problem Problem Statement: For n objects with weights w i and profits p i, obtain the set of fractions of objects x i which will maximize the total profit without exceeding a total weight m. Formally: Obtain the set X = (x 1, x 2, …, x n ) that will maximize  1  i  n p i x i subject to the constraints:  1  i  n w i x i  m, 0  x i  1, 1  i  n

12. Prof. Amr Goneid, AUC12 Optimal Solution Feasible Solution: by satisfying constraints. Optimal Solution: Feasible solution and maximizing profit. Lemma 1: If  1  i  n w i = m then x i = 1 is optimal. Lemma 2: An optimal solution will give  1  i  n w i x i = m

13. Prof. Amr Goneid, AUC13 Greedy Algorithm To maximize profit, choose highest p first. Also choose highest x, i.e., smallest w first. In other words, let us define the “value” of an object (i) to be the ratio v i = p i /w i and so we choose first the object with the highest v i value.

14. Prof. Amr Goneid, AUC14 Algorithm GreedyKnapsack ( p[ ], w[ ], m, n,x[ ] ) { insert indices (i) of items in a maximum heap on value v i = p i / w i ; Zero the vector x;Rem = m ; For k = 1..n { remove top of heap to get index (i); if (w[i] > Rem) then break; x[i] = 1.0 ; Rem = Rem – w[i] ; } if (k < = n ) x[i] = Rem / w[i] ; } // T(n) = O(n log n)

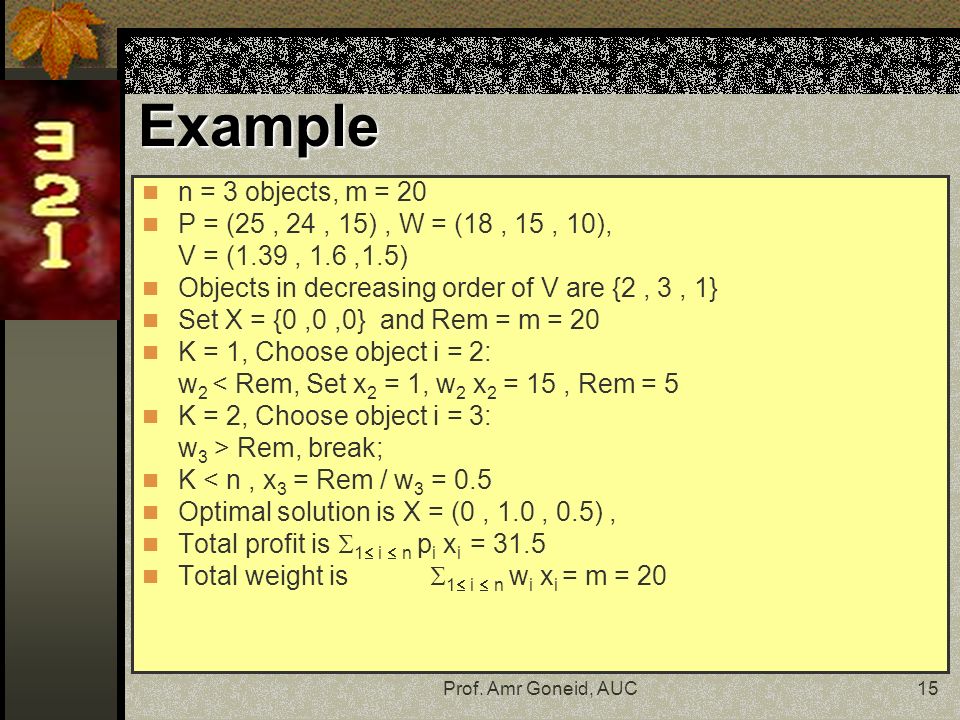

15. Prof. Amr Goneid, AUC15 Example n = 3 objects, m = 20 P = (25, 24, 15), W = (18, 15, 10), V = (1.39, 1.6,1.5) Objects in decreasing order of V are {2, 3, 1} Set X = {0,0,0} and Rem = m = 20 K = 1, Choose object i = 2: w 2 < Rem, Set x 2 = 1, w 2 x 2 = 15, Rem = 5 K = 2, Choose object i = 3: w 3 > Rem, break; K < n, x 3 = Rem / w 3 = 0.5 Optimal solution is X = (0, 1.0, 0.5), Total profit is  1  i  n p i x i = 31.5 Total weight is  1  i  n w i x i = m = 20

16. Prof. Amr Goneid, AUC16 4. Optimal Merge Patterns (a) Definitions Binary Merge Tree: A binary tree with external nodes representing entities and internal nodes representing merges of these entities. Optimal Binary Merge Tree: The sum of paths from root to external nodes is optimal (e.g. minimum). Assuming that the node (i) contributes to the cost by p i and the path from root to such node has length L i, then optimality requires a pattern that minimizes

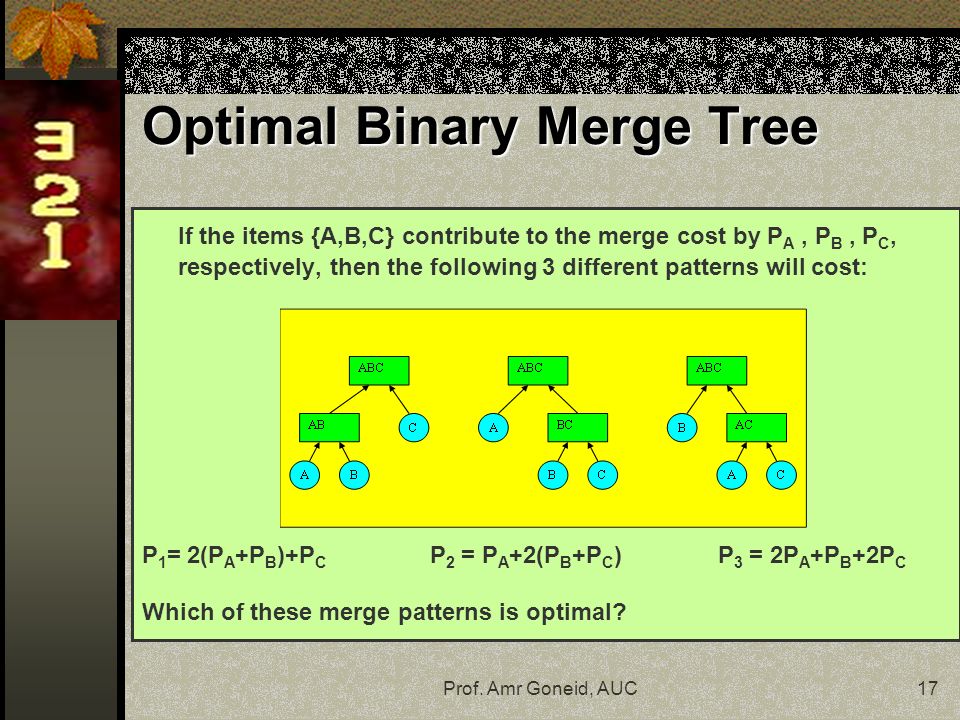

17. Prof. Amr Goneid, AUC17 Optimal Binary Merge Tree If the items {A,B,C} contribute to the merge cost by P A, P B, P C, respectively, then the following 3 different patterns will cost: P 1 = 2(P A +P B )+P C P 2 = P A +2(P B +P C )P 3 = 2P A +P B +2P C Which of these merge patterns is optimal?

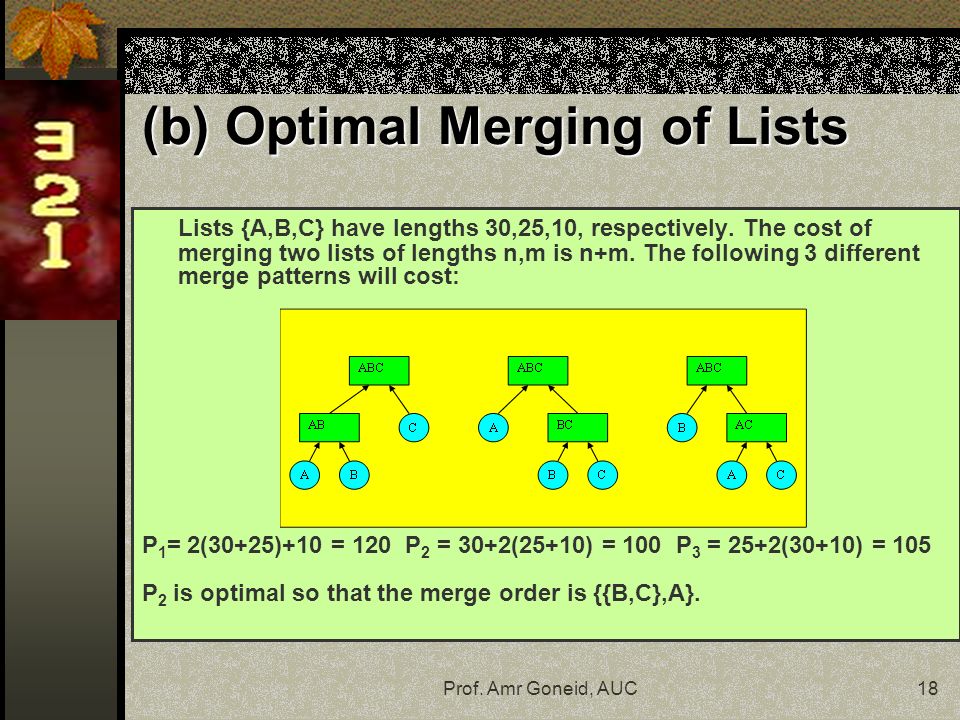

18. Prof. Amr Goneid, AUC18 (b) Optimal Merging of Lists Lists {A,B,C} have lengths 30,25,10, respectively. The cost of merging two lists of lengths n,m is n+m. The following 3 different merge patterns will cost: P 1 = 2(30+25)+10 = 120 P 2 = 30+2(25+10) = 100 P 3 = 25+2(30+10) = 105 P 2 is optimal so that the merge order is {{B,C},A}.

19. Prof. Amr Goneid, AUC19 The Greedy Method Insert lists and their lengths in a minimum heap of lengths. Repeat Remove the two lowest length lists (p i,p j ) from heap. Merge lists with lengths (p i,p j ) to form a new list with length p ij = p i + p j Insert p ij and its into the heap until all symbols are merged into one final list C10 B25A30 A BC35BCA65

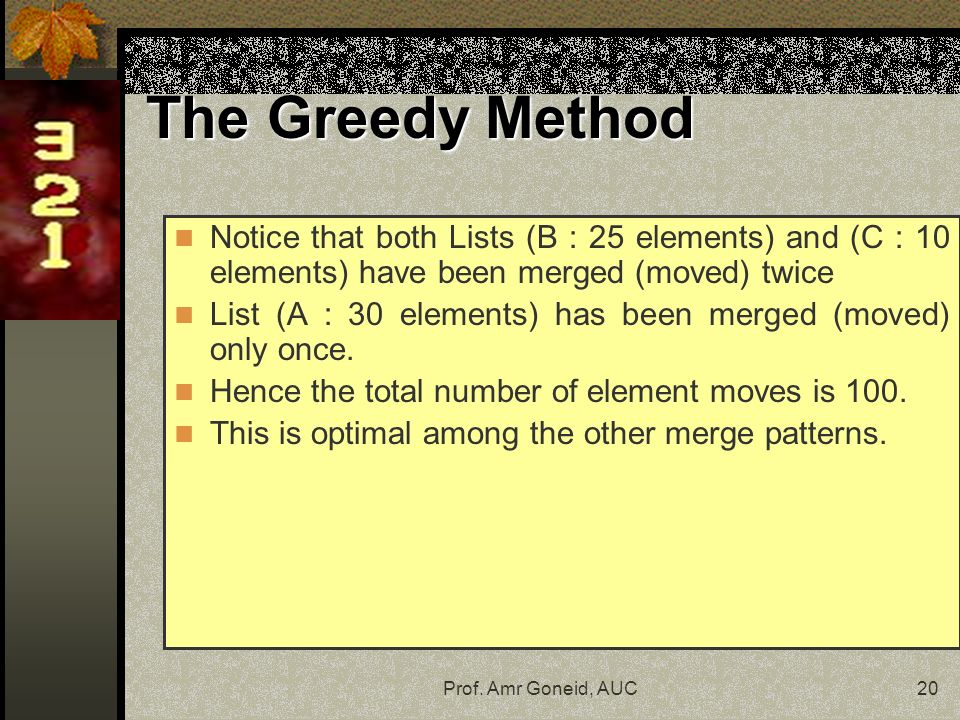

20. Prof. Amr Goneid, AUC20 The Greedy Method Notice that both Lists (B : 25 elements) and (C : 10 elements) have been merged (moved) twice List (A : 30 elements) has been merged (moved) only once. Hence the total number of element moves is 100. This is optimal among the other merge patterns.

21. Prof. Amr Goneid, AUC21 (c) Huffman Coding Terminology Symbol: A one-to-one representation of a single entity. Alphabet: A finite set of symbols. Message: A sequence of symbols. Encoding: Translating symbols to a string of bits. Decoding: The reverse.

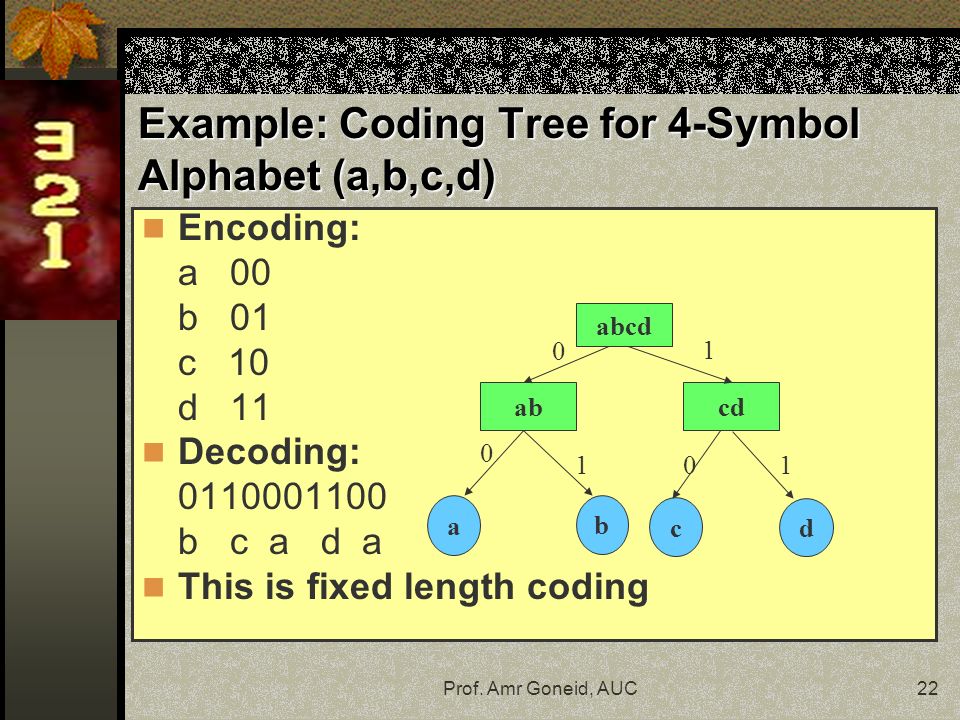

22. Prof. Amr Goneid, AUC22 Encoding: a 00 b 01 c 10 d 11 Decoding: 0110001100 b c a d a This is fixed length coding Example: Coding Tree for 4-Symbol Alphabet (a,b,c,d) abcd abcd a b c d 0 0 1 1 01

23. Prof. Amr Goneid, AUC23 Coding Efficiency & Redundancy L i =Length of path from root to symbol (i) = no. of bits representing that symbol. P i = probability of occurrence of symbol (i) in message. n = size of alphabet. = Average Symbol Length =  1  i  n P i L i bits/symbol (bps) For fixed length coding, L i = L = constant, = L (bps) Is this optimal (minimum) ? Not necessarily.

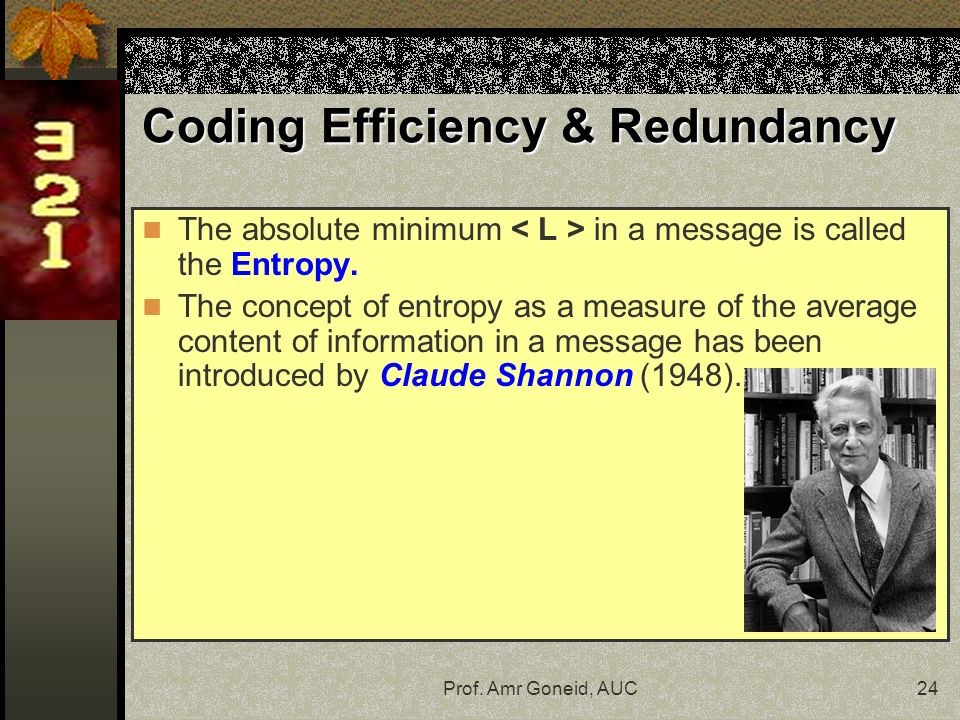

24. Prof. Amr Goneid, AUC24 Coding Efficiency & Redundancy The absolute minimum in a message is called the Entropy. The concept of entropy as a measure of the average content of information in a message has been introduced by Claude Shannon (1948).

25. Prof. Amr Goneid, AUC25 Coding Efficiency & Redundancy Shannon's entropy represents an absolute limit on the best possible lossless compression of any communication. It is computed as:

26. Prof. Amr Goneid, AUC26 Coding Efficiency & Redundancy Coding Efficiency:  = H / 0    1 Coding Redundancy: R = 1 -  0  R  1 H Actual Optimal Perfect

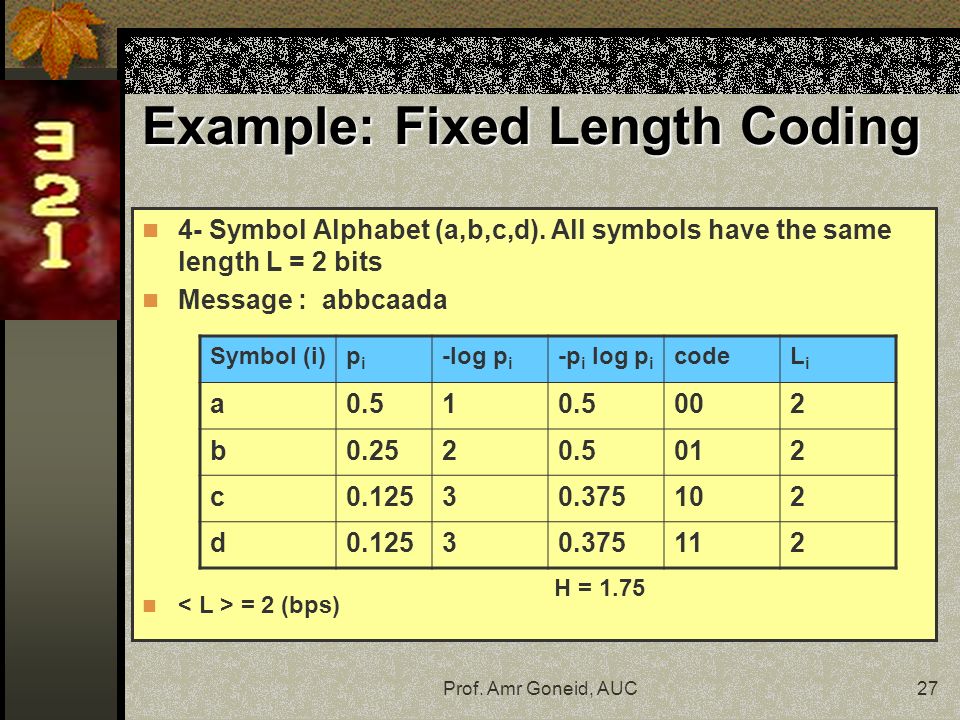

27. Prof. Amr Goneid, AUC27 Example: Fixed Length Coding 4- Symbol Alphabet (a,b,c,d). All symbols have the same length L = 2 bits Message : abbcaada = 2 (bps) Symbol (i)pipi -log p i -p i log p i codeLiLi a0.51 002 b0.2520.5012 c0.12530.375102 d0.12530.375112 H = 1.75

28. Prof. Amr Goneid, AUC28 Example Entropy H = 0.5 + 0.5 + 0.375 + 0.375 = 1.75 (bps), Coding Efficiency  = H / = 1.75 / 2 = 0.875, Coding Redundancy R = 1 – 0.875 = 0.125 This is not optimal

29. Prof. Amr Goneid, AUC29 Result Fixed length coding is optimal (perfect) only when all symbol probabilities are equal. To prove this: With n = 2 m symbols, L = m bits and = m (bps). If all probabilities are equal,

30. Prof. Amr Goneid, AUC30 Variable Length Coding (Huffman Coding) The problem: Given a set of symbols and their probabilities Find a set of binary codewords that minimize the average length of the symbols

31. Prof. Amr Goneid, AUC31 Variable Length Coding (Huffman Coding) Formally: Input: A message M(A,P) with a symbol alphabet A = {a 1,a 2,…,a n } of size (n) a set of probabilities for the symbols P = {p 1,p 2,….p n } Output: A set of binary codewords C = {c 1,c 2,….c n } with bit lengths L = {L 1,L 2,….L n } Condition:

32. Prof. Amr Goneid, AUC32 Variable Length Coding (Huffman Coding) To achieve optimality, we use optimal binary merge trees to code symbols of unequal probabilities. Huffman Coding: More frequent symbols occur nearer to the root ( shorter code lengths), less frequent symbols occur at deeper levels (longer code lengths).

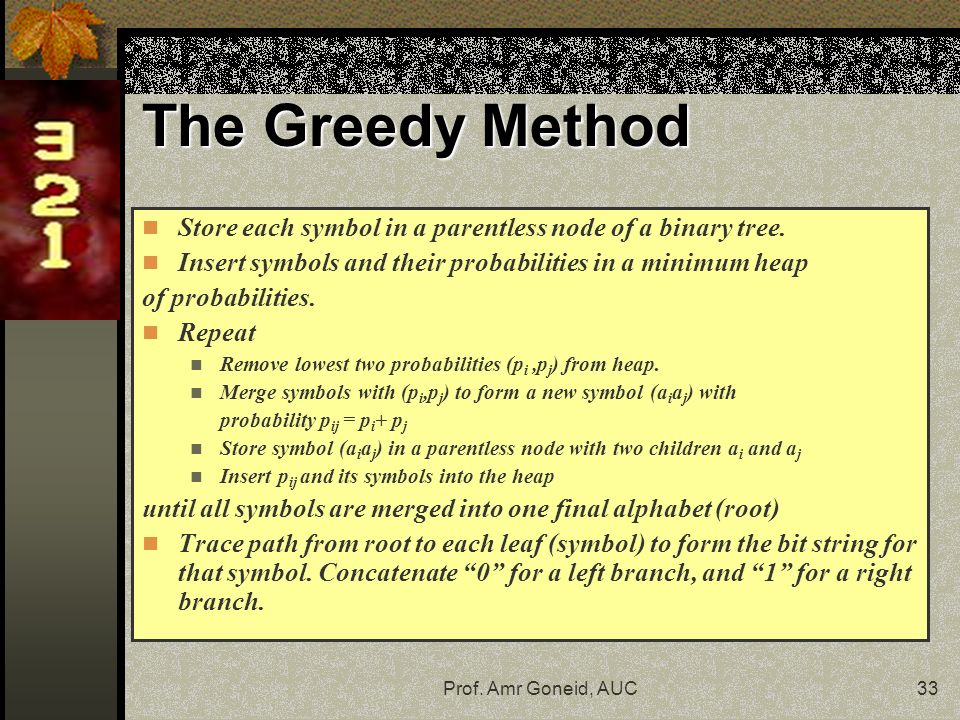

33. Prof. Amr Goneid, AUC33 The Greedy Method Store each symbol in a parentless node of a binary tree. Insert symbols and their probabilities in a minimum heap of probabilities. Repeat Remove lowest two probabilities (p i,p j ) from heap. Merge symbols with (p i,p j ) to form a new symbol (a i a j ) with probability p ij = p i + p j Store symbol (a i a j ) in a parentless node with two children a i and a j Insert p ij and its symbols into the heap until all symbols are merged into one final alphabet (root) Trace path from root to each leaf (symbol) to form the bit string for that symbol. Concatenate “0” for a left branch, and “1” for a right branch.

34. Prof. Amr Goneid, AUC34 Example (1): 4- Symbol Alphabet A = {a, b, c, d} of size (4). Message M(A,P) : abbcaada, P = {0.5, 0.25, 0.125, 0.125} H = 1.75 Symbol (i)pipi -log p i -p i log p i a0.51 b0.2520.5 c0.12530.375 d0.12530.375

35. Prof. Amr Goneid, AUC35 Building The Optimal Merge Table sisi pipi sisi pipi sisi pipi sisi pipi d0.125 c cd0.25 b b bcd0.5 a a a abcd1.0

36. Prof. Amr Goneid, AUC36 Optimal Merge Tree for Example(1) Example: a (50%), b (25%), c (12.5%), d (12.5%) a b cd

37. Prof. Amr Goneid, AUC37 Optimal Merge Tree for Example(1) Example: a (50%), b (25%), c (12.5%), d (12.5%) cd a b cd 0 1

38. Prof. Amr Goneid, AUC38 Optimal Merge Tree for Example(1) Example: a (50%), b (25%), c (12.5%), d (12.5%) bcd cd a b cd 0 1 0 1

39. Prof. Amr Goneid, AUC39 Optimal Merge Tree for Example(1) Example: a (50%), b (25%), c (12.5%), d (12.5%) abcd bcd cd a b cd 0 1 0 1 0 1 aiai cici L i (bits) a01 b102 c1103 d1113

40. Prof. Amr Goneid, AUC40 Coding Efficiency for Example(1) = ( 1* 0.5 + 2 * 0.25 + 3 * 0.125 + 3 * 0.125) = 1.75 (bps) H = 0.5 + 0.5 + 0.375 + 0.375 = 1.75 (bps),  = H / = 1.75 / 1.75 = 1.00, R = 0.0 Notice that: Symbols exist at leaves, i.e., no symbol code is the prefix of another symbol code. This is why the method is also called “prefix coding”

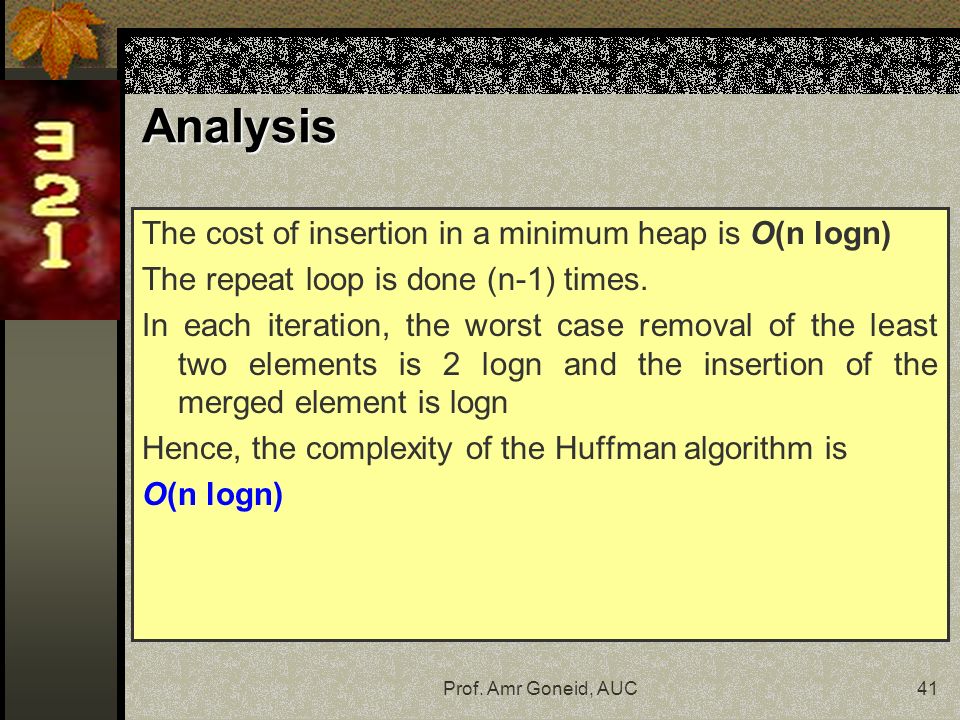

41. Prof. Amr Goneid, AUC41 Analysis The cost of insertion in a minimum heap is O(n logn) The repeat loop is done (n-1) times. In each iteration, the worst case removal of the least two elements is 2 logn and the insertion of the merged element is logn Hence, the complexity of the Huffman algorithm is O(n logn)

42. Prof. Amr Goneid, AUC42 Example (2): 4- Symbol Alphabet A = {a, b, c, d} of size (4). P = {0.4, 0.25, 0.18, 0.17} H = 1.909 Symbol (i)pipi -log p i -p i log p i a0.401.3220.5288 b0.2520.5 c0.182.4740.4453 d0.172.5560.4345

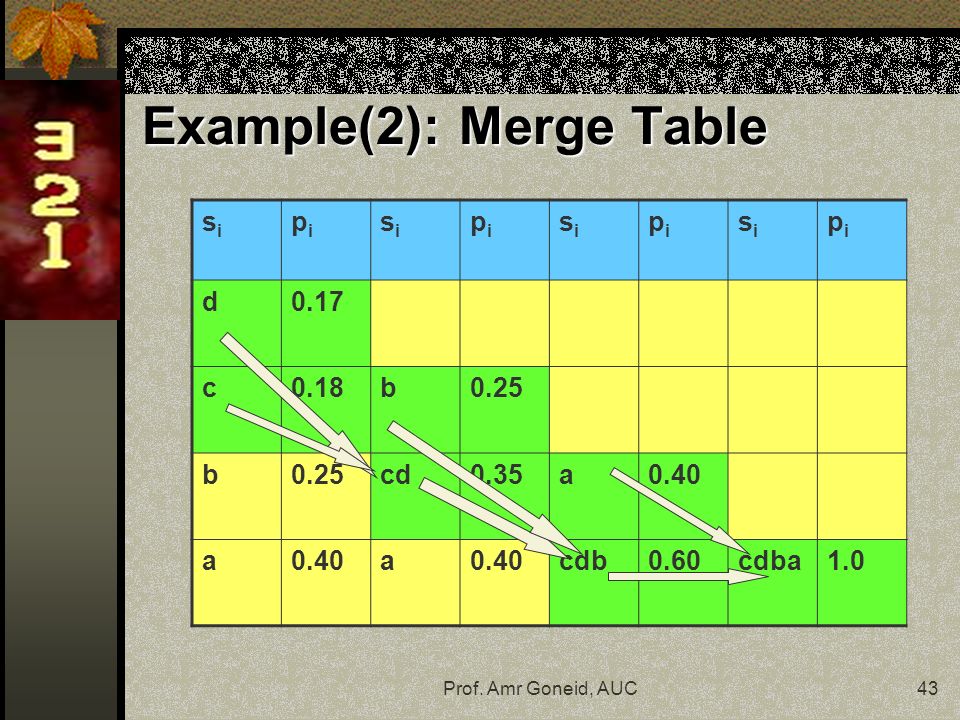

43. Prof. Amr Goneid, AUC43 Example(2): Merge Table sisi pipi sisi pipi sisi pipi sisi pipi d0.17 c0.18b0.25 b cd0.35a0.40 a a cdb0.60cdba1.0

44. Prof. Amr Goneid, AUC44 Optimal Merge Tree for Example(2) cdba cdb cd a b cd 0 1 01 0 1 aiai cici L i (bits) a11 b012 c0013 d0003

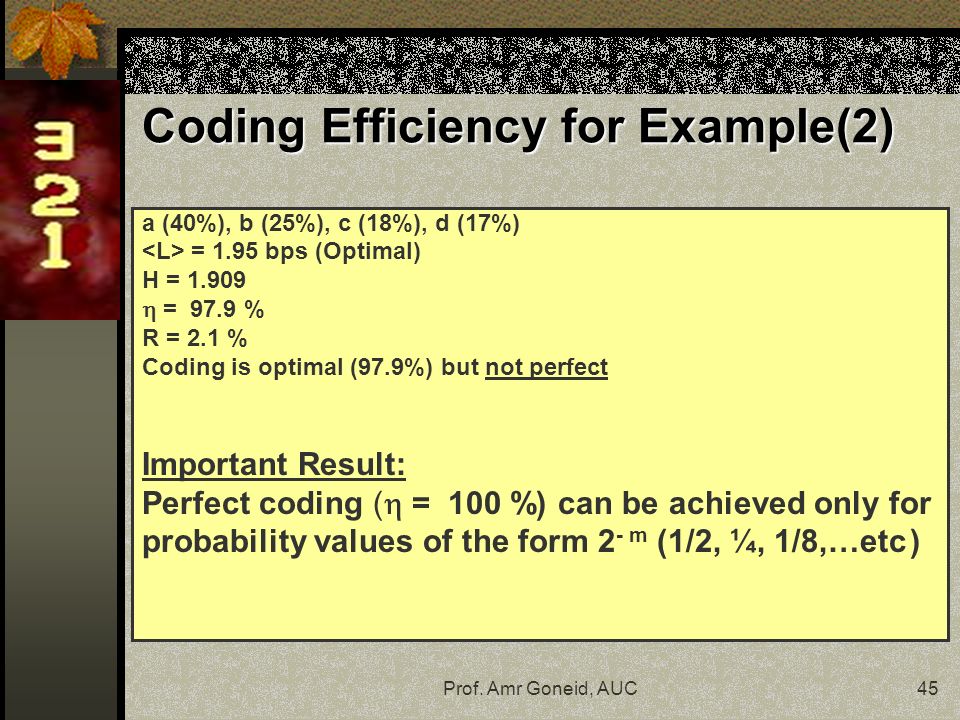

45. Prof. Amr Goneid, AUC45 Coding Efficiency for Example(2) a (40%), b (25%), c (18%), d (17%) = 1.95 bps (Optimal) H = 1.909  = 97.9 % R = 2.1 % Coding is optimal (97.9%) but not perfect Important Result: Perfect coding (  = 100 %) can be achieved only for probability values of the form 2 - m (1/2, ¼, 1/8,…etc)

46. Prof. Amr Goneid, AUC46 File Compression Variable Length Codes can be used to compress files. Symbols are initially coded using ASCII (8-bit) fixed length codes. Steps: 1. Determine Probabilities of symbols in file. 2. Build Merge Tree (or Table) 3. Assign variable length codes to symbols. 4. Encode symbols using new codes. 5. Save coded symbols in another file together with the symbol code table. The Compression Ratio = / 8

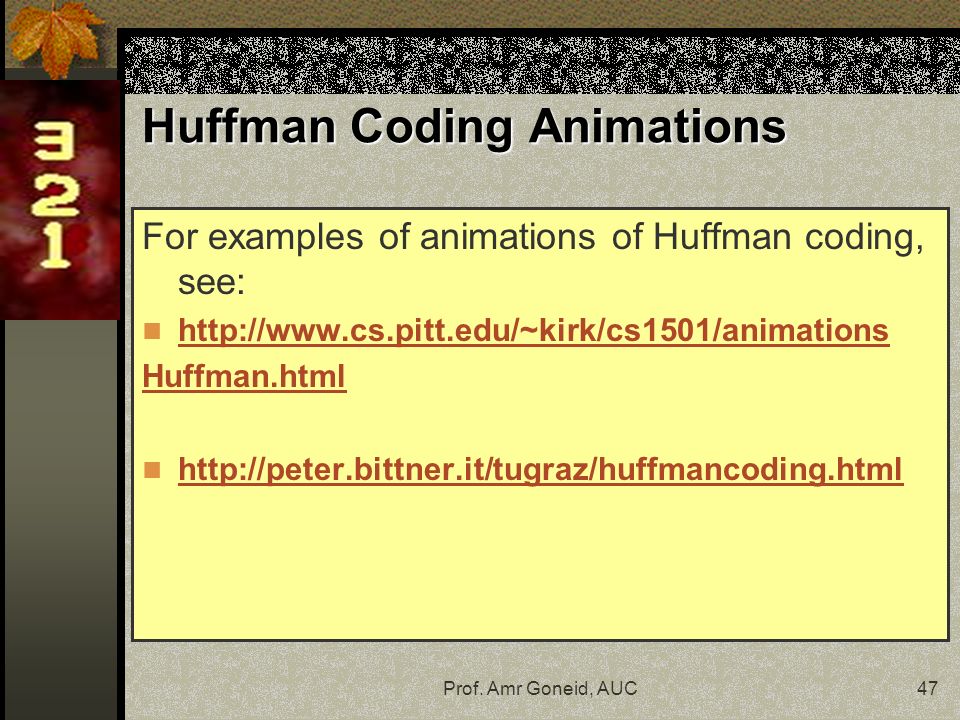

47. Prof. Amr Goneid, AUC47 Huffman Coding Animations For examples of animations of Huffman coding, see: http://www.cs.pitt.edu/~kirk/cs1501/animations Huffman.html http://peter.bittner.it/tugraz/huffmancoding.html
