1. Triggers

2. Why Triggers ? Suppose a warehouse wishes to maintain a minimum inventory of each item. Number of items kept in items table Items(name, number,...) Orders for less items kept in orders table and Orders(name, number,...) If number of any item is less than a level; a row containing name of the item must be added to orders table How to define this process? (When to check? What to check? What to do?) Execute the process in DB Application side or db-sever side ? Why?

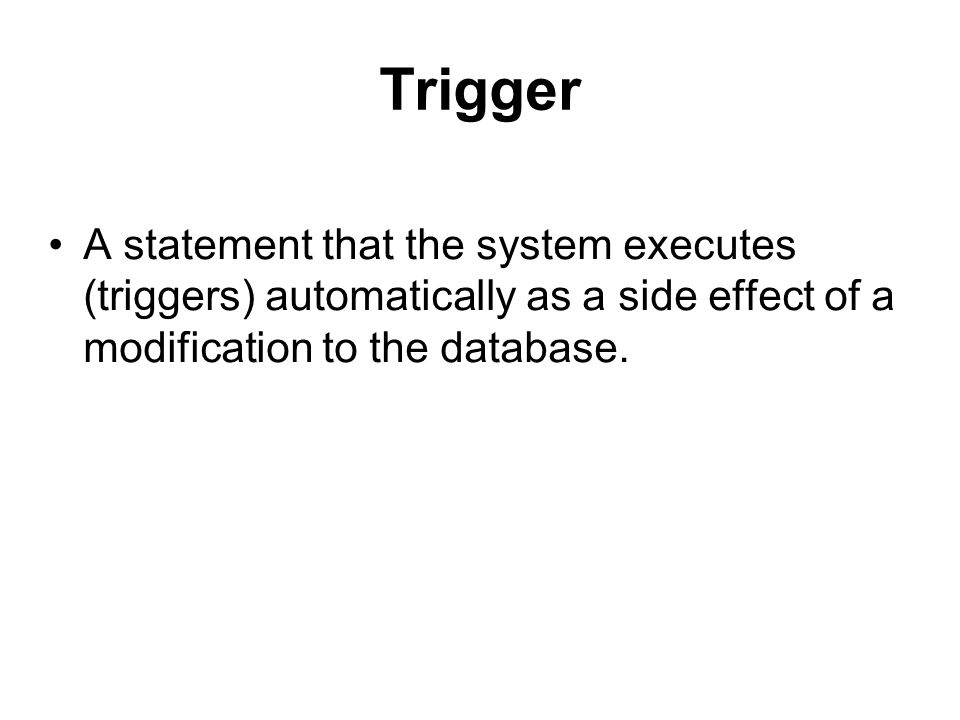

3. Trigger A statement that the system executes (triggers) automatically as a side effect of a modification to the database.

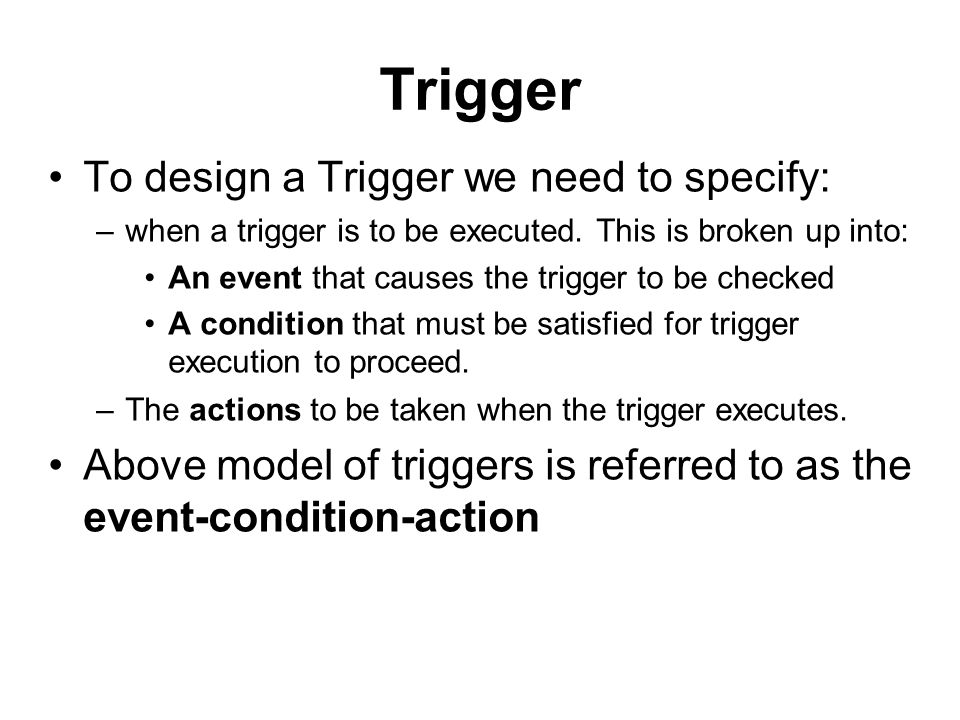

4. Trigger To design a Trigger we need to specify: –when a trigger is to be executed. This is broken up into: An event that causes the trigger to be checked A condition that must be satisfied for trigger execution to proceed. –The actions to be taken when the trigger executes. Above model of triggers is referred to as the event-condition-action

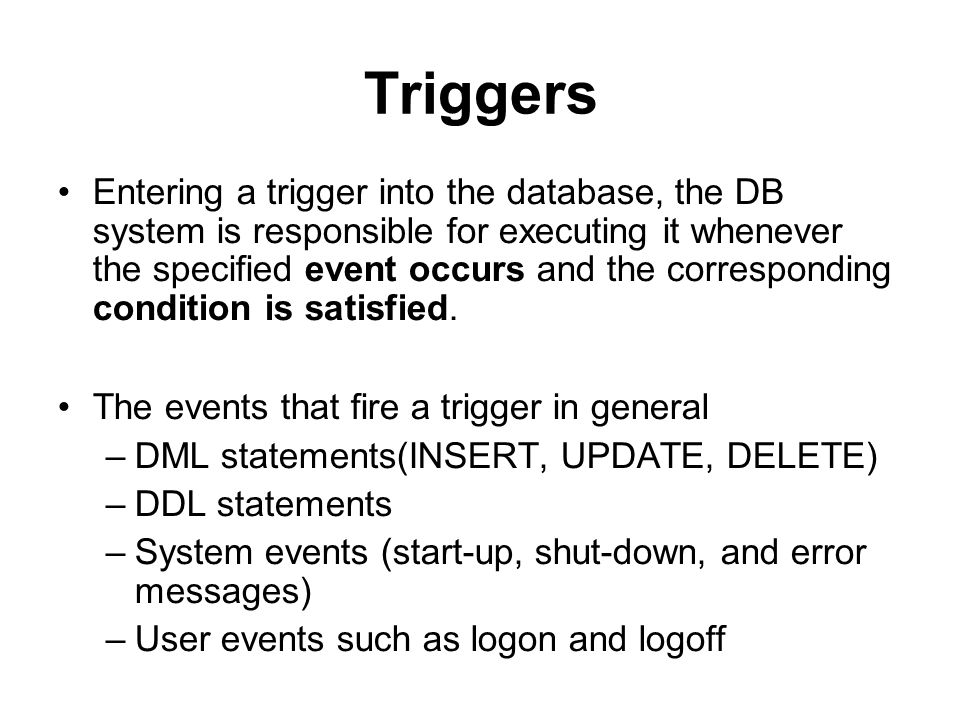

5. Triggers Entering a trigger into the database, the DB system is responsible for executing it whenever the specified event occurs and the corresponding condition is satisfied. The events that fire a trigger in general –DML statements(INSERT, UPDATE, DELETE) –DDL statements –System events (start-up, shut-down, and error messages) –User events such as logon and logoff

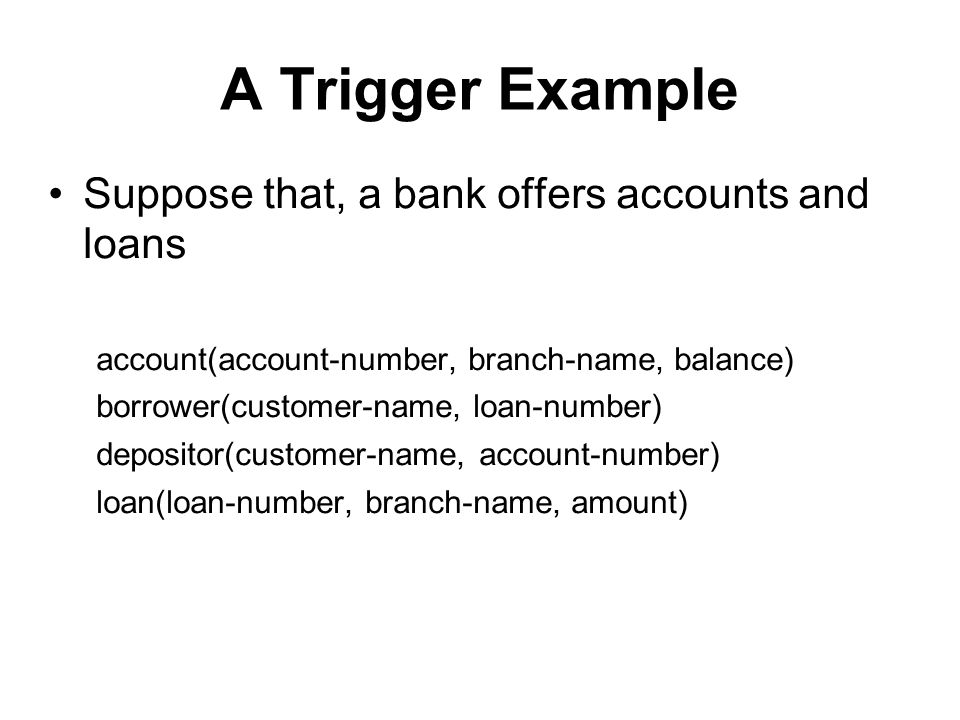

6. A Trigger Example Suppose that, a bank offers accounts and loans account(account-number, branch-name, balance) borrower(customer-name, loan-number) depositor(customer-name, account-number) loan(loan-number, branch-name, amount)

7. The banks does not allows negative account balances Instead bank –creates a loan in the amount of the overdraft. –sets the account balance to zero –gives this loan a loan number same as the account number A Trigger Example

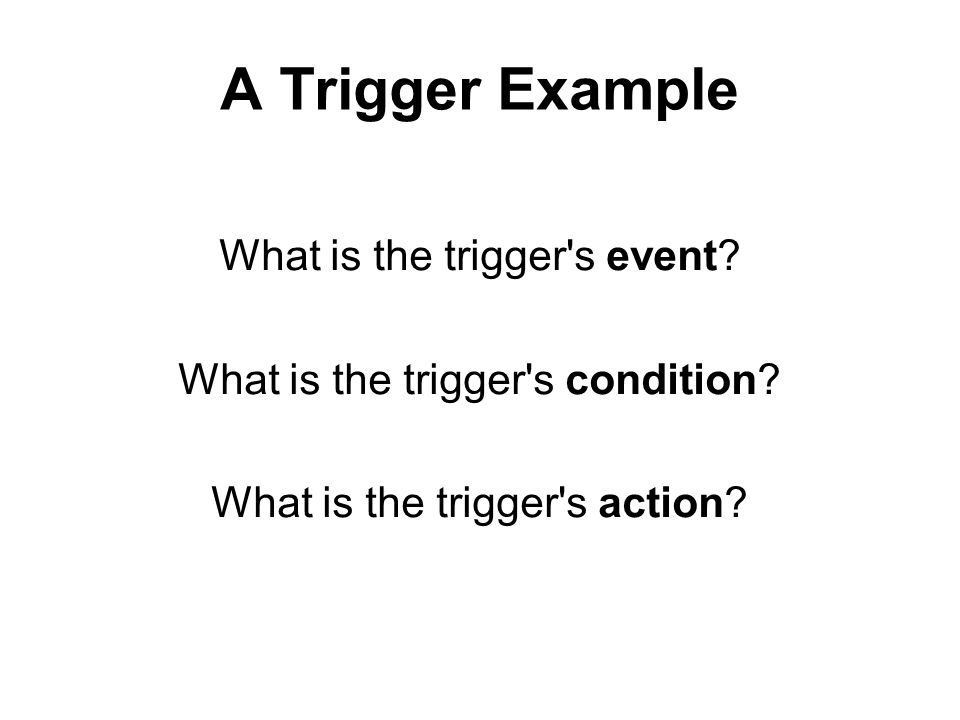

8. What is the trigger's event? What is the trigger's condition? What is the trigger's action? A Trigger Example

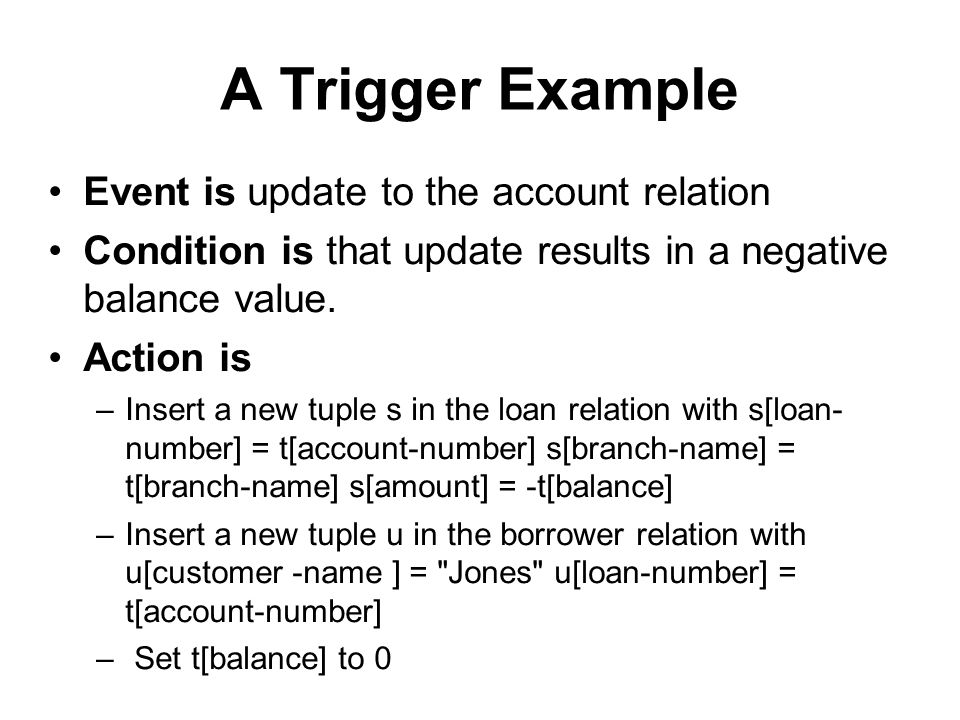

9. Event is update to the account relation Condition is that update results in a negative balance value. Action is –Insert a new tuple s in the loan relation with s[loan- number] = t[account-number] s[branch-name] = t[branch-name] s[amount] = -t[balance] –Insert a new tuple u in the borrower relation with u[customer -name ] = "Jones" u[loan-number] = t[account-number] – Set t[balance] to 0 A Trigger Example

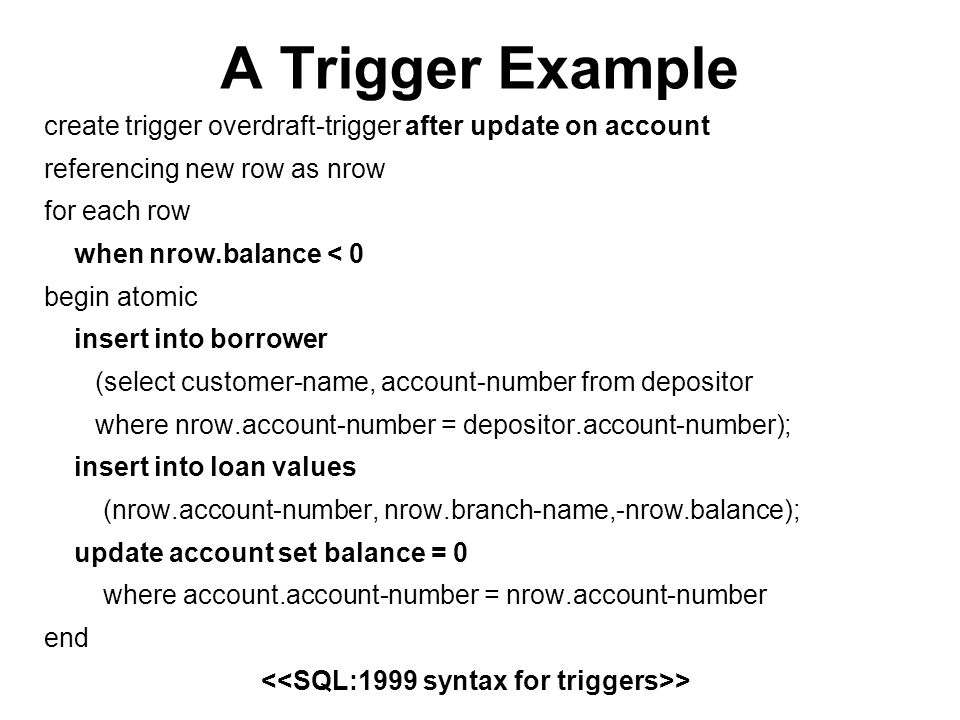

10. create trigger overdraft-trigger after update on account referencing new row as nrow for each row when nrow.balance < 0 begin atomic insert into borrower (select customer-name, account-number from depositor where nrow.account-number = depositor.account-number); insert into loan values (nrow.account-number, nrow.branch-name,-nrow.balance); update account set balance = 0 where account.account-number = nrow.account-number end > A Trigger Example

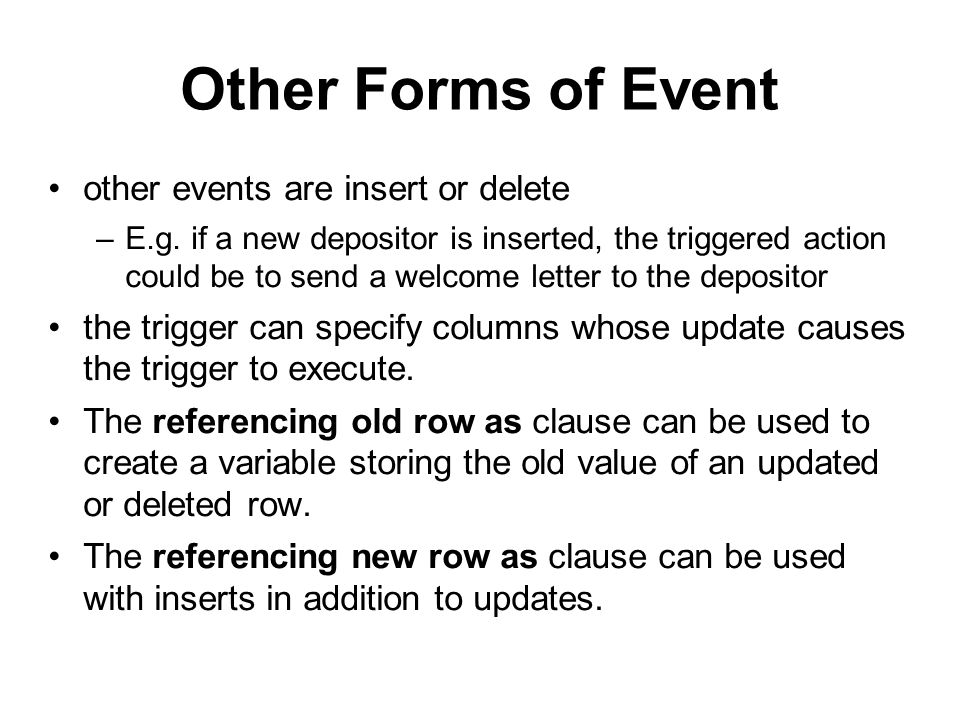

11. Other Forms of Event other events are insert or delete –E.g. if a new depositor is inserted, the triggered action could be to send a welcome letter to the depositor the trigger can specify columns whose update causes the trigger to execute. The referencing old row as clause can be used to create a variable storing the old value of an updated or deleted row. The referencing new row as clause can be used with inserts in addition to updates.

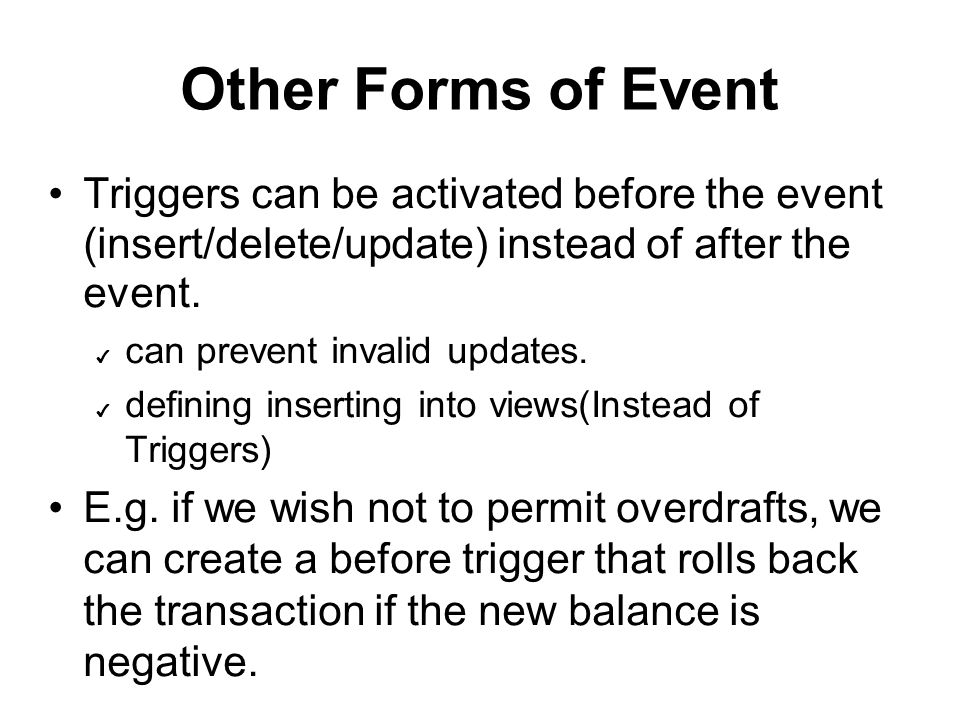

12. Other Forms of Event Triggers can be activated before the event (insert/delete/update) instead of after the event. ✔ can prevent invalid updates. ✔ defining inserting into views(Instead of Triggers) E.g. if we wish not to permit overdrafts, we can create a before trigger that rolls back the transaction if the new balance is negative.

13. Other Forms Of Action carry out an action for each affected row ✔ Like the above example carry out a single action for the entire SQL statement that caused the event To do so, use the for each statement clause instead of the for each row clause

14. Other Forms Of Action Then the clauses referencing old table as or referencing new table as can then be used to refer to temporary tables (called transition tables) containing all the old and affected rows Transition tables cannot be used with before triggers But can be used with after triggers, regardless of whether they are statement triggers or row triggers A single SQL statement can then be used to carry out multiple actions beased on transition tables

15. When Triggers Are Used Using triggers to –Automatically generate derived column values –Prevent invalid transactions –Enforce complex security authorizations –Enforce referential integrity across nodes in a distributed database –Enforce complex business rules

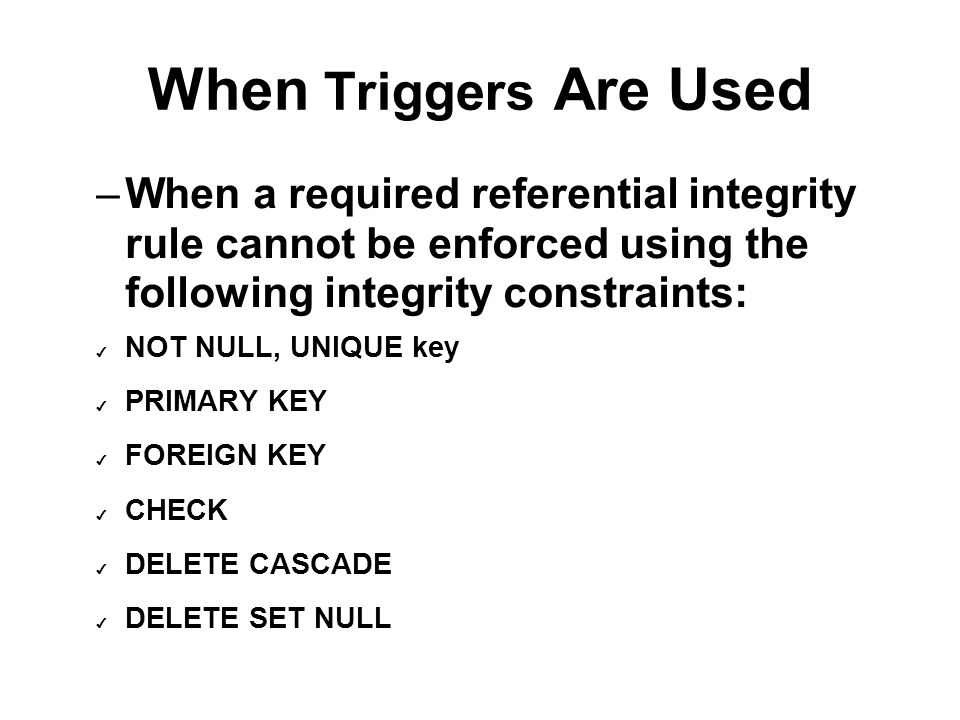

16. –When a required referential integrity rule cannot be enforced using the following integrity constraints: ✔ NOT NULL, UNIQUE key ✔ PRIMARY KEY ✔ FOREIGN KEY ✔ CHECK ✔ DELETE CASCADE ✔ DELETE SET NULL When Triggers Are Used

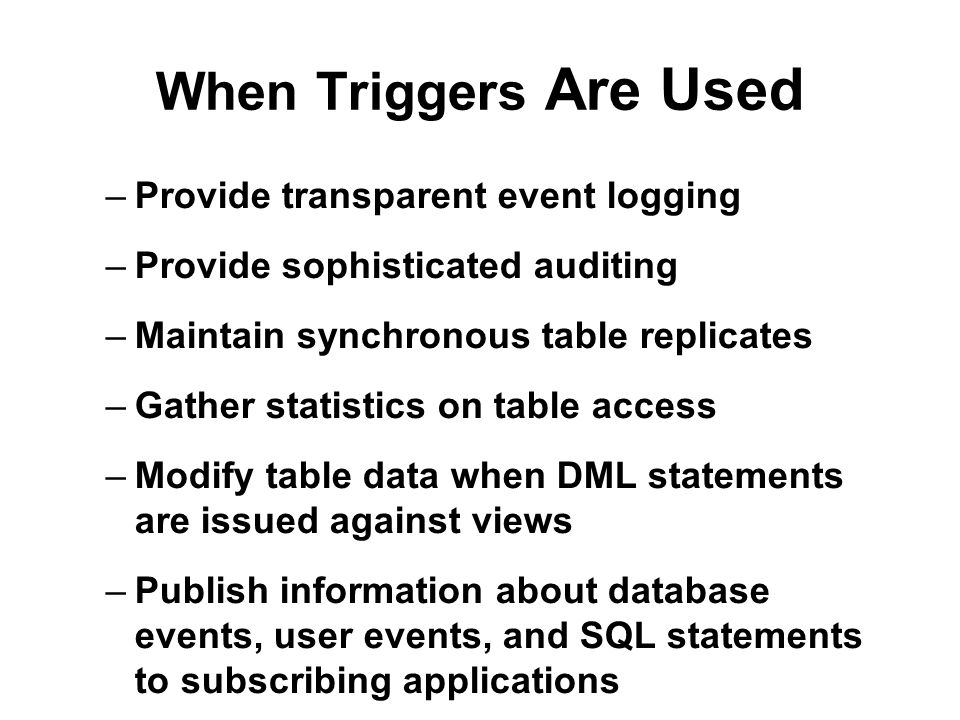

17. –Provide transparent event logging –Provide sophisticated auditing –Maintain synchronous table replicates –Gather statistics on table access –Modify table data when DML statements are issued against views –Publish information about database events, user events, and SQL statements to subscribing applications

18. Past Use Of Triggers To maintain summary data. –E.g. they used triggers on insert/delete/update of a employee relation containing salary and dept attributes to maintain the total salary of each department. –Today solution: materialized views For replicating databases –they used triggers on insert/delete/update of each relation to record the changes in relations called delta relations. –A separate process copied and the system executed the changes on the replica. –Modern DB systems, provide built-in facilities for database replication, so no need to triggers

19. In fact, many trigger applications, including our example overdraft-trigger, can be substituted by "encapsulation" (introduced in SQL:1999) – Encapsulation used to ensure that updates to the balance attribute of account are done only through a special procedure. Past Use Of Triggers

20. Use Triggers Carefully Furthermore, the action of one trigger can set off another trigger. In the worst case, this could even lead to an infinite chain of triggering Write triggers with great care, since a trigger error detected at run time causes the failure of the DML statement that set off the trigger. Use triggers only when necessary Use triggers only when the operation can't be expressed using DBMS other features Excessive use of triggers can result in complex interdependencies. E.g. –When a trigger fires, a SQL statement within its trigger action potentially can fire other triggers, resulting in cascading triggers

21. So Triggers provide a highly customized DBMS
