1. European Design Study Towards a Global TeV Linear Collider Susan L Smith

2. LCUK30.06.2004 Content EUROTeV Bid Goals Proposal Participating Institutes Work packages & UK participation Budget Outcome of the bid Status CARE & ELAN

3. Susan L SmithLCUK30.06.2004 Goal of the Design Study European Particle Physics and Accelerator Laboratories intend to contribute to a unique research facility of worldwide relevance, the Global Linear Collider EU Contribution addresses Feasibility Studies Preparatory Work European effort naturally merges with similar and complementary efforts undertaken in Asia and America to enable construction of such a facility

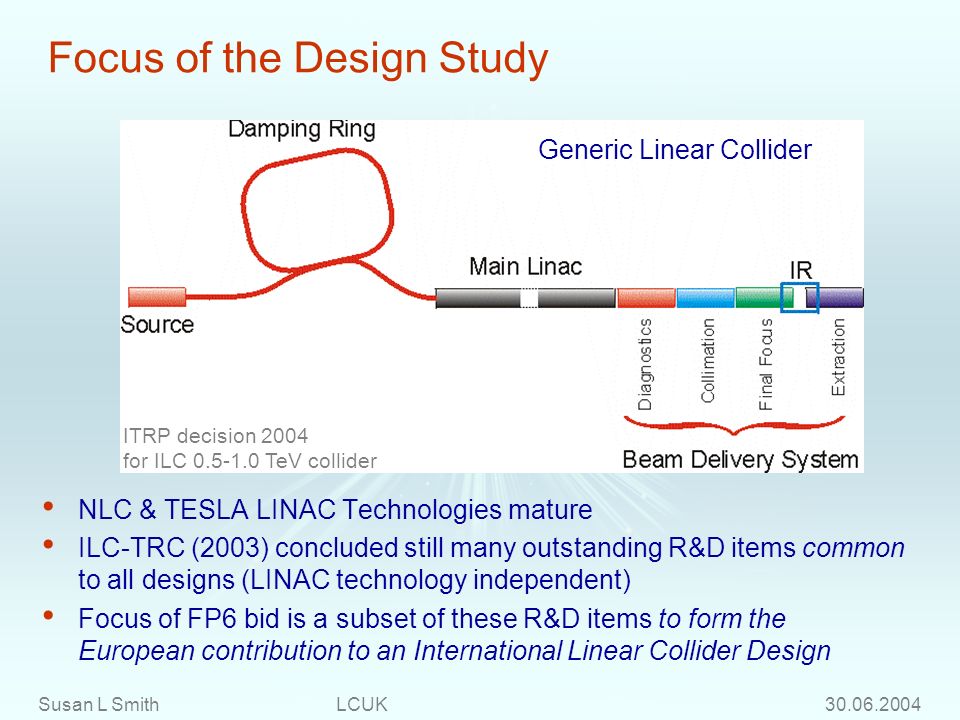

4. Susan L SmithLCUK30.06.2004 Focus of the Design Study NLC & TESLA LINAC Technologies mature ILC-TRC (2003) concluded still many outstanding R&D items common to all designs (LINAC technology independent) Focus of FP6 bid is a subset of these R&D items to form the European contribution to an International Linear Collider Design Generic Linear Collider ITRP decision 2004 for ILC 0.5-1.0 TeV collider

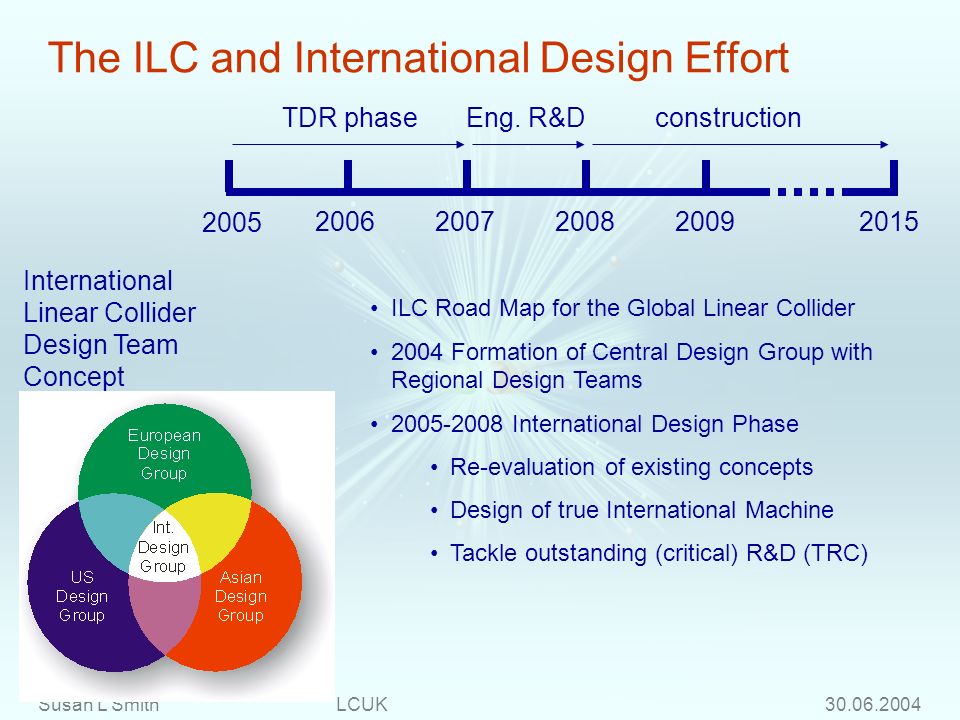

5. Susan L SmithLCUK30.06.2004 The ILC and International Design Effort International Linear Collider Design Team Concept 2005 20062007200820092015 TDR phaseEng. R&Dconstruction ILC Road Map for the Global Linear Collider 2004 Formation of Central Design Group with Regional Design Teams 2005-2008 International Design Phase Re-evaluation of existing concepts Design of true International Machine Tackle outstanding (critical) R&D (TRC)

6. Susan L SmithLCUK30.06.2004 FP6 Design Study Proposal European Linear Collider Design Team Beam Delivery System Damping Rings Diagnostics Metrology & Stabilisatio n Global Accelerator Network Luminosity Stability Studies Polarised Positron Source International Linear Collider Design Team Concept Formation of the European Design Team Initial focus on TRC tech. Independent R&D

7. Susan L SmithLCUK30.06.2004 EUROTeV Work Package Structure Work PackageCoordinator WP1ManagementEckhard ElsenDESY WP2Beam Delivery SystemSusan SmithCCLRC WP3Damping RingsSusanne GuiducciINFN-LNF WP4Polarised Positron SourceAchim StahlDESY WP5DiagnosticsGrahame BlairRHUL WP6Luminosity Performance Studies (Beam Dynamics) Daniel SchulteCERN WP7Metrology & StabilisationYannis KaryotakisLAPP (IN2P3) WP8Global Accelerator NetworkFerdinand WillekeDESY

8. Susan L SmithLCUK30.06.2004 European Added Value Physics Roadmap Europe Contributes to the Understanding of the Fundamental Laws of Nature World-wide consensus ECFA has endorsed LC as the highest priority Keeping Europe at the forefront of accelerator development Advancing LC Technologies in Europe Longstanding expertise Development of sophisticated Technologies Numerous spin-offs, e.g. SLS, FEL and XFEL, medical treatment, computational methods Science Opportunities and Training Ground

9. Susan L SmithLCUK30.06.2004 Scientific and Technological Excellence Advanced accelerator technologies Acceleration of ultra-low emittance beams Beam stabilisation at the nm level Polarised Sources Global Accelerator Network Advanced communication techniques Remote controls …towards a Global Linear Collider

10. Susan L SmithLCUK30.06.2004 Participating Institutes 27 Institutes CCLRC (RAL&DL) & 9 UK Universities

11. Susan L SmithLCUK30.06.2004 WP1: MNGMNT Management Coordinator: Eckhard Elsen, DESY

12. Susan L SmithLCUK30.06.2004 Organisation Tasks coordinated by WP coordinators Steering Committee consists of WP coordinators + MNGMNT International Scientific Advisory Committee addresses relevance and oversees integration with worldwide efforts

13. Susan L SmithLCUK30.06.2004 International Context From individual attempts on WP in institutes to European Design Study merging coherently with the worldwide design efforts for a LC Asia America Europe WP EUROTeV & ILC Institutes

14. Susan L SmithLCUK30.06.2004 WP2: BDS Beam Delivery System Coordinator: Susan Smith, CCLRC

15. Susan L SmithLCUK30.06.2004 WP2: Overall Goal Develop and evolve a BDS optics design to allow the specification of beam delivery system components in conjunction with the output of the DIAG and BDYN WP Progress the design concept of critical components of the BDS, specifically the final focus quadrupoles, the wakefield modelling and design of collimation systems, fast feedback systems and the crab cavity system Participants: CCLRC, CERN, CEA, TU Darmstadt, Lancaster Uni., Queen Mary Uni, Manchester Uni

16. Susan L SmithLCUK30.06.2004 BDS Goals Design & Optimisation of Final Focus system Design & Optimisation of Collimation System Studies of SC Quadrupoles for us as Strong Final IR Quads Crab Cavity Prototyping Spoiler Wakefield Calculations Mechanical Spoiler Design & Prototyping Fast Beam-Based Feedback System(s) R&D Spoiler Design Coll System BDS FF System

17. Susan L SmithLCUK30.06.2004 Beam Delivery System: UK Participation CCLRC : Lattice design for BDS; Collimation simulations, hardware beam test; N/C crab cavity design, prototype, test; Development of fast feedback systems (BPM) Lancaster : Crab cavities and associated RF system design study, Collimator wakefield calculations Queen Mary: Design and fabrication of prototypes of beam-based feedback components: BPMs, fast kickers, driver amplifiers, feedback circuits, Testing of prototypes with beam. Manchester: Effect of particle interactions on the collimators and spoilers technology

18. Susan L SmithLCUK30.06.2004 WP3: DR Damping Rings Coordinator: Susanna Guiducci, INFN-LNF

19. Susan L SmithLCUK30.06.2004 WP3 Overall Goal  Study of problems related to the low emittance achievement: Emittance tuning (orbit, dispersion and coupling correction)  with Diagnostics and Beam Dynamics Dynamic aperture optimization  Kickers/Deflectors: Design of CTF3 extraction kicker Study of RF deflectors scheme for TESLA DR Impedance calculations (kickers, deflectors and Combiner Ring vacuum chamber)  e-cloud, and Vacuum design:  with Beam Dynamics NEG coating Measurements of photoelectron yields. Participants: CCLRC, CERN, DESY, INFN

20. Susan L SmithLCUK30.06.2004 DR Goals Study of low emittance tuning algorithms Electron Cloud (and other instabilities) Studies Development of RF Separators Damping Ring NEG Vacuum Technology R&D Low SEC Coating Technology Dynamic Aperture Optimisation in Wiggler Dominated Systems Development of Fast Kicker Systems e-cloud sol. Vac. system Tests in CTF3

21. Susan L SmithLCUK30.06.2004 Damping Rings: UK Participation CCLRC Emittance tuning algorithms, Testing of NEG material, Vacuum issues of electron cloud

22. Susan L SmithLCUK30.06.2004 WP4: PPS Polarised Positron Source Coordinator: Achim Stahl, DESY

23. Susan L SmithLCUK30.06.2004 WP4: Overall Goal Conceptual design of all infrastructure necessary to produce polarised positron beams for a linear collider with sufficient intensity and the highest possible degree of polarisation. The direction of the polarisation should be freely adjustable at the IP Full simulation of beams with polarisation all the way from the undulator to the IP Engineering design and prototyping of the most critical components Participants: CCLRC, DESY, HU Berlin, Liverpool Univ, Durham Uni

24. Susan L SmithLCUK30.06.2004 PPS Goals Photon Collimator Conceptual Design S.C. Helical Undulator Development PPS PM Helical Undulator Development Beam Tests Target System Design Capture System PPS Model Spin Rotator Systems Performance Simulation Source Polarimeter Design Source Polarimeter Prototype Polarimeter

25. Susan L SmithLCUK30.06.2004 Polarised Positron Source: UK participation CCLRC: 2 prototypes, comparison, final design, test undulator design and construction, beam test. Liverpool: Undulator design, simulation and measurement of photon spectrum Photon collimator: Simulation, engineering design Photon target: Engineering design Spin transport: Implementation of linac + DR, simulation analysis Durham: Theoretical calculations on spin depolarisation

26. Susan L SmithLCUK30.06.2004 WP5: DIAG Diagnostics Coordinator: Grahame Blair, RHUL

27. Susan L SmithLCUK30.06.2004 WP5: Overall Goal The Linear Collider will need an unprecedented concentration and quality of beam diagnostic tools in order to deliver the required luminosity. Some of these tools themselves will require qualitatively new approaches and are challenging projects in their own right. The control system of the LC will need to combine all the various diagnostic information in real time and tune the system to respond to variations in the beam due to ground motion, feedback performance etc. Participants: CERN, DESY, LAL, Oxford Univ., RHUL, UCL, Cambridge Univ. Uppsala

28. Susan L SmithLCUK30.06.2004 DIAG Goals Laser Wire Diagnostics Precision Magnetic Spectrometer based on nm level BPM Con-focal resonator pickup Wide-Band Current Pickup Precision timing & phase systems Critical BPM technology

29. Susan L SmithLCUK30.06.2004 Diagnostics: UK participation Oxford: Evaluate laserwire technique, design electronics do beam tests Royal Holloway: Scanning systems and electronics for the PETRA laser-wire. Optical design and data analysis. Simulation of laser-wire systems in the beam diagnostics section. UCL: Studies of upstream spectrometer for beam energy determination. Development of beam position monitors which can withstand beamline conditions. Integration of beamline spectrometry into determination of the luminosity spectrum. Cambridge: Studies of upstream spectroscopy for beam energy determination. Beam tests of Beam Position Monitors to access their precision and stability for this task. Integration of spectrometer into design of Beam Delivery System.

30. Susan L SmithLCUK30.06.2004 WP6: BDYN Luminosity Stabilisation Studies (Beam Dynamics) Coordinator: Daniel Schulte, CERN

31. Susan L SmithLCUK30.06.2004 WP6 Overall Goal Overall Goal: Develop and use the necessary models and tools to reliably predict the luminosity performance of a future LC Requirements: Development and coding of tuning strategies Development and implementation of realistic models Participants: CERN, DESY, LAL, PSI, Uppsala, Royal Holloway, Queen Mary, Manchester

32. Susan L SmithLCUK30.06.2004 BDYN Goals Luminosity Tuning Simulations (inc. static & dynamic errors) Integrated Luminosity Performance LET Simulation Package (application development) Halo Build-up and Detector background Studies (Further) development of e-Cloud theory and modelling codes Design of path-length tuning chicane Bunch Compressor Studies Beam-based Feedback Studies (optimisation) Lumi opt. & stability

33. Susan L SmithLCUK30.06.2004 Beam Dynamics UK Participation Royal Holloway:Further development and application of GEANT-based simulation code. Support code on GRID. Study of secondary background due to collimation, emphasis on the effect of synchrotron radiation and its impact on the collimation system design. Manchester: Study of secondary background production in collimation region and its impact on the system design; emphasis on muons and neutrons. Benchmarking GEANT4 and FLUKA simulations. Queen Mary: Develop static alignment procedures and feedback systems for BDS. Support codes on GRID. Participate in code benchmarking.

34. Susan L SmithLCUK30.06.2004 WP7: METSTB Metrology and Mechanical Stabilisation Coordinator: Yannis Karyotakis, LAPP

35. Susan L SmithLCUK30.06.2004 Overview Study of the ground motion and cultural noise Develop alignment methods and instrumentation that allow for a rapid high precision alignment of the complete accelerator Develop an active stabilization method and instrumentation at a nanometer level for the final focus magnets Extend usability of the stabilization to other critical magnets in the BDS by developing cost effective lower resolution derivatives of the FF system solutions Participants: DESY, LAPP, CCLRC, Oxford Univ.

36. Susan L SmithLCUK30.06.2004 METSTB Goals Optical Anchoring Techniques Component Alignment and Stabilisation Precision Laser Alignment System (LICAS) Precision Measurement of Ground Vibration Spectra Motion Sensors and Actuators (Industrial Study) Active Mechanical Stabilisation Active Stabilisation Feedback Electronics / Algorithms Critical FD (IR) Magnet Model Refinement of Ground Motion Models, inc. ‘cultural noise’ Ground Motion Characterisation

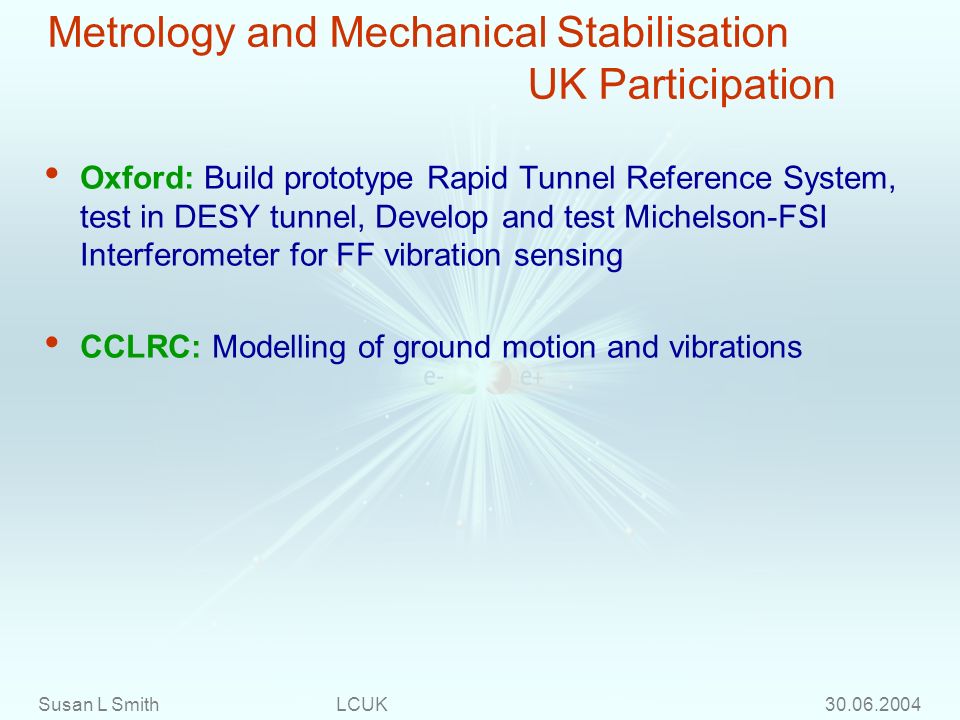

37. Susan L SmithLCUK30.06.2004 Metrology and Mechanical Stabilisation UK Participation Oxford: Build prototype Rapid Tunnel Reference System, test in DESY tunnel, Develop and test Michelson-FSI Interferometer for FF vibration sensing CCLRC: Modelling of ground motion and vibrations

38. Susan L SmithLCUK30.06.2004 WP8: GANMVL Global Accelerator Network Multipurpose Virtual Laboratory Coordinator: Ferdinand Willeke, DESY

39. Susan L SmithLCUK30.06.2004 WP8: Overall Goal Design and build a collaborative tool for far Remote Observation and far Remote Control of accelerator components or experiments at accelerators with full control of equipment and the program of work, with combined high quality audio and video and full sharing of managed information MVL will be a tool to demonstrate and gain experience that - accelerator components can be efficiently operated, maintained and repaired under the control of experts from remote sites geographically dispersed experts can work together in a virtual team Participants: DESY, GSI, Elettra, FHG-IGD, INFN- Milano, INFN-Roma2, INFN-LNF, University Udine, University Mannheim

40. Susan L SmithLCUK30.06.2004 Budget

41. Susan L SmithLCUK30.06.2004 Requested by Country, total request = €11.25M Total budget = €28 M

42. Susan L SmithLCUK30.06.2004 Requested by Country/UK Institute

43. Susan L SmithLCUK30.06.2004 Requested By Work Package

44. Susan L SmithLCUK30.06.2004 Outcome of the bid EUROTeV ranked second in the scientific evaluation Recommended approval of 9M€ which is less than the 11.2M€ bid The recommendation is that the host institutes makeup the shortfall to ensure that the scope of the project is maintained! Overall the UK host contribution is around twice the UK request. This is around twice the relative contribution of other countries which generally commit just over the matching funds required by the bid call.

45. Susan L SmithLCUK30.06.2004 Status ITRP Review proceeding, a decision should be announced during the summer Global Design Initiative (GDI) starts discussion on the structure of global design approach, regional initiatives play an important role in optimisation of worldwide research program EUROTeV will assemble considerable resources Consider fine-tuning the proposed EUROTeV program in accordance with global research program EUROTeV starts in 2005, funds will not be available before 2005 Kick-off meeting to be organised by ELAN towards end 2004

46. Susan L SmithLCUK30.06.2004 EUROTeV URL http://www-flc.desy.de/eurotev/

47. Susan L SmithLCUK30.06.2004 CARE & ELAN First ELAN workshop meeting was 2 ½ days Covered ELAN WP and the JRA’s in parallel was a combination of network planning and scientific workshop ELAN LTECNC: Normal conducting & source, LTECSC: Super conducting, BDYN: Beam dynamics, INSTR: Instrumentation, ANAD: Advanced acceleration JRAs SRF: Superconducting RF, PHIN: Photoinjector, Next meeting is combined CARE and ELAN (November 2 nd - 5 th @ DESY ) http://www.lnf.infn.it/conference/elan/
