Basic Concepts Block diagram representation of control systems Transfer functions Analysis of block diagrams P, PI and PID controllers ( Continuous and discrete forms) Stability of feedback control systems

3
Basic Block Diagram

4
PID:Process Instrumentation Diagram

5
Block Diagram of Feedback Control System

6
Laplace Transform

7

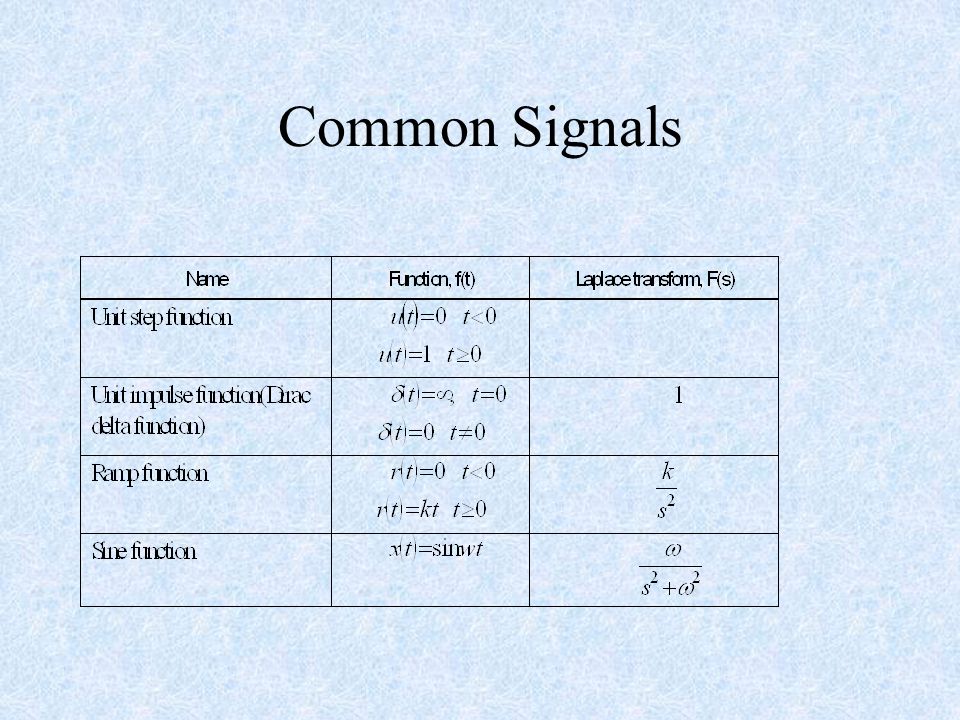

Common Signals

8
Properties of Laplace Transform

9
Transfer functions

10

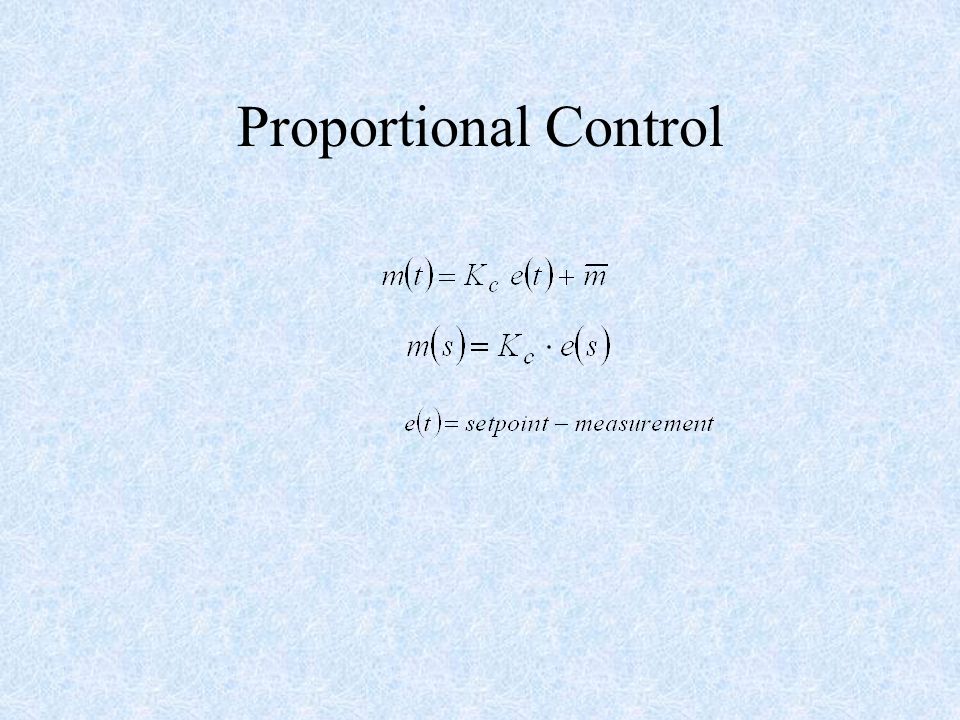

Proportional Control

11

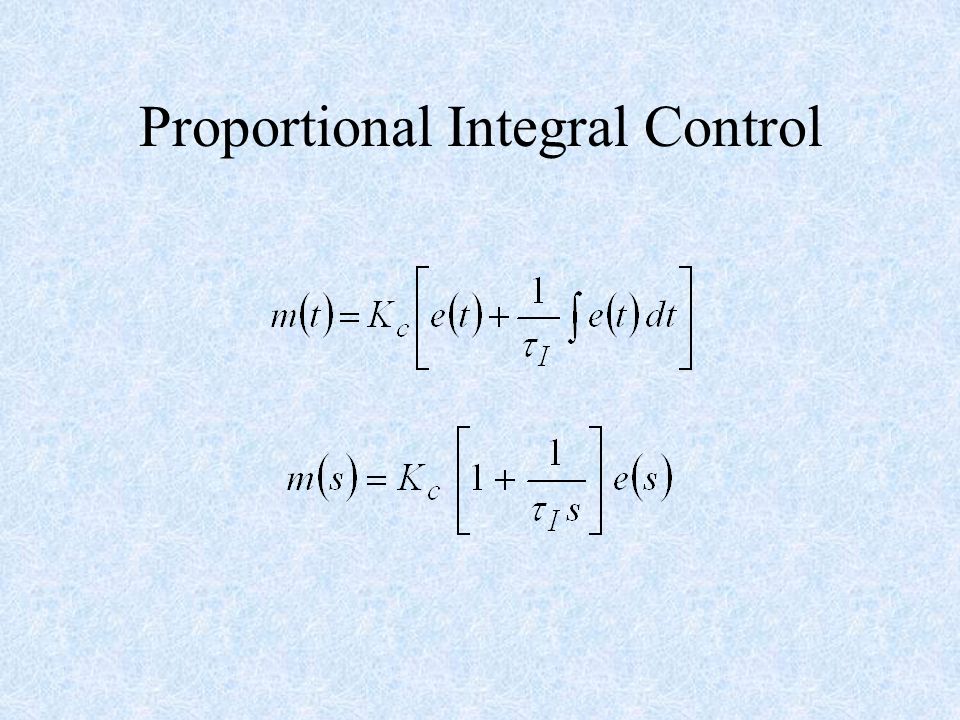

Proportional Integral Control

12

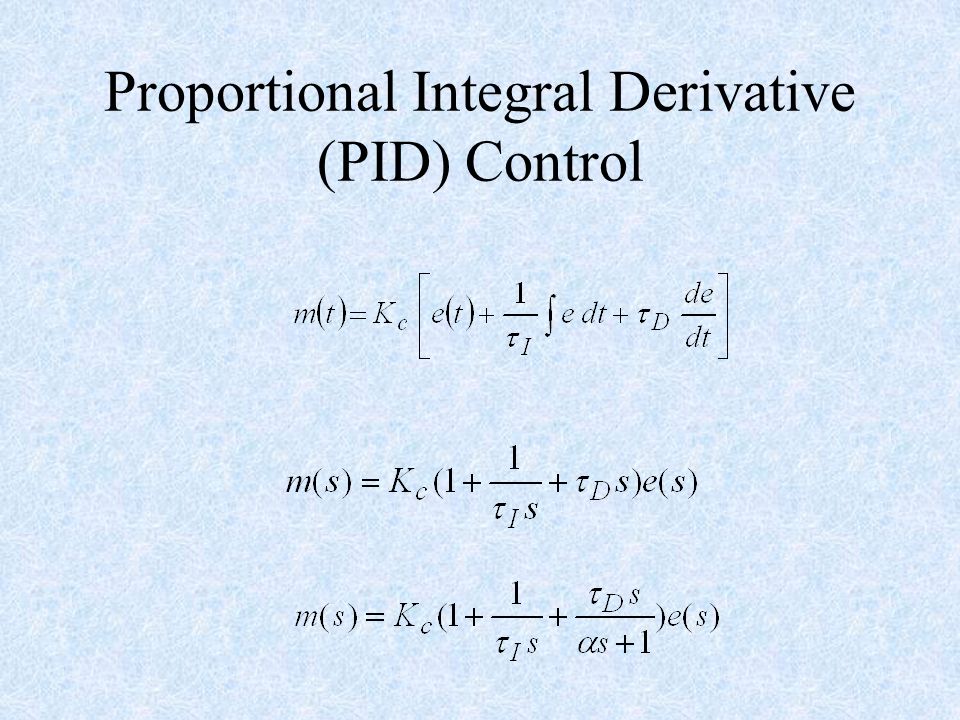

Proportional Integral Derivative (PID) Control

13
Common Transfer Functions

14

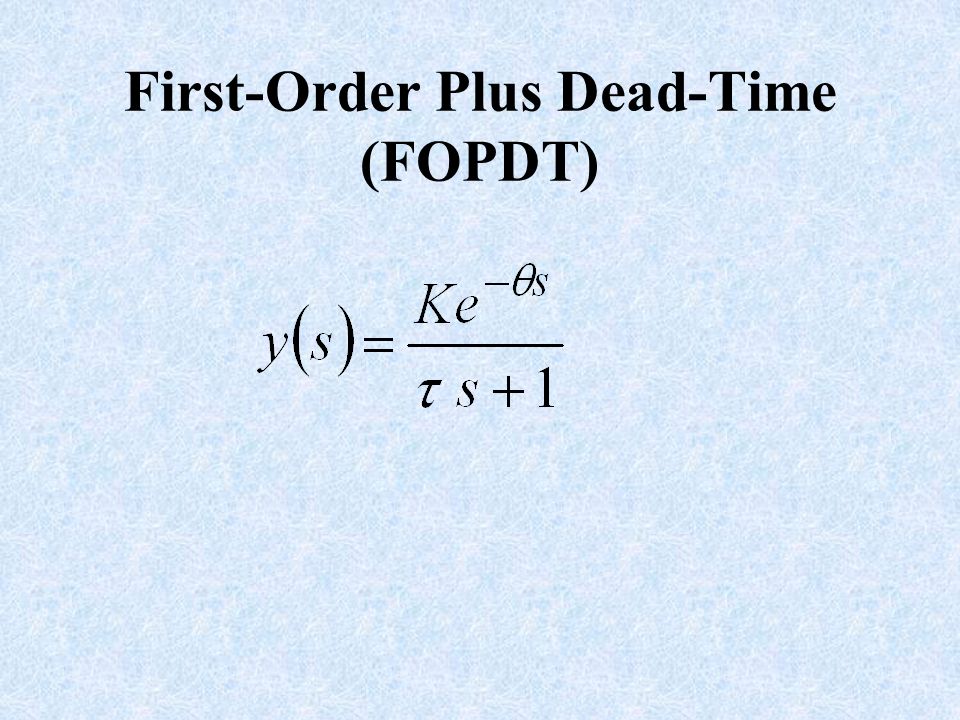

First-Order Plus Dead-Time (FOPDT)

15

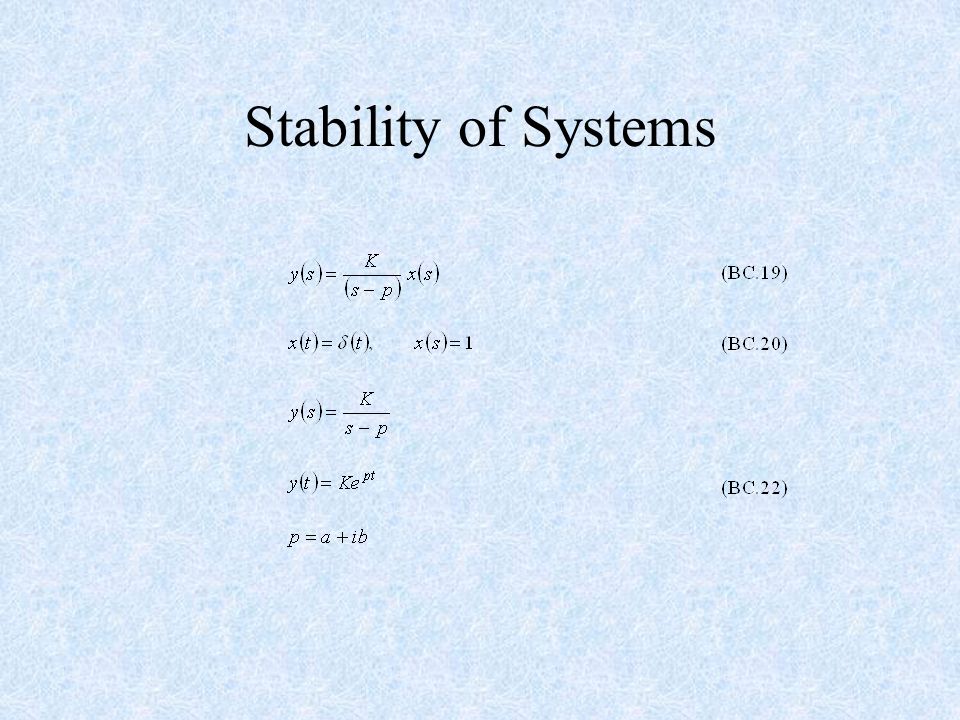

Stability of Systems

16

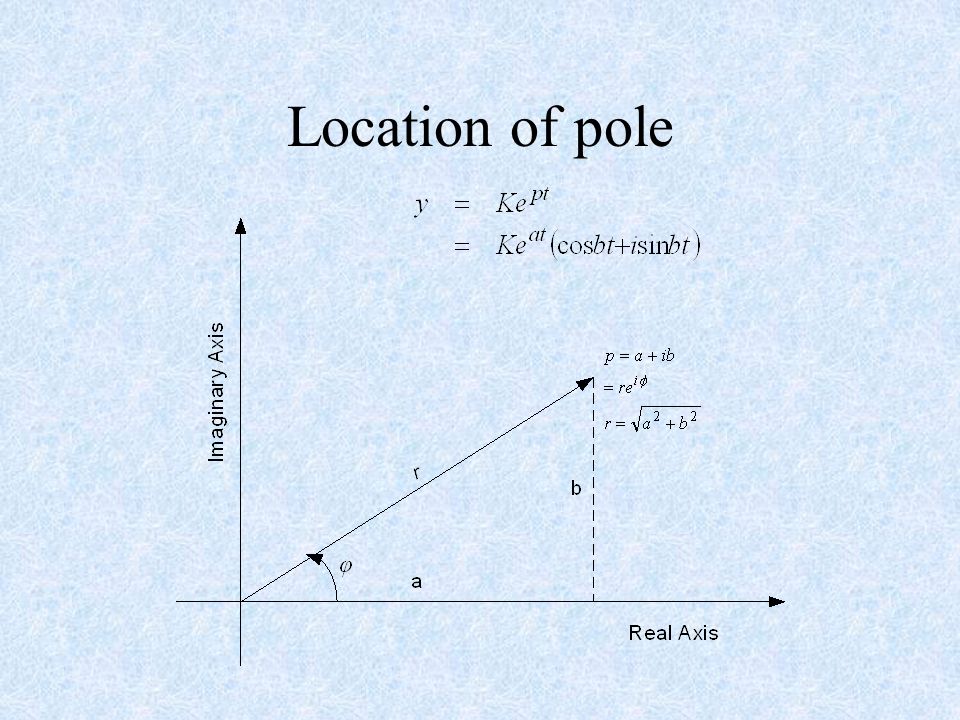

Location of pole

17

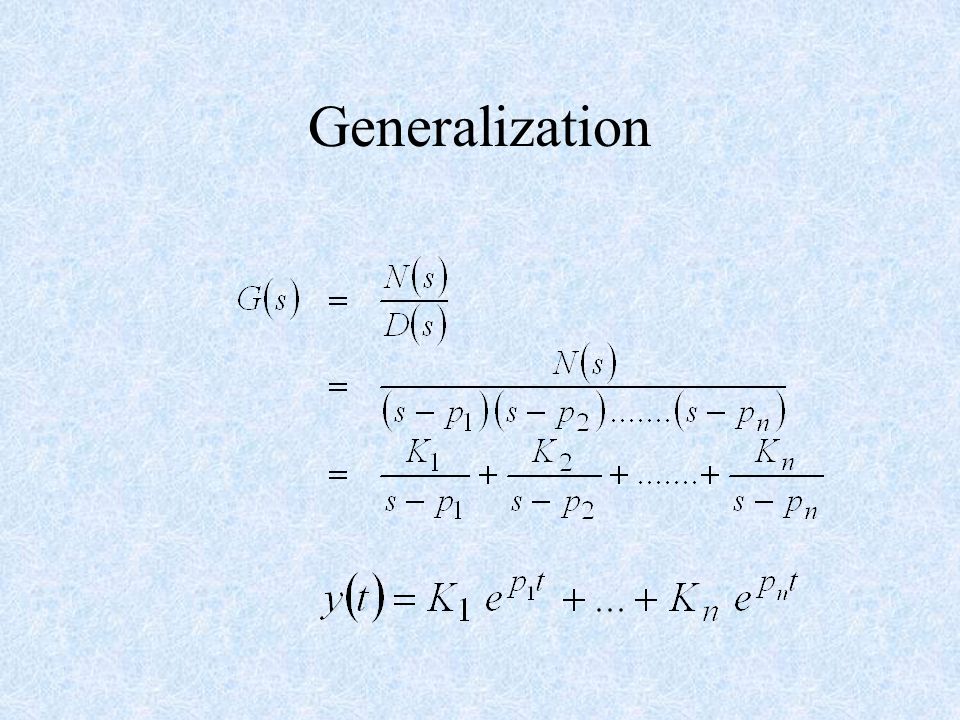

Generalization

18

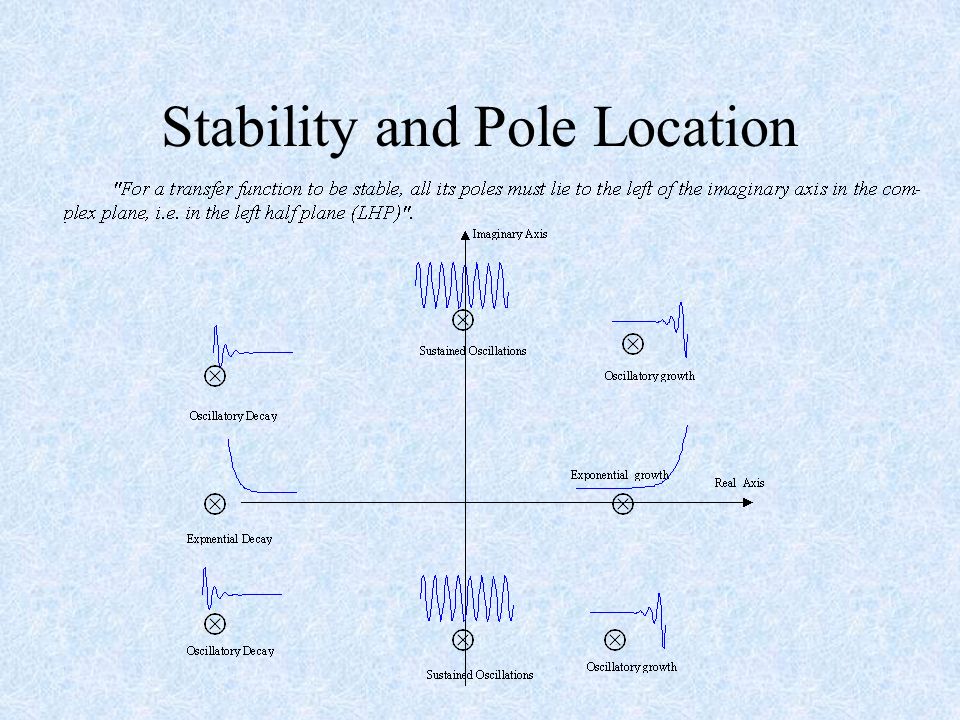

Stability and Pole Location

19
Stability of Closed Loop Systems

20
Example: Third order process

21
Root Locus

22

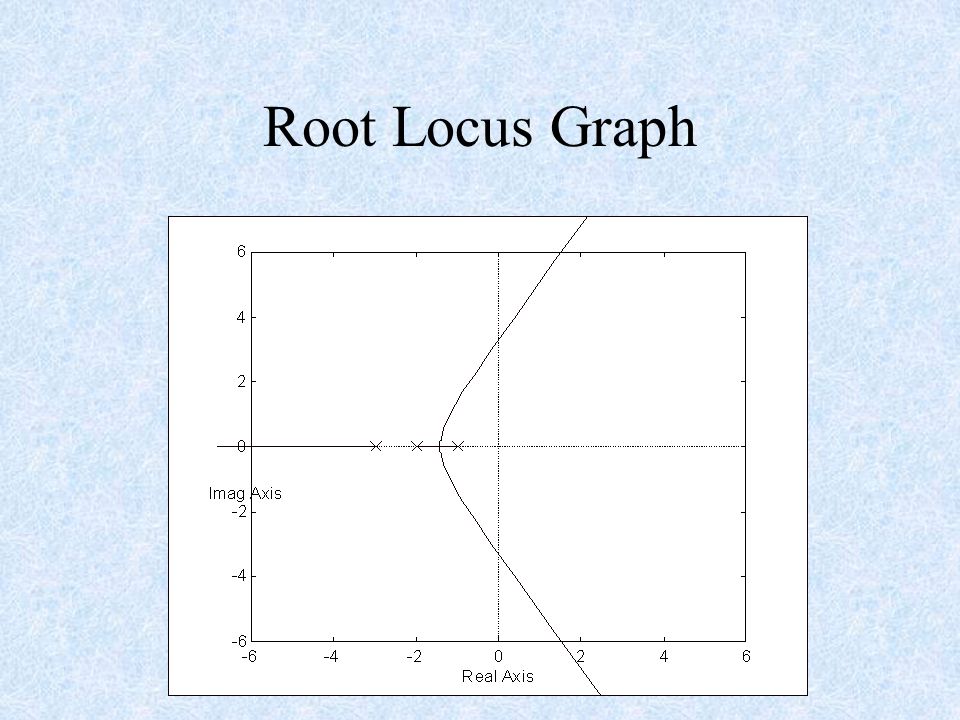

Root Locus Graph

23
CONTROLLER TUNING

24

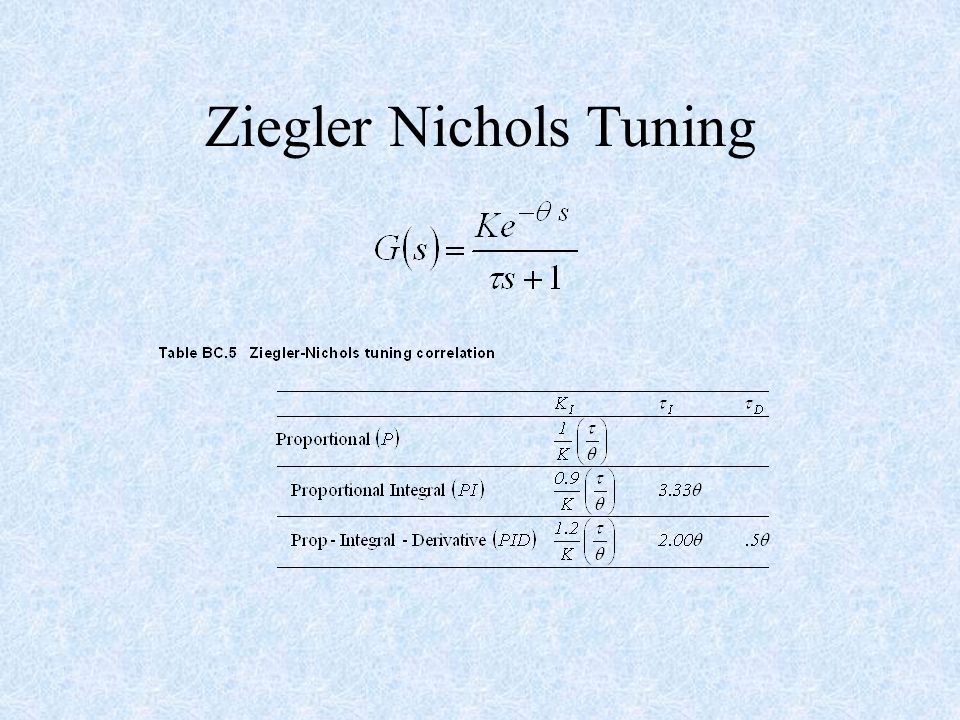

Ziegler Nichols Tuning
