1. LDAP Authentication Copyright © 2000-2007 Liferay, Inc. All Rights Reserved. No material may be reproduced electronically or in print without written permission from Liferay, Inc.

2. Objectives Authenticating with LDAP server 1.What is LDAP 2.LDAP in Action 3.How does it work with Liferay?

3. What is LDAP? LDAP = Lightweight Directory Access Protocol An application protocol for querying and modifying directory services running over TCP/IP. A Directory Information Tree (DIT) is data represented in a hierarchical tree- like structure consisting of the Distinguished names (DNs) of the directory entries.

4. LDAP in Action LDAP Browser Plugin in Eclipse Using the Eclipse Install/Update Manager is the easiest way to install the LDAP Studio Browser plug-in. From workbench menu choose Help → Software Updates → Find and Install.... In the opened wizard choose Search for new features to install and click Next. Next please specify the LDAP Studio update site. Click the New Remote Site... button. In the dialog input the following and press OK: –Name: LDAP Studio Update Site –URL: http://directory.apache.org/ldapstudio/update/

5. LDAP in Action LDAP Browser Plugin in Eclipse Make sure the new update site is checked an press Finish. Now the install manager checks the update site and presents the search results. Select the feature you want to install - of course the LDAP Studio Browser - and click Next. In the next dialog ensure that the LDAP Studio Browser feature is selected and click to Finish. Now the install manager loads the necessary files. When download is finished you have to verify the installation, please click to Install.

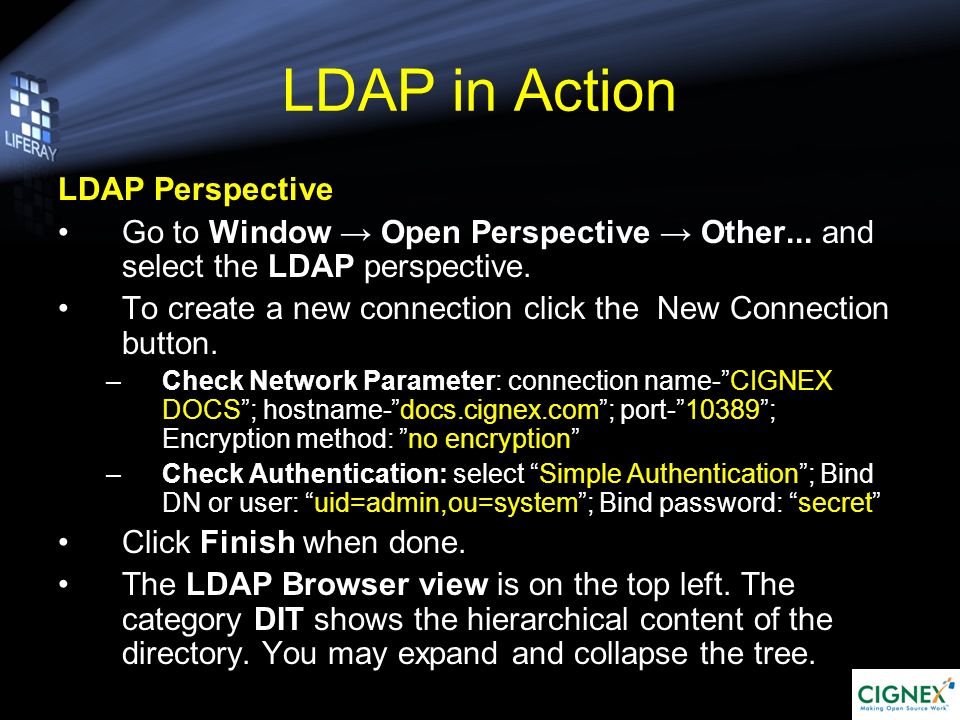

6. LDAP in Action LDAP Perspective Go to Window → Open Perspective → Other... and select the LDAP perspective. To create a new connection click the New Connection button. –Check Network Parameter: connection name-”CIGNEX DOCS”; hostname-”docs.cignex.com”; port-”10389”; Encryption method: ”no encryption” –Check Authentication: select “Simple Authentication”; Bind DN or user: “uid=admin,ou=system”; Bind password: “secret” Click Finish when done. The LDAP Browser view is on the top left. The category DIT shows the hierarchical content of the directory. You may expand and collapse the tree.

7. LDAP in Action LDAP Perspective Select user “janesmith” under “ou=users, ou=system”; Select user “janesmith”; View all attributes View user password “jane”; and others – “cn”, “sn”, “mail”, “given name”, etc. Now Integrate this LDAP server with Liferay

8. How does it work with Liferay Log in as “janesmith@liferay.com” Password: “jane” Failed surely. Login as admin The login is test@liferay.com and the password is test. click on the Users tab in the Admin portlet. Click Authentication. Click LDAP. Check the Enabled box. Input LDAP info as demo (next slide). Select the Apache Directory Server and click Save.

9. How does it work with Liferay

10. Log out Log in as “janesmith@liferay.com” Password: “jane” Got? Q&A

11. Exercise 1.Create an account in LDAP for your self 2.Sign in with your account in Liferay

12. Possible steps In LDAP perspective, select ou=users, ou=system. Right click, select New Entry. Check create entry from scratch; ->next Select inetOrgPerson ->add ->next Input cn in left side of “=” and your first name in right side of “=”; ->next Input your surname as value of ‘sn’ Add new values: giveName O (organization) Mail (email address) userPassword (plain text) Finish

13. Revision History Jonas Yuan06/07/07Created for Liferay 4.2.2
