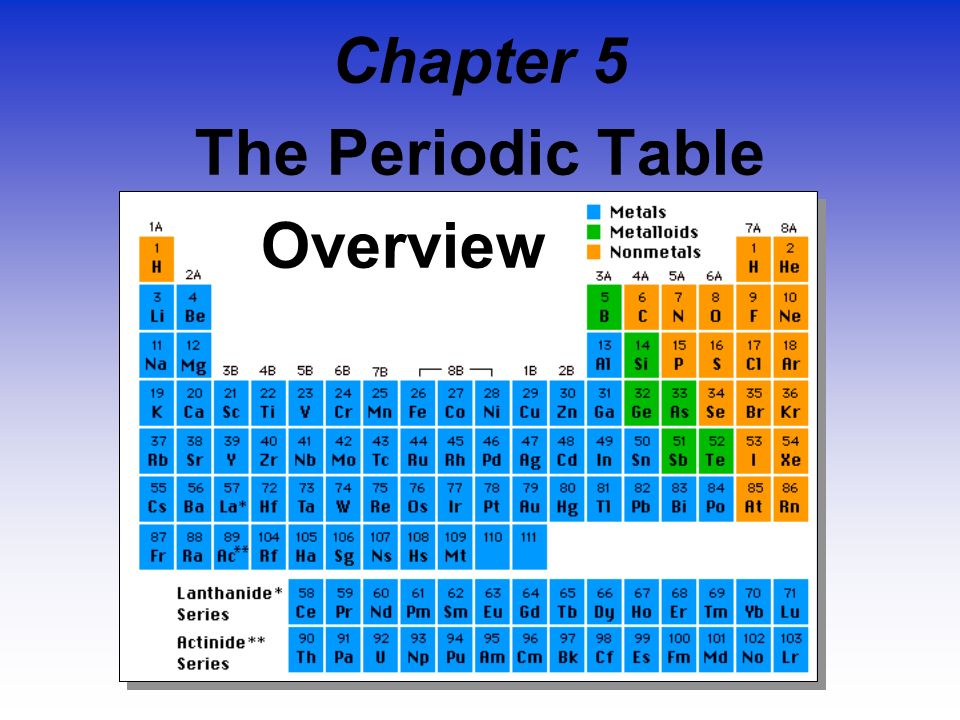

1. Chapter 5 The Periodic Table Overview

2. The Language of Chemistry The elements, their names, and symbols are given on the PERIODIC TABLEThe elements, their names, and symbols are given on the PERIODIC TABLE How many elements are there?How many elements are there? Overview

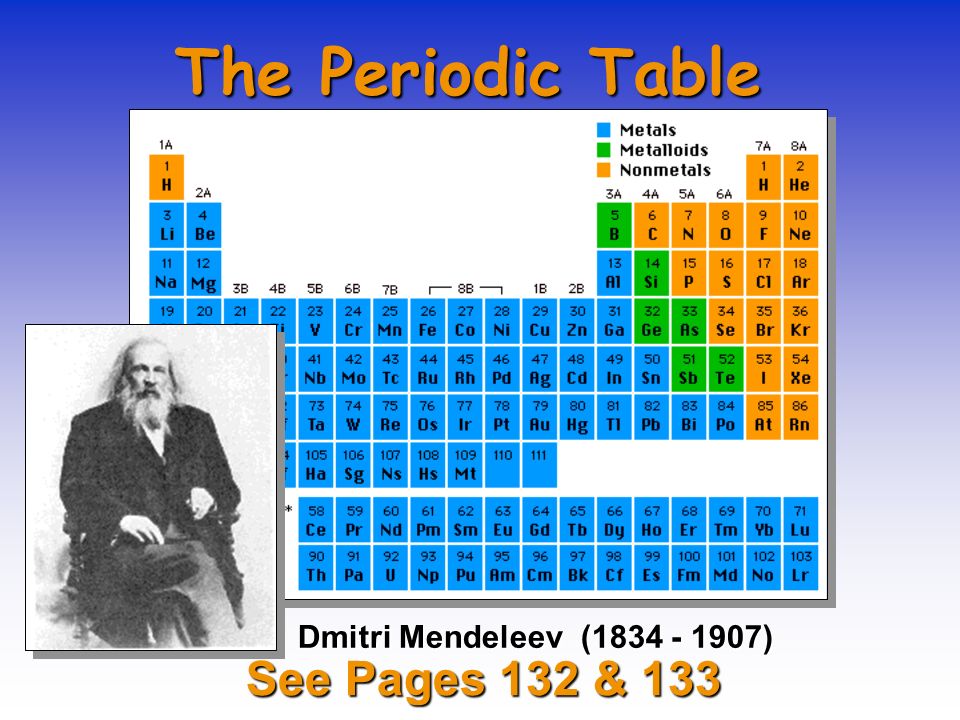

3. The Periodic Table Dmitri Mendeleev (1834 - 1907) See Pages 132 & 133

4. Glenn Seaborg (1912-1999 ) Discovered 8 new elements.Discovered 8 new elements. Only living person for whom an element was named.Only living person for whom an element was named.

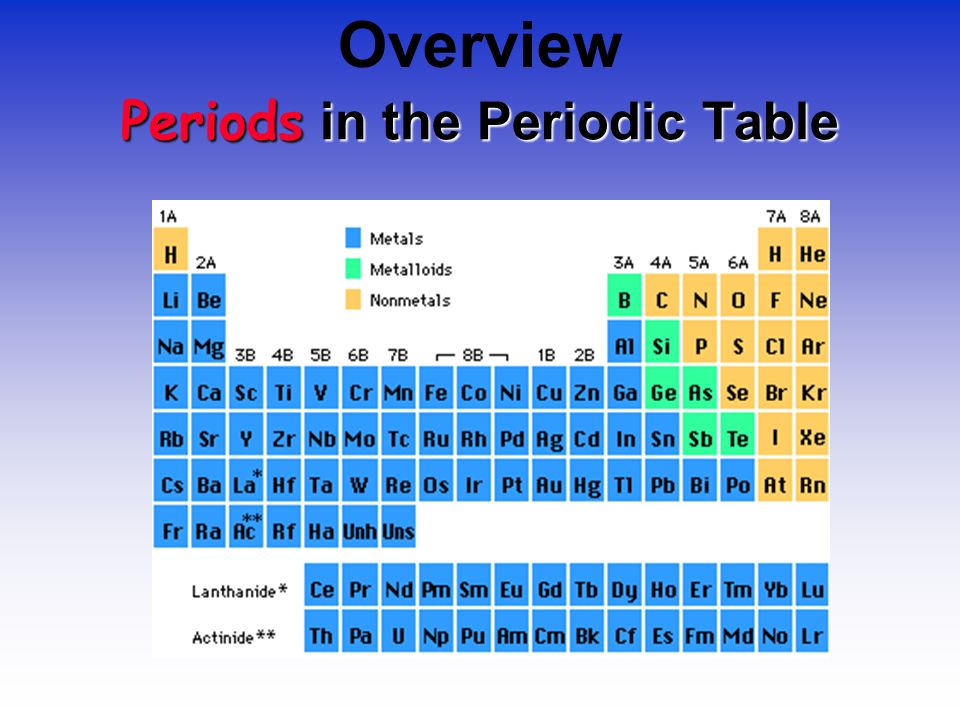

5. Periods in the Periodic Table Overview

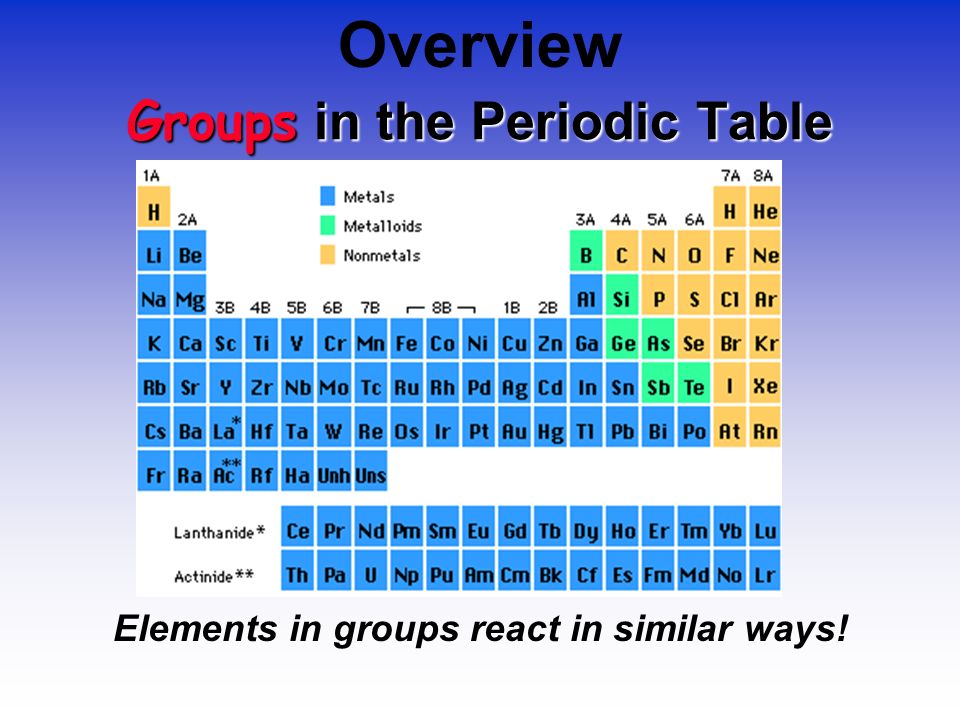

6. Groups in the Periodic Table Elements in groups react in similar ways! Overview

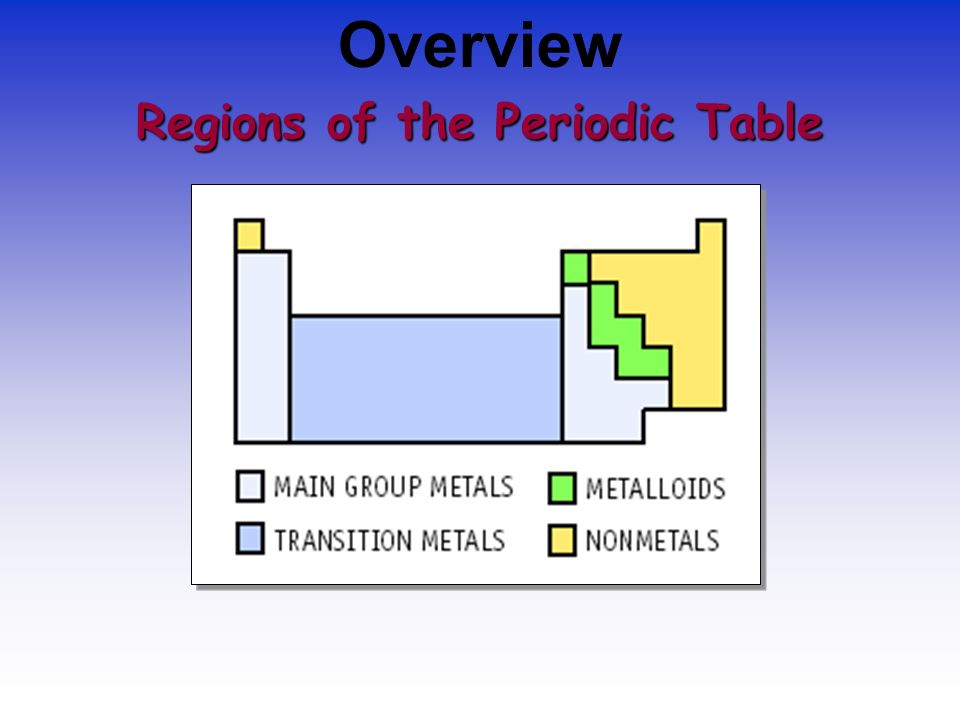

7. Regions of the Periodic Table Overview

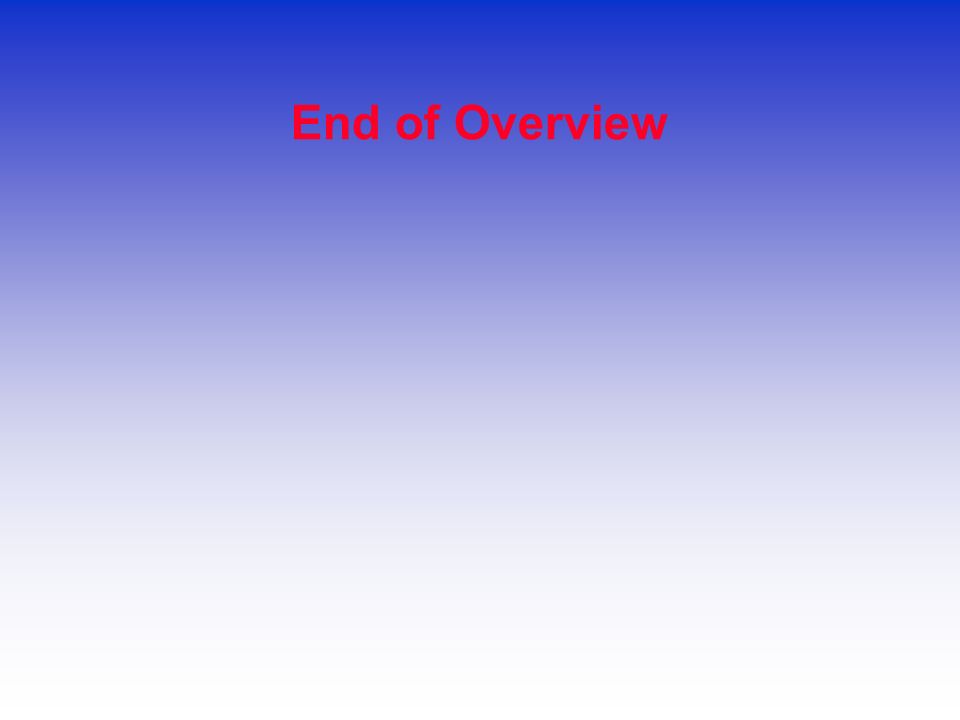

8. End of Overview

9. The Periodic Table Dmitri Mendeleev (1834 - 1907) See Pages 132 & 133

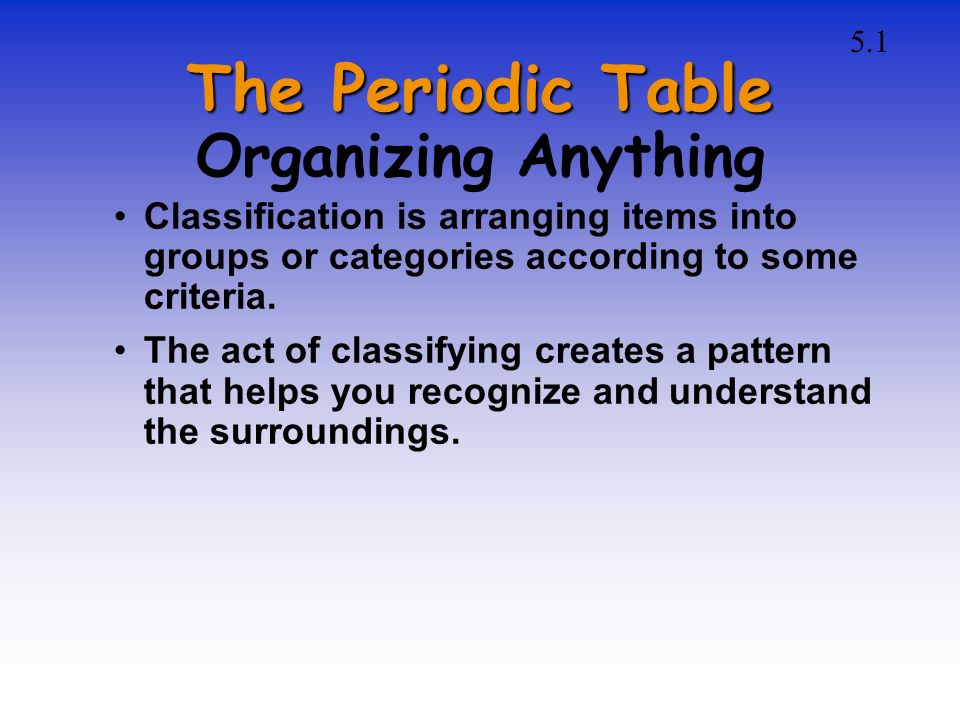

10. The Periodic Table The Periodic Table Organizing Anything Classification is arranging items into groups or categories according to some criteria. The act of classifying creates a pattern that helps you recognize and understand the surroundings. 5.1

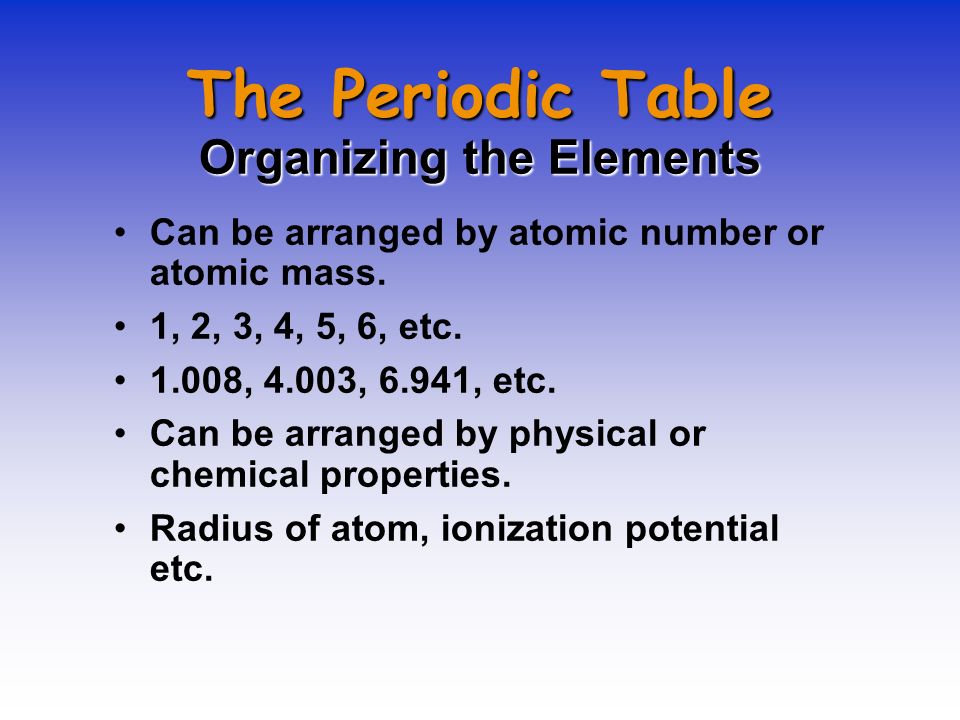

11. The Periodic Table Organizing the Elements Can be arranged by atomic number or atomic mass. 1, 2, 3, 4, 5, 6, etc. 1.008, 4.003, 6.941, etc. Can be arranged by physical or chemical properties. Radius of atom, ionization potential etc.

12. Organizing the Elements The atomic mass is usually placed under the symbol for the atom. The periodic table is arranged by atomic number: 1, 2, 3, 4, etc., with new rows placed when there is a big change in a property. C 6 Atomic Number 12.0 Atomic Mass C 6 12 Atomic Number Mass Number

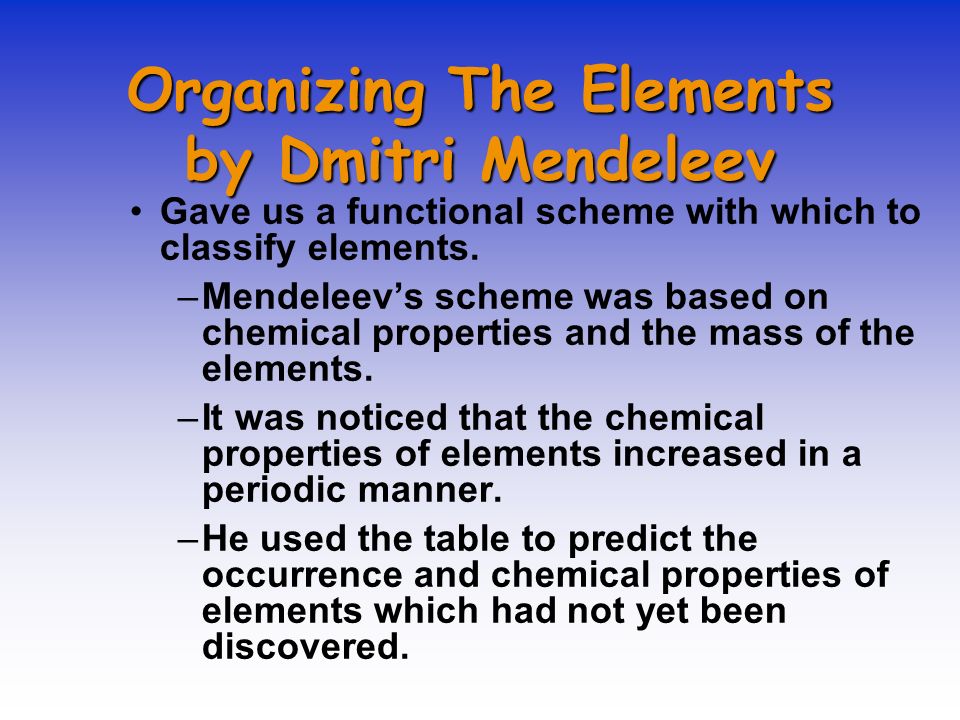

13. Gave us a functional scheme with which to classify elements. –Mendeleev’s scheme was based on chemical properties and the mass of the elements. –It was noticed that the chemical properties of elements increased in a periodic manner. –He used the table to predict the occurrence and chemical properties of elements which had not yet been discovered. Organizing The Elements by Dmitri Mendeleev

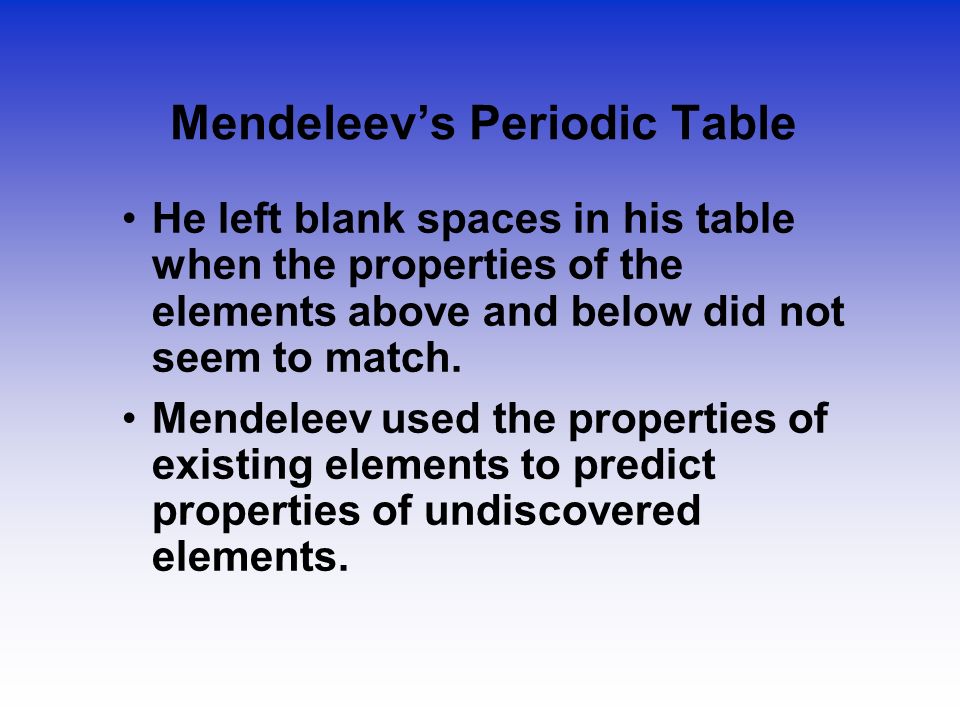

14. Mendeleev’s Periodic Table He left blank spaces in his table when the properties of the elements above and below did not seem to match. Mendeleev used the properties of existing elements to predict properties of undiscovered elements.

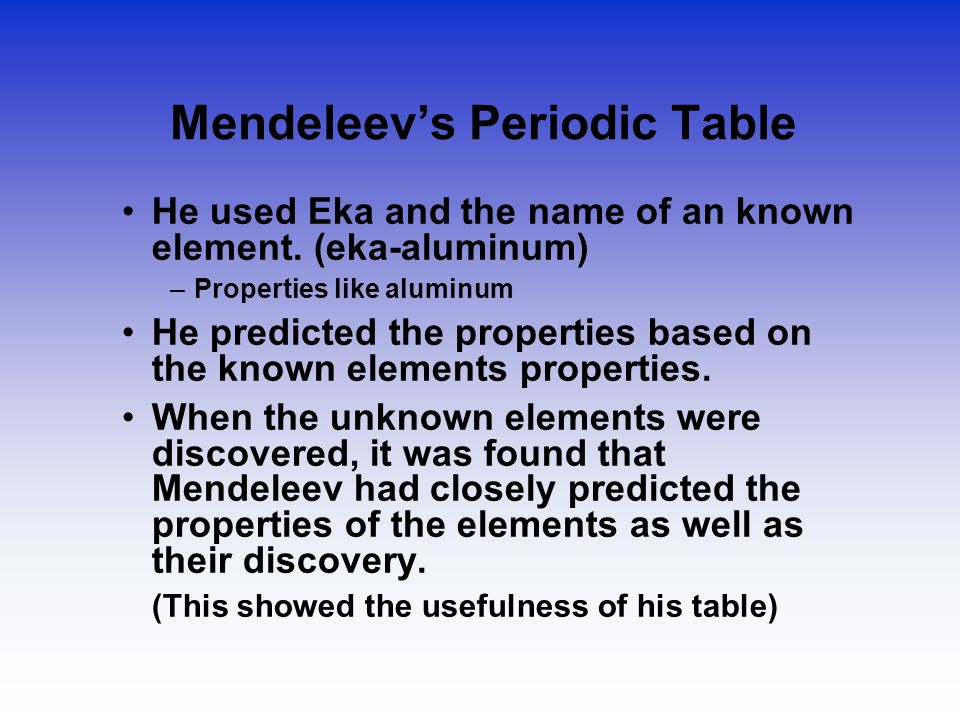

15. Mendeleev’s Periodic Table He used Eka and the name of an known element. (eka-aluminum) –Properties like aluminum He predicted the properties based on the known elements properties. When the unknown elements were discovered, it was found that Mendeleev had closely predicted the properties of the elements as well as their discovery. (This showed the usefulness of his table)

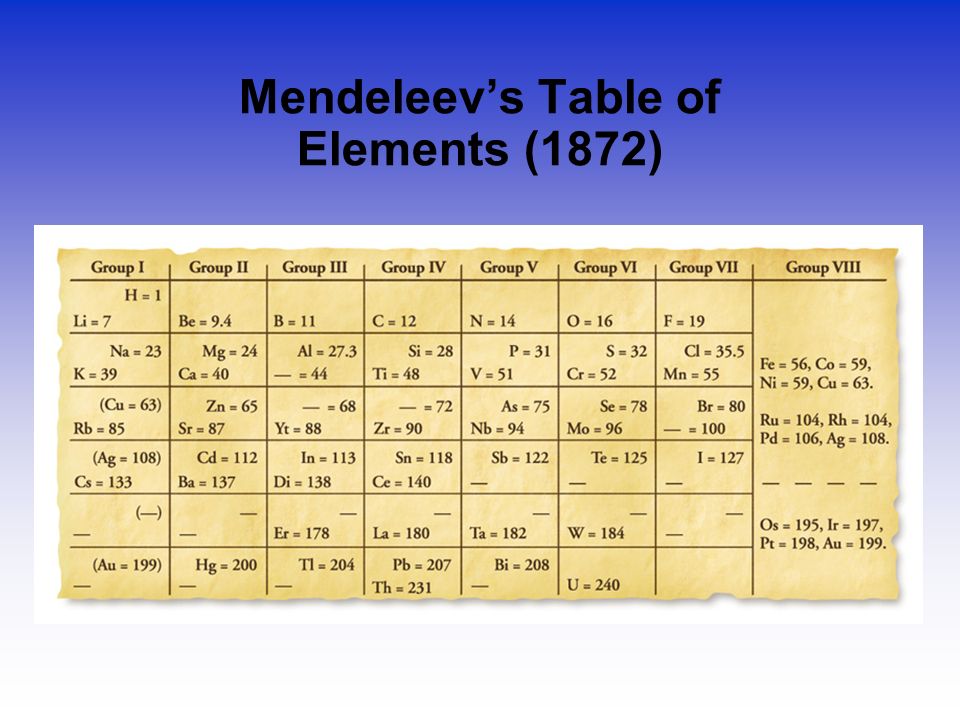

16. Mendeleev’s Table of Elements (1872)

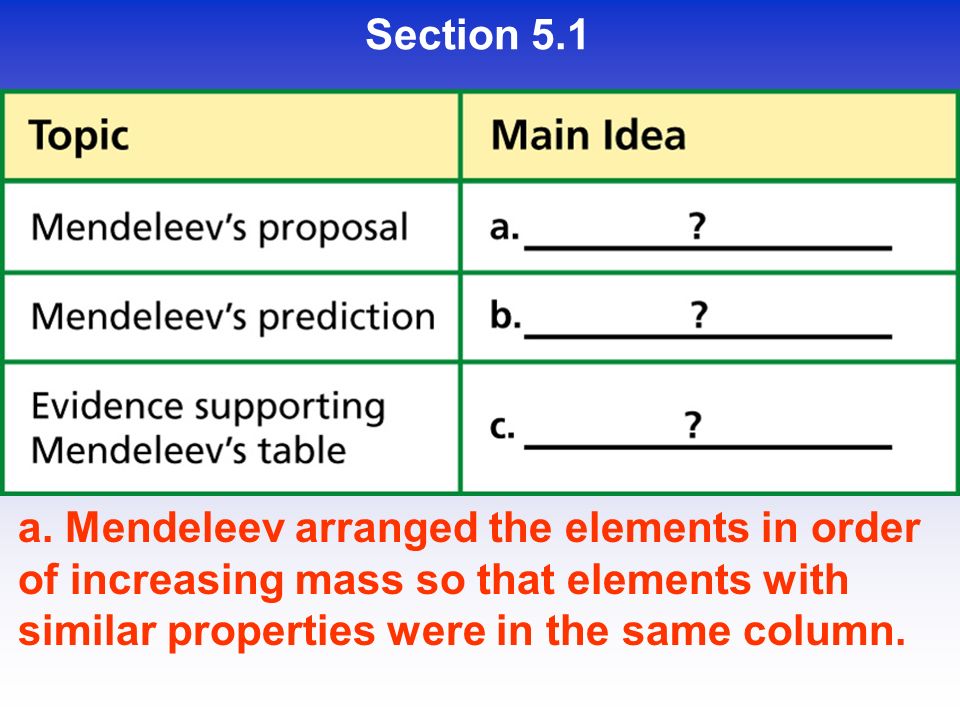

17. Section 5.1 a. Mendeleev arranged the elements in order of increasing mass so that elements with similar properties were in the same column.

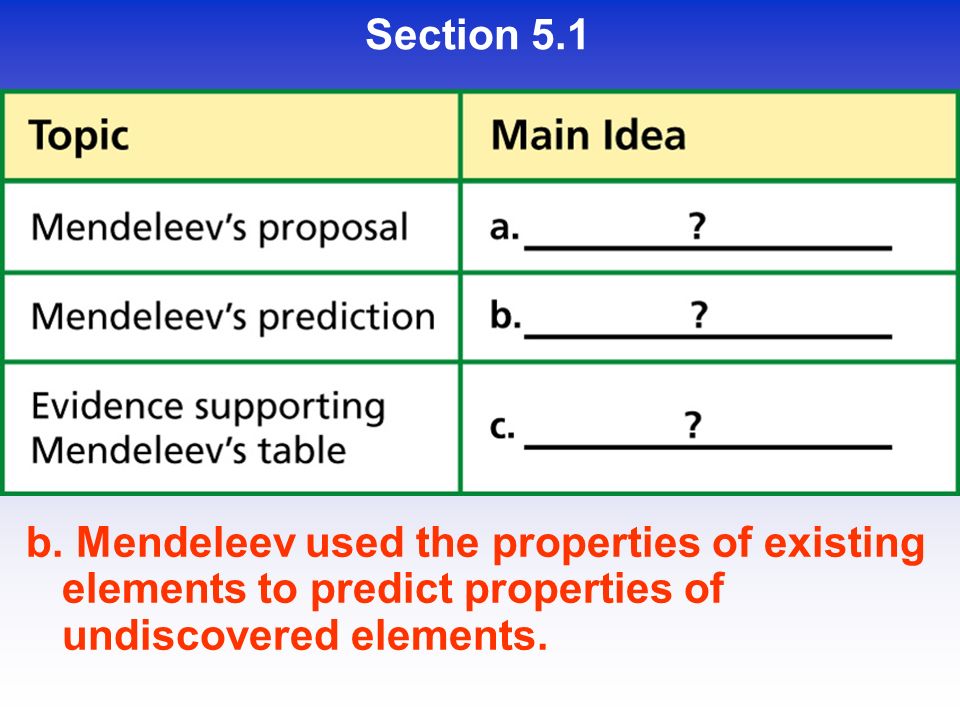

18. Section 5.1 b. Mendeleev used the properties of existing elements to predict properties of undiscovered elements.

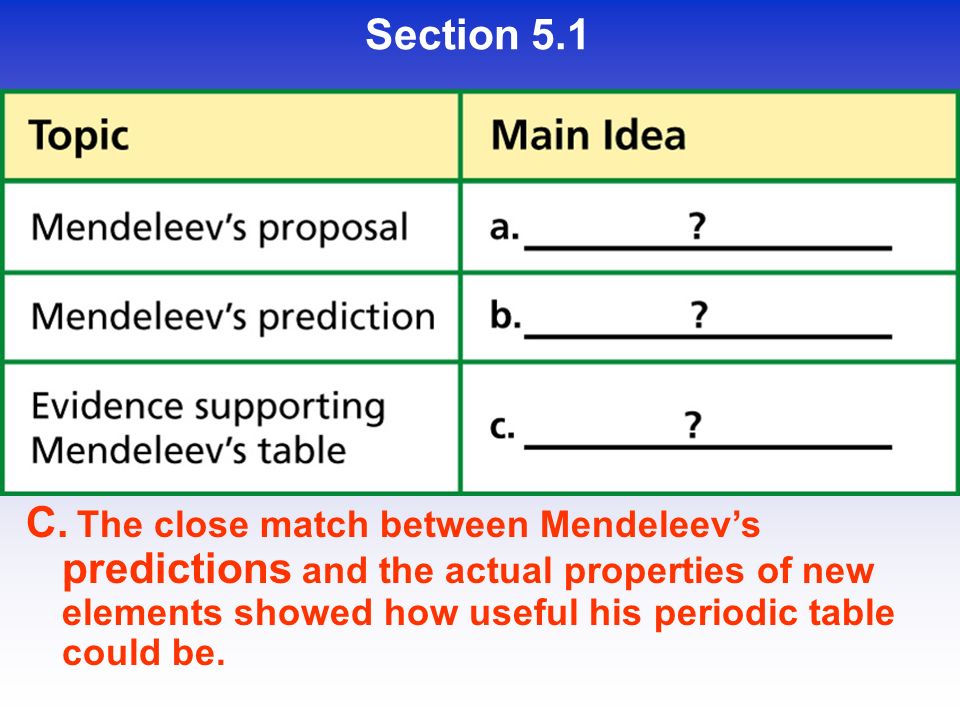

19. Section 5.1 C. The close match between Mendeleev’s predictions and the actual properties of new elements showed how useful his periodic table could be.

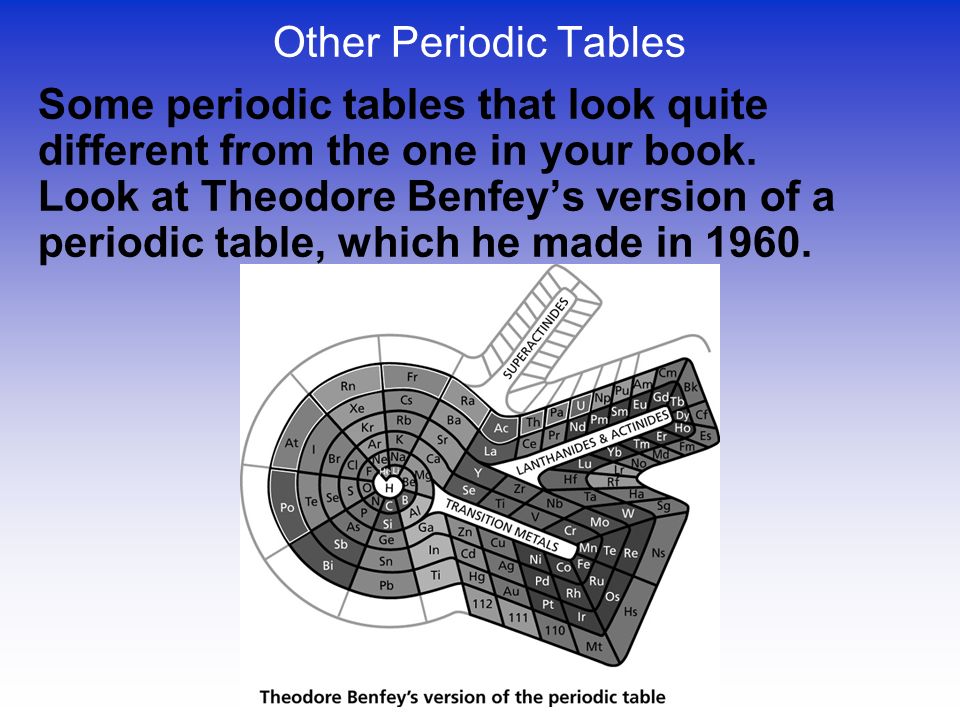

20. Other Periodic Tables Some periodic tables that look quite different from the one in your book. Look at Theodore Benfey’s version of a periodic table, which he made in 1960.

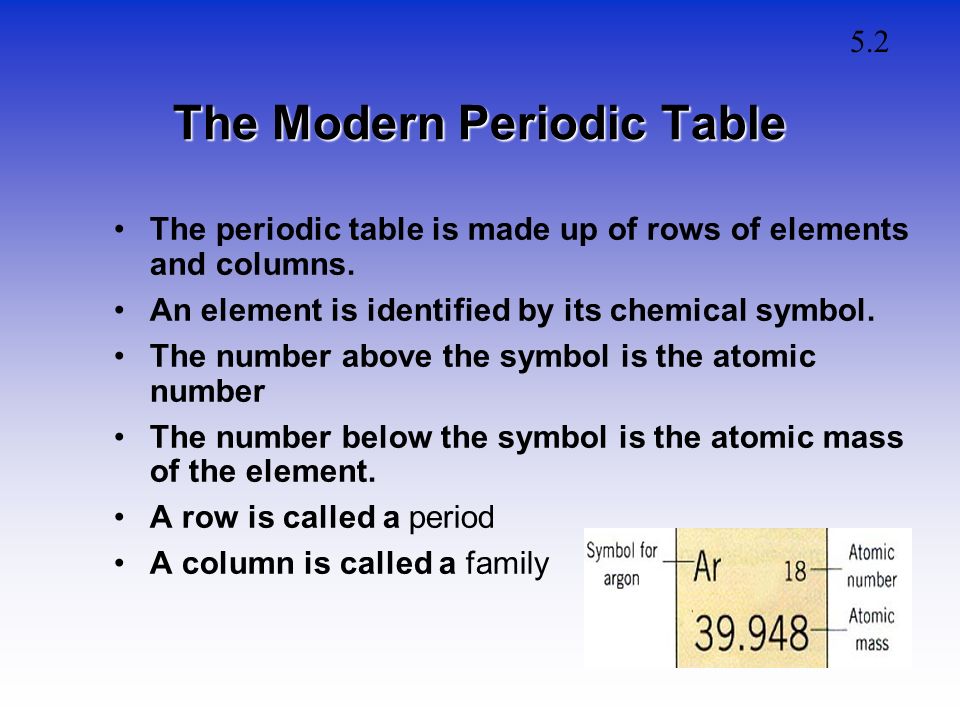

22. The Modern Periodic Table The periodic table is made up of rows of elements and columns. An element is identified by its chemical symbol. The number above the symbol is the atomic number The number below the symbol is the atomic mass of the element. A row is called a period A column is called a family 5.2

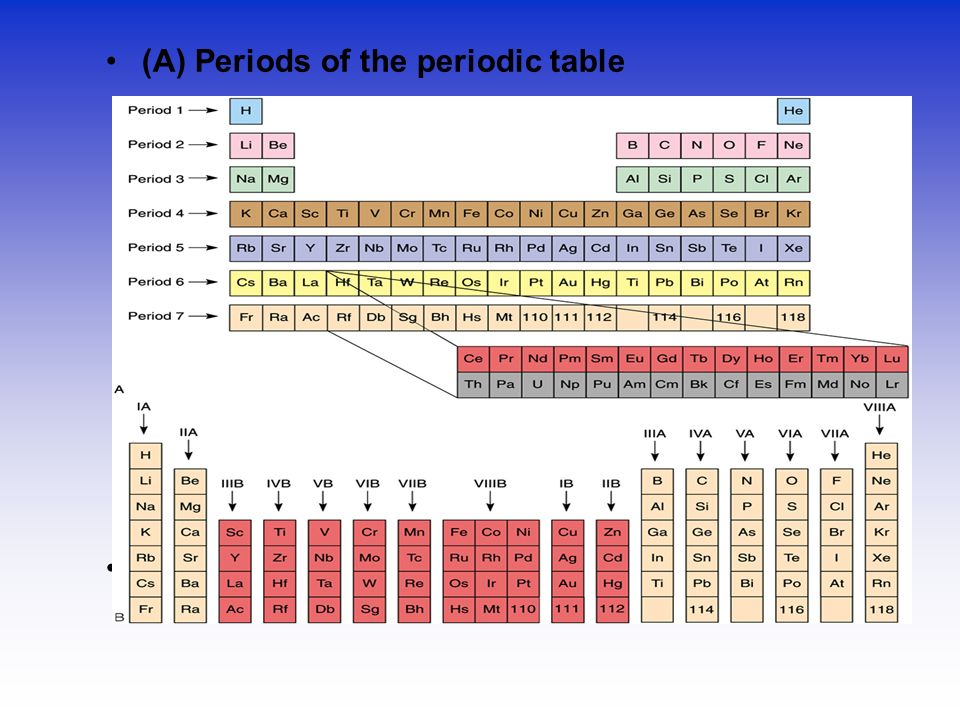

23. (A) Periods of the periodic table (B) families of the periodic table

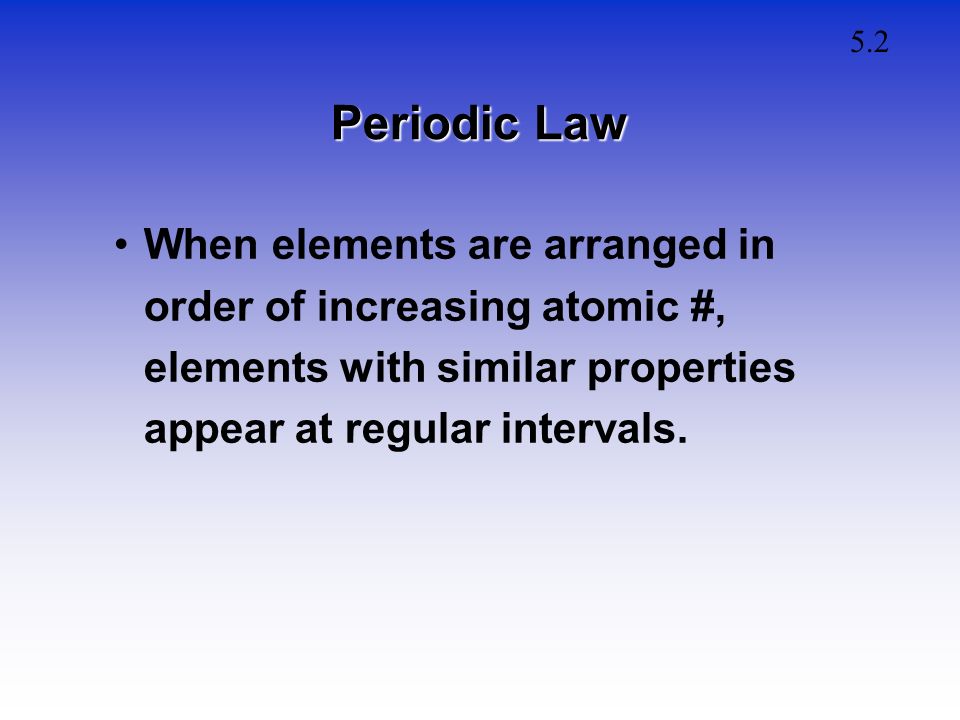

24. Periodic Law When elements are arranged in order of increasing atomic #, elements with similar properties appear at regular intervals. 5.2

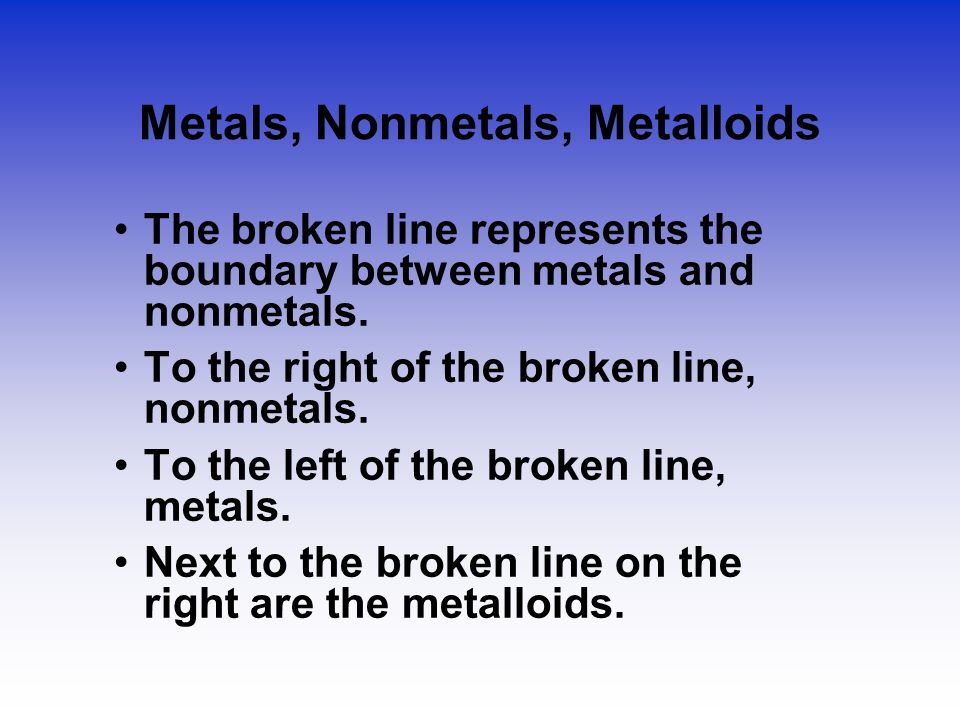

25. Metals, Nonmetals, Metalloids The broken line represents the boundary between metals and nonmetals. To the right of the broken line, nonmetals. To the left of the broken line, metals. Next to the broken line on the right are the metalloids.

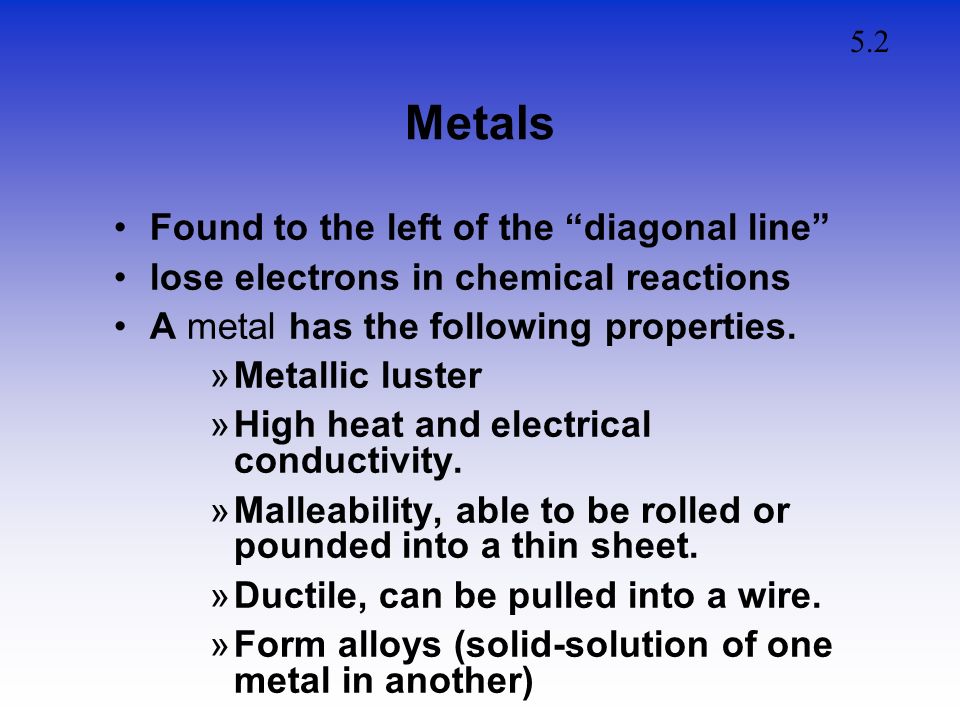

26. Metals Found to the left of the “diagonal line” lose electrons in chemical reactions A metal has the following properties. »Metallic luster »High heat and electrical conductivity. »Malleability, able to be rolled or pounded into a thin sheet. »Ductile, can be pulled into a wire. »Form alloys (solid-solution of one metal in another) 5.2

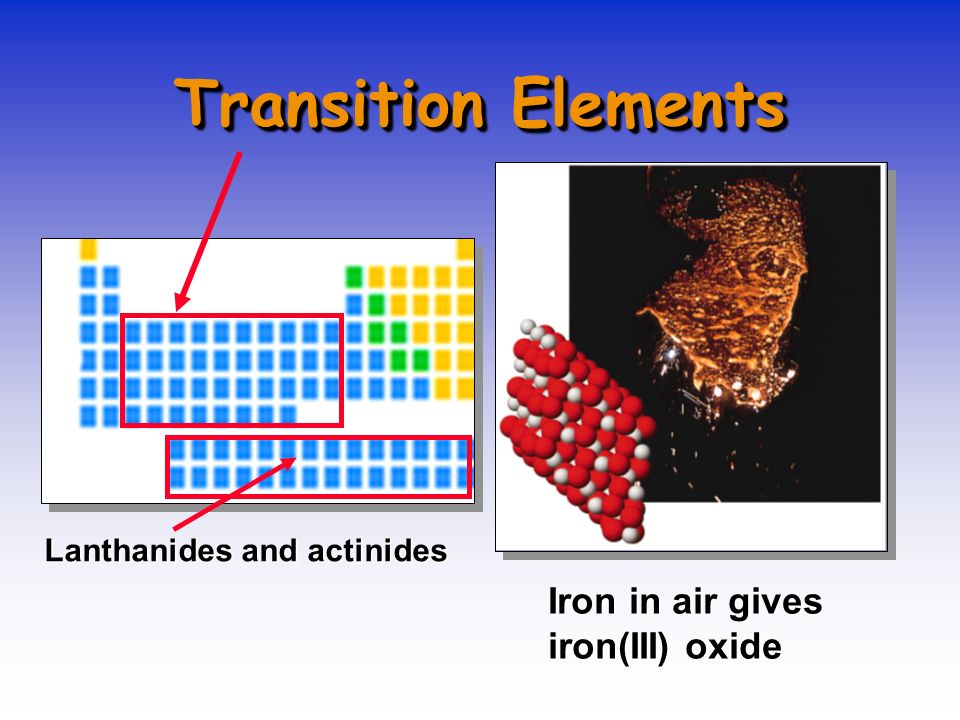

27. Transition Elements Lanthanides and actinides Iron in air gives iron(III) oxide

28. The Transition Elements An important use of transition elements is as pigments in paints and glasses

29. Nonmetals Found to the right of the “diagonal line” Like to gain electrons from metals, or share electrons among themselves A nonmetal has the following properties »No metallic luster »Poor conductor of heat and electricity. »When it is a solid it is brittle so it cannot be pounded or pulled into a wire. 5.2

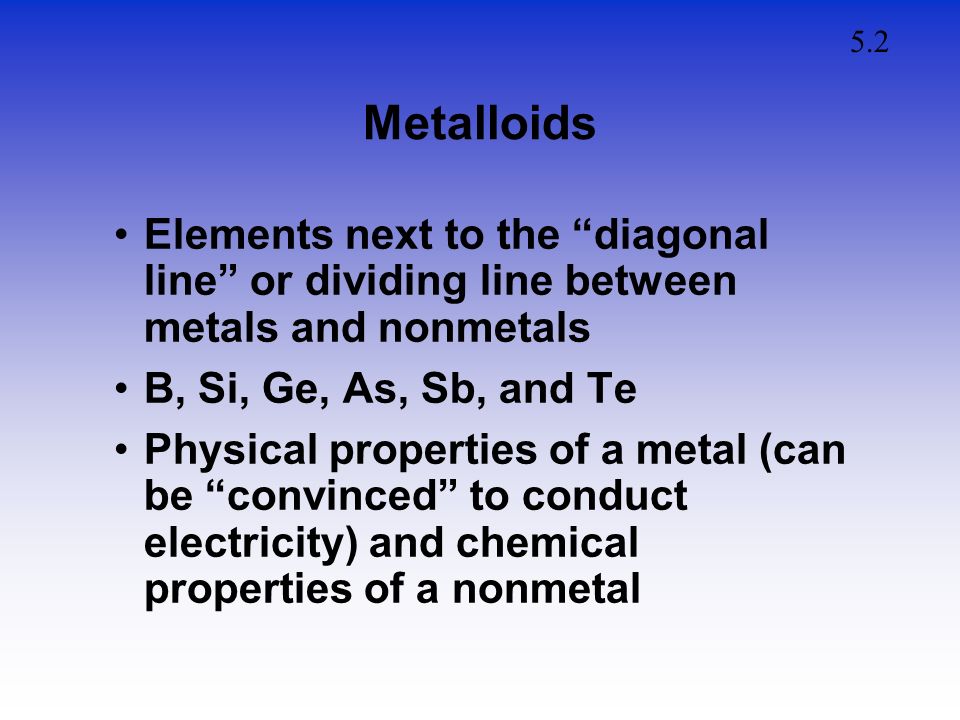

30. Metalloids Elements next to the “diagonal line” or dividing line between metals and nonmetals B, Si, Ge, As, Sb, and Te Physical properties of a metal (can be “convinced” to conduct electricity) and chemical properties of a nonmetal 5.2

31. 5.3 Representative Groups

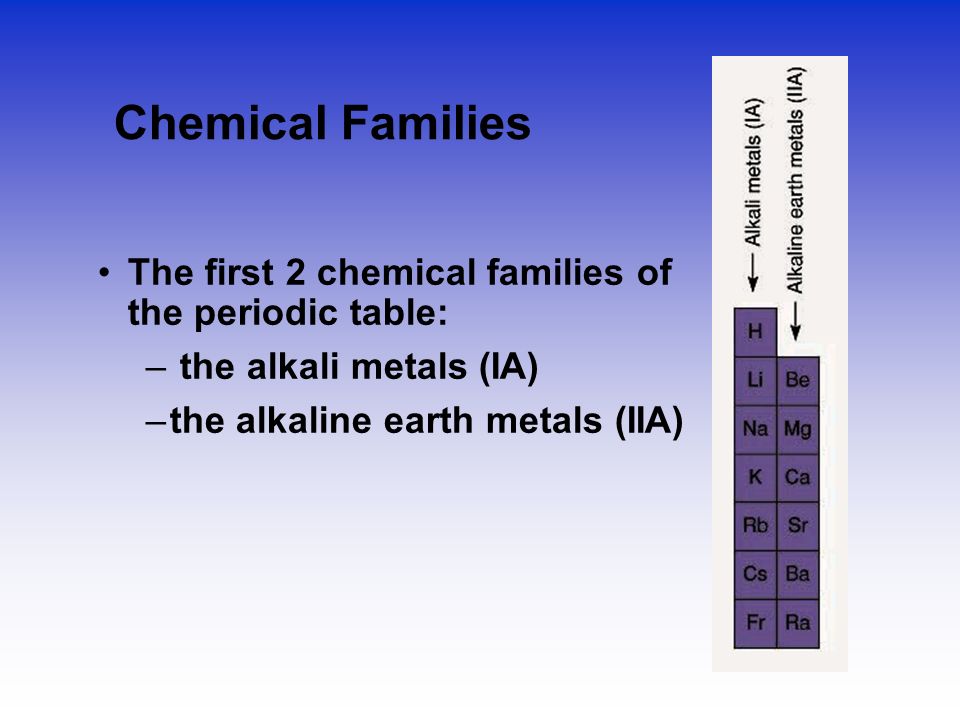

32. Chemical Families The first 2 chemical families of the periodic table: – the alkali metals (IA) –the alkaline earth metals (IIA)

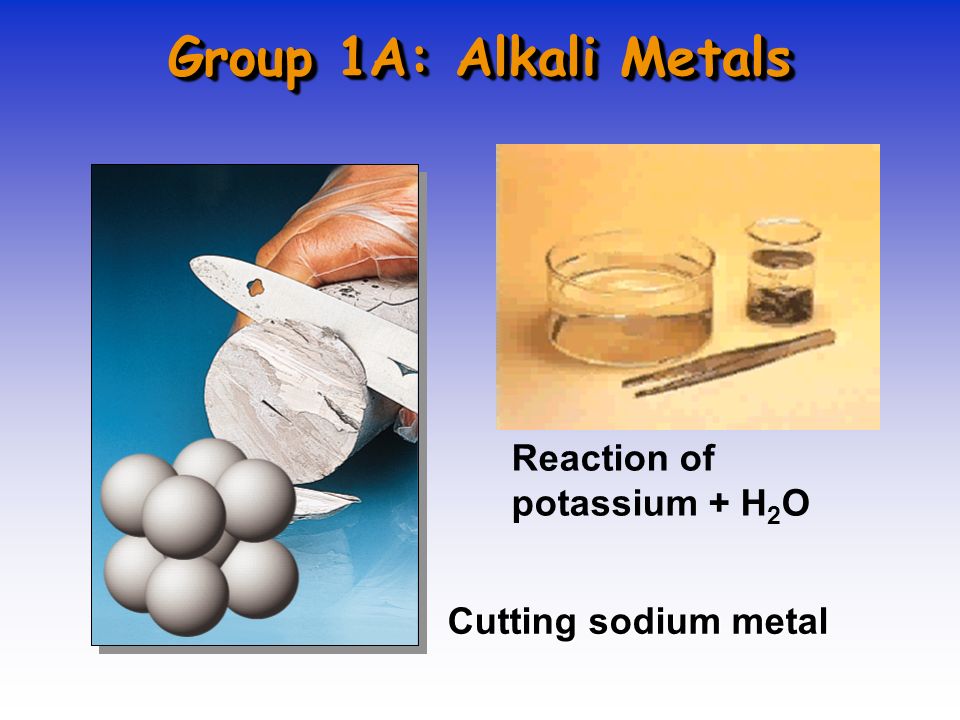

33. Group 1A: Alkali Metals Cutting sodium metal Reaction of potassium + H 2 O

34. Group IA - The Alkali Metals (Li, Na, K, Rb, Cs, Fr) Alkali metals because they react with water to from an alkaline solution Lose 1 valence electron Highly reactive Reaction of potassium + H 2 O

35. Magnesium Magnesium oxide Group 2A: Alkaline Earth Metals

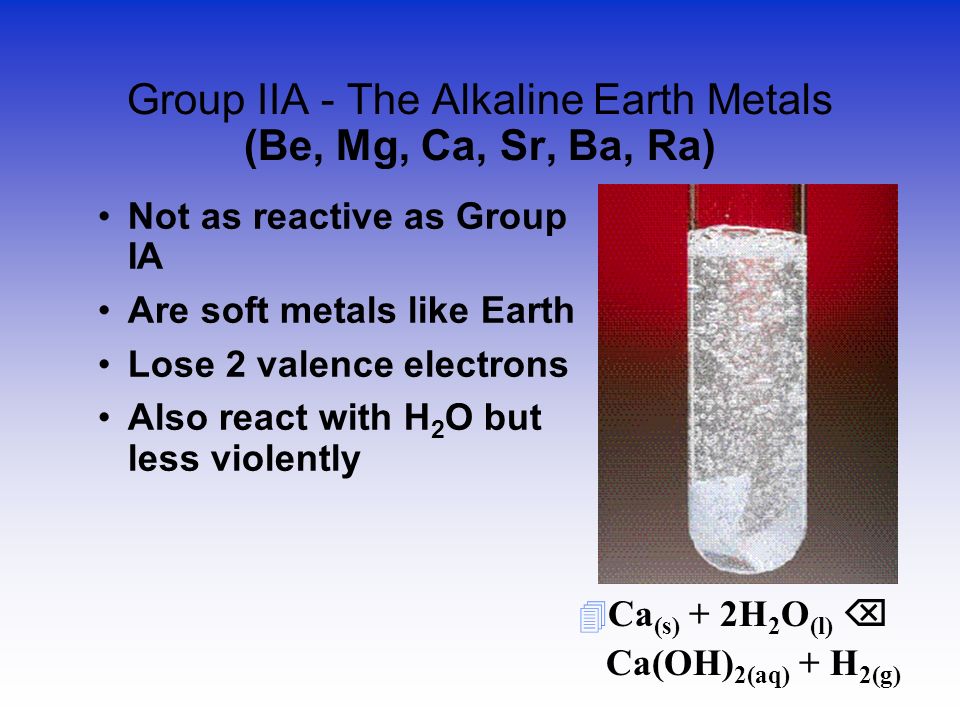

36. Group IIA - The Alkaline Earth Metals (Be, Mg, Ca, Sr, Ba, Ra) Not as reactive as Group IA Are soft metals like Earth Lose 2 valence electrons Also react with H 2 O but less violently 4 Ca (s) + 2H 2 O (l)  Ca(OH) 2(aq) + H 2(g)

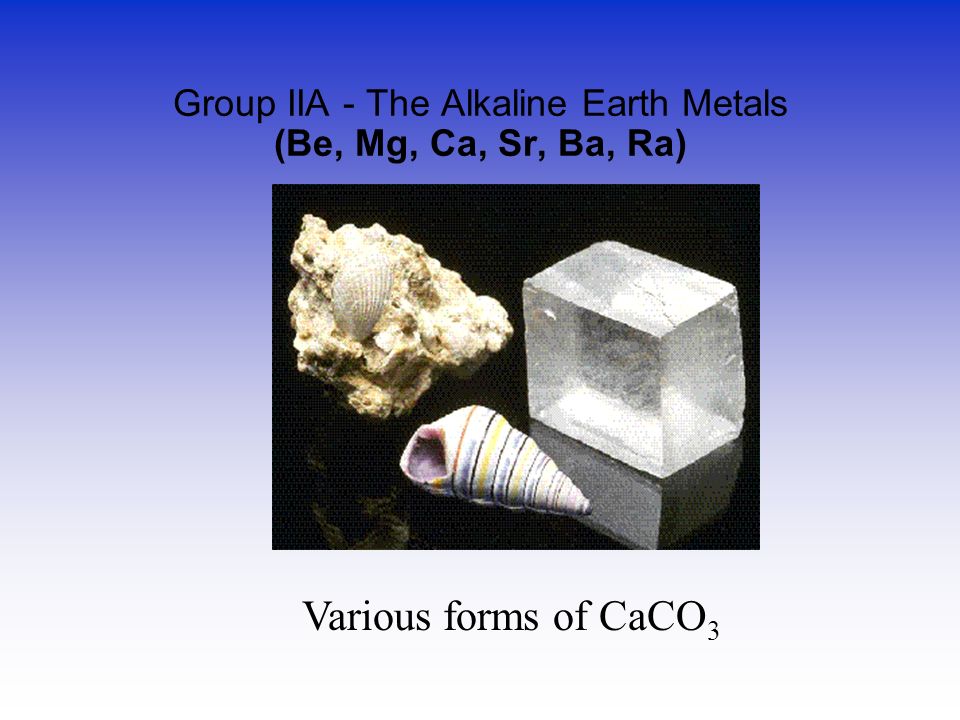

37. Group IIA - The Alkaline Earth Metals (Be, Mg, Ca, Sr, Ba, Ra) Various forms of CaCO 3

38. Reaction of magnesium with oxygen Mg (s) + O 2(g)  MgO (s) Group IIA - The Alkaline Earth Metals (Be, Mg, Ca, Sr, Ba, Ra) flashbulbs

39. Other Group/Families Four group/families of the periodic table: –Boron (IIIA) –Carbon (IVA) –Nitrogen (V) –Oxygen (VIA)

40. Group IIIA - The Boron Family (B, Al, Ga, In, Tl) Boron is mined in the form of Borax, and is used in laundry soap Laboratory glassware contains borosilicates

41. Aluminum metal is the most abundant metal in the earth’s crust and has many uses Group IIIA - The Boron Family (B, Al, Ga, In, Tl)

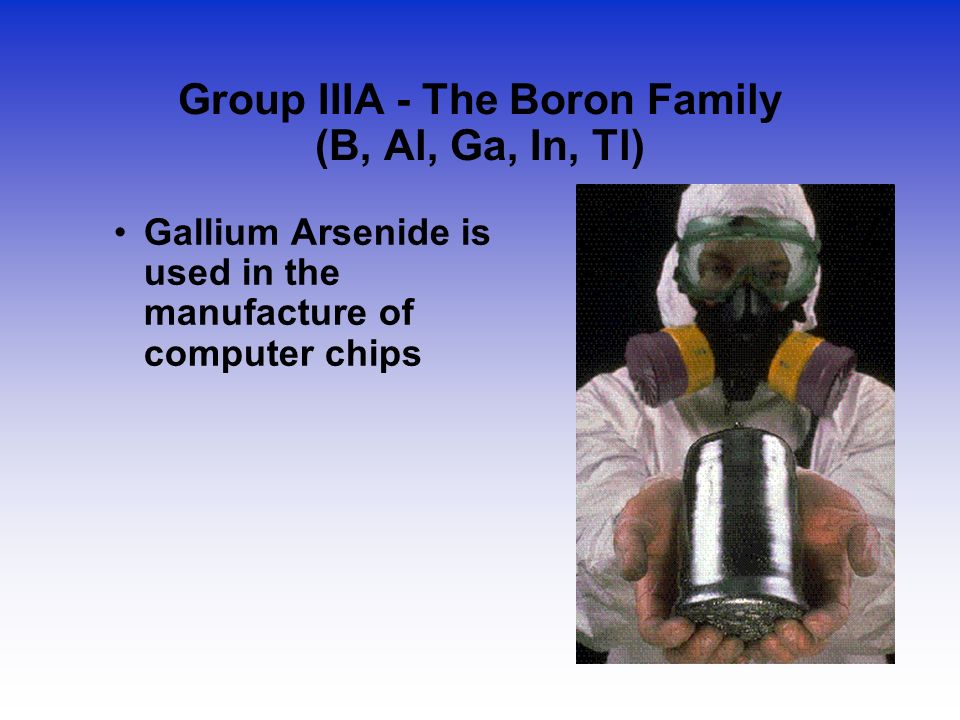

42. Gallium Arsenide is used in the manufacture of computer chips Group IIIA - The Boron Family (B, Al, Ga, In, Tl)

43. Group IVA - The Carbon Family (C, Si, Ge, Sn, Pb) Carbon is essential for life and is found in all organic molecules

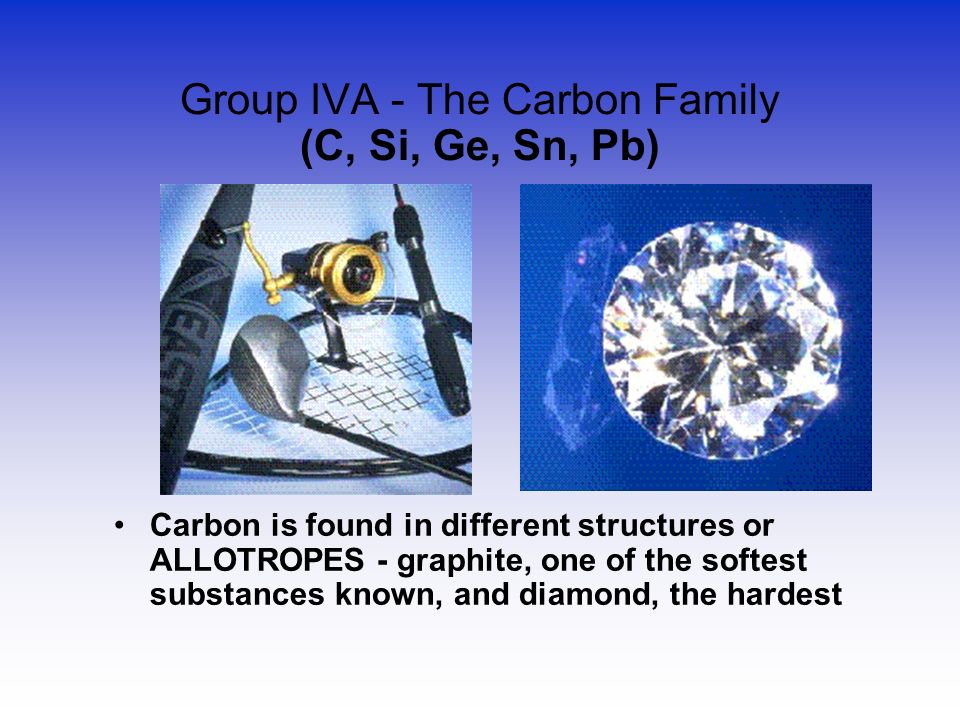

44. Group IVA - The Carbon Family (C, Si, Ge, Sn, Pb) Carbon is found in different structures or ALLOTROPES - graphite, one of the softest substances known, and diamond, the hardest

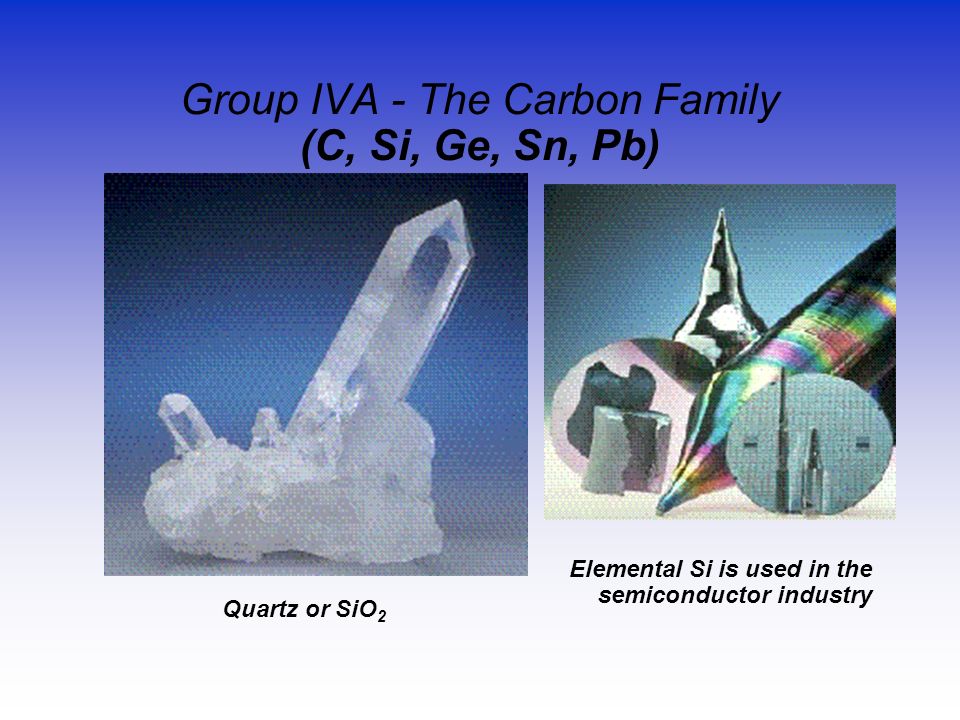

45. Group IVA - The Carbon Family (C, Si, Ge, Sn, Pb) Quartz or SiO 2 Elemental Si is used in the semiconductor industry

46. Group VA - The Nitrogen Family (N, P, As, Sb, Bi) A control rocket on the Space Shuttle uses hydrazine, N 2 H 4, as fuel There are two varieties of P, red and white.

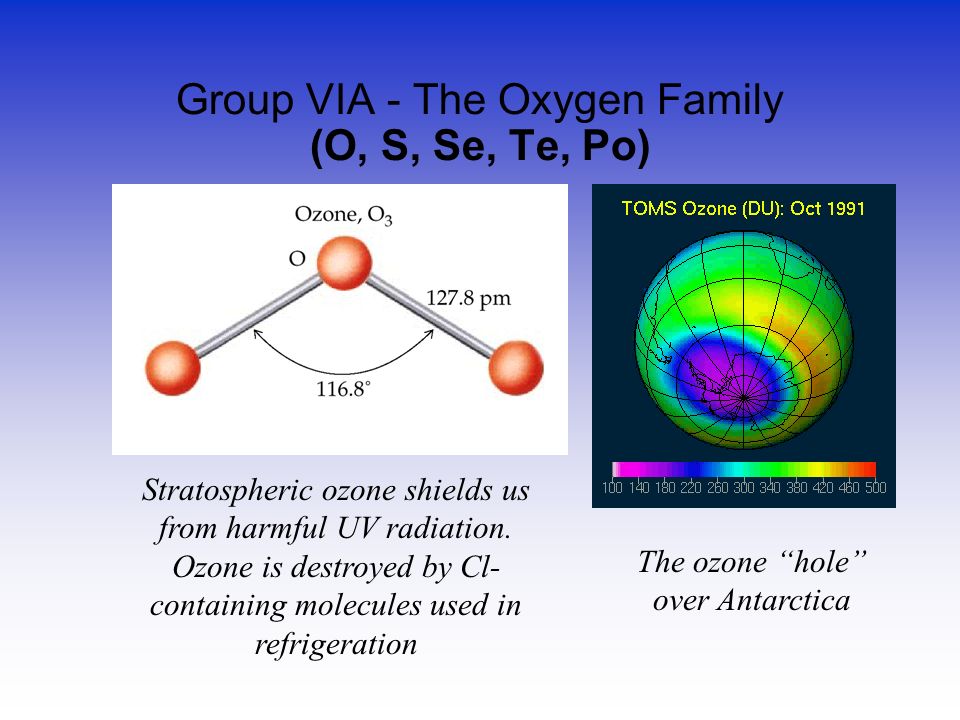

47. Group VIA - The Oxygen Family (O, S, Se, Te, Po) Stratospheric ozone shields us from harmful UV radiation. Ozone is destroyed by Cl- containing molecules used in refrigeration The ozone “hole” over Antarctica

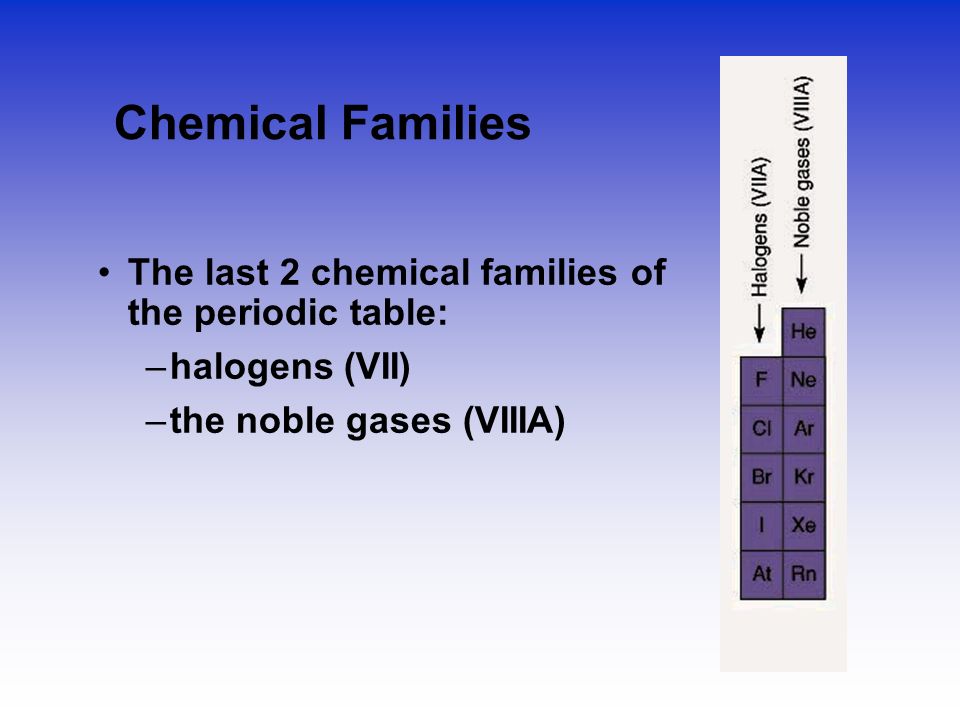

48. Chemical Families The last 2 chemical families of the periodic table: –halogens (VII) –the noble gases (VIIIA)

49. Group 7A: The Halogens (salt makers) F, Cl, Br, I, At

50. Group VIIA - The Halogens (F, Cl, Br, I, At) Halogens need only one electron to fill their outer shell They are very reactive. Br 2 and I 2

51. Group VIIA - The Halogens (F, Cl, Br, I, At) Halogen mean “salt-former”. Here sodium metal reacts vigorously with Cl 2(g)

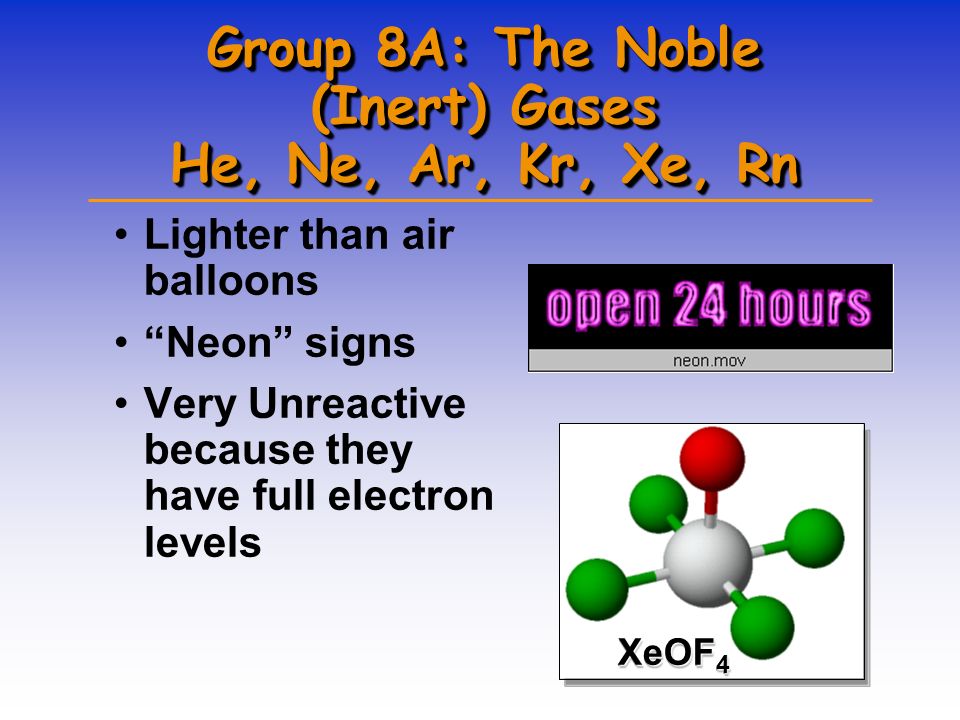

52. Group 8A: The Noble (Inert) Gases He, Ne, Ar, Kr, Xe, Rn Lighter than air balloons “Neon” signs Very Unreactive because they have full electron levels XeOF 4

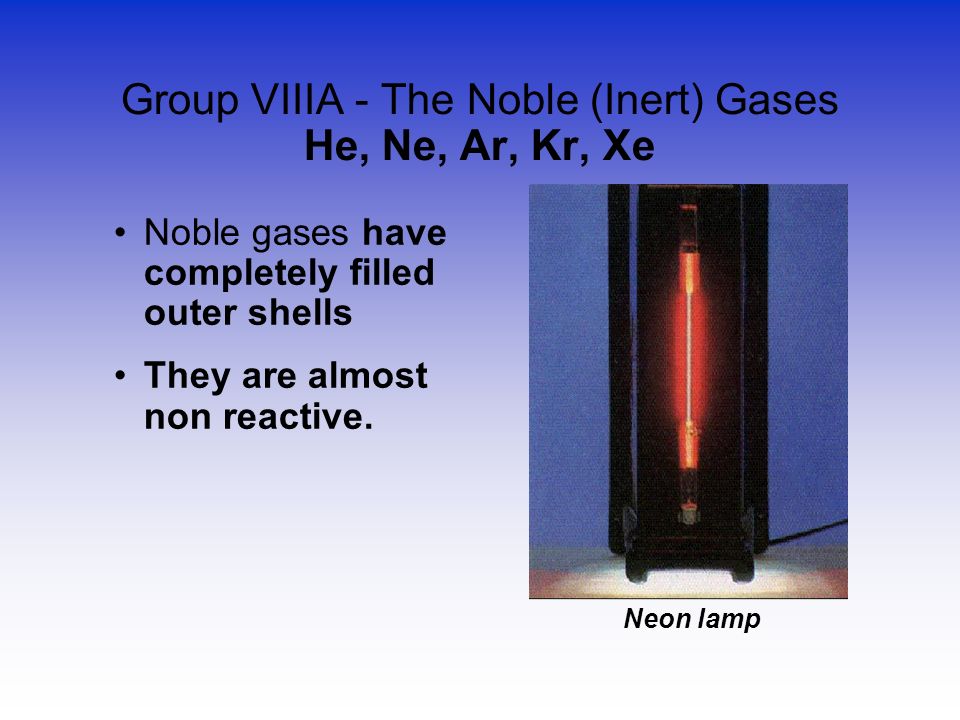

53. Group VIIIA - The Noble (Inert) Gases He, Ne, Ar, Kr, Xe Noble gases have completely filled outer shells They are almost non reactive. Neon lamp

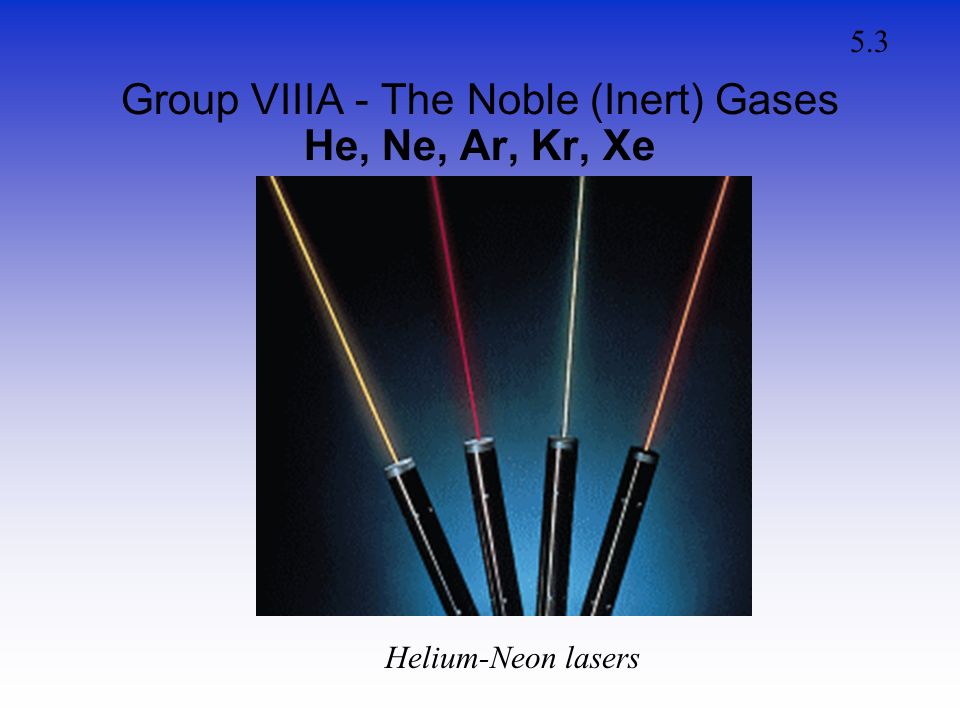

54. Group VIIIA - The Noble (Inert) Gases He, Ne, Ar, Kr, Xe Helium-Neon lasers 5.3
