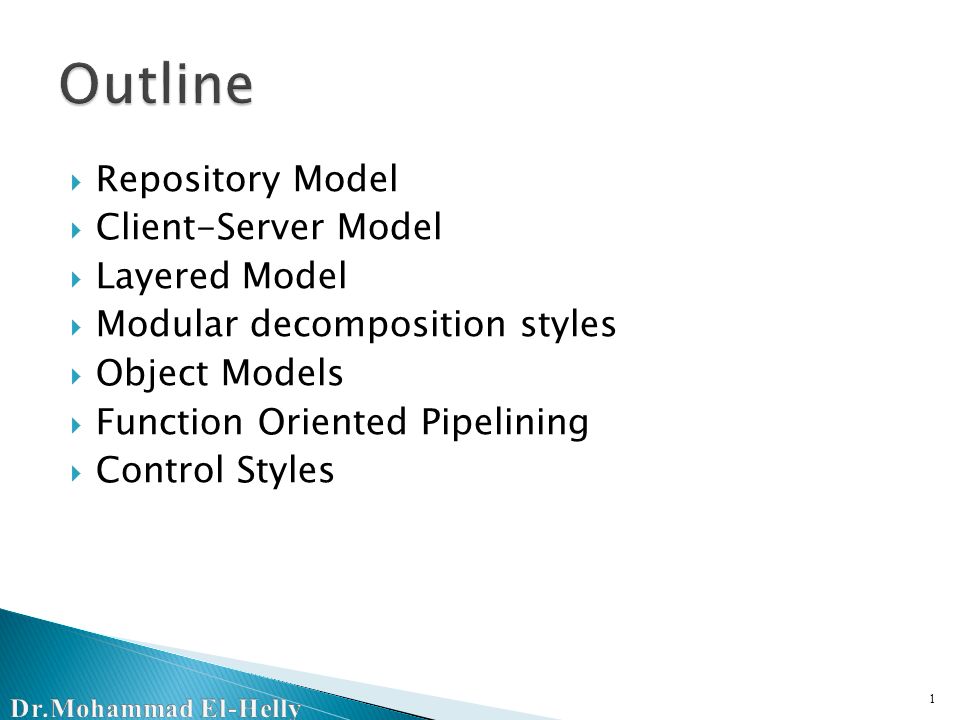

Repository Model Client-Server Model Layered Model Modular decomposition styles Object Models Function Oriented Pipelining Control Styles 1
2
Sub-systems must exchange data so that they can work together effectively This may be done in two ways: ◦ Shared data is held in a central database or repository and may be accessed by all sub-systems; ◦ Each sub-system maintains its own database and passes data explicitly to other sub-systems 2
3
When large amounts of data are to be shared, the repository model of sharing is most commonly used It is suited to applications where data is generated by sub-system and used by another Example of this model is CASE tools 3
4
4
5

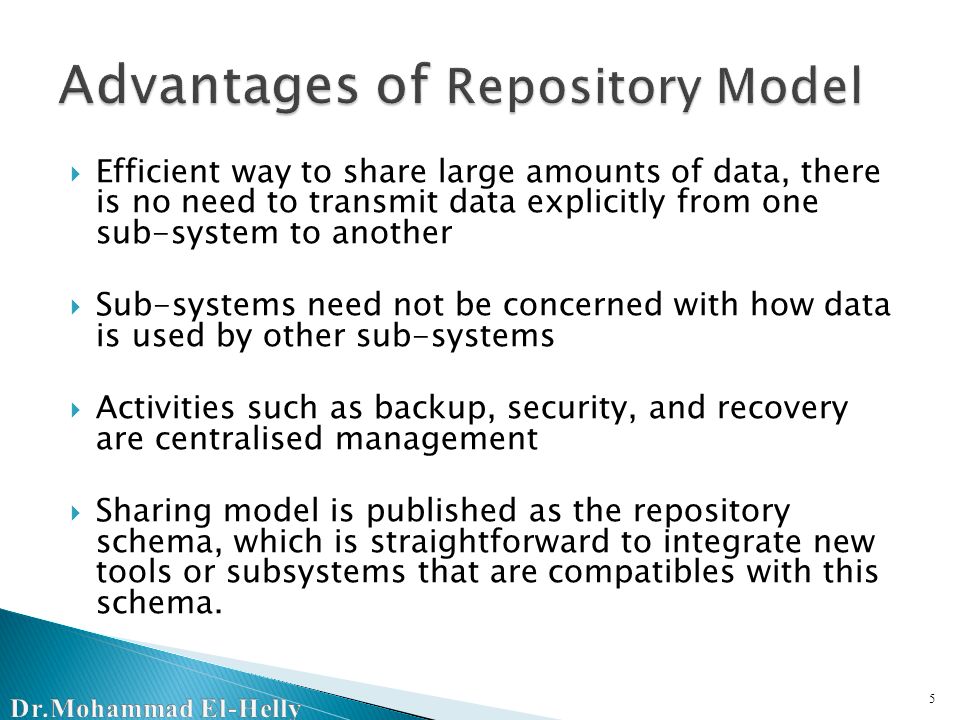

Efficient way to share large amounts of data, there is no need to transmit data explicitly from one sub-system to another Sub-systems need not be concerned with how data is used by other sub-systems Activities such as backup, security, and recovery are centralised management Sharing model is published as the repository schema, which is straightforward to integrate new tools or subsystems that are compatibles with this schema. 5
6
Sub-systems must agree on a repository data model. Inevitably a compromise between specific needs of each sub-system Performance may be adversely affected by this compromise It may be difficult or impossible to integrate new sub-systems if their data models do not fit the agreed schema 6
7
Data evolution is difficult as a large volume of information is generated according to an agreed data model So translating this model to a new model will be expensive, it may be difficult or even impossible Different sub-systems may have different requirements for security, recovery, backup policies, the model forces the same policy on all sub-systems 7
8

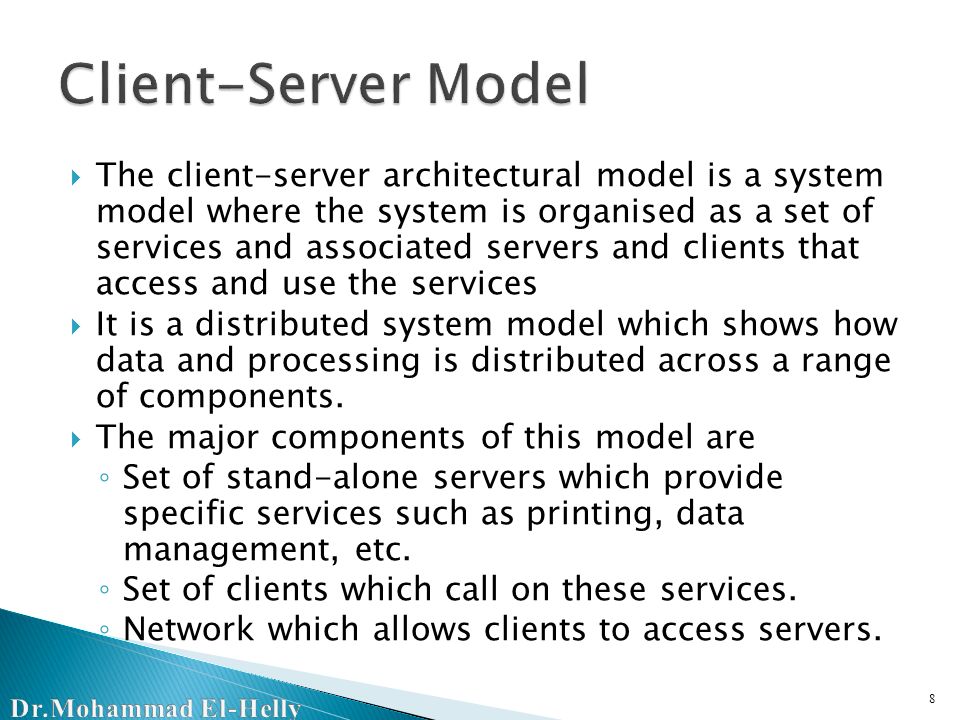

The client-server architectural model is a system model where the system is organised as a set of services and associated servers and clients that access and use the services It is a distributed system model which shows how data and processing is distributed across a range of components. The major components of this model are ◦ Set of stand-alone servers which provide specific services such as printing, data management, etc. ◦ Set of clients which call on these services. ◦ Network which allows clients to access servers. 8
9
9
10
Advantages ◦ Distribution of data is straightforward; ◦ Makes effective use of networked systems. May require cheaper hardware; ◦ Easy to add new servers or upgrade existing servers. Disadvantages ◦ No shared data model so sub-systems use different data organisation. ◦ Data interchange may be inefficient; 10
11
The layered model sometimes called an abstract machine The layered model organises a system into layers, each of which provide a set of services Each layer can be thought of as an abstract machine whose machine language is defined by the services provided by the layer This language is used to implement the next level of abstract machine 11
12
For Example ◦ To implement a programming language ◦ The first layer is high level language ◦ Second layer is the compilation layer ◦ Third layer is translation the compiled language to machine code When a layer interface changes, only the adjacent layer is affected. 12
13
Used to model the interfacing of sub- systems The layered approach supports the incremental development of sub-systems in different layers An Example of layered Model ◦ Open System Interconnections OSI reference model of network protocol 1980 ◦ ADA Programming Support Environment APSE 1980 13
14
Information systems have a generic architecture that can be organised as a layered architecture. Layers include: ◦ The user interface ◦ User communications ◦ Information retrieval ◦ System database
16
The library system LIBSYS is an example of an information system.
17
The layered model supports the incremental development of systems. As a layer is developed, some of the services provided by the layer may be made available to users This architecture is also changeable and portable, as long as its interface is unchanged, a layer can be replaced by another equivalent layer A layered systems localize machine dependencies in inner layers, So only the inner, machine dependent layers need to be re-implemented to facilitate different operating system or database 17
18
It structure the system in a way that can be difficult Inner layers may provide basic facilities, such as file management that are required at all levels Services required at the top level may have to punch through adjacent layers to get access to services that are provided several levels beneath it This subverts the model, as the layer in the system does not just depend on its immediate layer 18
19
Performance can also be a problem because of it multiple levels of command interpretation If there are many layers, a services request from a top layer may have to be interpreted several times in different layers before it is processed To avoid this problem applications may have to communicate directly with inner layers rather than use the services provided by the adjacent layer 19
20
After an overall system organization has been chosen, you need to make a decision on the approach to be used in decomposition sub- systems into modules There is not a rigid distinction between system organization and modular decomposition All previous styles could be applied at this level The component in modules are usually smaller than sub-systems which allows alternative decomposition styles to be used 20
21
A sub-system is a system in its own right whose operation is independent of the services provided by other sub-systems. Subsystems are decomposed of modules and have defined interfaces which are used for communication with other subsystems A module is a system component that provides services to other components but would not normally be considered as a separate system. 21
22
There are two main strategies that can be used when decomposing sub- system into module ◦ Object Oriented Decomposition Where the system is decomposed into a set of communicating object ◦ Function Oriented Pipelining Where the system is decomposed into functional modules which transform inputs to outputs. 22
23
Structure the system into a set of objects with well-defined interfaces Object-oriented decomposition is concerned with identifying object classes, their attributes and operations Objects are created from these classes and some control model used to coordinate object operations 23
24

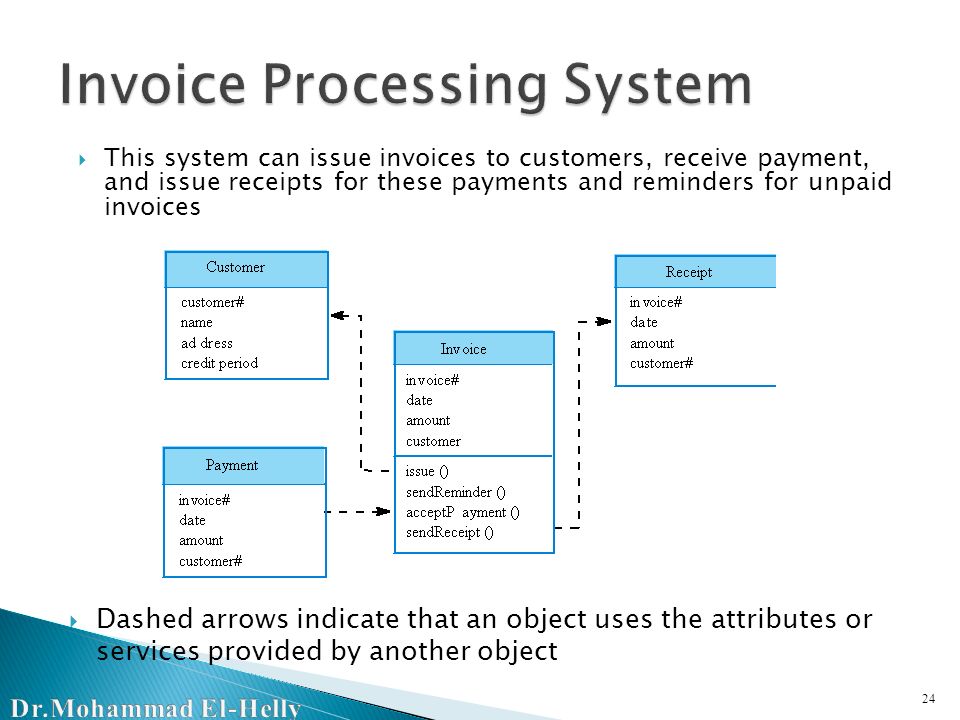

24 This system can issue invoices to customers, receive payment, and issue receipts for these payments and reminders for unpaid invoices Dashed arrows indicate that an object uses the attributes or services provided by another object
25
Objects are loosely coupled so their implementation can be modified without affecting other objects The objects may reflect real-world entities OO languages are widely used However, object interface changes may cause problems and complex entities may be hard to represent as objects. 25
26
In a function oriented pipeline or data-flow model, function process their inputs to produce outputs Data flows from one to another and is transformed as it moves through the sequence Each processing step is called a transform Input data flows through these transforms until converted to output 26
27
The transformations may execute sequentially or in parallel When transformations are sequential, this is a batch sequential model This model is extensively used in data processing systems such as billing systems Data-processing systems usually generate many output reports that are derived from simple computations on a large number of input records 27
28
28 This is an example of this type of architecture An organization has issued invoices to customers. Once a week, payments that have been made are reconciled with the invoices ◦ For those invoices that have been paid a receipt is issued ◦ For those invoices that have not been paid within the allowed payment time, a reminder is issued
29
Supports transformation reuse. Intuitive for stakeholder communication, many people think of their work in terms of input and output Easy to add new transformations Relatively simple to implement as either a concurrent or sequential system. However, requires a common format for data transfer along the pipeline and difficult to support event- based interaction. 29
30
Control models are concerned with the control flow between sub-systems. There are two generic control styles that are used in software systems ◦ Centralised control One sub-system has overall responsibility for control and starts and stops other sub-systems. ◦ Event-based control Each sub-system can respond to externally generated events from other sub-systems or the system’s environment. 30
31
A control sub-system takes responsibility for managing the execution of other sub-systems Centralized control models fall into two classes, depending on whether the controlled subsystem execute sequentially or in parallel ◦ Call-return model ◦ Manager model 31
32
32 Top-down subroutine model where control starts at the top of a subroutine hierarchy and moves downwards to the lower level of the tree through a subroutines calls Applicable to sequential systems.
33
33 Applicable to concurrent systems One system component controls the stopping, starting and coordination of other system processes
34
In centralised control models, control decisions are usually determined by the values of some system state variables By contrast, event –driven control models are driven by externally generated events The time of events is outside the control of the process that handles that event 34
35
Two principal event-driven models ◦ Broadcast models An event is broadcast to all sub-systems. Any sub-system which can handle the event may do so ◦ Interrupt-driven models Used in real-time systems where interrupts are detected by an interrupt handler and passed to some other component for processing Other event driven models include spreadsheets and production systems. 35
