1. IT Just Works ©2008 BigFix, Inc. Practical Guide to Relevance Ben Kus – 1/31/2008

2. ©2008 BigFix, Inc. IT Just Works 2 Presentation Goal Explain Relevance Help Relevance beginners get started Help round out knowledge for more advanced users Explain some tools and resources Teach some tips/tricks Caution against some potential pitfalls October 15

3. ©2008 BigFix, Inc. IT Just Works 3 About Relevance Origins of Relevance – Created in 1997 – We needed language that could describe computer issues – No other good languages available Design Goals – Query-only language – not allowed to change things – Powerful – be able to express very complicated expressions – Cross platform – language shouldn’t be OS dependent – Extensible – add new “inspectors” over time – Easy to read – should be readable by untrained users – Reasonable learning curve – easy things easy, hard things not too hard (make relevance author’s life as easy as possible) October 15

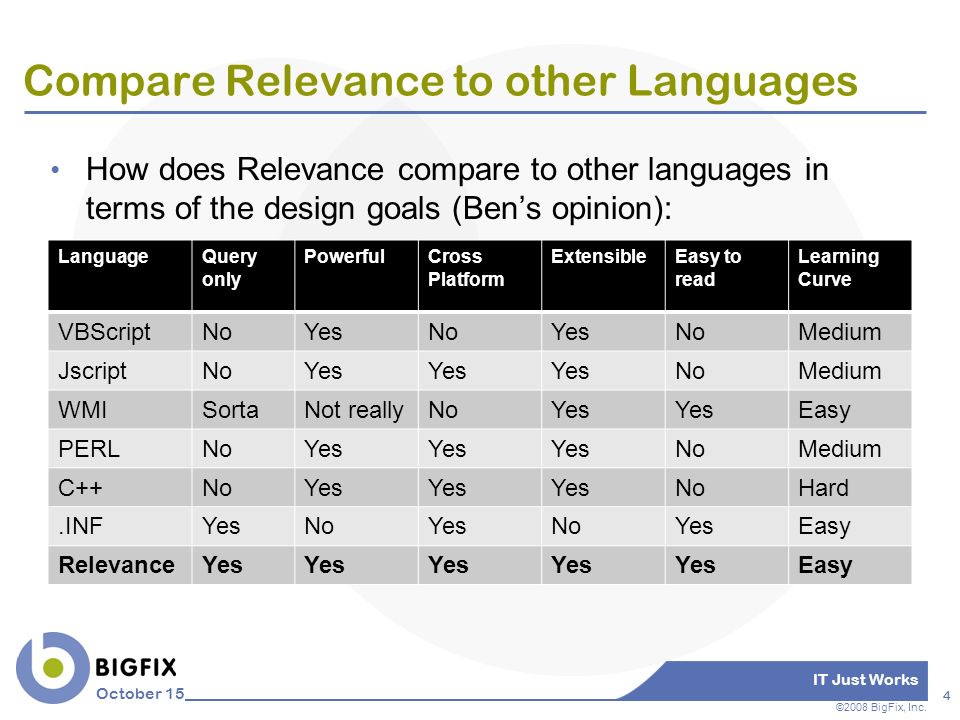

4. ©2008 BigFix, Inc. IT Just Works 4 Compare Relevance to other Languages How does Relevance compare to other languages in terms of the design goals (Ben’s opinion): October 15 LanguageQuery only PowerfulCross Platform ExtensibleEasy to read Learning Curve VBScriptNoYesNoYesNoMedium JscriptNoYes NoMedium WMISortaNot reallyNoYes Easy PERLNoYes NoMedium C++NoYes NoHard.INFYesNoYesNoYesEasy RelevanceYes Easy

5. ©2008 BigFix, Inc. IT Just Works 5 Relevance Attributes Relevance queries … – will not change your computers – will try to avoid causing network traffic (if at all possible) – can be “English-like” for easier reading – will generally try to find the most efficient way possible to get the information – will always try to be “safe” and “standard” BigFix spends a lot of time maintaining the Relevance language and inspectors to meet all these goals as much as possible October 15

6. ©2008 BigFix, Inc. IT Just Works 6 Terminology Relevance – Language name Relevance Engine – Engine that processes relevance Inspectors – “objects” in the Relevance Language (“operating system”, “rpm”, “ram”, “time”, etc.) QnA (or “Fixlet Debugger”) – Tool to evaluate relevance Actionscript – BigFix action language (not Relevance) Fixlet – Relevance + Action + Description Property – Relevance query the agent returns October 15

7. ©2008 BigFix, Inc. IT Just Works 7 The Many Uses of Relevance BigFix uses Relevance for many reasons: – Retrieve properties from agents – Used in Fixlets / Tasks – Used to define actions and constraints – Customize ClientUI – Used in Dashboards/Wizards (session relevance) – Basis of Custom Reports (session relevance) October 15

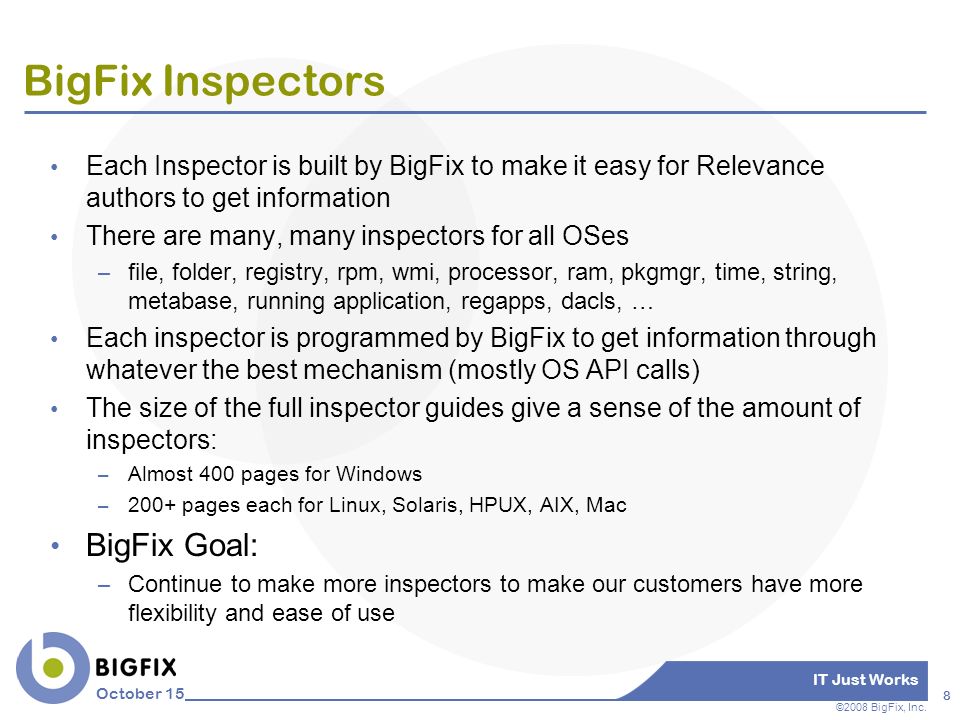

8. ©2008 BigFix, Inc. IT Just Works 8 BigFix Inspectors Each Inspector is built by BigFix to make it easy for Relevance authors to get information There are many, many inspectors for all OSes – file, folder, registry, rpm, wmi, processor, ram, pkgmgr, time, string, metabase, running application, regapps, dacls, … Each inspector is programmed by BigFix to get information through whatever the best mechanism (mostly OS API calls) The size of the full inspector guides give a sense of the amount of inspectors: – Almost 400 pages for Windows – 200+ pages each for Linux, Solaris, HPUX, AIX, Mac BigFix Goal: – Continue to make more inspectors to make our customers have more flexibility and ease of use October 15

9. ©2008 BigFix, Inc. IT Just Works 9 Where to begin? BigFix provides Relevance training courses – Company-specific classes available – Regional classes available Many people learn Relevance on their own One key to learning Relevance is the Fixlet Debugger – http://support.bigfix.com/fixlet/ http://support.bigfix.com/fixlet/ Try some basic queries Steal Relevance and modify it yourself! – From BigFix Fixlets, Properties, Forum posts, etc. October 15

10. ©2008 BigFix, Inc. IT Just Works 10 Some Major Forms of Relevance 1. of – Q: size of file "c:\boot.ini" – Basic form of relevance 2. if (condition) then ("T") else ("F") – Q: if (exists file "c:\boot.ini) then (size of file "c:\boot.ini) else (0) – Good for analysis or retrieved properties 3. whose (condition of it) of – Q: size whose (it > 10) of file "c:\boot.ini" – Filters a list 4. (it) of of – Q: (it) of size of file "c:\boot.ini" – Allows for singular treatment of items in a list

11. ©2008 BigFix, Inc. IT Just Works 11 Example Fixlet Scenario (Example taken directly from forum post) Problem: Computers need to have folder “C:\Logs” Need to create a custom Fixlet – Relevance: check if folder exists – Action: create folder Process: – First, need to find Relevance / Actionscript (look at other Fixlets, experiment, ask on forum, …) – Verify with Fixlet Debugger – Create custom Fixlet and test October 15

12. ©2008 BigFix, Inc. IT Just Works 12 Example Fixlet Scenario – Couple notes… Because we were detecting a specific condition and we needed to change something, we used a Fixlet (or Task) Fixlet relevance must evaluate to “True” or “False” – errors are equal to “False” for Fixlets Action status is determined by the relevance for Fixlets – Fixlets must start as “True” and after the action change to “False” for the status to change to “Fixed” If the relevance is still “True”, it will be “Failed” – Tasks will return “Completed” if the action ran all the lines October 15

13. ©2008 BigFix, Inc. IT Just Works 13 Example Property Scenario Problem: Need to find the version of the WMI Tools – Look through Fixlet relevance – Use the “inspector search engine” – Use the Fixlet Debugger Process: – Need to find the relevance – Refine the relevance using the Fixlet Debugger – Create a custom property in BigFix October 15

14. ©2008 BigFix, Inc. IT Just Works 14 Fixlet Debugger The Fixlet Debugger is the most useful tool for a Relevance Author There are multiple modes for Fixlet Debugger: – QnA Mode – Q:/A: format that is simple and easy – Single Clause Mode – Helps read large Relevance queries – Graphical Breakdown Mode – Graphical representation of the Relevance query (very useful for debugging) – Action mode – Test actions (new functionality in Alpha) Make sure your version number matches your agent version number Pay attention to “Evaluation Times” to make sure no queries run too long (2ms is short.. 1 sec is very long) October 15

15. ©2008 BigFix, Inc. IT Just Works 15 Relevance Building Tools Fixlet Debugger – http://support.bigfix.com/fixlet/ http://support.bigfix.com/fixlet/ – Very useful for testing Relevance/Actionscript Inspector Search Engine – http://support.bigfix.com/inspectorsearch/inspector_search.html http://support.bigfix.com/inspectorsearch/inspector_search.html – Great way to search for Relevance Inspectors – Much easier to use than the full PDF “Inspector Guides” BigFix Forum – http://forum.bigfix.com http://forum.bigfix.com – Post your Relevance questions October 15

16. ©2008 BigFix, Inc. IT Just Works 16 Relevance Building Tools (more…) More Guides / Quick References – http://support.bigfix.com/fixlet/ http://support.bigfix.com/fixlet/ Action Guide Examples – Easy way to get acquainted with actionscript Relevance Error Messages – Help understand those confusing error messages Custom Authoring Training Guide – Good place to start if you don’t know any Relevance Inspector Guides – All inspectors listed for all supported OSes http://support.bigfix.com/bes/misc/retrievedproperties.html – Useful for looking at lots of bits and pieces of relevance http://search.bigfix.com! http://search.bigfix.com October 15

17. ©2008 BigFix, Inc. IT Just Works 17 What to worry about? Relevance is designed to be safe, but you can still cause issues if you aren’t careful: – Relevance that runs too long Always check evaluation times Be careful with WMI – Relevance that iterates over too many files Avoid causing too much disk IO –Descendants of folder, lines of file, etc. – Relevance that causes undesired side-effects Be careful with any query that might cause AD traffic –Domain users, security permissions, etc. October 15

18. ©2008 BigFix, Inc. IT Just Works 18 What to do when stuck? Find ways to get the information outside of BigFix – Is there a file with the info? – Is it in the registry? – Will the WMI help? – Is there an application to run to get the info? Once you know how to find the information, getting the relevance right is usually the easier part The forum is your friend! October 15

19. IT Just Works ©2008 BigFix, Inc. Questions? October 15
