1. O. Tengblad IEM-CSIC EUROGENESIS EUROGENESIS workshop on reactions of Astrophysical Interest April 27-29 th IEM-CSIC Madrid N UCLEAR A STROPHYSICS @ THE A CCELERATOR

2. Astrophysics @ cmam Formation of 12 C and 7 Be Life of stars Death of stars Production of p-nuclei Study of 10 B( 3 He,p) 12 C* & 11 B( 3 He,d) 12 C* 197 Au(  n) 200 Tl reaction cross section 2 Study of 4 He( 3 He,  ) 7 Be & 3 He( 4 He,  ) 7 Be Mariano Carmona O. TENGBLAD EuroGENESIS workshop R&D

3. 3 Nuclear Structure & Astrophysics – “Exact” A-body calculations possible for A  12 Shell-model states Molecular-cluster states – We can cover from drip-line to drip-line – Break-up mechanism not fixed by kinematics Sequential? Direct? – Crucial for bridging the A=5 and A=8 gaps in Big Bang and Stellar nuclear synthesis. 12 C & The triple alpha process 4 He + 4 He ↔ 8 Be 8 Be + 4 He ↔ 12 C + γ + 7.367 MeV  clustering

4. 12 C 12.711 + ≈10 (0,2 + ) 4.442 + g.s.0 + 7.650 + 9.643 - 10.841 - 11.832 - 13.35 (2 - ) 14.084 + 15.111 +  7.27 1 +, 2 + 1 -, 2 -, 3 -, 4 - 1 -, 2 - - Single-nucleon excitations to 1p 1/2,1d 5/2 and 2s 1/2 : 12 C* Excited states: Theory 1s 1/2  1p 3/2 1p 1/2 1d 5/2 2s 1/2 4 Recent theoretical papers discussing different cluster modules, that can reproduce rather well the states in 12 C: Bijker and Iachello, Ann. Phys. 298, 334 (2002). Kanada En’yo, Prog. Theo. Phys. 117 (2007) 65 O. TENGBLAD EuroGENESIS workshop

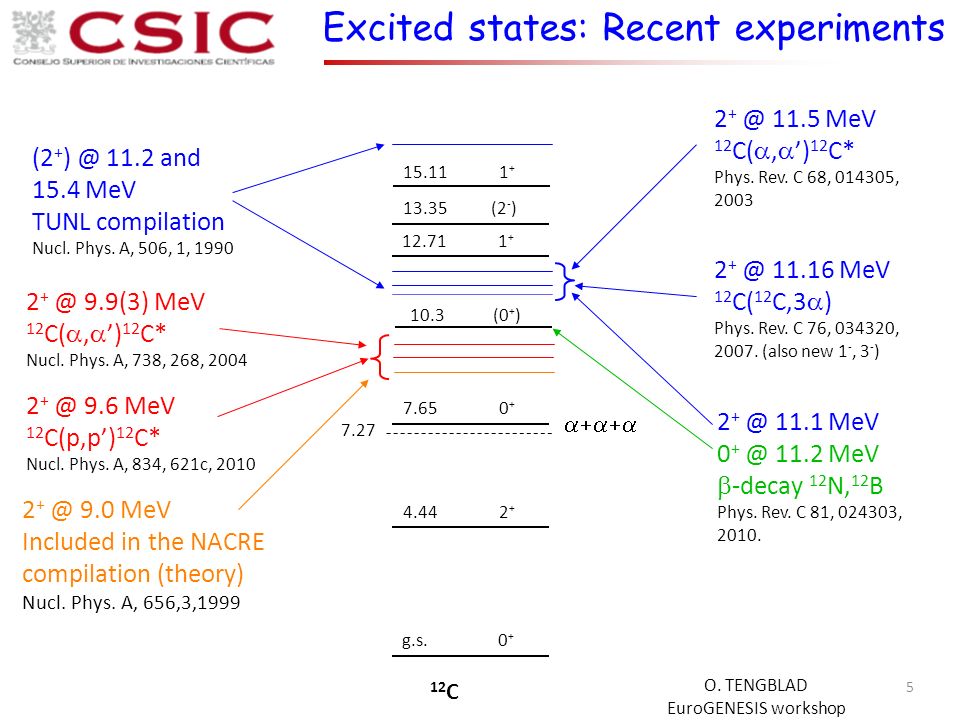

5. Excited states: Recent experiments 12 C 4.442 + g.s.0 + 13.35 (2 - ) 15.111 + 12.711 + 10.3 (0 + ) 7.650 +  7.27 2 + @ 9.0 MeV Included in the NACRE compilation (theory) Nucl. Phys. A, 656,3,1999 2 + @ 9.6 MeV 12 C(p,p’) 12 C* Nucl. Phys. A, 834, 621c, 2010 2 + @ 11.16 MeV 12 C( 12 C,3  ) Phys. Rev. C 76, 034320, 2007. (also new 1 -, 3 - ) 2 + @ 11.5 MeV 12 C( ,  ’) 12 C* Phys. Rev. C 68, 014305, 2003 2 + @ 9.9(3) MeV 12 C( ,  ’) 12 C* Nucl. Phys. A, 738, 268, 2004 (2 + ) @ 11.2 and 15.4 MeV TUNL compilation Nucl. Phys. A, 506, 1, 1990 2 + @ 11.1 MeV 0 + @ 11.2 MeV  -decay 12 N, 12 B Phys. Rev. C 81, 024303, 2010. 5 O. TENGBLAD EuroGENESIS workshop

6. 4 He +4 He 7.650 + 11.354 + 3.032 + g.s.0 + -0.092 8 Be 12 C 7.27 9.643 - 10.841 - 11.832 - 12.711 + 13.35 (2 - ) 14.084 + 15.111 + 16.112 + 18.71 ≈100 +  More questions: Decay mechanisms    12 C    8 Be Direct decay Sequential decay  How do the different states decay ? How is this related to the state structure ? 6 O. TENGBLAD EuroGENESIS workshop

7. 7 12 C measured @ ISOLDE, JYFL & KVI Measured with high segmentation  decay mechanism / branching Measured with implantation method  total energy Experiment 2002-2004 Experiment april 2006

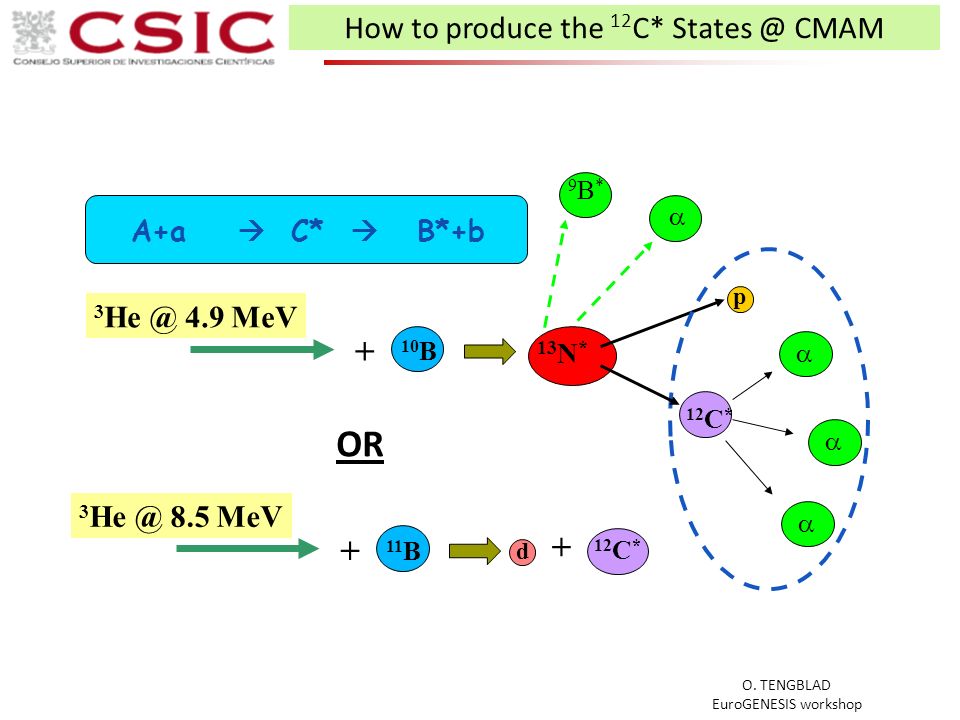

8. How to produce the 12 C* States @ CMAM A+a  C*  B*+b 3 He @ 4.9 MeV 10 B 13 N * p 12 C * +  9B*9B*  OR 3 He @ 8.5 MeV 11 B + d 12 C * + 8 O. TENGBLAD EuroGENESIS workshop

9. Targets: 18.9  g/cm 2 10 B enriched (90%) on 4  g/cm 2 C-backing 22.0  g/cm 2 11 B with 4  g/cm 2 C-backing Beam: 3 He @ 4.9 and 8.5 MeV from 5 MV Tandetron The experiment: highly segmented  = 38% of 4  Reactions: 10 B( 3 He,p)  11 B( 3 He,d)  9 O. TENGBLAD EuroGENESIS workshop

10. Particle Identification 3 He + 11 B d + 12 C * EE E d 10 Reaction productsQ-Value (MeV) 14 N +  20.74 13 C + p13.19 12 C + d10.46 10 B +  9.12 12 C + n + p8.24 6 Li + 2  4.66 9 Be + p +  2.54 5 He + p + 2  0.07 11 B + 3 He0.00 11 C + t-2.00  p

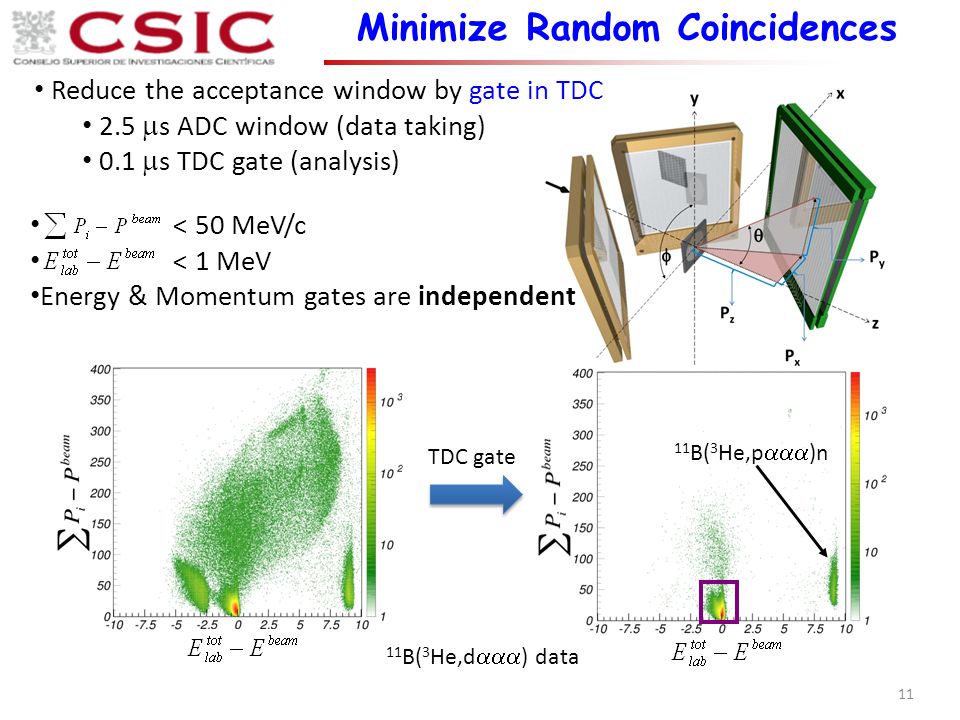

11. Minimize Random Coincidences 11 B( 3 He,d  ) data 11 Reduce the acceptance window by gate in TDC 2.5  s ADC window (data taking) 0.1  s TDC gate (analysis) < 50 MeV/c < 1 MeV Energy & Momentum gates are independent 11 B( 3 He,p  )n TDC gate

12. 12 E i (  ) (MeV) E sum (  ) (MeV) E sum =3/2*E 1 +0.092 MeV E 12C (MeV) Selecting proton channel: p +  +  +  coincidences  Excitation Energy in 12 C reconstructed 12 C *  8 Be(0 + )   EE O. TENGBLAD EuroGENESIS workshop

13. 13 3 He + 11 B d + 12 C *  Partial branches O. TENGBLAD EuroGENESIS workshop

14. 14 7.650 + 3.032 + g.s.0 + 8 Be 12 C 7.27 MeV 9.643 - 10.841 - 11.832 - 12.711 + 13.35 (2 - ) ≈100 + 11 B( 3 He,d  ) data O. TENGBLAD EuroGENESIS workshop Partial branches

15. 7.650 + 15.111 + Indirect Detection of  -decay 3 He @ 4.5 MeV 10 B p 12 C * 17  g/cm 2 (+3  g/cm 2 )     12 C * 12.711 + ≈100 + 11.832 - 12 C 15.111 + 7.650 +   The proton gives initial populated resonance in 12 C This state can emit  and populate a lower excited state The 3  alphas give resonance populated in 12 C after  -decay 15 O. TENGBLAD EuroGENESIS workshop

16. Excitation energy: calculated from p vs invariant mass of 3  3 He+ 11 B d+3  3 He+ 11 B n+p+3  3 He+ 10 B p+3  punch- throughs M. Alcorta et al, NIM A605, 318 (2009). 16 O. TENGBLAD EuroGENESIS workshop Indirect Detection of  -decay

17. O. Kirsebom et al, PLB 680, 44 (2009)  -decay of 15.11 MeV  12.71 1 + ≈10 0 + 7.65 0 + 11.83 2 - 15.111 + 12 C 1.24.41.4 0.3 92.8%  width to bound states determined from p- 12 C coincidences 4.44 0 + 0.0 0 + 92.7 17

18. 18 p-process Studies Production of most rare nuclei in the solar system p-nuclei Photon-disintegration reactions involved in the astrophysical p-process: (γ,n), (γ,p) & (γ,α) ( ,n) ++ Photon-disintegration: p-process (  ) Experiments to improve knowledge on α-nuclear potentials for astrophysical applications Nucleonsynthesis of the 35 stable p-rich nuclei, which cannot be reached in normal n-capture process

19. Production & study of p-nuclei 19 197 Au( ,n) 200 Tl D. Galaviz Redondo, Centro de Física Nuclear da Universidade de Lisboa Radiative α-capture reactions (α,p), (α,n) & (α,γ) on proton-rich nuclei Optimum energy for CMAM Astrophysical energy region Gamow-peak 6-12 MeV first experiments on 92 Mo, 130 Ba & 162 Er α-beam E α = 5-15 MeV I α = 1µA Au-Mo-Au p n γ γ α Si-detector α-Intensity: 197 Au(α,α) 197 Au 197 Au(α,γ) reactions

20. 10 h after end of activation 20 O. TENGBLAD EuroGENESIS workshop 372 keV 40 Ca(α,p) 43 Sc 367 keV 200 Tl D. GalavizD. Galaviz Redondo, Centro de Física Nuclear da Universidade de Lisboa 197 Au( ,n) 200 Tl

21. 21 Literature value: 26.1 (1) h 197 Au( ,n) 200 Tl D. GalavizD. Galaviz Redondo, Centro de Física Nuclear da Universidade de Lisboa

22. 22 R&D for experiments

23. 500  m N- Detector E 1  m N+ Detector  E Rear cathode 0.5  m  E (N+) Monolithic  E-E telescope

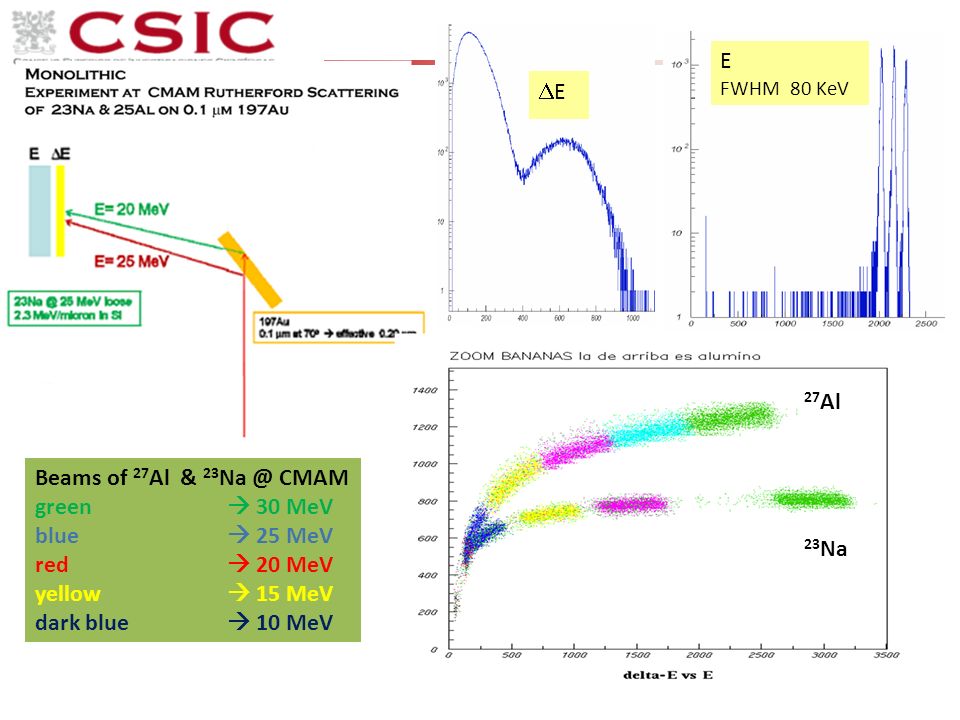

24. EE E FWHM 80 KeV Beams of 27 Al & 23 Na @ CMAM green  30 MeV blue  25 MeV red  20 MeV yellow  15 MeV dark blue  10 MeV 27 Al 23 Na

25. Detectors: DSSSD  monolithic Si telescope Detector area: 5x5 cm 2 64 pixel detectores á 3x3=9 mm 2 128 electronic channels Solid angle 20% of the DSSSD and 4 times more electronics needed!! 5x5 cm 2 16x16 strips á 3mm 256 pixel detectors á 3x3=9 mm 2 32 electronic channels DSSSDMonolito

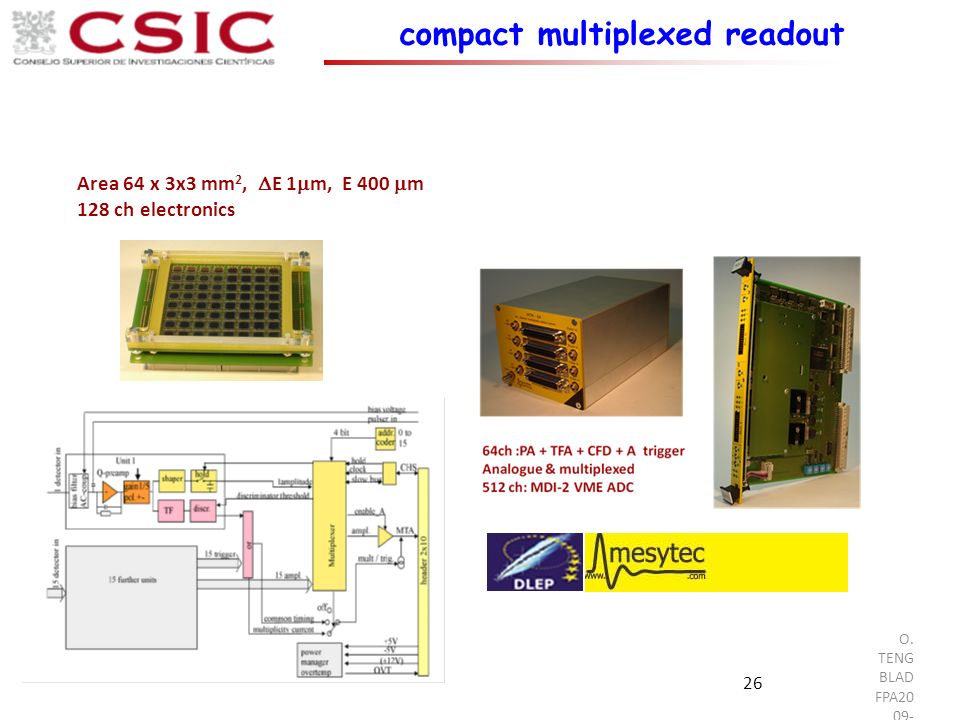

26. compact multiplexed readout 26 O. TENG BLAD FPA20 09- 07387 Area 64 x 3x3 mm 2,  E 1  m, E 400  m 128 ch electronics

27. compact multiplexed readout

28. 256 channels multiplexed to MDI-2 via a 20 pin twisted pair cable 2x MTM-64 128 channels MDI-2 Motorola power PC VME5055 Twisted pair 20 line

29. 29 Materials Energy Resolution (at 662 keV) (%) Light yield (photons/k eV γ) Decay time (ns) λ emision LaBr 3 2.96316380 nm LaCl 3 3.84928350 nm LaBr 3 LaCl 3 30 50 mm  Two crystals of different materials with a unique readout system?  Optically compatible E  E 1  E 2 Phoswich for high E Gamma and Proton detection

30. Phoswich: 1 st results  it works ENERGY SPECTRUM WITH GATE B FWHM 4 % PHOSWICH TEMPORAL SPECTRUM + 30 O. TENG BLAD FPA20 09- 07387

31. LaCl 3 PMT Phoswich response to 180 mev protons  Proton slowed down in the two crystals  Proton escaping leaving part of energy  Proton scattered out from LaBr  Proton stopped in 1st crystal  Pile up & noise  Proton entered from the side to 2nd crystal Phoswich detector response to 150 & 180 MeV protons Flash ADC PMT LaBr 3 31 FWHM < 1%

32. Reactions study at CMAM 32 p( 17 0, 18 F) γ p( 17 0, 14 N)α } Difficult to compare previous results Uncertainties associated to thickness and composition of the target We will perform our expeiments in inverse kinematics 17 0(p, γ) 18 F 17 0(p, α) 14 N ISOLDE/JYFL Si-Ball: 36x4 quadrants of 1000 micron Si L.M. Fraile & J.Äystö, NIMA513 (2003) 28 LaBr 3 +LaCl 3 Phoswich 9x { 15x15 mm 2 x (40+60)mm } crystals 3-1% resolution, 40% photopeak efficiency 0-20 MeV

33. Collaborators H.O.U. Fynbo, O. Kirsebom, S. Hyldegaard, K. Riisager Århus University, Denmark B. Jonson, T. Nilsson, G. Nyman Chalmers Univ. of Technology, Göteborg, Sweden M. Alcorta, M.J.G. Borge, J-A Briz, M. Carmona, M. Cubero, E. Nacher, A. Perea, O. Tengblad, IEM-CSIC, Madrid, Spain B. R. Fulton, C. Aa Diget, N S Bondili University of York, United Kingdom. 33 O. TENGBLAD EuroGENESIS workshop

34. 34 19 F(p,α  ) 16 O beam: protones de 1 MeV target: teflon “Gamma beam” test bench
