1. Apoptosis and Diseases

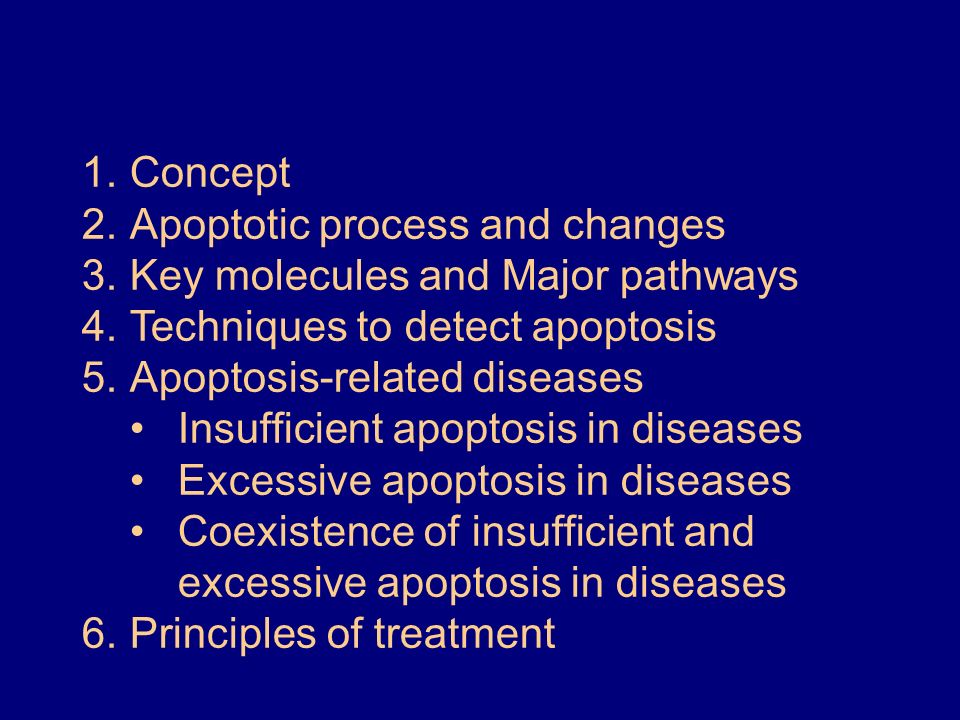

2. 1.Concept 2.Apoptotic process and changes 3.Key molecules and Major pathways 4.Techniques to detect apoptosis 5.Apoptosis-related diseases Insufficient apoptosis in diseases Excessive apoptosis in diseases Coexistence of insufficient and excessive apoptosis in diseases 6.Principles of treatment

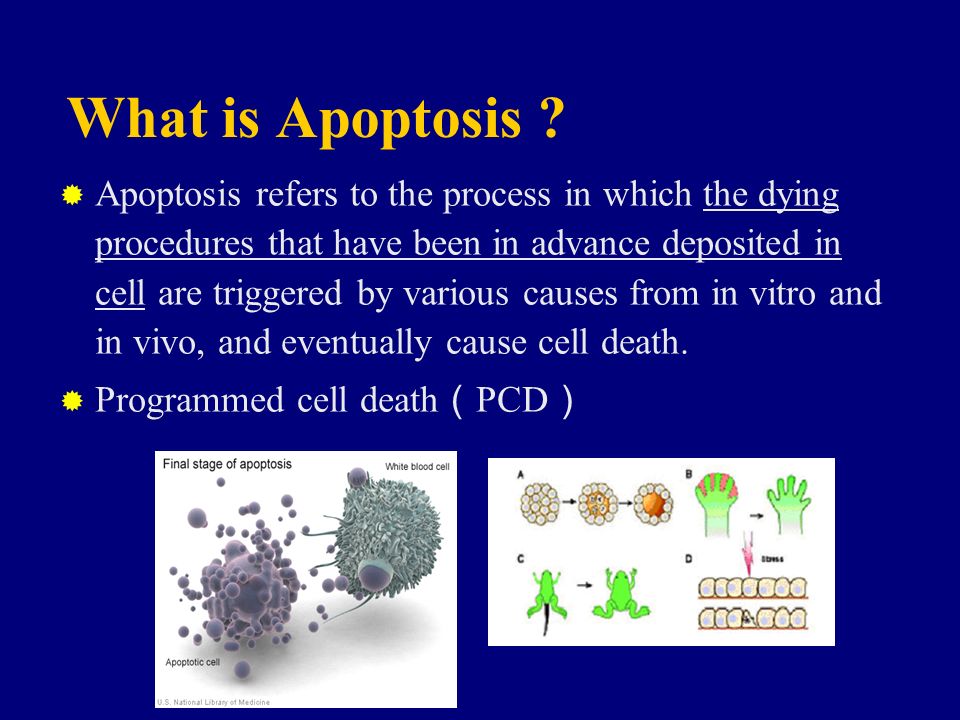

3. What is Apoptosis ?  Apoptosis refers to the process in which the dying procedures that have been in advance deposited in cell are triggered by various causes from in vitro and in vivo, and eventually cause cell death.  Programmed cell death （ PCD ）

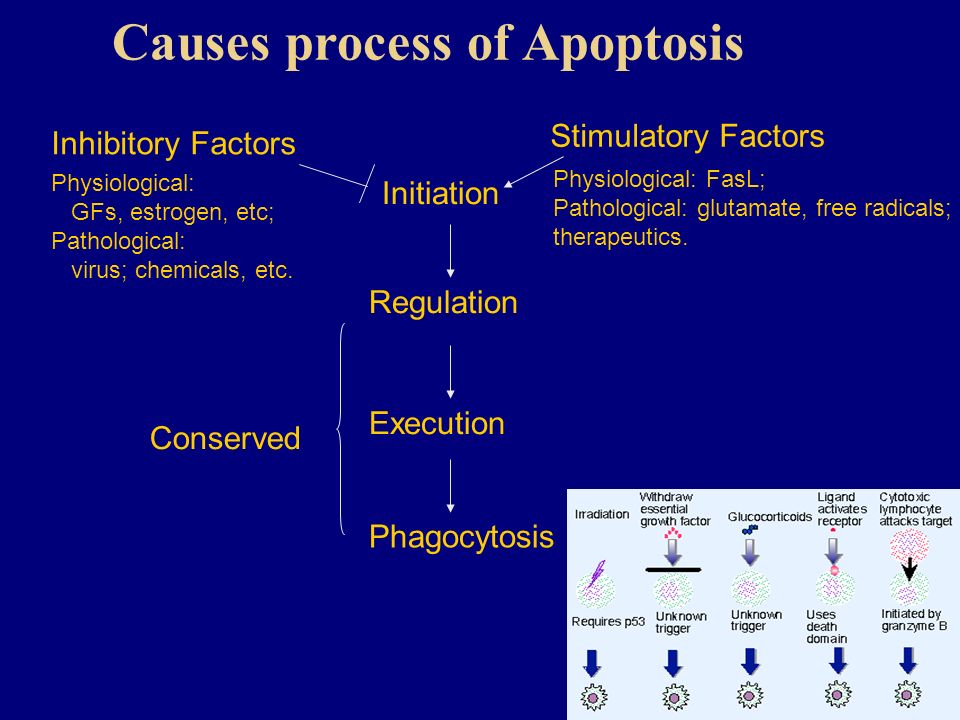

4. Initiation Regulation Execution Phagocytosis Physiological: GFs, estrogen, etc; Pathological: virus; chemicals, etc. Inhibitory Factors Stimulatory Factors Physiological: FasL; Pathological: glutamate, free radicals; therapeutics. Conserved Causes process of Apoptosis

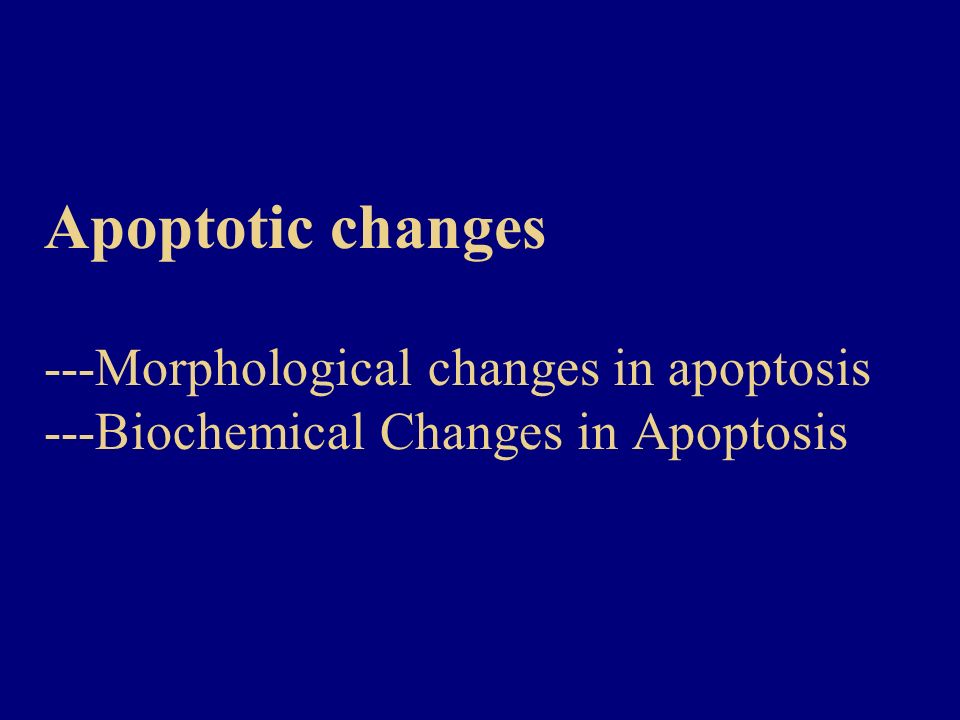

5. Apoptotic changes ---Morphological changes in apoptosis ---Biochemical Changes in Apoptosis

6. Morphological changes in apoptosis  Cell membrane  Cytoplasm  Cell nucleus  Apoptotic body  Phagocytose Normal Cell Apoptotic Cell condensation margination Apoptotic Bodies Budding Changes of Cell membrane

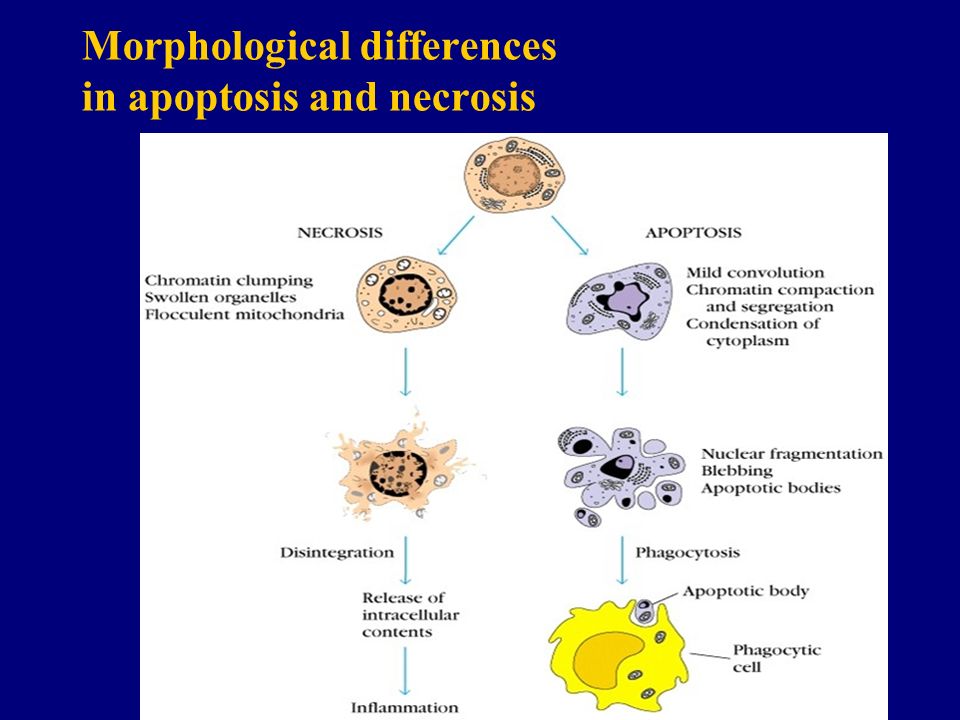

7. Morphological differences in apoptosis and necrosis

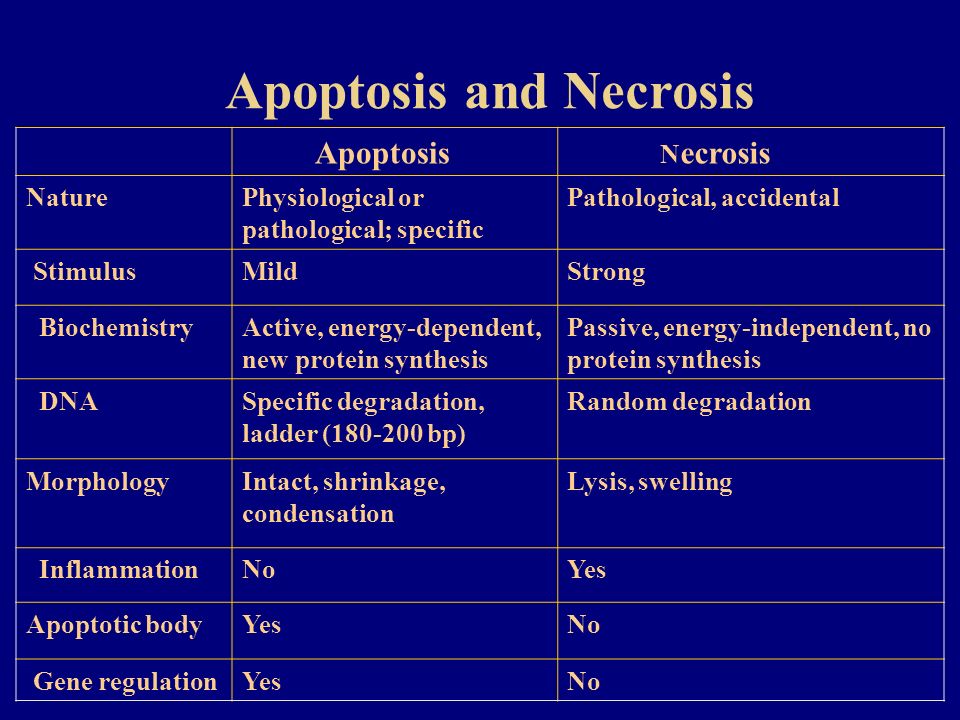

8. Apoptosis N ecrosis NaturePhysiological or pathological; specific Pathological, accidental StimulusMildStrong BiochemistryActive, energy-dependent, new protein synthesis Passive, energy-independent, no protein synthesis DNA Specific degradation, ladder (180-200 bp) Random degradation MorphologyIntact, shrinkage, condensation Lysis, swelling InflammationNoYes Apoptotic bodyYesNo Gene regulationYesNo Apoptosis and Necrosis

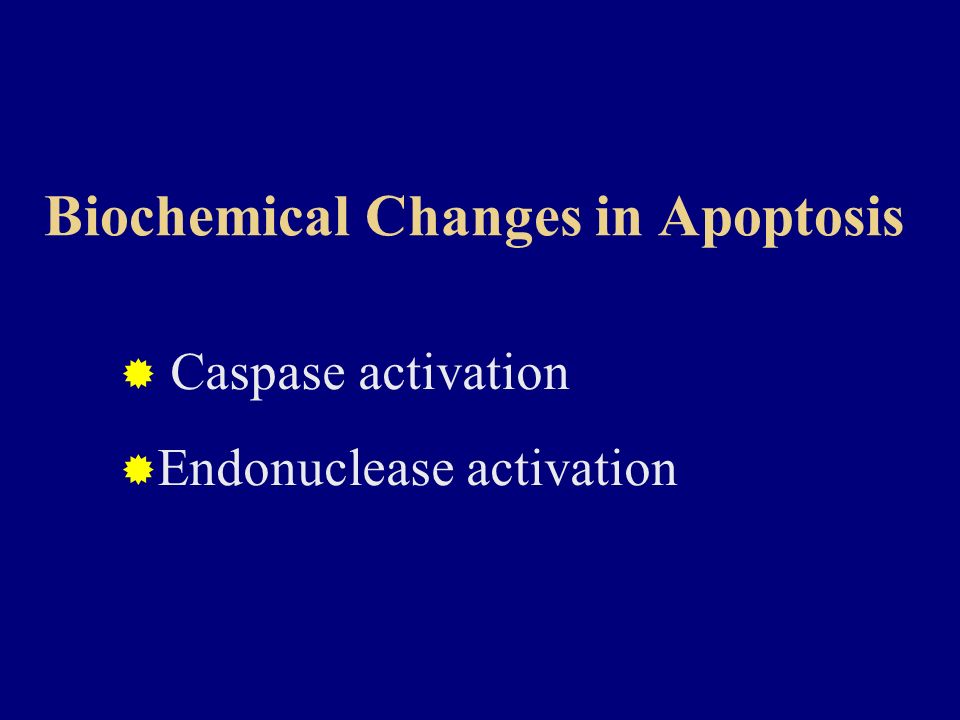

9. Biochemical Changes in Apoptosis  Caspase activation  Endonuclease activation

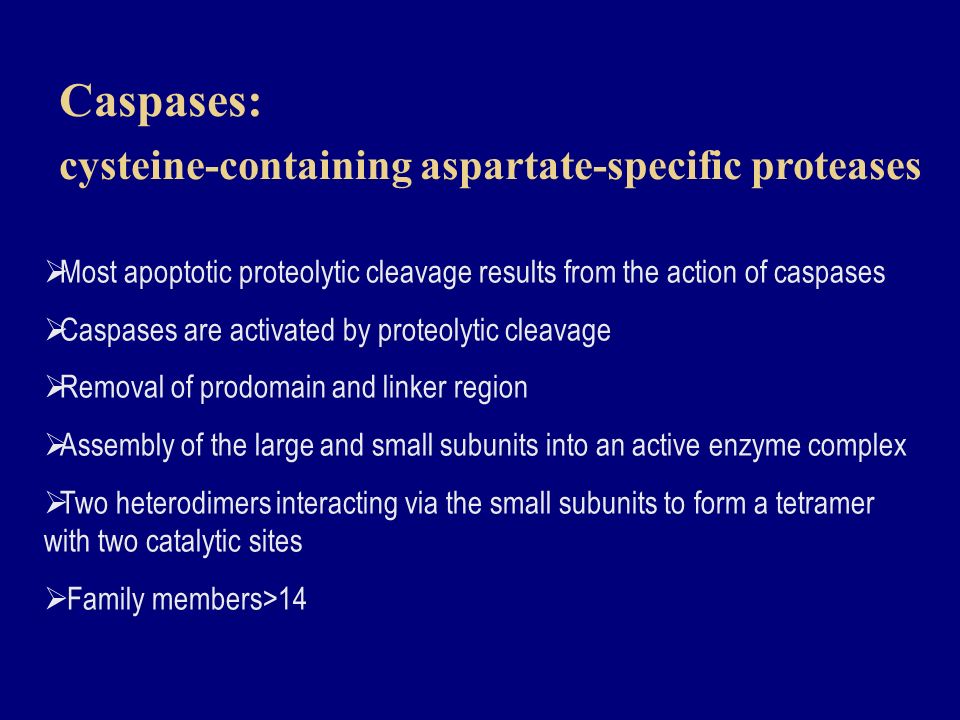

10.  Most apoptotic proteolytic cleavage results from the action of caspases  Caspases are activated by proteolytic cleavage  Removal of prodomain and linker region  Assembly of the large and small subunits into an active enzyme complex  Two heterodimers interacting via the small subunits to form a tetramer with two catalytic sites  Family members>14 Caspases: cysteine-containing aspartate-specific proteases

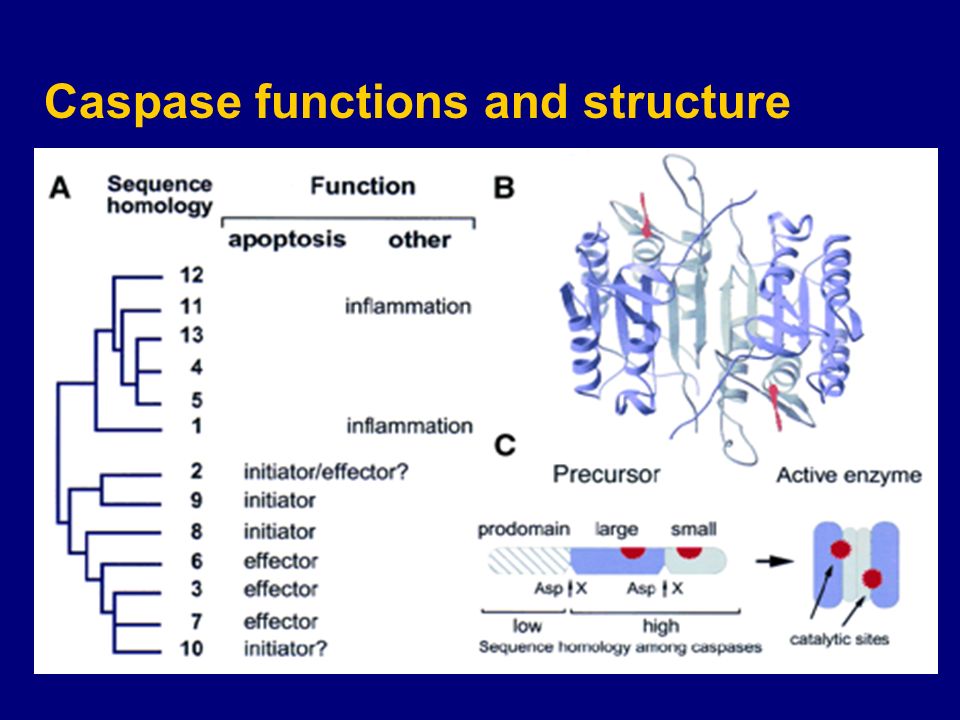

11. Caspase functions and structure

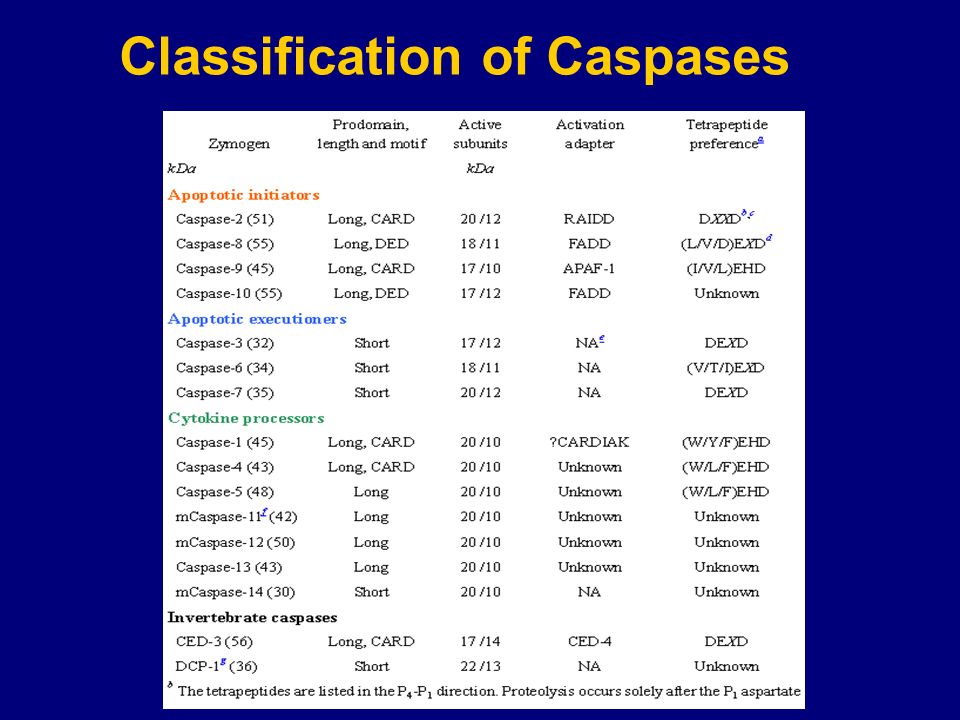

12. Classification of Caspases

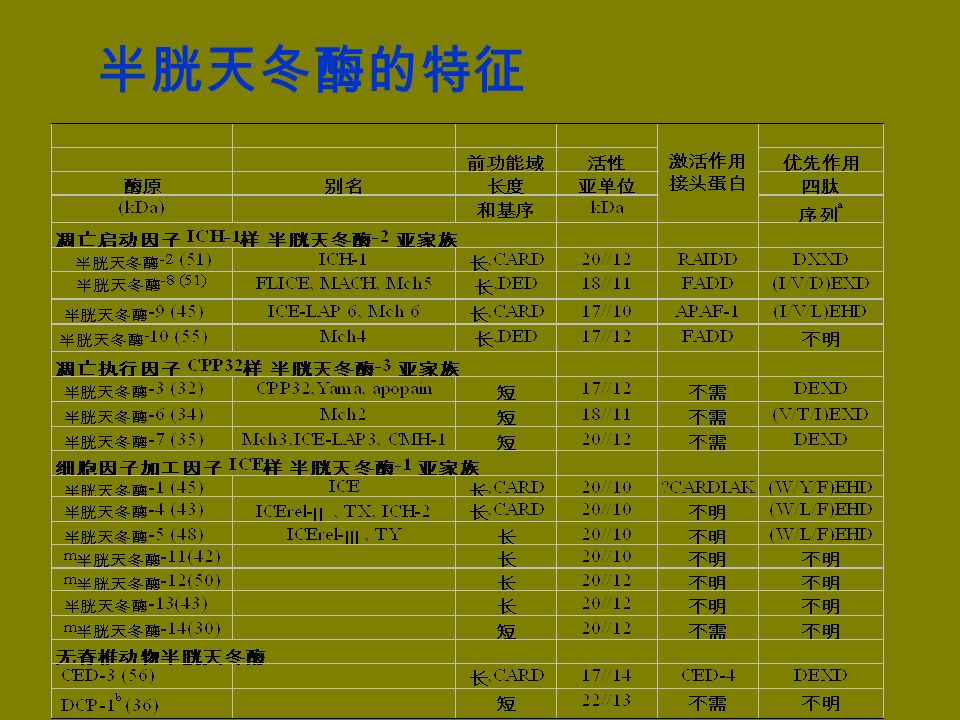

13. 半胱天冬酶的特征

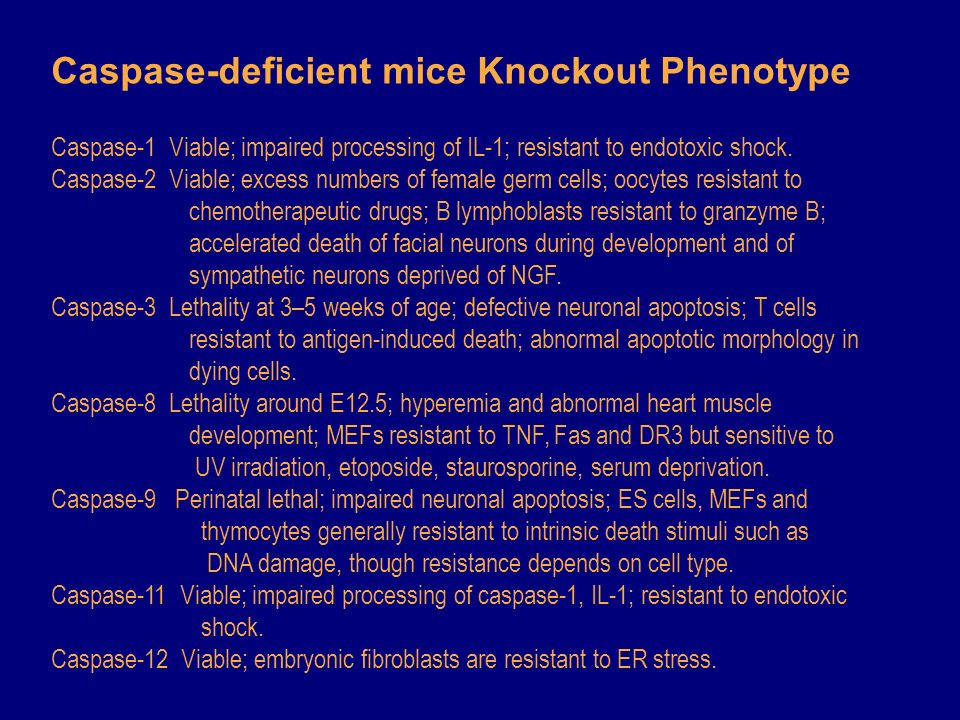

14. Caspase-deficient mice Knockout Phenotype Caspase-1 Viable; impaired processing of IL-1; resistant to endotoxic shock. Caspase-2 Viable; excess numbers of female germ cells; oocytes resistant to chemotherapeutic drugs; B lymphoblasts resistant to granzyme B; accelerated death of facial neurons during development and of sympathetic neurons deprived of NGF. Caspase-3 Lethality at 3–5 weeks of age; defective neuronal apoptosis; T cells resistant to antigen-induced death; abnormal apoptotic morphology in dying cells. Caspase-8 Lethality around E12.5; hyperemia and abnormal heart muscle development; MEFs resistant to TNF, Fas and DR3 but sensitive to UV irradiation, etoposide, staurosporine, serum deprivation. Caspase-9 Perinatal lethal; impaired neuronal apoptosis; ES cells, MEFs and thymocytes generally resistant to intrinsic death stimuli such as DNA damage, though resistance depends on cell type. Caspase-11 Viable; impaired processing of caspase-1, IL-1; resistant to endotoxic shock. Caspase-12 Viable; embryonic fibroblasts are resistant to ER stress.

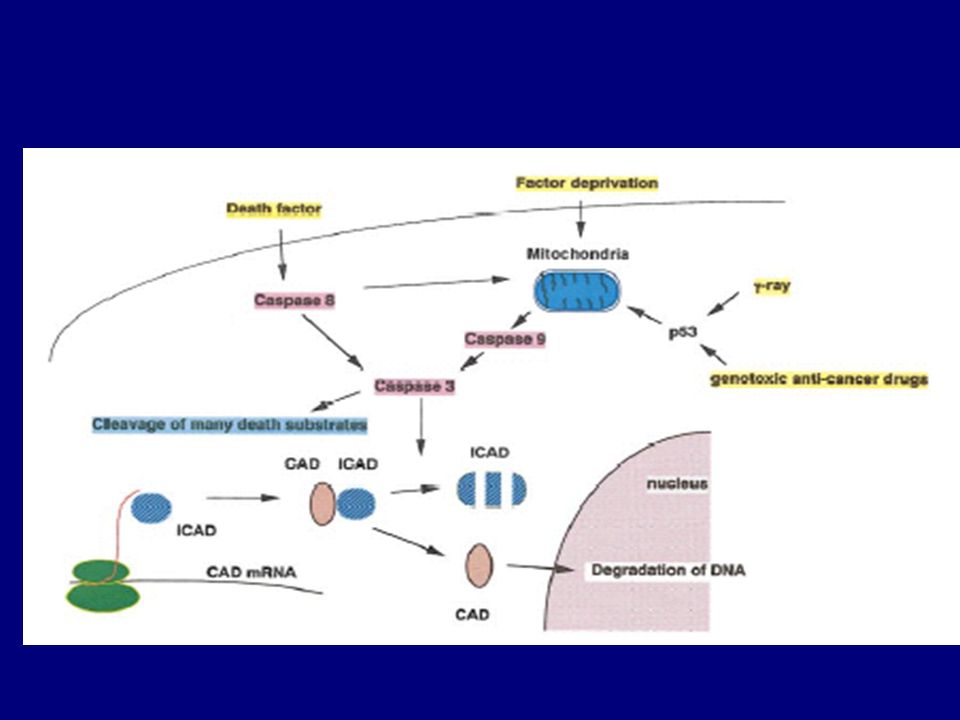

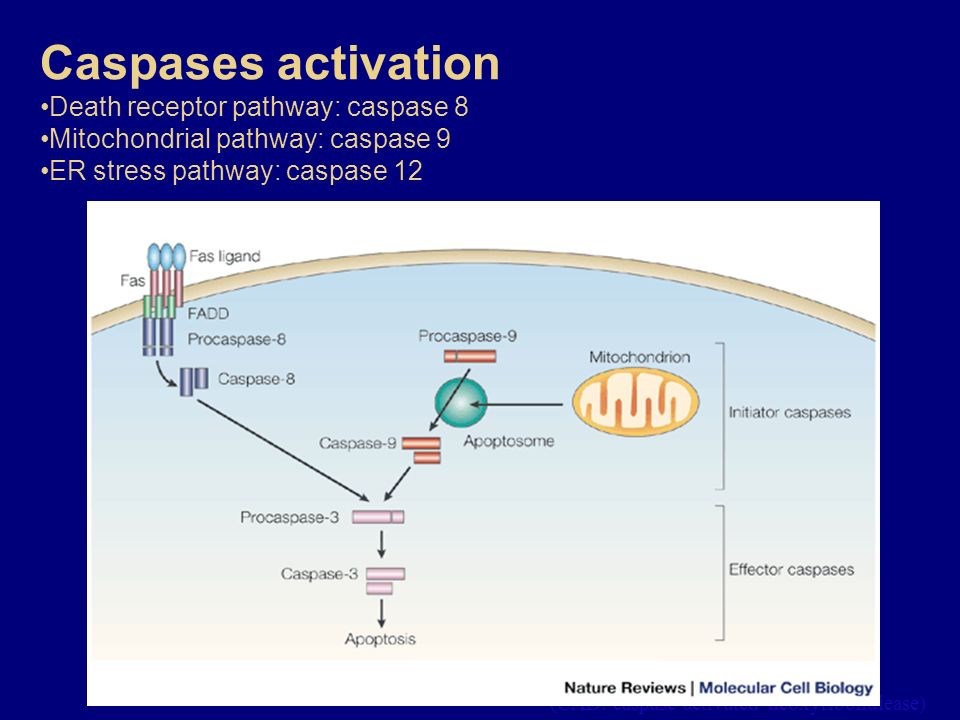

15. Caspases activation Death receptor pathway: caspase 8 Mitochondrial pathway: caspase 9 ER stress pathway: caspase 12 (CAD: caspase-activated deoxyribonulease)

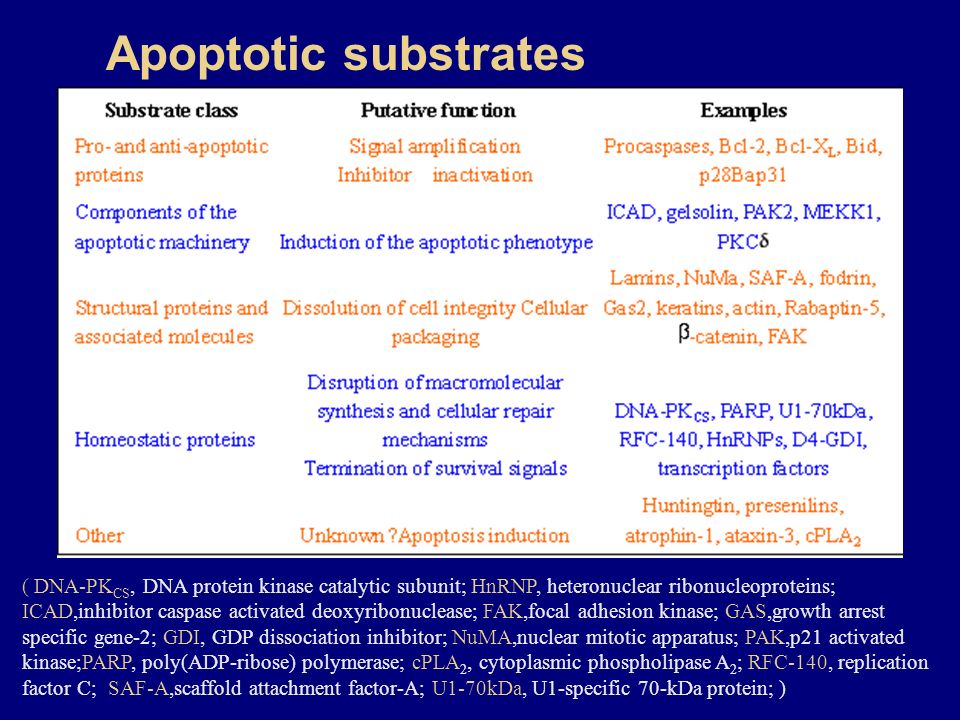

17. Apoptotic substrates ( DNA-PK CS, DNA protein kinase catalytic subunit; HnRNP, heteronuclear ribonucleoproteins; ICAD,inhibitor caspase activated deoxyribonuclease; FAK,focal adhesion kinase; GAS,growth arrest specific gene-2; GDI, GDP dissociation inhibitor; NuMA,nuclear mitotic apparatus; PAK,p21 activated kinase;PARP, poly(ADP-ribose) polymerase; cPLA 2, cytoplasmic phospholipase A 2 ; RFC-140, replication factor C; SAF-A,scaffold attachment factor-A; U1-70kDa, U1-specific 70-kDa protein; )

18. 凋亡性底物

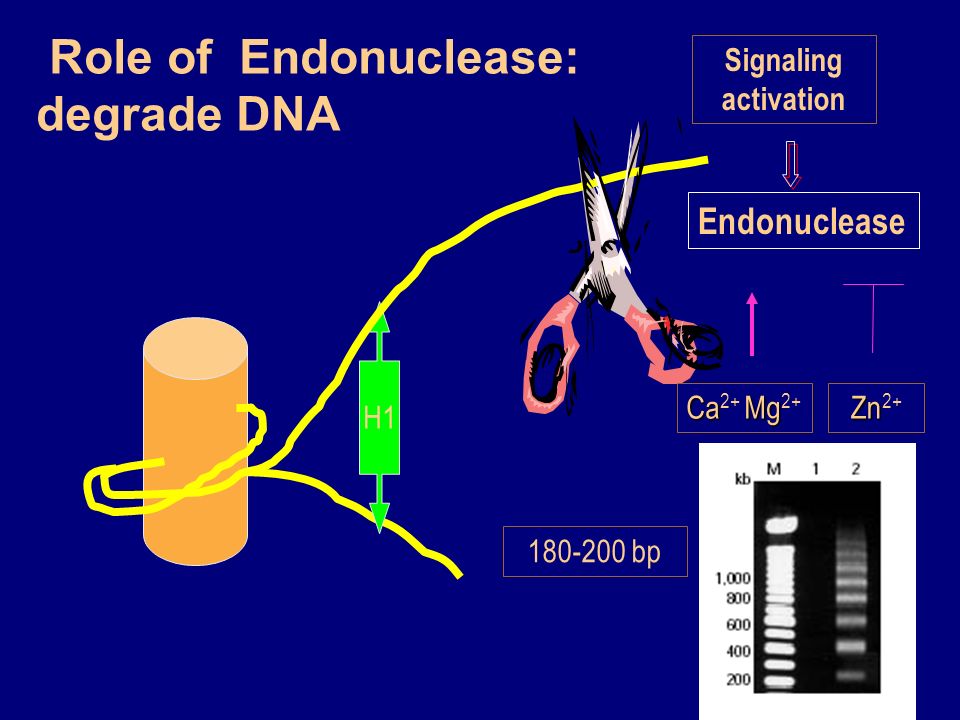

19. Role of Endonuclease: degrade DNA 180-200 bp H1 Zn Zn 2+ CaMg Ca 2+ Mg 2+ Endonuclease Signaling activation

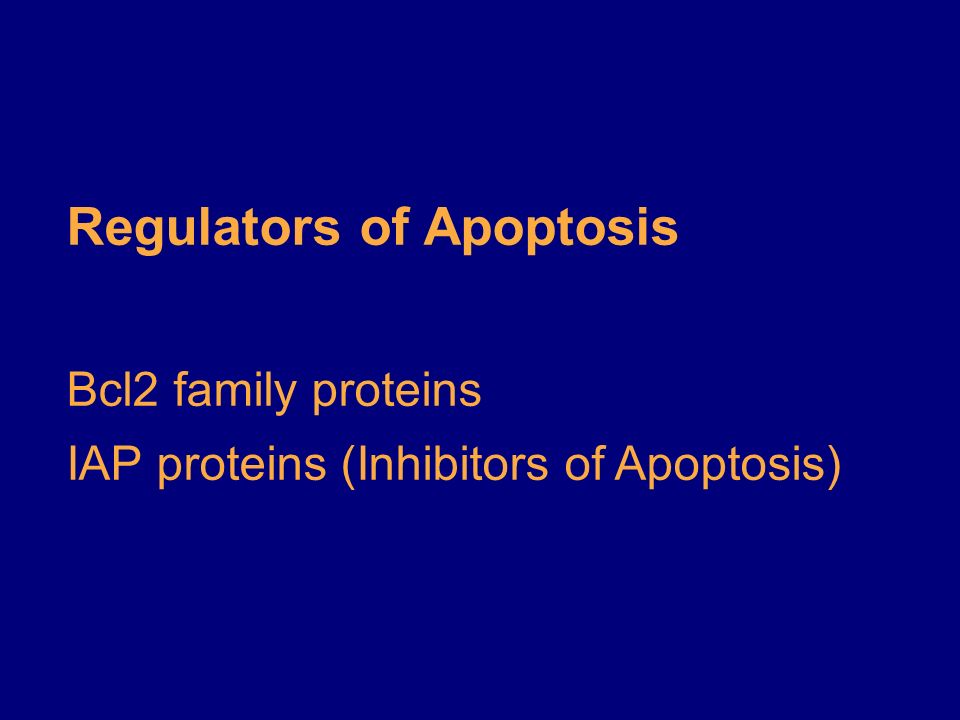

20. Regulators of Apoptosis Bcl2 family proteins IAP proteins (Inhibitors of Apoptosis)

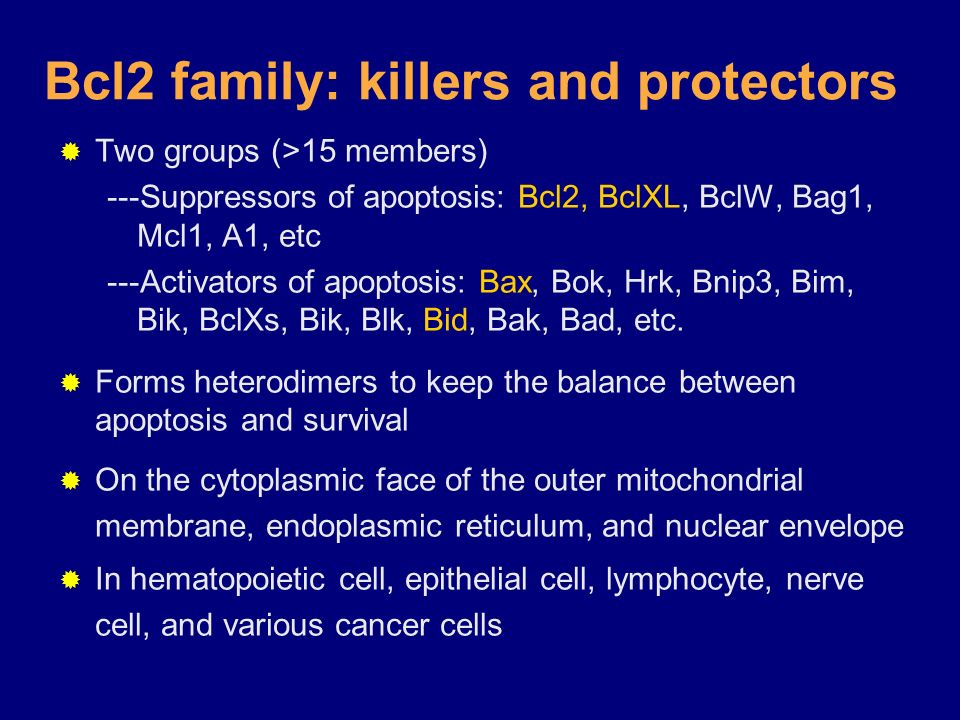

21. Bcl2 family: killers and protectors  Two groups (>15 members) ---Suppressors of apoptosis: Bcl2, BclXL, BclW, Bag1, Mcl1, A1, etc ---Activators of apoptosis: Bax, Bok, Hrk, Bnip3, Bim, Bik, BclXs, Bik, Blk, Bid, Bak, Bad, etc.  Forms heterodimers to keep the balance between apoptosis and survival  On the cytoplasmic face of the outer mitochondrial membrane, endoplasmic reticulum, and nuclear envelope  In hematopoietic cell, epithelial cell, lymphocyte, nerve cell, and various cancer cells

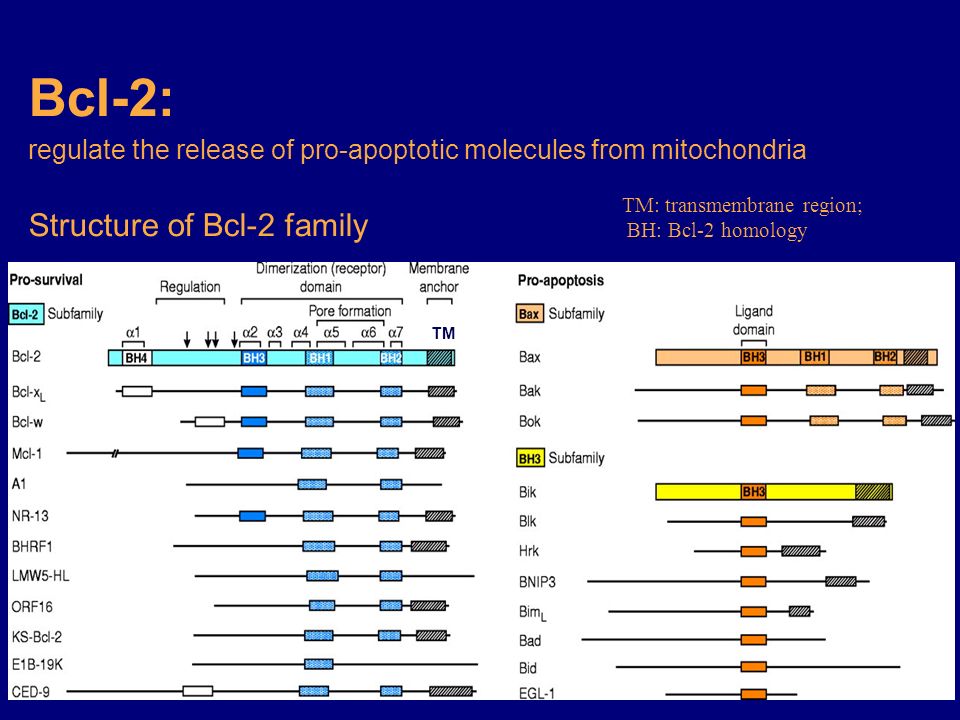

22. Bcl-2: regulate the release of pro-apoptotic molecules from mitochondria Structure of Bcl-2 family TM: transmembrane region; BH: Bcl-2 homology TM

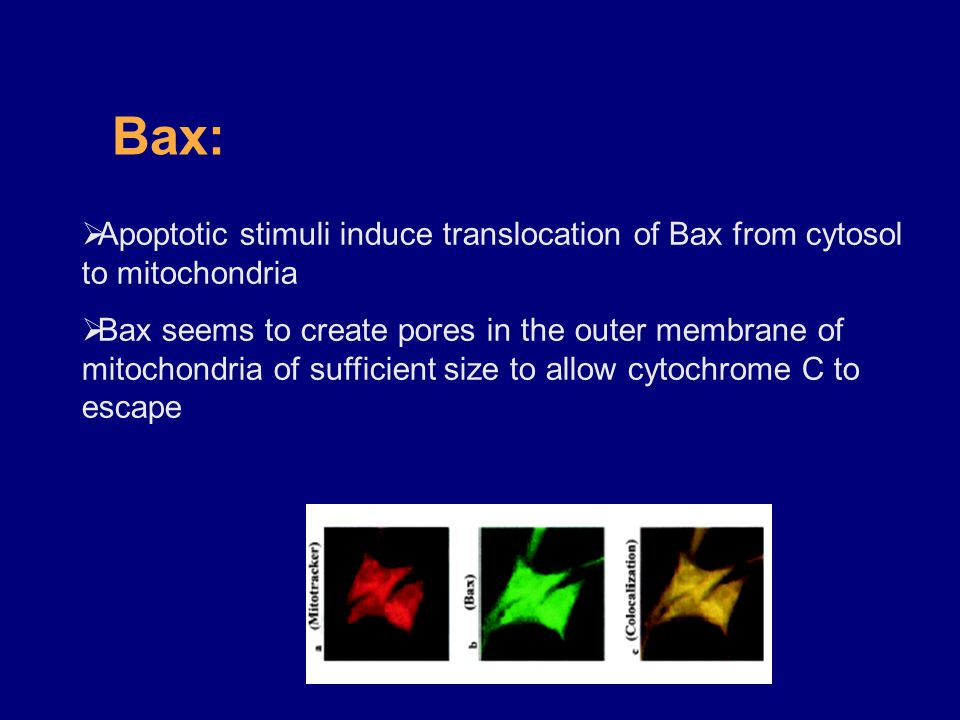

23. Bax:  Apoptotic stimuli induce translocation of Bax from cytosol to mitochondria  Bax seems to create pores in the outer membrane of mitochondria of sufficient size to allow cytochrome C to escape

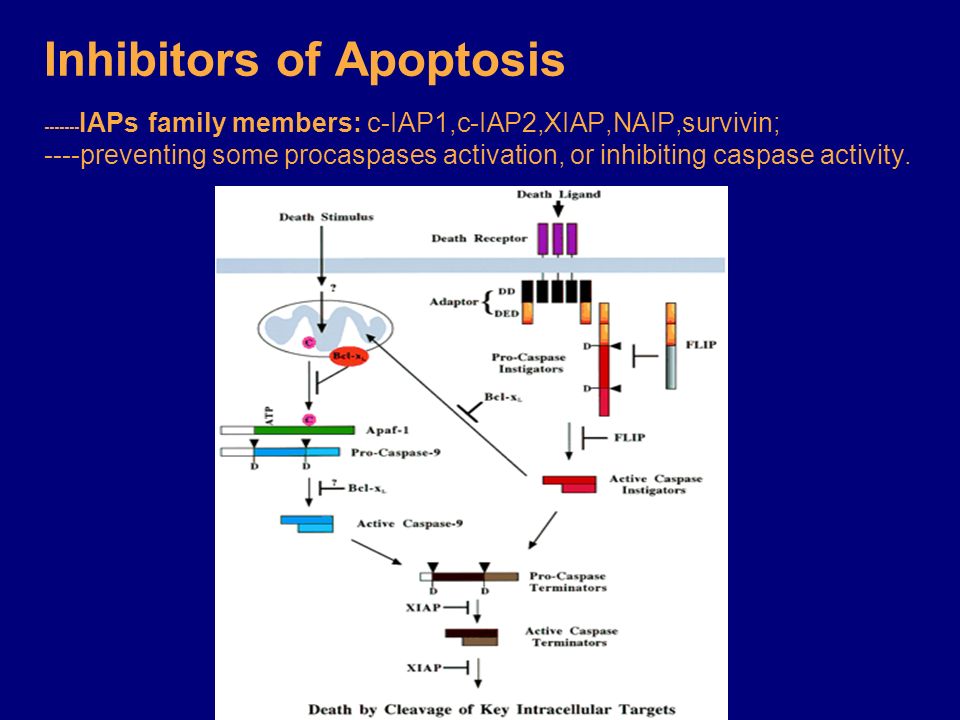

24. Inhibitors of Apoptosis ------- IAPs family members: c-IAP1,c-IAP2,XIAP,NAIP,survivin; ----preventing some procaspases activation, or inhibiting caspase activity.

25. Apoptosis pathways and related genes  Death Receptor induced apoptosis  Mitochondria – Integrator of Apoptosis  others

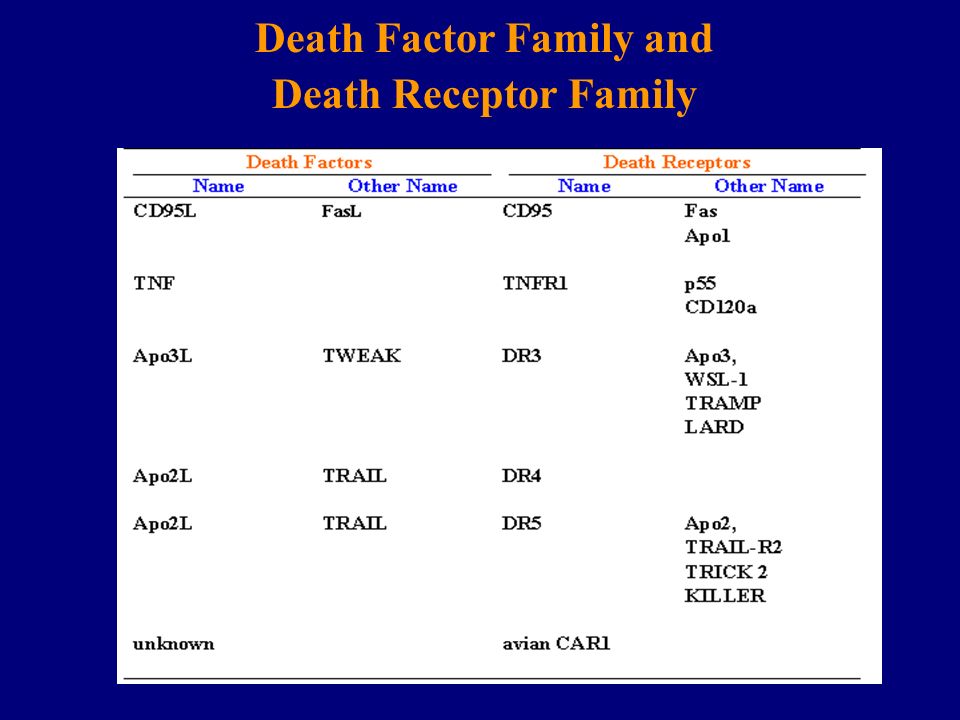

26. Death Factor Family and Death Receptor Family

27. Death receptor induced apoptosis Fas ( factor associated suicide):  Homologous cytoplasmic domain: death domain (DD)  Interacts with each other through DD  Anti-apoptotic pathway: NF-kB pathway  TNF rarely induces apoptosis unless protein synthesis is inhibited  Decoy receptors

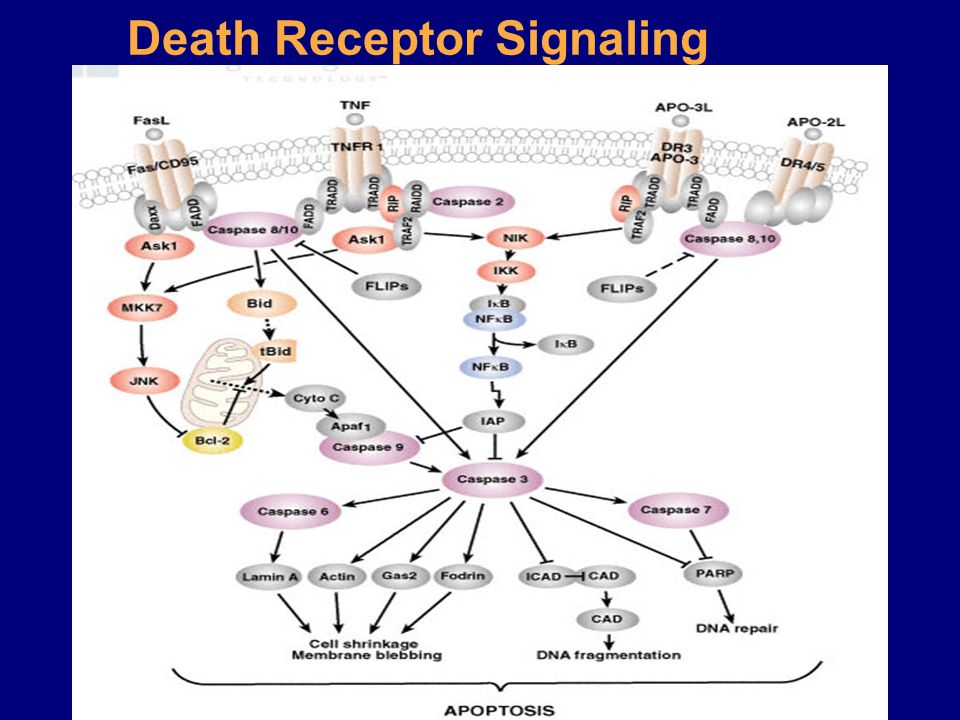

28. Death Receptor Signaling

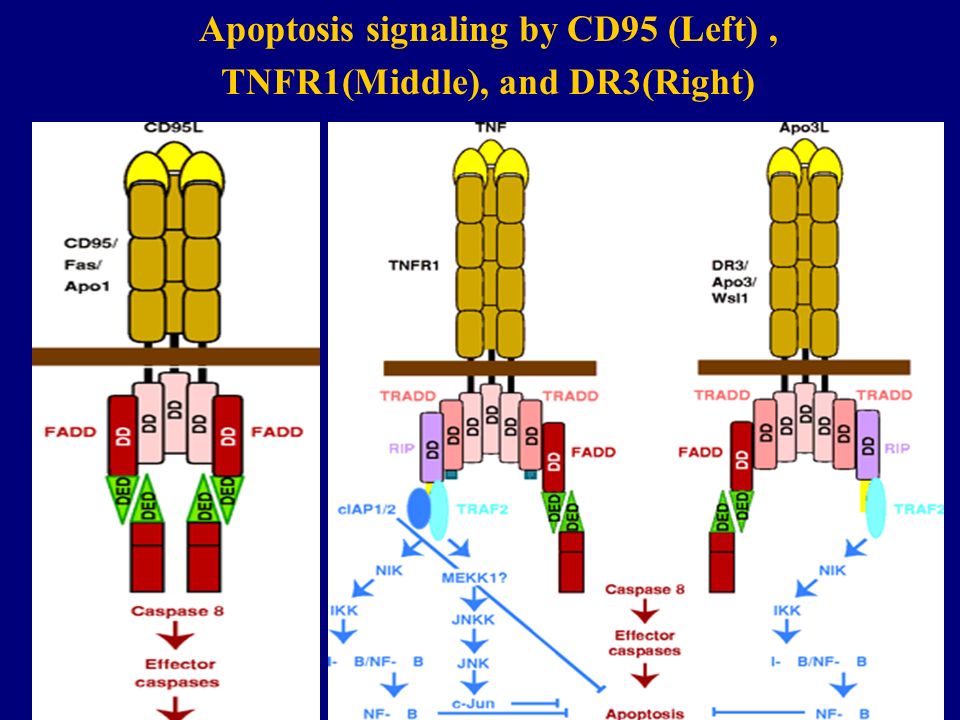

29. Apoptosis signaling by CD95 (Left), TNFR1(Middle), and DR3(Right)

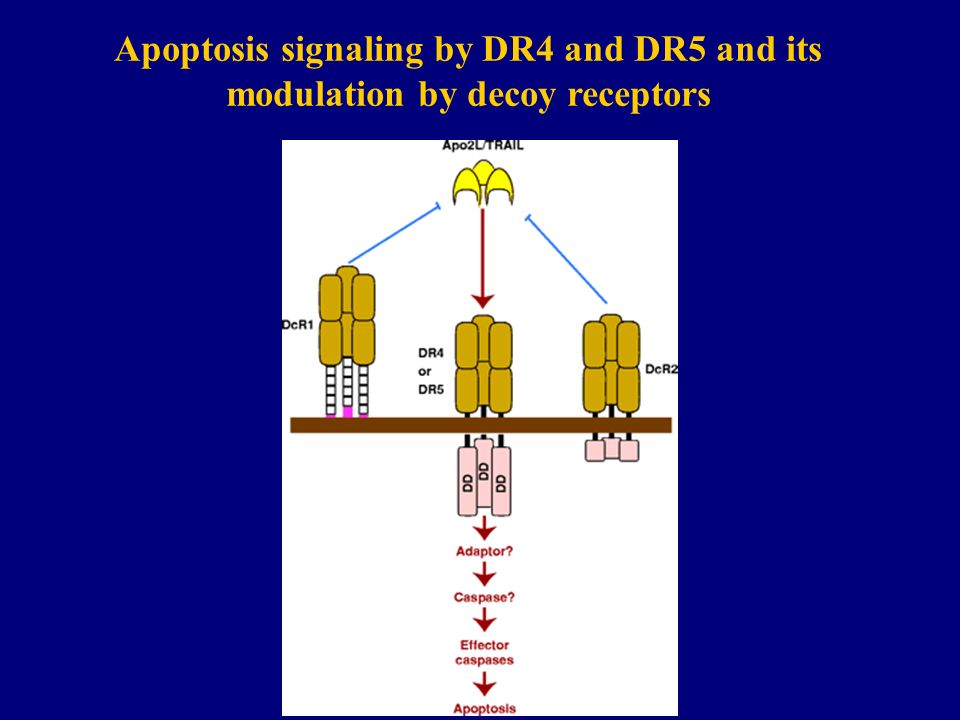

30. Apoptosis signaling by DR4 and DR5 and its modulation by decoy receptors

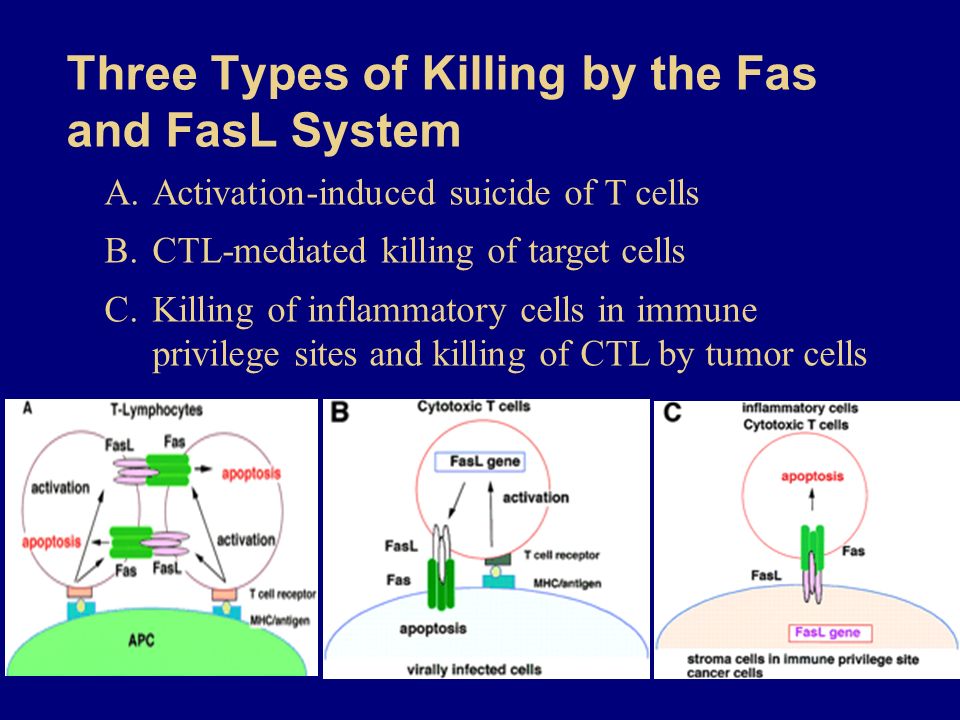

31. Three Types of Killing by the Fas and FasL System A.Activation-induced suicide of T cells B.CTL-mediated killing of target cells C.Killing of inflammatory cells in immune privilege sites and killing of CTL by tumor cells

33. p53 Mediated Apoptosis

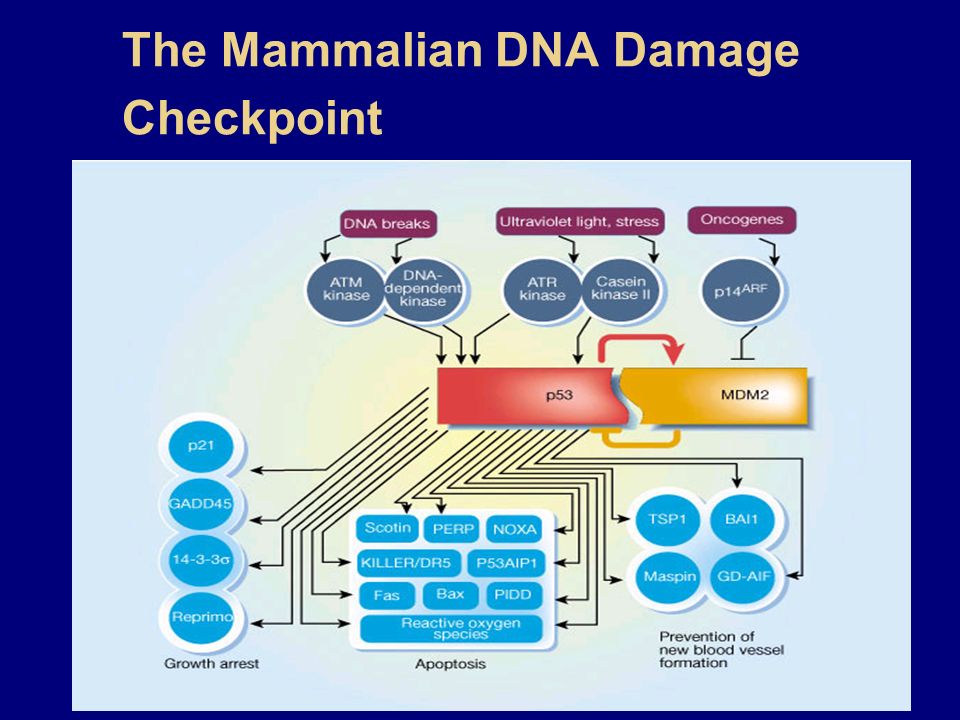

34. The Mammalian DNA Damage Checkpoint

35. p53-Inducible Apoptosis Related Genes  Scotin: localized to the ER and the nuclear membrane  PERP ： similarity to PMP-22/gas3 tetraspan membrane protein  NOXA: A member of Bcl-2 family  BAX  KILLERS/DR5  FAS  P53AIP1: p53-regulated apoptosis-inducing protein 1, leads to apoptosis via dissipation of mitochondrial △ ψ m  PIDD: A new death domain containing protein  PIG: P53 induced genes,related to ROS production  IGFBP

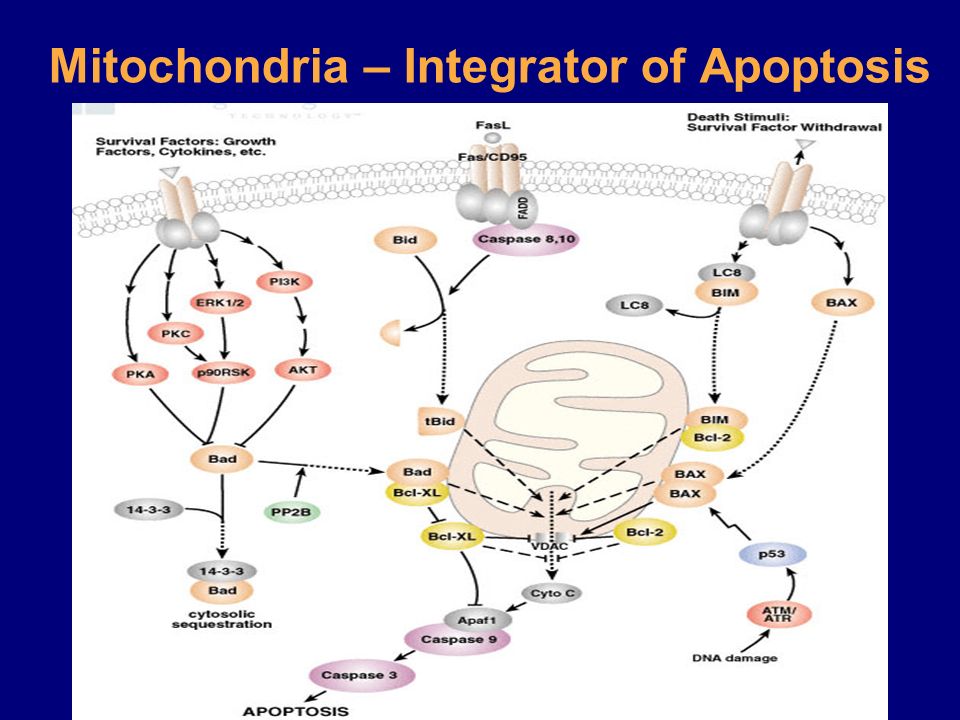

36. Mitochondria – Integrator of Apoptosis

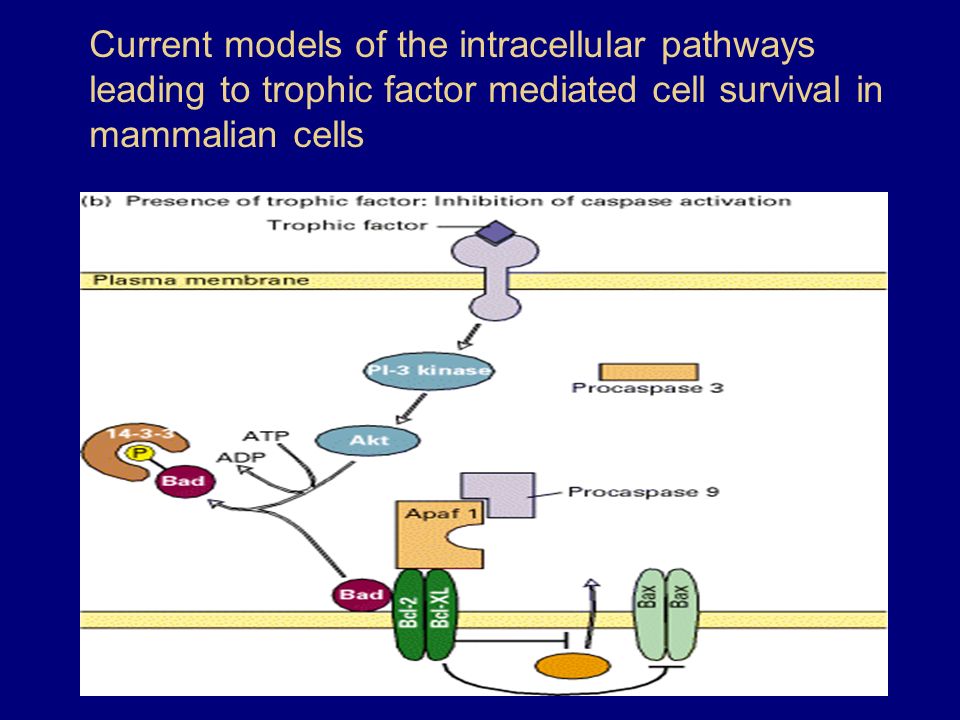

37. Current models of the intracellular pathways leading to trophic factor mediated cell survival in mammalian cells

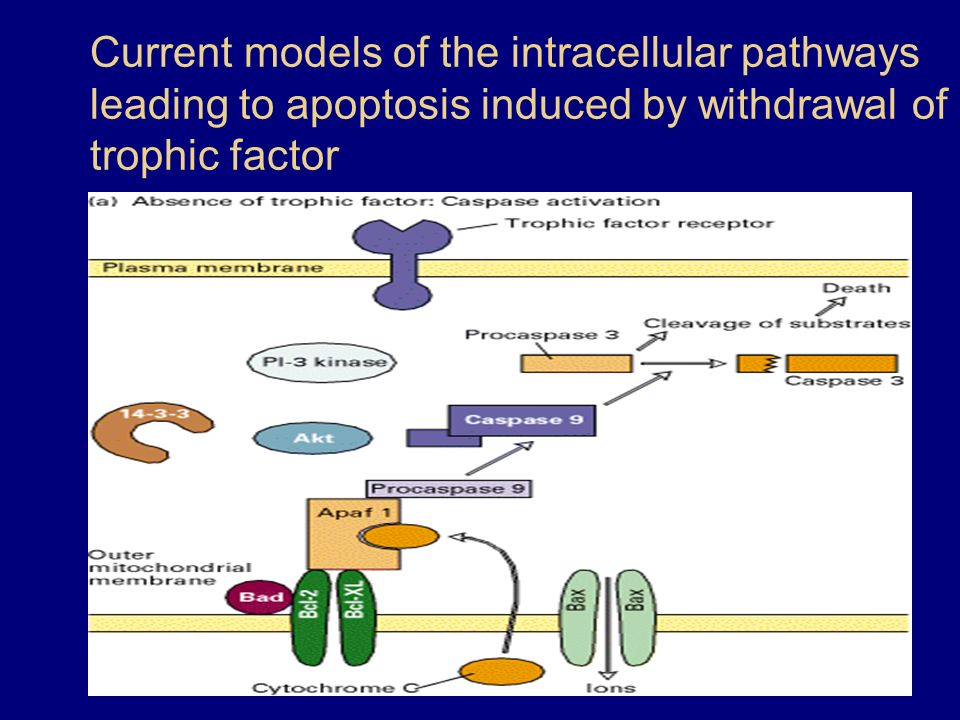

38. Current models of the intracellular pathways leading to apoptosis induced by withdrawal of trophic factor

39. ER and Apoptosis

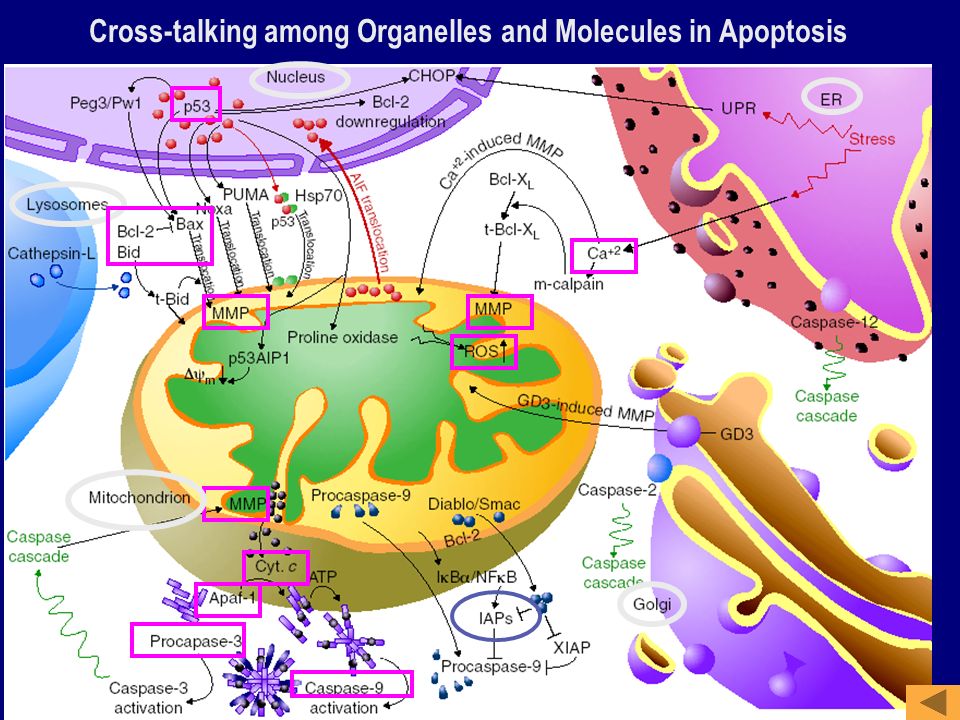

40. Cross-talking among Organelles and Molecules in Apoptosis

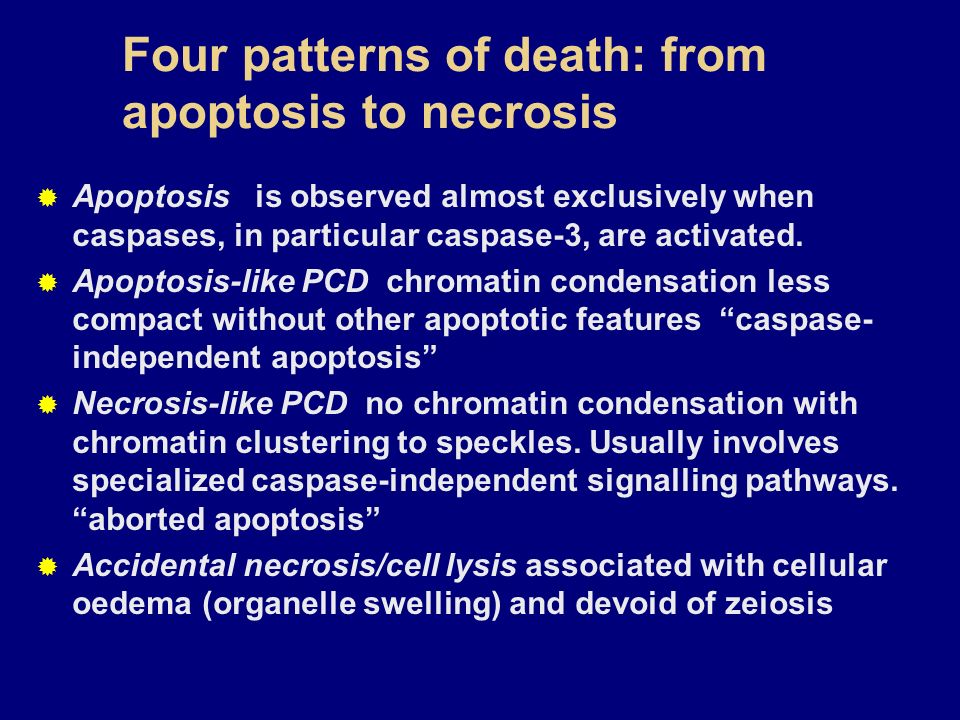

42. Four patterns of death: from apoptosis to necrosis  Apoptosis is observed almost exclusively when caspases, in particular caspase-3, are activated.  Apoptosis-like PCD chromatin condensation less compact without other apoptotic features “caspase- independent apoptosis”  Necrosis-like PCD no chromatin condensation with chromatin clustering to speckles. Usually involves specialized caspase-independent signalling pathways. “aborted apoptosis”  Accidental necrosis/cell lysis associated with cellular oedema (organelle swelling) and devoid of zeiosis

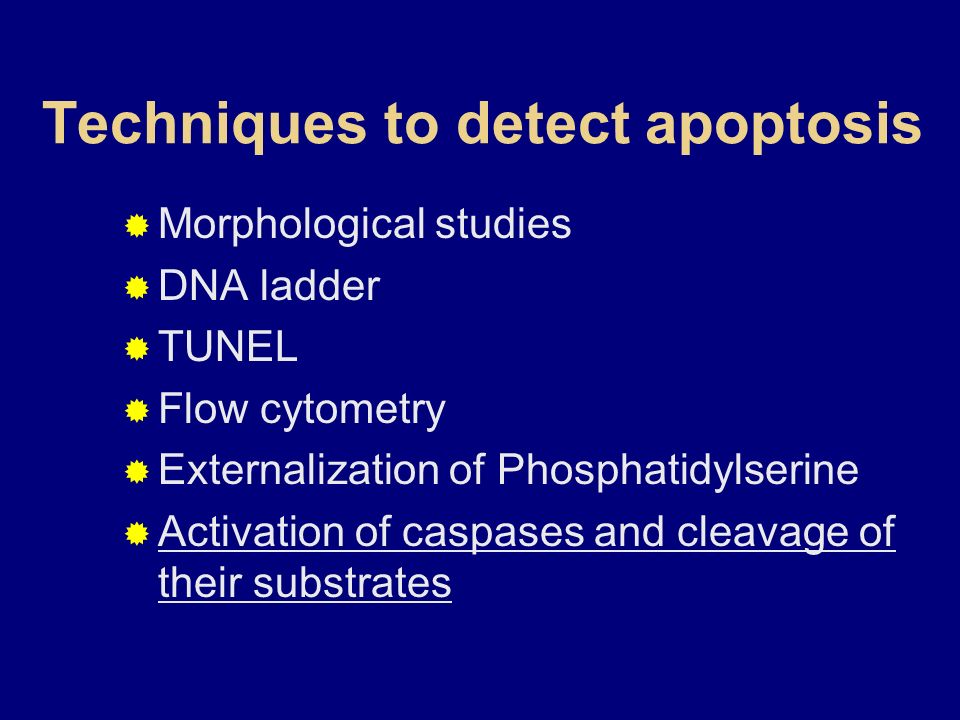

43. Techniques to detect apoptosis  Morphological studies  DNA ladder  TUNEL  Flow cytometry  Externalization of Phosphatidylserine  Activation of caspases and cleavage of their substrates

44. Ultrastructural feathers of Normal and Apoptotic Cell Induced Apoptosis of Cultured Rat Hepatocytes

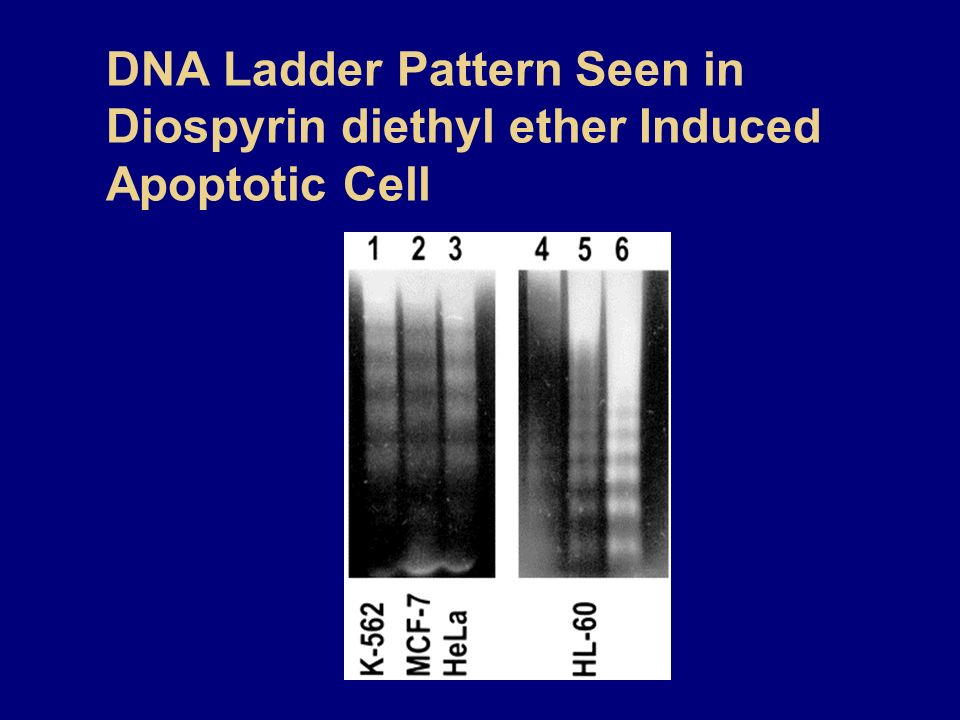

45. DNA Ladder Pattern Seen in Diospyrin diethyl ether Induced Apoptotic Cell

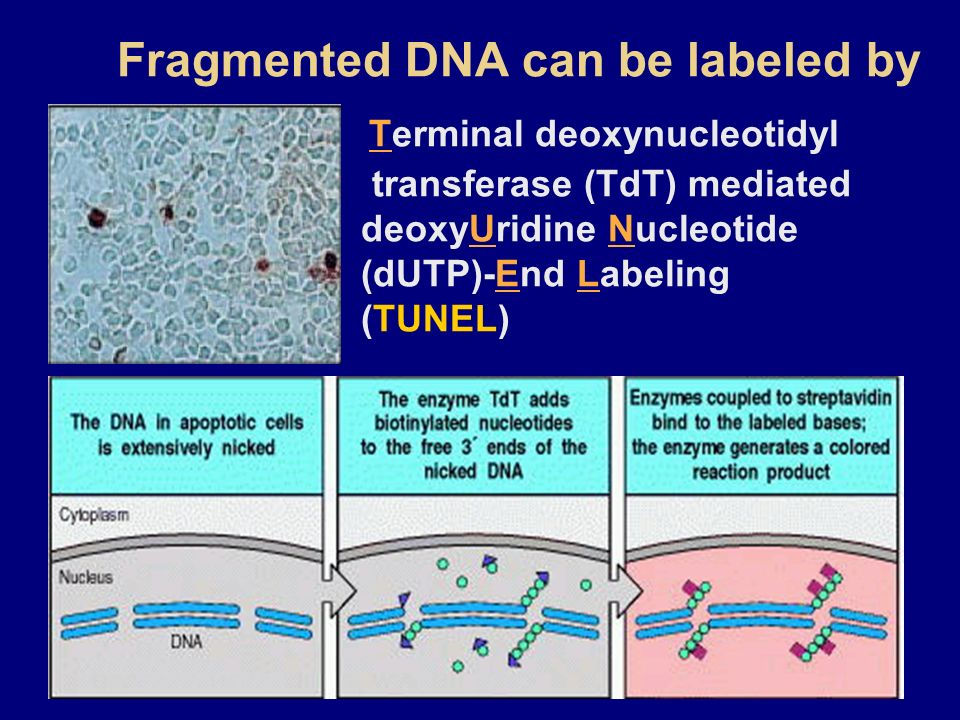

46. Fragmented DNA can be labeled by Terminal deoxynucleotidyl transferase (TdT) mediated deoxyUridine Nucleotide (dUTP)-End Labeling (TUNEL)

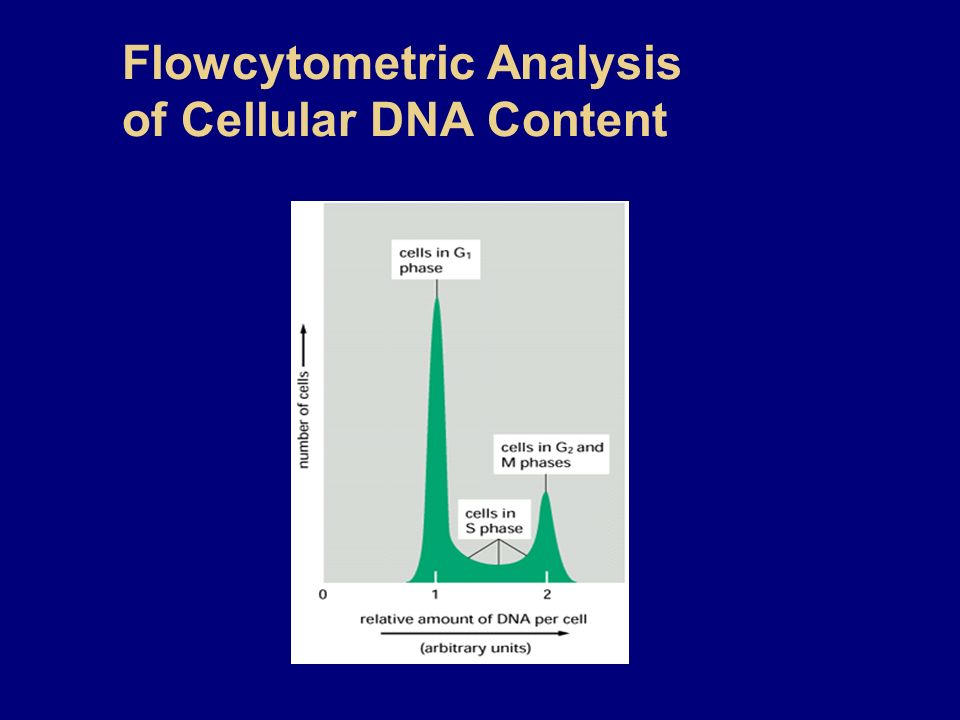

47. Flowcytometric Analysis of Cellular DNA Content

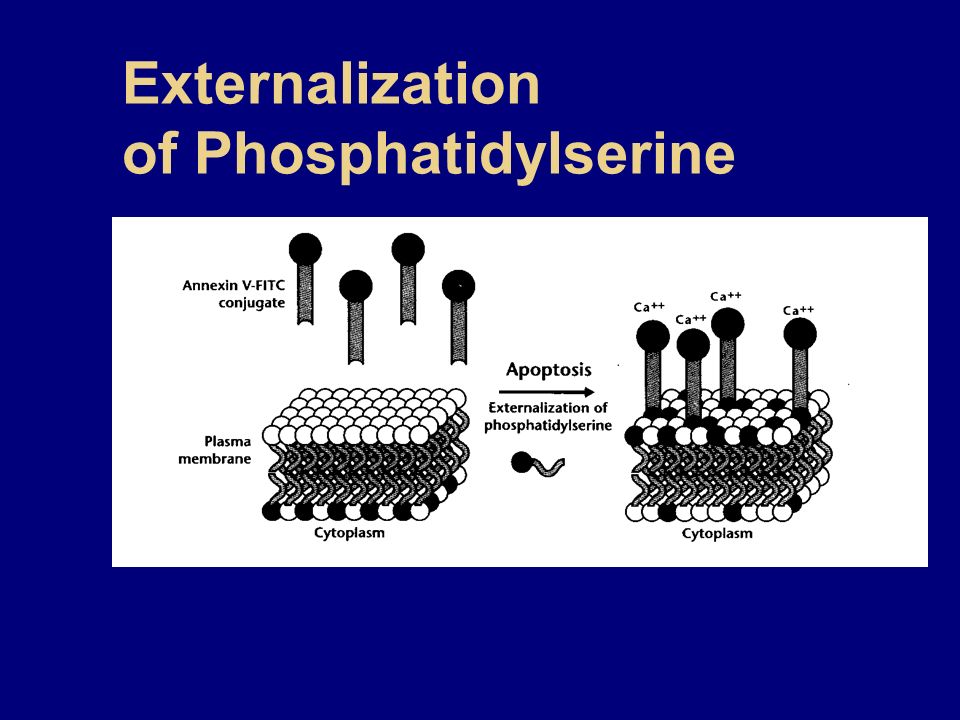

48. Externalization of Phosphatidylserine

49. Phosphatidylserine on the surface of apoptotic cells [stained with annexin V (green)] Due to: Caspase-3-mediated cleavage and activation of scramblase PKC activation Inactivated amino- phospholipid translocase

50. Activation of Caspase 3 and Cleavage of Its Substrates, PARP and D4-GDI
