1. Grid User Management System Gabriele Carcassi HEPIX 2004 18 October 2004

2. Outline What GUMS is How it is used at BNL What the current functionalities are Roadmap and future

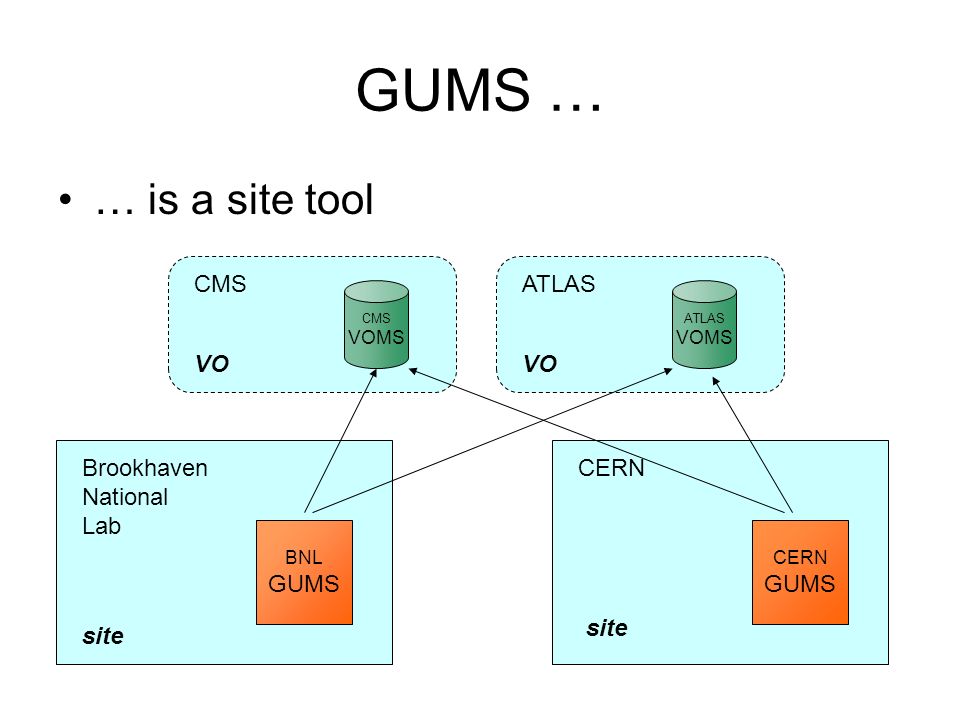

3. GUMS … … is a site tool ATLAS VOMS Brookhaven National Lab BNL GUMS CERN GUMS site VO ATLAS CMS VOMS VO CMS

4. GUMS … … translates a Grid identity to a local identity (certificate -> local user) BNL GUMS /DC=org/DC=doegrids/OU=People/CN=Gabriele Carcassi carcassi Grid resource Resource AuthZ Service – Grid Identity Mapping Simpler case show, equivalent to grid-mapfile

5. GUMS … … is centralized: one server per site BNL GUMS Grid resource Grid resource Grid resource Grid resource Allows to control identity mapping from a single place Keeps the site consistent

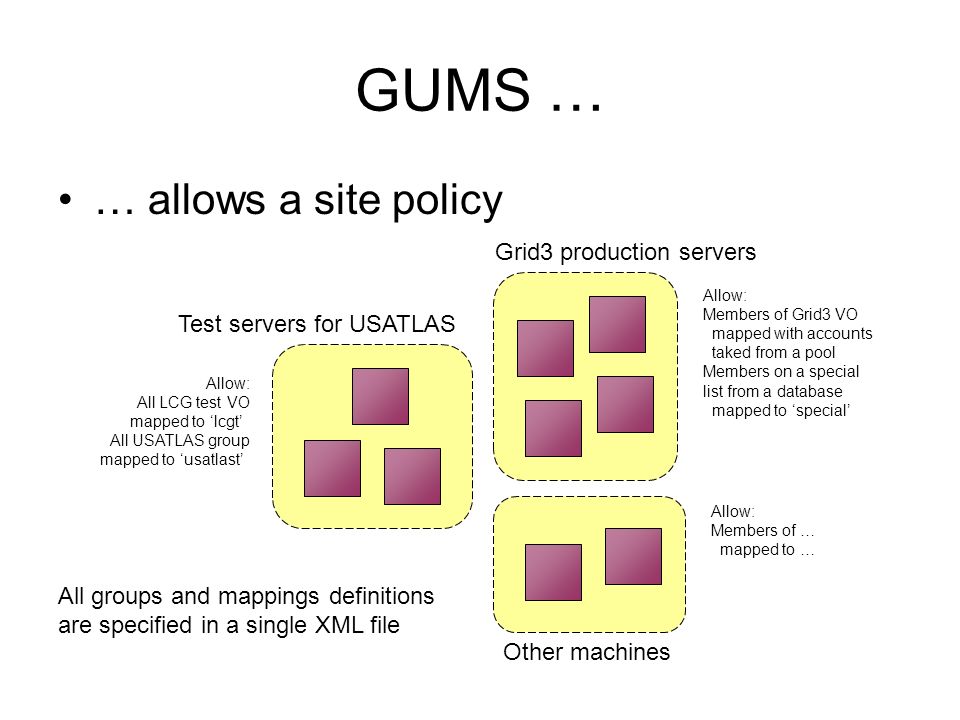

6. GUMS … … allows a site policy Test servers for USATLAS Allow: All LCG test VO mapped to ‘lcgt’ All USATLAS group mapped to ‘usatlast’ Allow: Members of Grid3 VO mapped with accounts taked from a pool Members on a special list from a database mapped to ‘special’ Grid3 production servers Other machines Allow: Members of … mapped to … All groups and mappings definitions are specified in a single XML file

7. Use at BNL since May 2004 ATLAS VO STAR VO PHENIX VO … VO GUMS server Grid resource Grid resource Grid resource mapfile cache GUMS DB GUMS contacts VO servers and update local database with members GUMS generates the maps according to the policy and stores it in a special DB table The gatekeepers contact the database to retireve their mapping 1. 2. 3. 1. 2. 3.

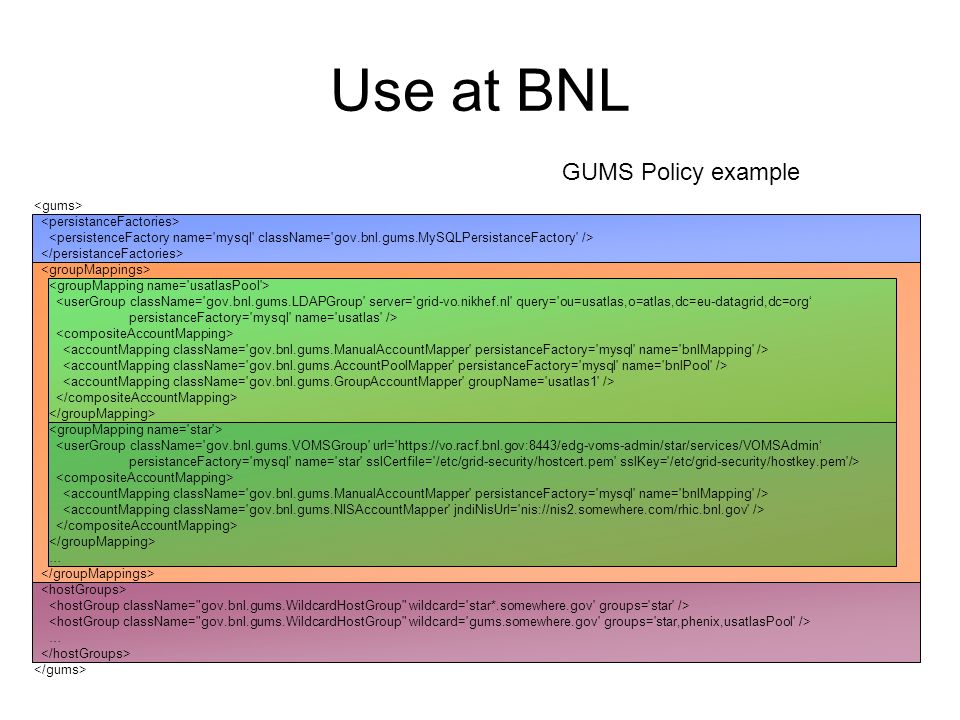

8. Use at BNL GUMS Policy example <userGroup className='gov.bnl.gums.LDAPGroup' server='grid-vo.nikhef.nl' query='ou=usatlas,o=atlas,dc=eu-datagrid,dc=org‘ persistanceFactory='mysql' name='usatlas' /> <userGroup className='gov.bnl.gums.VOMSGroup' url='https://vo.racf.bnl.gov:8443/edg-voms-admin/star/services/VOMSAdmin‘ persistanceFactory='mysql' name='star' sslCertfile='/etc/grid-security/hostcert.pem' sslKey='/etc/grid-security/hostkey.pem'/> … …

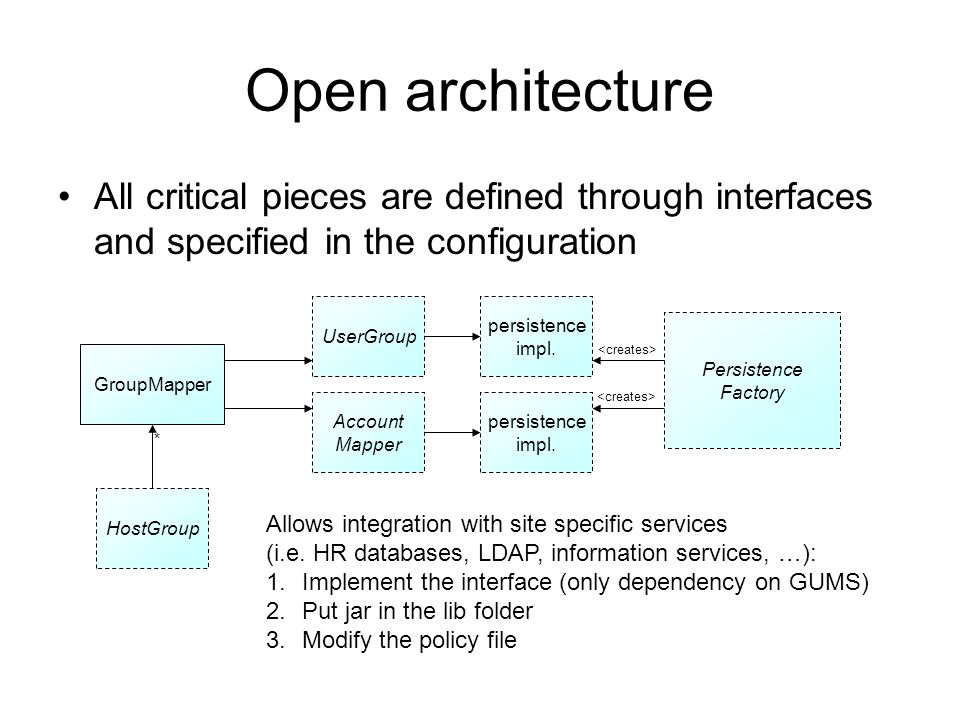

9. Open architecture All critical pieces are defined through interfaces and specified in the configuration Persistence Factory persistence impl. persistence impl. UserGroup Account Mapper GroupMapper HostGroup * Allows integration with site specific services (i.e. HR databases, LDAP, information services, …): 1.Implement the interface (only dependency on GUMS) 2.Put jar in the lib folder 3.Modify the policy file

10. Features implemented Persistence: –MySQL UserGroups: –LDAP VO, VOMS, manual list of users (persistence) AccountMappers: –Group account, best effort NIS mapping, account pool, manual mapping (persistance) All are being used at BNL

11. Future plans Version 1.0 will be ready by OSG-0 release (February 2005) Target functionalities: –Account pooling Tested already setup within grid3 –Web service interface for GUMS –Role based authorization part of Privilege Project, joint USATLAS and USCMS project

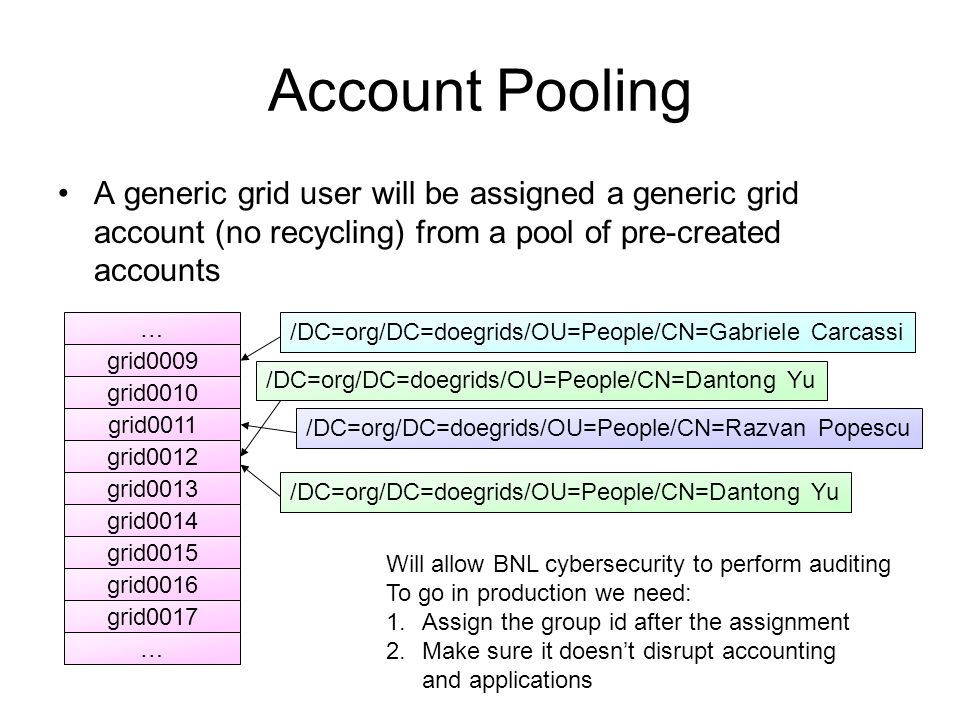

12. Account Pooling A generic grid user will be assigned a generic grid account (no recycling) from a pool of pre-created accounts Will allow BNL cybersecurity to perform auditing To go in production we need: 1.Assign the group id after the assignment 2.Make sure it doesn’t disrupt accounting and applications … grid0009 grid0010 grid0011 grid0012 grid0013 grid0014 grid0015 grid0016 grid0017 … /DC=org/DC=doegrids/OU=People/CN=Gabriele Carcassi /DC=org/DC=doegrids/OU=People/CN=Dantong Yu /DC=org/DC=doegrids/OU=People/CN=Razvan Popescu /DC=org/DC=doegrids/OU=People/CN=Dantong Yu

13. GT3 GUMS service Use gatekeeper call-out to contact GUMS directly ATLAS VO STAR VO PHENIX VO … VO GUMS server Grid resource Grid resource Grid resource GUMS DB

14. Role based authorization Use of callout and of VOMS extended proxy BNL GUMS /DC=org/DC=doegrids/OU=People/CN=Gabriele Carcassi carcassi Grid resource BNL GUMS /DC=org/DC=doegrids/OU=People/CN=Gabriele Carcassi usatlasprod Grid resource /VO=ATLAS/Group=USATLAS/Role=production-leader
