2. 2 Presentation to KIB-TEK Northern Cyprus (16/11/2005)

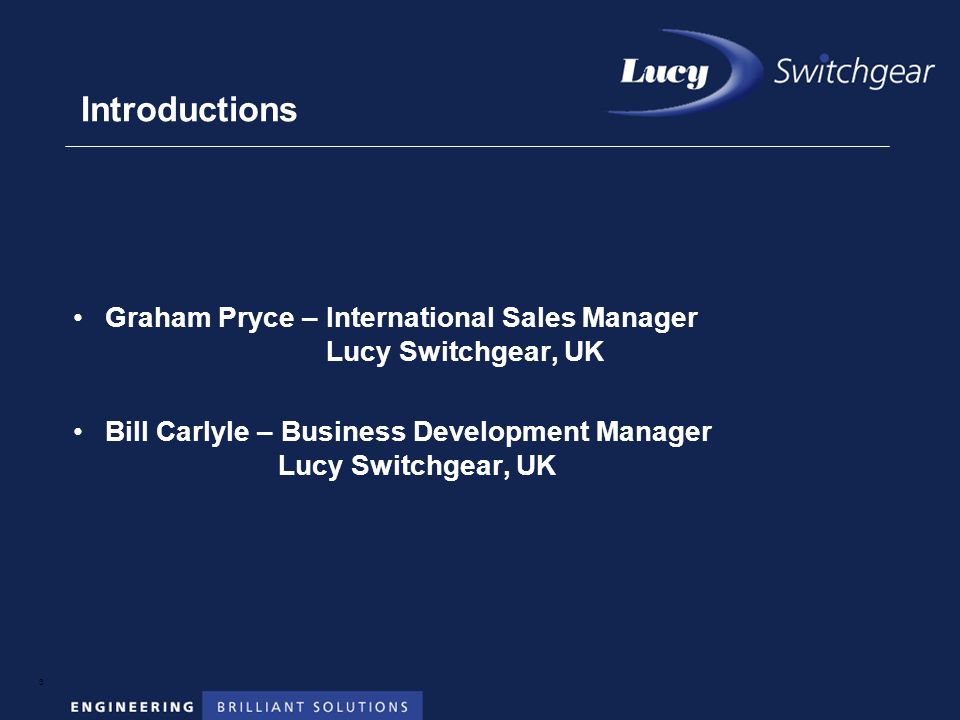

3. 3 Introductions Graham Pryce – International Sales Manager Lucy Switchgear, UK Bill Carlyle – Business Development Manager Lucy Switchgear, UK

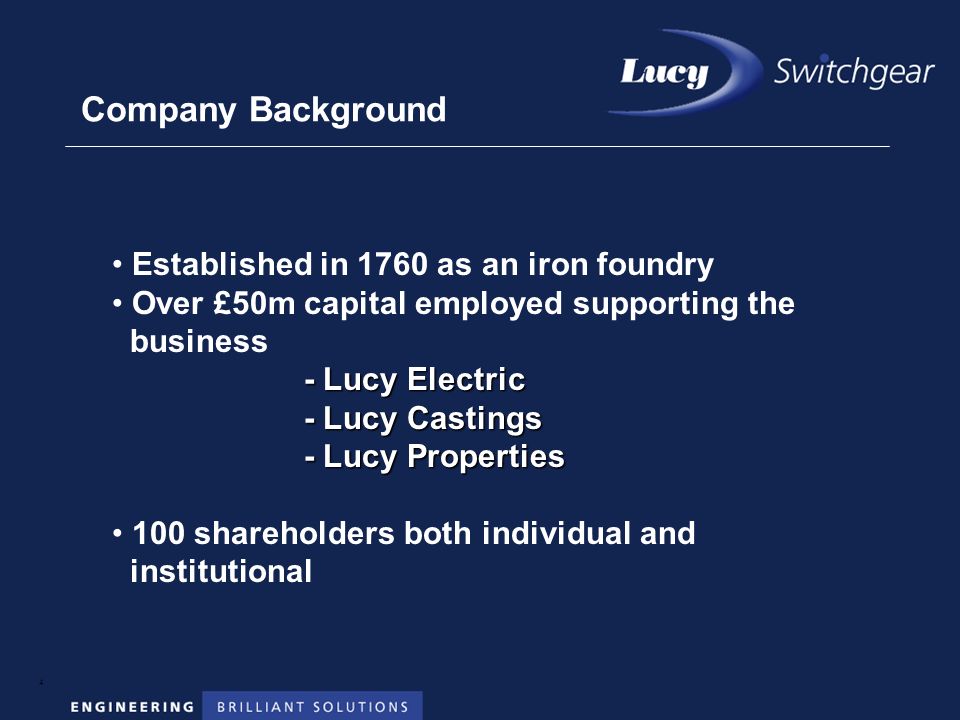

4. 4 Company Background Established in 1760 as an iron foundry Over £50m capital employed supporting the business -Lucy Electric - Lucy Electric - Lucy Castings - Lucy Properties 100 shareholders both individual and institutional

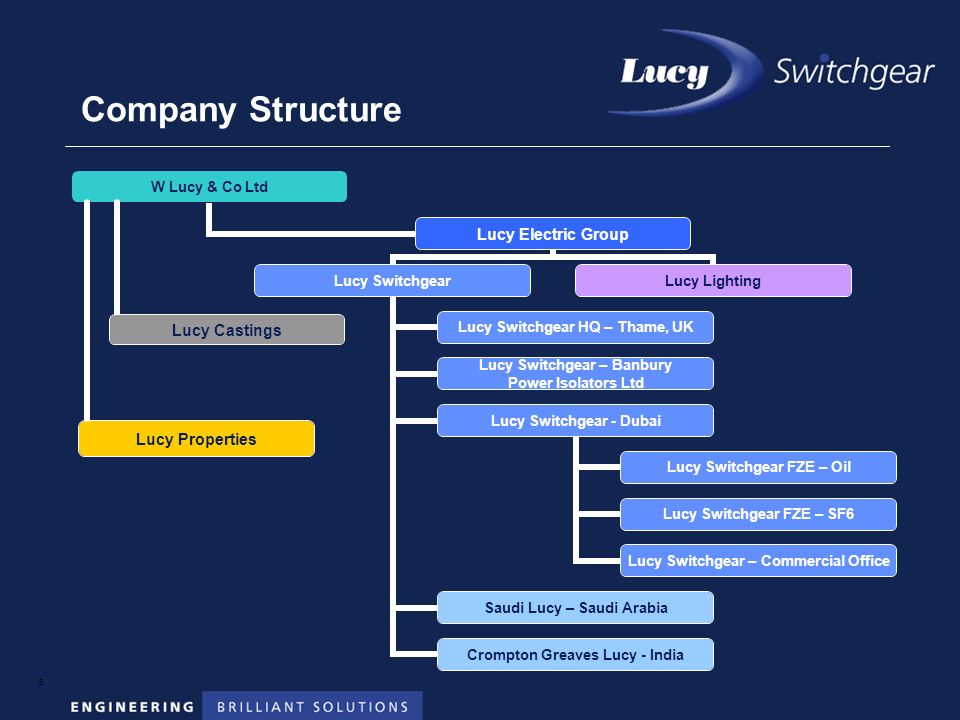

5. 5 Company Structure Lucy Castings Lucy Properties

6. 6 Lucy Switchgear - UK

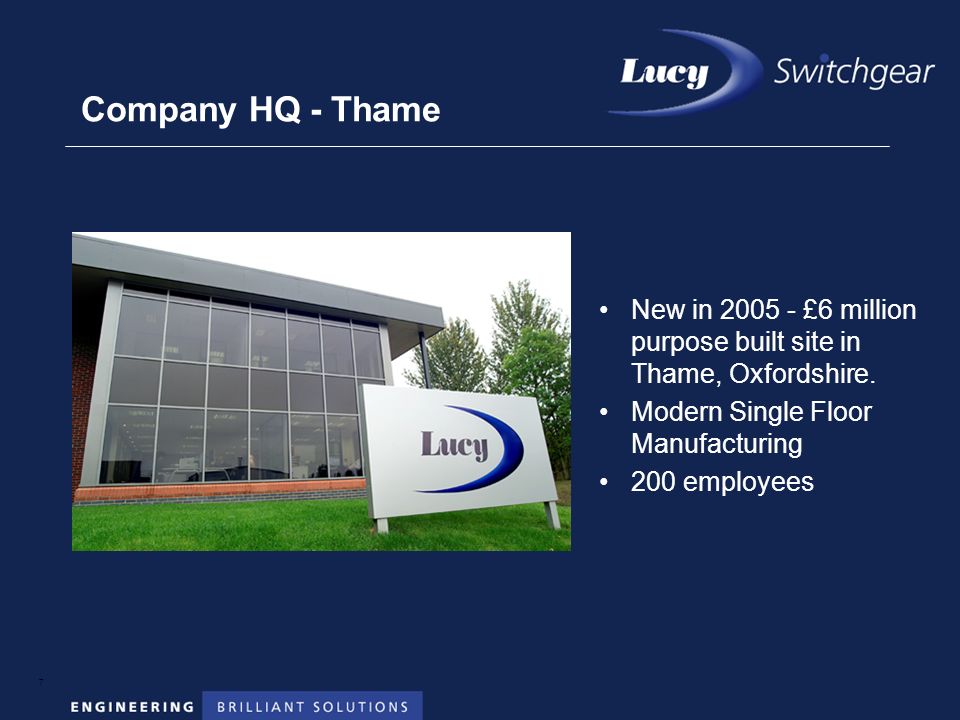

7. 7 Company HQ - Thame New in 2005 - £6 million purpose built site in Thame, Oxfordshire. Modern Single Floor Manufacturing 200 employees

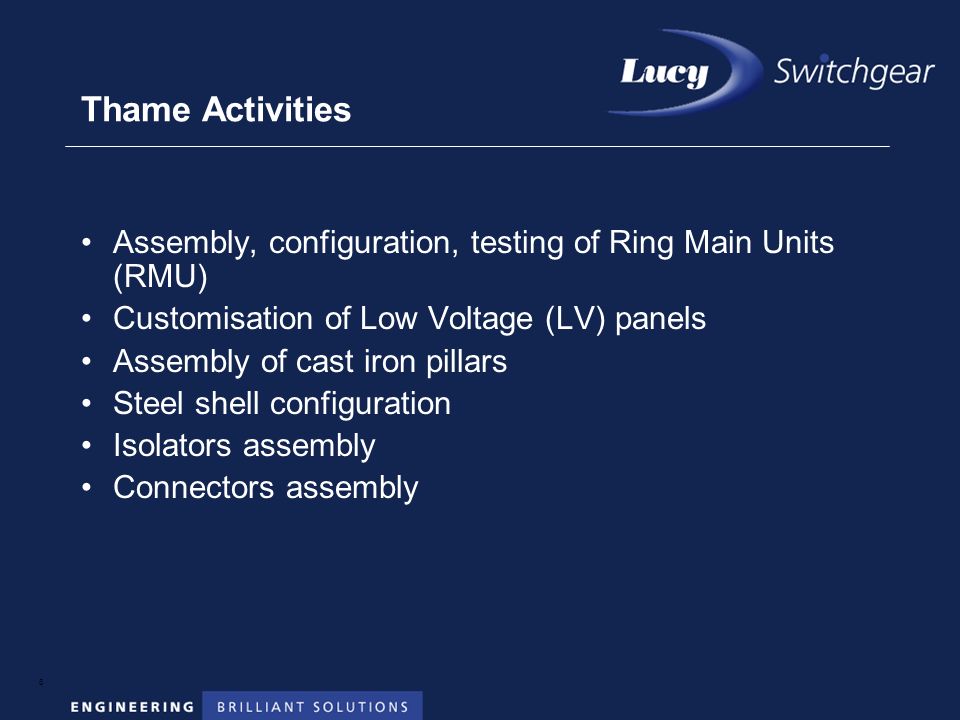

8. 8 Thame Activities Assembly, configuration, testing of Ring Main Units (RMU) Customisation of Low Voltage (LV) panels Assembly of cast iron pillars Steel shell configuration Isolators assembly Connectors assembly

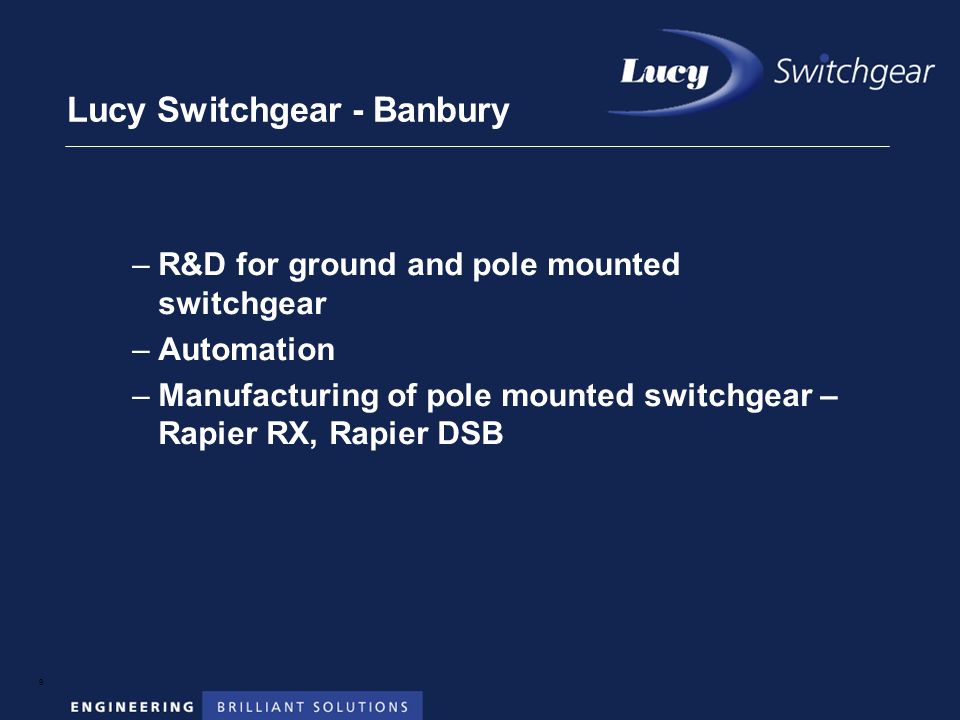

9. 9 Lucy Switchgear - Banbury –R&D for ground and pole mounted switchgear –Automation –Manufacturing of pole mounted switchgear – Rapier RX, Rapier DSB

10. 10 Lucy Switchgear FZE

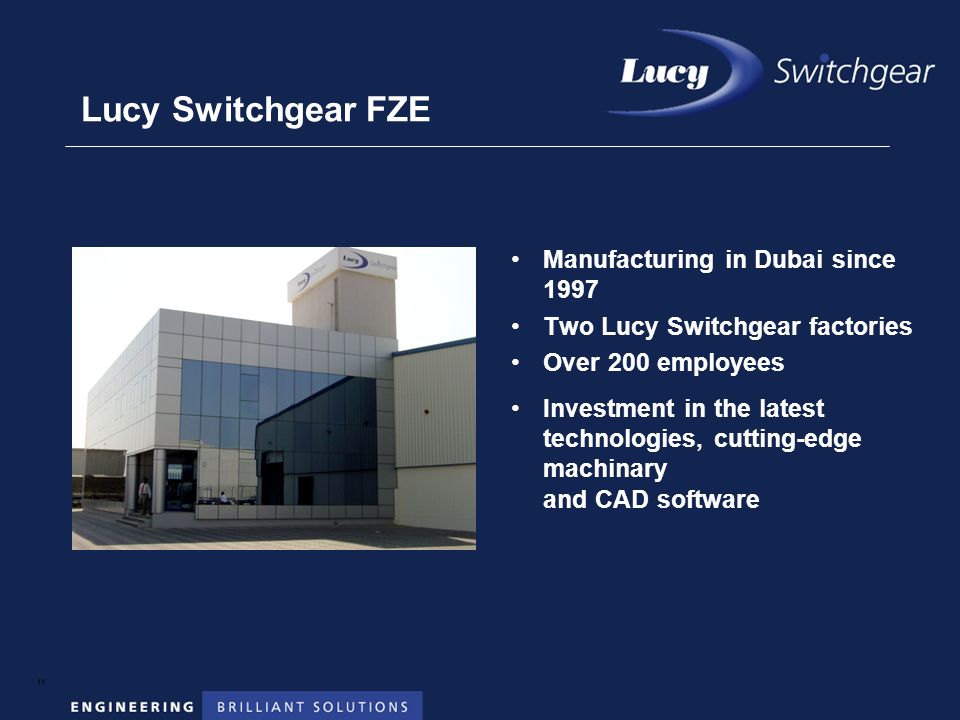

11. 11 Lucy Switchgear FZE Manufacturing in Dubai since 1997 Two Lucy Switchgear factories Over 200 employees Investment in the latest technologies, cutting-edge machinary and CAD software

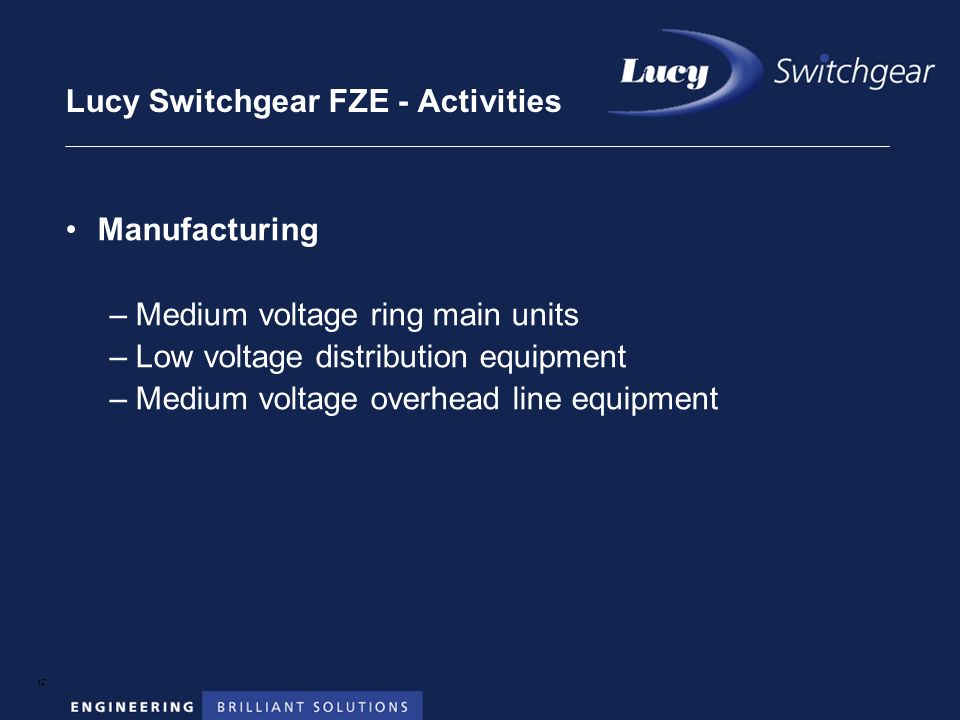

12. 12 Lucy Switchgear FZE - Activities Manufacturing –Medium voltage ring main units –Low voltage distribution equipment –Medium voltage overhead line equipment

13. 13 Global Presence

14. 14 Global Presence

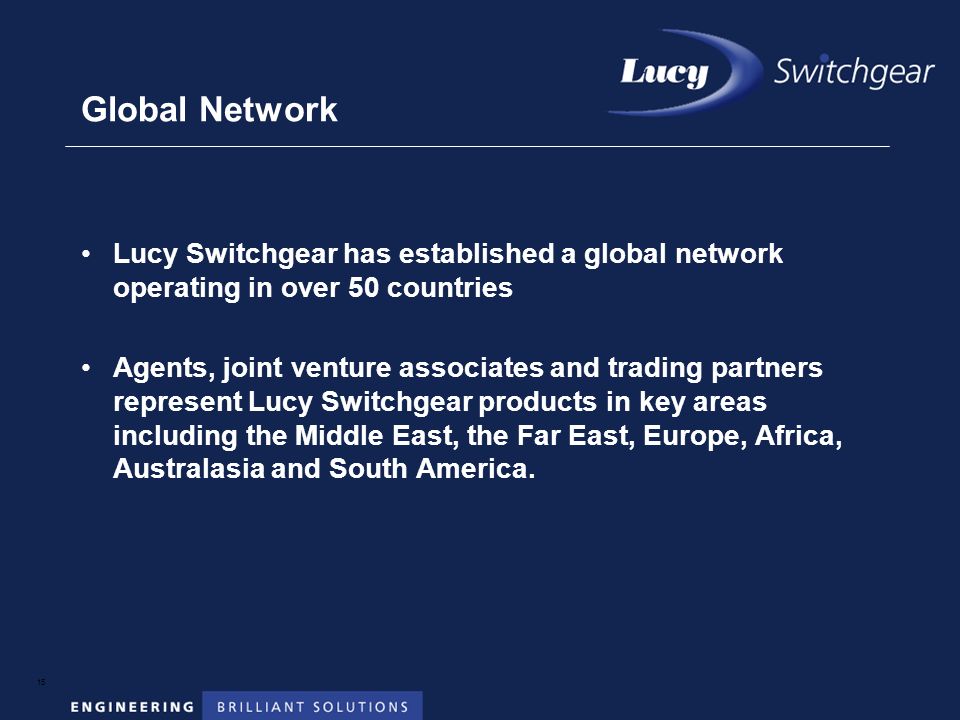

15. 15 Global Network Lucy Switchgear has established a global network operating in over 50 countries Agents, joint venture associates and trading partners represent Lucy Switchgear products in key areas including the Middle East, the Far East, Europe, Africa, Australasia and South America.

16. 16 New SABRE VRN2a

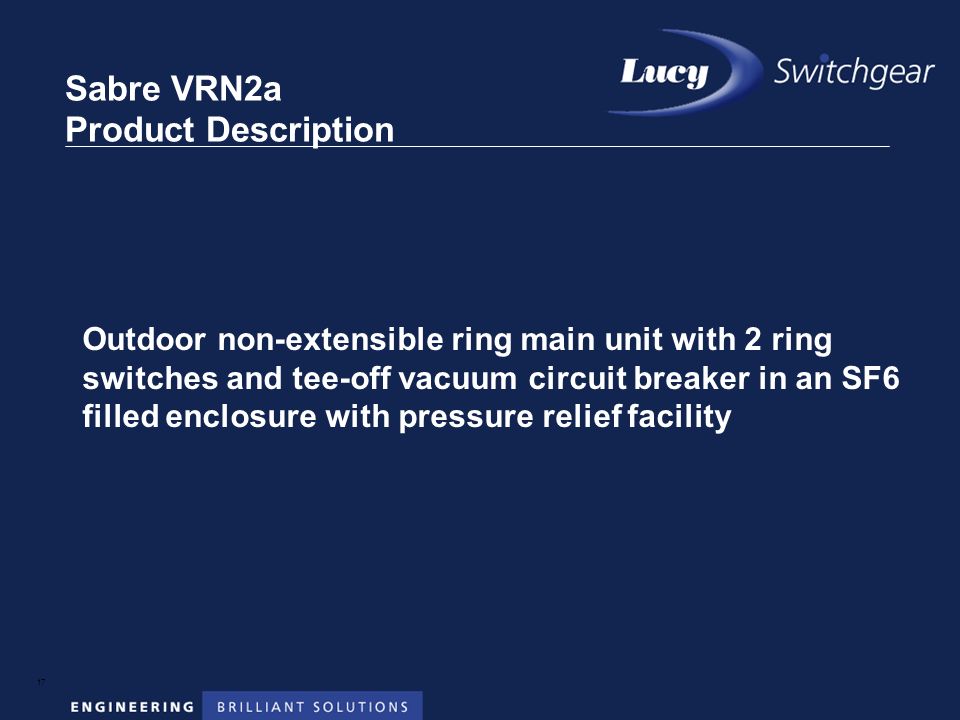

17. 17 Sabre VRN2a Product Description Outdoor non-extensible ring main unit with 2 ring switches and tee-off vacuum circuit breaker in an SF6 filled enclosure with pressure relief facility

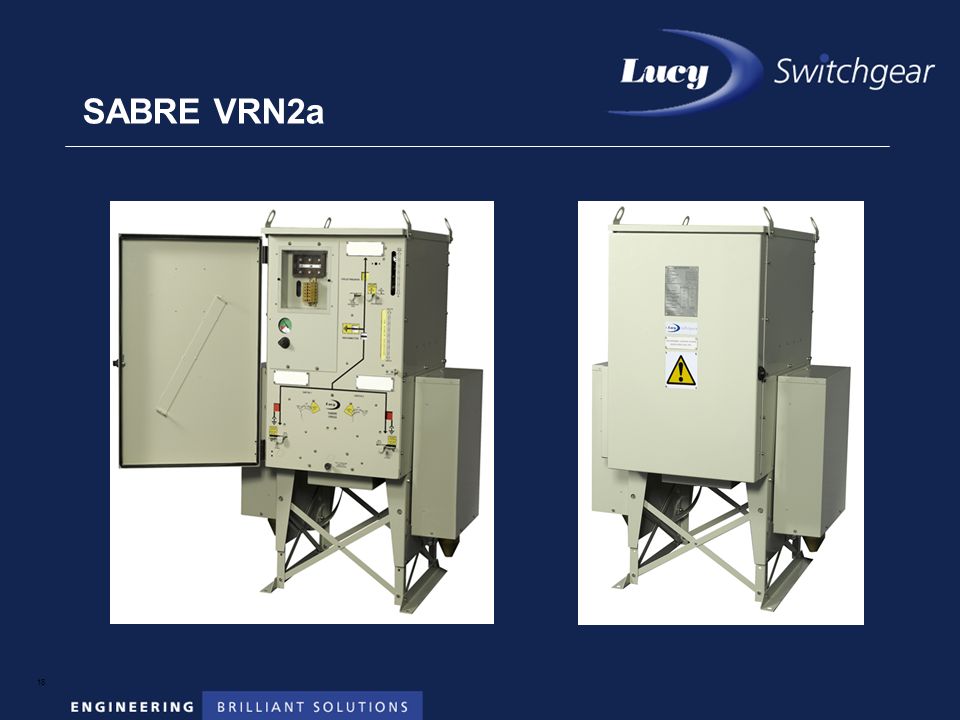

18. 18 SABRE VRN2a

19. 19 SABRE Comparison Improved Features Smaller and lighter Easier to use Improved test access

20. 20 SABRE VRN2a Main Features Vacuum tee off circuit breaker Common switching chamber with sealed SF6 environment 12/15.5k/24V versions Indoor and Outdoor Enhanced electrical performance Interlocked for safe operation

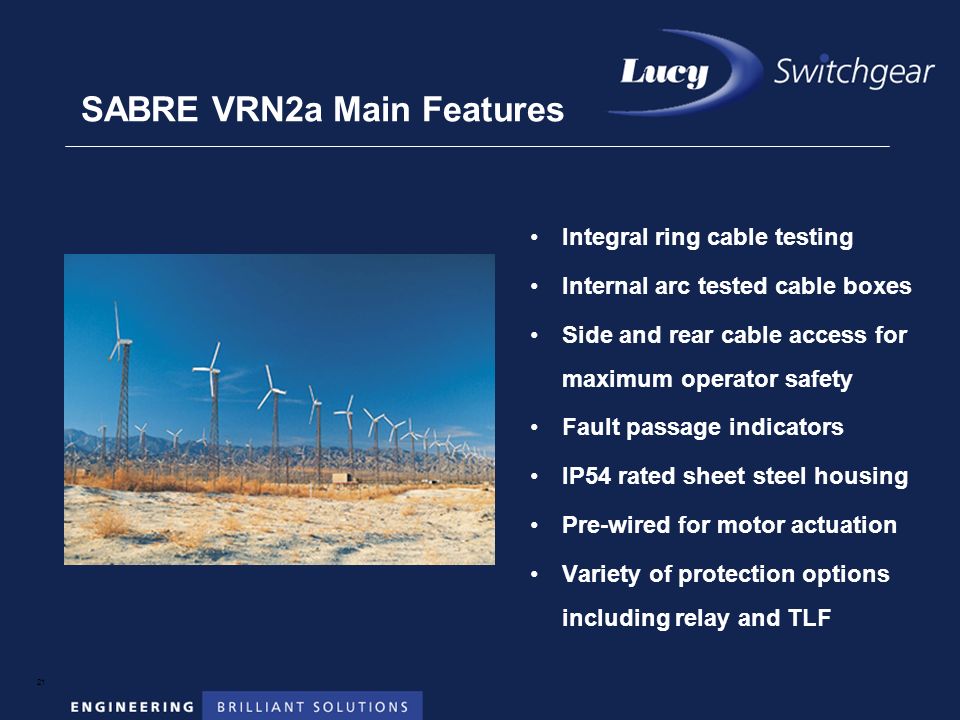

21. 21 SABRE VRN2a Main Features Integral ring cable testing Internal arc tested cable boxes Side and rear cable access for maximum operator safety Fault passage indicators IP54 rated sheet steel housing Pre-wired for motor actuation Variety of protection options including relay and TLF

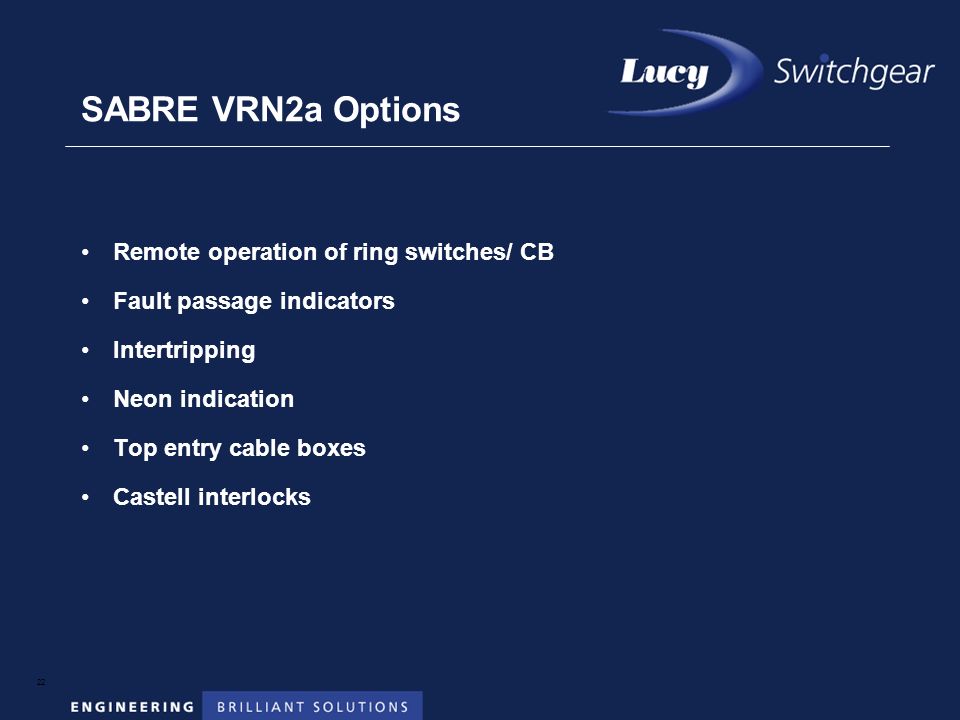

22. 22 SABRE VRN2a Options Remote operation of ring switches/ CB Fault passage indicators Intertripping Neon indication Top entry cable boxes Castell interlocks

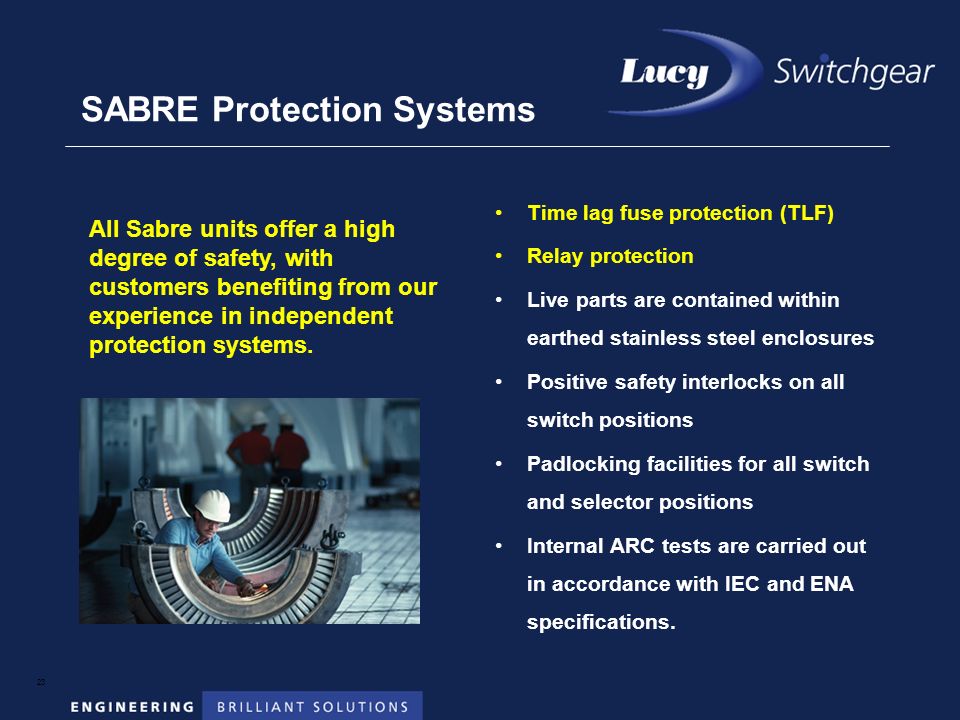

23. 23 SABRE Protection Systems Time lag fuse protection (TLF) Relay protection Live parts are contained within earthed stainless steel enclosures Positive safety interlocks on all switch positions Padlocking facilities for all switch and selector positions Internal ARC tests are carried out in accordance with IEC and ENA specifications. All Sabre units offer a high degree of safety, with customers benefiting from our experience in independent protection systems.

24. 24 Environment and Quality We are committed to providing products that minimise adverse environmental impacts and contribute positively to customers’ own environmental objectives We operate a quality management system, which conforms to and exceeds international requirements of BSEN and ISO 9001:2000

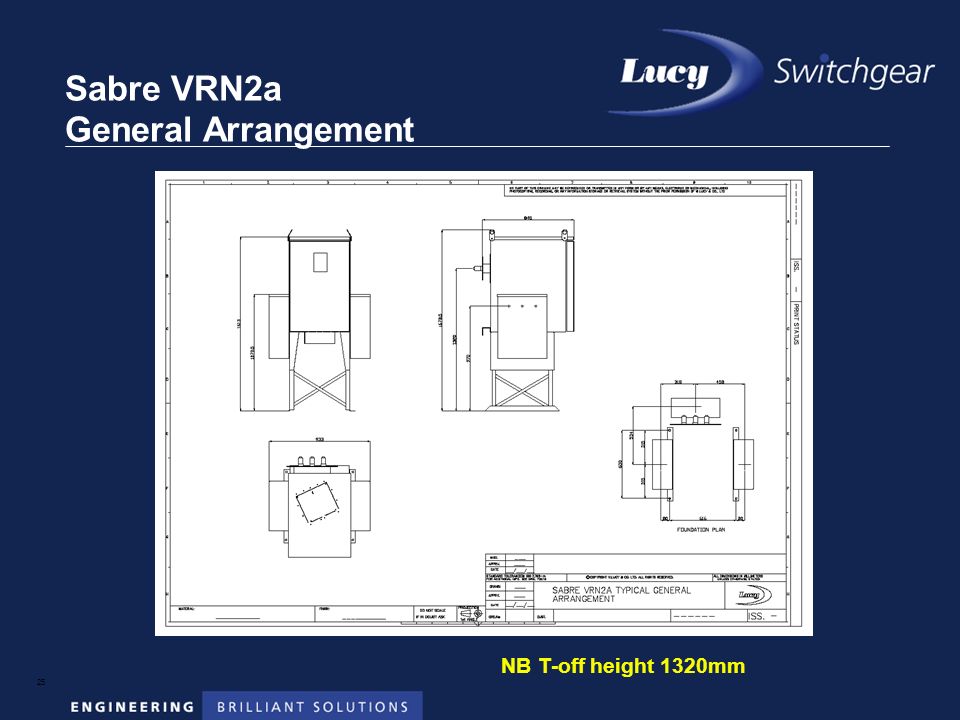

25. 25 Sabre VRN2a General Arrangement NB T-off height 1320mm

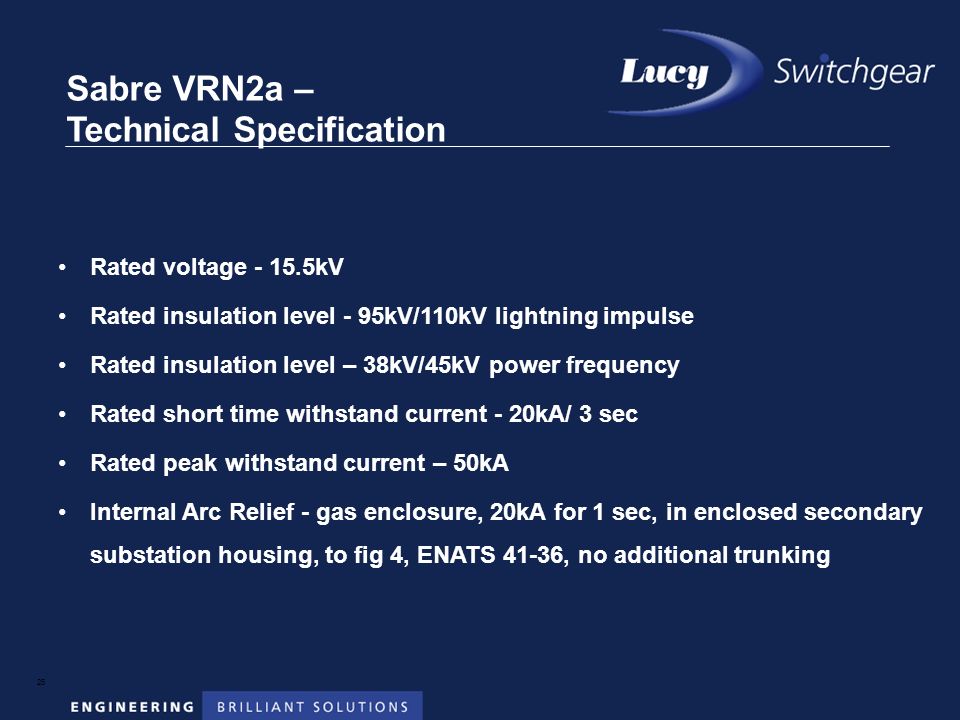

26. 26 Sabre VRN2a – Technical Specification Rated voltage - 15.5kV Rated insulation level - 95kV/110kV lightning impulse Rated insulation level – 38kV/45kV power frequency Rated short time withstand current - 20kA/ 3 sec Rated peak withstand current – 50kA Internal Arc Relief - gas enclosure, 20kA for 1 sec, in enclosed secondary substation housing, to fig 4, ENATS 41-36, no additional trunking

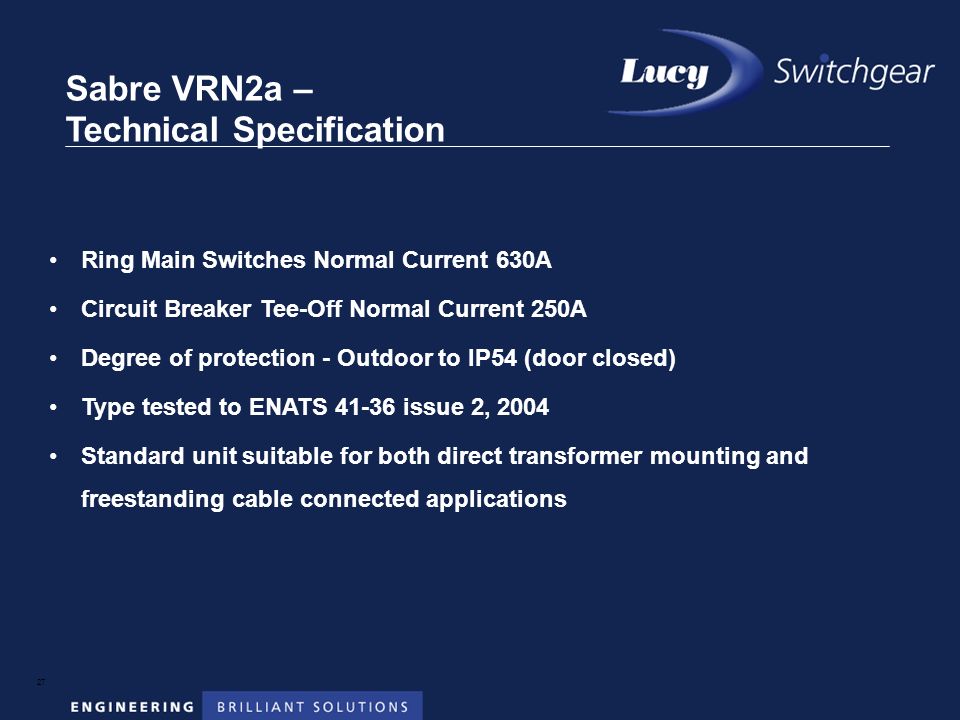

27. 27 Sabre VRN2a – Technical Specification Ring Main Switches Normal Current 630A Circuit Breaker Tee-Off Normal Current 250A Degree of protection - Outdoor to IP54 (door closed) Type tested to ENATS 41-36 issue 2, 2004 Standard unit suitable for both direct transformer mounting and freestanding cable connected applications

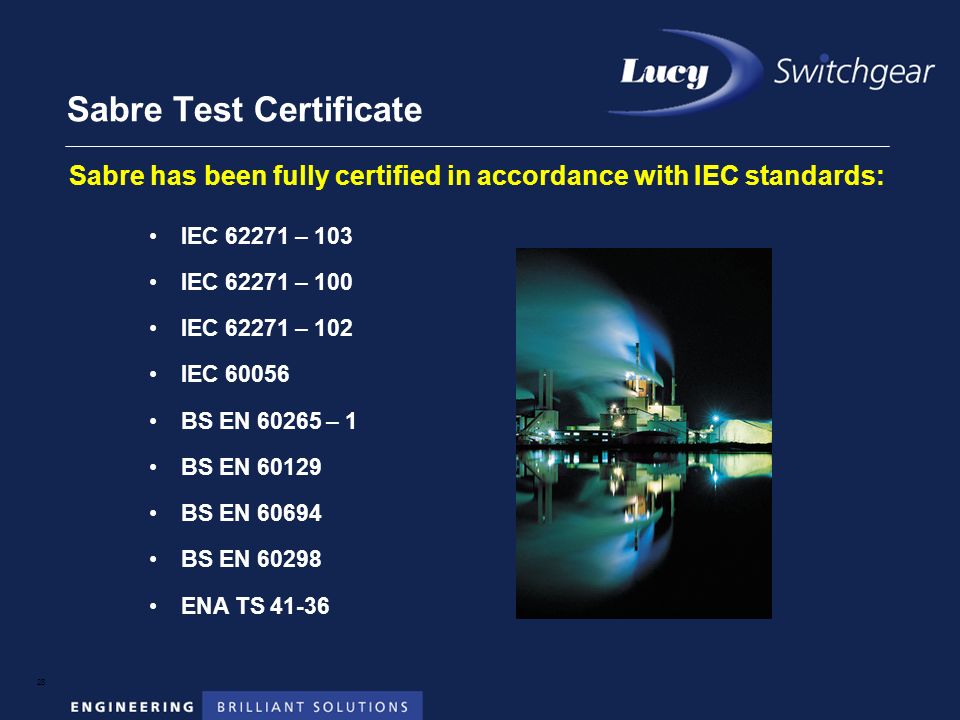

28. 28 Sabre Test Certificate IEC 62271 – 103 IEC 62271 – 100 IEC 62271 – 102 IEC 60056 BS EN 60265 – 1 BS EN 60129 BS EN 60694 BS EN 60298 ENA TS 41-36 Sabre has been fully certified in accordance with IEC standards:

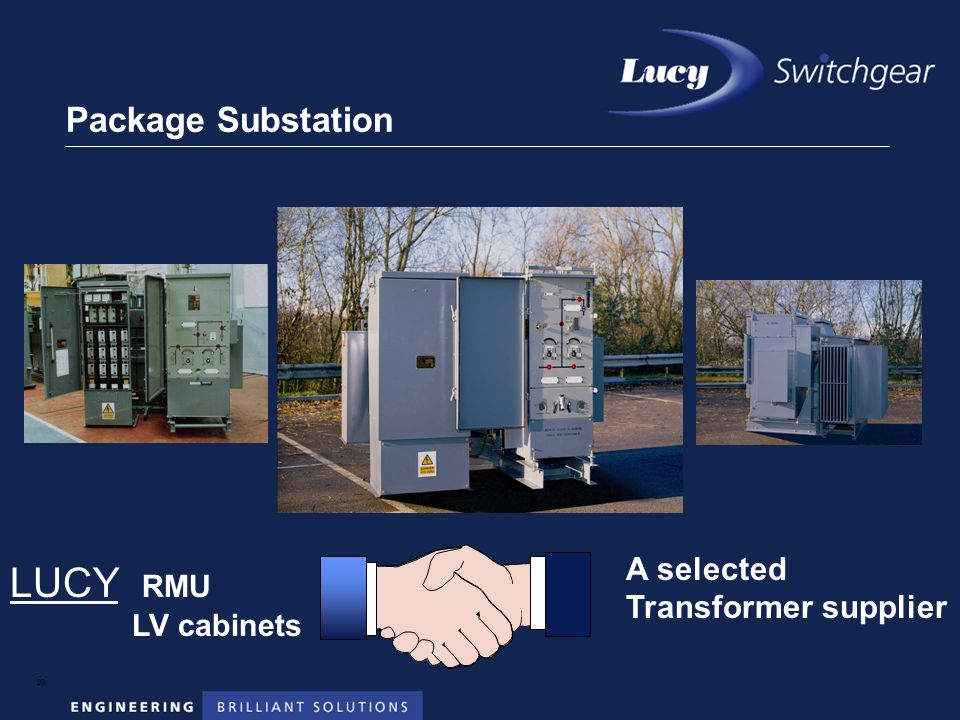

29. 29 Package Substation A selected Transformer supplier LUCY RMU LV cabinets

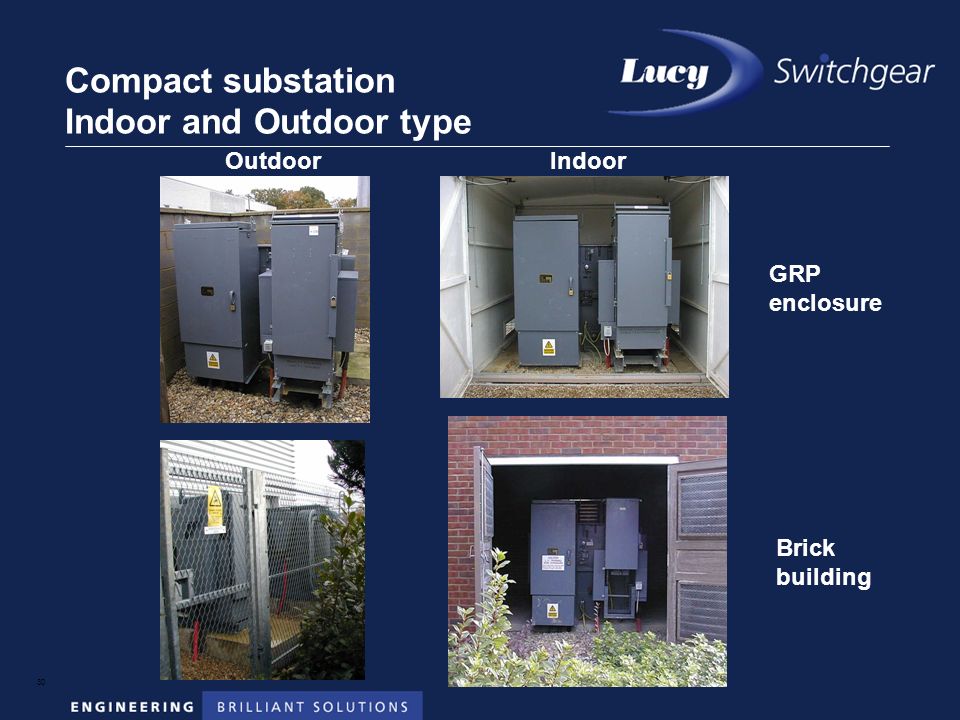

30. 30 Compact substation Indoor and Outdoor type Outdoor Brick building Indoor GRP enclosure

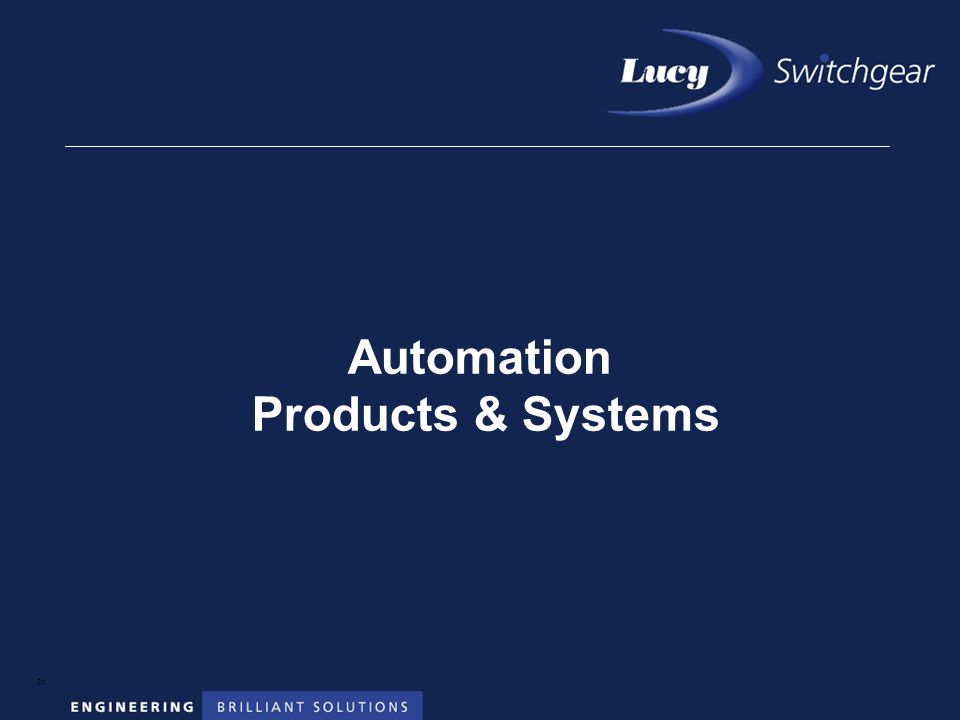

31. 31 Automation Products & Systems

32. 32 RMU Automation & Retrofit Actuator Solutions

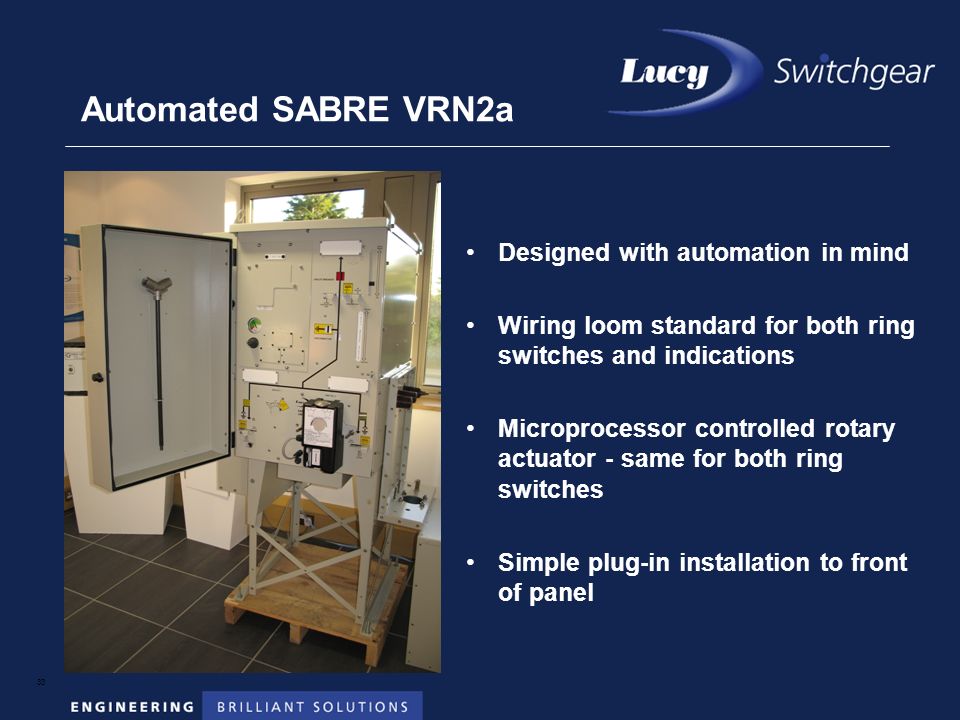

33. 33 Automated SABRE VRN2a Designed with automation in mind Wiring loom standard for both ring switches and indications Microprocessor controlled rotary actuator - same for both ring switches Simple plug-in installation to front of panel

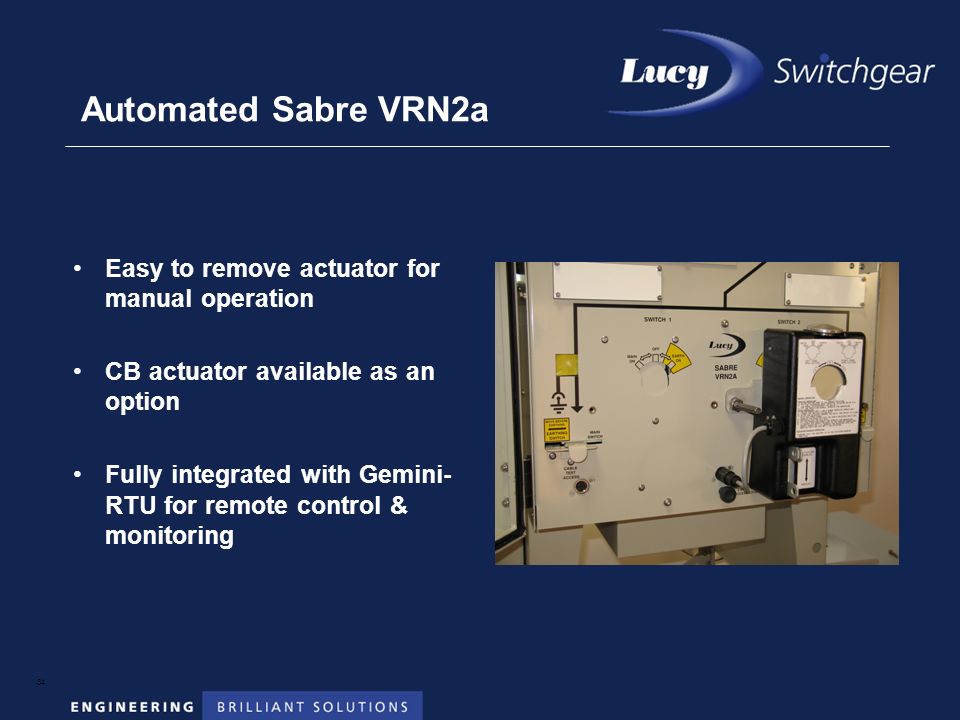

34. 34 Automated Sabre VRN2a Easy to remove actuator for manual operation CB actuator available as an option Fully integrated with Gemini- RTU for remote control & monitoring

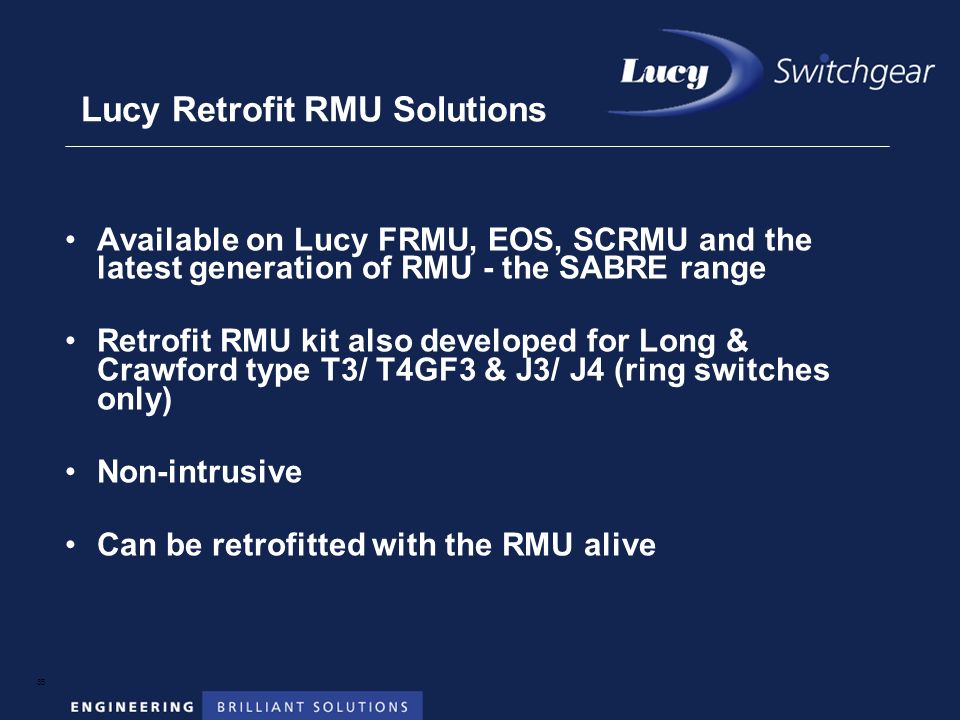

35. 35 Lucy Retrofit RMU Solutions Available on Lucy FRMU, EOS, SCRMU and the latest generation of RMU - the SABRE range Retrofit RMU kit also developed for Long & Crawford type T3/ T4GF3 & J3/ J4 (ring switches only) Non-intrusive Can be retrofitted with the RMU alive

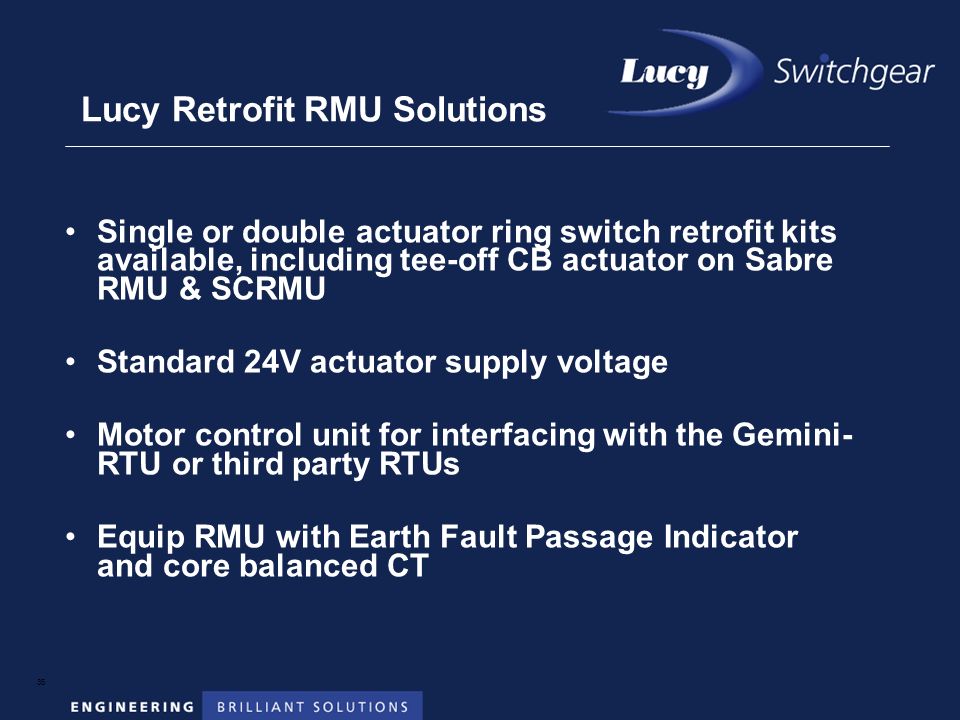

36. 36 Lucy Retrofit RMU Solutions Single or double actuator ring switch retrofit kits available, including tee-off CB actuator on Sabre RMU & SCRMU Standard 24V actuator supply voltage Motor control unit for interfacing with the Gemini- RTU or third party RTUs Equip RMU with Earth Fault Passage Indicator and core balanced CT

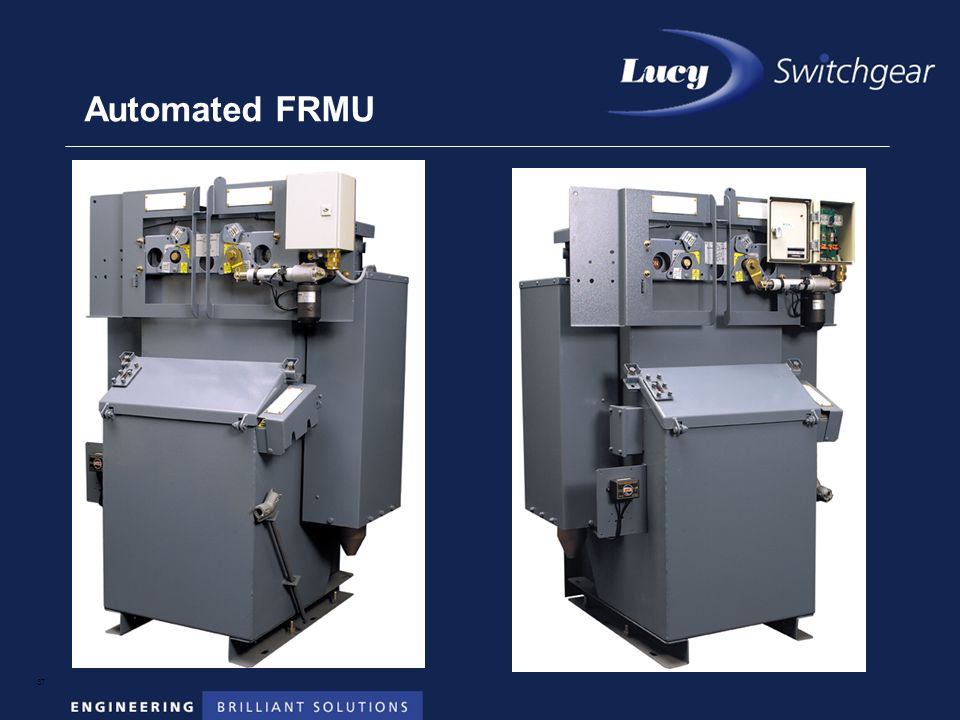

37. 37 Automated FRMU

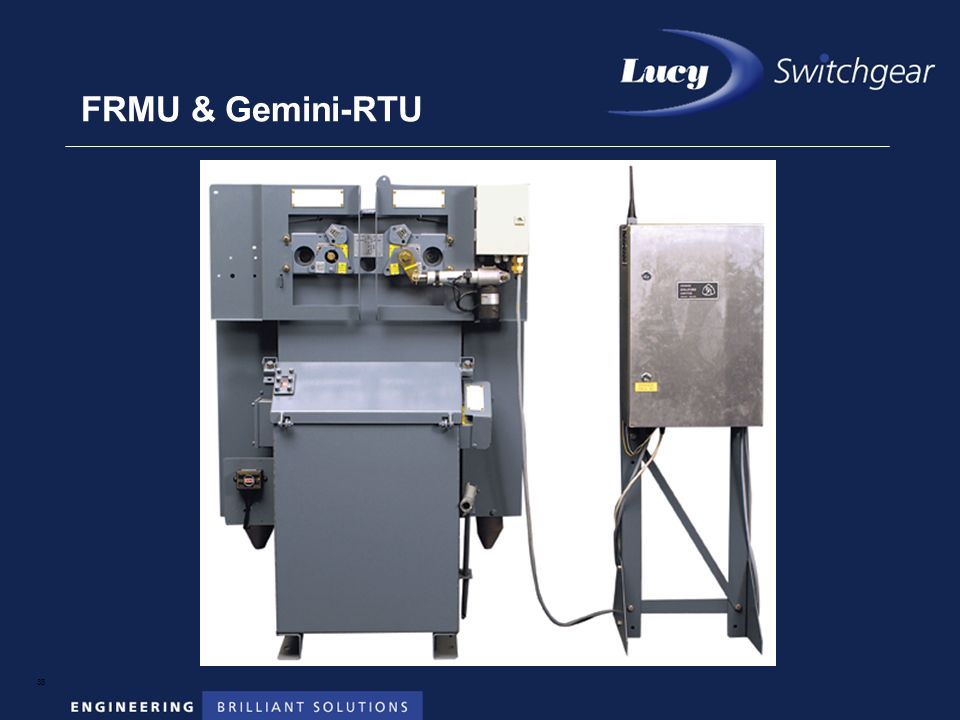

38. 38 FRMU & Gemini-RTU

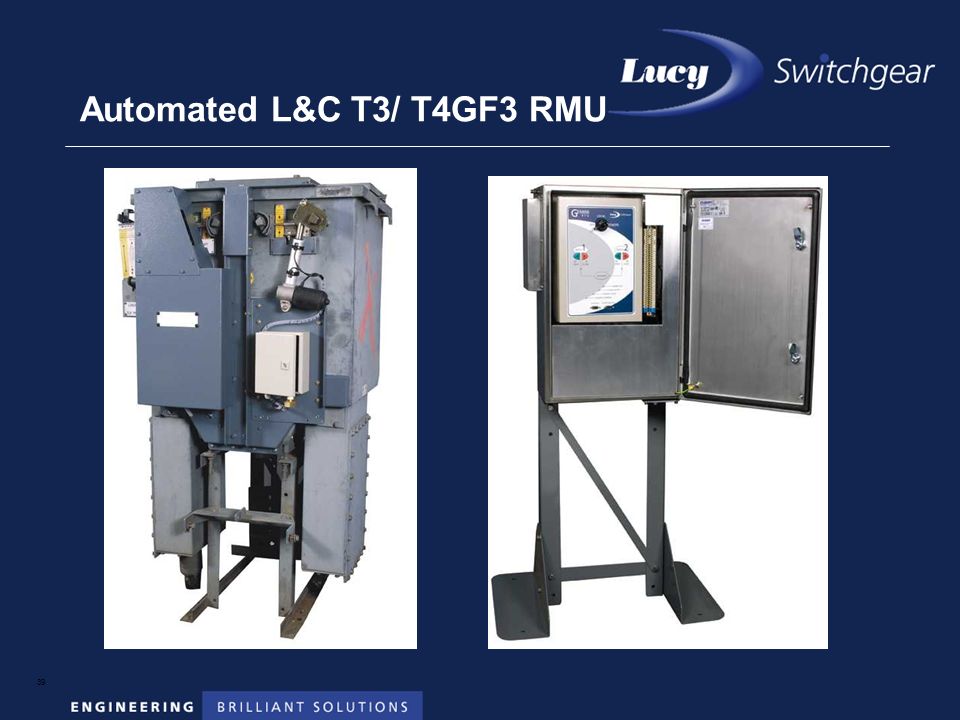

39. 39 Automated L&C T3/ T4GF3 RMU

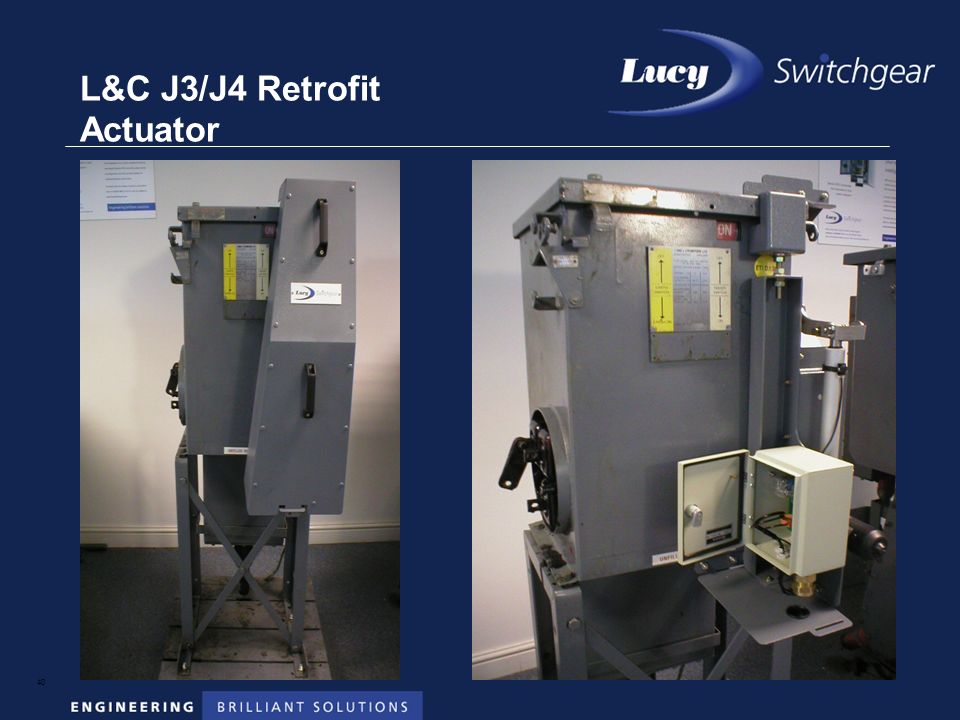

40. 40 L&C J3/J4 Retrofit Actuator

41. 41 RAPIER Overhead Range

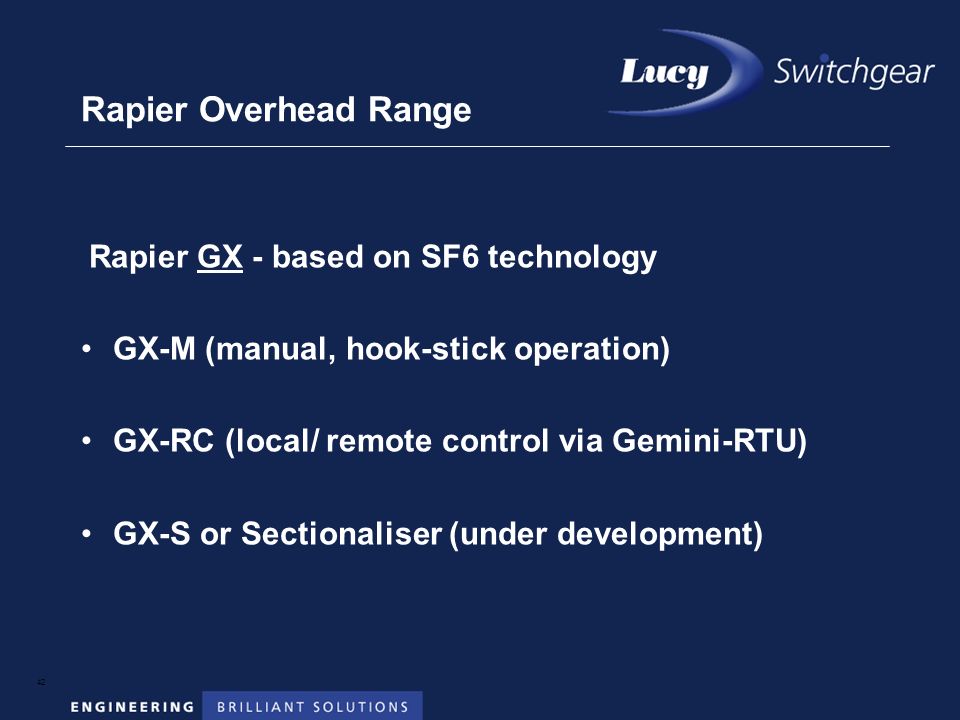

42. 42 Rapier Overhead Range Rapier GX - based on SF6 technology GX-M (manual, hook-stick operation) GX-RC (local/ remote control via Gemini-RTU) GX-S or Sectionaliser (under development)

43. 43 Rapier GX Load Break Switch - Features Ratings up to 38kV SF6 gas utilised as both arc quenching and insulating medium Equipped with 3 current transformers and 6 VCT’s in the bushings Stainless Steel enclosure sealed for life Motor actuator for DA Overpressure membrane for internal arc protection

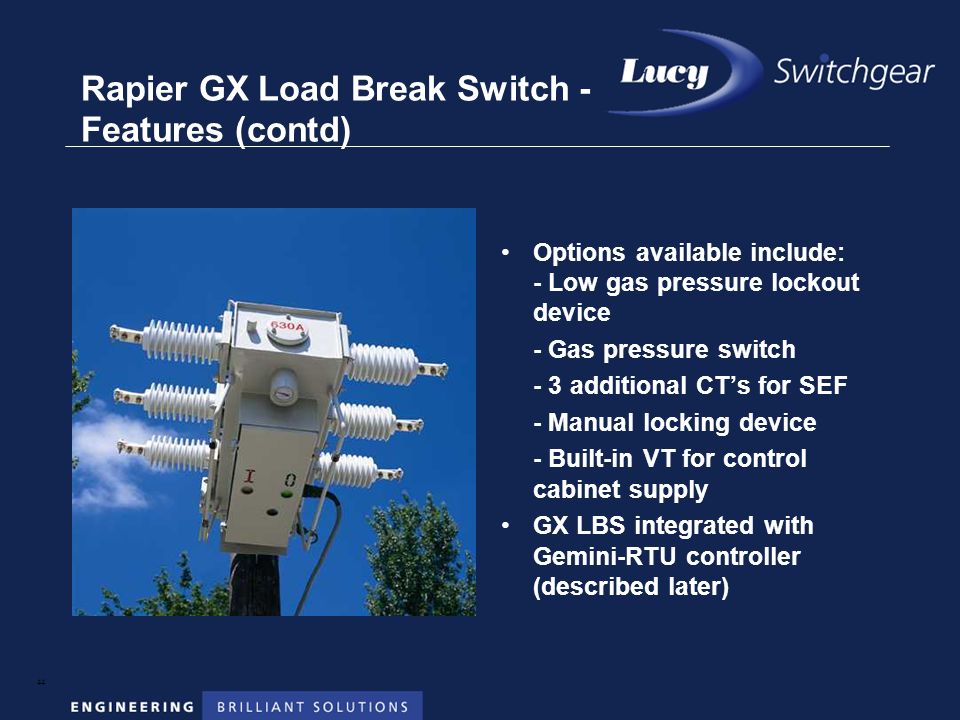

44. 44 Rapier GX Load Break Switch - Features (contd) Options available include: - Low gas pressure lockout device - Gas pressure switch - 3 additional CT’s for SEF - Manual locking device - Built-in VT for control cabinet supply GX LBS integrated with Gemini-RTU controller (described later)

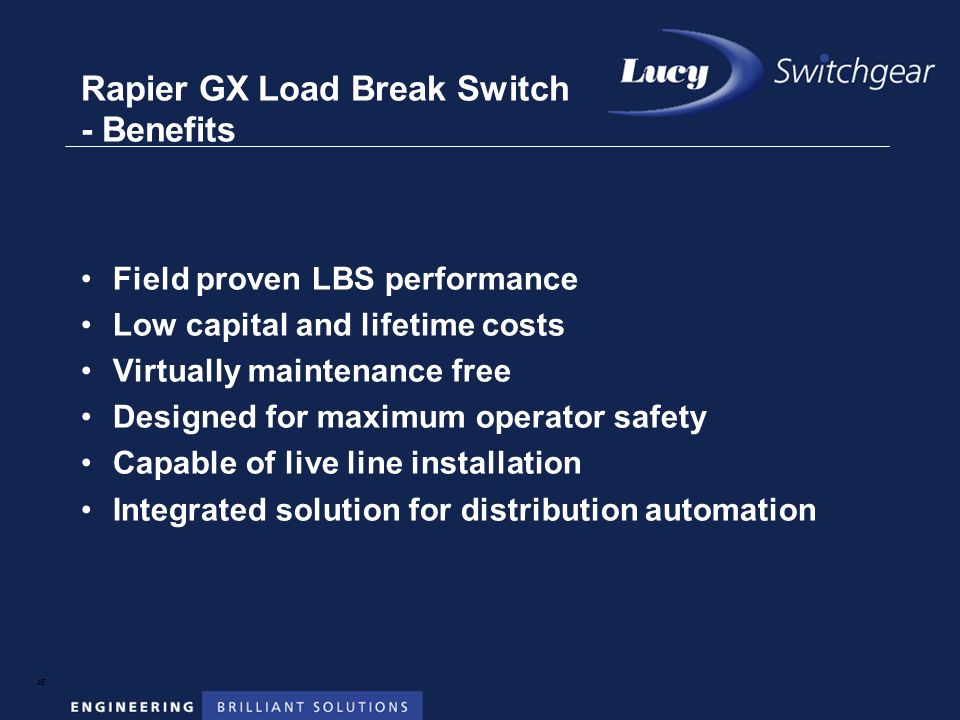

45. 45 Rapier GX Load Break Switch - Benefits Field proven LBS performance Low capital and lifetime costs Virtually maintenance free Designed for maximum operator safety Capable of live line installation Integrated solution for distribution automation

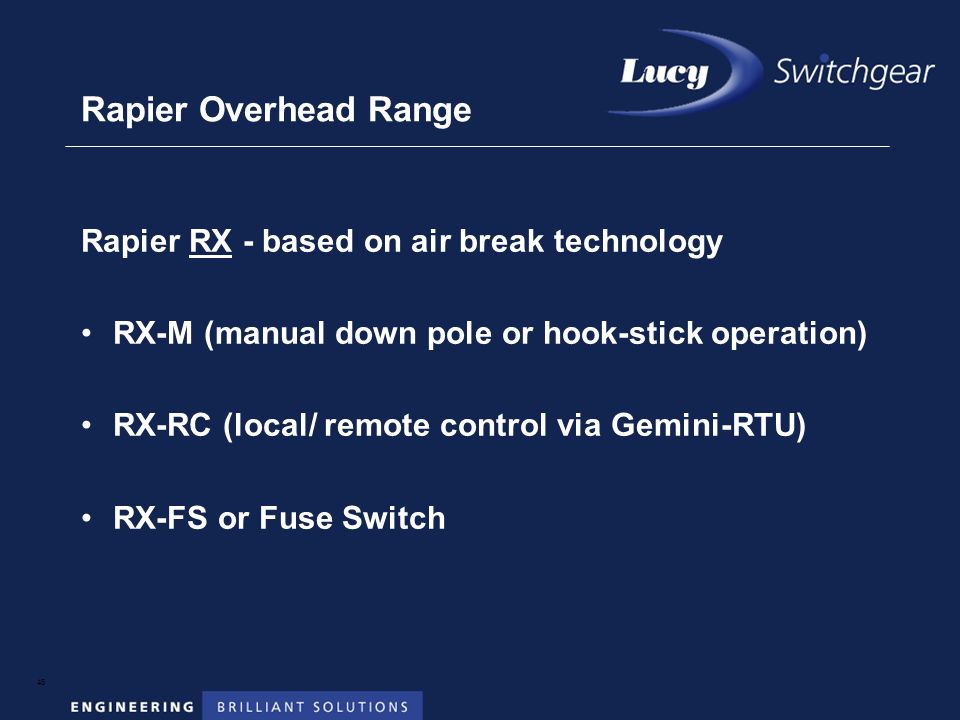

46. 46 Rapier Overhead Range Rapier RX - based on air break technology RX-M (manual down pole or hook-stick operation) RX-RC (local/ remote control via Gemini-RTU) RX-FS or Fuse Switch

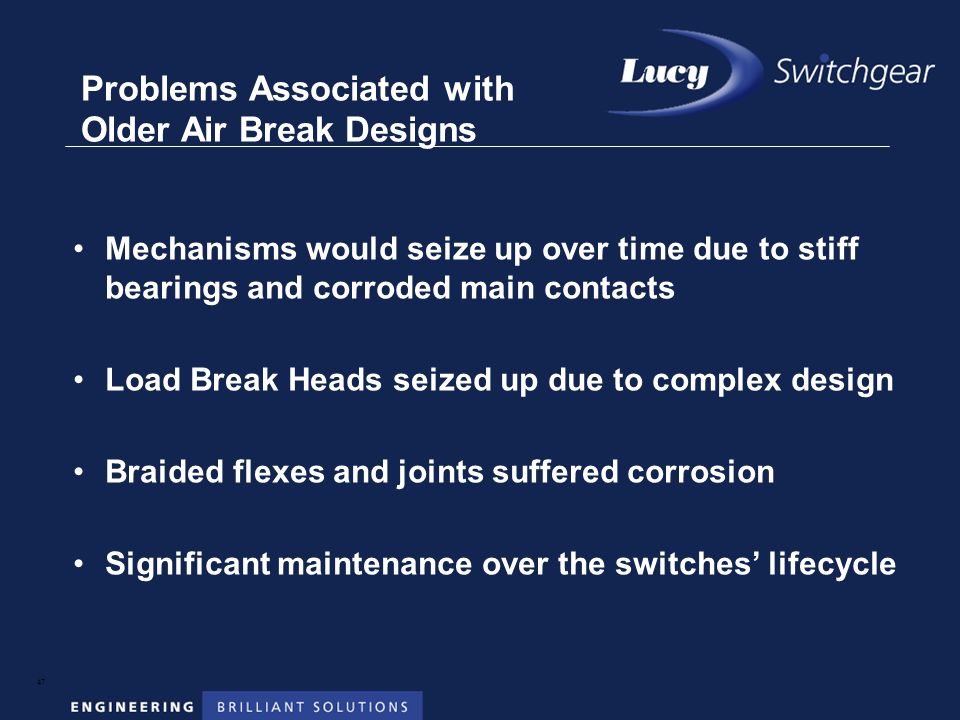

47. 47 Problems Associated with Older Air Break Designs Mechanisms would seize up over time due to stiff bearings and corroded main contacts Load Break Heads seized up due to complex design Braided flexes and joints suffered corrosion Significant maintenance over the switches’ lifecycle

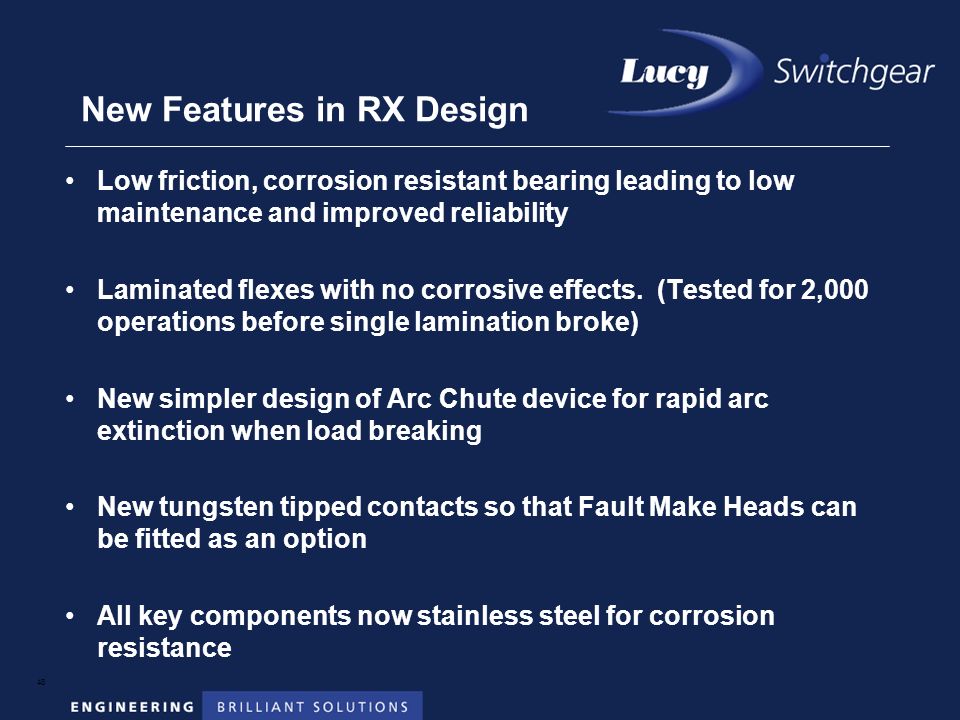

48. 48 New Features in RX Design Low friction, corrosion resistant bearing leading to low maintenance and improved reliability Laminated flexes with no corrosive effects. (Tested for 2,000 operations before single lamination broke) New simpler design of Arc Chute device for rapid arc extinction when load breaking New tungsten tipped contacts so that Fault Make Heads can be fitted as an option All key components now stainless steel for corrosion resistance

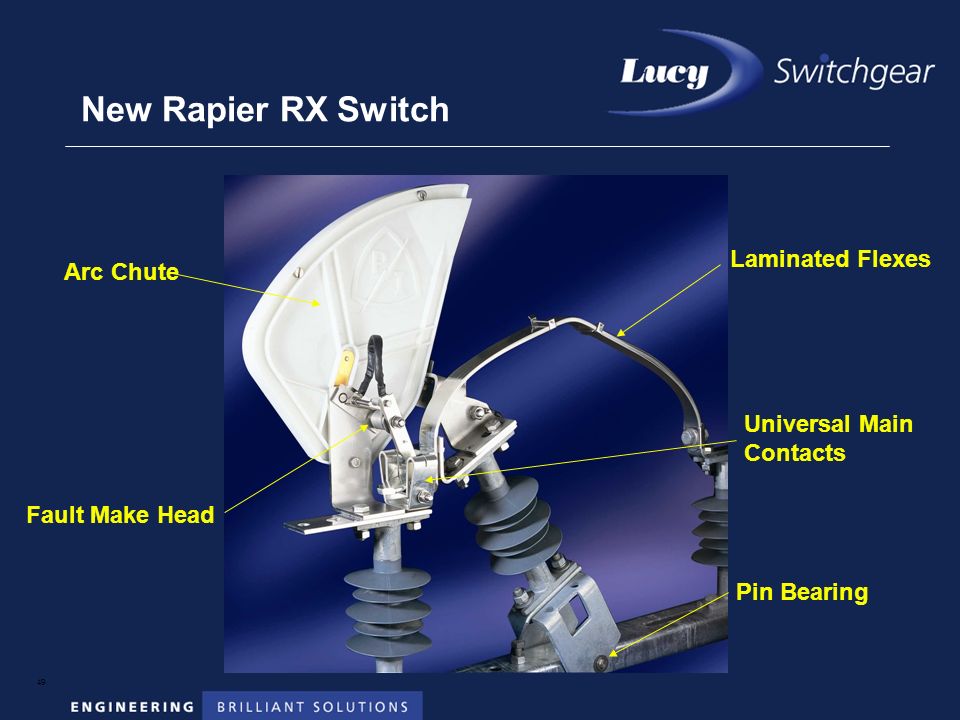

49. 49 New Rapier RX Switch Arc Chute Fault Make Head Laminated Flexes Pin Bearing Universal Main Contacts

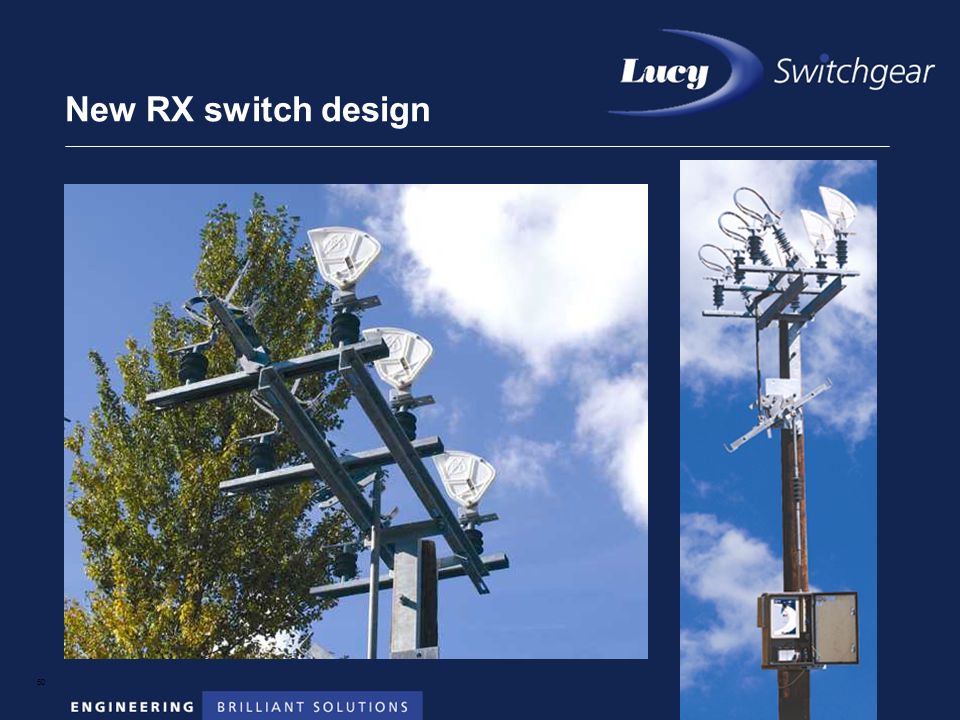

50. 50 New RX switch design

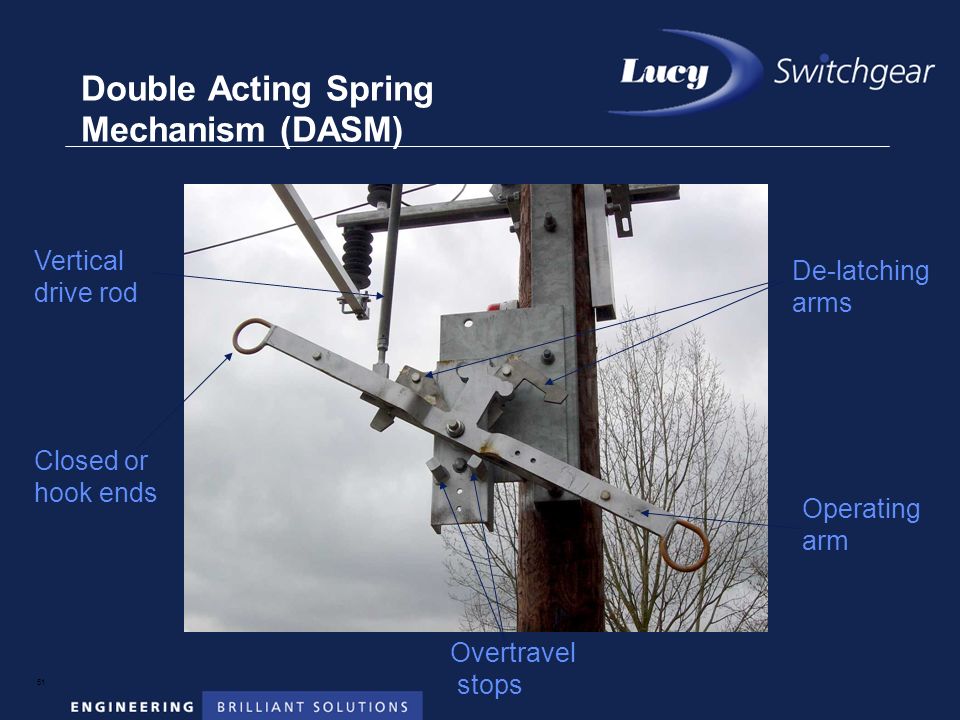

51. 51 Double Acting Spring Mechanism (DASM) Closed or hook ends Overtravel stops Operating arm De-latching arms Vertical drive rod

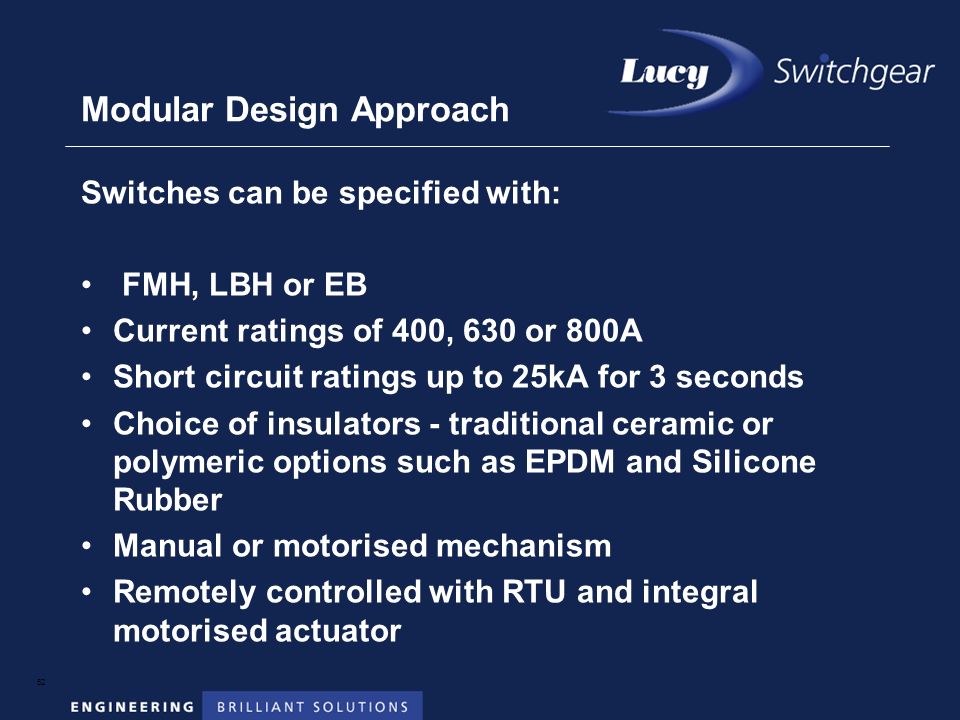

52. 52 Modular Design Approach Switches can be specified with: FMH, LBH or EB Current ratings of 400, 630 or 800A Short circuit ratings up to 25kA for 3 seconds Choice of insulators - traditional ceramic or polymeric options such as EPDM and Silicone Rubber Manual or motorised mechanism Remotely controlled with RTU and integral motorised actuator

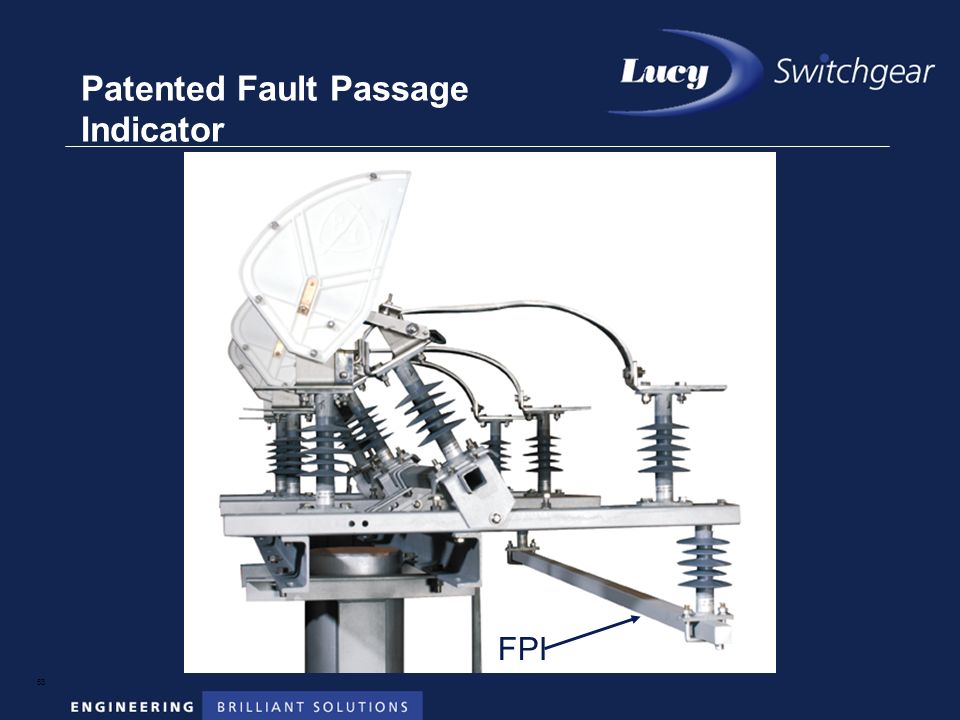

53. 53 Patented Fault Passage Indicator FPI

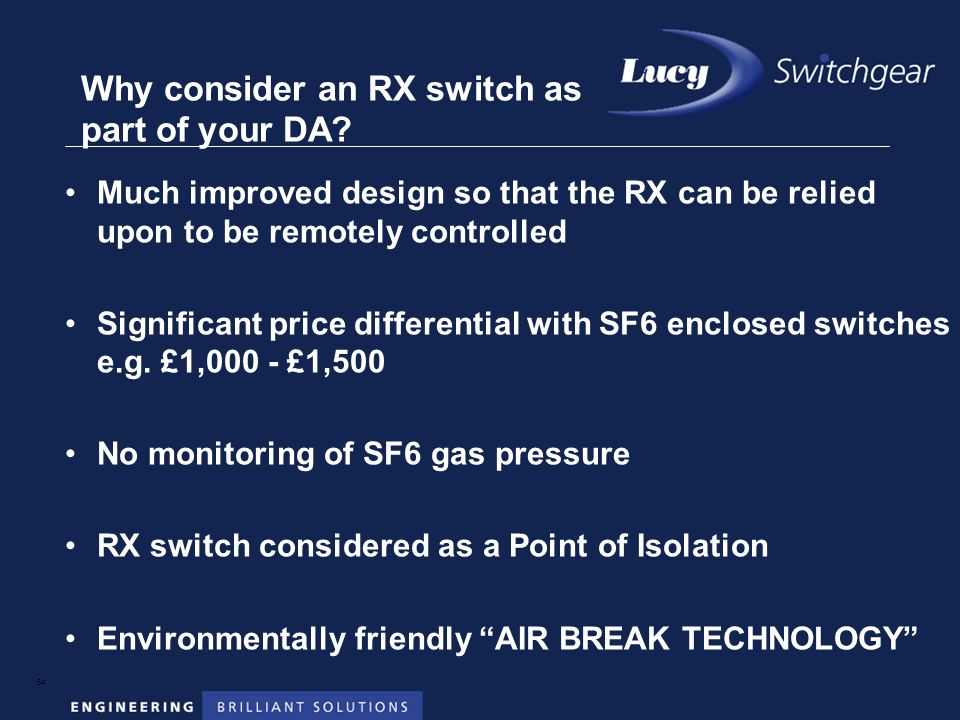

54. 54 Why consider an RX switch as part of your DA? Much improved design so that the RX can be relied upon to be remotely controlled Significant price differential with SF6 enclosed switches e.g. £1,000 - £1,500 No monitoring of SF6 gas pressure RX switch considered as a Point of Isolation Environmentally friendly “AIR BREAK TECHNOLOGY”

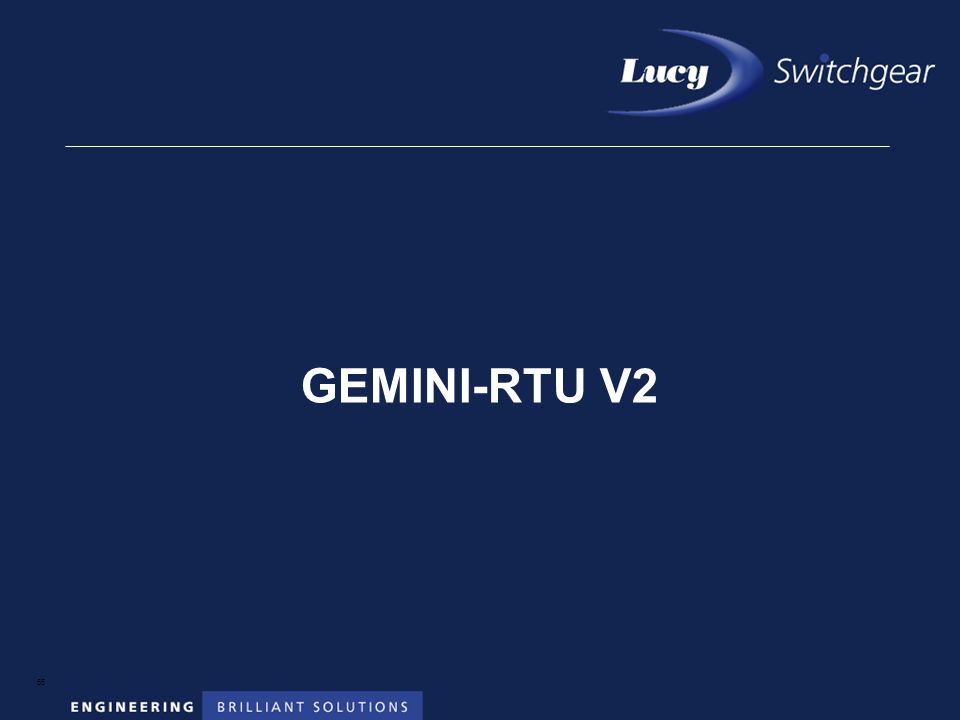

55. 55 GEMINI-RTU V2

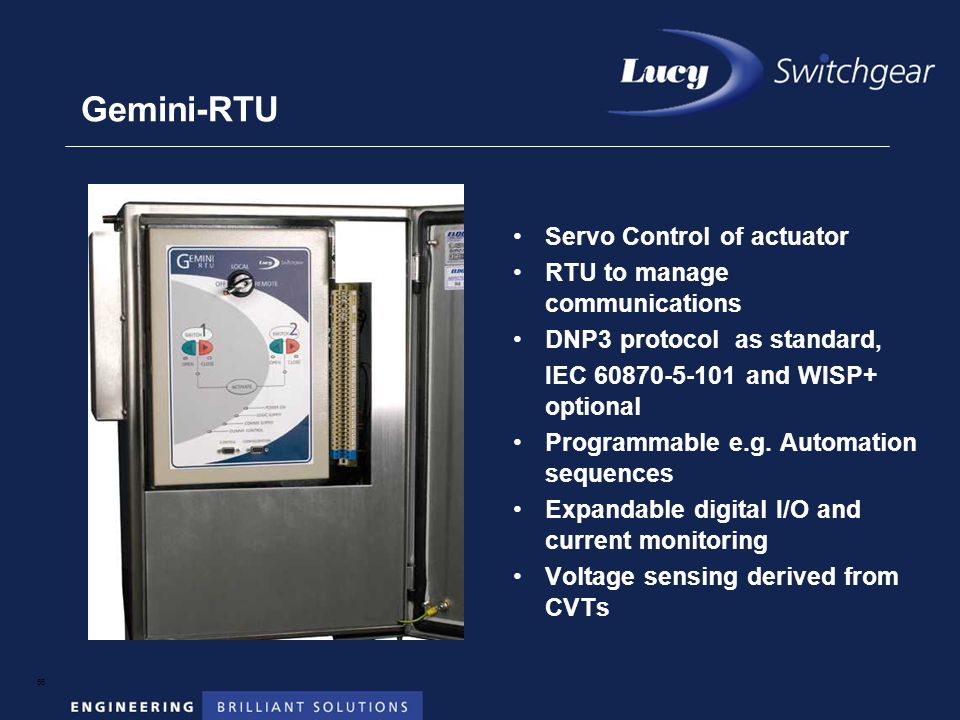

56. 56 Gemini-RTU Servo Control of actuator RTU to manage communications DNP3 protocol as standard, IEC 60870-5-101 and WISP+ optional Programmable e.g. Automation sequences Expandable digital I/O and current monitoring Voltage sensing derived from CVTs

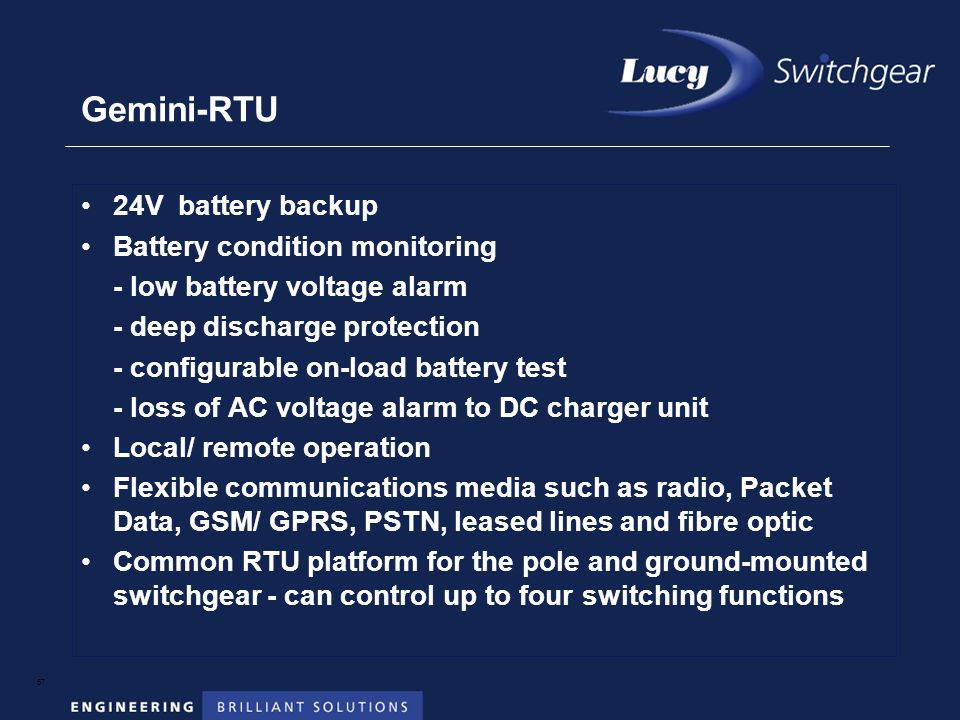

57. 57 Gemini-RTU 24V battery backup Battery condition monitoring - low battery voltage alarm - deep discharge protection - configurable on-load battery test - loss of AC voltage alarm to DC charger unit Local/ remote operation Flexible communications media such as radio, Packet Data, GSM/ GPRS, PSTN, leased lines and fibre optic Common RTU platform for the pole and ground-mounted switchgear - can control up to four switching functions

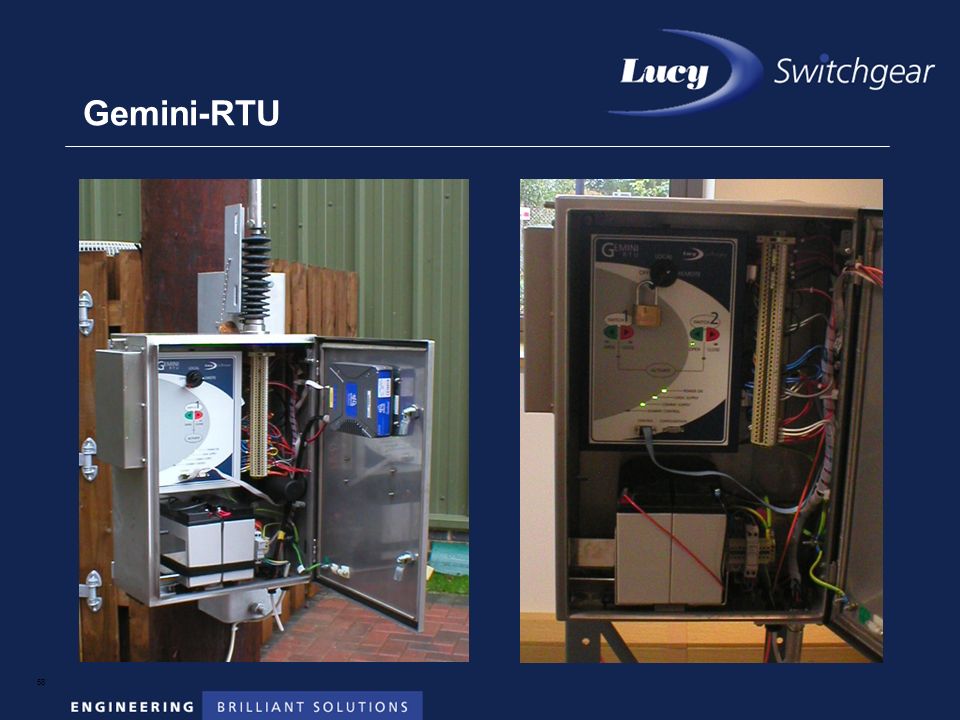

58. 58 Gemini-RTU

59. 59 Other GEMINI Systems

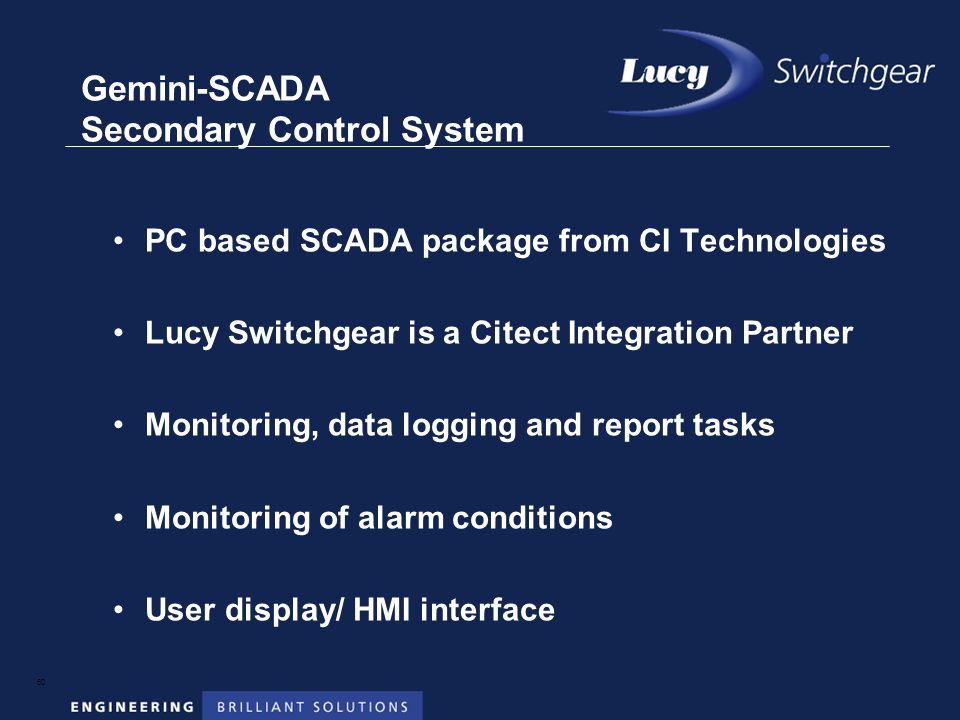

60. 60 Gemini-SCADA Secondary Control System PC based SCADA package from CI Technologies Lucy Switchgear is a Citect Integration Partner Monitoring, data logging and report tasks Monitoring of alarm conditions User display/ HMI interface

61. 61 Gemini-SCADA Secondary Control System Tasks can be installed on different machines Open and scaleable architecture I/O Communications - DNP3 provided as standard protocol Networking Password security

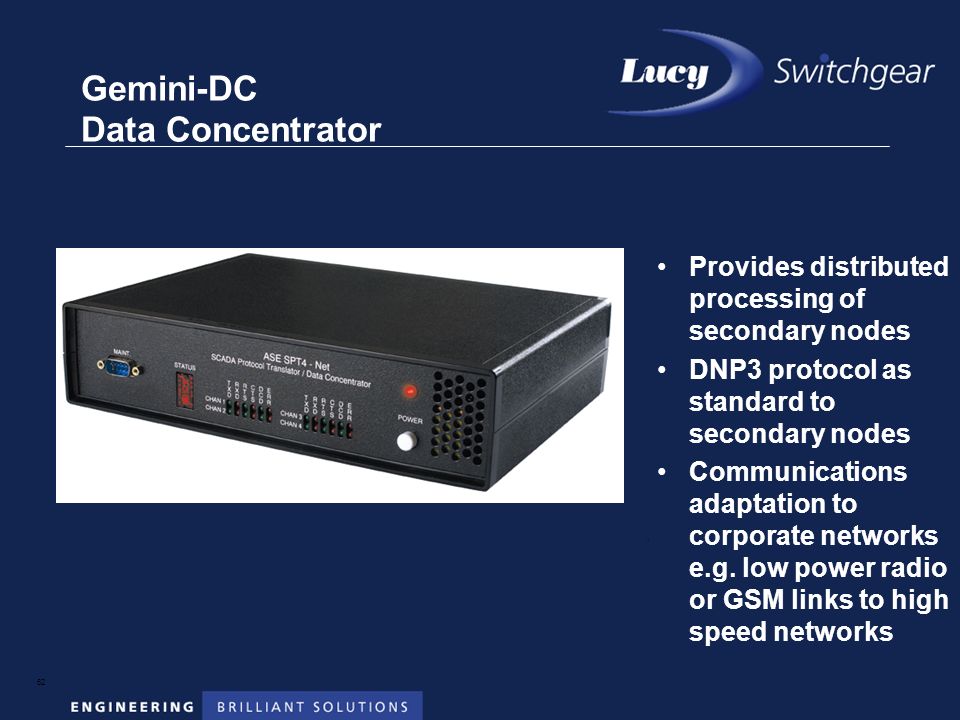

62. 62 Gemini-DC Data Concentrator Provides distributed processing of secondary nodes DNP3 protocol as standard to secondary nodes Communications adaptation to corporate networks e.g. low power radio or GSM links to high speed networks 1

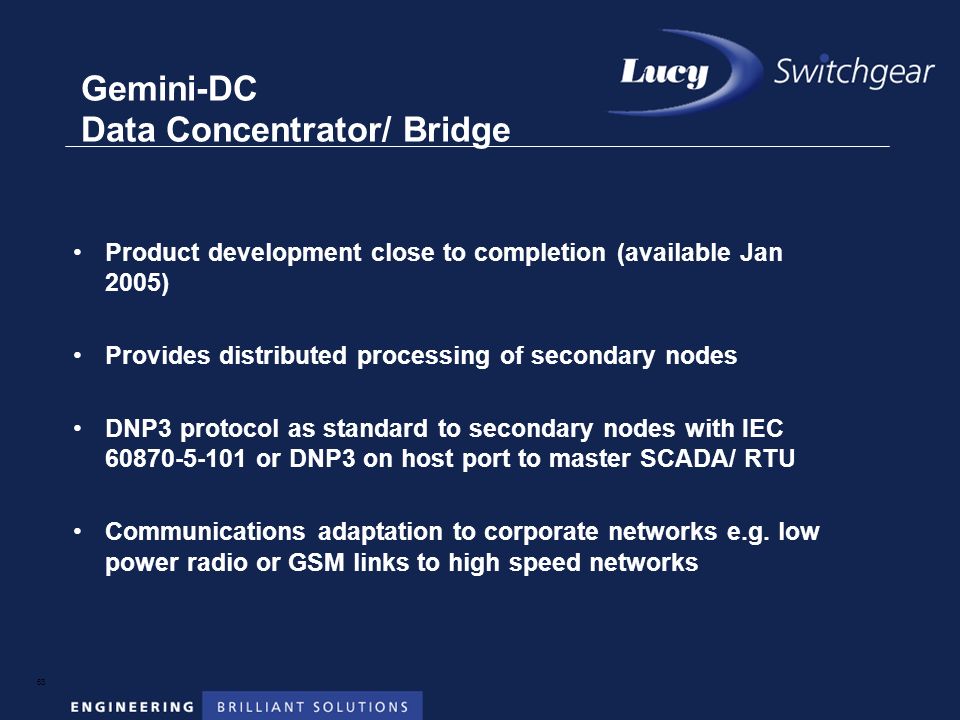

63. 63 Gemini-DC Data Concentrator/ Bridge Product development close to completion (available Jan 2005) Provides distributed processing of secondary nodes DNP3 protocol as standard to secondary nodes with IEC 60870-5-101 or DNP3 on host port to master SCADA/ RTU Communications adaptation to corporate networks e.g. low power radio or GSM links to high speed networks 1

64. 64 System Architectures

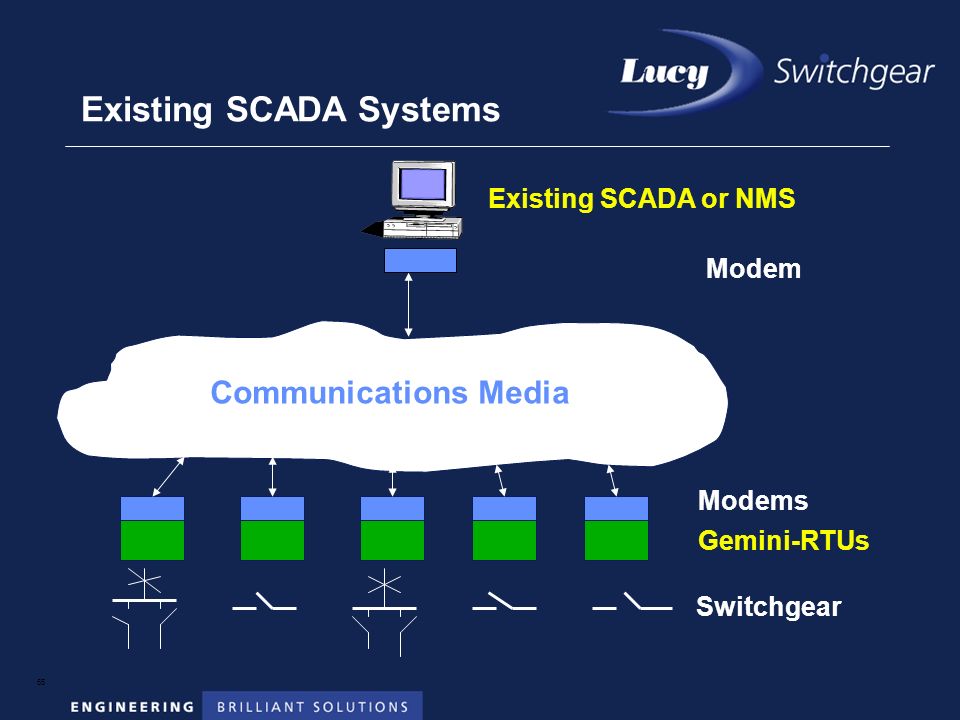

65. 65 Existing SCADA Systems Switchgear Gemini-RTUs Communications Media Modems Existing SCADA or NMS Modem

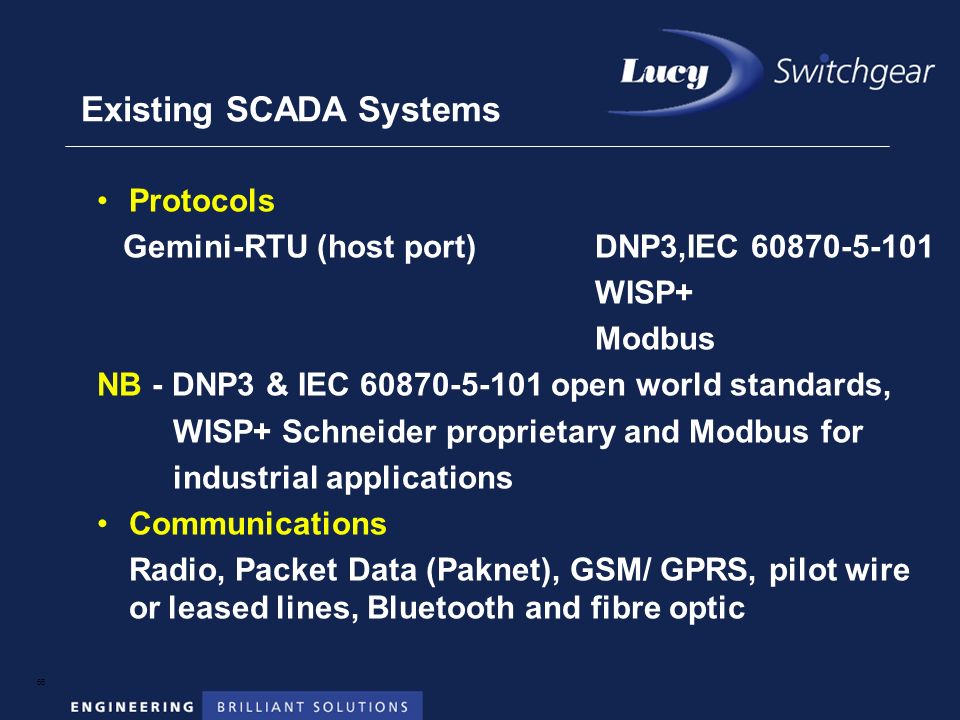

66. 66 Existing SCADA Systems Protocols Gemini-RTU (host port)DNP3,IEC 60870-5-101 WISP+ Modbus NB - DNP3 & IEC 60870-5-101 open world standards, WISP+ Schneider proprietary and Modbus for industrial applications Communications Radio, Packet Data (Paknet), GSM/ GPRS, pilot wire orleased lines, Bluetooth and fibre optic

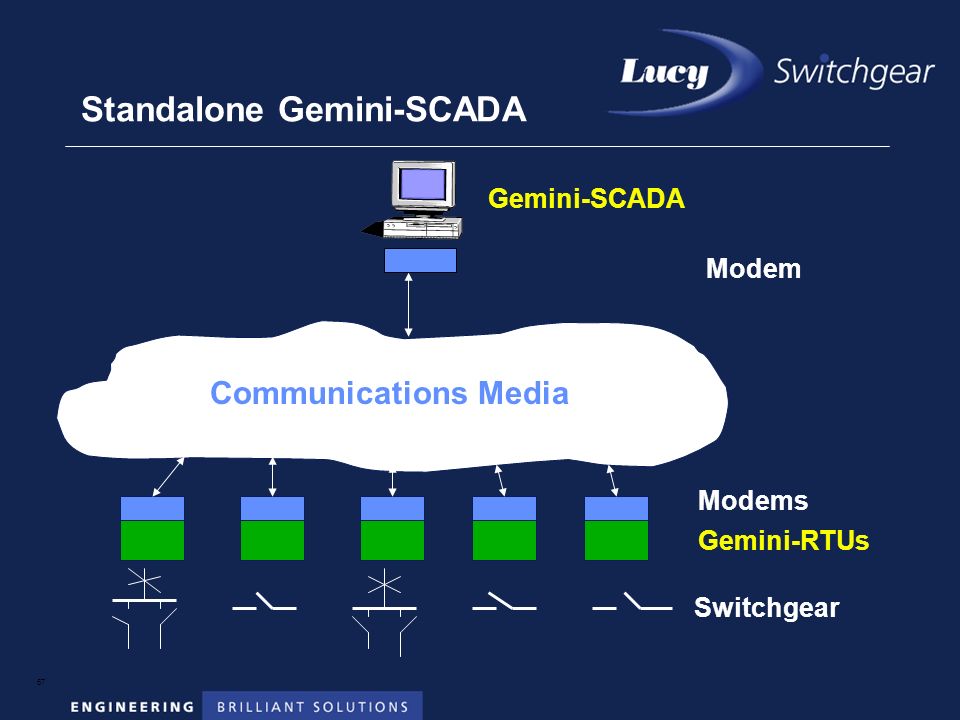

67. 67 Standalone Gemini-SCADA Switchgear Gemini-RTUs Communications Media Modems Gemini-SCADA Modem

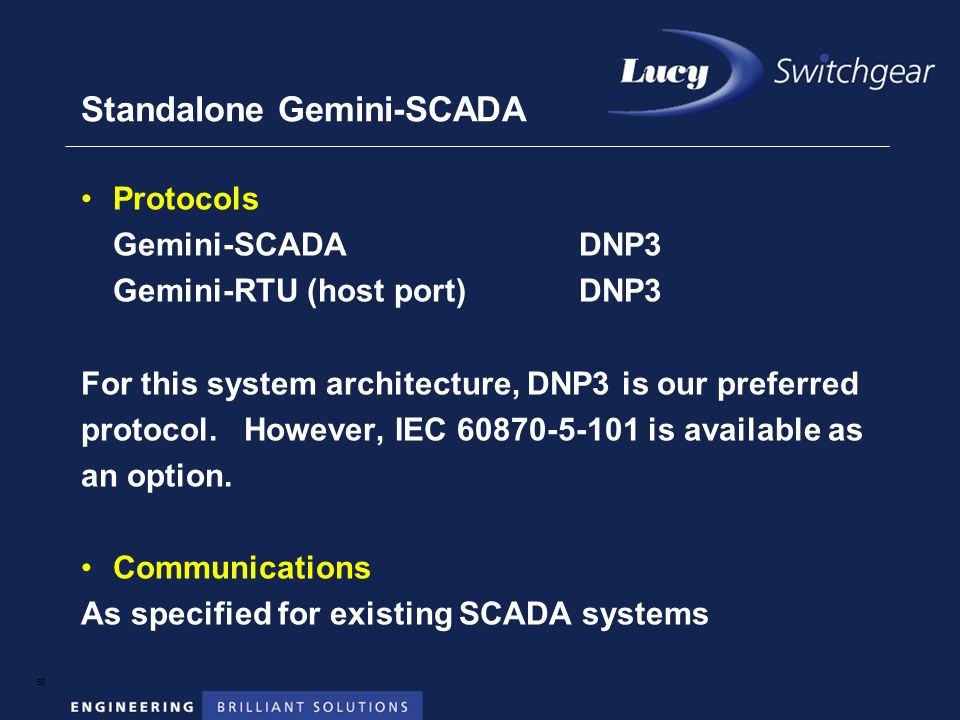

68. 68 Standalone Gemini-SCADA Protocols Gemini-SCADADNP3 Gemini-RTU (host port)DNP3 For this system architecture, DNP3 is our preferred protocol. However, IEC 60870-5-101 is available as an option. Communications As specified for existing SCADA systems

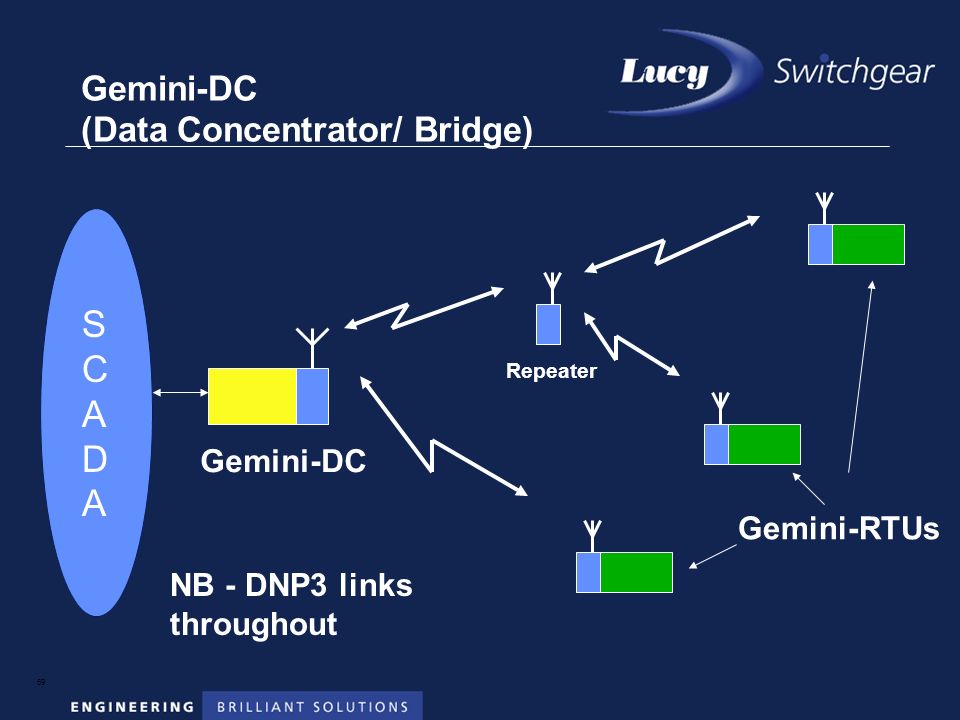

69. 69 Gemini-DC (Data Concentrator/ Bridge) Gemini-DC SCADASCADA NB - DNP3 links throughout Gemini-RTUs Repeater

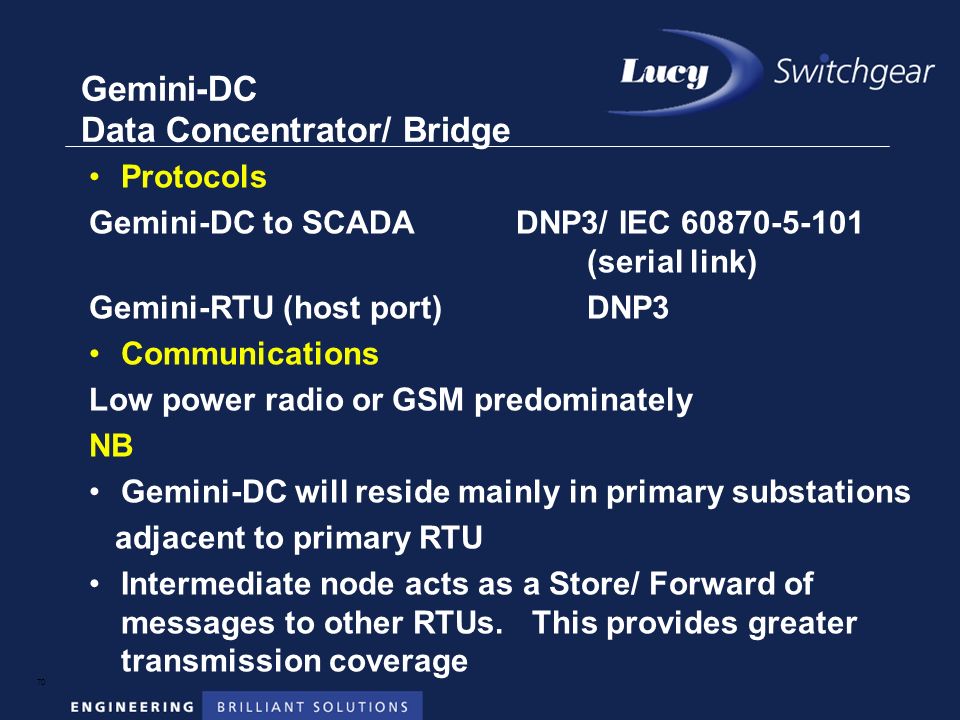

70. 70 Gemini-DC Data Concentrator/ Bridge Protocols Gemini-DC to SCADADNP3/ IEC 60870-5-101 (serial link) Gemini-RTU (host port) DNP3 Communications Low power radio or GSM predominately NB Gemini-DC will reside mainly in primary substations adjacent to primary RTU Intermediate node acts as a Store/ Forward of messages to other RTUs. This provides greater transmission coverage

71. 71 Automation Project References

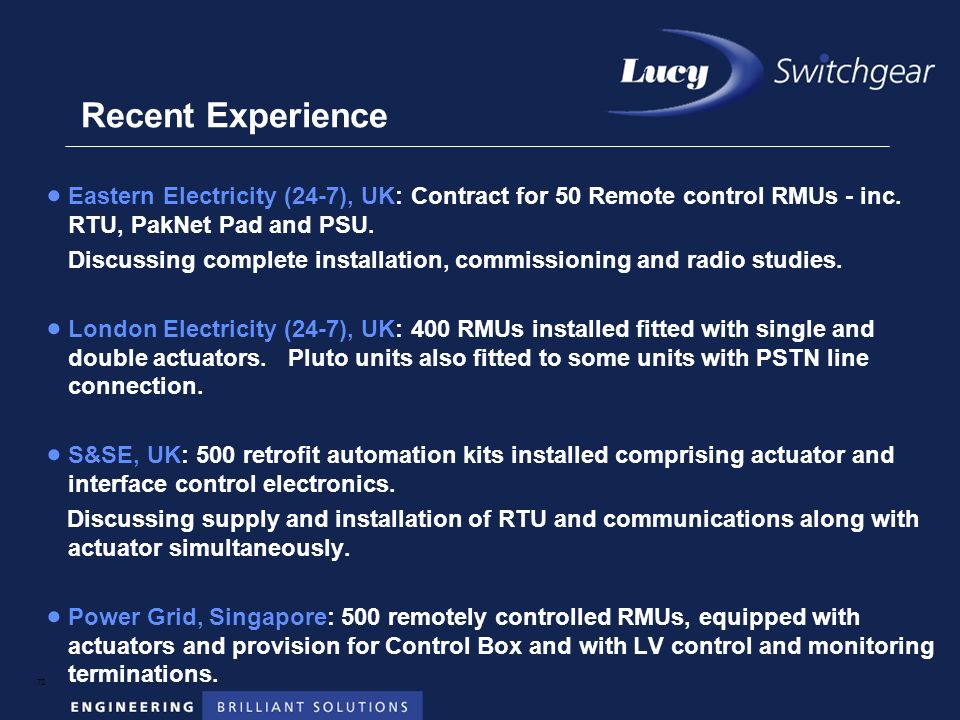

72. 72 Recent Experience  Eastern Electricity (24-7), UK: Contract for 50 Remote control RMUs - inc. RTU, PakNet Pad and PSU. Discussing complete installation, commissioning and radio studies.  London Electricity (24-7), UK: 400 RMUs installed fitted with single and double actuators. Pluto units also fitted to some units with PSTN line connection.  S&SE, UK: 500 retrofit automation kits installed comprising actuator and interface control electronics. Discussing supply and installation of RTU and communications along with actuator simultaneously.  Power Grid, Singapore: 500 remotely controlled RMUs, equipped with actuators and provision for Control Box and with LV control and monitoring terminations.

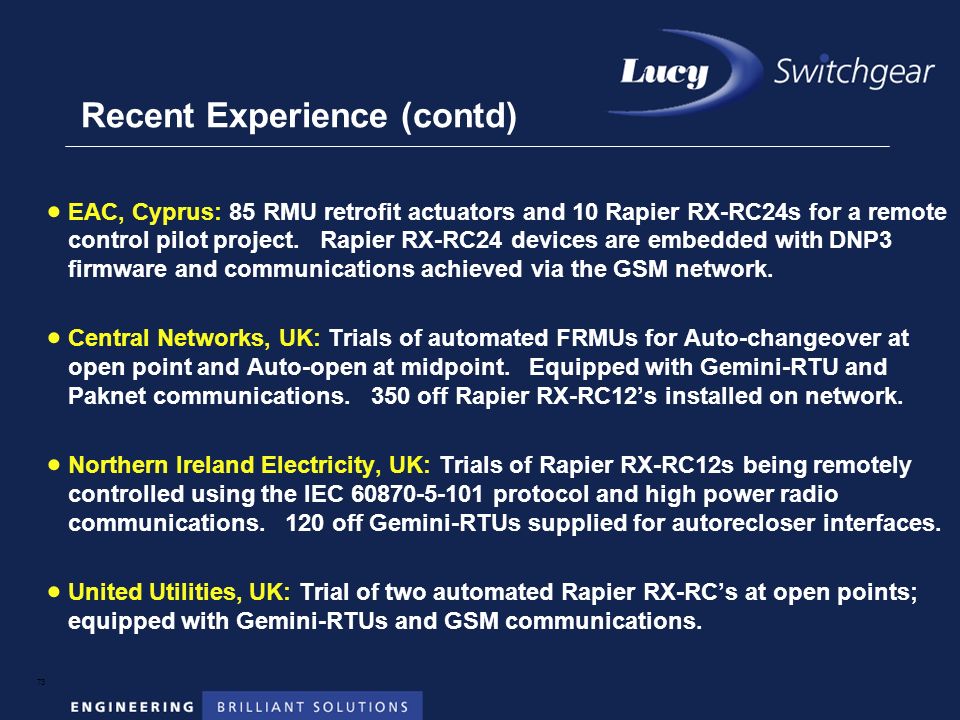

73. 73 Recent Experience (contd)  EAC, Cyprus: 85 RMU retrofit actuators and 10 Rapier RX-RC24s for a remote control pilot project. Rapier RX-RC24 devices are embedded with DNP3 firmware and communications achieved via the GSM network.  Central Networks, UK: Trials of automated FRMUs for Auto-changeover at open point and Auto-open at midpoint. Equipped with Gemini-RTU and Paknet communications. 350 off Rapier RX-RC12’s installed on network.  Northern Ireland Electricity, UK: Trials of Rapier RX-RC12s being remotely controlled using the IEC 60870-5-101 protocol and high power radio communications. 120 off Gemini-RTUs supplied for autorecloser interfaces.  United Utilities, UK: Trial of two automated Rapier RX-RC’s at open points; equipped with Gemini-RTUs and GSM communications.

74. 74 End of Presentation Any questions?
