1. Measurement In 1700’s the French academy of Sciences began to form a global measurement system now know as International System of Units or SI. All units are based on the number 10, which makes conversions easier.

2. Length and Area Meter (m) is the basic SI unit of length. Tools meter stick and ruler to measure. Kilometer (km), decimeter (dm), centimeter(cm), millimeter (mm) Area: measure of the size of the surface of an object. Formula: length X width=area (cm )

3. Mass/Volume Mass: measure of the amount of matter in an object. SI units: kilograms (kg), gram (g), milligram (mg) Volume: the amount of space an object takes up. Formula: length X width X height= Volume (cm ) Volume of an irregular shape can be found by measuring the volume of liquid it displaces.

4. Density Density: the amount of matter in a given volume. Formula: Mass =Density (g/cm^3 ) Volume

5. Measuring Length Ruler: http://www.k12math.com/math-concepts/measurement/ruler-cm.jpg How many millimeters are in 1 centimeter? What is the length of the line in centimeters? _______cm What is the length of the line in millimeters? _______mm What is the length of the line to the nearest centimeter? ________cm HINT: Round to the nearest centimeter – no decimals. 1 centimeter = 10 millimeters

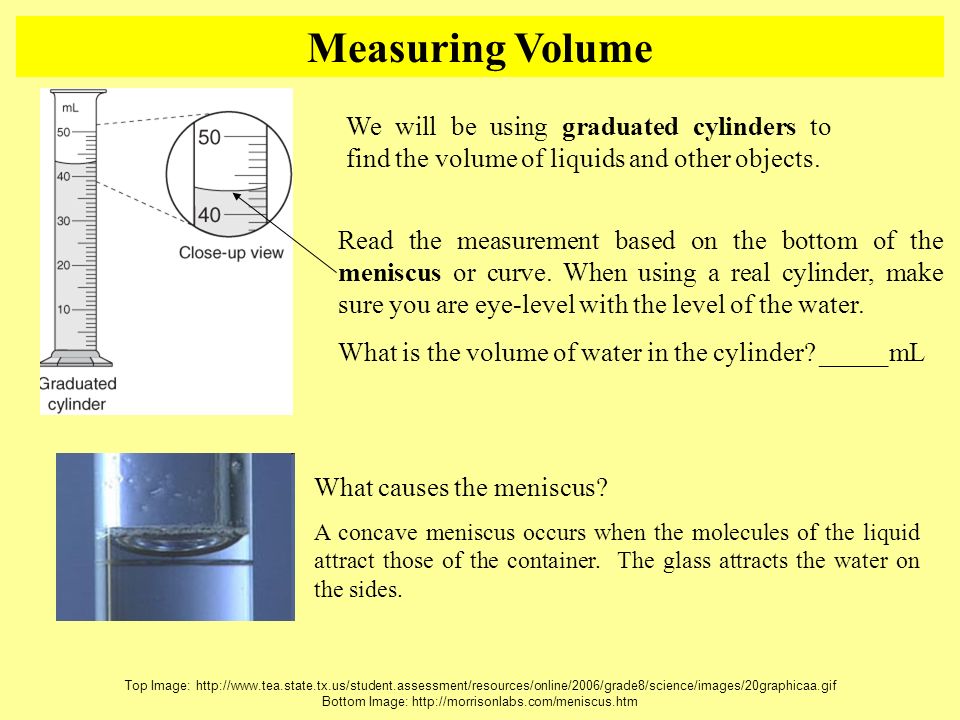

6. Measuring Volume Top Image: http://www.tea.state.tx.us/student.assessment/resources/online/2006/grade8/science/images/20graphicaa.gif Bottom Image: http://morrisonlabs.com/meniscus.htm We will be using graduated cylinders to find the volume of liquids and other objects. Read the measurement based on the bottom of the meniscus or curve. When using a real cylinder, make sure you are eye-level with the level of the water. What is the volume of water in the cylinder? _____mL What causes the meniscus? A concave meniscus occurs when the molecules of the liquid attract those of the container. The glass attracts the water on the sides.

7. Measuring Liquid Volume Images created at http://www.standards.dfes.gov.uk/primaryframework/downloads/SWF/measuring_cylinder.swf What is the volume of water in each cylinder? Pay attention to the scales for each cylinder.

8. Measuring Solid Volume Click here for an online activity about volumeClick here for an online activity about volume. Choose Lessons  Volume & Displacement 10 cm 9 cm 8 cm We can measure the volume of regular object using the formula length x width x height. _____ X _____ X _____ = _____ http://resources.edb.gov.hk/~s1sci/R_S1Science/sp/e n/syllabus/unit14/new/testingmain1.htm We can measure the volume of irregular object using water displacement. Amount of H 2 O with object = ______ About of H 2 O without object = ______ Difference = Volume = ______

9. Measuring Mass Top Image: http://www.southwestscales.com/Ohaus_Triple_Beam_750-SO.jpg Bottom Image: http://www.regentsprep.org/Regents/biology/units/laboratory/graphics/triplebeambalance.jpg We will be using triple-beam balances to find the mass of various objects. The objects are placed on the scale and then you move the weights on the beams until you get the lines on the right-side of the scale to match up. Once you have balanced the scale, you add up the amounts on each beam to find the total mass. What would be the mass of the object measured in the picture? _______ + ______ + _______ = ________ g
