Destructive Examination & Testing 2 Destructive Examination Destructive Examination renders the weld or material unfit for further service.

Similar presentations


Presentation on theme: "Destructive Examination & Testing 2 Destructive Examination Destructive Examination renders the weld or material unfit for further service."— Presentation transcript:

1

2 Destructive Examination & Testing

3 2 Destructive Examination Destructive Examination renders the weld or material unfit for further service.

4 3 Common methods used in Destructive Examination Bend testing Tensile testing Impact testing Hardness testing Chemical analysis & Metallography Hydrostatic testing to destruction

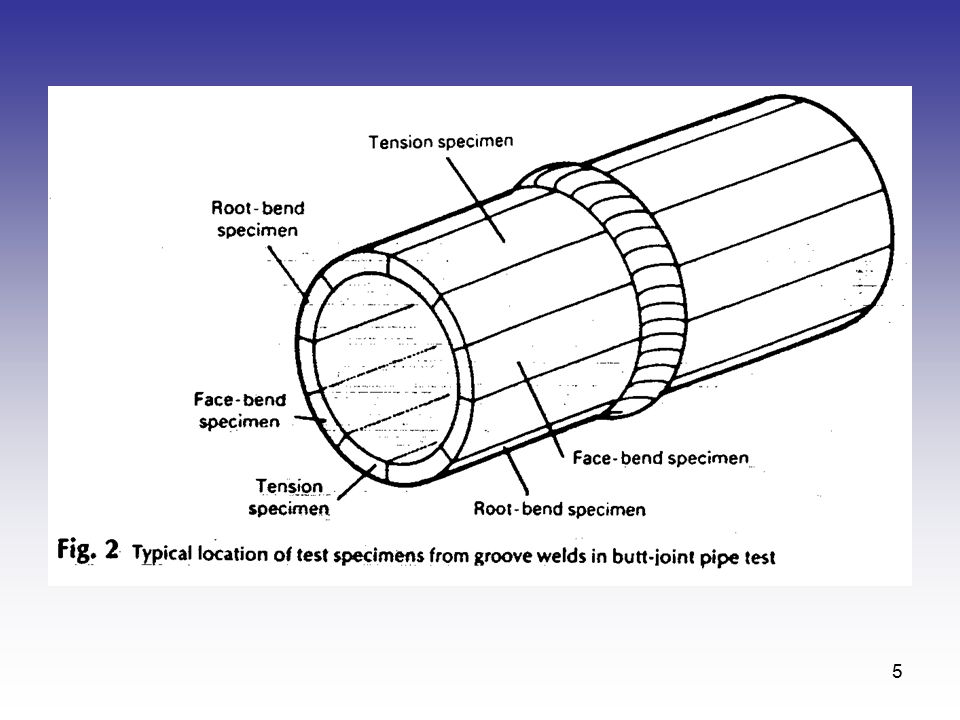

5 4

6 5

7 6

8 7

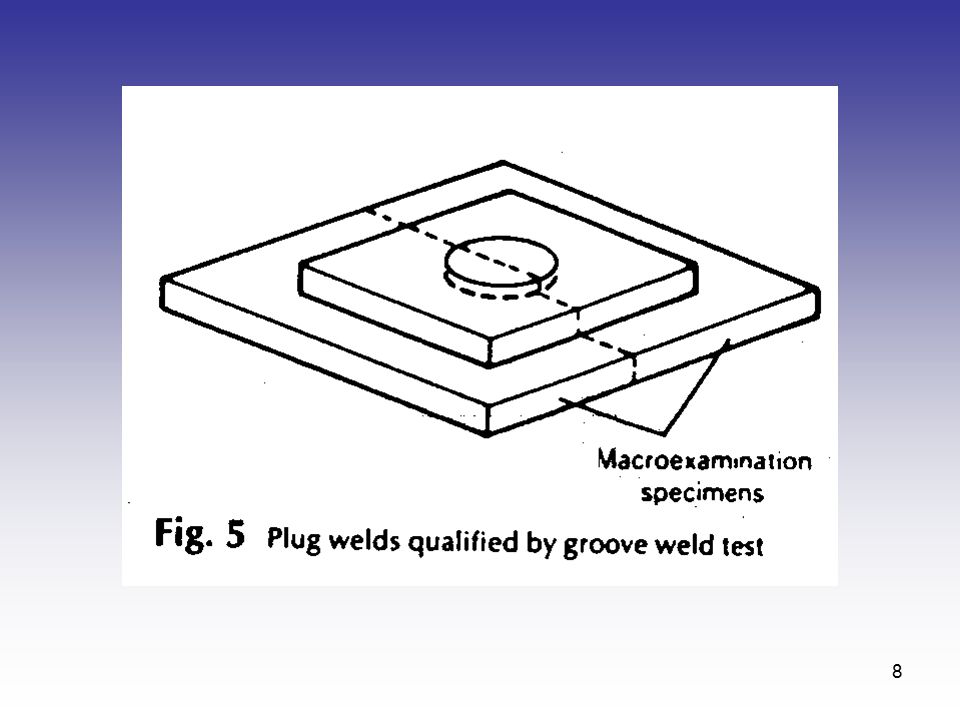

9 8

10 9

11 10

12 11 Mechanical Testing Tension

13 12 Tensile Strength Testing “Tensile” is a test in which a prepared sample is pulled until the sample breaks. Test Measurements are recorded in PSI (Pounds per Square Inch) E7018 = 70,000 PSI Tensile Test samples called “Tensile Bolts” can reveal a welds Tensile strength, Elastic limit, Yield point, and Ductility.

14 13 Tensile Strength Testing The Elastic Limit of metal is the stress (load) it can withstand and still return to the original length after the load is released. Yield Strength occurs when the test sample stretches however will not return to its original length. Ductility is the ability of a metal to stretch or elongate before it breaks.

15 14 Tensile Testing Strength Graph

16 15

17 16

18 17

19 18

20 19

21 20

22 21

23 22

24 23

25 24 Bending

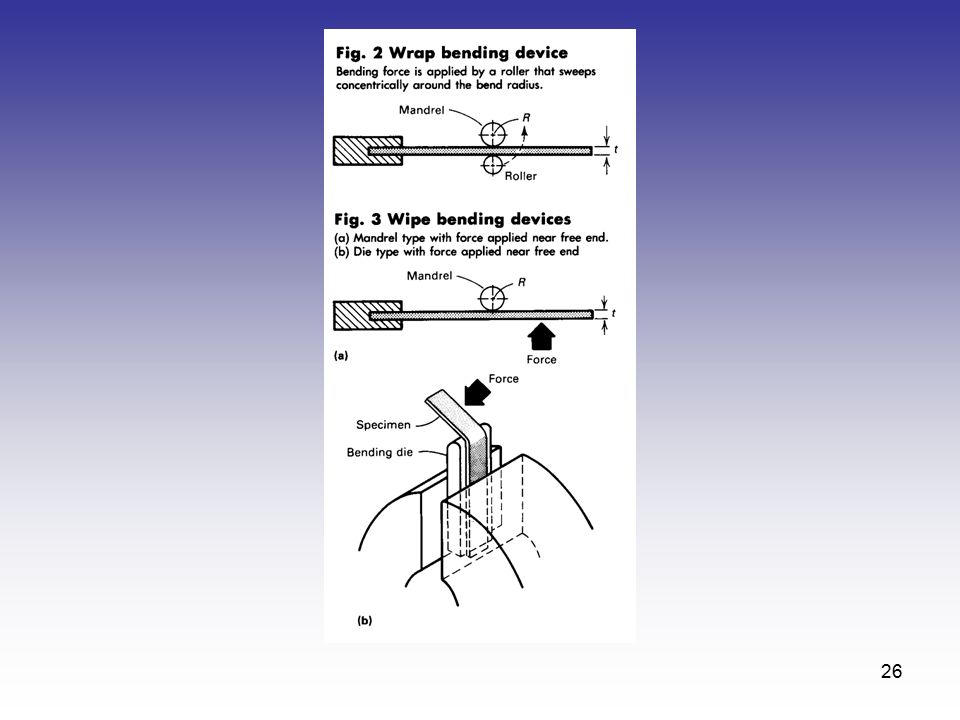

26 25

27 26

28 27

29 28

30 29

31 30

32 31

33 32 Bend Testing Bend test samples are referred to as “Test Coupons” The most common bend tests are –Guided face and root bend testing –Guided side bend testing –Longitudinal root and side bend testing –Fillet weld bend testing –Unguided bend testing

34 33 Bend Testing Sample Removal

35 34 Bend Testing Sample Preparation

36 35 Face Bend Testing

37 36 Root Bend Testing

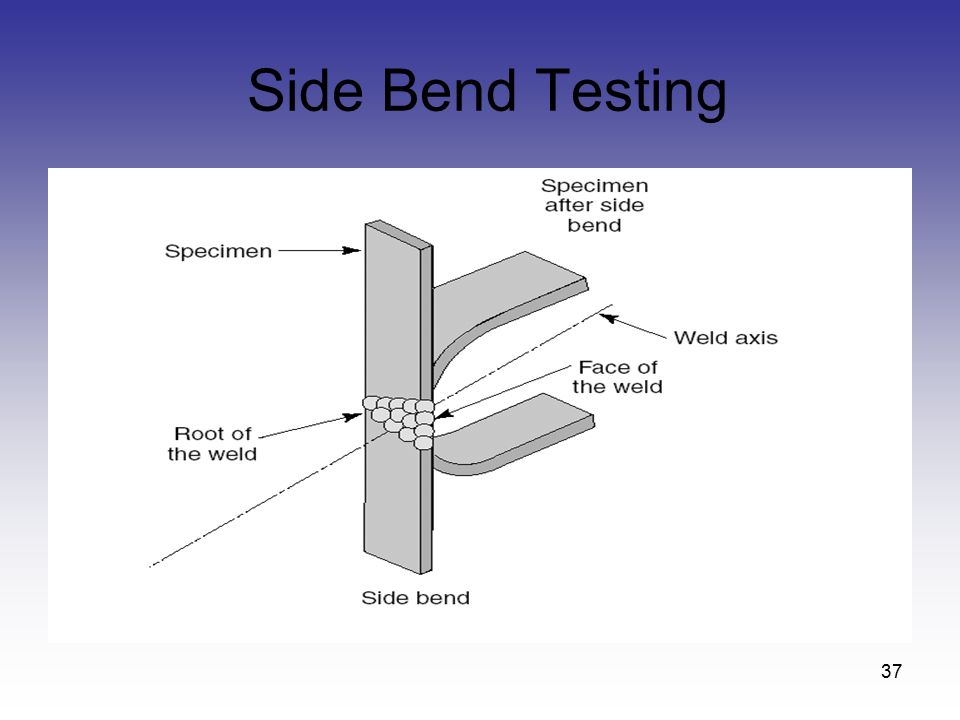

38 37 Side Bend Testing

39 38 Longitudinal Face Bend Testing

40 39 Longitudinal Root Bend Testing

41 40 Pipe Fillet Bend Testing

42 41 Impact Testing

43 42

44 43 TEST MACHINE

45 44

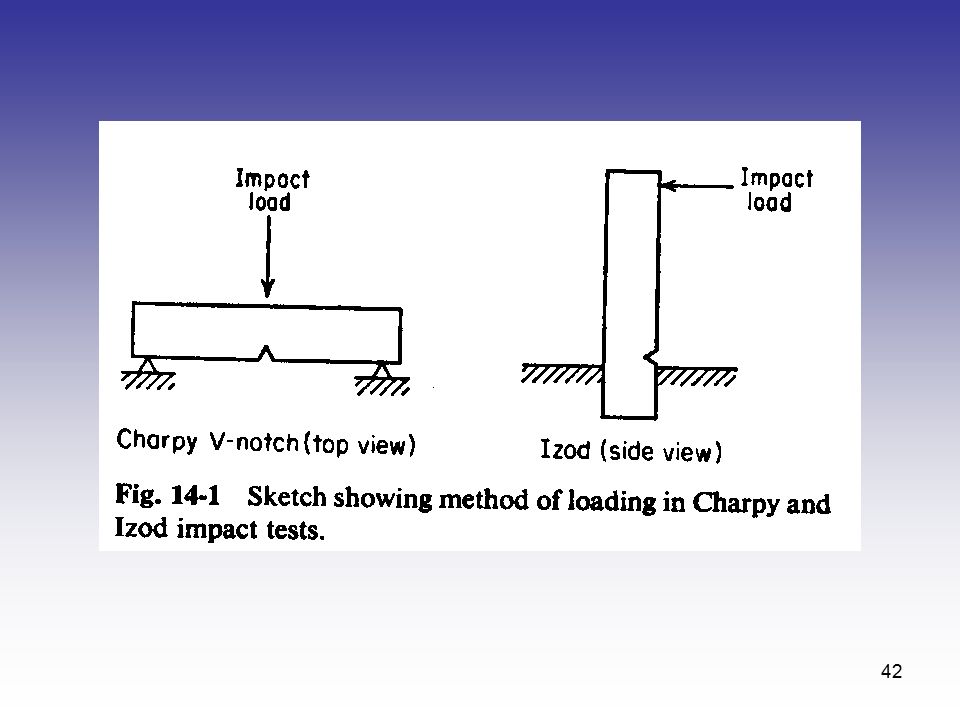

46 45 CHARPY

47 46 IZOD

48 47

49 48

50 49

51 50

52 51

53 52

54 53

55 54

56 55 An Impact tester uses a heavy pendulum that is able to measure the amount of force required to shear or fracture a test sample taken from welds “Heat Affected Zone” (HAZ) Impact testing may be performed using either the Izod or Charpy method. (Both methods are similar)

57 56 A Charpy or Izod test measures the welds ability to withstand an Impact force. Low Charpy test readings indicate brittle weld metal Higher Charpy readings indicate the samples toughness.

58 57 Hardness Testing

59 58 1- scratch 2- dynamic 3- indentation

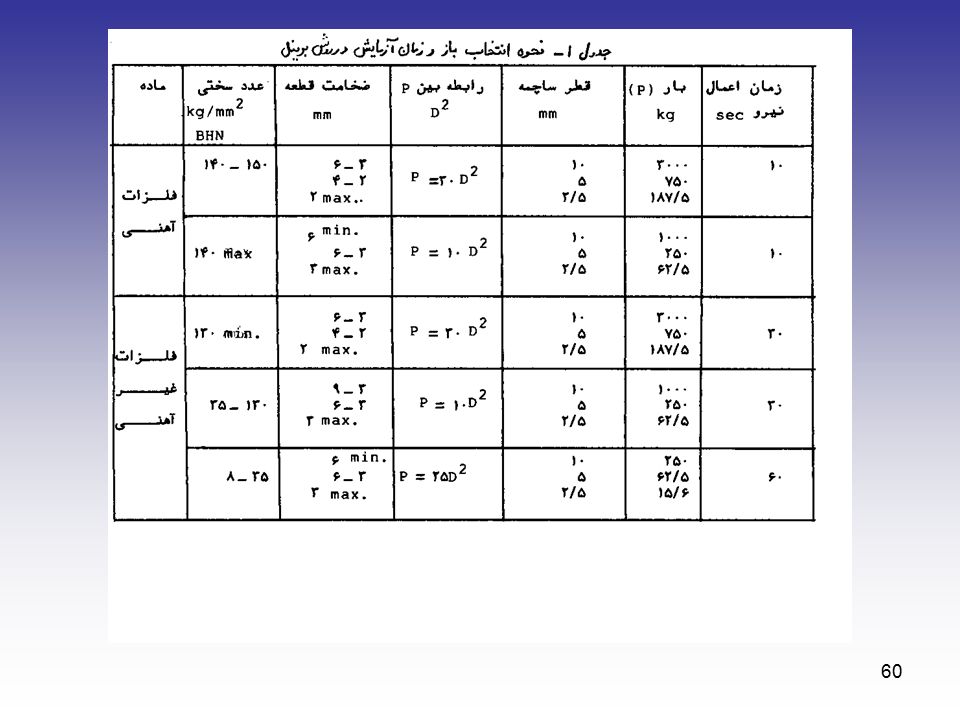

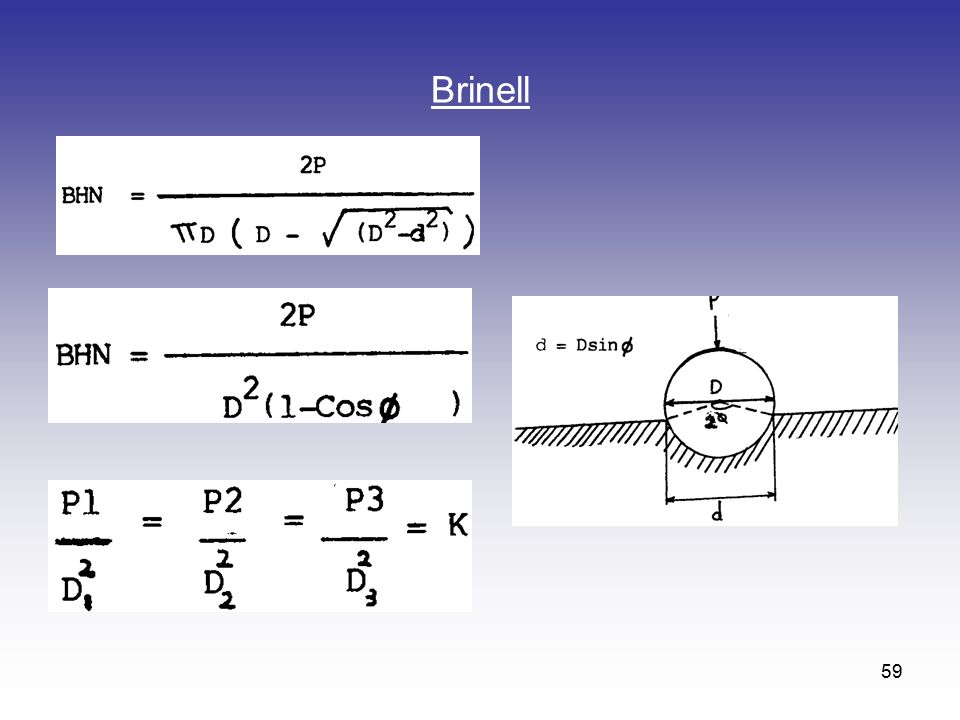

60 59 Brinell

61 60

62 61

63 62

64 63 Vickers

65 64

66 65 Rockwell

67 66

68 67

69 68

70 69

71 70 VICKERS HARDNES

72 71

73 72

74 Microhardness Testing Knoop and Vickers

75

76 75

77 76

78 77 Summary of Hardness testing Hardness may be defined as the resistance to permanent indentation. Three common hardness measuring tests are –Rockwell test –Scleroscope test –Brinell –Microhardness test

79 78 Summary of Hardness testing The Rockwell testing machine operates somewhat like a press, using a indenter to penetrate the surface of the test sample. The depth of the indentation determines the materials hardness on a scale of 0- 100

80 79 Summary of Hardness testing The Sceleroscpoe testing machine measures the amount “bounce” that a diamond tip hammer rebounds off the test sample after being dropped. The Brinell method presses the “indenter” into a sample for a given period of time. The ability for the sample to resist indentation determines hardness.

81 80 Summary of Hardness testing Microhardness testers allow you to measure a materials hardness while leaving the least amount of damage possible on the metals surface. After the indenter is used a powerful microscope is used to determine the the amount of indentation into the components surface.

82 81 Chemical Analysis Chemical analysis is used in metallurgical laboratories to determine the metals grain and crystalline structures. Samples are then place under a high power microscope to view the results. This is referred to as “Metalography”

83 82 Hydrostatic Testing to Destruction Pressure testing or leak testing can be performed with either gasses or liquids. When this pressure exceeds the limitations of the structures design it will rupture under force. This rupture will allow engineers to understand the welds weakest areas.

84 83 Used to determine the actual structure of the weld and parent metal Up to 50,000 times magnification with an electron beam microscope Polishing must be of a very high standard MICROSCOPIC

85 84

86 85

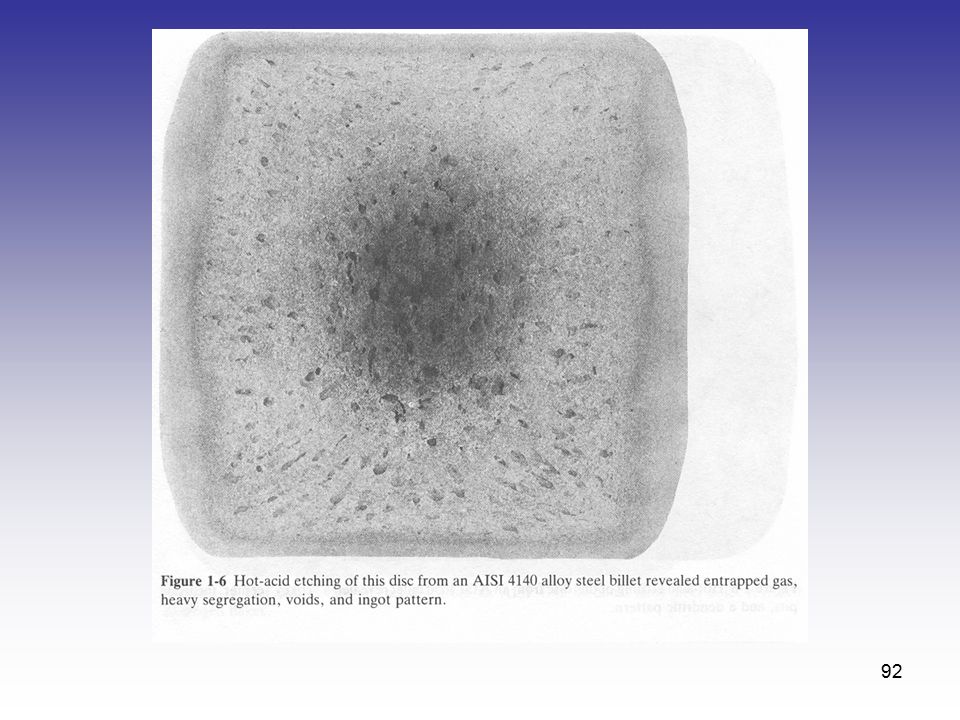

87 86 Examined using a magnifying glass. magnification from 2 to 20 time. it will show up slag entrapment or cracks polishing not as high as micro. MACROSCOPIC

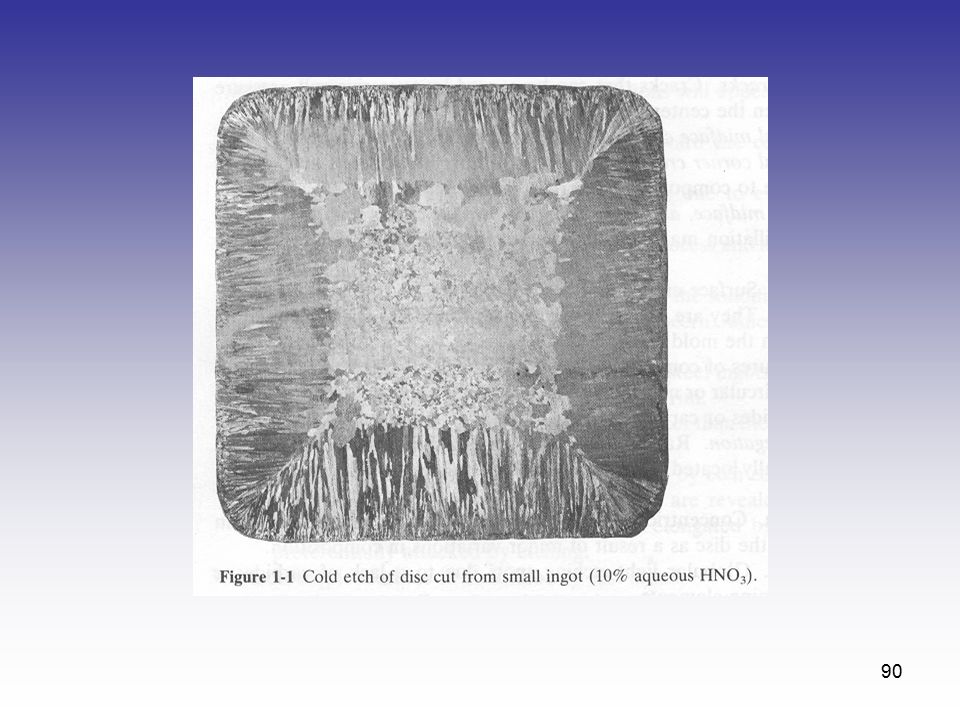

88 87 ETCHING REAGENTS These are acids used to show up different structures in metals For steels the most common is “1-2 % nitric acid in distilled water or alcohol. Aluminum uses a solution of 10-20% NaOH in water

89 88

90 89

91 90

92 91

93 92

94 93

95 94

96 95

97 96
