1
Design of Charts Prof. Michael McGuffin
2
The fonction y = x^0.5: x y --- 0 0 1 1 4 2 9 3... The relation in a table of a relational database: Client_name Product_purchased Price Date... ------------- ----------------- ------- ------------ ----- Robert G. Trombone 500.00 2008 mars 7. Robert G. Partitions vol. 1 45.00 2008 mars 7. Lucie M. Flute 180.00 2007 nov 11. Cynthia S. Partitions vol. 2 40.00 2008 juin 16 Jules T. Piano 6000.00 2008 jan 10 Jules T. Partitions vol. 1 45.00 2008 jan 13... A video (for example, an.avi file): x y time red green blue --- --- ------- ------- ------ ------ 0 0 0 255 0 0 0 1 0 200 10 6... 0 0 0.1 255 50 100 0 1 0.1 255 200 190... Examples of relations. A relation is a subset of a cartesian product of two or more sets. Each relation can be thought of as a multidimensional data set. In the examples here, each row is a tuple, each column is a dimension.
3
Tableau: software for visualizing databases (Mackinlay et al. 2007, tableausoftware.com)
9
x y b a x y x y x y Rows: b, y Columns: a, x
11
Tableau For more information: http://www.tableausoftware.com/products/tour http://www.tableausoftware.com/products/desktop/demo http://www.tableausoftware.com/products/tour http://www.tableausoftware.com/products/desktop/demo
12
Types of dimensions Quantitative (or continuous, or metric) – Examples: x, y, time, temperature Ordinal – We can put the values in a logical order, but we cannot say that one value is N times bigger than another value – Example: high school diploma, bachelor’s degree, master’s degree, doctoral degree (in order of years of schooling) Nominal (or categorical) – There is no natural order (except maybe alphabetical, which is arbitrary and language-dependent) – Example: degree in mechanical engineering, degree in physics, degree in math, degree in music, etc. – Example: Honda, Toyota, GM, Chrysler, etc. Binary – A kind of nominal (or ordinal?) dimension with two possible values
13
Input data: dimensions can be {independent, dependent} and {continuous, ordinal, nominal} Output graphical representation: at most 3D space × 1D time
14
Hierarchy of graphical variables
15
Example from a course by Marilyn Ostergren at U Washington ( http://courses.washington.edu/info424/Week3Practice_ExcelGraphs.html )
16
Hierarchy of graphical variables (Mackinlay, 1986)
17
Tableau Automatically determines which columns in a database are "dimensions" (independent variables), which are "measures" (dependent variables), and which are "quantitative" (continuous) or "categorical" (nominal). Automatically chooses a kind of chart or graphic based on the nature of the data (Mackinlay et al. 2007)
18
Tableau Continuous variable as a function of a nominal variable Bar chart Continuous variable as a function of a continuous variable Line graph Continuous variable as a function of (nominal) time Two dependent continuous variables Scatter plot Nominal variable as a function of a continuous variable Gantt chart Nominal independent variable with continuous independent variable Two independent nominal variablesCross tabulation (“cross tab”) Examples resulting from applying the rules on the previous slide:
21
Bar chart vs line graph Which makes it easier to perceive changes in slope?
22
Tufte (1983) Length vs area
25
From IEEE Canadian Review, 2009, No. 60, page 31
26

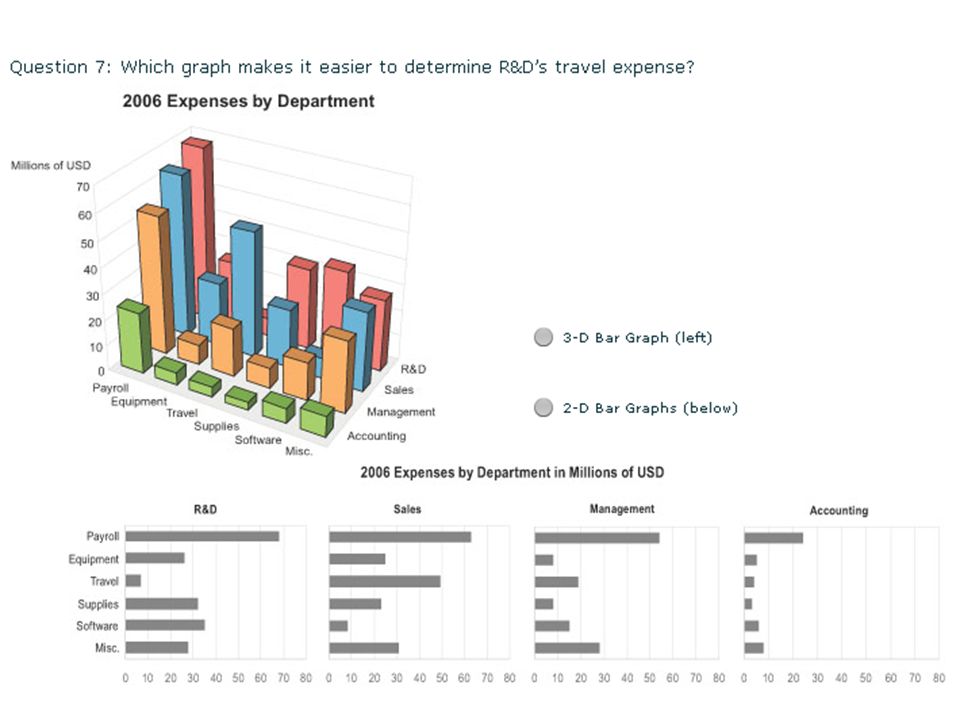

Example from a course by Marilyn Ostergren at U Washington ( http://courses.washington.edu/info424/Week3Practice_ExcelGraphs.html )
28
http://www.research.ibm.com/people/l/lloydt/color/color.HTM Rogowitz and Treinish, “Why Should Engineers and Scientists Be Worried About Color?”
29
Borland and Taylor, “Rainbow Color Map (Still) Considered Harmful”, IEEE CG&A, 27(2):14-17, 2007
32
ABC abc 123 000
33
Other examples … Notes are shown on lines as well as between lines, reducing the number of lines necessary by a factor of 2. Rows are located on grey bands as well as between grey bands. The number of grey bands necessary is half the number of separating lines that would be necessary between rows.
34
octave semitone octave Naïve notation: Modern notation:
35
Genetic code (mapping from nucleotide triplets to amino acids) Ben Fry’s version (http://benfry.com/aasd/) Traditional versions
36
Graphic invented by Florence Nightingale (1820-1910; statistician, and pioneer in nursing care) http://upload.wikimedia.org/wikipedia/commons/1/17/Nightingale-mortality.jpg
37

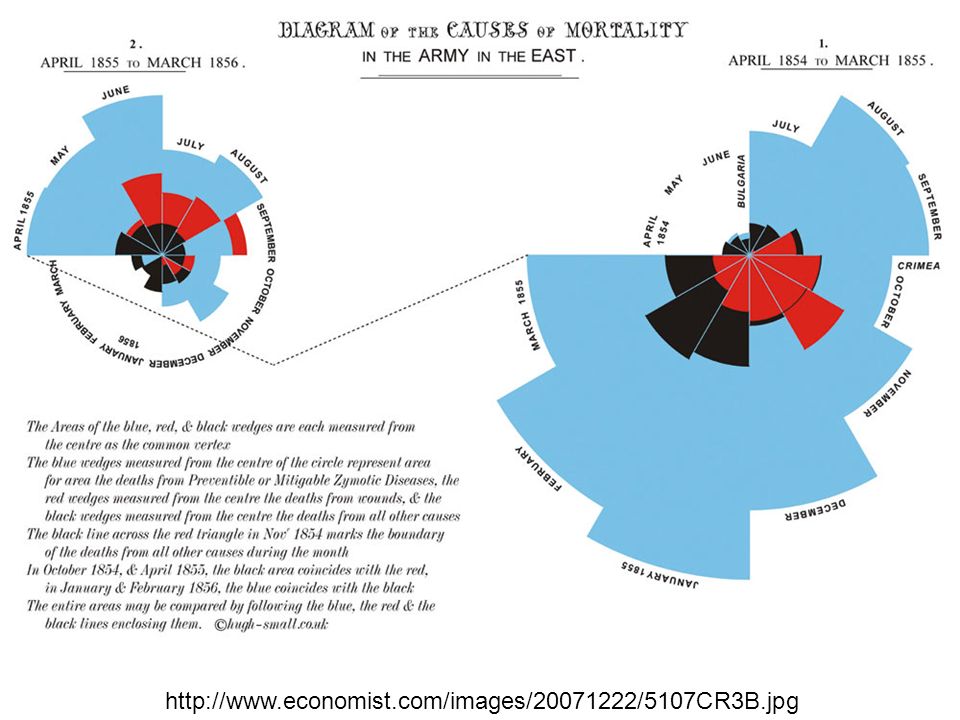

http://www.economist.com/images/20071222/5107CR3B.jpg
38
A polar variant of parallel coordinates http://en.wikipedia.org/wiki/Radar_chart Noms: star plots, star glyphs, star coordinates, spider chart, radar chart, polar chart, kiviat diagram.
39
A polar variant of parallel coordinates Stephen Few; http://www.perceptualedge.com/example4.php
40
A polar variant of parallel coordinates http://www.onscale.de/specbrowser/
41

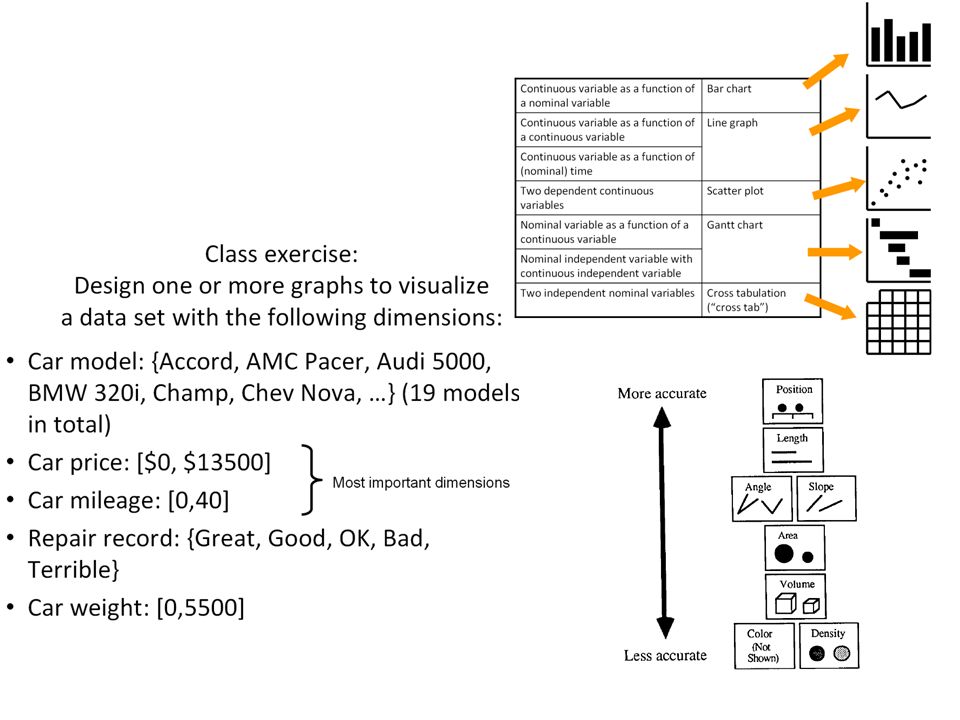

Class exercise: Design one or more graphs to visualize a data set of 19 tuples, with the following dimensions: Car model: {Accord, AMC Pacer, Audi 5000, BMW 320i, Champ, Chev Nova, …} (19 models in total) Car price: [$0, $13500] Car mileage: [0,40] Repair record: {Great, Good, OK, Bad, Terrible} Car weight: [0,5500] Most important dimensions
43
Exercise en classe: Concevoir un ou des graphiques pour visualiser un jeu de données de 19 points, ayant les dimensions suivantes: Modèle d’auto: {Accord, AMC Pacer, Audi 5000, BMW 320i, Champ, Chev Nova, …} (19 modèles en tout) Prix d’auto: [$0, $13500] Consommation: [0,40] Historique de réparations: {Excellent, Bon, OK, Mauvais, Affreux} Poids: [0,5500] Dimensions les plus importantes
