1 HOLOGRAPHIC DATA STORAGE

2 Contents

3 Introduction  Magnetic and conventional optical data storage technologies are approaching physical limits beyond which individual bits may be too small or too difficult to store.  Holographic data storage is an approach of storing information throughout the volume of a medium—not just on its surface.  With the rapidly increasing demand for increased storage capacity in a smaller space, this technology offers an economy in price.

4 Features  Next – Next generation Technology  1 HVD = 5800 CDs = 830 DVDs = 160 Blu-ray  Media type : Ultra-high density optical disc  Encoding : MPEG-2, MPEG-4 AVC (H.264), and VC-1  Capacity theoretically up to 3.9 TB  Developed by HSD Forum  Usage : Data Storage, : High-defination video and the possibility of Ultra-high defination video  permits over 10 Kbits of data to be read and written in parallel with a single flash

5 What Is Hologram ? A hologram is a recording of the optical interference pattern that forms at the intersection of two coherent optical beams  Signal beam  Reference beam on the holographic medium.

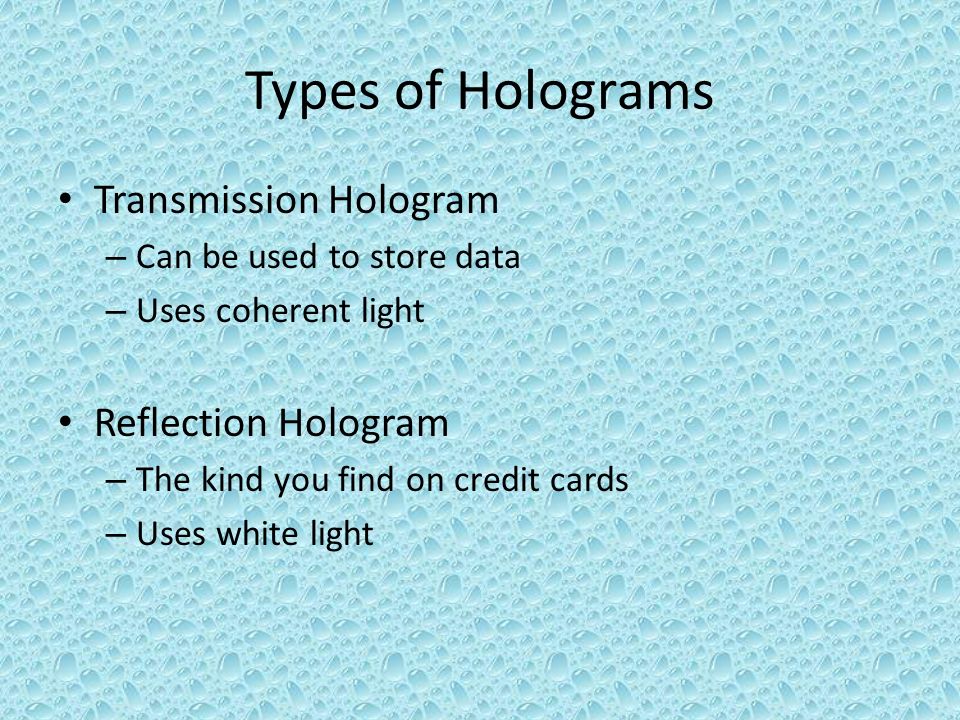

6 Types of Holograms Transmission Hologram – Can be used to store data – Uses coherent light Reflection Hologram – The kind you find on credit cards – Uses white light

7 Holography vs Photography  Black and white photograph – Intensity  Color photograph – Intensity and wavelength  Hologram – Intensity, phase, and sometimes wavelength

8 Review of Interference

9 Creating Hologram

10 Reconstructing the Image

11 Qualitative Explanation of Storage Reference beamObject imageResultant patternStored in film

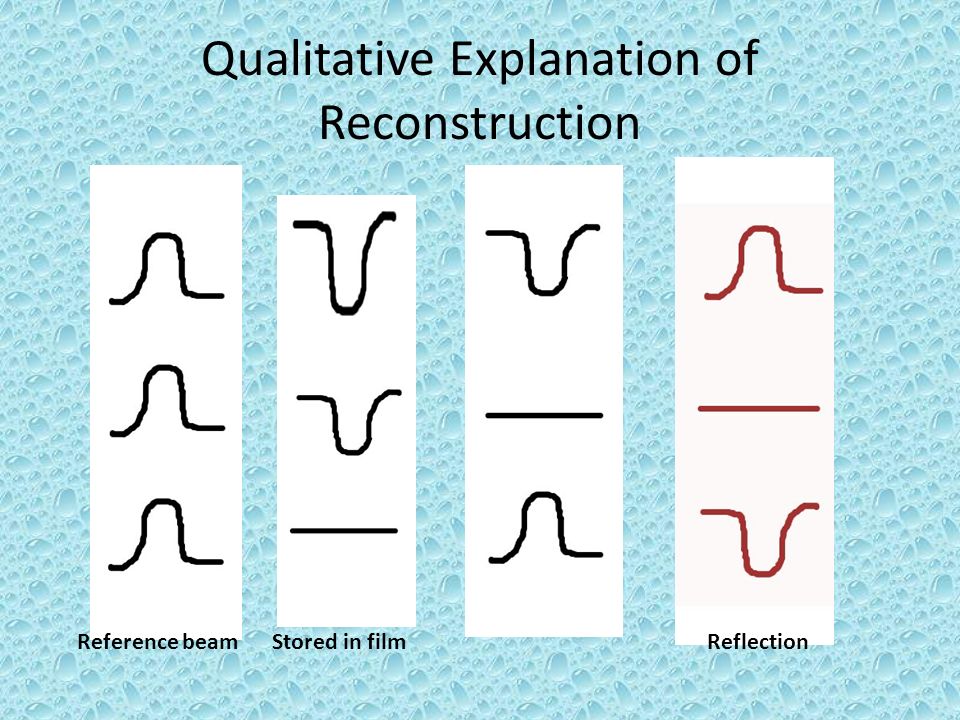

12 Qualitative Explanation of Reconstruction Reference beamStored in filmReflection

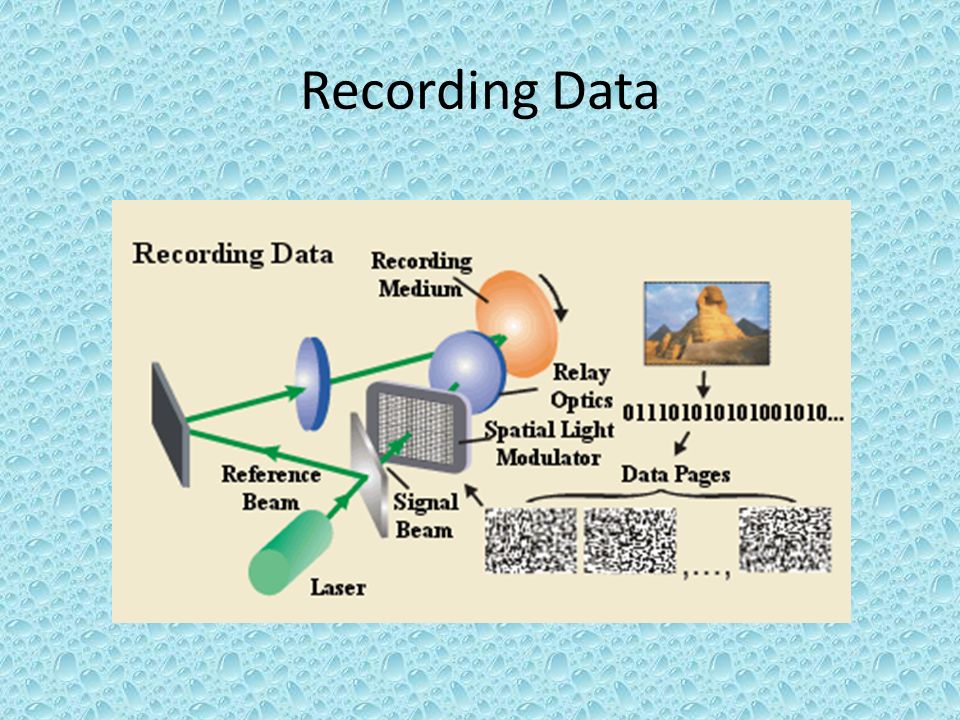

13 Recording Data

14 Spatial Light Modulator(SDM)  Translates electronic data (0’s and 1’s) into optical pattern of light and dark pixcels  Data is arranged in an array similar to a checker board of usually 1 million bits  By varying the angle of the reference beam,wavelength or media position, many holograms can be stored in the same volume of storage material

15 Reading Data

16 Pattern Left on Media

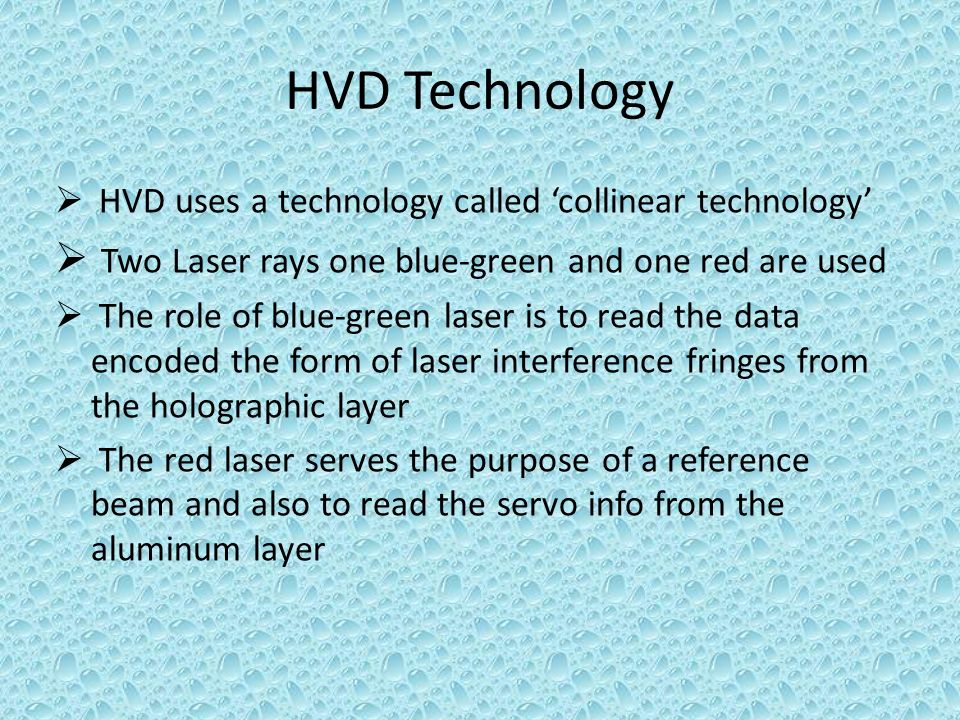

17 HVD Technology  HVD uses a technology called ‘collinear technology’  Two Laser rays one blue-green and one red are used  The role of blue-green laser is to read the data encoded the form of laser interference fringes from the holographic layer  The red laser serves the purpose of a reference beam and also to read the servo info from the aluminum layer

18

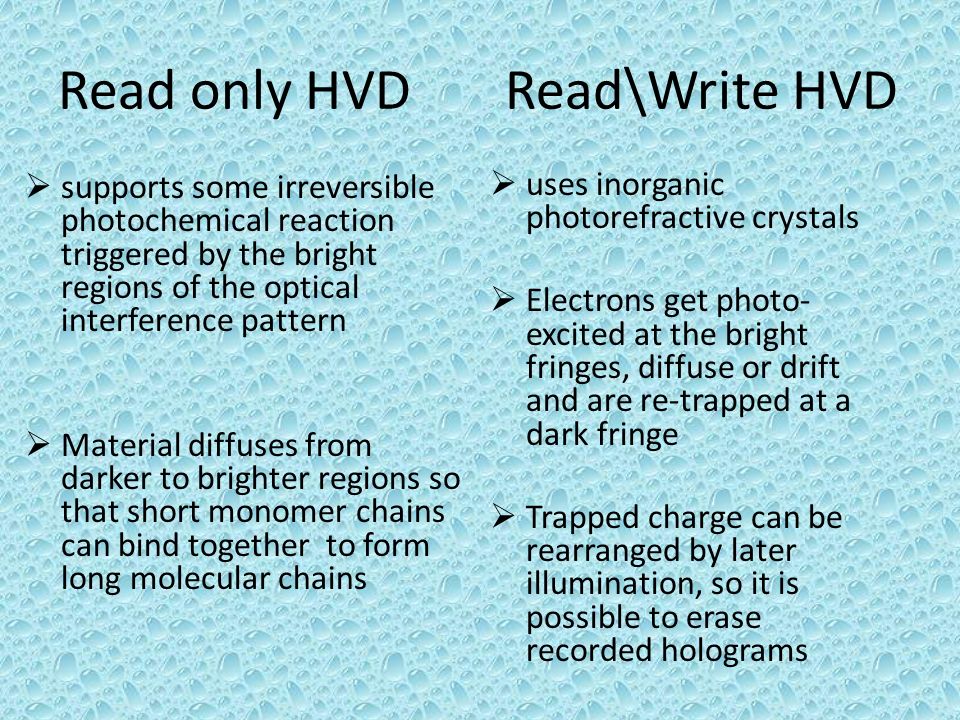

19 Read only HVD Read\Write HVD  supports some irreversible photochemical reaction triggered by the bright regions of the optical interference pattern  Material diffuses from darker to brighter regions so that short monomer chains can bind together to form long molecular chains  uses inorganic photorefractive crystals  Electrons get photo- excited at the bright fringes, diffuse or drift and are re-trapped at a dark fringe  Trapped charge can be rearranged by later illumination, so it is possible to erase recorded holograms

20

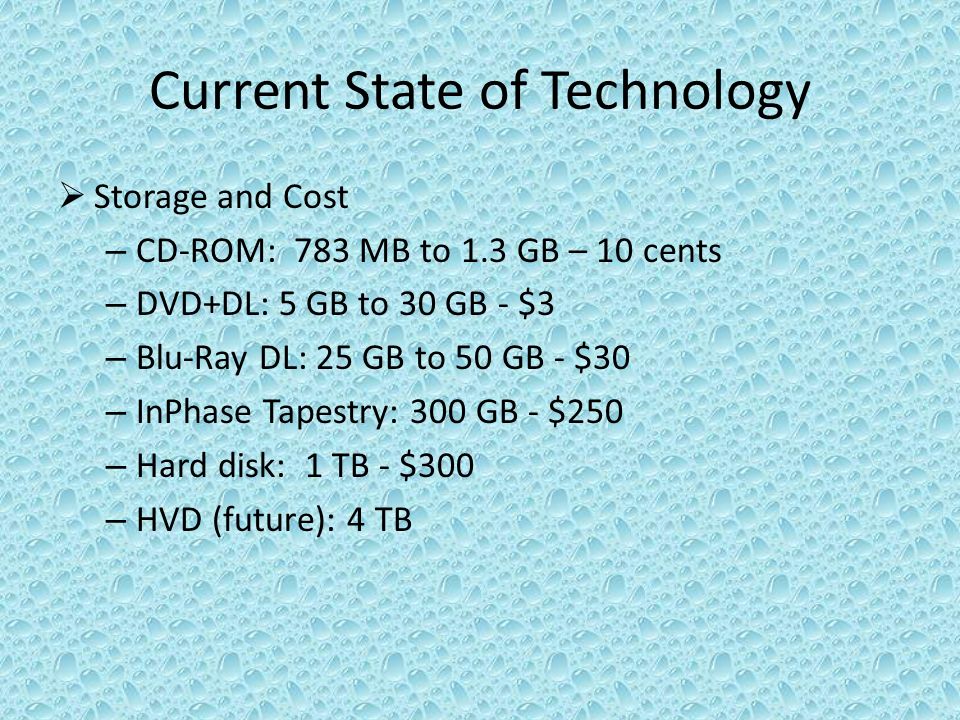

21 Current State of Technology  Storage and Cost – CD-ROM: 783 MB to 1.3 GB – 10 cents – DVD+DL: 5 GB to 30 GB - $3 – Blu-Ray DL: 25 GB to 50 GB - $30 – InPhase Tapestry: 300 GB - $250 – Hard disk: 1 TB - $300 – HVD (future): 4 TB

22 Current State of Technology  Tansfer rates and Recordable Player Approx Cost – CD-ROM 52x: ~ 5 MB/second --$200 – DVD 16x: ~ 20 MB/s --$ 2000 – InPhase Tapestry: 20 MB/sec – Blu-Ray and HDDVD: ~ 30 MB/sec --$2000 – 7200 rpm Hard disk: 80 MB/sec – HVD: 1 GB/sec --$3000

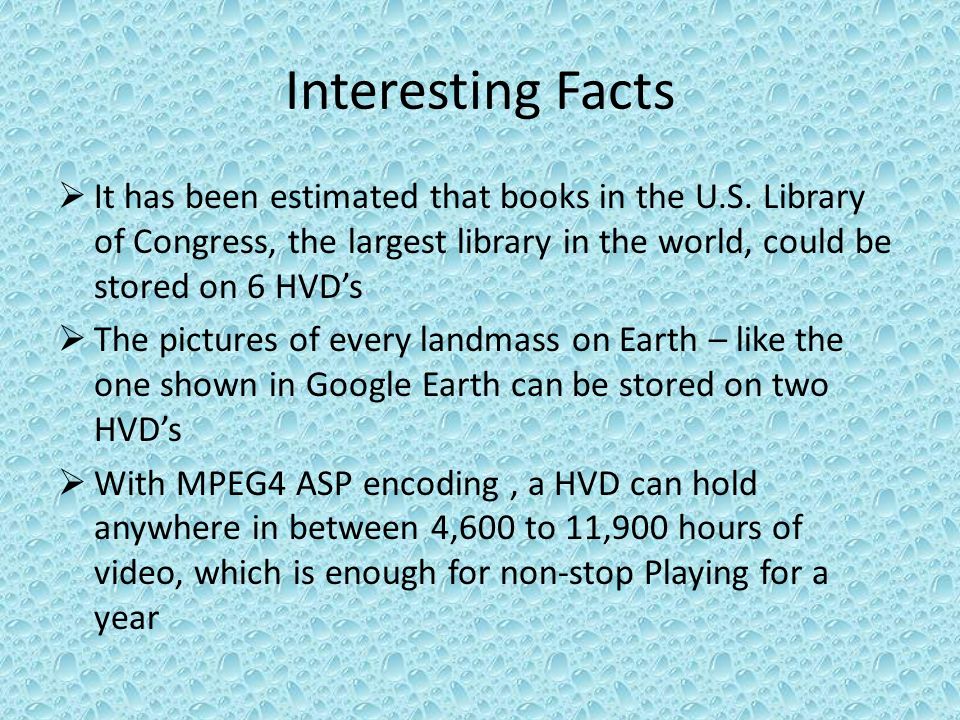

23 Interesting Facts  It has been estimated that books in the U.S. Library of Congress, the largest library in the world, could be stored on 6 HVD’s  The pictures of every landmass on Earth – like the one shown in Google Earth can be stored on two HVD’s  With MPEG4 ASP encoding, a HVD can hold anywhere in between 4,600 to 11,900 hours of video, which is enough for non-stop Playing for a year

24

25

26
