1 Database System Concepts, 5th Ed. ©Silberschatz, Korth and Sudarshan Chapter 6: Entity-Relationship Model

2 ©Silberschatz, Korth and Sudarshan6.2Database System Concepts - 5 th Edition, Oct 5, 2006 Chapter 6: Entity-Relationship Model Modeling Constraints E-R Diagram Design Issues Weak Entity Sets Extended E-R Features Design of the Bank Database Reduction to Relation Schemas Database Design UML ** (Self-Reading)

3 ©Silberschatz, Korth and Sudarshan6.3Database System Concepts - 5 th Edition, Oct 5, 2006 Modeling A database can be modeled as: a collection of entities, relationship among entities. An entity is an object that exists and is distinguishable from other objects. Example: specific person, company, event, plant Entities have attributes Example: people have names and addresses An entity set is a set of entities of the same type that share the same properties. Example: set of all persons, companies, trees, holidays

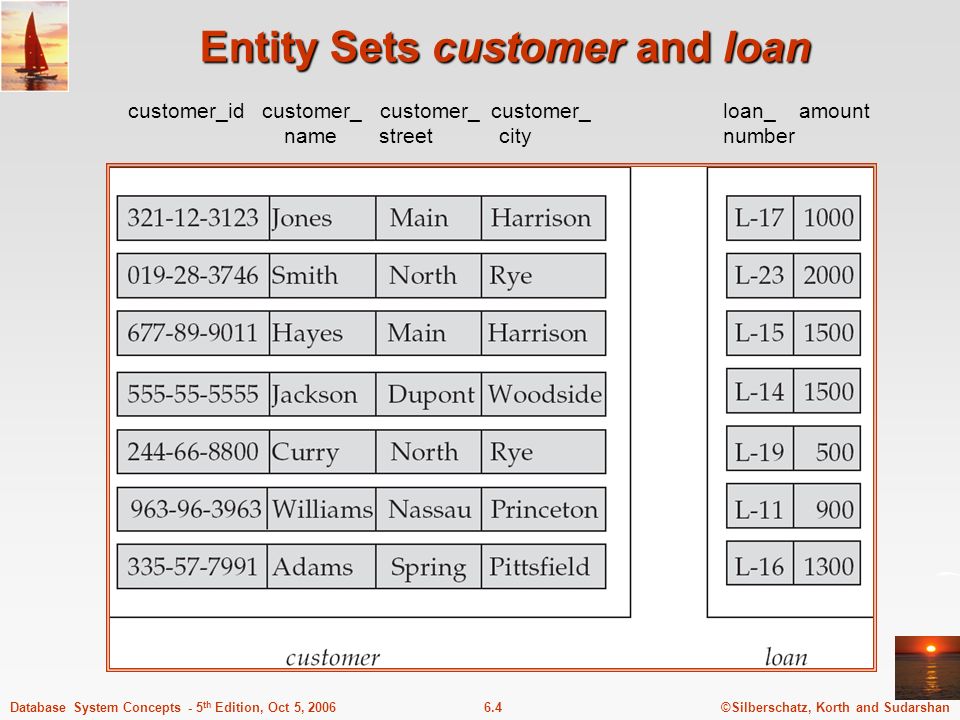

4 ©Silberschatz, Korth and Sudarshan6.4Database System Concepts - 5 th Edition, Oct 5, 2006 Entity Sets customer and loan customer_id customer_ customer_ customer_ loan_ amount name street city number

5 ©Silberschatz, Korth and Sudarshan6.5Database System Concepts - 5 th Edition, Oct 5, 2006 Relationship Sets A relationship is an association among several entities Example: HayesdepositorA-102 customer entityrelationship setaccount entity A relationship set is a mathematical relation among n  2 entities, each taken from entity sets Example: (Hayes, A-102)  depositor

6 ©Silberschatz, Korth and Sudarshan6.6Database System Concepts - 5 th Edition, Oct 5, 2006 Relationship Sets (Cont.) An attribute can also be property of a relationship set. For instance, the depositor relationship set between entity sets customer and account may have the attribute access-date

7 ©Silberschatz, Korth and Sudarshan6.7Database System Concepts - 5 th Edition, Oct 5, 2006 Degree of a Relationship Set Refers to number of entity sets that participate in a relationship set. Relationship sets that involve two entity sets are binary (or degree two). Generally, most relationship sets in a database system are binary. Relationship sets may involve more than two entity sets. Relationships between more than two entity sets are rare. Most relationships are binary. (More on this later.)  Example: Suppose employees of a bank may have jobs (responsibilities) at multiple branches, with different jobs at different branches. Then there is a ternary relationship set between entity sets employee, job, and branch

8 ©Silberschatz, Korth and Sudarshan6.8Database System Concepts - 5 th Edition, Oct 5, 2006 Attributes An entity is represented by a set of attributes, that is descriptive properties possessed by all members of an entity set. Domain – the set of permitted values for each attribute Attribute types: Simple and composite attributes. Single-valued and multi-valued attributes  Example: multivalued attribute: phone_numbers, dependents Derived attributes  Can be computed from other attributes  Example: age, given date_of_birth Example: customer = (customer_id, customer_name, customer_street, customer_city ) loan = (loan_number, amount )

9 ©Silberschatz, Korth and Sudarshan6.9Database System Concepts - 5 th Edition, Oct 5, 2006 Composite Attributes

10 ©Silberschatz, Korth and Sudarshan6.10Database System Concepts - 5 th Edition, Oct 5, 2006 Mapping Cardinality Constraints Express the number of entities to which another entity can be associated via a relationship set. Most useful in describing binary relationship sets. For a binary relationship set the mapping cardinality must be one of the following types: One to one One to many Many to one Many to many

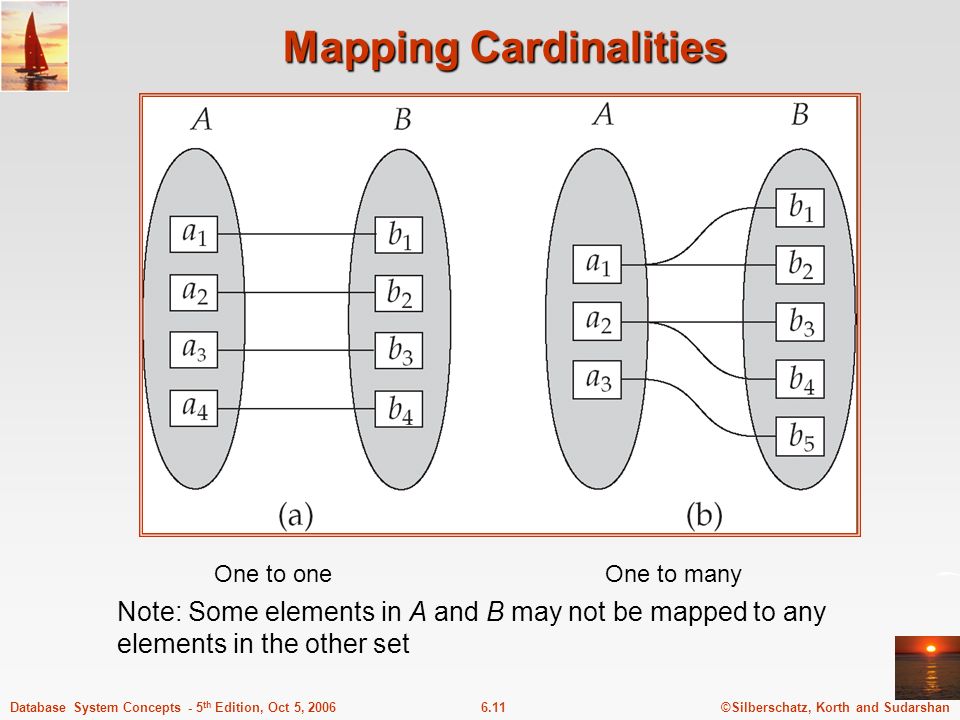

11 ©Silberschatz, Korth and Sudarshan6.11Database System Concepts - 5 th Edition, Oct 5, 2006 Mapping Cardinalities One to oneOne to many Note: Some elements in A and B may not be mapped to any elements in the other set

12 ©Silberschatz, Korth and Sudarshan6.12Database System Concepts - 5 th Edition, Oct 5, 2006 Mapping Cardinalities Many to oneMany to many Note: Some elements in A and B may not be mapped to any elements in the other set

13 ©Silberschatz, Korth and Sudarshan6.13Database System Concepts - 5 th Edition, Oct 5, 2006 Keys A super key of an entity set is a set of one or more attributes whose values uniquely determine each entity. A candidate key of an entity set is a minimal super key Customer_id is candidate key of customer account_number is candidate key of account Although several candidate keys may exist, one of the candidate keys is selected to be the primary key.

14 ©Silberschatz, Korth and Sudarshan6.14Database System Concepts - 5 th Edition, Oct 5, 2006 E-R Diagrams Rectangles represent entity sets. Diamonds represent relationship sets. Lines link attributes to entity sets and entity sets to relationship sets. Ellipses represent attributes Double ellipses represent multivalued attributes. Dashed ellipses denote derived attributes. Underline indicates primary key attributes (will study later)

15 ©Silberschatz, Korth and Sudarshan6.15Database System Concepts - 5 th Edition, Oct 5, 2006 E-R Diagram With Composite, Multivalued, and Derived Attributes

16 ©Silberschatz, Korth and Sudarshan6.16Database System Concepts - 5 th Edition, Oct 5, 2006 Relationship Sets with Attributes

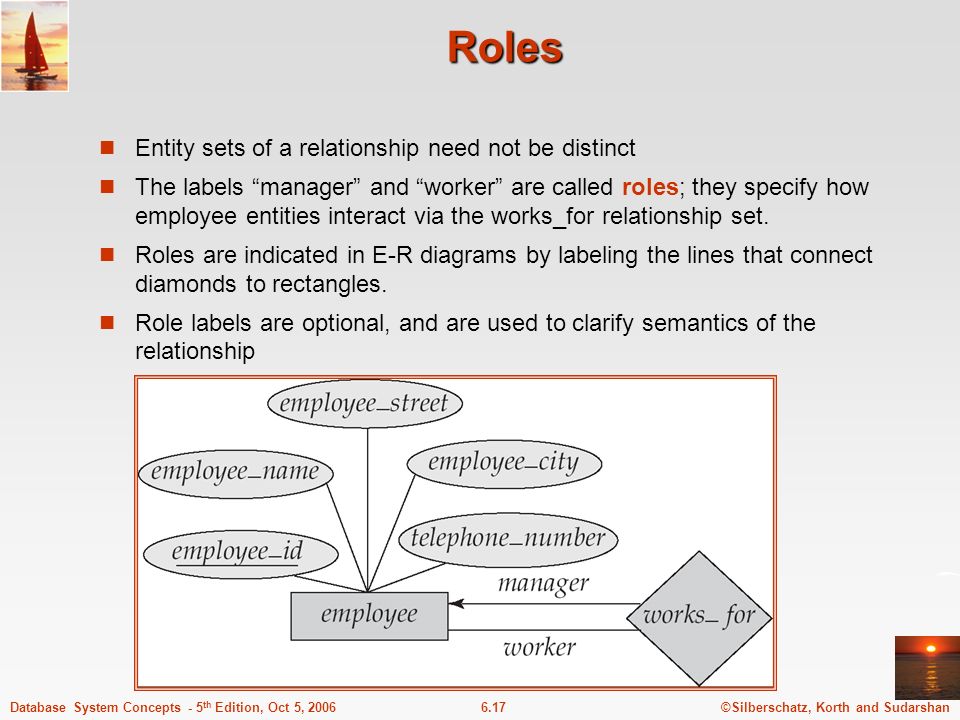

17 ©Silberschatz, Korth and Sudarshan6.17Database System Concepts - 5 th Edition, Oct 5, 2006 Roles Entity sets of a relationship need not be distinct The labels “manager” and “worker” are called roles; they specify how employee entities interact via the works_for relationship set. Roles are indicated in E-R diagrams by labeling the lines that connect diamonds to rectangles. Role labels are optional, and are used to clarify semantics of the relationship

18 ©Silberschatz, Korth and Sudarshan6.18Database System Concepts - 5 th Edition, Oct 5, 2006 Cardinality Constraints We express cardinality constraints by drawing either a directed line (  ), signifying “one,” or an undirected line (—), signifying “many,” between the relationship set and the entity set. One-to-one relationship: A customer is associated with at most one loan via the relationship borrower A loan is associated with at most one customer via borrower

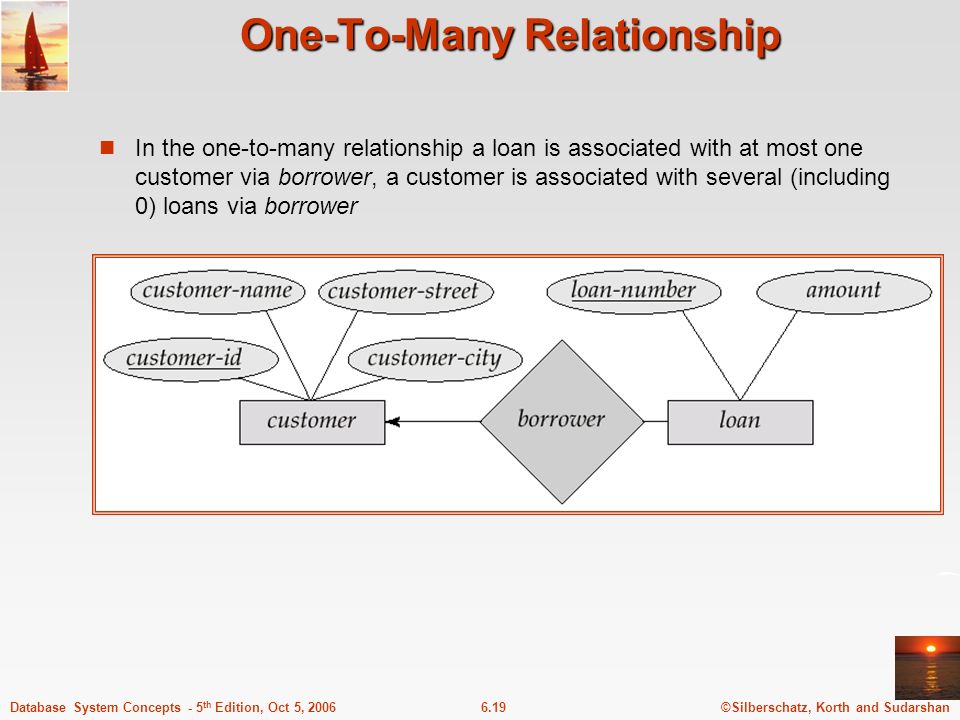

19 ©Silberschatz, Korth and Sudarshan6.19Database System Concepts - 5 th Edition, Oct 5, 2006 One-To-Many Relationship In the one-to-many relationship a loan is associated with at most one customer via borrower, a customer is associated with several (including 0) loans via borrower

20 ©Silberschatz, Korth and Sudarshan6.20Database System Concepts - 5 th Edition, Oct 5, 2006 Many-To-One Relationships In a many-to-one relationship a loan is associated with several (including 0) customers via borrower, a customer is associated with at most one loan via borrower

21 ©Silberschatz, Korth and Sudarshan6.21Database System Concepts - 5 th Edition, Oct 5, 2006 Many-To-Many Relationship A customer is associated with several (possibly 0) loans via borrower A loan is associated with several (possibly 0) customers via borrower

22 ©Silberschatz, Korth and Sudarshan6.22Database System Concepts - 5 th Edition, Oct 5, 2006 Participation of an Entity Set in a Relationship Set Total participation (indicated by double line): every entity in the entity set participates in at least one relationship in the relationship set E.g. participation of loan in borrower is total  every loan must have a customer associated to it via borrower Partial participation: some entities may not participate in any relationship in the relationship set Example: participation of customer in borrower is partial

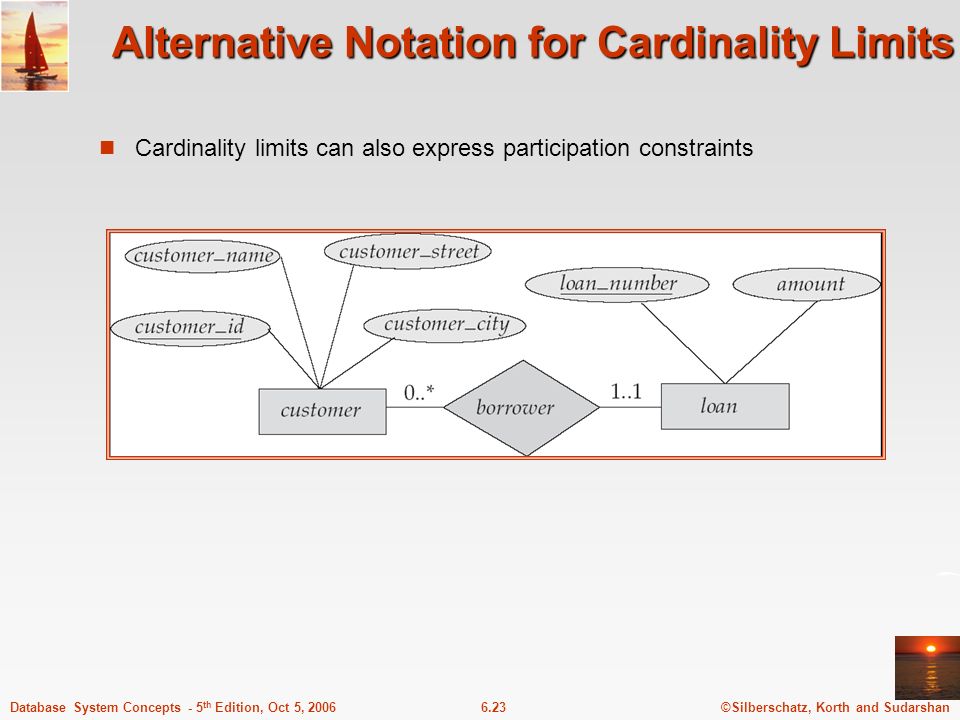

23 ©Silberschatz, Korth and Sudarshan6.23Database System Concepts - 5 th Edition, Oct 5, 2006 Alternative Notation for Cardinality Limits Cardinality limits can also express participation constraints

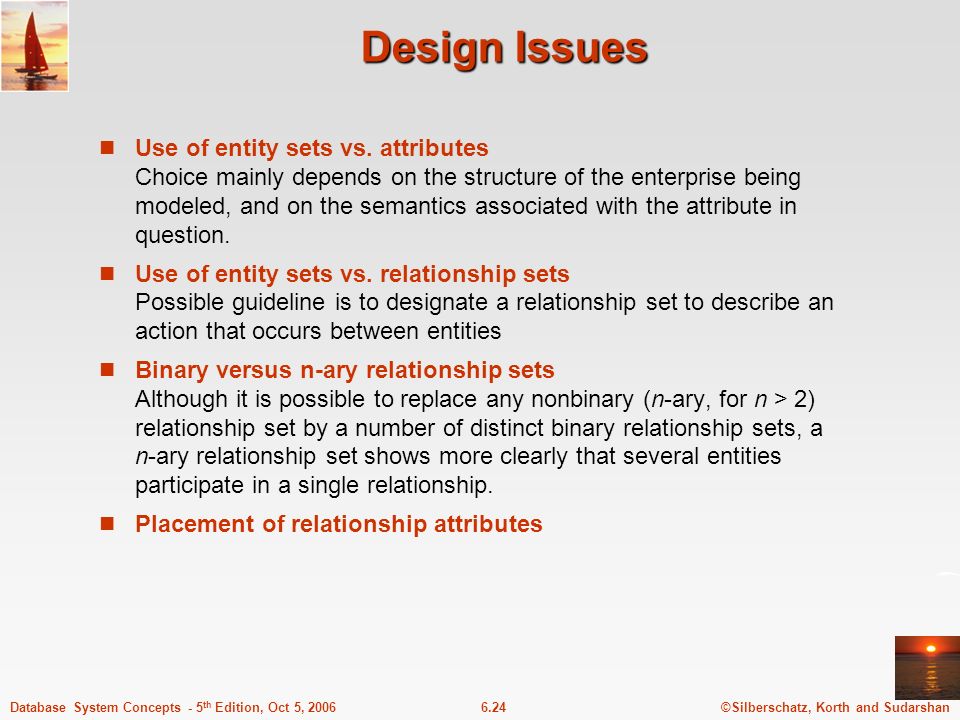

24 ©Silberschatz, Korth and Sudarshan6.24Database System Concepts - 5 th Edition, Oct 5, 2006 Design Issues Use of entity sets vs. attributes Choice mainly depends on the structure of the enterprise being modeled, and on the semantics associated with the attribute in question. Use of entity sets vs. relationship sets Possible guideline is to designate a relationship set to describe an action that occurs between entities Binary versus n-ary relationship sets Although it is possible to replace any nonbinary (n-ary, for n > 2) relationship set by a number of distinct binary relationship sets, a n-ary relationship set shows more clearly that several entities participate in a single relationship. Placement of relationship attributes

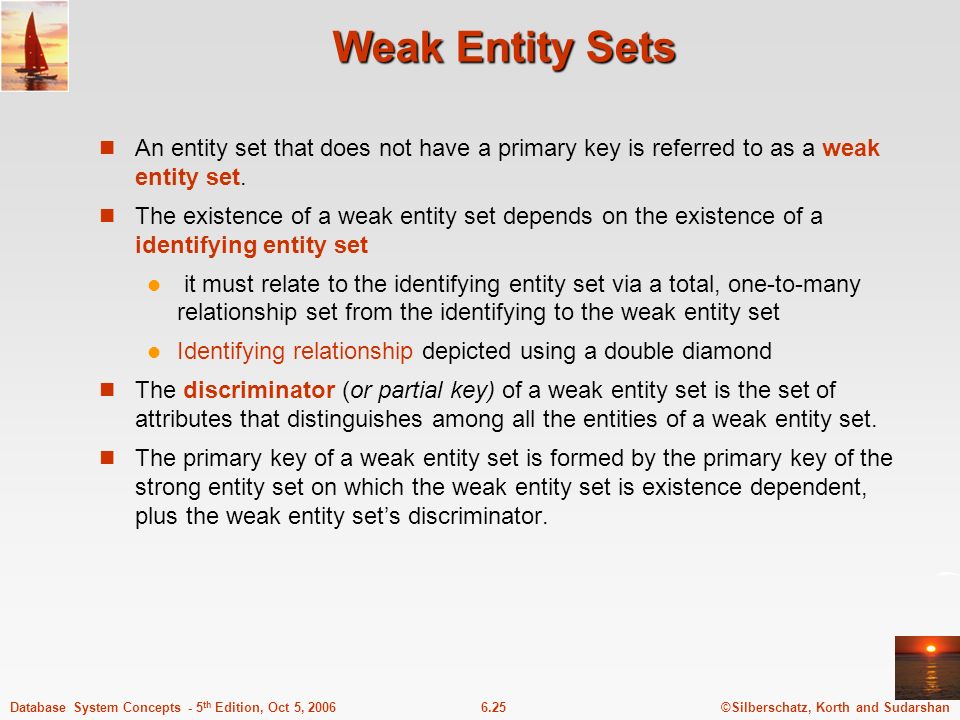

25 ©Silberschatz, Korth and Sudarshan6.25Database System Concepts - 5 th Edition, Oct 5, 2006 Weak Entity Sets An entity set that does not have a primary key is referred to as a weak entity set. The existence of a weak entity set depends on the existence of a identifying entity set it must relate to the identifying entity set via a total, one-to-many relationship set from the identifying to the weak entity set Identifying relationship depicted using a double diamond The discriminator (or partial key) of a weak entity set is the set of attributes that distinguishes among all the entities of a weak entity set. The primary key of a weak entity set is formed by the primary key of the strong entity set on which the weak entity set is existence dependent, plus the weak entity set’s discriminator.

26 ©Silberschatz, Korth and Sudarshan6.26Database System Concepts - 5 th Edition, Oct 5, 2006 Weak Entity Sets (Cont.) We depict a weak entity set by double rectangles. We underline the discriminator of a weak entity set with a dashed line. payment_number – discriminator of the payment entity set Primary key for payment – (loan_number, payment_number)

27 ©Silberschatz, Korth and Sudarshan6.27Database System Concepts - 5 th Edition, Oct 5, 2006 Extended E-R Features: Specialization Top-down design process; we designate subgroupings within an entity set that are distinctive from other entities in the set. These subgroupings become lower-level entity sets that have attributes or participate in relationships that do not apply to the higher-level entity set. Depicted by a triangle component labeled ISA (E.g. customer “is a” person). Attribute inheritance – a lower-level entity set inherits all the attributes and relationship participation of the higher-level entity set to which it is linked.

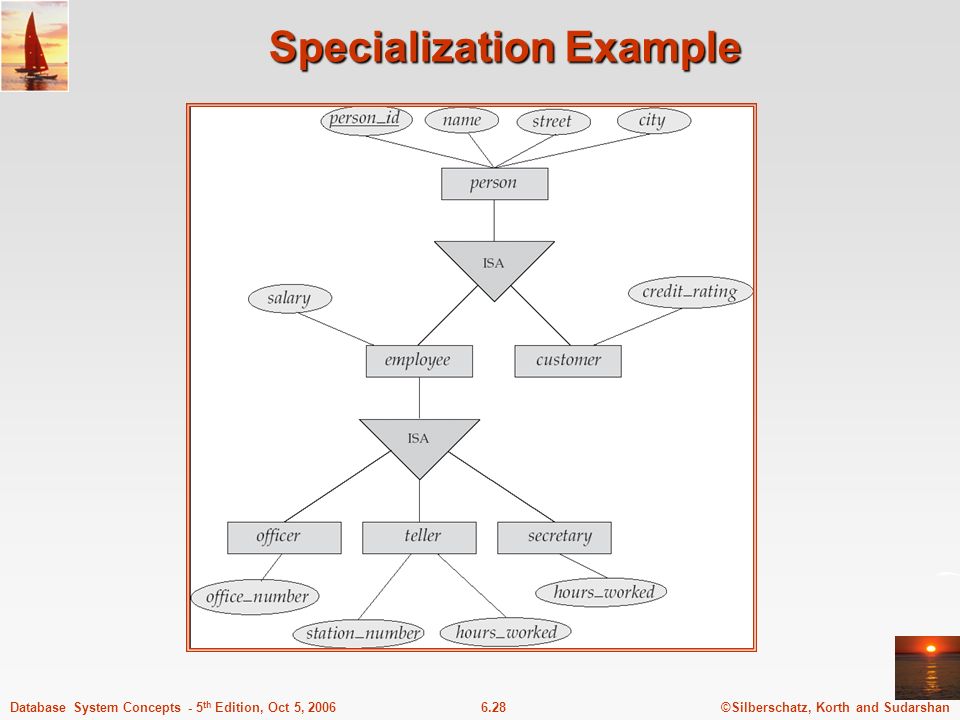

28 ©Silberschatz, Korth and Sudarshan6.28Database System Concepts - 5 th Edition, Oct 5, 2006 Specialization Example

29 ©Silberschatz, Korth and Sudarshan6.29Database System Concepts - 5 th Edition, Oct 5, 2006 Extended ER Features: Generalization A bottom-up design process – combine a number of entity sets that share the same features into a higher-level entity set. Specialization and generalization are simple inversions of each other; they are represented in an E-R diagram in the same way. The terms specialization and generalization are used interchangeably.

30 ©Silberschatz, Korth and Sudarshan6.30Database System Concepts - 5 th Edition, Oct 5, 2006 Specialization and Generalization (Cont.) Can have multiple specializations of an entity set based on different features. E.g. permanent_employee vs. temporary_employee, in addition to officer vs. secretary vs. teller Each particular employee would be a member of one of permanent_employee or temporary_employee, and also a member of one of officer, secretary, or teller The ISA relationship also referred to as superclass - subclass relationship

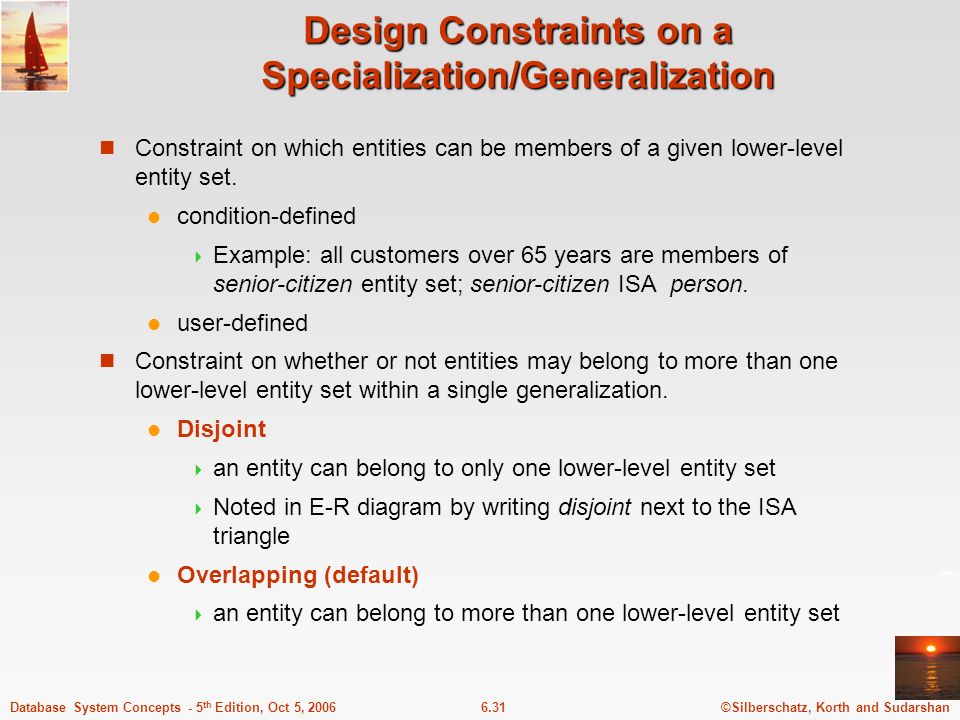

31 ©Silberschatz, Korth and Sudarshan6.31Database System Concepts - 5 th Edition, Oct 5, 2006 Design Constraints on a Specialization/Generalization Constraint on which entities can be members of a given lower-level entity set. condition-defined  Example: all customers over 65 years are members of senior-citizen entity set; senior-citizen ISA person. user-defined Constraint on whether or not entities may belong to more than one lower-level entity set within a single generalization. Disjoint  an entity can belong to only one lower-level entity set  Noted in E-R diagram by writing disjoint next to the ISA triangle Overlapping (default)  an entity can belong to more than one lower-level entity set

32 ©Silberschatz, Korth and Sudarshan6.32Database System Concepts - 5 th Edition, Oct 5, 2006 Design Constraints on a Specialization/Generalization (Cont.) Completeness constraint -- specifies whether or not an entity in the higher-level entity set must belong to at least one of the lower-level entity sets within a generalization. total : an entity must belong to one of the lower-level entity sets. Ex: Account Partial (default): an entity need not belong to one of the lower-level entity sets  Noted in E-R diagram by using a double line to connect the box representing the higher-level entity set to the triangle symbol

33 ©Silberschatz, Korth and Sudarshan6.33Database System Concepts - 5 th Edition, Oct 5, 2006 Aggregation Consider the ternary relationship works_on Suppose we want to record managers for tasks performed by an employee at a branch

34 ©Silberschatz, Korth and Sudarshan6.34Database System Concepts - 5 th Edition, Oct 5, 2006 Aggregation (Cont.) Relationship sets works_on and manages represent overlapping information Every manages relationship corresponds to a works_on relationship However, some works_on relationships may not correspond to any manages relationships  So we can’t discard the works_on relationship Eliminate this redundancy via aggregation Treat relationship as an abstract entity Allows relationships between relationships Abstraction of relationship into new entity Without introducing redundancy, the following diagram represents: An employee works on a particular job at a particular branch An employee, branch, job combination may have an associated manager

35 ©Silberschatz, Korth and Sudarshan6.35Database System Concepts - 5 th Edition, Oct 5, 2006 E-R Diagram With Aggregation

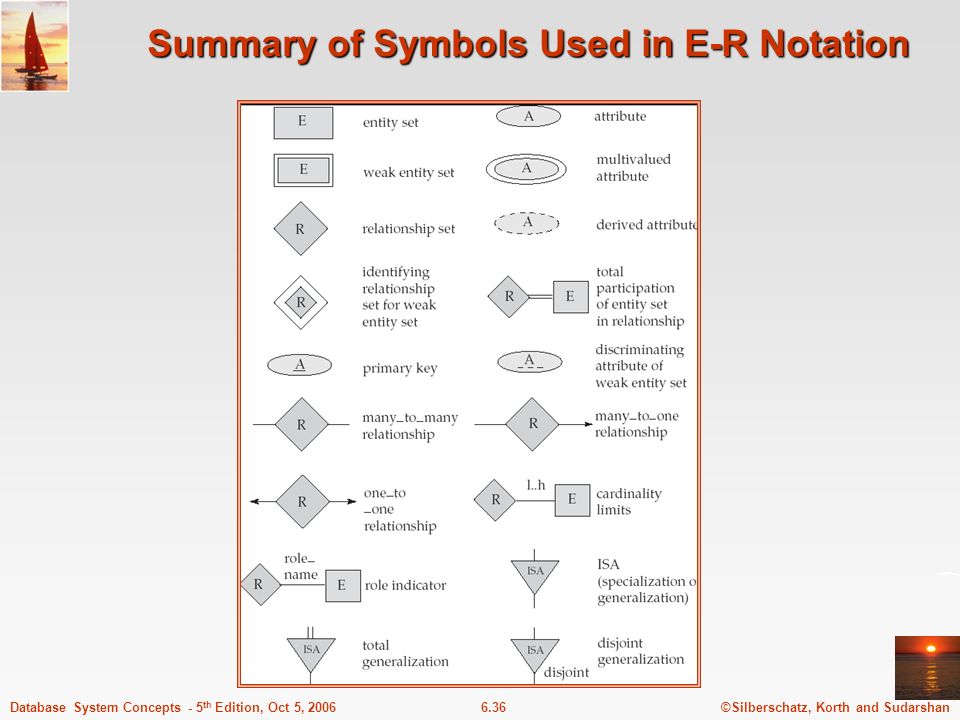

36 ©Silberschatz, Korth and Sudarshan6.36Database System Concepts - 5 th Edition, Oct 5, 2006 Summary of Symbols Used in E-R Notation

37 ©Silberschatz, Korth and Sudarshan6.37Database System Concepts - 5 th Edition, Oct 5, 2006 E-R Design Decisions The use of an attribute or entity set to represent an object. Whether a real-world concept is best expressed by an entity set or a relationship set. The use of a ternary relationship versus a pair of binary relationships. The use of a strong or weak entity set. The use of specialization/generalization – contributes to modularity in the design. The use of aggregation – can treat the aggregate entity set as a single unit without concern for the details of its internal structure.

38 ©Silberschatz, Korth and Sudarshan6.38Database System Concepts - 5 th Edition, Oct 5, 2006 E-R Diagram for a Banking Enterprise

39 ©Silberschatz, Korth and Sudarshan6.39Database System Concepts - 5 th Edition, Oct 5, 2006 Reduction to Relation Schemas Primary keys allow entity sets and relationship sets to be expressed uniformly as relation schemas that represent the contents of the database. A database which conforms to an E-R diagram can be represented by a collection of schemas. For each entity set and relationship set there is a unique schema that is assigned the name of the corresponding entity set or relationship set. Each schema has a number of columns (generally corresponding to attributes), which have unique names.

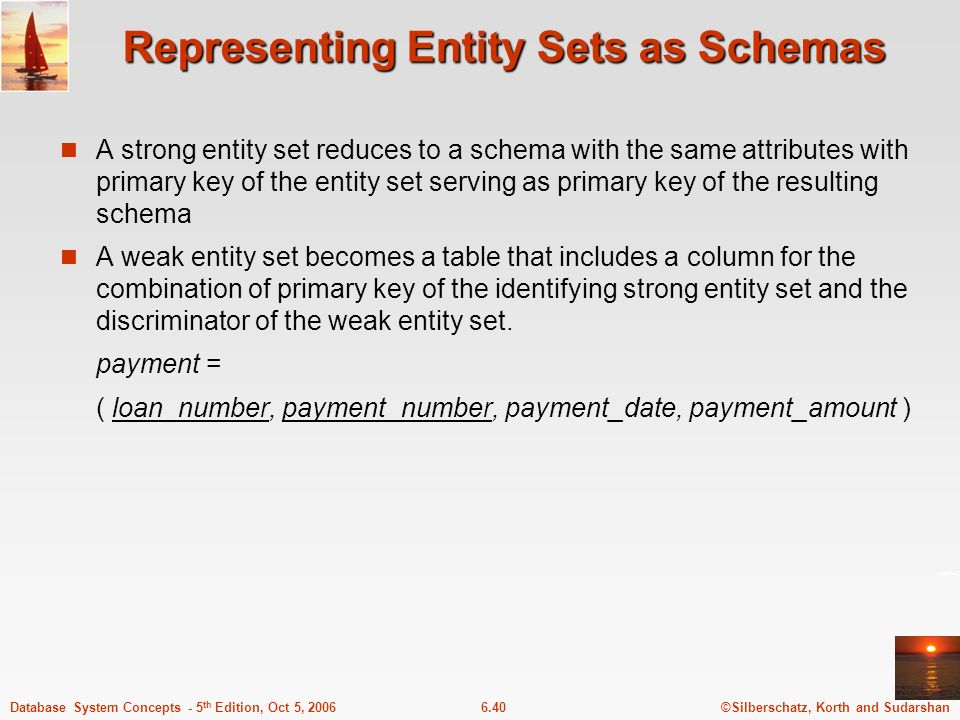

40 ©Silberschatz, Korth and Sudarshan6.40Database System Concepts - 5 th Edition, Oct 5, 2006 Representing Entity Sets as Schemas A strong entity set reduces to a schema with the same attributes with primary key of the entity set serving as primary key of the resulting schema A weak entity set becomes a table that includes a column for the combination of primary key of the identifying strong entity set and the discriminator of the weak entity set. payment = ( loan_number, payment_number, payment_date, payment_amount )

41 ©Silberschatz, Korth and Sudarshan6.41Database System Concepts - 5 th Edition, Oct 5, 2006 Representing Relationship Sets as Schemas A many-to-many relationship set is represented as a schema with attributes for the primary keys of the two participating entity sets, and any descriptive attributes of the relationship set. The union of the primary key attributes from the participating entity sets becomes the primary key Example: schema for relationship set borrower borrower = (customer_id, loan_number)

42 ©Silberschatz, Korth and Sudarshan6.42Database System Concepts - 5 th Edition, Oct 5, 2006 Redundancy of Schemas Many-to-one and one-to-many relationship sets that are total on the many-side can be represented by adding an extra attribute to the “many” side, containing the primary key of the “one” side Example: Instead of creating a schema for relationship set account_branch, add an attribute branch_name to the schema arising from entity set account

43 ©Silberschatz, Korth and Sudarshan6.43Database System Concepts - 5 th Edition, Oct 5, 2006 Redundancy of Schemas (Cont.) For one-to-one relationship sets, either side can be chosen to act as the primary key for the relationship That is, extra attribute can be added to either of the tables corresponding to the two entity sets If participation is partial on the “many” side, replacing a schema by an extra attribute in the schema corresponding to the “many” side could result in null values The schema corresponding to a relationship set linking a weak entity set to its identifying strong entity set is redundant. Example: The payment schema already contains the attributes that would appear in the loan_payment schema (i.e., loan_number and payment_number).

44 ©Silberschatz, Korth and Sudarshan6.44Database System Concepts - 5 th Edition, Oct 5, 2006 Composite and Multivalued Attributes Composite attributes are flattened out by creating a separate attribute for each component attribute Example: given entity set customer with composite attribute name with component attributes first_name and last_name the schema corresponding to the entity set has two attributes name.first_name and name.last_name A multivalued attribute M of an entity E is represented by a separate schema EM Schema EM has attributes corresponding to the primary key of E and an attribute corresponding to multivalued attribute M Example: Multivalued attribute dependent_names of employee is represented by a schema: employee_dependent_names = ( employee_id, dname) Each value of the multivalued attribute maps to a separate tuple of the relation on schema EM  For example, an employee entity with primary key 123-45-6789 and dependents Jack and Jane maps to two tuples: (123-45-6789, Jack) and (123-45-6789, Jane)

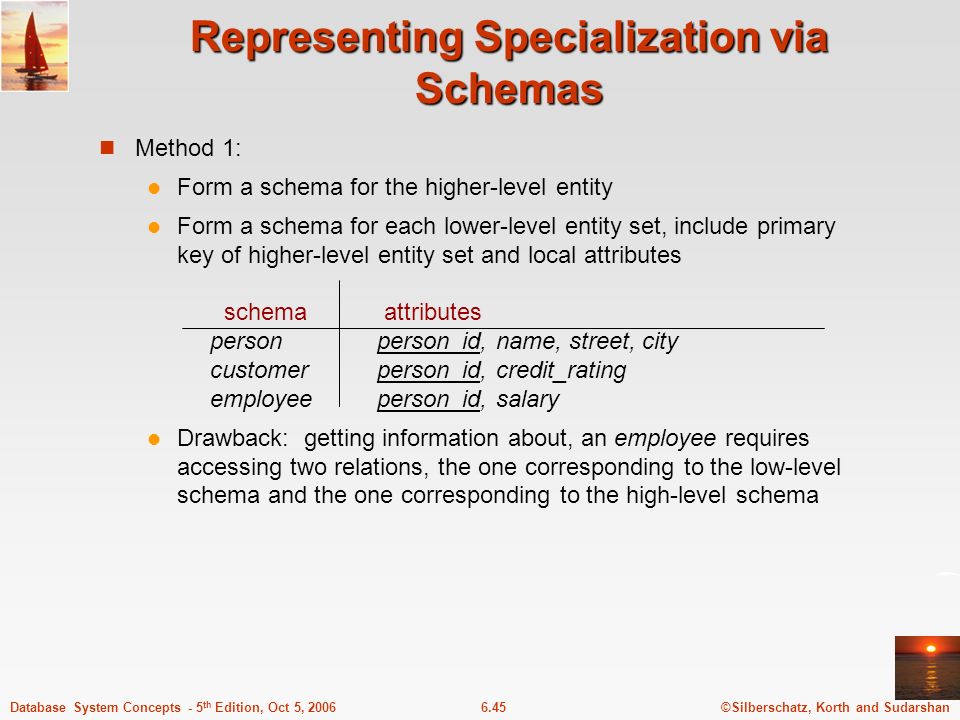

45 ©Silberschatz, Korth and Sudarshan6.45Database System Concepts - 5 th Edition, Oct 5, 2006 Representing Specialization via Schemas Method 1: Form a schema for the higher-level entity Form a schema for each lower-level entity set, include primary key of higher-level entity set and local attributes schema attributes person person_id, name, street, city customer person_id, credit_rating employee person_id, salary Drawback: getting information about, an employee requires accessing two relations, the one corresponding to the low-level schema and the one corresponding to the high-level schema

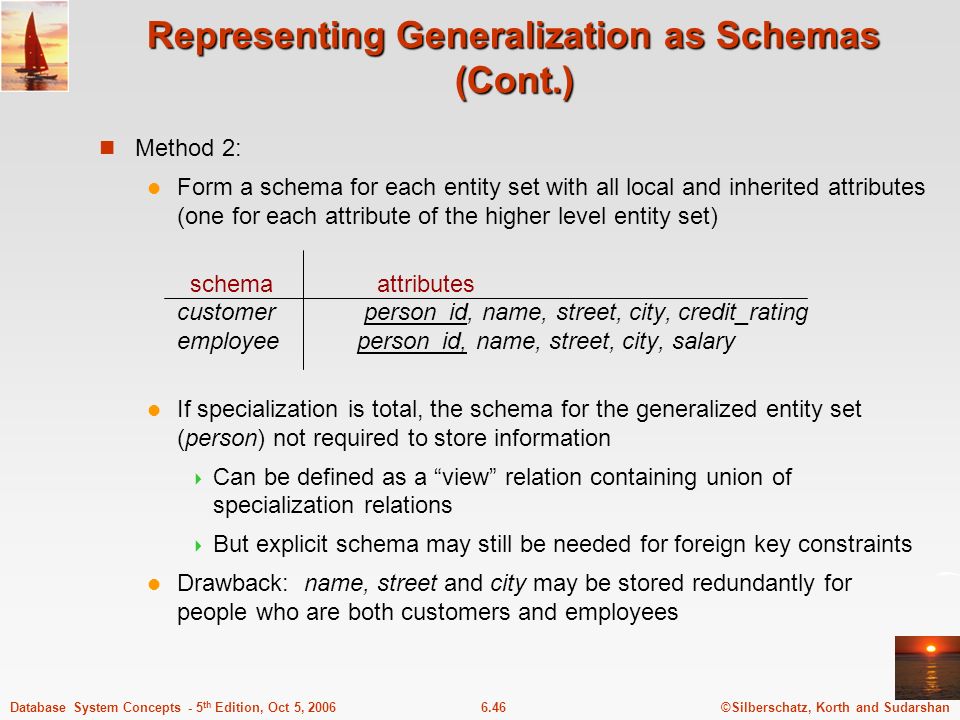

46 ©Silberschatz, Korth and Sudarshan6.46Database System Concepts - 5 th Edition, Oct 5, 2006 Representing Generalization as Schemas (Cont.) Method 2: Form a schema for each entity set with all local and inherited attributes (one for each attribute of the higher level entity set) schema attributes customer person_id, name, street, city, credit_rating employee person_id, name, street, city, salary If specialization is total, the schema for the generalized entity set (person) not required to store information  Can be defined as a “view” relation containing union of specialization relations  But explicit schema may still be needed for foreign key constraints Drawback: name, street and city may be stored redundantly for people who are both customers and employees

47 ©Silberschatz, Korth and Sudarshan6.47Database System Concepts - 5 th Edition, Oct 5, 2006 Schemas Corresponding to Aggregation To represent aggregation, create a schema containing primary key of the aggregated relationship, the primary key of the associated entity set any descriptive attributes

48 ©Silberschatz, Korth and Sudarshan6.48Database System Concepts - 5 th Edition, Oct 5, 2006 Schemas Corresponding to Aggregation (Cont.) For example, to represent aggregation manages between relationship works_on and entity set manager, create a schema manages (employee_id, branch_name, title, manager_name) Schema works_on is redundant provided we are willing to store null values for attribute manager_name in relation on schema manages

49 Database System Concepts, 5th Ed. ©Silberschatz, Korth and Sudarshan End of Chapter 2

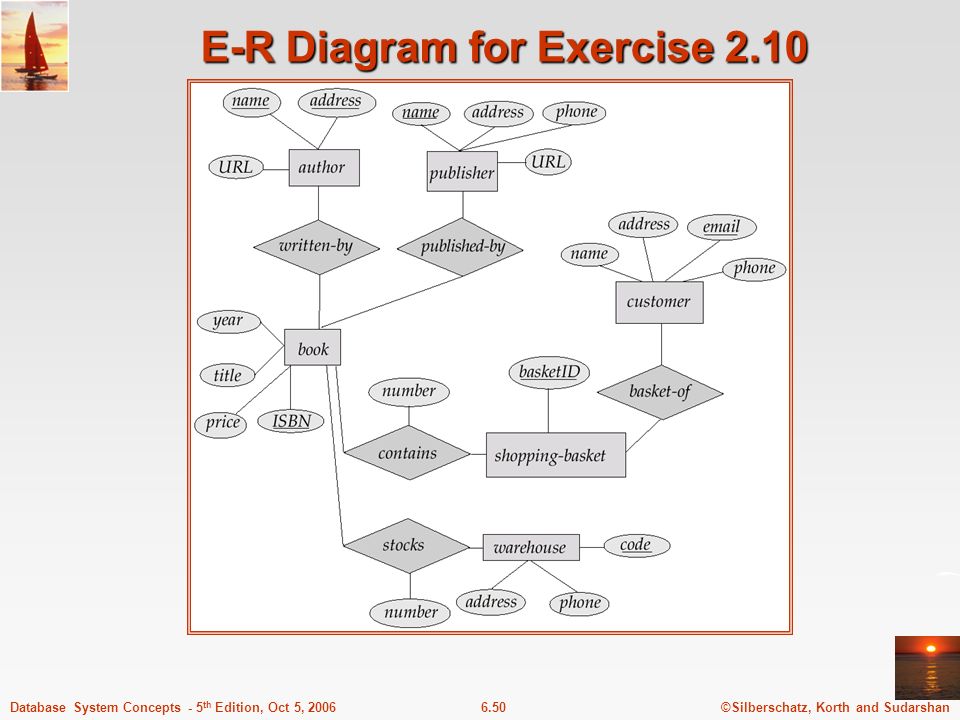

50 ©Silberschatz, Korth and Sudarshan6.50Database System Concepts - 5 th Edition, Oct 5, 2006 E-R Diagram for Exercise 2.10

51 ©Silberschatz, Korth and Sudarshan6.51Database System Concepts - 5 th Edition, Oct 5, 2006 E-R Diagram for Exercise 2.15

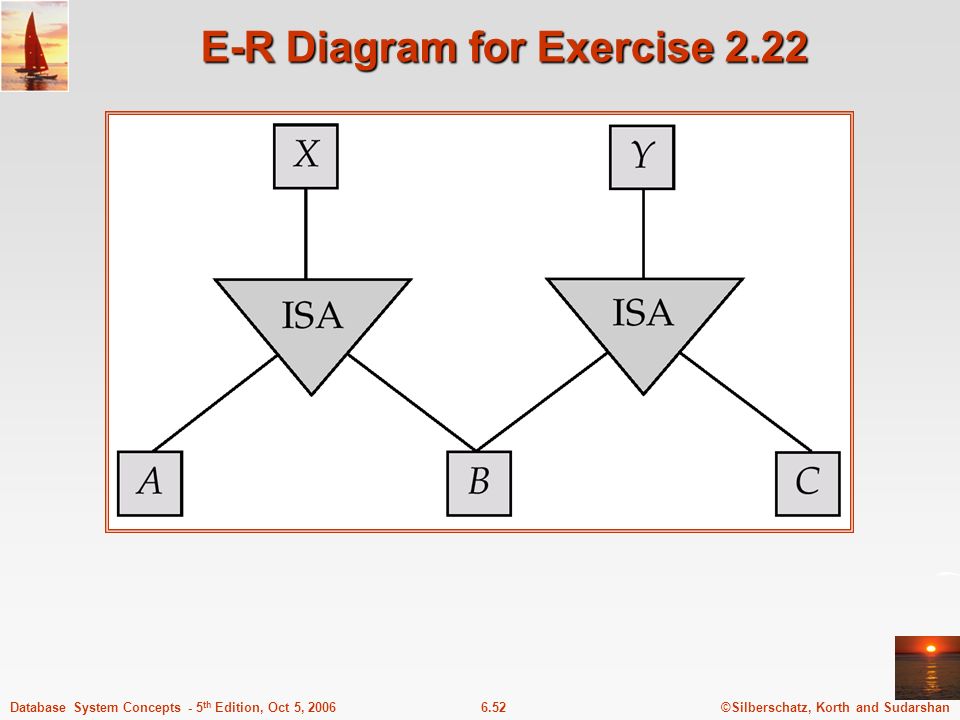

52 ©Silberschatz, Korth and Sudarshan6.52Database System Concepts - 5 th Edition, Oct 5, 2006 E-R Diagram for Exercise 2.22

53 ©Silberschatz, Korth and Sudarshan6.53Database System Concepts - 5 th Edition, Oct 5, 2006 E-R Diagram for Exercise 2.15

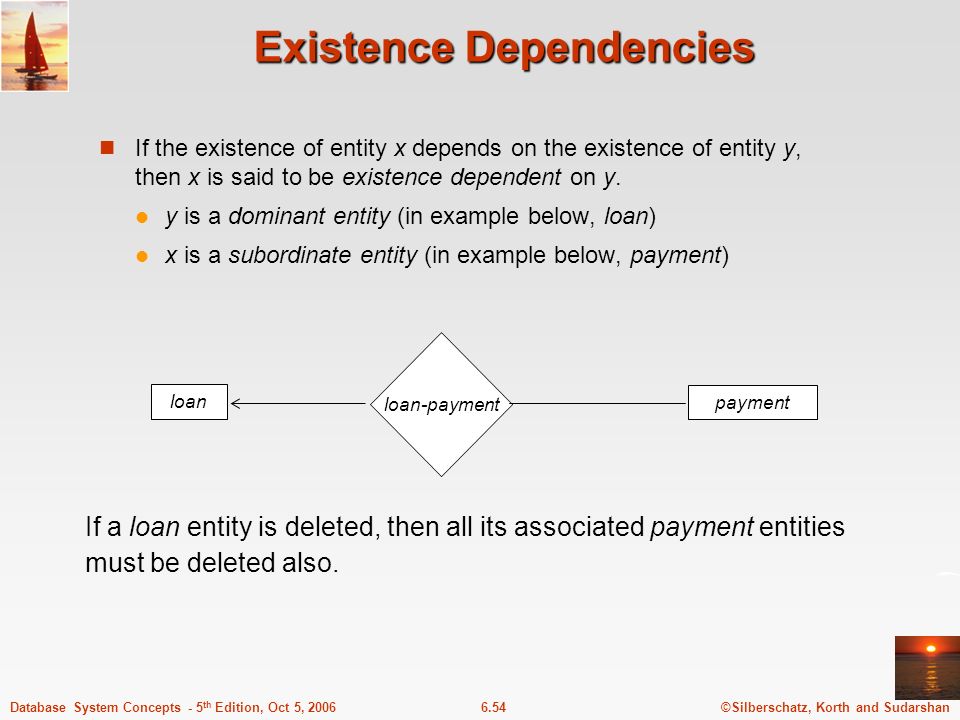

54 ©Silberschatz, Korth and Sudarshan6.54Database System Concepts - 5 th Edition, Oct 5, 2006 Existence Dependencies If the existence of entity x depends on the existence of entity y, then x is said to be existence dependent on y. y is a dominant entity (in example below, loan) x is a subordinate entity (in example below, payment) loan-payment payment loan If a loan entity is deleted, then all its associated payment entities must be deleted also.

55 ©Silberschatz, Korth and Sudarshan6.55Database System Concepts - 5 th Edition, Oct 5, 2006 Figure 6.8

56 ©Silberschatz, Korth and Sudarshan6.56Database System Concepts - 5 th Edition, Oct 5, 2006 Figure 6.15

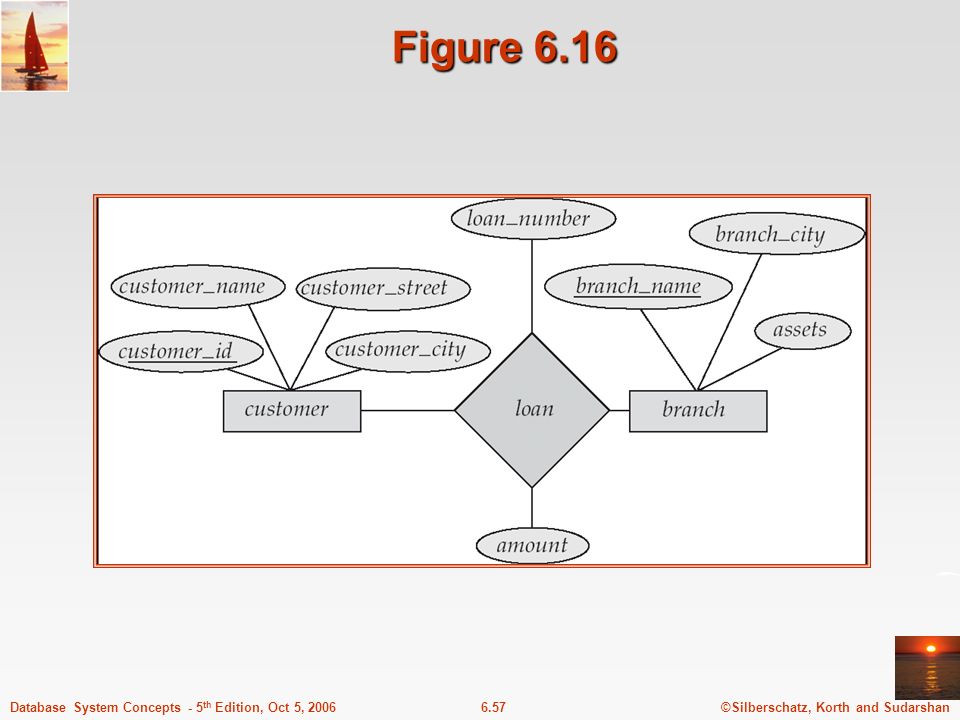

57 ©Silberschatz, Korth and Sudarshan6.57Database System Concepts - 5 th Edition, Oct 5, 2006 Figure 6.16

58 ©Silberschatz, Korth and Sudarshan6.58Database System Concepts - 5 th Edition, Oct 5, 2006 Figure 6.26

59 ©Silberschatz, Korth and Sudarshan6.59Database System Concepts - 5 th Edition, Oct 5, 2006 Figure 6.27

60 ©Silberschatz, Korth and Sudarshan6.60Database System Concepts - 5 th Edition, Oct 5, 2006 Figure 6.28

61 ©Silberschatz, Korth and Sudarshan6.61Database System Concepts - 5 th Edition, Oct 5, 2006 Figure 6.29

62 ©Silberschatz, Korth and Sudarshan6.62Database System Concepts - 5 th Edition, Oct 5, 2006 Figure 6.30

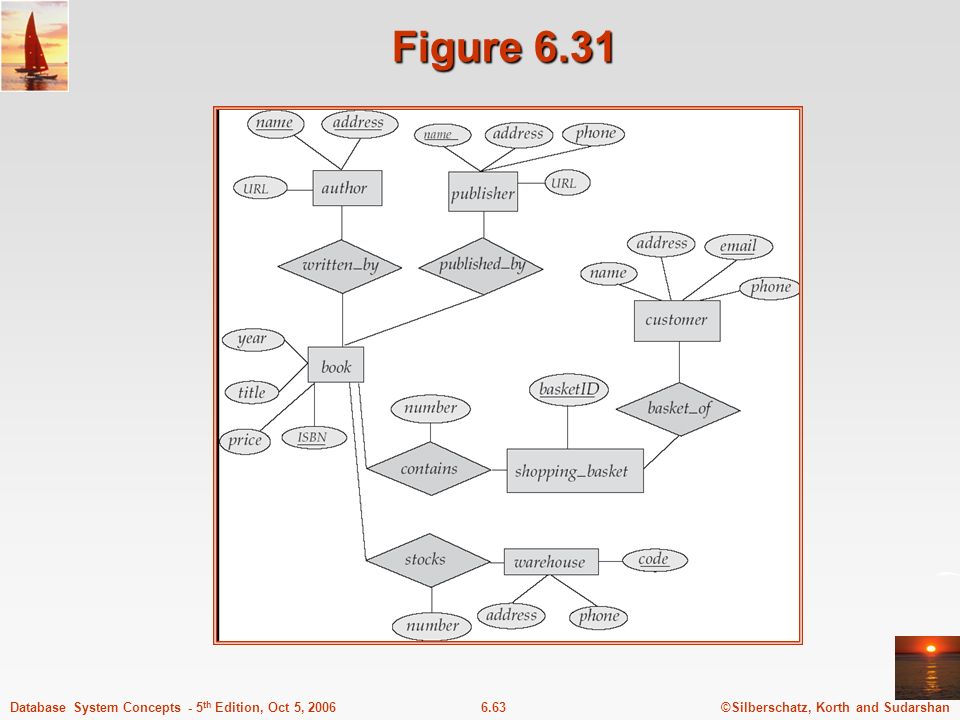

63 ©Silberschatz, Korth and Sudarshan6.63Database System Concepts - 5 th Edition, Oct 5, 2006 Figure 6.31

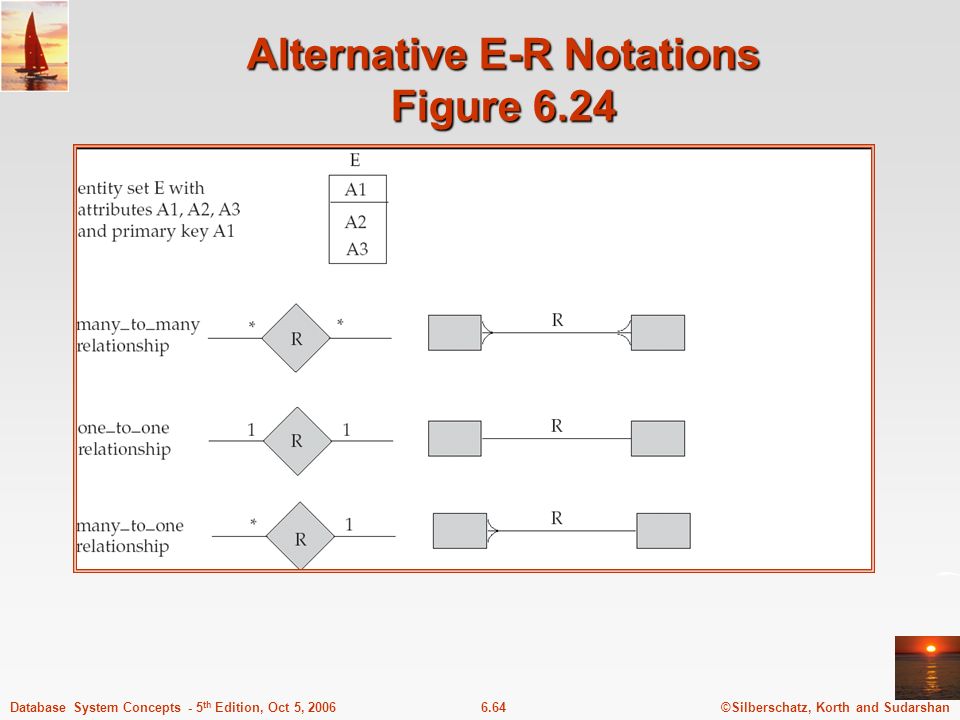

64 ©Silberschatz, Korth and Sudarshan6.64Database System Concepts - 5 th Edition, Oct 5, 2006 Alternative E-R Notations Figure 6.24
