1. The Earth: A Layered Planet

2. How Earth Came to be… Astronomers believe that the Earth was formed as a result of the collision of large and small rocks. –Many rocks were in orbit around the newly forming sun. –As rocks collided they joined together to form even larger rocks and planets, like Earth, were formed. =

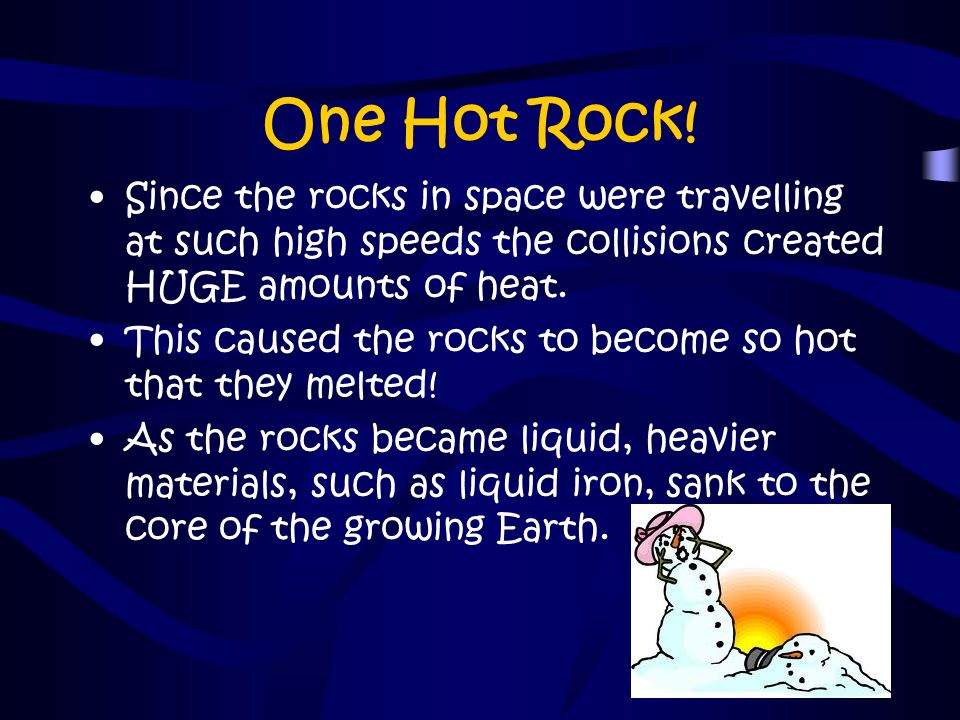

3. One Hot Rock! Since the rocks in space were travelling at such high speeds the collisions created HUGE amounts of heat. This caused the rocks to become so hot that they melted! As the rocks became liquid, heavier materials, such as liquid iron, sank to the core of the growing Earth.

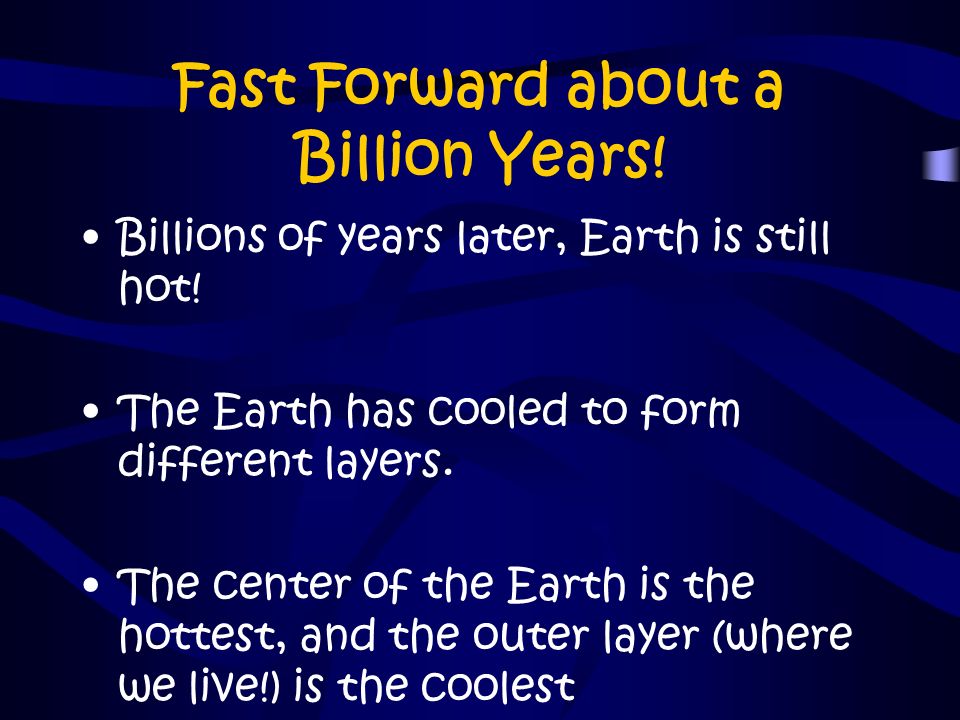

4. Fast Forward about a Billion Years! Billions of years later, Earth is still hot! The Earth has cooled to form different layers. The center of the Earth is the hottest, and the outer layer (where we live!) is the coolest

5. Layers of the Earth There are 4 layers of the Earth: –The Crust –The Mantle –The outer Core –The Inner Core

6. The Layers of the Earth © Copyright 2006. M. J. Krech. All rights reserved.

7. The Crust The uppermost layer. Thin layer of solid rock. The Earth’s crust “floats” on the inner layers. The Earth's Crust is like the skin of an apple. It is very thin in comparison to the other three layers. Continental Crust:

8. Continental Crust: The top portion of the Earth’s crust, where land is found. Oceanic Crust: The lower portion of the Earth’s crust, the ocean floor.

9. The Lithospheric Plates The crust of the Earth is broken into many pieces called plates. The plates "float" on the soft, semi-rigid asthenosphere.

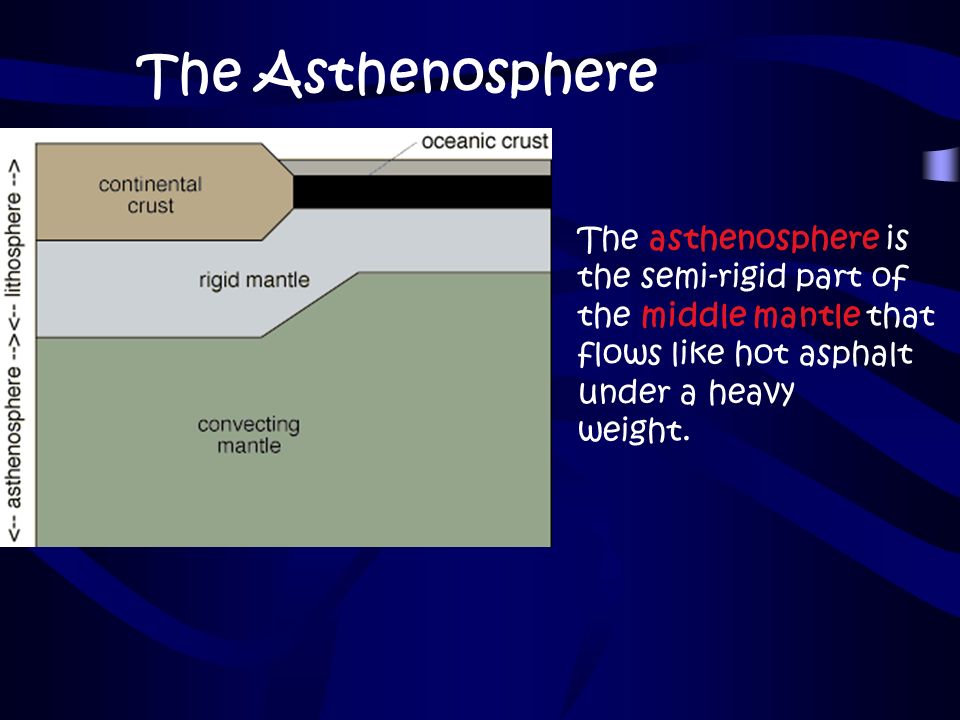

10. The Asthenosphere The asthenosphere is the semi-rigid part of the middle mantle that flows like hot asphalt under a heavy weight.

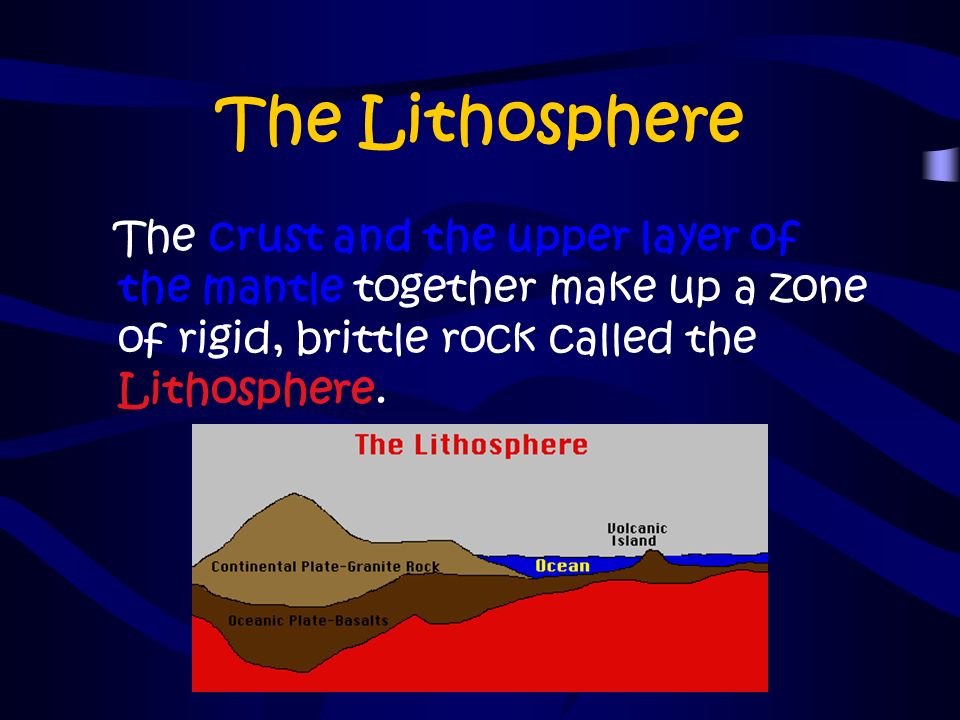

11. The Lithosphere The crust and the upper layer of the mantle together make up a zone of rigid, brittle rock called the Lithosphere.

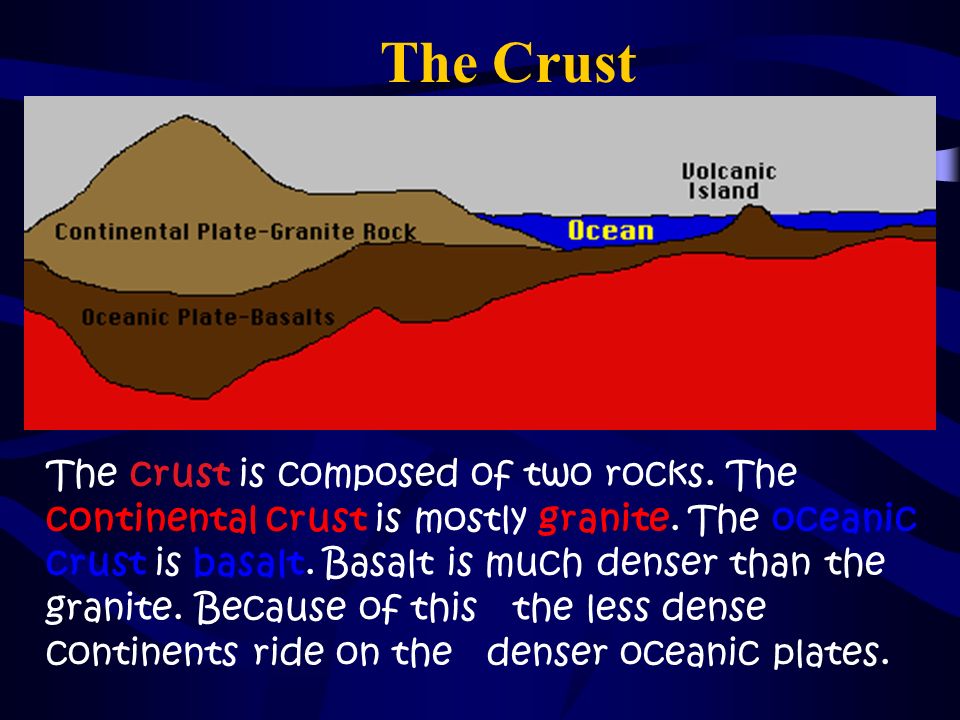

12. The Crust The crust is composed of two rocks. The continental crust is mostly granite. The oceanic crust is basalt. Basalt is much denser than the granite. Because of this the less dense continents ride on the denser oceanic plates.

13. The Mantle The Mantle is the largest layer of the Earth. Partly molten layer below the crust composed of a thick heavy material that when cooled will form rock.

14. The Mantle The mantle is divided into the upper, middle and lower mantle. The middle mantle is composed of very hot dense rock that flows like asphalt under a heavy weight. The movement of the middle mantle (asthenosphere) is the reason that the crustal plates of the Earth move.

15. Convection Currents The middle mantle "flows" because of convection currents. Convection currents are caused by the very hot material at the deepest part of the mantle rising, then cooling and sinking again --repeating this cycle over and over.

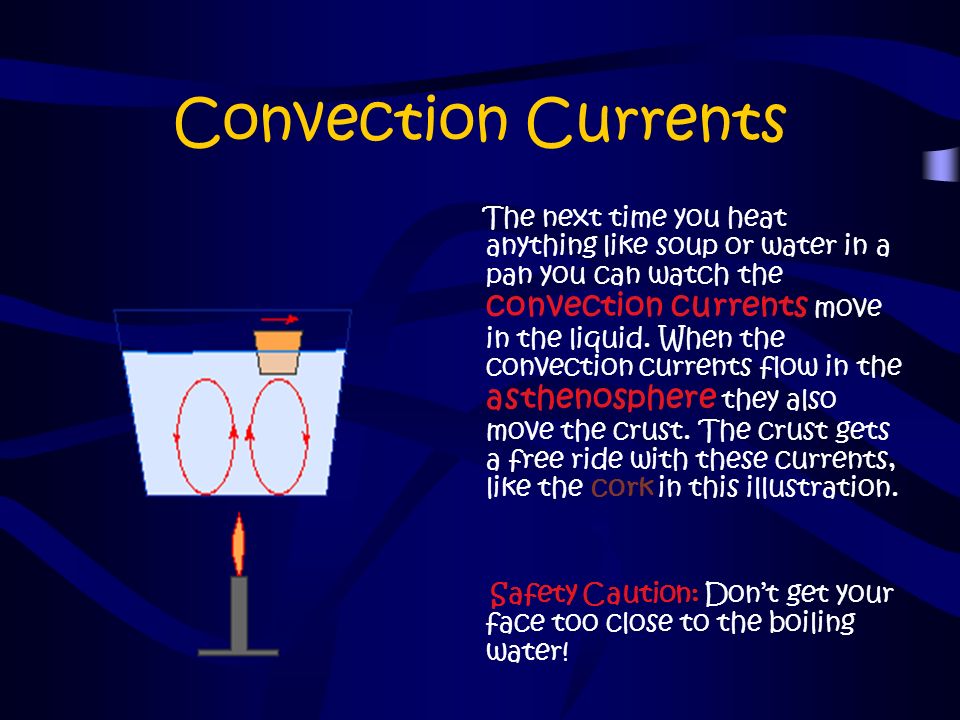

16. Convection Currents The next time you heat anything like soup or water in a pan you can watch the convection currents move in the liquid. When the convection currents flow in the asthenosphere they also move the crust. The crust gets a free ride with these currents, like the cork in this illustration. Safety Caution: Don’t get your face too close to the boiling water!

17. The Outer Core The core of the Earth is like a ball of very hot metals. The outer core is so hot that the metals in it are all in the liquid state. The outer core is composed of the melted metals of nickel and iron.

18. The Inner Core The inner core of the Earth has temperatures and pressures so great that the metals are squeezed together and are not able to move about like a liquid, but are forced to vibrate in place like a solid.
