1. Lesson 8

2. Dividing the screen horizontally Horizontal Frames

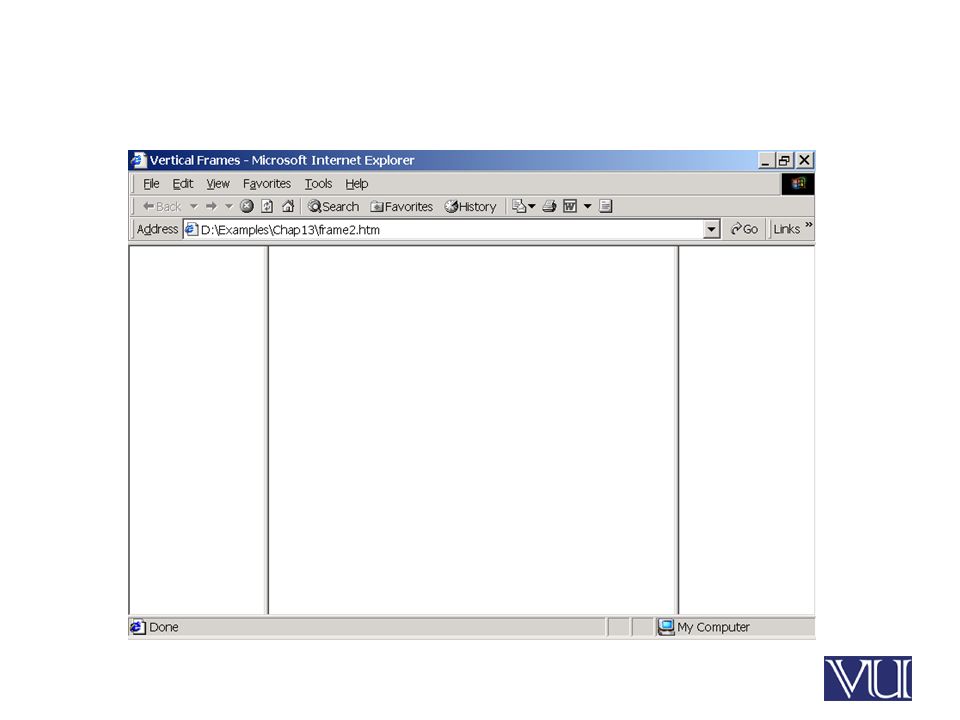

5. Dividing the screen vertically Vertical Frames

6. frames.htm Horizontal Frames with Content

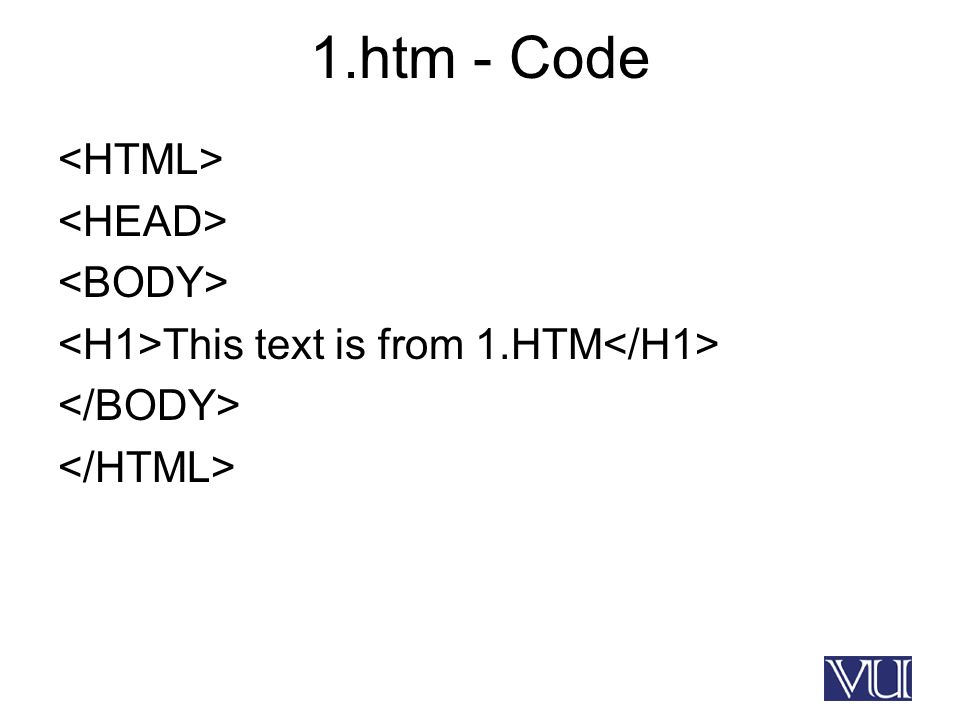

8. 1.htm - Code This text is from 1.HTM

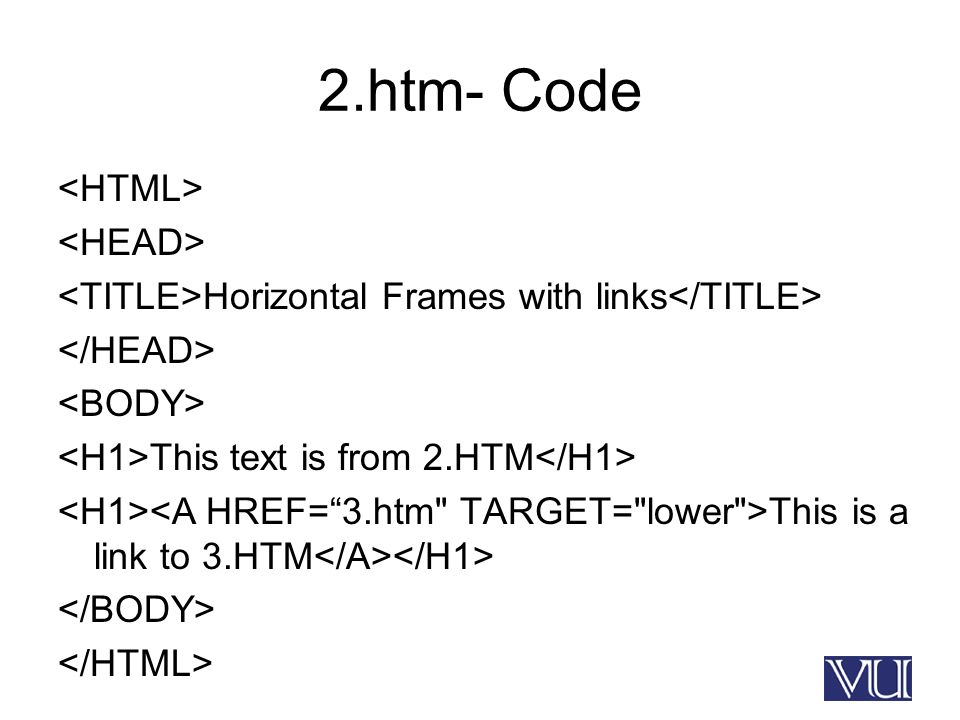

9. 2.htm- Code Horizontal Frames with links This text is from 2.HTM This is a link to 3.HTM

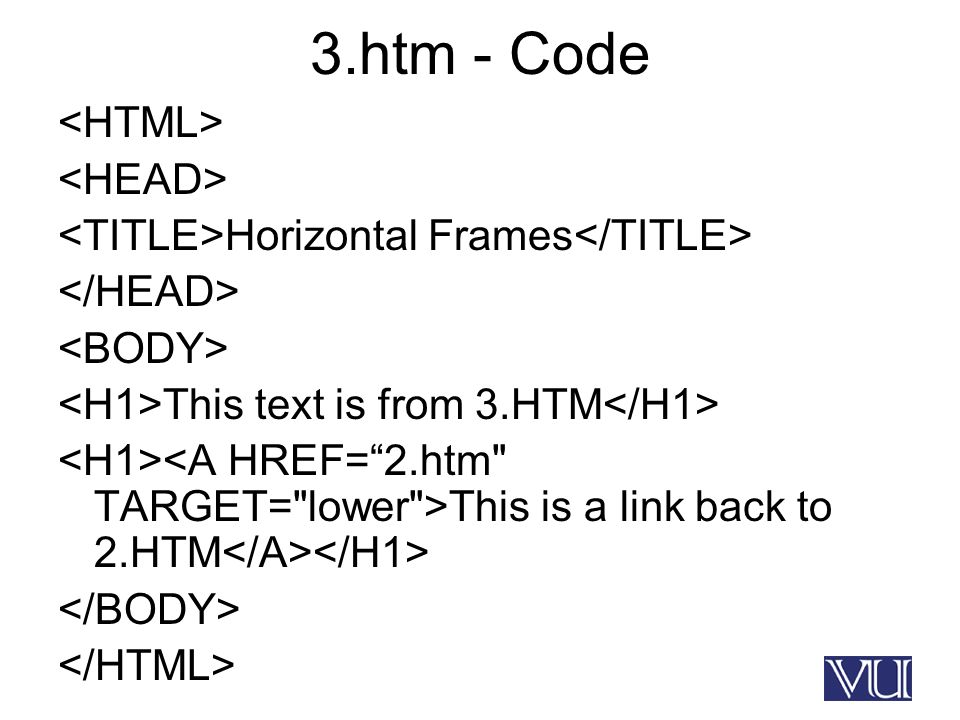

11. 3.htm - Code Horizontal Frames This text is from 3.HTM This is a link back to 2.HTM

12. Ready-made names for frames Target=“_self” Target=“_top” Target=“_blank”

13. Some frame attributes NORESIZE SCROLLING BORDER or FRAMEBORDER

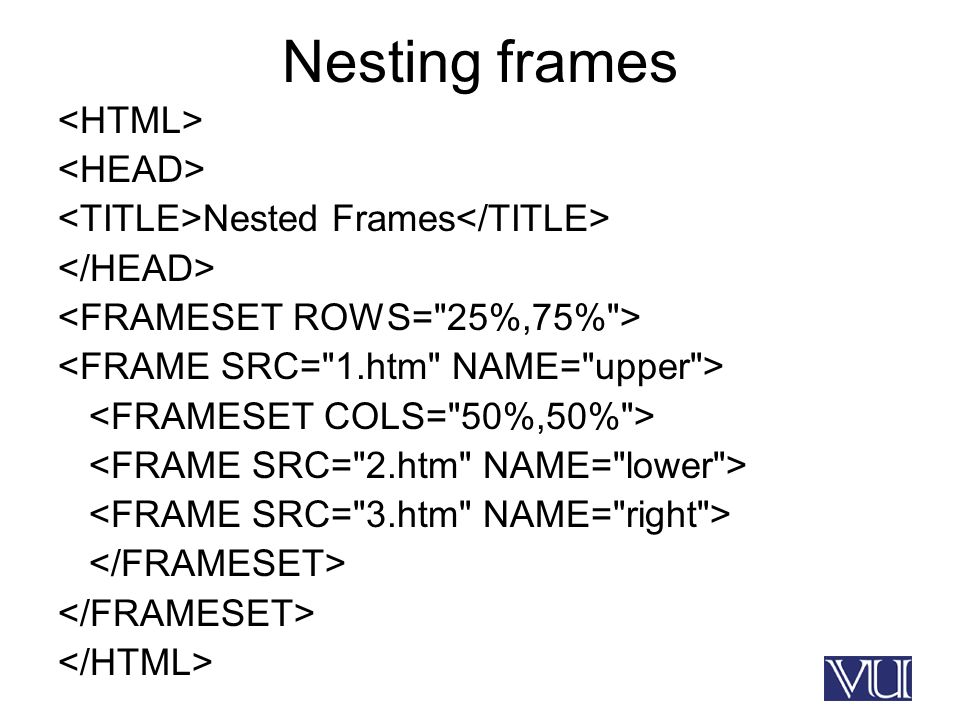

15. Nesting frames Nested Frames

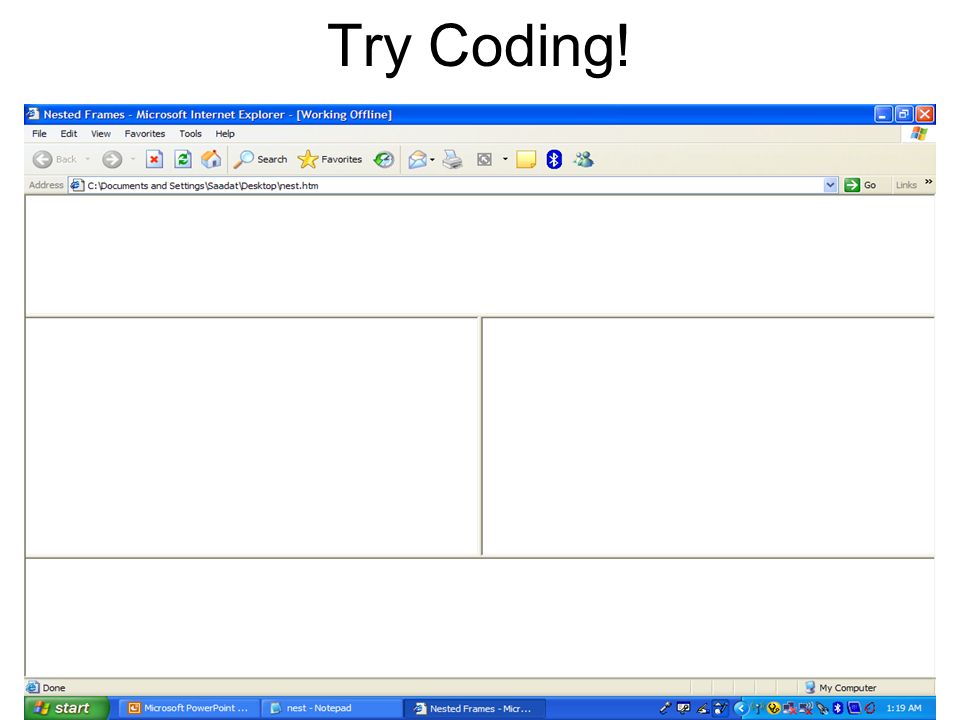

16. Try Coding!

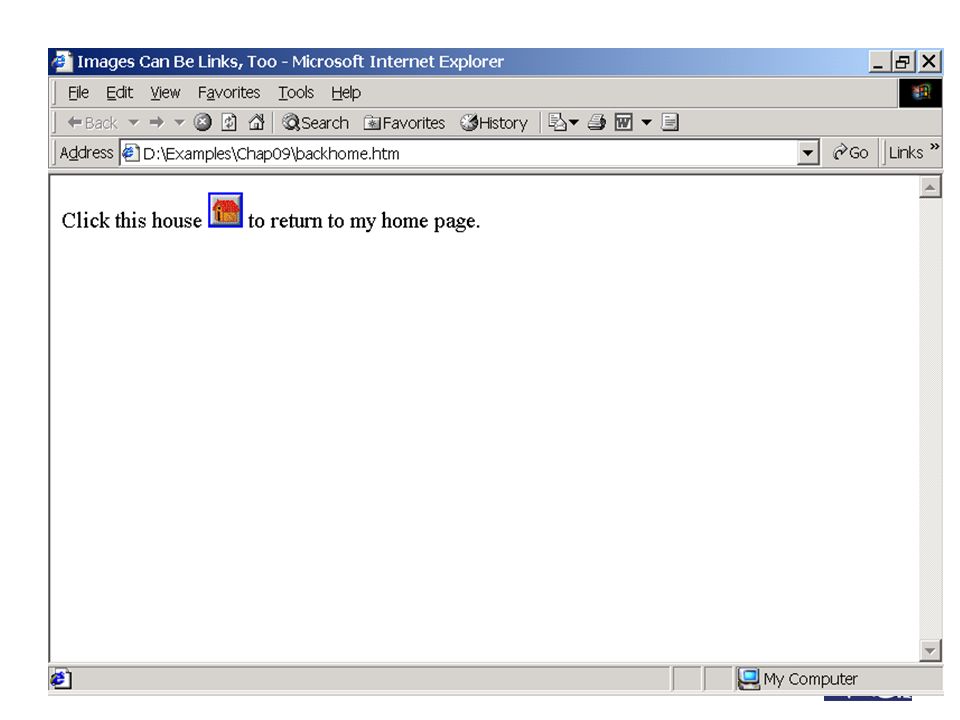

18. Images can be links, too Images Can Be Links, Too Click this house to return to my home page.

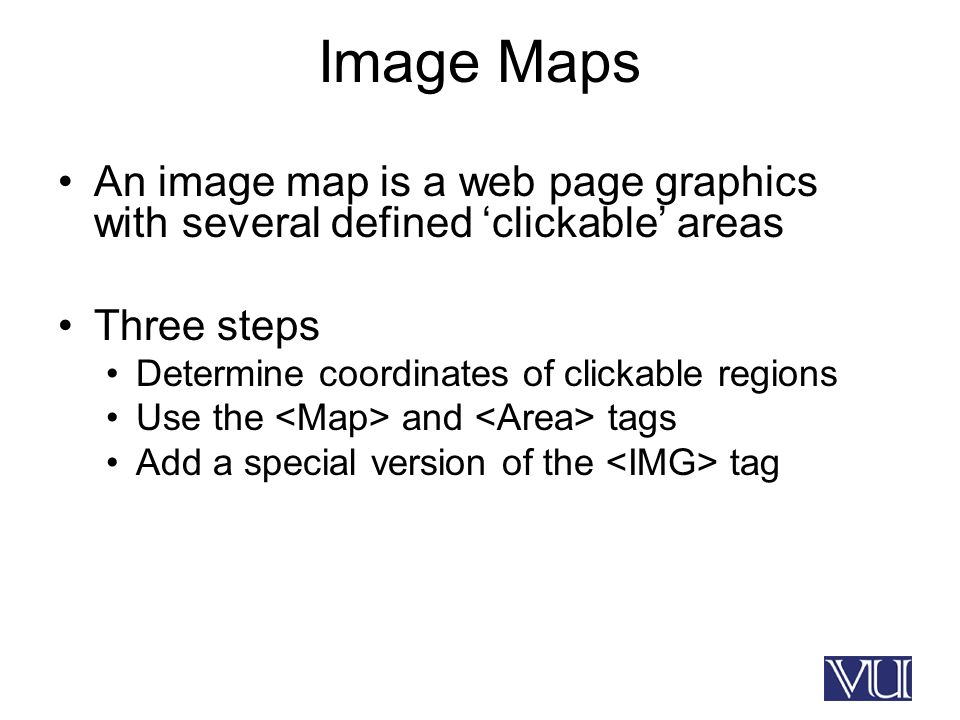

19. Image Maps An image map is a web page graphics with several defined ‘clickable’ areas Three steps Determine coordinates of clickable regions Use the and tags Add a special version of the tag

20. Finding Coordinates

21. ABC 0,0 199,0 399,0 599,0 199,99 399,99599,99

22. and Tags

23. Applying Tag

24. Shape Attribute Shape attribute also accepts values “Circle” and “Poly” (for a polygon)
