1. Lecture 5: p53 and Apoptosis
GMS Apoptosis
Lecture 5: p53 and Apoptosis
R4-265
Mar 1, 06, 9 – 10:30 pm
Dr. Daiqing Liao B1-016

2. Tumor-suppressor genes
Tumor-suppressor genes, function like brakes, keep cell numbers down, either by inhibiting progress through the cell cycle and thereby preventing cell birth, or by promoting programmed cell death (also called apoptosis). When cellular tumor suppressor genes are rendered non-functional through mutation, the cell becomes malignant. Examples are the gene encoding the retinoblastoma protein (Rb), inactivated in retinoblastomas, p53, and p16INK4a, which inhibits cyclin-dependent kinases and is inactivated in many different tumors.

3. Oncogenes
Oncogenes stimulate appropriate cell growth under normal conditions, as required for the continued turnover and replenishment of the skin, gastrointestinal tract and blood, for example. Cells with mutant oncogenes continue to grow (or refuse to die) even when they are receiving no growth signals. Examples are Ras, activated in pancreatic and colon cancers, and Bcl-2, activated in lymphoid tumours. Amplification of oncogenes (more than their normal gene copy number) is also found in cancer: MDM2 is amplified in liposarcomas.

4. Roles of p53 in apoptosis
p53 induces apoptosis through transcriptional activation of proapoptotic genes, such as Puma, Noxa, p53AIP1, Bax, Apaf-1 etc.
It can also directly induce apoptosis by localizing to mitochondria via interaction with Bcl-2 family protein Bcl-xL and facilitating Bax oligomerization
Reading: Vousden and Lu: Nature Reviews Cancer, 2002, 2:

5. p53 and of apoptosis
Ref: Mol. Cell, 2003, 11(3):552-4

6. p53 and apoptosis
Ref: Cell, 2002, 108:

7. Tumor Suppressor p53
• First identified as a protein associated with viral oncogenes
• Mutated/inactivated in a majority of human cancers
• Integrates numerous signals that control cell life and death
• A common denominator in human cancer
• Understanding functions and regulation of p53 is of great importance in cancer biology and cancer therapy

9. The p53 pathways

10. The p53 network

11. p53 is a sequence-specific DNA binding protein
p53 central core-domain interacts directly with DNA
p53 binding sites consist of four copies of the pentamer consensus sequence PuPuPuC(A/T). The pentamers are oriented in alternating directions. A short stretch of sequence up to 13 bp may be inserted between the pairs of pentamers. The p53 target genes in the human genome usually carry the consensus sequence.
3. Amino acid residues in the core-domain that are critical for DNA-binding are among the “hot-spots” of tumor-derived p53 mutations, attesting to the importance of DNA-binding for p53’s tumor suppression function.

12. Structure of p53 core-domain
Ref: Science, 265: , 1994

13. Structure of the p53 OD
Science 1995, 67:

14. The p53-MDM2 feedback loop
MDM2 binds to p53 N-terminal transactivation domain and inhibits p53-dependent transcription.
2. MDM2 is a transcription target of p53.
MDM2 is an E3 ubiquitin ligase of p53, thus targeting p53 for proteolytic degradation.
4. MDM2 knockout is lethal for mouse embryonic development, but simultaneous deletion of p53 and MDM2 genes rescues MDM2-KO, thus confirming the in vivo genetic interaction of these two proteins.

15. Structure of MDM2-p53 complex
Figure 2. The MDM2 NH2-terminal domain (in cyan) forms a structure reminiscent of a twisted trough. It has a hydrophobic cleft where the p53 peptide (in yellow) binds as an amphipathic  helix. Three approximately orthogonal views of the complex are shown. (A) The MDM2-p53 complex in an orientation where the floor of the MDM2 cleft is in the plane of the figure. MDM2, p53 and the NH2- and COOH-termini are labeled C and N. (B) The complex rotated approximately 90° about the horizontal axis of (A). (C) The complex rotated approximately 90° about the vertical axis of (B), looking down the helix axis of p53. Also shown are Phe19, Trp23, and Leu26 of p53, which insert deep into the MDM2 cleft [prepared with the programs MOLSCRIPT (50) and RASTER3D (51)]. Abbreviations for the amino acid residues are: A, Ala; C, Cys; D, Asp; E, Glu; F, Phe; G, Gly; H, His; I, Ile; K, Lys; L, Leu; M, Met; N, Asn; P, Pro; Q, Gln; R, Arg; S, Ser; T, Thr; V, Val; W, Trp; Y, Tyr.
Science :

16. p53 and apoptosis
p53AIP1
Apaf-1

17. p53 in apoptosis
p53 mediates apoptosis in response to DNA damage, oncogene expression (adenovirus E1A, myc etc.), or withdrawal of growth factors
2. Overexpression wild-type of p53 leads to apoptosis
3. p53 can induce the expression of proapoptotic genes, such as Bax (ref Cell, 80:293) and p53AIP1 (ref: Cell, 102:849)

18. p53 in apoptosis
4. p53 can also repress transcription of certain genes, and it has been proposed that the repression function may also be required for apoptosis (ref: Genes Dev 13: )
5. In vivo, p53 transactivation mutant is defective in inducing apoptosis, at least for some cell types (ref: EMBO J. 19: )

19. Physiological relevance of p53-induced apoptosis
• Suppress oncogene-induced transformation
• Inhibit tumor growth and progression
• Remove cells with severe DNA damage
• Effectiveness of cancer chemotheraphy correlates with the ability to induce p53-dependent apoptotic response

20. Tumor-derived mutations affecting apoptosis
Protein
Role in apoptosis
Ref
p53
Mutated or altered expression in many cancers. Initiates the intrinsic apoptotic pathway. p53-/- cells are resistant to drug induced apoptosis.
Vogelstein et al., 2000
p19ARF
Mutated or altered expression in many cancers. Blocks MDM2 inhibition of p53. Enhances drug-induced apoptosis by p53.
Sherr and Weber, 2000 Rb
Mutated in some cancers, and functionally disrupted in many cancers. Inhibits E2F-medidated transcription. Loss of Rb function induces p53-dependent and independent apoptosis.
Harbour and Dean, 2000
Chk2
Mutated in Li-Fraumeni syndrome. Senses DNA double strand breaks and phosphorylates and stabilizes p53.
Khanna and Jackson, 2001
Ref: Cell, 2002, 108:

21. Tumor-derived mutations affecting apoptosis
Protein
Role in apoptosis
Ref
ATM
Mutated in ataxia-talangiectasia syndrome. Senses DNA double strand breaks and stabilizes p53. Deficiencies increase risk of developing haematological malignancies and breast cancer
Khanna and Jackson, 2001
Bax (p53 target gene)
Mutated or decreased expression in some tumors. Mediates mitochondrial membrane damage. Sufficient but not necessary for drug-induced apoptosis.
Rampino et al., 1997
Bak
Mutated or decreased expression in some tumors. Mediates mitochondrial membrane damage. Sufficient but not necessary for drug-induced apoptosis.
Kondo et al., 2000
PTEN (p53 target gene)
Mutated or altered expression in cancers. Regulates Akt activation and subsequent phosphorylation of Bad. Loss of PTEN results in resistance to many apoptotic stimuli.
Di Cristofano and Pandolfi, 2000
Ref: Cell, 2002, 108:

22. Tumor-derived mutations affecting apoptosis
Protein
Role in apoptosis
Ref
Apaf-1 (p53 target gene)
Mutated and transcriptionally silenced in melanoma and leukemia cell lines. Necessary for activation of caspase-9 following cytochrome c release. Apaf-1-/- cells are chemoresistant.
Soengas et al., 2001
CD-95/Fas
Mutated and down-regulated in lymphoid and solid tumors. Initiates the extrinsic apoptotic pathway. Loss of function is associated with resistance to drug-induced cell death.
Muschen et al., 2000
TRAIL-R1/R2
Mutated in metastatic breast cancers. Initiate the extrinsic apoptotic pathway. Mutations lead to suppression of death receptor-mediated apoptosis.
Shin et al., 2001
Caspase-8
Gene silenced in neuroblastomas. Activates both extrinsic and intrinsic apoptotic pathways. Silencing results in resistance to drug-induced apoptosis.
Teitz et al., 2000
Ref: Cell, 2002, 108:

23. Tumor-derived mutations affecting apoptosis
Protein
Role in apoptosis
Ref
Bcl2
Frequently overexpressed in many tumors. Antagonises Bax and/or Bak and inhibits mitochondrial membrane disruption. Inhibits drug-induced apoptosis.
Reed, 1999
MDM2
Overexpressed in some tumors. Negative regulator of p53. Inhibits drug-induced p53 activation.
Sherr and Weber, 2000
IAPs
Frequently overexpressed in cancer. Down regulation of XIAP induces apoptosis in chemoresistant tumors.
Deveraux and Reed, 1999
NFkB
Deregulated activity in many cancers. Transcriptionally activates expression of anti-apoptotic members of the Bcl-2 and IAP families. Can inhibit both the extrinsic and intrinsic death pathways and induce drug-resistance.
Baldwin, 2001
Ref: Cell, 2002, 108:

24. Tumor-derived mutations affecting apoptosis
Protein
Role in apoptosis
Ref
Myc
Deregulated expression in many cancers. Induces proliferation in the presence of survival factors, such as Bcl-2, and apoptosis in the absence of survival factors. Can sensitise cells to drug-induced apoptosis.
Evan and Vousden, 2001
Akt
Frequently amplified in solid tumors. Phosphorylates Bad. Hyperactivation induces resistance to a range of apoptotic stimuli including drugs.
Datta et al., 1999
PI3K
Overexpressed or deregulated in some cancers. Responsible for activation of Akt and downstream phosphorylation of Bad. Inhibition of PI3K enhances chemotherapeutic drug-induced apoptosis.
Roymans and Slegers, 2001
Ras
Mutated or deregulated in many cancers. Activates PI3K and downstream pathways. Induces proliferation and inhibits c-myc and drug-induced apoptosis.
el-Deiry, 1997
Ref: Cell, 2002, 108:

25. Tumor-derived mutations affecting apoptosis
Protein
Role in apoptosis
Ref
FLIP
Overexpressed in some cancers. Prevents activation of caspase-8 and apoptosis induced by some chemotherapeutic drugs.
Tepper and Seldin, 1999
Ref: Cell, 2002, 108:

26. p53 directly mediates mitochondrial mechanism of apoptosis
Early studies indicate that transactivation-defective mutants of p53 are capable of inducing apoptosis, implying a transcription-independent role for p53 in apoptosis.
DNA-damage leads to mitochondrial translocation of p53.
p53 binds to Bcl-2 family protein Bcl-xL to influence cytochrome c release.
p53 directly activates the proapoptotic Bcl-2 protein Bax in the absence of other proteins to permeabilize mitochondria and engage the apoptotic program.
p53 can release both proapoptotic multidomain proteins and BH3-only proteins [Proapoptotic Bcl-2 family proteins that share only the third Bcl-2 homology domain (BH3)] that are sequestered by Bcl-xL.
Ref: Mol. Cell, 2003, 11:577-90; Science, 2004, 303:

27. p53 is found in mitochondria following DNA damage
Ref: Mol. Cell, 2003, 11:577-90

28. Recombinant p53 causes rapid cytochrome c release from mitochondria
Ref: Mol. Cell, 2003, 11:577-90

29. Cooperation of endogenous cytoplasmic p53 with Bax to induce apoptosis in the absence of p53 nuclear activity
Ref: Science, 2004, 303:

30. How p53 functions in mitochondria to induce cell death
1. p53 or Bax alone does not permeabilize membrane, but they together can do so.
2. p53 facilitates Bax oligomerization.
3. p53 binds to Bcl-xL, but not to Bax.
4. p53-Bcl-xL interaction releases Bax.
5. Released Bax forms oligomers in mitochondrial membrane, leading cytochrome c release and apoptosis.
6. The proline-rich domain (aa in mouse) of p53 is required for this effect.
Ref: Science, 2004, 303:

31. p53 binds to Bcl-xL and releases Bax
Bax is sequestered by Bcl-xL and inactive
Bax is released by p53 from Bcl-xL and forms oligomers, leading to apoptosis
Ref: Science, 2004, 303:

32. p53 and Puma in apoptosis
Ref: K. Vousden, Science, 2005

33. Viral oncogenes and the p53 network
Viral oncogenes and the p53 network. Several viruses encode proteins that block the interaction between an infected cell's retinoblastoma protein (Rb) and transcription factors of the E2F family, such as E2F-1. This frees E2F-1 to activate target genes required for cellular proliferation (not shown). But it also results in the production of the p14 ARF protein, interference with the activity of MDM2 (a negative regulator of the p53 protein), and consequent stabilization of p53. This slows cell (and hence viral) replication. The viruses counteract these cellular defences by producing proteins that inhibit the function of p53. This predisposes the infected cells to become cancerous.
Ref: Nature 408, (2000)

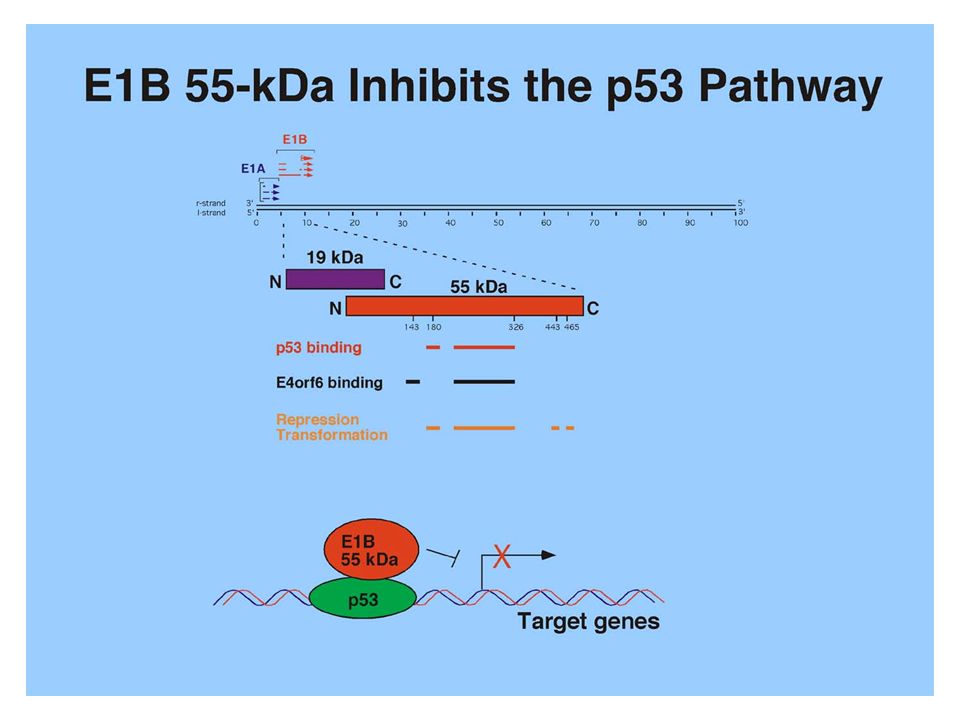

34. Viral oncogenes inhibit p53 functions
1. p53 was first identified as binding protein of SV40 large T antigen in 1979, which interacts with p53 core domain
2. Adenovirus oncoprotein E1B 55-kDa binds to p53 and inhibits p53 transactivation activity
3. HPV E6 binds to p53 and targets it for ubiquitin-mediated degradation.

37. Ad12 E1B and p53 colocalize in the cytoplasmic bodies
Ref: Zhao&Liao. J. Virol., 2003,77:

38. Inhibition of p53-mediated apoptosis by E1B 55-kDa through cytoplasmic sequestration
• Ad12 E1B 55-kDa forms large and filamentous cytoplasmic body
• p53 localizes to the E1B cytoplasmic body, and its N-terminal TAD is required for this localization
• Sequestration of p53 in the cytoplasmic body correlates with the ability of E1B 55-kDa to repress p53-dependent apoptosis

39. Using p53 to kill cancer cells
The p53 protein is a tumor suppressor — it keeps cell numbers down by stopping cells from multiplying or by promoting cell death. Loss of p53 occurs in most human cancers, so it would be useful to be able to restore its function. Several innovative strategies have been suggested:
• Introduce normal p53 genes into a cancer cell with mutant p53.
• Introduce a small compound that converts mutant p53 proteins from an abnormal to a normal shape.
• Add a protein that attaches itself to mutant p53 and kills cells.
• Stimulate the host's immune response to mutant p53 peptides.

40. Using p53 to kill cancer cells
• Introduce drugs that disrupt the interaction between the MDM2 or E6 proteins and p53. (MDM2 and E6 negatively regulate p53; they are present at abnormally high levels in some cancer cells, so 'quench' any normal p53.)
• Introduce the adeno-associated virus, which mimics damaged DNA. Cells with mutant p53 cannot activate the usual p53-dependent 'checkpoint' that is induced by DNA damage, and eventually die.
• Infect cells with viruses that can replicate only in cells without normal p53; the viruses kill these cells.

41. AAV kills cancer cells Ref: Nature, 412, 865 - 866 (2001)
The strategy used by Raj et al.3 to kill cells that lack p53. This is one of many approaches being developed to restore p53 function to cancer cells (Box 1).
Ref: Nature, 412, (2001)

42. p53 in DNA repair and apoptosis
Ref: Bensaad & Vousden, Nature Med, 2005
ROS: reactive oxygen species

43. Summary
p53 is a tumor-suppressor protein that induces apoptotic cell death in response to oncogenic stress. Malignant progression is dependent on loss of p53 function, either through mutation in the TP53 gene (which encodes p53) itself or by defects in the signaling pathways that are upstream or downstream of p53.
Mutations in TP53 occur in about half of all human cancers, almost always resulting in the expression of a mutant p53 protein that has acquired transforming activity.
p53-induced apoptosis depends on the ability of p53 to activate gene expression.
p53 can also directly trigger the apoptotic response, by interacting with Bcl-2 family protein.
The apoptotic and cell-cycle arrest activities of p53 can be separated, and apoptotic cofactors that play a specific role in allowing p53-induced death are being identified.
Ref: Nature Reviews Cancer, 2, (2002)

44. Summary
Phosphorylation of p53 regulates its ability to activate the expression of apoptotic target genes, and other post-translational modifications such as acetylation might also have a role.
In tumors that retain wild-type p53, the apoptotic response might be hindered by defects in the apoptotic cofactors. These, therefore, represent additional targets for the design of therapeutics that are aimed at reactivating p53-mediated apoptosis in cancer cells.
Ref: Nature Reviews Cancer, 2, (2002)
