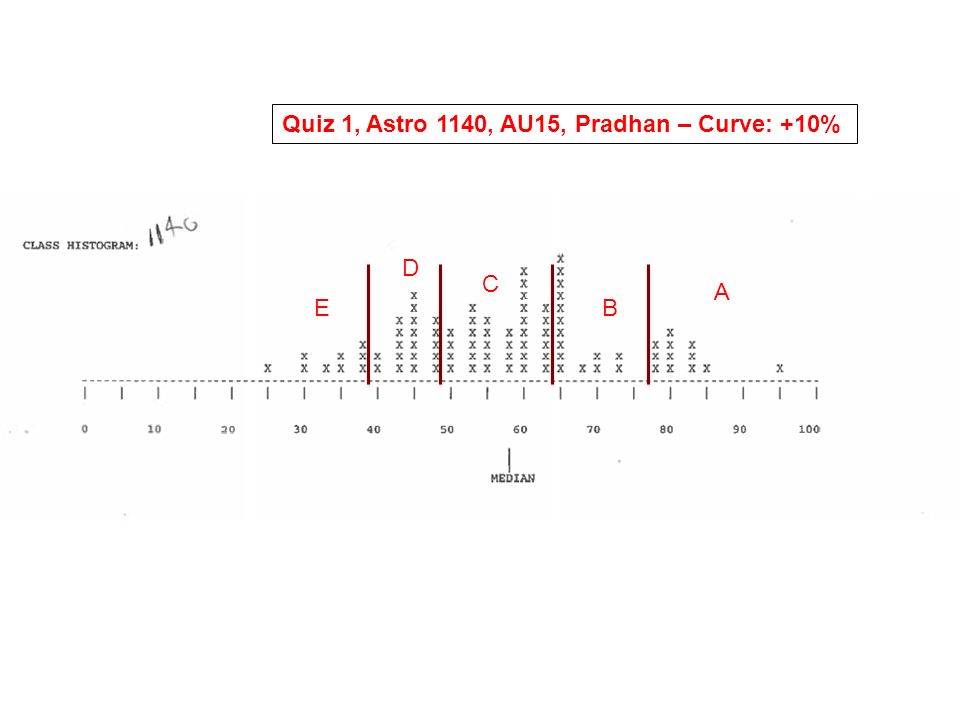

1. Quiz 1, Astro 1140, AU15, Pradhan – Curve: +10% A B C D E

2. Einstein’s Theory of Relativity Is there a maximum velocity in nature ? If no, then one can travel or convey information over infinite distances in infinitesimally short time – Action at a distance as presupposed by Newton But, do not observe instantaneous action implying infinite speed But if yes, then what is the limiting velocity?

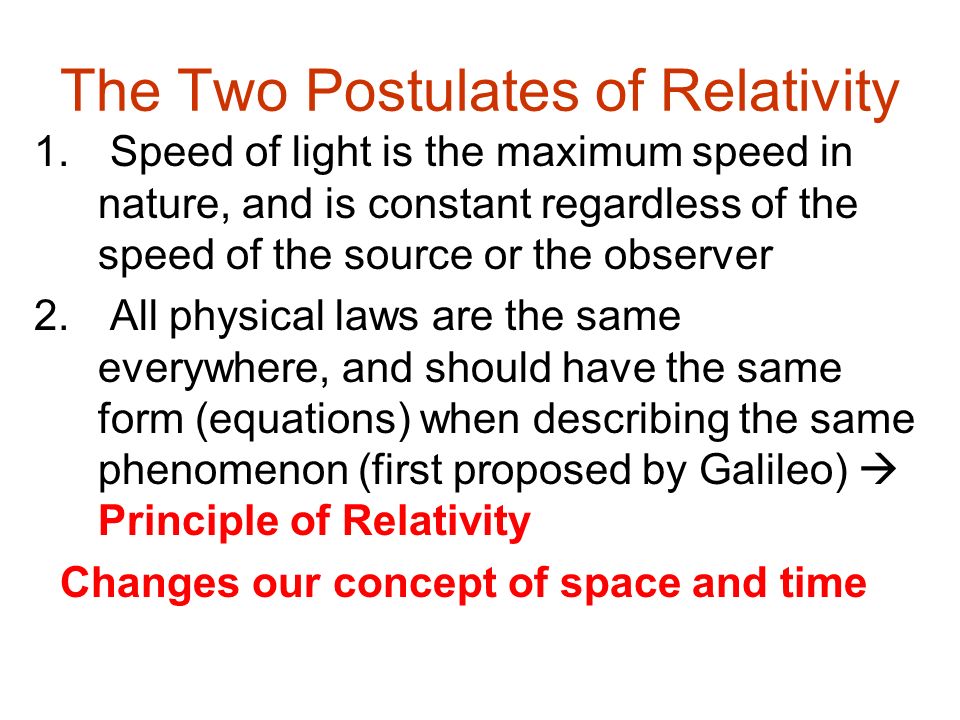

3. The Two Postulates of Relativity 1. Speed of light is the maximum speed in nature, and is constant regardless of the speed of the source or the observer 2. All physical laws are the same everywhere, and should have the same form (equations) when describing the same phenomenon (first proposed by Galileo)  Principle of Relativity Changes our concept of space and time

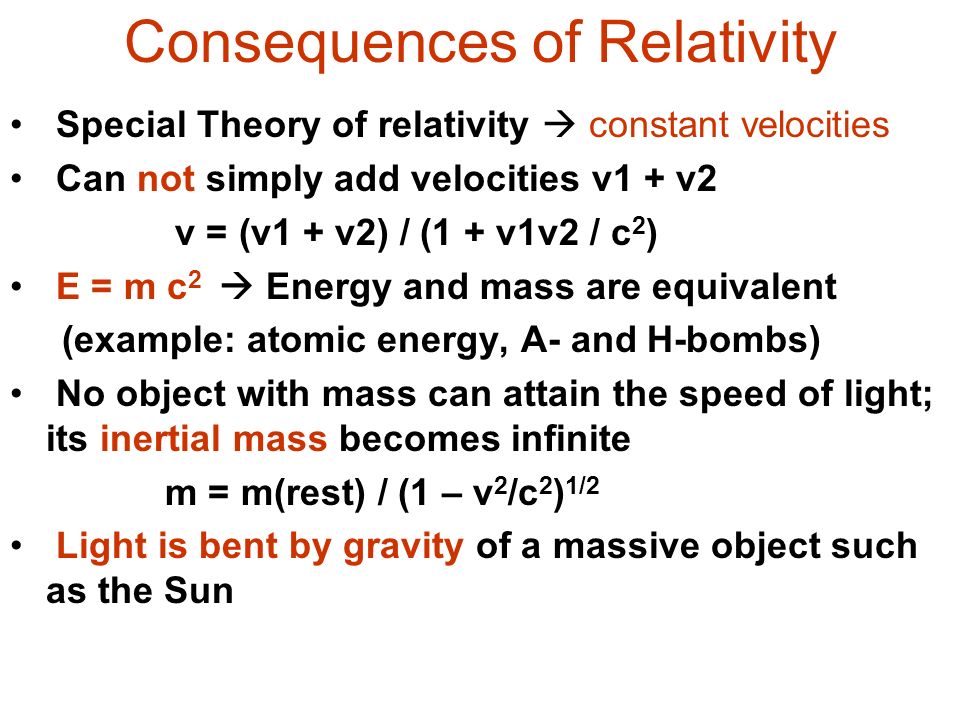

4. Consequences of Relativity Special Theory of relativity  constant velocities Can not simply add velocities v1 + v2 v = (v1 + v2) / (1 + v1v2 / c 2 ) E = m c 2  Energy and mass are equivalent (example: atomic energy, A- and H-bombs) No object with mass can attain the speed of light; its inertial mass becomes infinite m = m(rest) / (1 – v 2 /c 2 ) 1/2 Light is bent by gravity of a massive object such as the Sun

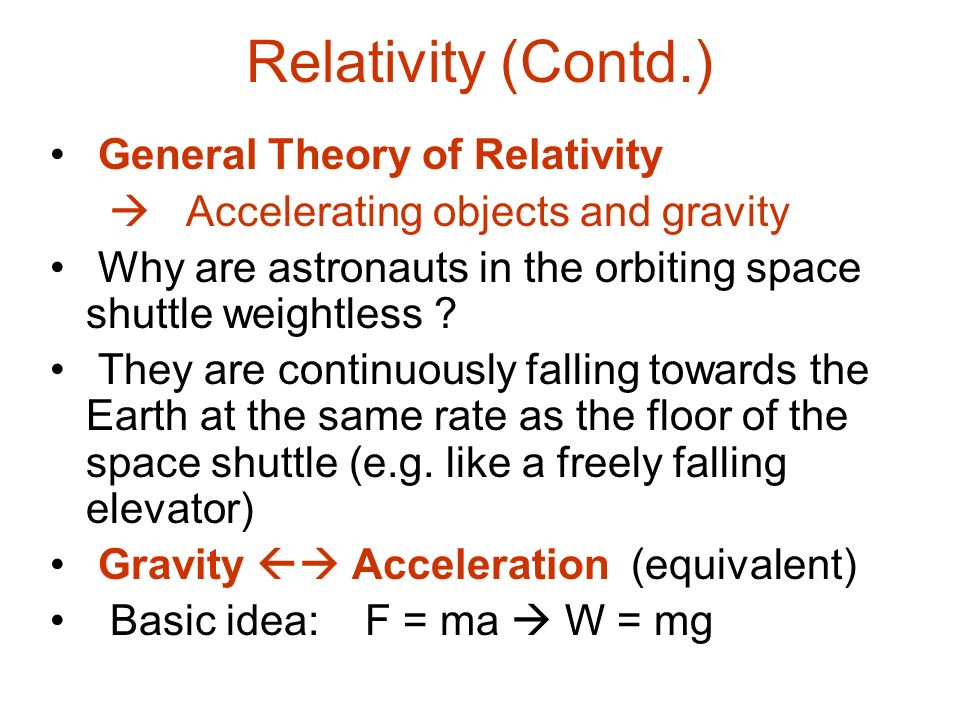

5. Relativity (Contd.) General Theory of Relativity  Accelerating objects and gravity Why are astronauts in the orbiting space shuttle weightless ? They are continuously falling towards the Earth at the same rate as the floor of the space shuttle (e.g. like a freely falling elevator) Gravity  Acceleration (equivalent) Basic idea: F = ma  W = mg

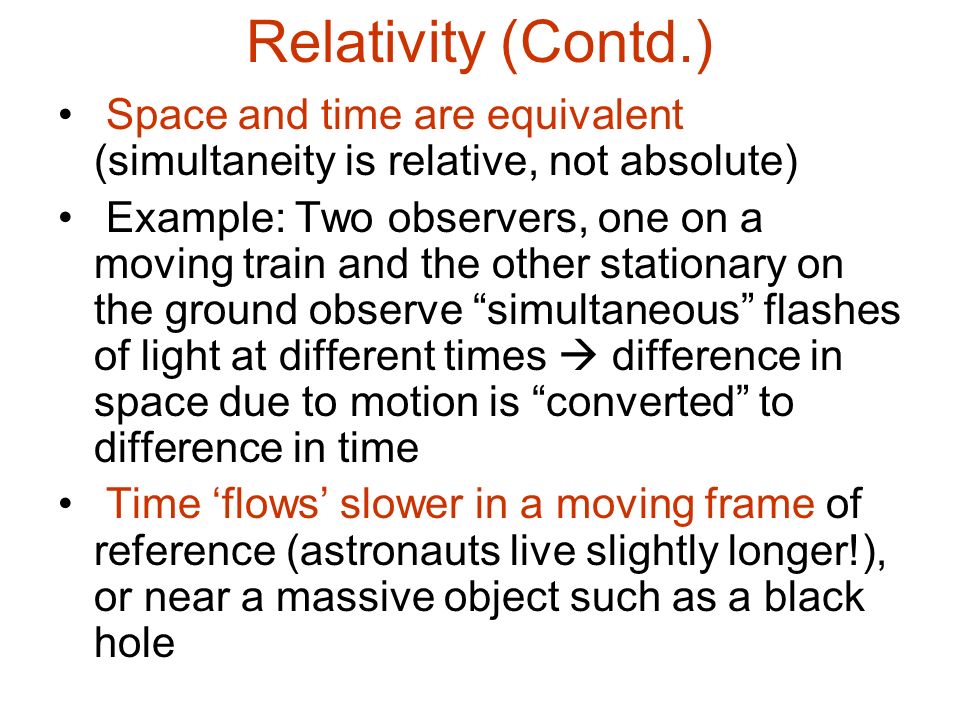

6. Relativity (Contd.) Space and time are equivalent (simultaneity is relative, not absolute) Example: Two observers, one on a moving train and the other stationary on the ground observe “simultaneous” flashes of light at different times  difference in space due to motion is “converted” to difference in time Time ‘flows’ slower in a moving frame of reference (astronauts live slightly longer!), or near a massive object such as a black hole

7. Time Dilation and Space Contraction A time interval in a moving frame of reference (platform moving with velocity v) gets longer as t’ = t / [ 1 – (v/c ) 2 ] 1/2 But the space interval gets shorter as x’ = x [ 1 – (v/c) 2 ] 1/2

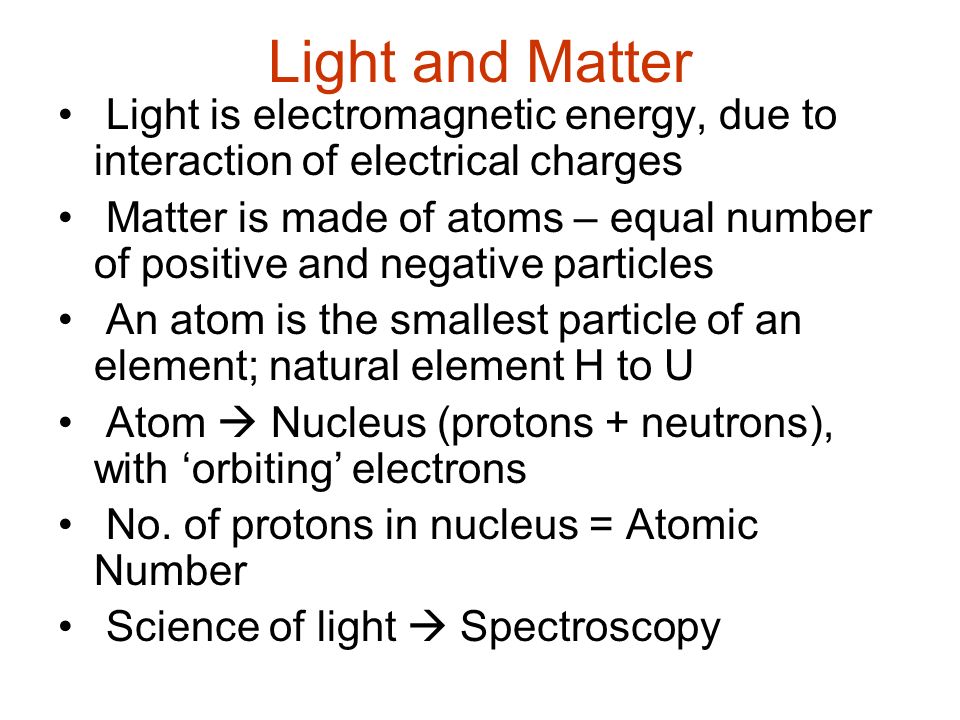

8. Light and Matter Light is electromagnetic energy, due to interaction of electrical charges Matter is made of atoms – equal number of positive and negative particles An atom is the smallest particle of an element; natural element H to U Atom  Nucleus (protons + neutrons), with ‘orbiting’ electrons No. of protons in nucleus = Atomic Number Science of light  Spectroscopy

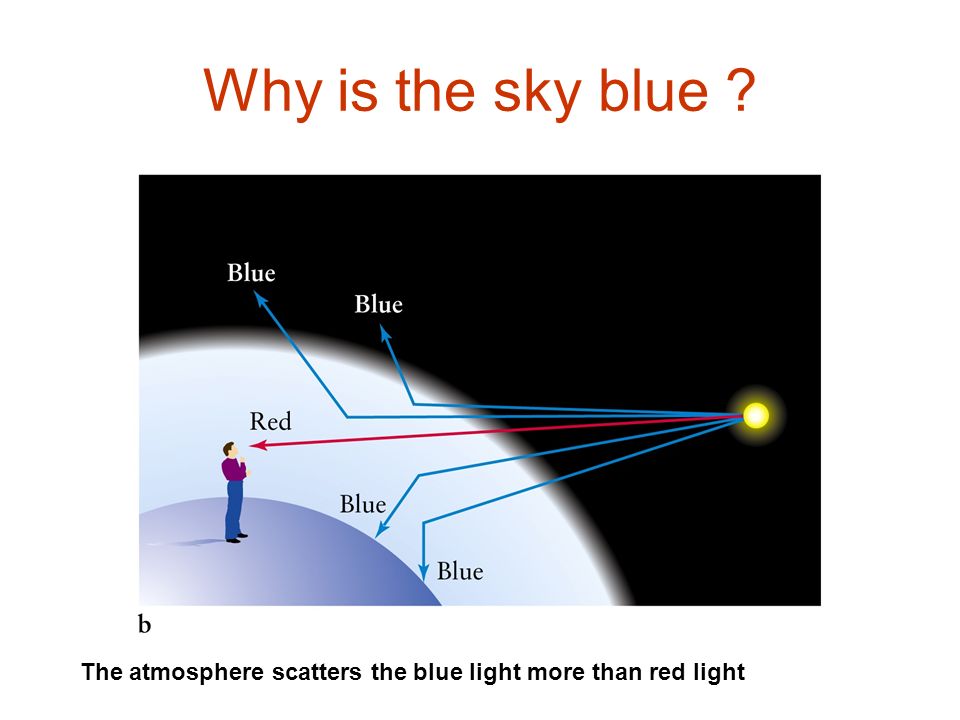

10. Why is the sky blue ? The atmosphere scatters the blue light more than red light

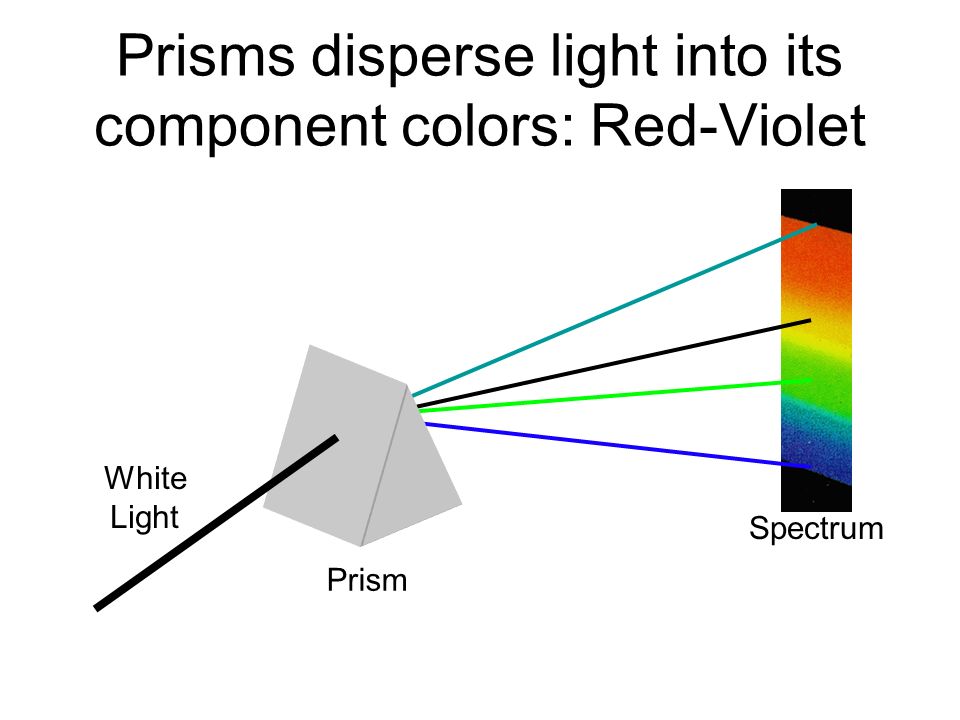

11. Spectrum Prism White Light Prisms disperse light into its component colors: Red-Violet

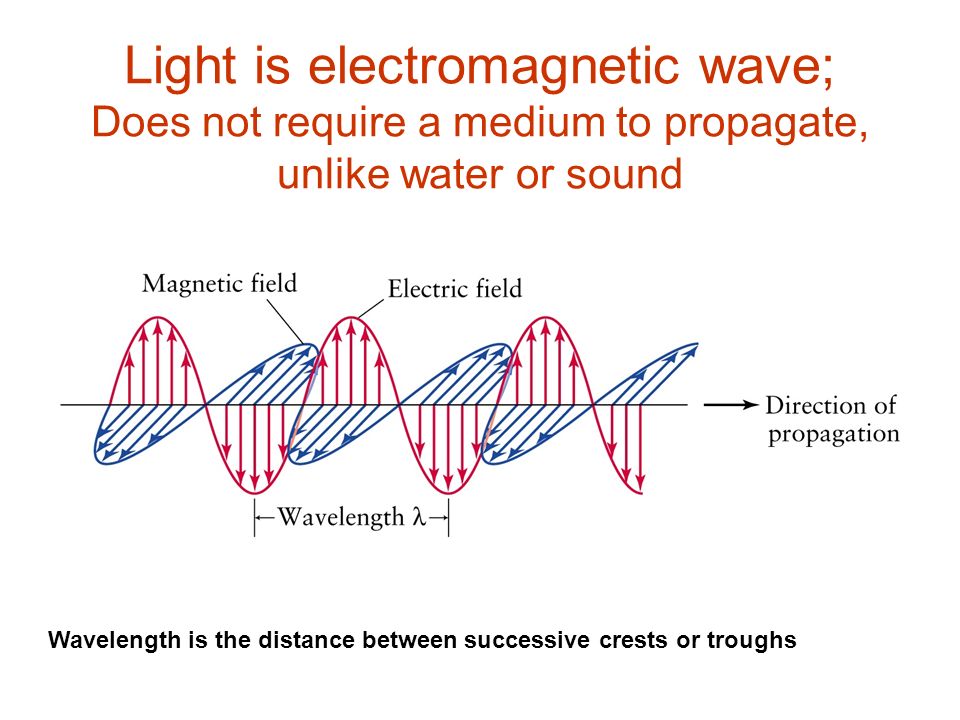

12. Light is electromagnetic wave; Does not require a medium to propagate, unlike water or sound Wavelength is the distance between successive crests or troughs

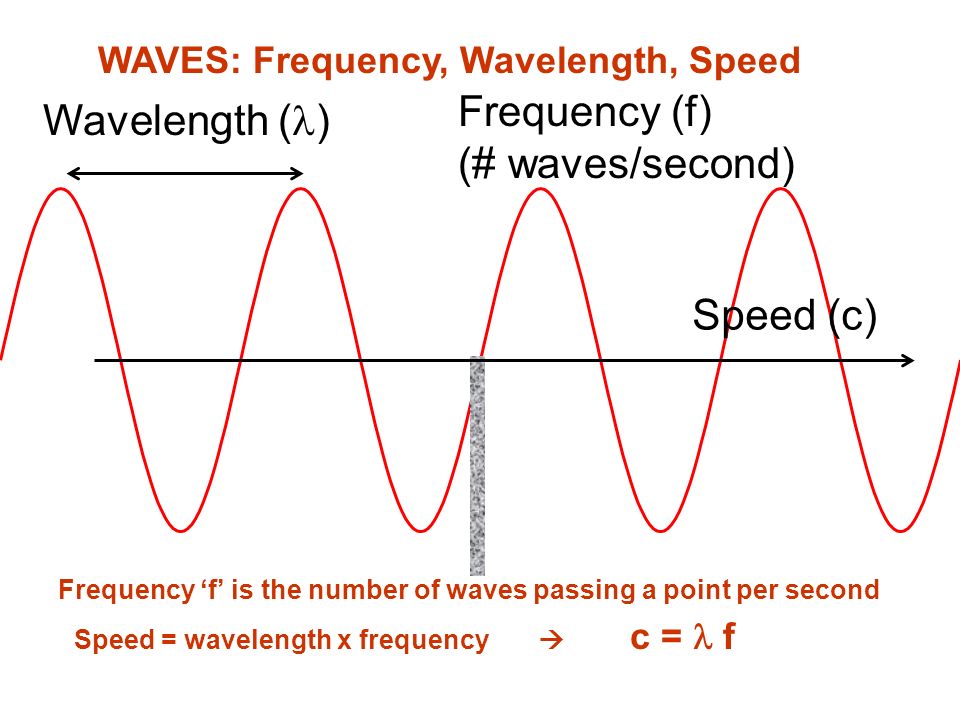

13. Wavelength ( ) Speed (c) Frequency (f) (# waves/second) Speed = wavelength x frequency  c =  f Frequency ‘f’ is the number of waves passing a point per second WAVES: Frequency, Wavelength, Speed

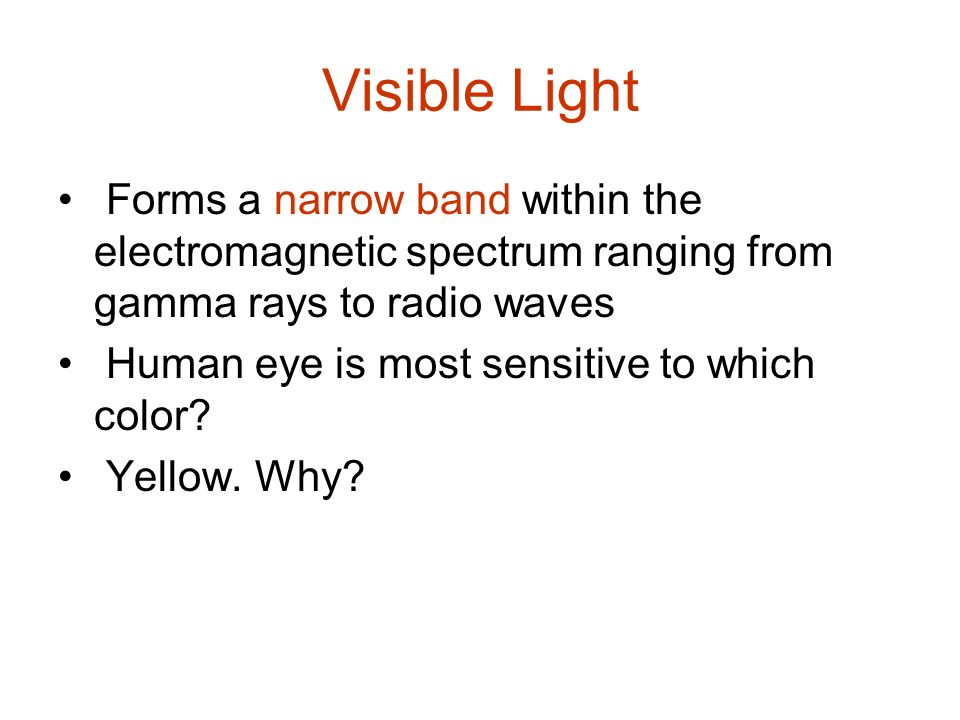

14. Visible Light Forms a narrow band within the electromagnetic spectrum ranging from gamma rays to radio waves Human eye is most sensitive to which color? Yellow. Why?

15. Units of wavelength and frequency Frequency is the number of cycles per second Since speed of light is constant, higher the frequency the shorter the wavelength and vice- versa Wavelengths are measured in Angstroms: 1A = 1/100,000,000 cm = 1/10 nanometer (nm) The higher the frequency the more energetic the wave Wavelength (or frequency) defines radiation or color

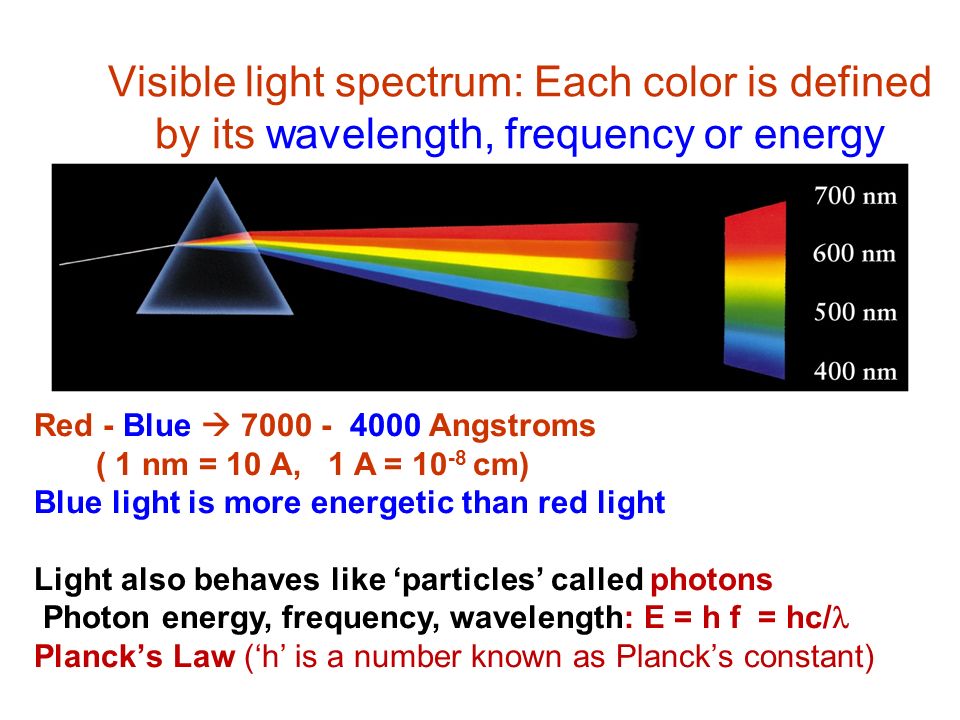

16. Visible light spectrum: Each color is defined by its wavelength, frequency or energy Red - Blue  7000 - 4000 Angstroms ( 1 nm = 10 A, 1 A = 10 -8 cm) Blue light is more energetic than red light Light also behaves like ‘particles’ called photons Photon energy, frequency, wavelength: E = h f = hc/ Planck’s Law (‘h’ is a number known as Planck’s constant)

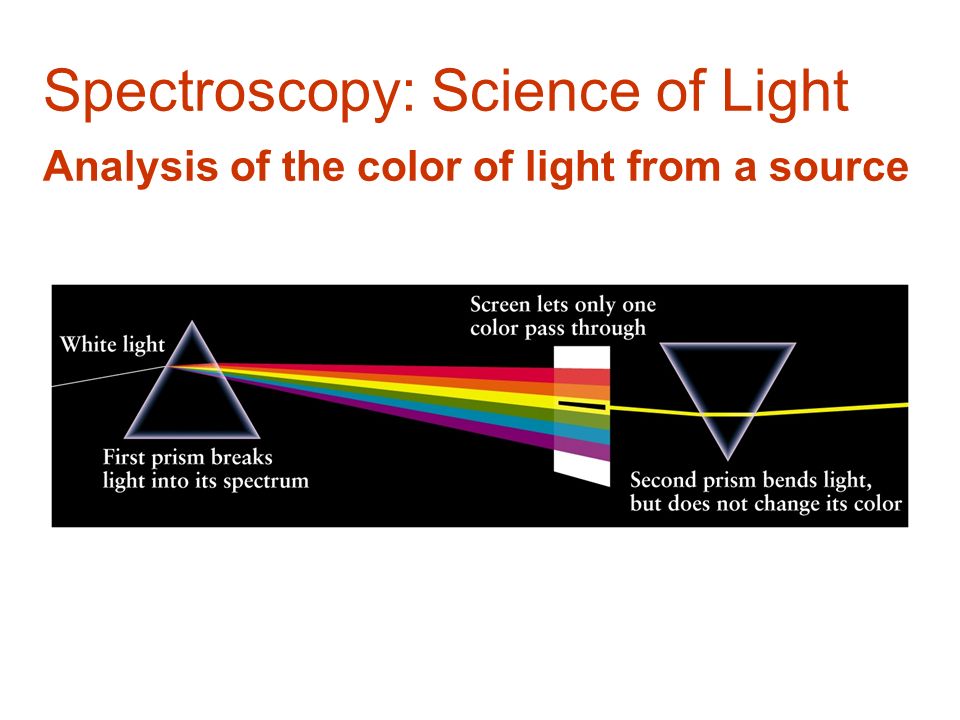

17. Spectroscopy: Science of Light Analysis of the color of light from a source

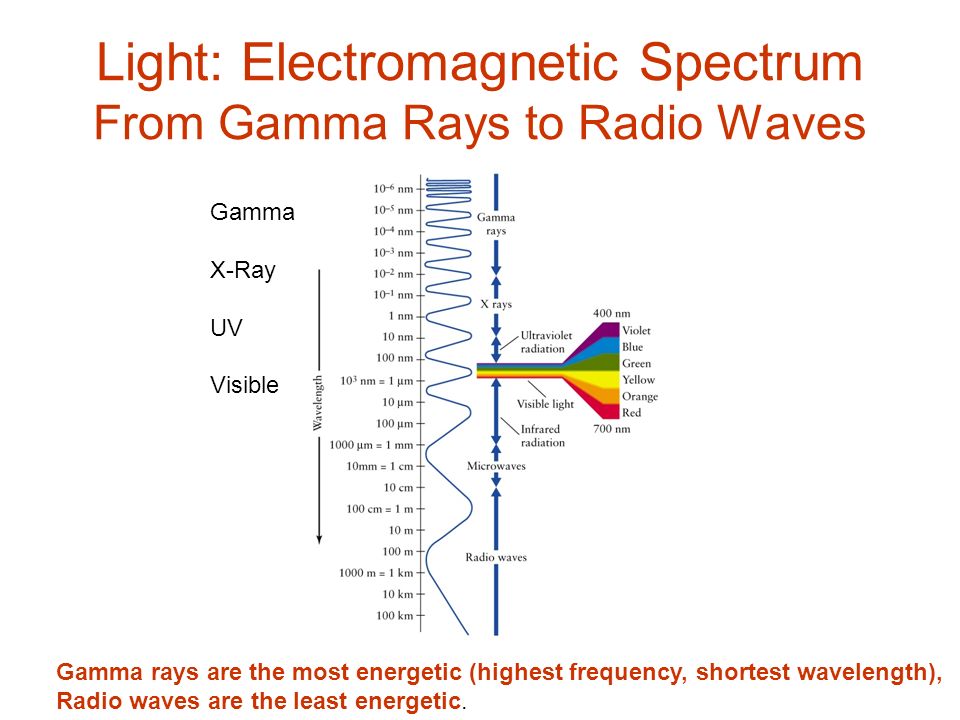

18. Light: Electromagnetic Spectrum From Gamma Rays to Radio Waves Gamma rays are the most energetic (highest frequency, shortest wavelength), Radio waves are the least energetic. Gamma X-Ray UV Visible

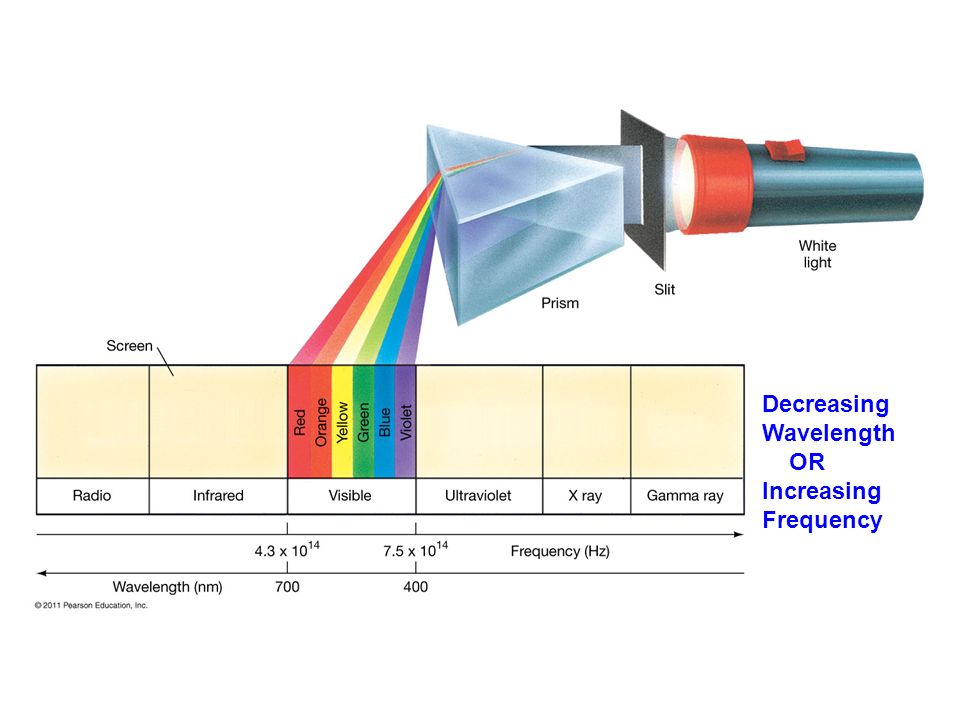

19. Decreasing Wavelength OR Increasing Frequency

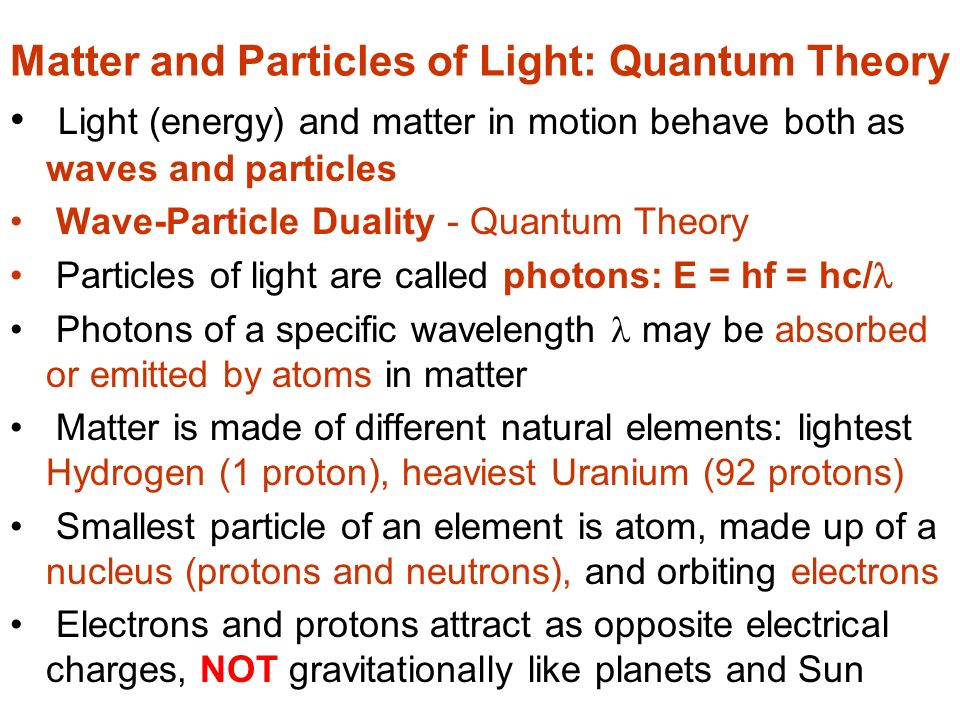

20. Matter and Particles of Light: Quantum Theory Light (energy) and matter in motion behave both as waves and particles Wave-Particle Duality - Quantum Theory Particles of light are called photons: E = hf = hc/ Photons of a specific wavelength may be absorbed or emitted by atoms in matter Matter is made of different natural elements: lightest Hydrogen (1 proton), heaviest Uranium (92 protons) Smallest particle of an element is atom, made up of a nucleus (protons and neutrons), and orbiting electrons Electrons and protons attract as opposite electrical charges, NOT gravitationally like planets and Sun

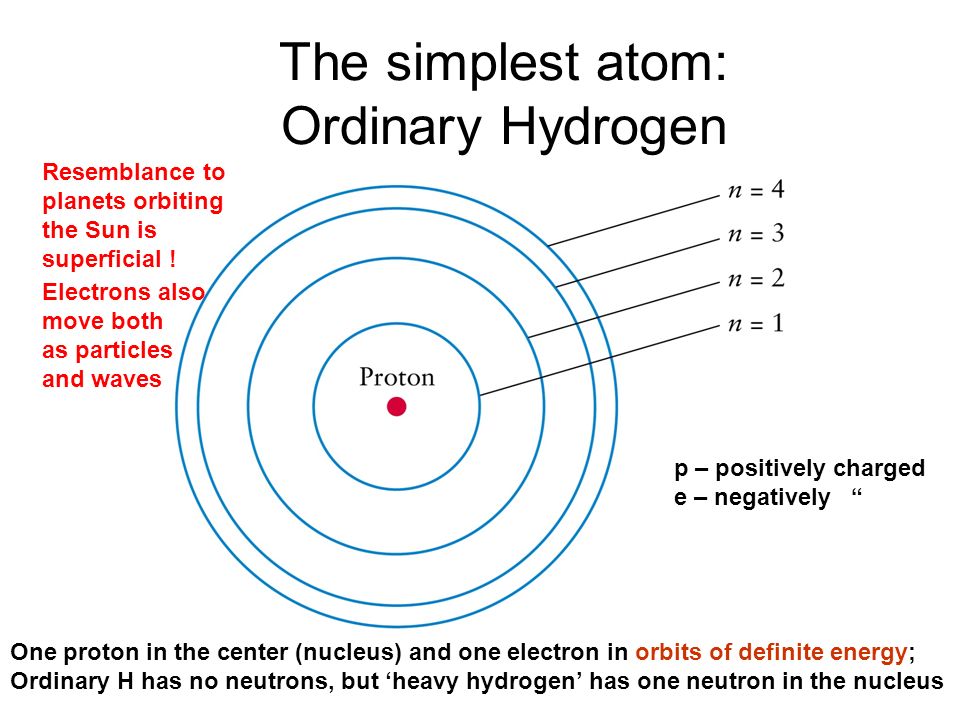

21. The simplest atom: Ordinary Hydrogen One proton in the center (nucleus) and one electron in orbits of definite energy; Ordinary H has no neutrons, but ‘heavy hydrogen’ has one neutron in the nucleus p – positively charged e – negatively “ Resemblance to planets orbiting the Sun is superficial ! Electrons also move both as particles and waves

22. Energy, Frequency, Wavelength Light particles ‘photons’ have a unique wavelength The more ‘energetic’ a wave, the higher its frequency, or lower its wavelength Planck’s Law: Photon energy (‘quantum’) is E = h f = h /  ‘h’ is the Planck’s constant  This ‘quantum’ of energy must be equal to the difference in energies between two electron orbits, for either absorption or emission by an atom

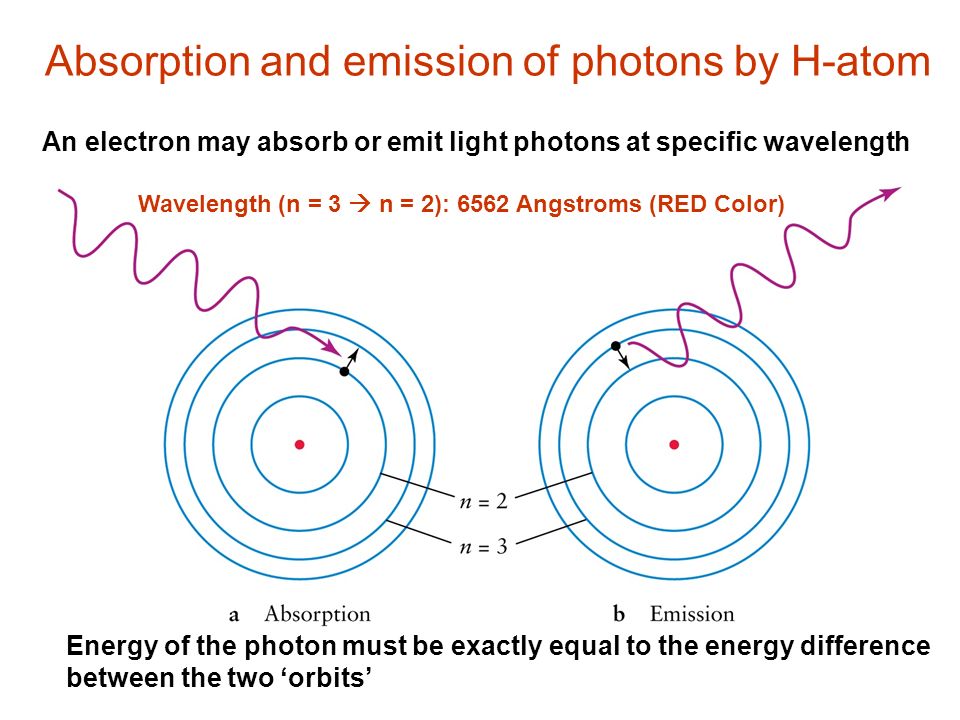

23. Absorption and emission of photons by H-atom Energy of the photon must be exactly equal to the energy difference between the two ‘orbits’ An electron may absorb or emit light photons at specific wavelength Wavelength (n = 3  n = 2): 6562 Angstroms (RED Color)

24. file:///E:/Univ7e/content/ch05/0503002.html

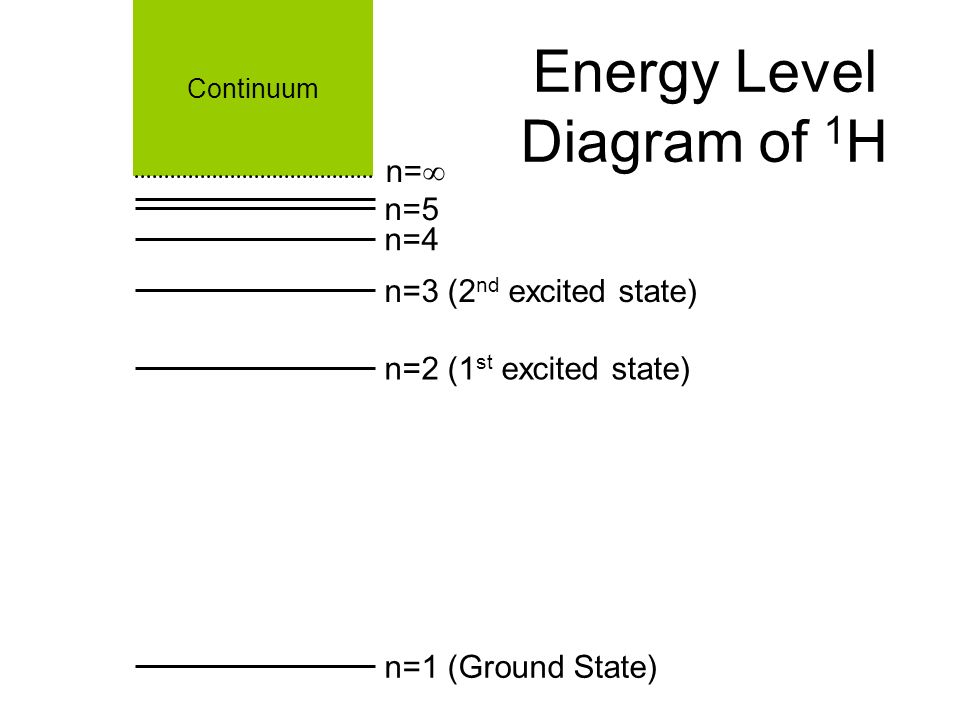

25. n=1 (Ground State) n=3 (2 nd excited state) n=2 (1 st excited state) n=4 n=5 Energy Level Diagram of 1 H Continuum n= 

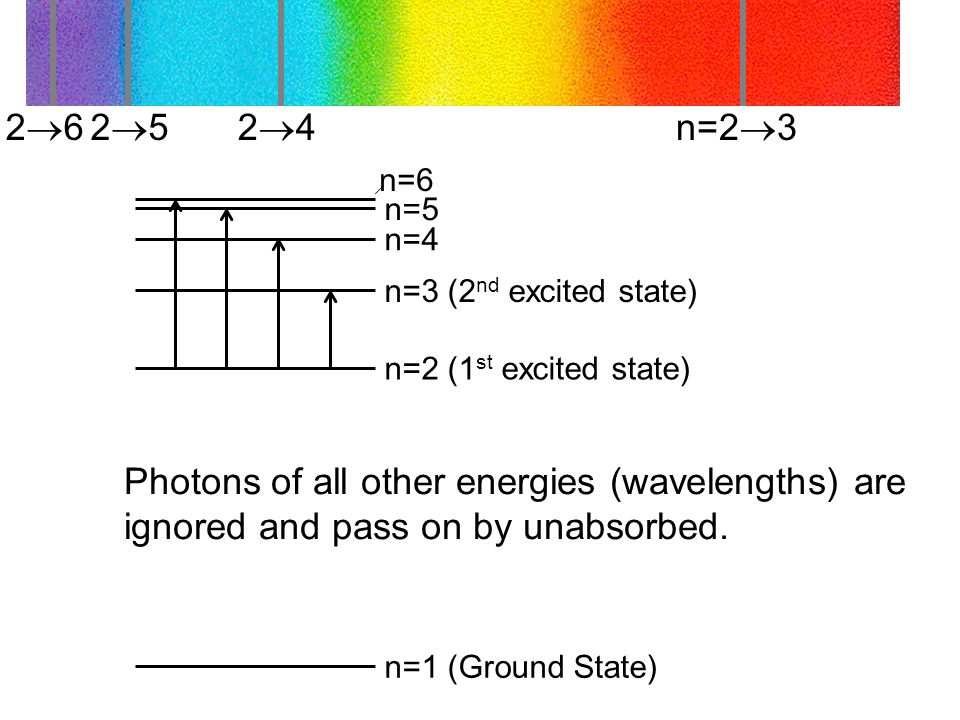

26. n=1 (Ground State) n=3 (2 nd excited state) n=2 (1 st excited state) n=4 n=5 Photons of all other energies (wavelengths) are ignored and pass on by unabsorbed. n=2  3262625252424 n=6

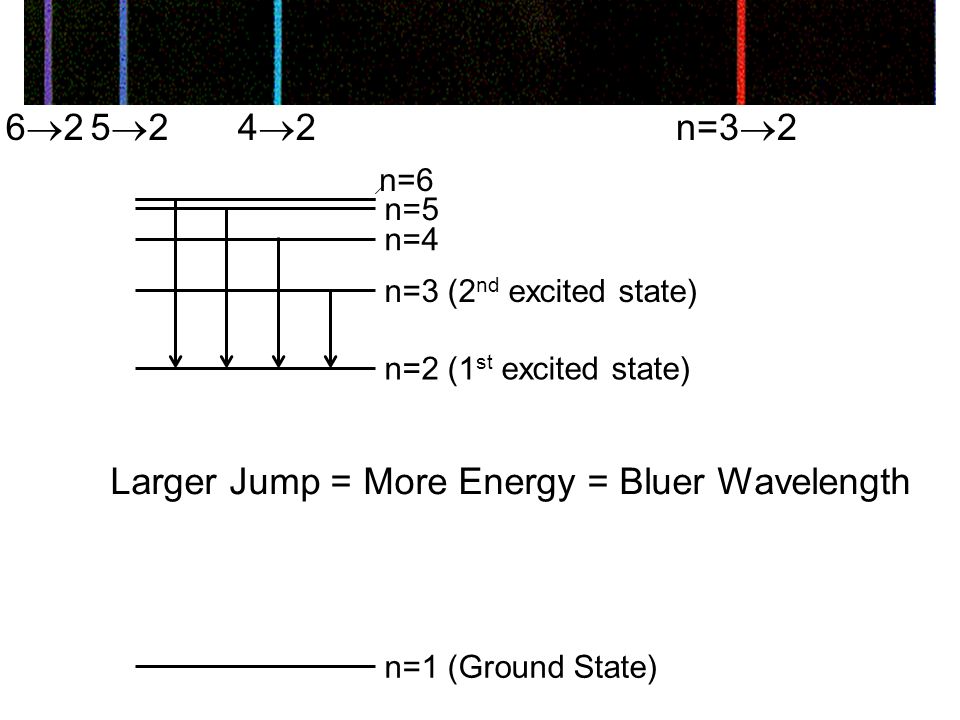

27. n=1 (Ground State) n=3 (2 nd excited state) n=2 (1 st excited state) n=4 n=5 n=3  2626252524242 Larger Jump = More Energy = Bluer Wavelength n=6

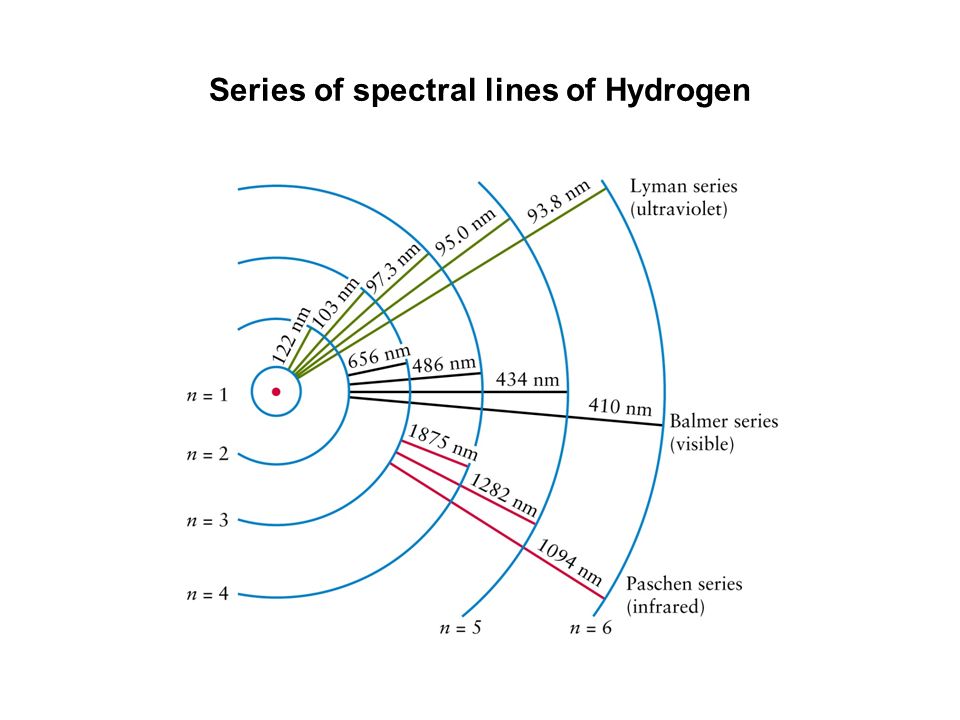

28. Series of spectral lines of Hydrogen

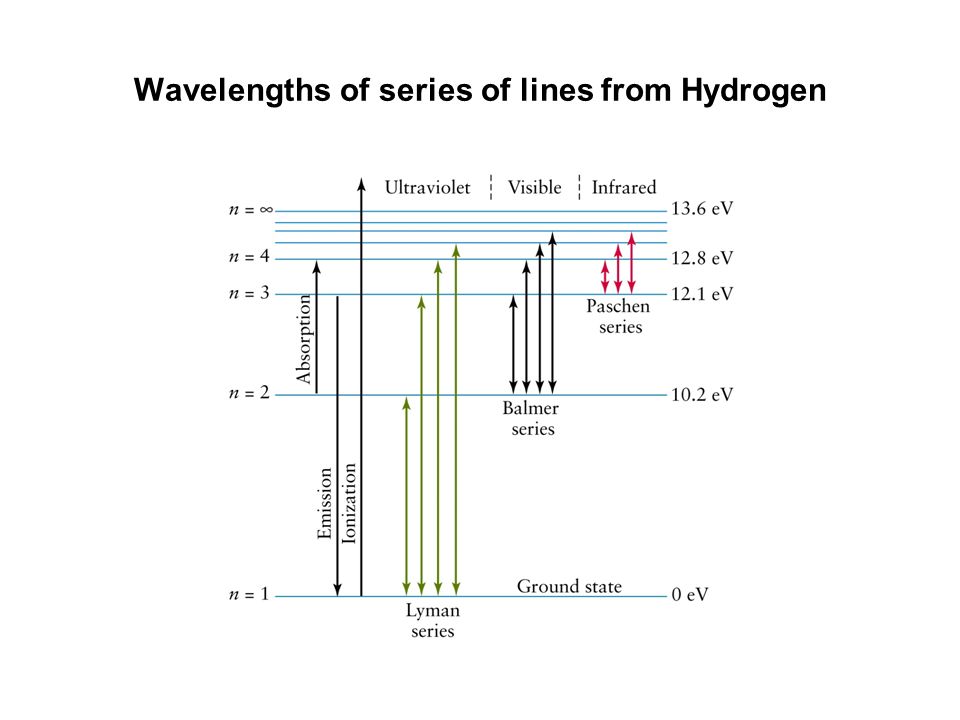

29. Wavelengths of series of lines from Hydrogen

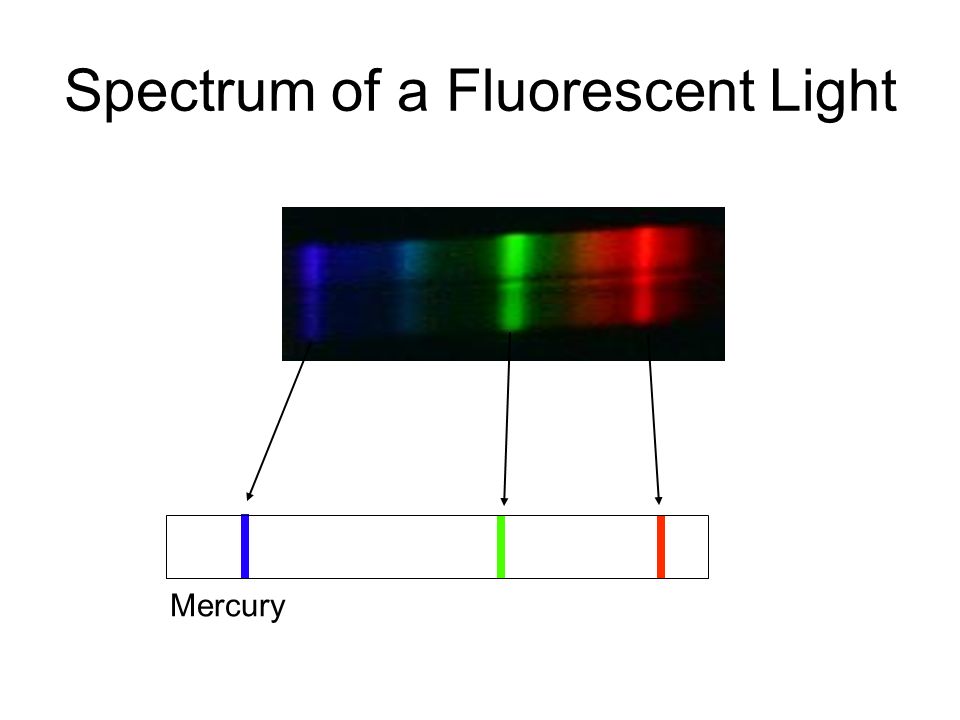

30. Spectrum of a Fluorescent Light Mercury

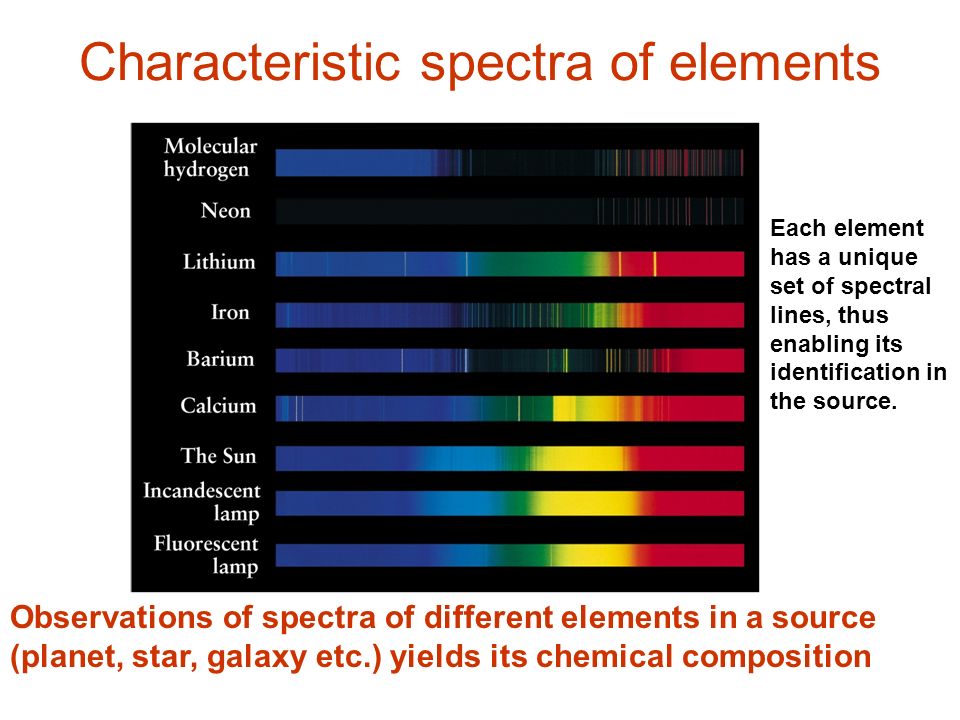

31. Characteristic spectra of elements Observations of spectra of different elements in a source (planet, star, galaxy etc.) yields its chemical composition Each element has a unique set of spectral lines, thus enabling its identification in the source.

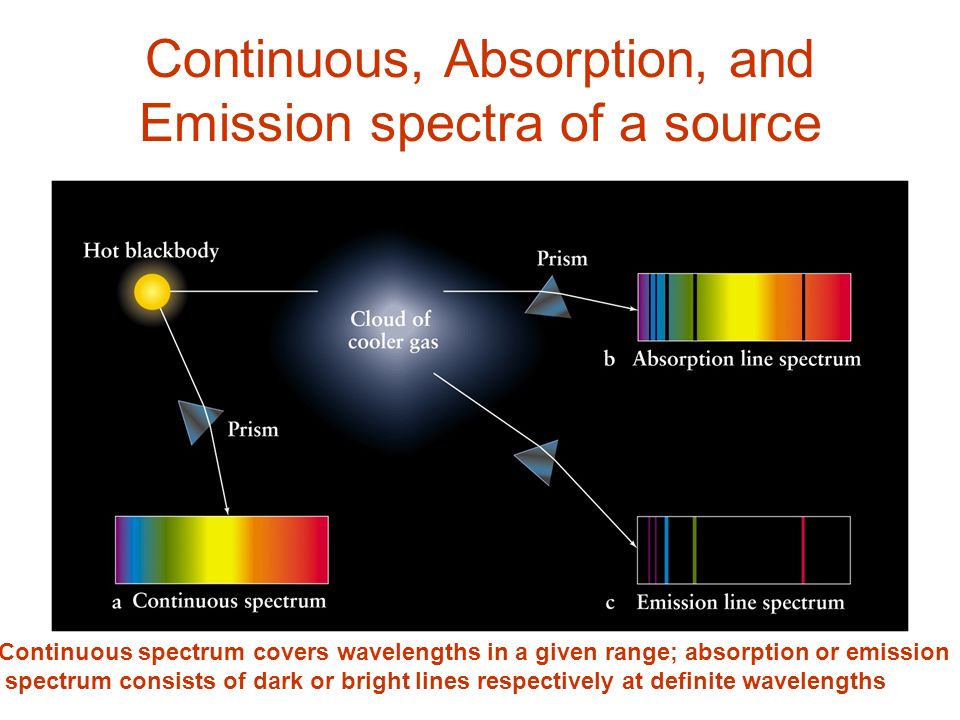

32. Continuous, Absorption, and Emission spectra of a source Continuous spectrum covers wavelengths in a given range; absorption or emission spectrum consists of dark or bright lines respectively at definite wavelengths

33. Color Indicates Temperature and Energy of the Source Objects generally emit radiation at all wavelengths, but mostly at one peak Wavelength depending on their temperature (e.g. blue – hot, red – cool) Surface T (Sun) = 5600 K “ (Mercury) = 800 K Blackbody: Perfect absorber and emitter Of radiation at a given Temperature T

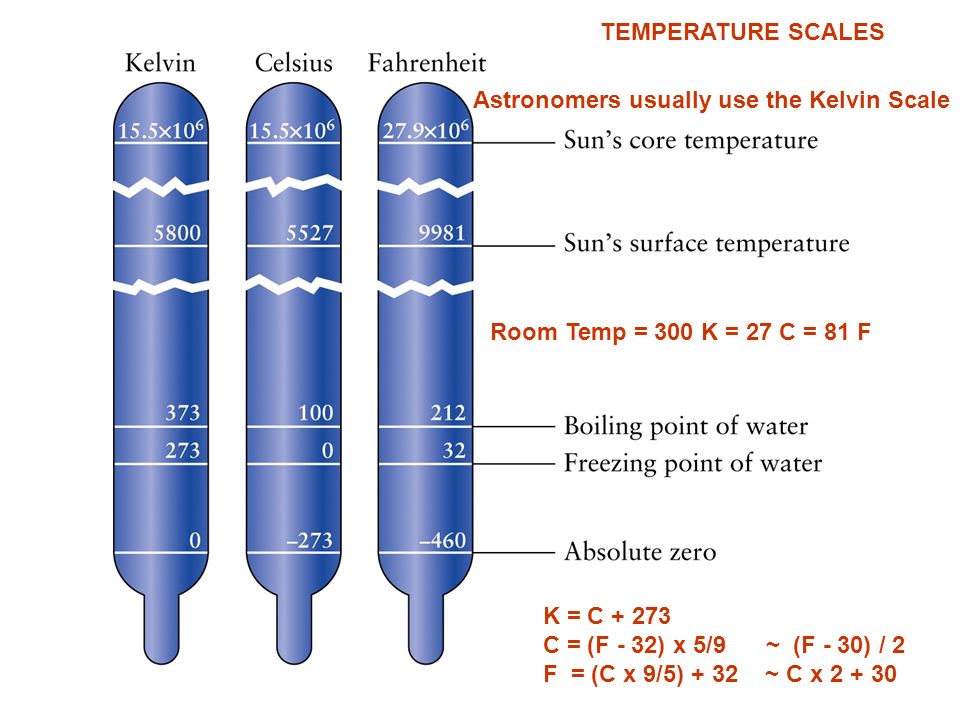

34. TEMPERATURE SCALES Room Temp = 300 K = 27 C = 81 F Astronomers usually use the Kelvin Scale K = C + 273 C = (F - 32) x 5/9 ~ (F - 30) / 2 F = (C x 9/5) + 32 ~ C x 2 + 30

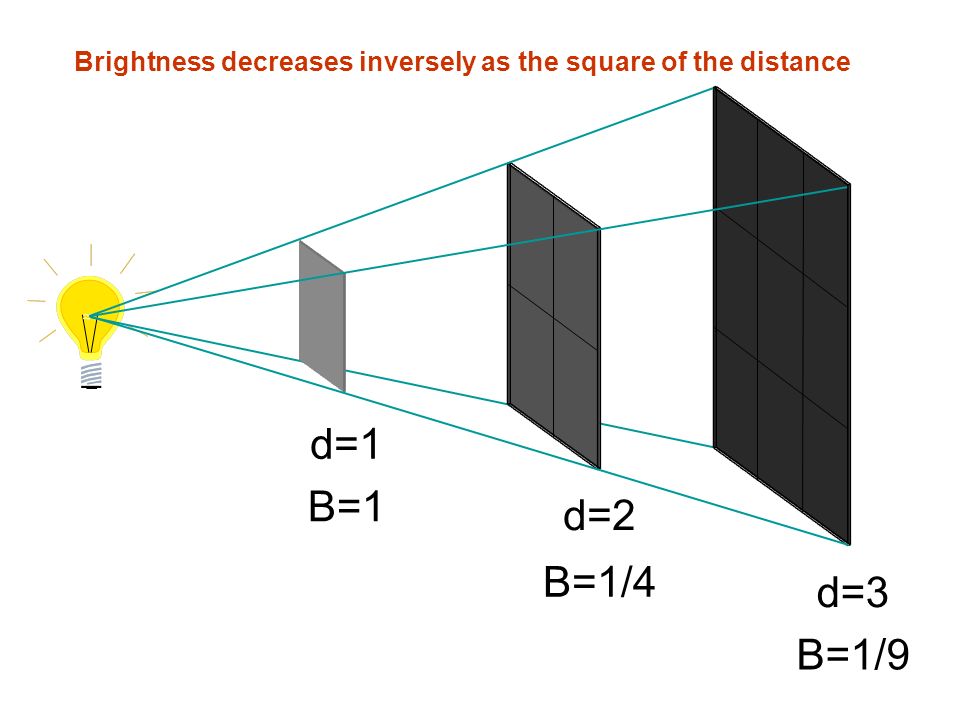

35. d=1 d=2 d=3 B=1 B=1/9 B=1/4 Brightness decreases inversely as the square of the distance

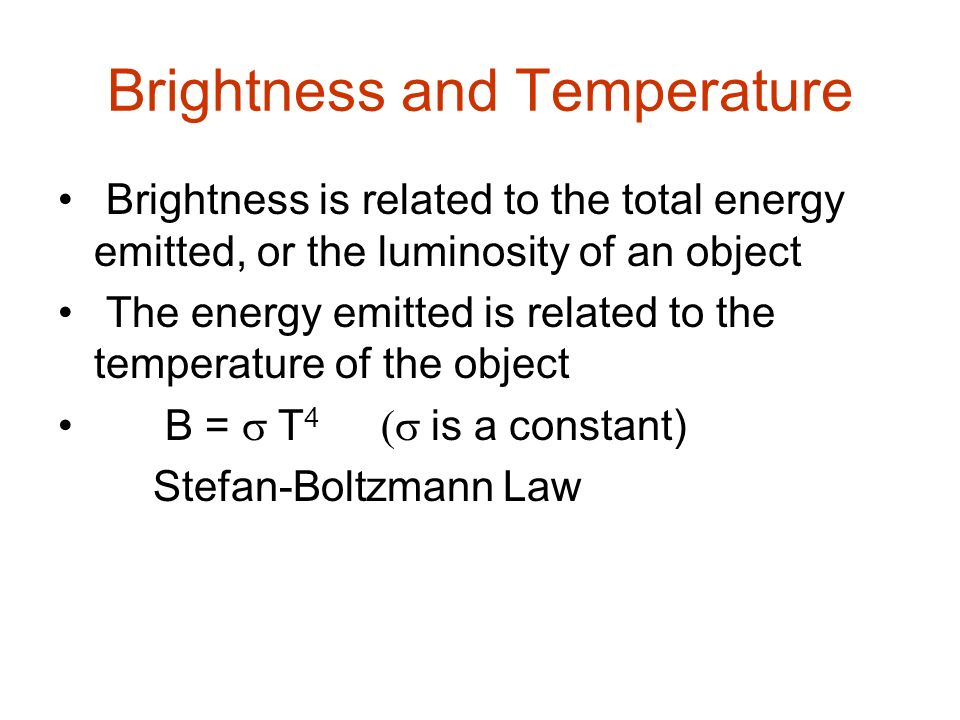

36. Brightness and Temperature Brightness is related to the total energy emitted, or the luminosity of an object The energy emitted is related to the temperature of the object B =  T 4  is a constant) Stefan-Boltzmann Law

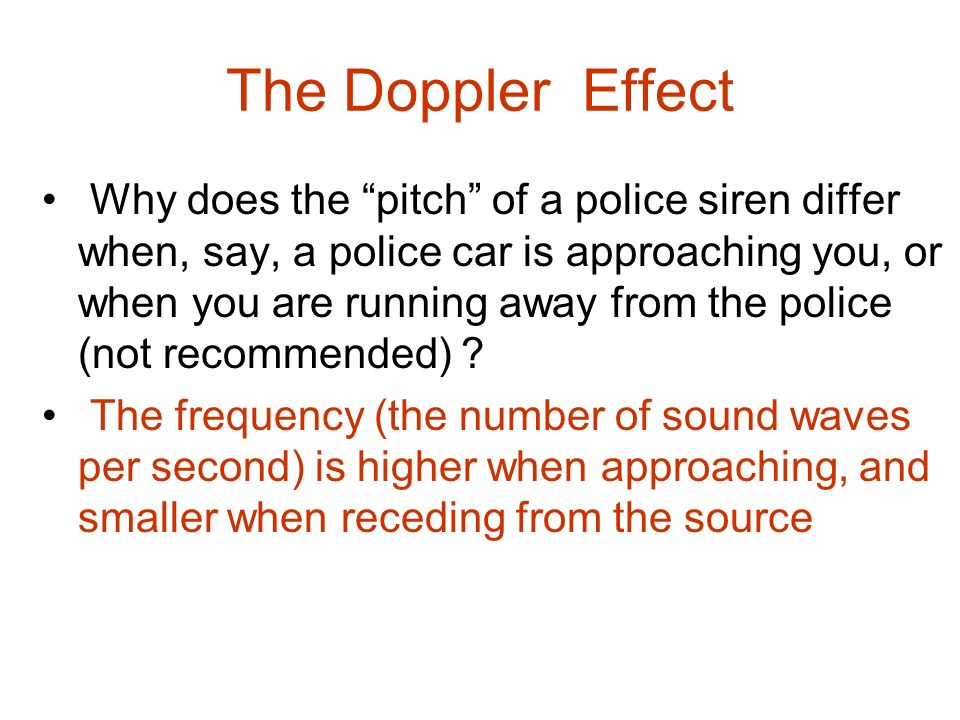

37. The Doppler Effect Why does the “pitch” of a police siren differ when, say, a police car is approaching you, or when you are running away from the police (not recommended) ? The frequency (the number of sound waves per second) is higher when approaching, and smaller when receding from the source

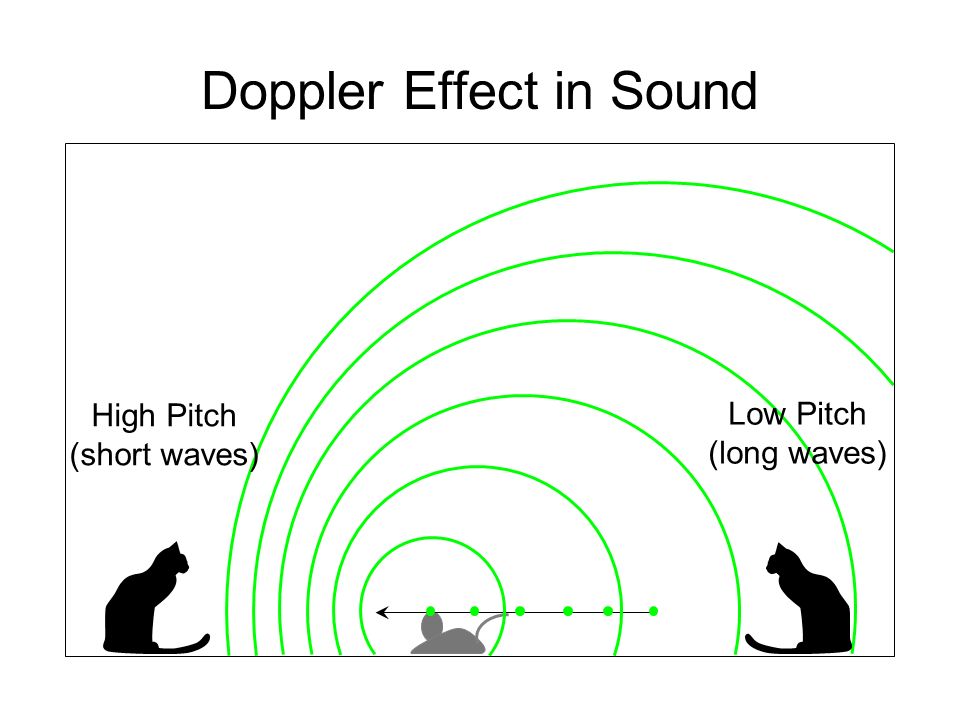

38. Doppler Effect in Sound High Pitch (short waves) Low Pitch (long waves)

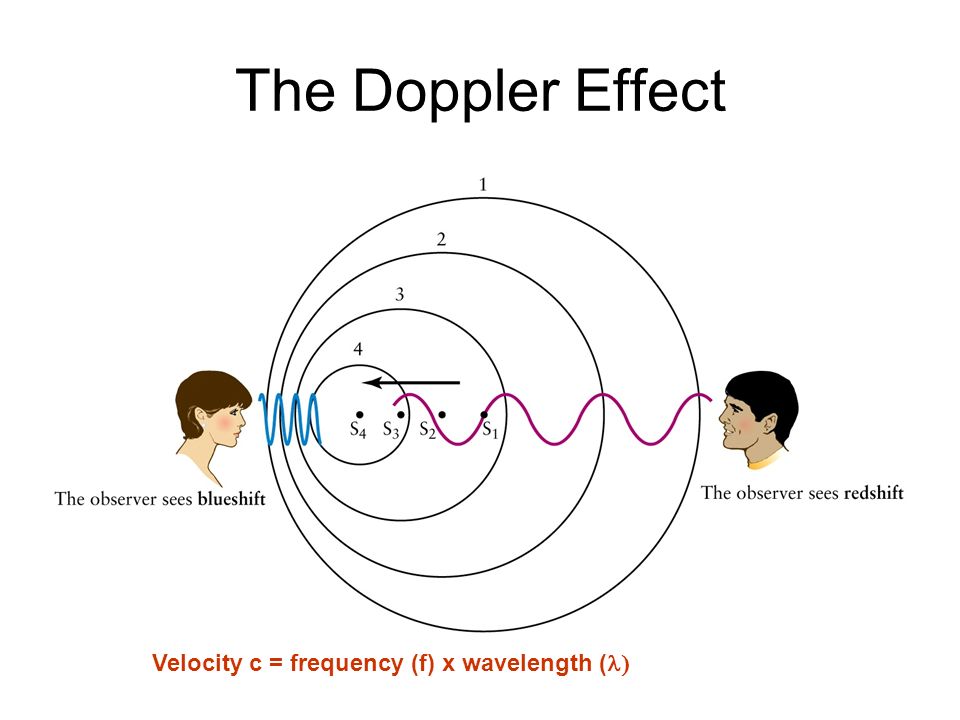

39. The Doppler Effect Velocity c = frequency (f) x wavelength ( 

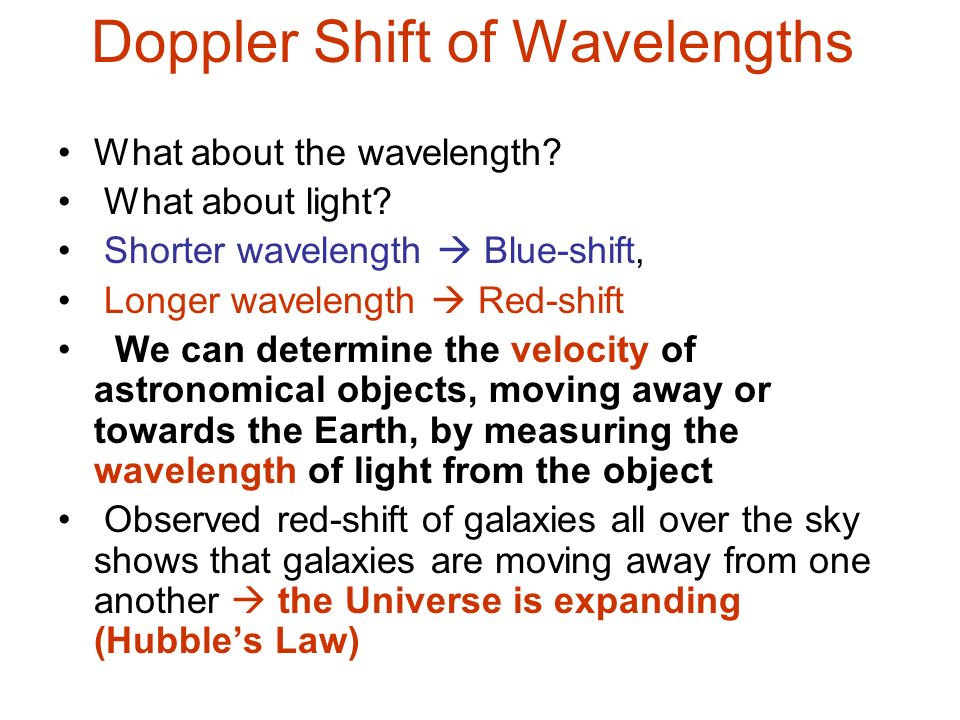

40. Doppler Shift of Wavelengths What about the wavelength? What about light? Shorter wavelength  Blue-shift, Longer wavelength  Red-shift We can determine the velocity of astronomical objects, moving away or towards the Earth, by measuring the wavelength of light from the object Observed red-shift of galaxies all over the sky shows that galaxies are moving away from one another  the Universe is expanding (Hubble’s Law)
