1 B-Trees and Red Black Trees

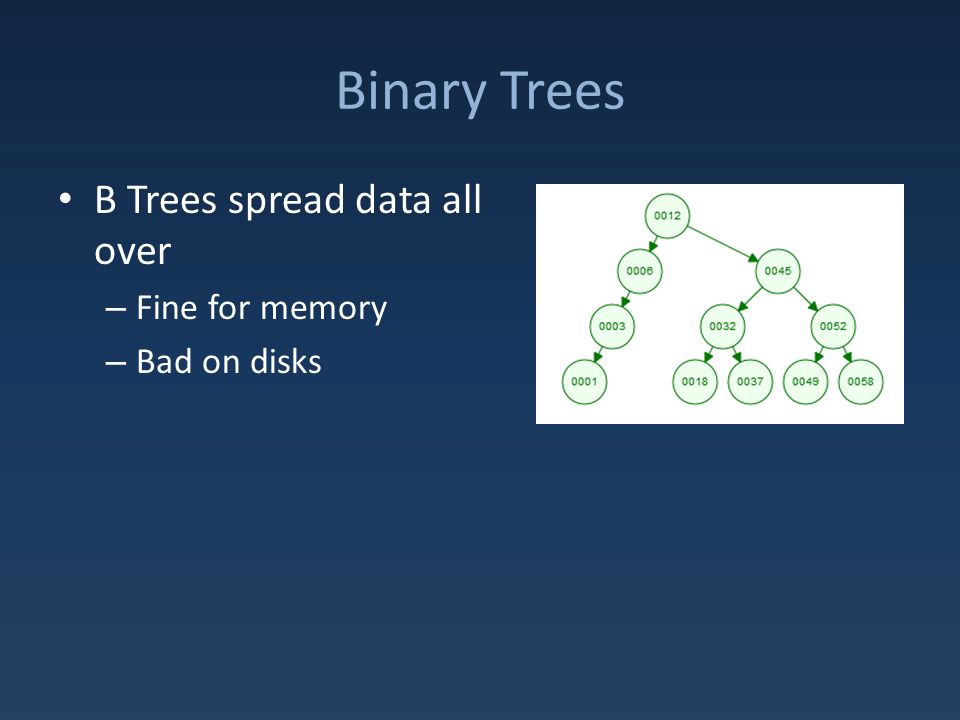

2 Binary Trees B Trees spread data all over – Fine for memory – Bad on disks

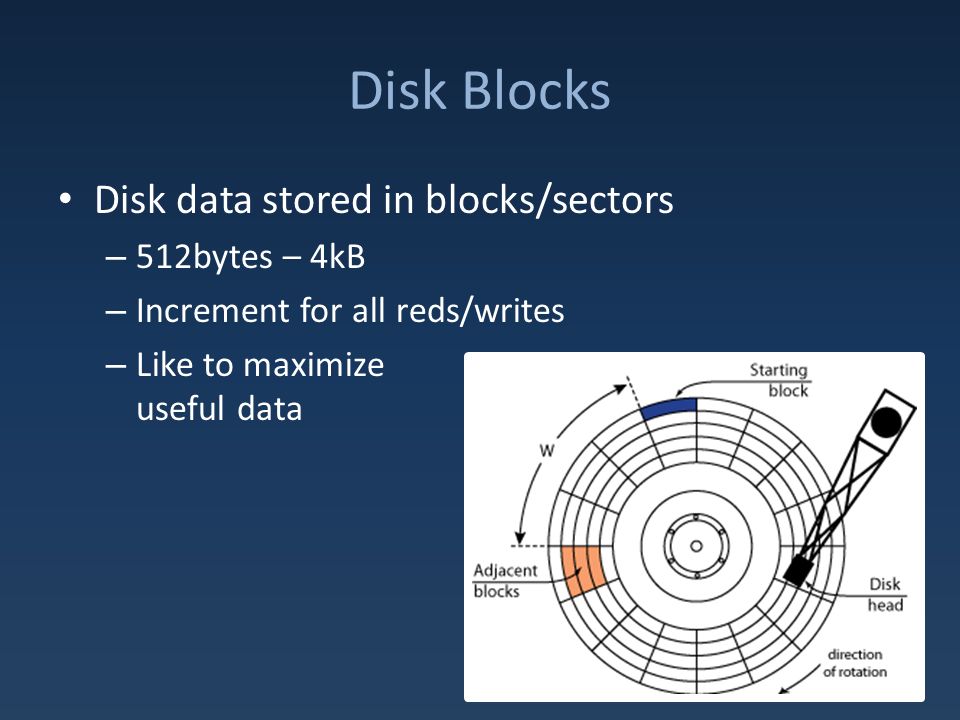

3 Disk Blocks Disk data stored in blocks/sectors – 512bytes – 4kB – Increment for all reds/writes – Like to maximize useful data

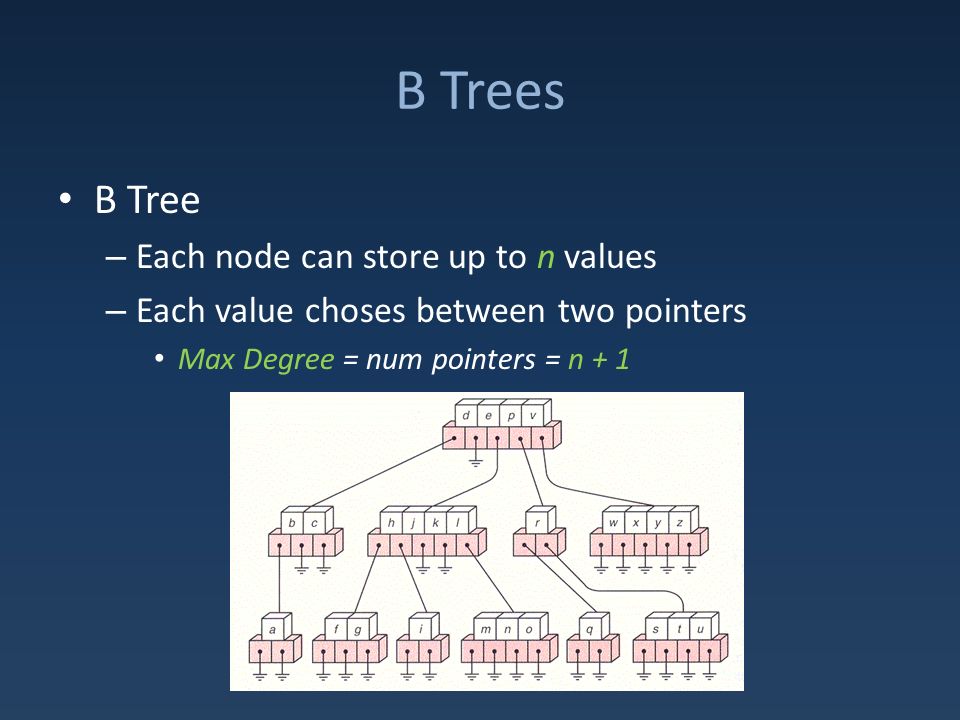

4 B Trees B Tree – Each node can store up to n values – Each value choses between two pointers Max Degree = num pointers = n + 1

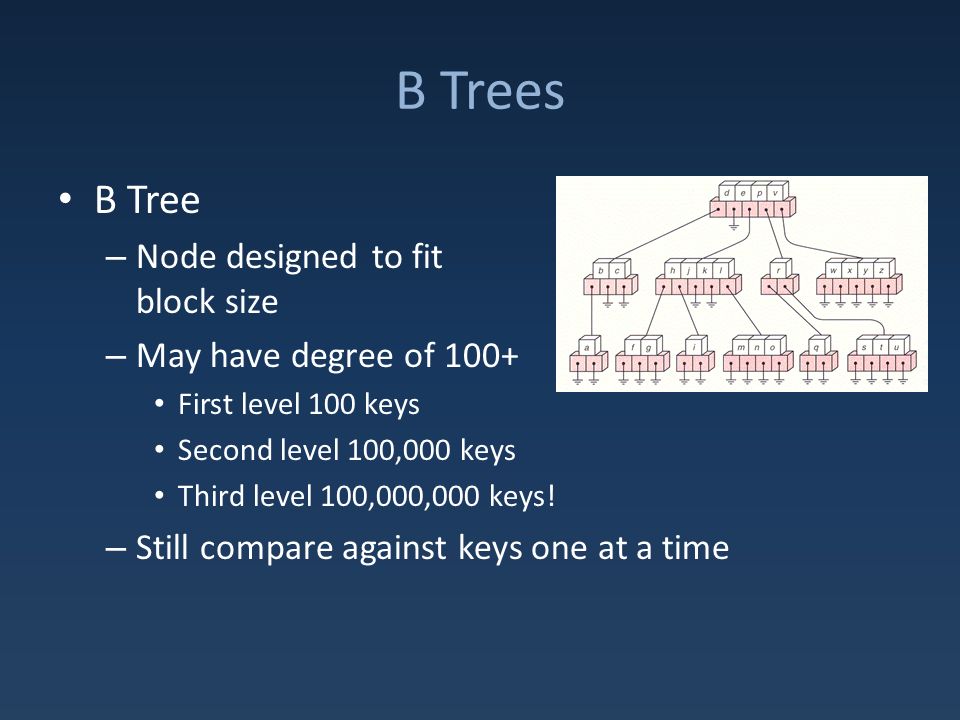

5 B Trees B Tree – Node designed to fit block size – May have degree of 100+ First level 100 keys Second level 100,000 keys Third level 100,000,000 keys! – Still compare against keys one at a time

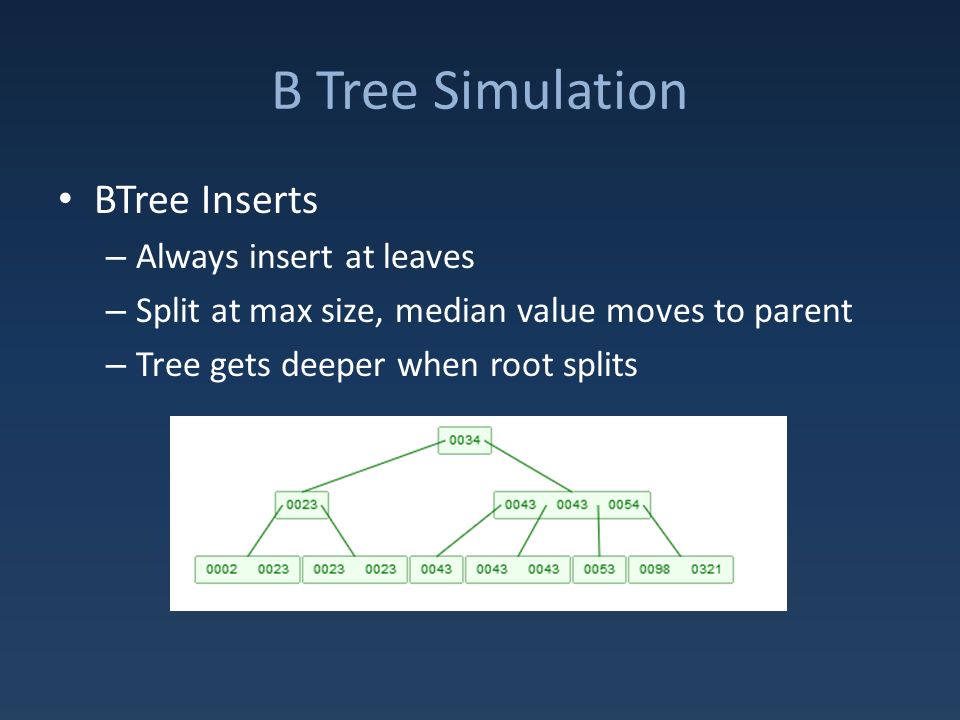

6 B Tree Simulation BTree Inserts – Always insert at leaves – Split at max size, median value moves to parent – Tree gets deeper when root splits

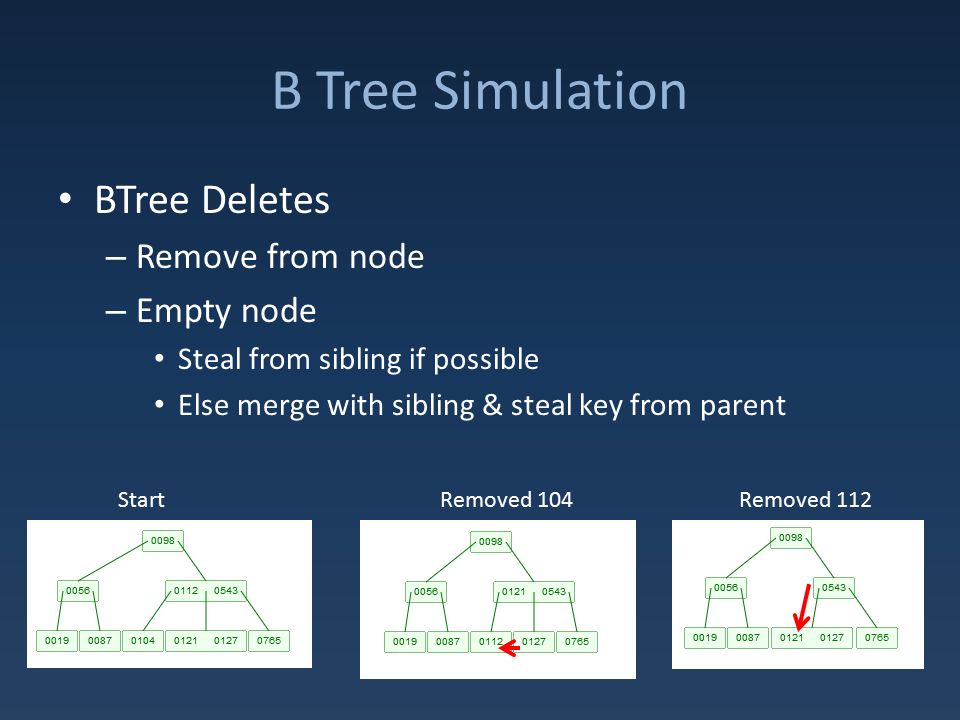

7 B Tree Simulation BTree Deletes – Remove from node – Empty node Steal from sibling if possible Else merge with sibling & steal key from parent Start Removed 104 Removed 112

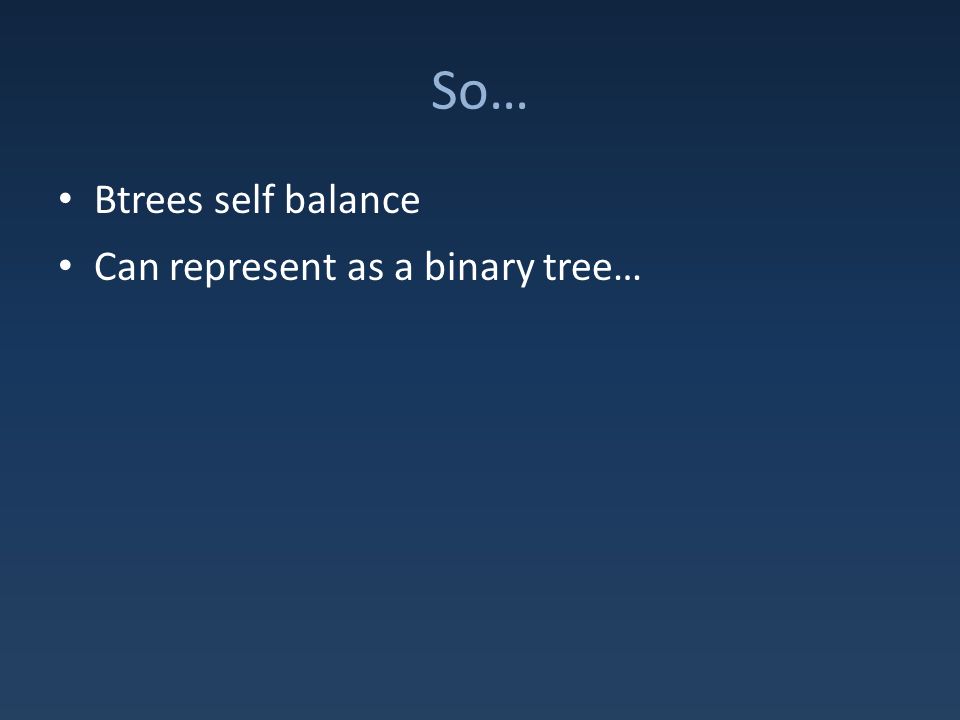

8 So… Btrees self balance Can represent as a binary tree…

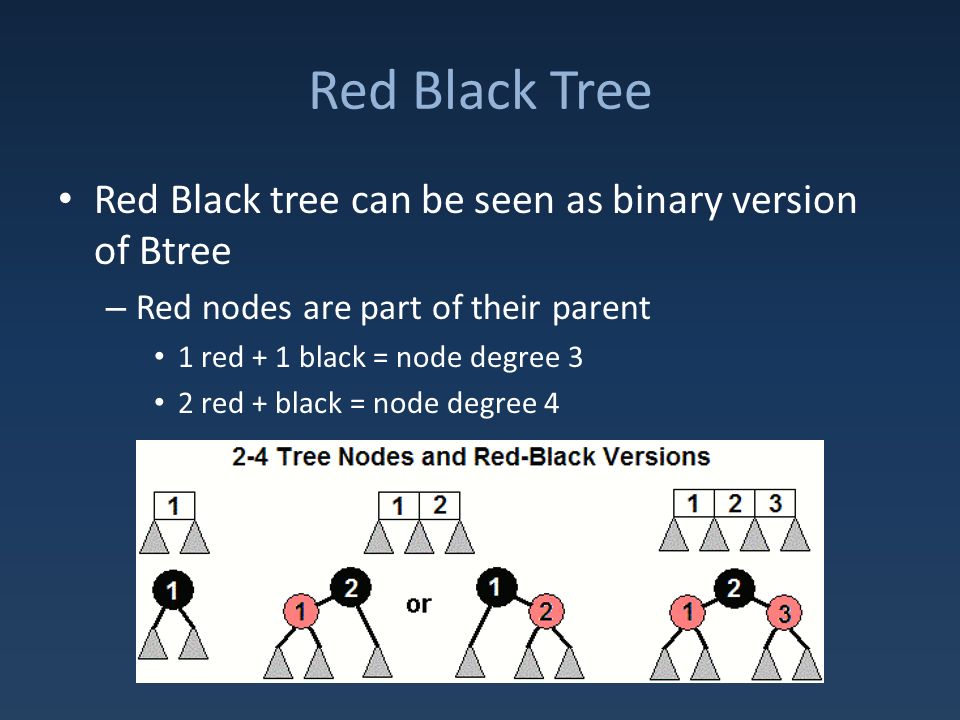

9 Red Black Tree Red Black tree can be seen as binary version of Btree – Red nodes are part of their parent 1 red + 1 black = node degree 3 2 red + black = node degree 4

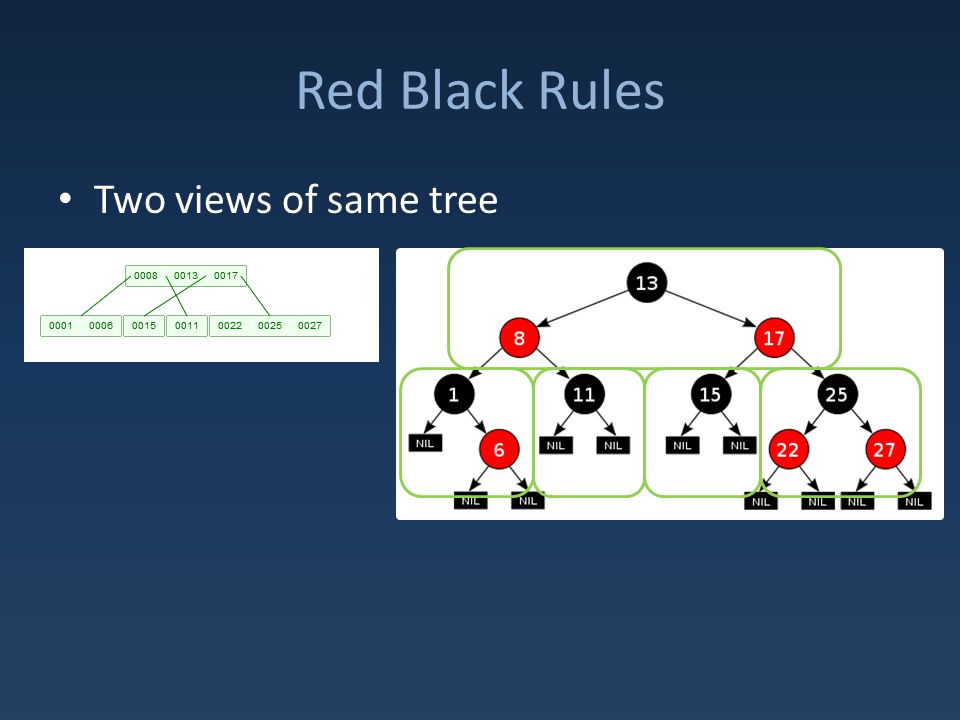

10 Red Black Rules Two views of same tree

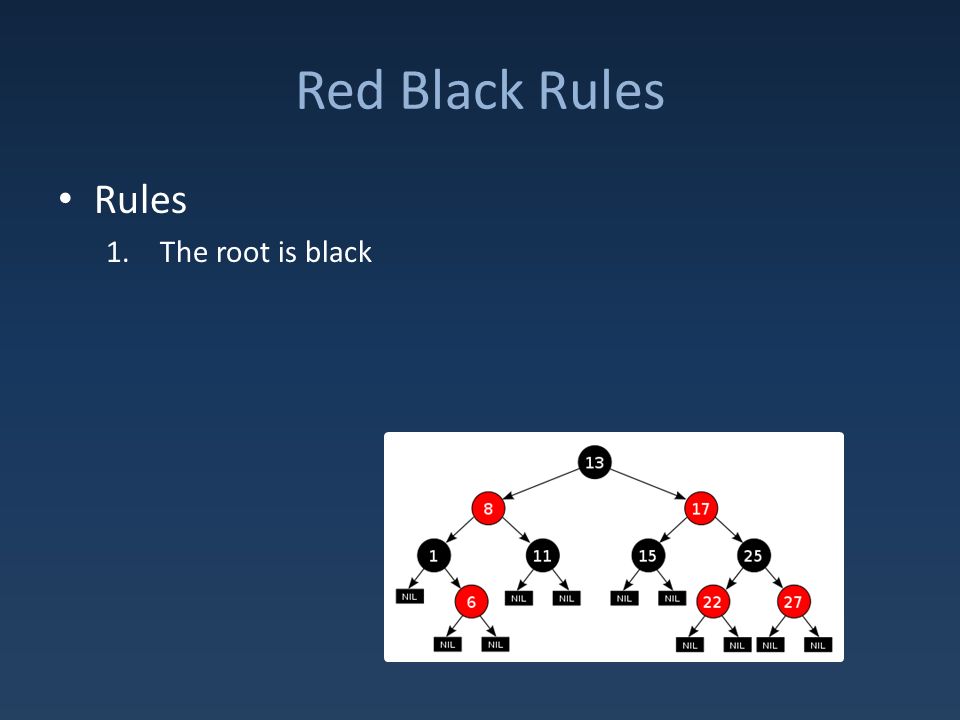

11 Red Black Rules Rules 1.The root is black

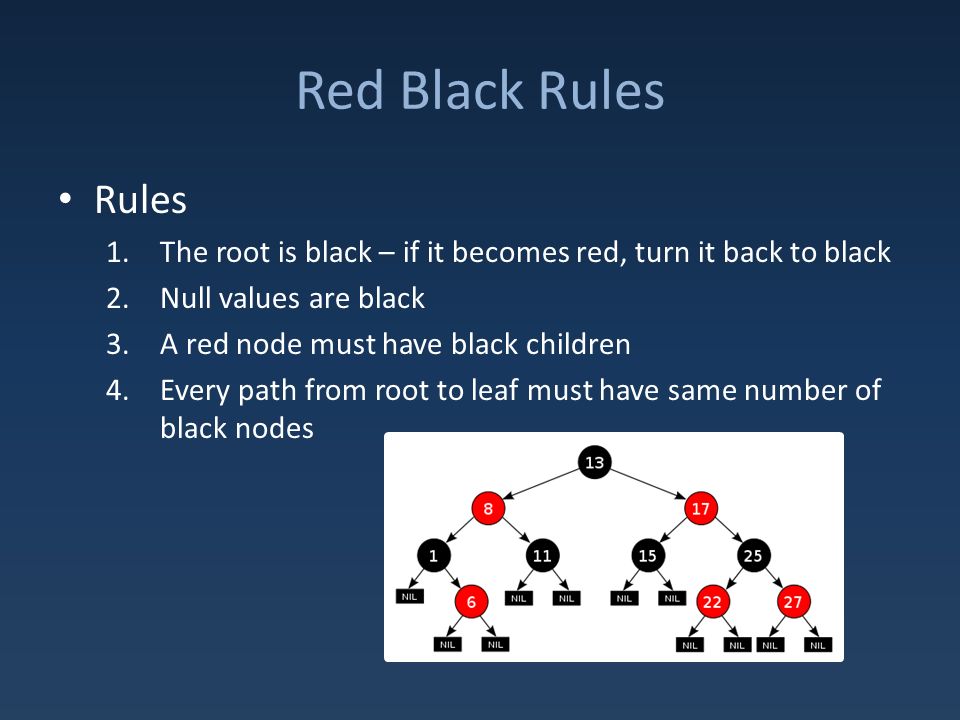

12 Red Black Rules Rules 1.The root is black – if it becomes red, turn it back to black 2.Null values are black 3.A red node must have black children 4.Every path from root to leaf must have same number of black nodes

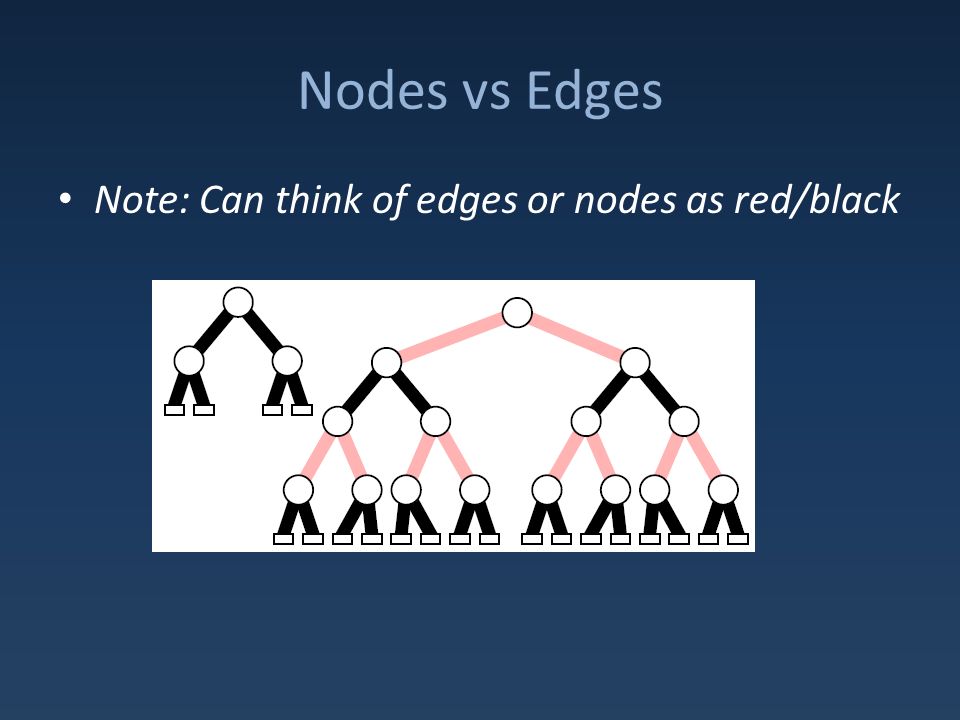

13 Nodes vs Edges Note: Can think of edges or nodes as red/black

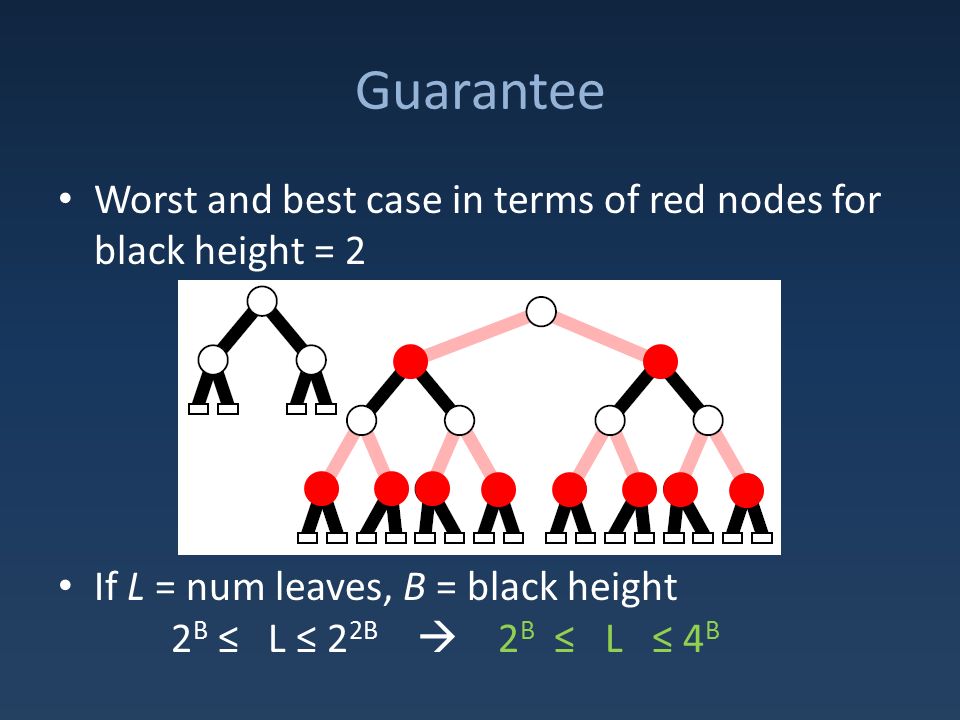

14 Guarantee Worst and best case in terms of red nodes for black height = 2 If L = num leaves, B = black height 2 B ≤ L ≤ 2 2B  2 B ≤ L ≤ 4 B

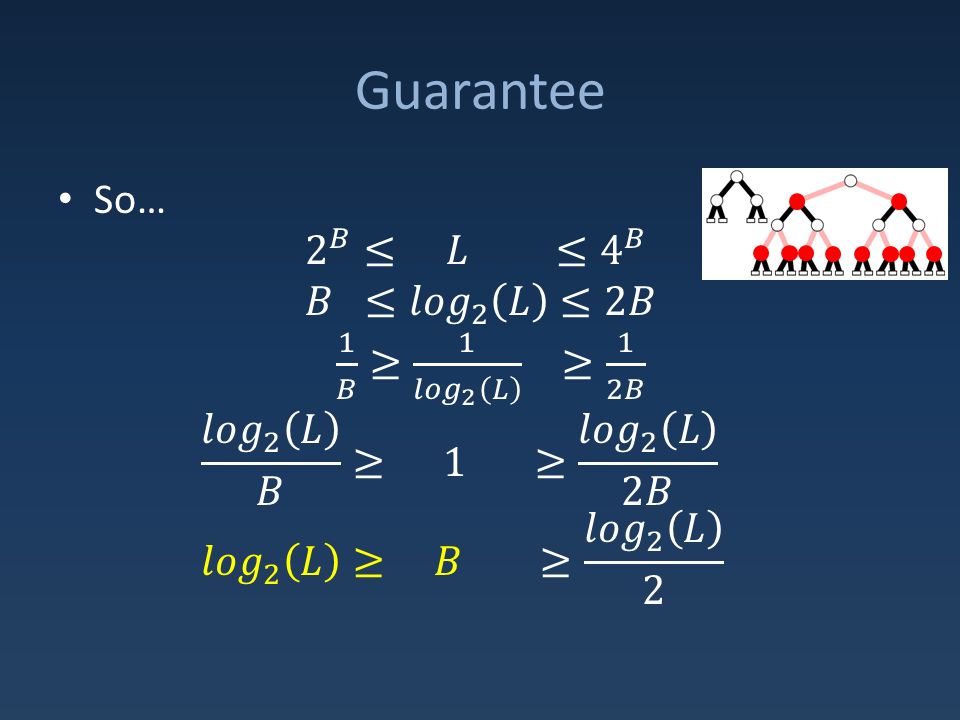

15 Guarantee

16 Height Black height is O(logL) Total height at most 2B – 2O(logL) = O(logL) – Height is O(logL) Total nodes (N) < 2L – 1 – O(log(n/2)) = O(logn)  Guaranteed logN performance

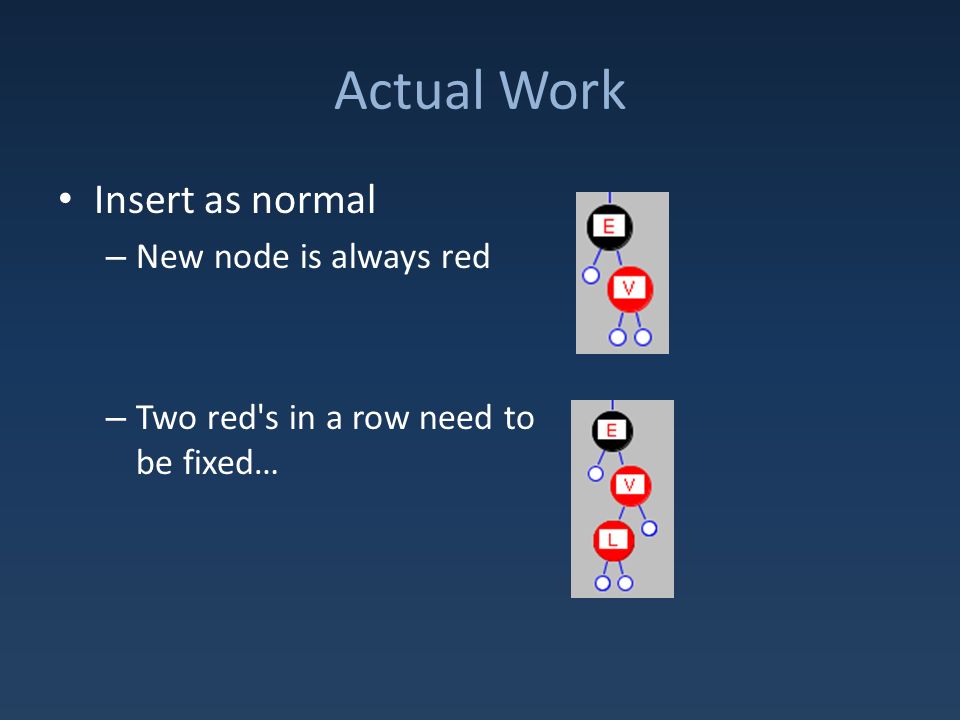

17 Actual Work Insert as normal – New node is always red – Two red's in a row need to be fixed…

18 Fixes Red parent of red child with red sibling – Push up redness of siblings to grandparent Fix them if necessary If root becomes red, make it black Splitting a 4 node

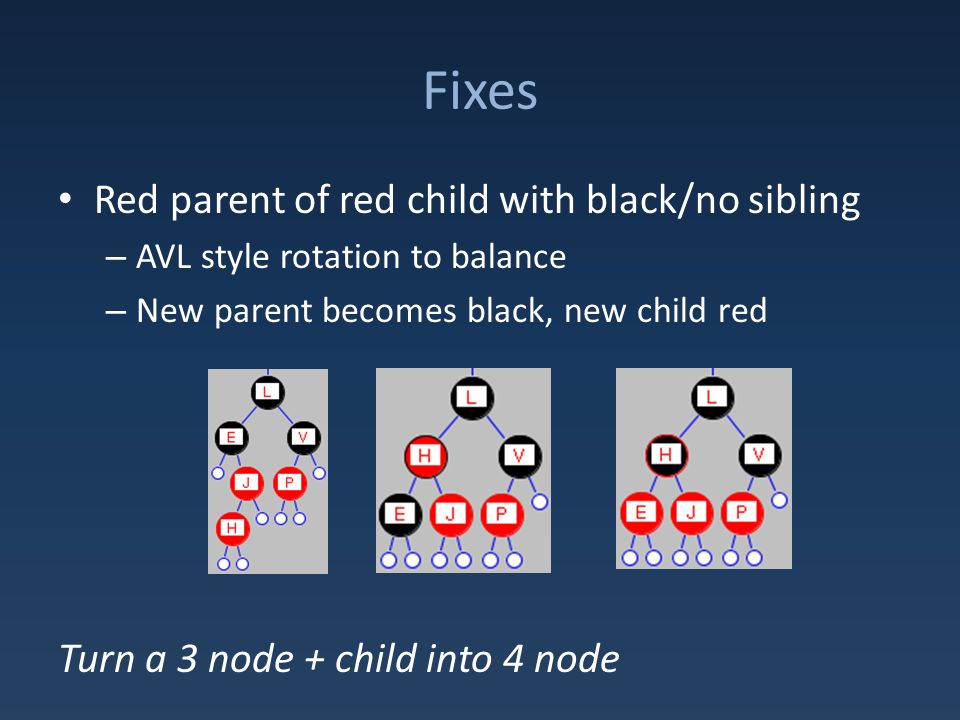

19 Fixes Red parent of red child with black/no sibling – AVL style rotation to balance – New parent becomes black, new child red Turn a 3 node + child into 4 node

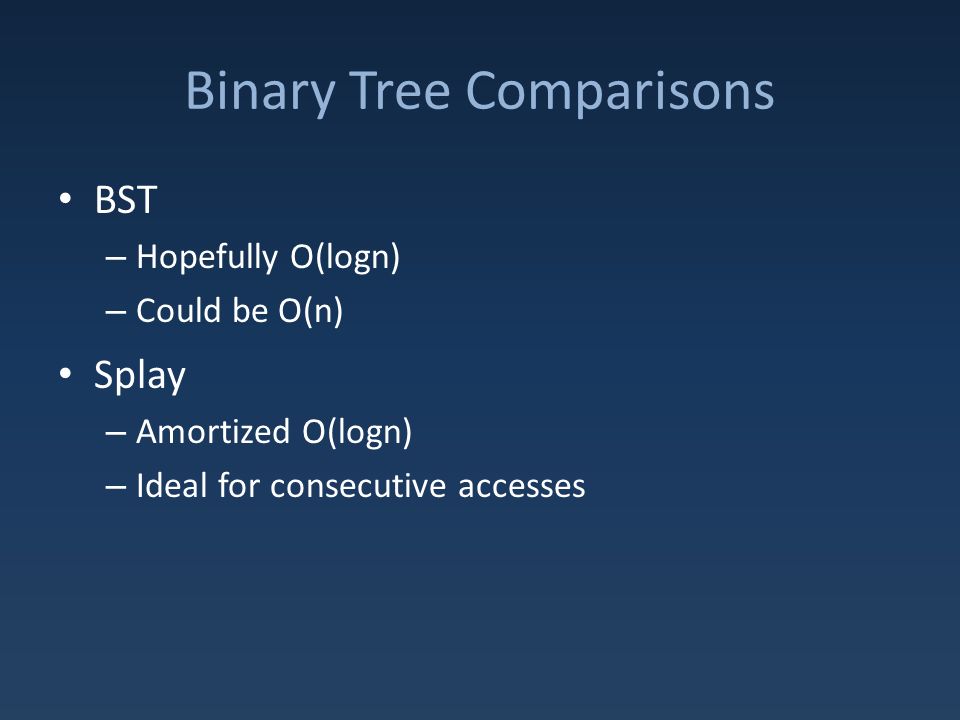

20 Binary Tree Comparisons BST – Hopefully O(logn) – Could be O(n) Splay – Amortized O(logn) – Ideal for consecutive accesses

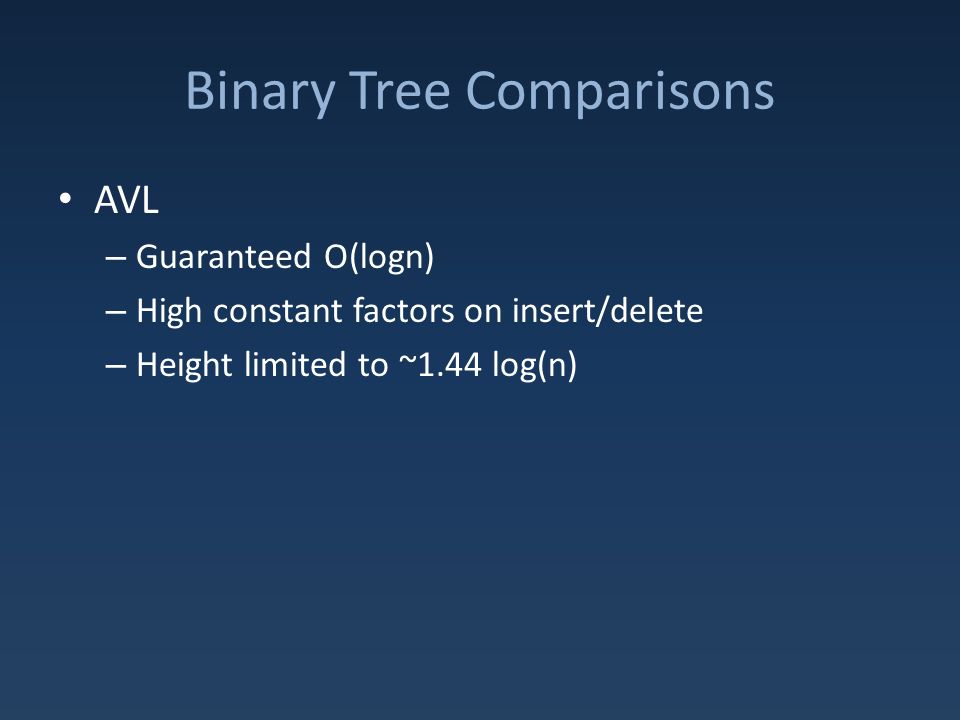

21 Binary Tree Comparisons AVL – Guaranteed O(logn) – High constant factors on insert/delete – Height limited to ~1.44 log(n)

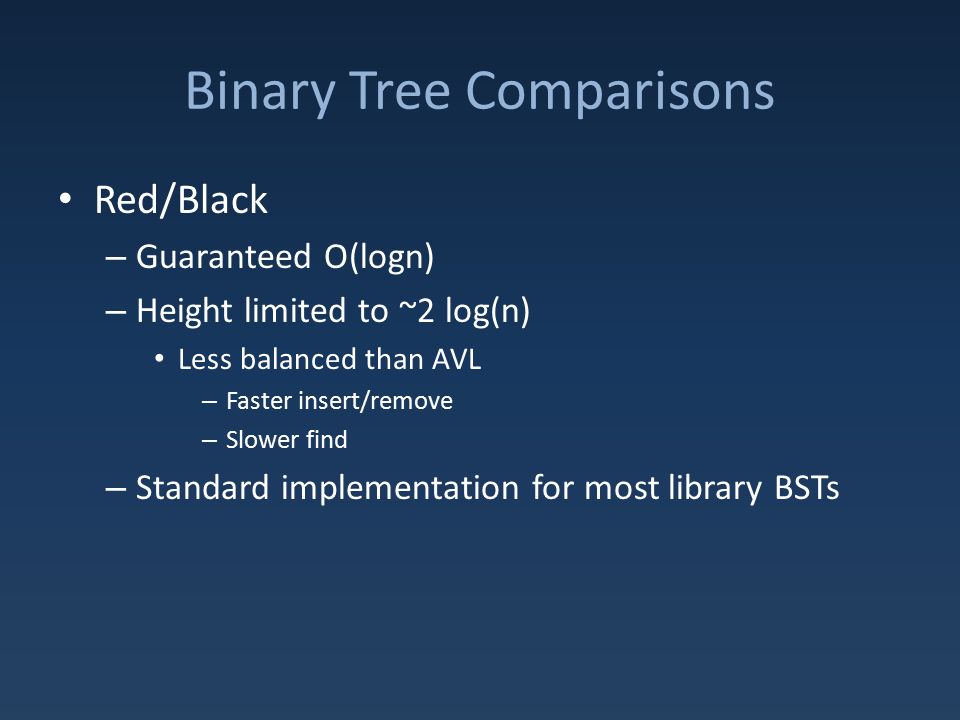

22 Binary Tree Comparisons Red/Black – Guaranteed O(logn) – Height limited to ~2 log(n) Less balanced than AVL – Faster insert/remove – Slower find – Standard implementation for most library BSTs

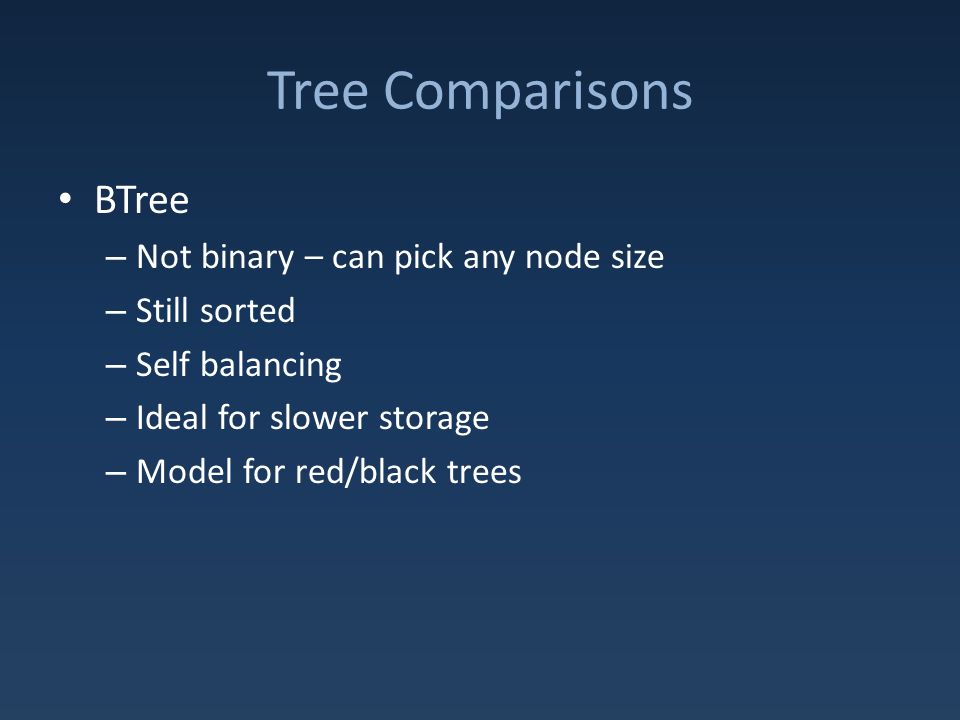

23 Tree Comparisons BTree – Not binary – can pick any node size – Still sorted – Self balancing – Ideal for slower storage – Model for red/black trees

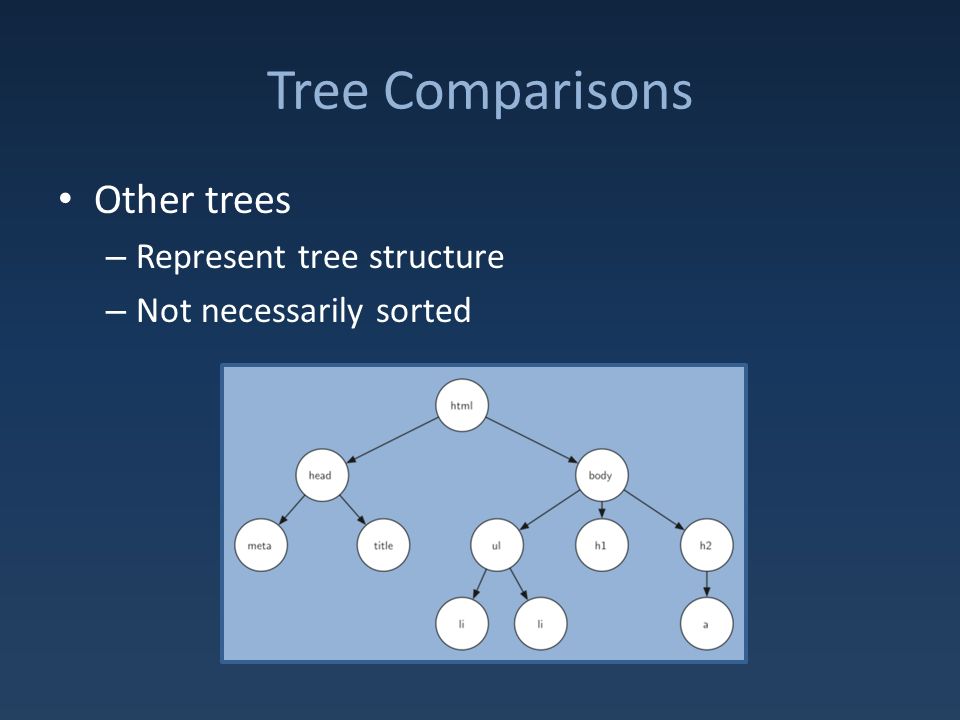

24 Tree Comparisons Other trees – Represent tree structure – Not necessarily sorted
