Presentation on theme: "DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 1."— Presentation transcript:

1 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 1

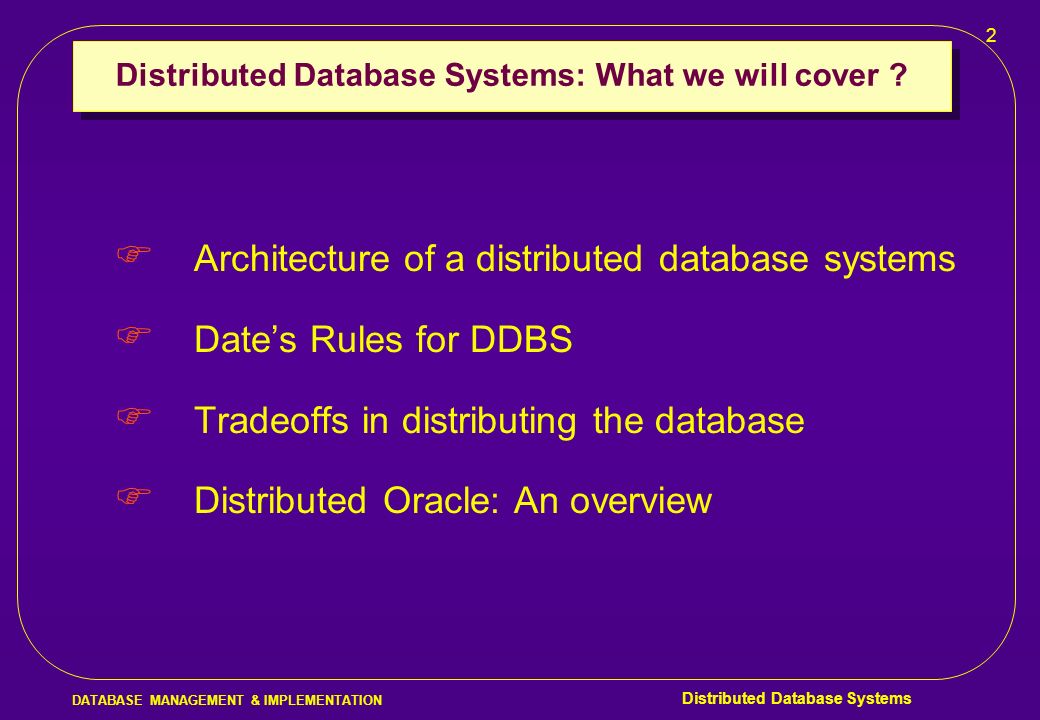

2 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 2 Distributed Database Systems: What we will cover ?  Architecture of a distributed database systems  Date’s Rules for DDBS  Tradeoffs in distributing the database  Distributed Oracle: An overview

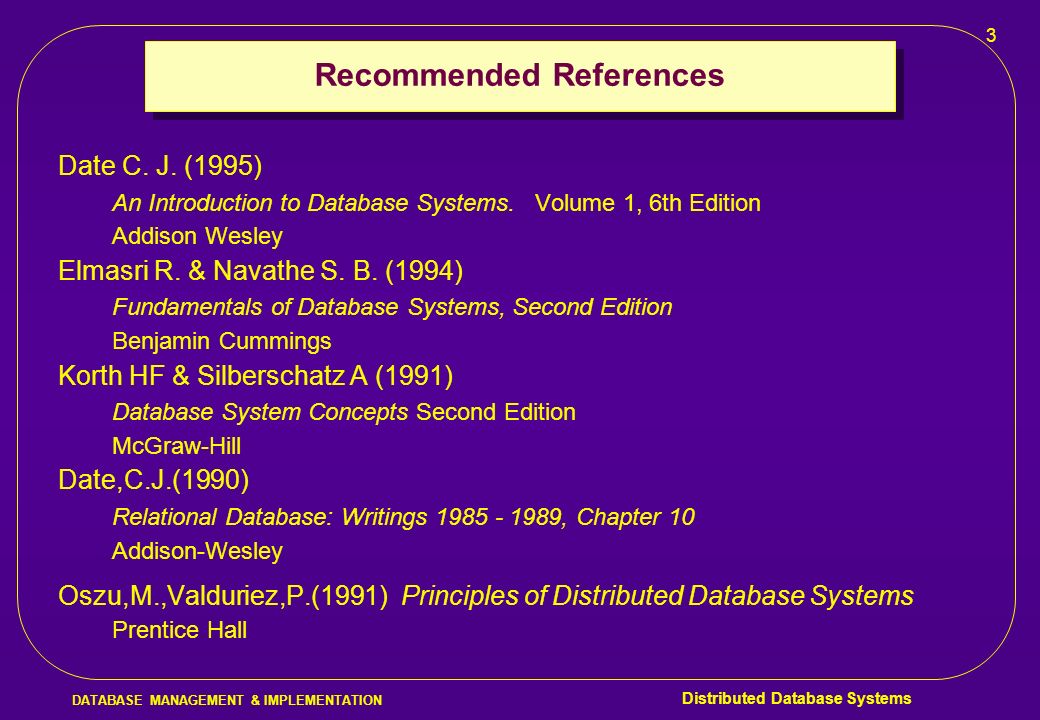

3 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 3 Recommended References Date C. J. (1995) An Introduction to Database Systems. Volume 1, 6th Edition Addison Wesley Elmasri R. & Navathe S. B. (1994) Fundamentals of Database Systems, Second Edition Benjamin Cummings Korth HF & Silberschatz A (1991) Database System Concepts Second Edition McGraw-Hill Date,C.J.(1990) Relational Database: Writings 1985 - 1989, Chapter 10 Addison-Wesley Oszu,M.,Valduriez,P.(1991) Principles of Distributed Database Systems Prentice Hall

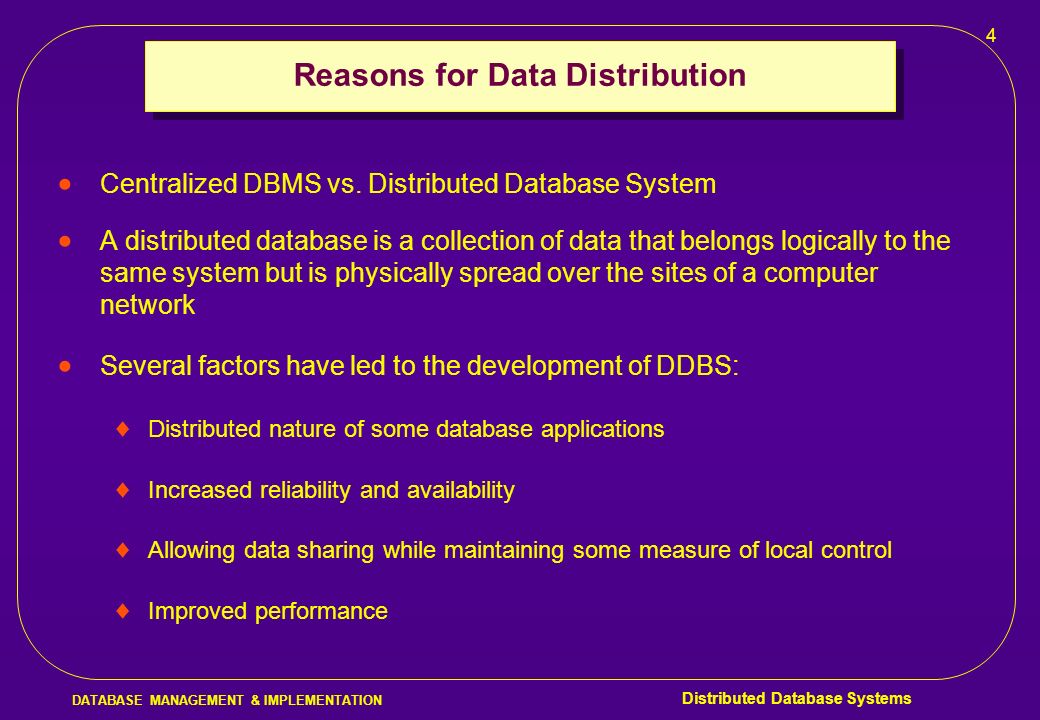

4 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 4 Reasons for Data Distribution  Centralized DBMS vs. Distributed Database System  A distributed database is a collection of data that belongs logically to the same system but is physically spread over the sites of a computer network  Several factors have led to the development of DDBS:  Distributed nature of some database applications  Increased reliability and availability  Allowing data sharing while maintaining some measure of local control  Improved performance

5 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 5 Additional Functionality of DDBS  Distribution leads to increased complexity in the system design and implementation  DDBMS must be able to provide additional functions to those of a centralized DBMS. Some of these are:  To access remote sites and transmit queries and data among the various sites via a communication network.  To keep track of the data distribution and replication in the DDBMS catalog.  To devise execution strategies for queries and transactions that access data from more than one site.  To decide on which copy of a replicated data item to access.  To maintain the consistency of copies of a replicated data item.  To maintain the global conceptual schema of the distributed database  To recover from individual site crashes and from new types of failures such as failure of a communication link.

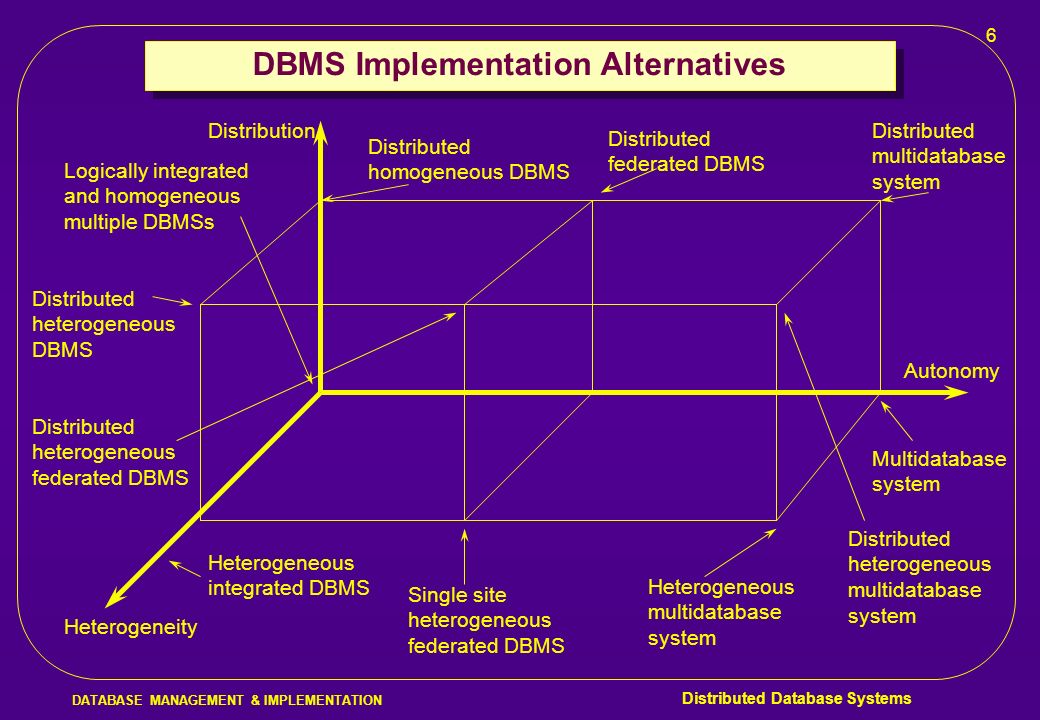

6 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 6 DBMS Implementation Alternatives Distribution Logically integrated and homogeneous multiple DBMSs Distributed heterogeneous DBMS Distributed heterogeneous federated DBMS Heterogeneity Heterogeneous integrated DBMS Single site heterogeneous federated DBMS Heterogeneous multidatabase system Distributed heterogeneous multidatabase system Autonomy Multidatabase system Distributed multidatabase system Distributed federated DBMS Distributed homogeneous DBMS

7 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 7 Physical Architecture of DDBS Site 1 DP AP Site N DP AP Site 3 DP Site 2 AP.... Communication network Back-end machine Front-end machine

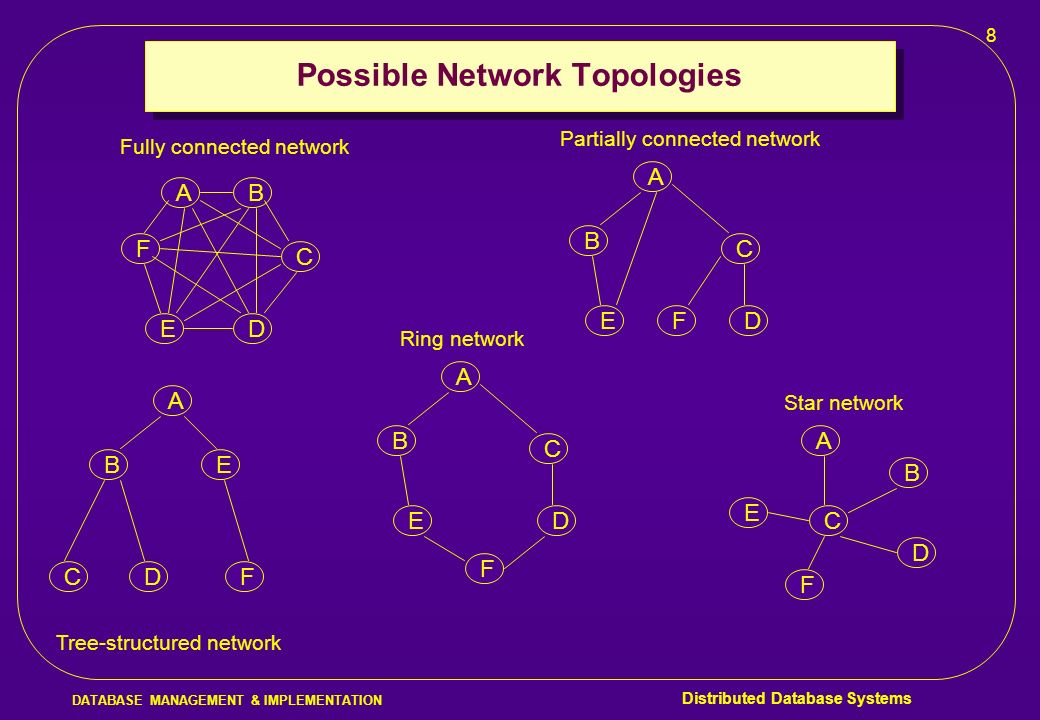

8 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 8 Possible Network Topologies AB F ED C Fully connected network A B FED C Partially connected network A B F E D C Star network A B F ED C Ring network A B F E DC Tree-structured network

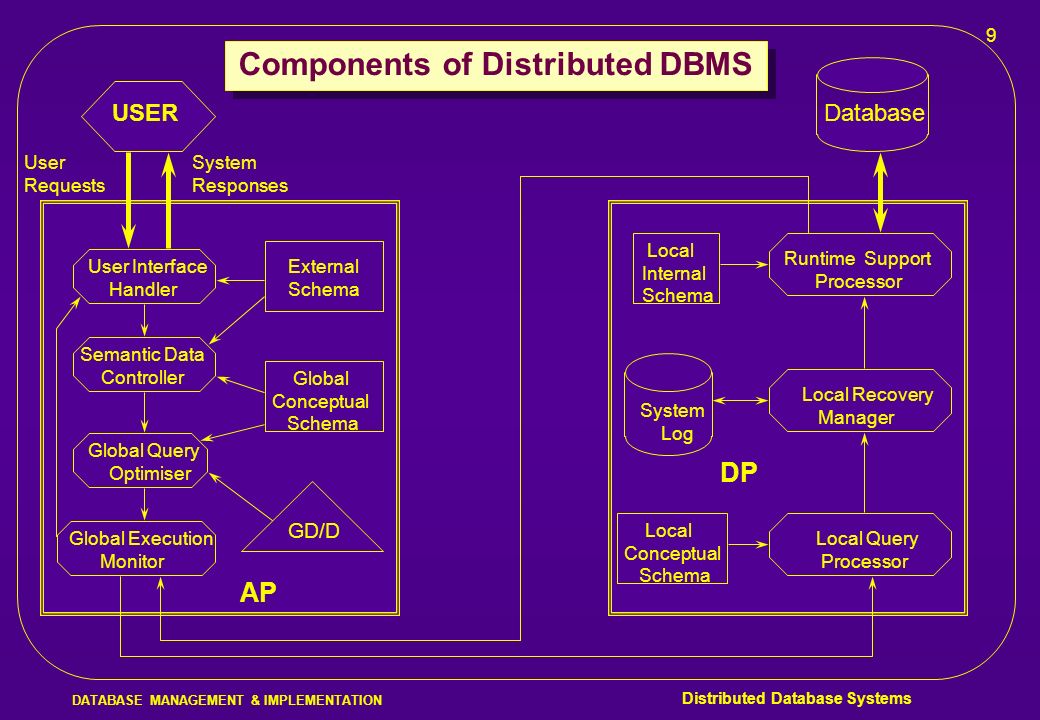

9 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 9 Components of Distributed DBMS USER User Interface Handler Semantic Data Controller Global Query Optimiser Global Execution Monitor External Schema Global Conceptual Schema GD/D System Responses User Requests AP Local Conceptual Schema Local Internal Schema System Log Runtime Support Processor Local Recovery Manager Local Query Processor Database DP

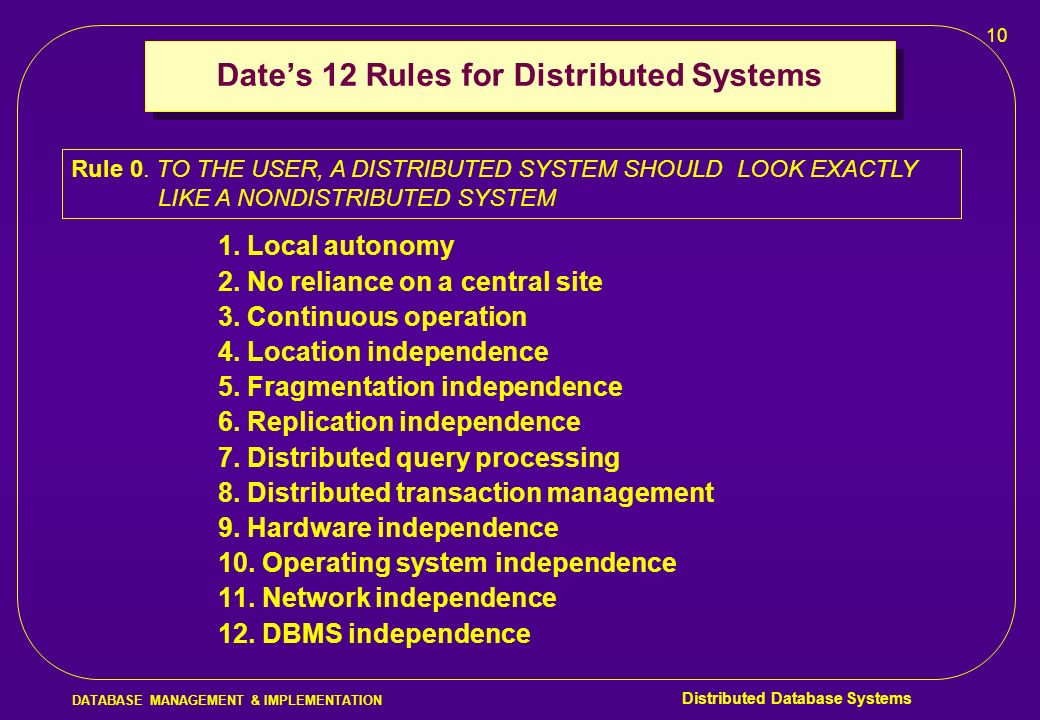

10 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 10 Date’s 12 Rules for Distributed Systems Rule 0. TO THE USER, A DISTRIBUTED SYSTEM SHOULD LOOK EXACTLY LIKE A NONDISTRIBUTED SYSTEM 1. Local autonomy 2. No reliance on a central site 3. Continuous operation 4. Location independence 5. Fragmentation independence 6. Replication independence 7. Distributed query processing 8. Distributed transaction management 9. Hardware independence 10. Operating system independence 11. Network independence 12. DBMS independence

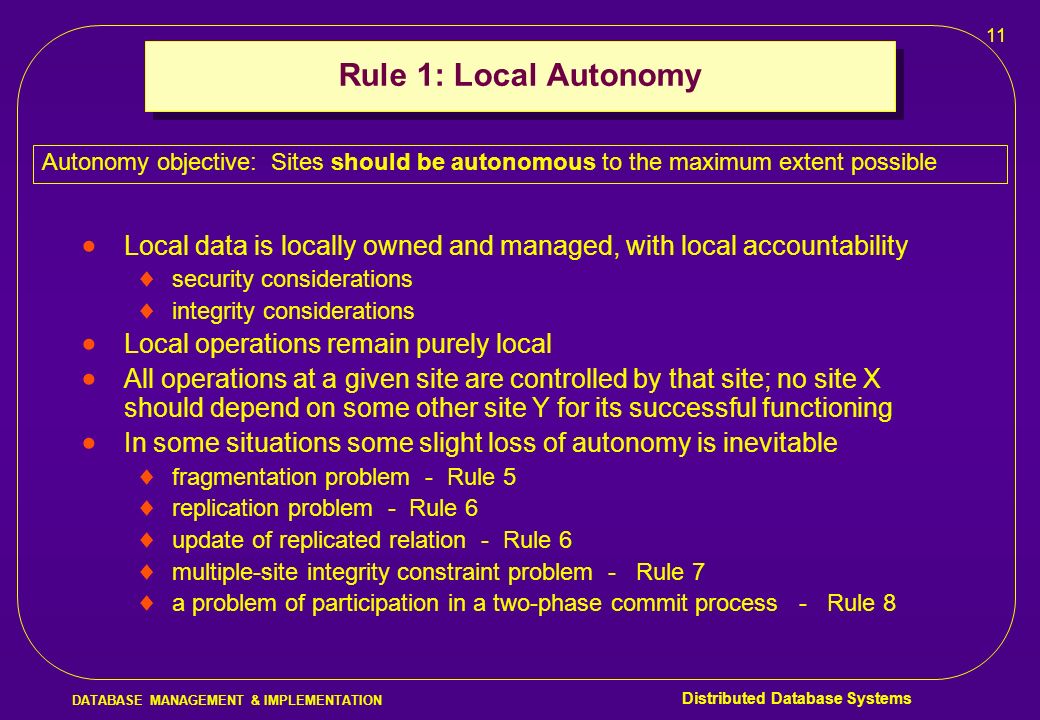

11 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 11 Rule 1: Local Autonomy Autonomy objective: Sites should be autonomous to the maximum extent possible  Local data is locally owned and managed, with local accountability  security considerations  integrity considerations  Local operations remain purely local  All operations at a given site are controlled by that site; no site X should depend on some other site Y for its successful functioning  In some situations some slight loss of autonomy is inevitable  fragmentation problem - Rule 5  replication problem - Rule 6  update of replicated relation - Rule 6  multiple-site integrity constraint problem - Rule 7  a problem of participation in a two-phase commit process - Rule 8

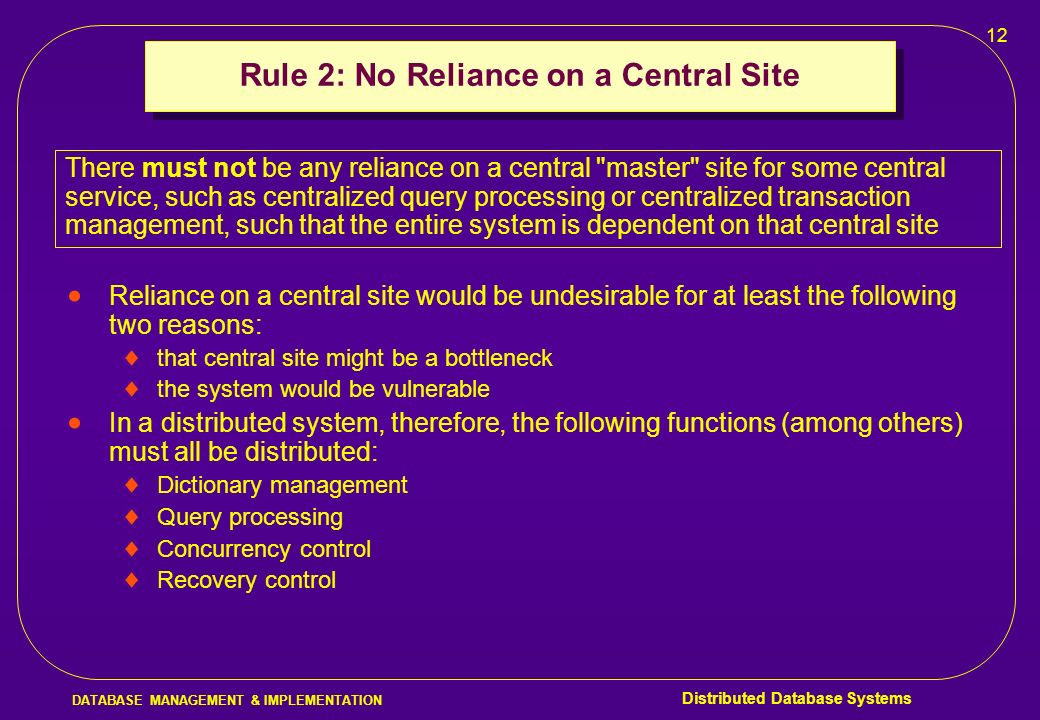

12 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 12 Rule 2: No Reliance on a Central Site There must not be any reliance on a central "master" site for some central service, such as centralized query processing or centralized transaction management, such that the entire system is dependent on that central site  Reliance on a central site would be undesirable for at least the following two reasons:  that central site might be a bottleneck  the system would be vulnerable  In a distributed system, therefore, the following functions (among others) must all be distributed:  Dictionary management  Query processing  Concurrency control  Recovery control

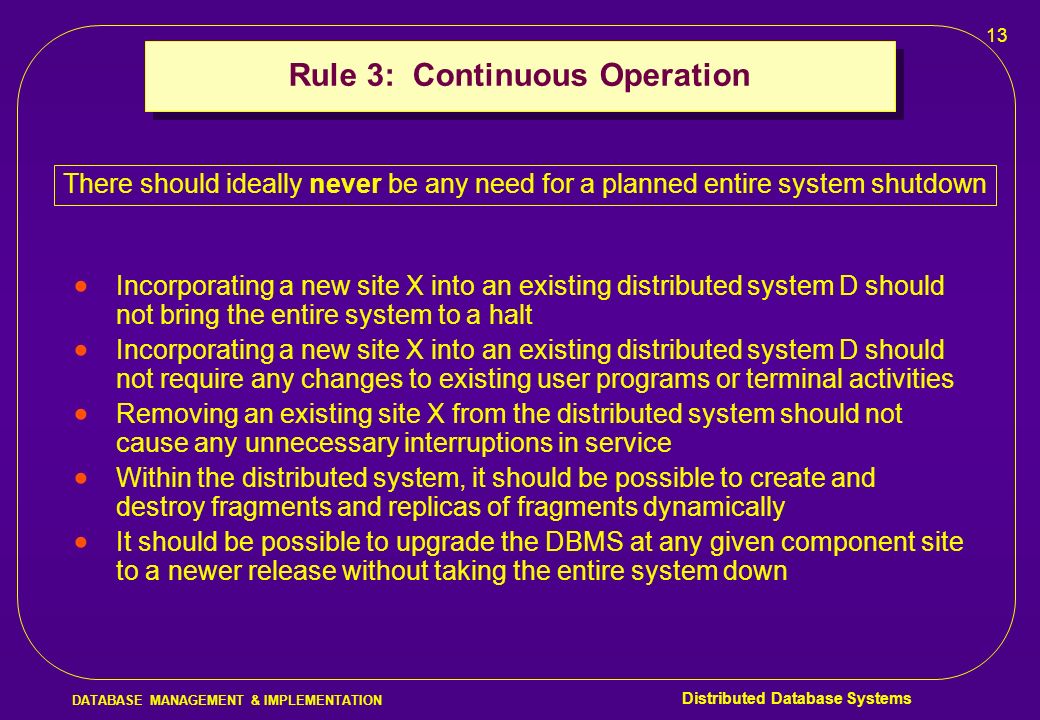

13 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 13 Rule 3: Continuous Operation There should ideally never be any need for a planned entire system shutdown  Incorporating a new site X into an existing distributed system D should not bring the entire system to a halt  Incorporating a new site X into an existing distributed system D should not require any changes to existing user programs or terminal activities  Removing an existing site X from the distributed system should not cause any unnecessary interruptions in service  Within the distributed system, it should be possible to create and destroy fragments and replicas of fragments dynamically  It should be possible to upgrade the DBMS at any given component site to a newer release without taking the entire system down

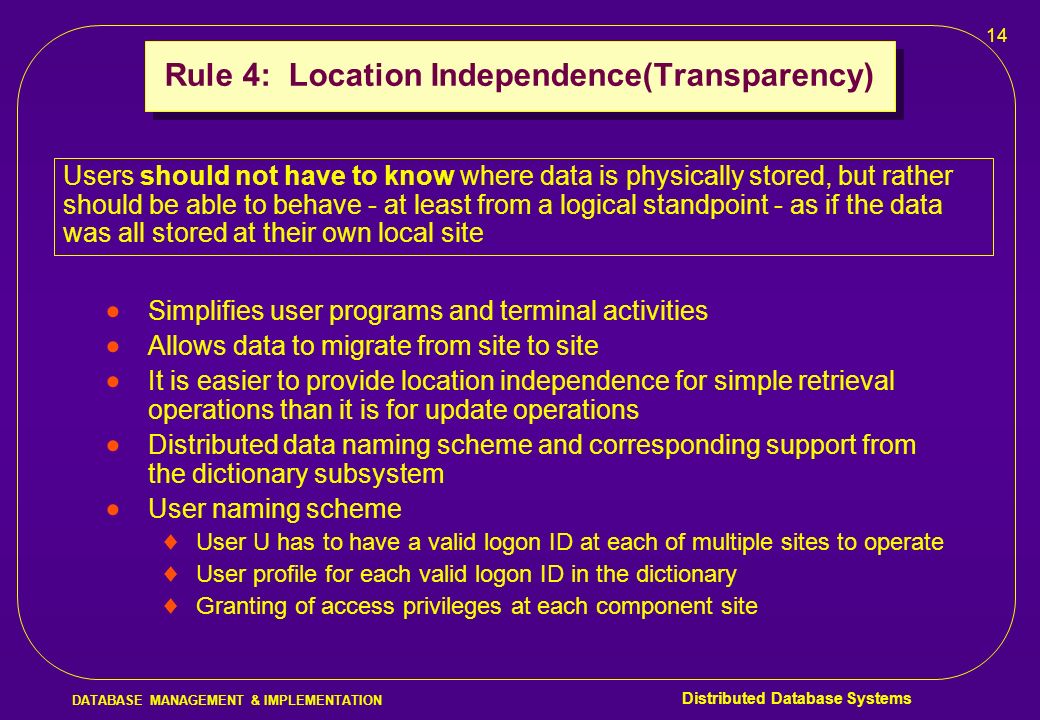

14 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 14 Rule 4: Location Independence(Transparency) Users should not have to know where data is physically stored, but rather should be able to behave - at least from a logical standpoint - as if the data was all stored at their own local site  Simplifies user programs and terminal activities  Allows data to migrate from site to site  It is easier to provide location independence for simple retrieval operations than it is for update operations  Distributed data naming scheme and corresponding support from the dictionary subsystem  User naming scheme  User U has to have a valid logon ID at each of multiple sites to operate  User profile for each valid logon ID in the dictionary  Granting of access privileges at each component site

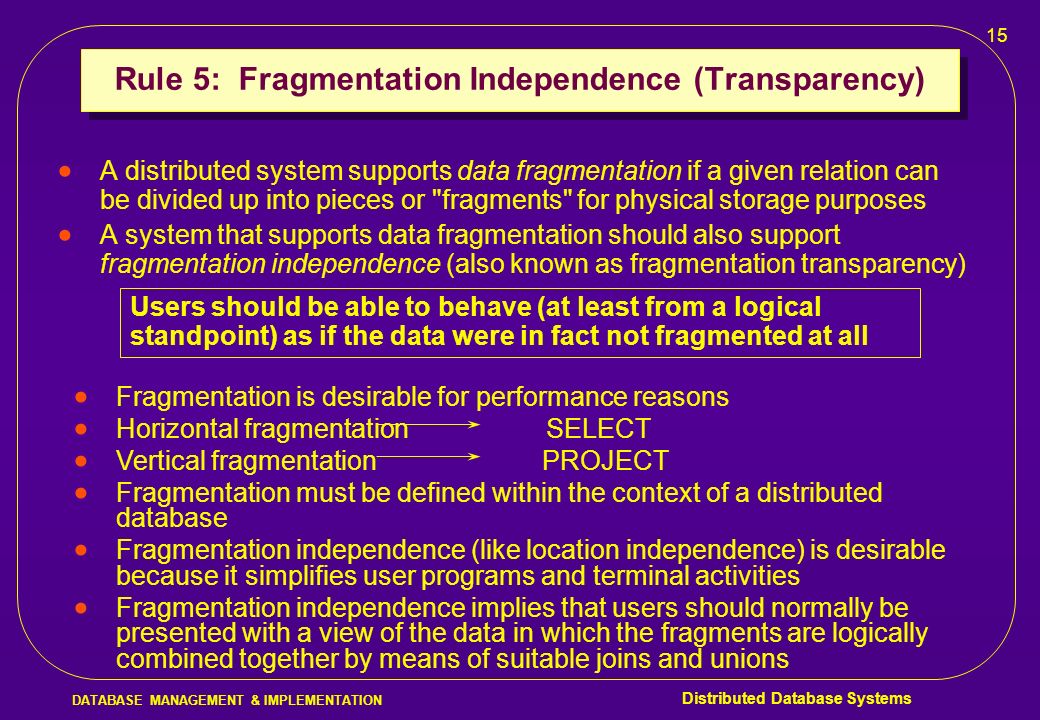

15 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 15 Rule 5: Fragmentation Independence (Transparency)  A distributed system supports data fragmentation if a given relation can be divided up into pieces or "fragments" for physical storage purposes  A system that supports data fragmentation should also support fragmentation independence (also known as fragmentation transparency)  Fragmentation is desirable for performance reasons  Horizontal fragmentation SELECT  Vertical fragmentation PROJECT  Fragmentation must be defined within the context of a distributed database  Fragmentation independence (like location independence) is desirable because it simplifies user programs and terminal activities  Fragmentation independence implies that users should normally be presented with a view of the data in which the fragments are logically combined together by means of suitable joins and unions Users should be able to behave (at least from a logical standpoint) as if the data were in fact not fragmented at all

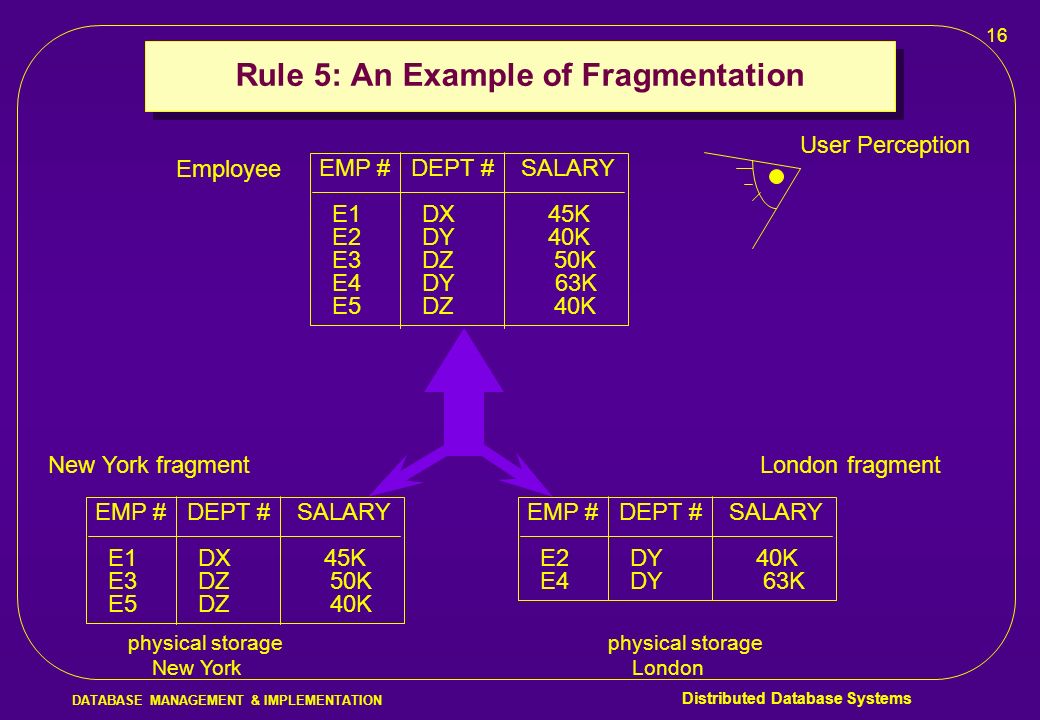

16 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 16 Rule 5: An Example of Fragmentation EMP # DEPT # SALARY E1 DX 45K E2 DY 40K E3 DZ 50K E4 DY 63K E5 DZ 40K Employee User Perception EMP # DEPT # SALARY E1 DX 45K E3 DZ 50K E5 DZ 40K EMP # DEPT # SALARY E2 DY 40K E4 DY 63K physical storage New York physical storage London New York fragmentLondon fragment

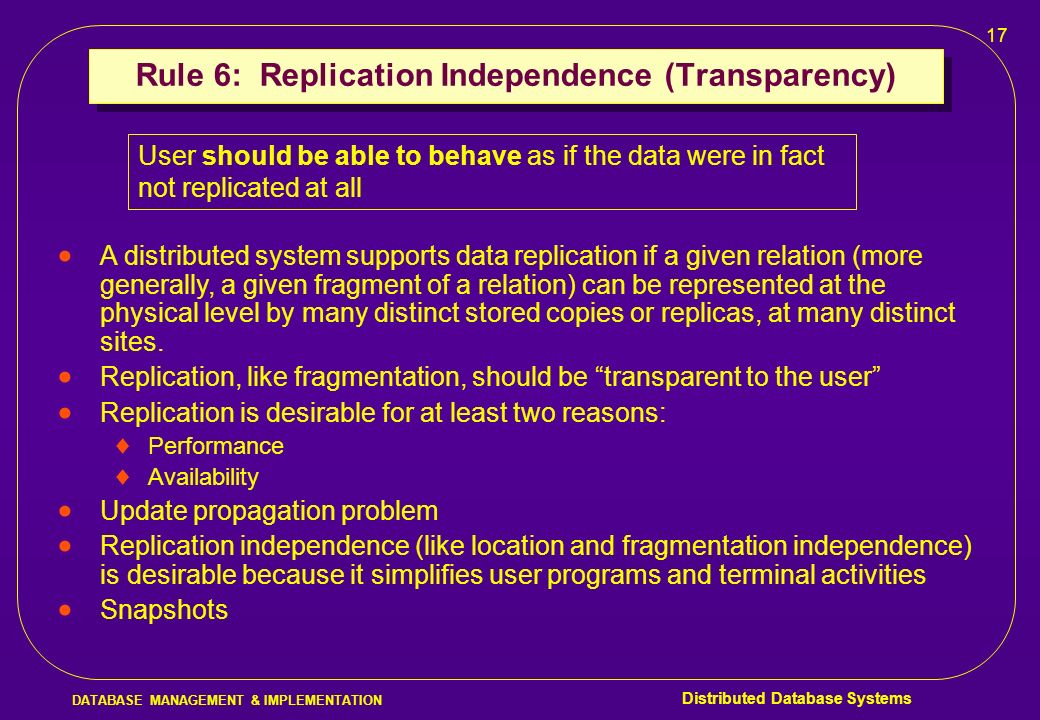

17 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 17 Rule 6: Replication Independence (Transparency) User should be able to behave as if the data were in fact not replicated at all  A distributed system supports data replication if a given relation (more generally, a given fragment of a relation) can be represented at the physical level by many distinct stored copies or replicas, at many distinct sites.  Replication, like fragmentation, should be “transparent to the user”  Replication is desirable for at least two reasons:  Performance  Availability  Update propagation problem  Replication independence (like location and fragmentation independence) is desirable because it simplifies user programs and terminal activities  Snapshots

18 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 18 Rule 6: Example of Data Replication EMP # DEPT # SALARY E1 DX 45K E2 DY 40K E3 DZ 50K E4 DY 63K E5 DZ 40K Employee User Perception EMP # DEPT # SALARY E1 DX 45K E3 DZ 50K E5 DZ 40K EMP # DEPT # SALARY E2 DY 40K E4 DY 63K physical storage New York physical storage London New York fragment London fragment EMP # DEPT # SALARY E1 DX 45K E3 DZ 50K E5 DZ 40K Replica of New York fragment EMP # DEPT # SALARY E2 DY 40K E4 DY 63K Replica of London fragment

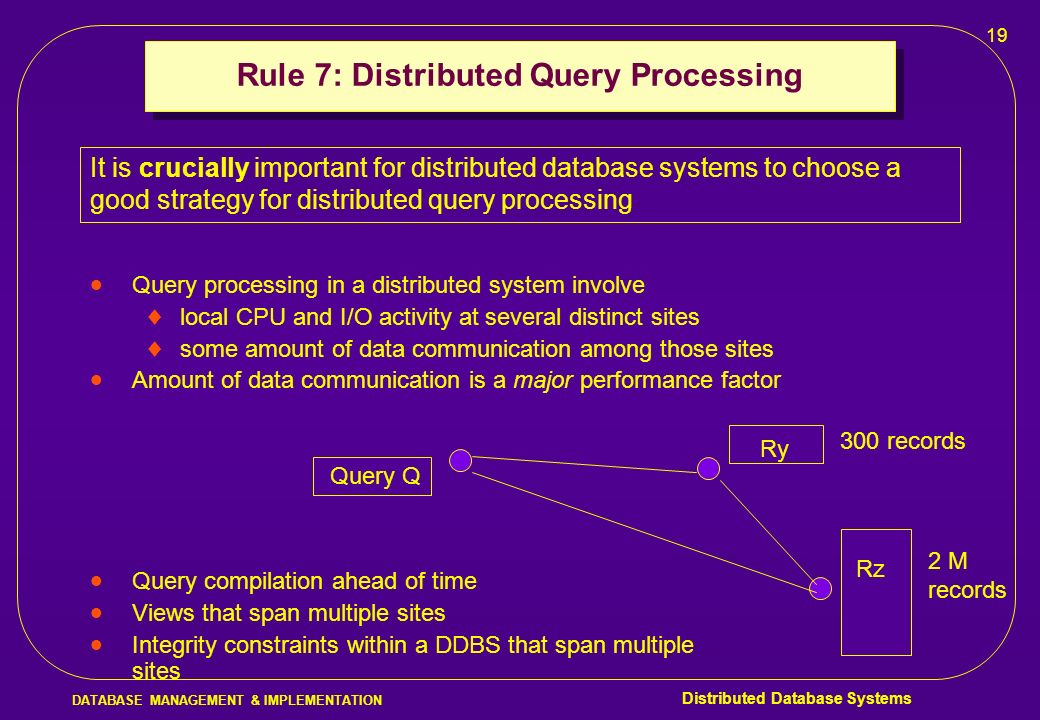

19 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 19 Rule 7: Distributed Query Processing It is crucially important for distributed database systems to choose a good strategy for distributed query processing  Query processing in a distributed system involve  local CPU and I/O activity at several distinct sites  some amount of data communication among those sites  Amount of data communication is a major performance factor  Query compilation ahead of time  Views that span multiple sites  Integrity constraints within a DDBS that span multiple sites Ry Rz Query Q 300 records 2 M records

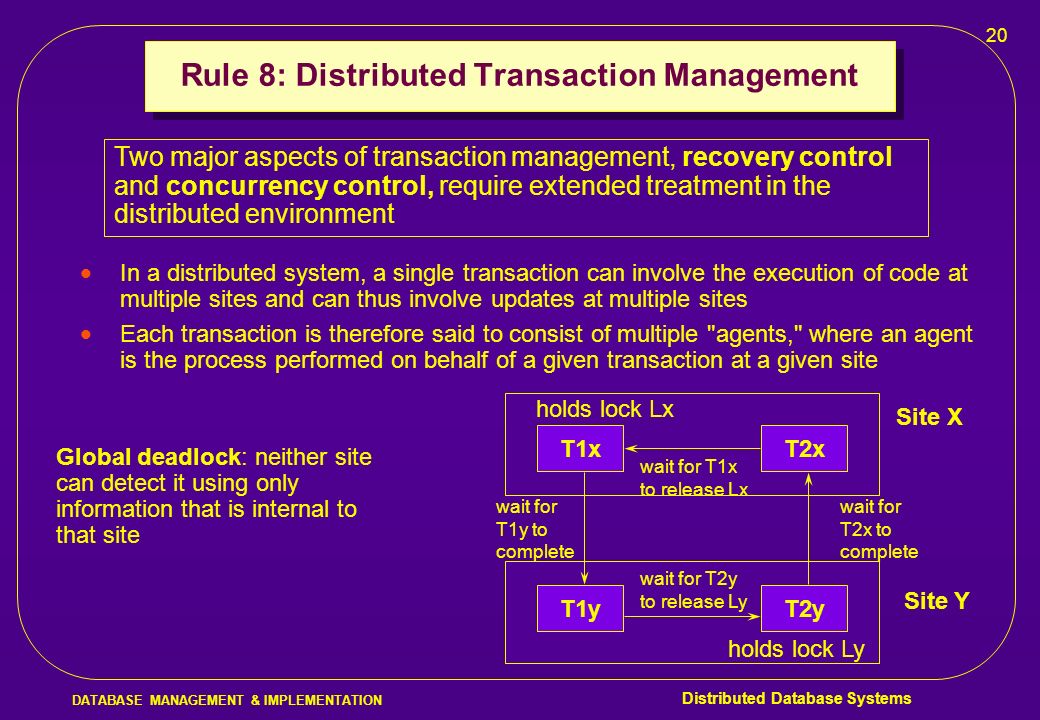

20 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 20 Rule 8: Distributed Transaction Management Two major aspects of transaction management, recovery control and concurrency control, require extended treatment in the distributed environment  In a distributed system, a single transaction can involve the execution of code at multiple sites and can thus involve updates at multiple sites  Each transaction is therefore said to consist of multiple "agents," where an agent is the process performed on behalf of a given transaction at a given site Global deadlock: neither site can detect it using only information that is internal to that site Site X Site Y T1xT2x T1y T1x T2y holds lock Lx holds lock Ly wait for T2y to release Ly wait for T1x to release Lx wait for T1y to complete wait for T2x to complete

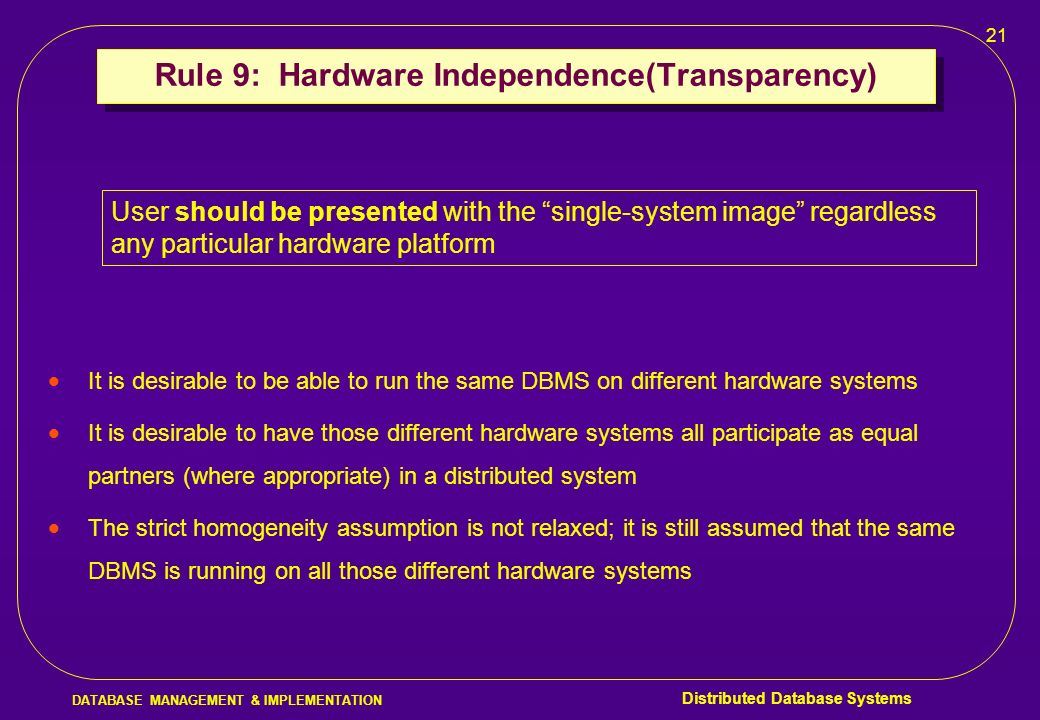

21 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 21 Rule 9: Hardware Independence(Transparency)  It is desirable to be able to run the same DBMS on different hardware systems  It is desirable to have those different hardware systems all participate as equal partners (where appropriate) in a distributed system  The strict homogeneity assumption is not relaxed; it is still assumed that the same DBMS is running on all those different hardware systems User should be presented with the “single-system image” regardless any particular hardware platform

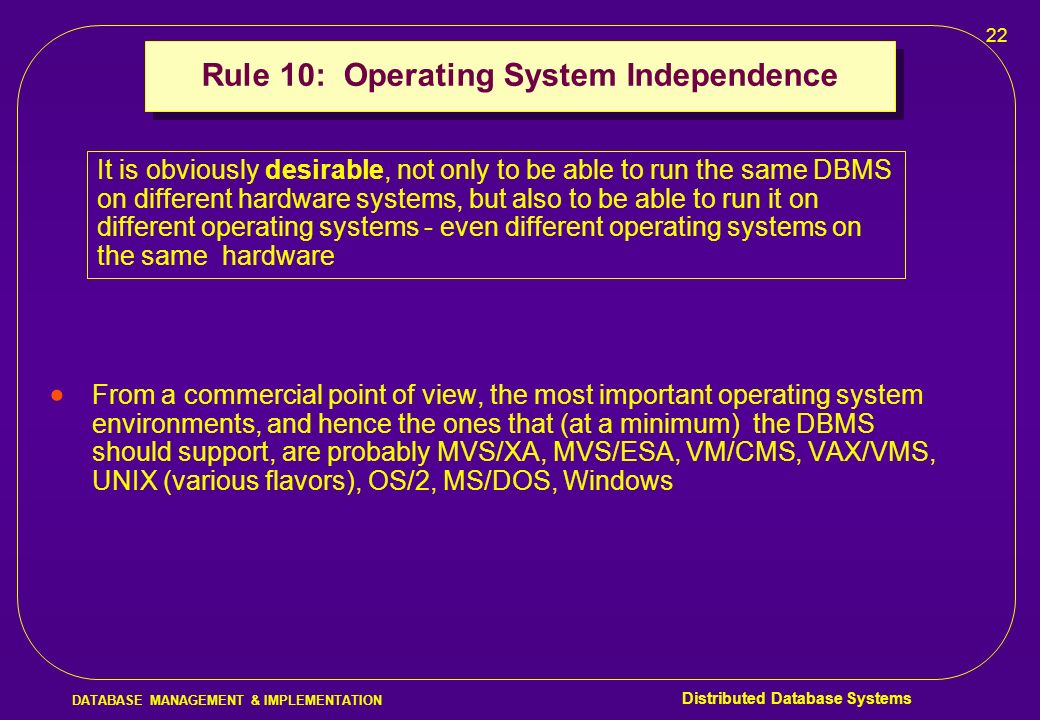

22 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 22 Rule 10: Operating System Independence  From a commercial point of view, the most important operating system environments, and hence the ones that (at a minimum) the DBMS should support, are probably MVS/XA, MVS/ESA, VM/CMS, VAX/VMS, UNIX (various flavors), OS/2, MS/DOS, Windows It is obviously desirable, not only to be able to run the same DBMS on different hardware systems, but also to be able to run it on different operating systems - even different operating systems on the same hardware

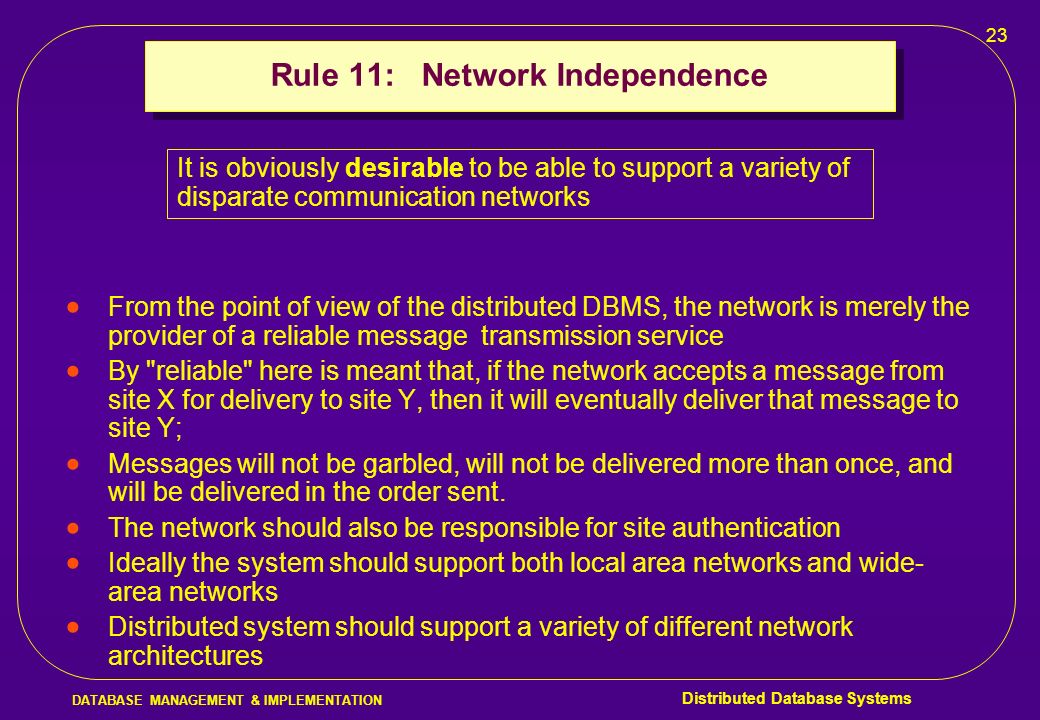

23 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 23 Rule 11: Network Independence  From the point of view of the distributed DBMS, the network is merely the provider of a reliable message transmission service  By "reliable" here is meant that, if the network accepts a message from site X for delivery to site Y, then it will eventually deliver that message to site Y;  Messages will not be garbled, will not be delivered more than once, and will be delivered in the order sent.  The network should also be responsible for site authentication  Ideally the system should support both local area networks and wide- area networks  Distributed system should support a variety of different network architectures It is obviously desirable to be able to support a variety of disparate communication networks

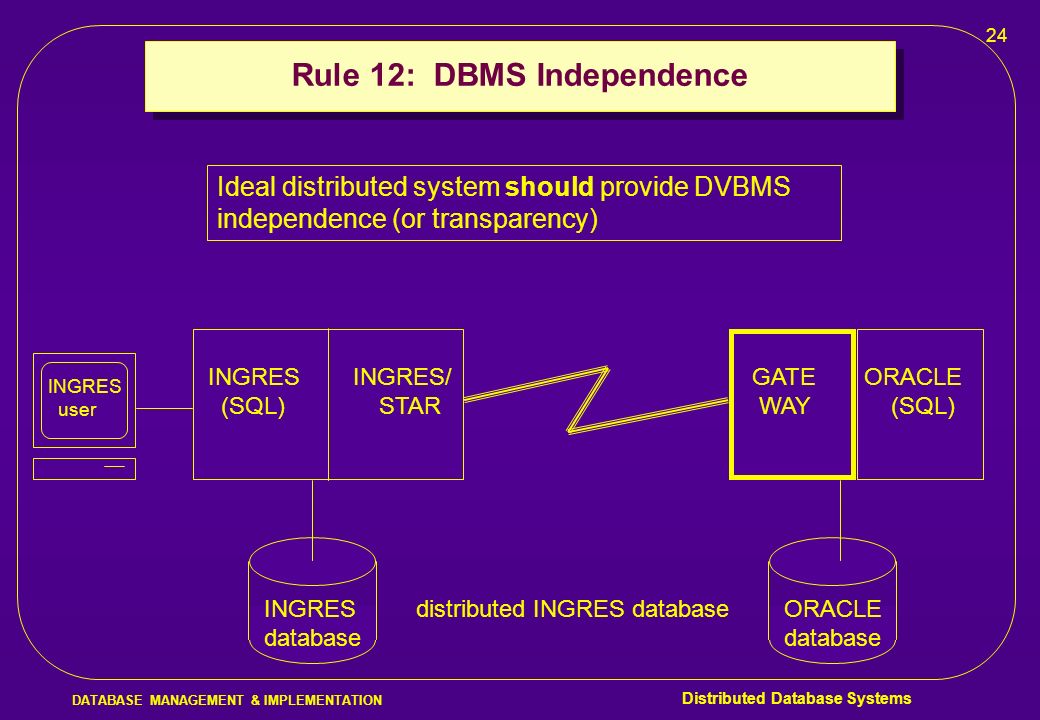

24 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 24 Rule 12: DBMS Independence Ideal distributed system should provide DVBMS independence (or transparency) INGRES user INGRES INGRES/ (SQL) STAR INGRES database ORACLE database ORACLE (SQL) GATE WAY distributed INGRES database

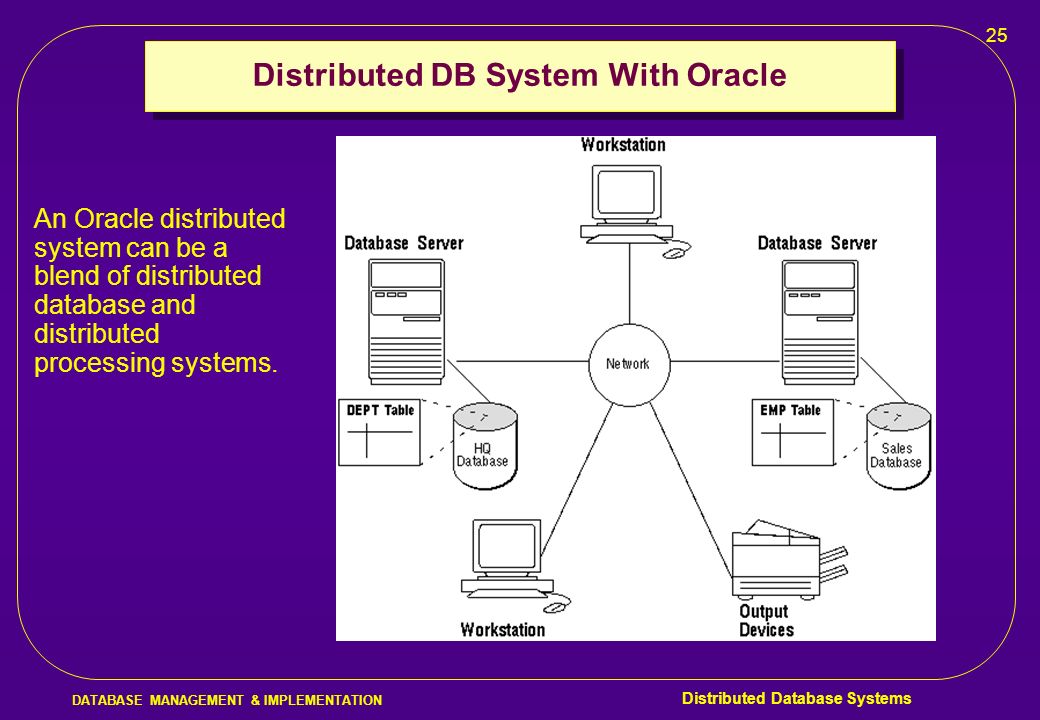

25 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 25 Distributed DB System With Oracle An Oracle distributed system can be a blend of distributed database and distributed processing systems.

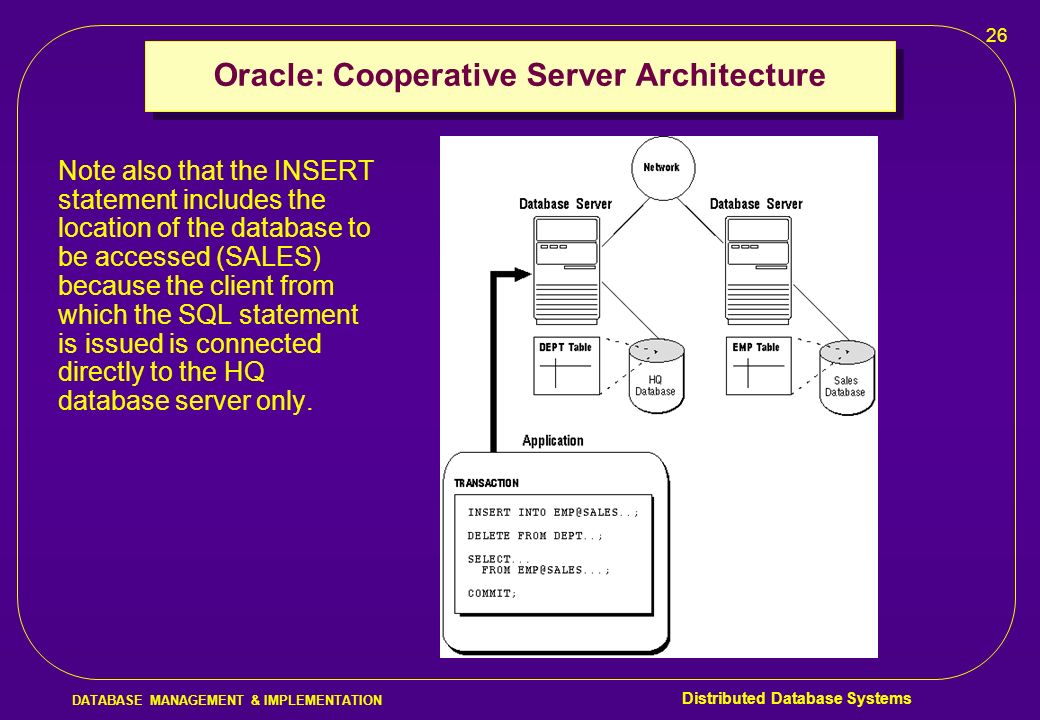

26 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 26 Oracle: Cooperative Server Architecture Note also that the INSERT statement includes the location of the database to be accessed (SALES) because the client from which the SQL statement is issued is connected directly to the HQ database server only.

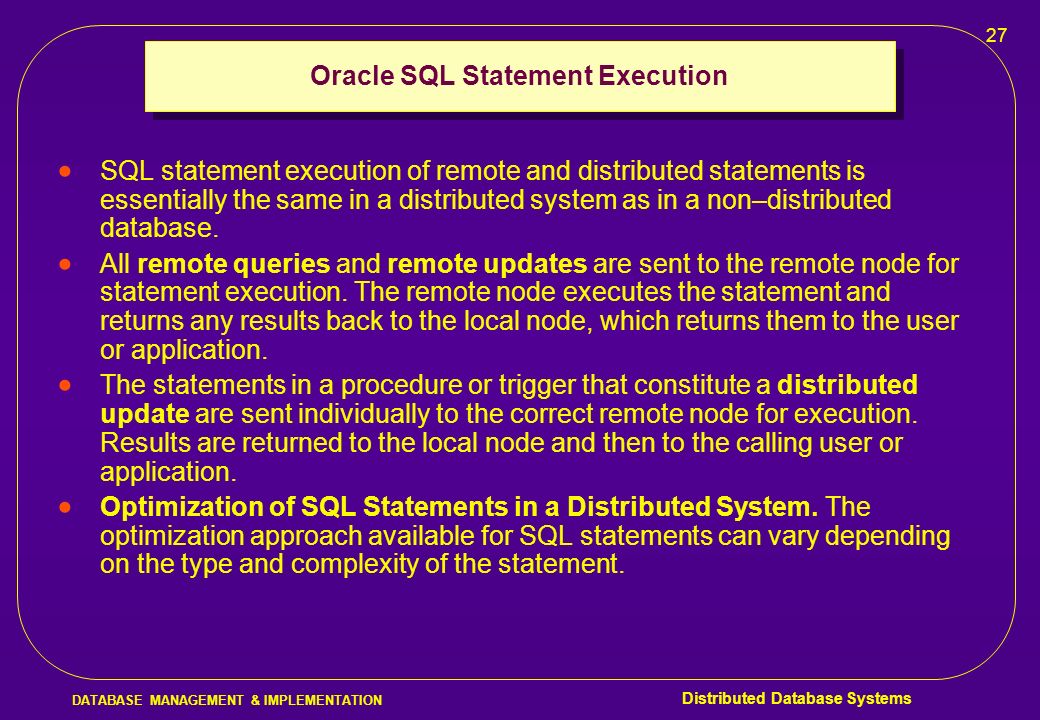

27 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 27 Oracle SQL Statement Execution  SQL statement execution of remote and distributed statements is essentially the same in a distributed system as in a non–distributed database.  All remote queries and remote updates are sent to the remote node for statement execution. The remote node executes the statement and returns any results back to the local node, which returns them to the user or application.  The statements in a procedure or trigger that constitute a distributed update are sent individually to the correct remote node for execution. Results are returned to the local node and then to the calling user or application.  Optimization of SQL Statements in a Distributed System. The optimization approach available for SQL statements can vary depending on the type and complexity of the statement.

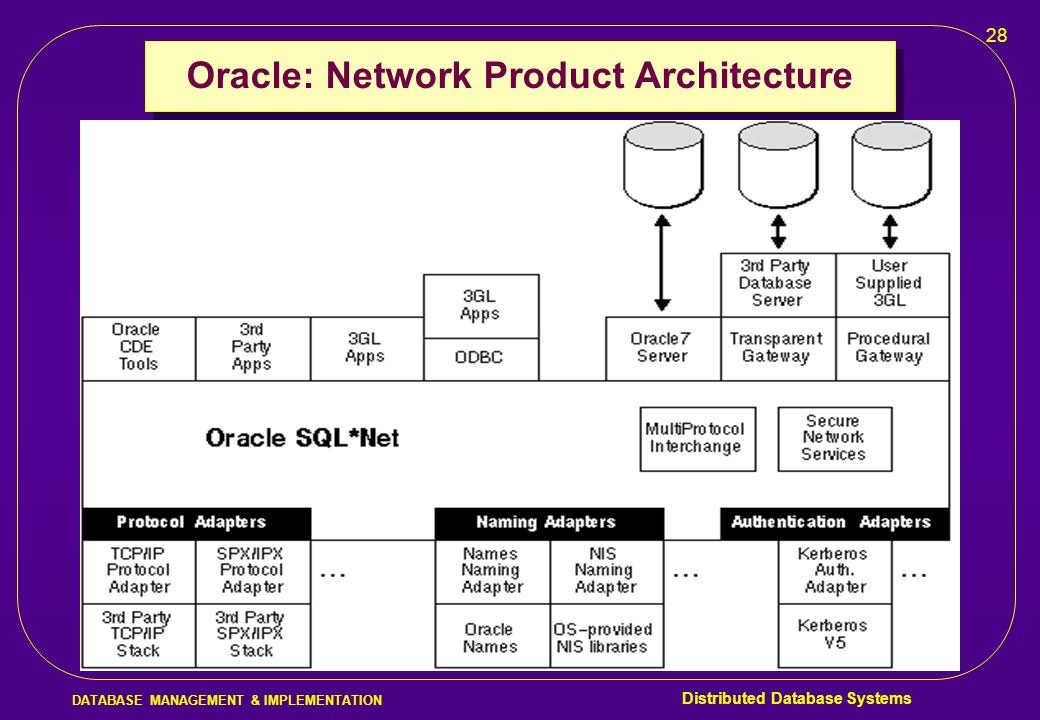

28 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 28 Oracle: Network Product Architecture

29 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 29 Oracle Network Products & Distributed Systems A Possible distributed systems scenario

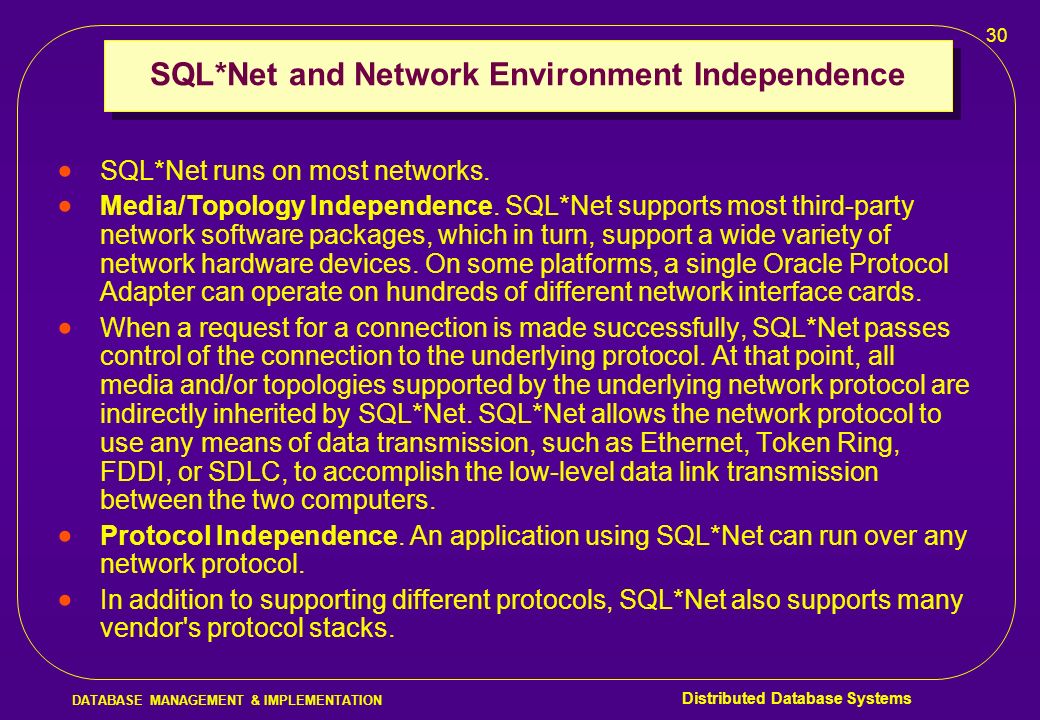

30 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 30 SQL*Net and Network Environment Independence  SQL*Net runs on most networks.  Media/Topology Independence. SQL*Net supports most third-party network software packages, which in turn, support a wide variety of network hardware devices. On some platforms, a single Oracle Protocol Adapter can operate on hundreds of different network interface cards.  When a request for a connection is made successfully, SQL*Net passes control of the connection to the underlying protocol. At that point, all media and/or topologies supported by the underlying network protocol are indirectly inherited by SQL*Net. SQL*Net allows the network protocol to use any means of data transmission, such as Ethernet, Token Ring, FDDI, or SDLC, to accomplish the low-level data link transmission between the two computers.  Protocol Independence. An application using SQL*Net can run over any network protocol.  In addition to supporting different protocols, SQL*Net also supports many vendor's protocol stacks.

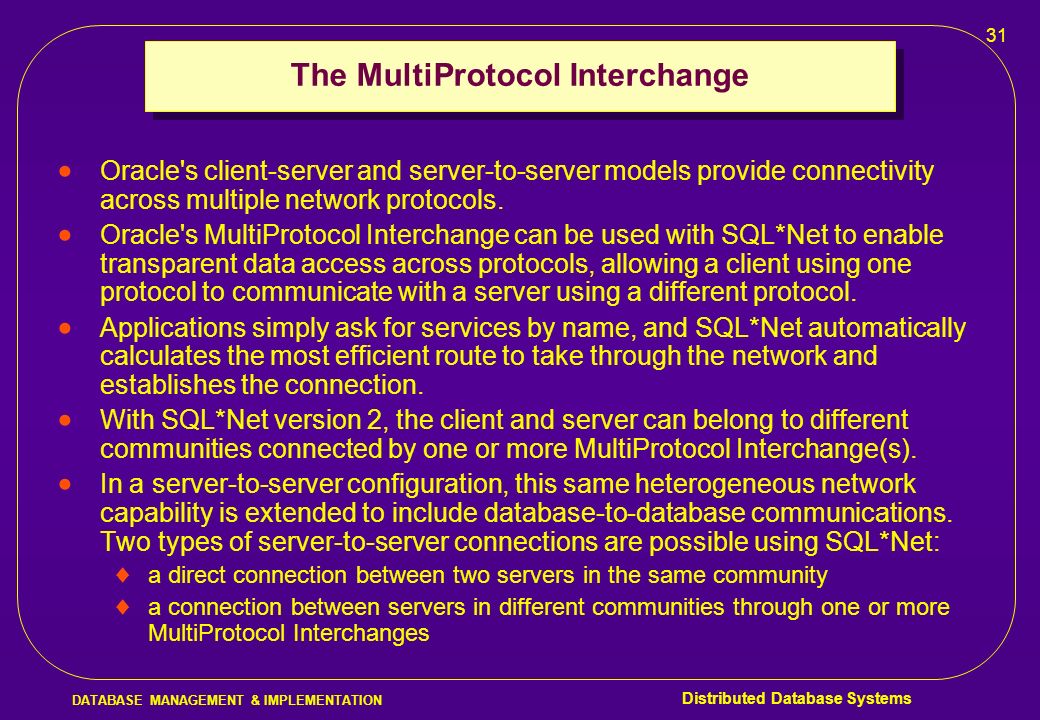

31 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 31 The MultiProtocol Interchange  Oracle's client-server and server-to-server models provide connectivity across multiple network protocols.  Oracle's MultiProtocol Interchange can be used with SQL*Net to enable transparent data access across protocols, allowing a client using one protocol to communicate with a server using a different protocol.  Applications simply ask for services by name, and SQL*Net automatically calculates the most efficient route to take through the network and establishes the connection.  With SQL*Net version 2, the client and server can belong to different communities connected by one or more MultiProtocol Interchange(s).  In a server-to-server configuration, this same heterogeneous network capability is extended to include database-to-database communications. Two types of server-to-server connections are possible using SQL*Net:  a direct connection between two servers in the same community  a connection between servers in different communities through one or more MultiProtocol Interchanges

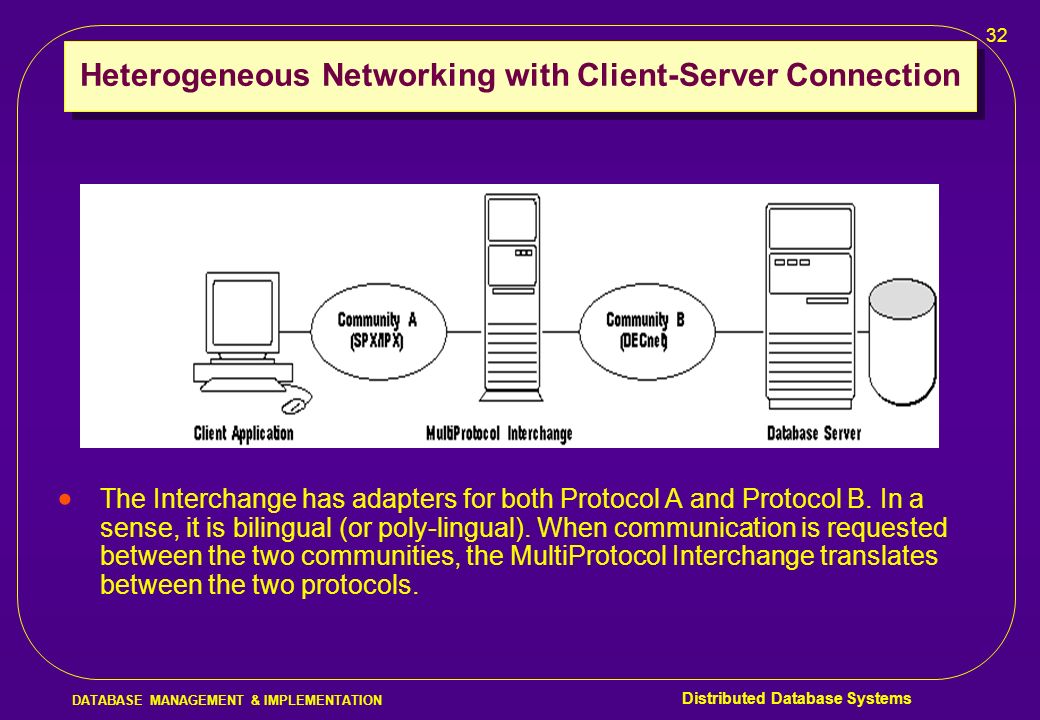

32 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 32 Heterogeneous Networking with Client-Server Connection  The Interchange has adapters for both Protocol A and Protocol B. In a sense, it is bilingual (or poly-lingual). When communication is requested between the two communities, the MultiProtocol Interchange translates between the two protocols.

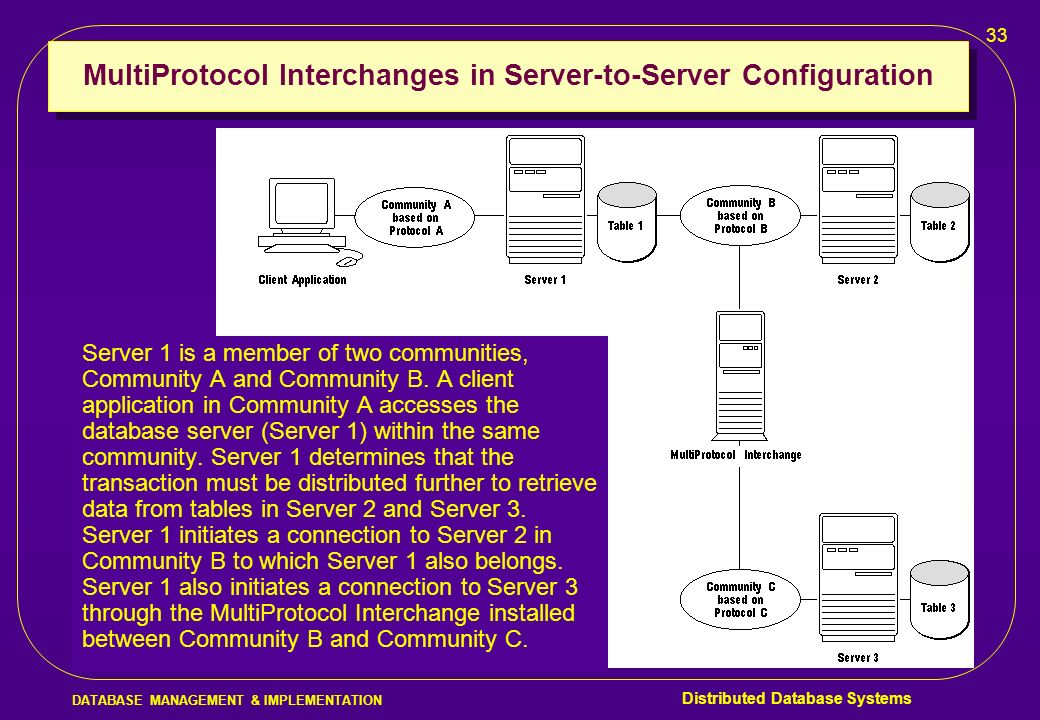

33 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 33 MultiProtocol Interchanges in Server-to-Server Configuration Server 1 is a member of two communities, Community A and Community B. A client application in Community A accesses the database server (Server 1) within the same community. Server 1 determines that the transaction must be distributed further to retrieve data from tables in Server 2 and Server 3. Server 1 initiates a connection to Server 2 in Community B to which Server 1 also belongs. Server 1 also initiates a connection to Server 3 through the MultiProtocol Interchange installed between Community B and Community C.

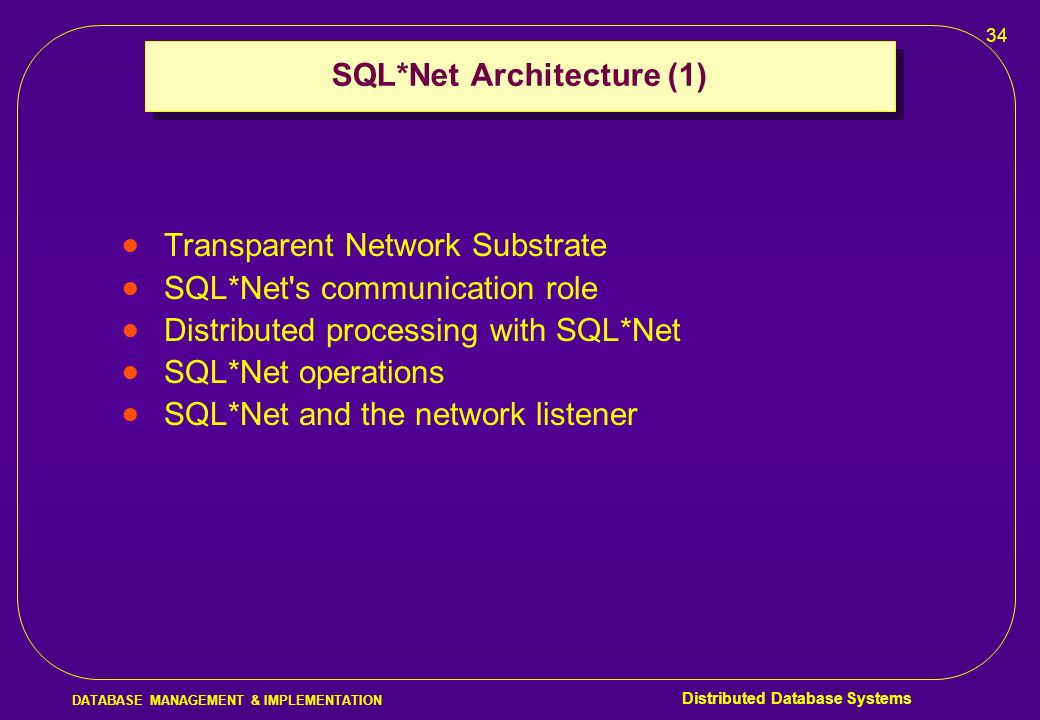

34 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 34 SQL*Net Architecture (1)  Transparent Network Substrate  SQL*Net's communication role  Distributed processing with SQL*Net  SQL*Net operations  SQL*Net and the network listener

35 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 35 SQL*Net Architecture (2)  Transparent Network Substrate (TNS) enables Oracle to provide a network of applications above all existing networks of computers. With TNS, peer-to-peer application connectivity is possible where no direct machine-level connectivity exists. Peer-to-peer is an architecture in which two or more nodes can communicate with each other directly, without the need for any intermediary devices. In a peer-to-peer system, a node can be both a client and a server.  TNS provides two key features to a TNS-based network product and, in turn, any application built using TNS:  a single, common interface to all industry-standard protocols  the ability to connect to applications in physically separate networks through one or more MultiProtocol Interchanges  In a distributed transaction, SQL*Net is responsible for sending information across various networks on behalf of a client application or database server.  The Oracle client and server exchange SQL statements and data rows.

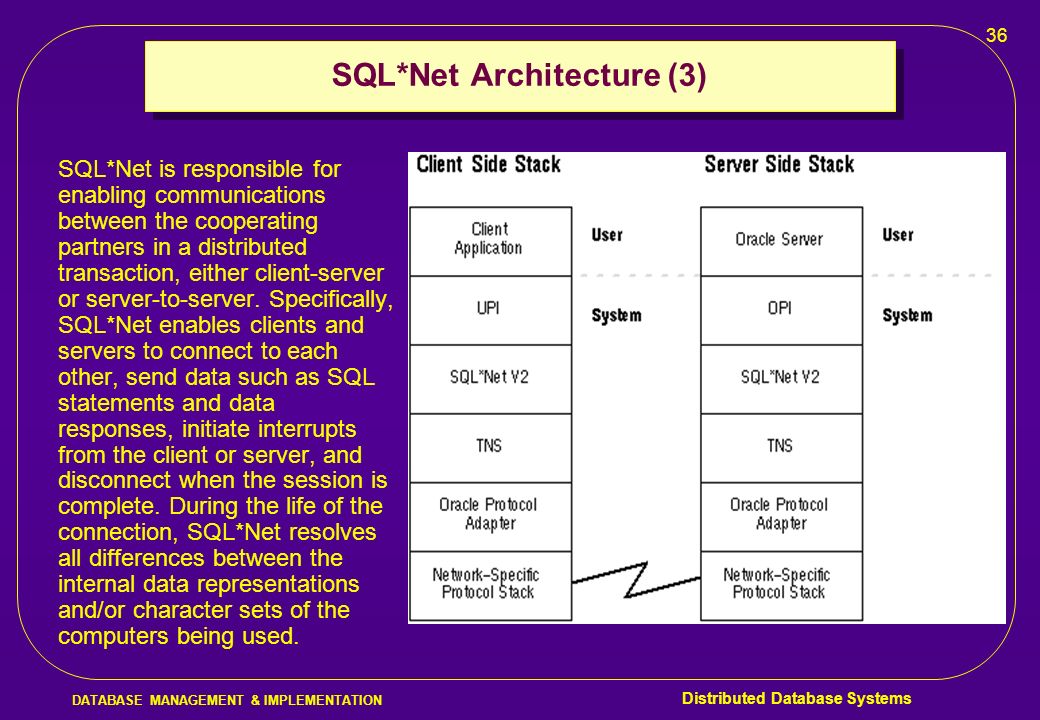

36 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 36 SQL*Net Architecture (3) SQL*Net is responsible for enabling communications between the cooperating partners in a distributed transaction, either client-server or server-to-server. Specifically, SQL*Net enables clients and servers to connect to each other, send data such as SQL statements and data responses, initiate interrupts from the client or server, and disconnect when the session is complete. During the life of the connection, SQL*Net resolves all differences between the internal data representations and/or character sets of the computers being used.

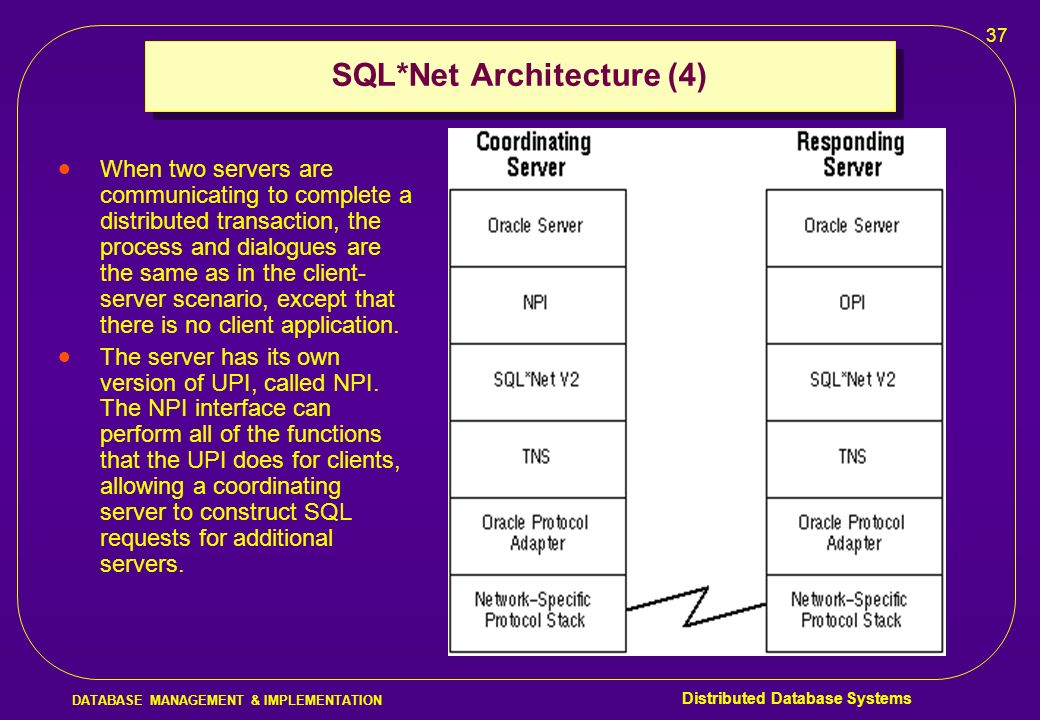

37 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 37 SQL*Net Architecture (4)  When two servers are communicating to complete a distributed transaction, the process and dialogues are the same as in the client- server scenario, except that there is no client application.  The server has its own version of UPI, called NPI. The NPI interface can perform all of the functions that the UPI does for clients, allowing a coordinating server to construct SQL requests for additional servers.

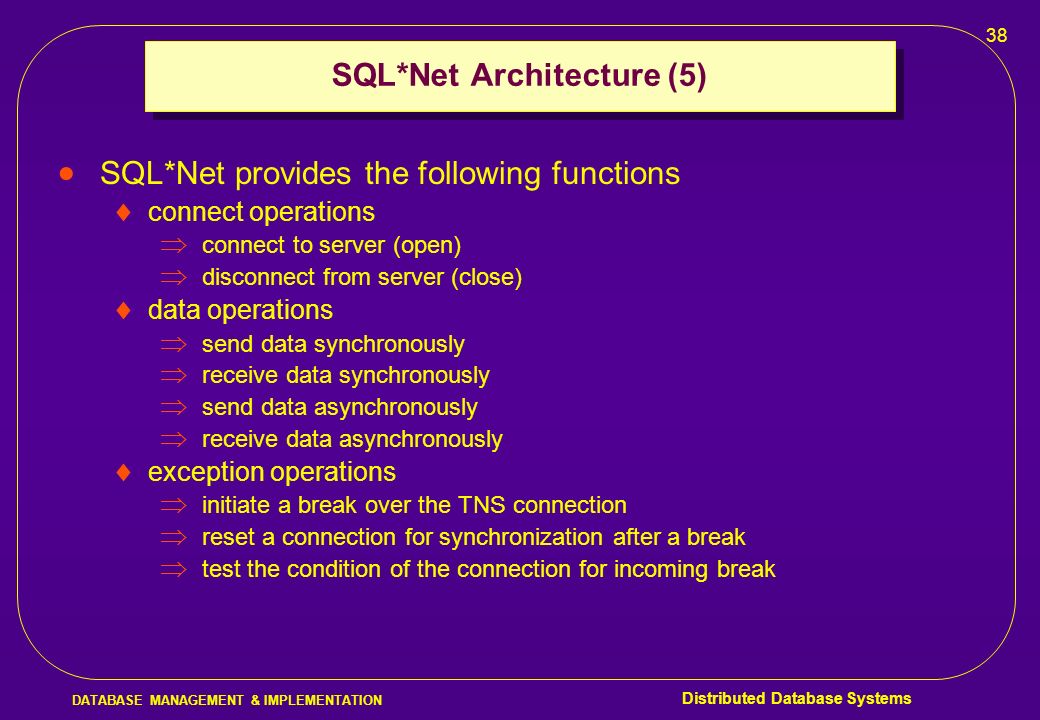

38 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 38 SQL*Net Architecture (5)  SQL*Net provides the following functions  connect operations  connect to server (open)  disconnect from server (close)  data operations  send data synchronously  receive data synchronously  send data asynchronously  receive data asynchronously  exception operations  initiate a break over the TNS connection  reset a connection for synchronization after a break  test the condition of the connection for incoming break

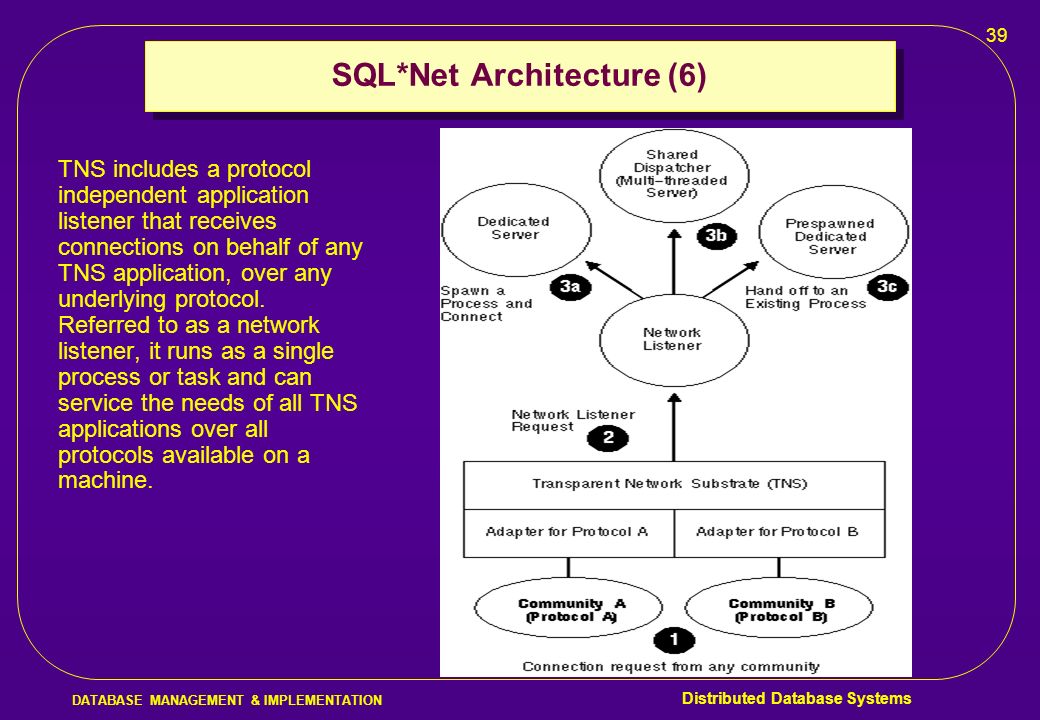

39 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 39 SQL*Net Architecture (6) TNS includes a protocol independent application listener that receives connections on behalf of any TNS application, over any underlying protocol. Referred to as a network listener, it runs as a single process or task and can service the needs of all TNS applications over all protocols available on a machine.

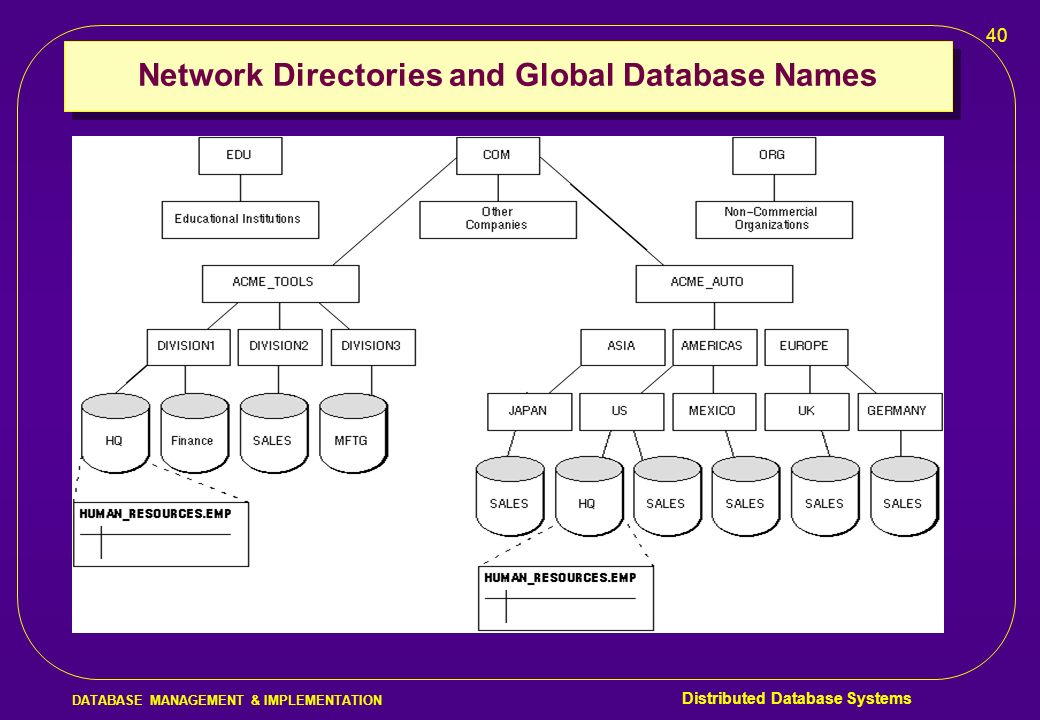

40 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 40 Network Directories and Global Database Names

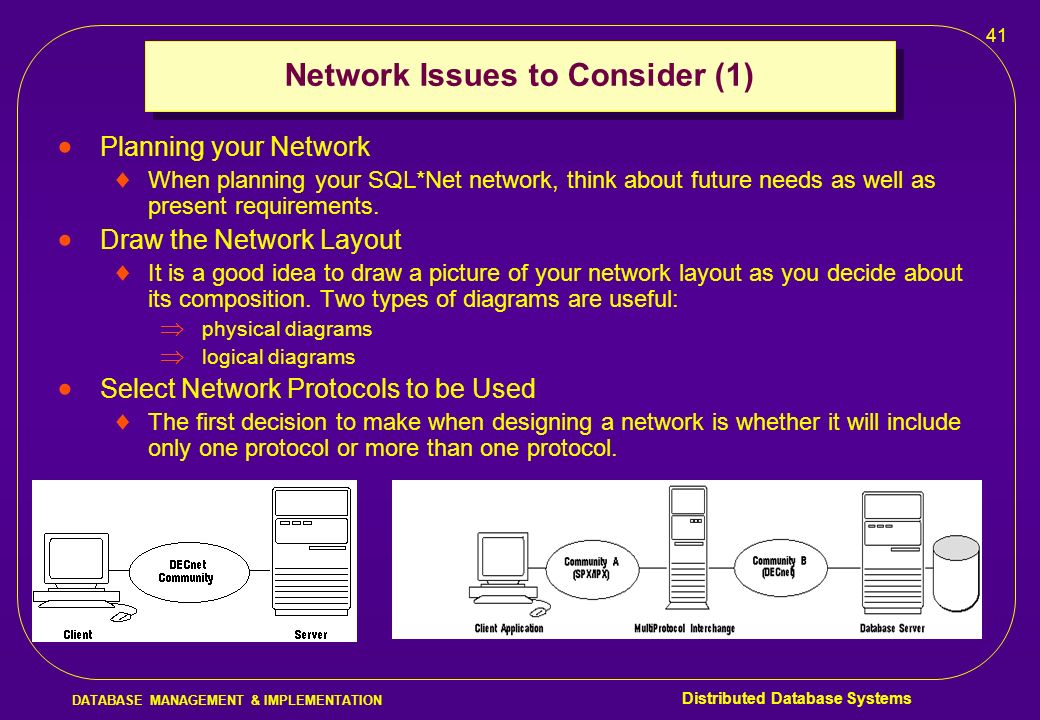

41 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 41 Network Issues to Consider (1)  Planning your Network  When planning your SQL*Net network, think about future needs as well as present requirements.  Draw the Network Layout  It is a good idea to draw a picture of your network layout as you decide about its composition. Two types of diagrams are useful:  physical diagrams  logical diagrams  Select Network Protocols to be Used  The first decision to make when designing a network is whether it will include only one protocol or more than one protocol.

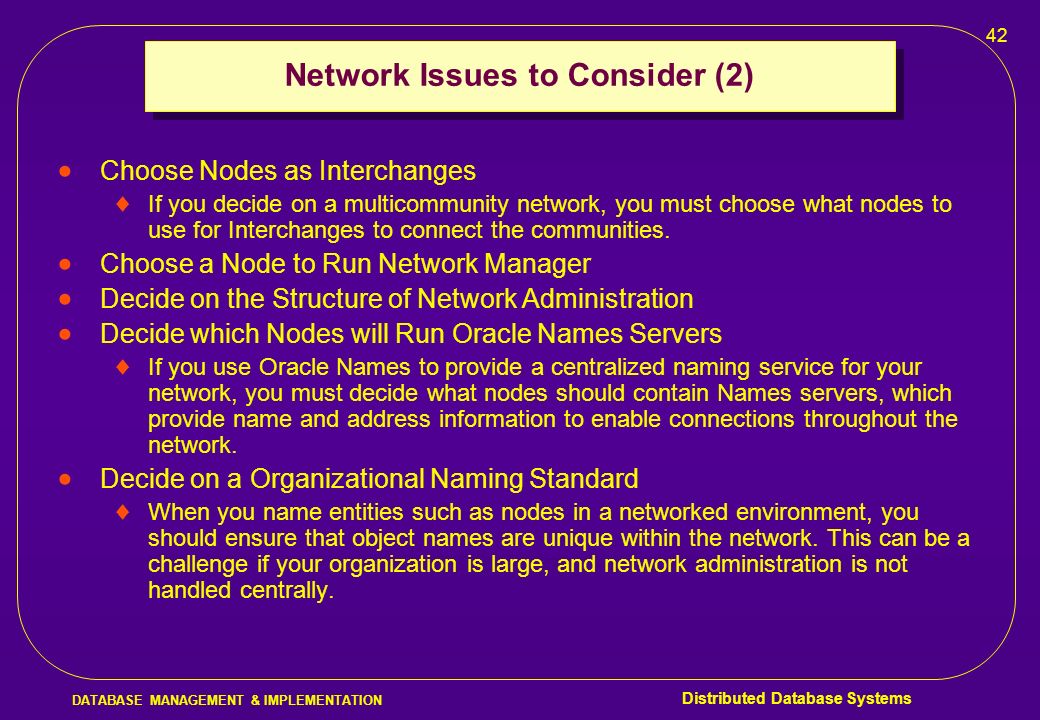

42 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 42 Network Issues to Consider (2)  Choose Nodes as Interchanges  If you decide on a multicommunity network, you must choose what nodes to use for Interchanges to connect the communities.  Choose a Node to Run Network Manager  Decide on the Structure of Network Administration  Decide which Nodes will Run Oracle Names Servers  If you use Oracle Names to provide a centralized naming service for your network, you must decide what nodes should contain Names servers, which provide name and address information to enable connections throughout the network.  Decide on a Organizational Naming Standard  When you name entities such as nodes in a networked environment, you should ensure that object names are unique within the network. This can be a challenge if your organization is large, and network administration is not handled centrally.

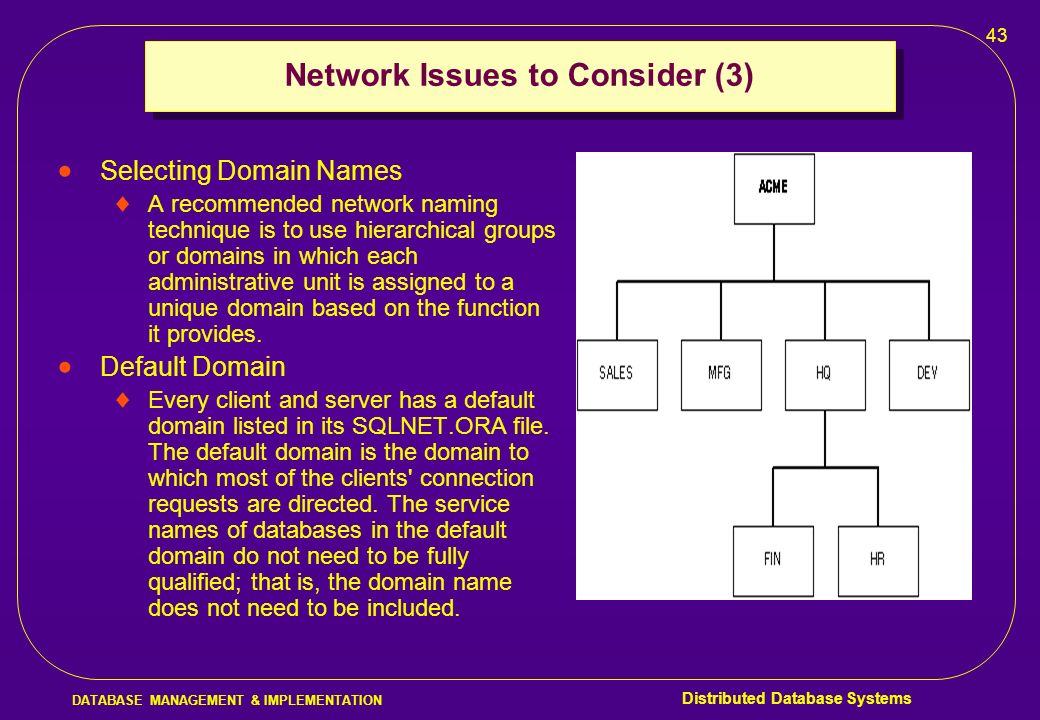

43 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 43 Network Issues to Consider (3)  Selecting Domain Names  A recommended network naming technique is to use hierarchical groups or domains in which each administrative unit is assigned to a unique domain based on the function it provides.  Default Domain  Every client and server has a default domain listed in its SQLNET.ORA file. The default domain is the domain to which most of the clients' connection requests are directed. The service names of databases in the default domain do not need to be fully qualified; that is, the domain name does not need to be included.

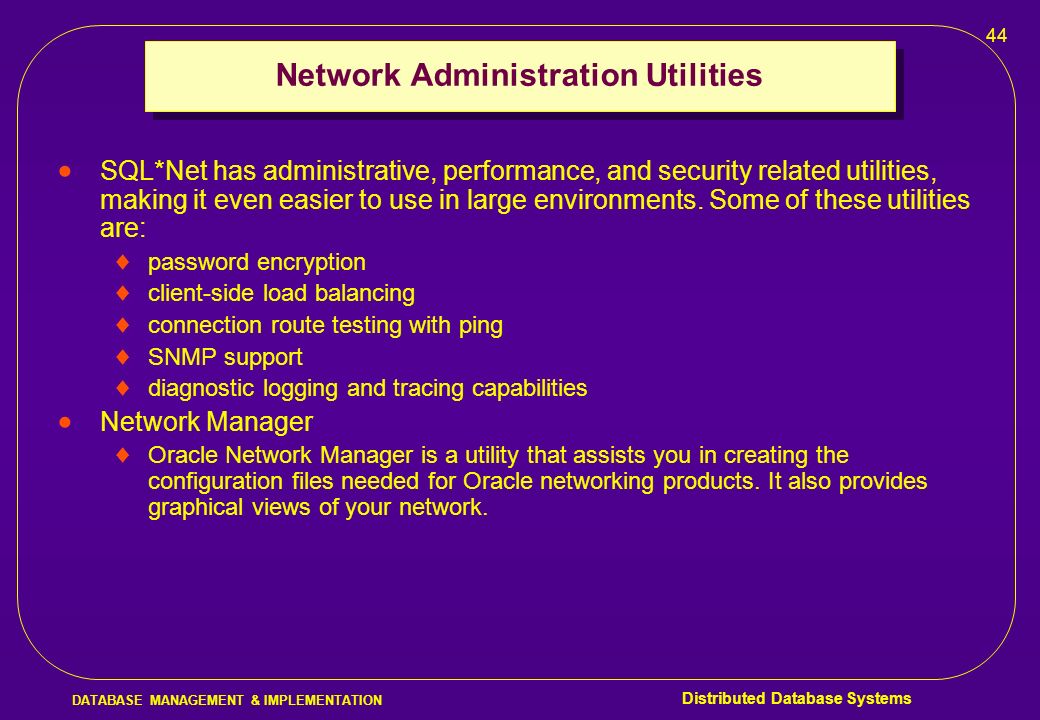

44 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 44 Network Administration Utilities  SQL*Net has administrative, performance, and security related utilities, making it even easier to use in large environments. Some of these utilities are:  password encryption  client-side load balancing  connection route testing with ping  SNMP support  diagnostic logging and tracing capabilities  Network Manager  Oracle Network Manager is a utility that assists you in creating the configuration files needed for Oracle networking products. It also provides graphical views of your network.

45 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 45 DDBS: Query Processing and Optimization From Date V2 SUPPLIER (SUPPLIER#,CITY) 10,000 RECORDS STORED IN DETROIT PART(PART#,COLOR) 100,000 RECORDS STORED IN CHICAGO SHIPMENT (SUPPLIER#,PART#) 1M RECORDS STORED IN DETROIT SELECT SUPPLIER.SUPPLIER# FROM SUPPLIER,SHIPMENT,PART WHERE SUPPLIER.CITY = ‘CLEVELAND’ AND SUPPLIER.SUPPLIER# = SHIPMENT.SUPPLIER# AND SHIPMENT.PART# = PART.PART# AND PART.COLOR = ‘RED’ 100 character records - 10,000 character per second data rate 1 second access daily to send a message

46 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 46 DDBS: Query Optimization 6 strategies Move part to Detroit and process whole query at Detroit computer Time to complete query = Access Delay + (Data Volume / Data Rate) = Number of Messages * 1 + 100,000 part records * 100 / 10,000 = 1 + 1,000 = 1,001 seconds = 16.67 minutes Strategies range from 1 sec Select just red parts at Chicago to 2.3 days join supplier and shipment at Detroit

47 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 47 DDBS: Global Transaction Management  Goals of Transaction Management in Distributed DBMS  resiliency  efficiency (message minimization)  correctness  Global Transaction  a logical concept  Local Transaction  the physical subtransactions of a global transaction Example ITEMS A B NODES N1 T1 = A - 10 N2, N3 N4,N5 B + 10 Local Tx to N1,N2,N3,N4,N5

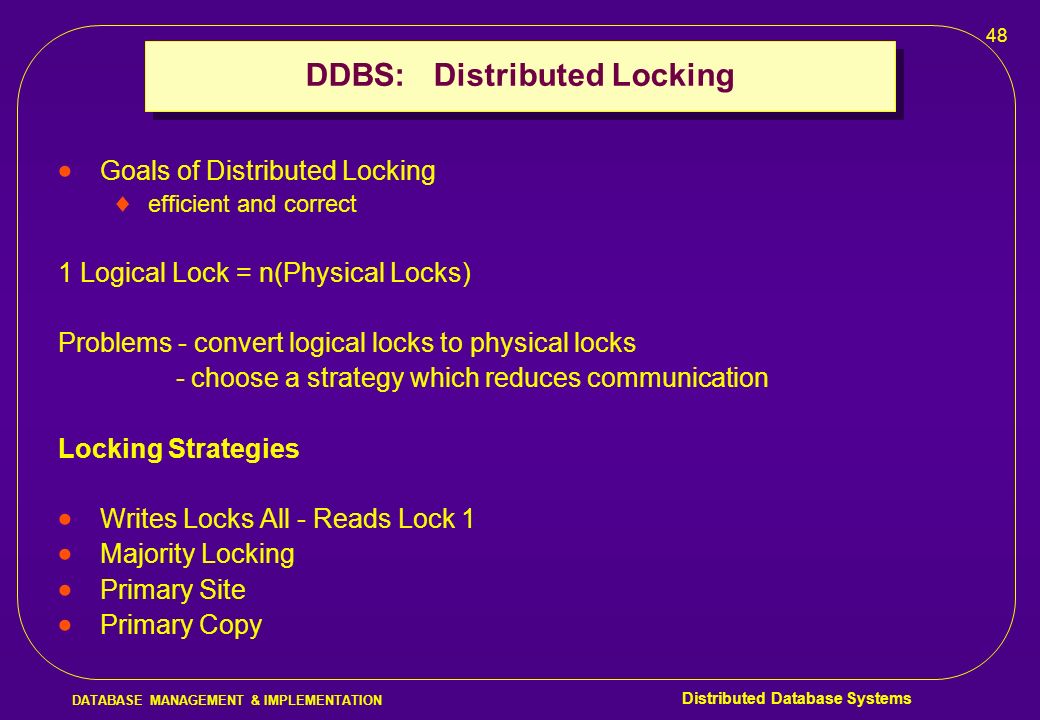

48 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 48 DDBS: Distributed Locking  Goals of Distributed Locking  efficient and correct 1 Logical Lock = n(Physical Locks) Problems - convert logical locks to physical locks - choose a strategy which reduces communication Locking Strategies  Writes Locks All - Reads Lock 1  Majority Locking  Primary Site  Primary Copy

49 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 49 DDBS: Comparison of Locking Strategies Method Control Msgs Control Msgs Comment to Write to Read Write Locks All 2n 1 Good if reads dominate Majority Locking >= n + 1 >= n Avoids some deadlock Primary Site 2 1 Vulnerable to Crash Primary Copy 2 1 Removes traffic from Central Site

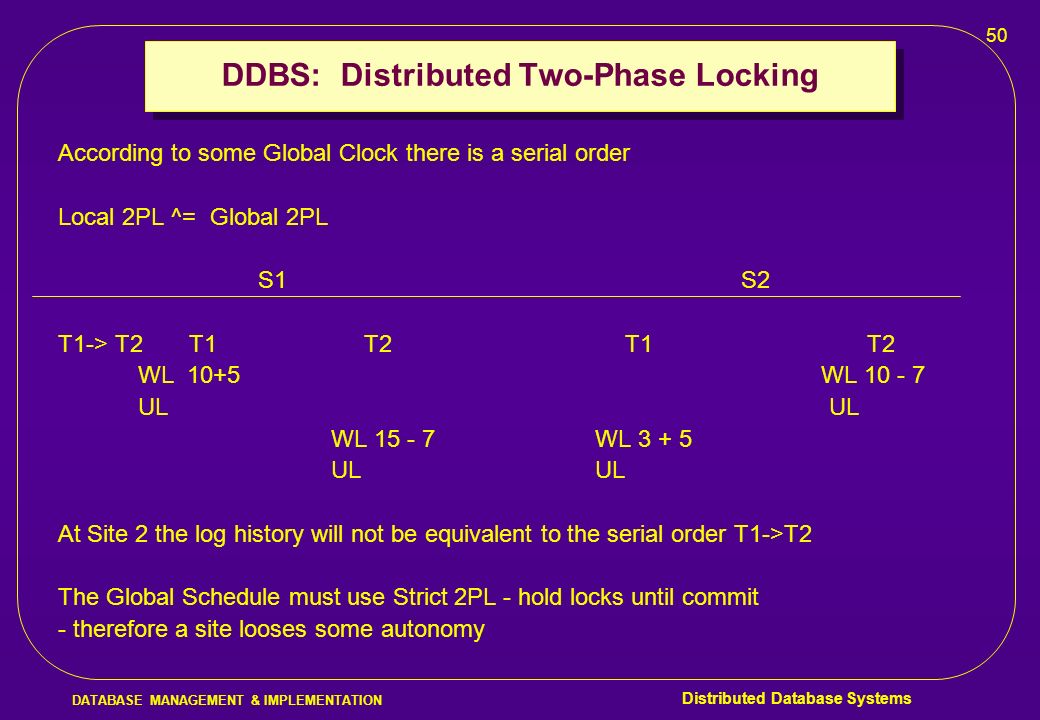

50 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 50 DDBS: Distributed Two-Phase Locking According to some Global Clock there is a serial order Local 2PL ^= Global 2PL S1 S2 T1-> T2 T1 T2 T1 T2 WL 10+5 WL 10 - 7 UL UL WL 15 - 7 WL 3 + 5 UL UL At Site 2 the log history will not be equivalent to the serial order T1->T2 The Global Schedule must use Strict 2PL - hold locks until commit - therefore a site looses some autonomy

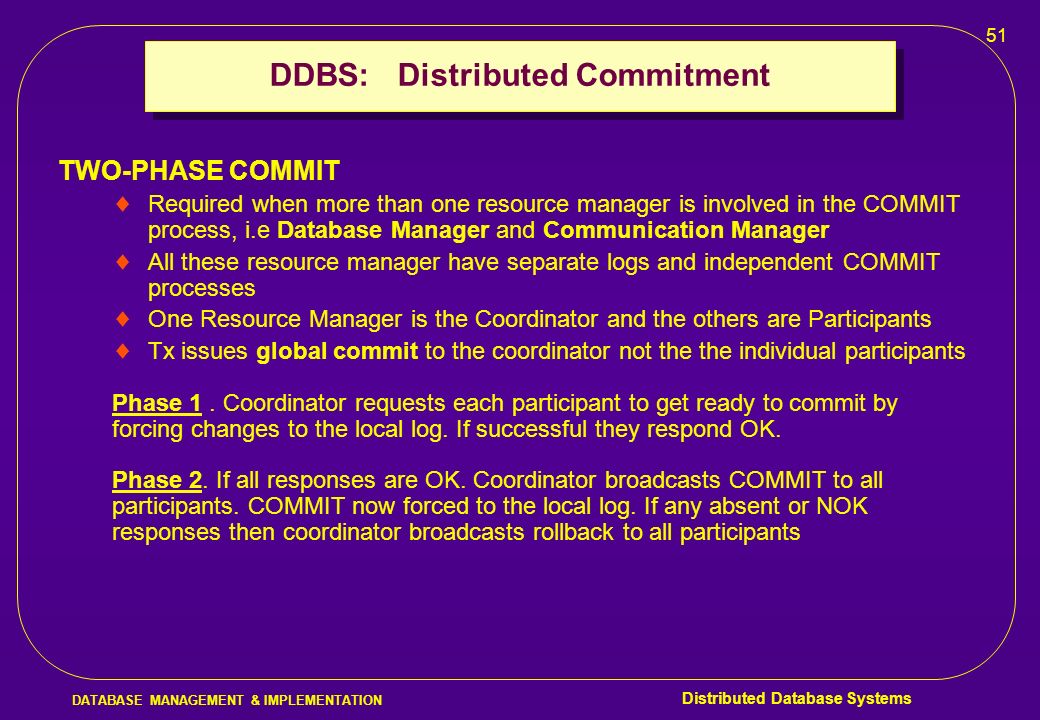

51 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 51 DDBS: Distributed Commitment TWO-PHASE COMMIT  Required when more than one resource manager is involved in the COMMIT process, i.e Database Manager and Communication Manager  All these resource manager have separate logs and independent COMMIT processes  One Resource Manager is the Coordinator and the others are Participants  Tx issues global commit to the coordinator not the the individual participants Phase 1. Coordinator requests each participant to get ready to commit by forcing changes to the local log. If successful they respond OK. Phase 2. If all responses are OK. Coordinator broadcasts COMMIT to all participants. COMMIT now forced to the local log. If any absent or NOK responses then coordinator broadcasts rollback to all participants

52 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 52 DDBS: Recovery of Nodes The Recovery of a Node after a failure involves :-  determining the transactions being committed at the time of failure  determining subsequent actions against an item that it hold a copy of This is performed by sending messages to other participants to find out what has been happening Must keep the database locked until all values are made current

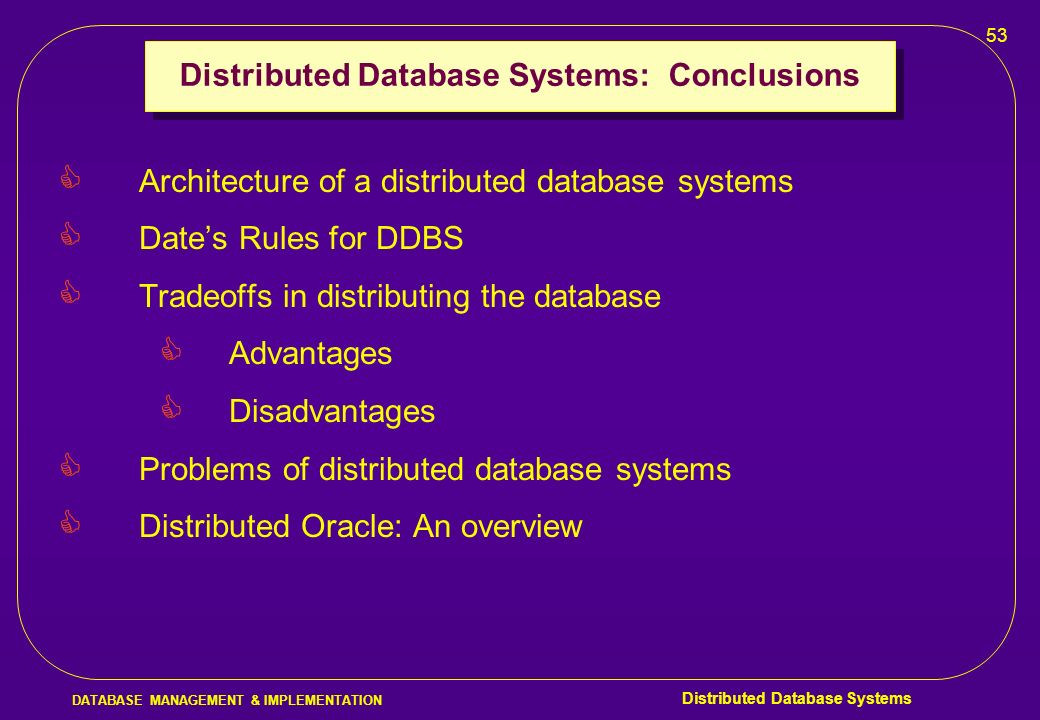

53 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 53 Distributed Database Systems: Conclusions  Architecture of a distributed database systems  Date’s Rules for DDBS  Tradeoffs in distributing the database  Advantages  Disadvantages  Problems of distributed database systems  Distributed Oracle: An overview

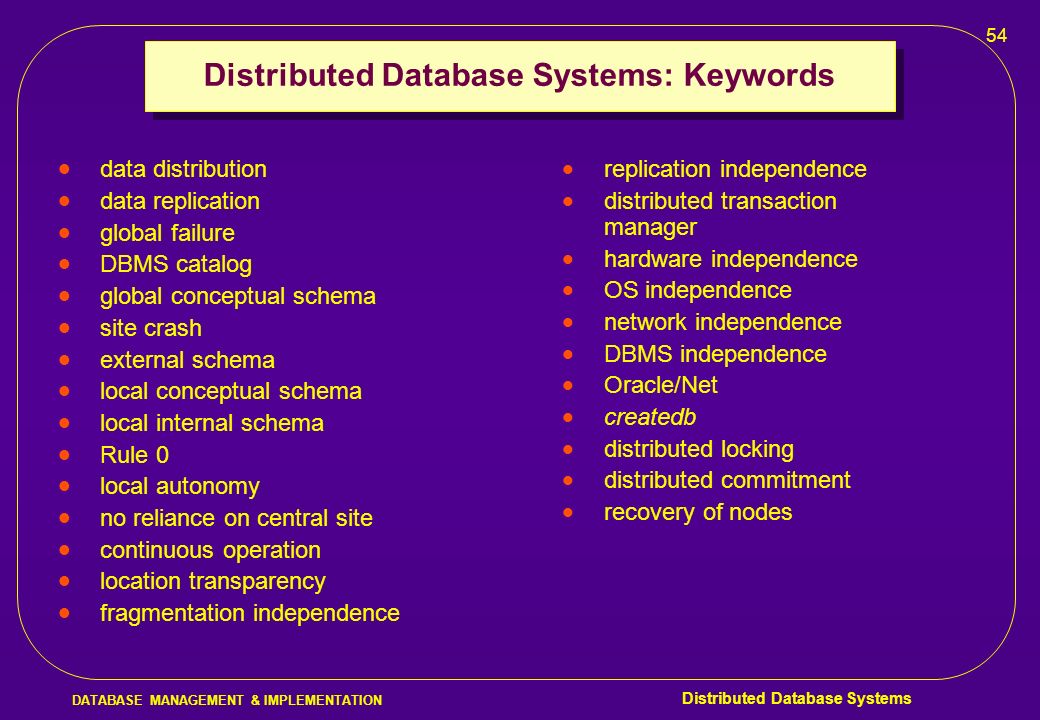

54 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 54 Distributed Database Systems: Keywords  data distribution  data replication  global failure  DBMS catalog  global conceptual schema  site crash  external schema  local conceptual schema  local internal schema  Rule 0  local autonomy  no reliance on central site  continuous operation  location transparency  fragmentation independence  replication independence  distributed transaction manager  hardware independence  OS independence  network independence  DBMS independence  Oracle/Net  createdb  distributed locking  distributed commitment  recovery of nodes

55 DATABASE MANAGEMENT & IMPLEMENTATION Distributed Database Systems 55 What’s next ? - Replication  Basic Architectural Models  Classification of Replica Control Strategies  Consistency & Request Ordering  The Gossip architecture  Process Groups and ISIS  Replication in Oracle
