1. 11.3: Movement of Ants (plus more Matlab, plus Artificial Life)

2. Movement of Ants Ant movement complicates the spread-of-fire model in a number of ways 1. Each ant has an orientation (N, S, E, W) 2. Each cell contains an ant, a quantity of pheromone (chemical deposited by ants and attractive to them), both, or neither 3. Ant cannot move into cell occupied by another

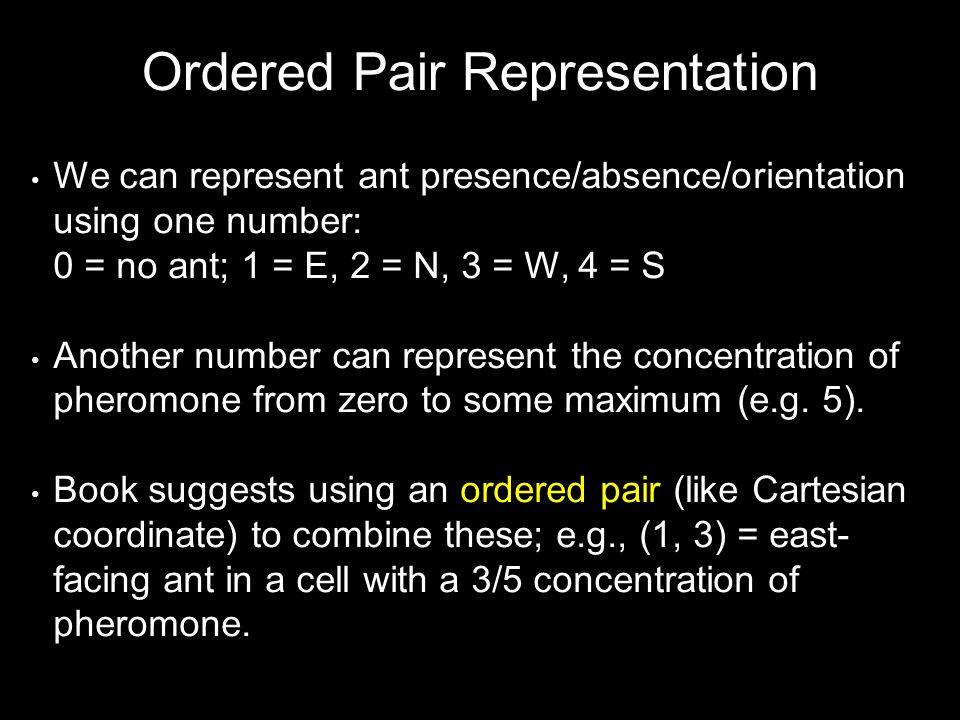

3. Ordered Pair Representation We can represent ant presence/absence/orientation using one number: 0 = no ant; 1 = E, 2 = N, 3 = W, 4 = S Another number can represent the concentration of pheromone from zero to some maximum (e.g. 5). Book suggests using an ordered pair (like Cartesian coordinate) to combine these; e.g., (1, 3) = east- facing ant in a cell with a 3/5 concentration of pheromone.

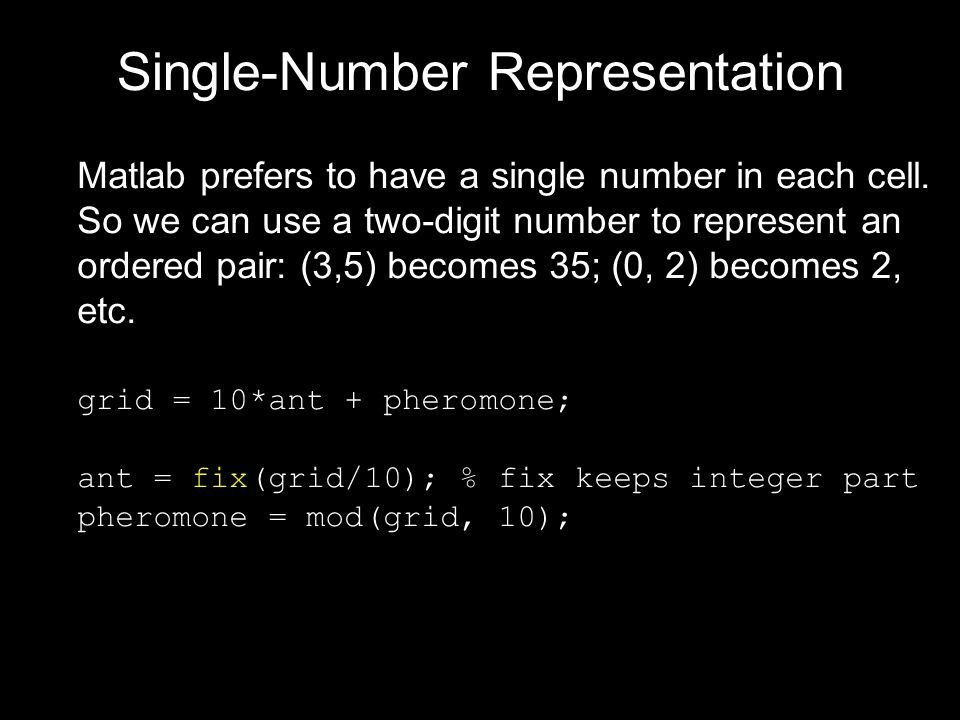

4. Single-Number Representation Matlab prefers to have a single number in each cell. So we can use a two-digit number to represent an ordered pair: (3,5) becomes 35; (0, 2) becomes 2, etc. grid = 10*ant + pheromone; ant = fix(grid/10); % fix keeps integer part pheromone = mod(grid, 10);

5. Matrices and Indexing We’ve seen how to perform operations on an entire matrix at once: grid(rand(n)<probTree) = 1, etc. What if we want to operate on individual rows, columns, and elements? grid(i, j) accesses row i, column j of grid. grid(i, :) accesses all columns of row i grid(:, j) accesses all rows of column j

6. Matrices and Indexing: Examples grid(2, 3) = 1; % a tree grows at 2,3 grid(1, :) = 2; % whole top row on fire

7. Ranges and Indexing But we’re supposed to start with a gradient strip of pheromone – a range like 0, 1, 2, 3, 4, 5 In Matlab we can simply say 1:5 grid(3, 4:8) = 1:5; For a vertical “strip”, we transpose the range: grid(2:6, 4) = (1:5)’; Let’s put an arbitrarily long horizontal strip of gradient in an arbitrary row....

8. Initializing the Gradient phergrid = zeros(n);% NxN pheromone grid row = fix(rand*n)+1; % indices start at 1 len = fix(rand*n)+1; % length of gradient strip col = fix(rand*(n-len))+1; % starting column phergrid(row, col:col+len-1) = 1:len; % help me Obi-wan!

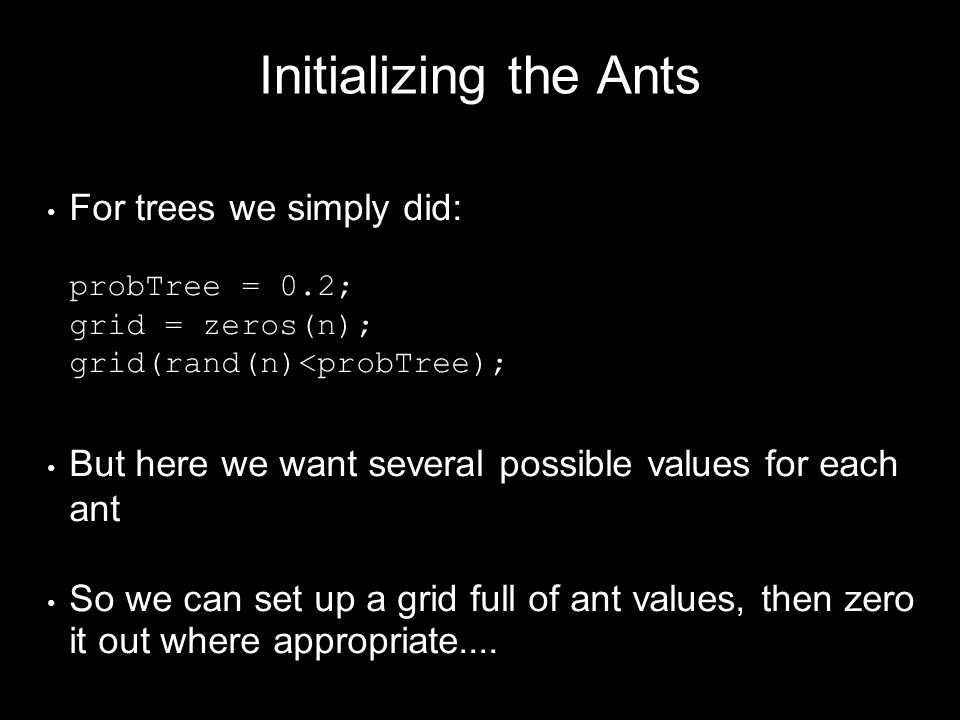

9. Initializing the Ants For trees we simply did: probTree = 0.2; grid = zeros(n); grid(rand(n)<probTree); But here we want several possible values for each ant So we can set up a grid full of ant values, then zero it out where appropriate....

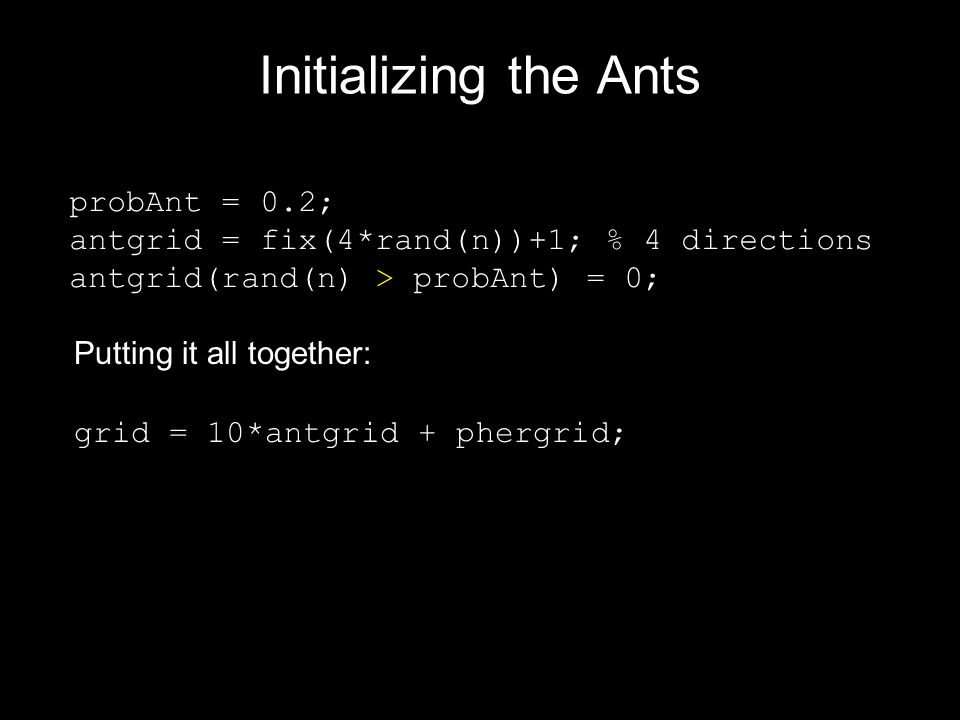

10. Initializing the Ants probAnt = 0.2; antgrid = fix(4*rand(n))+1; % 4 directions antgrid(rand(n) > probAnt) = 0; Putting it all together: grid = 10*antgrid + phergrid;

11. Updating the Grid An ant turns in the direction of the neighboring cell with the greatest amount of pheromone (in a tie, pick one at random), then walks in that direction If there’s no ant in a cell, the pheromone decreases by 1 at each time step, with a minimum value of 0. If an ant leaves a cell, the amount of pheromone increases by 1 (ant “deposits” pheromone”). So long as there is an ant in a cell, the amount of pheromone in the cell stays constant.

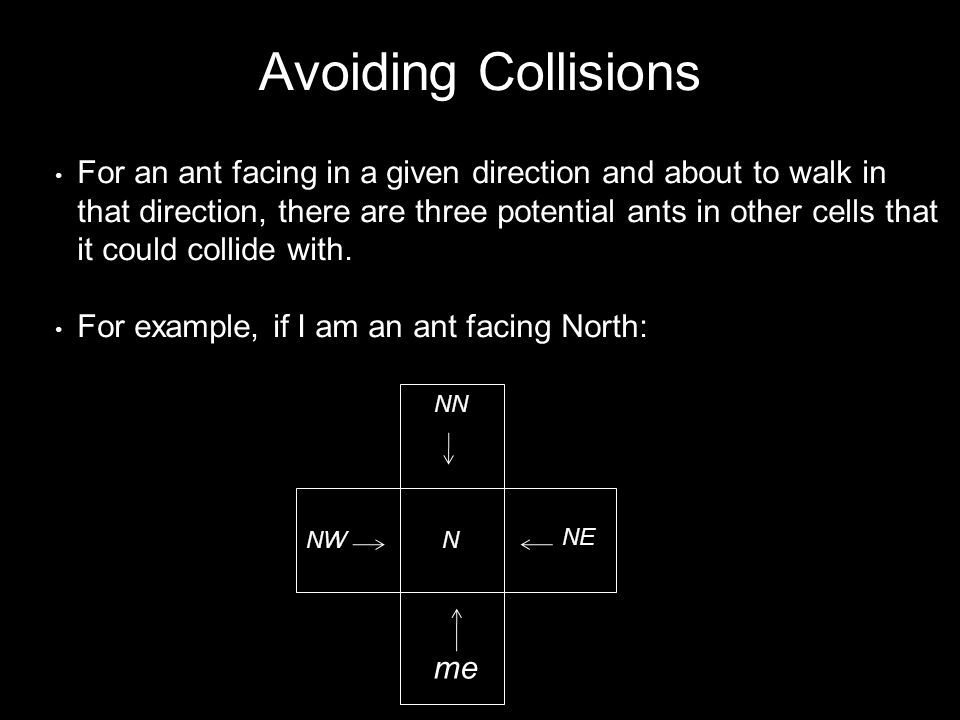

12. Avoiding Collisions For an ant facing in a given direction and about to walk in that direction, there are three potential ants in other cells that it could collide with. For example, if I am an ant facing North: me NW NE NN N

13. Avoiding Collisions Because there are four other directions (S, E, W), each cell has a potential collision with 12 others: me As a first approximation, we can ignore collisions: e.g., cell is occupied by last ant to move there, and others go away (maybe replaced by new ones being born).

14. The Big Picture: Self-Organization & Spontaneous Orders By itself, the rules for movement of ants aren’t terribly interesting. What interests scientists is the spontaneous orders and self-organizing behaviors that emerge from such simple systems of rules. This is a profound idea that shows up in biology, economics, and the social sciences.

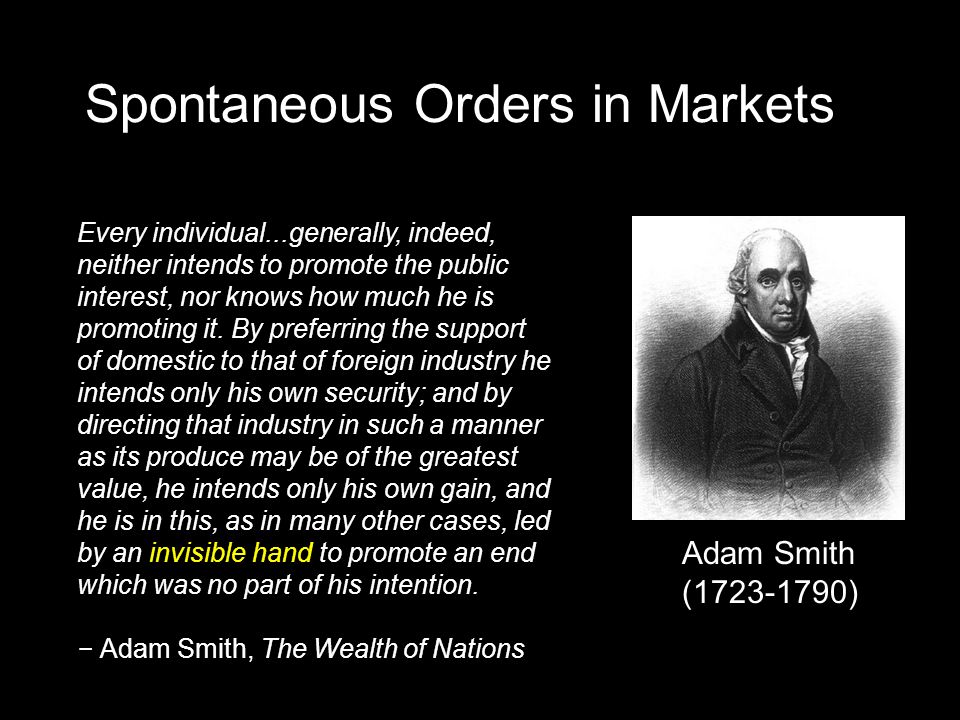

15. Spontaneous Orders in Markets Every individual...generally, indeed, neither intends to promote the public interest, nor knows how much he is promoting it. By preferring the support of domestic to that of foreign industry he intends only his own security; and by directing that industry in such a manner as its produce may be of the greatest value, he intends only his own gain, and he is in this, as in many other cases, led by an invisible hand to promote an end which was no part of his intention. − Adam Smith, The Wealth of Nations Adam Smith (1723-1790)

18. Termite Nest-Building

19. Bird Flocks

20. Boids: Artificial Birds Flocks of birds appear to be moving as a coherent whole, following a leader & avoiding obstacles Can this global behavior instead be emergent from the local behavior of individuals birds? Boids (Reynolds 1986): Each “boid” follows three simple rules

21. Boids: Artificial Birds Separation: steer to avoid crowding local flockmates Alignment: steer towards the average heading of local flockmates Cohesion: steer to move toward the average position of local flockmates http://www.red3d.com/cwr/boids/

22. Evolution of Cooperation Consider the Prisoner’s Dilemma game where you and I are arrested for committing a crime. If I defect (rat you out) and you cooperate with me (keep quiet), you get 10 years and I go free. If I cooperate and you defect, I get 10 years and you go free. If we both cooperate, we each get six months If we both defect, we both get five years. What is the best strategy?

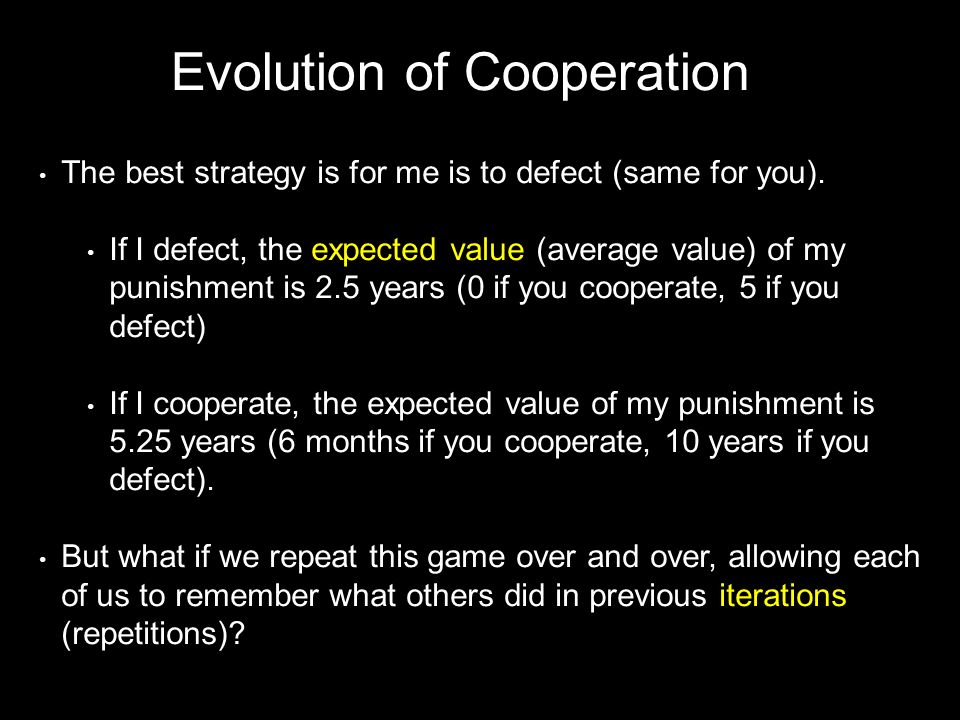

23. Evolution of Cooperation The best strategy is for me is to defect (same for you). If I defect, the expected value (average value) of my punishment is 2.5 years (0 if you cooperate, 5 if you defect) If I cooperate, the expected value of my punishment is 5.25 years (6 months if you cooperate, 10 years if you defect). But what if we repeat this game over and over, allowing each of us to remember what others did in previous iterations (repetitions)?

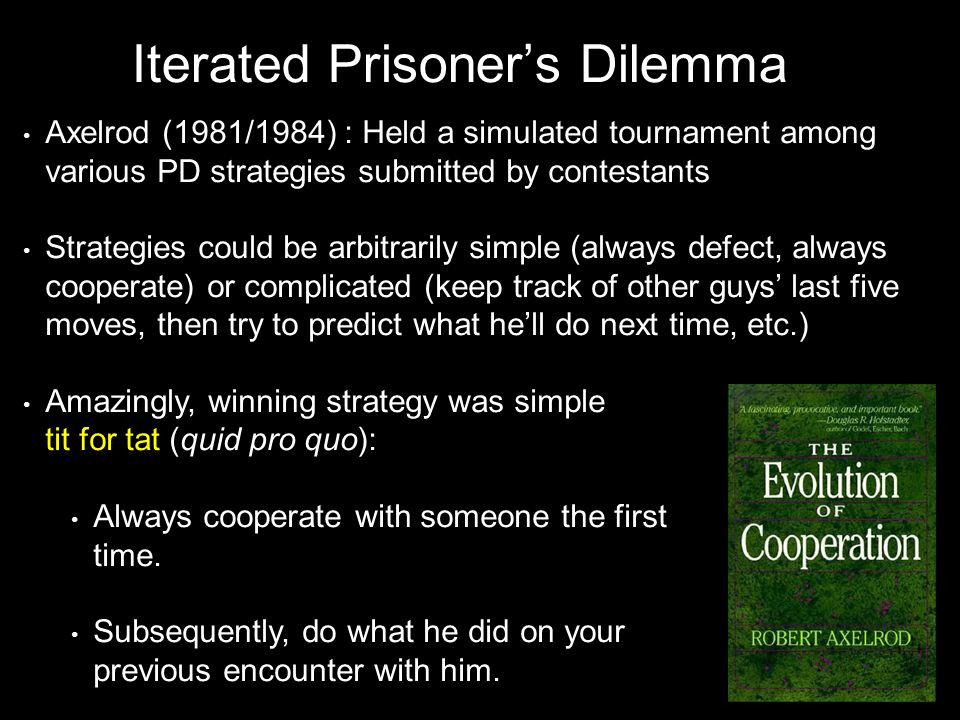

24. Iterated Prisoner’s Dilemma Axelrod (1981/1984) : Held a simulated tournament among various PD strategies submitted by contestants Strategies could be arbitrarily simple (always defect, always cooperate) or complicated (keep track of other guys’ last five moves, then try to predict what he’ll do next time, etc.) Amazingly, winning strategy was simple tit for tat (quid pro quo): Always cooperate with someone the first time. Subsequently, do what he did on your previous encounter with him.

25. Iterated Prisoner’s Dilemma: (Artificial) Life Lessons? In general, most successful strategies followed four rules: Be nice: Don’t be the first to defect Be provocable (don’t be a sucker) Don’t be envious: don’t strive for a payoff greater than the other player’s Don’t be too clever (KISS principle)

26. The Bad News: People Are Naturally Envious Ultimatum game : psychology experiment with human subjects (Güth et al. 1982) Subject A is given $10 and told to share some of it (in whole $$) with subject B, where B knows how much A is given Optimal for A is to give B $1 and keep $9 Typically, A will offer $3, and B will refuse to accept anything less (!)

27. The Good News: TFT is an Evolutionarily Stable Strategy Q: What happens when we introduce a “cheater” (always defects) into a population of TFT players? A: The cheater initially gains some points by exploiting TFT player’s niceness, but soon is overwhelmed by subsequent TFT retribution. So TFT is an evolutionarily stable strategy (Maynard-Smith 1982)

28. Evolution of Communication What is communication? Communication is the phenomenon of one organism producing a signal that when responded to by another organism confers some advantage (or the statistical probability of it) to the signaler or his group. ─ G. Burghardt (1970) How does a community come to share a common system of communication (language)?

29. Evolution of Communication MacLennan (1990): Simulate communication by a simple matching game: each “simorg” (simulated organism) has a “private” situation that it wants to describe to others.

30. MacLennan (1990): Simulation communication by a simple matching game To communicate a situation, the individual looks up its current situation in a table and emits an symbol into the shared environment Each individual then uses its own table to convert the shared symbol back into a guess about the private situation of the emitter. Whenever an individual matches the emitter’s situation, it and the emitter get a fitness point Individuals with highest fitness get to survive

31. Evolution of Communication: Results, Fitness iteration fitness

32. Evolution of Communication: Results, Denotation Matrix First iteration: random association of symbols with situations

33. Last iteration: systematic association of symbols with situations Evolution of Communication: Results, Denotation Matrix

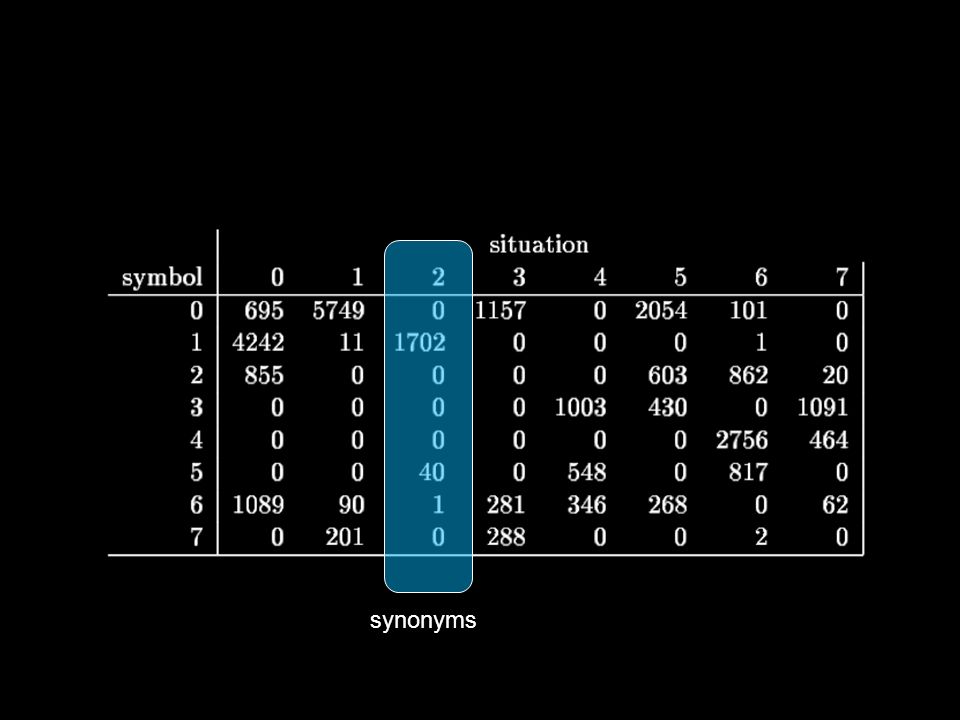

34. synonyms

35. homonyms

36. Quantifying Denotation (Dis)order Claude Shannon (1916-2001) Shannon Information Entropy: quantifies (in # bits) amount of disorder in a distribution where p k is the probability of event (situation) k Examples: p = [ 0.25,.25,.25,.25], H = 2.0 p = [.95,.025,.0125,.0125], H = 0.36

37. Choosing the Next Generation Fitness-Proportionate Selection: use our biased roulette wheel to favor individuals with higher fitness, without ruling out selection of low-fitness individuals i1i1 i2i2 i3i3 i4i4 i1i1 60% i3i3 i4i4 i2i2 8% 10% 22%.60.68.78 1.0 normalized fitnesses individuals

38. Iterating Over Generations A highly expressive language like Matlab may allow us to avoid explicit iteration (looping), via operators like sum, >, etc. But when the current generation (population) depends on the previous one, we say that the model is inherently iterative. For such models we use an explicit loop, typically a for loop....

39. Original Population Model in Matlab % growth rate k = 0.1; % initial population P0 = 100; P = zeros(1, 20); P(1) = P0; % iterate for t = 2:20 P(t) = P(t-1) + k*P(t-1); end % analytical solution Pa = P0 * exp(k*[1:20]); % overlay plots plot(P) hold on plot(Pa, 'r') % red

40. Modeling & Simulation: Conclusions Cellular automata and related simulations can be a powerful and exciting way of exploring phenomena for which an actual experiment is too difficult or costly. But one must be careful not to “build-in” the very behavior that one claims is emergent. One must also be careful not to over-interpret the results.

41. Potential Projects Implement collision avoidance in ants simulation. Implement Conway’s Game of Life in init, update functions. Implement MacLennan’s evolution of communication algorithm.
