1. Jonathan Carroll-Nellenback CIRC Summer School MESSAGE PASSING INTERFACE (MPI)

2.  Global Communicator  MPI_COMM_WORLD  Global Communication Routines:  [All]Gather[v]  Scatter[v]  [All]Reduce[v]  Alltoall[v]  BCast  Barrier  Reduction Operators  MPI_[MAX,MIN,SUM,PROD], MPI[B,L][AND,OR,XOR]  Basic Data Types (put MPI_ in front of name of data type)  Fortran - MPI_[CHARACTER,INTEGER,REAL,LOGICAL,...]  C – MPI_[CHAR,SHORT,INT,LONG,...] REVIEW

3.  Send Buffer – The starting address of the data to be sent  Send Count – The number of elements in the send buffer  Send Type – The type of elements in the send buffer  Recv Buffer – The starting address of the recv buffer  Recv Count – The number of elements to recv  Recv Type – The type of element to recv  Displacements – The offsets for Gatherv & Scatterv etc...  Tag – A message identifier  Root – The '1' in all-to-1 or 1-to-all communication  Dest – The destination for a point to point send  Source – The source for a point to point recv  Communicator – An independent collection of mpi tasks  Request – A handle to keep track of non-blocking sends or receives  Status – The status of a non-blocking send or any receive TYPES OF MPI ARGUMENTS

4. VARIOUS WAY TO PARALLELIZE DO LOOPS DO i=1,n a(i)=f(i) END DO a=0 DO i=rank+1,n,procs a(i)=f(i) END DO CALL MPI_Allreduce(MPI_IN_PLACE, a, n, MPi_REAL, MPI_SUM, MPI_COMM_WORLD, err) m=n/procs ALLOCATE(b(m)) DO i=1,m b(i)=f(m*rank+i) END DO CALL MPI_ALLGather(b, m, MPI_REAL, a, m, MPi_REAL, MPI_COMM_WORLD, err) DEALLOCATE(b)

5. GATHER VS. GATHERV m=n/procs rem=mod(n,procs) ALLOCATE(sizes(procs), displacements(procs+1)) sizes=(/(m+1,i=1,rem),(m,i=rem+1,procs)/) displacements=(/0,(sum(sizes(1:i)), i=1,procs)/) ALLOCATE(b(sizes(rank))) DO i=1,sizes(rank) b(i)=f(displacements(rank)+i) END DO CALL MPI_ALLGatherv(b, sizes(rank), MPI_REAL, a, sizes, displacements, & MPI_REAL, MPI_COMM_WORLD, err) DEALLOCATE(b,sizes,displacements) m=n/procs ALLOCATE(b(m)) DO i=1,m b(i)=f(m*rank+i) END DO CALL MPI_ALLGather(b, m, MPI_REAL, a, m, MPi_REAL, MPI_COMM_WORLD, err) DEALLOCATE(b)

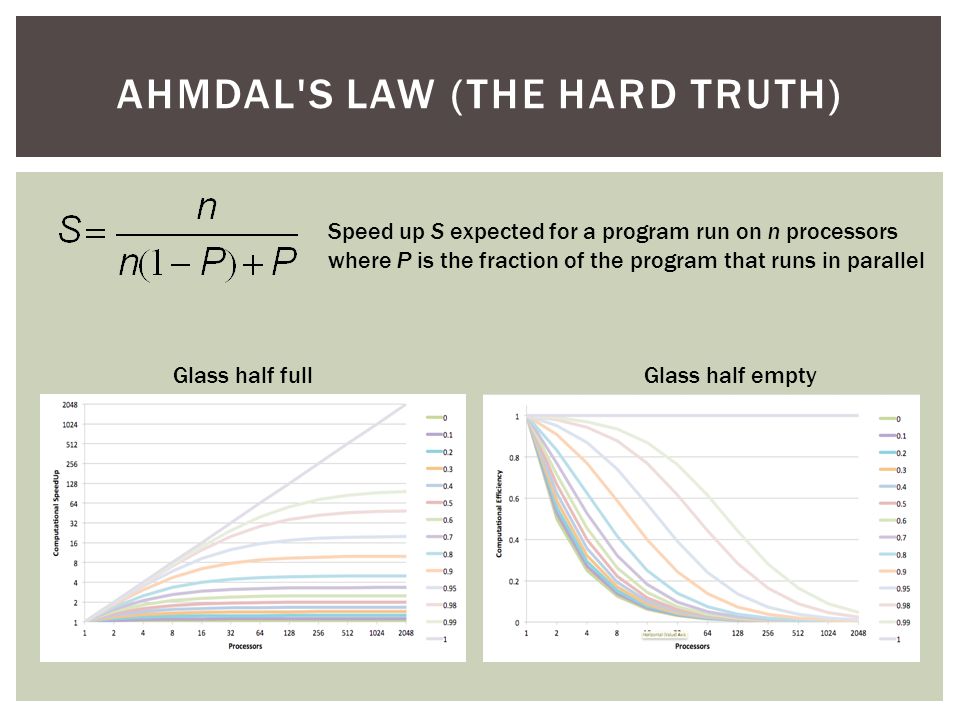

6. AHMDAL'S LAW (THE HARD TRUTH) Glass half full Glass half empty Speed up S expected for a program run on n processors where P is the fraction of the program that runs in parallel

7.  Fortran:  CALL MPI_WTIME(time)  C:  time=MPI_WTIME()  Measure the performance of exercise2p.f90 or exercise2p.c MEASURING PERFORMANCE

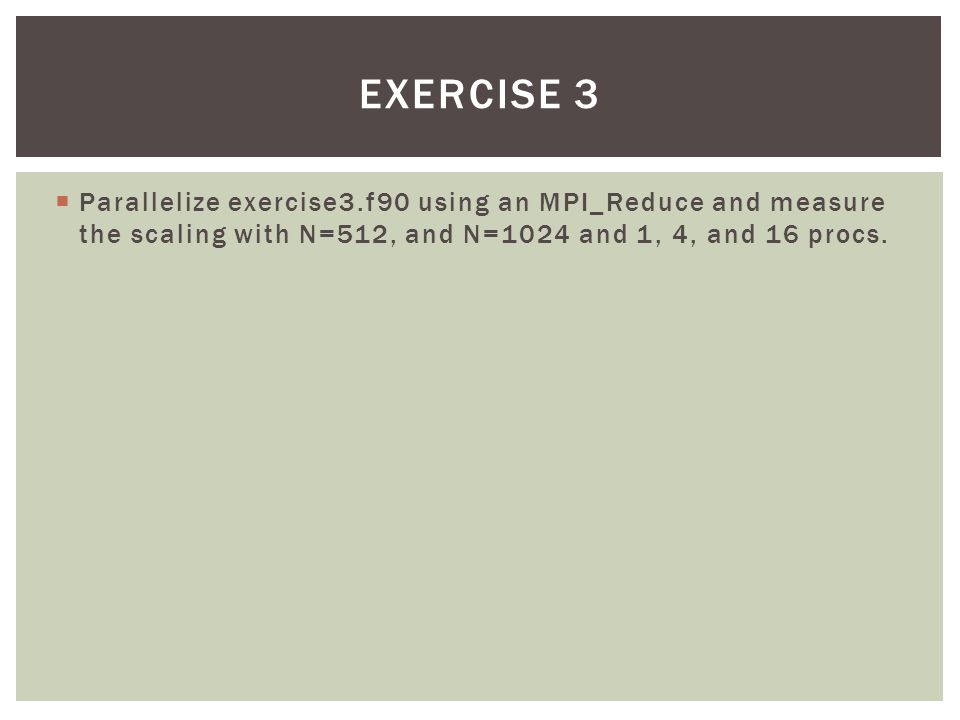

8.  Parallelize exercise3.f90 using an MPI_Reduce and measure the scaling with N=512, and N=1024 and 1, 4, and 16 procs. EXERCISE 3

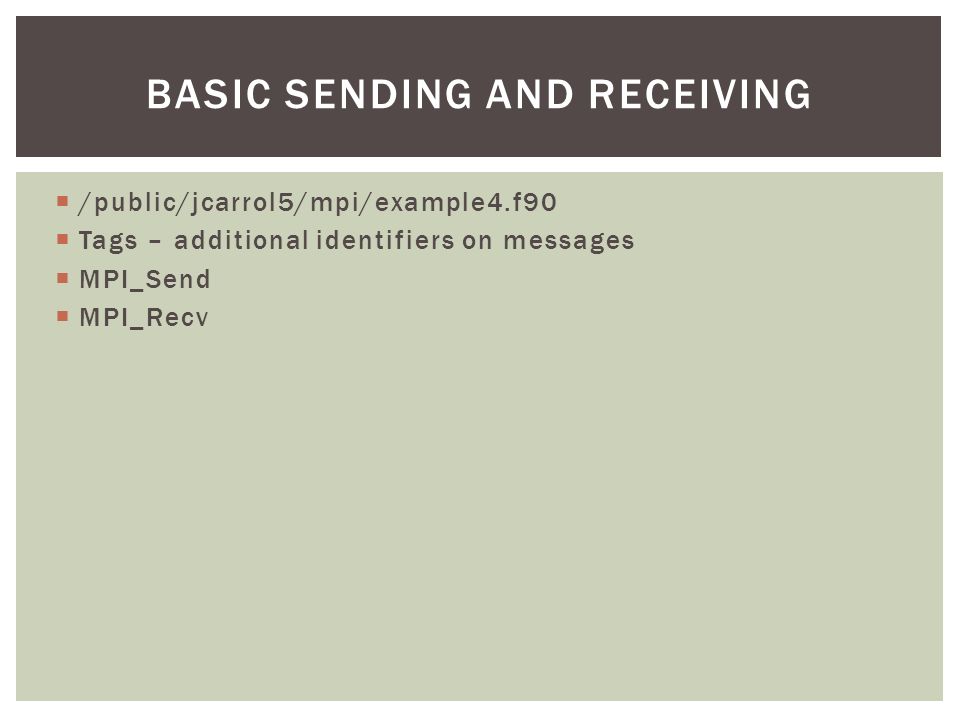

9.  /public/jcarrol5/mpi/example4.f90  Tags – additional identifiers on messages  MPI_Send  MPI_Recv BASIC SENDING AND RECEIVING

10.  Modify your program from exercise2 to only use point to point communication routines. (You can start with exercise2p.f90 or exercise2p.c) EXERCISE 4

11.  Blocking vs Non-blocking  Non Blocking sends and receives will immediately return control to the calling routine. However, they usually will require buffering and testing later on to see whether the send/recv has completed.  Good for overlapping communication with computation  May lead to extra buffering  Synchronous vs Asynchronous  Synchronous sends require a matching recv to be called before returning. Blocking only if recv has not been posted. Does not require any additional buffering.  Buffered vs NonBuffered  Buffered sends explicitly buffer the data to be sent so that the calling routine can release the memory.  Ready send  Assumes that the receiver has already posted the recv. SENDING MODES

12.  /public/jcarrol5/mpi/example4.f90  MPI_Send – May or may not block  MPI_Bsend – May buffer – returns immediately  MPI_Ssend – Synchronous Send (returns after matching recv posted)  MPi_Rsend – Ready send (matching recv must be posted)  MPI_Isend – Nonblocking send (must check for completion)  MPI_Ibsend – Nonblocking buffered send  MPI_Issend – Nonblocking synchronous send  MPI_Irsend- Nonblocking ready send  MPI_Recv – Blocking receive  MPI_IRecv – Nonblocking receive SEND ROUTINES

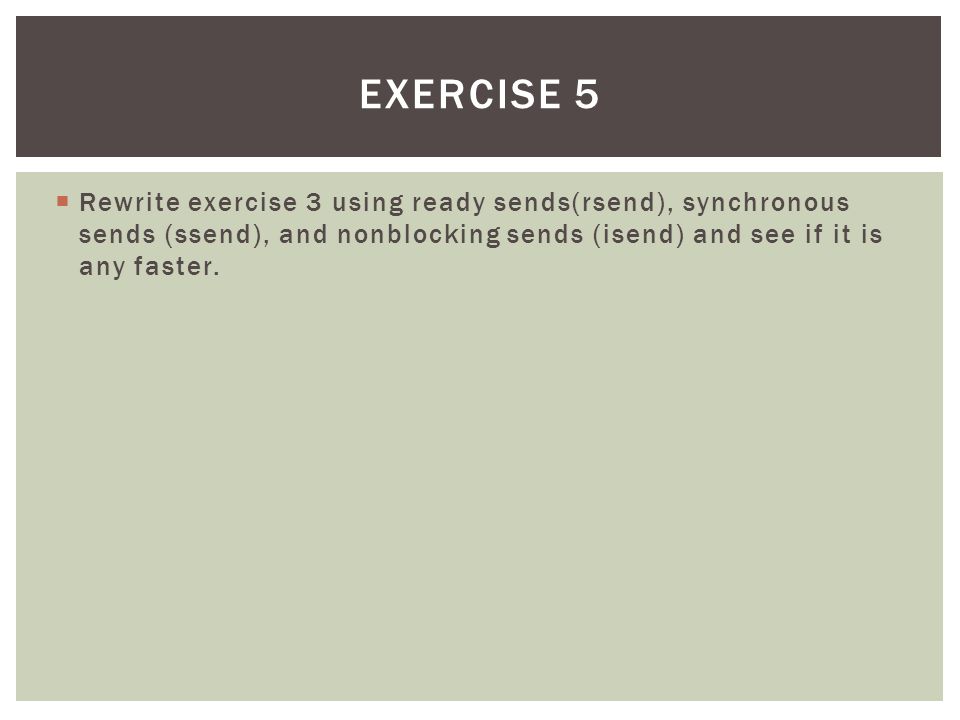

13.  Rewrite exercise 3 using ready sends(rsend), synchronous sends (ssend), and nonblocking sends (isend) and see if it is any faster. EXERCISE 5

14.  /public/jcarrol5/mpi/example5.f90  MPI starts with one communicator (MPI_COMM_WORLD)  Separate communicator groups can be formed using  MPI_Comm_split  Or you can extract the group belonging to mpi_comm_world and create subgroups through various routines.  Multiple communicators can use the same group. COMMUNICATORS AND GROUPS
