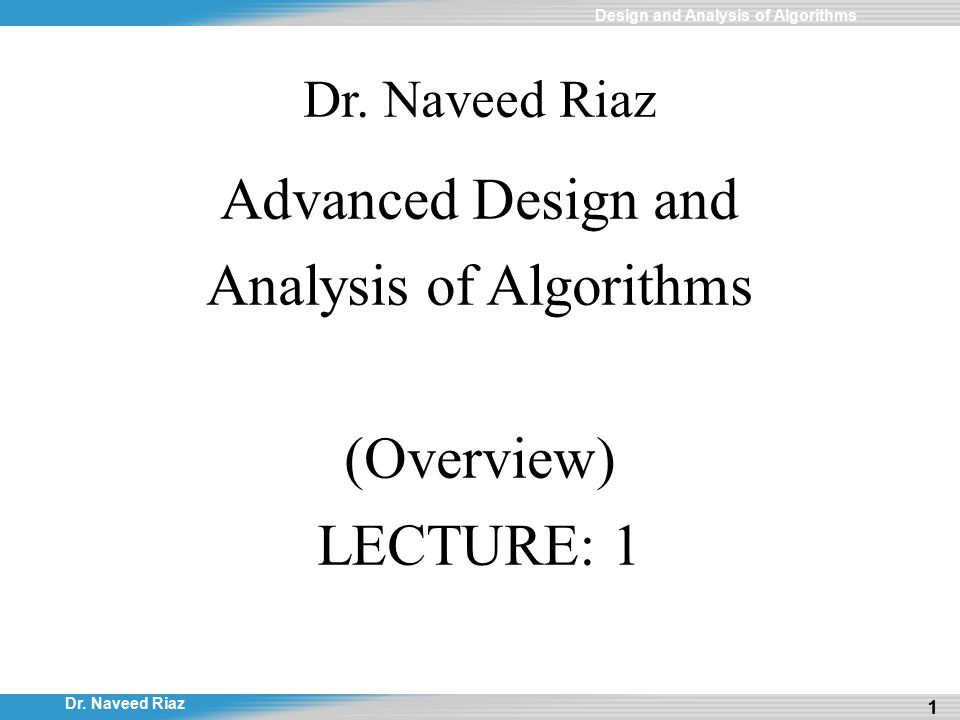

1. Dr. Naveed Riaz Design and Analysis of Algorithms 11 Dr. Naveed Riaz Advanced Design and Analysis of Algorithms (Overview) LECTURE: 1

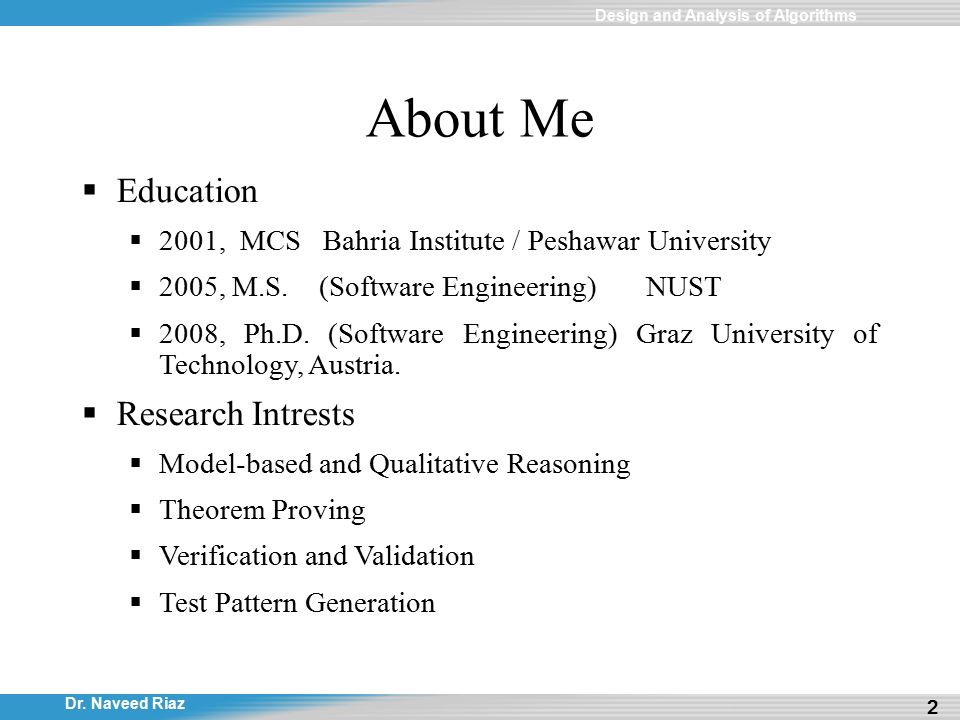

2. Dr. Naveed Riaz Design and Analysis of Algorithms 22 About Me  Education  2001, MCS Bahria Institute / Peshawar University  2005, M.S. (Software Engineering) NUST  2008, Ph.D. (Software Engineering) Graz University of Technology, Austria.  Research Intrests  Model-based and Qualitative Reasoning  Theorem Proving  Verification and Validation  Test Pattern Generation

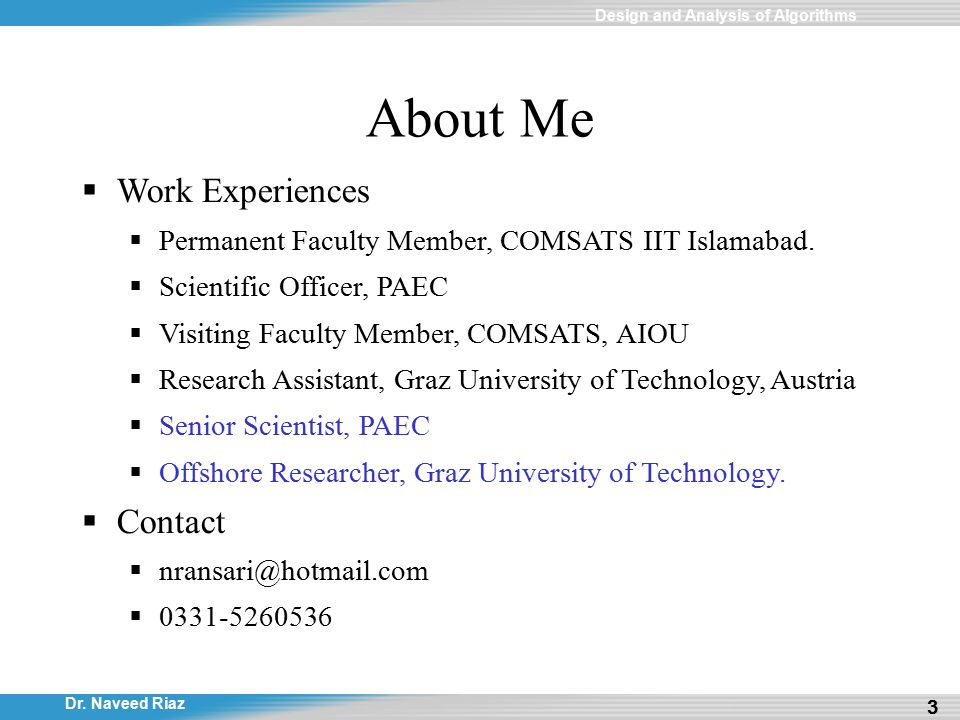

3. Dr. Naveed Riaz Design and Analysis of Algorithms 33 About Me  Work Experiences  Permanent Faculty Member, COMSATS IIT Islamabad.  Scientific Officer, PAEC  Visiting Faculty Member, COMSATS, AIOU  Research Assistant, Graz University of Technology, Austria  Senior Scientist, PAEC  Offshore Researcher, Graz University of Technology.  Contact  nransari@hotmail.com  0331-5260536

4. Dr. Naveed Riaz Design and Analysis of Algorithms 44 Course Outline  Introduction to Algorithms and Review of Data Structures  Introduction to Algorithm Analysis  Greedy Algorithms  Sorting Algorithms  Graph and Tree algorithms  Divide and Conquer Algorithms  Recurrences  Heaps  Hashing  String Matching  NP Completeness  Approximation Algorithms

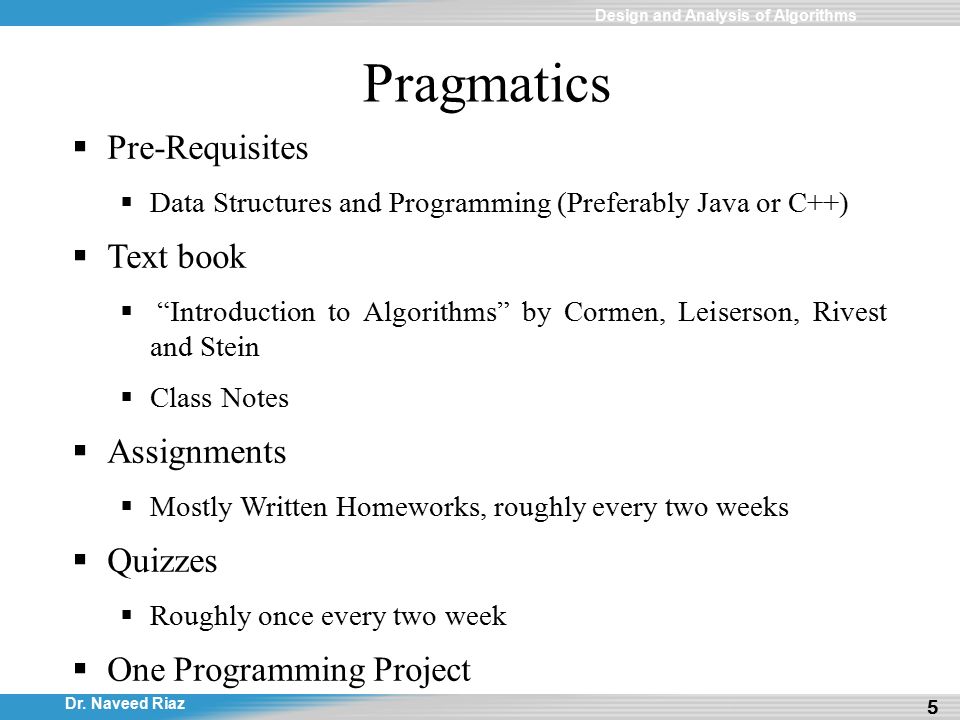

5. Dr. Naveed Riaz Design and Analysis of Algorithms 55 Pragmatics  Pre-Requisites  Data Structures and Programming (Preferably Java or C++)  Text book  “Introduction to Algorithms” by Cormen, Leiserson, Rivest and Stein  Class Notes  Assignments  Mostly Written Homeworks, roughly every two weeks  Quizzes  Roughly once every two week  One Programming Project

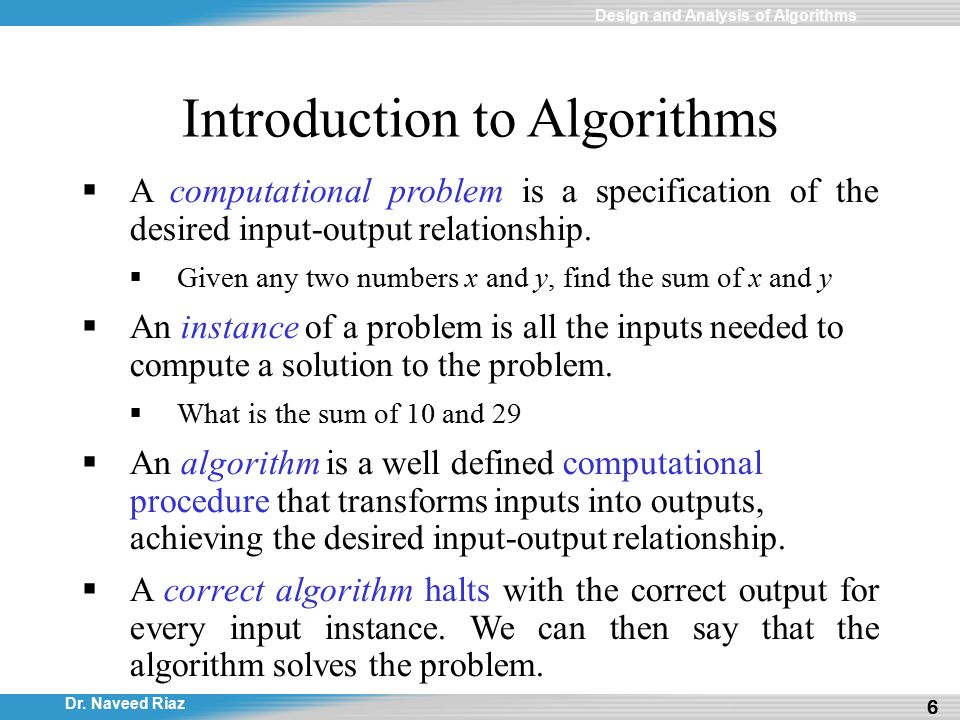

6. Dr. Naveed Riaz Design and Analysis of Algorithms 66 Introduction to Algorithms  A computational problem is a specification of the desired input-output relationship.  Given any two numbers x and y, find the sum of x and y  An instance of a problem is all the inputs needed to compute a solution to the problem.  What is the sum of 10 and 29  An algorithm is a well defined computational procedure that transforms inputs into outputs, achieving the desired input-output relationship.  A correct algorithm halts with the correct output for every input instance. We can then say that the algorithm solves the problem.

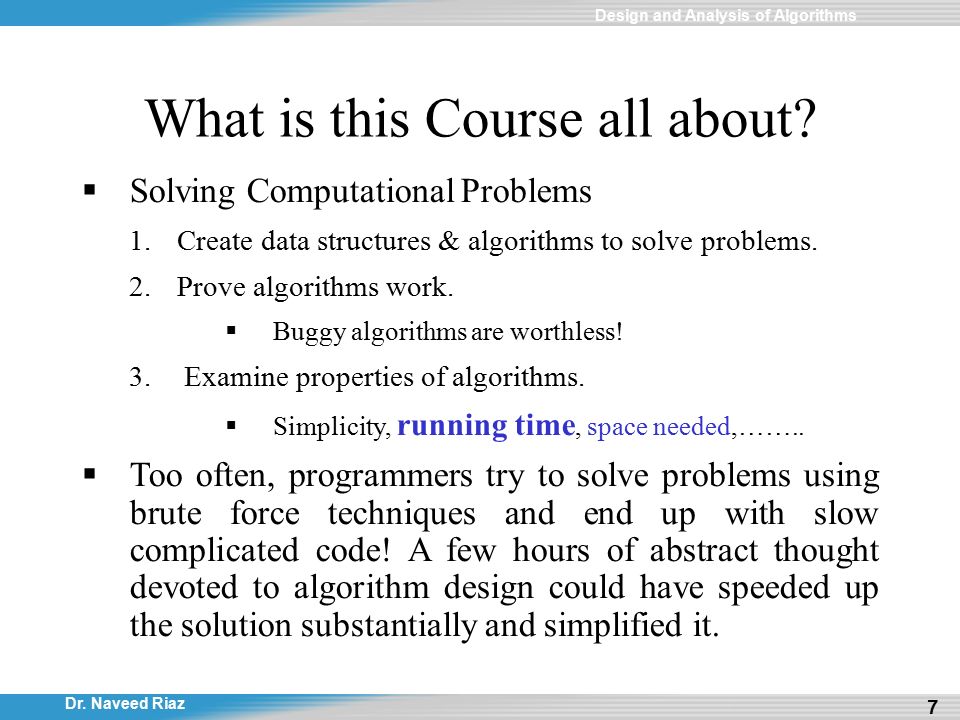

7. Dr. Naveed Riaz Design and Analysis of Algorithms 77 What is this Course all about?  Solving Computational Problems 1.Create data structures & algorithms to solve problems. 2.Prove algorithms work.  Buggy algorithms are worthless! 3. Examine properties of algorithms.  Simplicity, running time, space needed,……..  Too often, programmers try to solve problems using brute force techniques and end up with slow complicated code! A few hours of abstract thought devoted to algorithm design could have speeded up the solution substantially and simplified it.

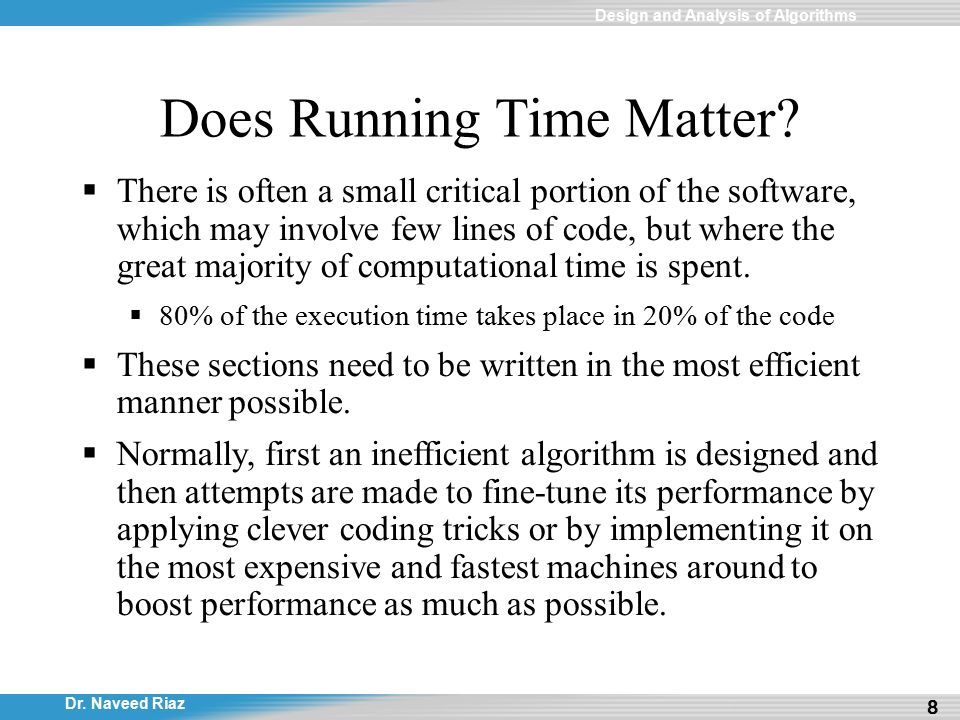

8. Dr. Naveed Riaz Design and Analysis of Algorithms 88 Does Running Time Matter?  There is often a small critical portion of the software, which may involve few lines of code, but where the great majority of computational time is spent.  80% of the execution time takes place in 20% of the code  These sections need to be written in the most efficient manner possible.  Normally, first an inefficient algorithm is designed and then attempts are made to fine-tune its performance by applying clever coding tricks or by implementing it on the most expensive and fastest machines around to boost performance as much as possible.

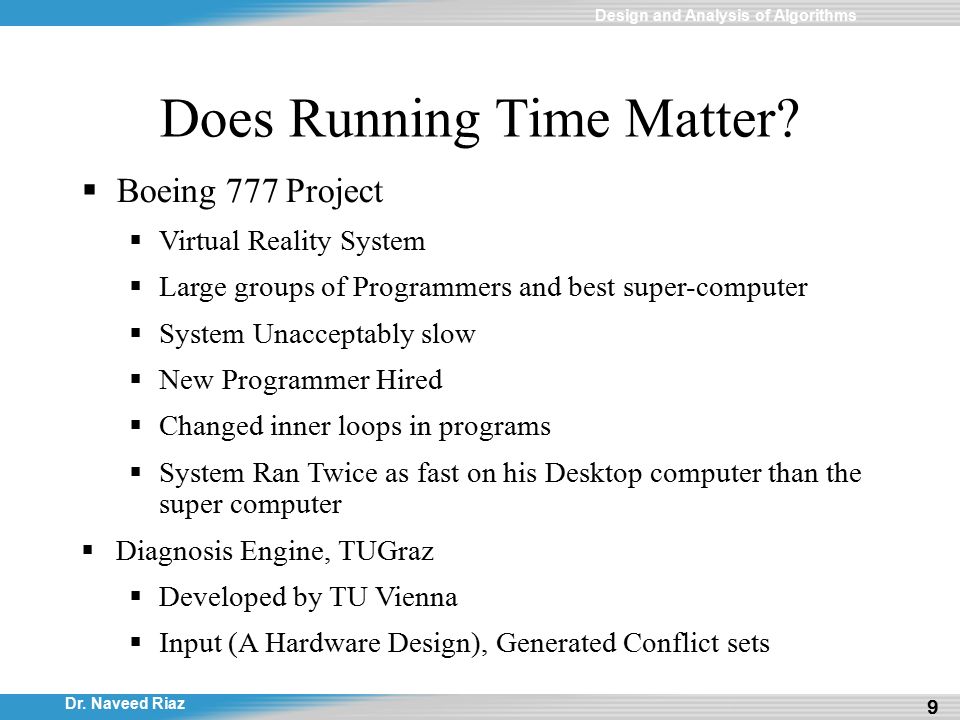

9. Dr. Naveed Riaz Design and Analysis of Algorithms 99 Does Running Time Matter?  Boeing 777 Project  Virtual Reality System  Large groups of Programmers and best super-computer  System Unacceptably slow  New Programmer Hired  Changed inner loops in programs  System Ran Twice as fast on his Desktop computer than the super computer  Diagnosis Engine, TUGraz  Developed by TU Vienna  Input (A Hardware Design), Generated Conflict sets

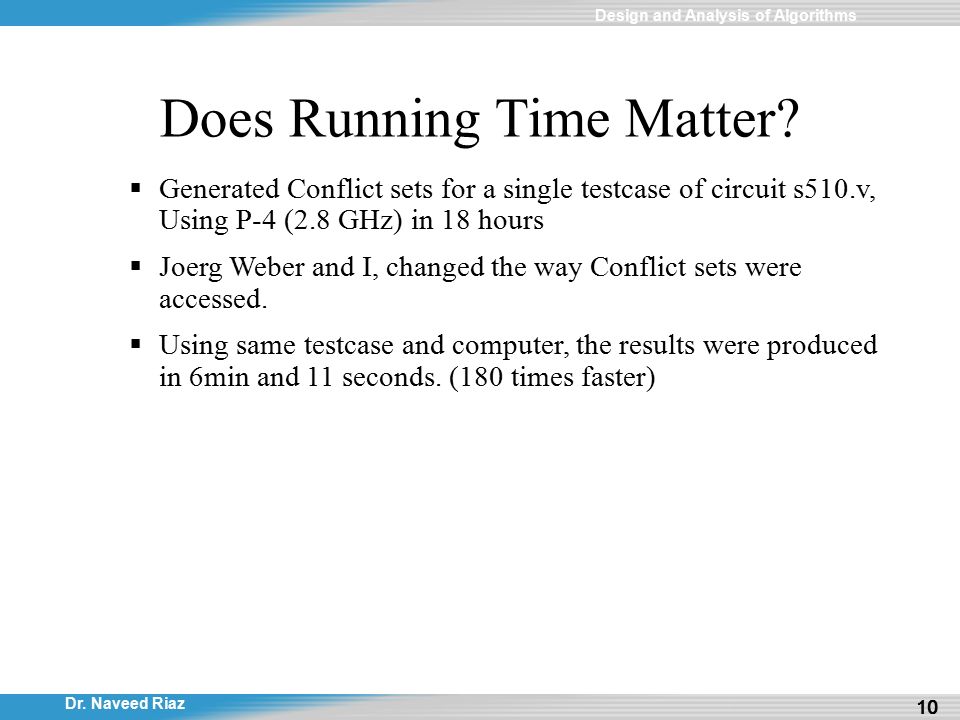

10. Dr. Naveed Riaz Design and Analysis of Algorithms 10 Does Running Time Matter?  Generated Conflict sets for a single testcase of circuit s510.v, Using P-4 (2.8 GHz) in 18 hours  Joerg Weber and I, changed the way Conflict sets were accessed.  Using same testcase and computer, the results were produced in 6min and 11 seconds. (180 times faster)

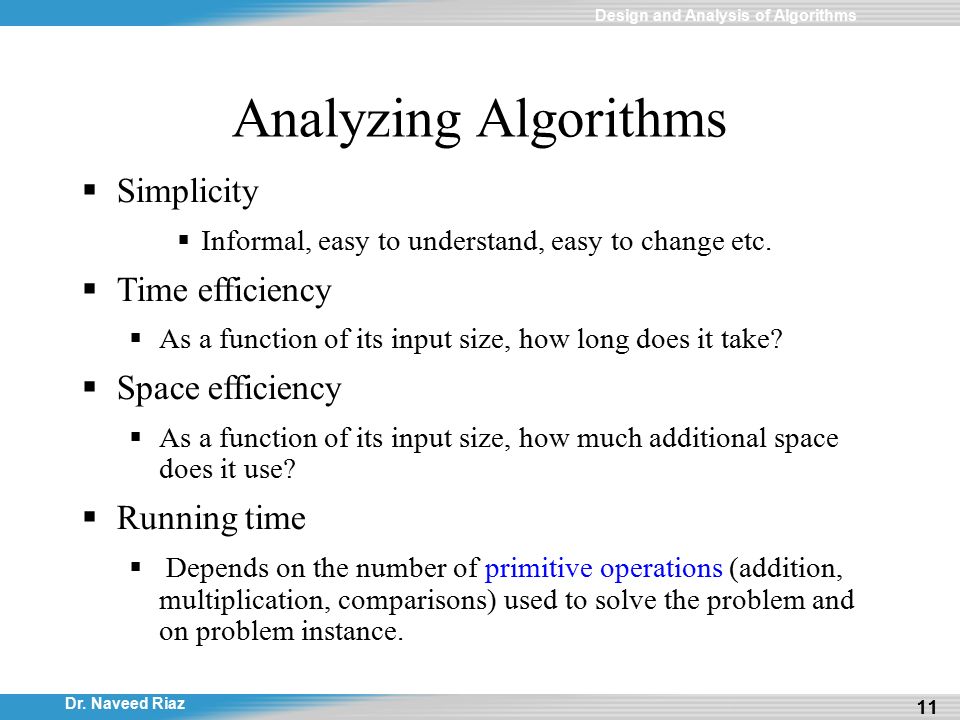

11. Dr. Naveed Riaz Design and Analysis of Algorithms 11 Analyzing Algorithms  Simplicity  Informal, easy to understand, easy to change etc.  Time efficiency  As a function of its input size, how long does it take?  Space efficiency  As a function of its input size, how much additional space does it use?  Running time  Depends on the number of primitive operations (addition, multiplication, comparisons) used to solve the problem and on problem instance.

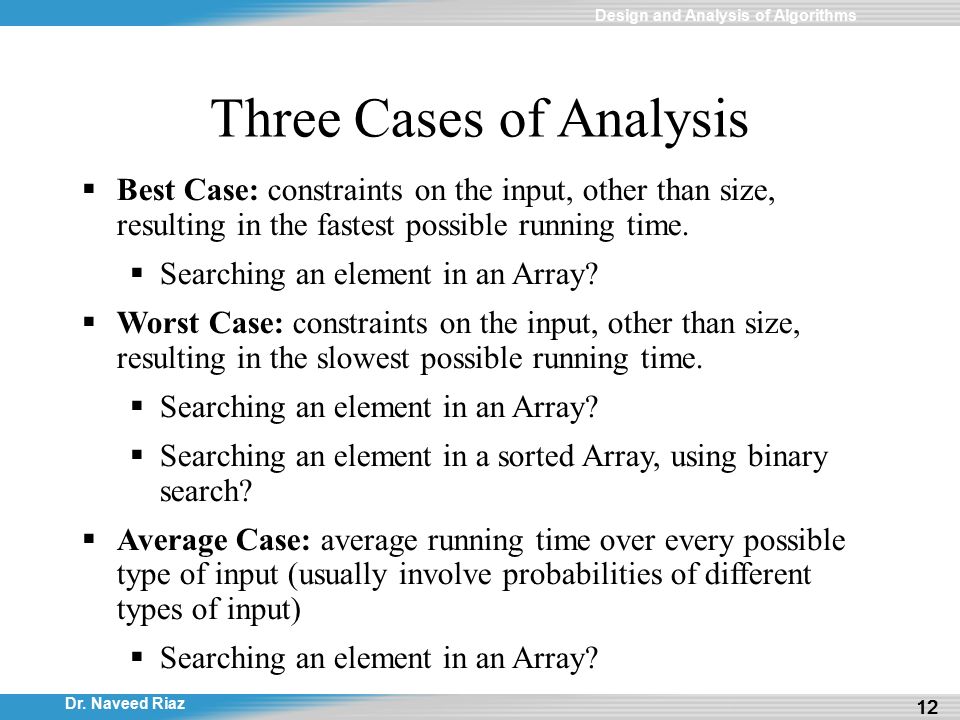

12. Dr. Naveed Riaz Design and Analysis of Algorithms 12 Three Cases of Analysis  Best Case: constraints on the input, other than size, resulting in the fastest possible running time.  Searching an element in an Array?  Worst Case: constraints on the input, other than size, resulting in the slowest possible running time.  Searching an element in an Array?  Searching an element in a sorted Array, using binary search?  Average Case: average running time over every possible type of input (usually involve probabilities of different types of input)  Searching an element in an Array?

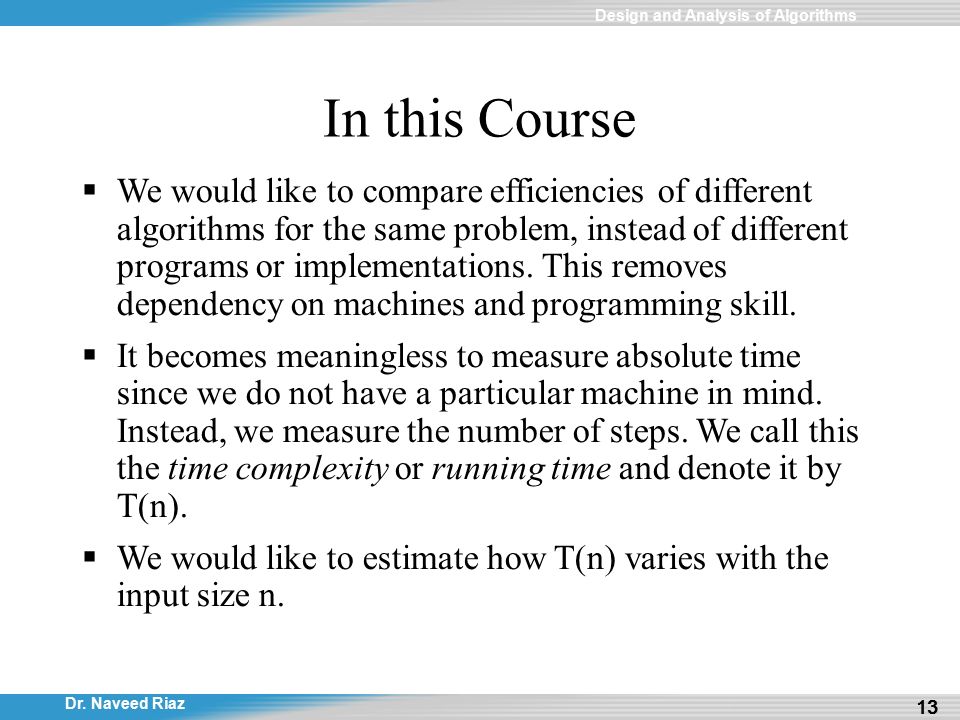

13. Dr. Naveed Riaz Design and Analysis of Algorithms 13 In this Course  We would like to compare efficiencies of different algorithms for the same problem, instead of different programs or implementations. This removes dependency on machines and programming skill.  It becomes meaningless to measure absolute time since we do not have a particular machine in mind. Instead, we measure the number of steps. We call this the time complexity or running time and denote it by T(n).  We would like to estimate how T(n) varies with the input size n.

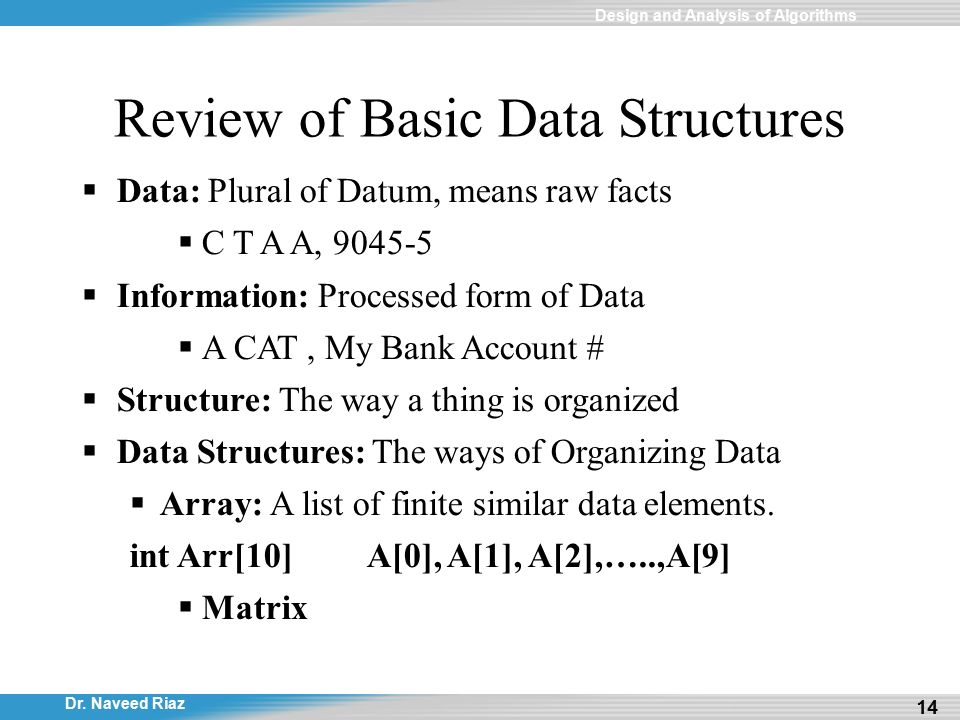

14. Dr. Naveed Riaz Design and Analysis of Algorithms 14 Review of Basic Data Structures  Data: Plural of Datum, means raw facts  C T A A, 9045-5  Information: Processed form of Data  A CAT, My Bank Account #  Structure: The way a thing is organized  Data Structures: The ways of Organizing Data  Array: A list of finite similar data elements. int Arr[10] A[0], A[1], A[2],…..,A[9]  Matrix

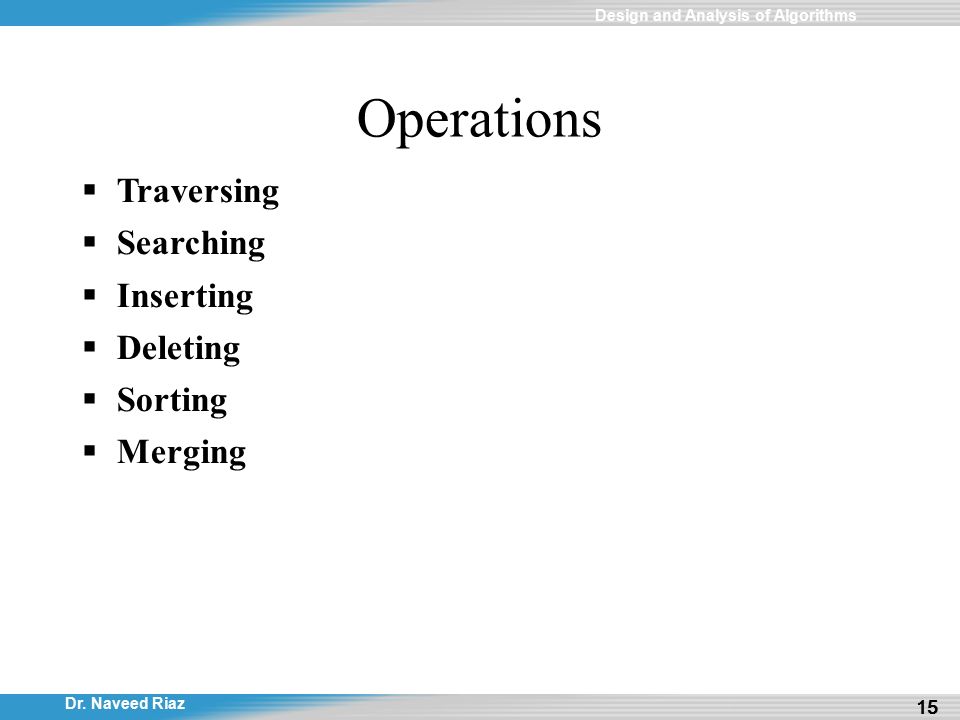

15. Dr. Naveed Riaz Design and Analysis of Algorithms 15 Operations  Traversing  Searching  Inserting  Deleting  Sorting  Merging

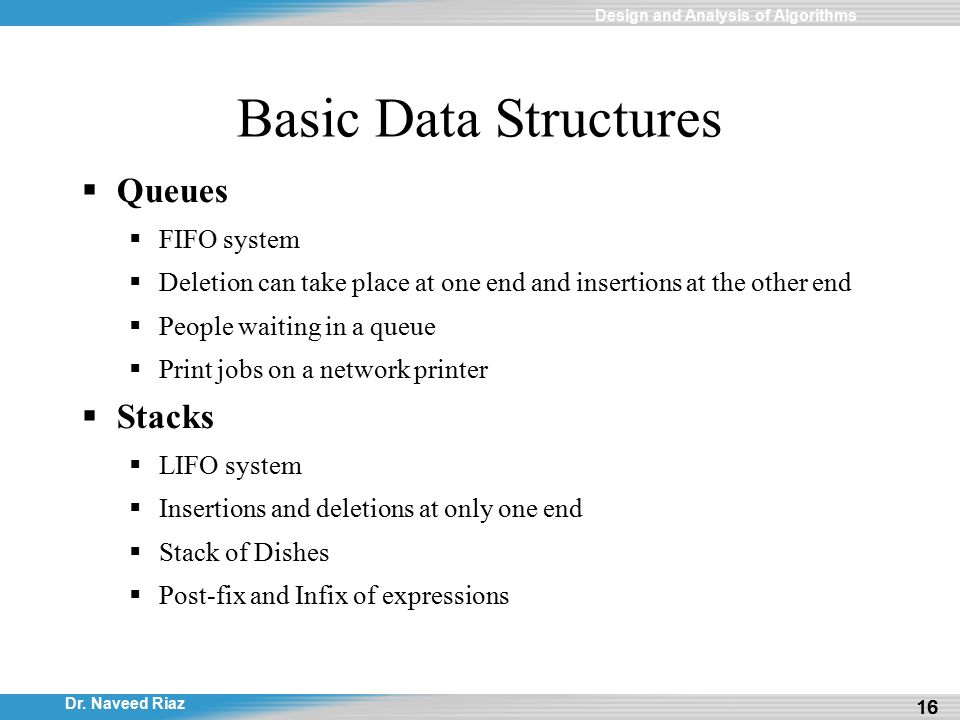

16. Dr. Naveed Riaz Design and Analysis of Algorithms 16 Basic Data Structures  Queues  FIFO system  Deletion can take place at one end and insertions at the other end  People waiting in a queue  Print jobs on a network printer  Stacks  LIFO system  Insertions and deletions at only one end  Stack of Dishes  Post-fix and Infix of expressions

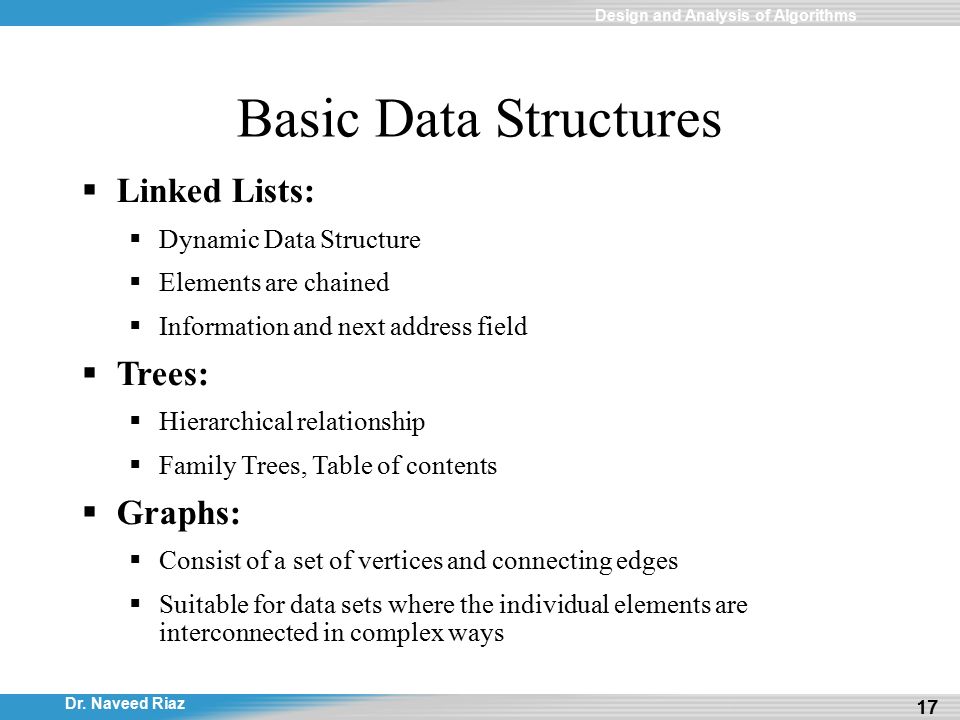

17. Dr. Naveed Riaz Design and Analysis of Algorithms 17 Basic Data Structures  Linked Lists:  Dynamic Data Structure  Elements are chained  Information and next address field  Trees:  Hierarchical relationship  Family Trees, Table of contents  Graphs:  Consist of a set of vertices and connecting edges  Suitable for data sets where the individual elements are interconnected in complex ways

18. Dr. Naveed Riaz Design and Analysis of Algorithms 18 Preliminaries  Floor and Ceiling Functions  Mod and Modulo  Integer (INT(x)) and absolute value function (|x|)  Summations  a 1 + a 2 + ………….. + a n =  What is  Sigma = 1+2+……+n = n(n+1)/2  Factorial  n! = n(n-1)(n-2)……1  4! = 4(3)(2)(1) = 24  Or simply n! = n(n-1)!

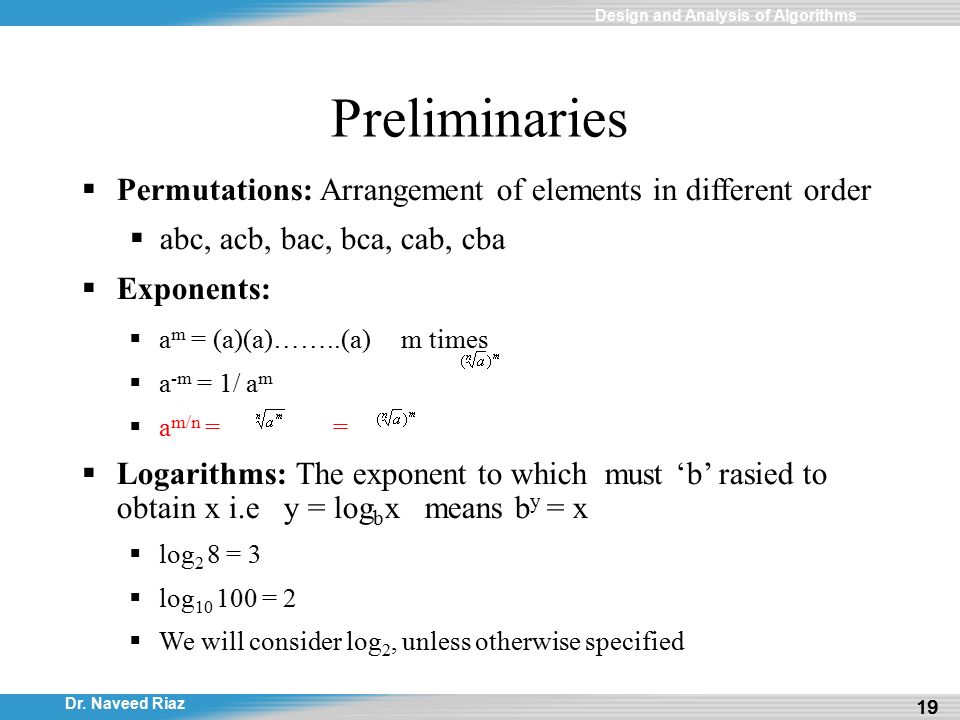

19. Dr. Naveed Riaz Design and Analysis of Algorithms 19 Preliminaries  Permutations: Arrangement of elements in different order  abc, acb, bac, bca, cab, cba  Exponents:  a m = (a)(a)……..(a) m times  a -m = 1/ a m  a m/n = =  Logarithms: The exponent to which must ‘b’ rasied to obtain x i.e y = log b x means b y = x  log 2 8 = 3  log 10 100 = 2  We will consider log 2, unless otherwise specified

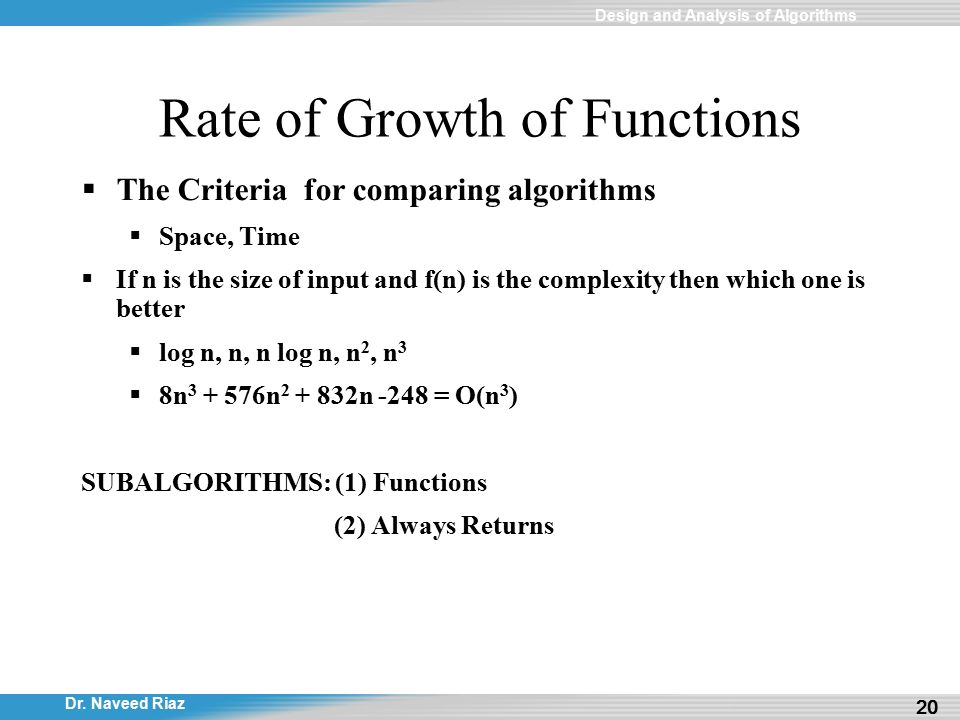

20. Dr. Naveed Riaz Design and Analysis of Algorithms 20 Rate of Growth of Functions  The Criteria for comparing algorithms  Space, Time  If n is the size of input and f(n) is the complexity then which one is better  log n, n, n log n, n 2, n 3  8n 3 + 576n 2 + 832n -248 = O(n 3 ) SUBALGORITHMS: (1) Functions (2) Always Returns

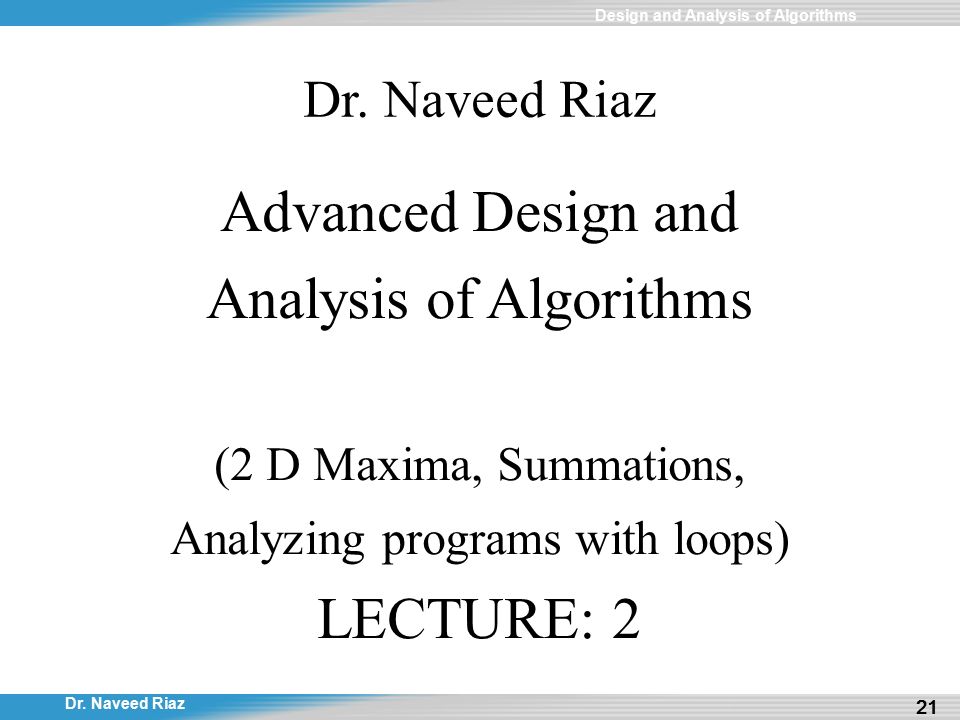

21. Dr. Naveed Riaz Design and Analysis of Algorithms 21 Dr. Naveed Riaz Advanced Design and Analysis of Algorithms (2 D Maxima, Summations, Analyzing programs with loops) LECTURE: 2

22. Dr. Naveed Riaz Design and Analysis of Algorithms 22 2 Dimension Maxima Problem  The emphasis in this course will be on the design of efficient algorithm, and hence we will measure algorithms in terms of the amount of computational resources that the algorithm requires.  Purchasing Car Problem:  You Want a Fast Car, but cost matters as well (Difficult to Decide)  One thing is sure, you definitely do NOT want to consider a car if there is another car that is both faster and cheaper  2 D Maxima: Given a set of points P = {p 1,p 2, …., p n } in 2-space, each represented by its x and y integer coordinates, output the set of the maximal points of P, that is, those points p i, such that p i is not dominated by any other point of P.

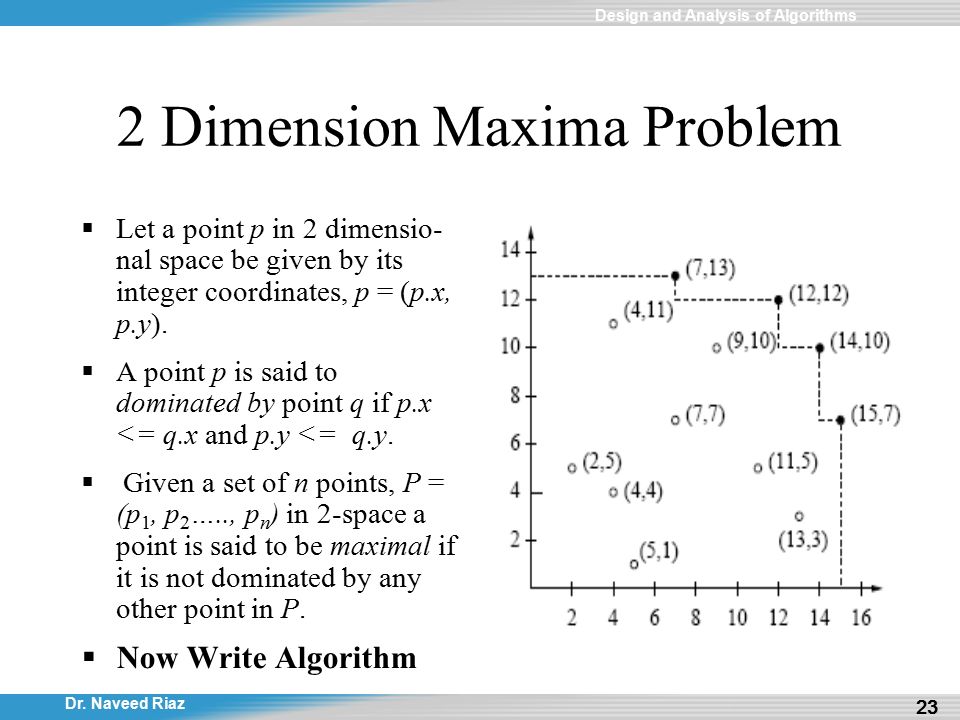

23. Dr. Naveed Riaz Design and Analysis of Algorithms 23 2 Dimension Maxima Problem  Let a point p in 2 dimensio- nal space be given by its integer coordinates, p = (p.x, p.y).  A point p is said to dominated by point q if p.x <= q.x and p.y <= q.y.  Given a set of n points, P = (p 1, p 2 ….., p n ) in 2-space a point is said to be maximal if it is not dominated by any other point in P.  Now Write Algorithm

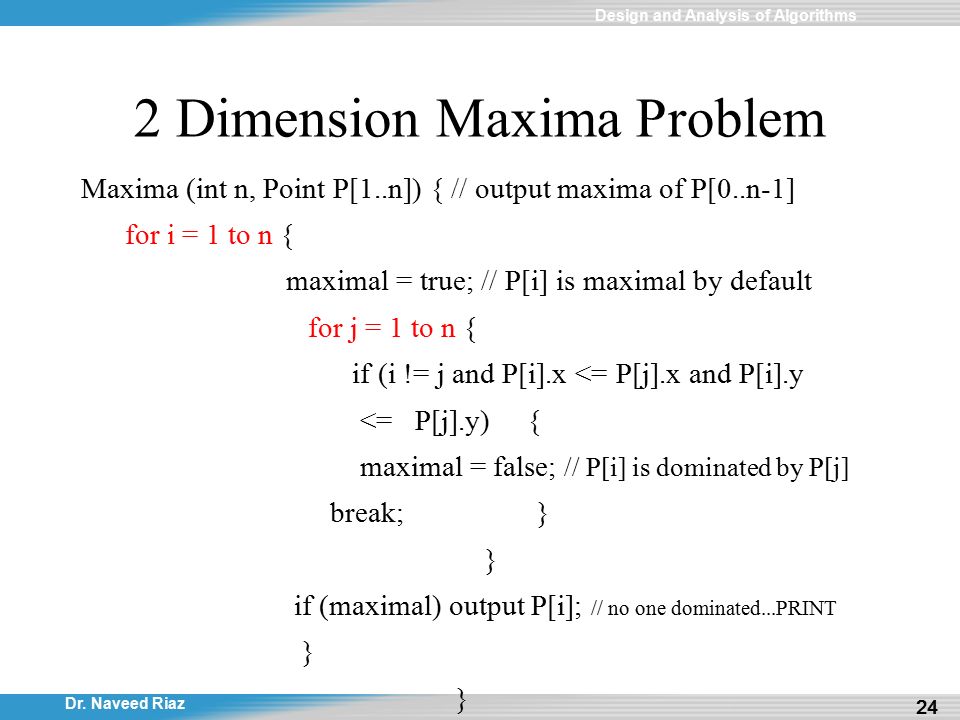

24. Dr. Naveed Riaz Design and Analysis of Algorithms 24 2 Dimension Maxima Problem Maxima (int n, Point P[1..n]) { // output maxima of P[0..n-1] for i = 1 to n { maximal = true; // P[i] is maximal by default for j = 1 to n { if (i != j and P[i].x <= P[j].x and P[i].y <= P[j].y) { maximal = false; // P[i] is dominated by P[j] break; } } if (maximal) output P[i]; // no one dominated...PRINT }

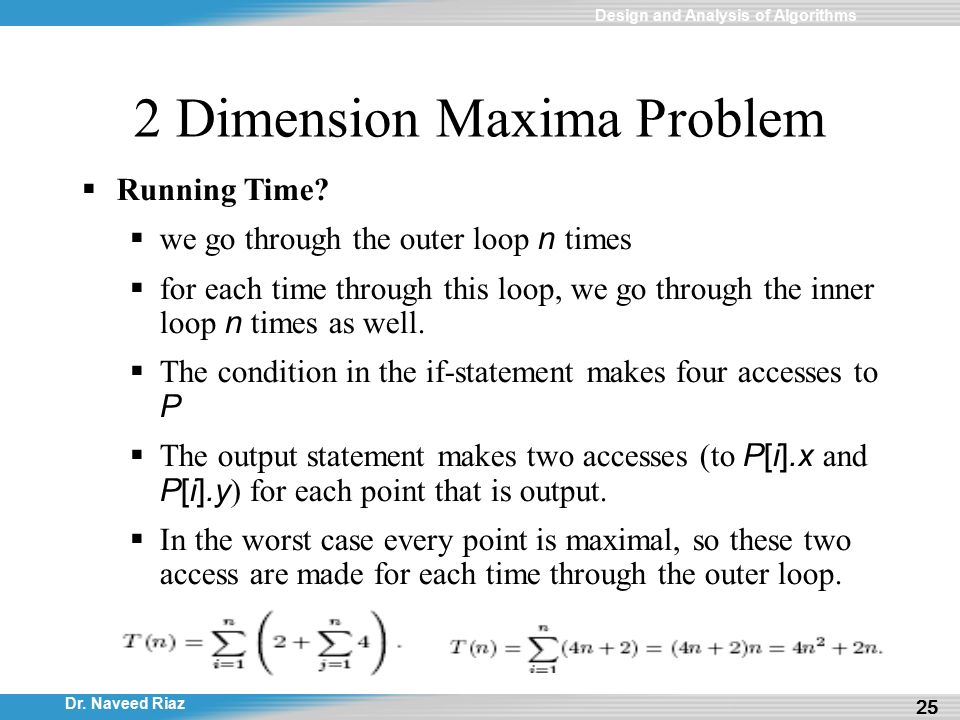

25. Dr. Naveed Riaz Design and Analysis of Algorithms 25 2 Dimension Maxima Problem  Running Time?  we go through the outer loop n times  for each time through this loop, we go through the inner loop n times as well.  The condition in the if-statement makes four accesses to P  The output statement makes two accesses (to P[i].x and P[i].y ) for each point that is output.  In the worst case every point is maximal, so these two access are made for each time through the outer loop.

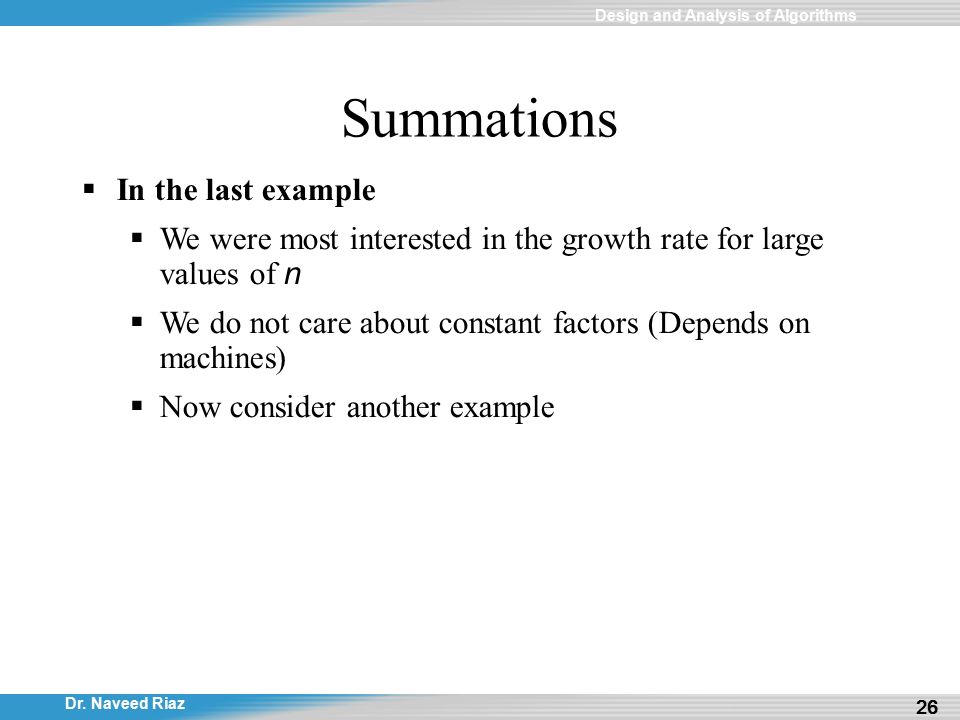

26. Dr. Naveed Riaz Design and Analysis of Algorithms 26 Summations  In the last example  We were most interested in the growth rate for large values of n  We do not care about constant factors (Depends on machines)  Now consider another example

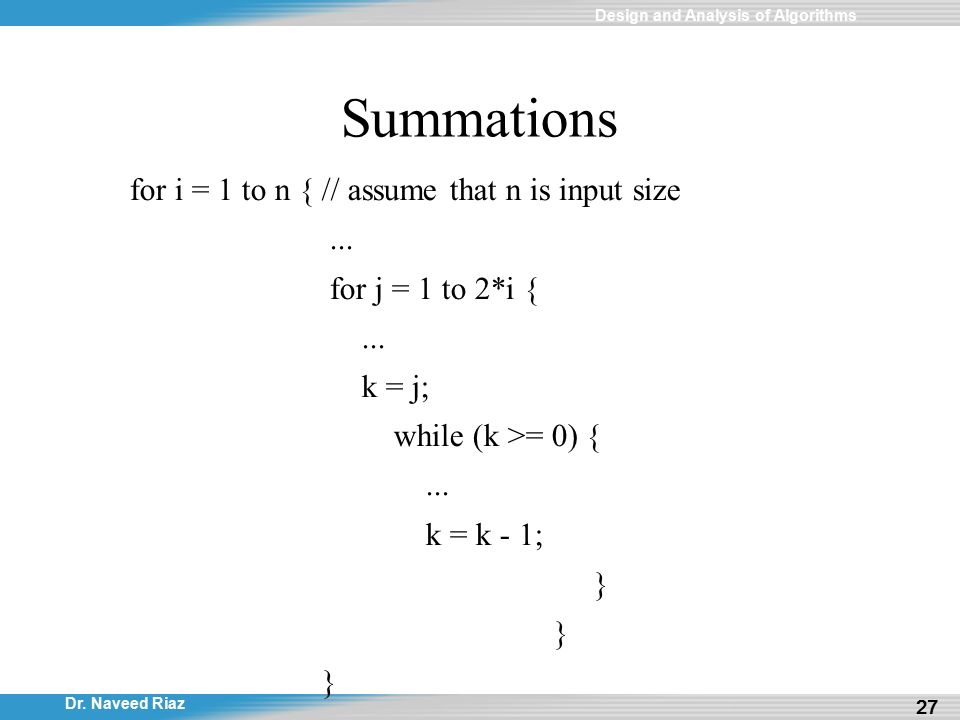

27. Dr. Naveed Riaz Design and Analysis of Algorithms 27 Summations for i = 1 to n { // assume that n is input size... for j = 1 to 2*i {... k = j; while (k >= 0) {... k = k - 1; }

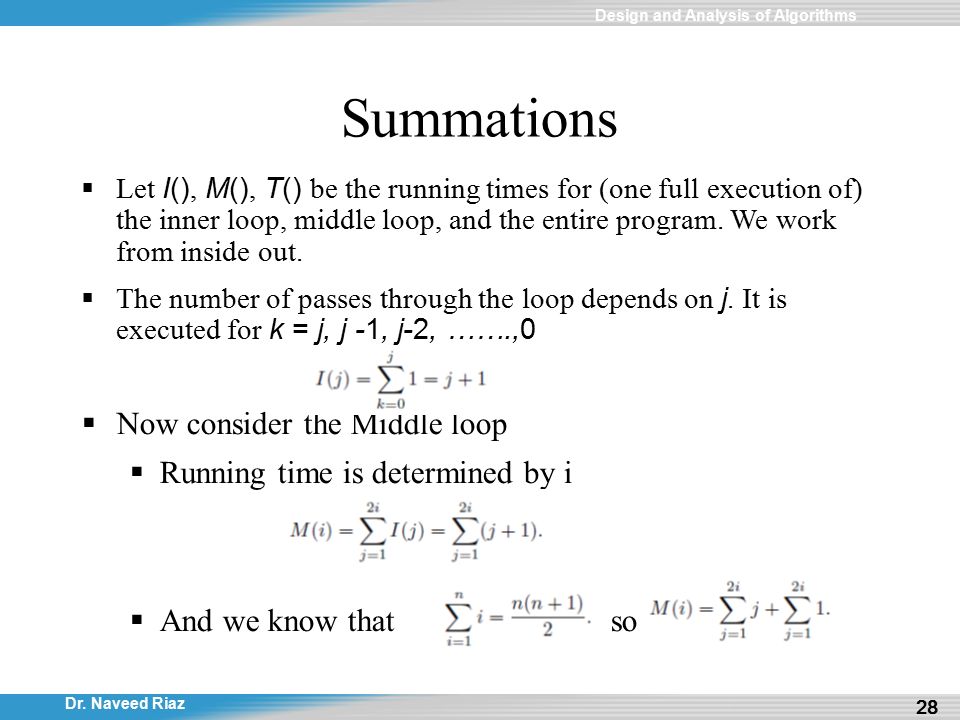

28. Dr. Naveed Riaz Design and Analysis of Algorithms 28 Summations  Let I(), M(), T() be the running times for (one full execution of) the inner loop, middle loop, and the entire program. We work from inside out.  The number of passes through the loop depends on j. It is executed for k = j, j -1, j-2, …….,0  Now consider the Middle loop  Running time is determined by i  And we know that so

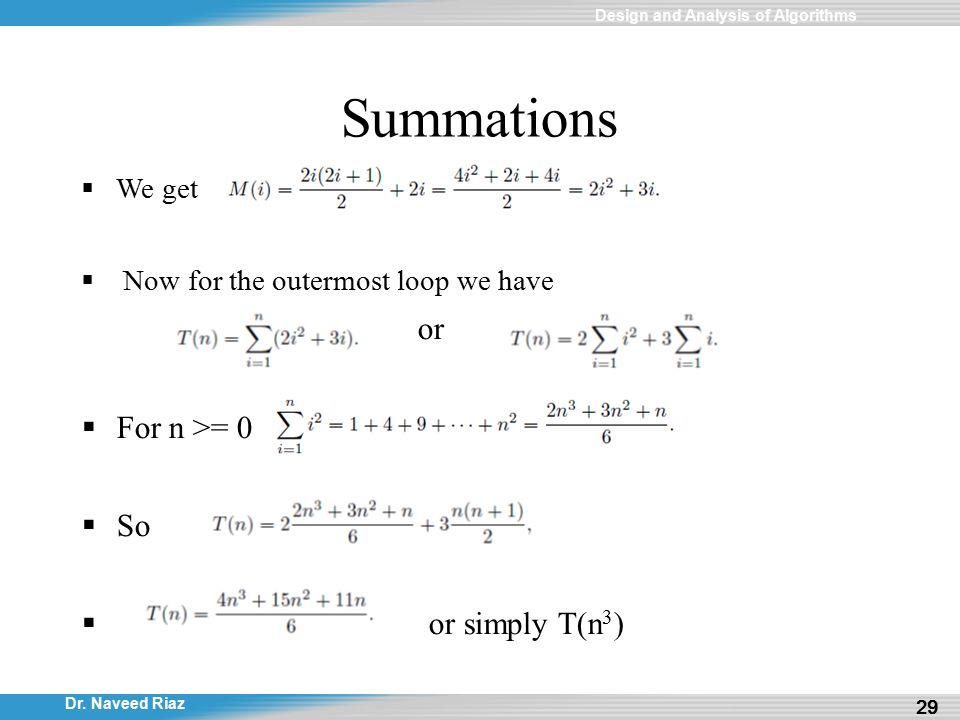

29. Dr. Naveed Riaz Design and Analysis of Algorithms 29 Summations  We get  Now for the outermost loop we have or  For n >= 0  So  or simply T(n 3 )

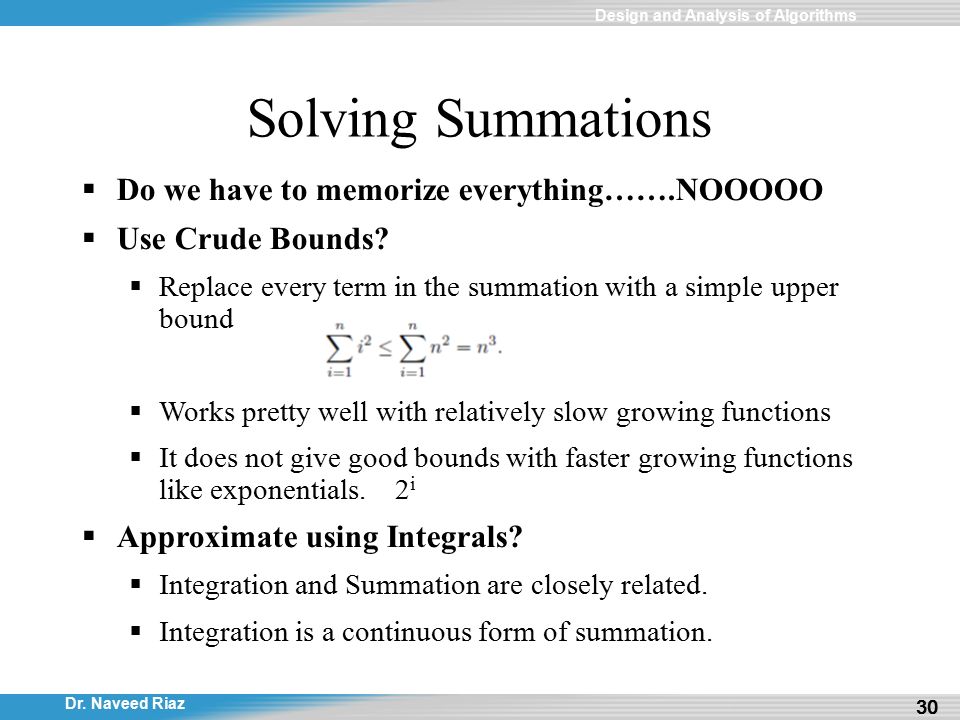

30. Dr. Naveed Riaz Design and Analysis of Algorithms 30 Solving Summations  Do we have to memorize everything…….NOOOOO  Use Crude Bounds?  Replace every term in the summation with a simple upper bound  Works pretty well with relatively slow growing functions  It does not give good bounds with faster growing functions like exponentials. 2 i  Approximate using Integrals?  Integration and Summation are closely related.  Integration is a continuous form of summation.

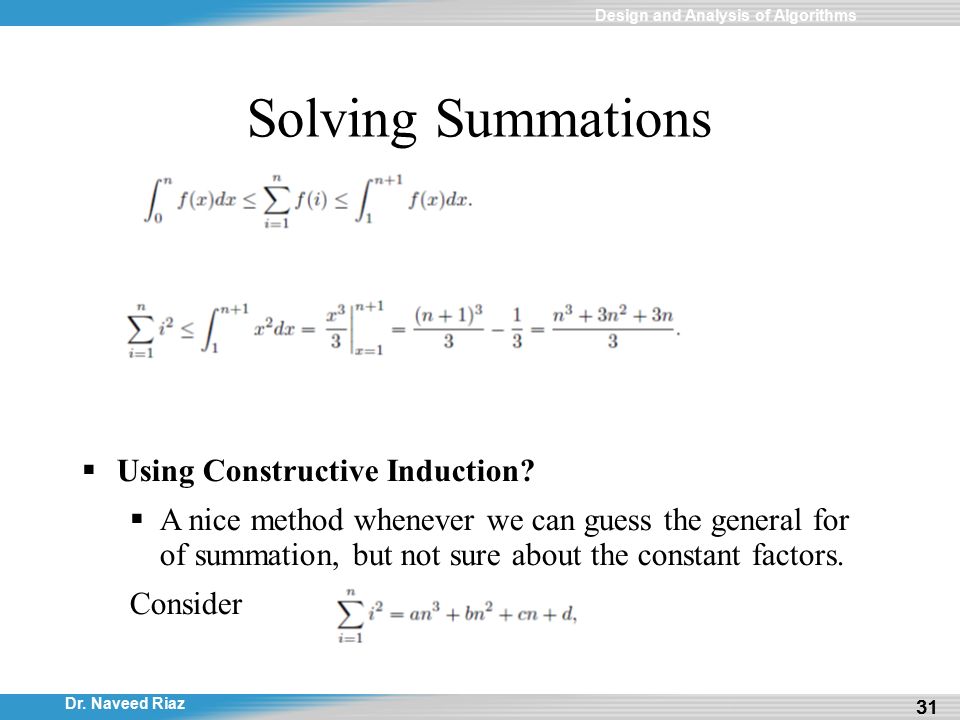

31. Dr. Naveed Riaz Design and Analysis of Algorithms 31 Solving Summations  Using Constructive Induction?  A nice method whenever we can guess the general for of summation, but not sure about the constant factors. Consider

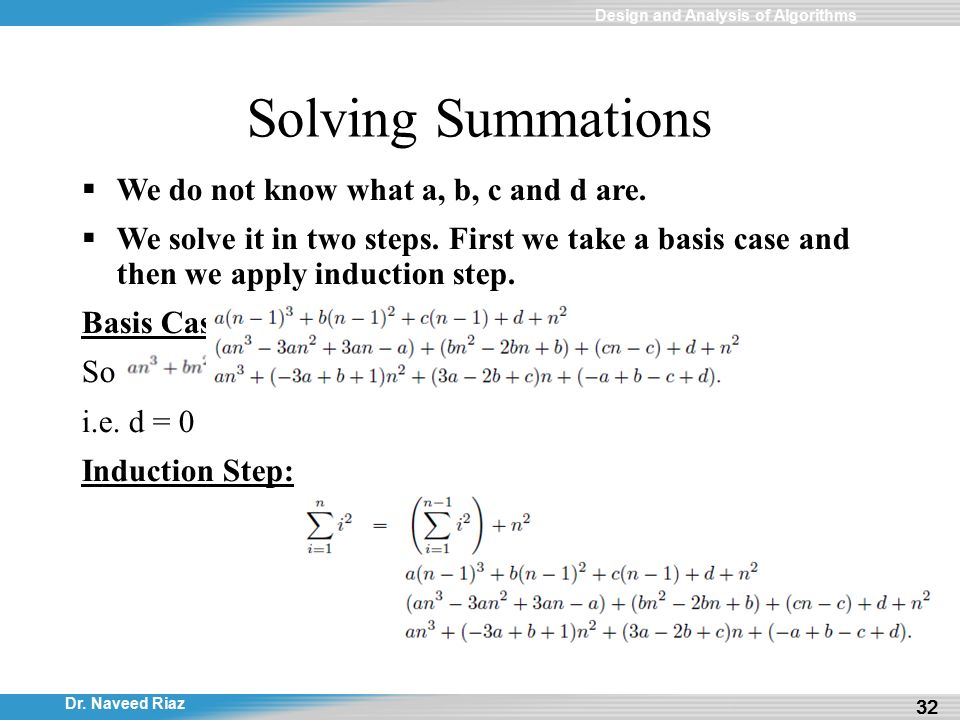

32. Dr. Naveed Riaz Design and Analysis of Algorithms 32 Solving Summations  We do not know what a, b, c and d are.  We solve it in two steps. First we take a basis case and then we apply induction step. Basis Case: (n = 0) So = i.e. d = 0 Induction Step:

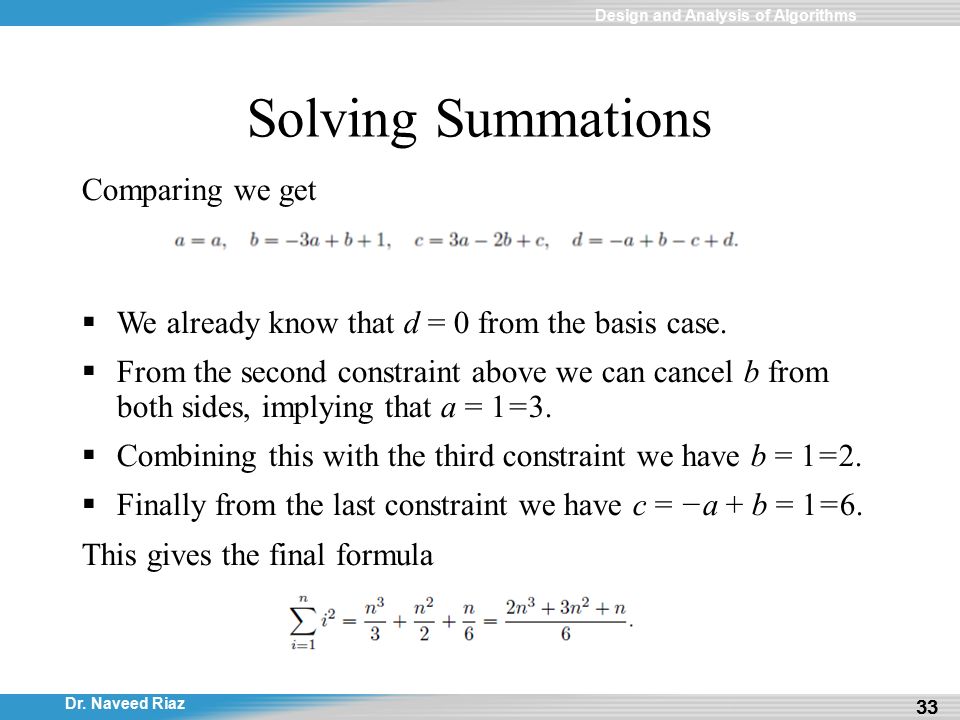

33. Dr. Naveed Riaz Design and Analysis of Algorithms 33 Solving Summations Comparing we get  We already know that d = 0 from the basis case.  From the second constraint above we can cancel b from both sides, implying that a = 1=3.  Combining this with the third constraint we have b = 1=2.  Finally from the last constraint we have c = −a + b = 1=6. This gives the final formula

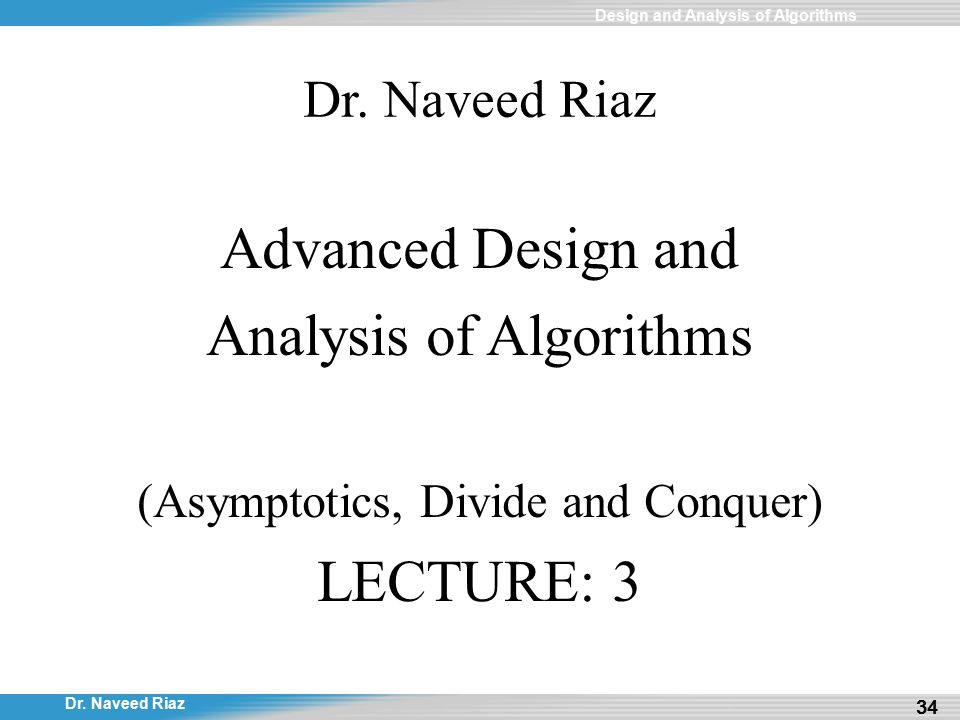

34. Dr. Naveed Riaz Design and Analysis of Algorithms 34 Dr. Naveed Riaz Advanced Design and Analysis of Algorithms (Asymptotics, Divide and Conquer) LECTURE: 3

35. Dr. Naveed Riaz Design and Analysis of Algorithms 35 Asymptotics  Asymptotic analysis is a method of describing limiting behavior i.e. asymptotic analysis refers to solving problems approximately  Θ notation: Given any function g(n), we define θ(g(n)) to be a set of functions that are asymptotically equivalent to g(n), or put formally:  θ(g(n)) = { f(n) | there exist positive constants c1, c2, and n 0 such that 0 ≤ c1g(n) ≤ f(n) ≤ c2g(n) for all n ≥ n0}.  T(n) = θ(n 2 ) or T(n) Є θ(n 2 ) ????????  For 2DMaxima we had T(n) = 4n2 + 2n now g(n) = n 2  For θ notation, we must argue that there exist constants c1, c2, and n0 such that 0 ≤ c1n 2 ≤ (4n 2 + 2n) ≤ c2n 2 for all n≥n 0  The constraint 0 ≤ c1n 2 is no problem, since we will always be dealing with positive n and positive constants.  Now we will consider c1n 2 ≤ 4n 2 + 2n (Take c1 = 4)  4n 2 ≤ 4n 2 + 2n for all n ≥ n 0

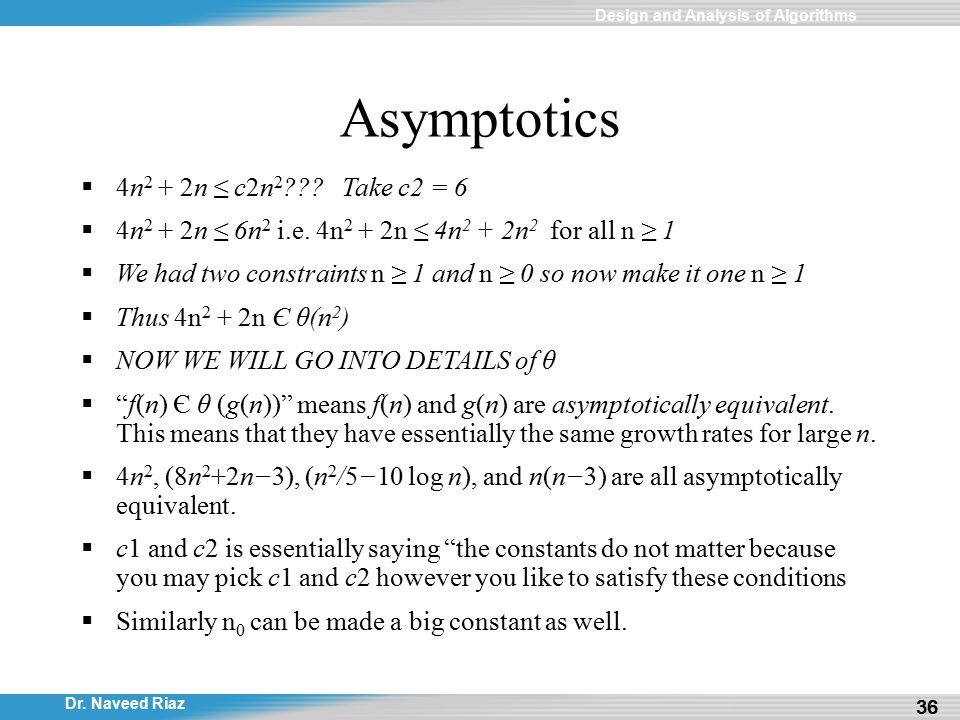

36. Dr. Naveed Riaz Design and Analysis of Algorithms 36 Asymptotics  4n 2 + 2n ≤ c2n 2 ??? Take c2 = 6  4n 2 + 2n ≤ 6n 2 i.e. 4n 2 + 2n ≤ 4n 2 + 2n 2 for all n ≥ 1  We had two constraints n ≥ 1 and n ≥ 0 so now make it one n ≥ 1  Thus 4n 2 + 2n Є θ(n 2 )  NOW WE WILL GO INTO DETAILS of θ  “f(n) Є θ (g(n))” means f(n) and g(n) are asymptotically equivalent. This means that they have essentially the same growth rates for large n.  4n 2, (8n 2 +2n−3), (n 2 /5−10 log n), and n(n−3) are all asymptotically equivalent.  c1 and c2 is essentially saying “the constants do not matter because you may pick c1 and c2 however you like to satisfy these conditions  Similarly n 0 can be made a big constant as well.

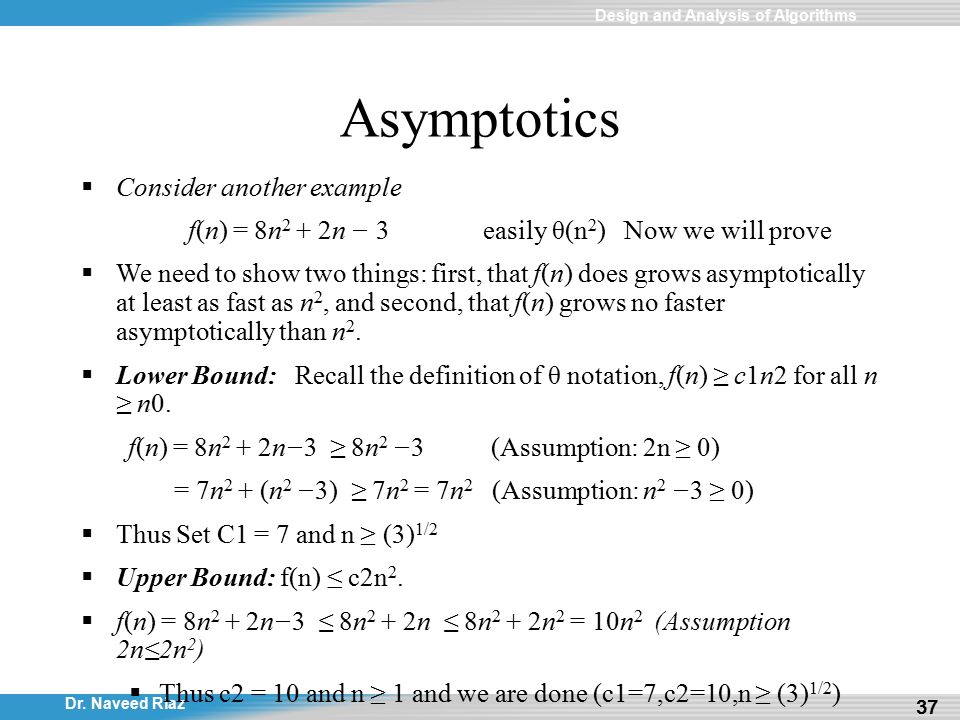

37. Dr. Naveed Riaz Design and Analysis of Algorithms 37 Asymptotics  Consider another example f(n) = 8n 2 + 2n − 3 easily θ(n 2 ) Now we will prove  We need to show two things: first, that f(n) does grows asymptotically at least as fast as n 2, and second, that f(n) grows no faster asymptotically than n 2.  Lower Bound: Recall the definition of θ notation, f(n) ≥ c1n2 for all n ≥ n0. f(n) = 8n 2 + 2n−3 ≥ 8n 2 −3 (Assumption: 2n ≥ 0) = 7n 2 + (n 2 −3) ≥ 7n 2 = 7n 2 (Assumption: n 2 −3 ≥ 0)  Thus Set C1 = 7 and n ≥ (3) 1/2  Upper Bound: f(n) ≤ c2n 2.  f(n) = 8n 2 + 2n−3 ≤ 8n 2 + 2n ≤ 8n 2 + 2n 2 = 10n 2 (Assumption 2n≤2n 2 )  Thus c2 = 10 and n ≥ 1 and we are done (c1=7,c2=10,n ≥ (3) 1/2 )

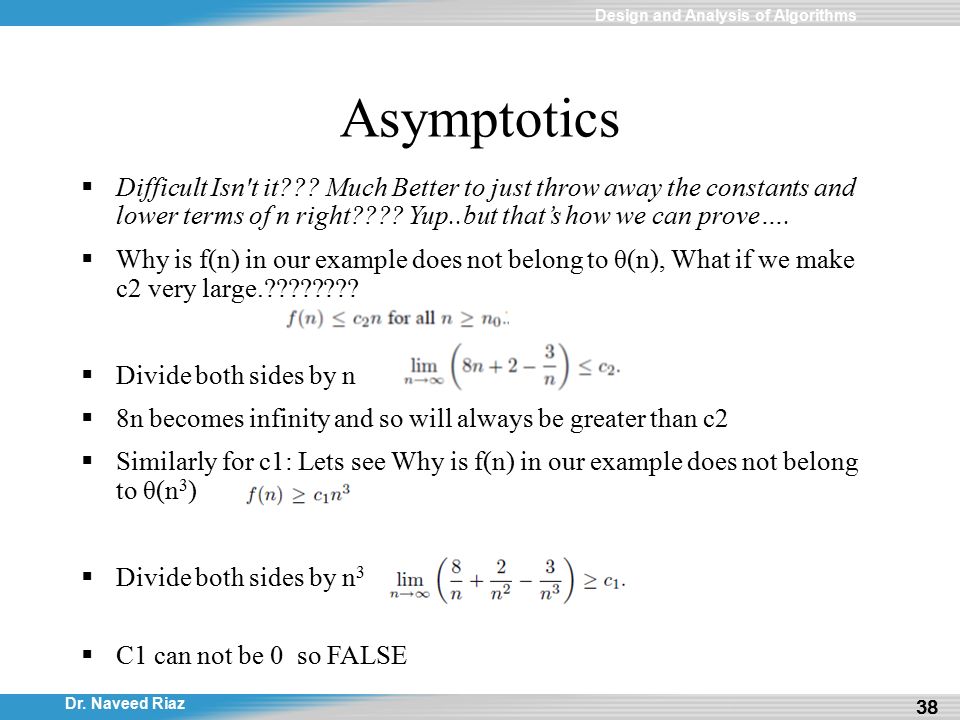

38. Dr. Naveed Riaz Design and Analysis of Algorithms 38 Asymptotics  Difficult Isn't it??? Much Better to just throw away the constants and lower terms of n right???? Yup..but that’s how we can prove….  Why is f(n) in our example does not belong to θ(n), What if we make c2 very large.????????  Divide both sides by n  8n becomes infinity and so will always be greater than c2  Similarly for c1: Lets see Why is f(n) in our example does not belong to θ(n 3 )  Divide both sides by n 3  C1 can not be 0 so FALSE

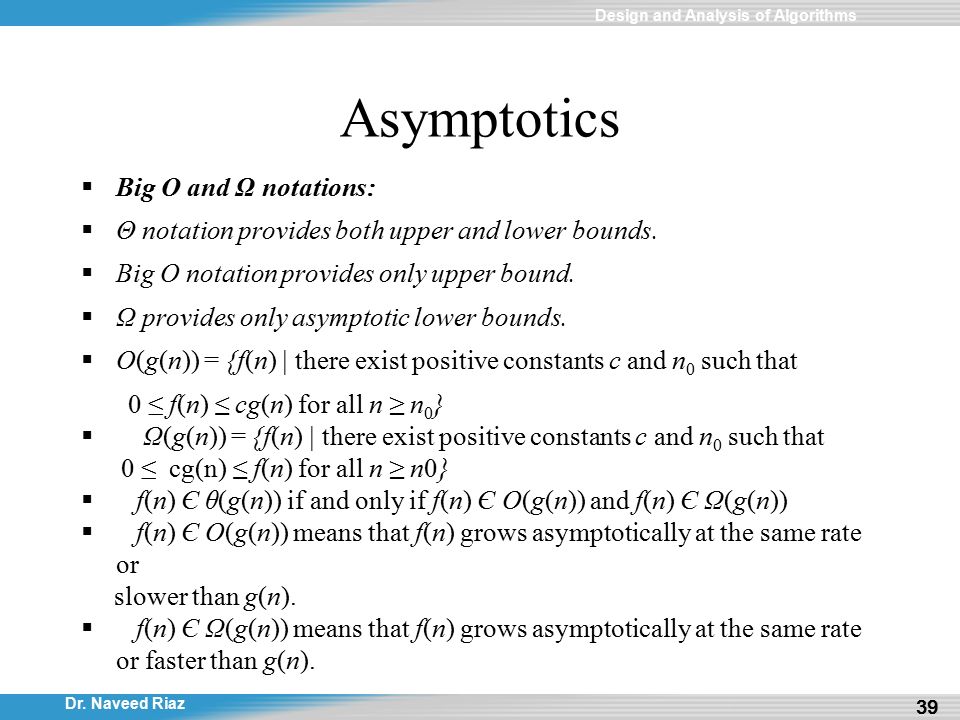

39. Dr. Naveed Riaz Design and Analysis of Algorithms 39 Asymptotics  Big O and Ω notations:  Θ notation provides both upper and lower bounds.  Big O notation provides only upper bound.  Ω provides only asymptotic lower bounds.  O(g(n)) = {f(n) | there exist positive constants c and n 0 such that 0 ≤ f(n) ≤ cg(n) for all n ≥ n 0 }  Ω(g(n)) = {f(n) | there exist positive constants c and n 0 such that 0 ≤ cg(n) ≤ f(n) for all n ≥ n0}  f(n) Є θ(g(n)) if and only if f(n) Є O(g(n)) and f(n) Є Ω(g(n))  f(n) Є O(g(n)) means that f(n) grows asymptotically at the same rate or slower than g(n).  f(n) Є Ω(g(n)) means that f(n) grows asymptotically at the same rate or faster than g(n).

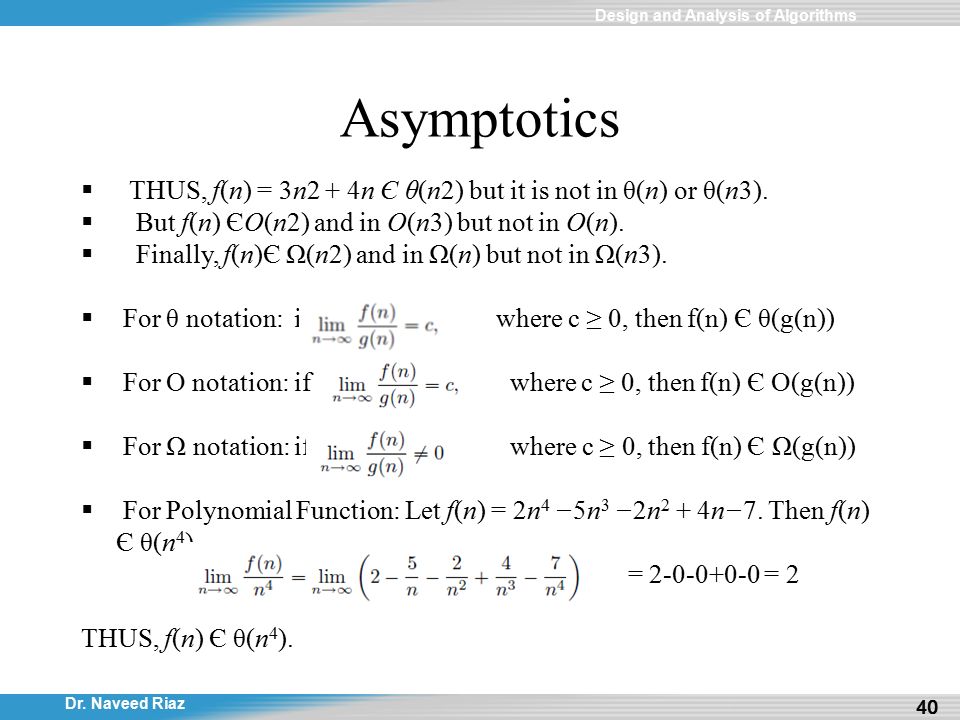

40. Dr. Naveed Riaz Design and Analysis of Algorithms 40 Asymptotics  THUS, f(n) = 3n2 + 4n Є θ(n2) but it is not in θ(n) or θ(n3).  But f(n) ЄO(n2) and in O(n3) but not in O(n).  Finally, f(n)Є Ω(n2) and in Ω(n) but not in Ω(n3).  For θ notation: if where c ≥ 0, then f(n) Є θ(g(n))  For O notation: if where c ≥ 0, then f(n) Є O(g(n))  For Ω notation: if where c ≥ 0, then f(n) Є Ω(g(n))  For Polynomial Function: Let f(n) = 2n 4 −5n 3 −2n 2 + 4n−7. Then f(n) Є θ(n 4 ). = 2-0-0+0-0 = 2 THUS, f(n) Є θ(n 4 ).

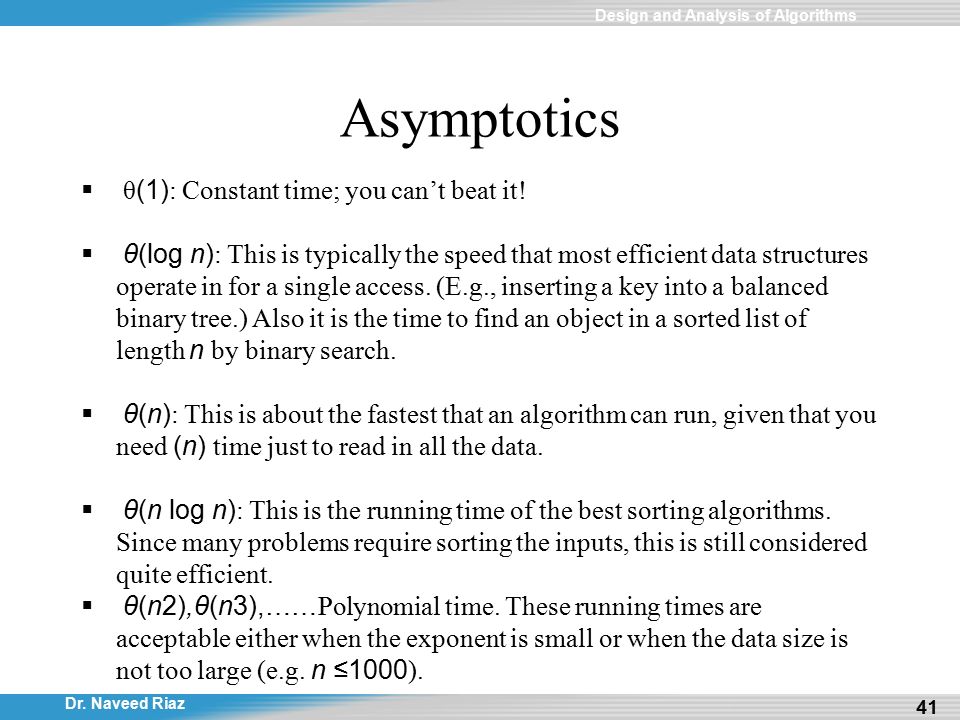

41. Dr. Naveed Riaz Design and Analysis of Algorithms 41 Asymptotics  θ (1) : Constant time; you can’t beat it!  θ(log n) : This is typically the speed that most efficient data structures operate in for a single access. (E.g., inserting a key into a balanced binary tree.) Also it is the time to find an object in a sorted list of length n by binary search.  θ(n) : This is about the fastest that an algorithm can run, given that you need (n) time just to read in all the data.  θ(n log n) : This is the running time of the best sorting algorithms. Since many problems require sorting the inputs, this is still considered quite efficient.  θ(n2),θ(n3),…… Polynomial time. These running times are acceptable either when the exponent is small or when the data size is not too large (e.g. n ≤1000 ).

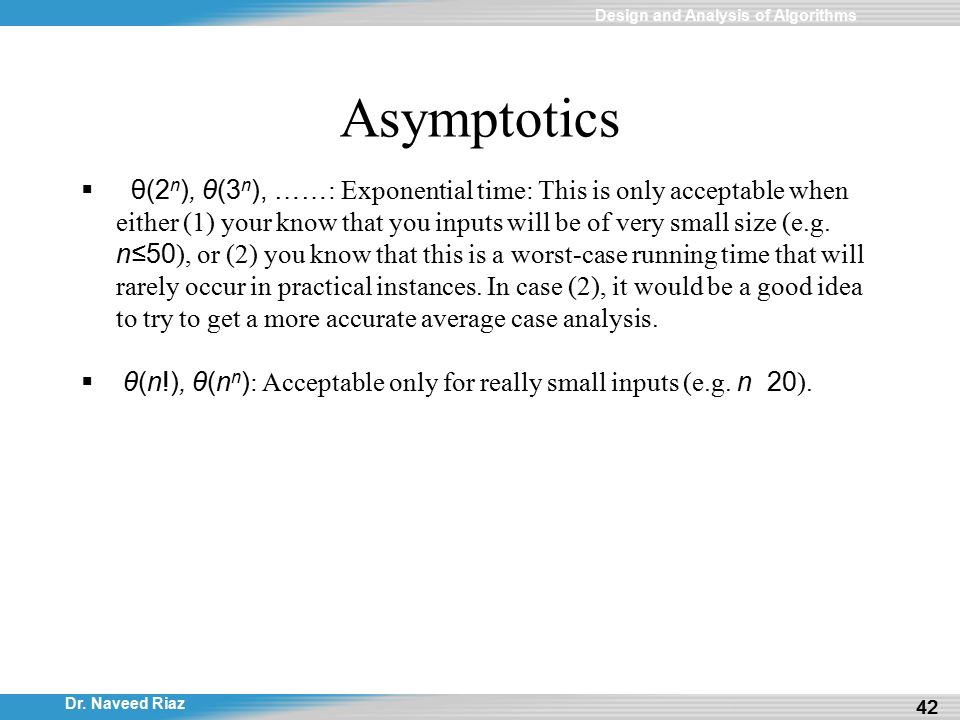

42. Dr. Naveed Riaz Design and Analysis of Algorithms 42 Asymptotics  θ(2 n ), θ(3 n ), …… : Exponential time: This is only acceptable when either (1) your know that you inputs will be of very small size (e.g. n≤50 ), or (2) you know that this is a worst-case running time that will rarely occur in practical instances. In case (2), it would be a good idea to try to get a more accurate average case analysis.  θ(n!), θ(n n ) : Acceptable only for really small inputs (e.g. n 20 ).

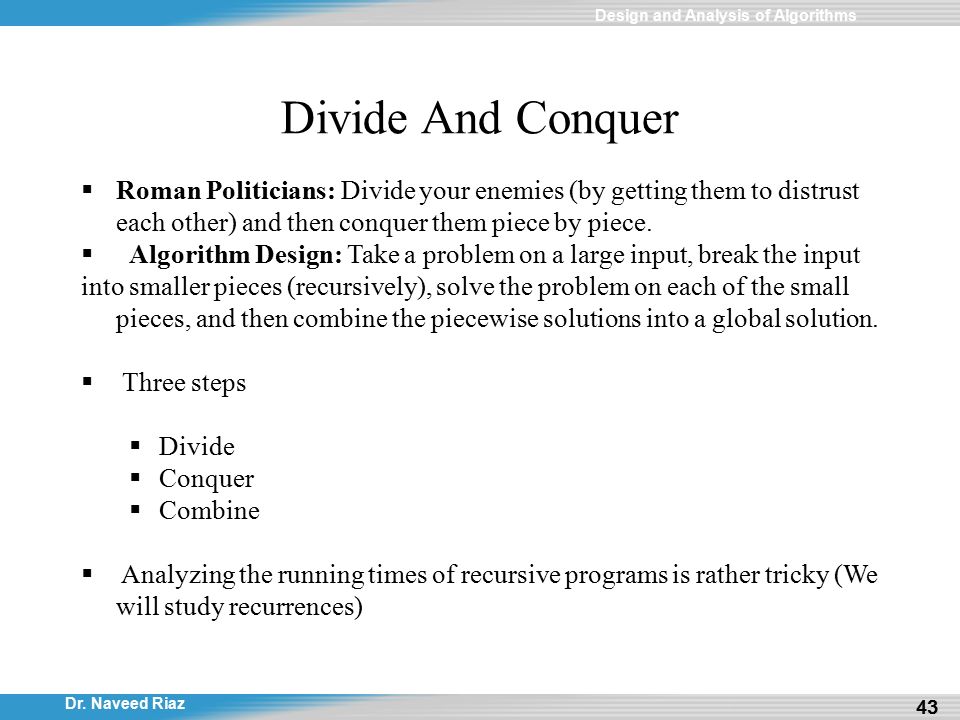

43. Dr. Naveed Riaz Design and Analysis of Algorithms 43 Divide And Conquer  Roman Politicians: Divide your enemies (by getting them to distrust each other) and then conquer them piece by piece.  Algorithm Design: Take a problem on a large input, break the input into smaller pieces (recursively), solve the problem on each of the small pieces, and then combine the piecewise solutions into a global solution.  Three steps  Divide  Conquer  Combine  Analyzing the running times of recursive programs is rather tricky (We will study recurrences)

44. Dr. Naveed Riaz Design and Analysis of Algorithms 44 Merge Sort  Divide: Split A down the middle into two subsequences, each of size roughly n=2.  Conquer: Sort each subsequence (by calling MergeSort recursively on each).  Combine: Merge the two sorted subsequences into a single sorted list.  The dividing process ends when we have split the subsequences down to a single item  The key operation where all the work is done is in the combine stage, which merges together two sorted lists into a single sorted list

45. Dr. Naveed Riaz Design and Analysis of Algorithms 45 Merge Sort

46. Dr. Naveed Riaz Design and Analysis of Algorithms 46 Merge Sort  Tricks for Improving: 1.Use two arrays A and B, During recursions, copy A to B. We will save the last copying of Data. 2.Rather than dividing to a size ‘1’, Divide to another size like ’20’ and then use Brute force algorithms (θ(n 2 ). Usually perform Ok for small ‘n’. We will not have to perform recursion. Remember 20 2 is constant.  Analysis:  First consider procedure Merge(), There are four independent loops. So running time is n+n+n+n = 4n or simply n  In MergeSort(), if we call MergeSort with a list containing a single element, then the running time is a constant.  When we call MergeSort with a list of length n > 1, e.g. Merge(A, p, r), where r−p+1 = n, the algorithm first computes q = floor((p + r)/2)) and size of left subarray is ceiling(n/2). For right subarray we have floor(n/2) elements. so

47. Dr. Naveed Riaz Design and Analysis of Algorithms 47 Merge Sort  For right subarray we have floor(n/2) elements.  So to sort left subarray we need and for right subarray we will need  To merge both sorted lists takes n time So

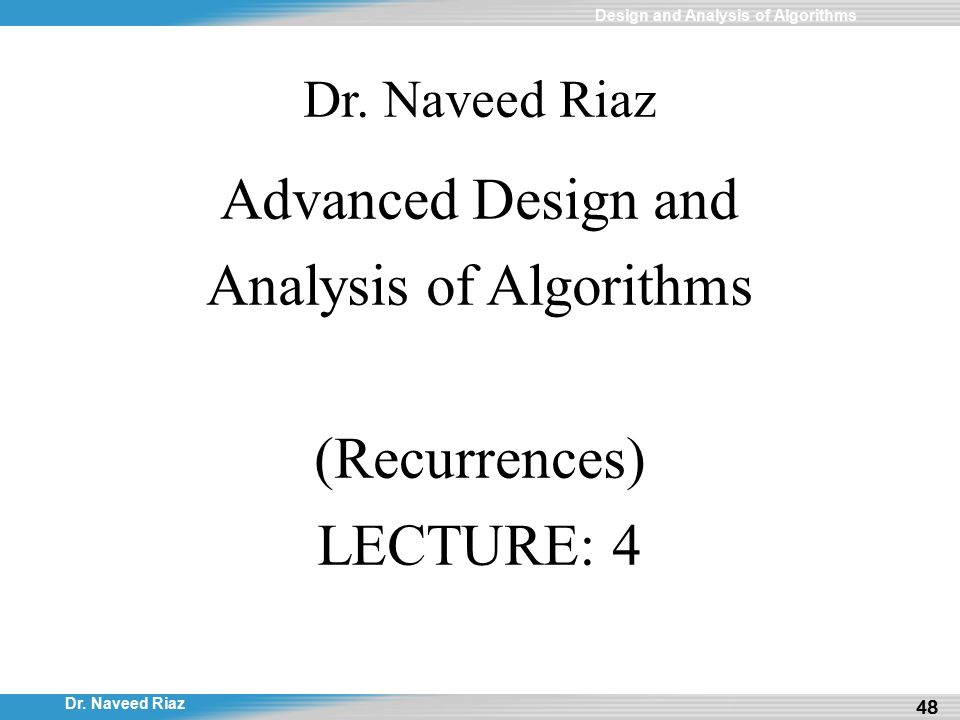

48. Dr. Naveed Riaz Design and Analysis of Algorithms 48 Dr. Naveed Riaz Advanced Design and Analysis of Algorithms (Recurrences) LECTURE: 4

49. Dr. Naveed Riaz Design and Analysis of Algorithms 49 Recurrences  Recurrences and Divide and Conquer:  Recall that the basic steps in divide-and-conquer solution are (1) divide the problem into a small number of subproblems, (2) solve each subproblem recursively, and (3) combine the solutions to the subproblems to a global solution.  We also described MergeSort, a sorting algorithm based on divide-and-conquer.  It is important to develop mathematical techniques for solving recurrences, either exactly or asymptotically  We now introduce the notion of a recurrence, that is, a recursively defined function.  Today we will discuss a number of techniques for solving recurrences.

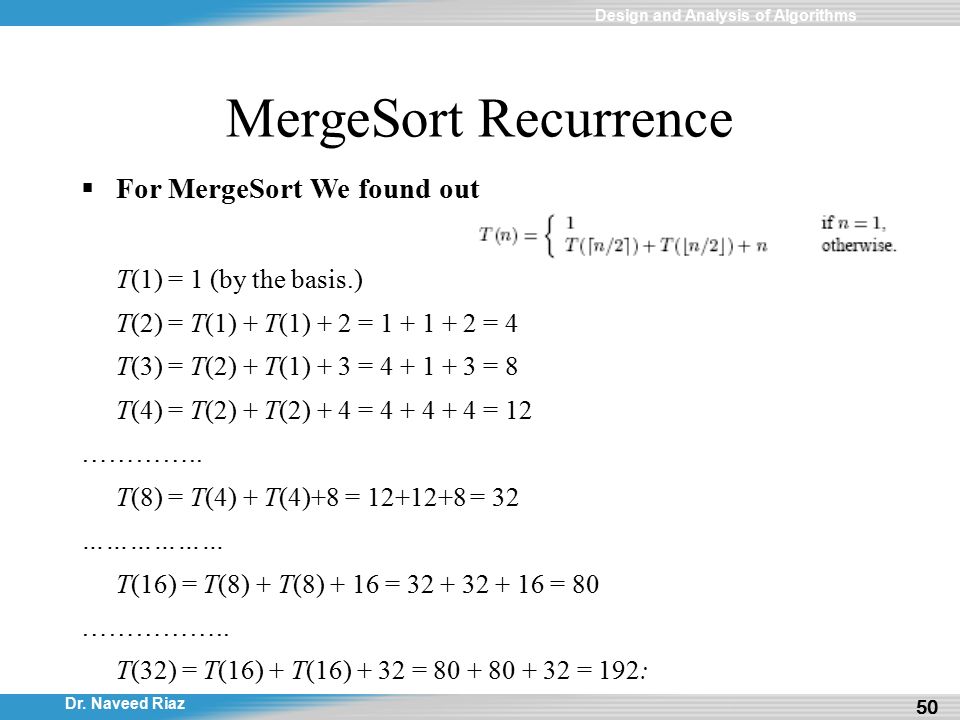

50. Dr. Naveed Riaz Design and Analysis of Algorithms 50 MergeSort Recurrence  For MergeSort We found out T(1) = 1 (by the basis.) T(2) = T(1) + T(1) + 2 = 1 + 1 + 2 = 4 T(3) = T(2) + T(1) + 3 = 4 + 1 + 3 = 8 T(4) = T(2) + T(2) + 4 = 4 + 4 + 4 = 12 ………….. T(8) = T(4) + T(4)+8 = 12+12+8 = 32 ……………… T(16) = T(8) + T(8) + 16 = 32 + 32 + 16 = 80 …………….. T(32) = T(16) + T(16) + 32 = 80 + 80 + 32 = 192:

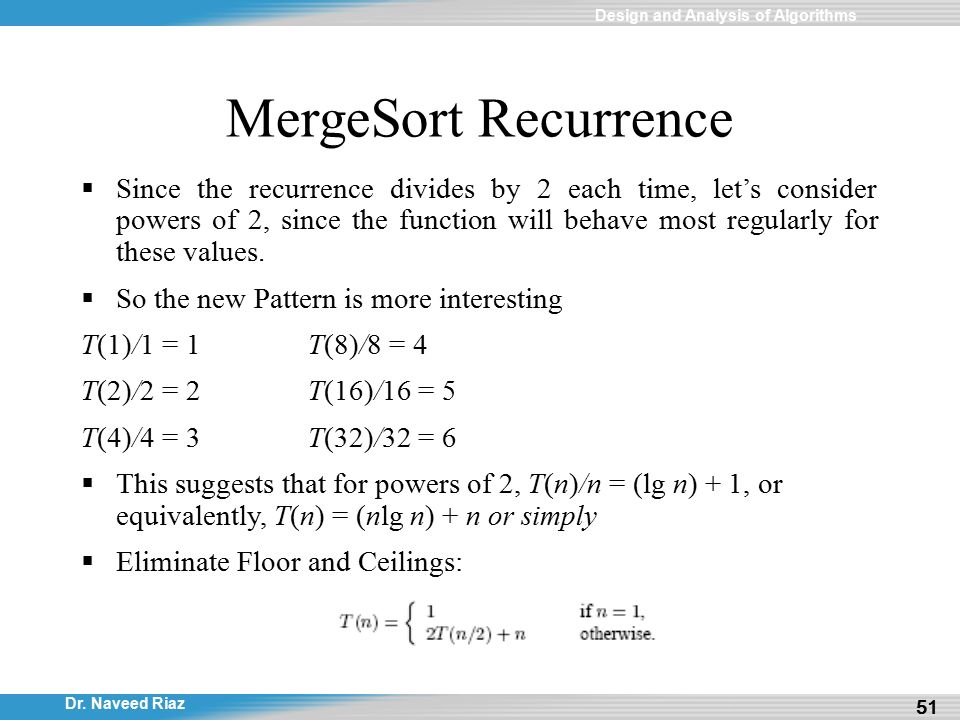

51. Dr. Naveed Riaz Design and Analysis of Algorithms 51 MergeSort Recurrence  Since the recurrence divides by 2 each time, let’s consider powers of 2, since the function will behave most regularly for these values.  So the new Pattern is more interesting T(1)/1 = 1 T(8)/8 = 4 T(2)/2 = 2 T(16)/16 = 5 T(4)/4 = 3 T(32)/32 = 6  This suggests that for powers of 2, T(n)/n = (lg n) + 1, or equivalently, T(n) = (nlg n) + n or simply  Eliminate Floor and Ceilings:

52. Dr. Naveed Riaz Design and Analysis of Algorithms 52 MergeSort Recurrence (Induction Method)  Proof By Induction:  Because n is limited to powers of 2, we cannot do the usuall n to n + 1 proof ( if n is a power of 2, n+1 generally not) Claim: For all n >=1, n a power of 2, T(n) = (nlg n) + n. Proof: Basis Case: (n = 1) In this case T(1) = 1 by definition and the formula gives 1lg1+1 = 1, which matches.  Let n > 1, and assume that the formula T(n’) = (n’ lg n’)+n’, holds whenever n’ < n. We want to prove the formula holds for n itself. To do this, we need to express T(n) in terms of smaller values.  To do this, we apply the definition: T(n) = 2T(n/2) + n:  Now, n/2 < n, so we can apply the induction hypothesis here, yielding T(n/2) = (n/2) lg(n/2)+ (n/2)

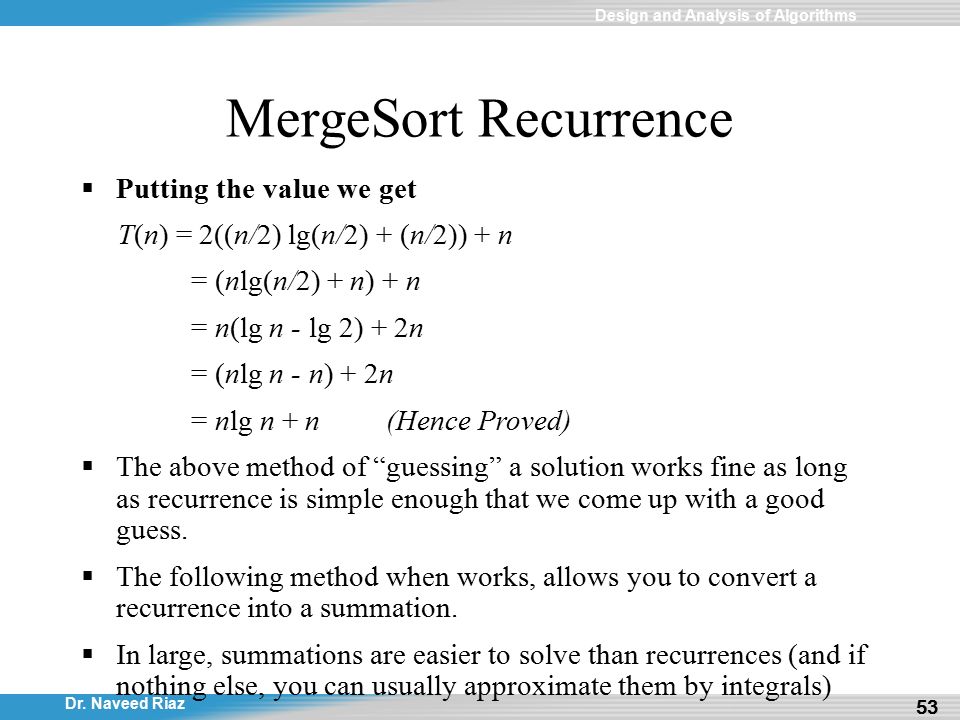

53. Dr. Naveed Riaz Design and Analysis of Algorithms 53 MergeSort Recurrence  Putting the value we get T(n) = 2((n/2) lg(n/2) + (n/2)) + n = (nlg(n/2) + n) + n = n(lg n - lg 2) + 2n = (nlg n - n) + 2n = nlg n + n (Hence Proved)  The above method of “guessing” a solution works fine as long as recurrence is simple enough that we come up with a good guess.  The following method when works, allows you to convert a recurrence into a summation.  In large, summations are easier to solve than recurrences (and if nothing else, you can usually approximate them by integrals)

54. Dr. Naveed Riaz Design and Analysis of Algorithms 54 Recurrence (Iteration Method)  Now we will discuss the Iteration Method.  Convert recurrences to summations  We start expanding out the definition until we see a pattern developing.  T(n) = 2T(n/2) + n. This has a recursive formula inside T(n/2)  Expanding with n/2 we get T(n) = 2T(n/2) + n //initial 1 st time so k = 1 = 2(2T(n/4) + n/2) + n = 4T(n/4) + n + n //putting value of T(n/2) k =2 = 4(2T(n/8) + n/4) + n + n = 8T(n/8) + n + n + n // k = 3 = 8(2T(n/16) + n/8) + n + n + n // k = 4 or 16T(n/16) + n + n + n + n =…………………………………

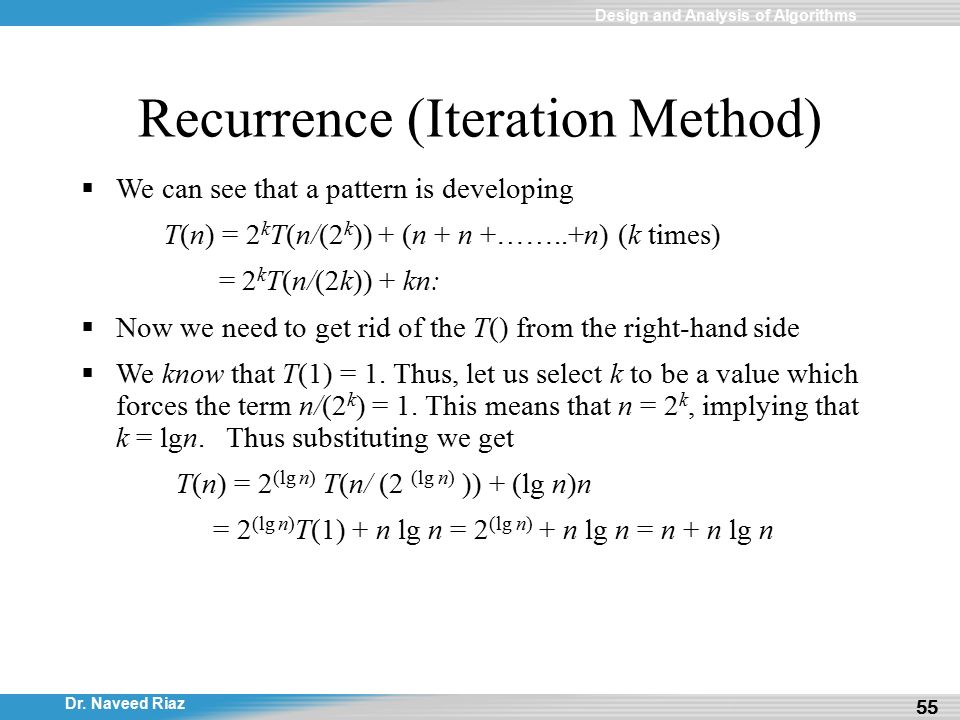

55. Dr. Naveed Riaz Design and Analysis of Algorithms 55 Recurrence (Iteration Method)  We can see that a pattern is developing T(n) = 2 k T(n/(2 k )) + (n + n +……..+n) (k times) = 2 k T(n/(2k)) + kn:  Now we need to get rid of the T() from the right-hand side  We know that T(1) = 1. Thus, let us select k to be a value which forces the term n/(2 k ) = 1. This means that n = 2 k, implying that k = lgn. Thus substituting we get T(n) = 2 (lg n) T(n/ (2 (lg n) )) + (lg n)n = 2 (lg n) T(1) + n lg n = 2 (lg n) + n lg n = n + n lg n

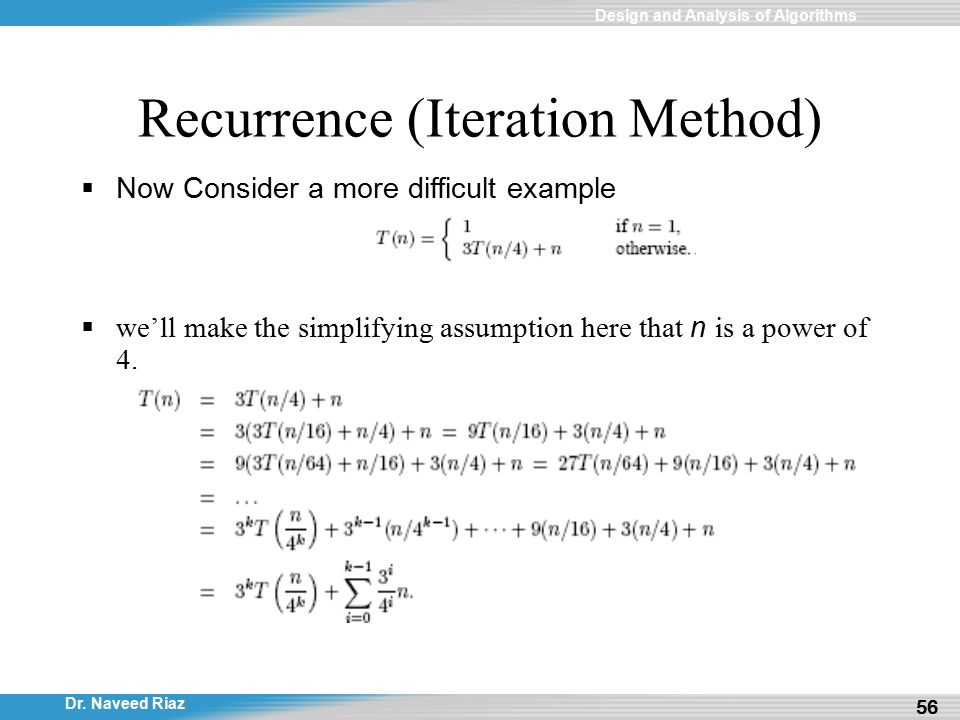

56. Dr. Naveed Riaz Design and Analysis of Algorithms 56 Recurrence (Iteration Method)  Now Consider a more difficult example  we’ll make the simplifying assumption here that n is a power of 4.

57. Dr. Naveed Riaz Design and Analysis of Algorithms 57 Recurrence (Iteration Method)  As before, we have the recursive term T(n/4 k ) still floating around.  To get rid of it we recall that we know the value of T(1), and so we set n/4 k = 1 implying that 4k = n, that is, k = log 4 n.

58. Dr. Naveed Riaz Design and Analysis of Algorithms 58 Recurrence (Iteration Method)  Applying the formula for the geometric series, i.e. for x!= 1 For x != 1:  SO Next  Plugging it back

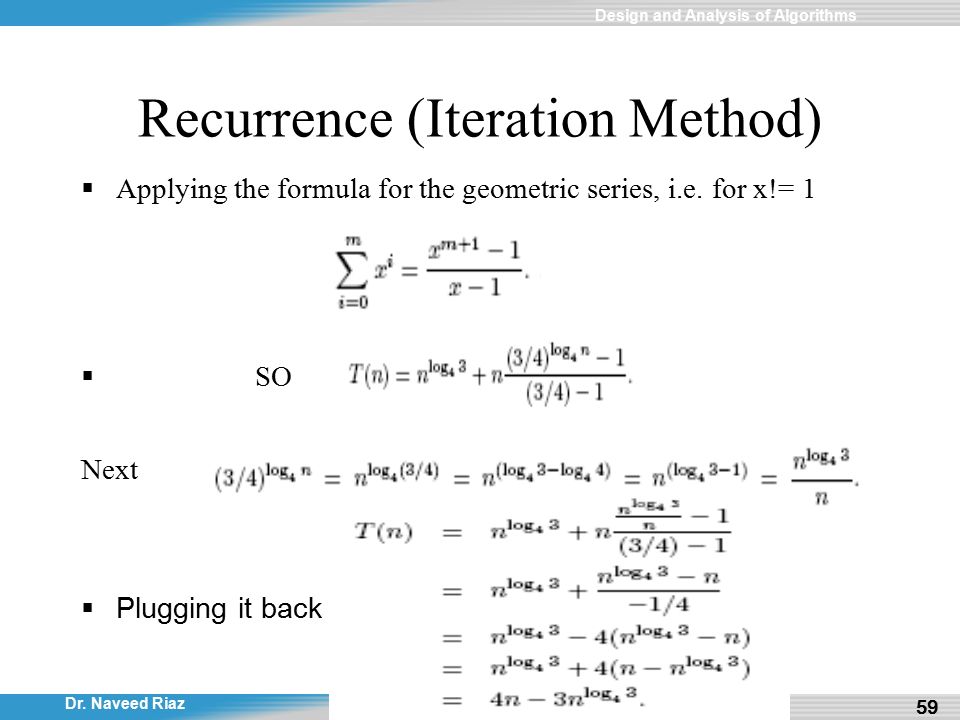

59. Dr. Naveed Riaz Design and Analysis of Algorithms 59 Recurrence (Iteration Method)  Applying the formula for the geometric series, i.e. for x!= 1 For x != 1:  SO Next  Plugging it back

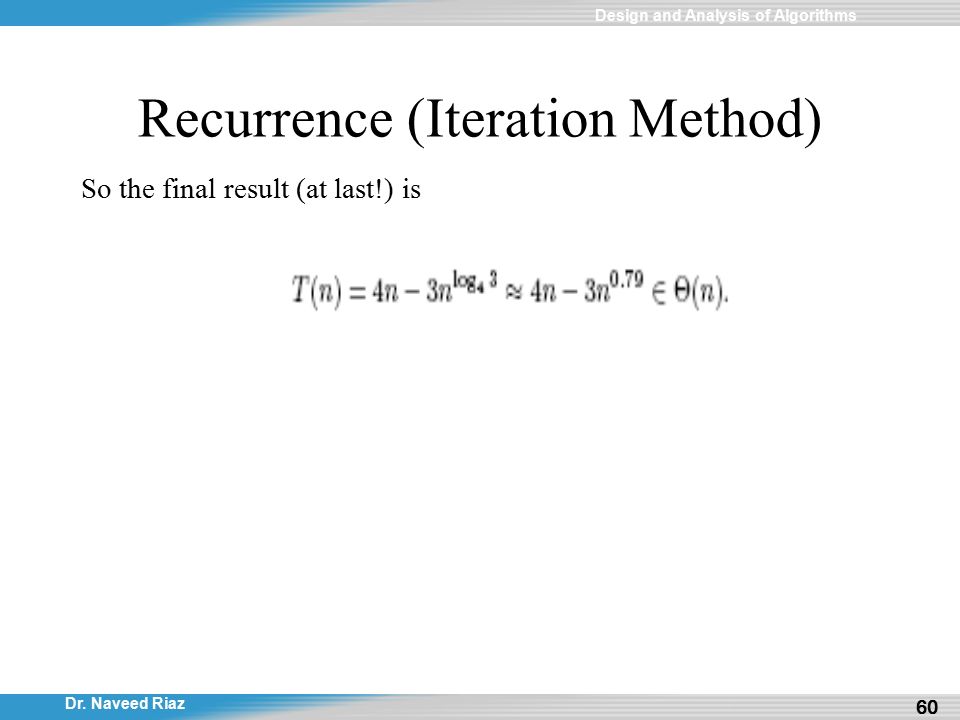

60. Dr. Naveed Riaz Design and Analysis of Algorithms 60 Recurrence (Iteration Method) So the final result (at last!) is

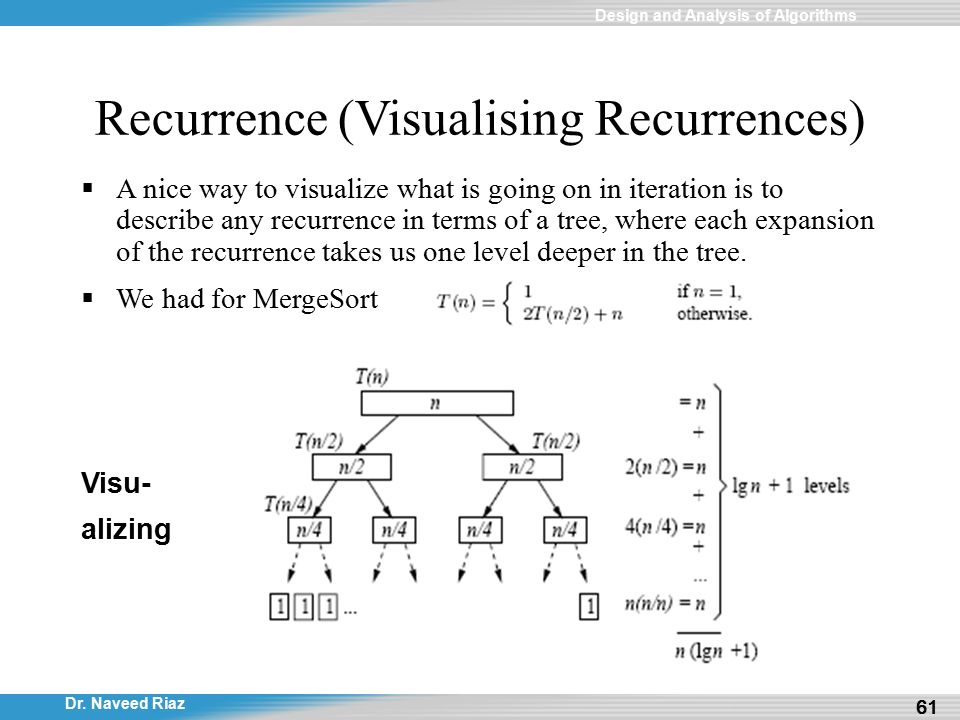

61. Dr. Naveed Riaz Design and Analysis of Algorithms 61 Recurrence (Visualising Recurrences)  A nice way to visualize what is going on in iteration is to describe any recurrence in terms of a tree, where each expansion of the recurrence takes us one level deeper in the tree.  We had for MergeSort Visu- alizing

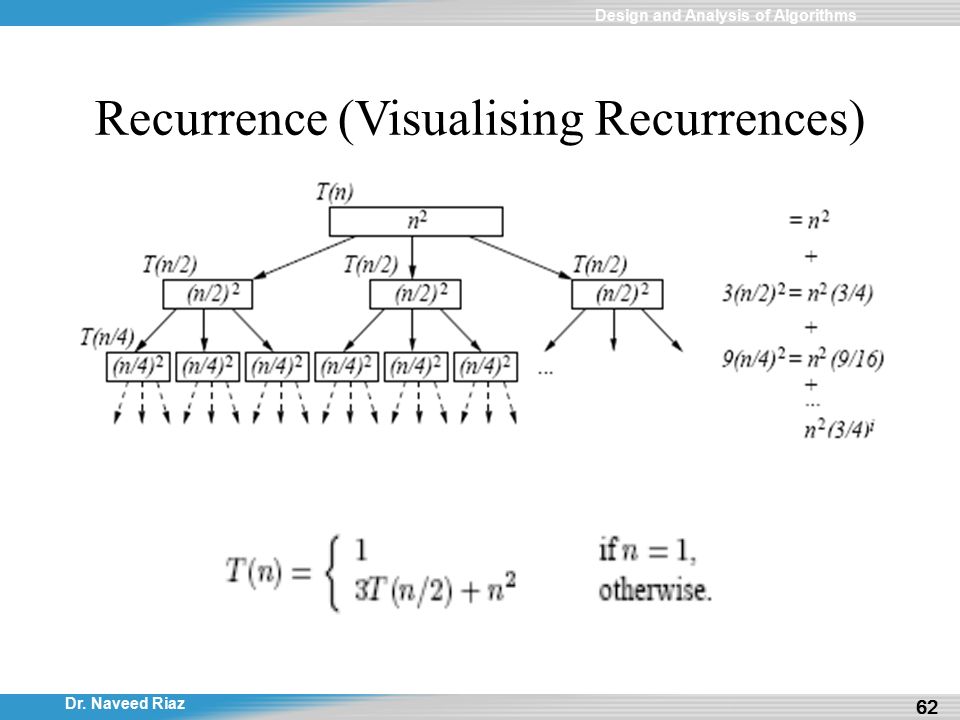

62. Dr. Naveed Riaz Design and Analysis of Algorithms 62 Recurrence (Visualising Recurrences)

63. Dr. Naveed Riaz Design and Analysis of Algorithms 63 Recurrence (Iteration Method)  work for T(m) is m 2.  For the top level (or 0th level) the work is n 2.  At level 1 we have three nodes whose work is (n/2) 2 each, for a total of 3(n/2) 2. This can be written as n 2 (3/4).  At the level 2 the work is 9(n/4) 2, which can be written as n2(9/16).  In general it is easy to extrapolate to see that at the level i, we have 3 i nodes, each involving (n/2 i ) 2 work, for a total of 3 i (n/2 i ) 2 = n 2 (3/4) i.  This leads to the following summation (We have not determined where the tree bottoms out)

64. Dr. Naveed Riaz Design and Analysis of Algorithms 64 Recurrence (Iteration Method)  If all we wanted was an asymptotic expression, then are essentially done at this point??????????? RIGHT  The summation is a geometric series, and the base (3/4) is less than 1. This means that this series converges to some nonzero constant. So θ(n 2 )  But lets go for a more specific result.  The recursion bottoms out when we get down to single items  Since the sizes of the inputs are cut by half at each level, it is not hard to see that the final level is level lg n SO

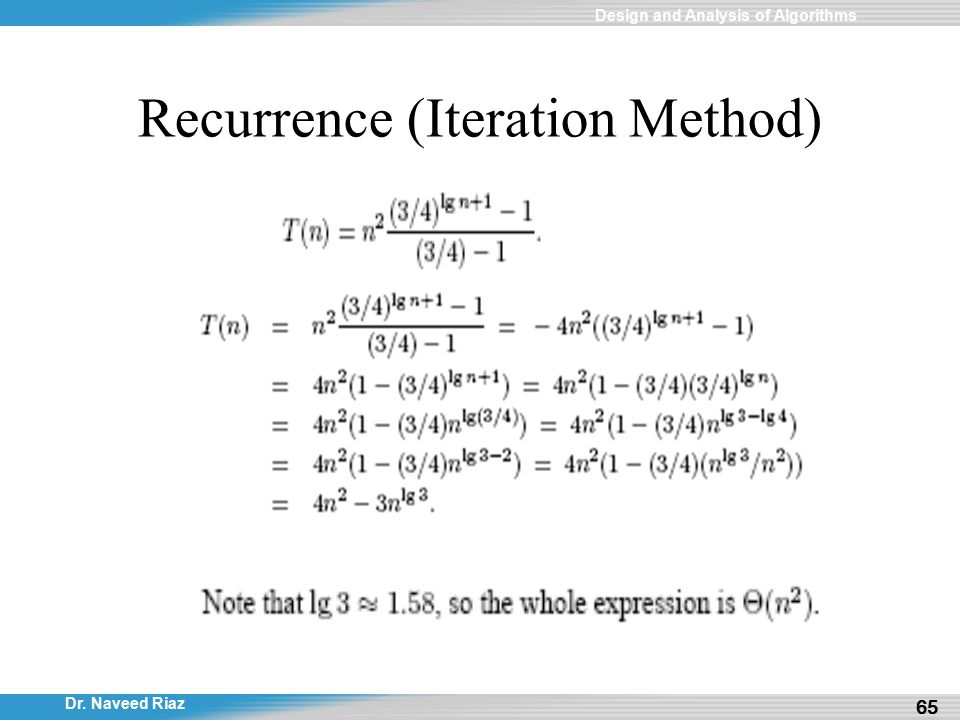

65. Dr. Naveed Riaz Design and Analysis of Algorithms 65 Recurrence (Iteration Method)

66. Dr. Naveed Riaz Design and Analysis of Algorithms 66 Recurrence (Master Theorem)  We have already seen that in Divide and Conquer, same general type of recurrence keeps popping up.  We break a problem into ‘a’ subproblems, where each subproblem is roughly a factor of 1/b of the original problem size  the time it takes to do the splitting and combining on an input of size n is θ(n k )  In MergeSort, a = 2, b = 2, and k = 1.  If we are only interested in asymptotic notation we can always come up with a general solution.  Theorem: (Simplified Master Theorem) Let a >=1, b > 1 be constants and let T(n) be the recurrence T(n) = aT(n/b) + n k ; defined for n >=0.

67. Dr. Naveed Riaz Design and Analysis of Algorithms 67 Recurrence (Master Theorem)  The basis case, T(1) can be any constant value.  Using this version of the Master Theorem we can see that in the MergeSort recurrence a = 2, b = 2, and k = 1.  Thus, a = b k (2 = 2 1 ) and so Case 2 applies. From this we have T(n) Є θ (n log n).  In the recurrence above, T(n) = 3T(n/2) + n 2, we have a = 3, b = 2 and k = 2. We have a < b k (3<2 2 ) in this case, and so Case 3 applies. From this we have T(n) Є θ (n 2 ).

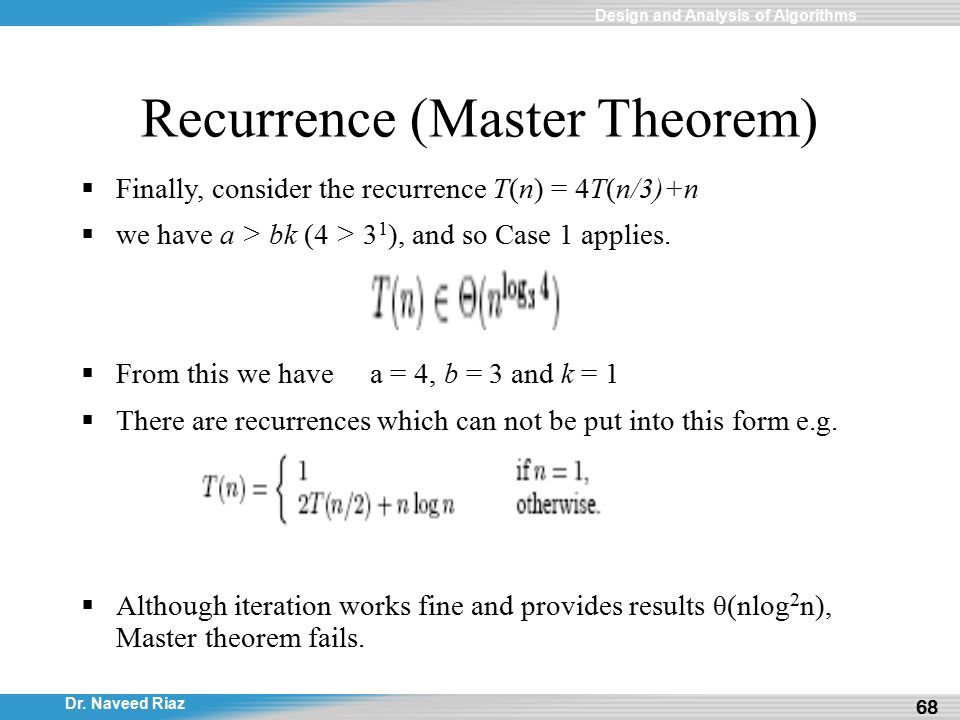

68. Dr. Naveed Riaz Design and Analysis of Algorithms 68 Recurrence (Master Theorem)  Finally, consider the recurrence T(n) = 4T(n/3)+n  we have a > bk (4 > 3 1 ), and so Case 1 applies.  From this we have a = 4, b = 3 and k = 1  There are recurrences which can not be put into this form e.g.  Although iteration works fine and provides results θ(nlog 2 n), Master theorem fails.
