1. INDE 2333 ENGINEERING STATISTICS I LECTURE 1 University of Houston Dept. of Industrial Engineering Houston, TX 77204-4812 (713) 743-4195

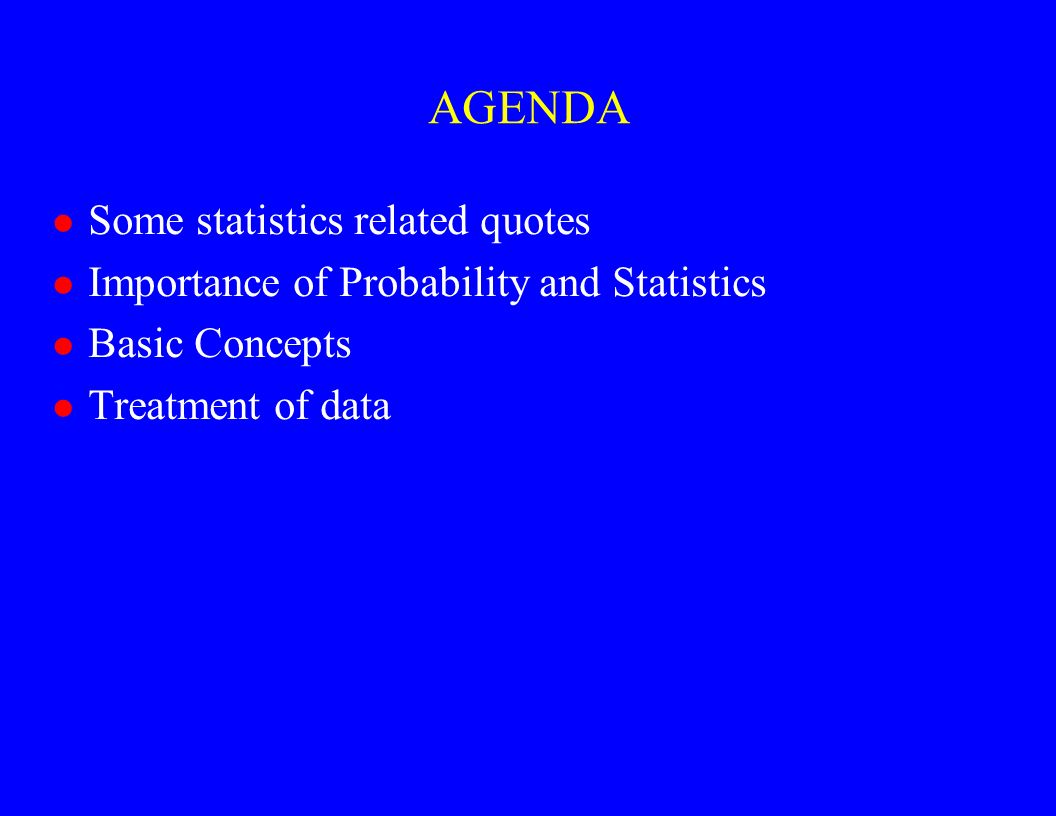

2. AGENDA l Some statistics related quotes l Importance of Probability and Statistics l Basic Concepts l Treatment of data

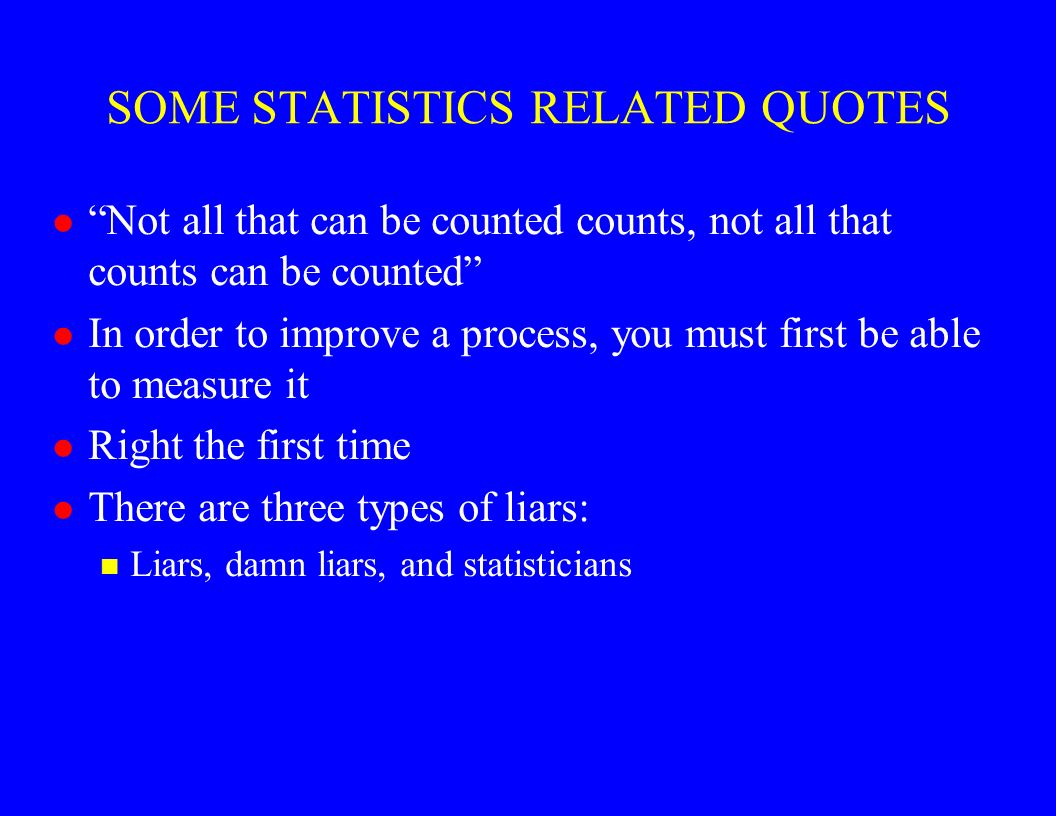

3. SOME STATISTICS RELATED QUOTES l “Not all that can be counted counts, not all that counts can be counted” l In order to improve a process, you must first be able to measure it l Right the first time l There are three types of liars: n Liars, damn liars, and statisticians

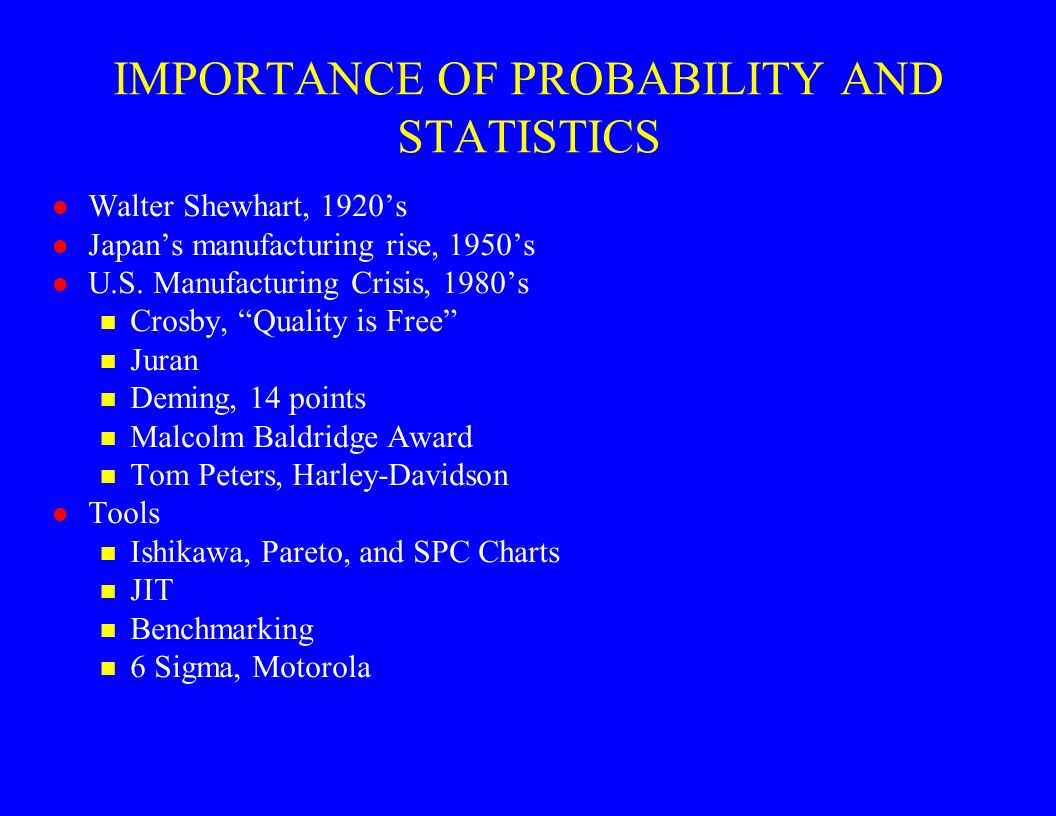

4. IMPORTANCE OF PROBABILITY AND STATISTICS l Walter Shewhart, 1920’s l Japan’s manufacturing rise, 1950’s l U.S. Manufacturing Crisis, 1980’s n Crosby, “Quality is Free” n Juran n Deming, 14 points n Malcolm Baldridge Award n Tom Peters, Harley-Davidson l Tools n Ishikawa, Pareto, and SPC Charts n JIT n Benchmarking n 6 Sigma, Motorola

5. BASIC CONCEPTS l Unit n Single entity of interest n Different measures l Population n Set of all units of interest present l Sample n Subset of the population present n Measurements actually collected n Samples should random not be biased l Sample size n Number of units in the sample that are taken for measurement

6. EXAMPLE l Sample Mean n Average value of sample l Sample Standard Deviation n Measurement of spread or variation in measurements l Situation n Company uses automatic equipment to fill bottles n FDA requires that the bottles be filled a minimum amount n FDA fines company when bottles are not n Automatic filling processes has inherent variation

7. VODKA, KETCHUP, ETC ml observations 101010021000 FDA

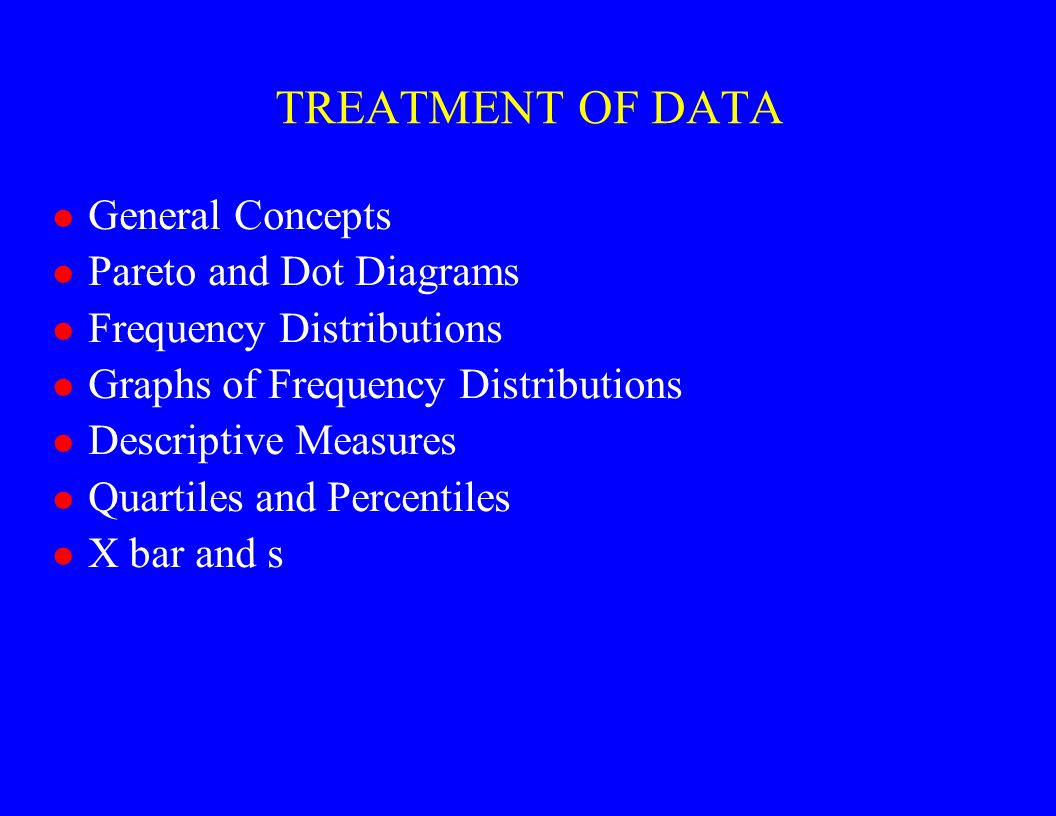

8. TREATMENT OF DATA l General Concepts l Pareto and Dot Diagrams l Frequency Distributions l Graphs of Frequency Distributions l Descriptive Measures l Quartiles and Percentiles l X bar and s

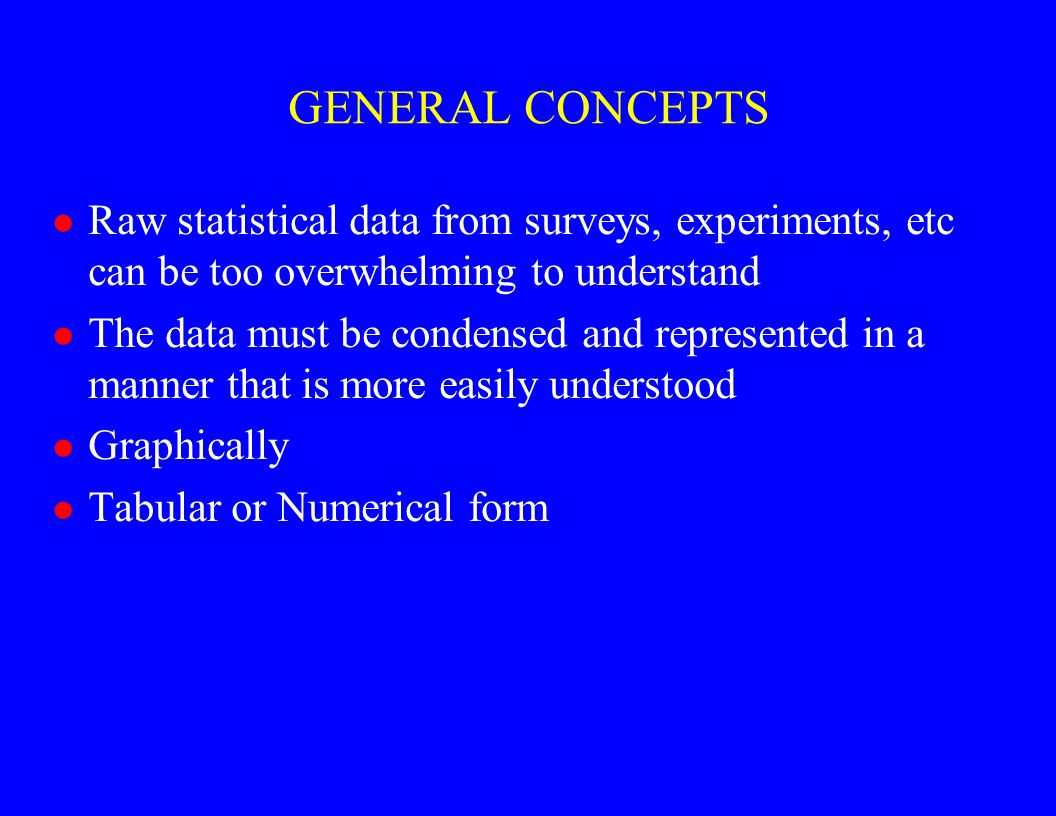

9. GENERAL CONCEPTS l Raw statistical data from surveys, experiments, etc can be too overwhelming to understand l The data must be condensed and represented in a manner that is more easily understood l Graphically l Tabular or Numerical form

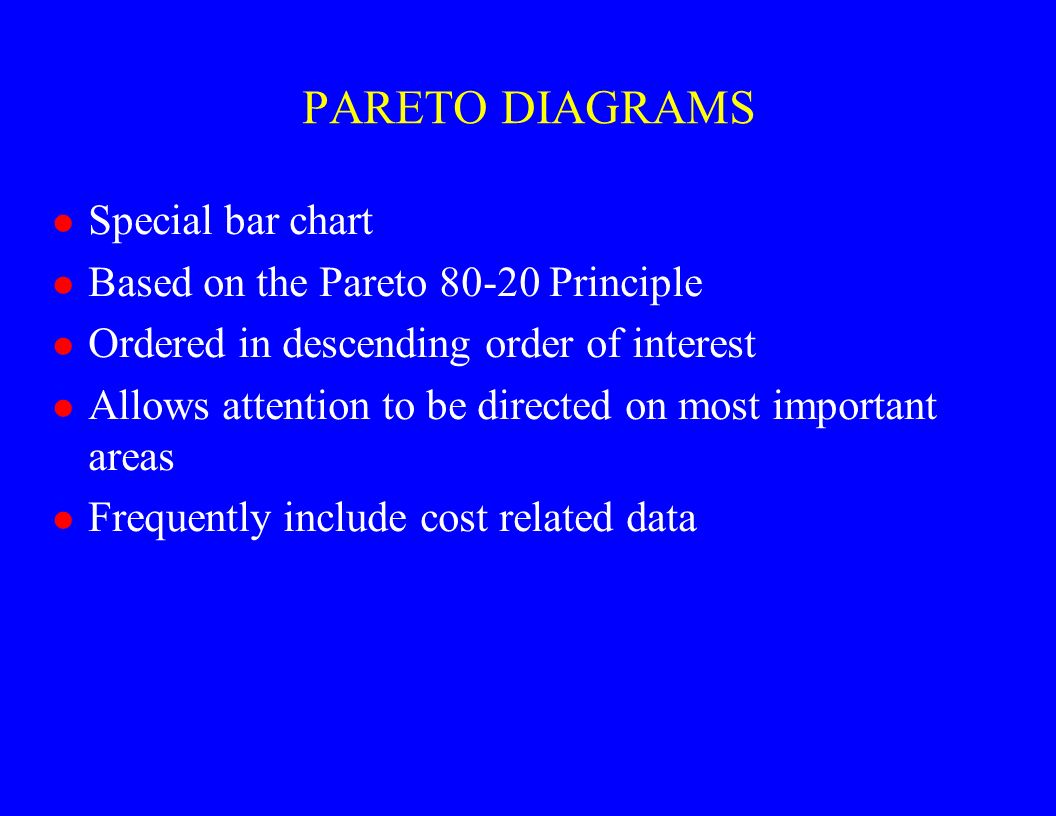

10. PARETO DIAGRAMS l Special bar chart l Based on the Pareto 80-20 Principle l Ordered in descending order of interest l Allows attention to be directed on most important areas l Frequently include cost related data

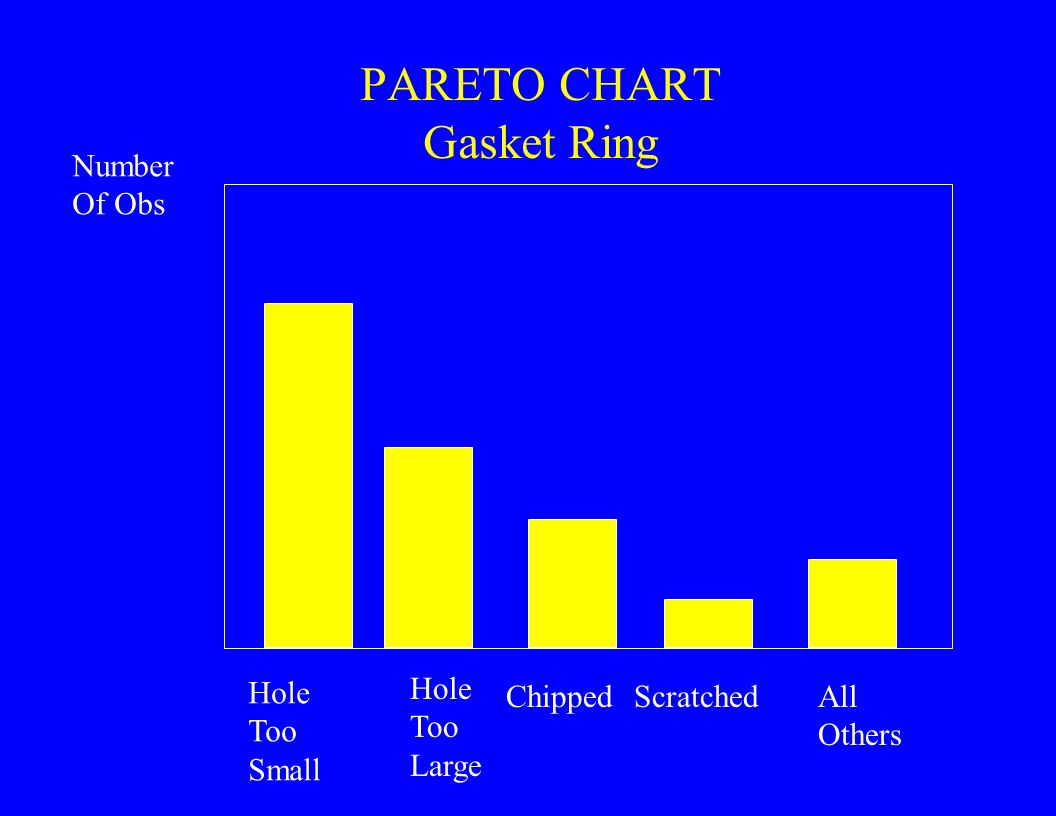

11. PARETO CHART Gasket Ring Number Of Obs Hole Too Small Hole Too Large ChippedScratchedAll Others

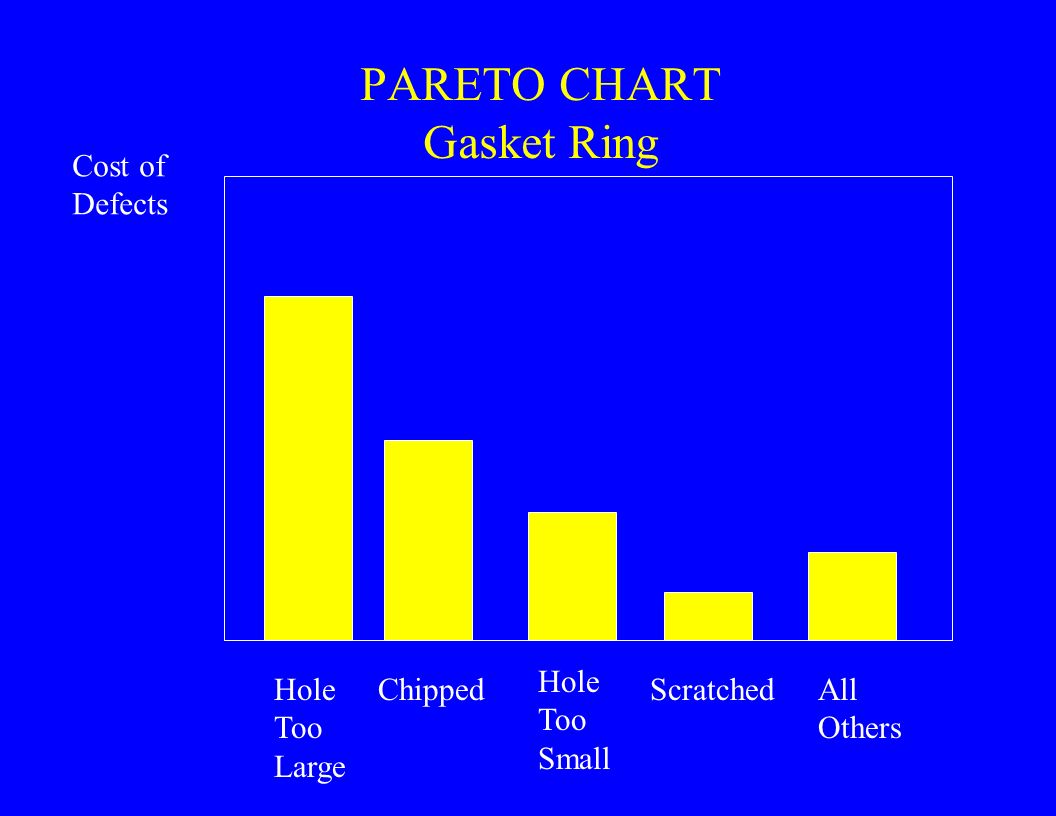

12. PARETO CHART Gasket Ring Cost of Defects Hole Too Small Hole Too Large ChippedScratchedAll Others

13. DOT DIAGRAMS l Visually summarizes individual data l Check for unusual patterns l Easily identifies outliers l Differences in data sources n Machines n Personnel n Materials

14. DOT DIAGRAMS 0 -55 Deviation from nominal value in um Day Shift Night Shift

15. FREQUENCY DISTRIBUTIONS l Table of data l Divided in classes / categories / cells l Number of cells is usually related to the total obs l Class / category / cell limits l Class / category / cell frequencies

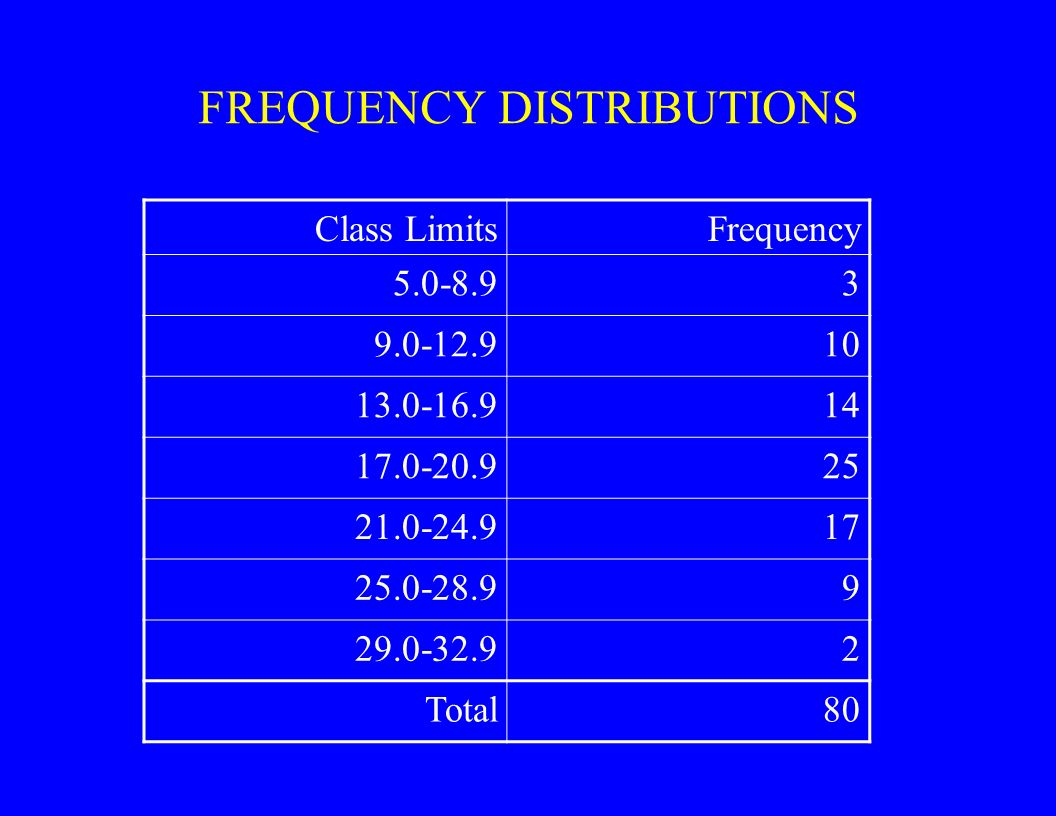

16. FREQUENCY DISTRIBUTIONS Class LimitsFrequency 5.0-8.93 9.0-12.910 13.0-16.914 17.0-20.925 21.0-24.917 25.0-28.99 29.0-32.92 Total80

17. CUMULATIVE DISTRIBUTION l Total number of observations less than a given value

18. CUMULATIVE DISTRIBUTION Class LimitsCumulative Frequency Less than 5.00 9.03 13.013 17.027 21.052 25.069 29.078 33.080

19. GRAPHS OF FREQUENCY DISTRIBUTIONS l Histogram of cell observations l Horizontal or vertical l Size is based on observations in each cell

20. GRAPHS OF FREQUENCY DISTRIBUTIONS

21. OGIVE l Graph of cumulative distribution

22. OGIVE

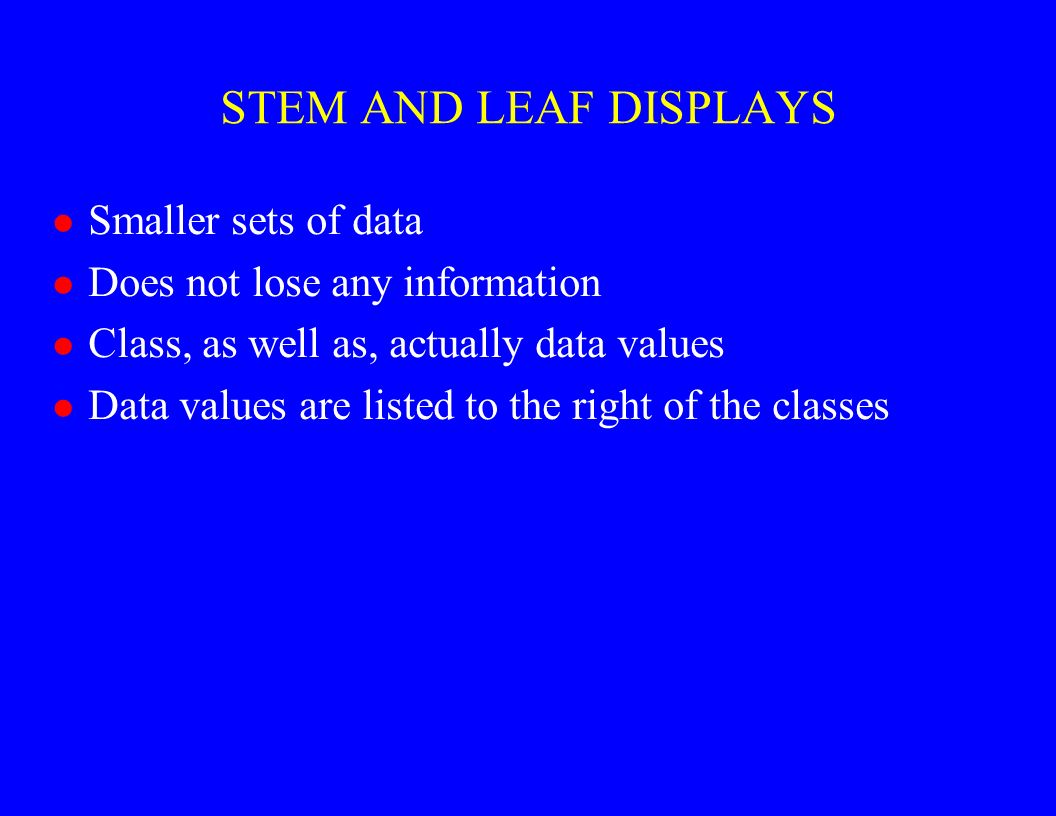

23. STEM AND LEAF DISPLAYS l Smaller sets of data l Does not lose any information l Class, as well as, actually data values l Data values are listed to the right of the classes

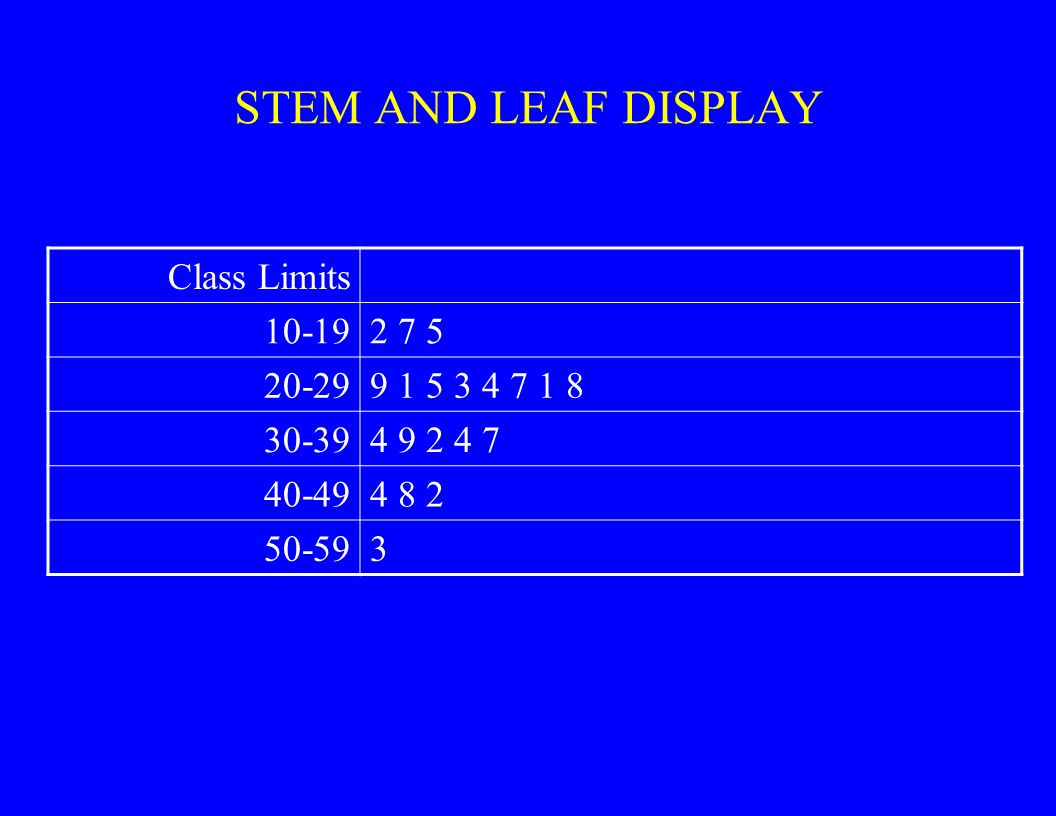

24. STEM AND LEAF DISPLAY Class Limits 10-192 7 5 20-299 1 5 3 4 7 1 8 30-394 9 2 4 7 40-494 8 2 50-593

25. STEM AND LEAF DISPLAY Class Limits 12 7 5 29 1 5 3 4 7 1 8 34 9 2 4 7 44 8 2 53

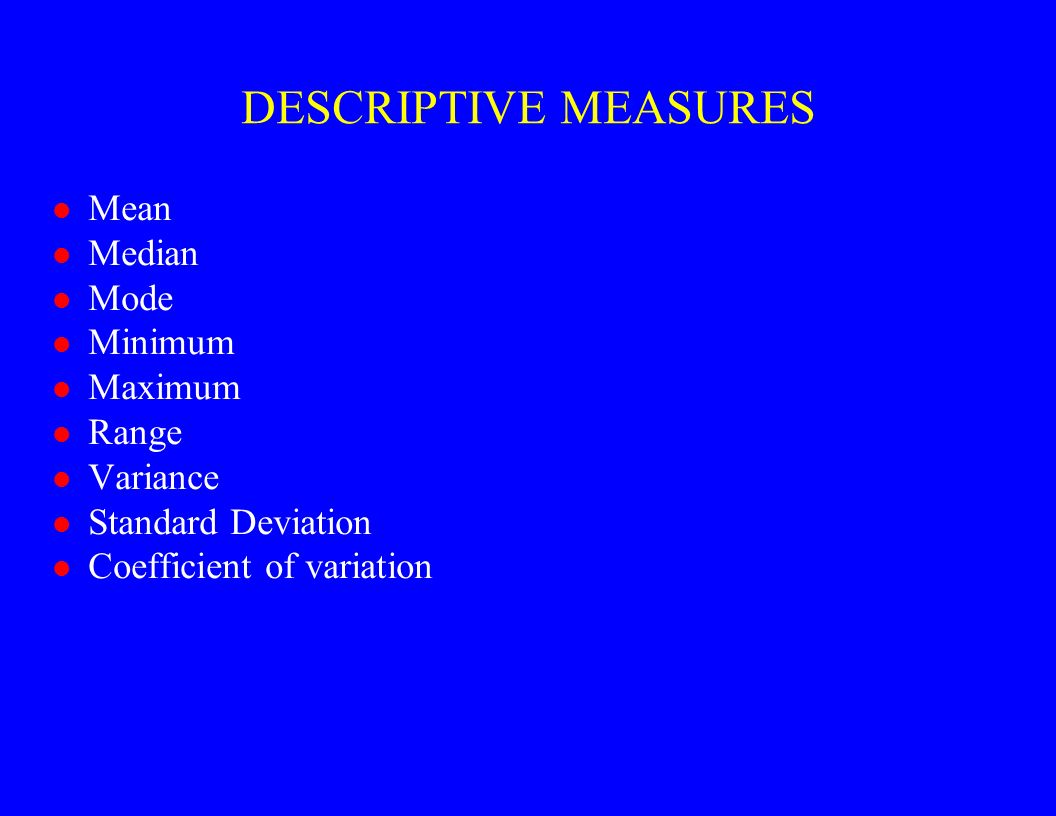

26. DESCRIPTIVE MEASURES l Mean l Median l Mode l Minimum l Maximum l Range l Variance l Standard Deviation l Coefficient of variation

27. MEAN l X bar l Arithmetic average of all values l Sum of all values divided by number of values l Sample mean and population mean

28. MEDIAN l “Middle value” l Observations are ordered from smallest to largest l Median observation depends on number of obs l Odd number of observations n (n+1)/2 n For 5 observations, median is value of (5+1)/2=3 rd observation l Even number of observations n Median value is average of the two observations in positions n/2 and (n+2)/2 n For 6 observations, average values of 3 rd and 4 th observations

29. MODE l Most common value

30. MINIMUM l Smallest value

31. MAXIMUM l Largest value

32. RANGE l Method to measure the dispersion of the values l Largest value minus the smallest value l Can be misleading when outliers are present l Does not take into account the distribution of bunching of values l Simple and fast to calculate so commonly used in industry particularly with SPC charts

33. RANGE = Maximum value – minimum value

34. SAMPLE VARIANCE l Absolute measure of dispersion l When many values are away from the mean, the variance is large l When many values are close to the mean, the variance is small l Based on n Sample mean n Squared difference of observations from sample mean n Number of observations in sample

35. SAMPLE VARIANCE

36. SAMPLE STANDARD DEVIATION l Absolute measure of dispersion l Based on square root of variance

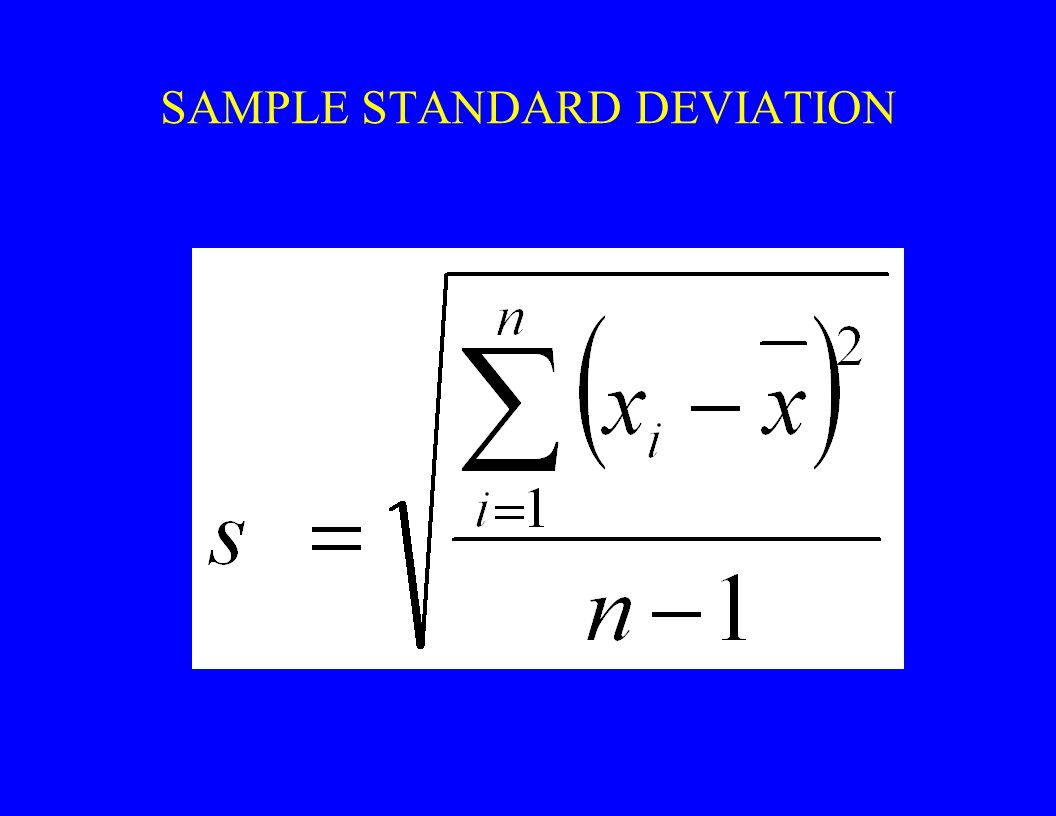

37. SAMPLE STANDARD DEVIATION

38. QUARTILES AND PERCENTILES l Quartiles n Groupings of 25% observations n 1 st, 2 nd, 3 rd, 4 th quartile l Percentiles n At least 100 p % are at or below value n At least 100 (1-p) % are at or above value

39. PROCEDURE FOR CALCULATING PERCENTILES l Order observations smallest to largest l Calculate n * p l Not an integer n Round up to next highest integer and find value l Integer n Calculate mean of kth and (k+1)th observations

40. BOX PLOT Minimum Maximum Median Q1 Q2
